MSC LETIZIA
9702065 | CQEU7 | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:MSC LETIZIA
IMO Code:9702065
Call Sign:CQEU7
Line Operator:MSC
Class Name for Sister Ships:LET
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,855
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

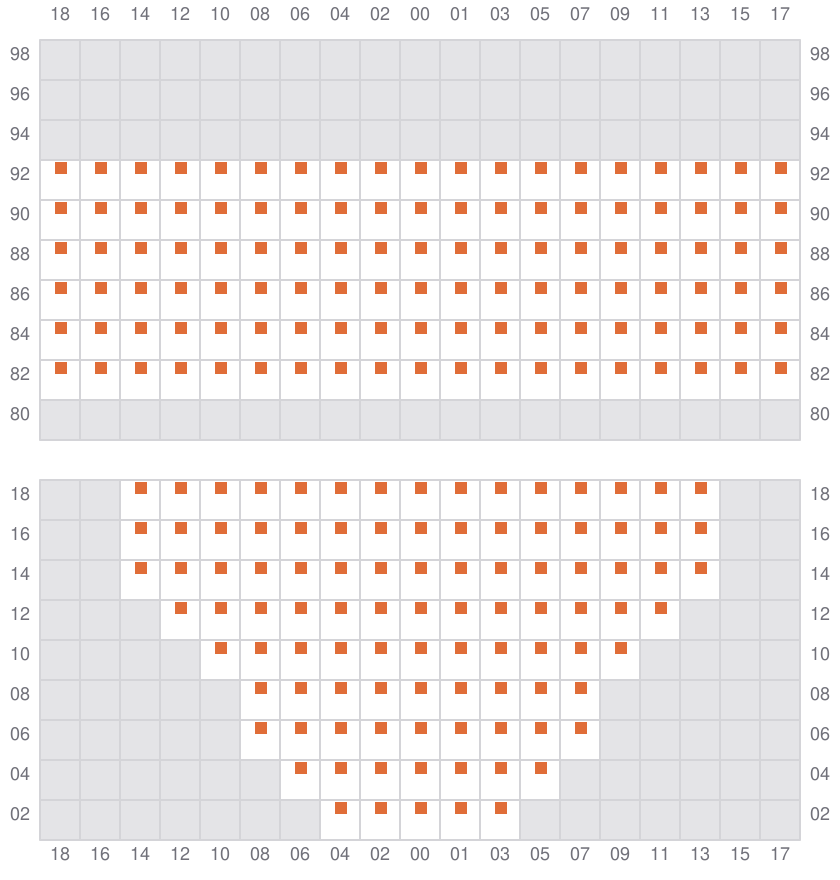

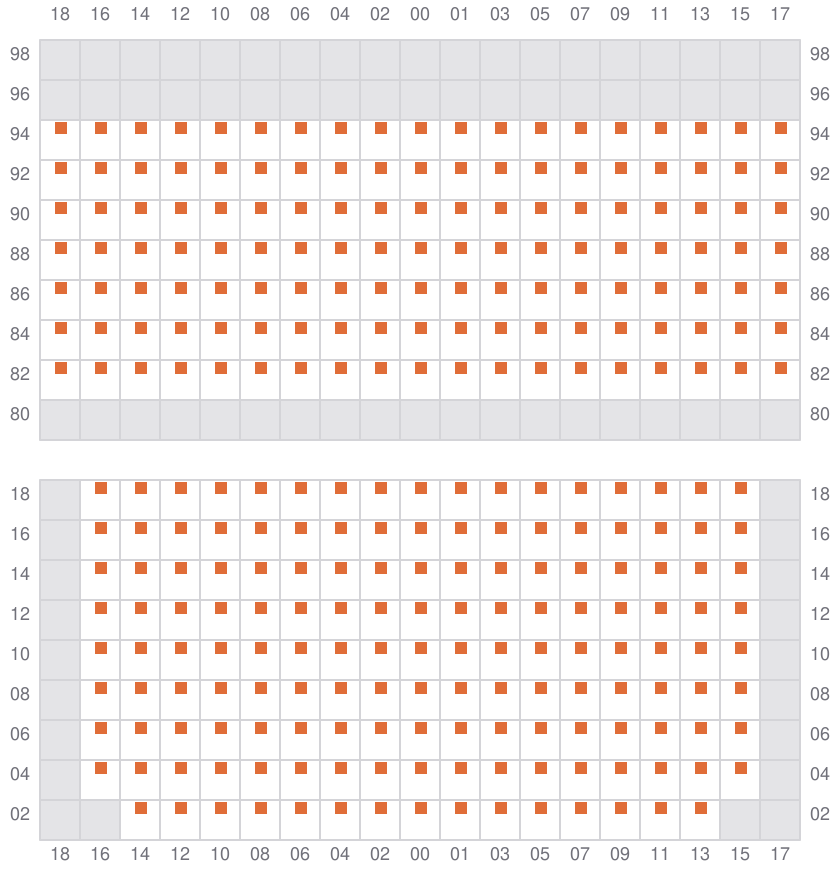

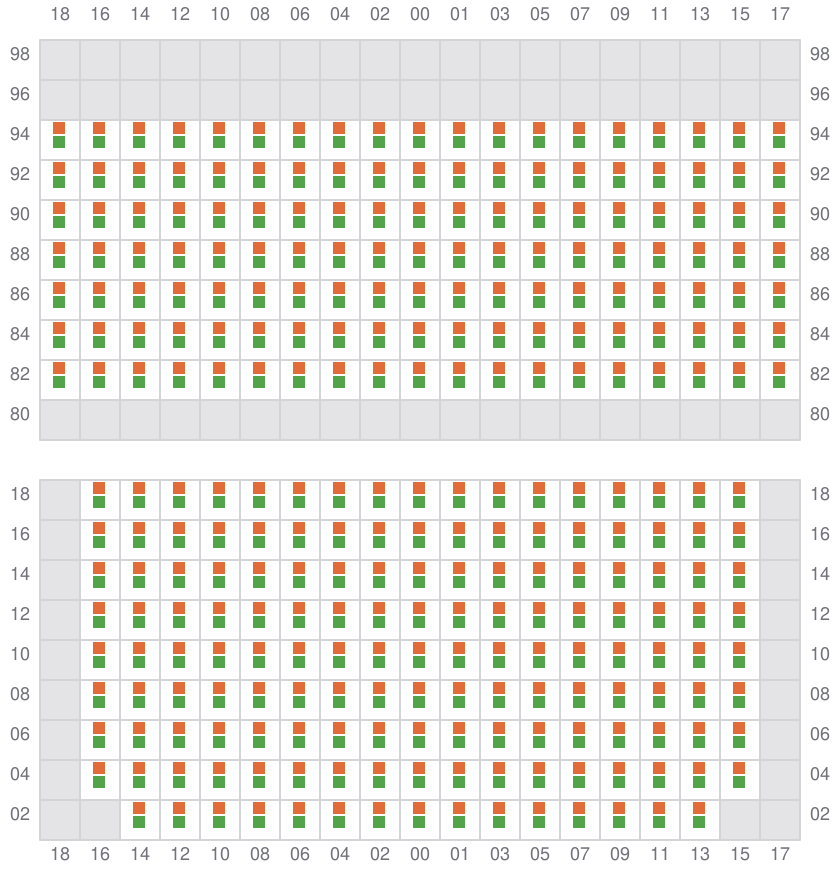

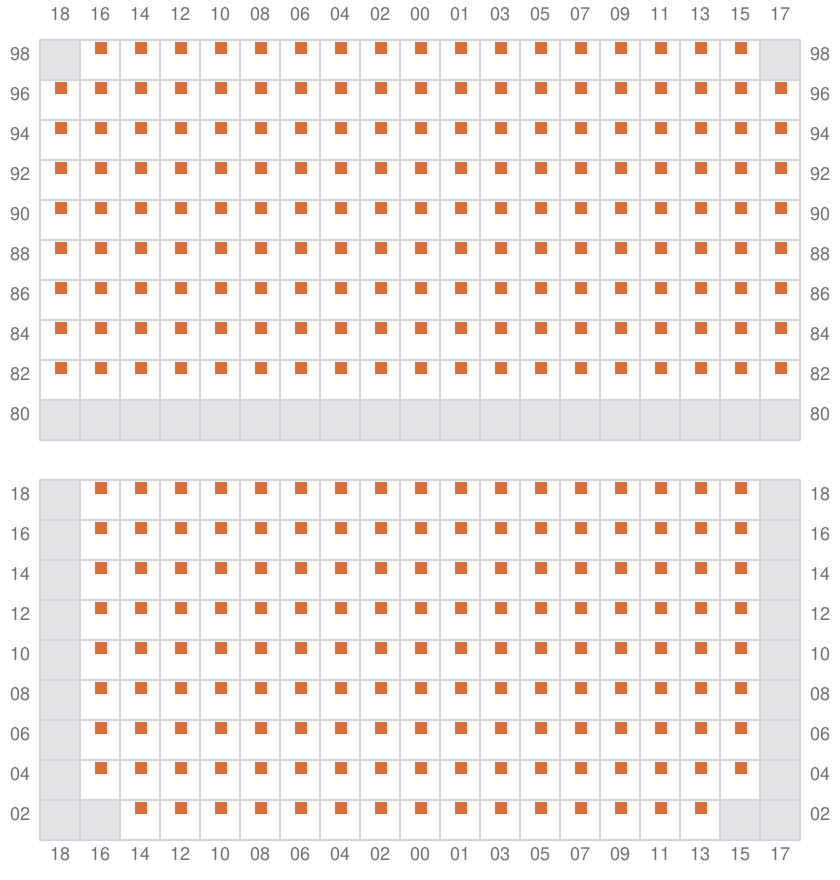

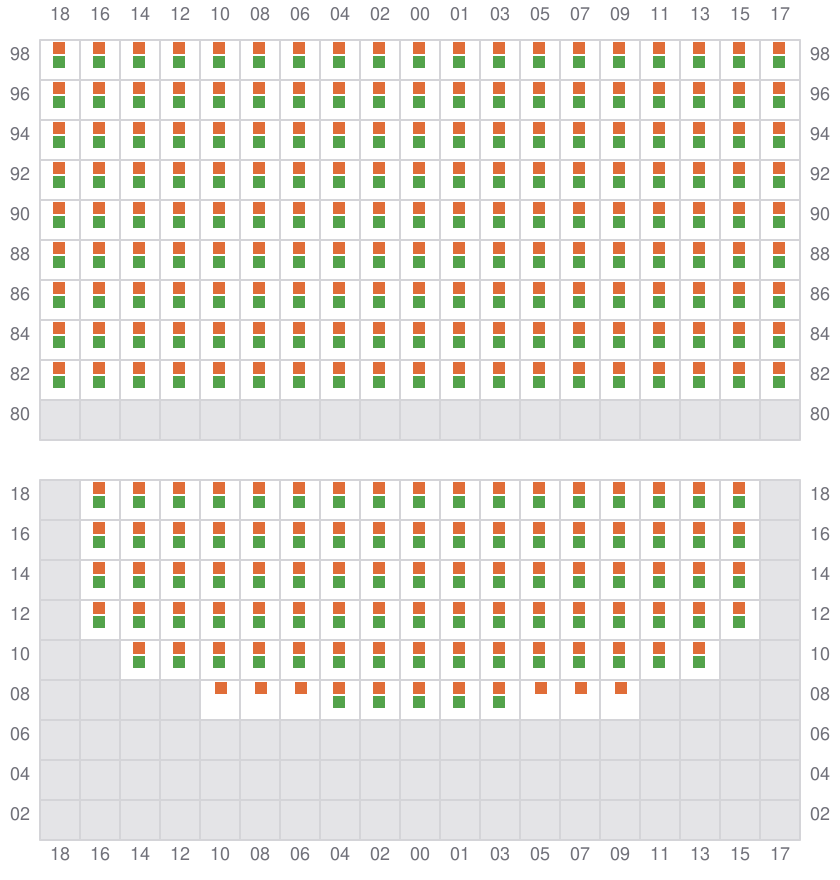

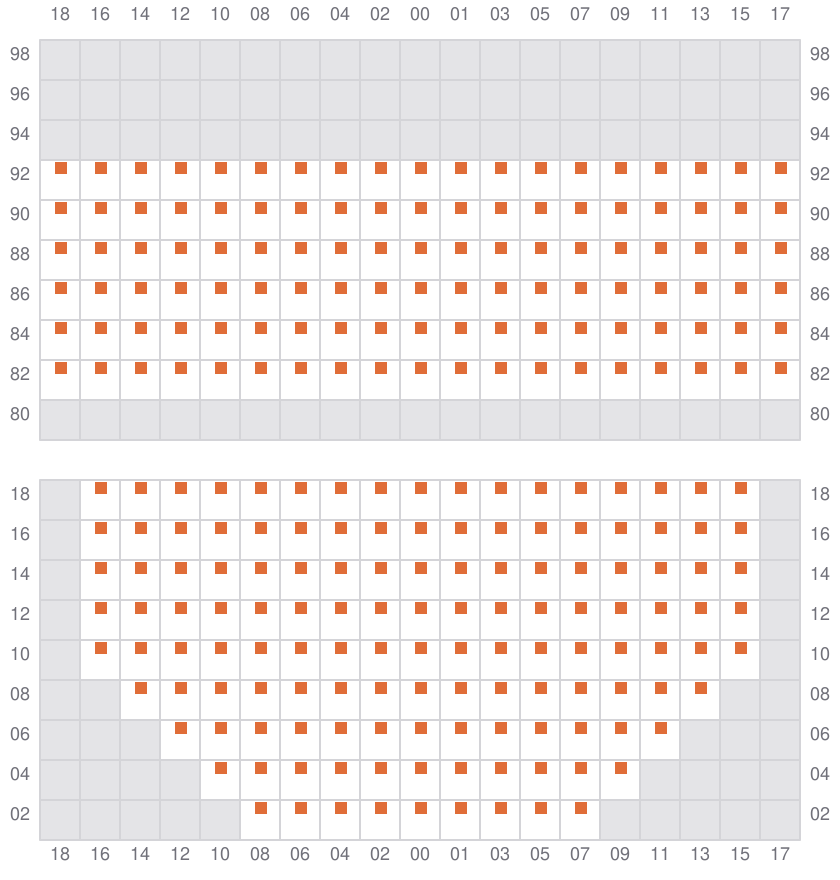

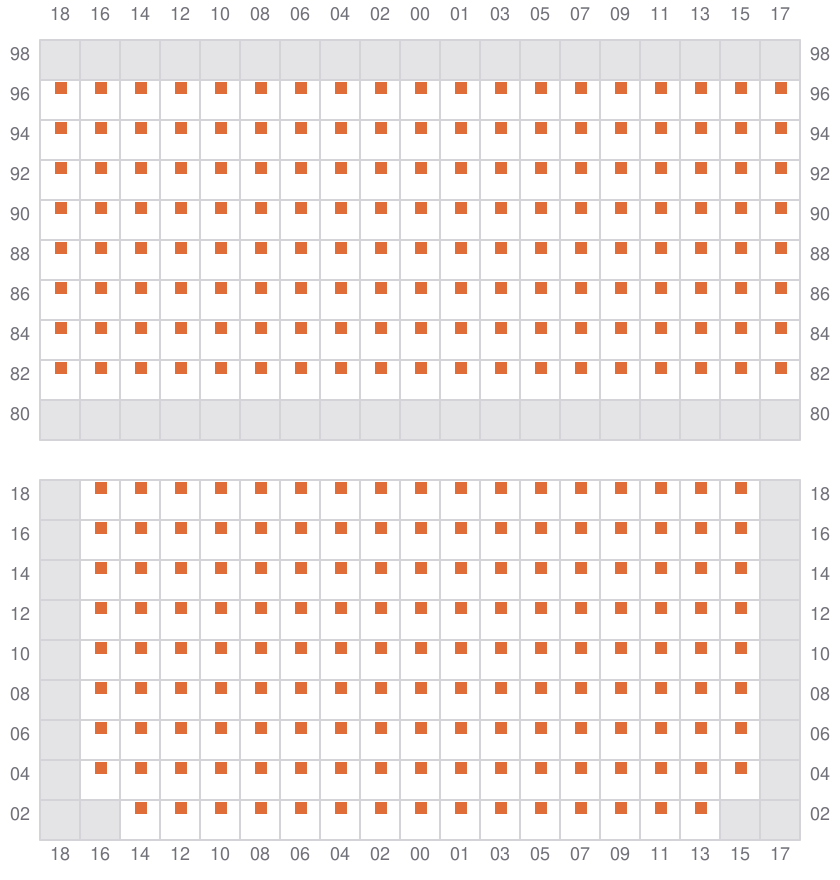

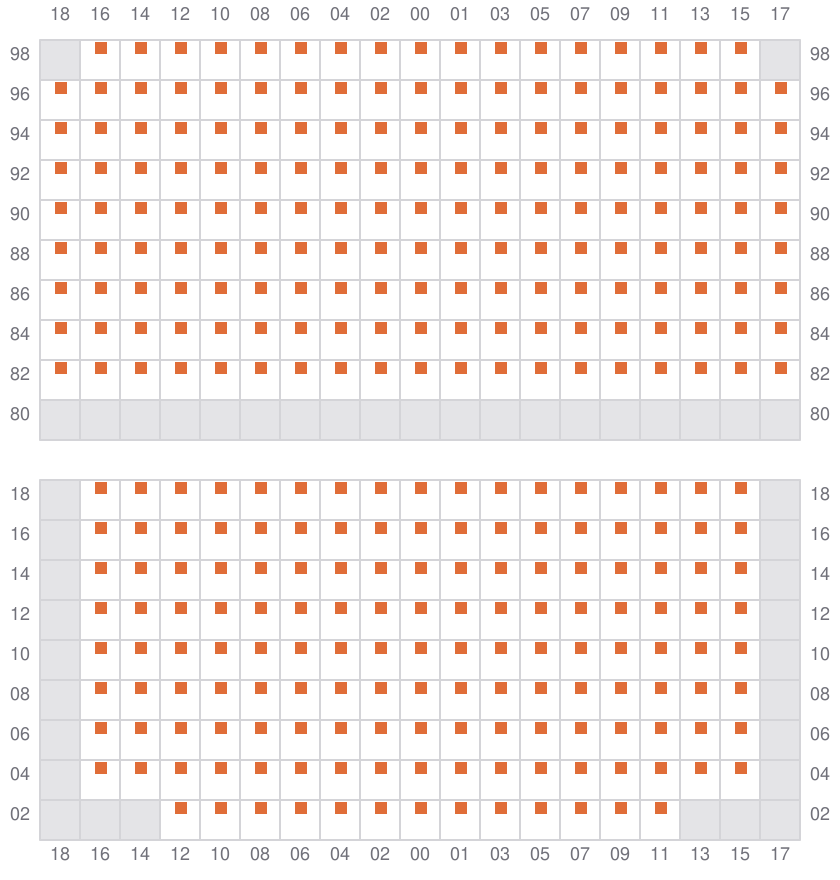

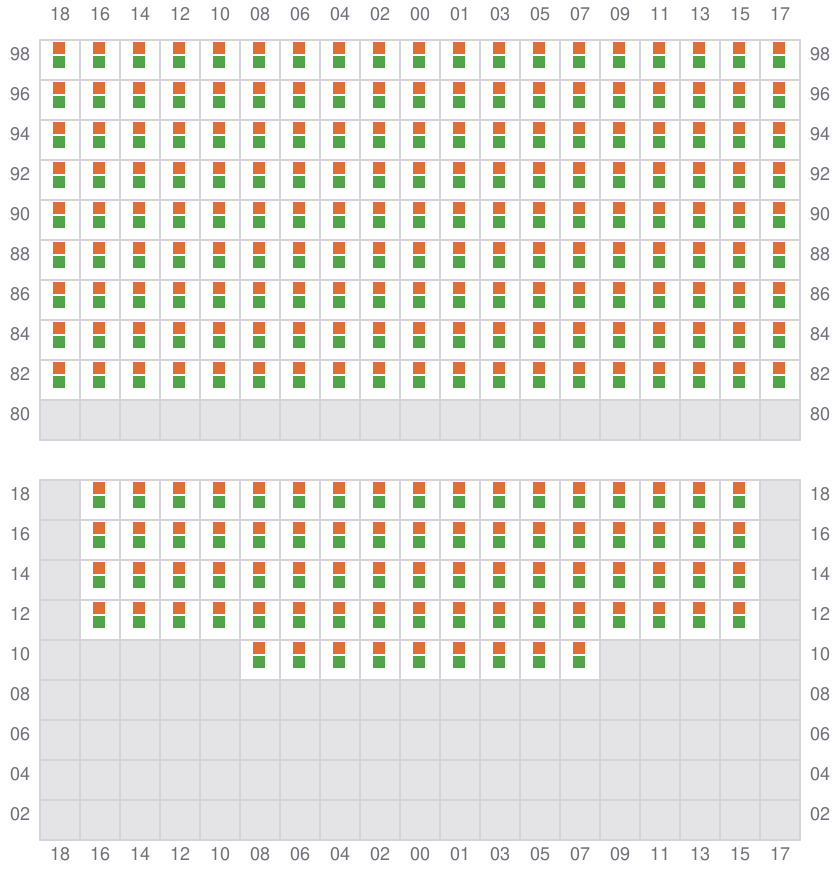

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

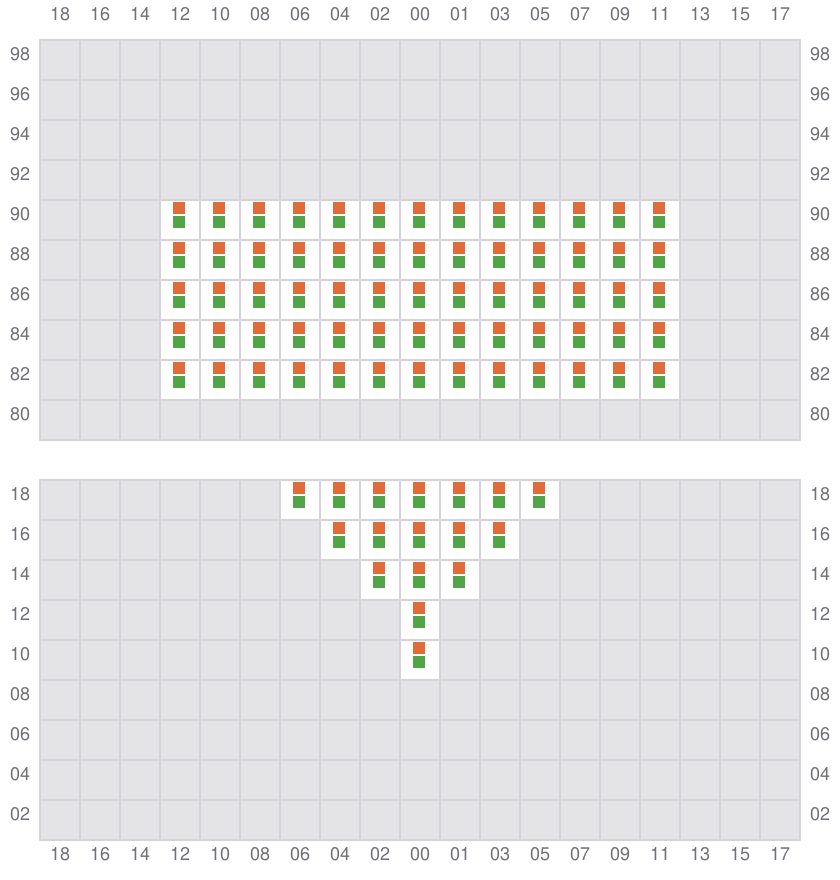

001 (002)
- →

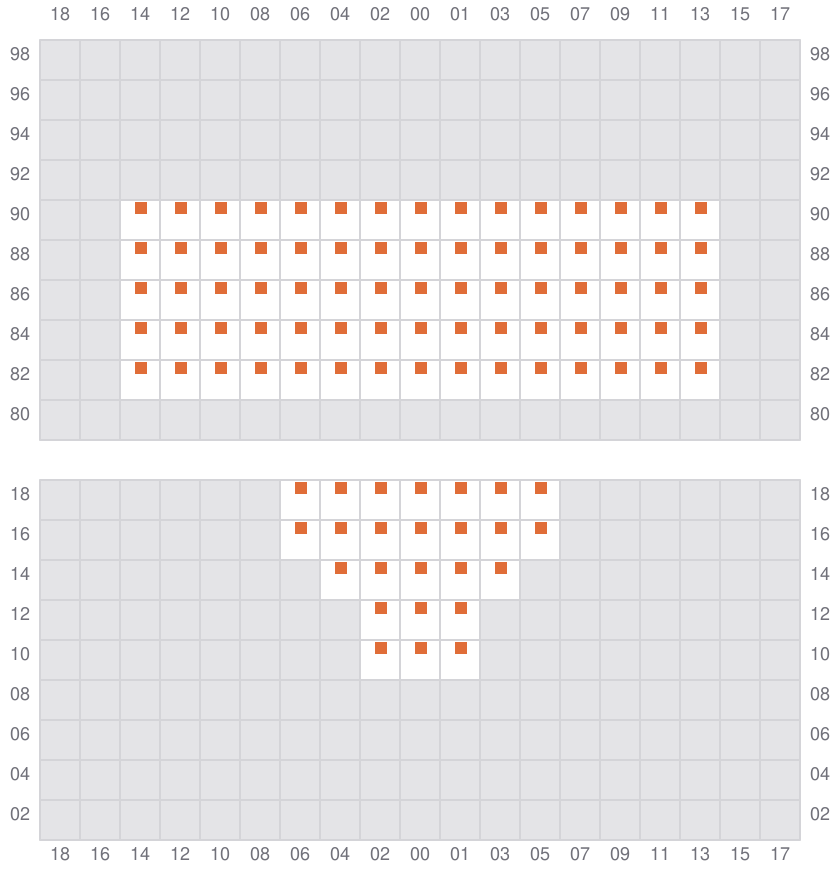

003
- ←

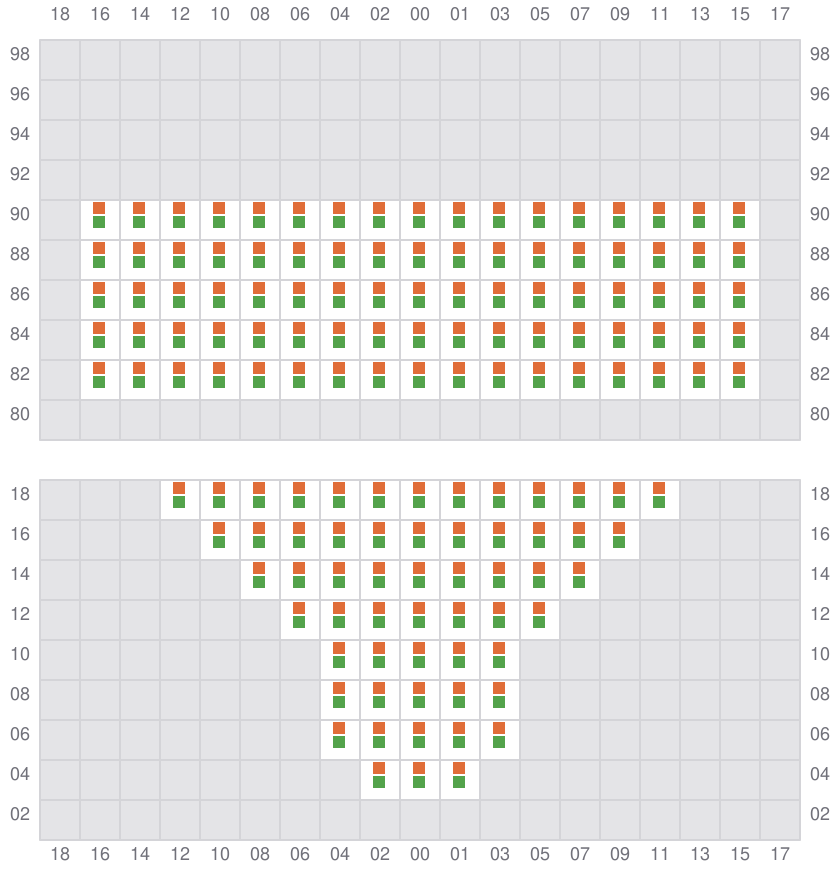

005 (006)
- →

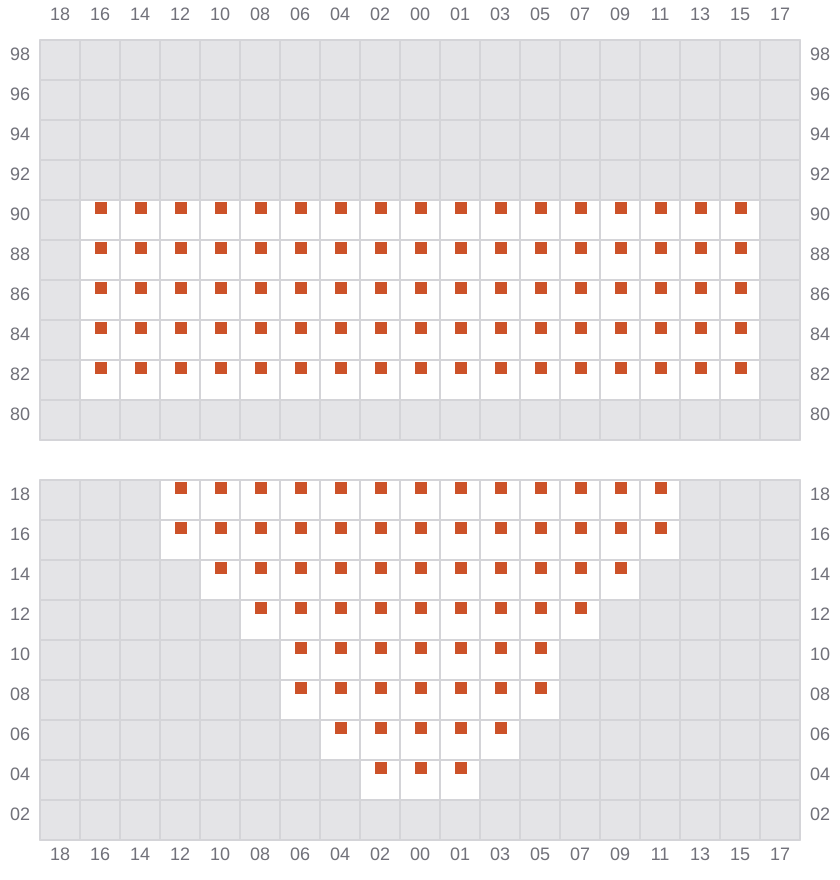

007
- ←

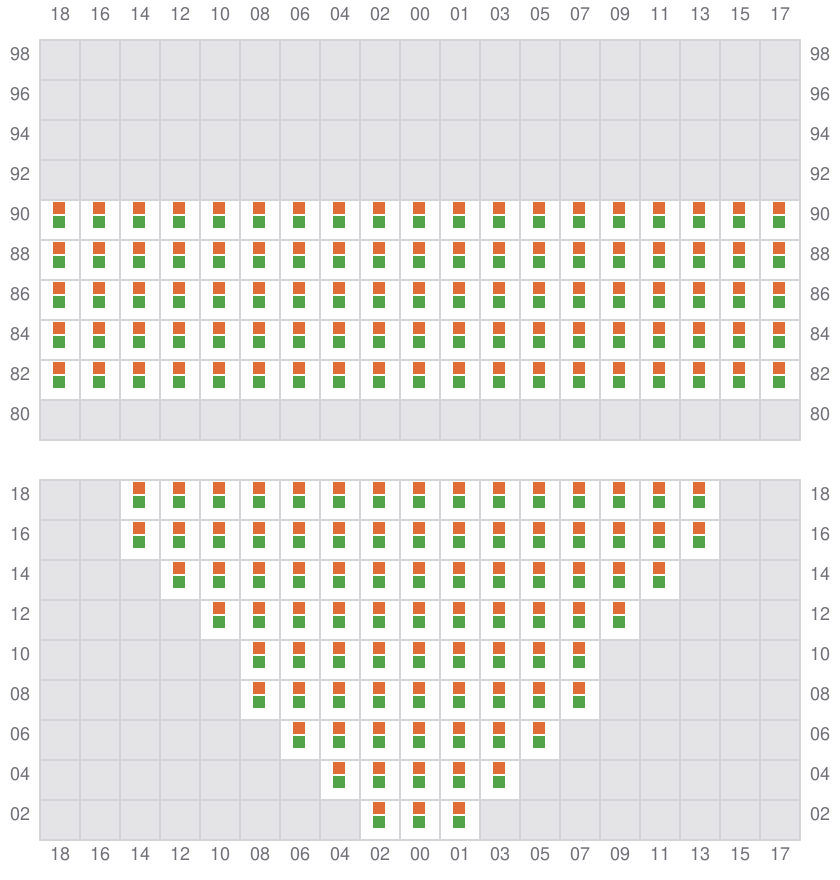

009 (010)
- →
011
- ←

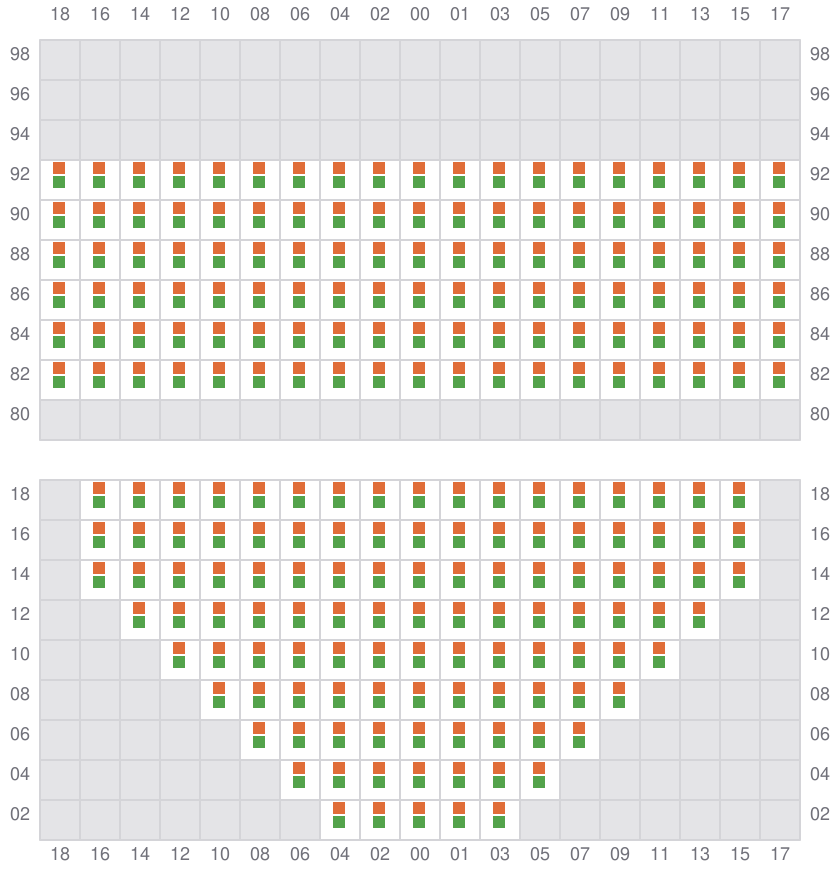

013 (014)
- →

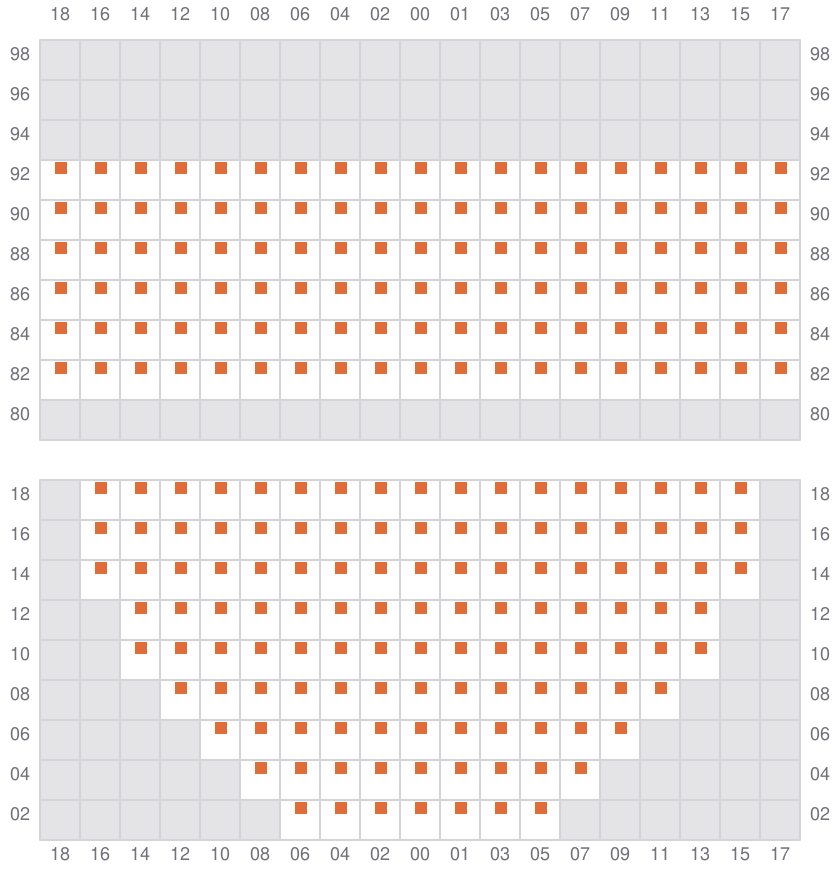

015
- ←

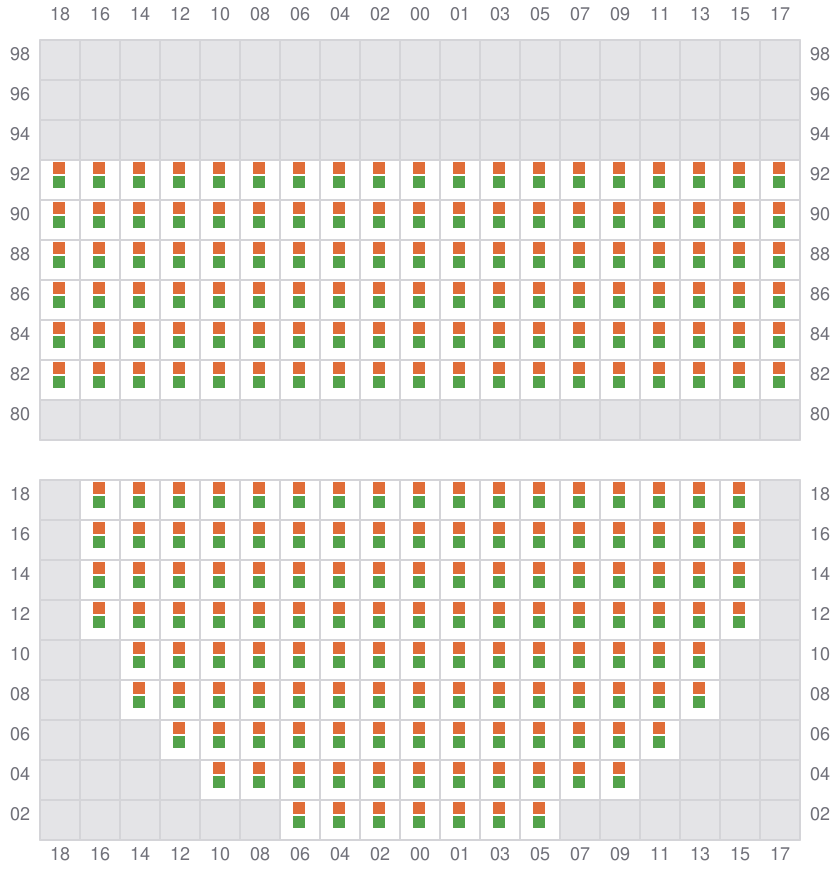

017 (018)
- →
019
- ←

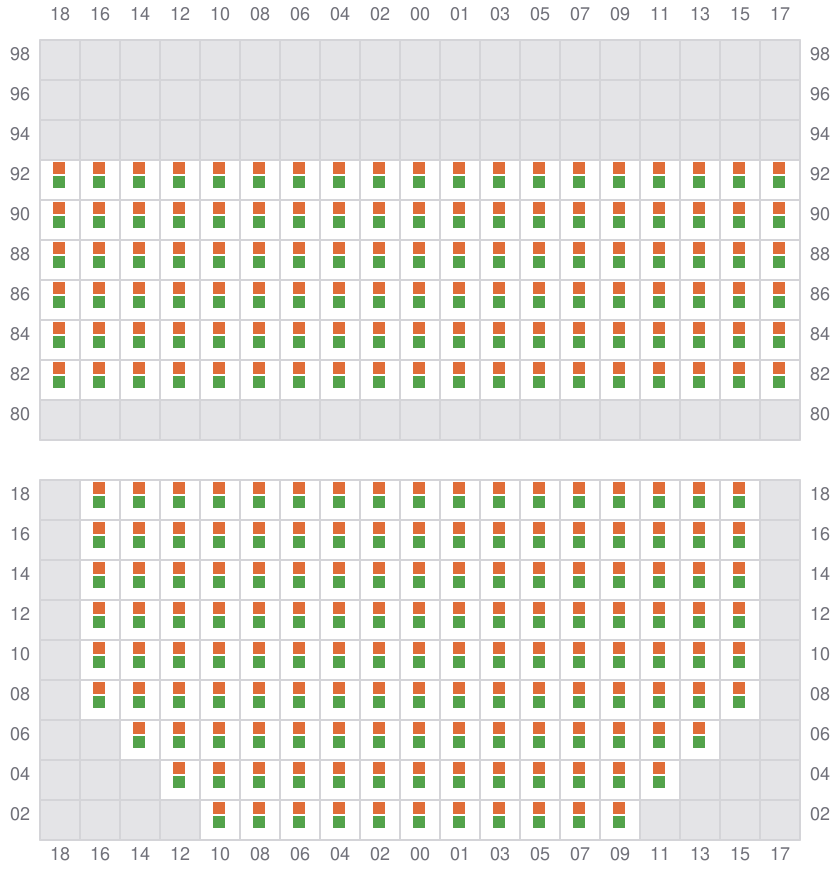

021 (022)
- →

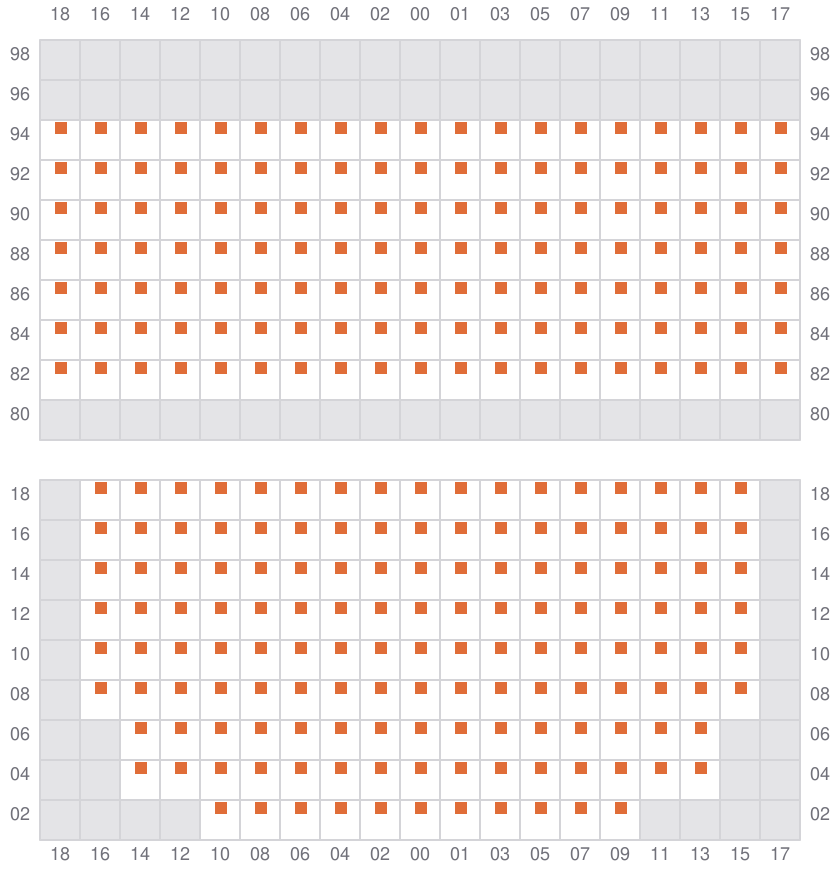

023
- ←

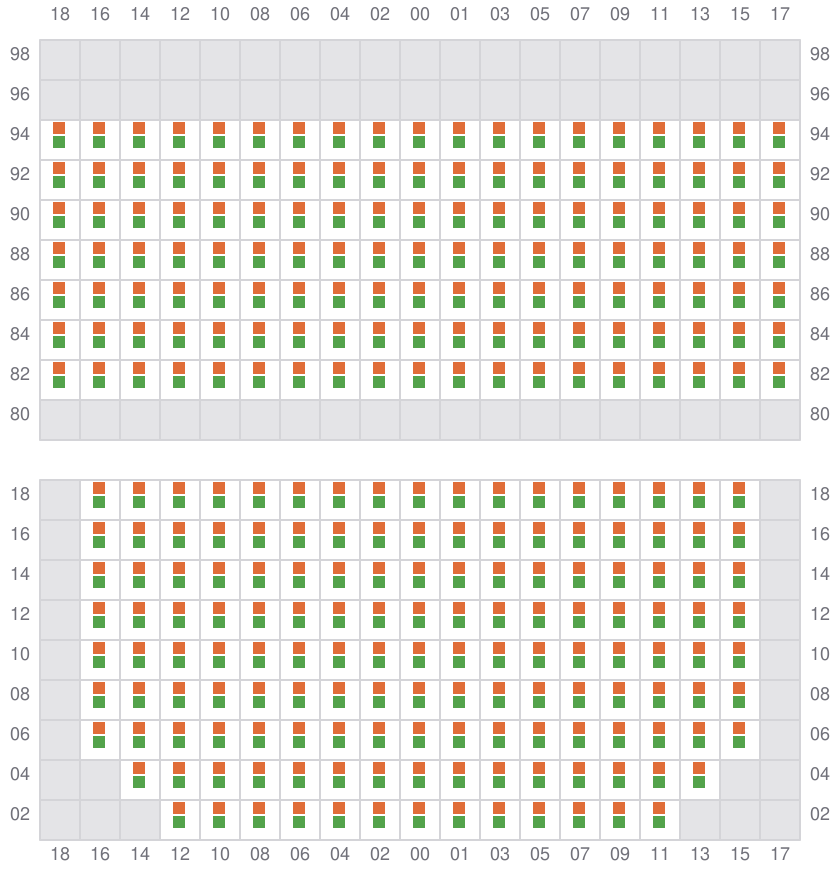

025 (026)
- →
027
- ←
029 (030)
- →
031
- ←

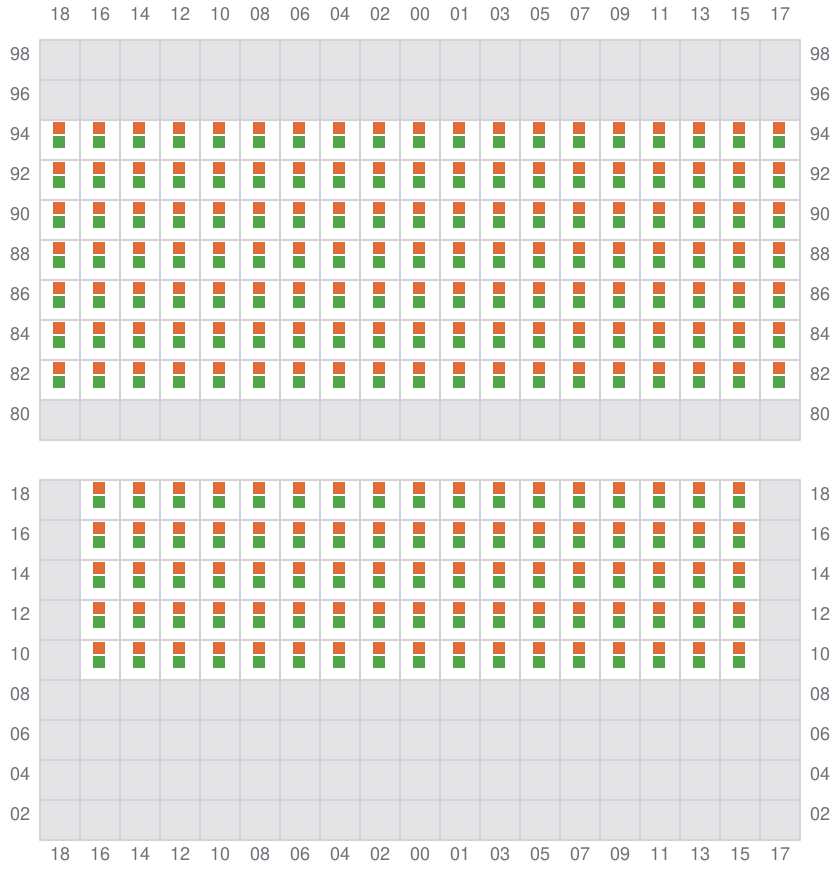

033 (034)
- →

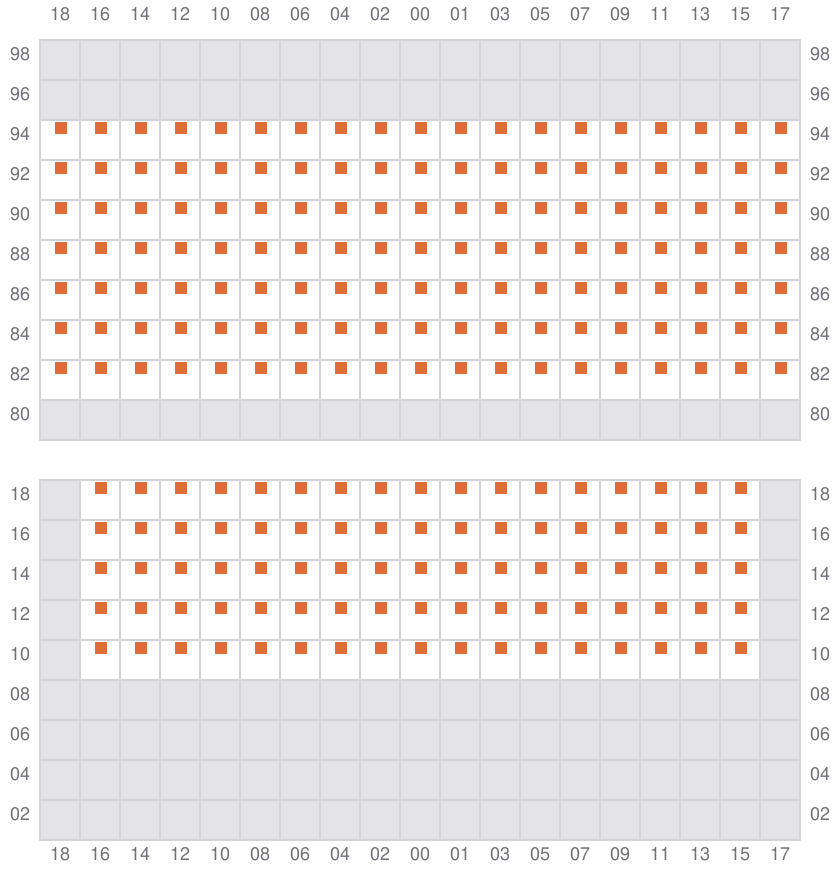

035
- ←

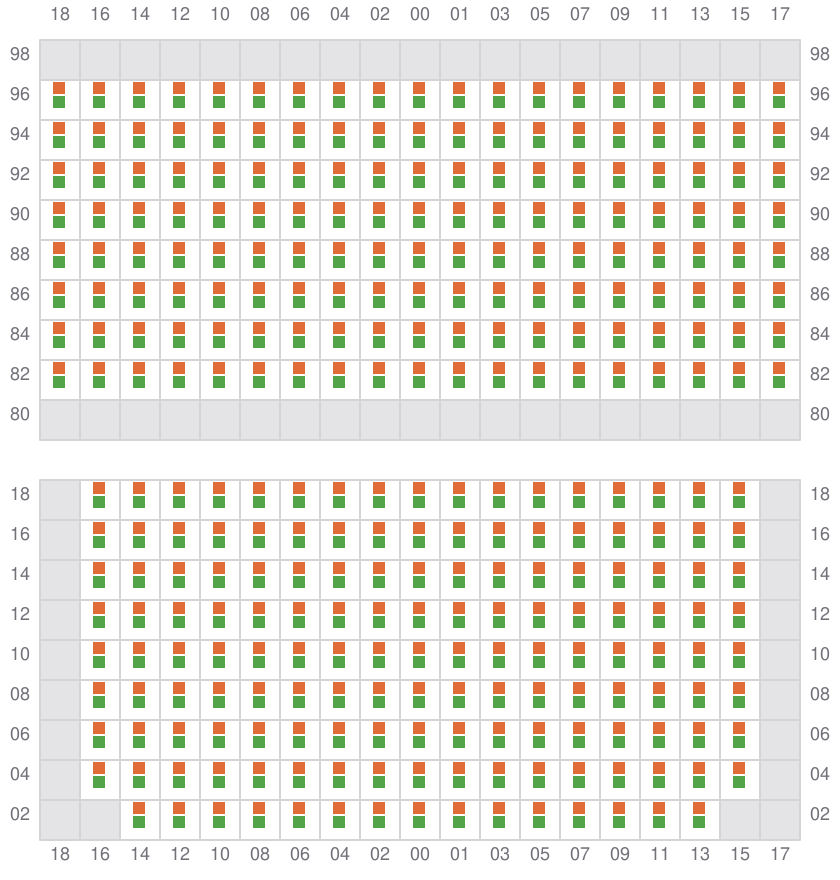

037 (038)
- →
039
- ←
041 (042)
- →
043
- ←
045 (046)
- →
047
- ←

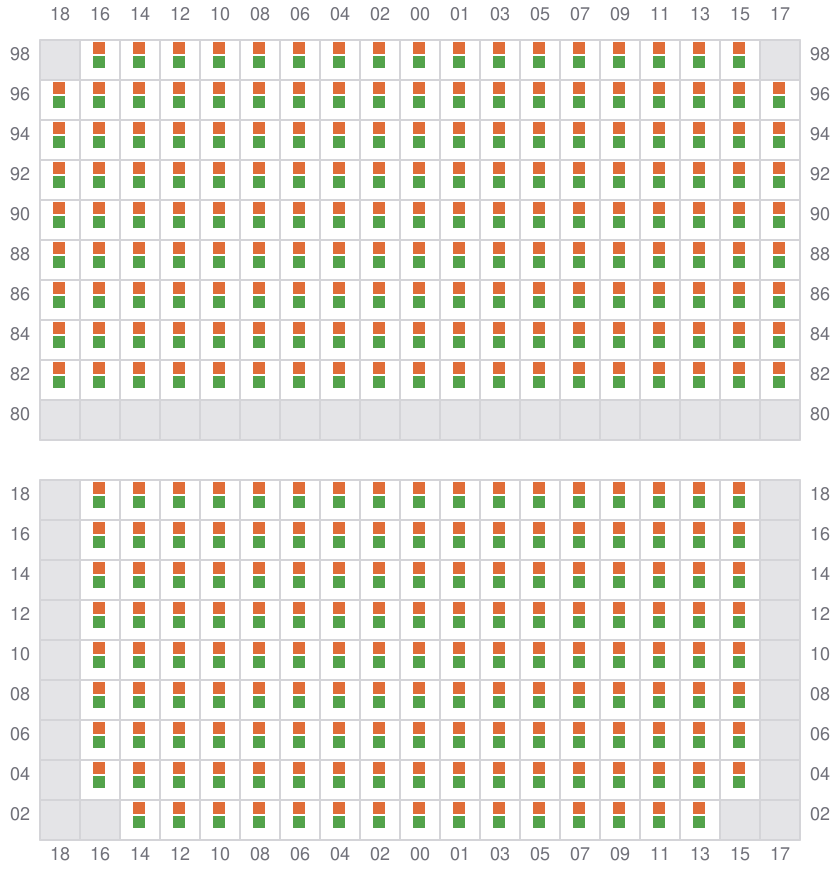

049 (050)
- →
051
- ←

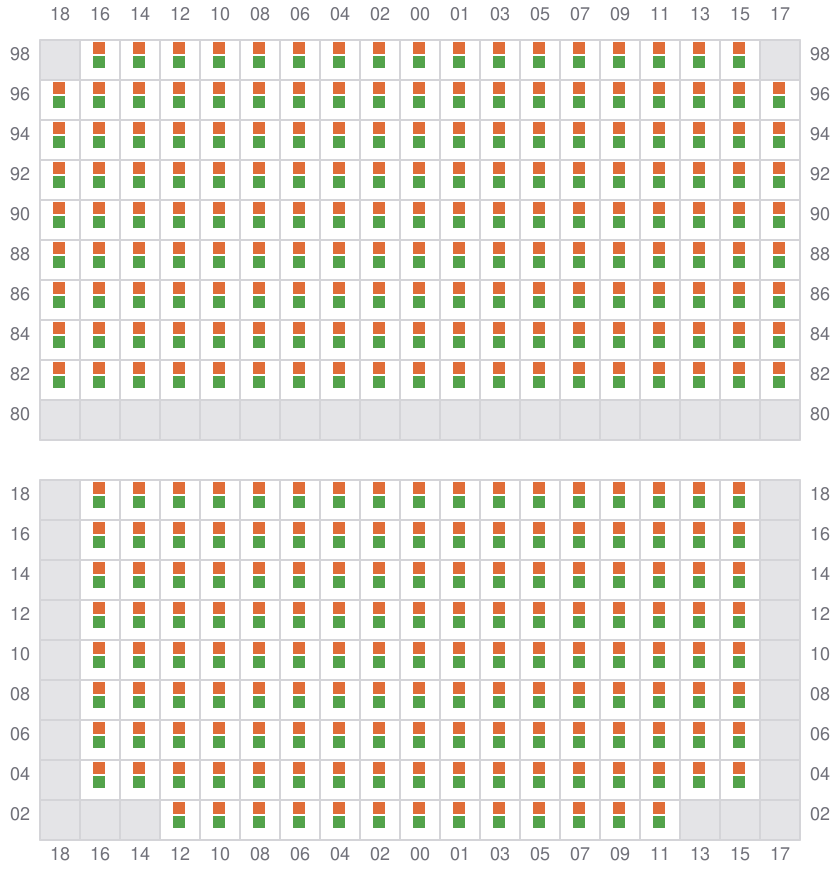

053 (054)
- →
055
- ←
057 (058)
- →

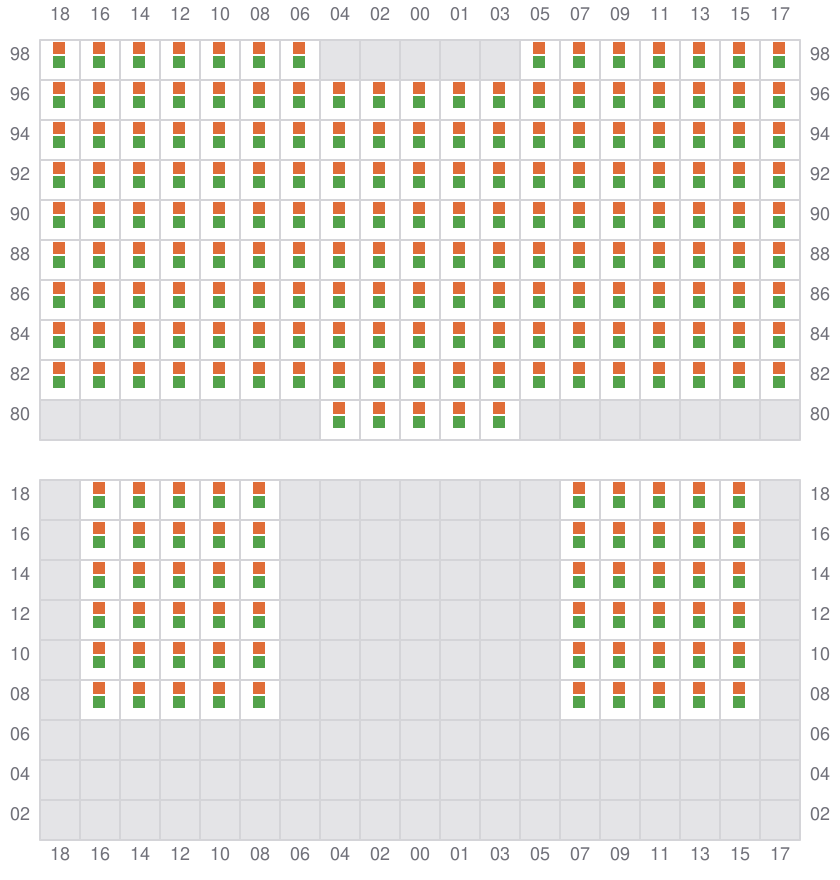

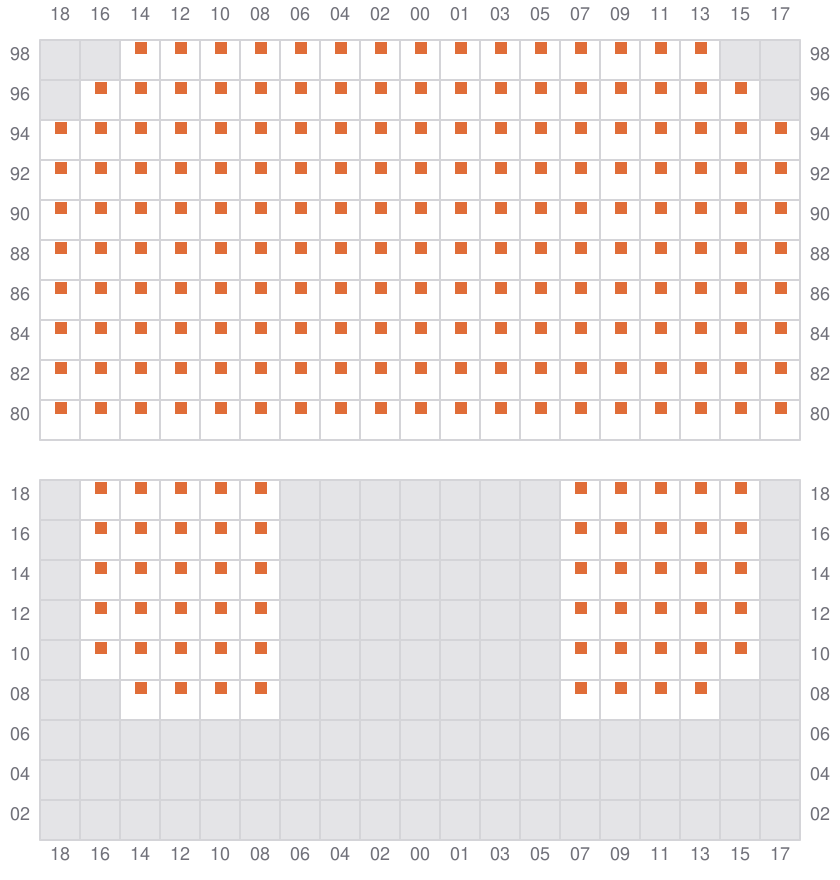

059
- ←
061 (062)
- →

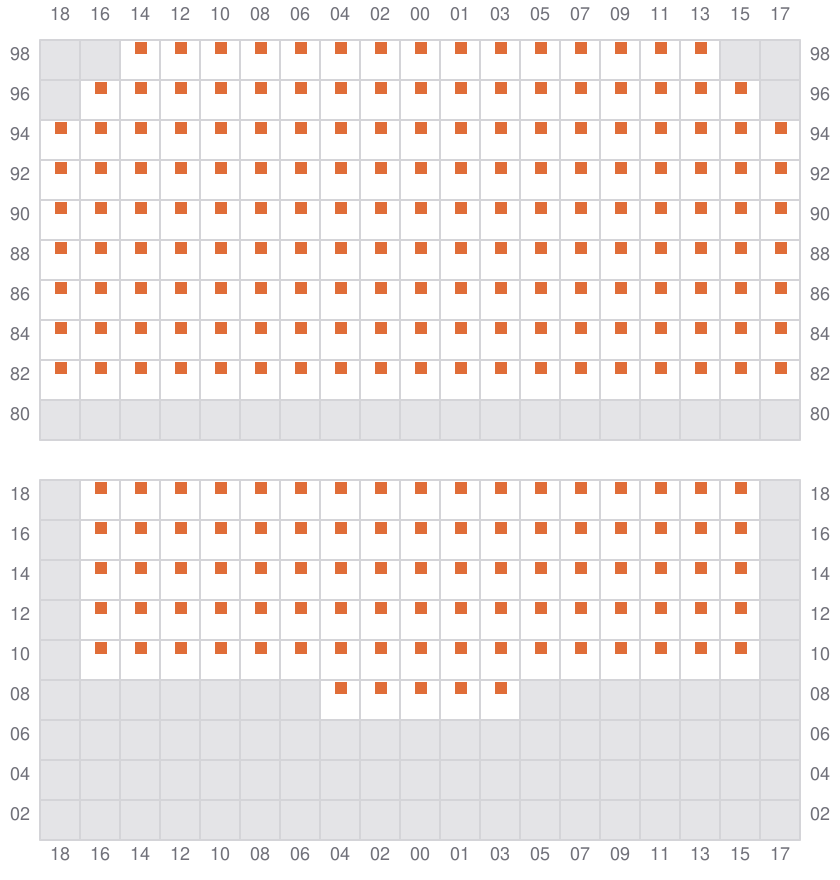

063
- ←
065 (066)
- →

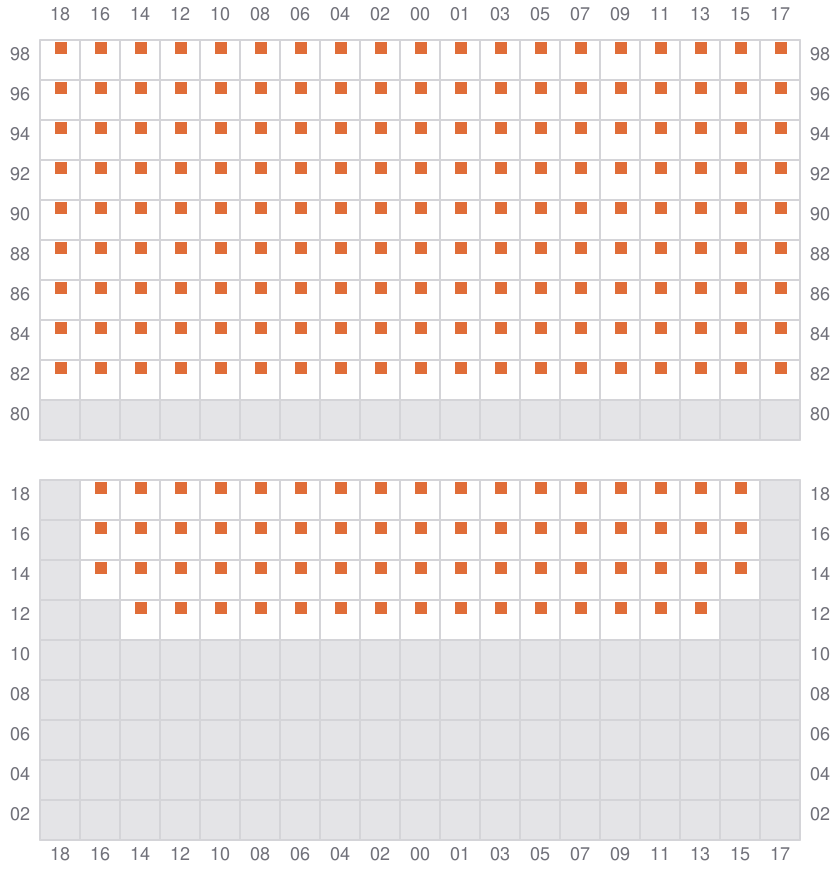

067
- ←

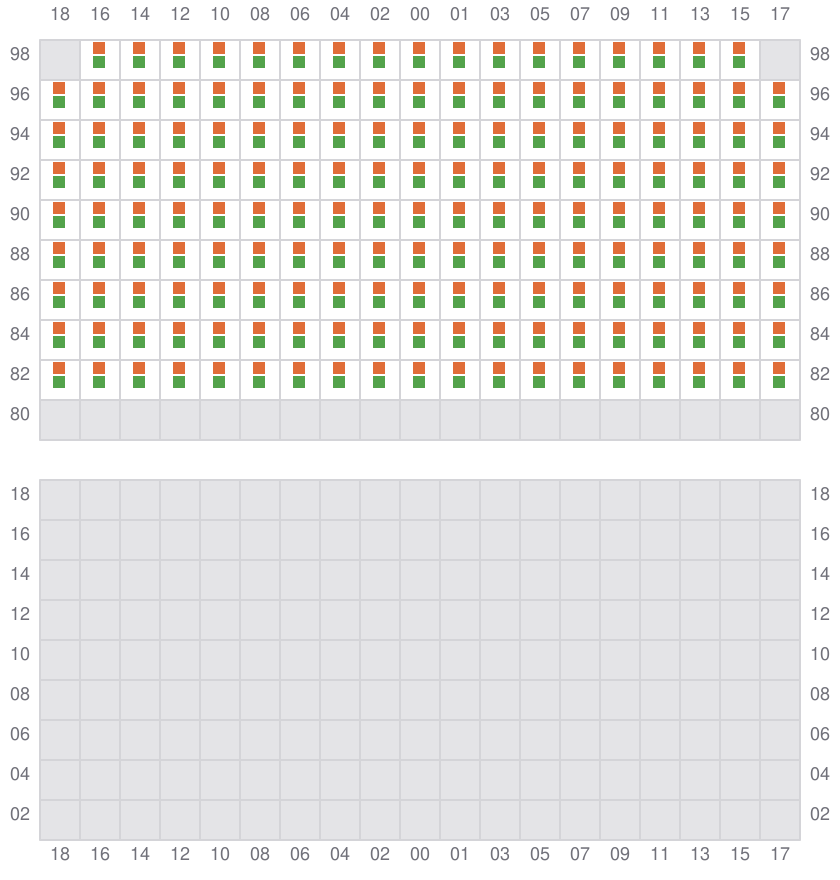

069 (070)
- → / ?

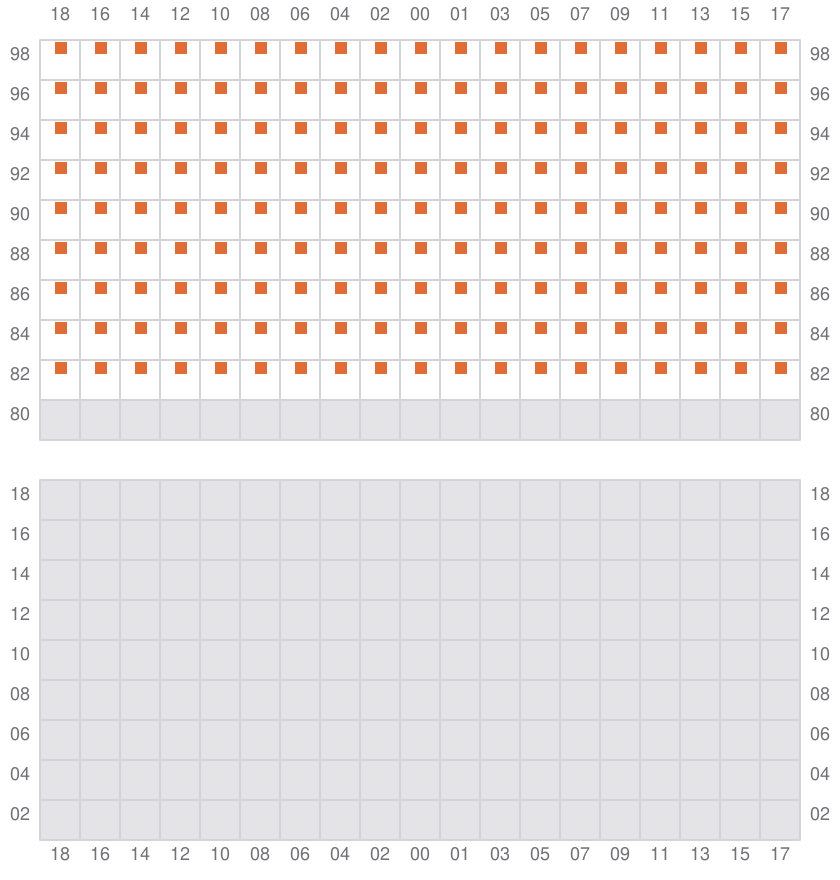

071
- ← / ?
