MSC LILOU III
9334349 | C4TB2 | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:MSC LILOU III
IMO Code:9334349
Call Sign:C4TB2
Line Operator:MSC
Class Name for Sister Ships:MLI
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,108
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

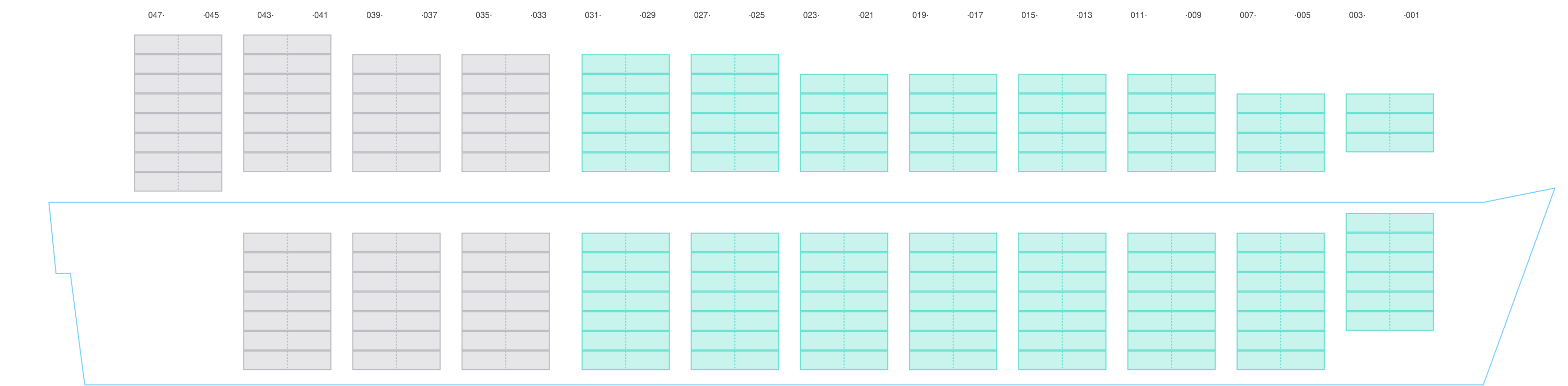

Side View
Hatch-Covers View

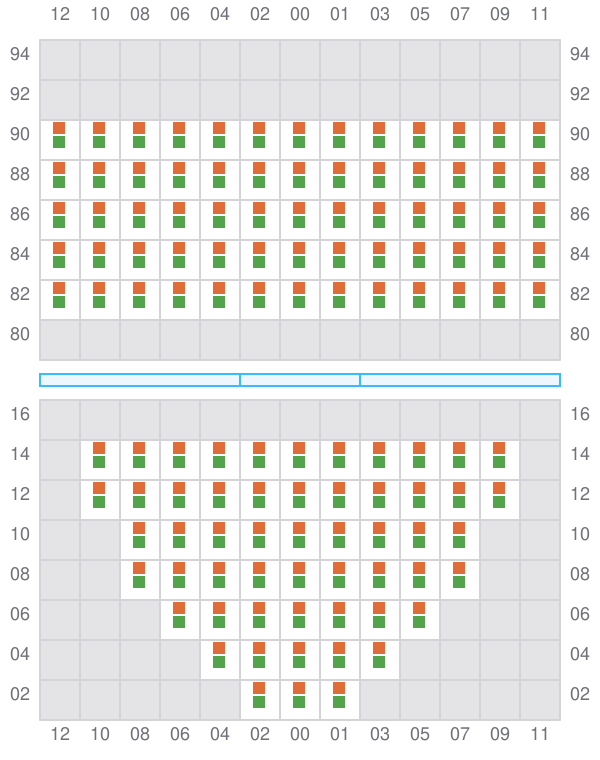

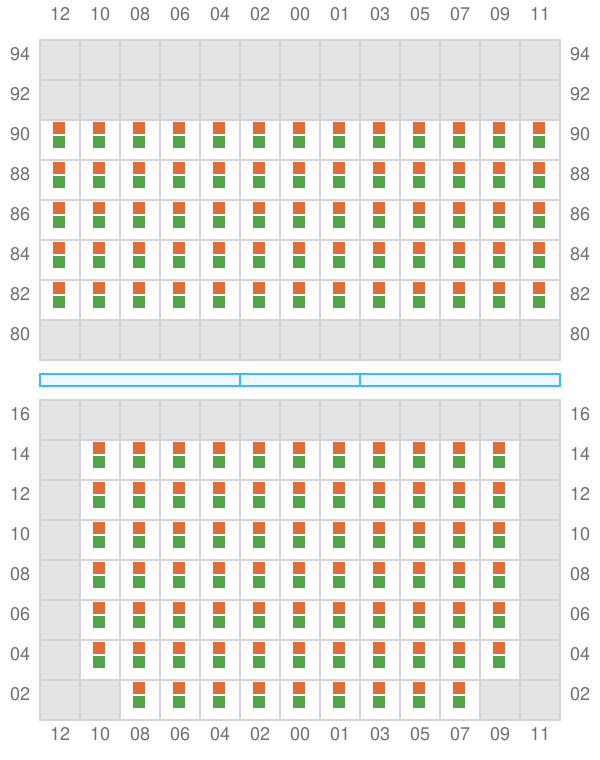

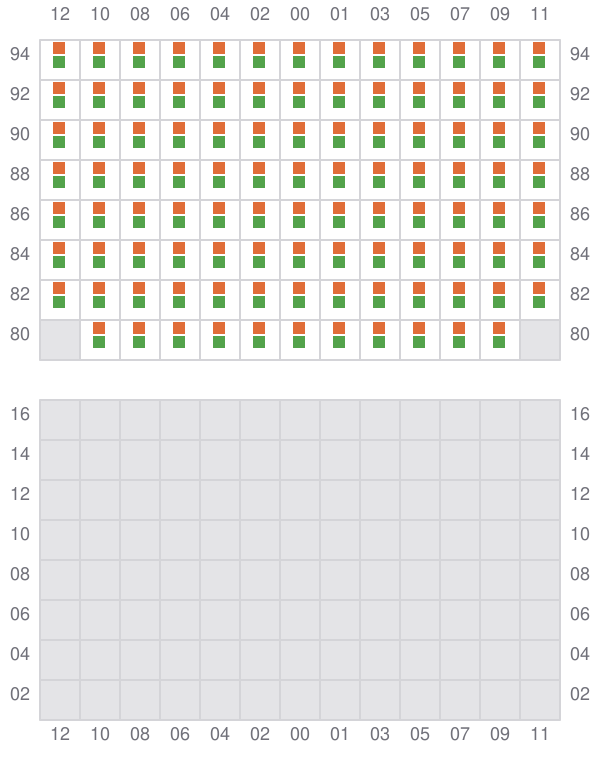

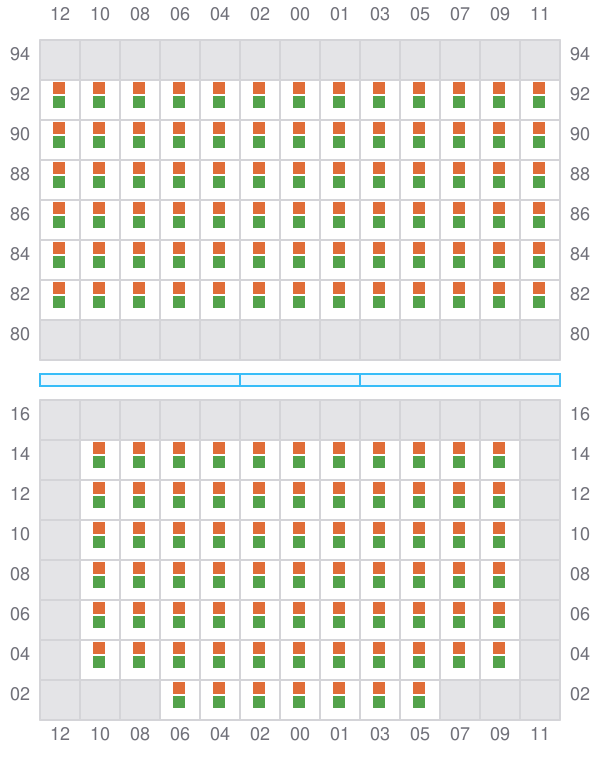

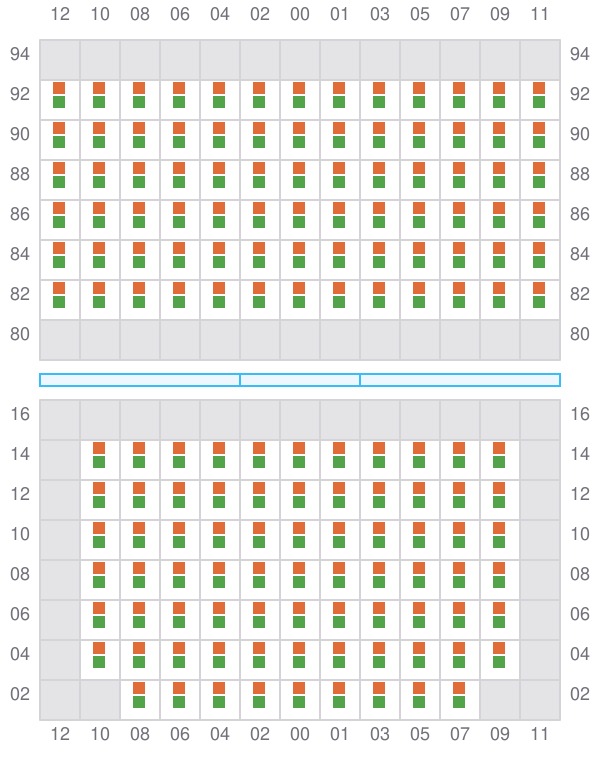

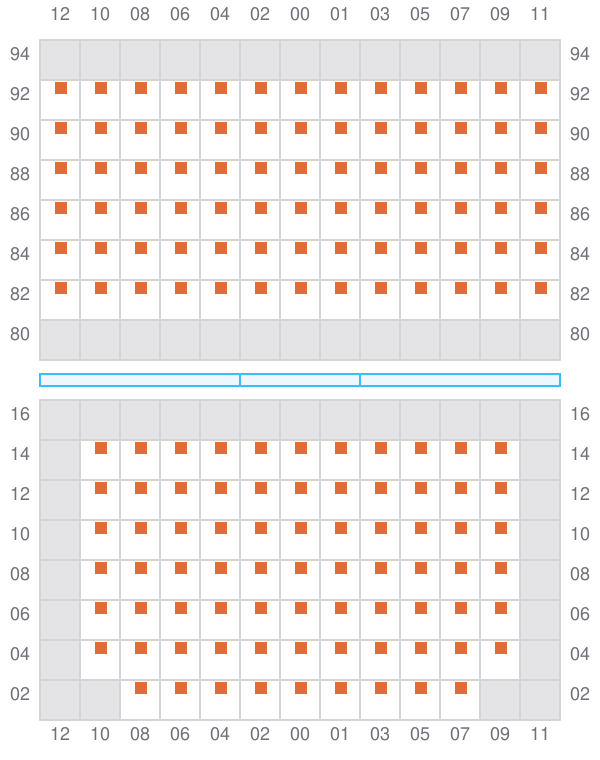

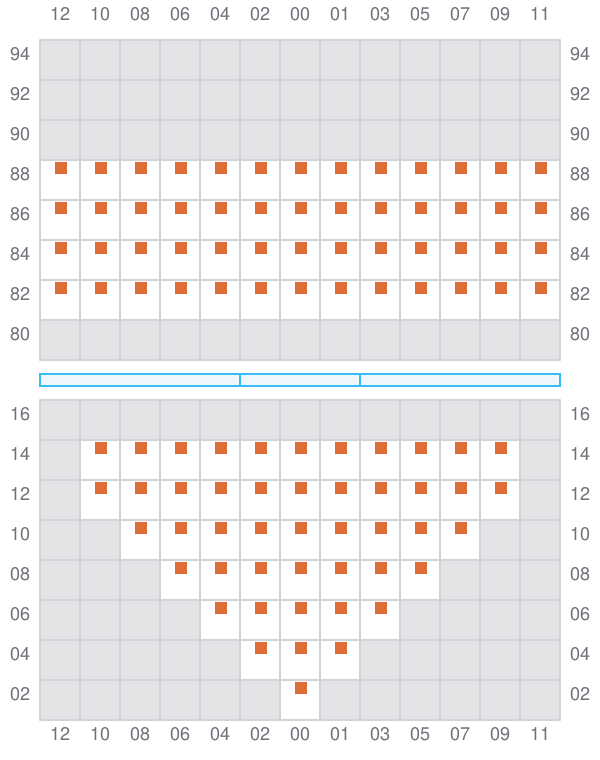

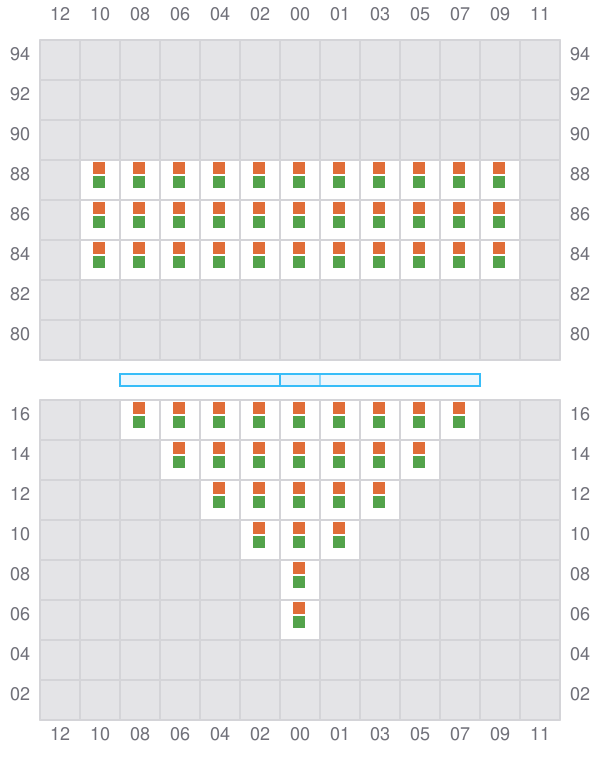

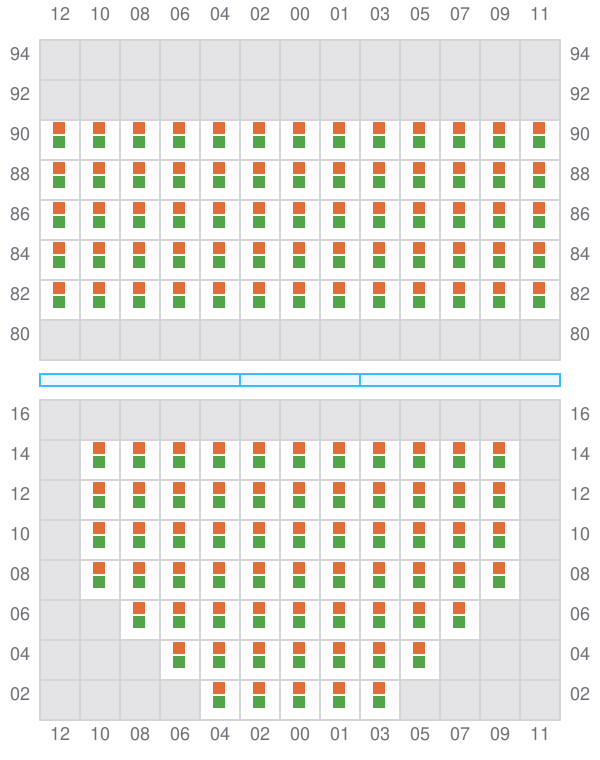

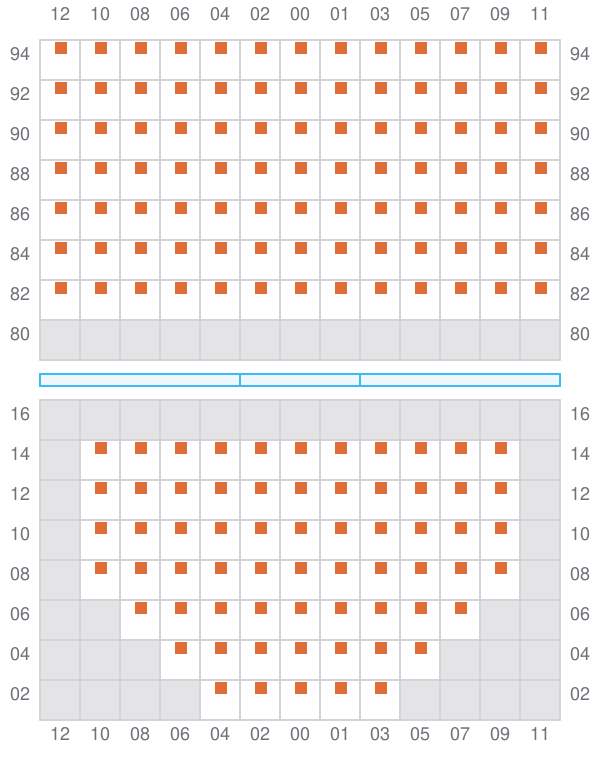

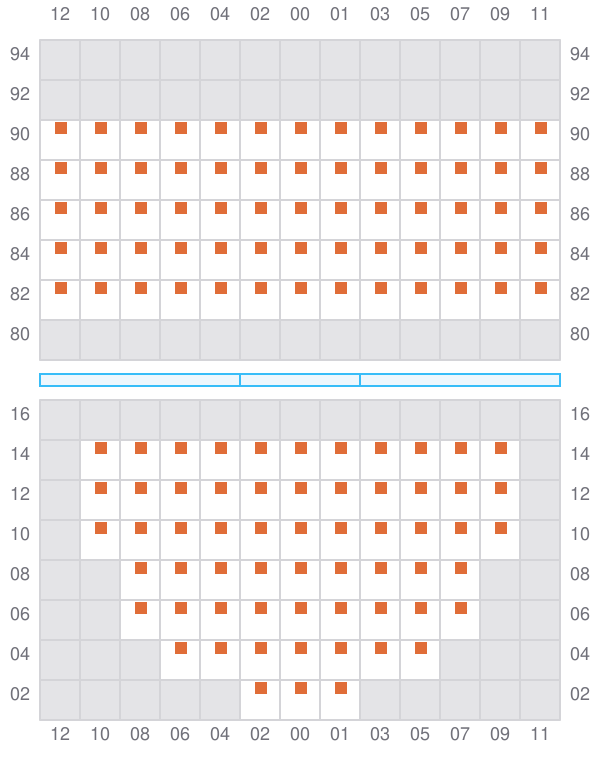

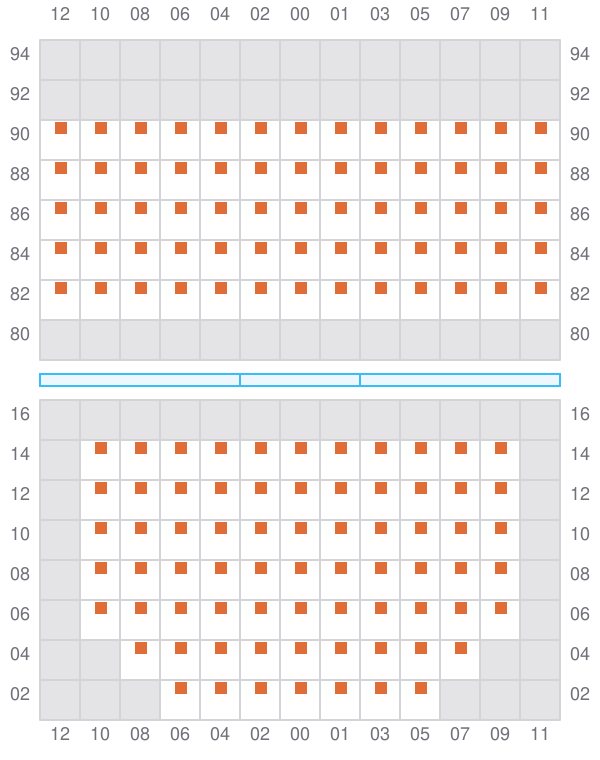

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

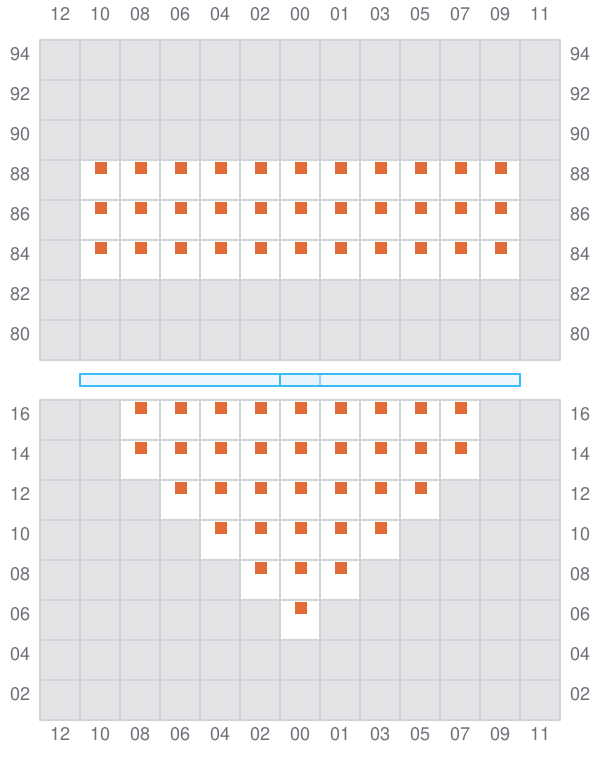

001 (002)
- →
003
- ←

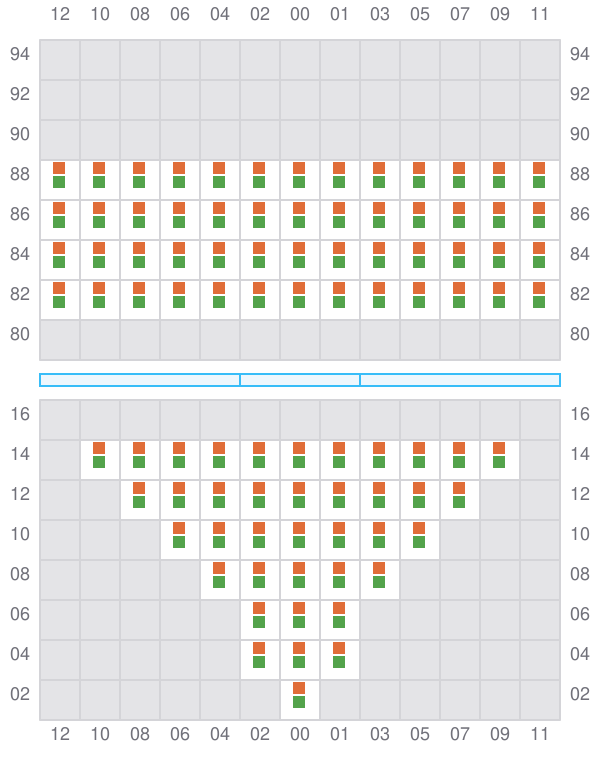

005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
013 (014)
- →
015
- ←

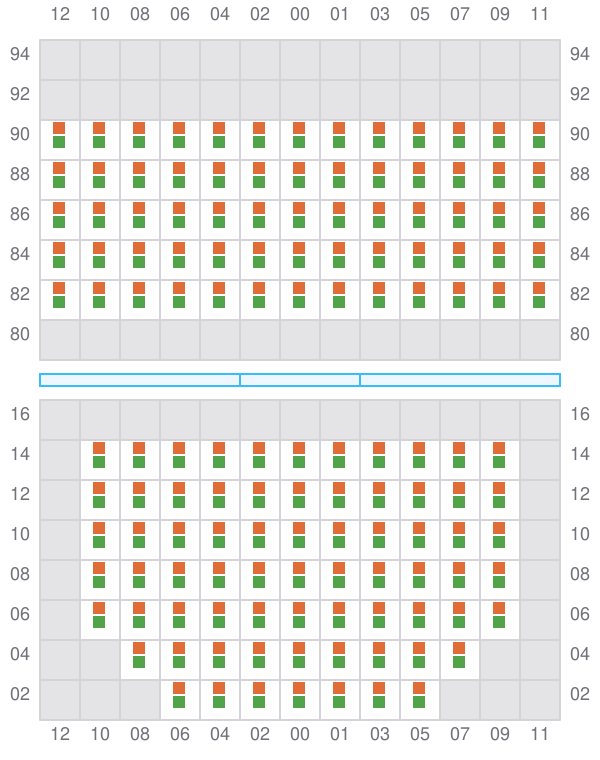

017 (018)
- →

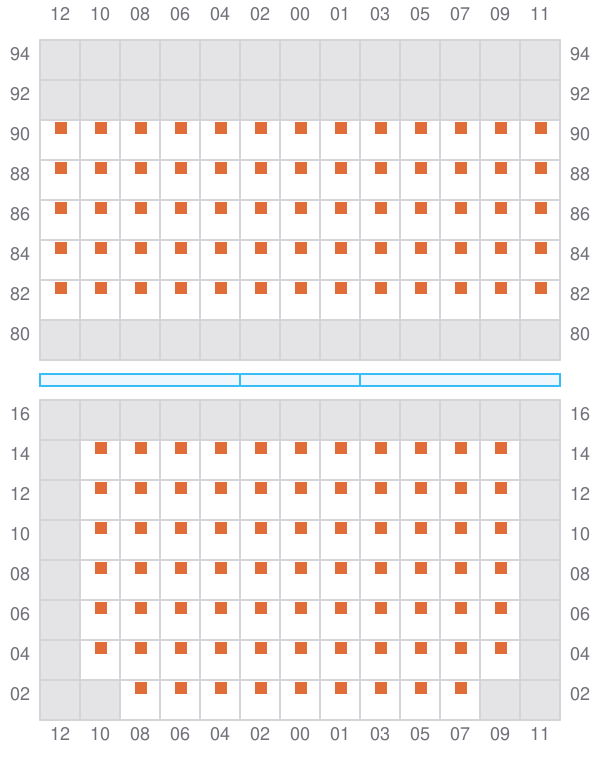

019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033
- →
035 (034)
- ←

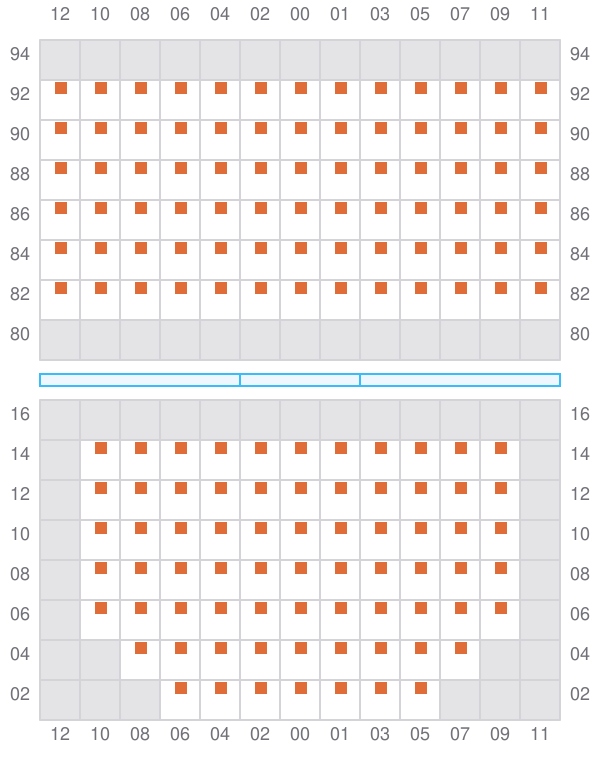

037
- →

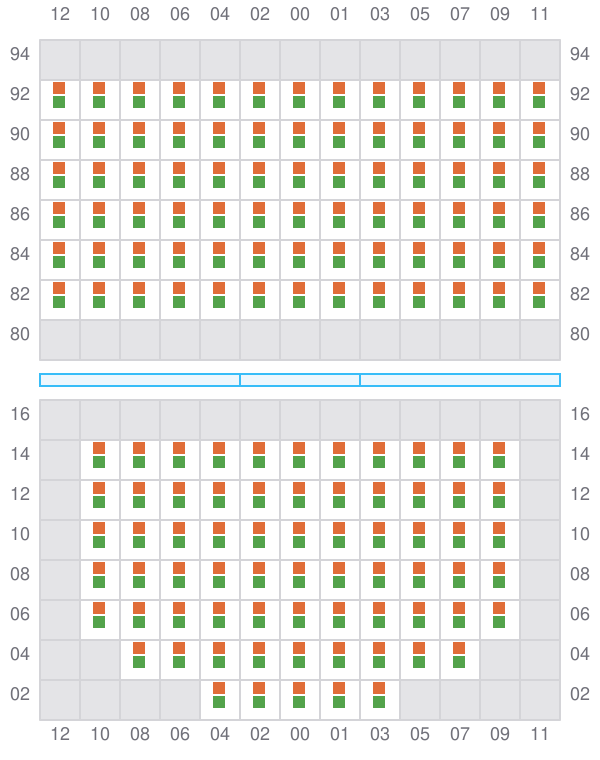

039 (038)
- ←
041
- →

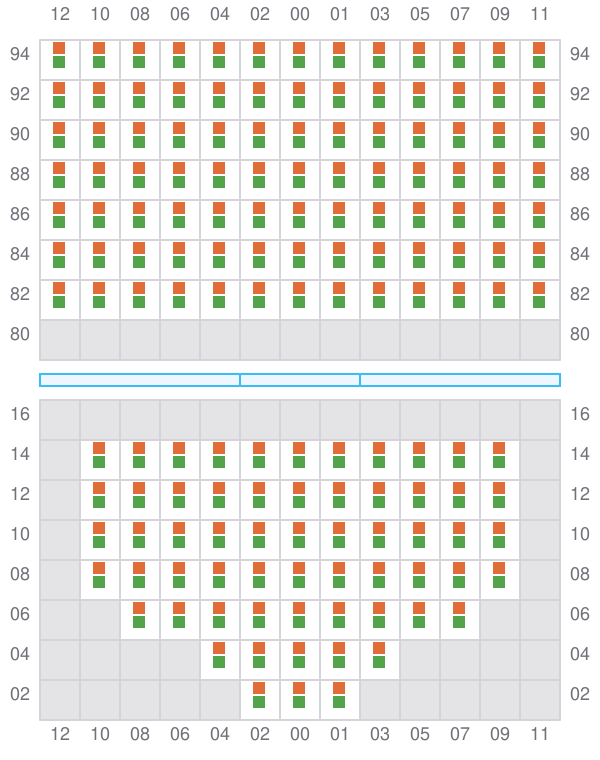

043 (042)
- ←

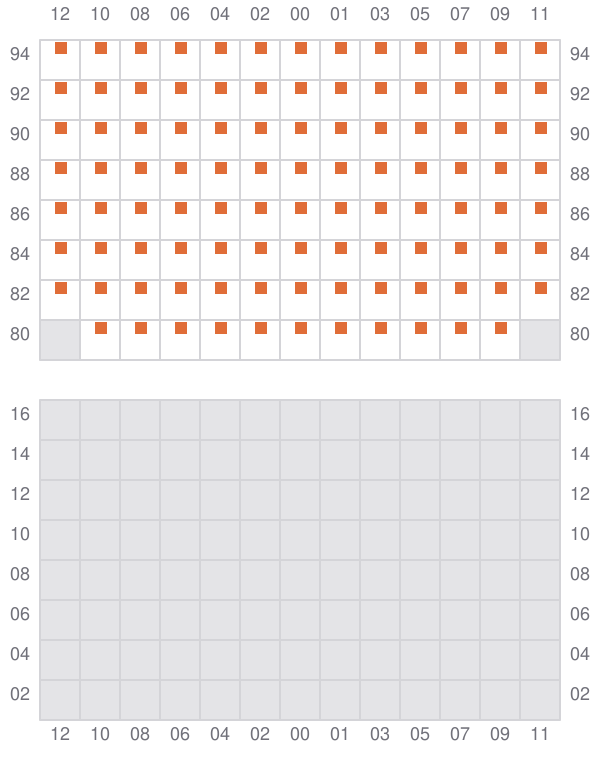

045
- → / ?
047 (046)
- ← / ?
