MSC LILOU III
9334349 | C4TB2 | 9334349 by ********* Last update: Fri Jun 14 2024

General Info

Ship Name:MSC LILOU III
IMO Code:9334349
Call Sign:C4TB2
Line Operator:9334349
Class Name for Sister Ships:MCC
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):210.29
LOA (Length Overall):220.32
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,210

Centers of Gravity

LCG Values:Known
LCG Data:0%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC LILOU III

Hatch-Covers View

Deck view of MSC LILOU III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

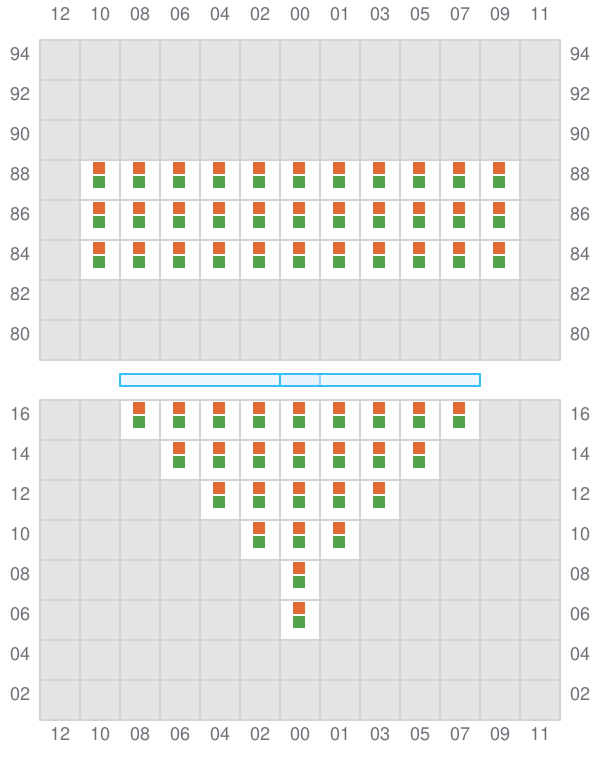

Bay 001 view and slots of MSC LILOU III

003

  • ←
Bay 003 view and slots of MSC LILOU III

005 (006)

  • →
Bay 005 view and slots of MSC LILOU III

007

  • ←
Bay 007 view and slots of MSC LILOU III

009 (010)

  • →
  • ? / →
Bay 009 view and slots of MSC LILOU III

011

  • ←
Bay 011 view and slots of MSC LILOU III

013 (014)

  • →
  • ? / ←
Bay 013 view and slots of MSC LILOU III

015

  • ←
Bay 015 view and slots of MSC LILOU III

017 (018)

  • →
  • ← / →
Bay 017 view and slots of MSC LILOU III

019

  • ←
  • → / ?
Bay 019 view and slots of MSC LILOU III

021 (022)

  • →
  • ←

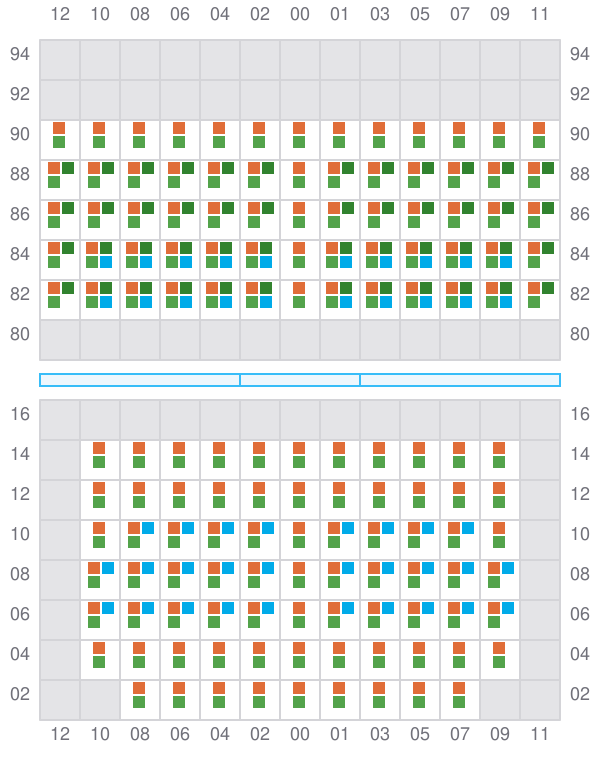

Bay 021 view and slots of MSC LILOU III

023

  • ←
  • → / ?
Bay 023 view and slots of MSC LILOU III

025 (026)

  • →
  • ← / →

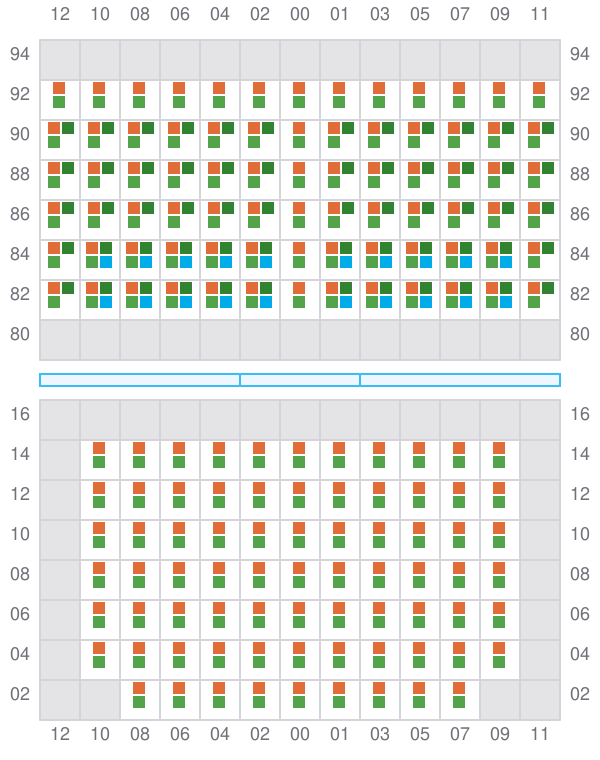

Bay 025 view and slots of MSC LILOU III

027

  • ←
  • → / ?
Bay 027 view and slots of MSC LILOU III

029 (030)

  • →
  • ←
Bay 029 view and slots of MSC LILOU III

031

  • ←
  • → / ?
Bay 031 view and slots of MSC LILOU III

033 (034)

  • →
  • ← / →

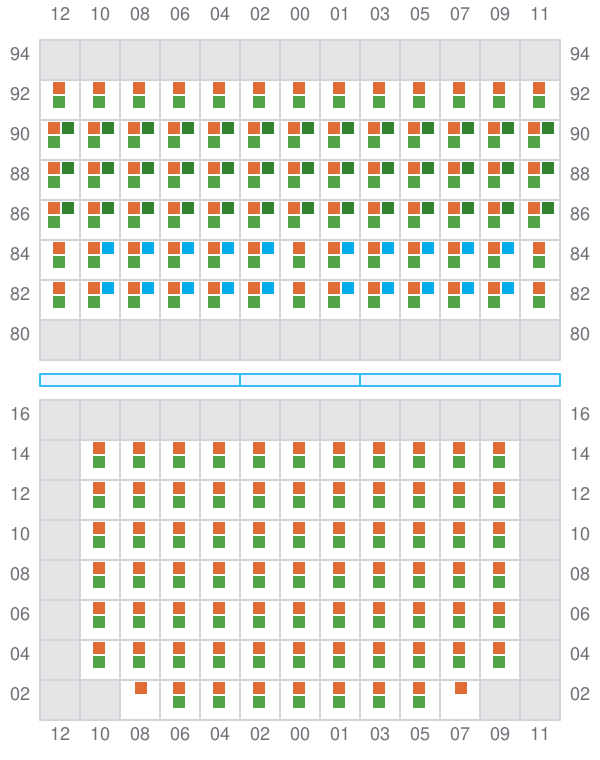

Bay 033 view and slots of MSC LILOU III

035

  • ←
  • → / ?
Bay 035 view and slots of MSC LILOU III

037 (038)

  • →
  • ←
Bay 037 view and slots of MSC LILOU III

039

  • ←
  • → / ?
Bay 039 view and slots of MSC LILOU III

041 (042)

  • →
  • ← / ?
Bay 041 view and slots of MSC LILOU III

043

  • ←
  • → / ?

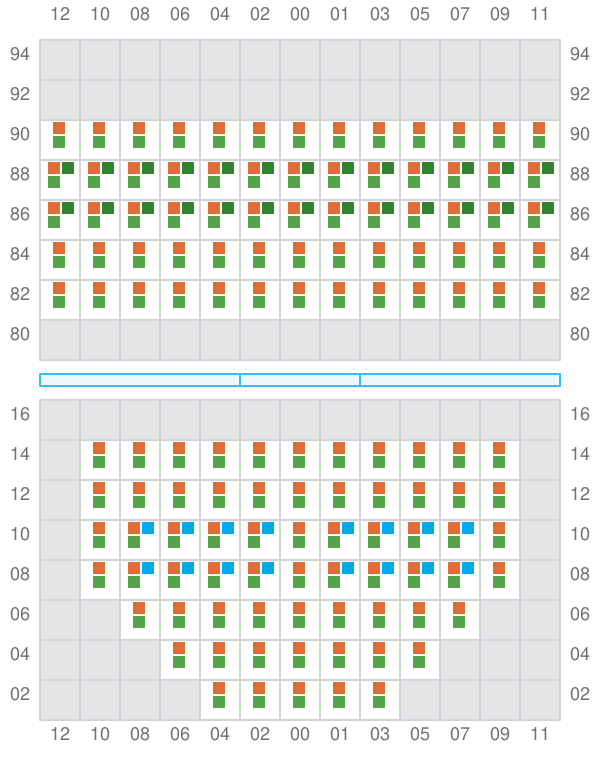

Bay 043 view and slots of MSC LILOU III

045 (046)

  • → / ?
  • ← / ?
Bay 045 view and slots of MSC LILOU III

047

  • → / ?
  • → / ?

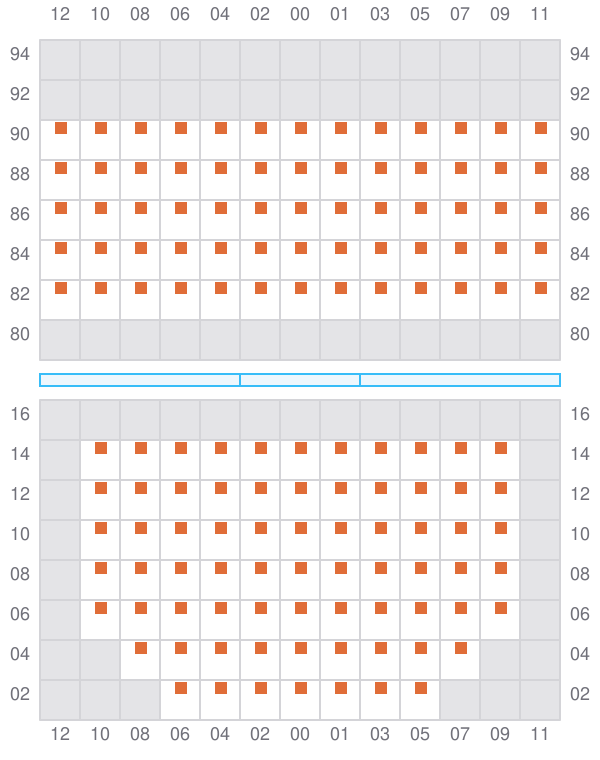

Bay 047 view and slots of MSC LILOU III
