MSC LILY
9704960 | CQEU6 | 9704960 by ********* Last update: Wed Jun 05 2024
General Info
Ship Name:MSC LILY
IMO Code:9704960
Call Sign:CQEU6
Line Operator:9704960
Class Name for Sister Ships:MSC LILY
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):286.00
LOA (Length Overall):299.95
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,819
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

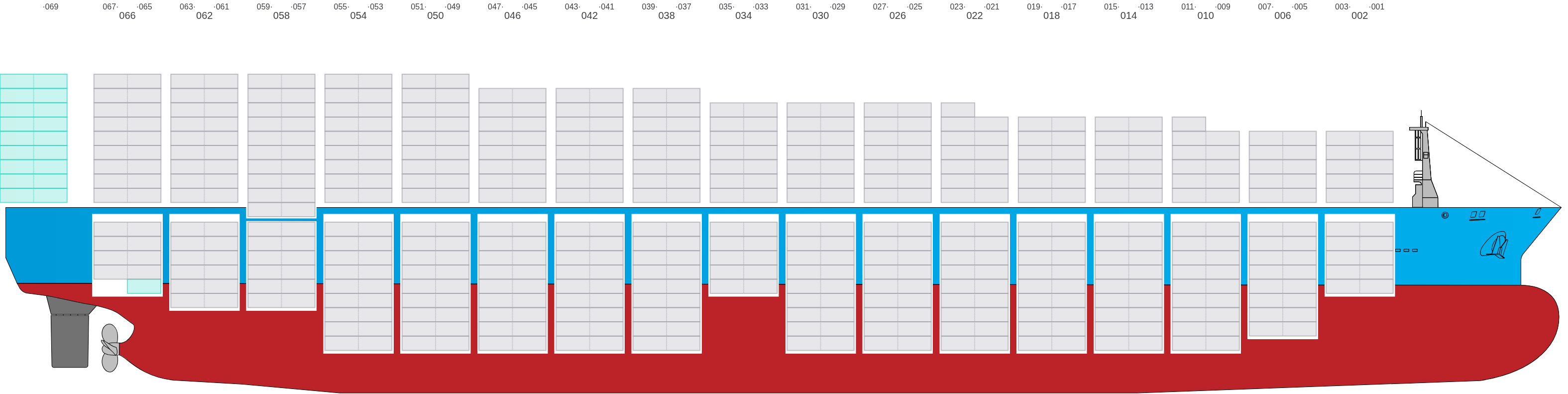

Side View
Hatch-Covers View

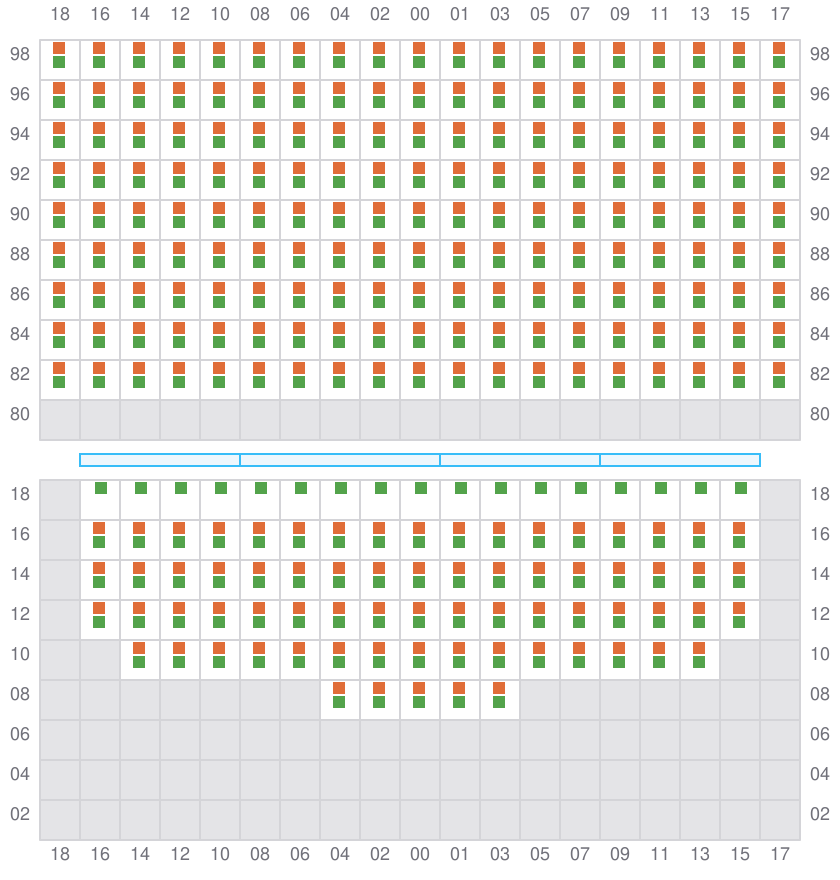

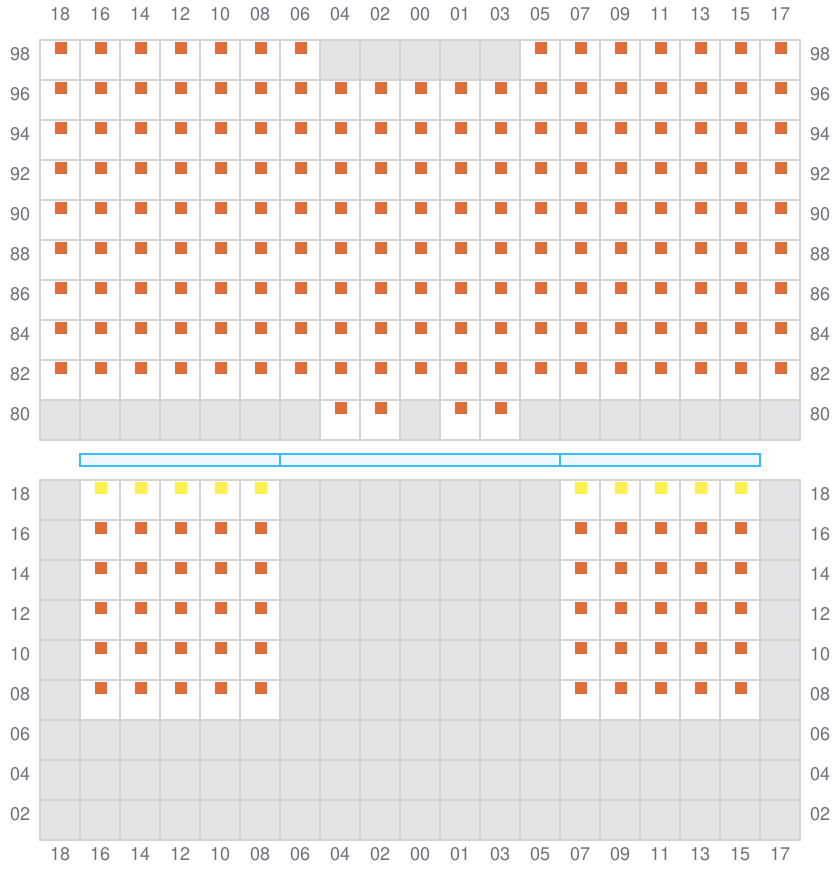

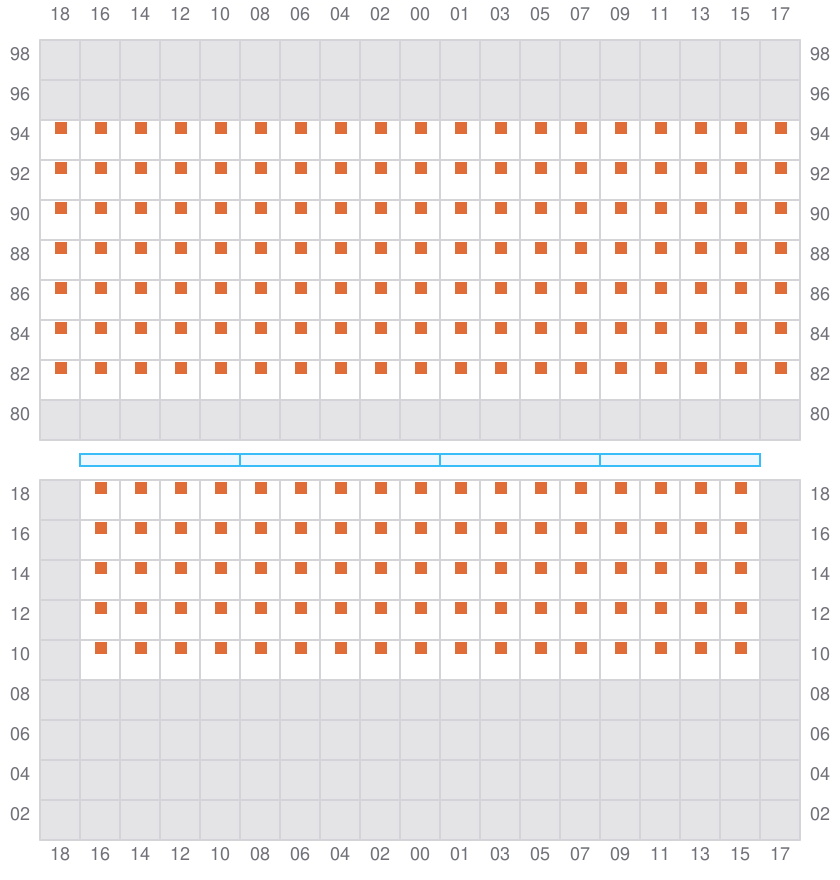

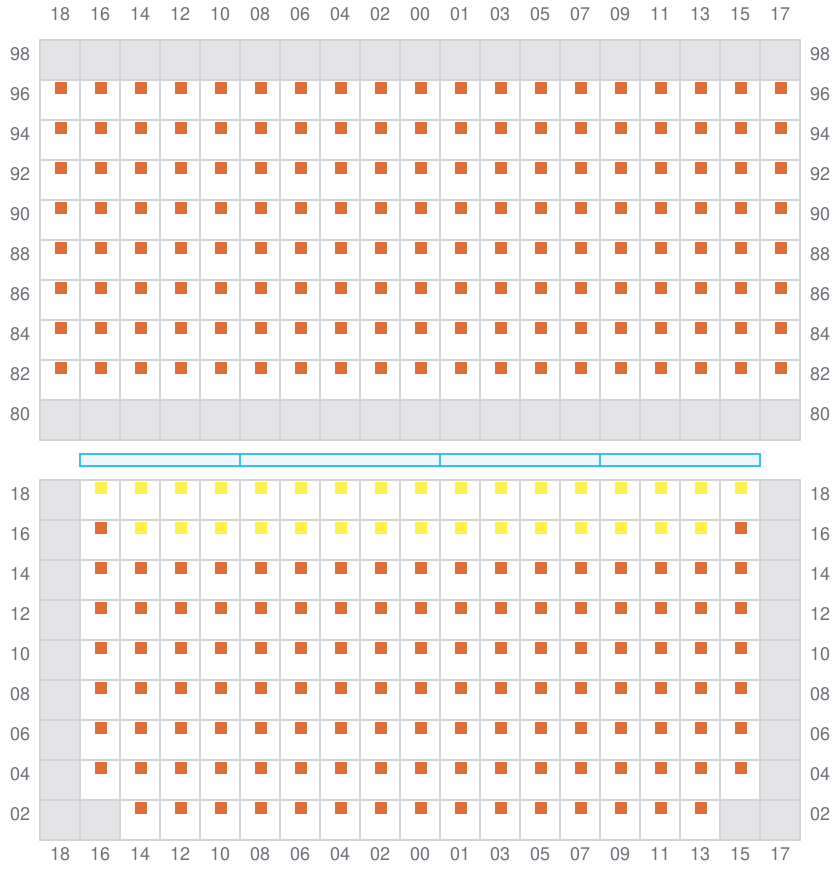

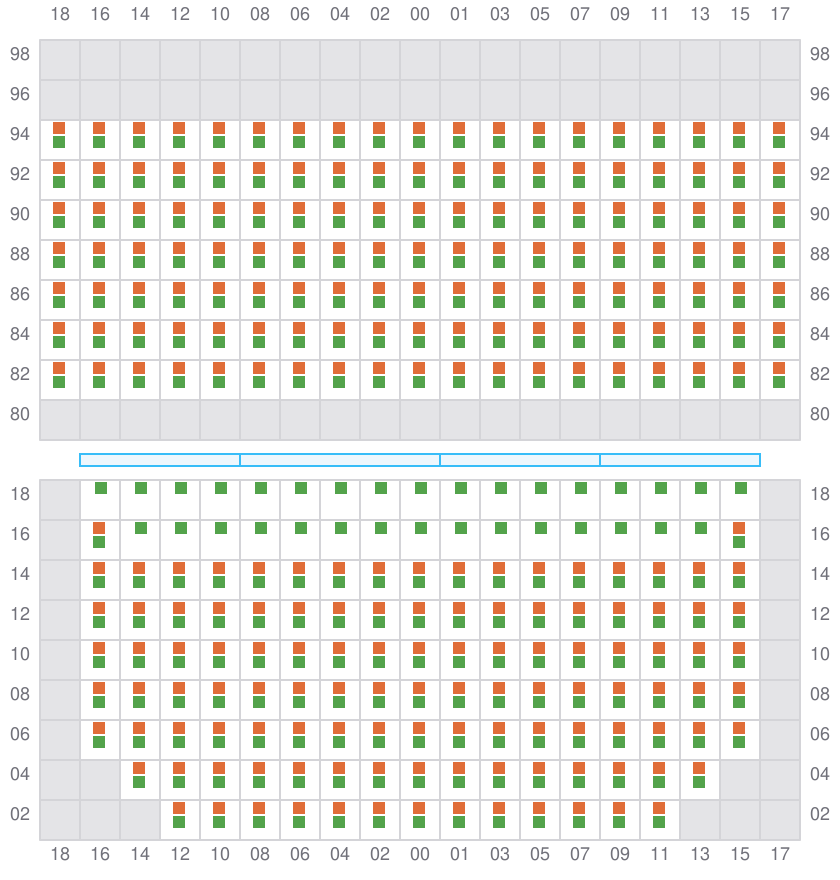

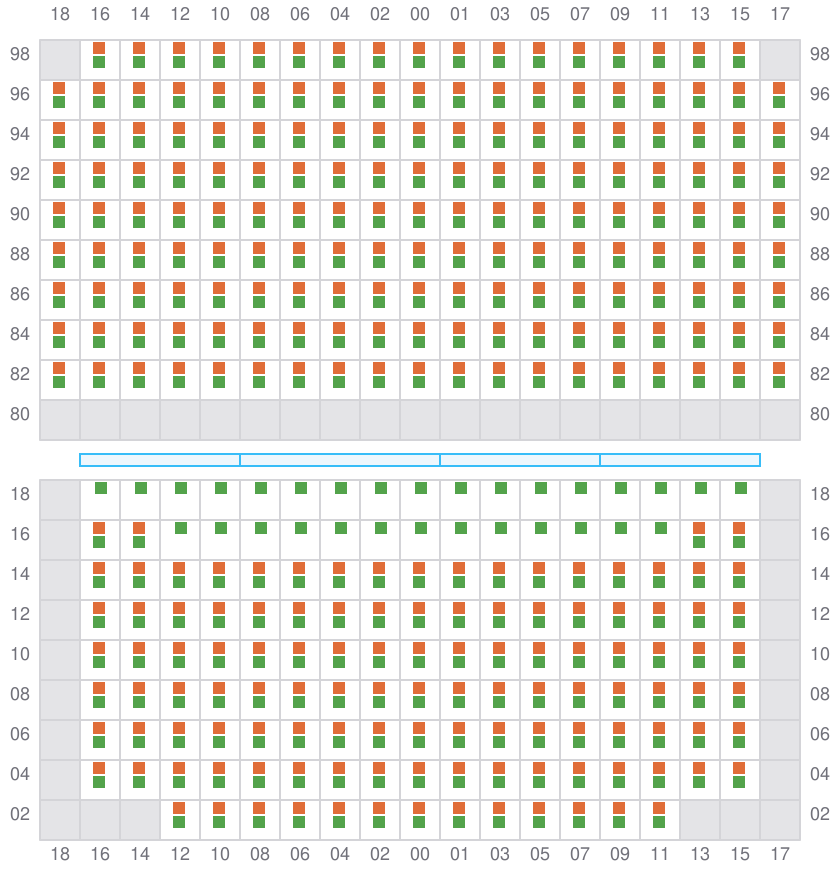

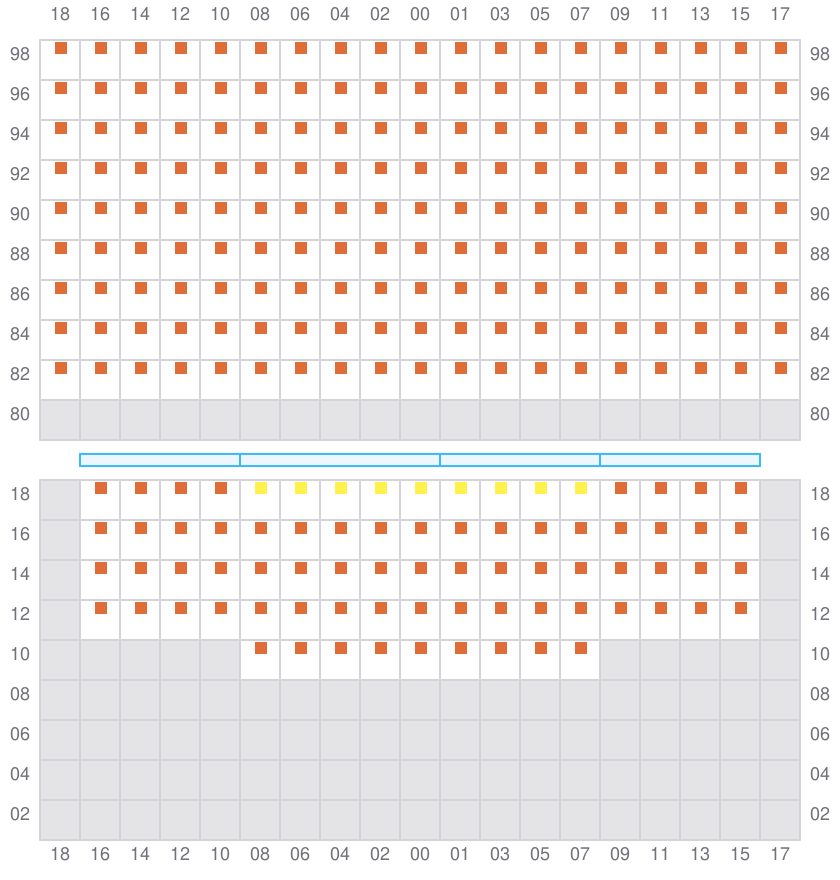

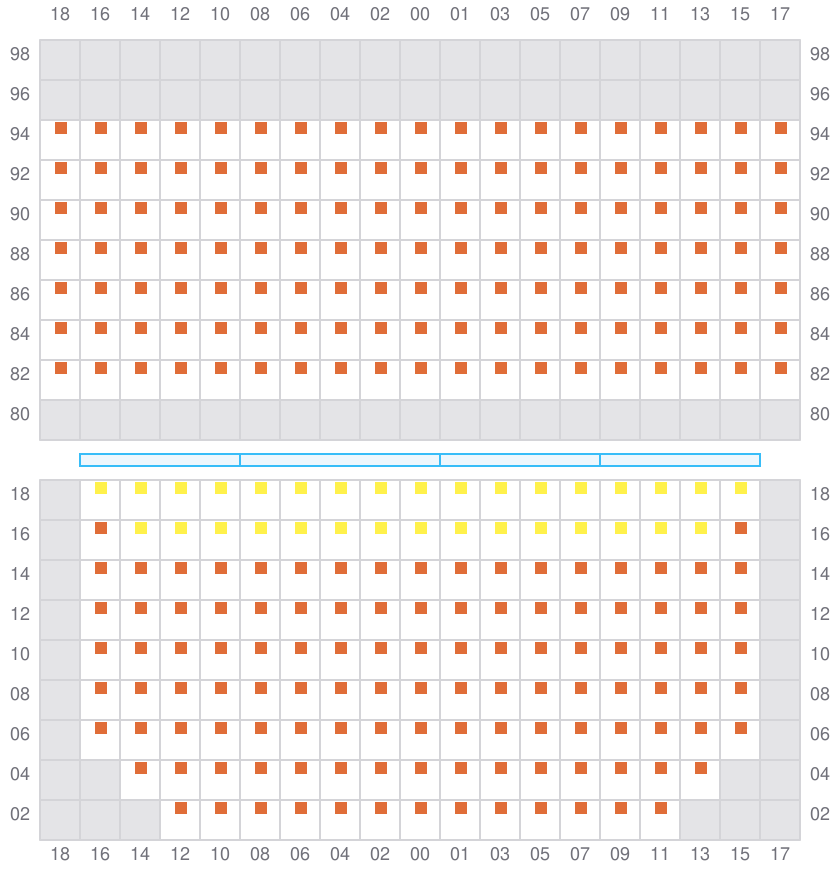

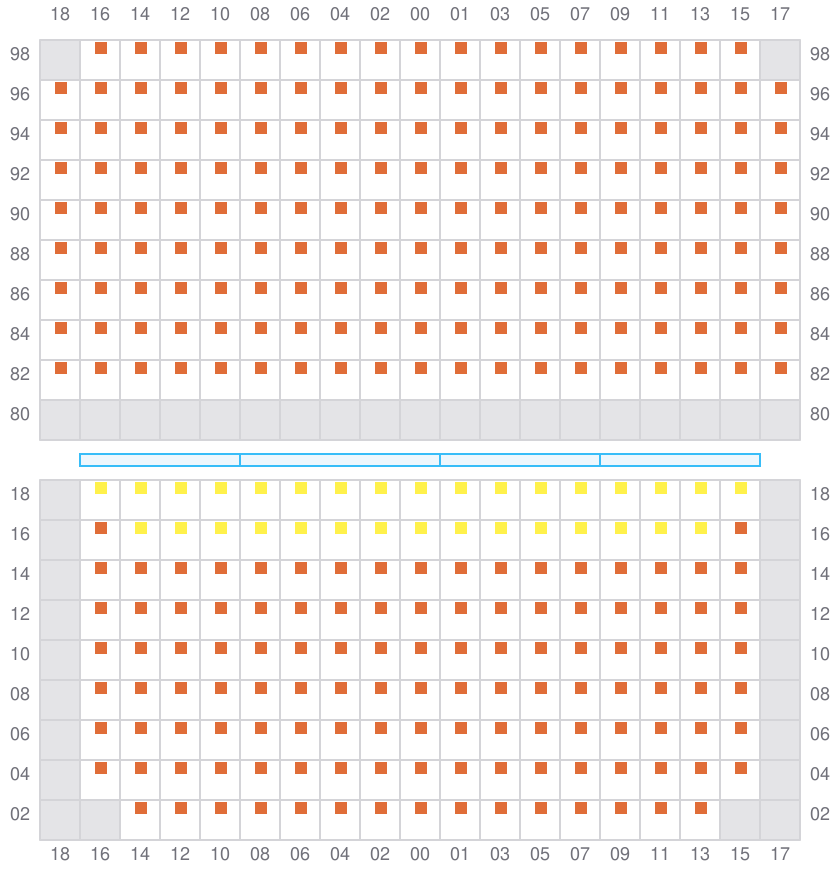

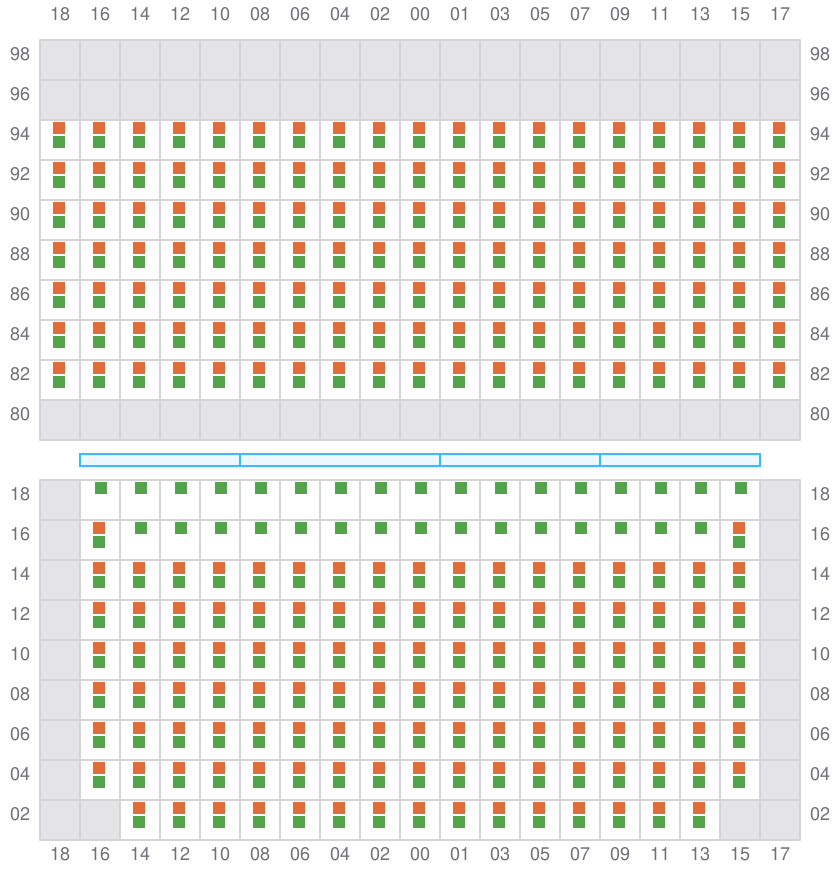

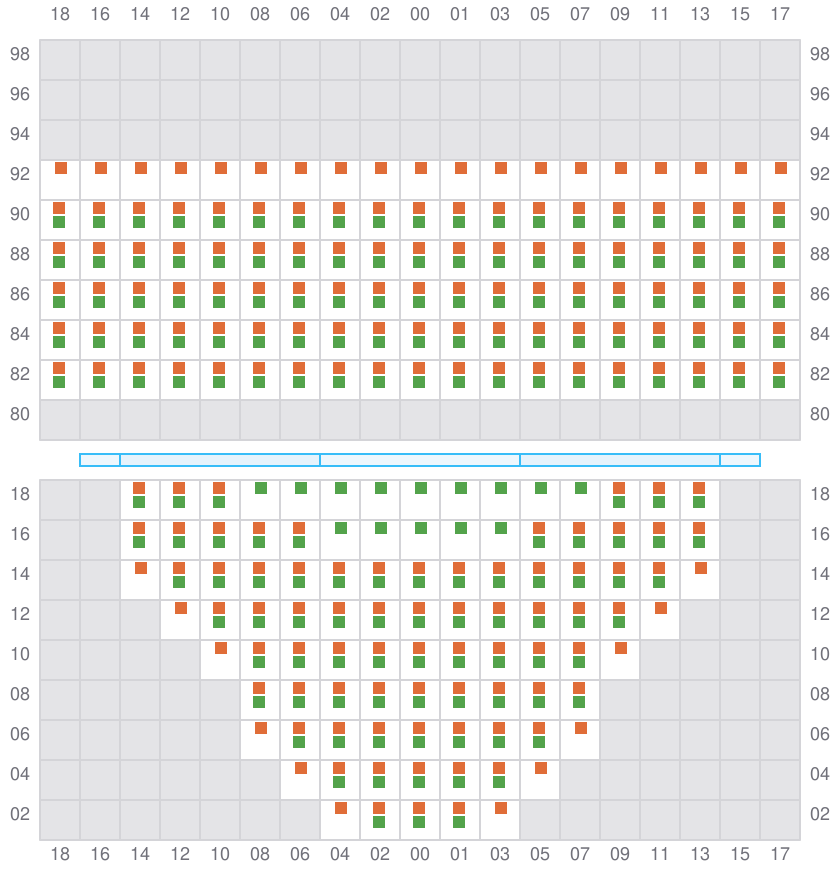

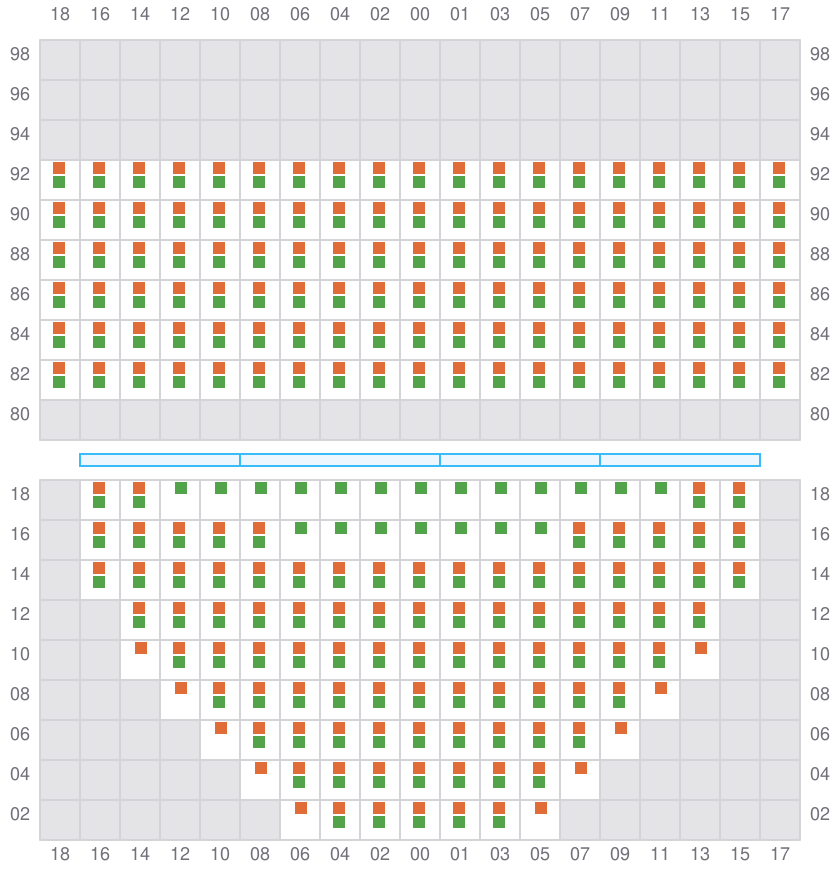

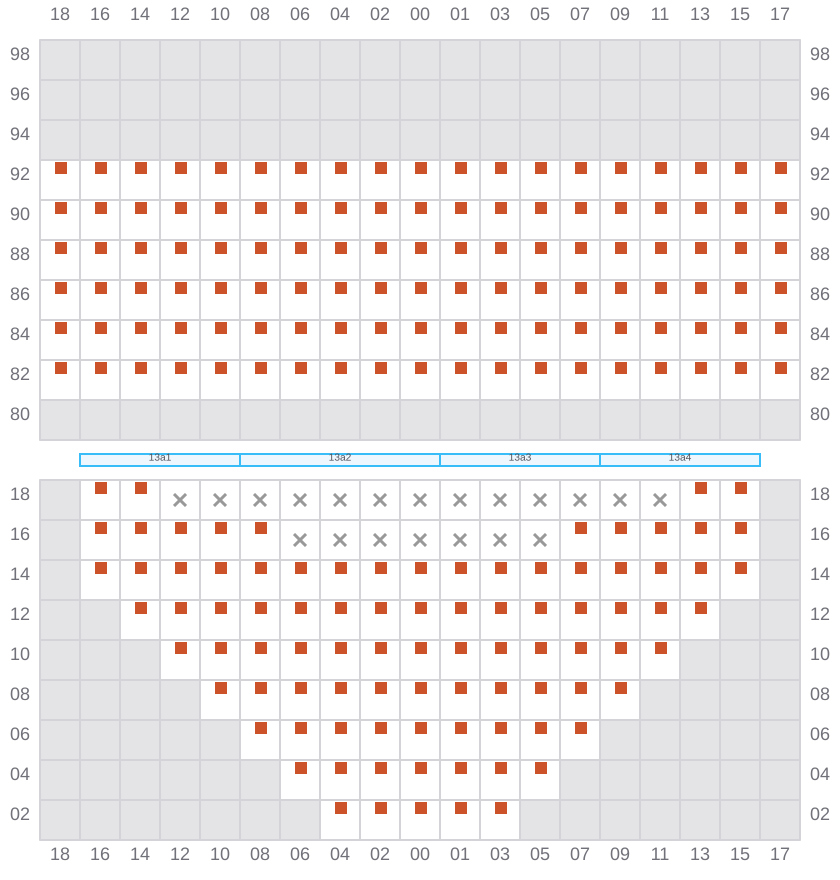

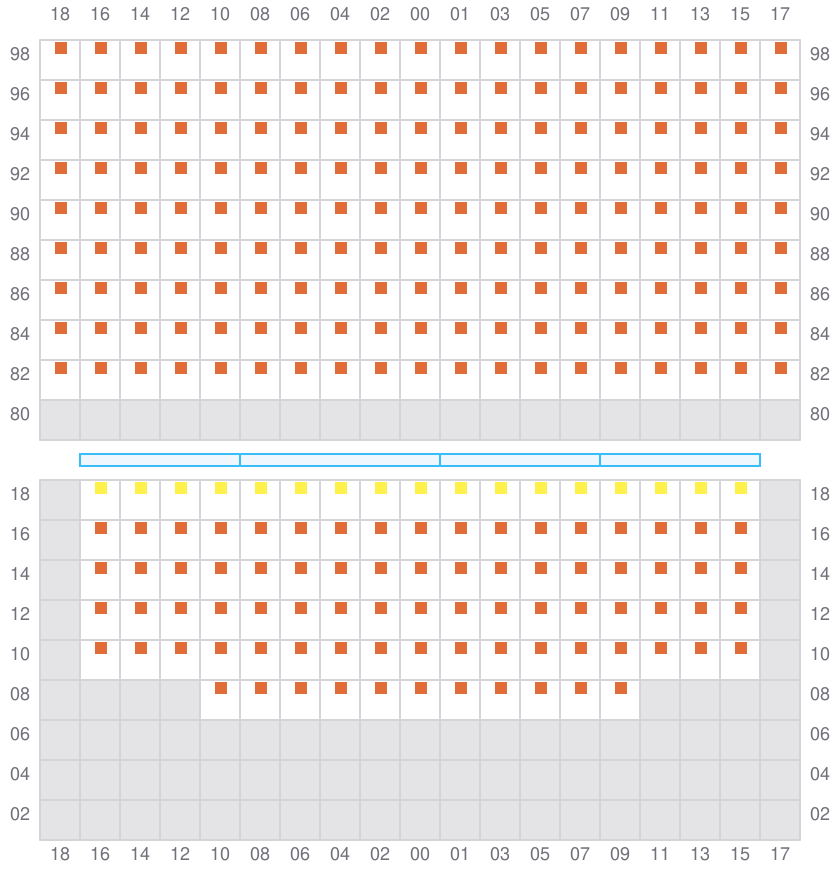

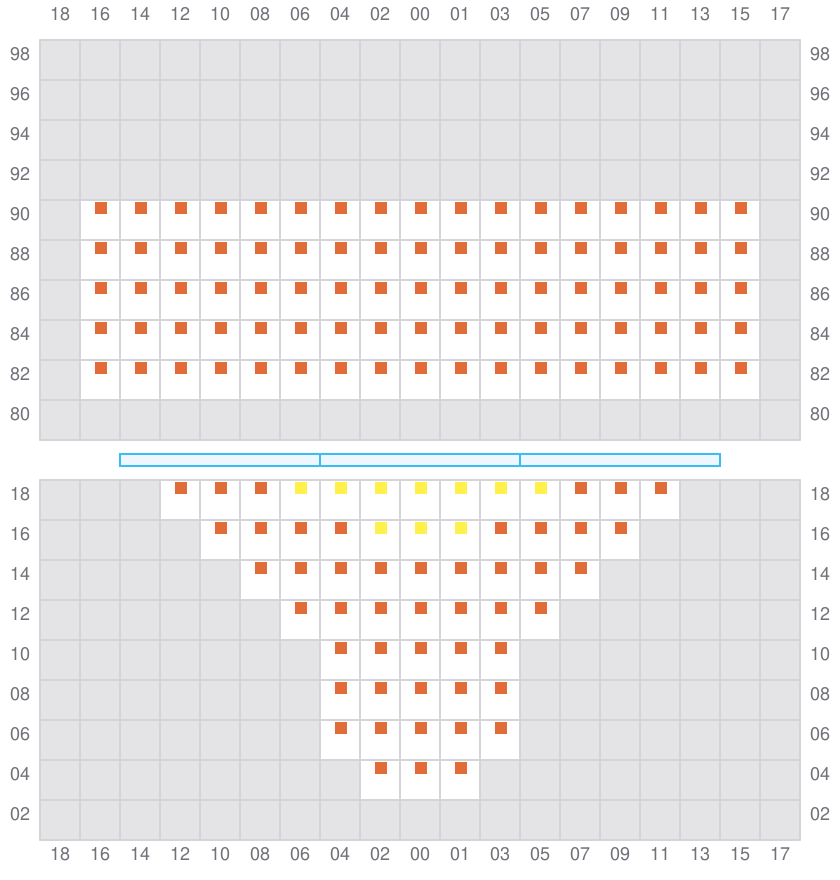

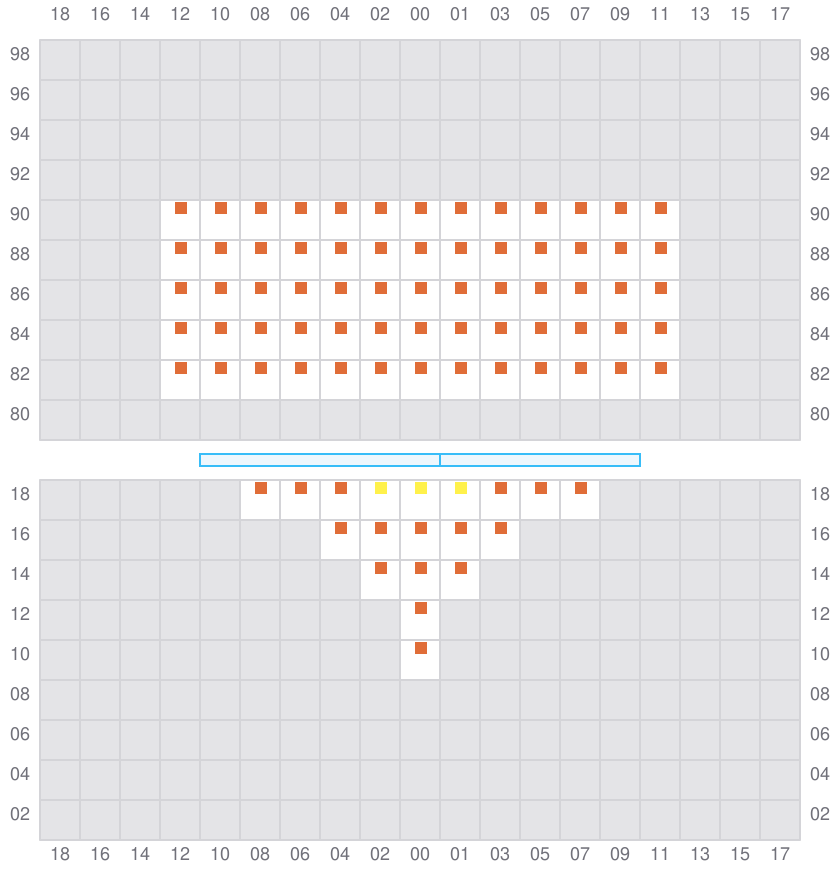

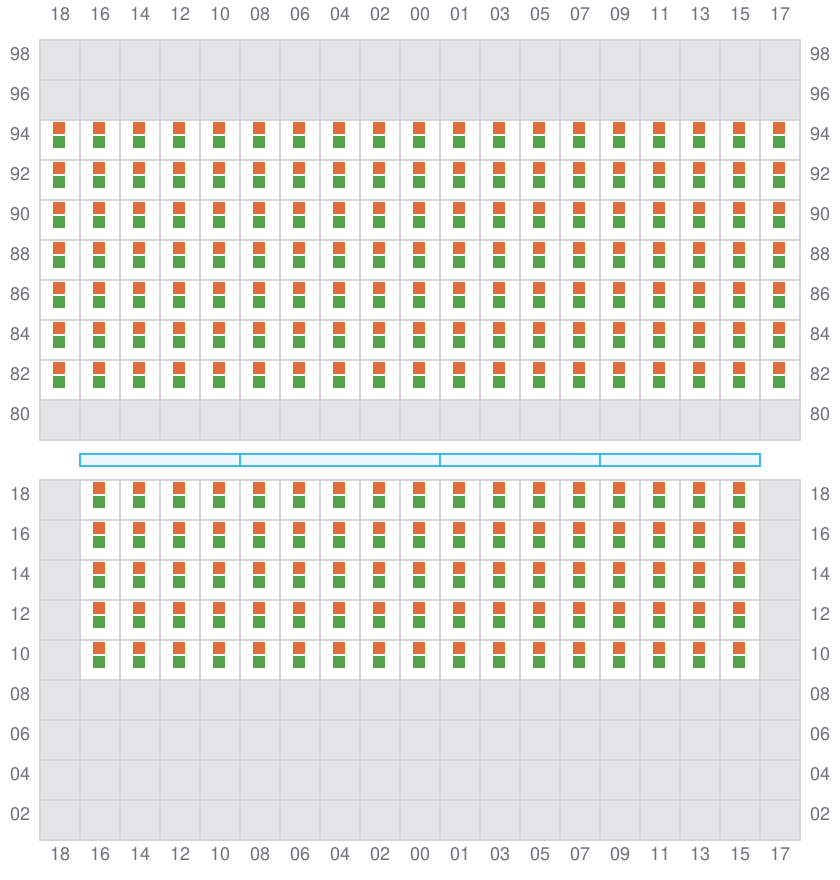

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →

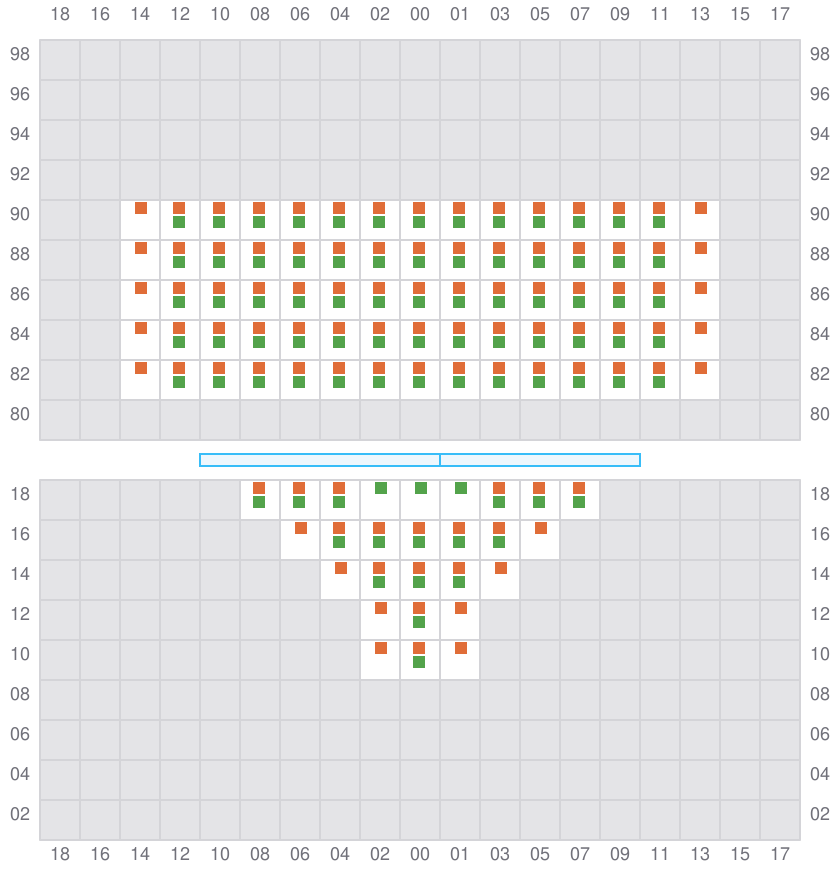

003 (002)
- ←
005
- →

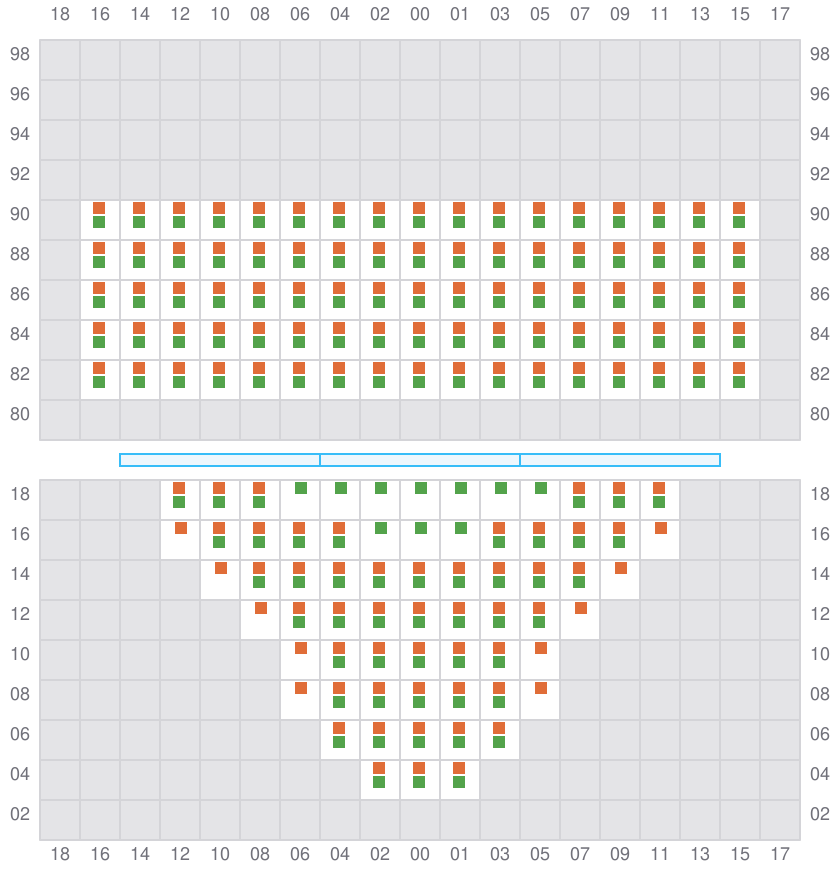

007 (006)
- ←

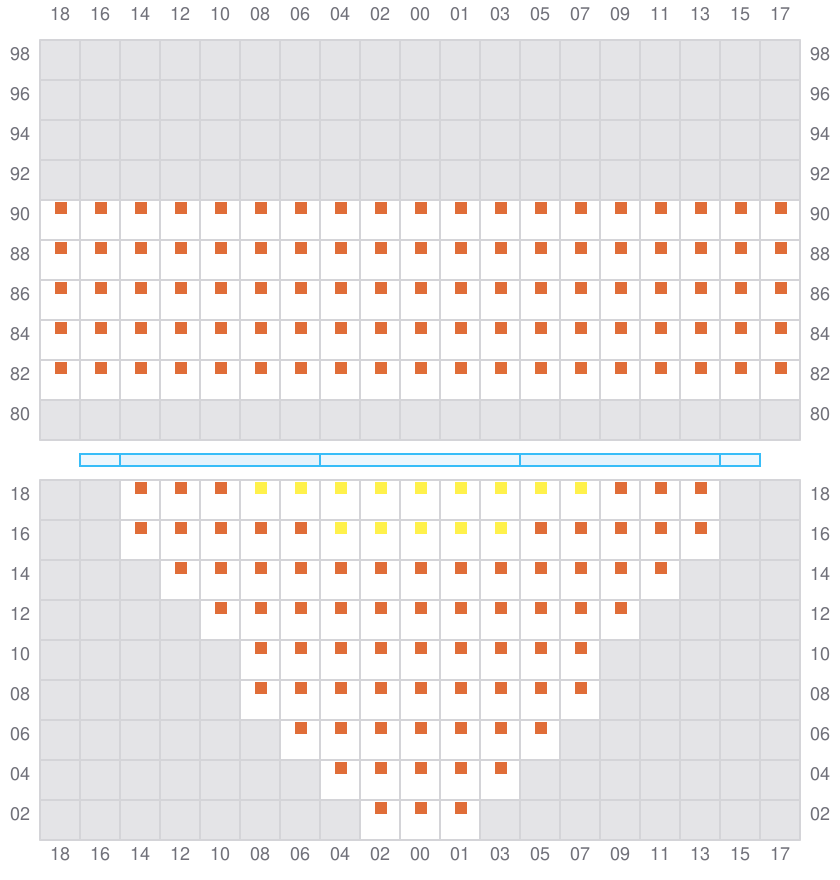

009
- →
011 (010)
- ←
013
- →
015 (014)
- ←

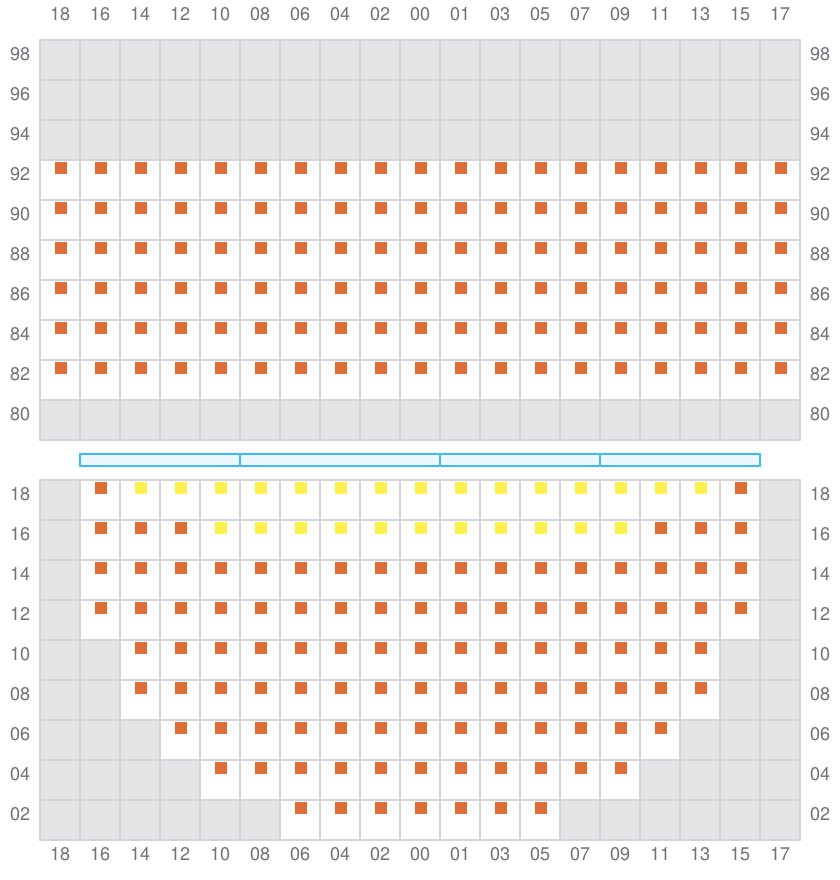

017
- →

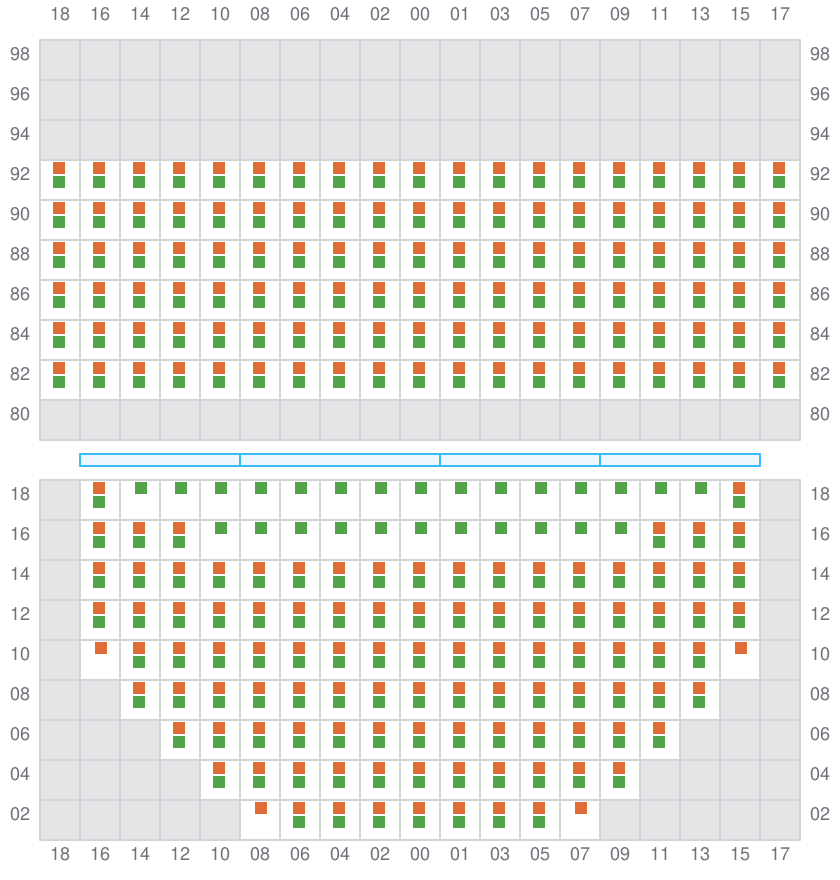

019 (018)
- ←
021
- →

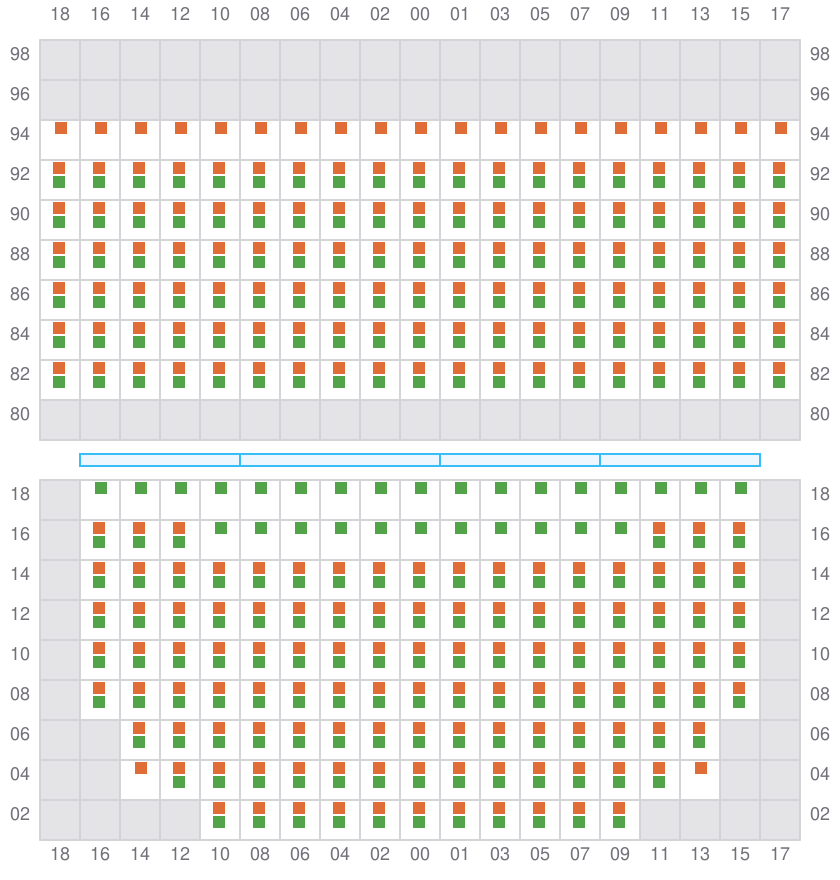

023 (022)
- ←
025
- →
027 (026)
- ←

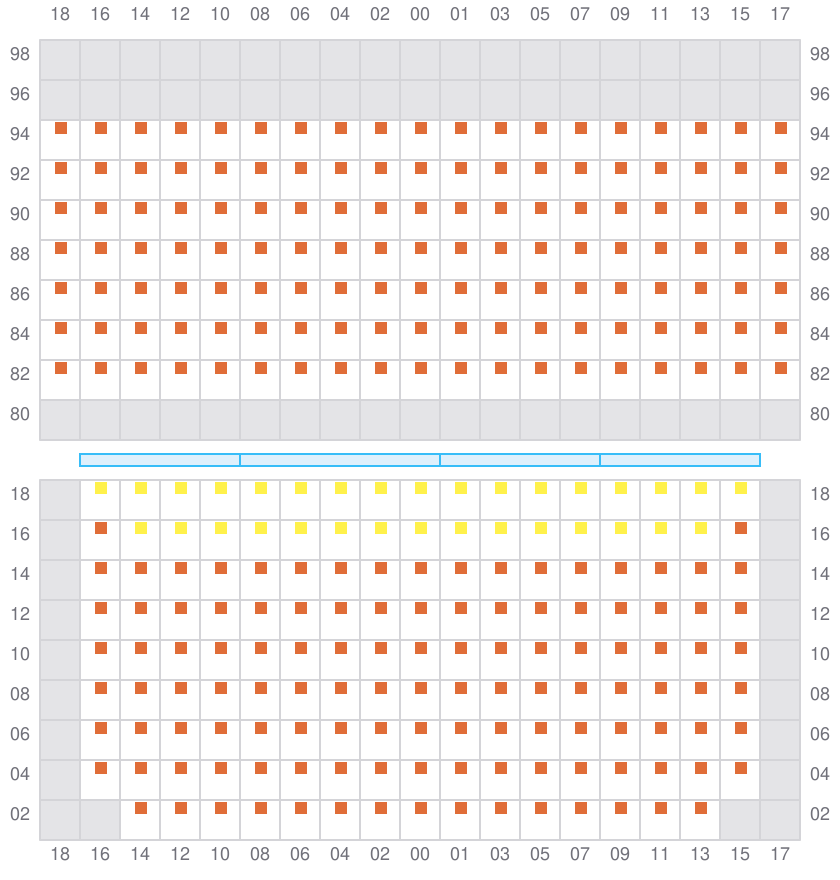

029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →

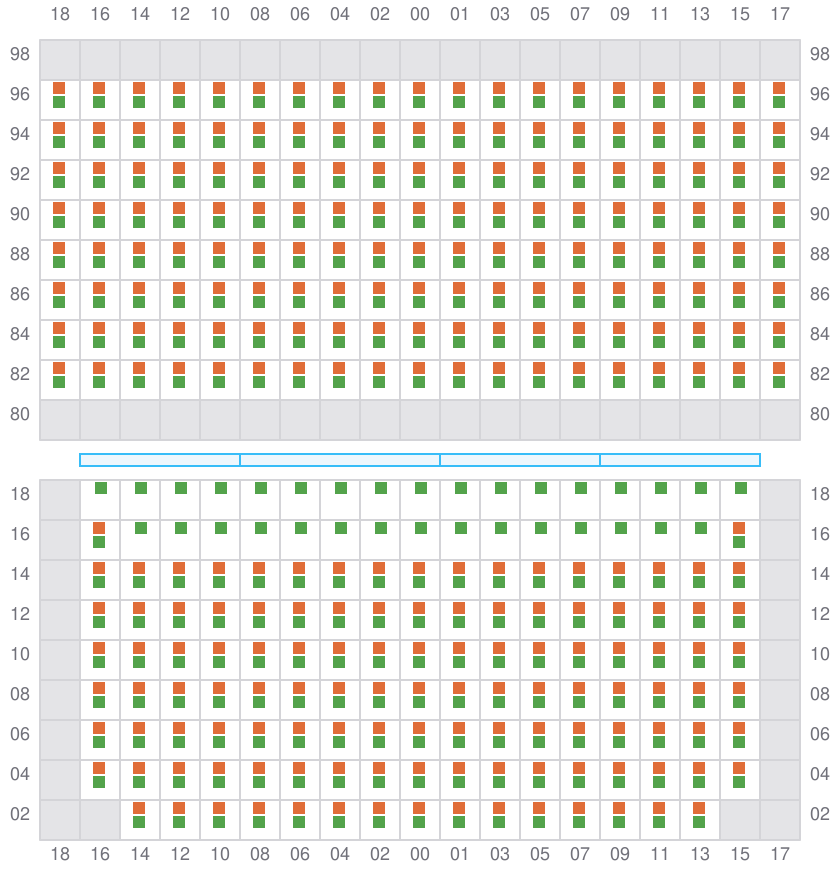

043 (042)
- ←
045
- →
047 (046)
- ←
049
- →

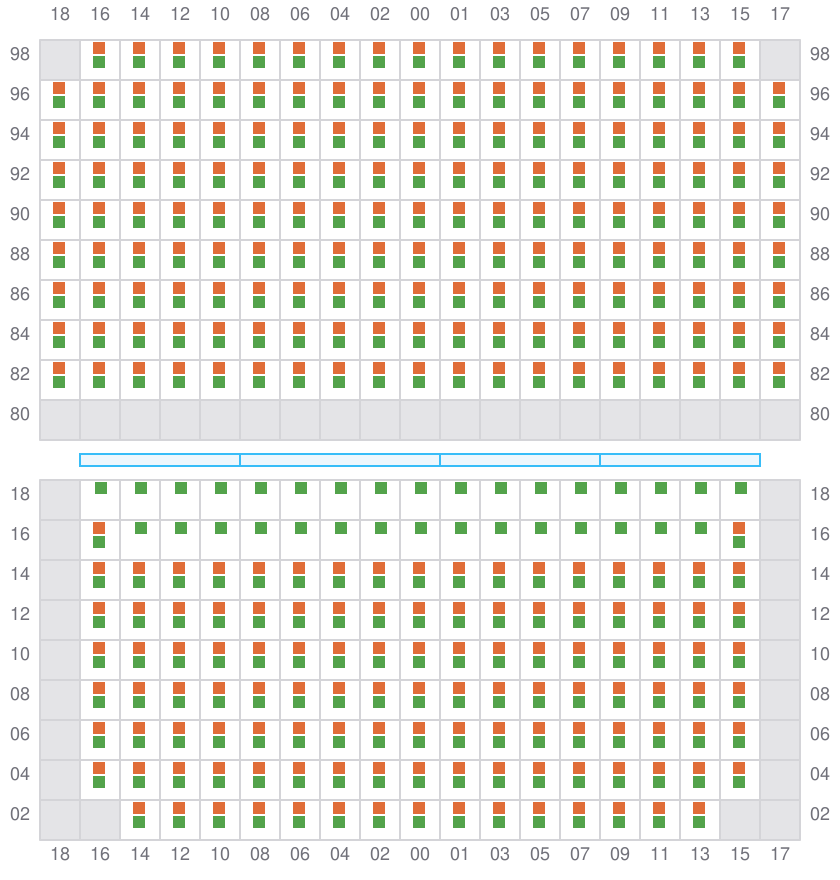

051 (050)
- ←

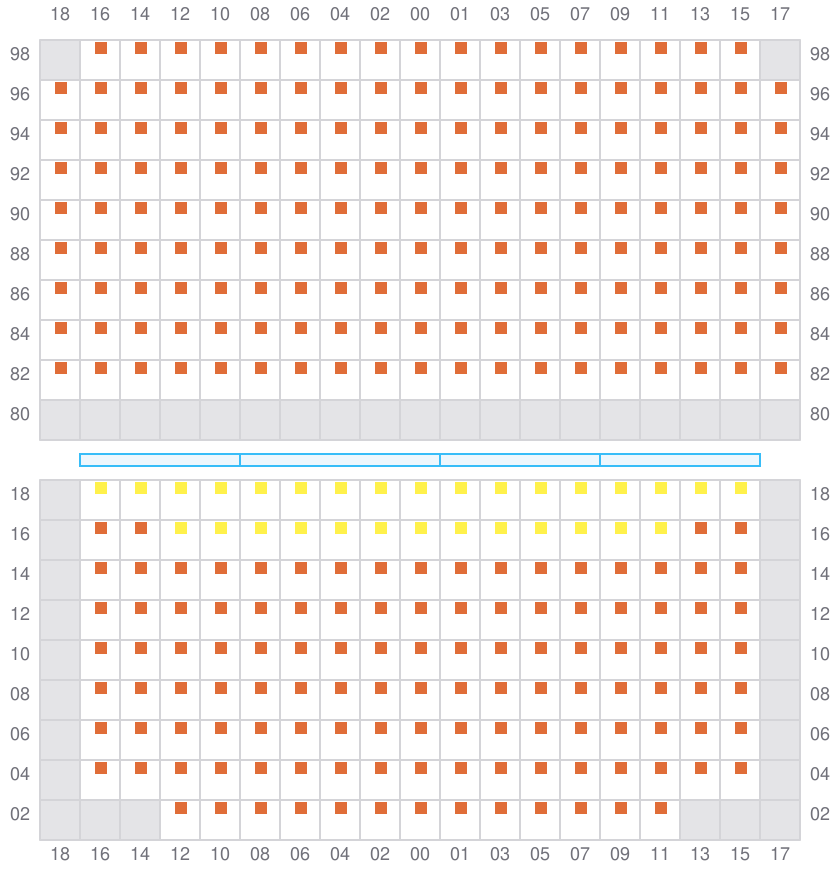

053
- →
055 (054)
- ←
057
- →
059 (058)
- ←
061
- →
063 (062)
- ←
065
- →

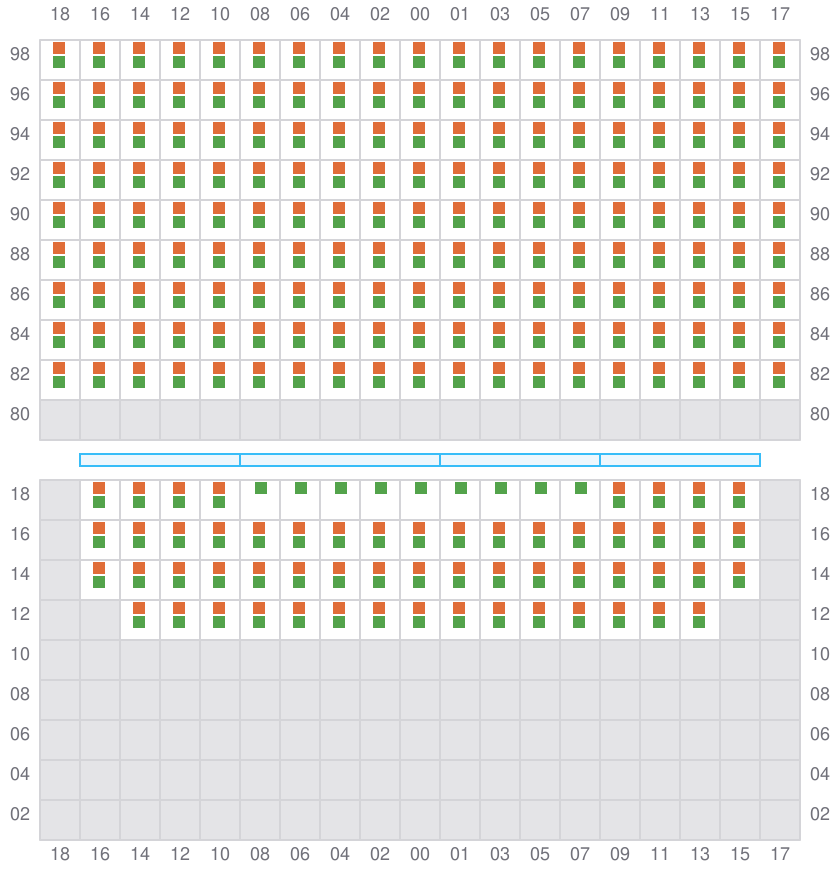

067 (066)
- ←

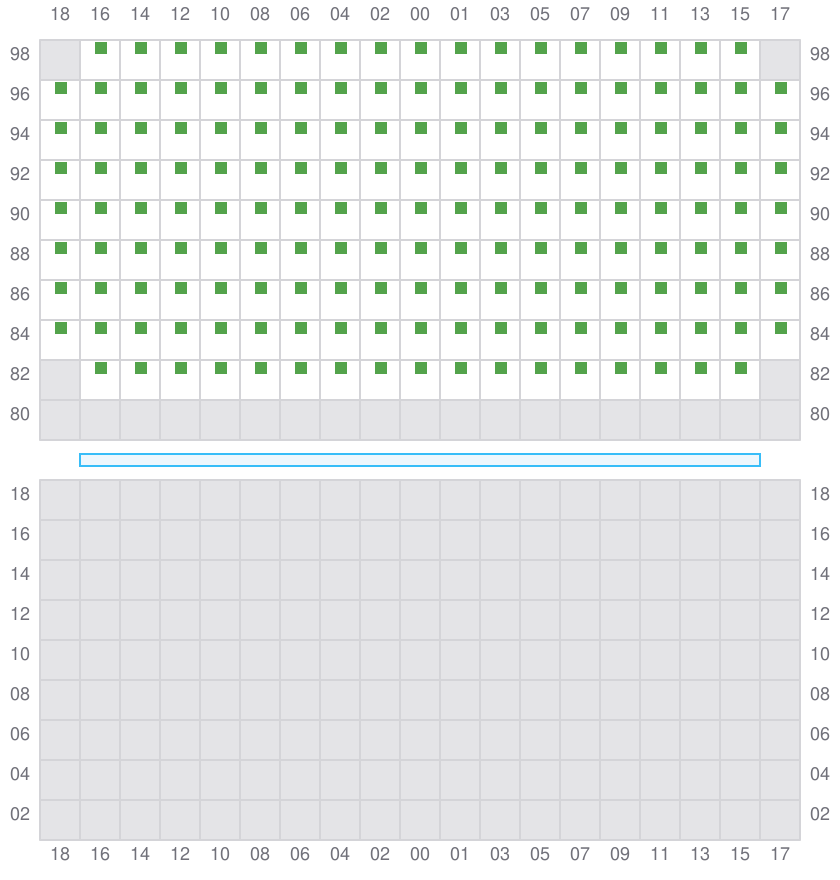

069 (070)
- → / ?
