MSC LISA
9281279 | H3MK | MSC MEDITERRANEAN SHIPPING CO by ************************** Last update: Sun Mar 17 2024
General Info
Ship Name:MSC LISA
IMO Code:9281279
Call Sign:H3MK
Line Operator:MSC MEDITERRANEAN SHIPPING CO
Class Name for Sister Ships:LIA
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):288.00
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,099
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

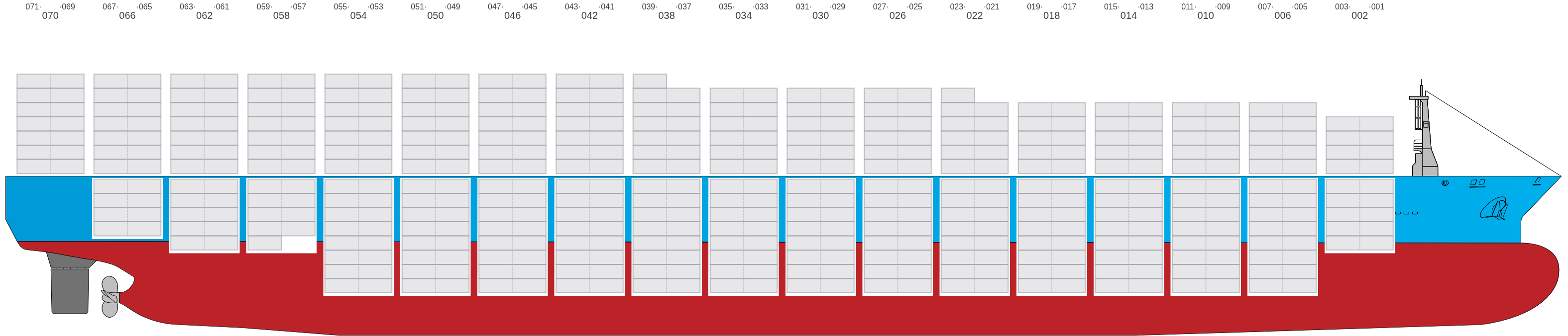

Side View
![Side view of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-sideView.png?v=1710713858679)

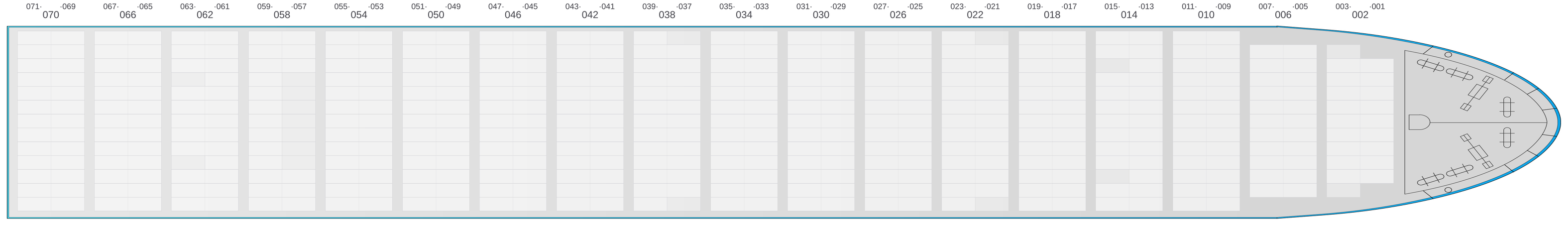

Hatch-Covers View
![Deck view of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-deckView.png?v=1710713858679)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

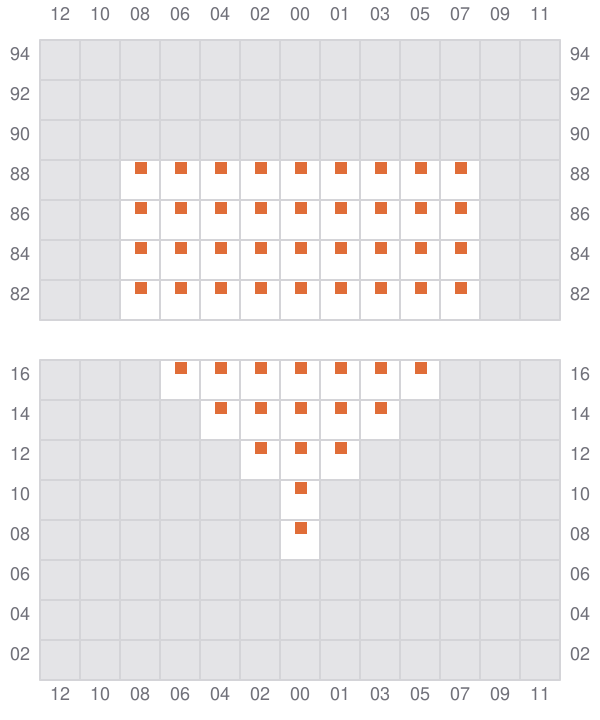

001
- →
- ✓
![Bay 001 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b001.png?v=1710713858679)

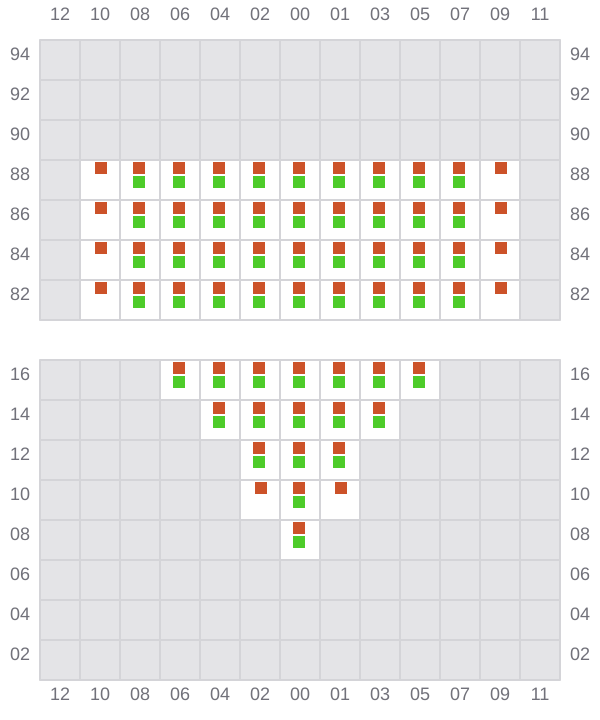

003 (002)
- ←
- ✓
![Bay 003 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b003.png?v=1710713858679)

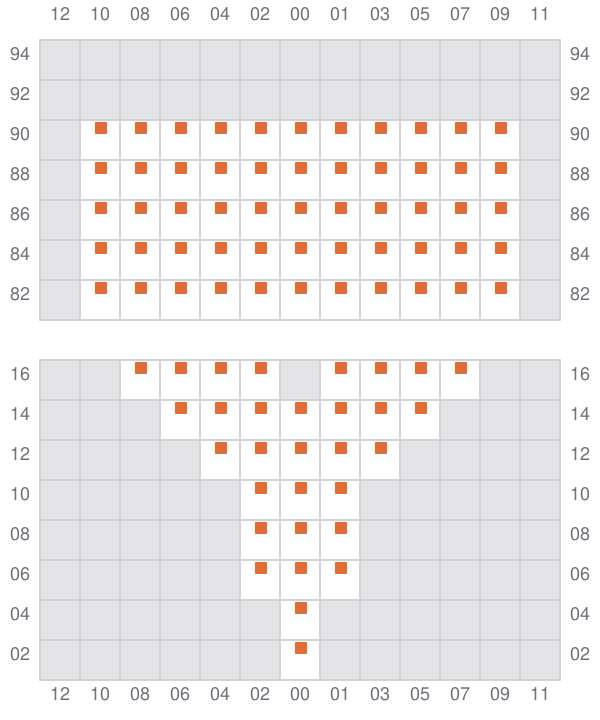

005
- →
- ✓
![Bay 005 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b005.png?v=1710713858679)

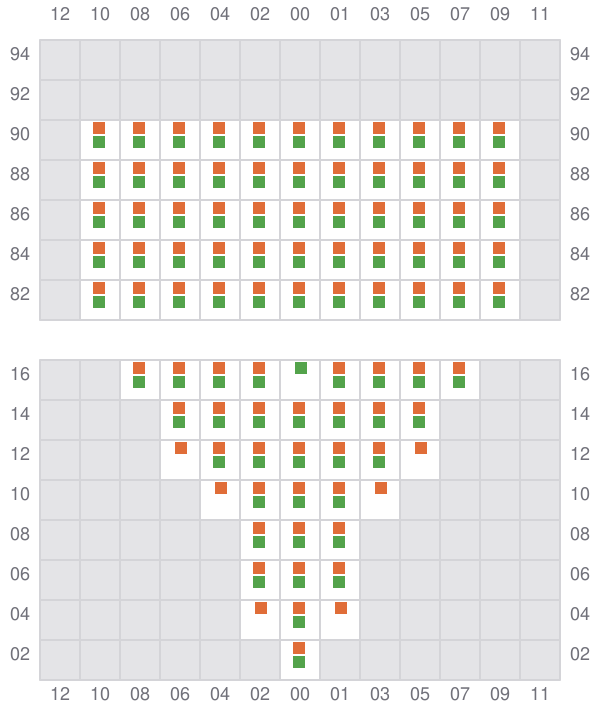

007 (006)
- ←
- ✓
![Bay 007 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b007.png?v=1710713858679)

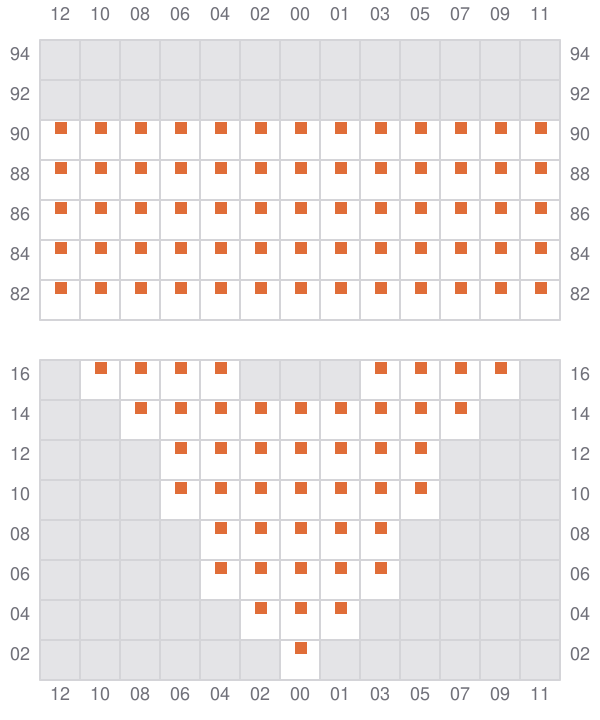

009
- →
- ✓
![Bay 009 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b009.png?v=1710713858679)
011 (010)
- ←
- ✓

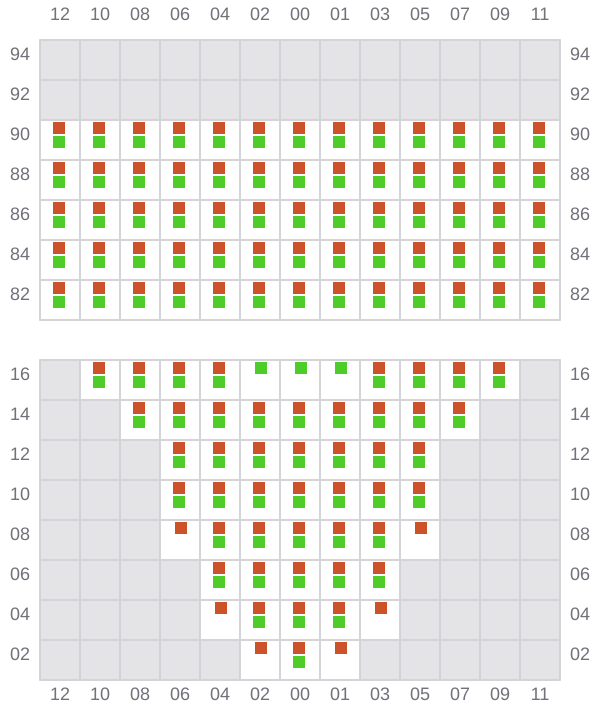

![Bay 011 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b011.png?v=1710713858679)

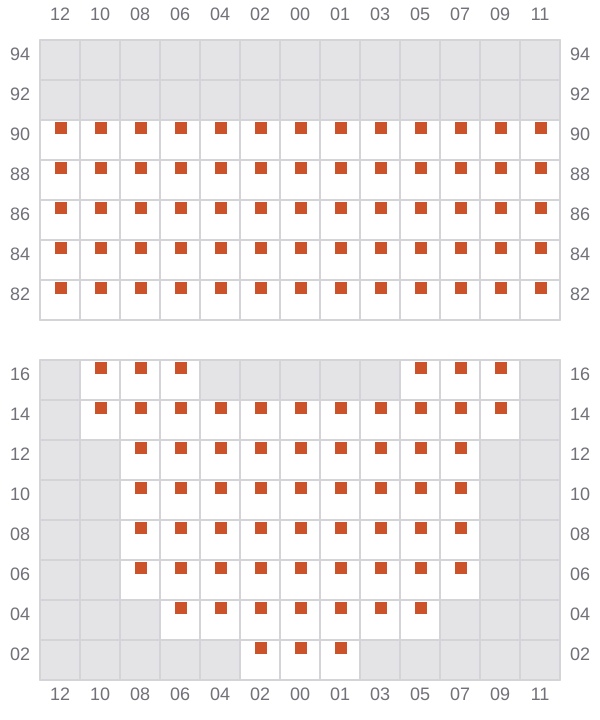

013
- →
- ✓
![Bay 013 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b013.png?v=1710713858679)

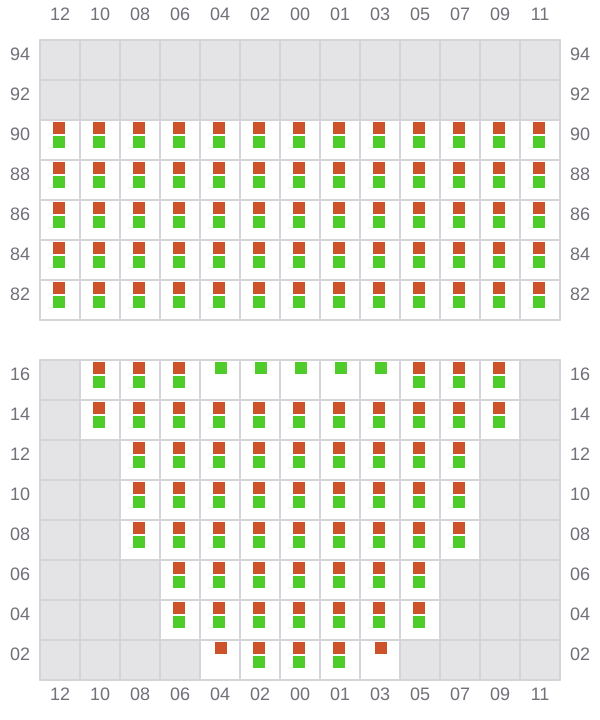

015 (014)
- ←
- ✓
![Bay 015 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b015.png?v=1710713858679)
017
- →
- ✓

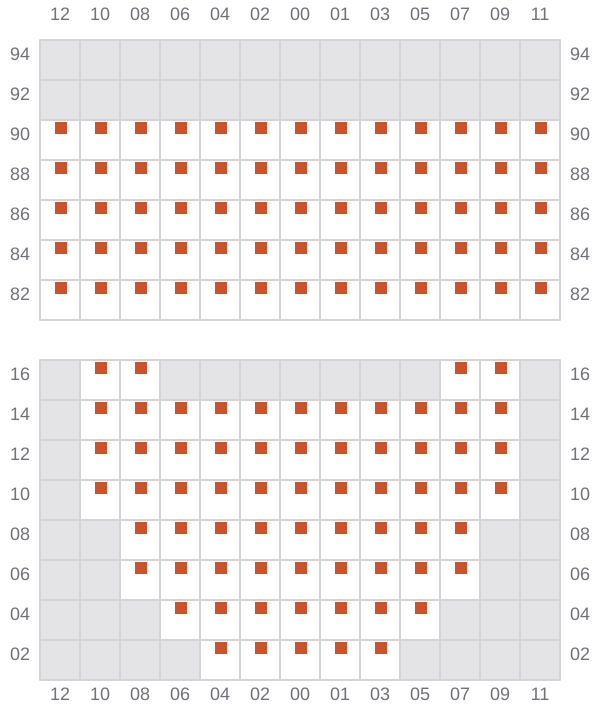

![Bay 017 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b017.png?v=1710713858679)

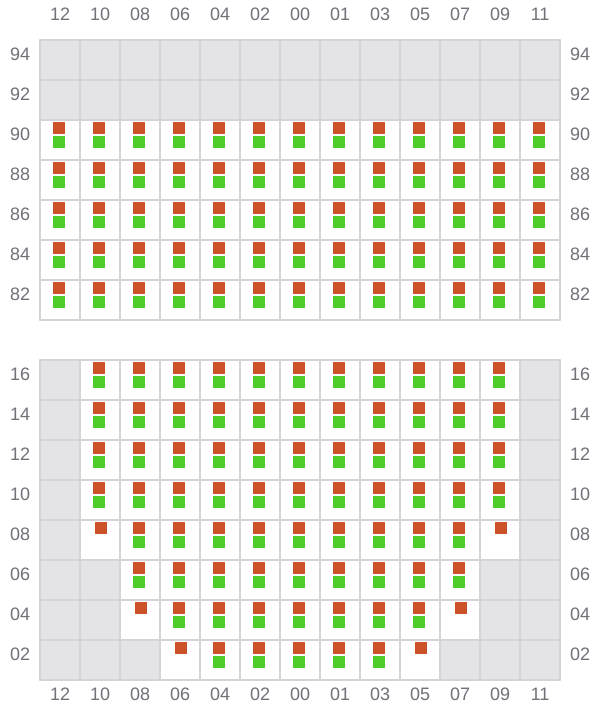

019 (018)
- ←
- ✓
![Bay 019 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b019.png?v=1710713858679)

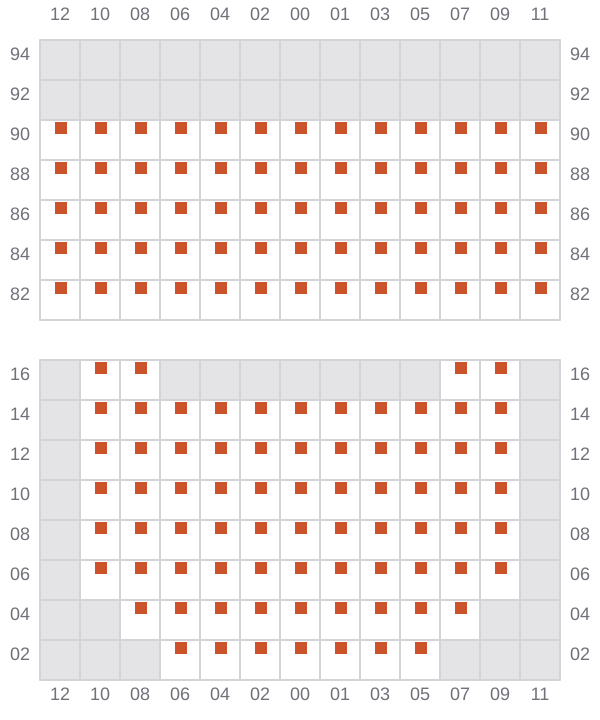

021
- →
- ✓
![Bay 021 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b021.png?v=1710713858679)

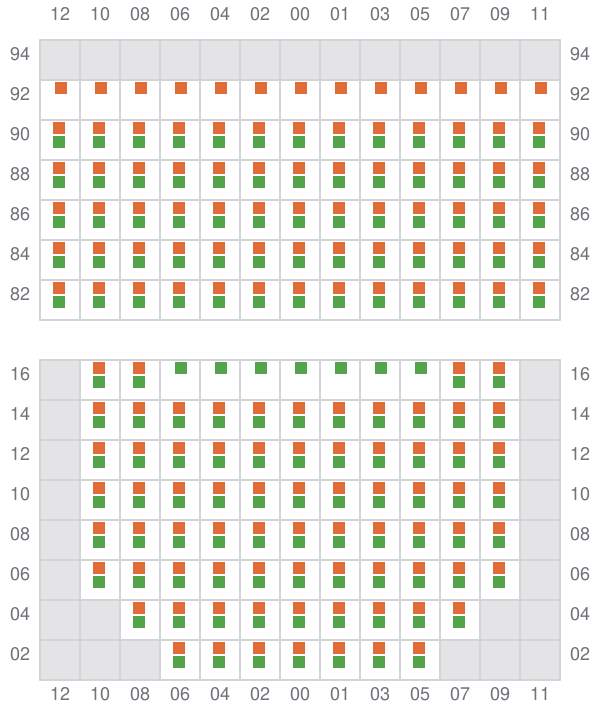

023 (022)
- ←
- ✓
![Bay 023 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b023.png?v=1710713858679)
025
- →
- ✓
![Bay 025 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b025.png?v=1710713858679)

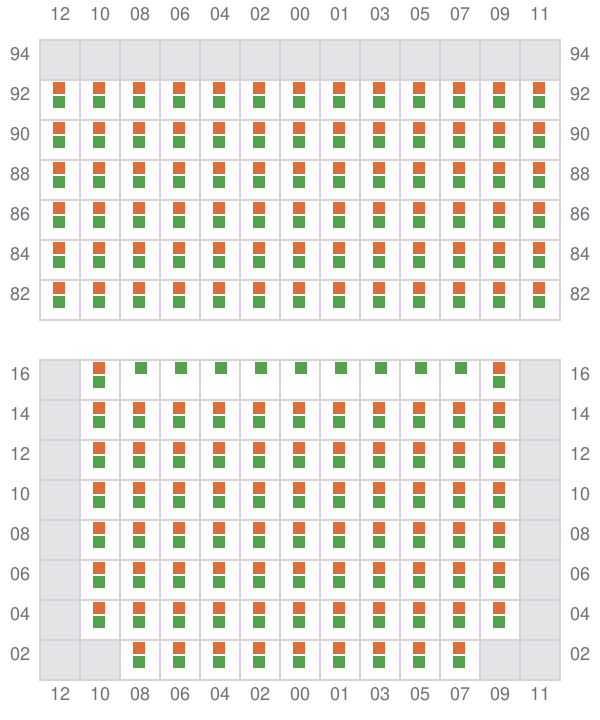

027 (026)
- ←
- ✓
![Bay 027 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b027.png?v=1710713858679)
029
- →
- ✓

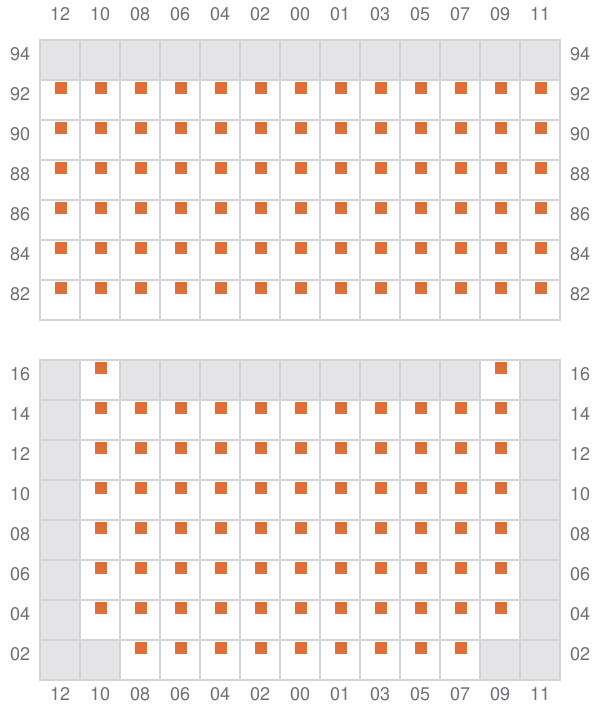

![Bay 029 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b029.png?v=1710713858679)
031 (030)
- ←
- ✓
![Bay 031 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b031.png?v=1710713858679)
033
- →
- ✓
![Bay 033 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b033.png?v=1710713858679)
035 (034)
- ←
- ✓
![Bay 035 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b035.png?v=1710713858679)
037
- →
- ✓

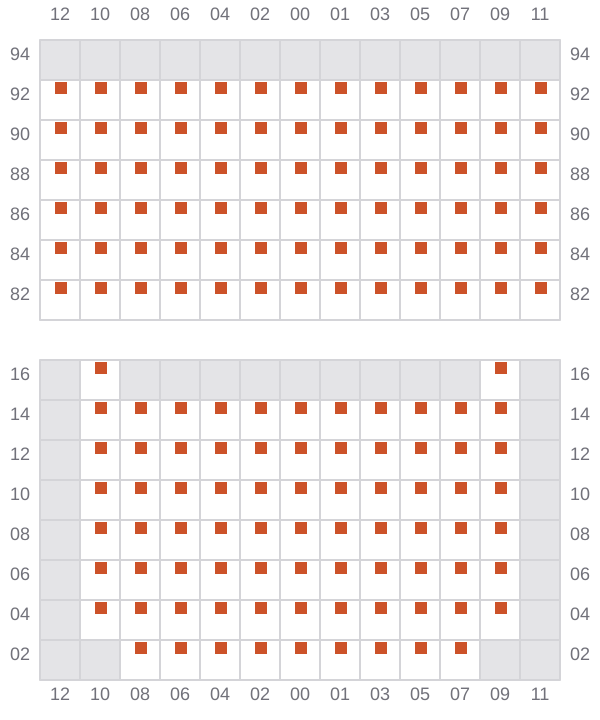

![Bay 037 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b037.png?v=1710713858679)
039 (038)
- ←
- ✓

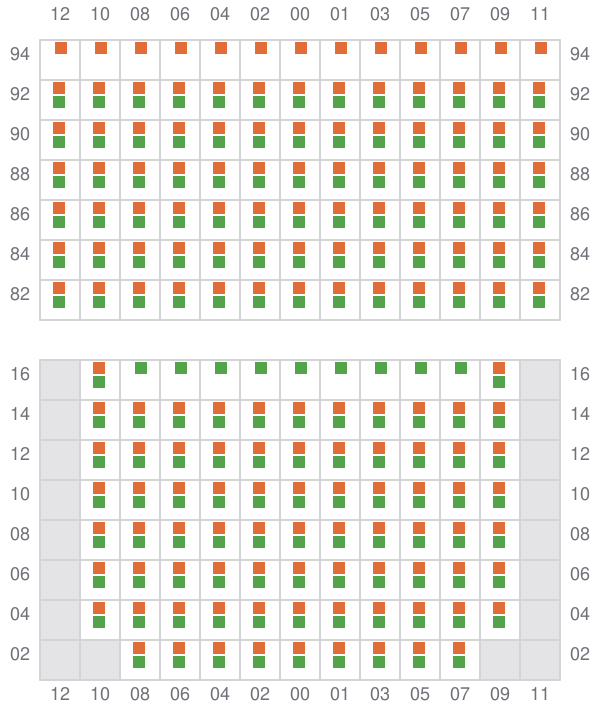

![Bay 039 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b039.png?v=1710713858679)
041
- →
- ✓
![Bay 041 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b041.png?v=1710713858679)
043 (042)
- ←
- ✓
![Bay 043 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b043.png?v=1710713858679)
045
- →
- ✓

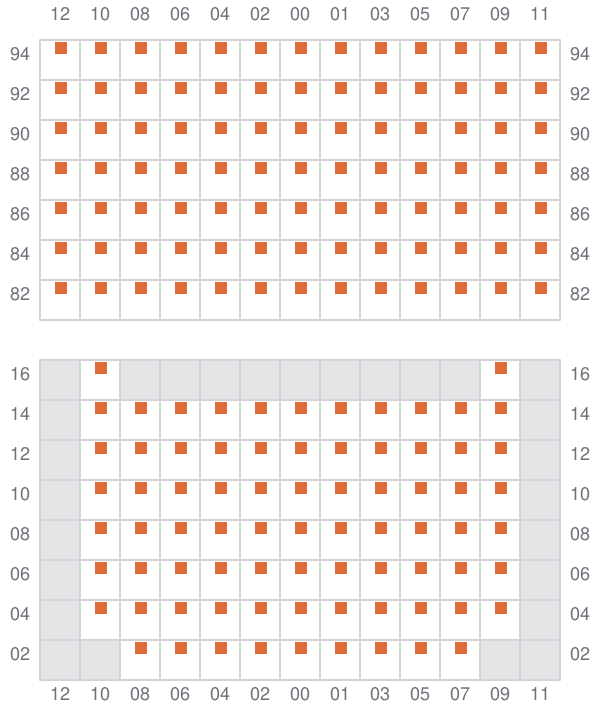

![Bay 045 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b045.png?v=1710713858679)

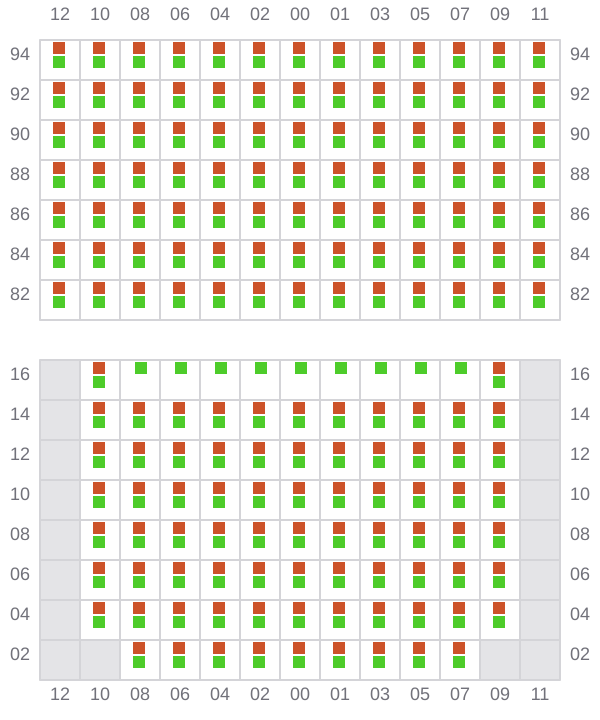

047 (046)
- ←
- ✓
![Bay 047 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b047.png?v=1710713858679)

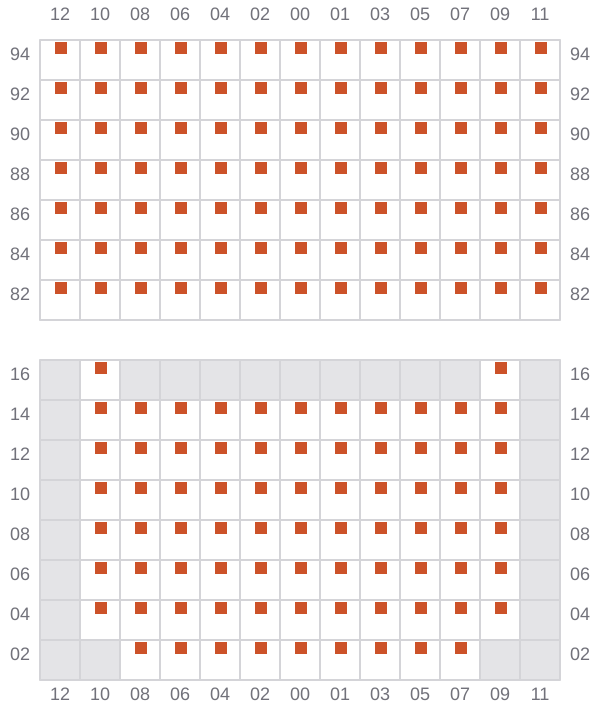

049
- →
- ✓
![Bay 049 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b049.png?v=1710713858679)

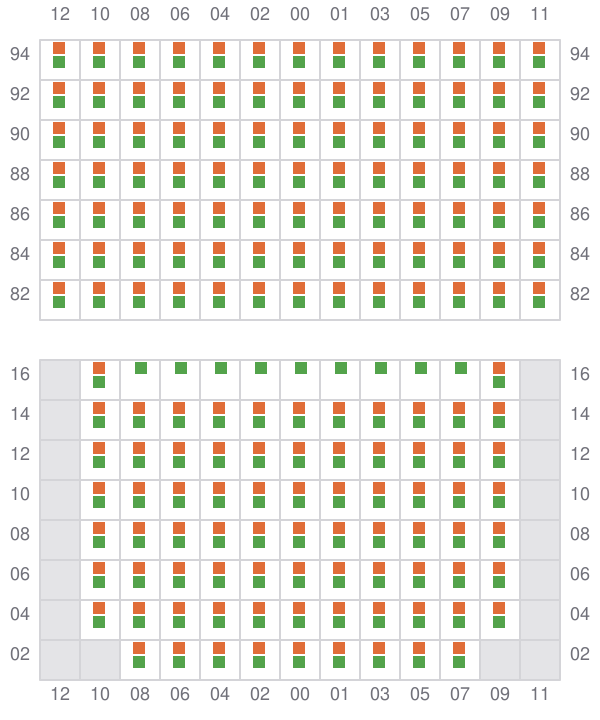

051 (050)
- ←
- ✓
![Bay 051 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b051.png?v=1710713858679)
053
- →
- ✓
![Bay 053 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b053.png?v=1710713858679)
055 (054)
- ←
- ✓
![Bay 055 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b055.png?v=1710713858679)
057
- →
- ✓
![Bay 057 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b057.png?v=1710713858679)

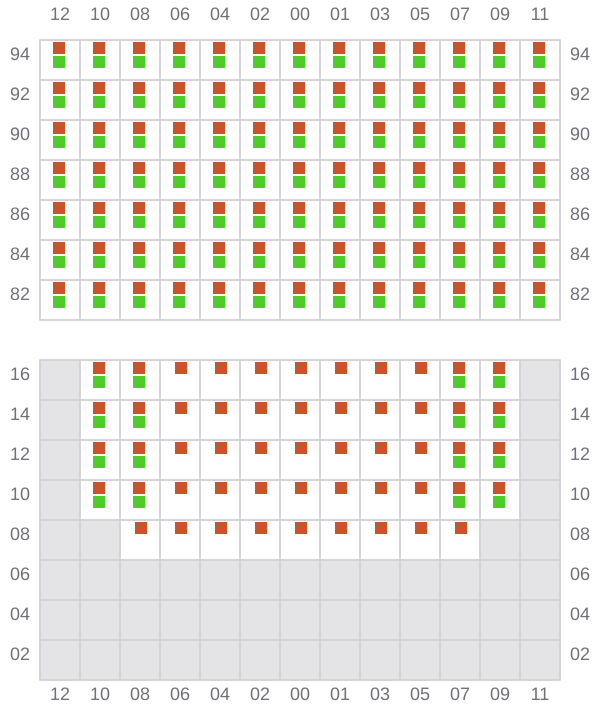

059 (058)
- ←
- ✓
![Bay 059 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b059.png?v=1710713858679)
061
- →
- ✓

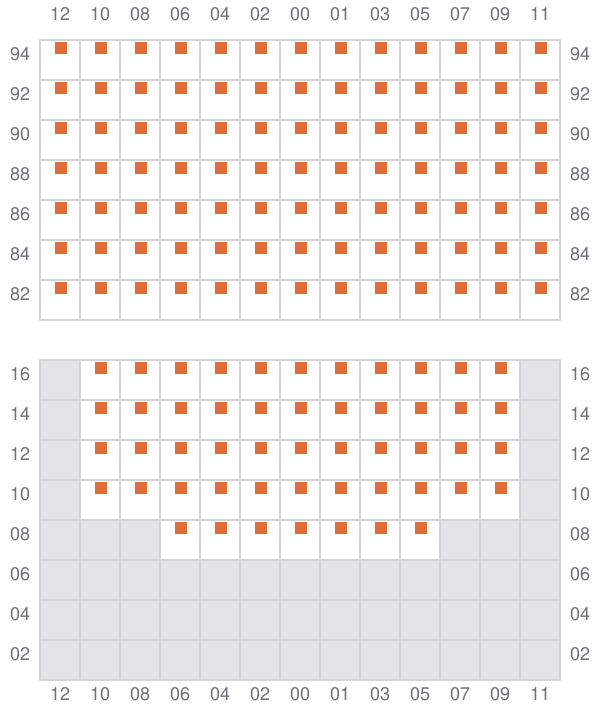

![Bay 061 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b061.png?v=1710713858679)

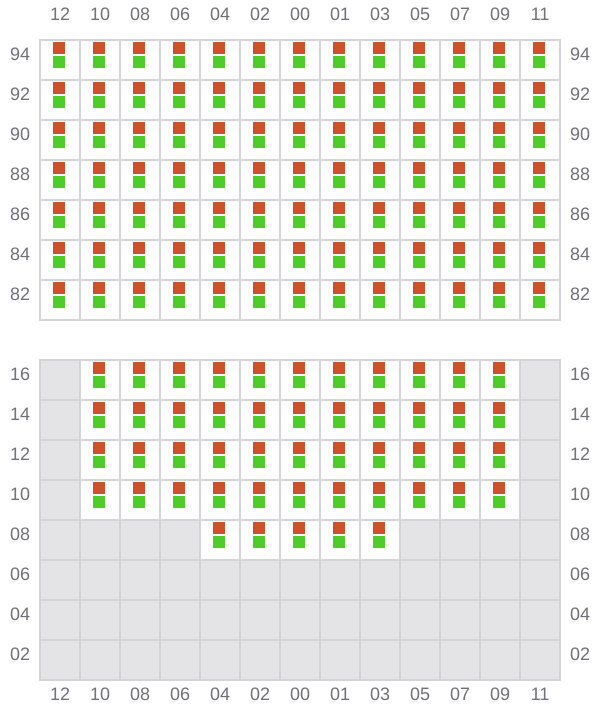

063 (062)
- ←
- ✓
![Bay 063 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b063.png?v=1710713858679)

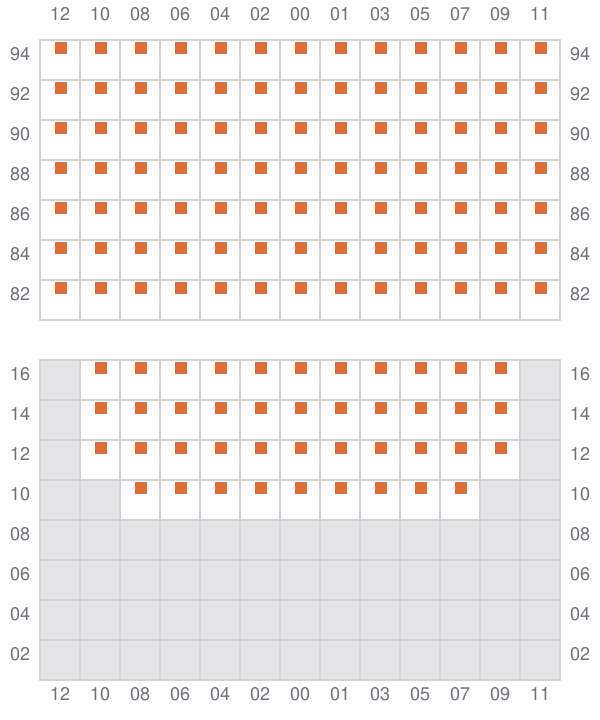

065
- →
- ✓
![Bay 065 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b065.png?v=1710713858679)

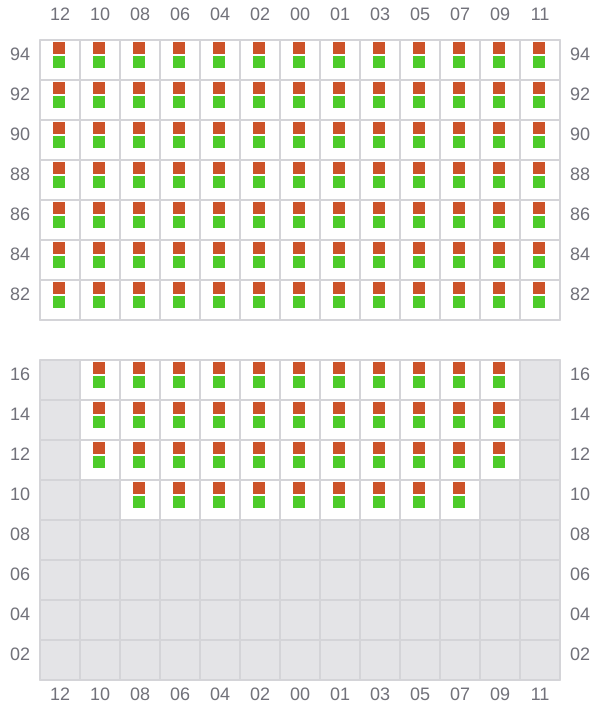

067 (066)
- ←
- ✓
![Bay 067 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b067.png?v=1710713858679)

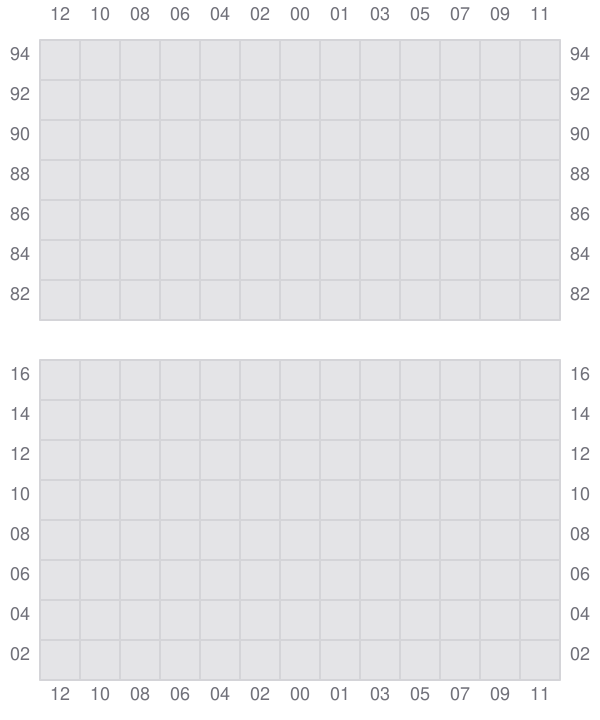

069
- →
- ✓
![Bay 069 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b069.png?v=1710713858679)
071 (070)
- ←
- ? / ?
- ? / ?
- ✓
![Bay 071 view and slots of MSC LISA](/vessel-images/85e7287e-1d45-4e9c-b067-a09062333991-b071.png?v=1710713858679)
