MSC LUCY
9289104 | 3EBC5 | MSC by ************************** Last update: Sun Jun 18 2023

General Info

Ship Name:MSC LUCY

IMO Code:9289104

Call Sign:3EBC5

Line Operator:MSC

Class Name for Sister Ships:LCY

Year Built:2005

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:077

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:90

Min Above ISO Tier:70

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,745

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of MSC LUCY

Hatch-Covers View

Deck view of MSC LUCY

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

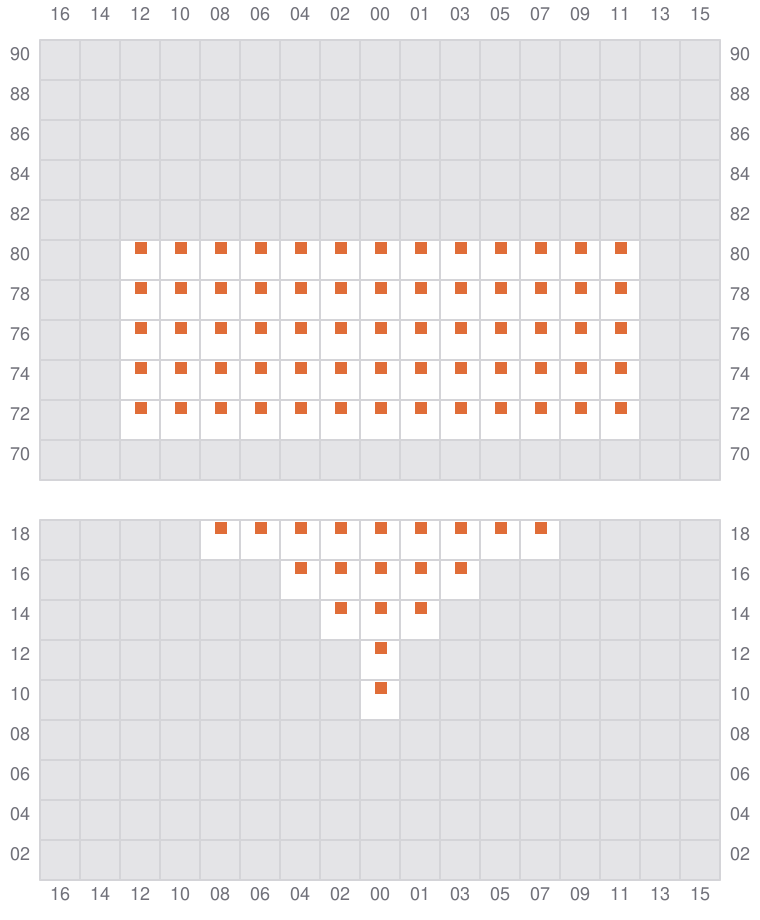

Bay 001 view and slots of MSC LUCY

003

→

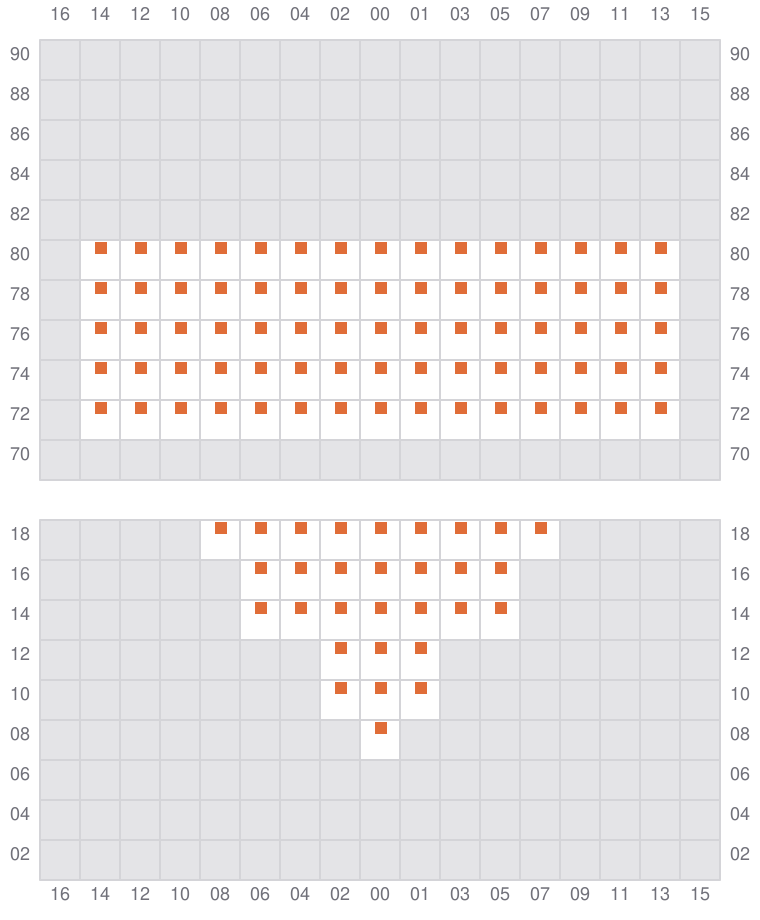

Bay 003 view and slots of MSC LUCY

005 (004)

←
^? / _←

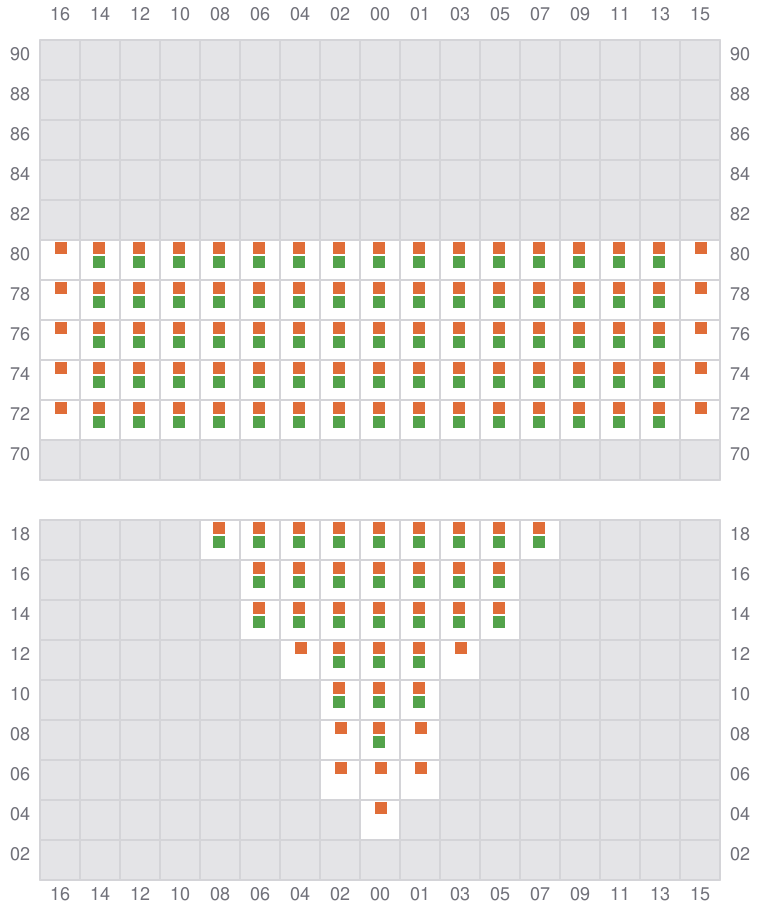

Bay 005 view and slots of MSC LUCY

007

→

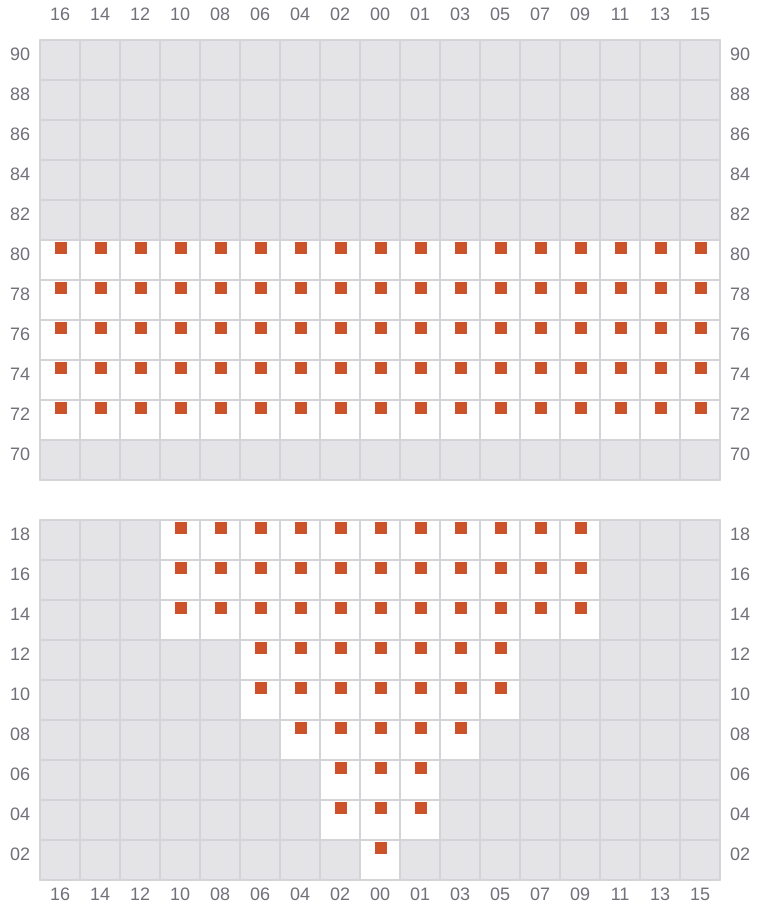

Bay 007 view and slots of MSC LUCY

009 (008)

←
^? / _←

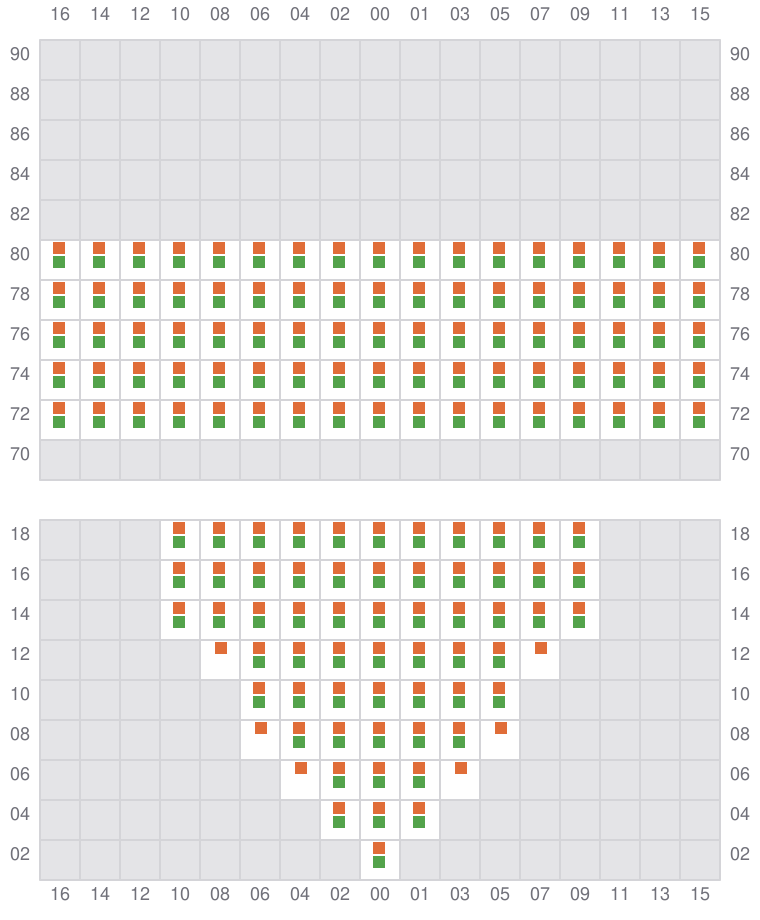

Bay 009 view and slots of MSC LUCY

011

→

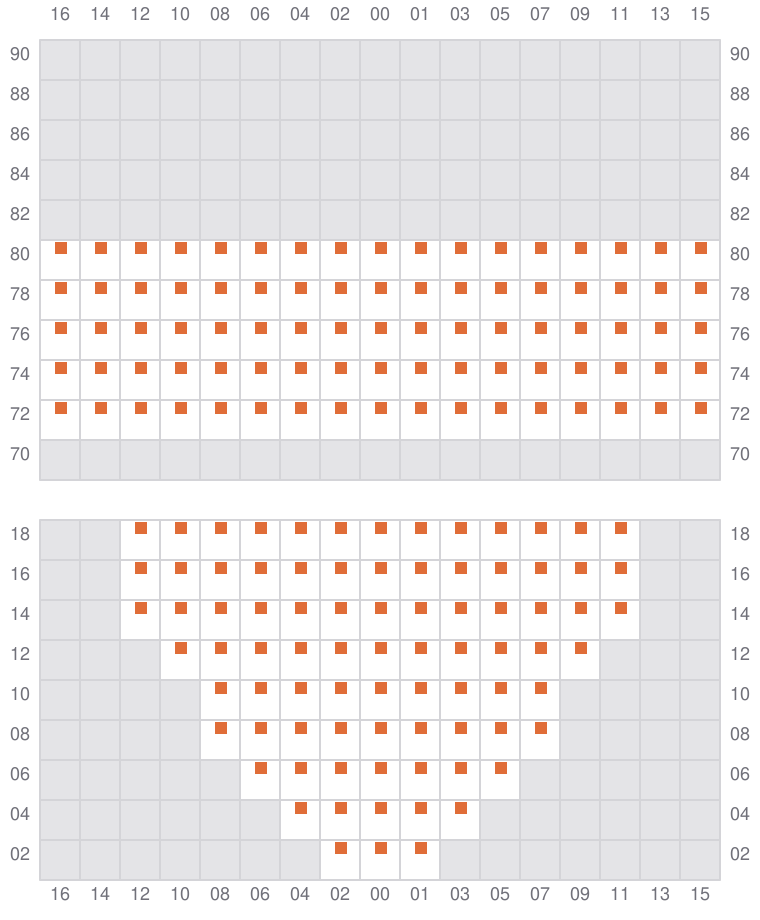

Bay 011 view and slots of MSC LUCY

013 (012)

←
^? / _←

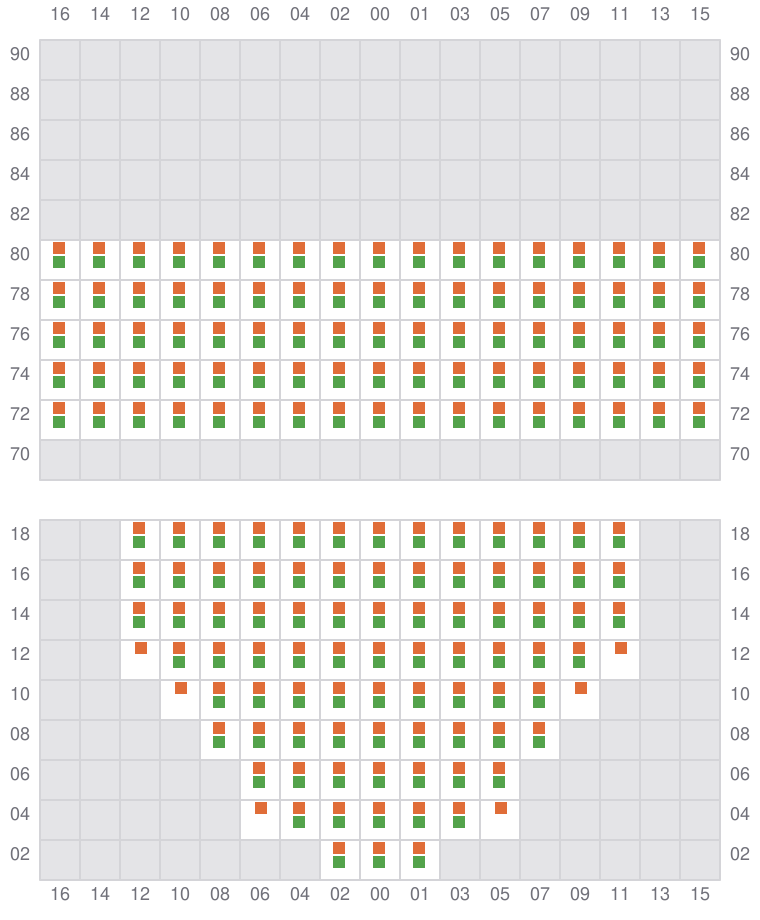

Bay 013 view and slots of MSC LUCY

015

→

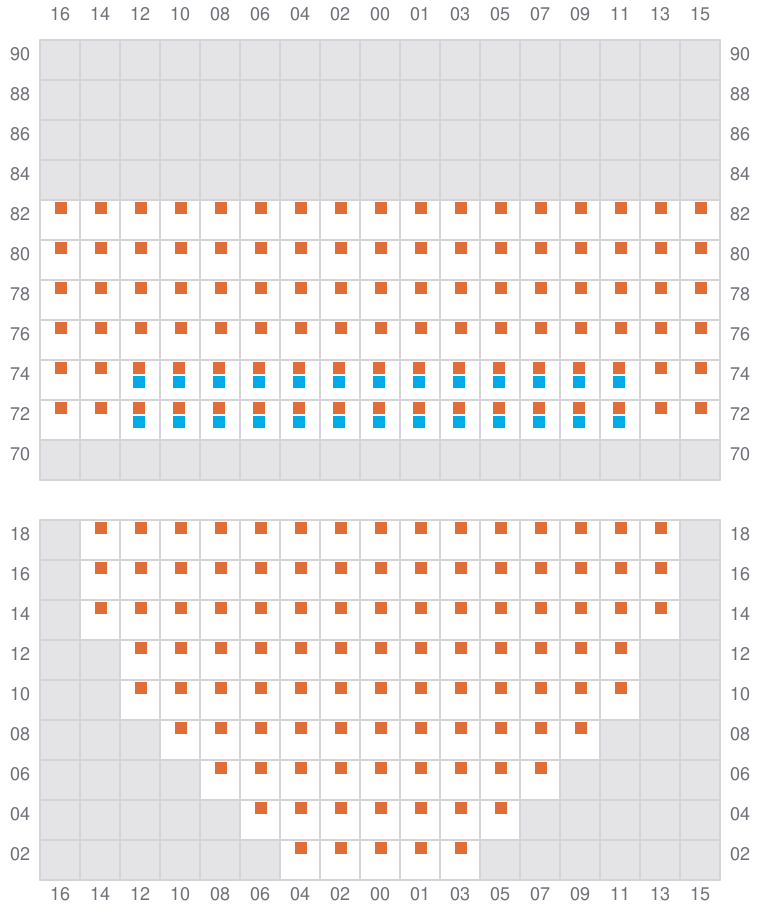

Bay 015 view and slots of MSC LUCY

017 (016)

←
^← / _?
←

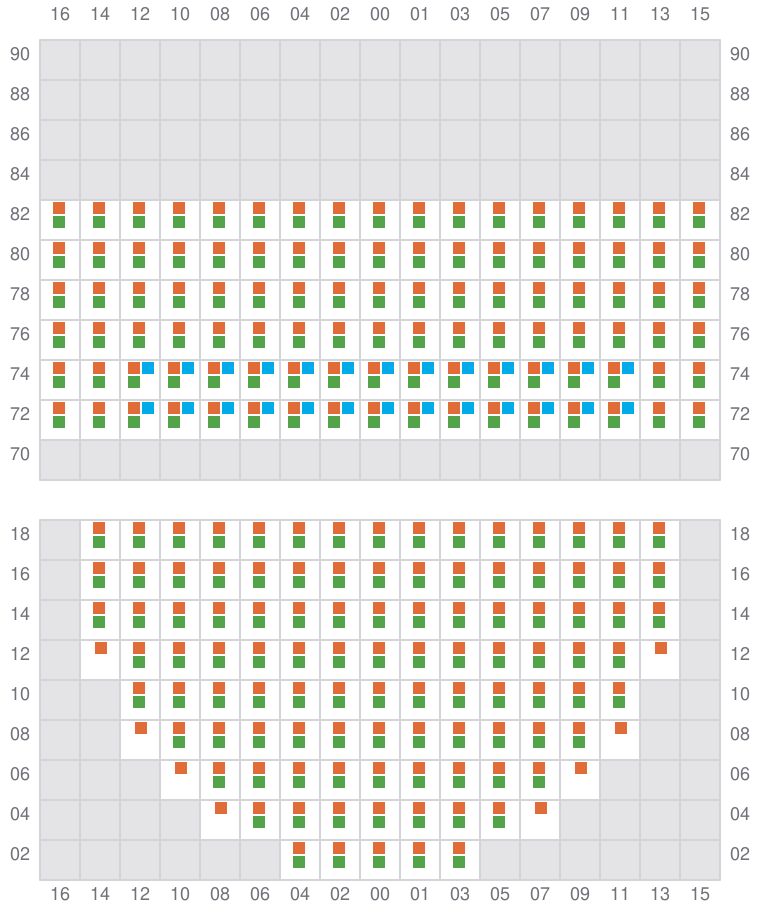

Bay 017 view and slots of MSC LUCY

019

→

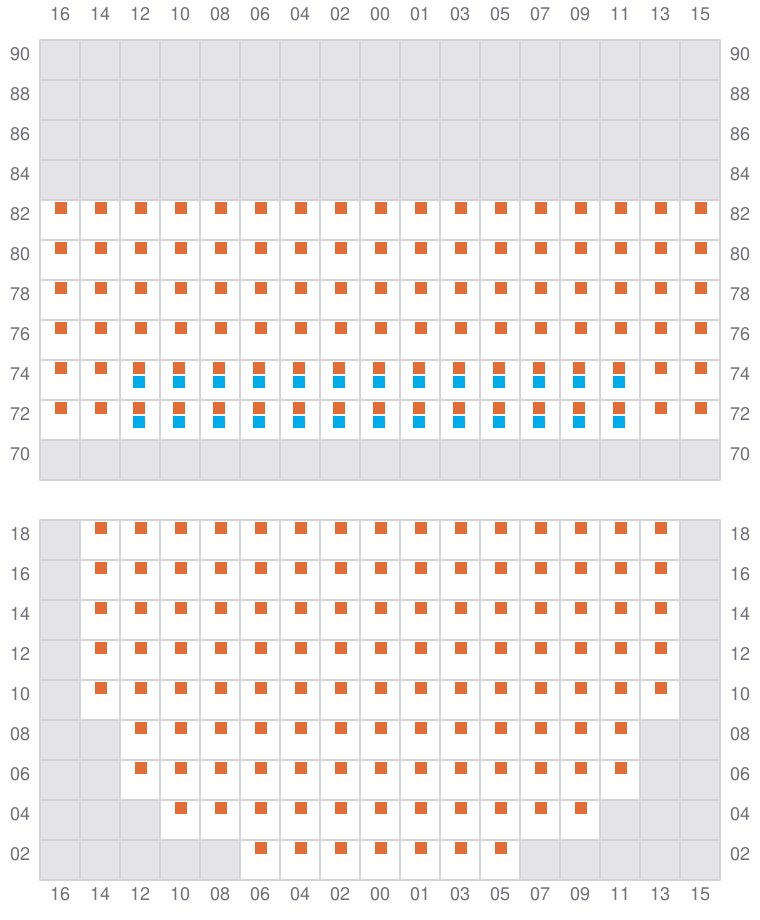

Bay 019 view and slots of MSC LUCY

021 (020)

←
^← / _?
←

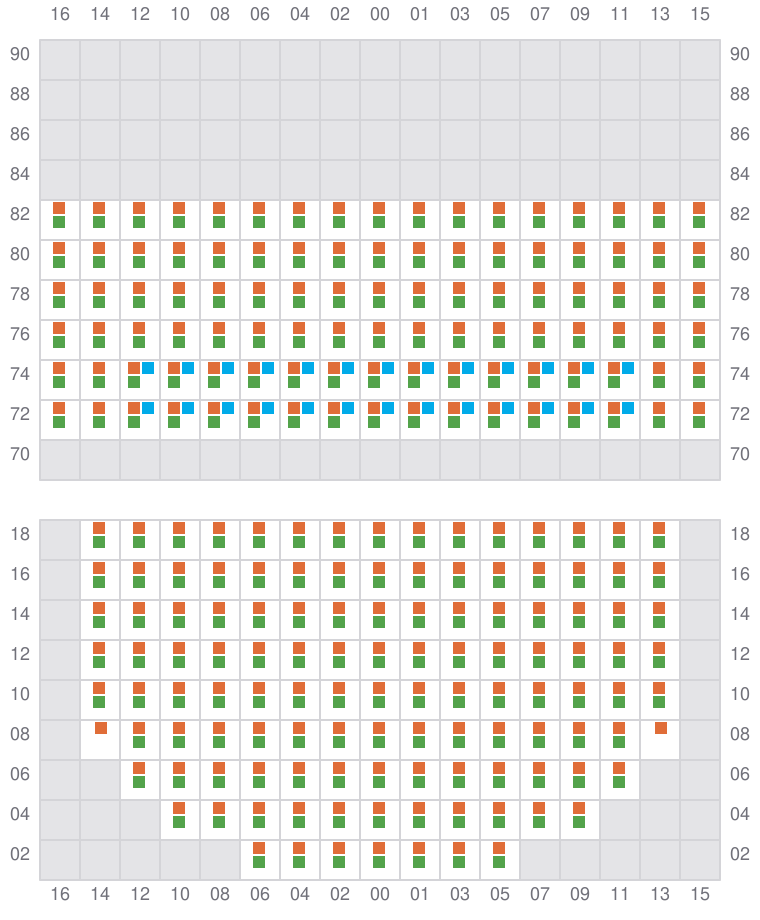

Bay 021 view and slots of MSC LUCY

023

→

Bay 023 view and slots of MSC LUCY

025 (024)

←
^← / _?
←

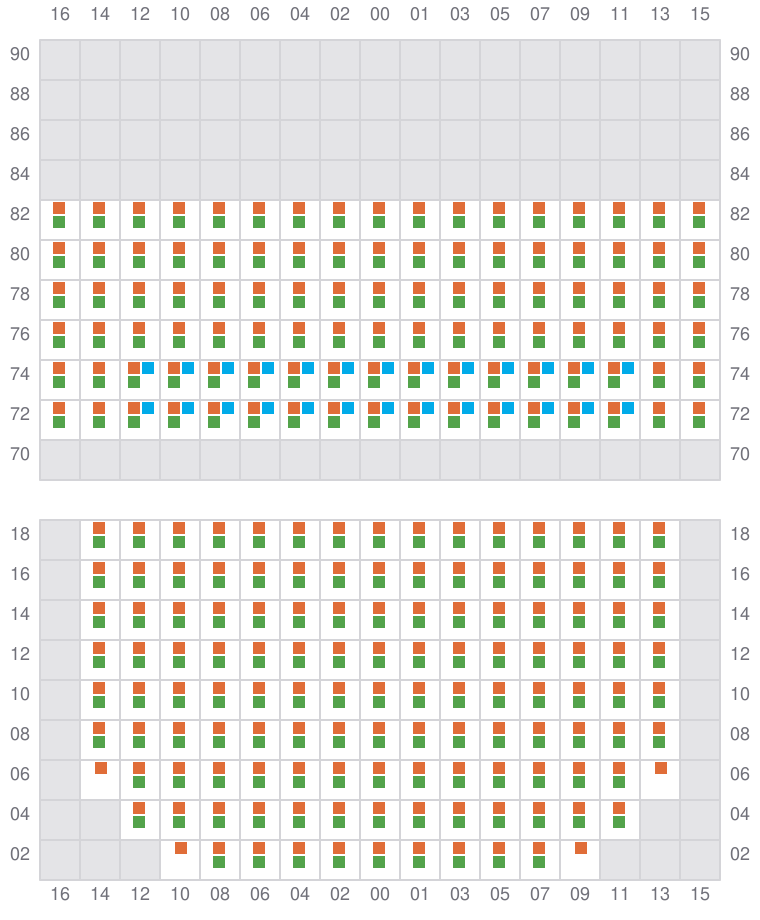

Bay 025 view and slots of MSC LUCY

027

→

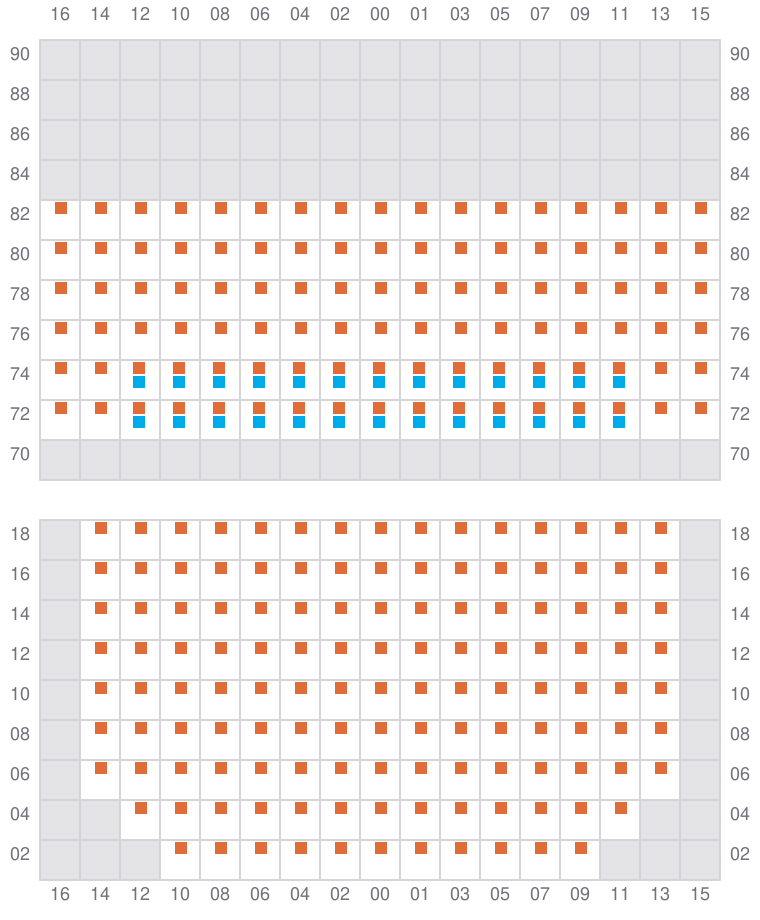

Bay 027 view and slots of MSC LUCY

029 (028)

←
^← / _?
←

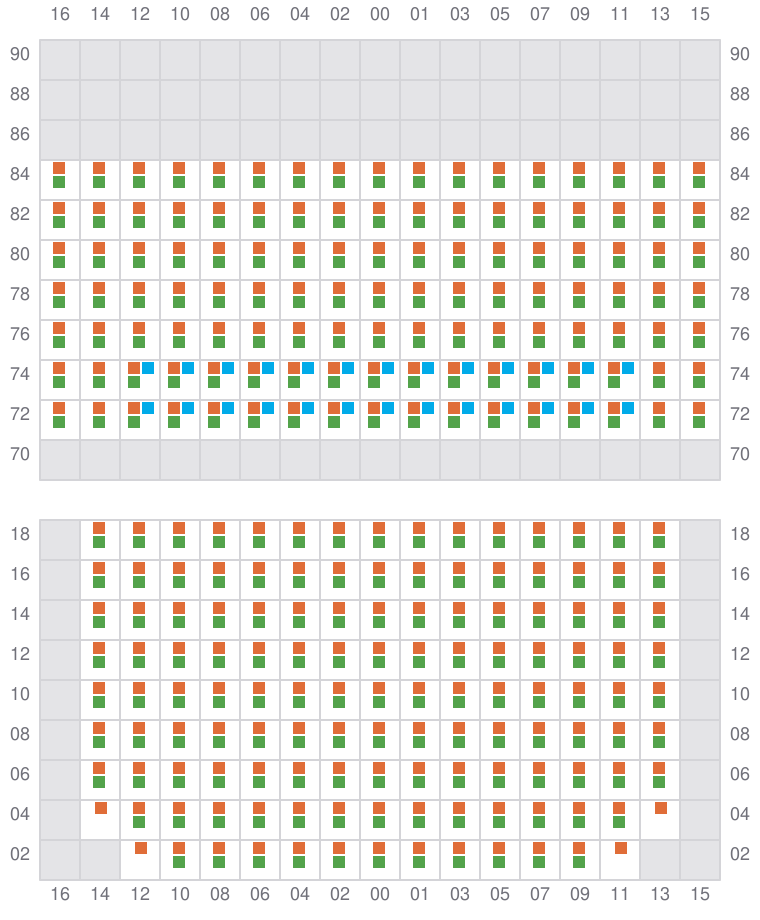

Bay 029 view and slots of MSC LUCY

031

→

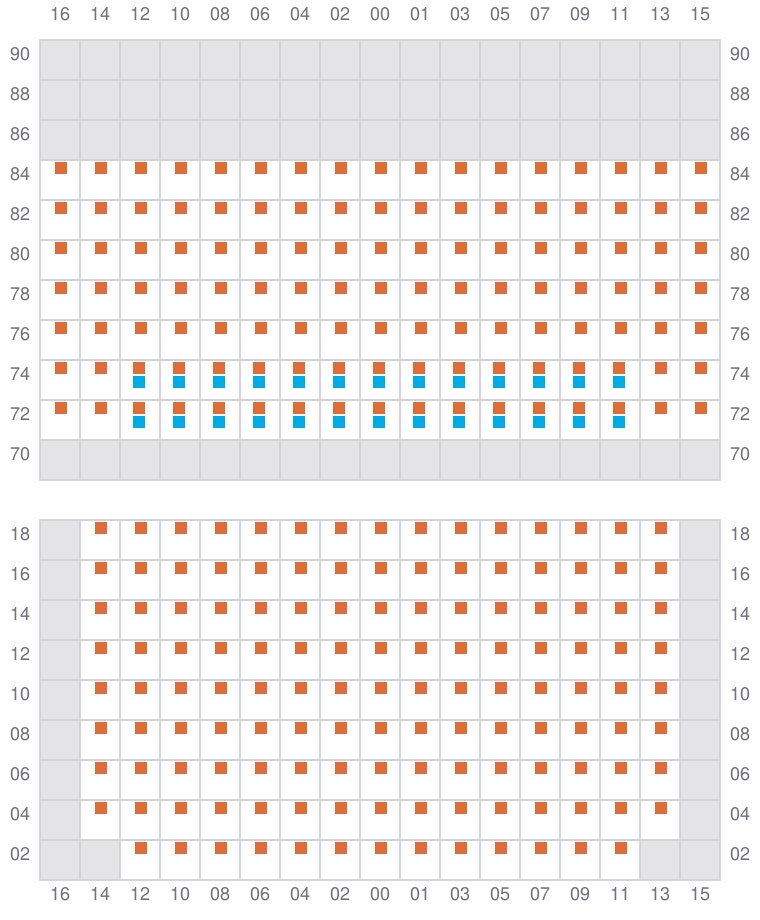

Bay 031 view and slots of MSC LUCY

033 (032)

←
^← / _?
←

Bay 033 view and slots of MSC LUCY

035

→

Bay 035 view and slots of MSC LUCY

037 (036)

←
^← / _?
←

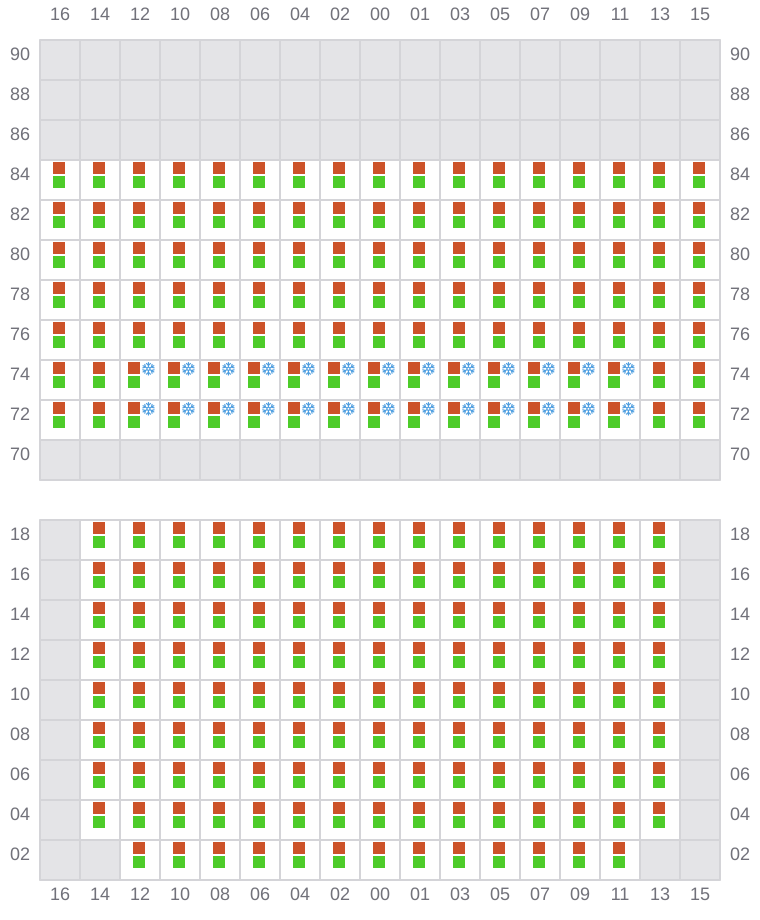

Bay 037 view and slots of MSC LUCY

039

→

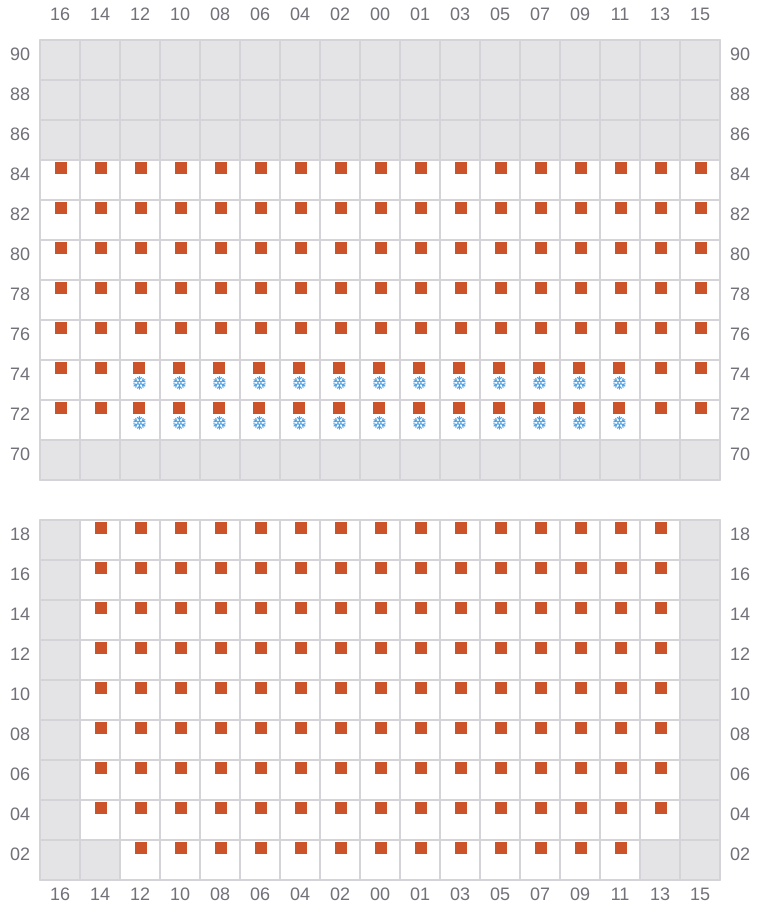

Bay 039 view and slots of MSC LUCY

041 (040)

←
^← / _?
←

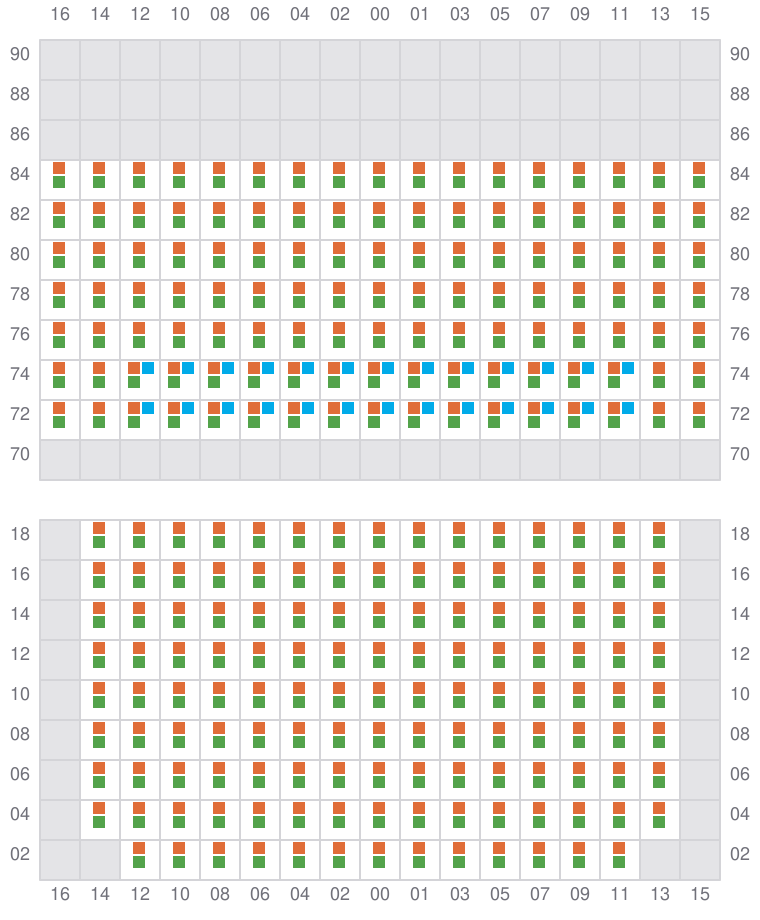

Bay 041 view and slots of MSC LUCY

043

→

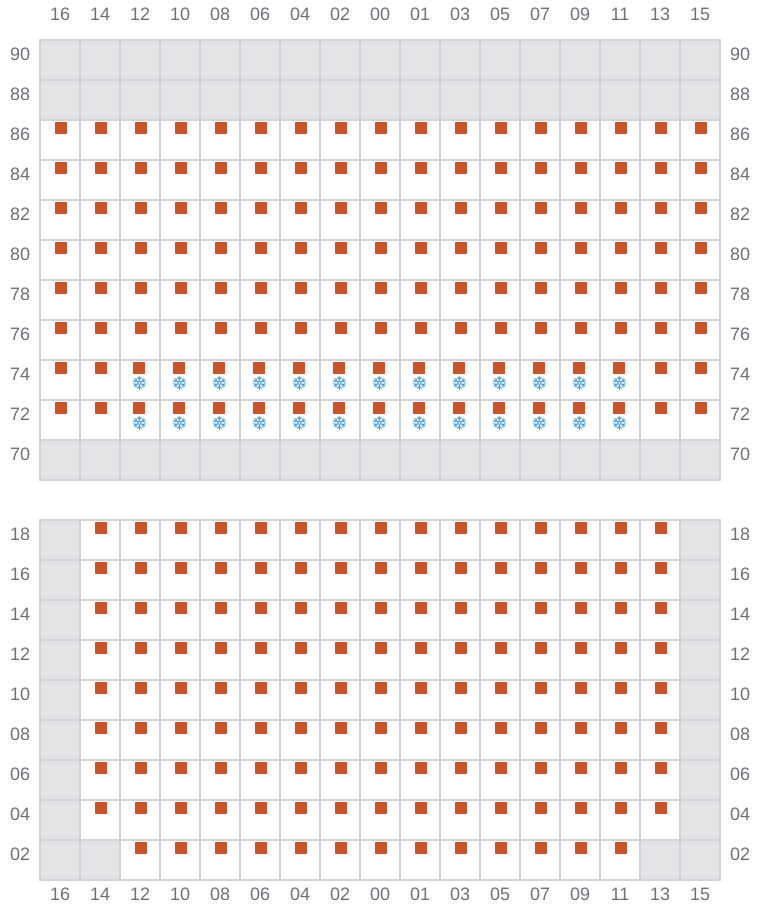

Bay 043 view and slots of MSC LUCY

045 (044)

←
^← / _?
←

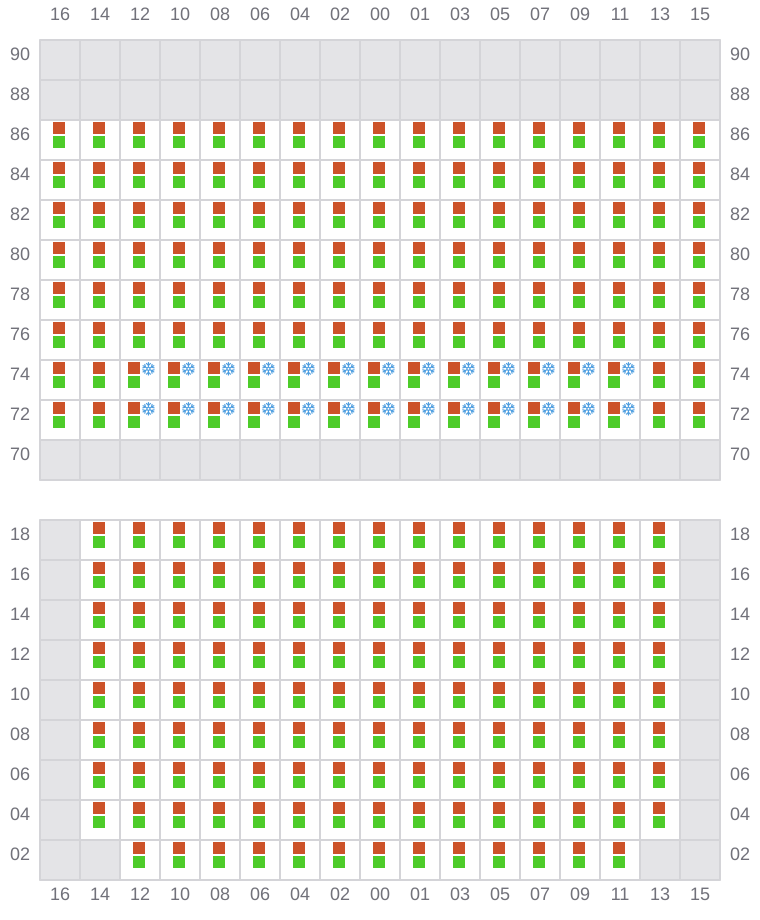

Bay 045 view and slots of MSC LUCY

047

→

Bay 047 view and slots of MSC LUCY

049 (048)

←
^← / _?
←

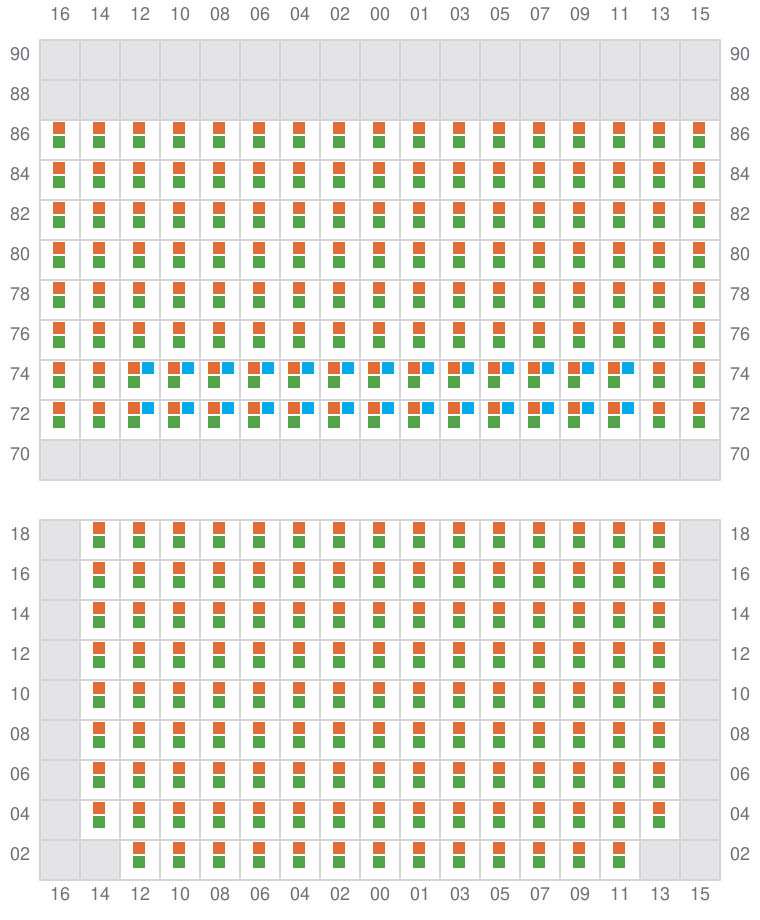

Bay 049 view and slots of MSC LUCY

051

→

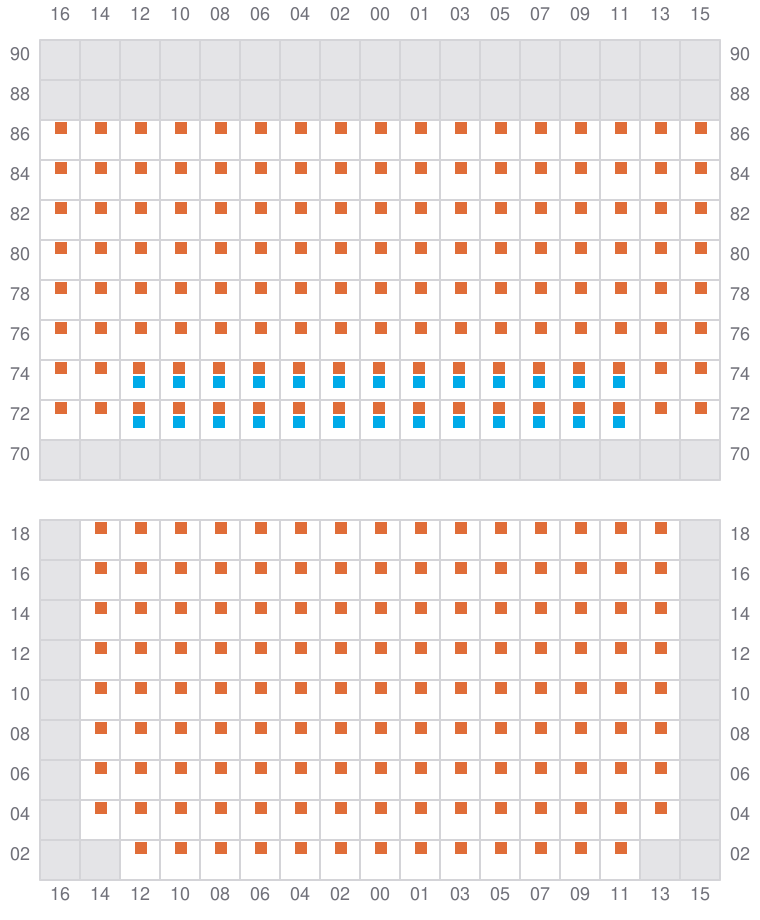

Bay 051 view and slots of MSC LUCY

053 (052)

←
^← / _?
←

Bay 053 view and slots of MSC LUCY

055

→

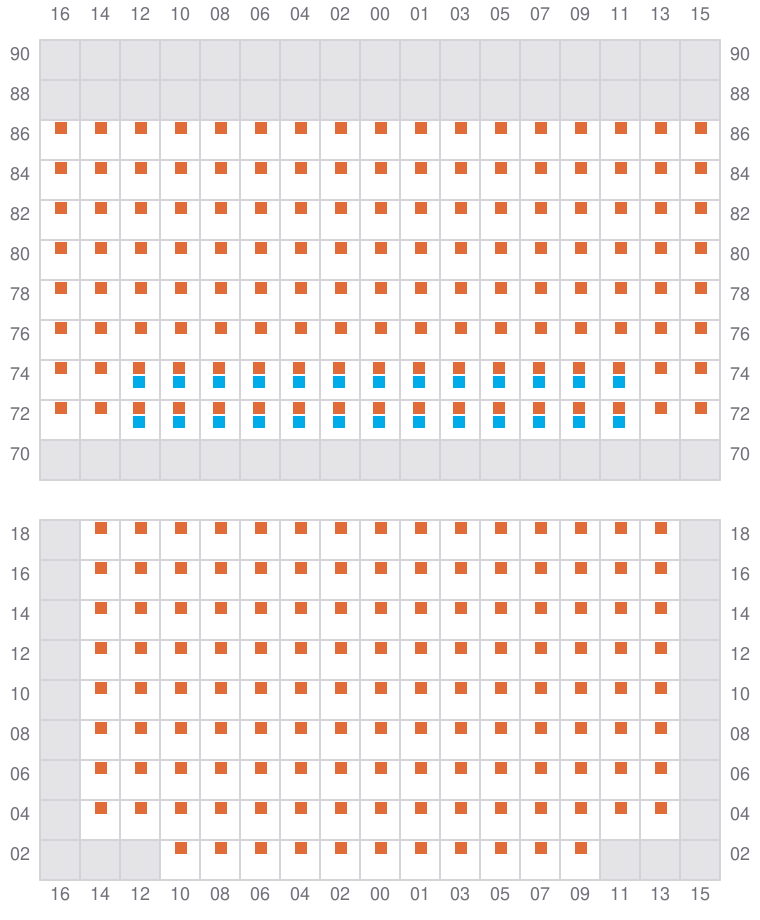

Bay 055 view and slots of MSC LUCY

057 (056)

←
^← / _?
←

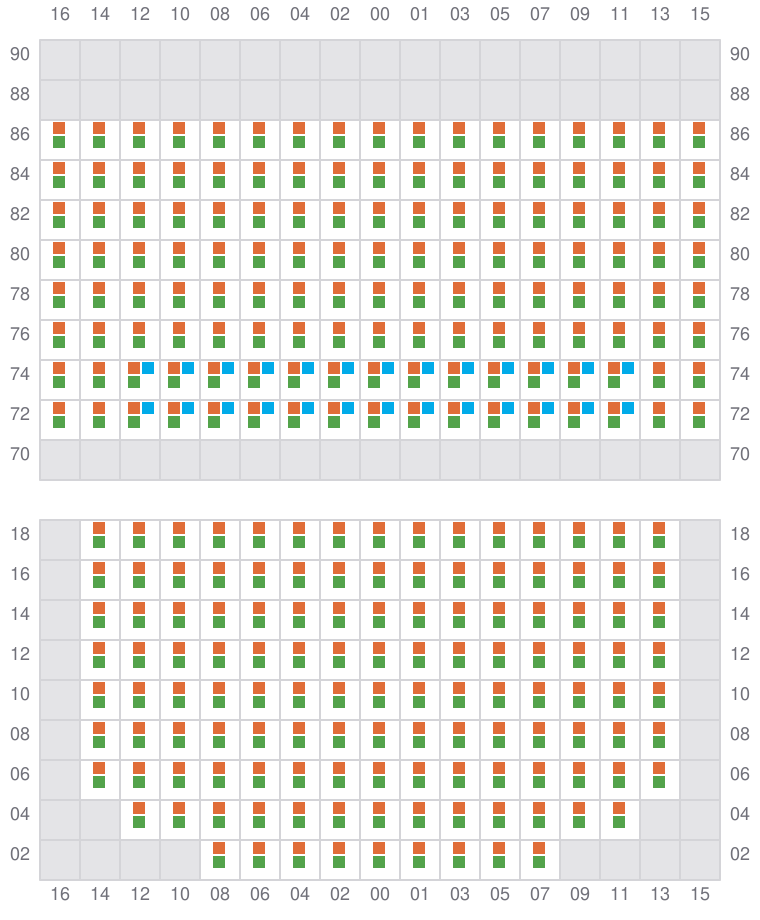

Bay 057 view and slots of MSC LUCY

059

→

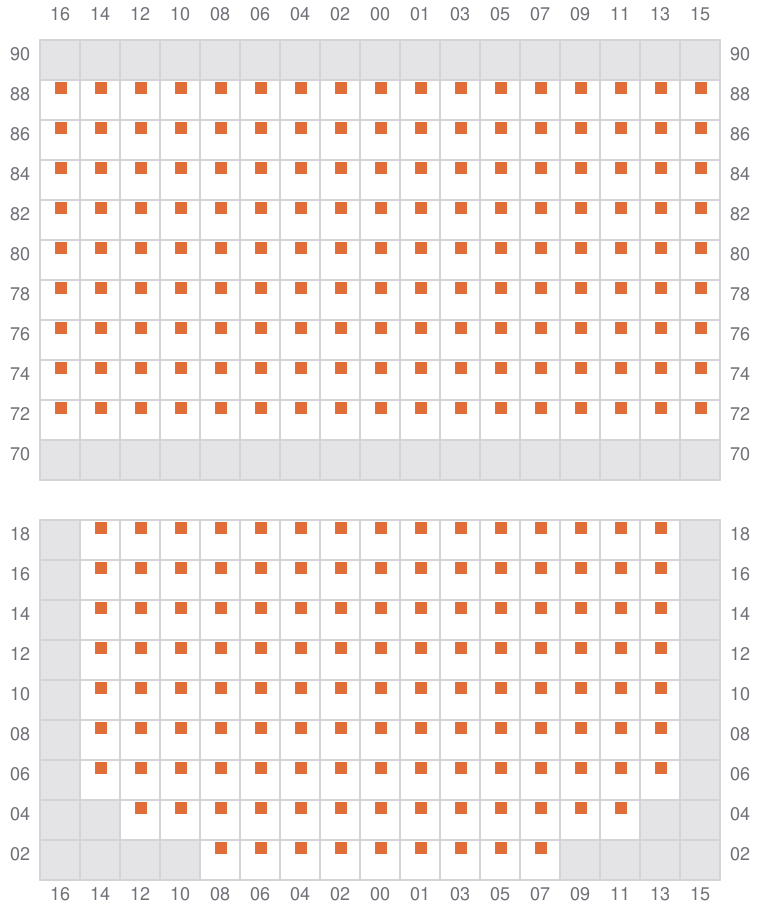

Bay 059 view and slots of MSC LUCY

061 (060)

←
←

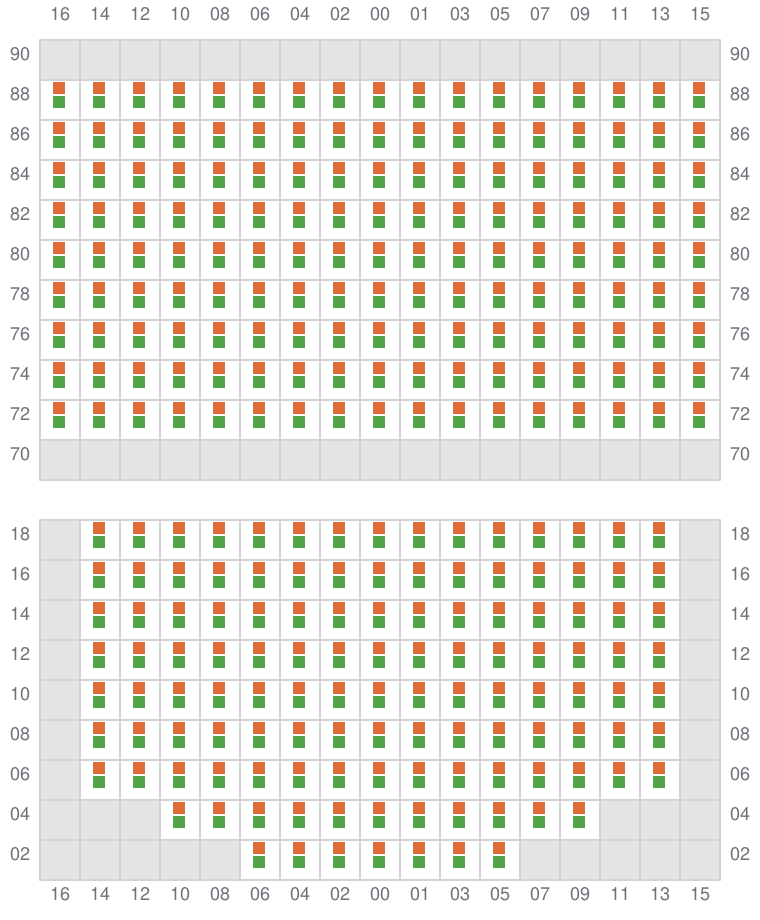

Bay 061 view and slots of MSC LUCY

063

→

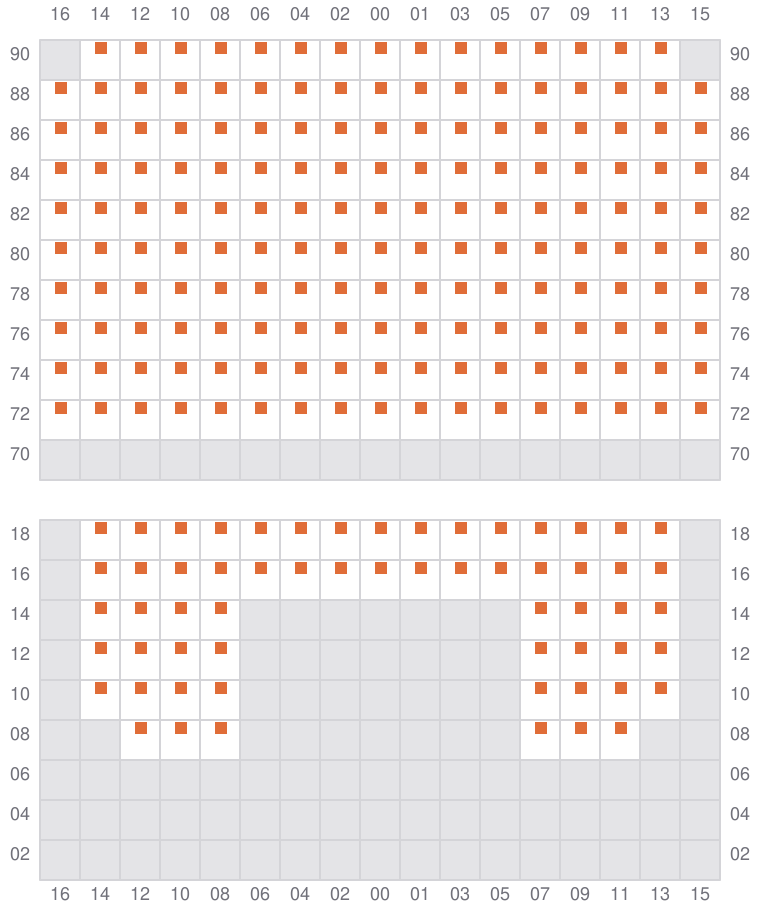

Bay 063 view and slots of MSC LUCY

065 (064)

←
←

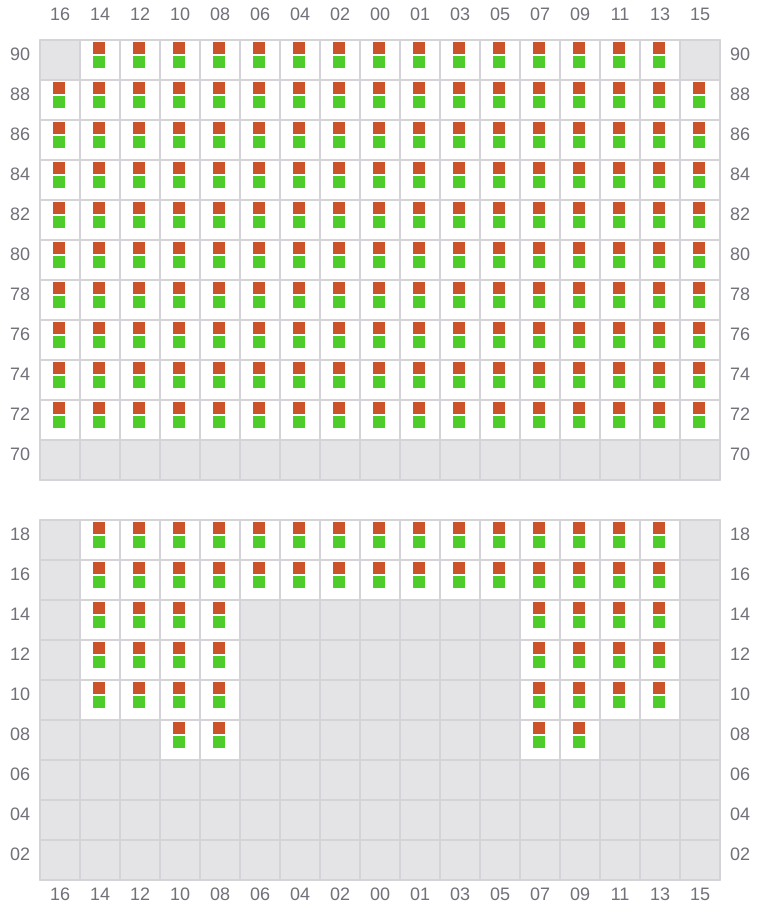

Bay 065 view and slots of MSC LUCY

067

→

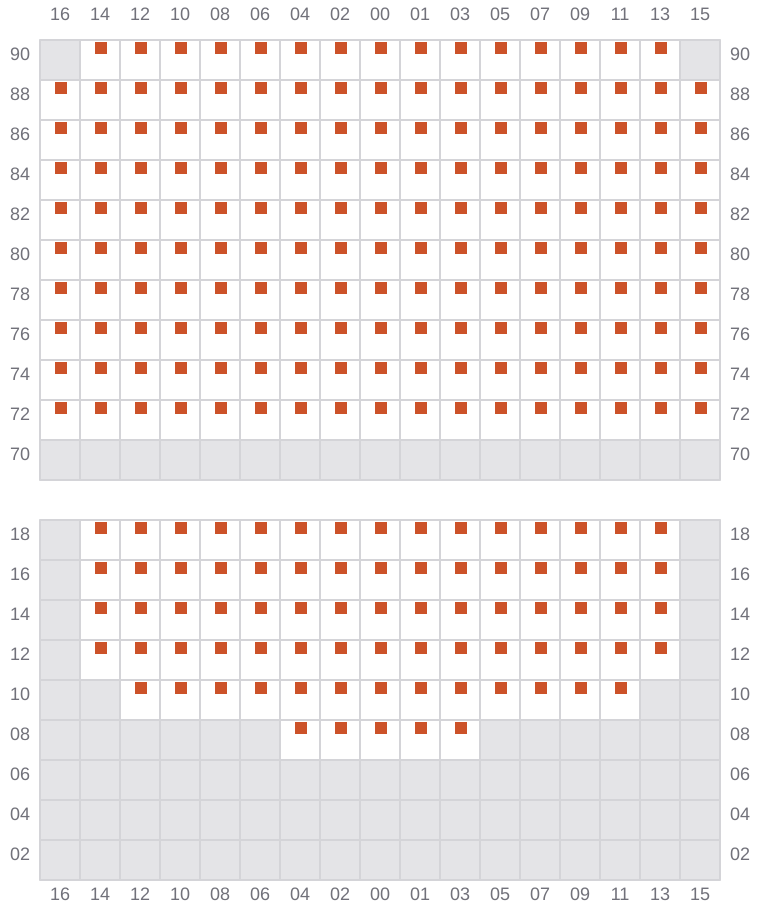

Bay 067 view and slots of MSC LUCY

069 (068)

←
←

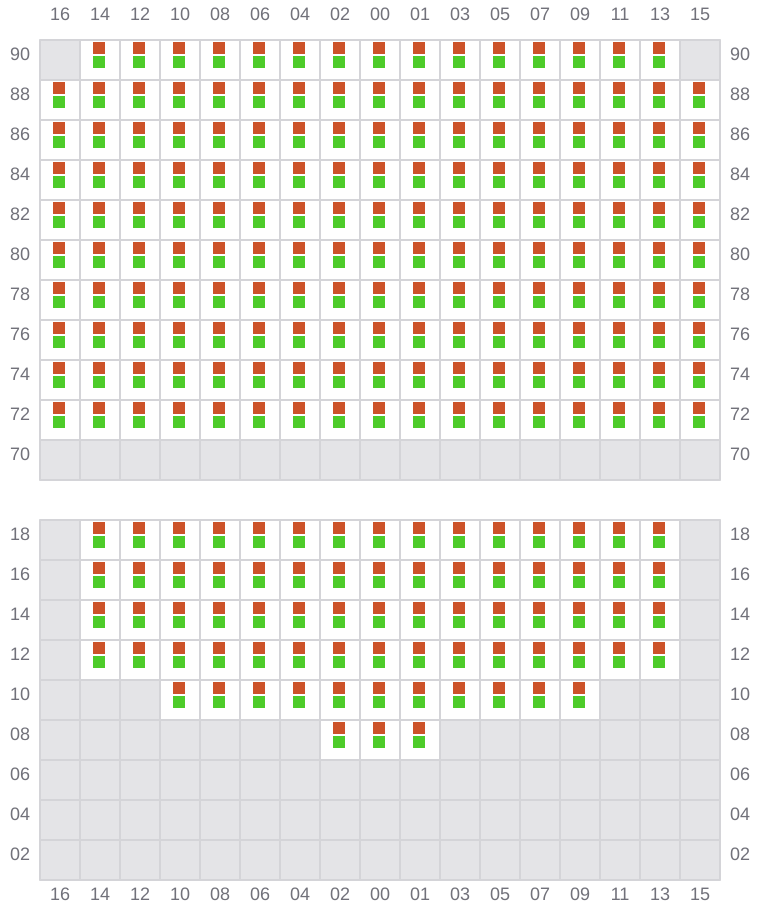

Bay 069 view and slots of MSC LUCY

071

→

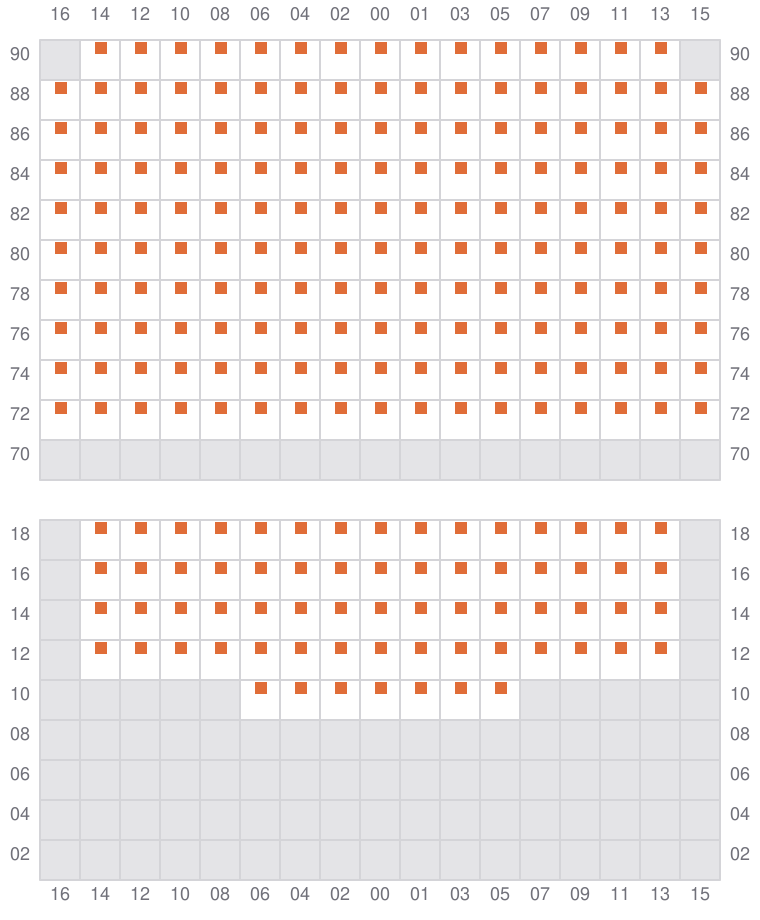

Bay 071 view and slots of MSC LUCY

073 (072)

←
←

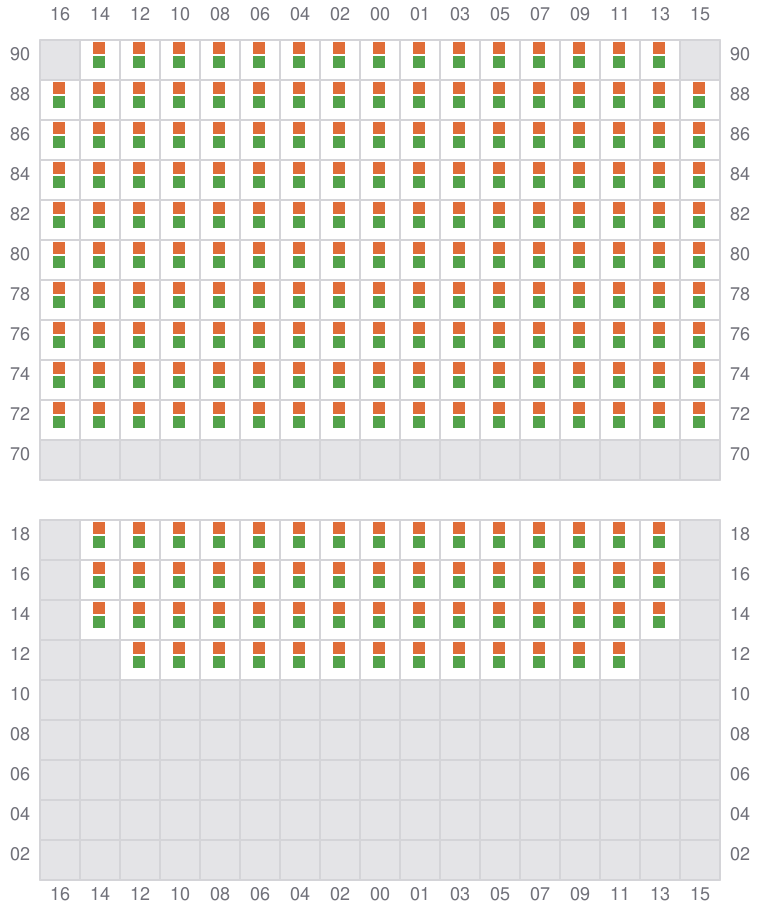

Bay 073 view and slots of MSC LUCY

075

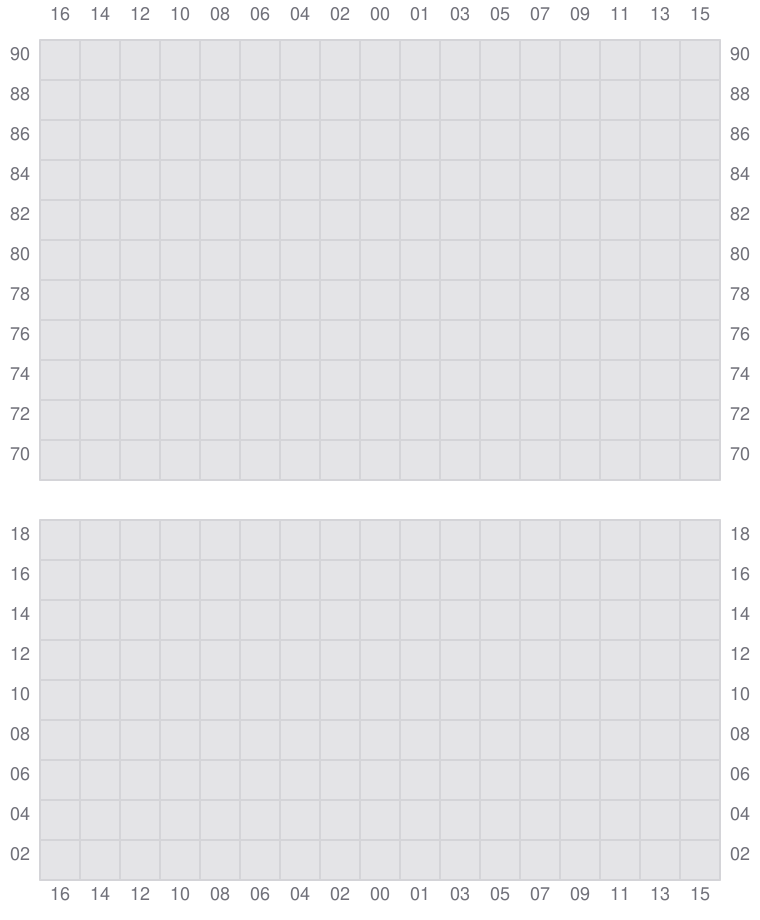

Bay 075 view and slots of MSC LUCY

077

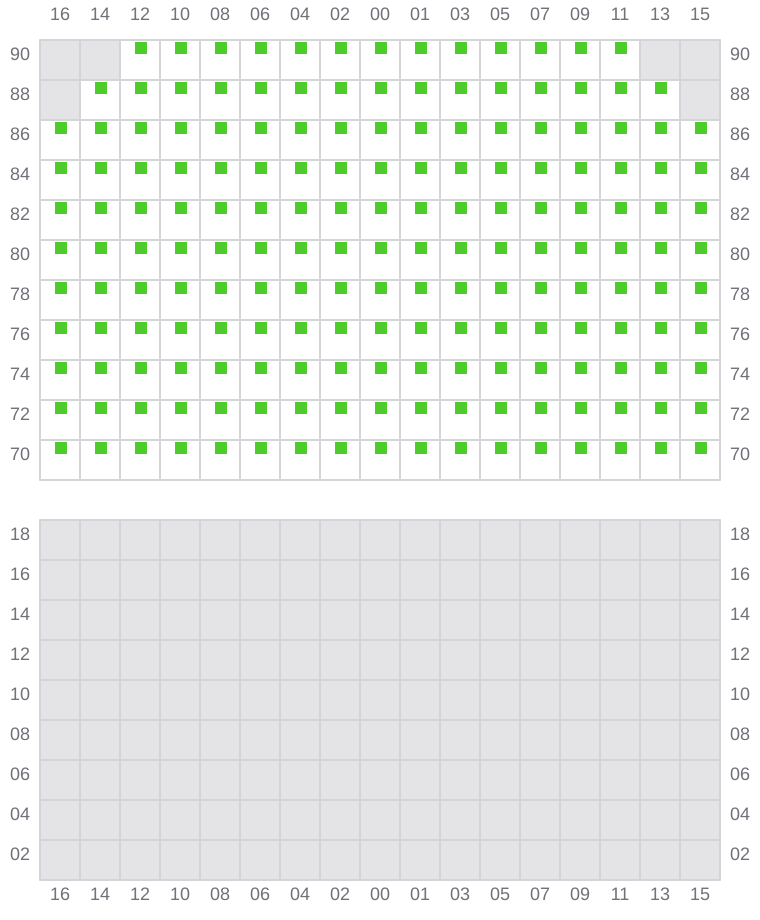

Bay 077 view and slots of MSC LUCY
