MSC LUISA
9225677 | H9XU | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:MSC LUISA
IMO Code:9225677
Call Sign:H9XU
Line Operator:MSC
Class Name for Sister Ships:LUI
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,734
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

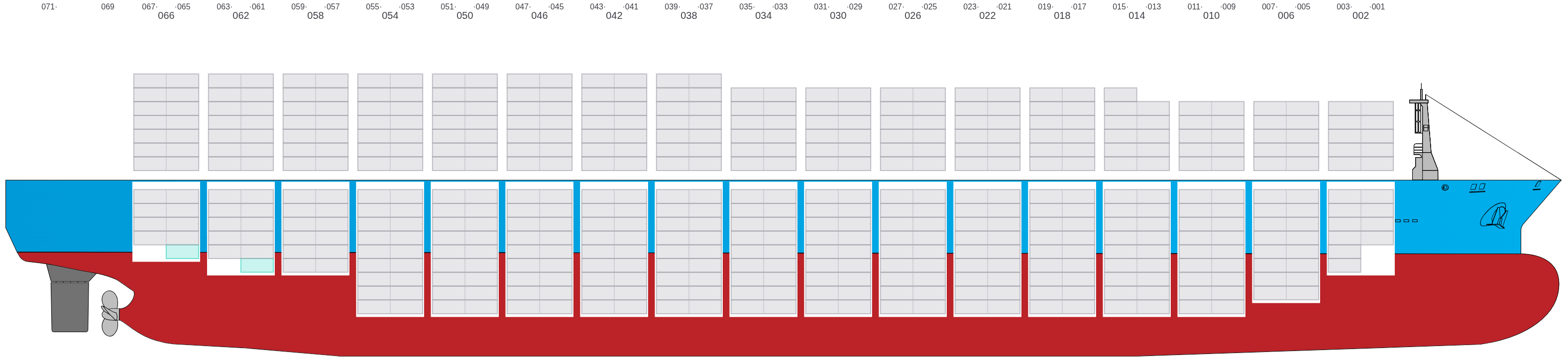

Side View
![Side view of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-sideView.png?v=1687110188395)
Hatch-Covers View
![Deck view of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-deckView.png?v=1687110188395)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

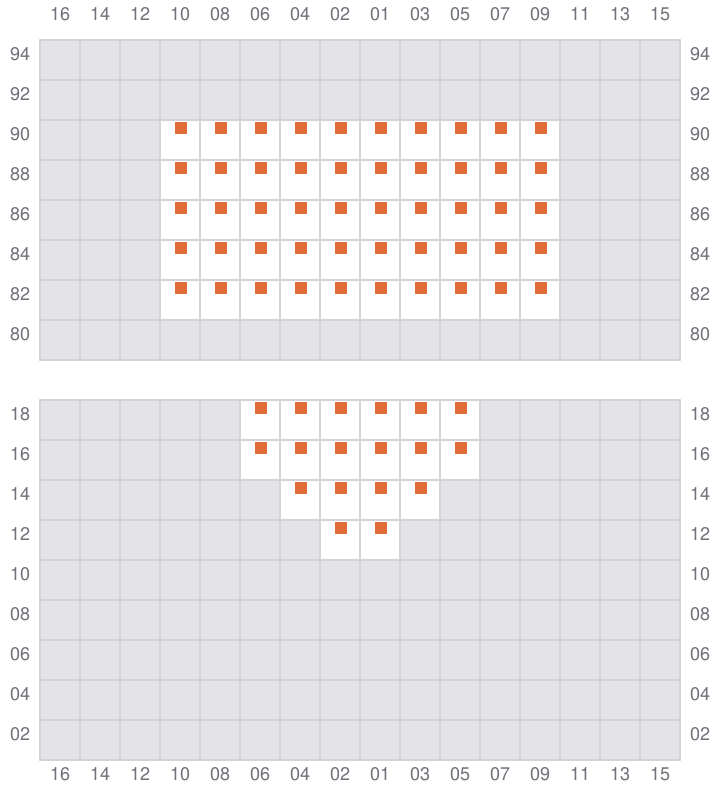

001
- →
![Bay 001 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b001.png?v=1687110188395)
003 (002)
- ←
![Bay 003 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b003.png?v=1687110188395)

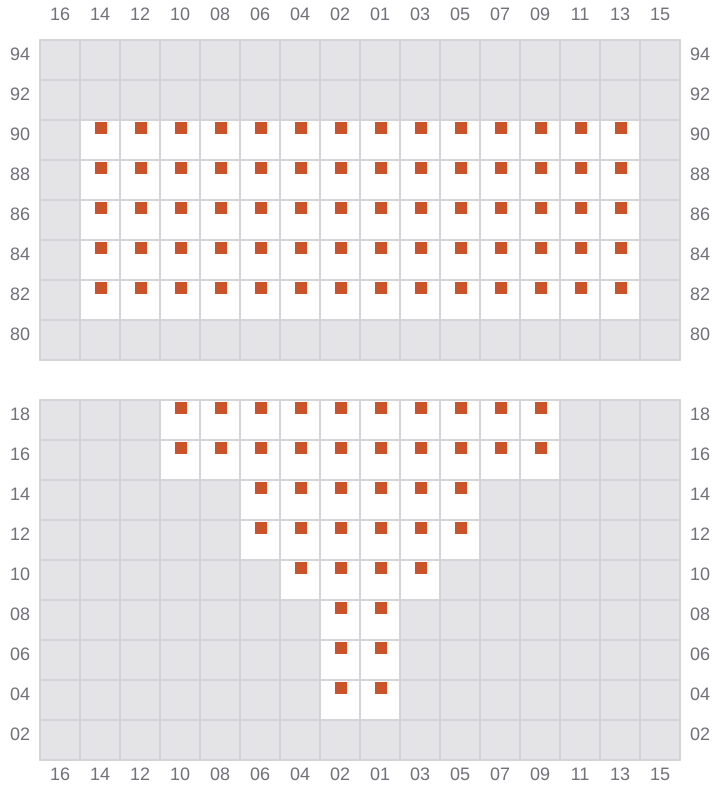

005
- →
![Bay 005 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b005.png?v=1687110188395)

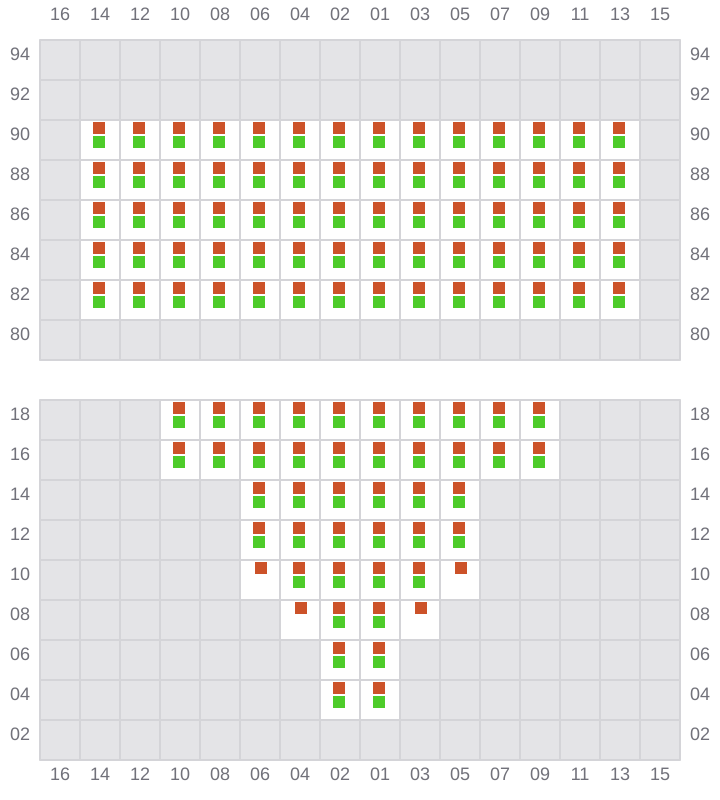

007 (006)
- ←
![Bay 007 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b007.png?v=1687110188395)

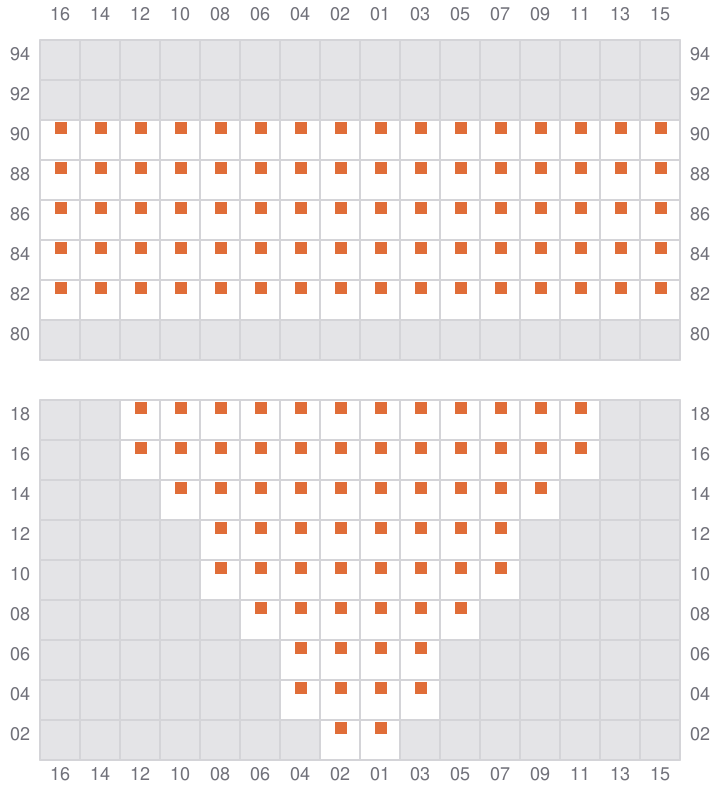

009
- →
![Bay 009 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b009.png?v=1687110188395)

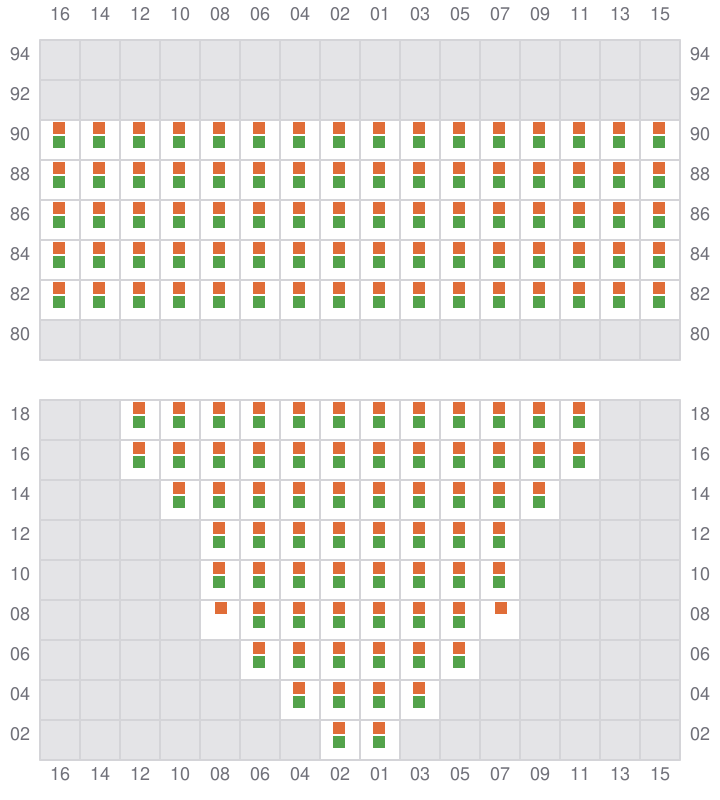

011 (010)
- ←
![Bay 011 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b011.png?v=1687110188395)

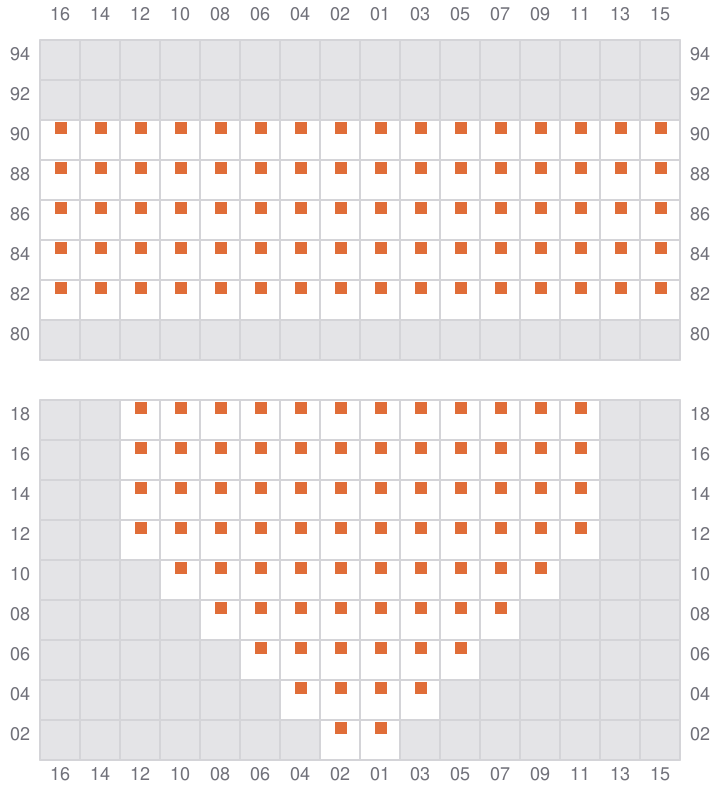

013
- →
![Bay 013 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b013.png?v=1687110188395)

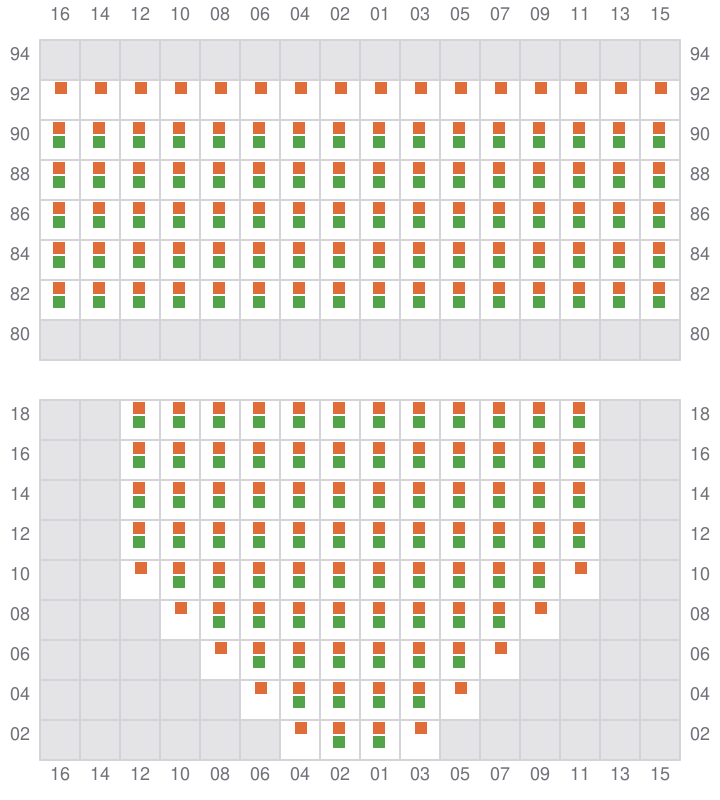

015 (014)
- ←
![Bay 015 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b015.png?v=1687110188395)

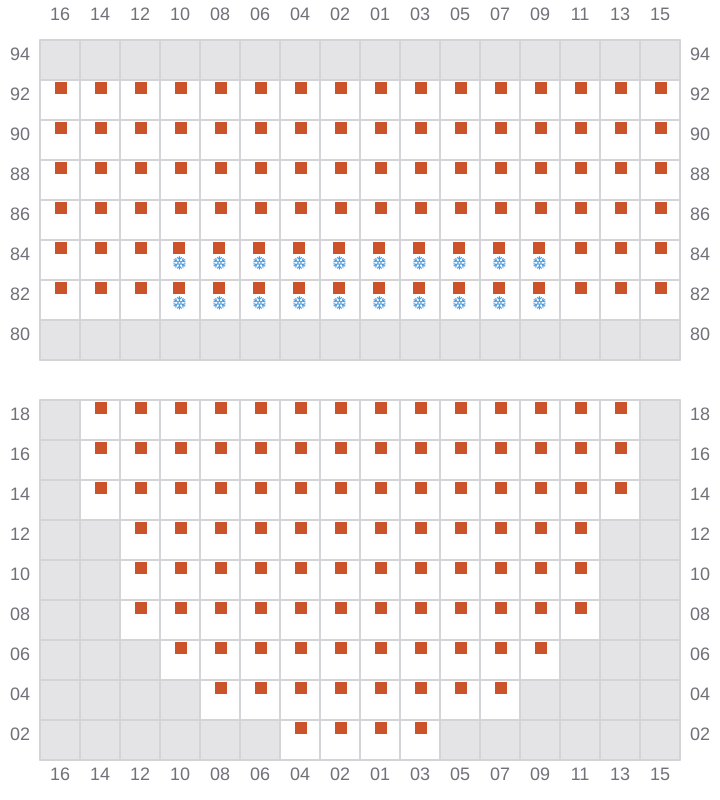

017
- →
![Bay 017 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b017.png?v=1687110188395)

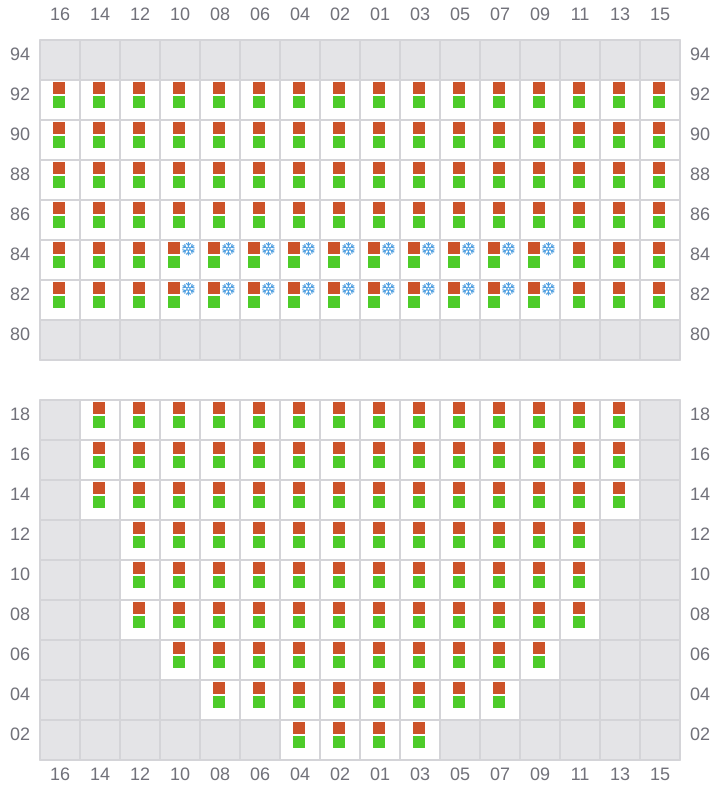

019 (018)
- ←
![Bay 019 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b019.png?v=1687110188395)

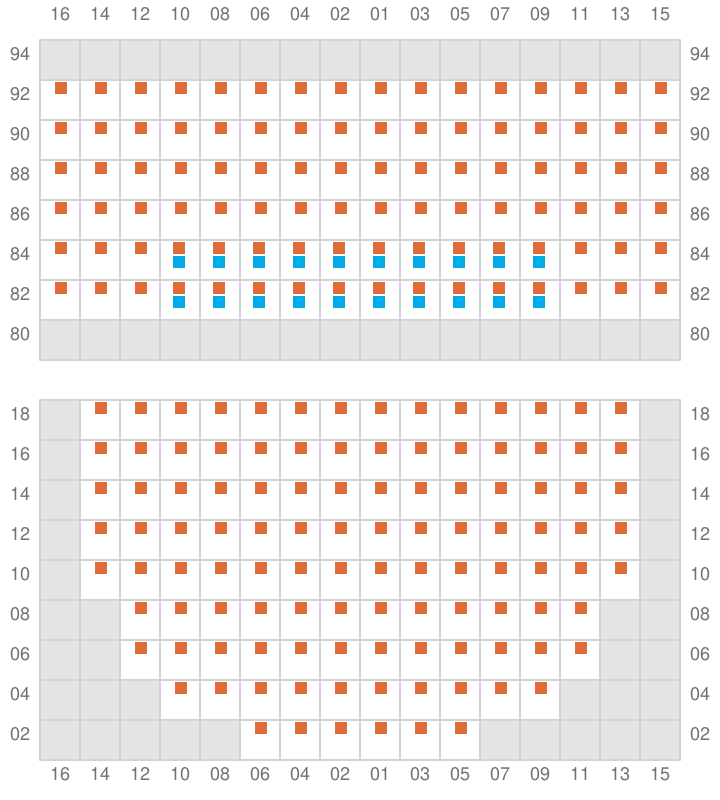

021
- →
![Bay 021 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b021.png?v=1687110188395)
023 (022)
- ←
![Bay 023 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b023.png?v=1687110188395)

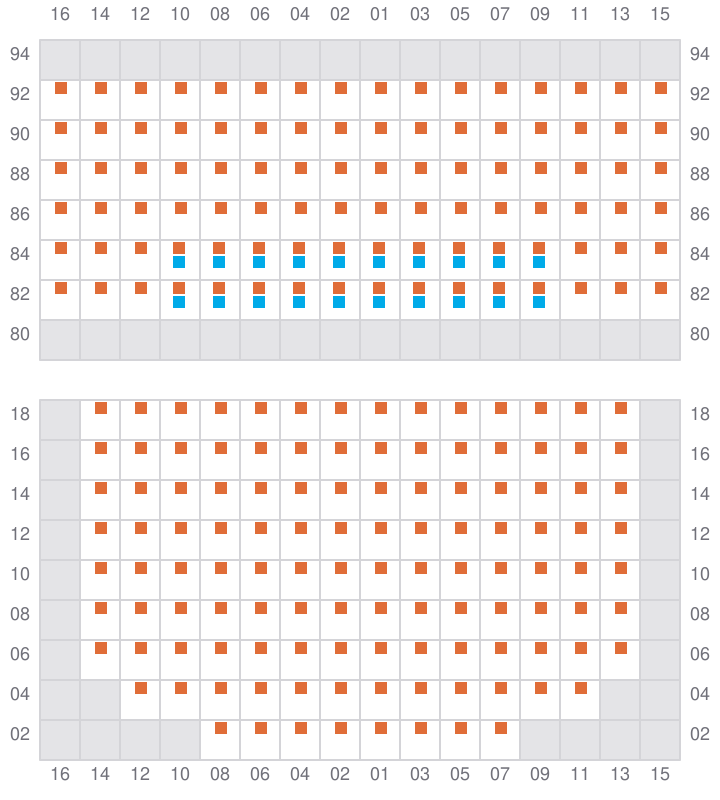

025
- →
![Bay 025 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b025.png?v=1687110188395)

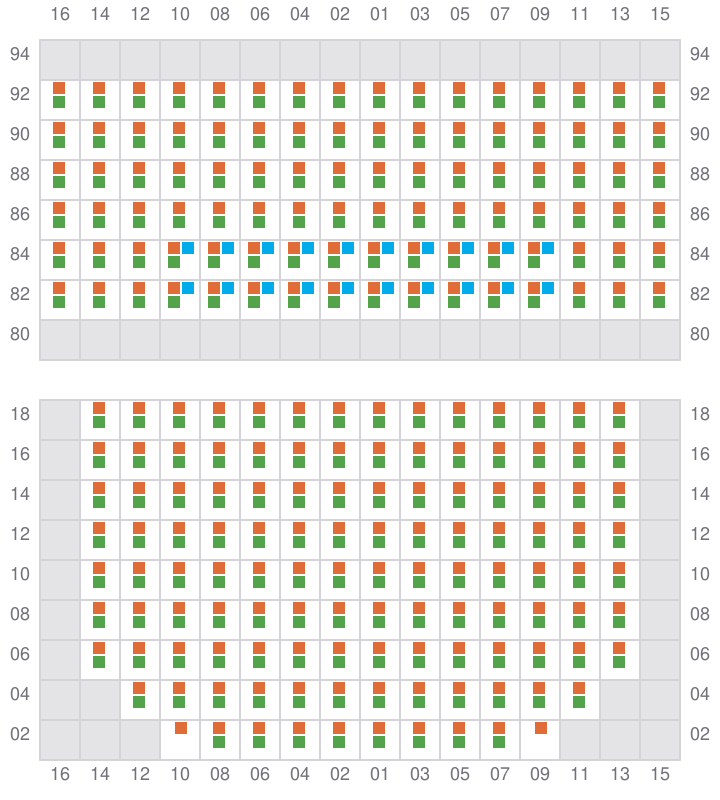

027 (026)
- ←
![Bay 027 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b027.png?v=1687110188395)
029
- →
![Bay 029 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b029.png?v=1687110188395)

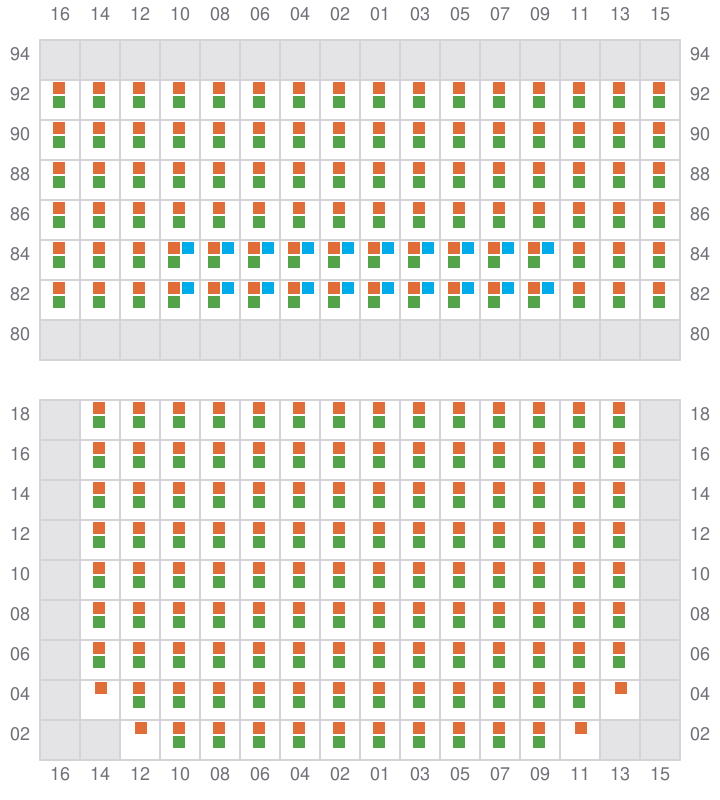

031 (030)
- ←
![Bay 031 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b031.png?v=1687110188395)

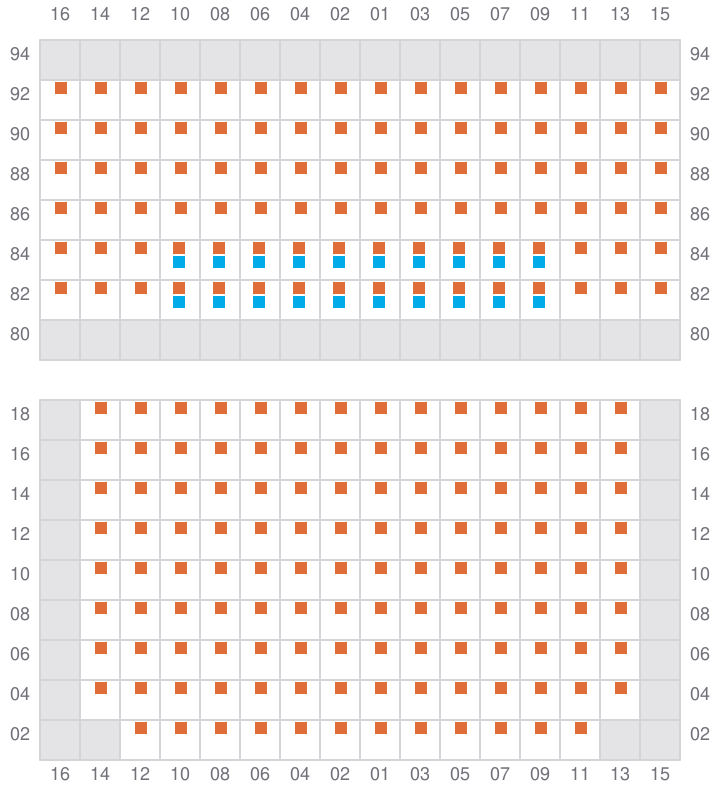

033
- →
![Bay 033 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b033.png?v=1687110188395)

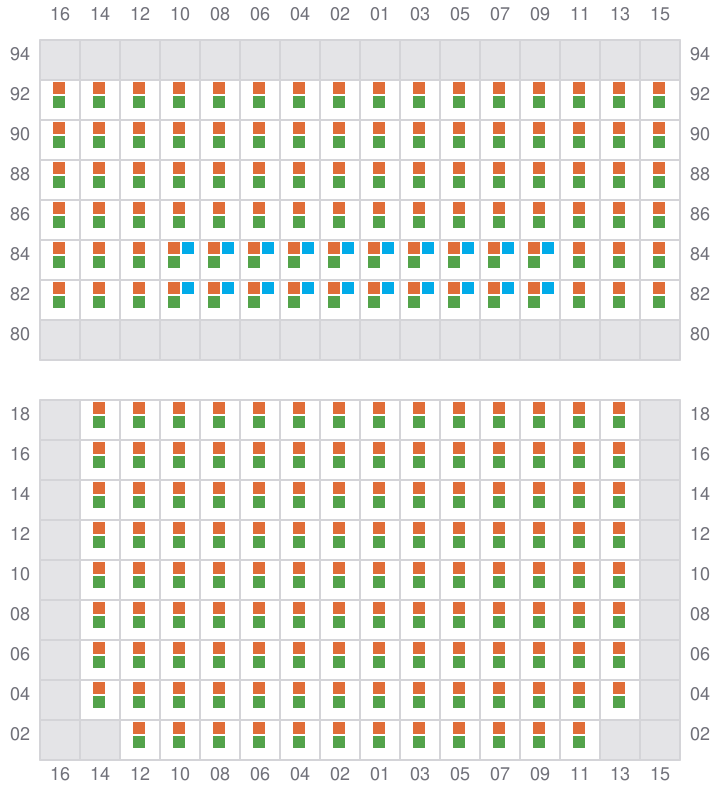

035 (034)
- ←
![Bay 035 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b035.png?v=1687110188395)

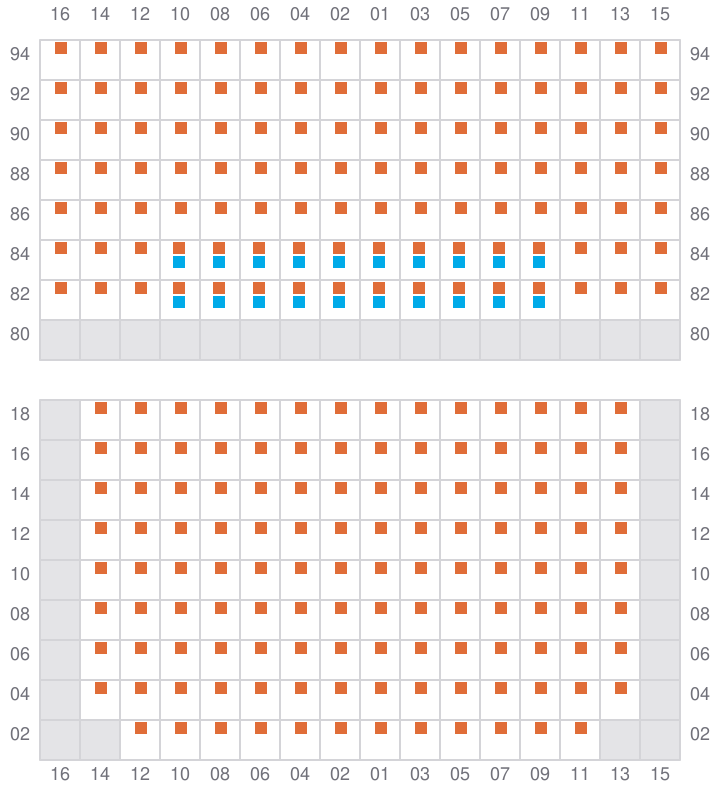

037
- →
![Bay 037 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b037.png?v=1687110188395)
039 (038)
- ←
![Bay 039 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b039.png?v=1687110188395)

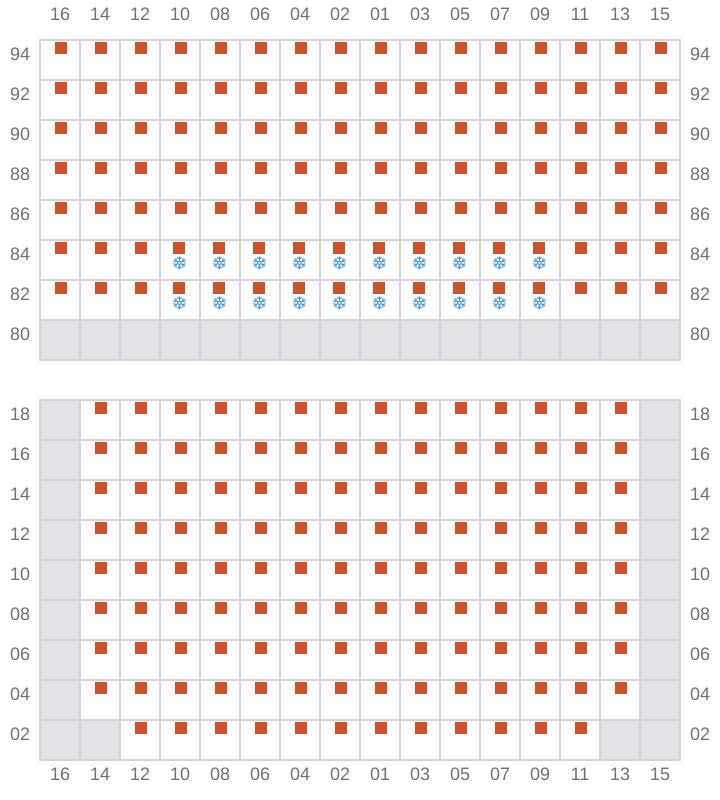

041
- →
![Bay 041 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b041.png?v=1687110188395)

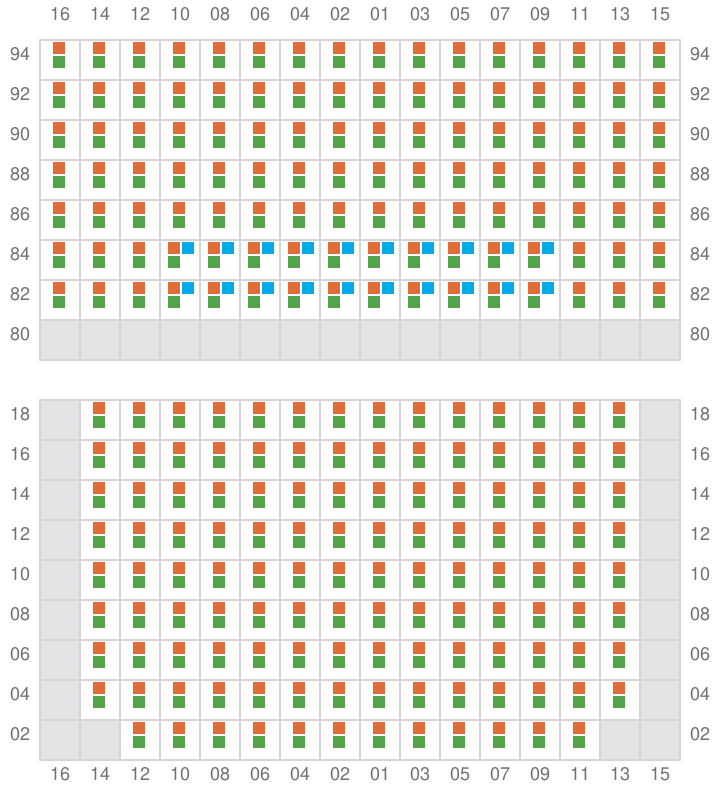

043 (042)
- ←
![Bay 043 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b043.png?v=1687110188395)
045
- →
![Bay 045 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b045.png?v=1687110188395)
047 (046)
- ←
![Bay 047 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b047.png?v=1687110188395)
049
- →
![Bay 049 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b049.png?v=1687110188395)

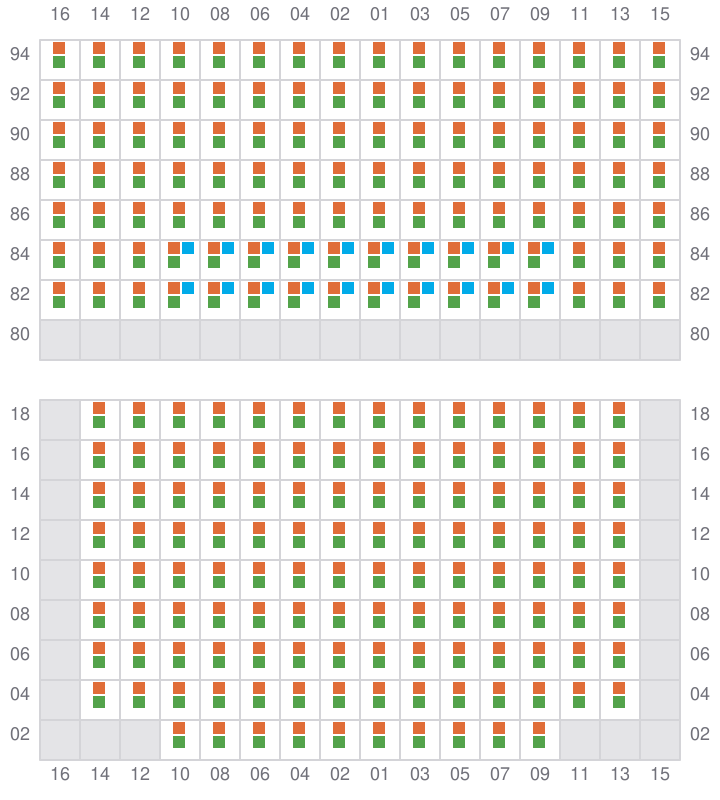

051 (050)
- ←
![Bay 051 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b051.png?v=1687110188395)

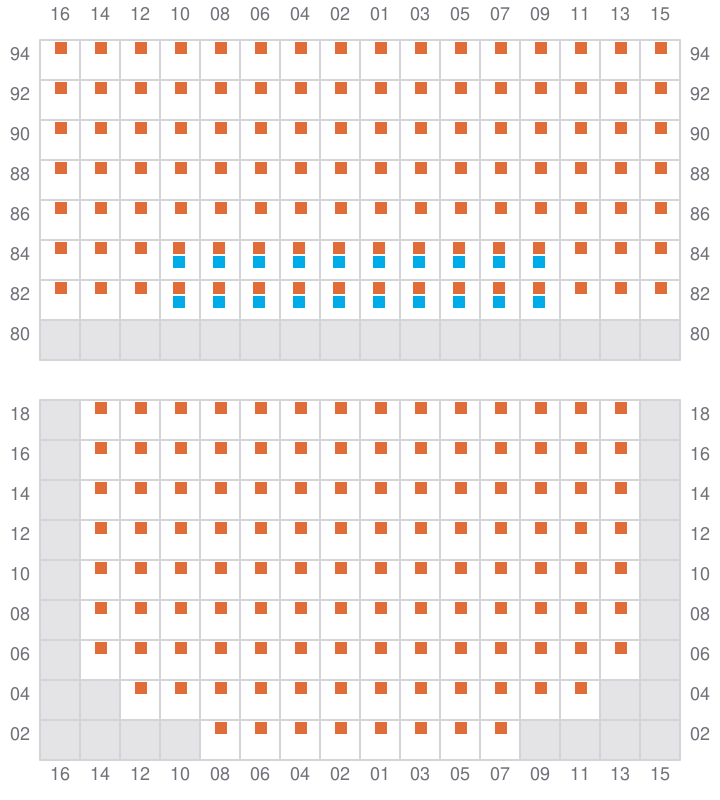

053
- →
![Bay 053 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b053.png?v=1687110188395)

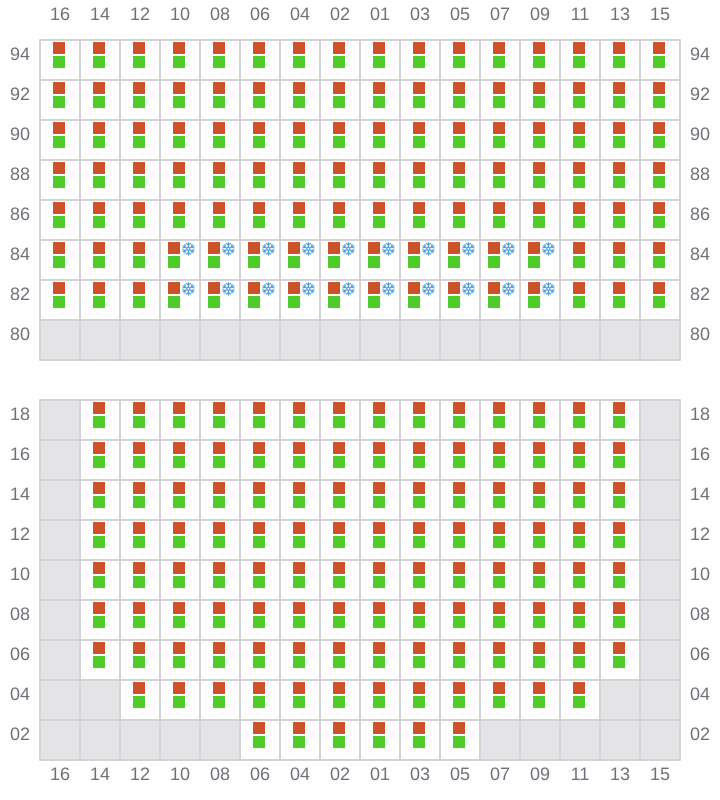

055 (054)
- ←
![Bay 055 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b055.png?v=1687110188395)

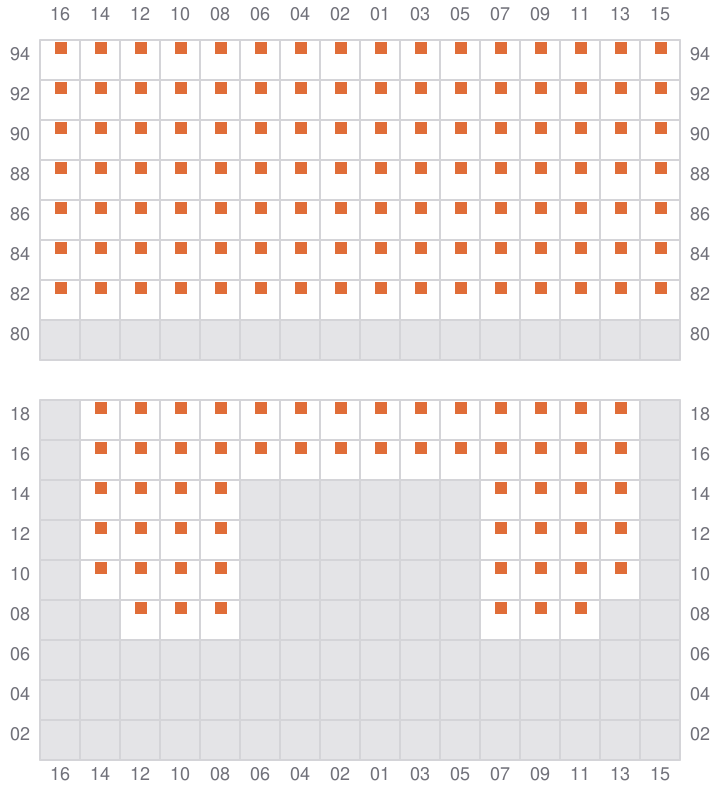

057
- →
![Bay 057 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b057.png?v=1687110188395)

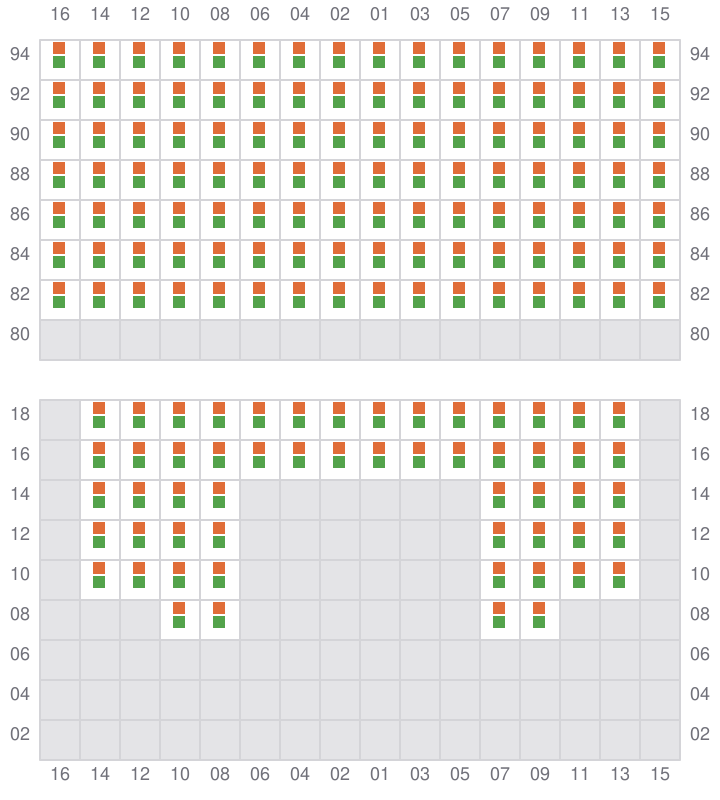

059 (058)
- ←
![Bay 059 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b059.png?v=1687110188395)

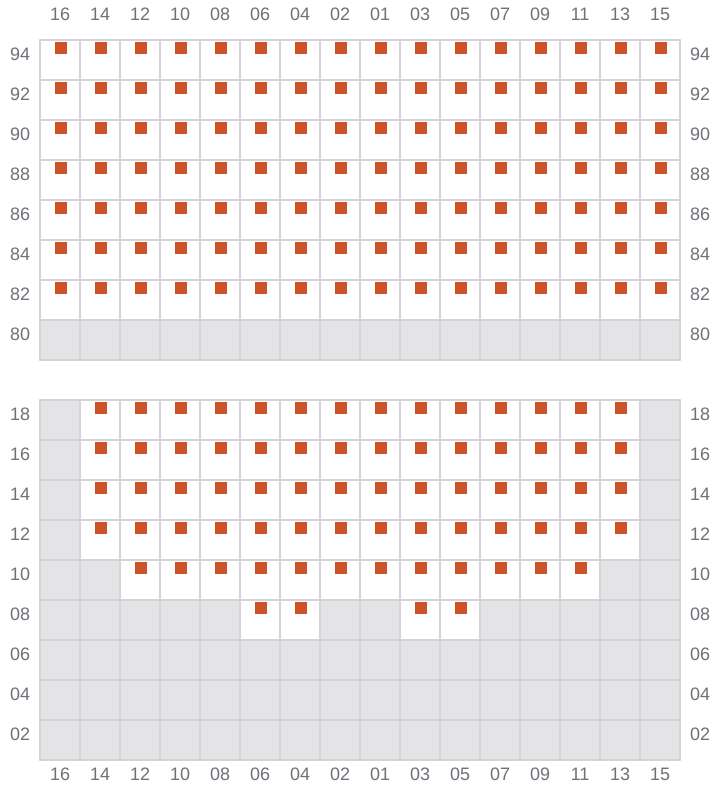

061
- →
![Bay 061 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b061.png?v=1687110188395)

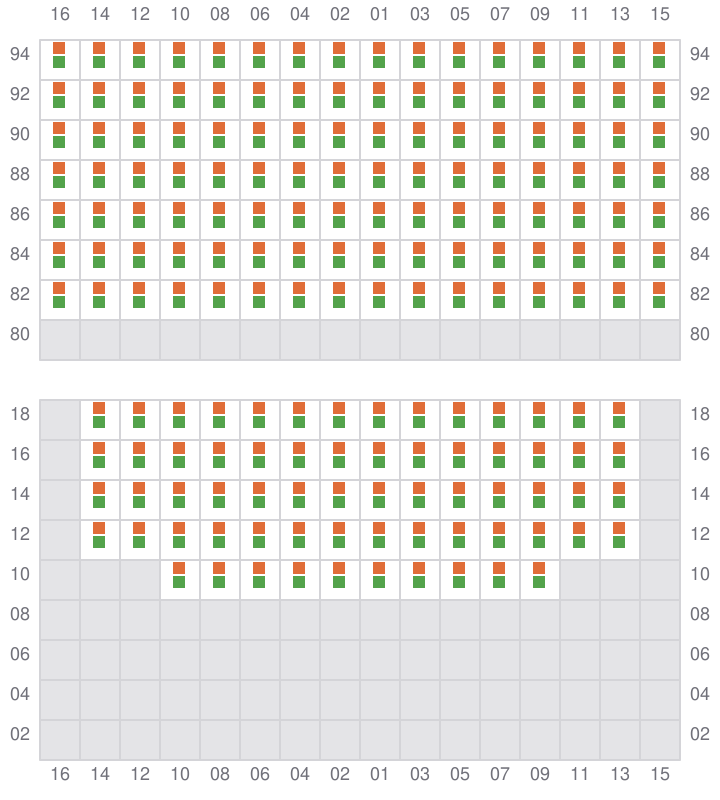

063 (062)
- ←
![Bay 063 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b063.png?v=1687110188395)

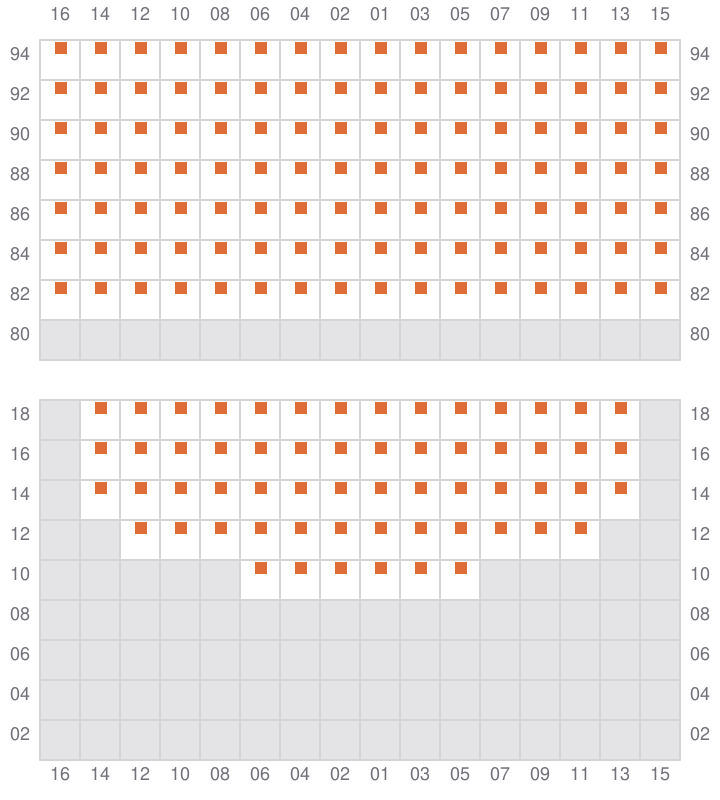

065
- →
![Bay 065 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b065.png?v=1687110188395)

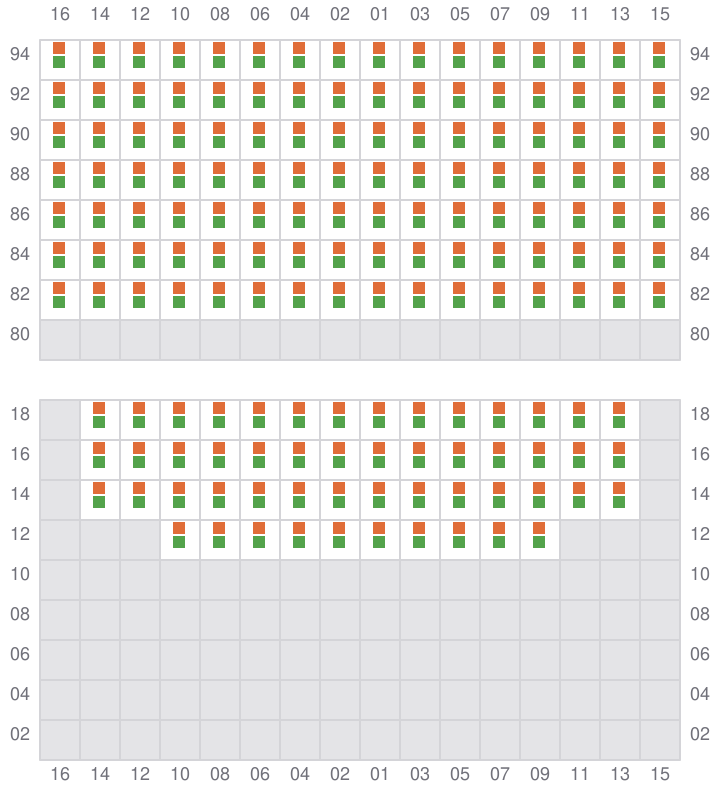

067 (066)
- ←
![Bay 067 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b067.png?v=1687110188395)

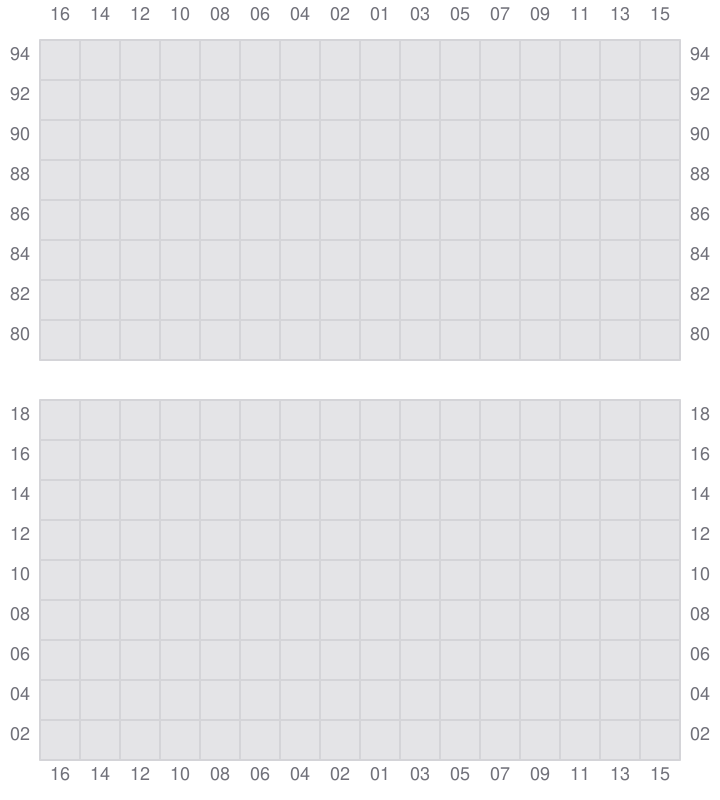

069
![Bay 069 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b069.png?v=1687110188395)

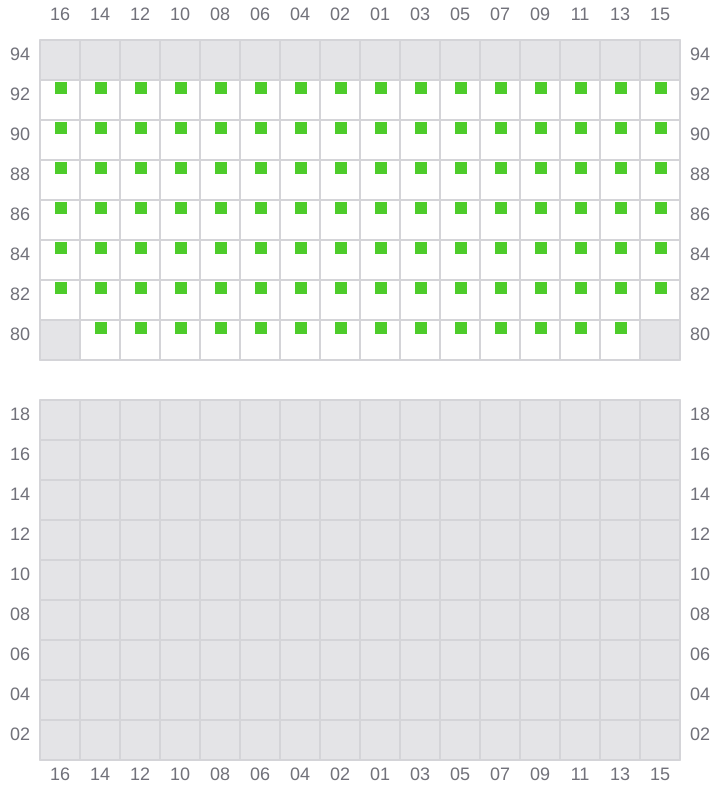

071 (070)
- ← / ?
![Bay 071 view and slots of MSC LUISA](/vessel-images/40f324ab-9e75-4d93-ac28-294bf1334205-b071.png?v=1687110188395)
