MSC LYON
9975569 | 5LSY4 | MSC MEDITERRANEAN SHIPPING CO by ************************** Last update: Wed Dec 10 2025

General Info

Ship Name:MSC LYON
IMO Code:9975569
Call Sign:5LSY4
Line Operator:MSC MEDITERRANEAN SHIPPING CO
Class Name for Sister Ships:MLY
Year Built:2024
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):258.00
LOA (Length Overall):272.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,070

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

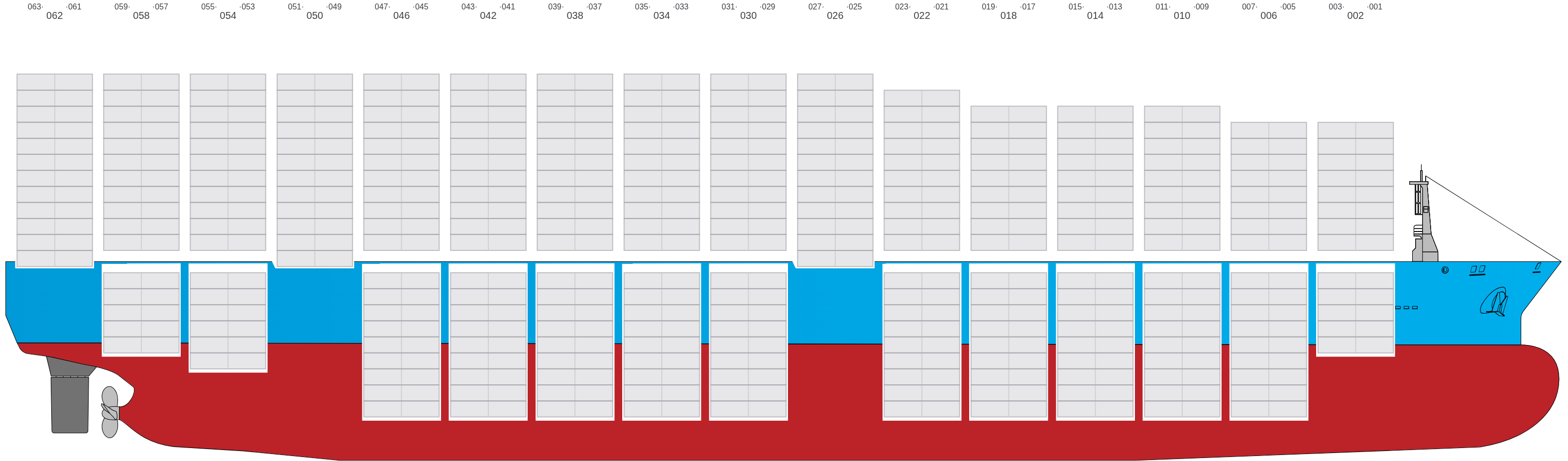

Side View

Side view of MSC LYON

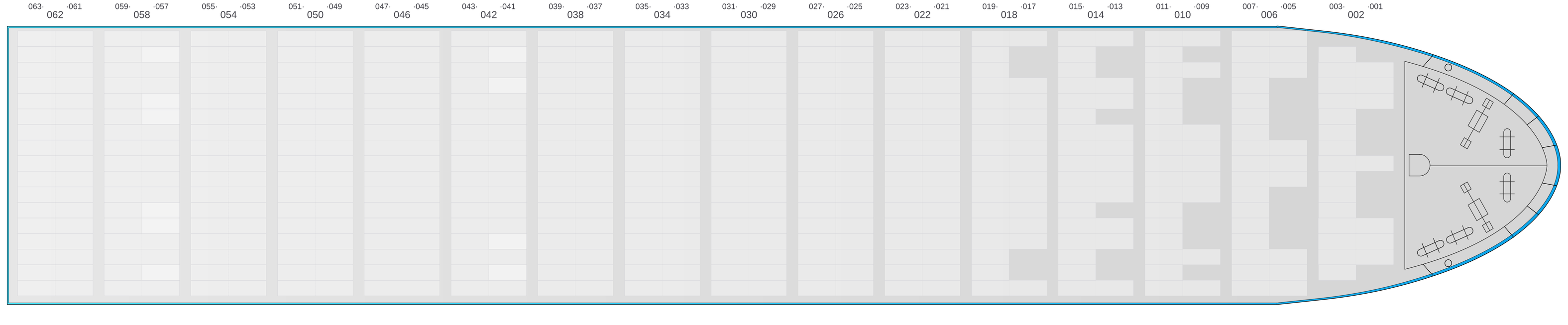

Hatch-Covers View

Deck view of MSC LYON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

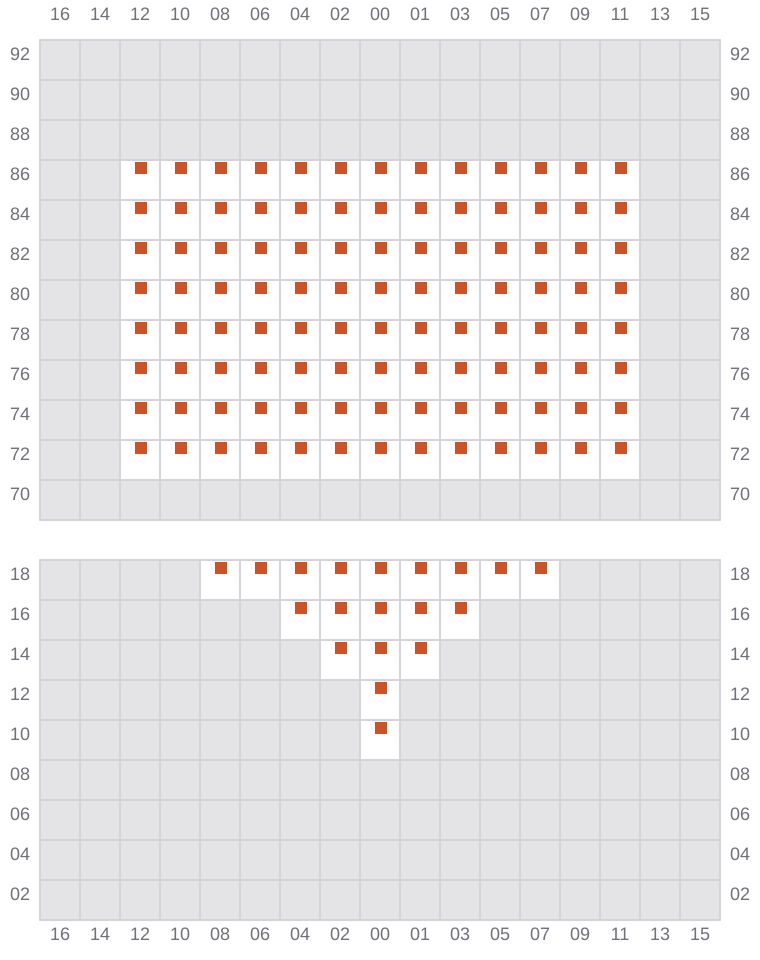

Bay 001 view and slots of MSC LYON

003 (002)

  • ←
  • ✓

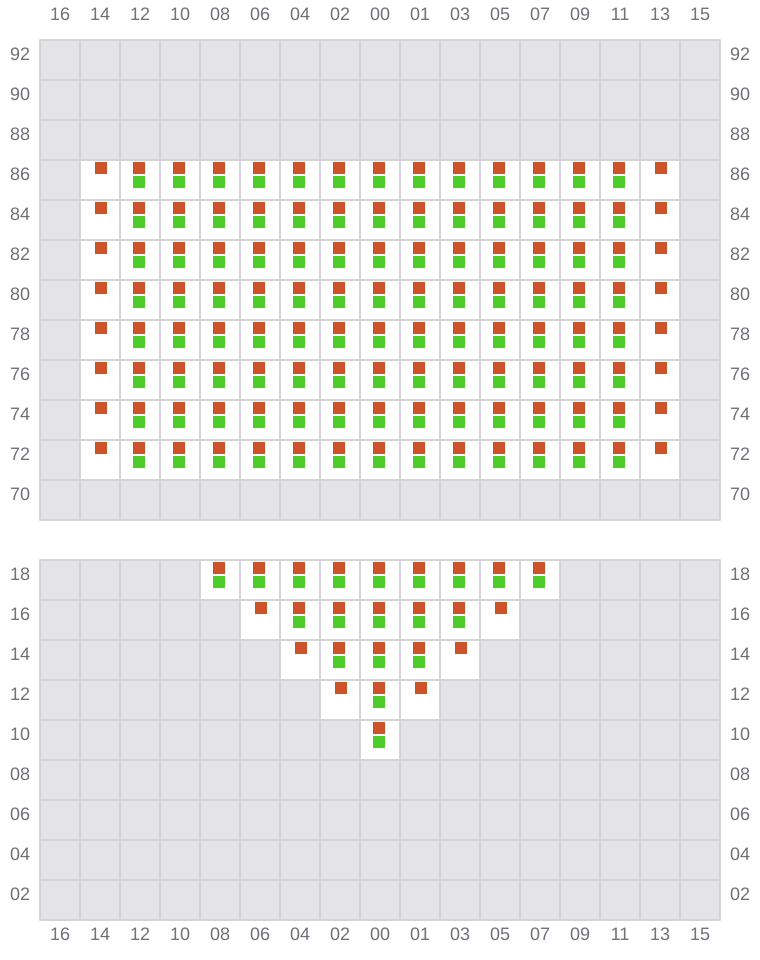

Bay 003 view and slots of MSC LYON

005

  • →
  • ✓

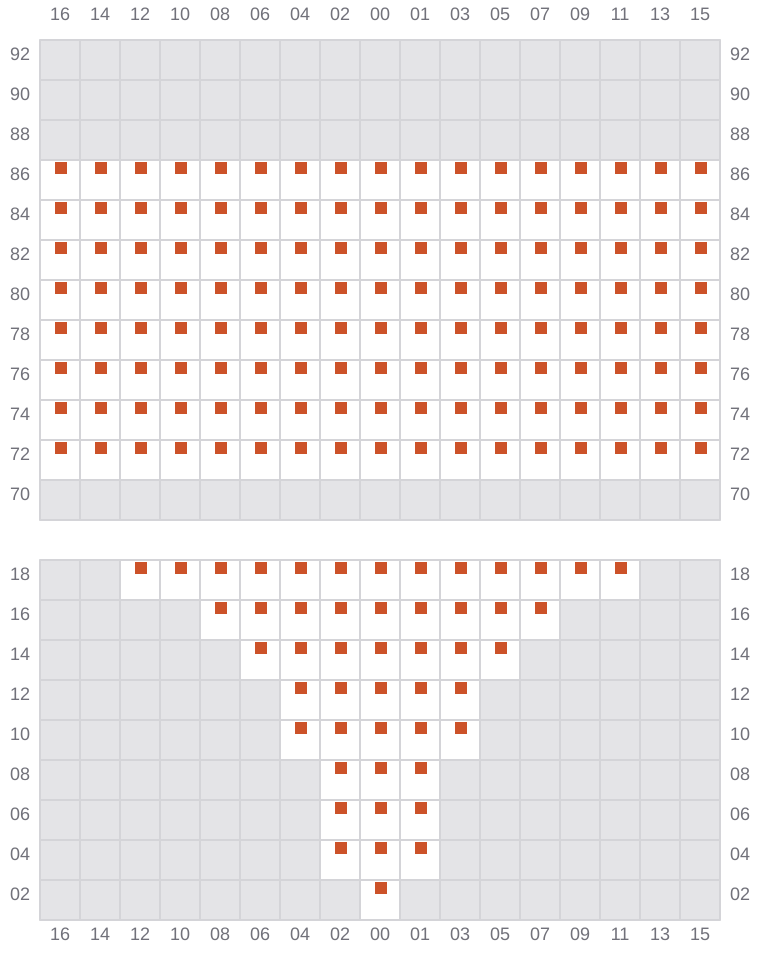

Bay 005 view and slots of MSC LYON

007 (006)

  • ←
  • ✓

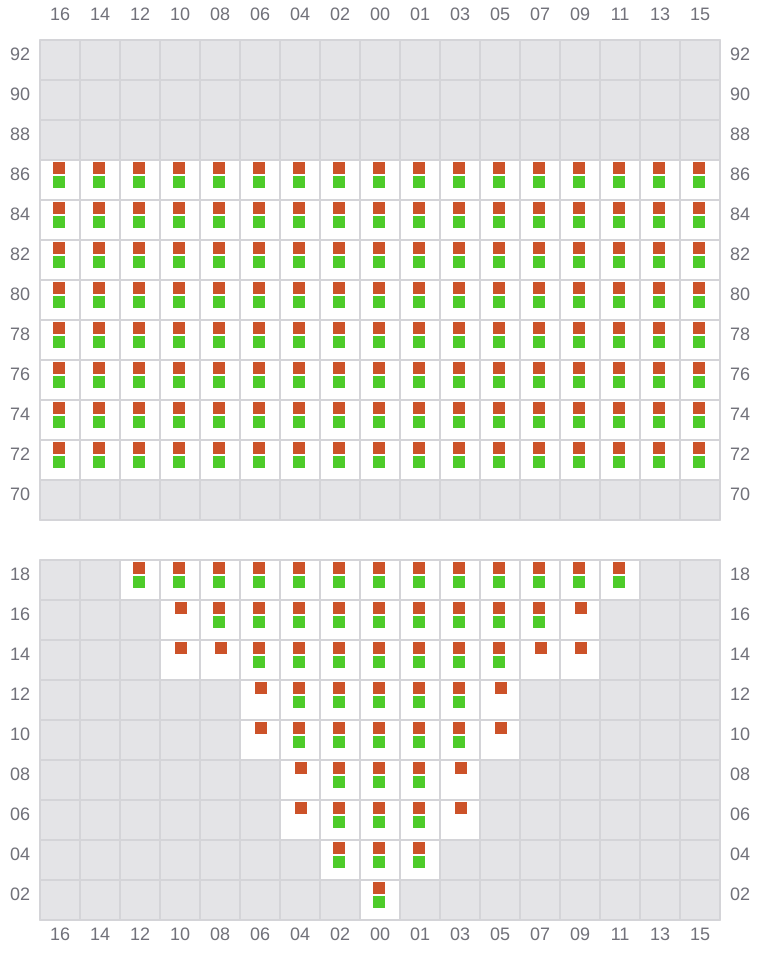

Bay 007 view and slots of MSC LYON

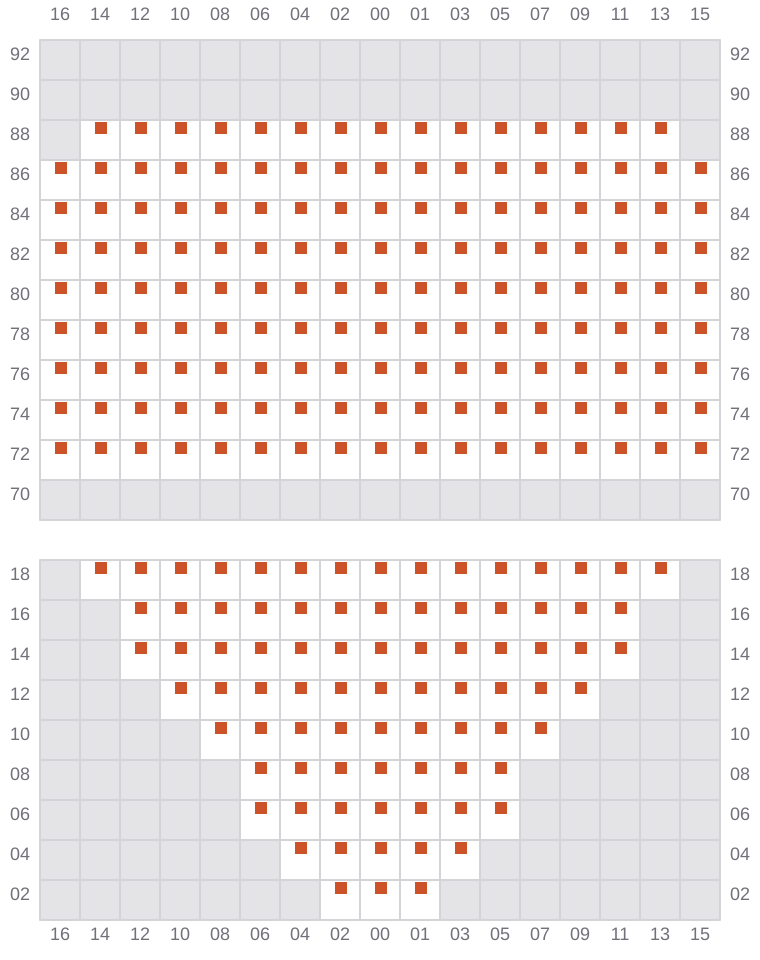

009

  • →
  • ✓
Bay 009 view and slots of MSC LYON

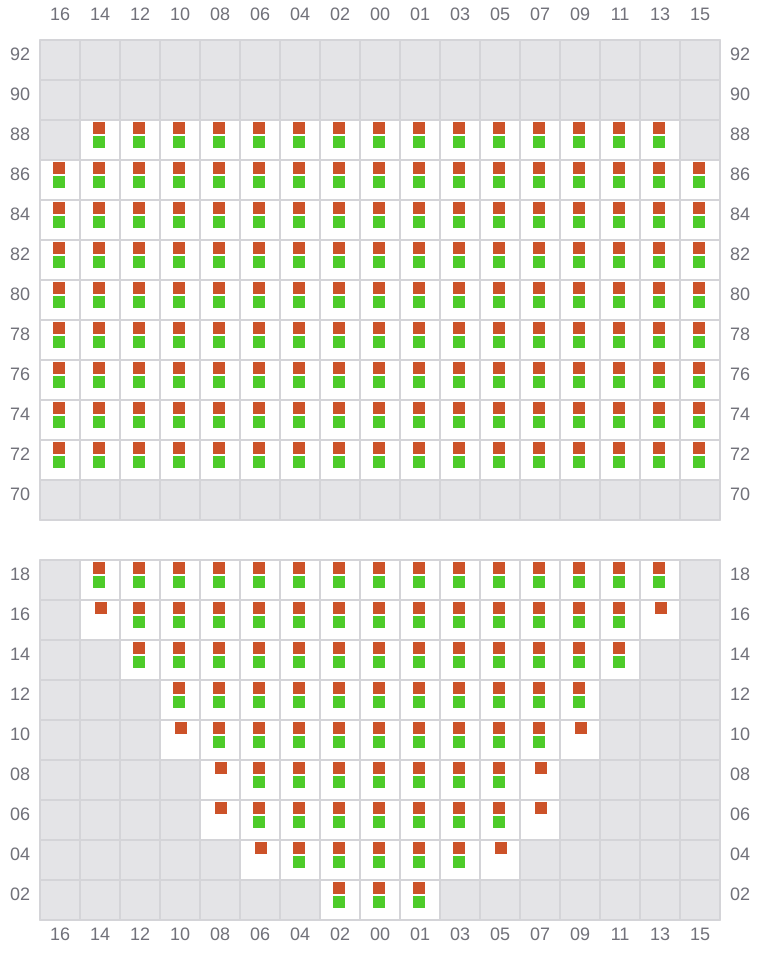

011 (010)

  • ←
  • ✓
Bay 011 view and slots of MSC LYON

013

  • →
  • ✓

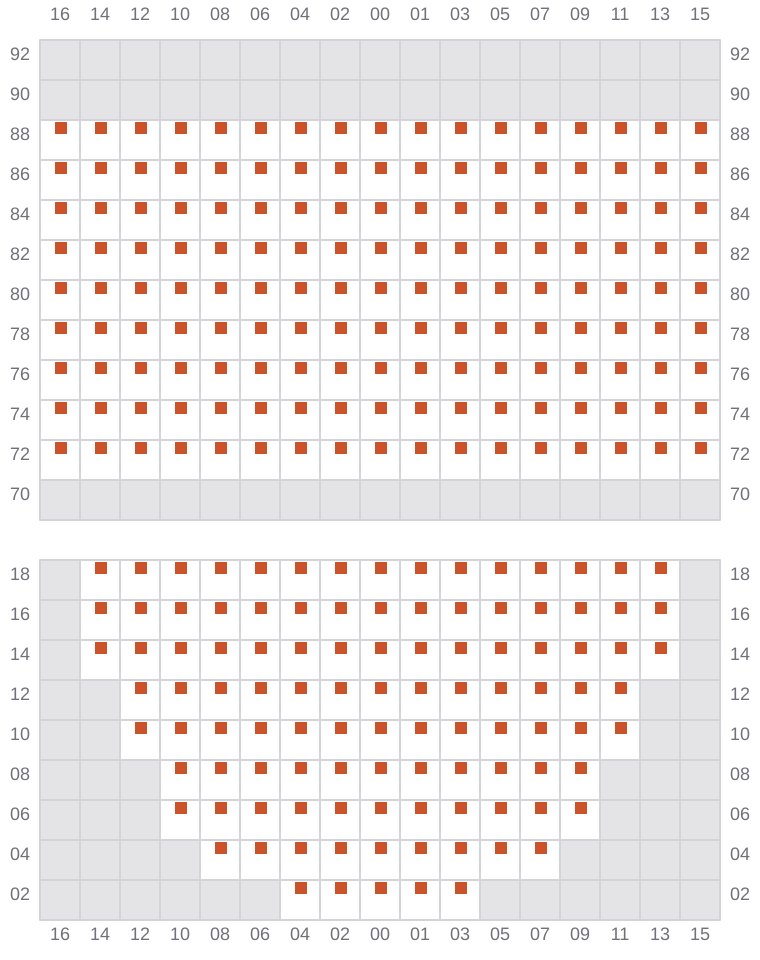

Bay 013 view and slots of MSC LYON

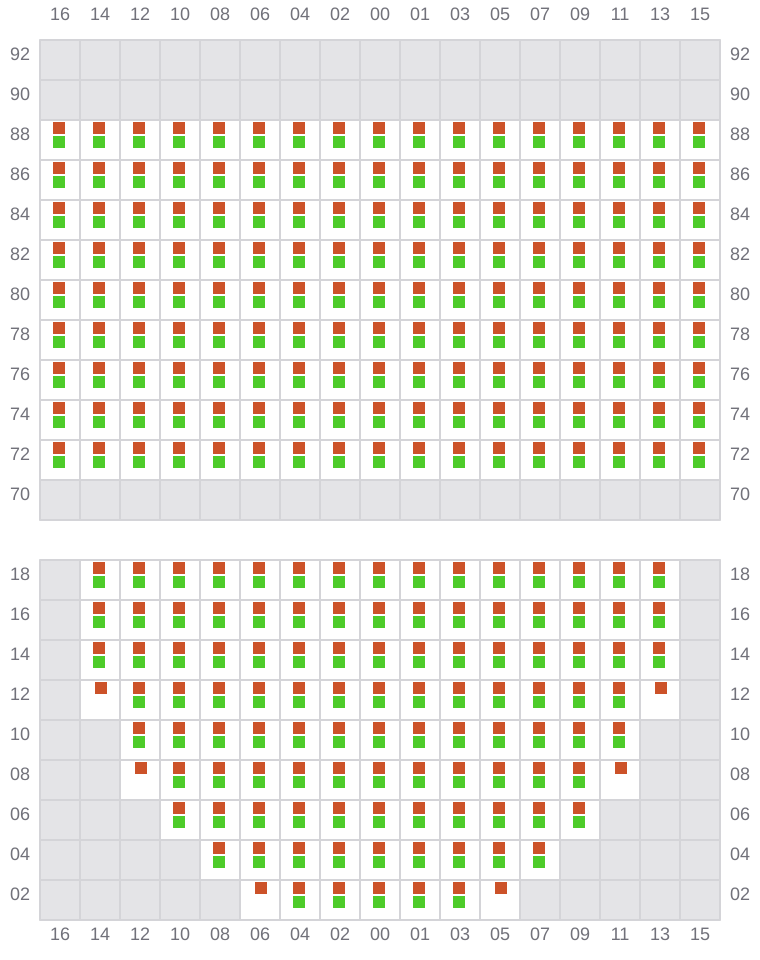

015 (014)

  • ←
  • ✓
Bay 015 view and slots of MSC LYON

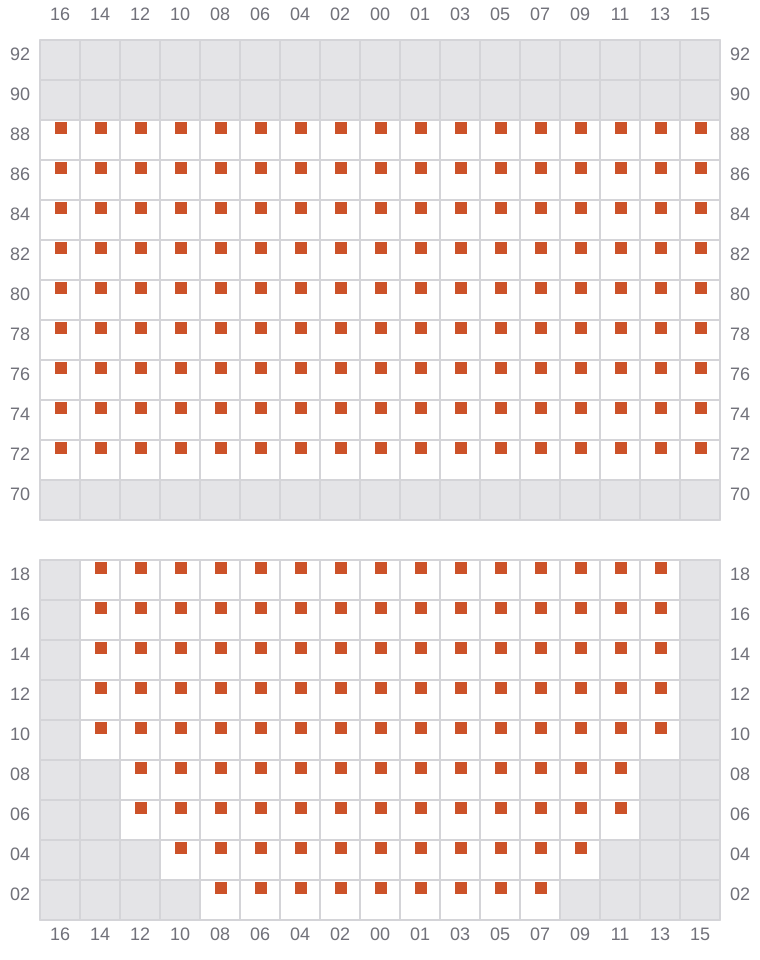

017

  • →
  • ✓
Bay 017 view and slots of MSC LYON

019 (018)

  • ←
  • ✓

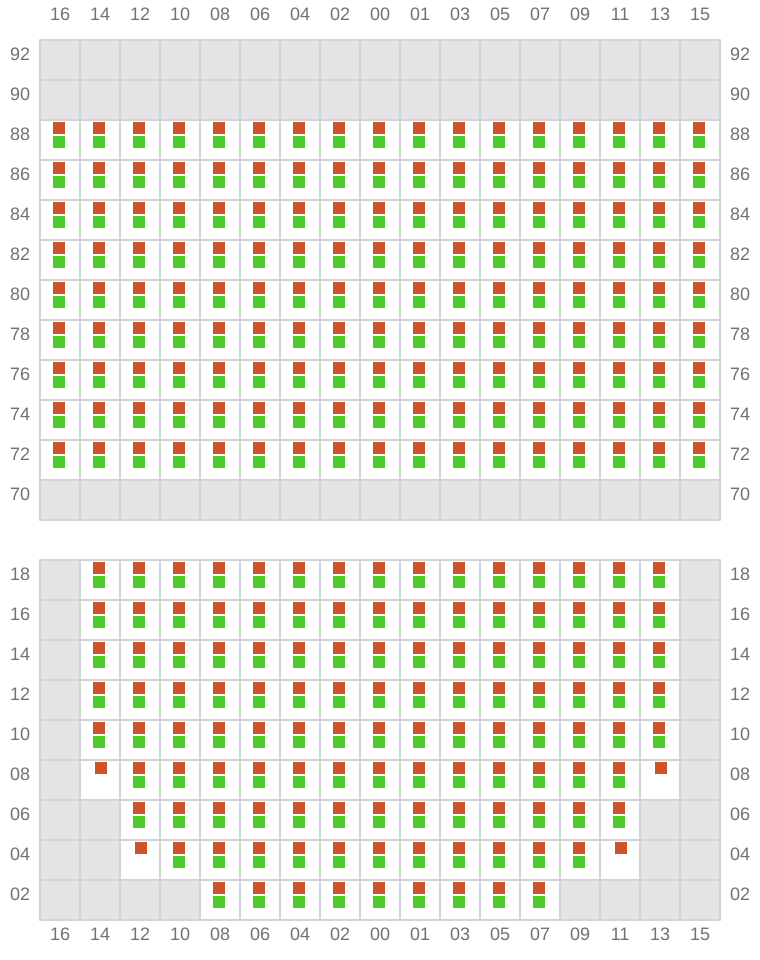

Bay 019 view and slots of MSC LYON

021

  • →
  • ✓
Bay 021 view and slots of MSC LYON

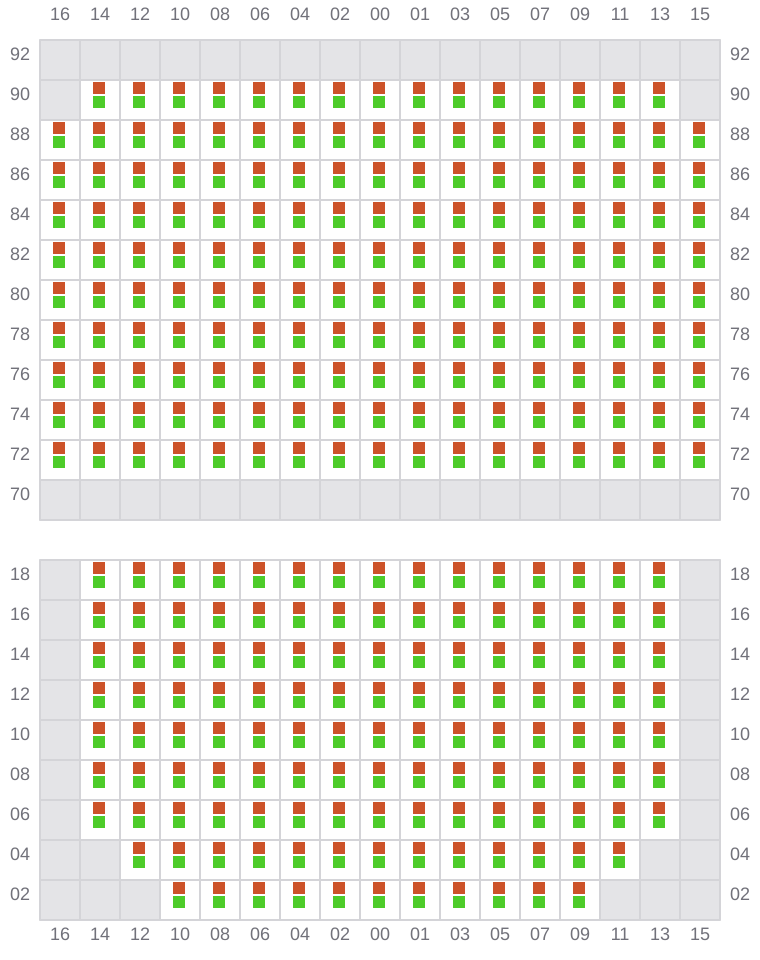

023 (022)

  • ←
  • ✓
Bay 023 view and slots of MSC LYON

025

  • →
  • ? / ?
  • ? / ?
  • ✓

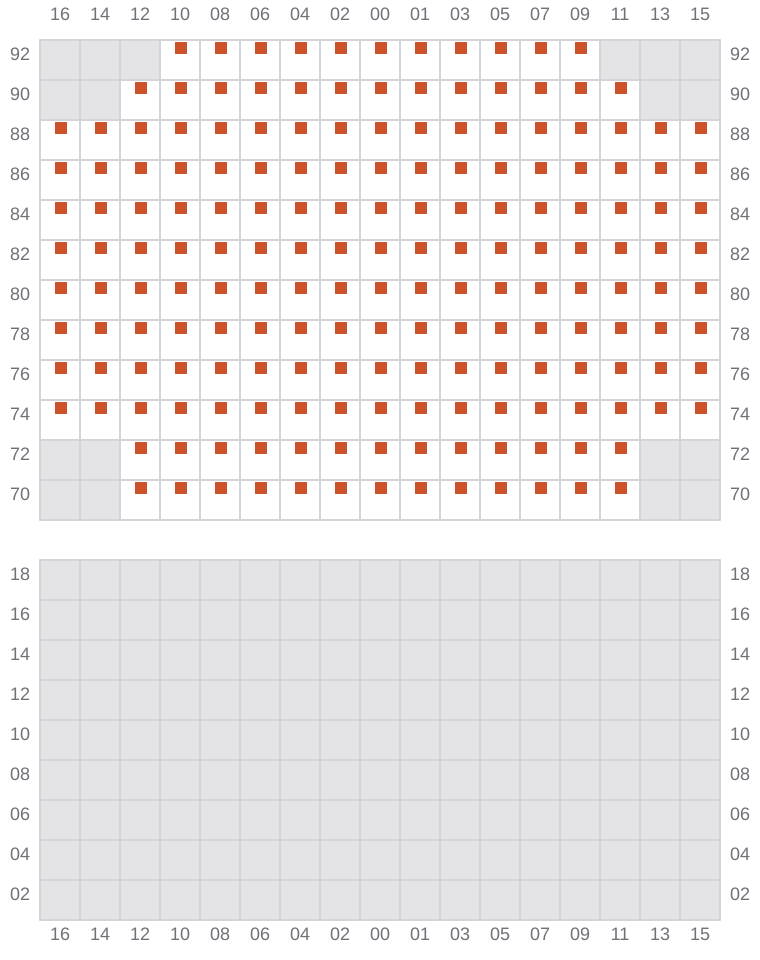

Bay 025 view and slots of MSC LYON

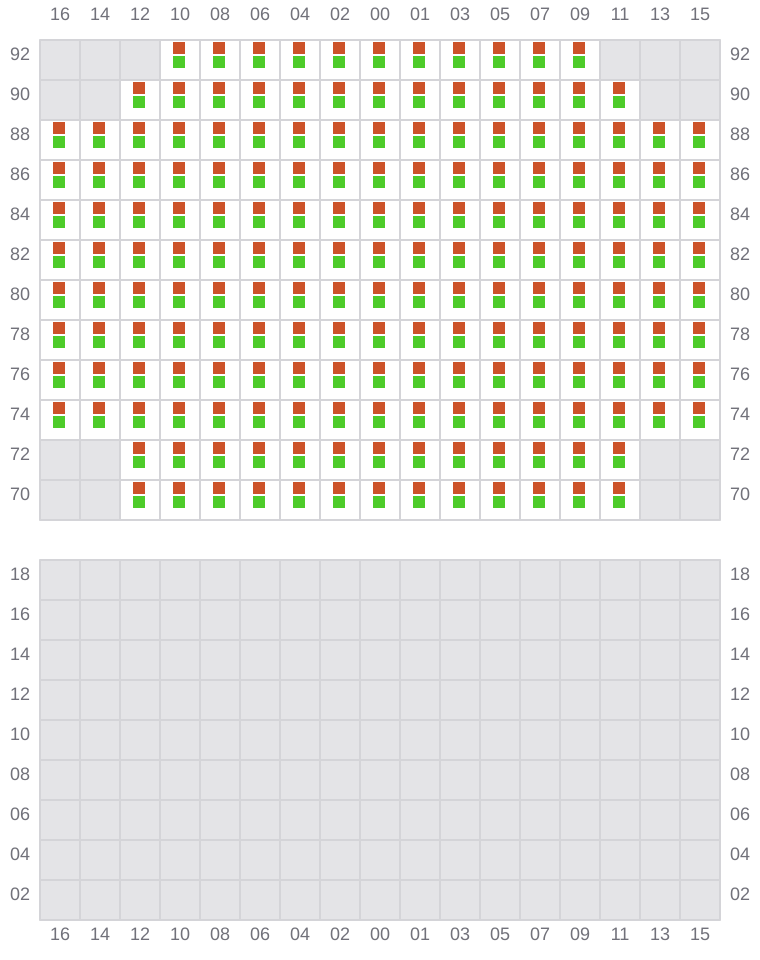

027 (026)

  • ←
  • ? / ?
  • ? / ?
  • ✓
Bay 027 view and slots of MSC LYON

029

  • →
  • ✓
Bay 029 view and slots of MSC LYON

031 (030)

  • ←
  • ✓
Bay 031 view and slots of MSC LYON

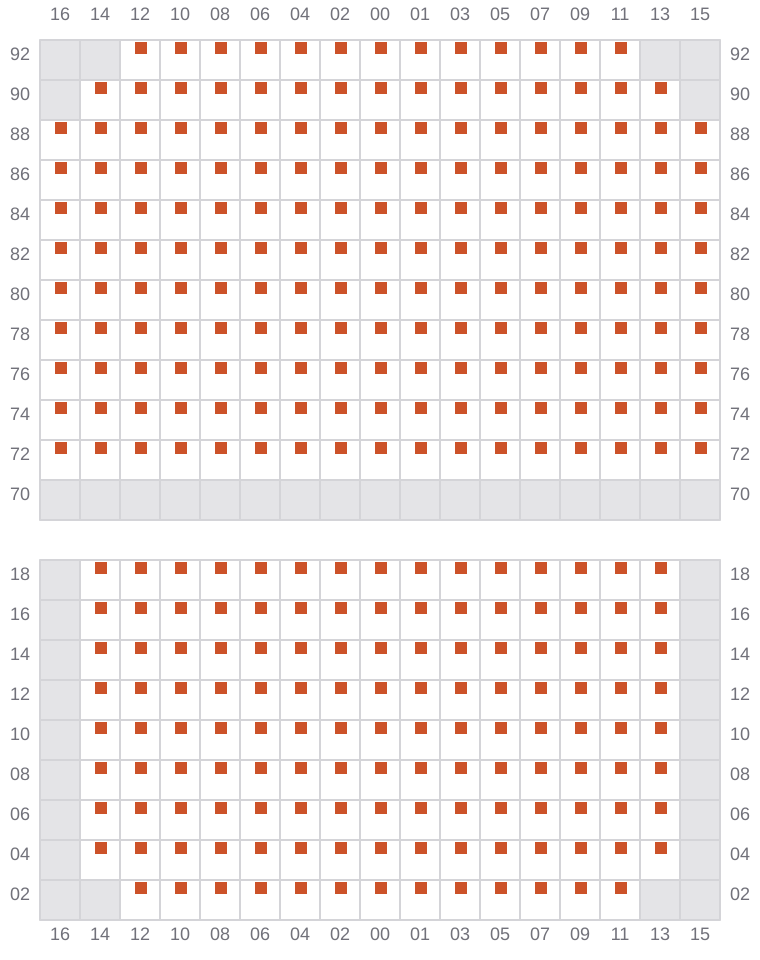

033

  • →
  • ✓
Bay 033 view and slots of MSC LYON

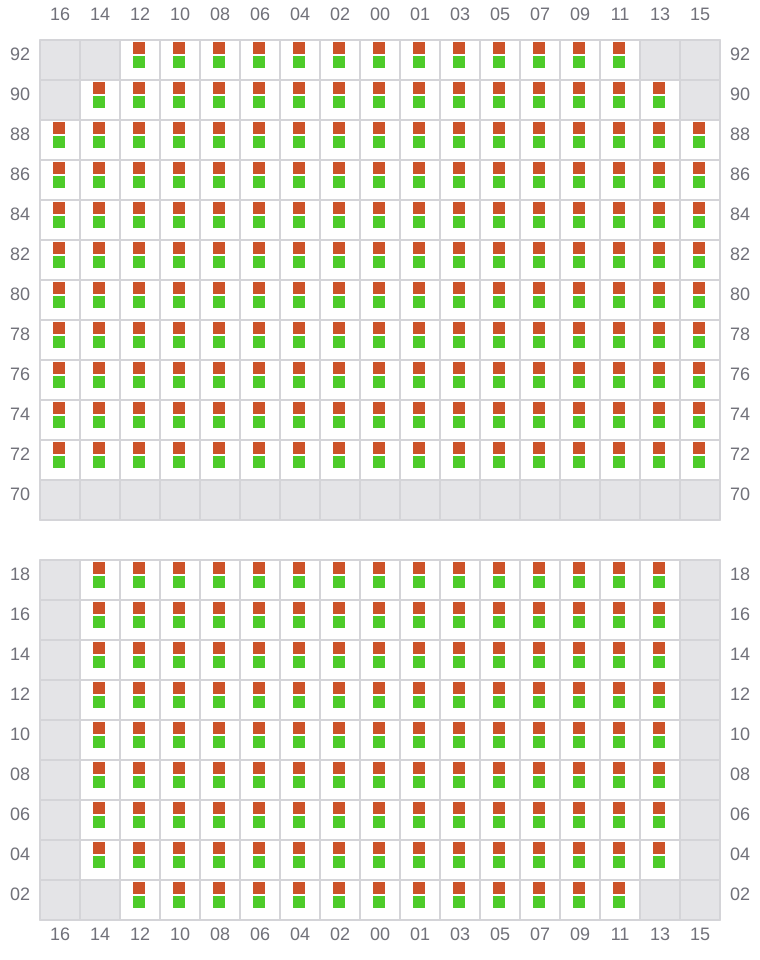

035 (034)

  • ←
  • ✓
Bay 035 view and slots of MSC LYON

037

  • →
  • ✓
Bay 037 view and slots of MSC LYON

039 (038)

  • ←
  • ✓
Bay 039 view and slots of MSC LYON

041

  • →
  • ✓

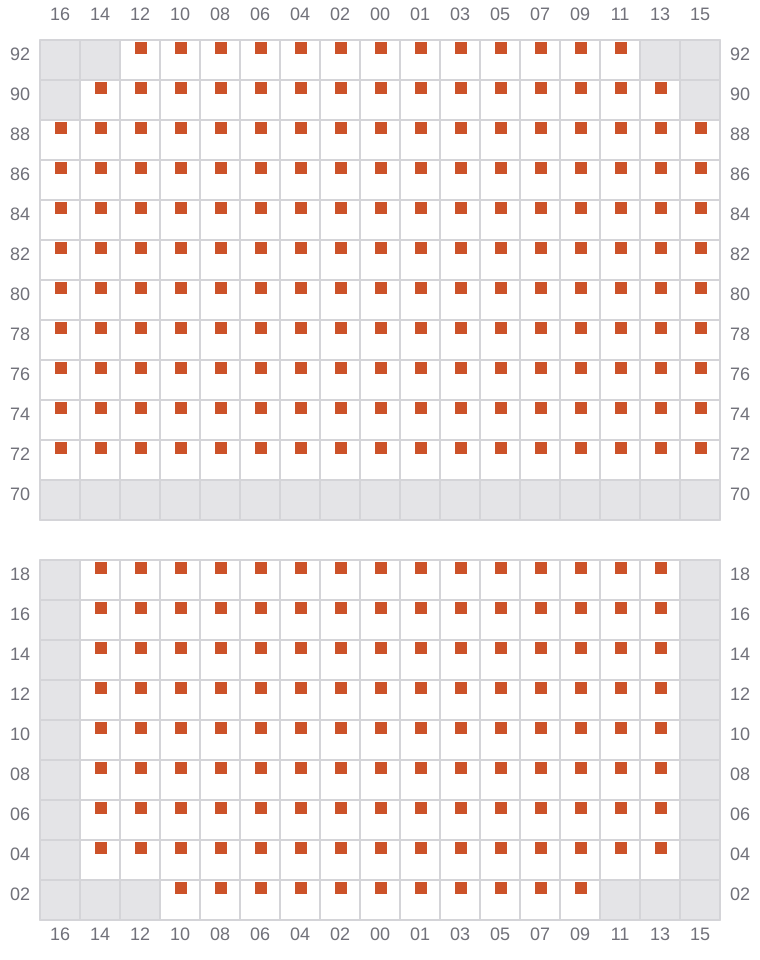

Bay 041 view and slots of MSC LYON

043 (042)

  • ←
  • ✓

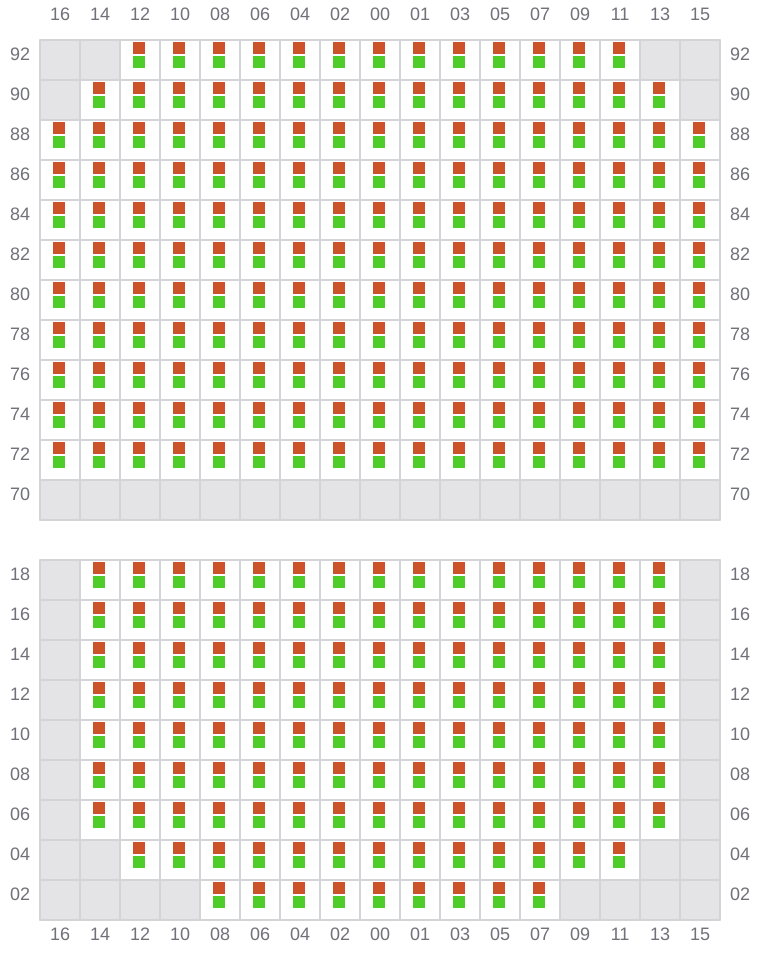

Bay 043 view and slots of MSC LYON

045

  • →
  • ✓

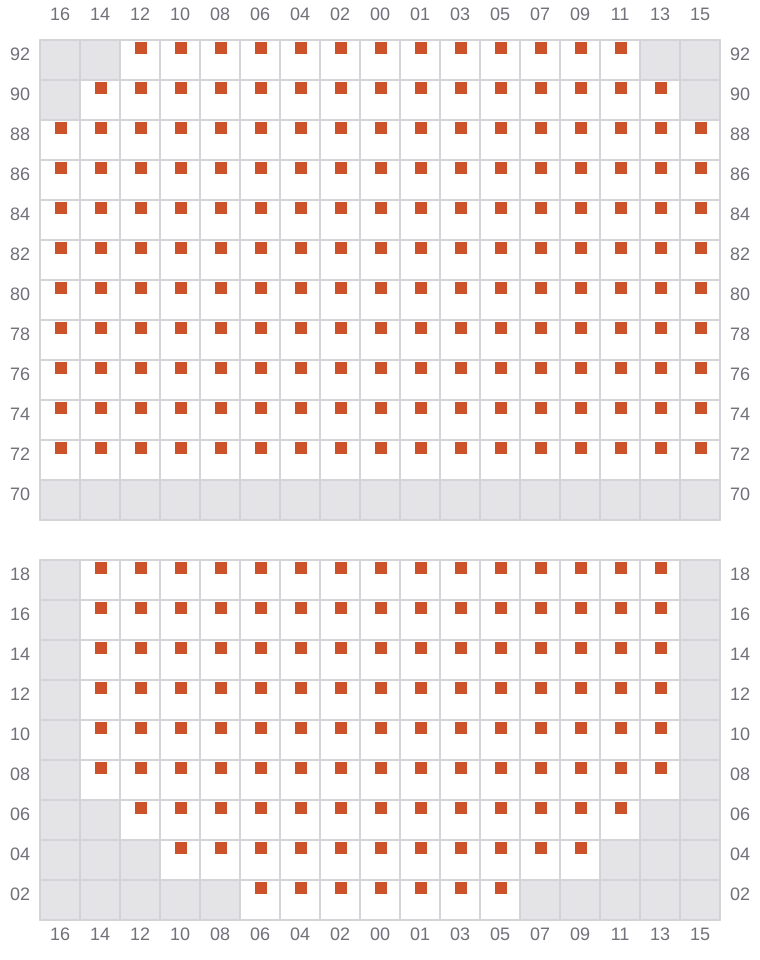

Bay 045 view and slots of MSC LYON

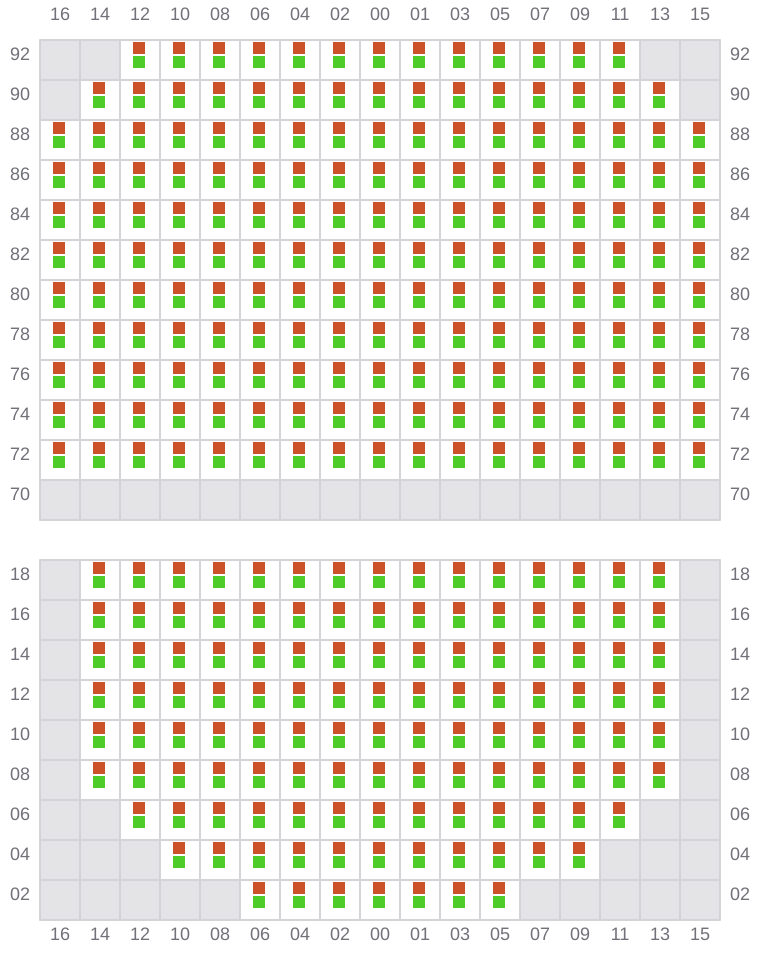

047 (046)

  • ←
  • ✓
Bay 047 view and slots of MSC LYON

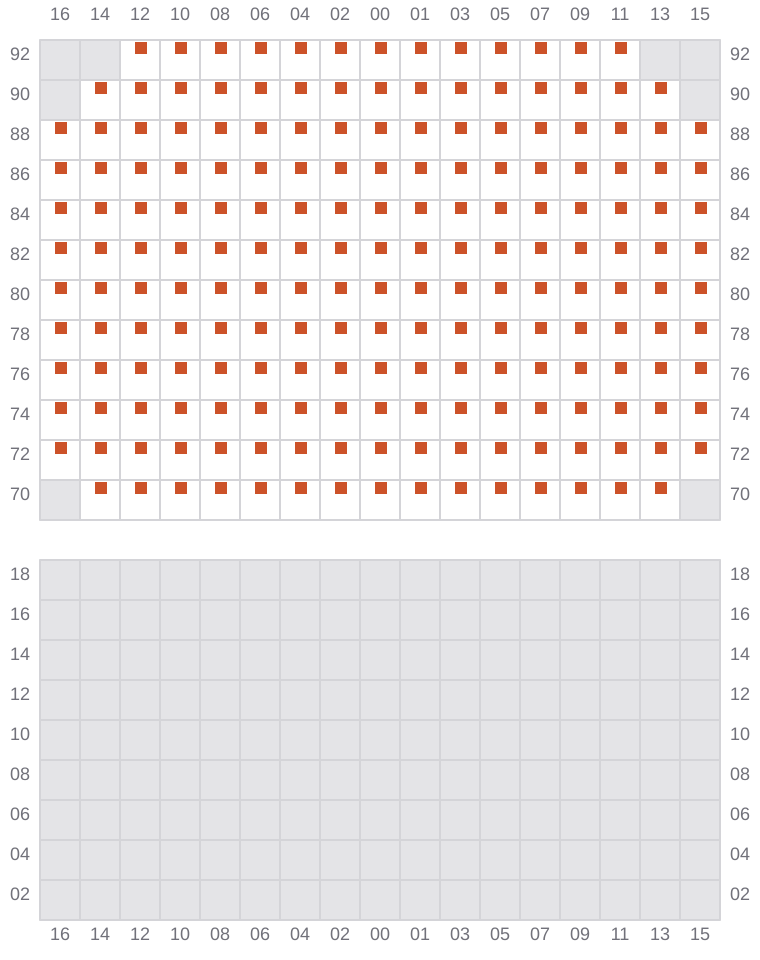

049

  • →
  • ? / ?
  • ? / ?
  • ✓
Bay 049 view and slots of MSC LYON

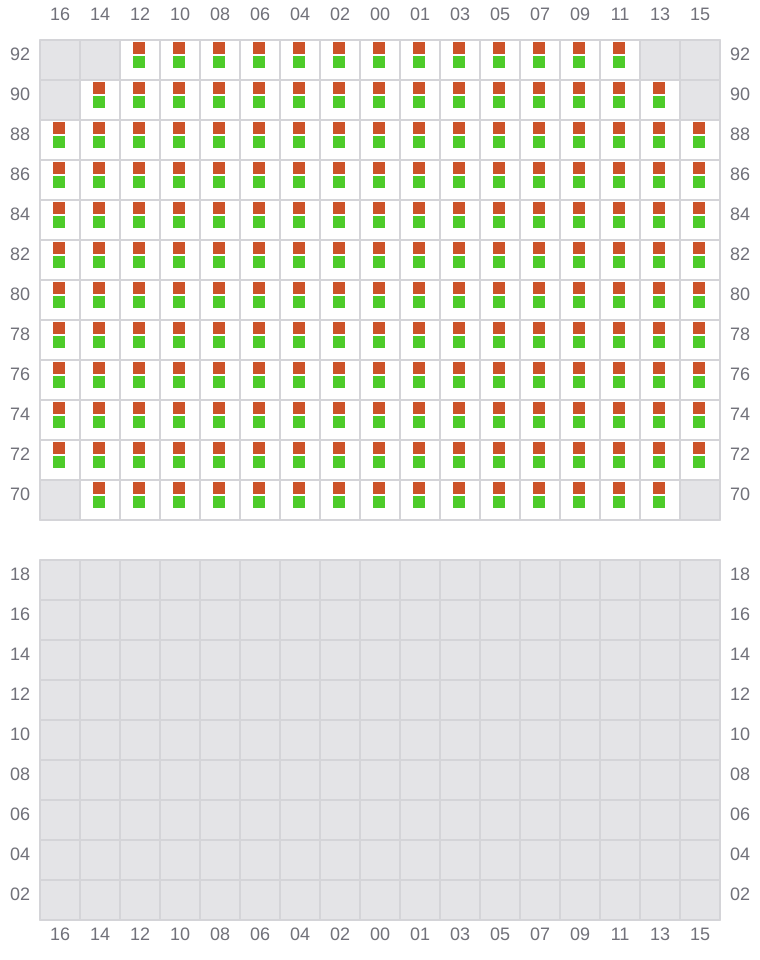

051 (050)

  • ←
  • ? / ?
  • ? / ?
  • ✓
Bay 051 view and slots of MSC LYON

053

  • →
  • ✓

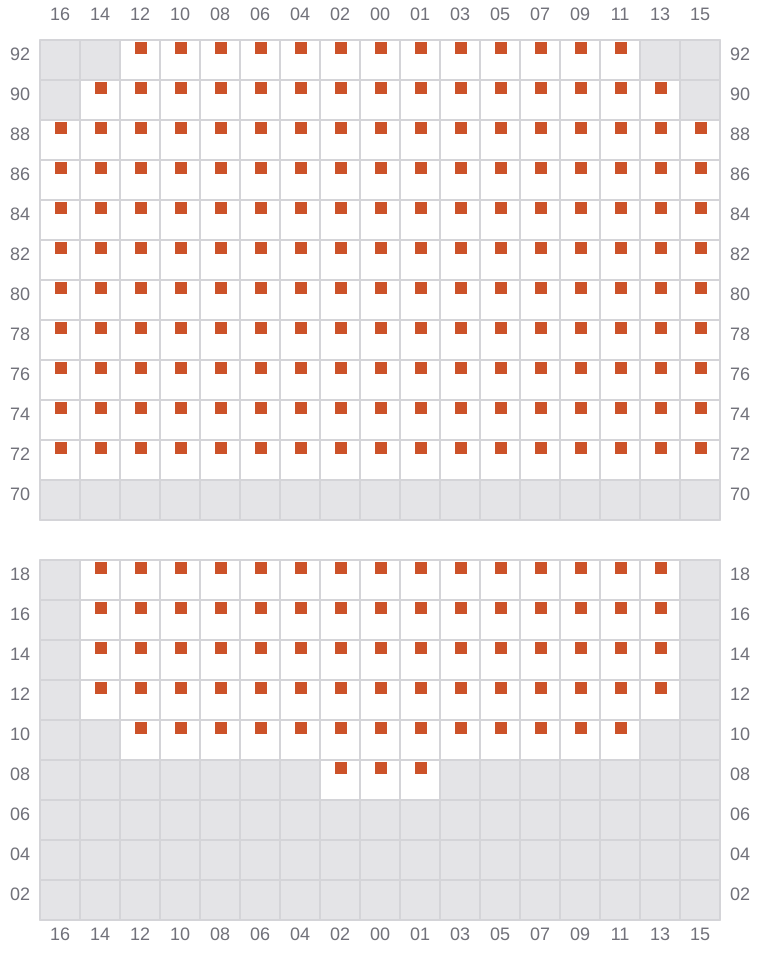

Bay 053 view and slots of MSC LYON

055 (054)

  • ←
  • ✓

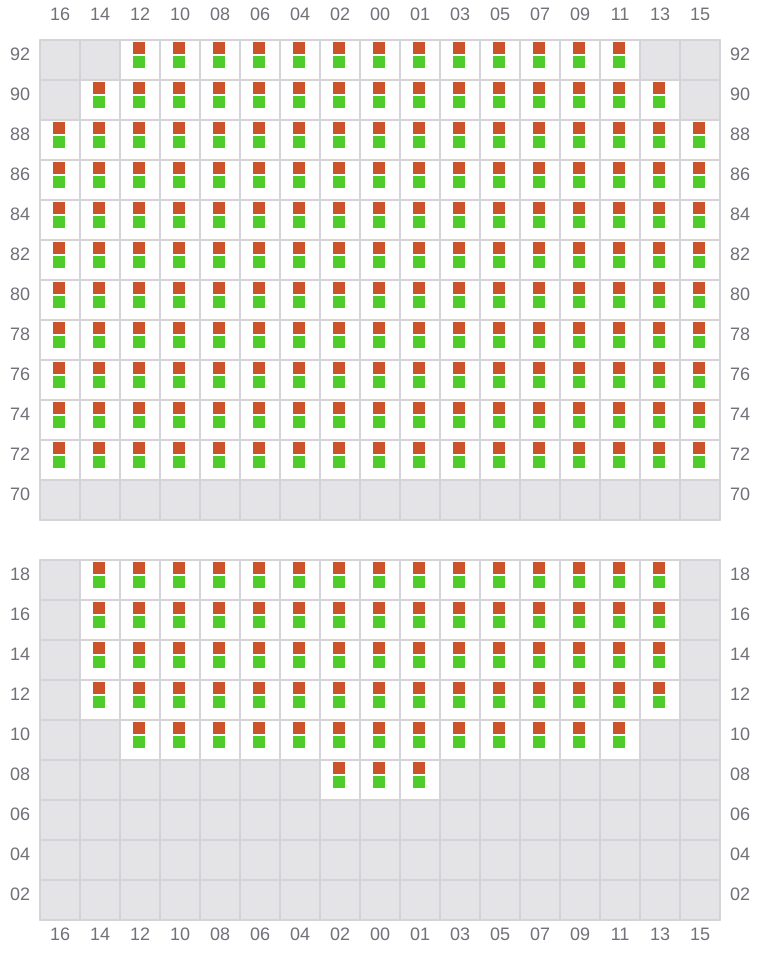

Bay 055 view and slots of MSC LYON

057

  • →
  • ✓

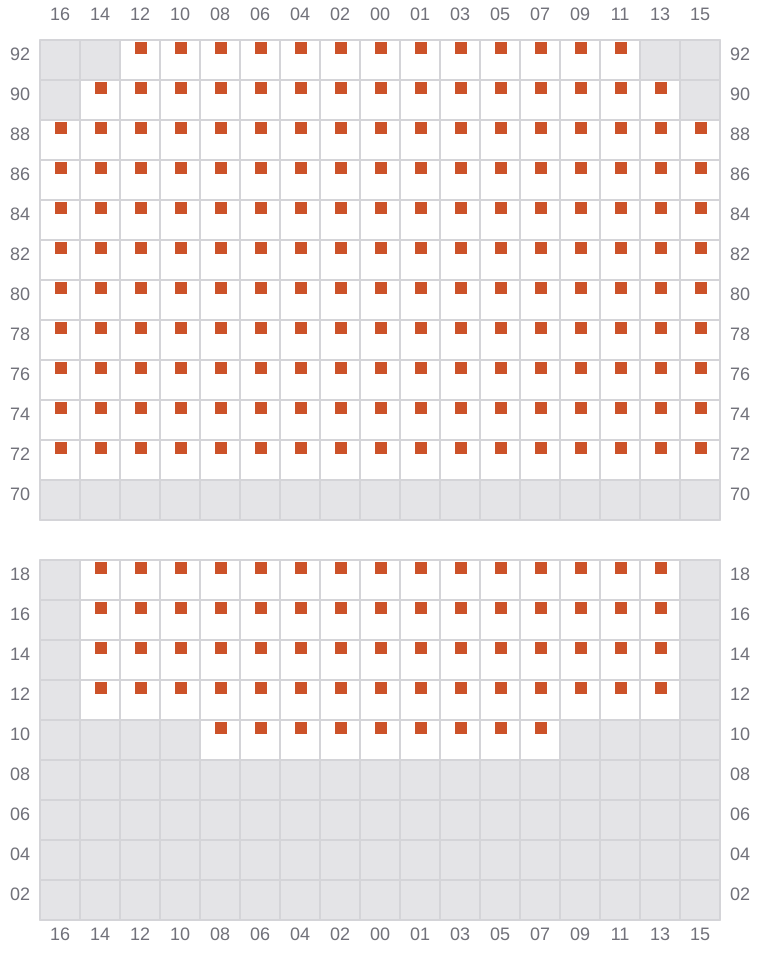

Bay 057 view and slots of MSC LYON

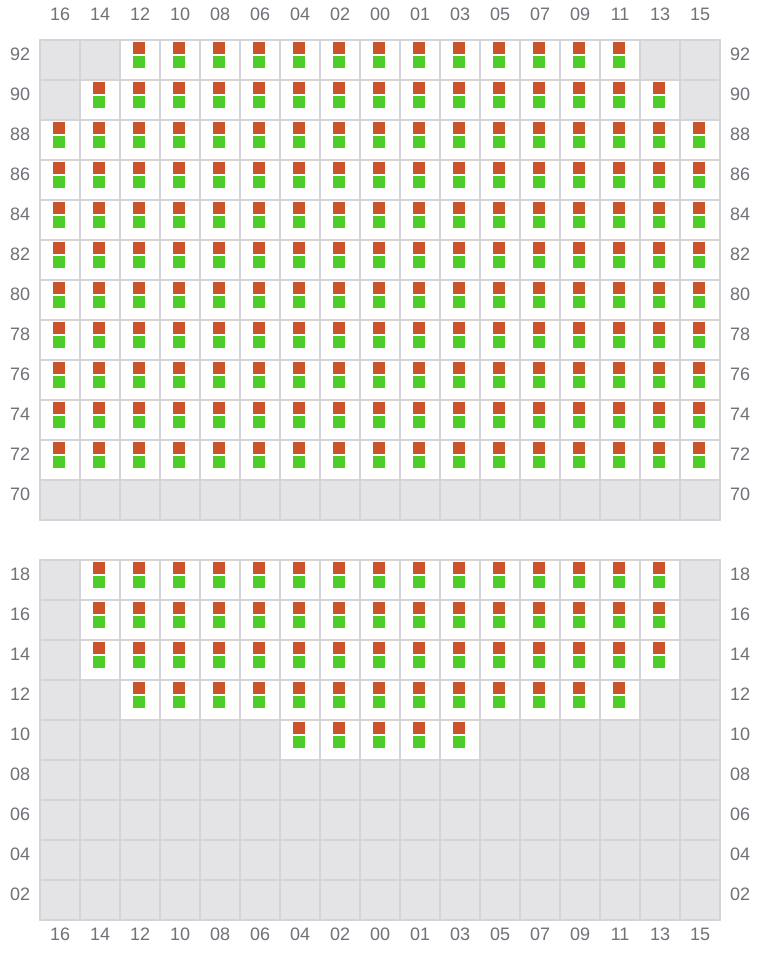

059 (058)

  • ←
  • ✓
Bay 059 view and slots of MSC LYON

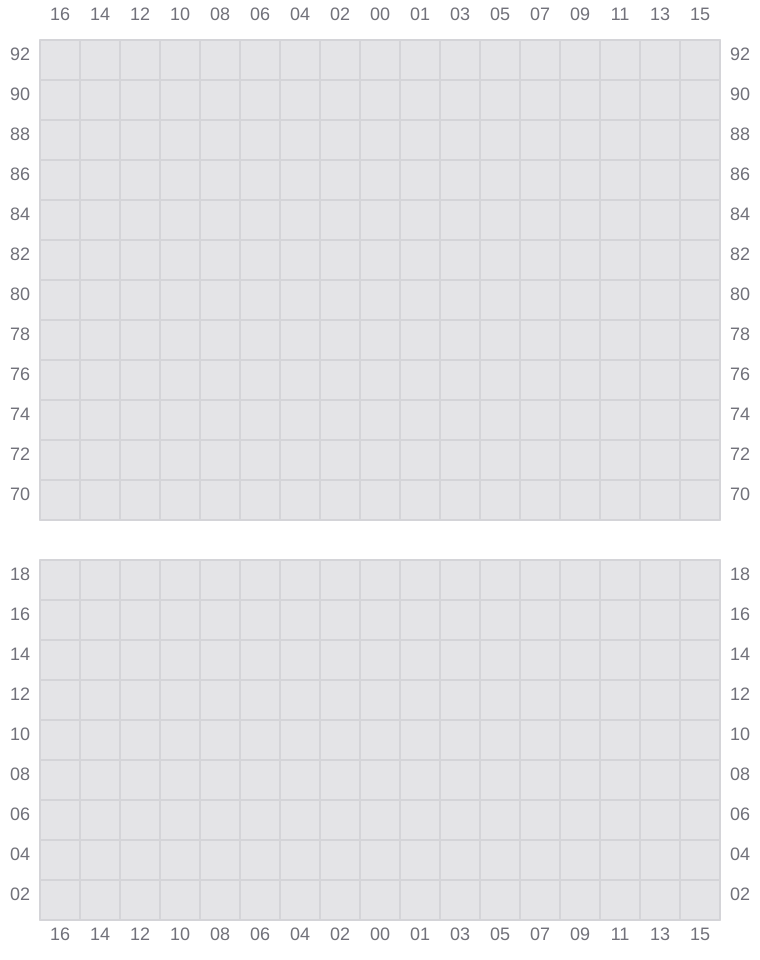

061

  • →
  • ✓
Bay 061 view and slots of MSC LYON

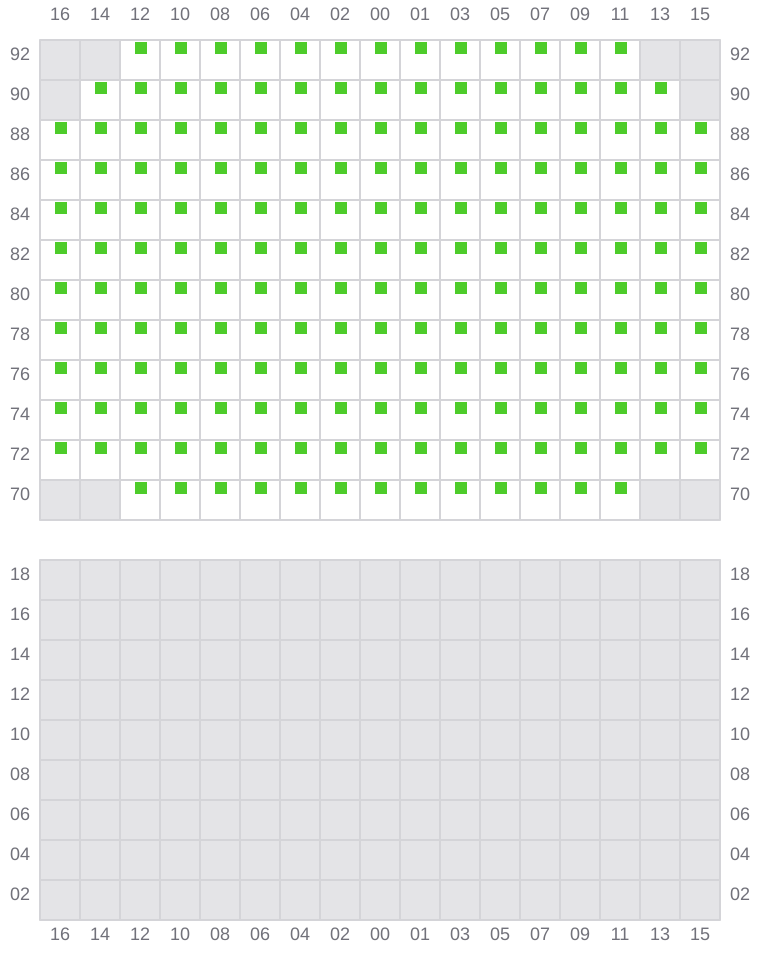

063 (062)

  • ←
  • ? / ?
  • ? / ?
  • ✓
Bay 063 view and slots of MSC LYON
