MSC MAEVA
9289128 | H9TF | MSC by ************* Last update: Sat May 27 2023

General Info

Ship Name:MSC MAEVA
IMO Code:9289128
Call Sign:H9TF
Line Operator:MSC
Class Name for Sister Ships:MSMV
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:075
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:84
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,099

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

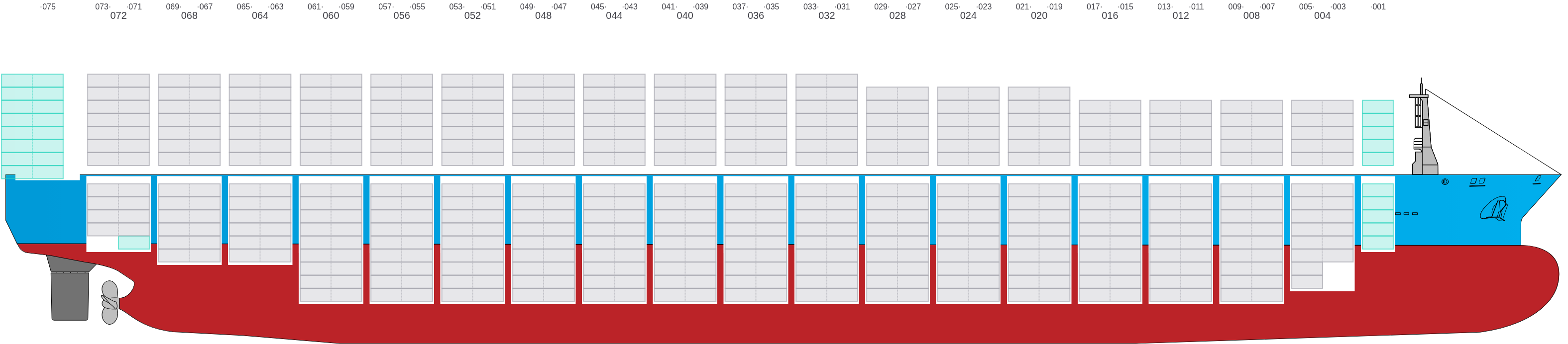

Side View

Side view of MSC MAEVA

Hatch-Covers View

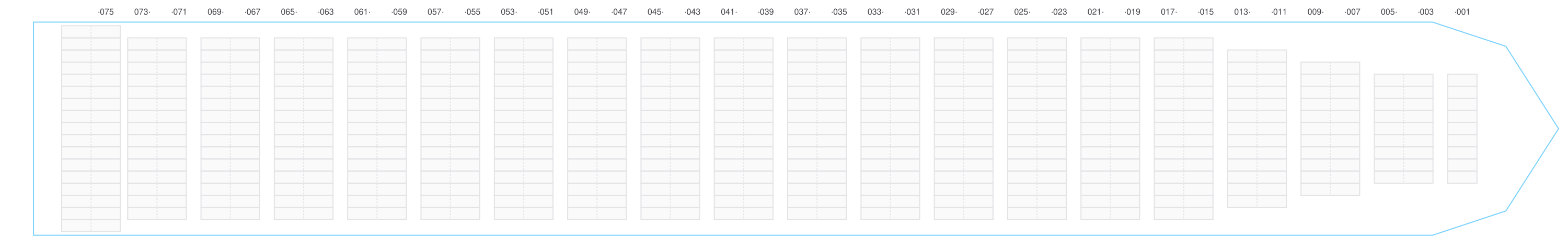

Deck view of MSC MAEVA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

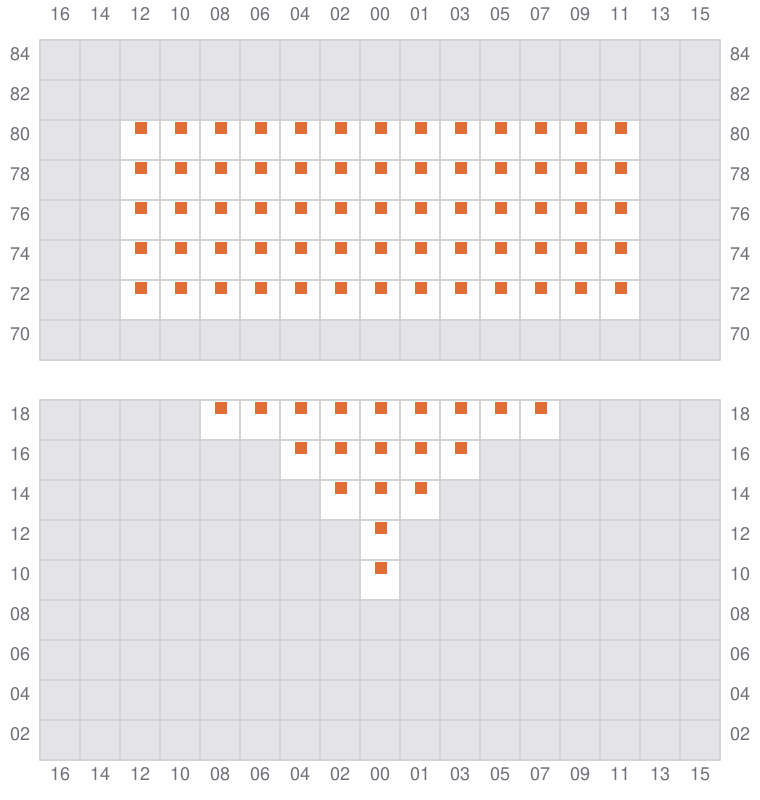

Bay 001 view and slots of MSC MAEVA

003

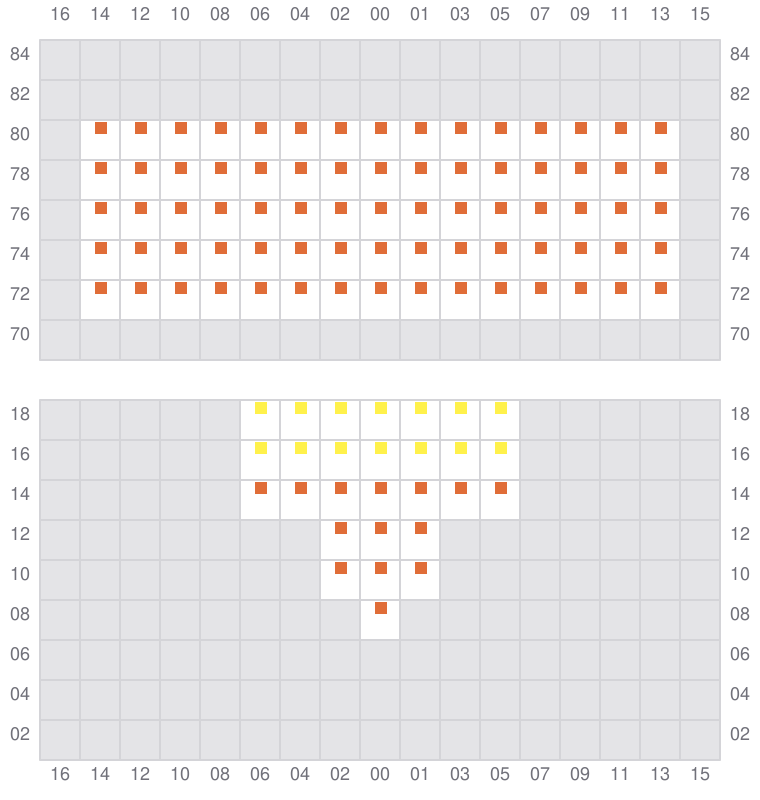

Bay 003 view and slots of MSC MAEVA

005 (004)

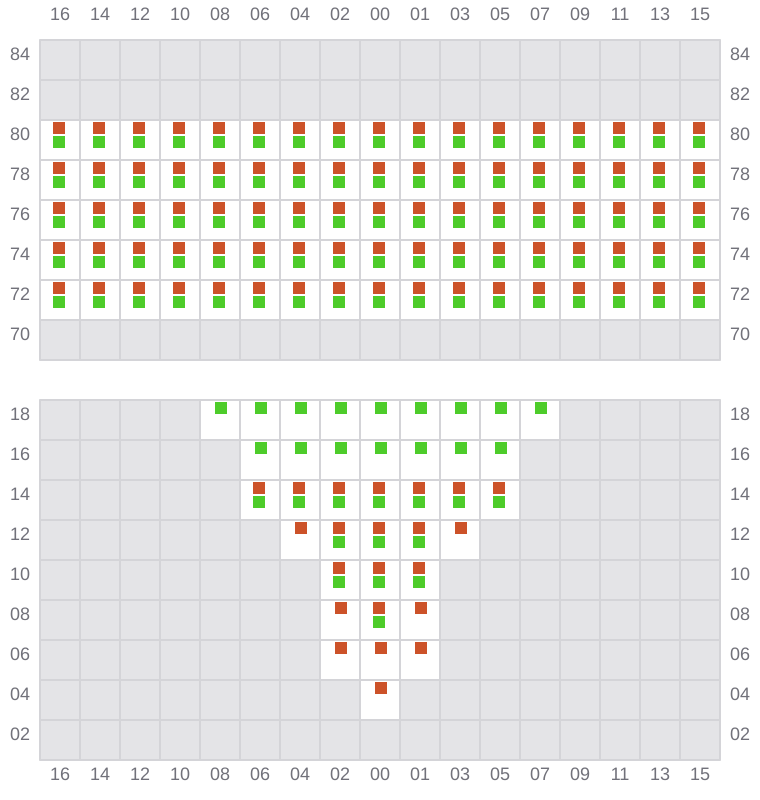

Bay 005 view and slots of MSC MAEVA

007

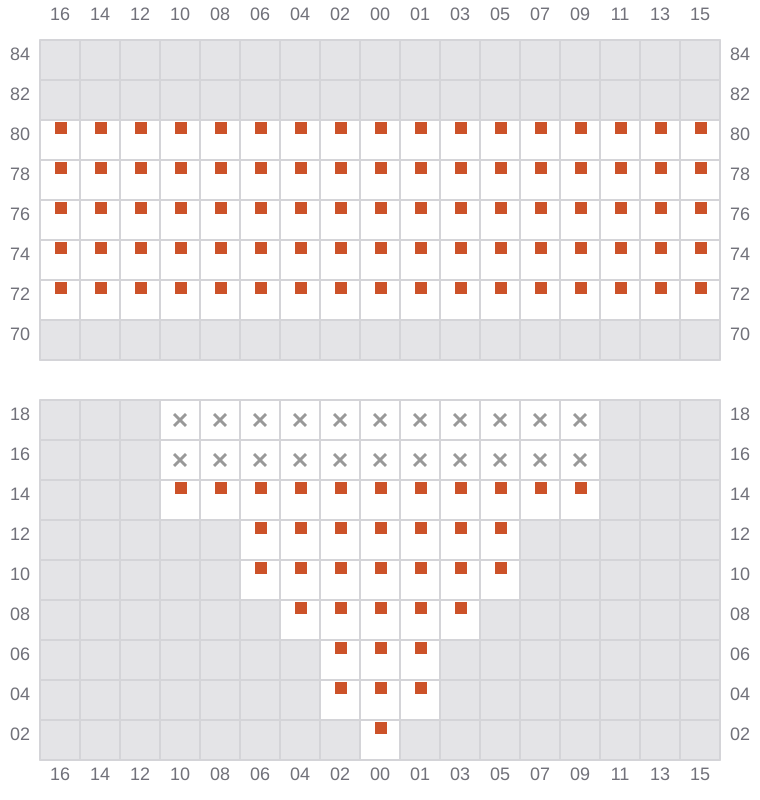

Bay 007 view and slots of MSC MAEVA

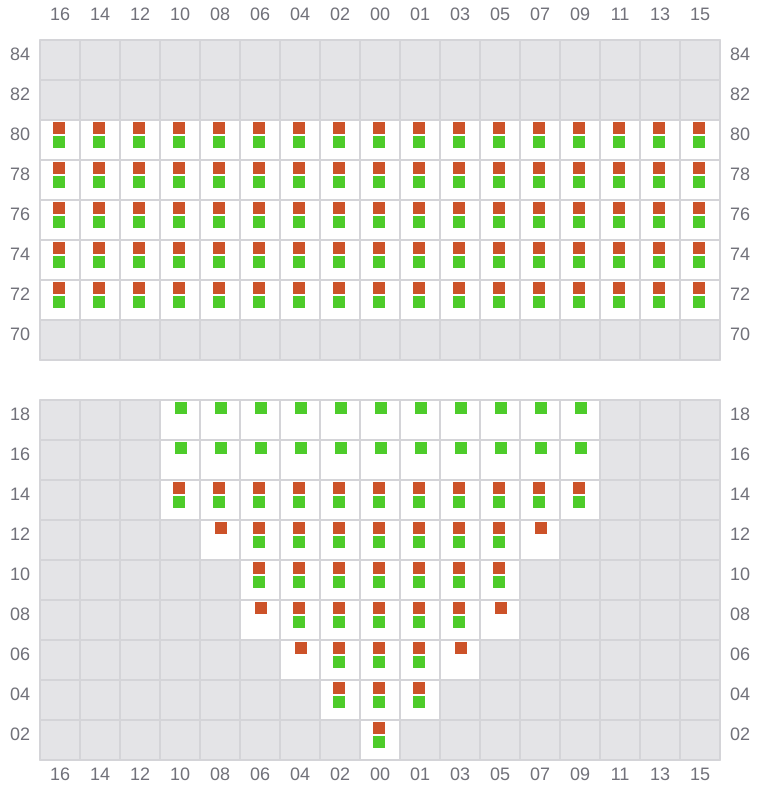

009 (008)

Bay 009 view and slots of MSC MAEVA

011

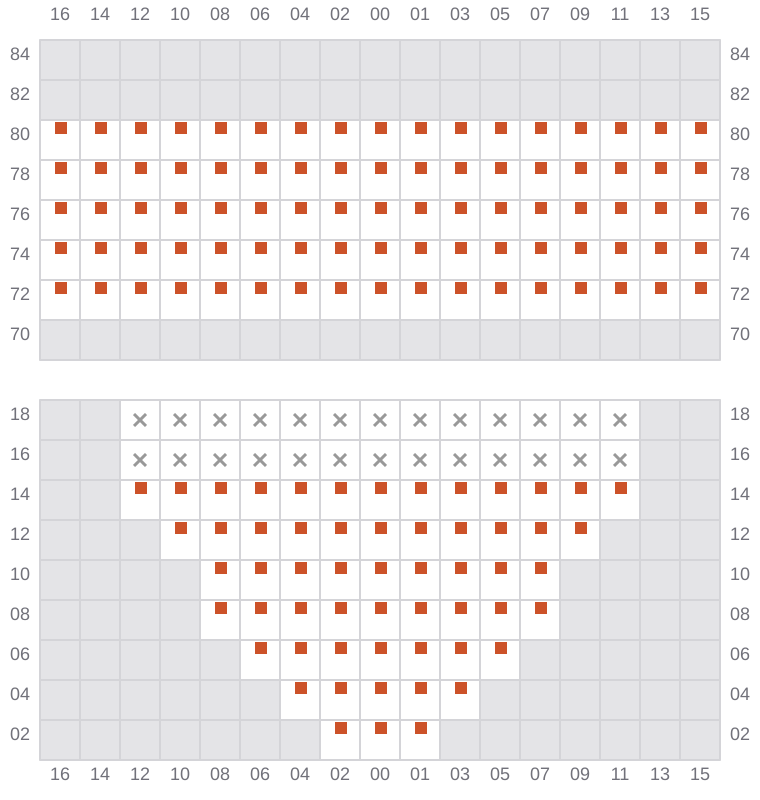

Bay 011 view and slots of MSC MAEVA

013 (012)

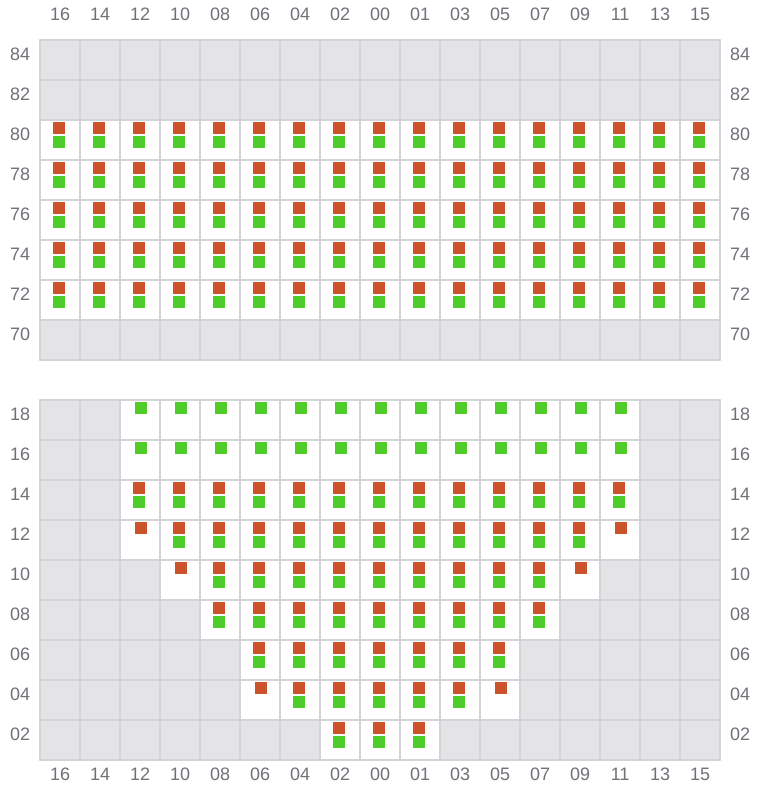

Bay 013 view and slots of MSC MAEVA

015

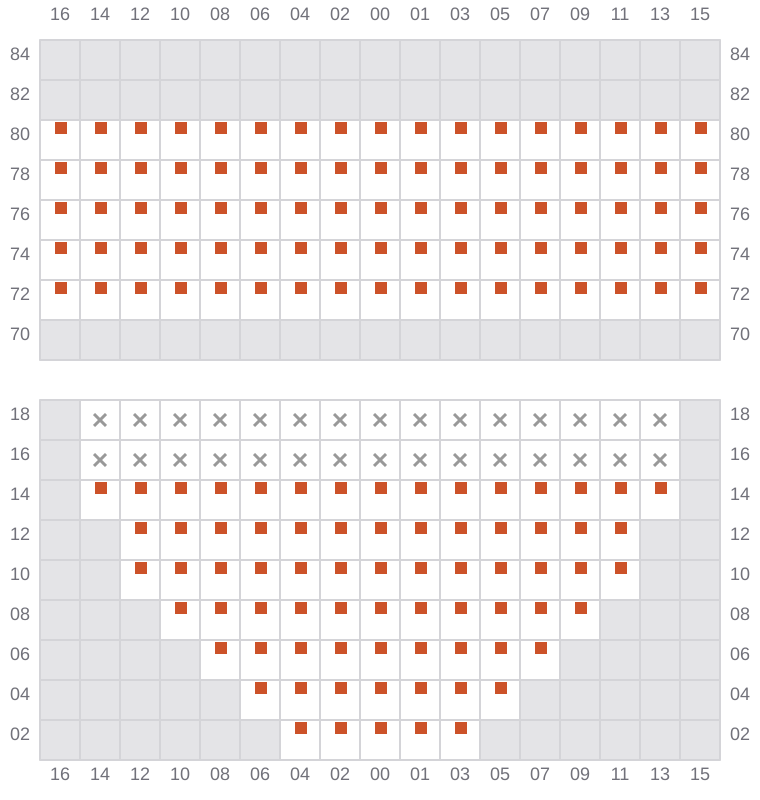

Bay 015 view and slots of MSC MAEVA

017 (016)

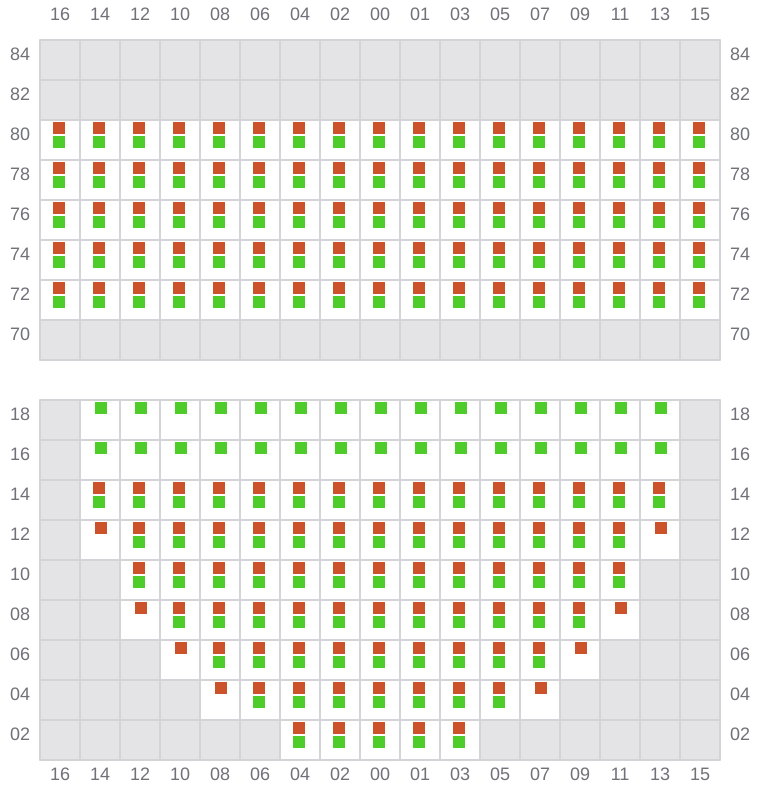

Bay 017 view and slots of MSC MAEVA

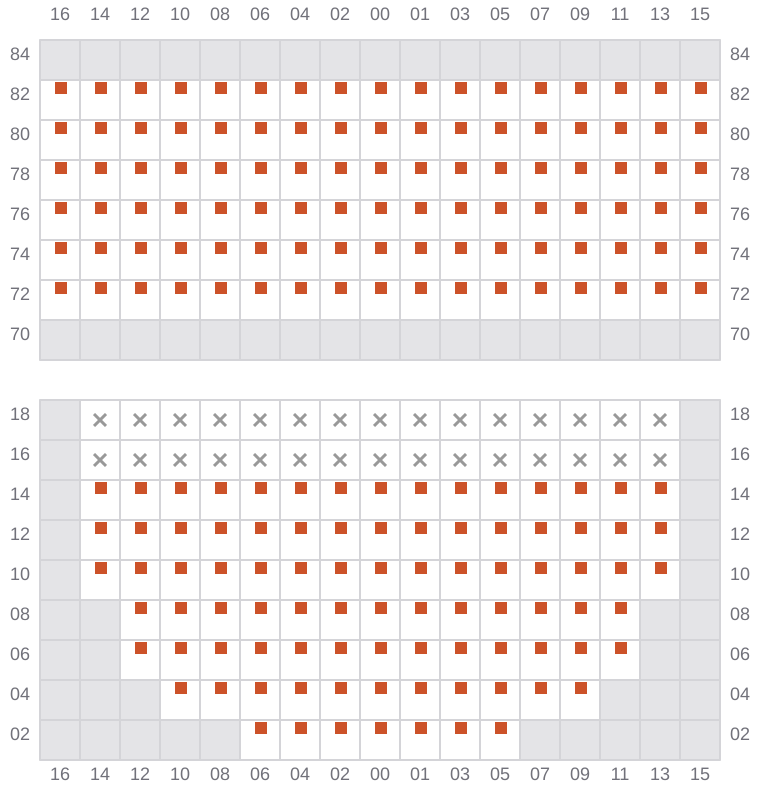

019

Bay 019 view and slots of MSC MAEVA

021 (020)

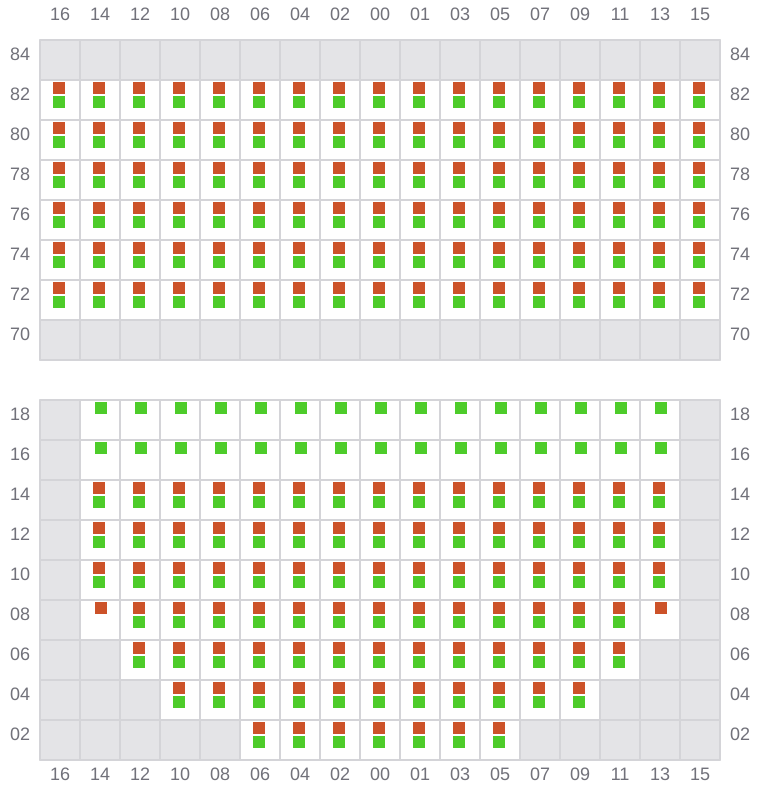

Bay 021 view and slots of MSC MAEVA

023

Bay 023 view and slots of MSC MAEVA

025 (024)

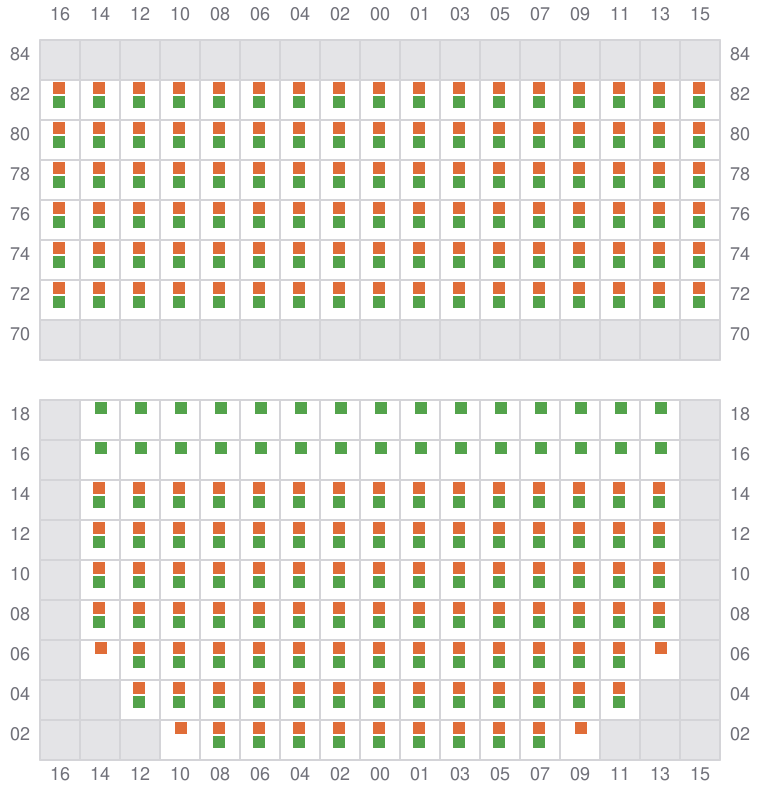

Bay 025 view and slots of MSC MAEVA

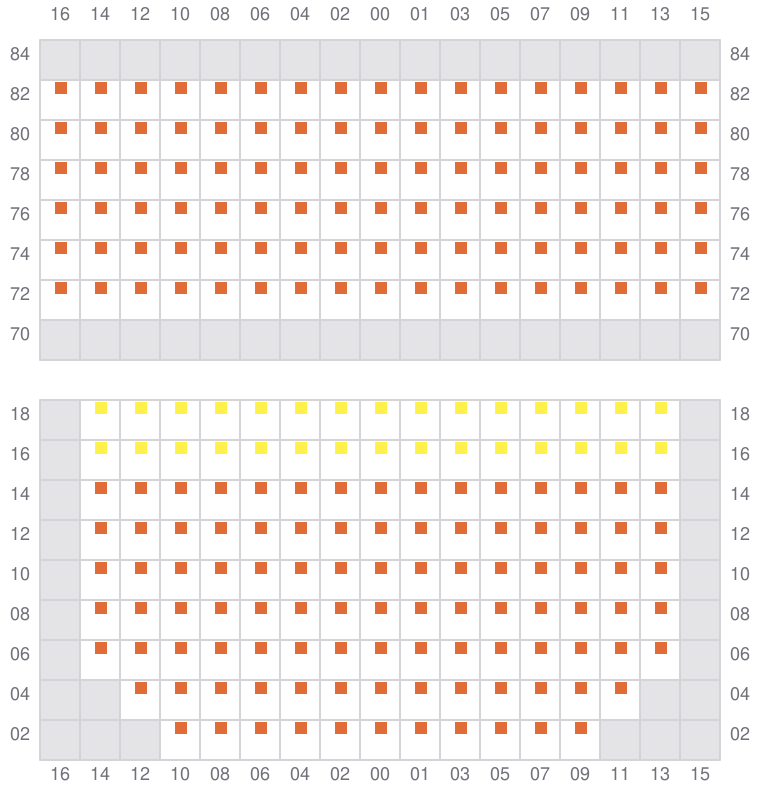

027

Bay 027 view and slots of MSC MAEVA

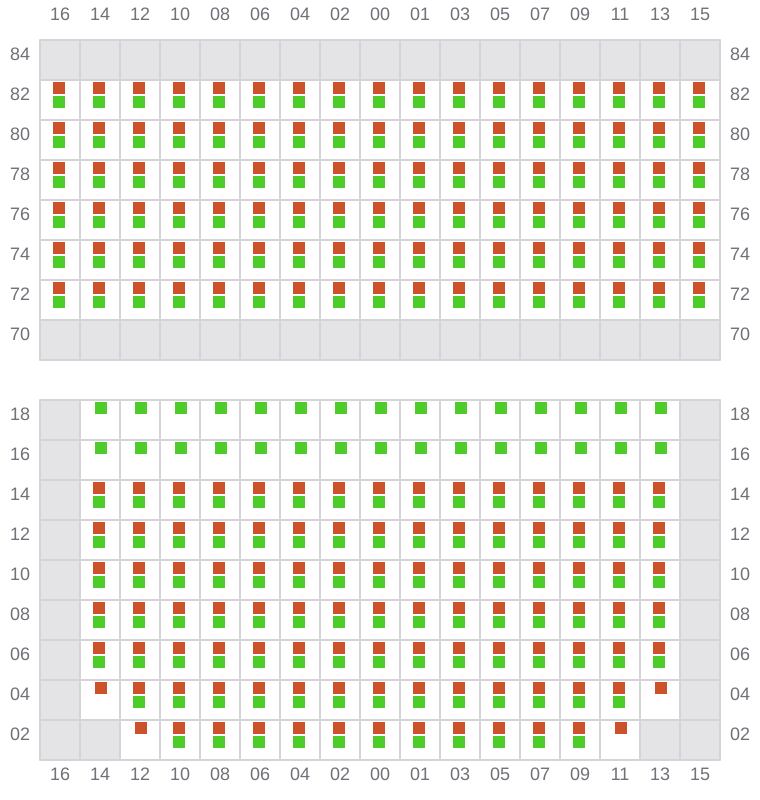

029 (028)

Bay 029 view and slots of MSC MAEVA

031

Bay 031 view and slots of MSC MAEVA

033 (032)

Bay 033 view and slots of MSC MAEVA

035

Bay 035 view and slots of MSC MAEVA

037 (036)

Bay 037 view and slots of MSC MAEVA

039

Bay 039 view and slots of MSC MAEVA

041 (040)

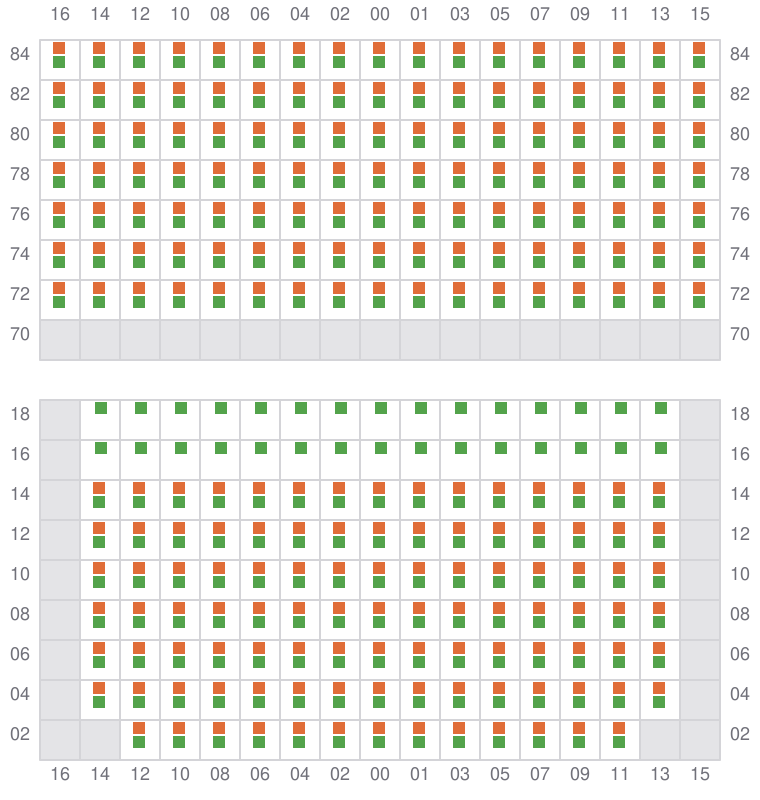

Bay 041 view and slots of MSC MAEVA

043

Bay 043 view and slots of MSC MAEVA

045 (044)

Bay 045 view and slots of MSC MAEVA

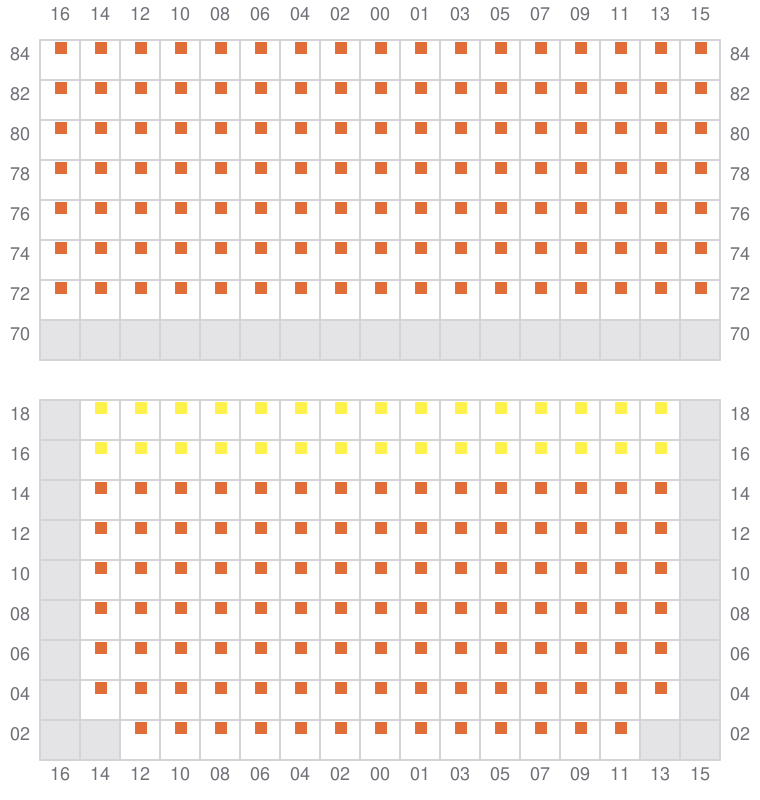

047

Bay 047 view and slots of MSC MAEVA

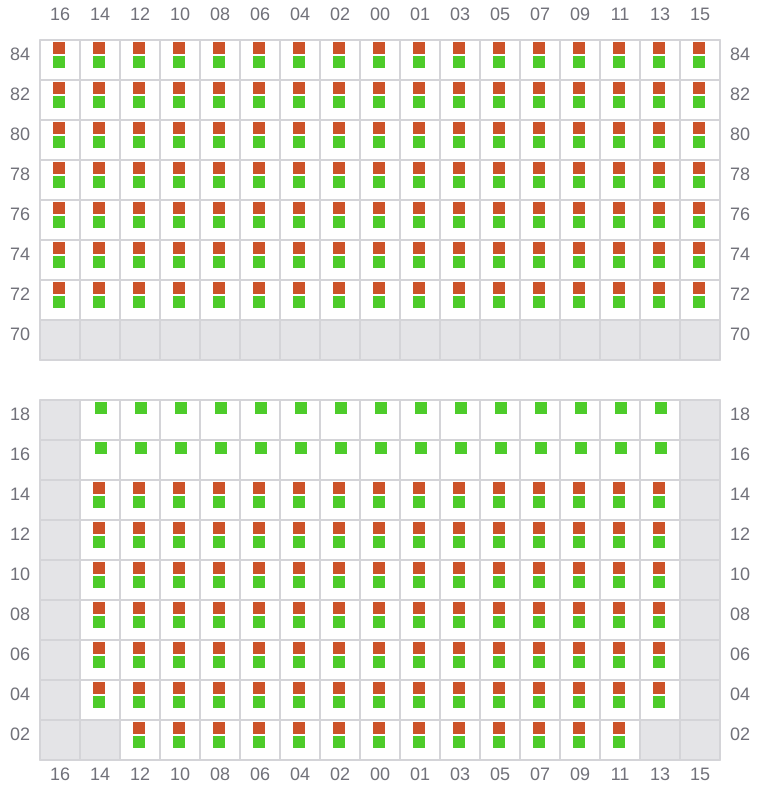

049 (048)

Bay 049 view and slots of MSC MAEVA

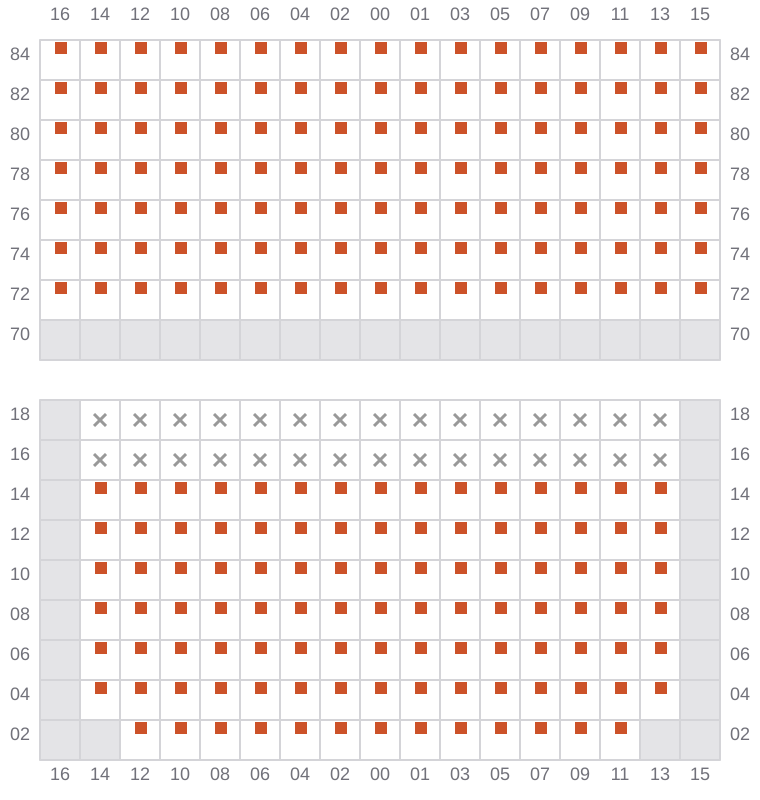

051

Bay 051 view and slots of MSC MAEVA

053 (052)

Bay 053 view and slots of MSC MAEVA

055

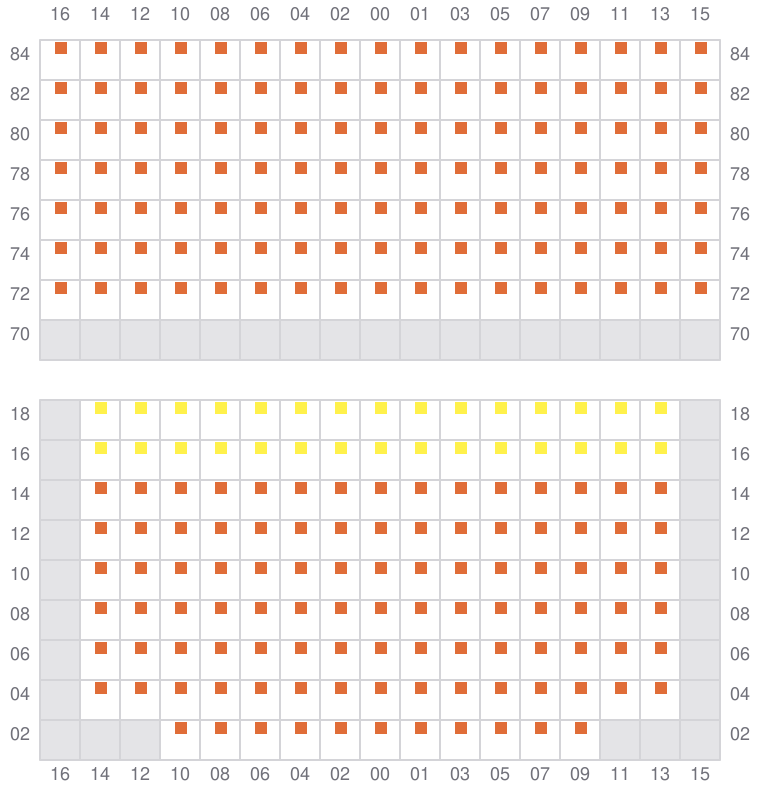

Bay 055 view and slots of MSC MAEVA

057 (056)

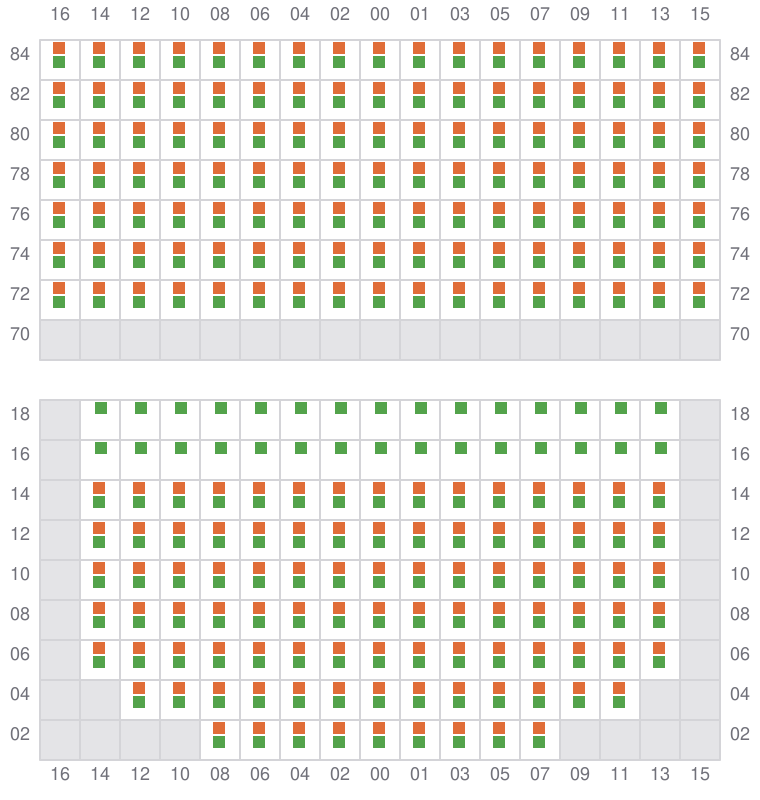

Bay 057 view and slots of MSC MAEVA

059

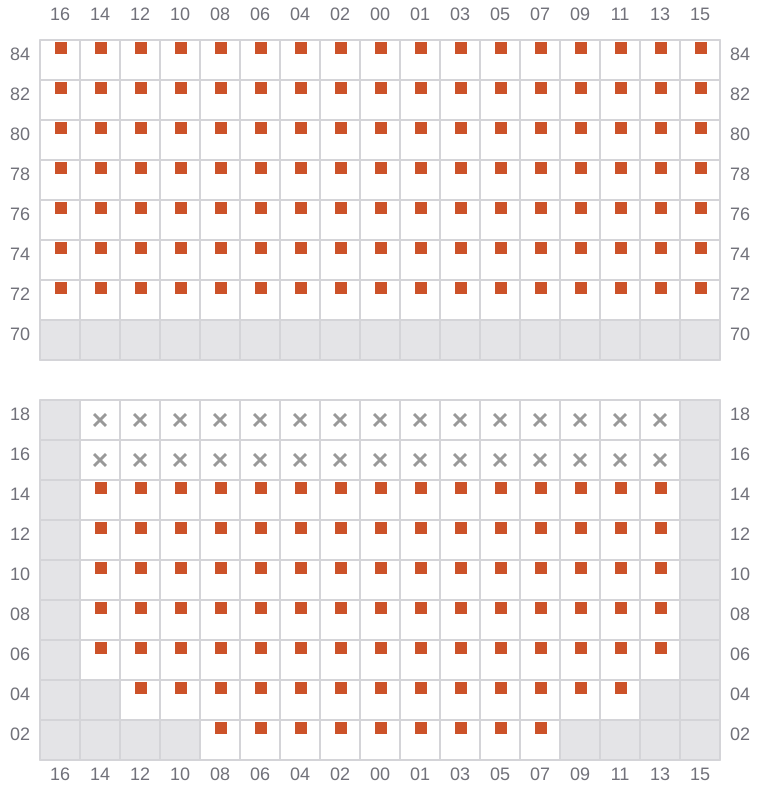

Bay 059 view and slots of MSC MAEVA

061 (060)

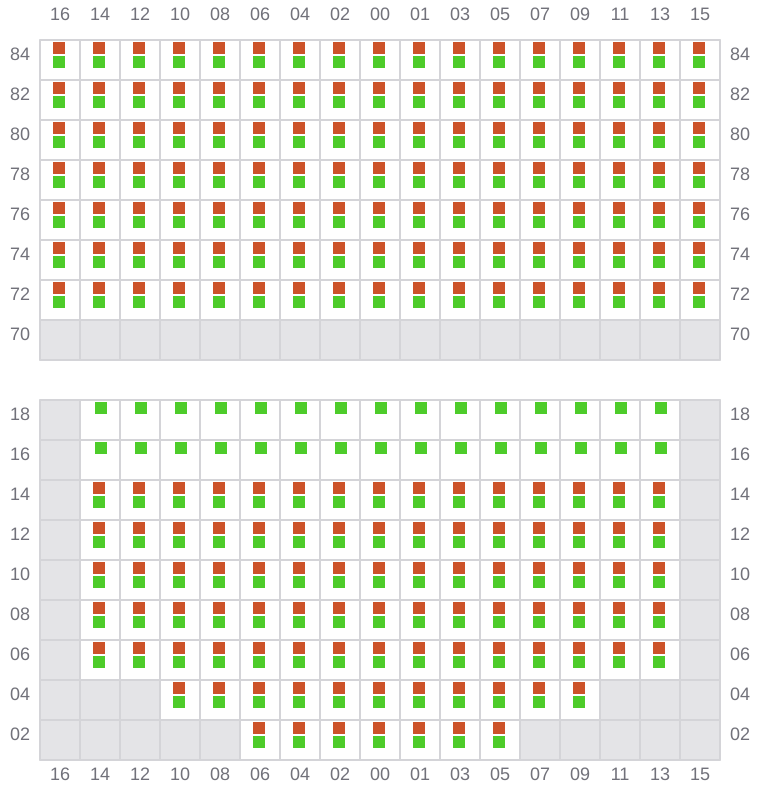

Bay 061 view and slots of MSC MAEVA

063

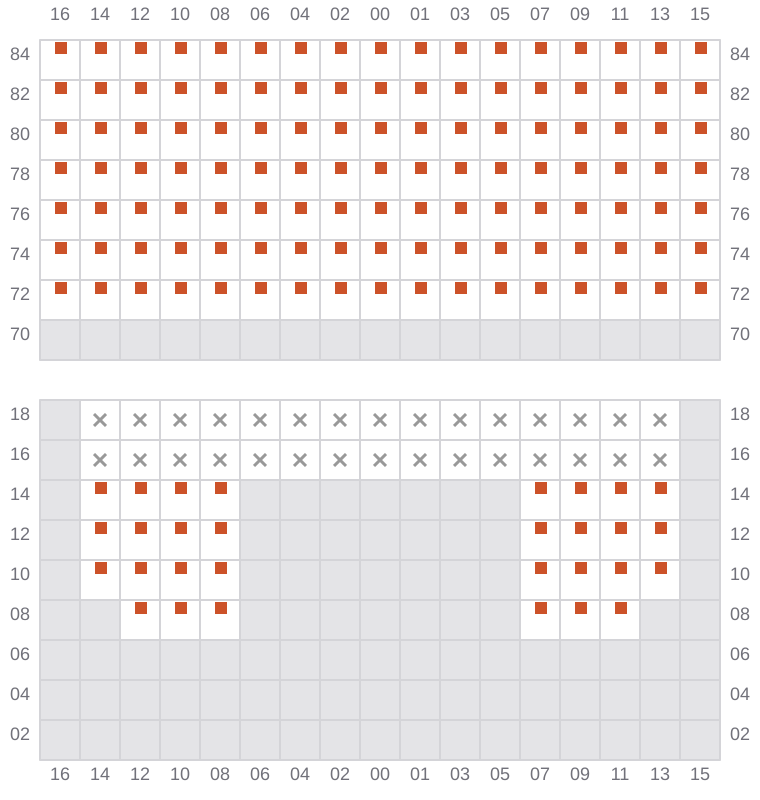

Bay 063 view and slots of MSC MAEVA

065 (064)

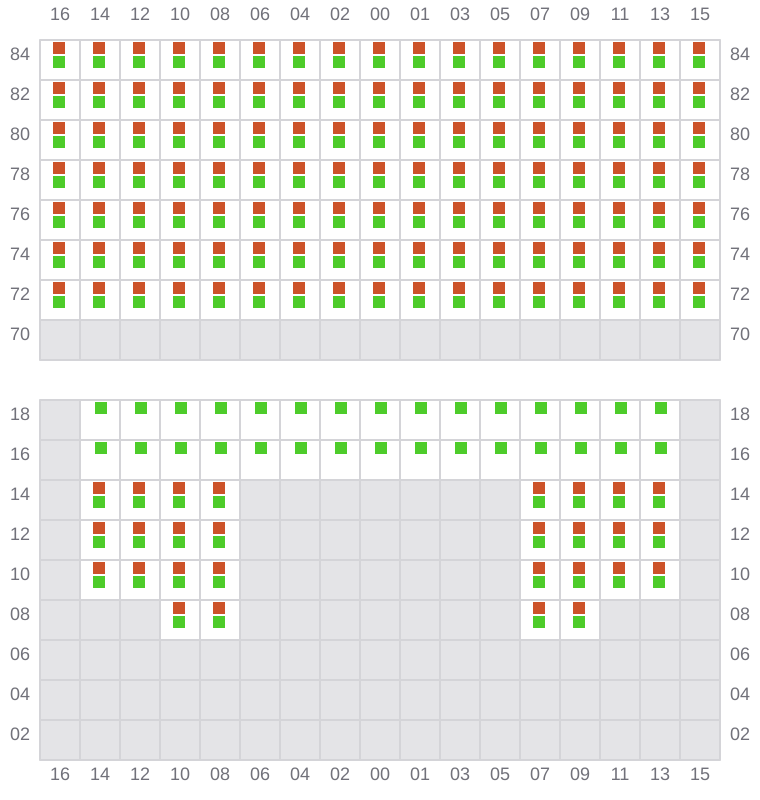

Bay 065 view and slots of MSC MAEVA

067

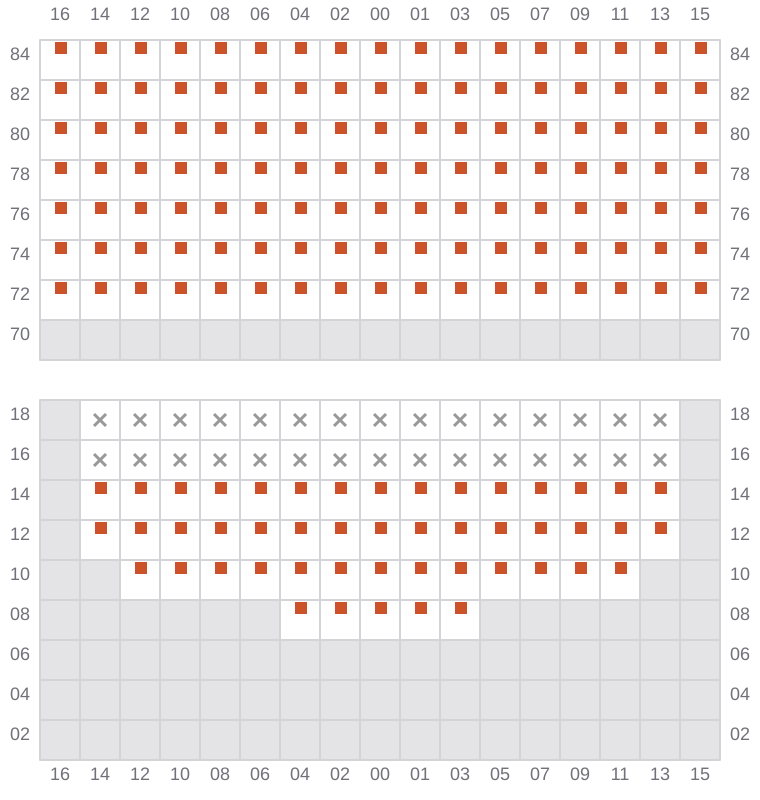

Bay 067 view and slots of MSC MAEVA

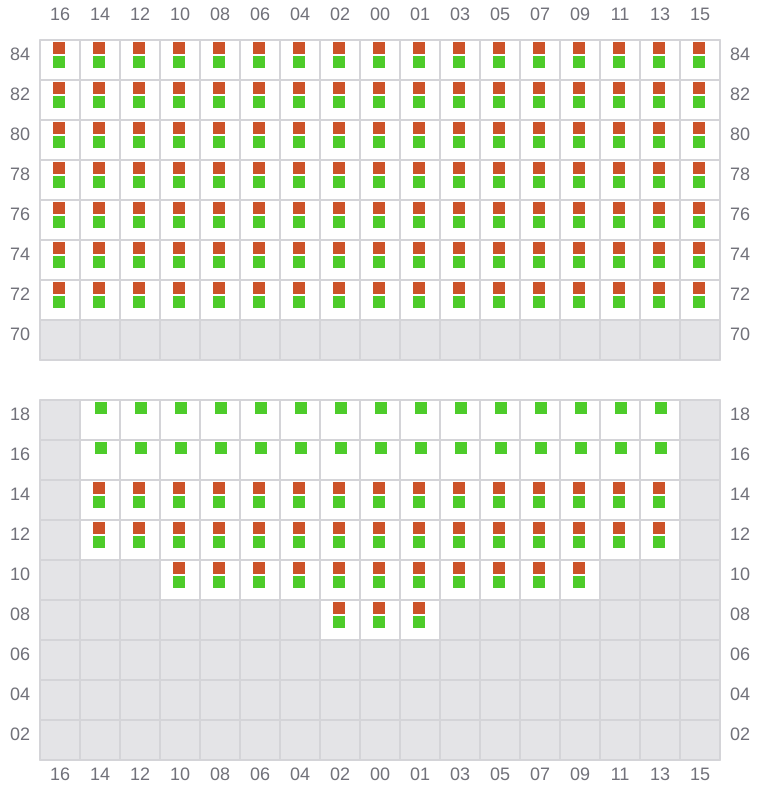

069 (068)

Bay 069 view and slots of MSC MAEVA

071

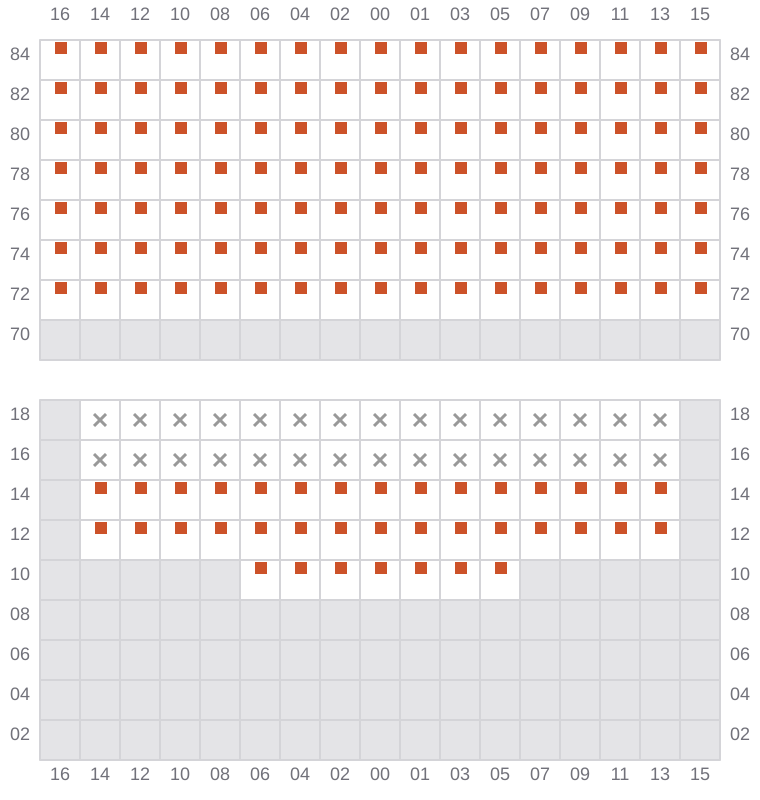

Bay 071 view and slots of MSC MAEVA

073 (072)

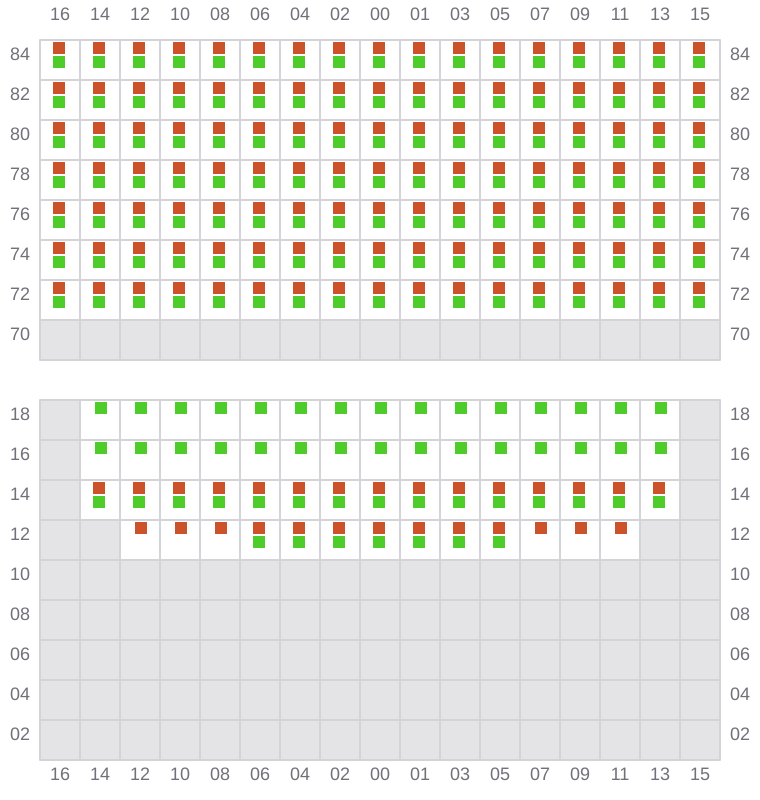

Bay 073 view and slots of MSC MAEVA

075 (076)

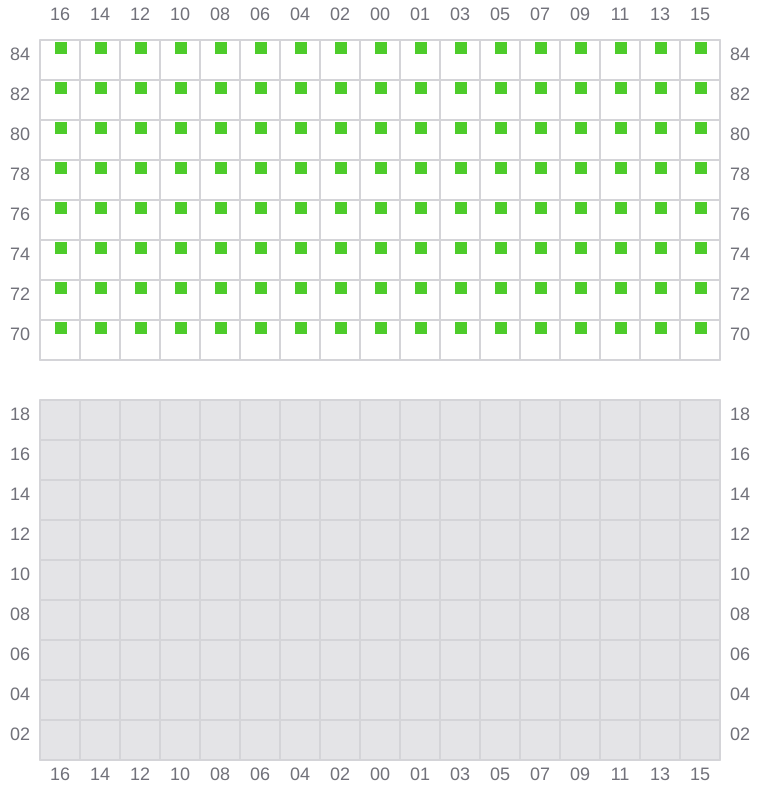

Bay 075 view and slots of MSC MAEVA
