MSC MAGNUM VII
9252541 | 5LME7 | 9252541 by ********* Last update: Fri Jun 07 2024

General Info

Ship Name:MSC MAGNUM VII

IMO Code:9252541

Call Sign:5LME7

Line Operator:9252541

Class Name for Sister Ships:NORTHERNMAGNUM

Year Built:2003

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):286.56

LOA (Length Overall):300.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:069

Max ISO Row:16

Center Line Row:No

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:6,700

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

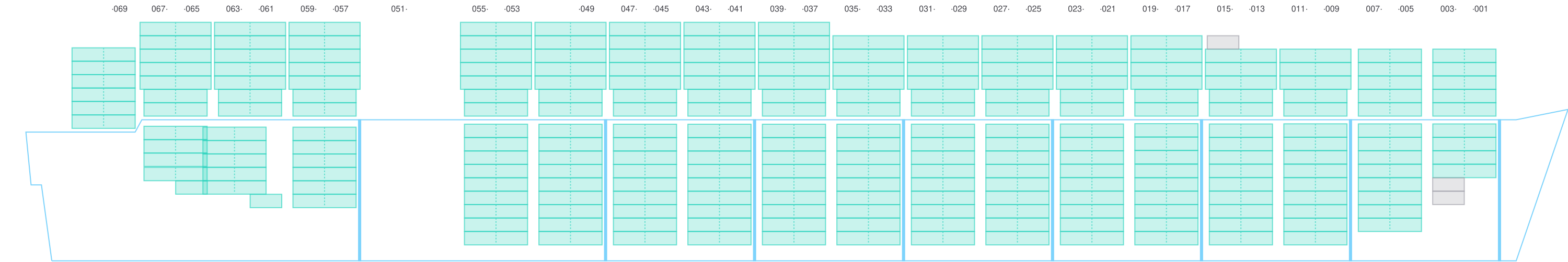

Side View

Side view of MSC MAGNUM VII

Hatch-Covers View

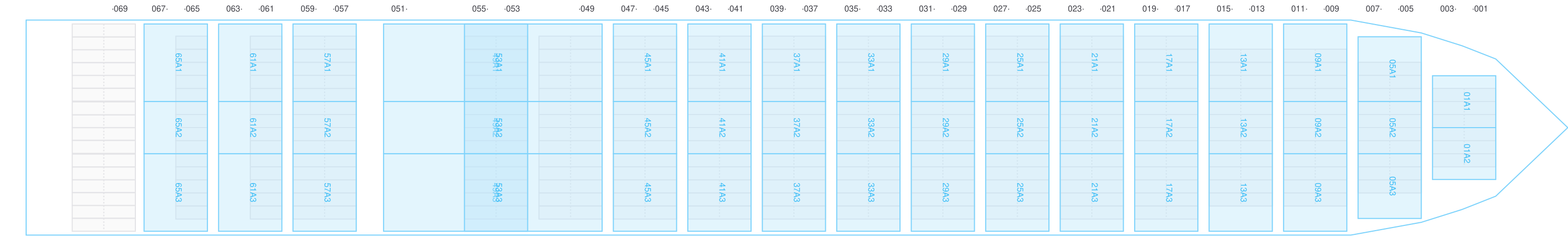

Deck view of MSC MAGNUM VII

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

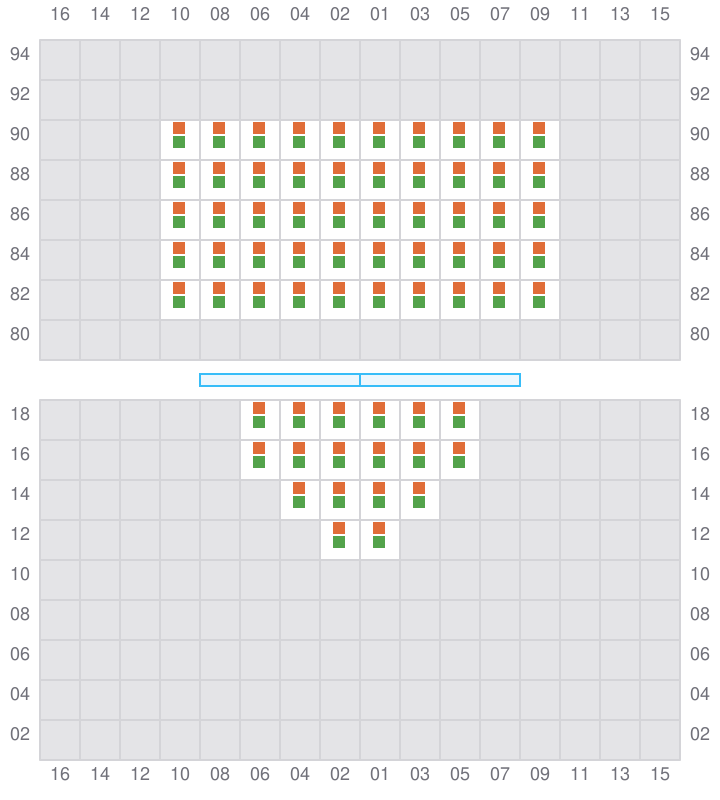

Bay 001 view and slots of MSC MAGNUM VII

003

←

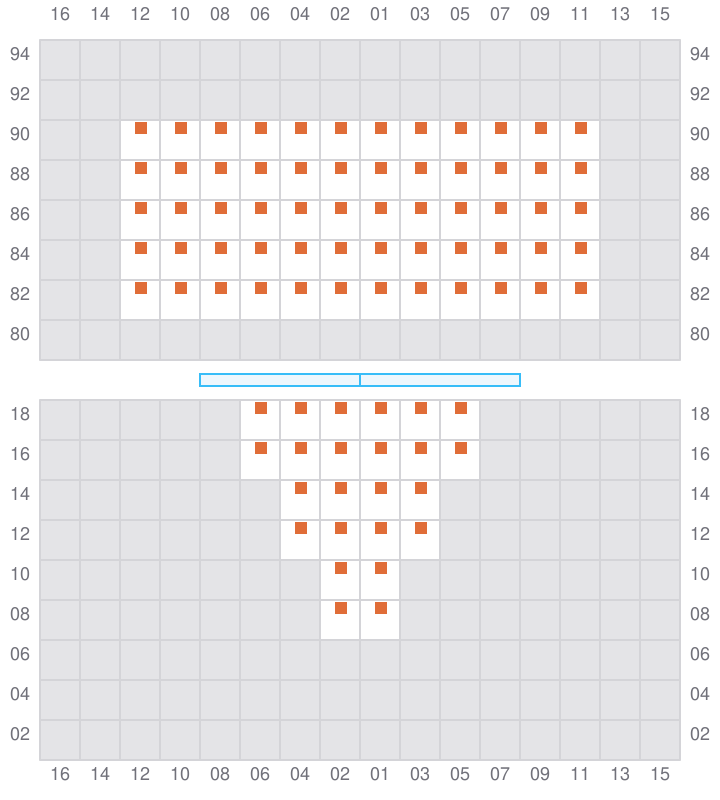

Bay 003 view and slots of MSC MAGNUM VII

005 (006)

→

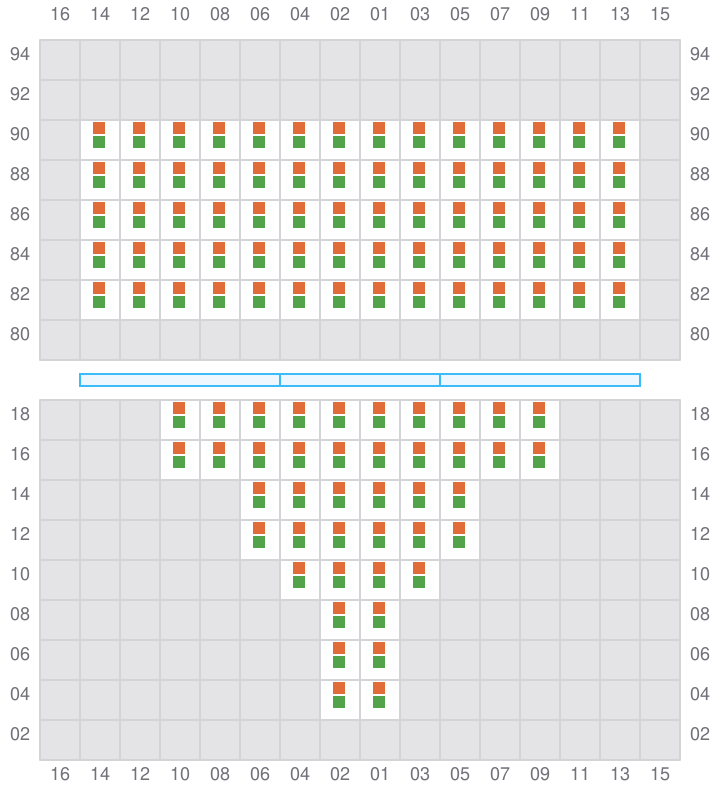

Bay 005 view and slots of MSC MAGNUM VII

007

←

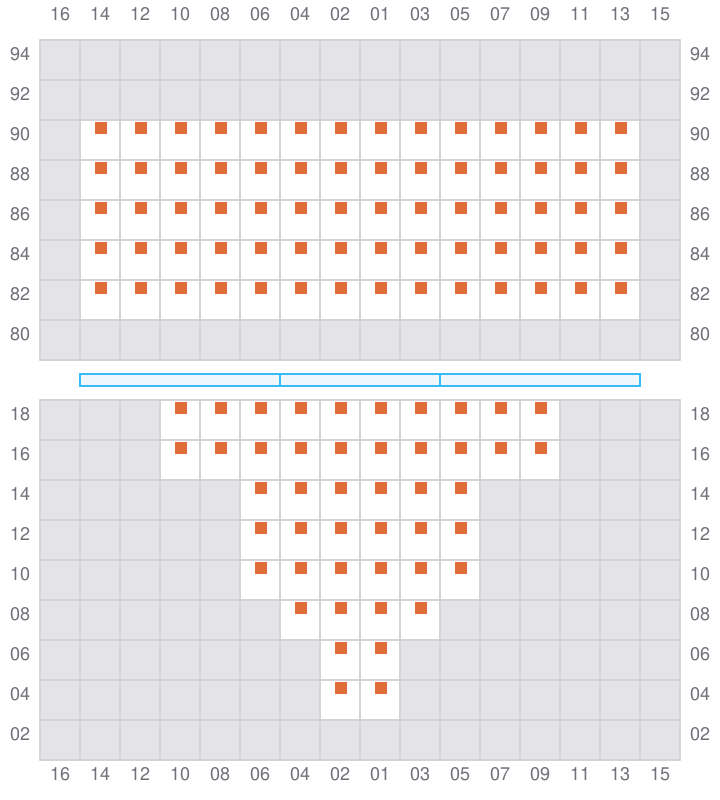

Bay 007 view and slots of MSC MAGNUM VII

009 (010)

→

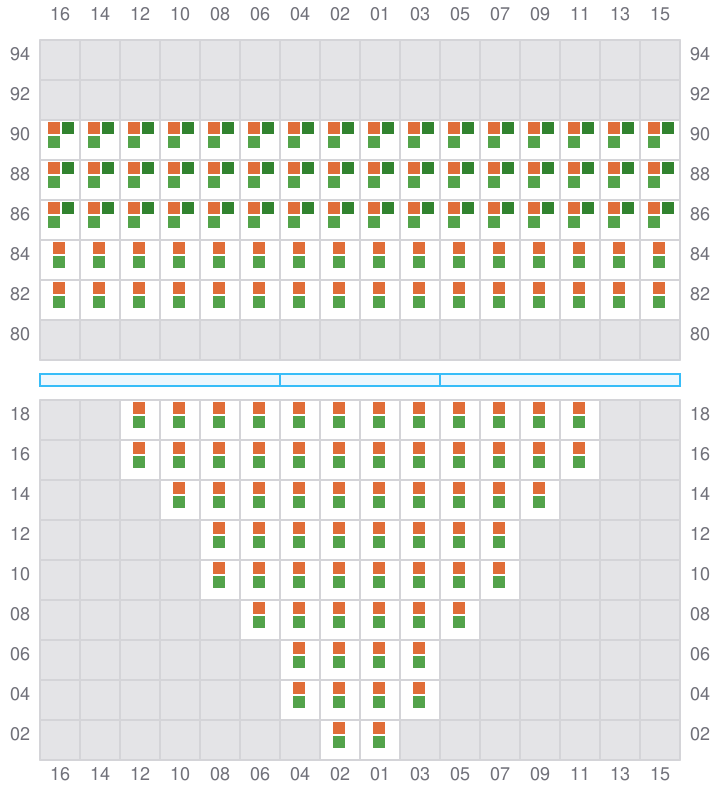

Bay 009 view and slots of MSC MAGNUM VII

011

←

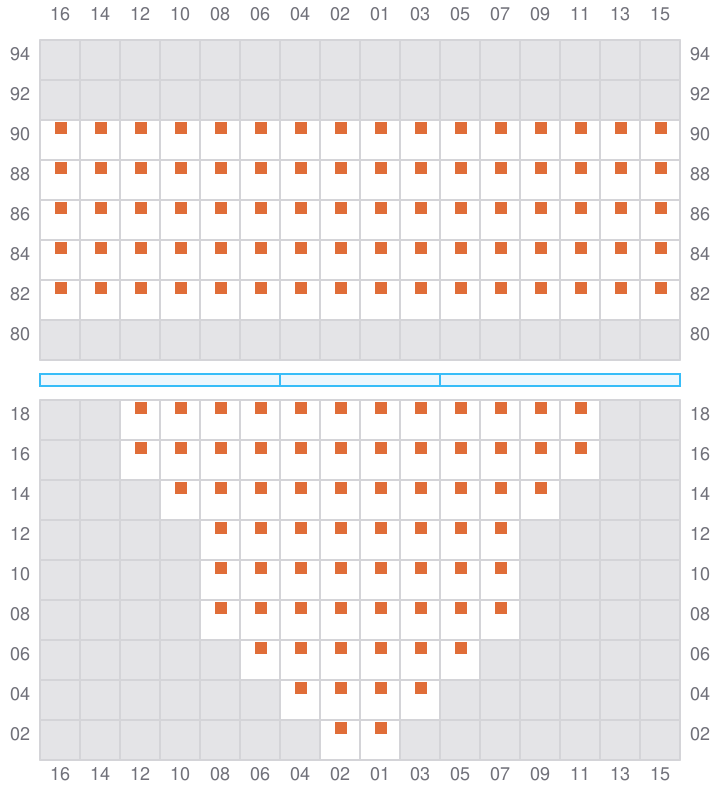

Bay 011 view and slots of MSC MAGNUM VII

013 (014)

→

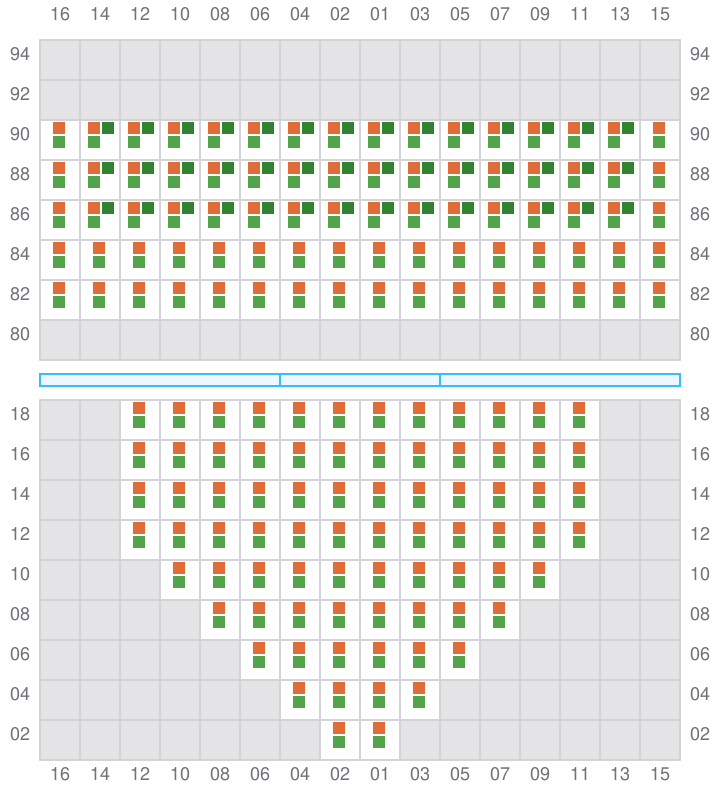

Bay 013 view and slots of MSC MAGNUM VII

015

←

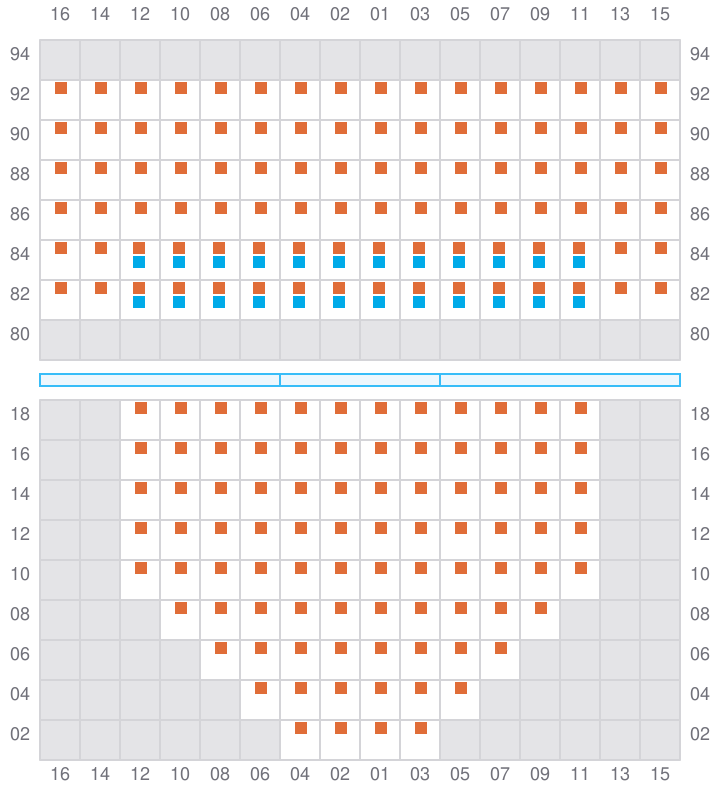

Bay 015 view and slots of MSC MAGNUM VII

017 (018)

→

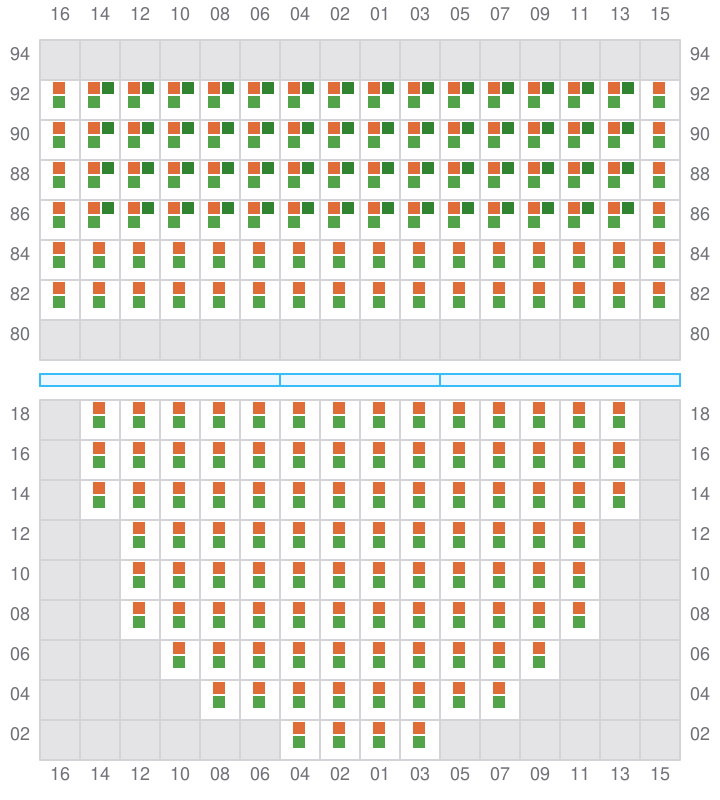

Bay 017 view and slots of MSC MAGNUM VII

019

←

Bay 019 view and slots of MSC MAGNUM VII

021 (022)

→

Bay 021 view and slots of MSC MAGNUM VII

023

←
^→ / _?

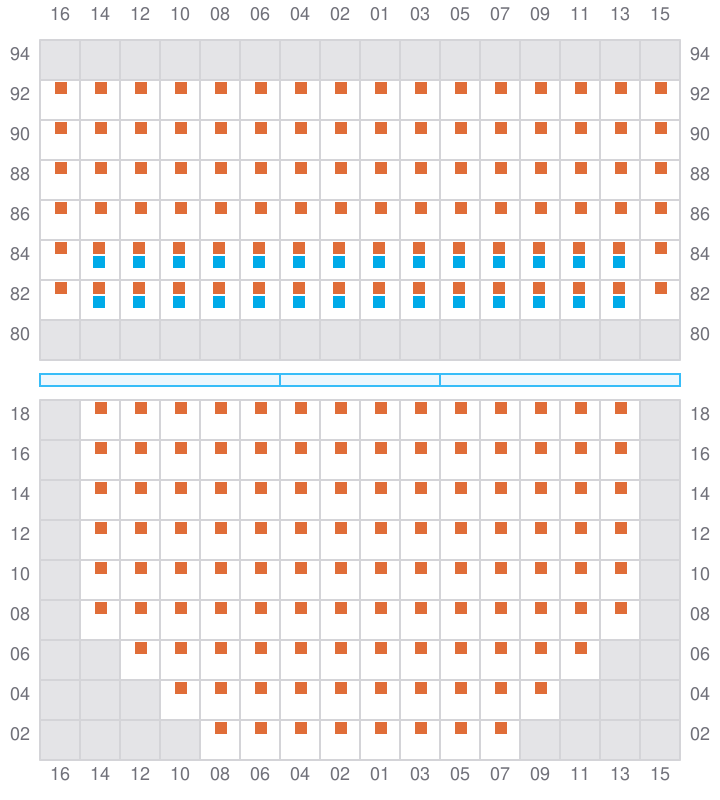

Bay 023 view and slots of MSC MAGNUM VII

025 (026)

→

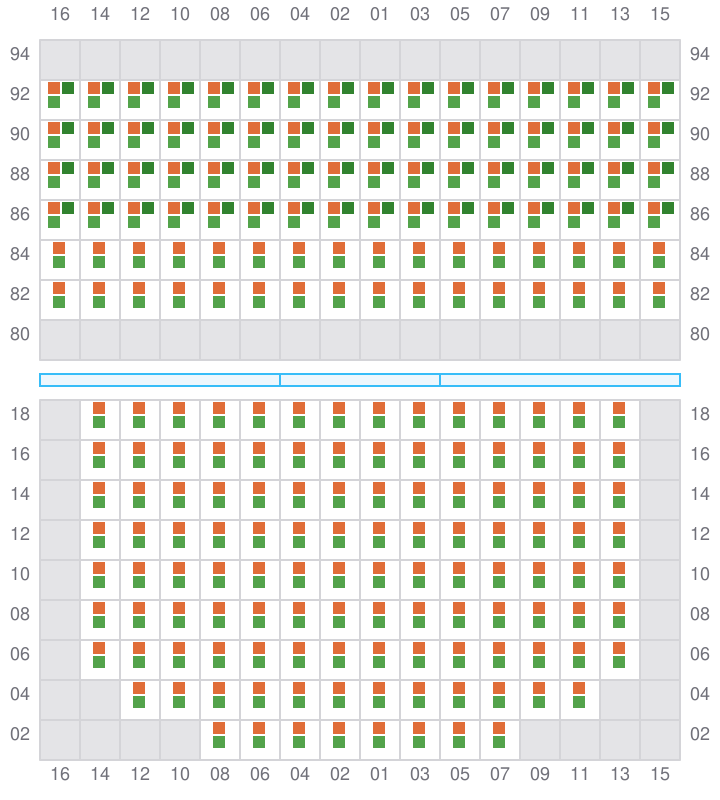

Bay 025 view and slots of MSC MAGNUM VII

027

←
^→ / _?

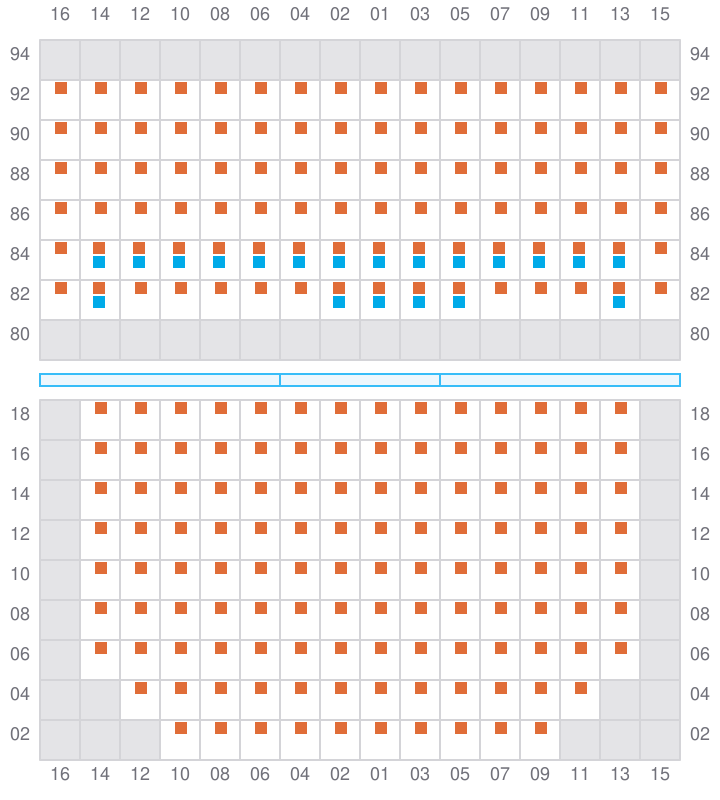

Bay 027 view and slots of MSC MAGNUM VII

029 (030)

→

Bay 029 view and slots of MSC MAGNUM VII

031

←
^→ / _?

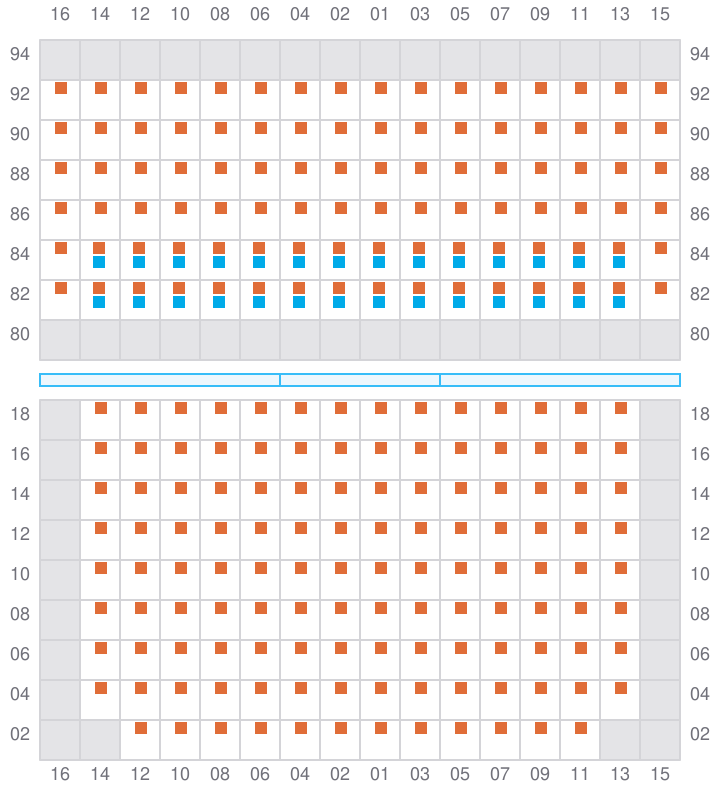

Bay 031 view and slots of MSC MAGNUM VII

033 (034)

→

Bay 033 view and slots of MSC MAGNUM VII

035

←
→

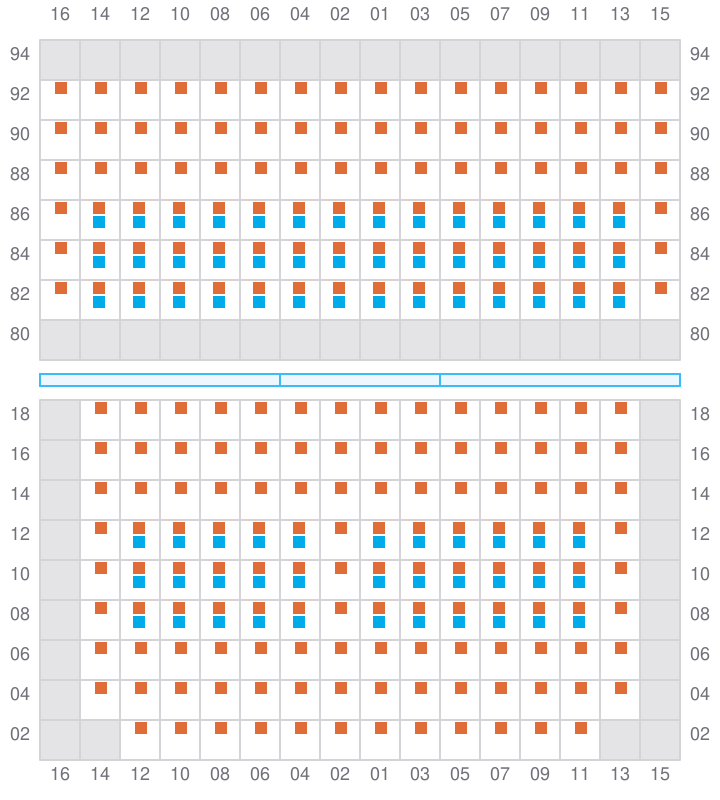

Bay 035 view and slots of MSC MAGNUM VII

037 (038)

→

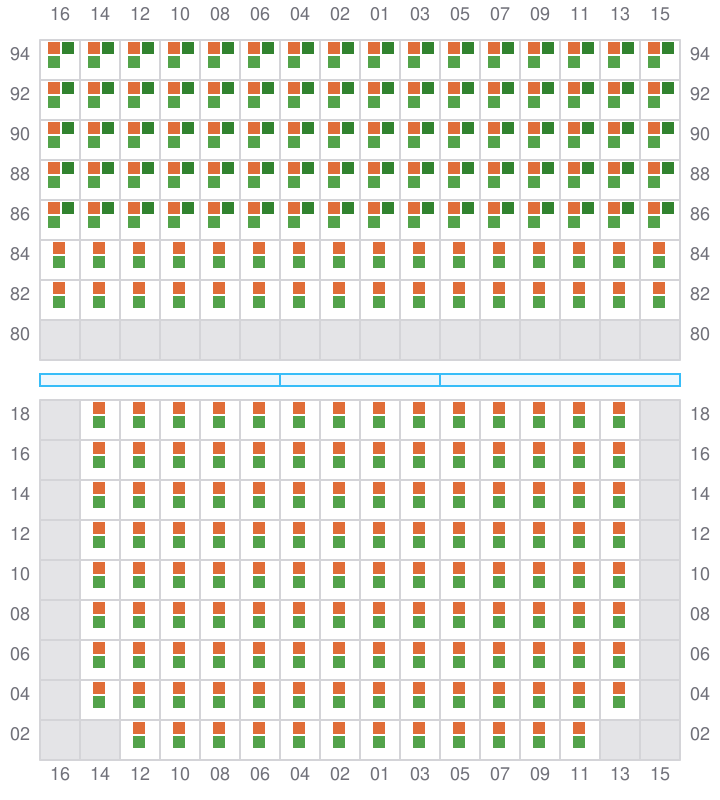

Bay 037 view and slots of MSC MAGNUM VII

039

←
→

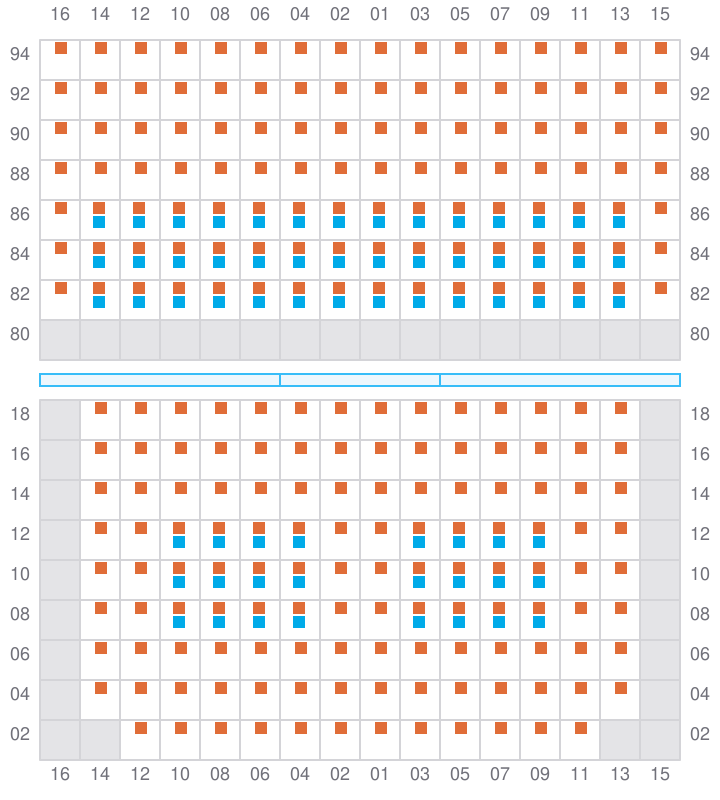

Bay 039 view and slots of MSC MAGNUM VII

041 (042)

→

Bay 041 view and slots of MSC MAGNUM VII

043

←
→

Bay 043 view and slots of MSC MAGNUM VII

045 (046)

→

Bay 045 view and slots of MSC MAGNUM VII

047

←
→

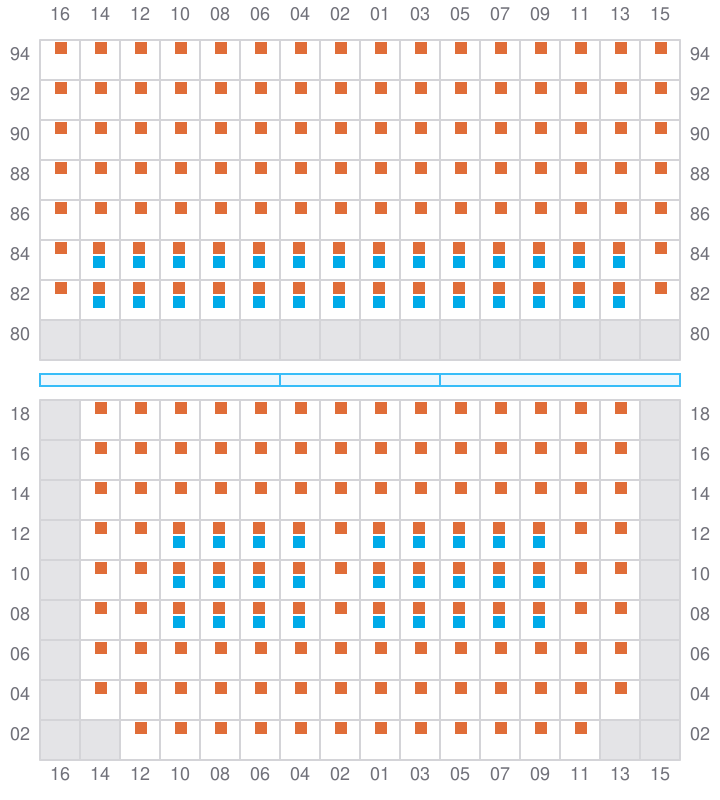

Bay 047 view and slots of MSC MAGNUM VII

049 (050)

→

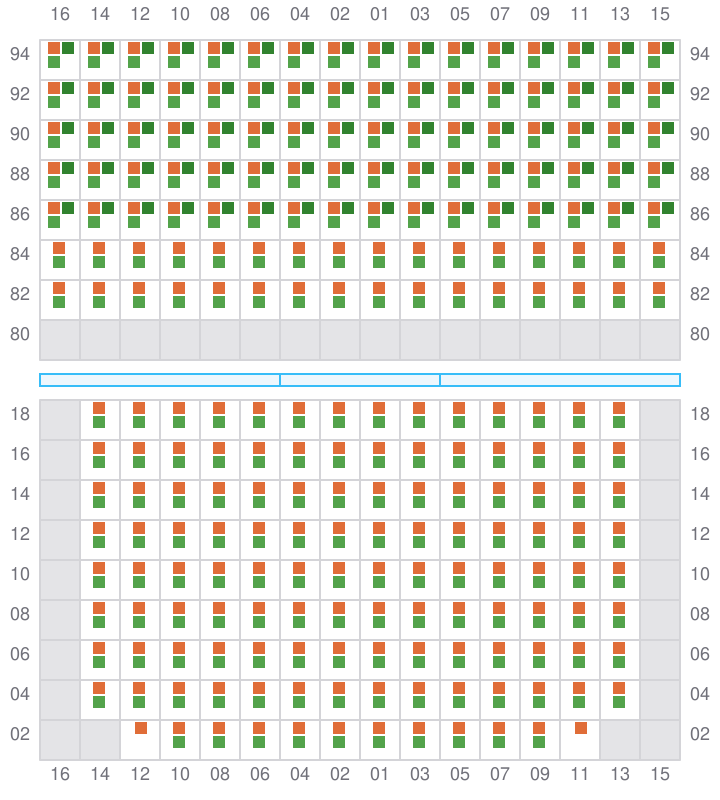

Bay 049 view and slots of MSC MAGNUM VII

051

←
→

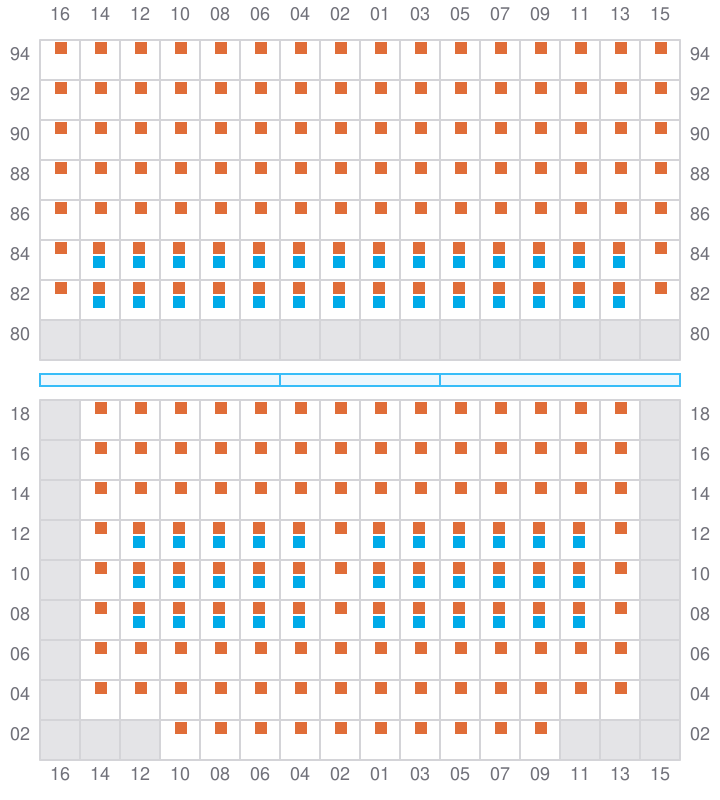

Bay 051 view and slots of MSC MAGNUM VII

053 (054)

→

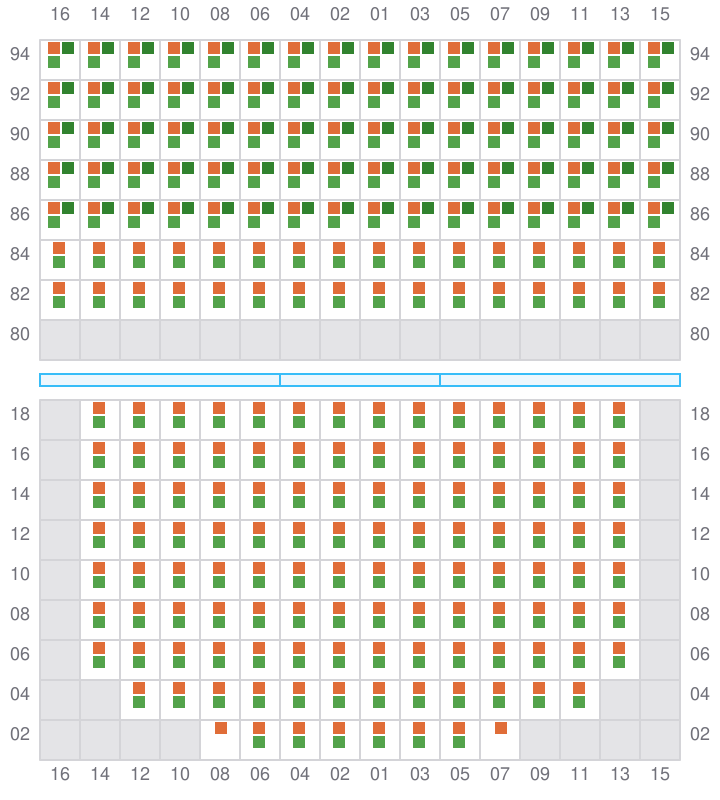

Bay 053 view and slots of MSC MAGNUM VII

055

←
^→ / _?

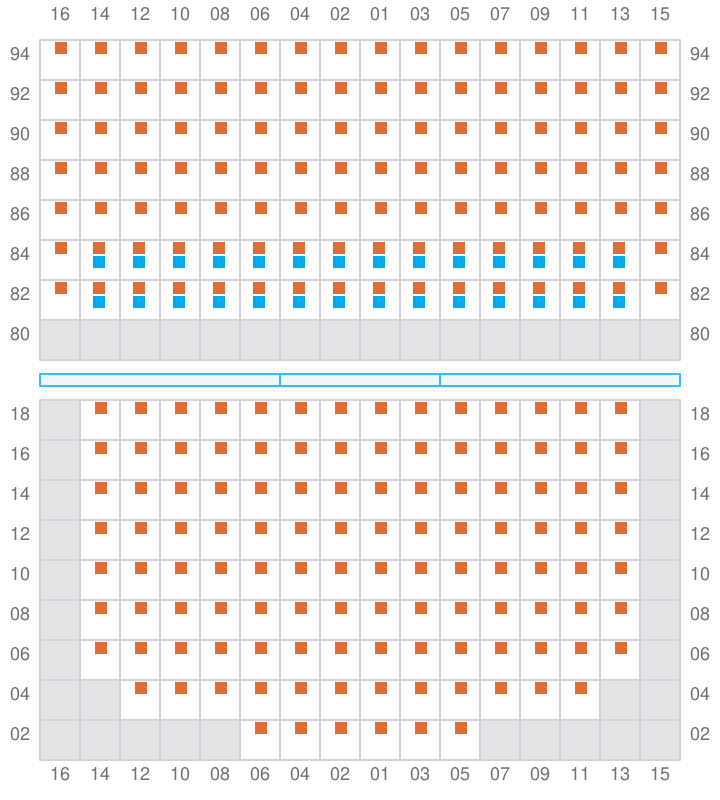

Bay 055 view and slots of MSC MAGNUM VII

057 (058)

→

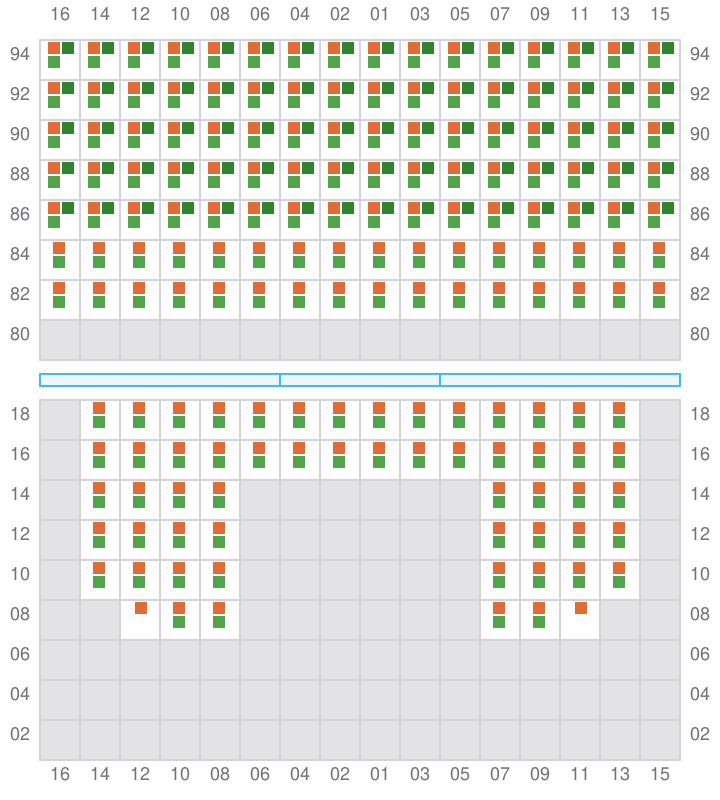

Bay 057 view and slots of MSC MAGNUM VII

059

←
^→ / _?

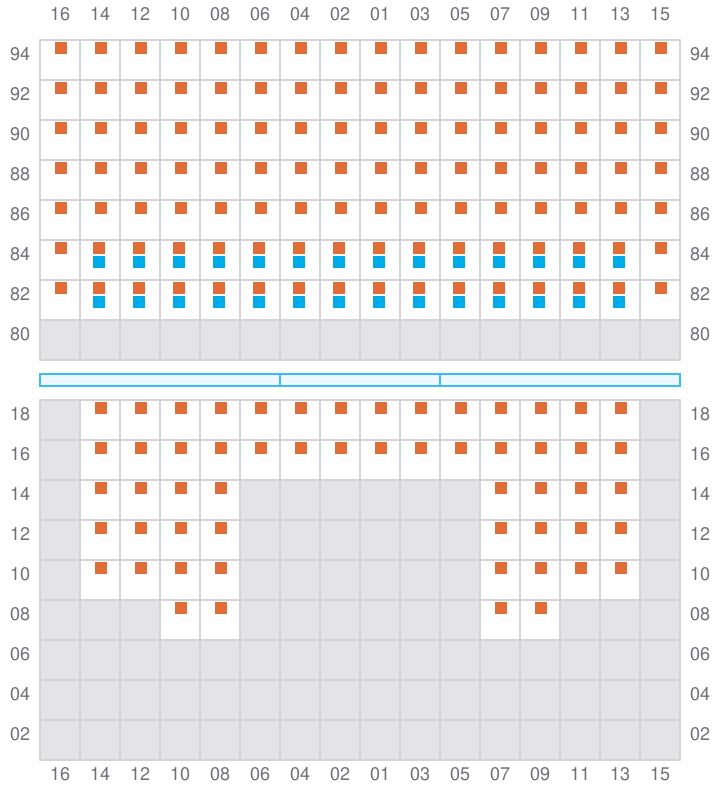

Bay 059 view and slots of MSC MAGNUM VII

061 (062)

→

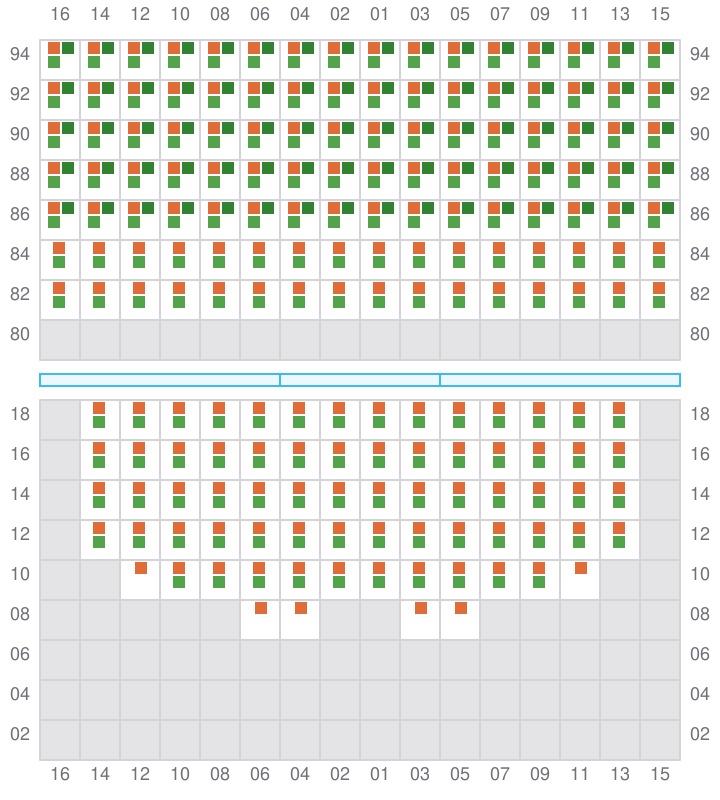

Bay 061 view and slots of MSC MAGNUM VII

063

←
^→ / _?

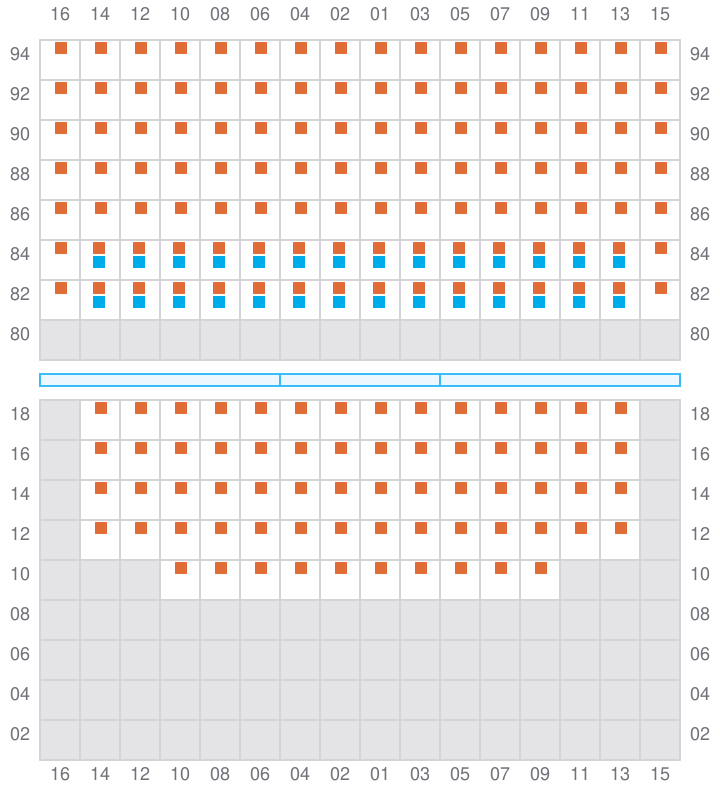

Bay 063 view and slots of MSC MAGNUM VII

065 (066)

→

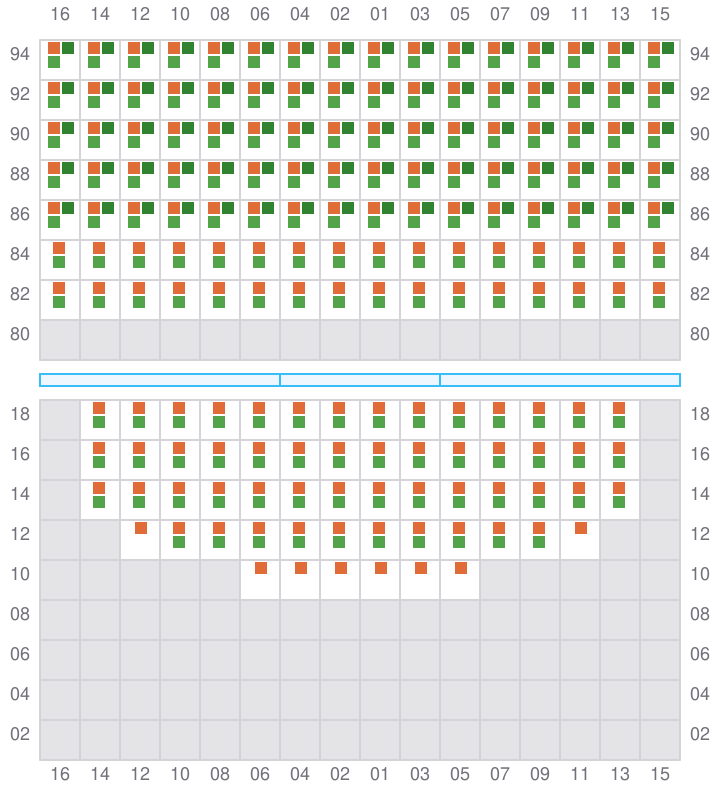

Bay 065 view and slots of MSC MAGNUM VII

067

←
^→ / _?

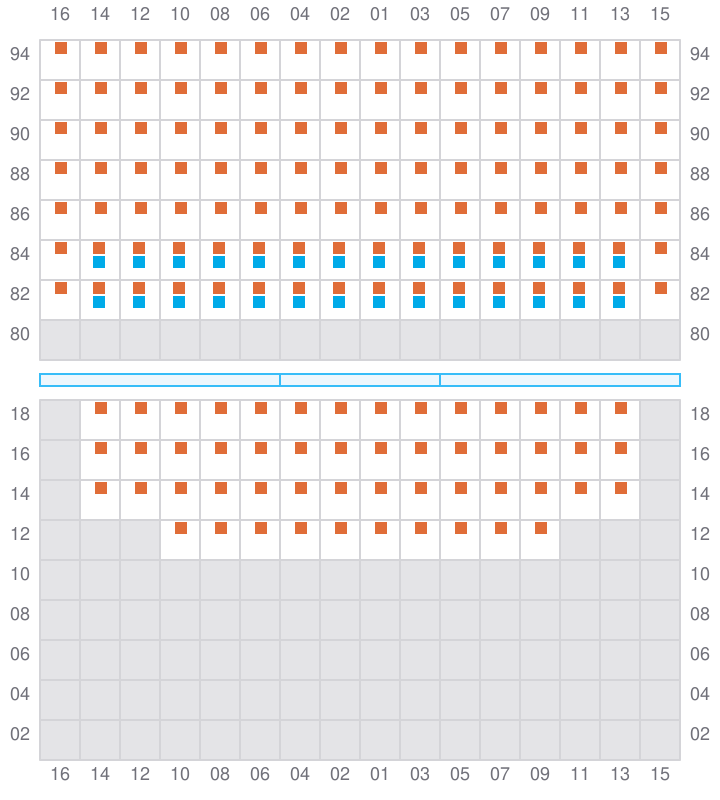

Bay 067 view and slots of MSC MAGNUM VII

069 (070)

^→ / _?

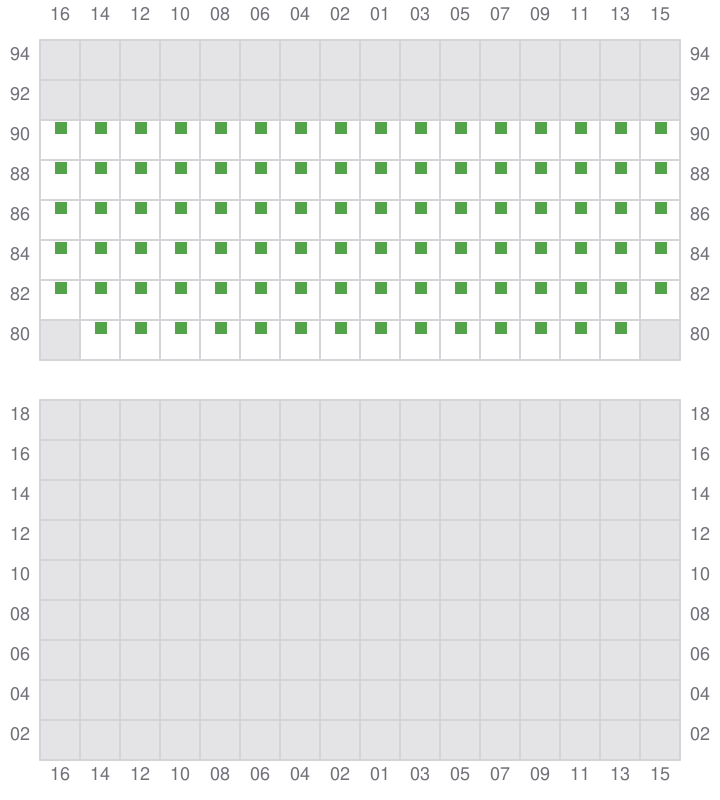

Bay 069 view and slots of MSC MAGNUM VII
