MSC MAKALU III
9327683 | 5LID5 | 9327683 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:MSC MAKALU III
IMO Code:9327683
Call Sign:5LID5
Line Operator:9327683
Class Name for Sister Ships:13B
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:2,729

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

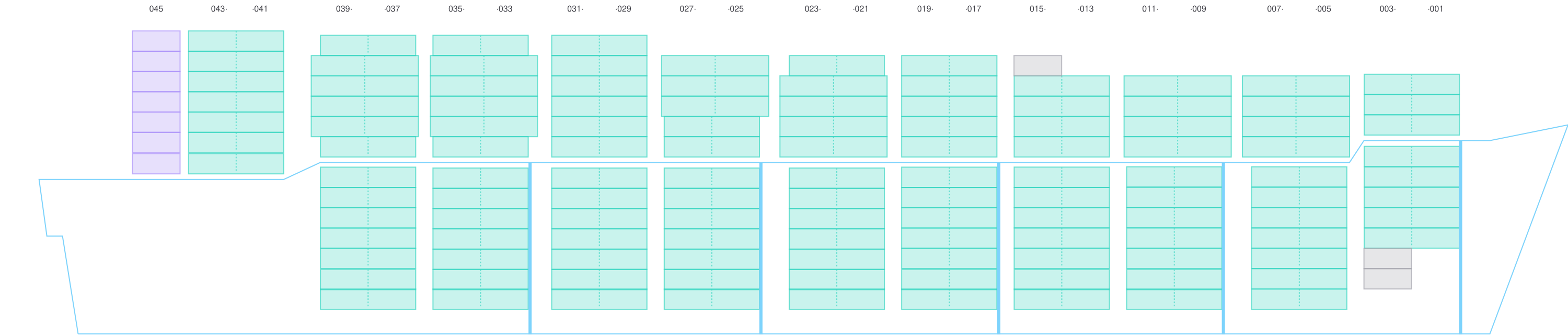

Side View

Side view of MSC MAKALU III

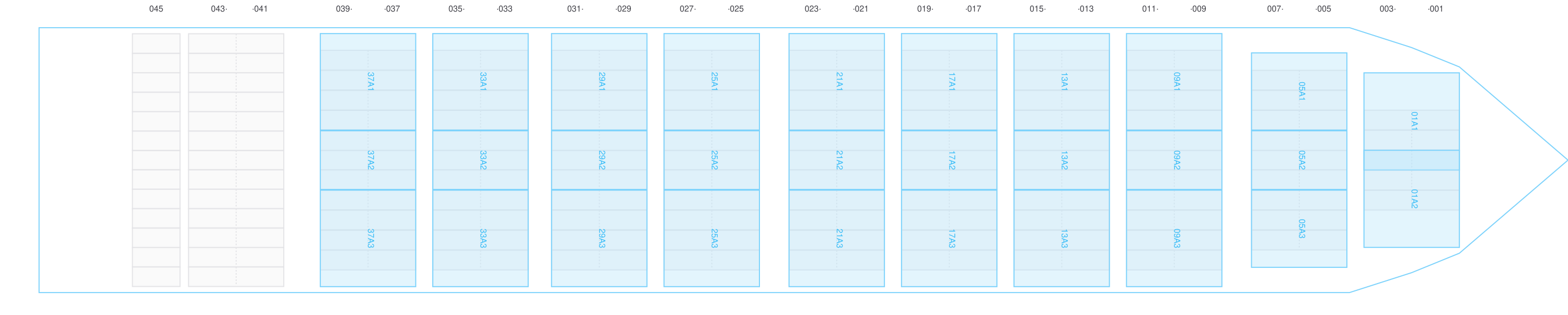

Hatch-Covers View

Deck view of MSC MAKALU III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

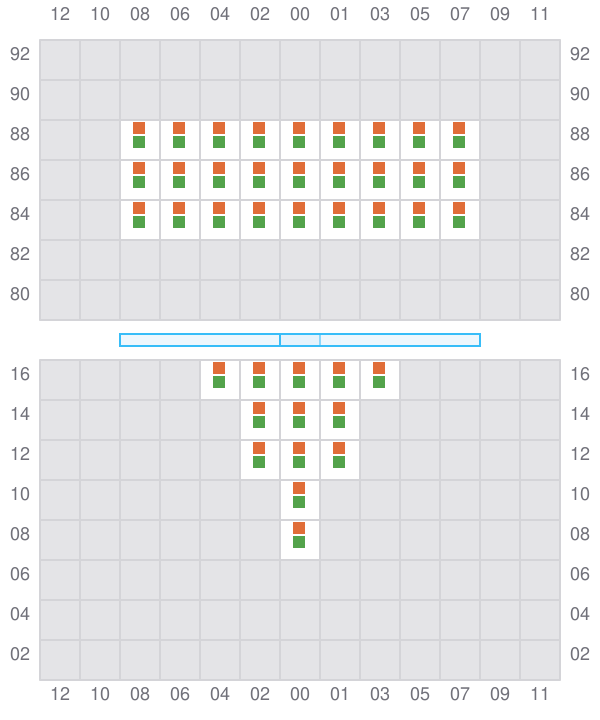

Bay 001 view and slots of MSC MAKALU III

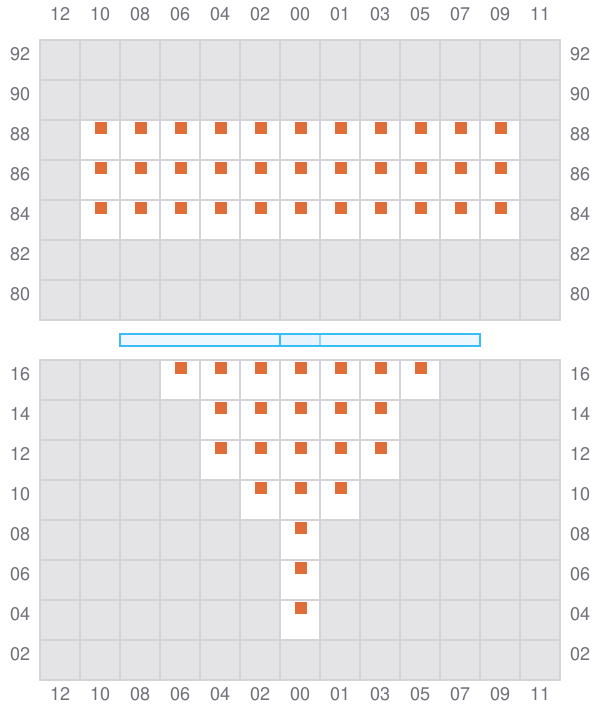

003

  • ←
Bay 003 view and slots of MSC MAKALU III

005 (006)

  • →
Bay 005 view and slots of MSC MAKALU III

007

  • ←
  • → / ?

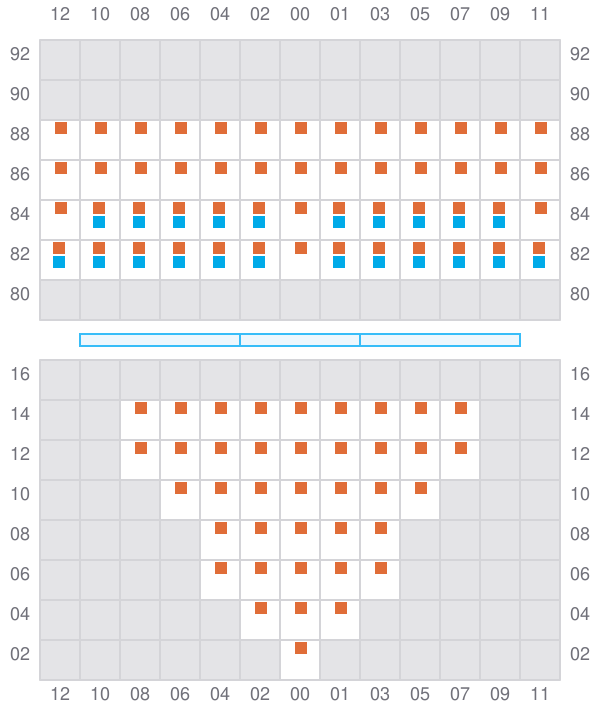

Bay 007 view and slots of MSC MAKALU III

009 (010)

  • →

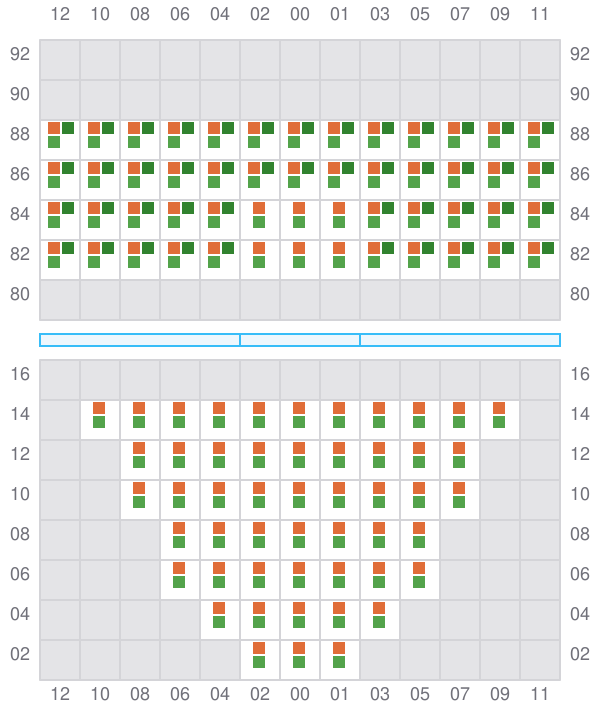

Bay 009 view and slots of MSC MAKALU III

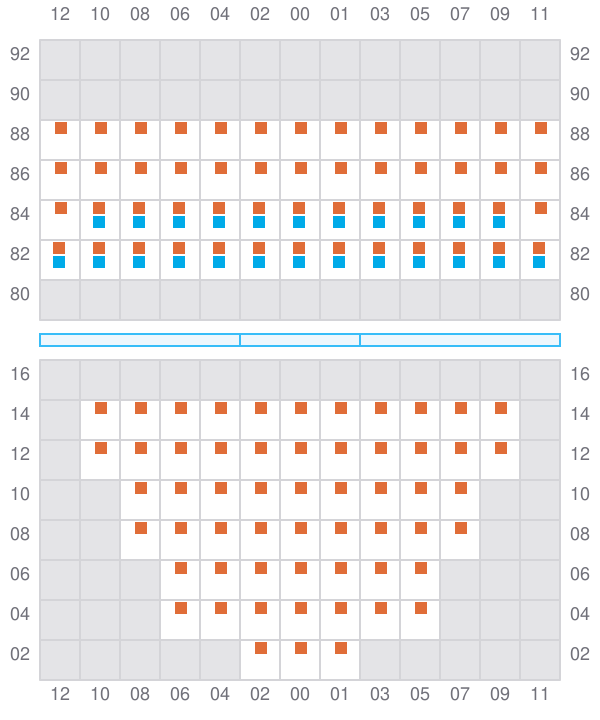

011

  • ←
  • → / ?
Bay 011 view and slots of MSC MAKALU III

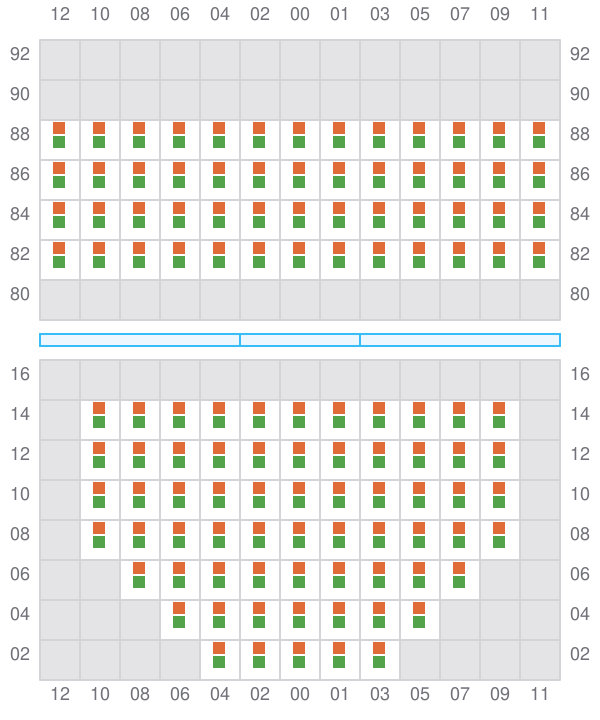

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of MSC MAKALU III

015

  • ←
  • → / ?

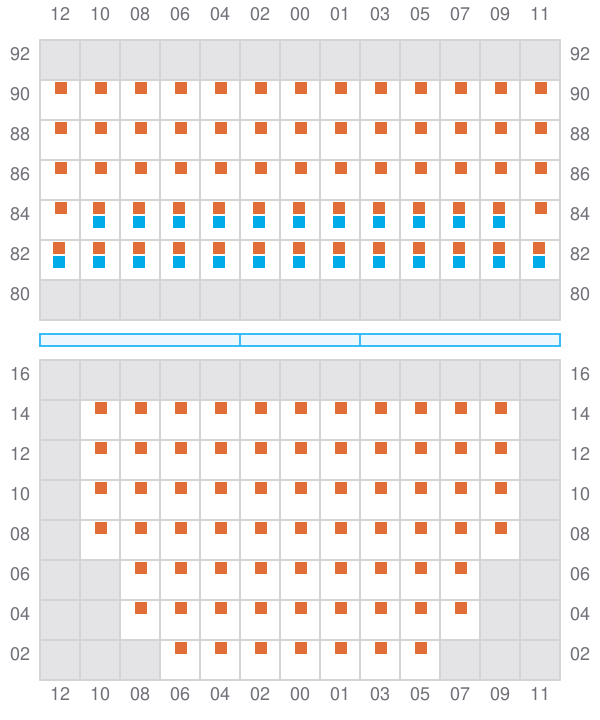

Bay 015 view and slots of MSC MAKALU III

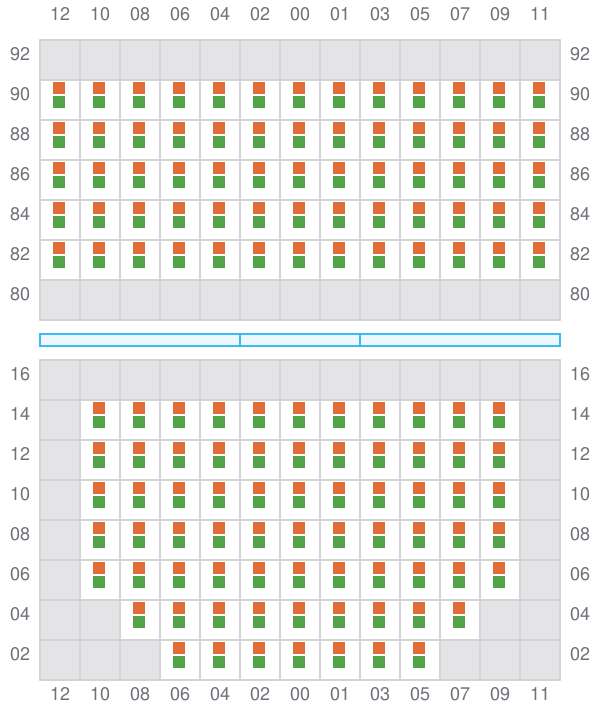

017 (018)

  • →
Bay 017 view and slots of MSC MAKALU III

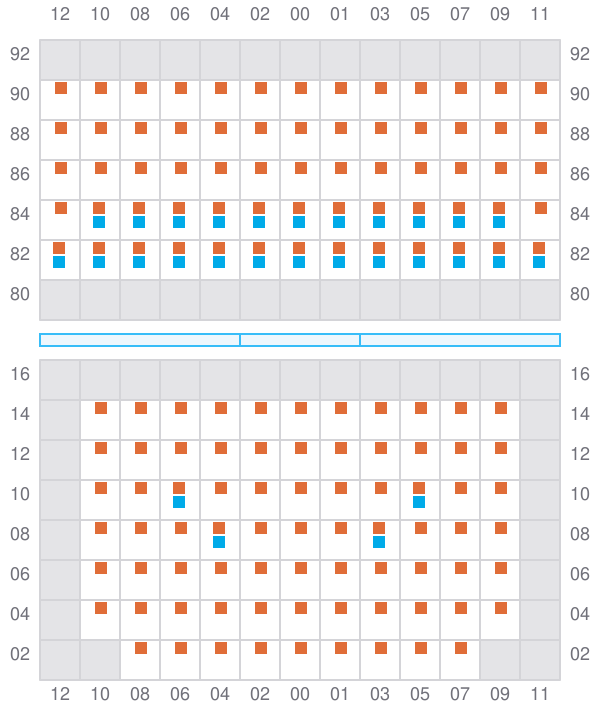

019

  • ←
  • →
Bay 019 view and slots of MSC MAKALU III

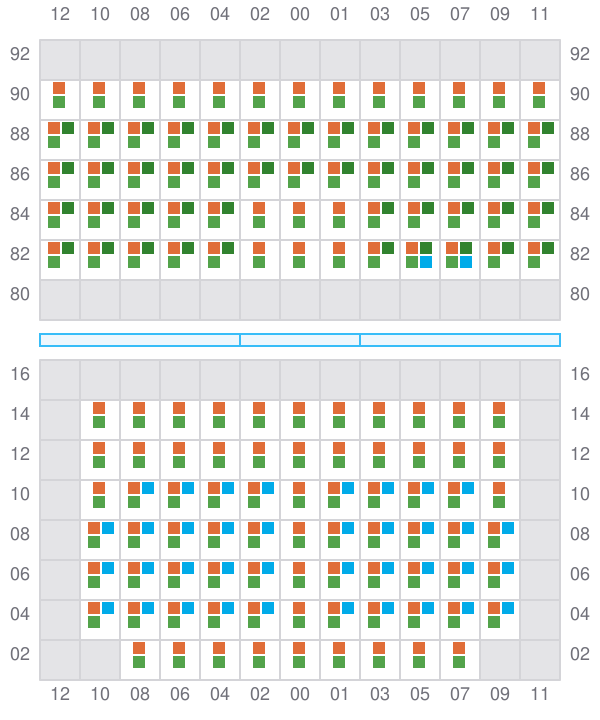

021 (022)

  • →
  • ←
Bay 021 view and slots of MSC MAKALU III

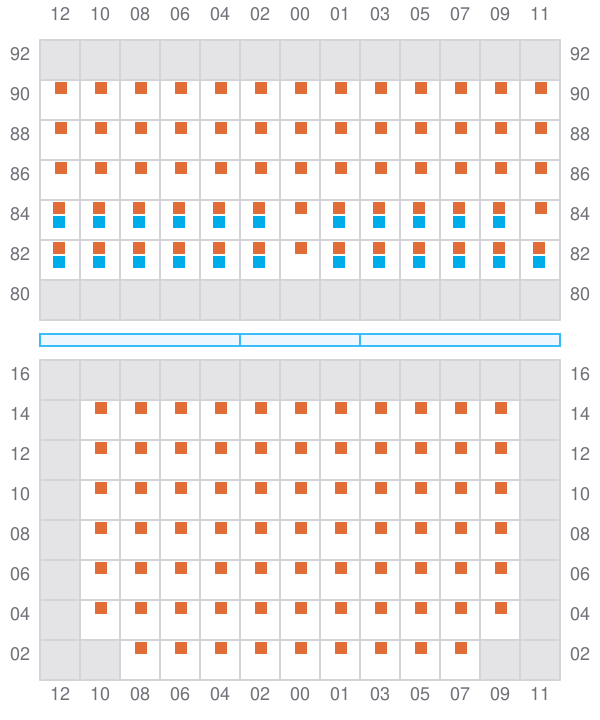

023

  • ←
  • → / ?
Bay 023 view and slots of MSC MAKALU III

025 (026)

  • →
  • ← / ?
Bay 025 view and slots of MSC MAKALU III

027

  • ←
  • →

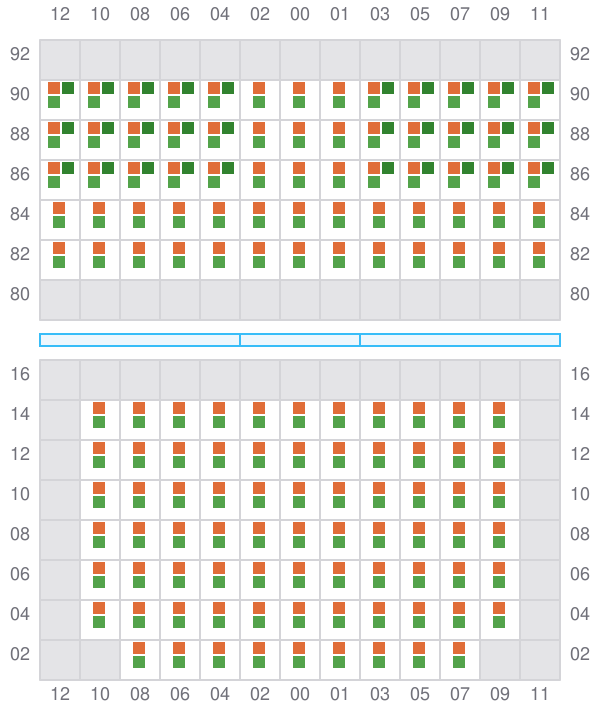

Bay 027 view and slots of MSC MAKALU III

029 (030)

  • →
  • ←
Bay 029 view and slots of MSC MAKALU III

031

  • ←
  • → / ?

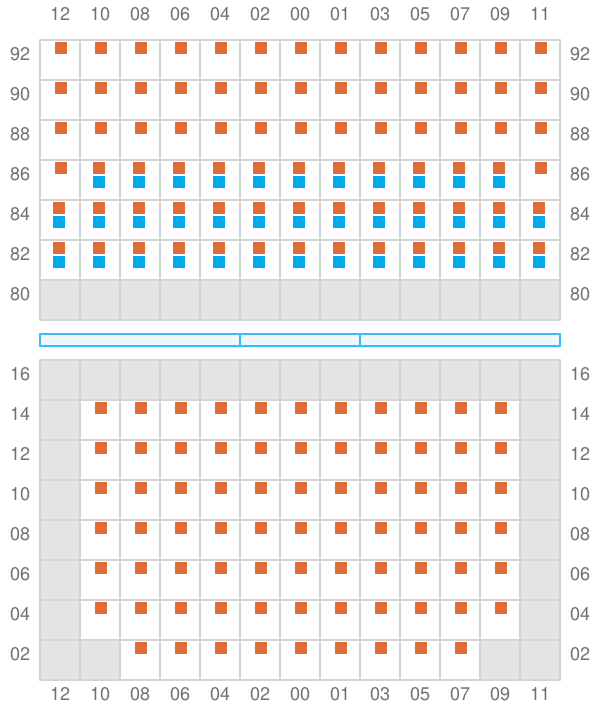

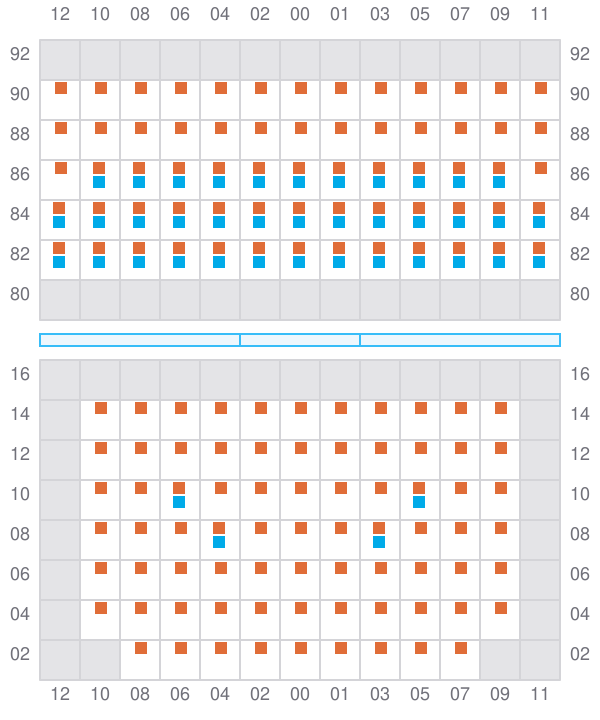

Bay 031 view and slots of MSC MAKALU III

033 (034)

  • →
  • ← / ?

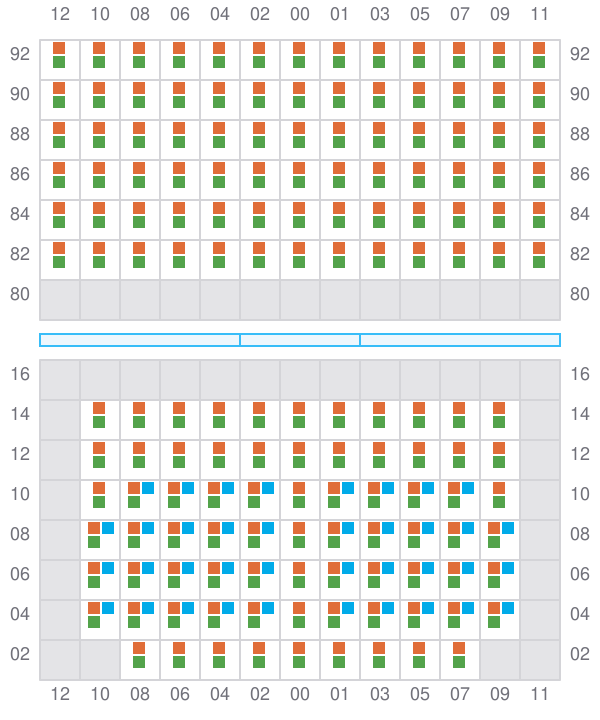

Bay 033 view and slots of MSC MAKALU III

035

  • ←
  • →

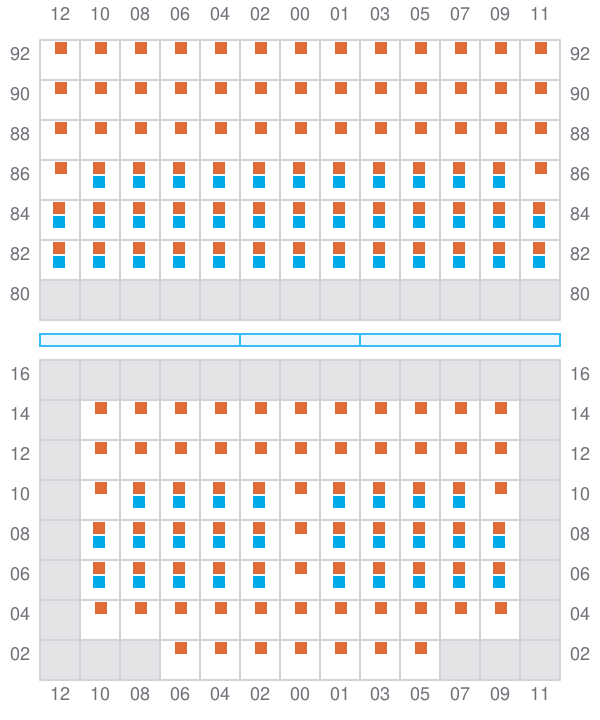

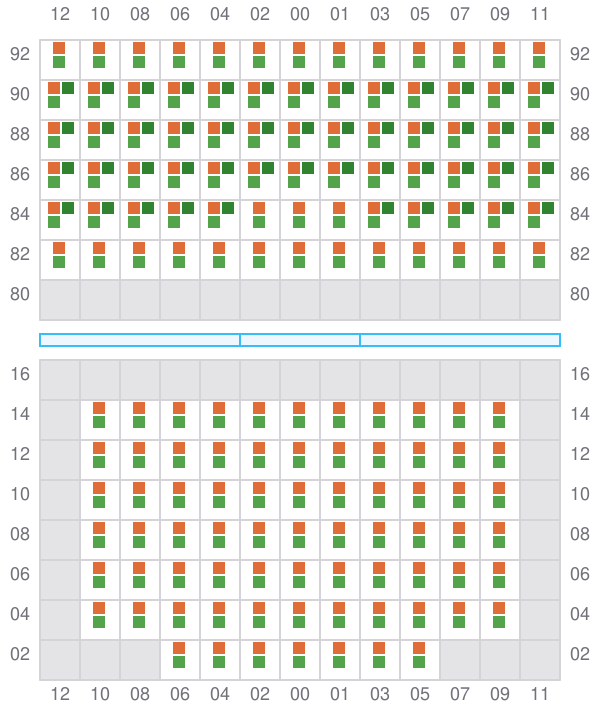

Bay 035 view and slots of MSC MAKALU III

037 (038)

  • →
  • ←

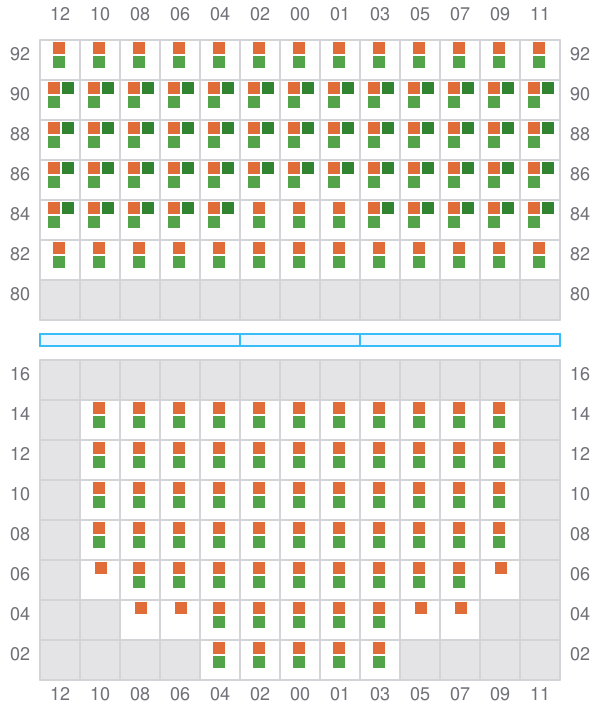

Bay 037 view and slots of MSC MAKALU III

039

  • ←
  • →

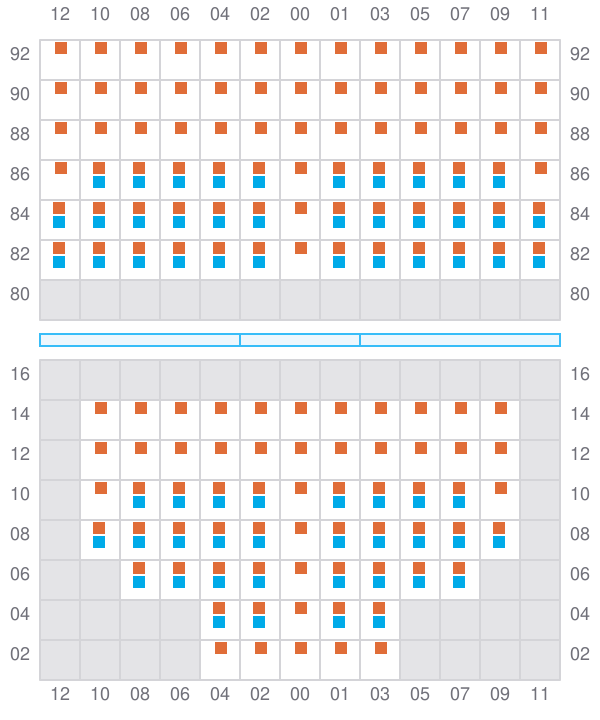

Bay 039 view and slots of MSC MAKALU III

041 (042)

  • → / ?
  • ← / ?

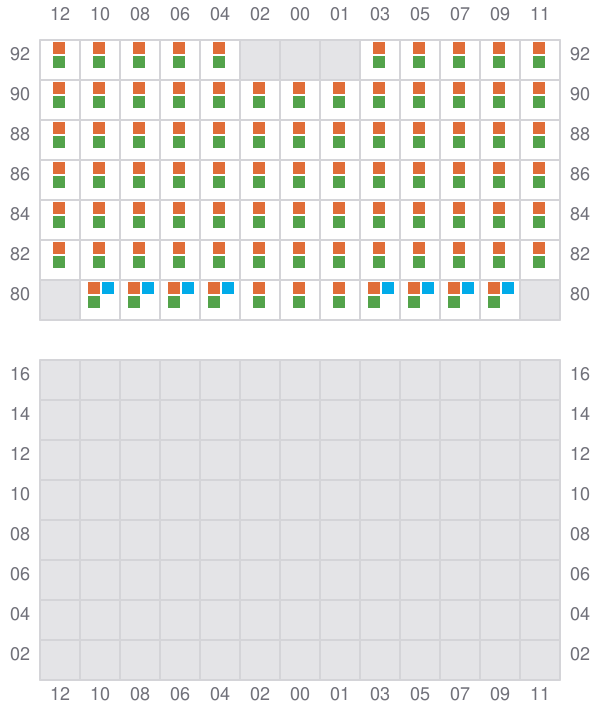

Bay 041 view and slots of MSC MAKALU III

043

  • ← / ?
  • → / ?

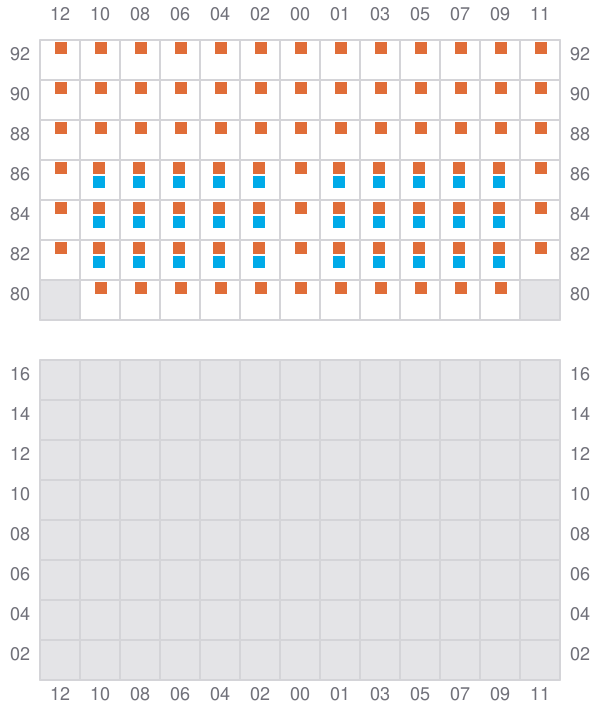

Bay 043 view and slots of MSC MAKALU III

045

  • ← / ?

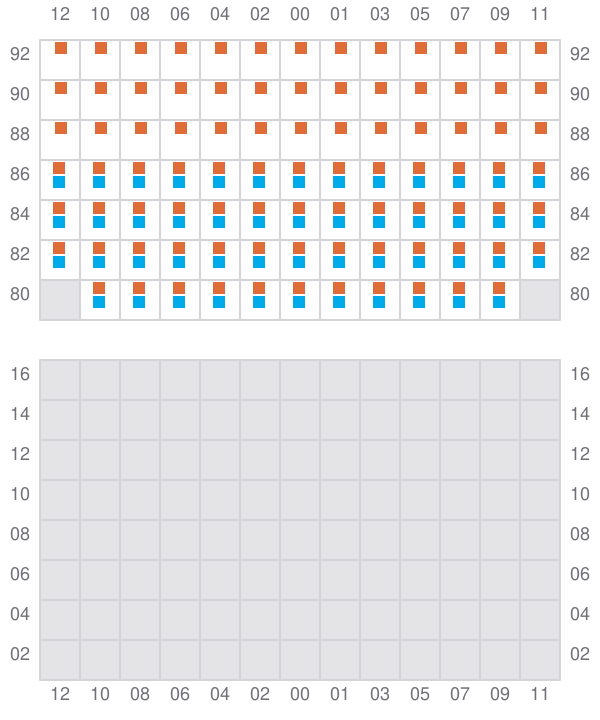

Bay 045 view and slots of MSC MAKALU III
