MSC MANDY
8918966 | HPRL | MSC by ************************** Last update: Sat Jun 17 2023
General Info
Ship Name:MSC MANDY
IMO Code:8918966
Call Sign:HPRL
Line Operator:MSC
Class Name for Sister Ships:MDY
Year Built:1993
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:2,929
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

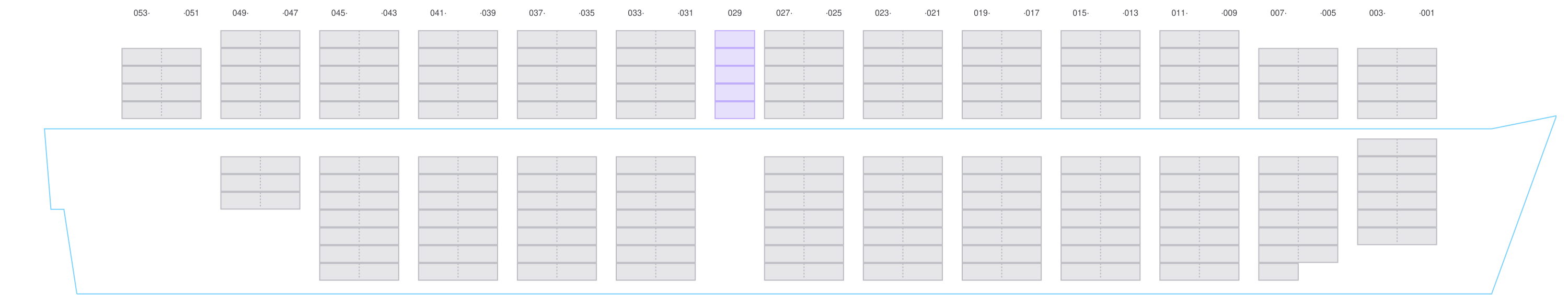

Side View
![Side view of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-sideView.png?v=1687027158751)

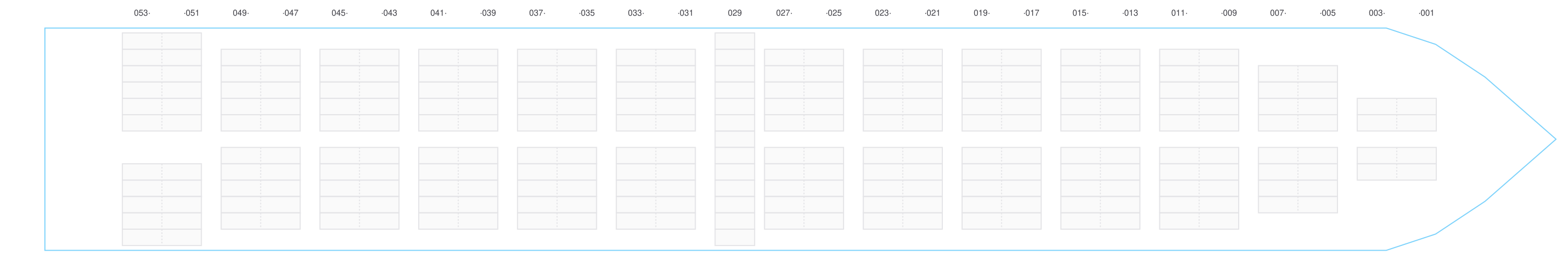

Hatch-Covers View
![Deck view of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-deckView.png?v=1687027158751)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

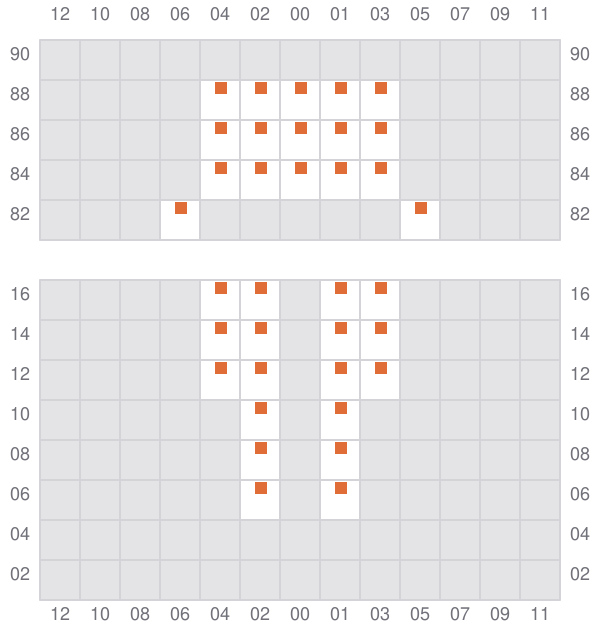

001
- →
![Bay 001 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b001.png?v=1687027158751)

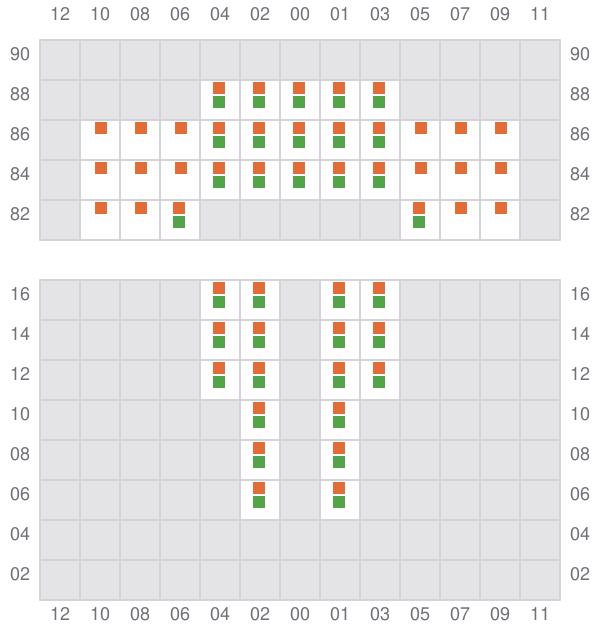

003 (002)
- ←
![Bay 003 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b003.png?v=1687027158751)
005
- →
![Bay 005 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b005.png?v=1687027158751)

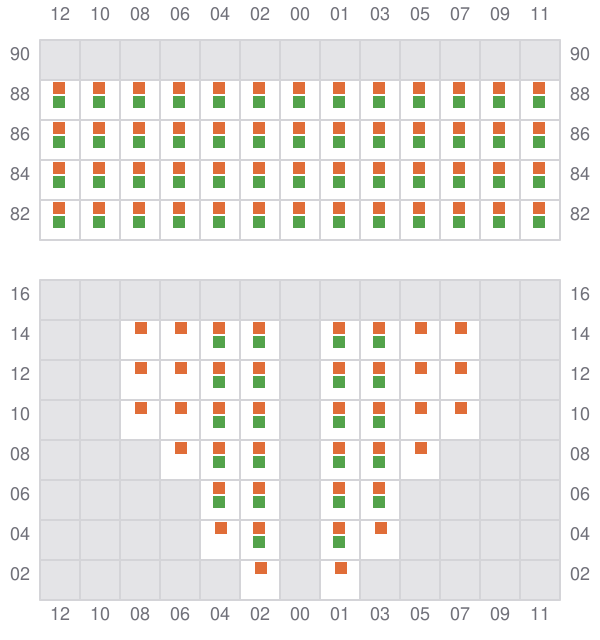

007 (006)
- ←
![Bay 007 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b007.png?v=1687027158751)

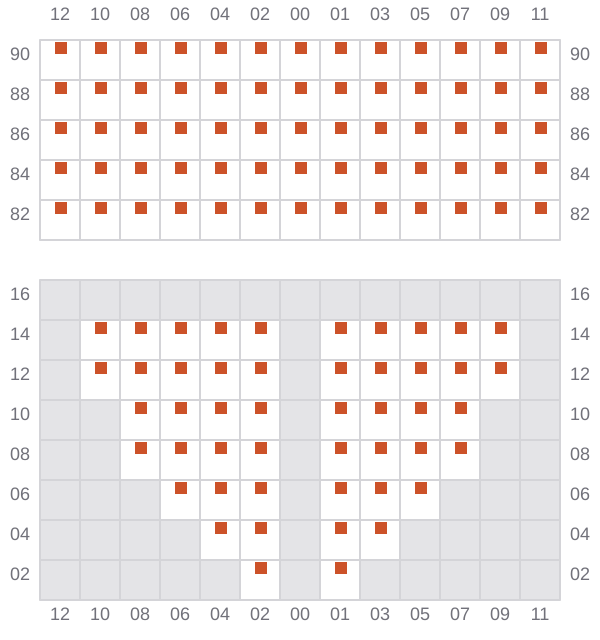

009
- →
![Bay 009 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b009.png?v=1687027158751)
011 (010)
- ←
![Bay 011 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b011.png?v=1687027158751)

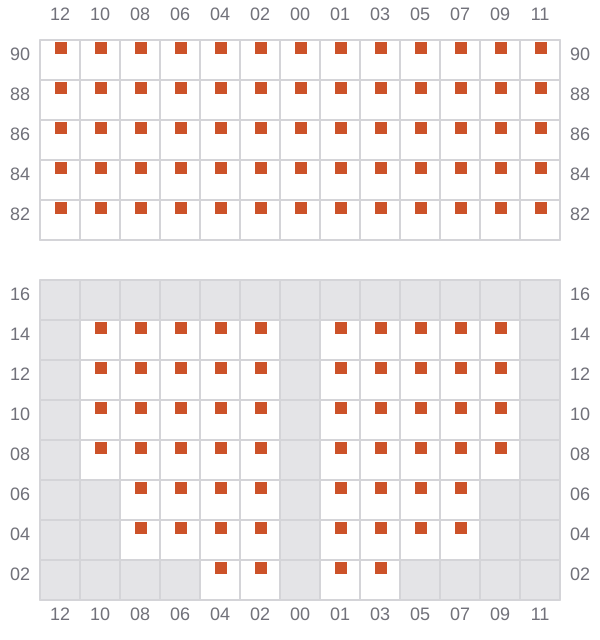

013
- →
![Bay 013 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b013.png?v=1687027158751)

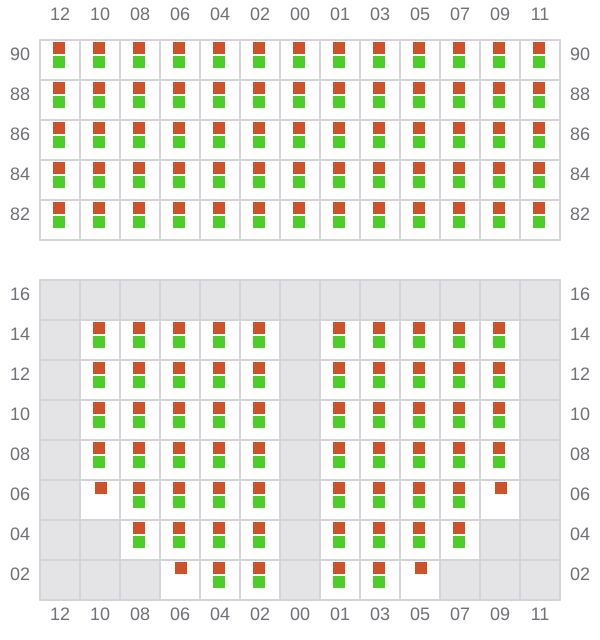

015 (014)
- ←
![Bay 015 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b015.png?v=1687027158751)

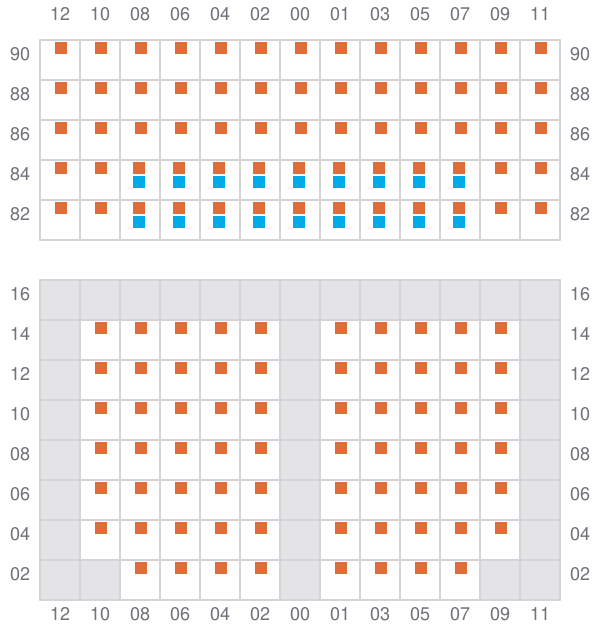

017
- →
![Bay 017 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b017.png?v=1687027158751)
019 (018)
- ←
![Bay 019 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b019.png?v=1687027158751)
021
- →
![Bay 021 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b021.png?v=1687027158751)
023 (022)
- ←
![Bay 023 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b023.png?v=1687027158751)

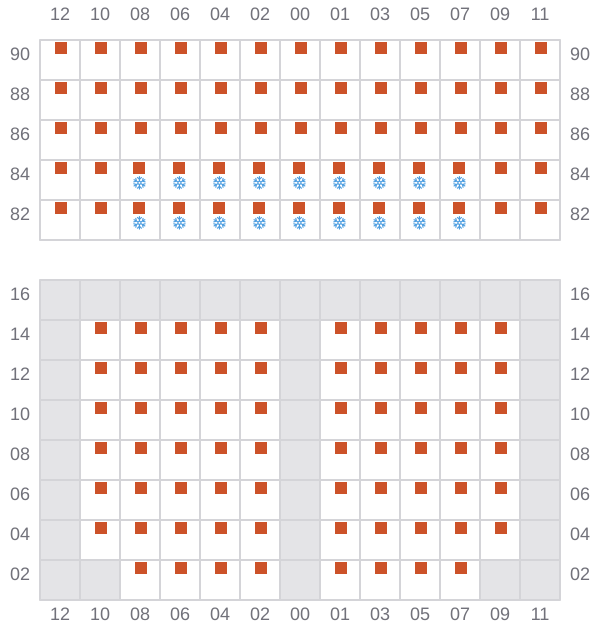

025
- →
![Bay 025 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b025.png?v=1687027158751)

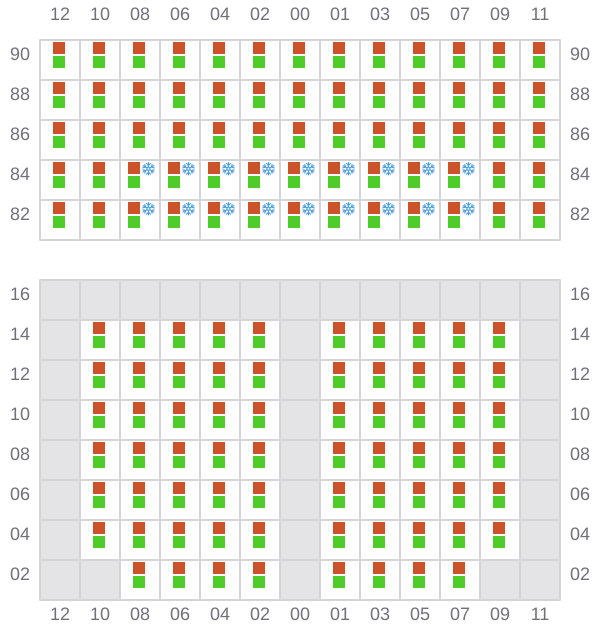

027 (026)
- ←
![Bay 027 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b027.png?v=1687027158751)
029
- ← / ?
![Bay 029 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b029.png?v=1687027158751)
031
- →
![Bay 031 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b031.png?v=1687027158751)
033 (032)
- ←
![Bay 033 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b033.png?v=1687027158751)
035
- →
![Bay 035 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b035.png?v=1687027158751)
037 (036)
- ←
![Bay 037 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b037.png?v=1687027158751)
039
- →
![Bay 039 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b039.png?v=1687027158751)

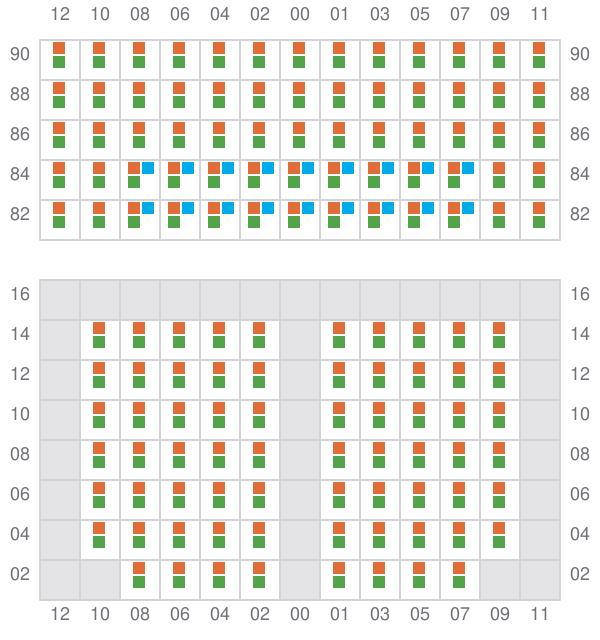

041 (040)
- ←
![Bay 041 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b041.png?v=1687027158751)
043
- →
![Bay 043 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b043.png?v=1687027158751)

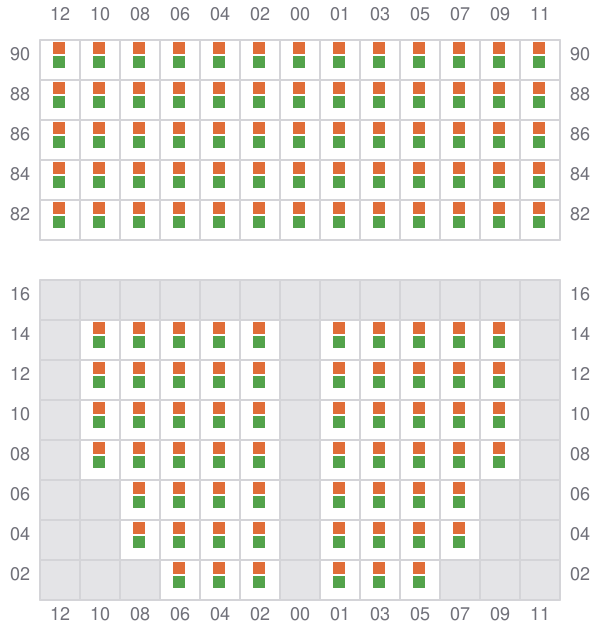

045 (044)
- ←
![Bay 045 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b045.png?v=1687027158751)

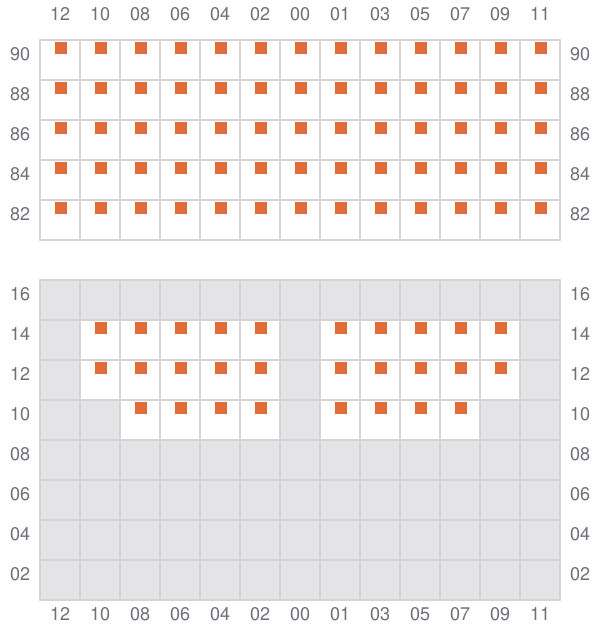

047
- →
![Bay 047 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b047.png?v=1687027158751)

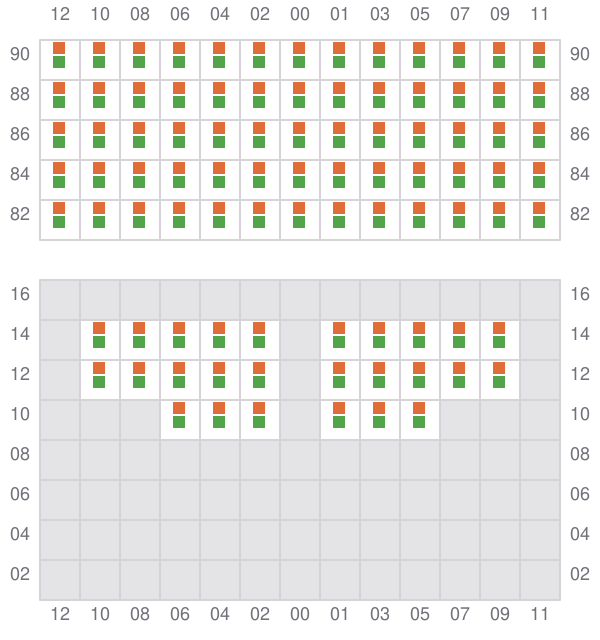

049 (048)
- ←
![Bay 049 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b049.png?v=1687027158751)

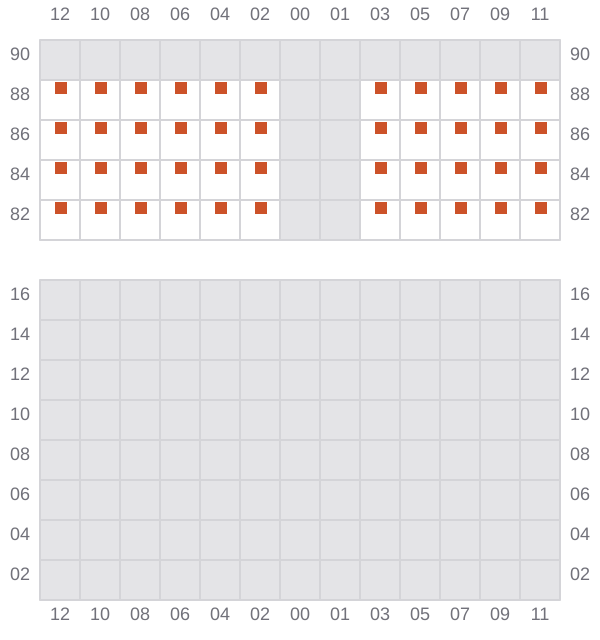

051
- → / ?
![Bay 051 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b051.png?v=1687027158751)

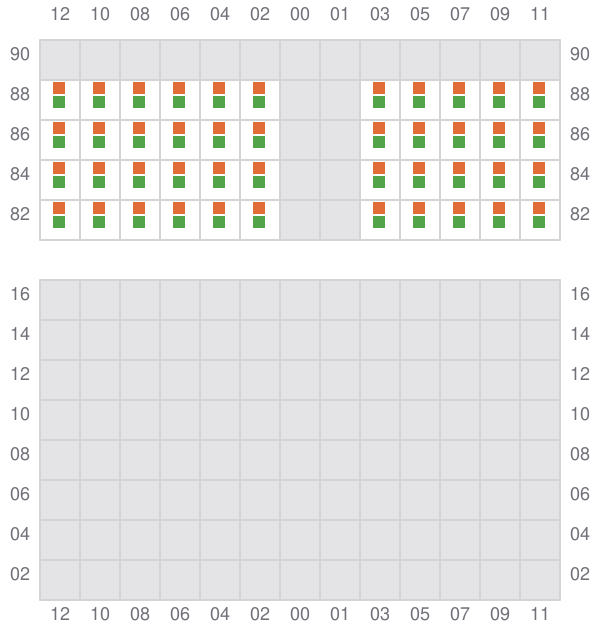

053 (052)
- ← / ?
![Bay 053 view and slots of MSC MANDY](/vessel-images/c6481c46-b1fb-4b8d-ad98-e06e4367a56b-b053.png?v=1687027158751)
