MSC MANU
9238789 | A8CF3 | 9238789 by ********* Last update: Tue Apr 09 2024
General Info
Ship Name:MSC MANU
IMO Code:9238789
Call Sign:A8CF3
Line Operator:9238789
Class Name for Sister Ships:CMACGM NILGAI
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):244.80
LOA (Length Overall):260.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,253
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

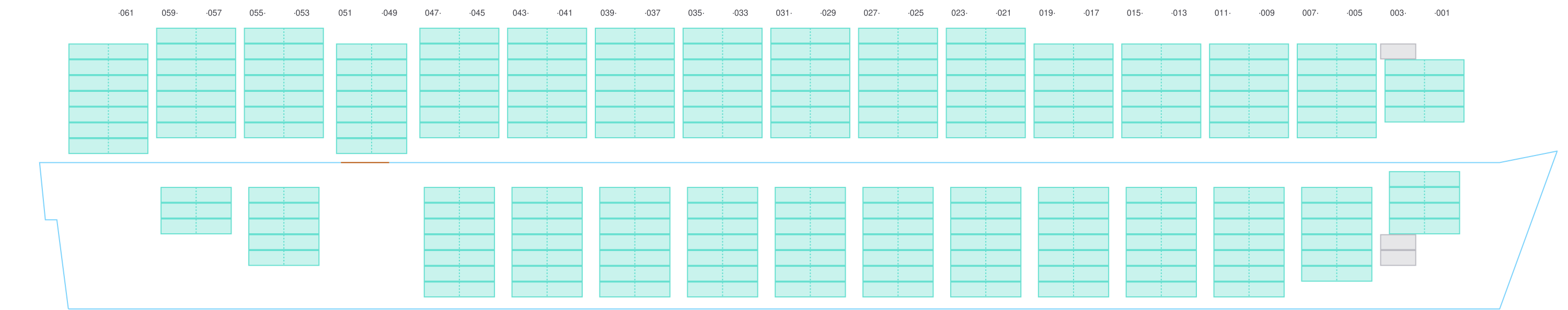

Side View

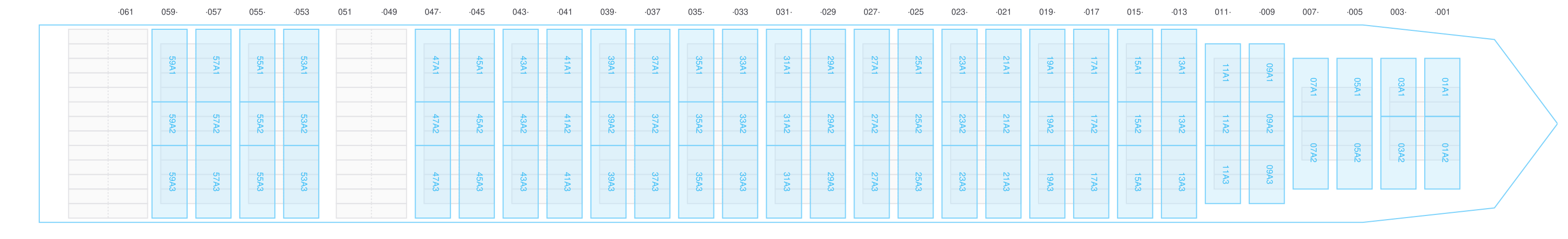

Hatch-Covers View

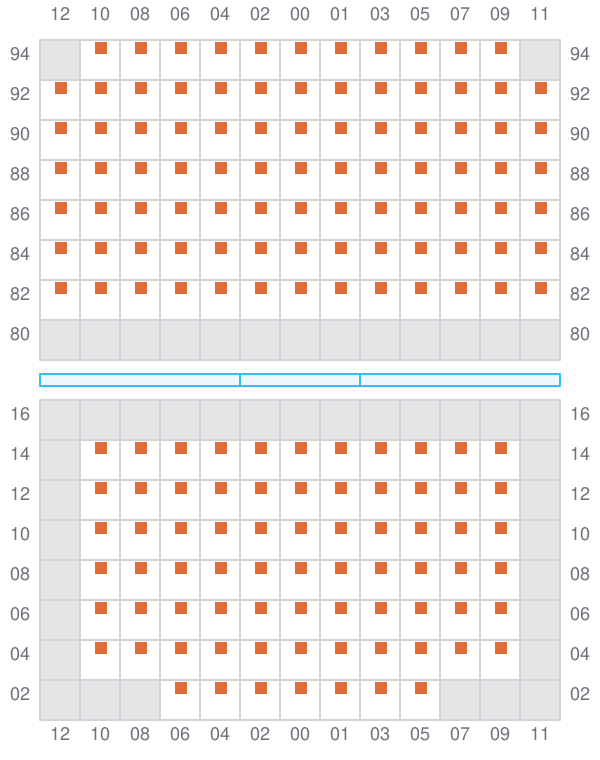

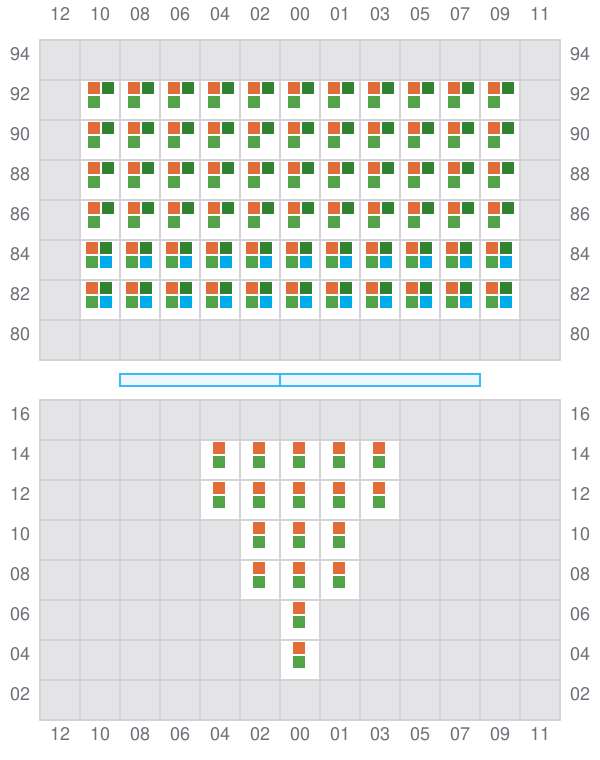

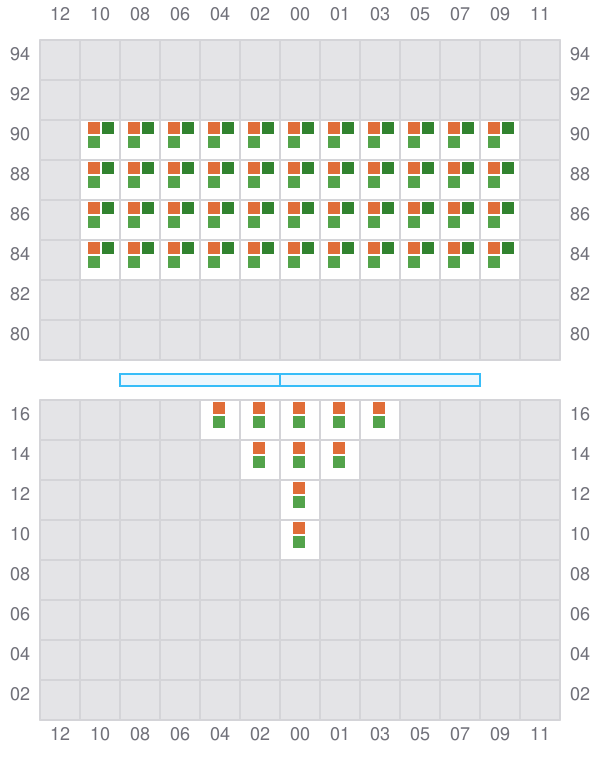

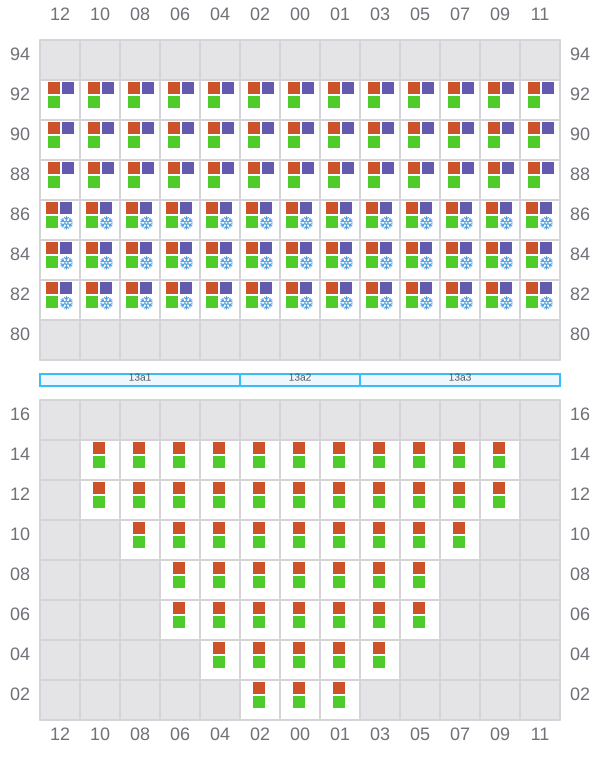

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

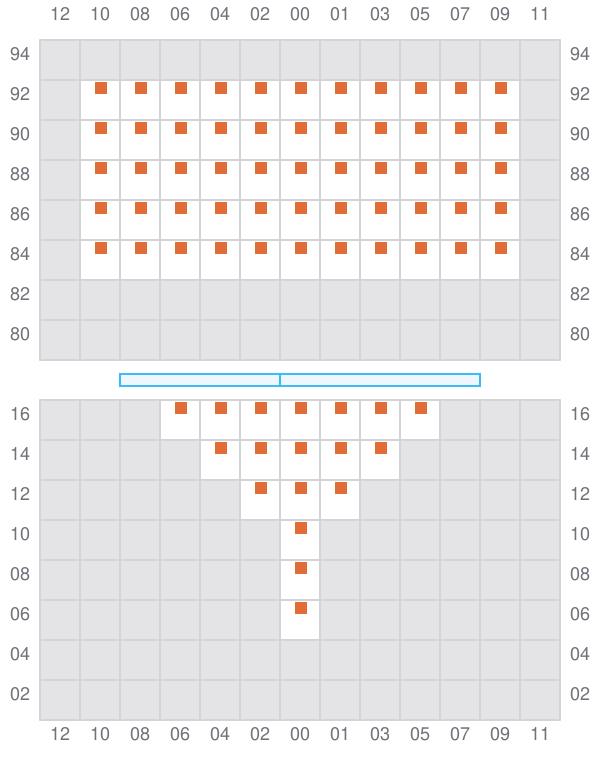

003
- ←
005 (006)
- →

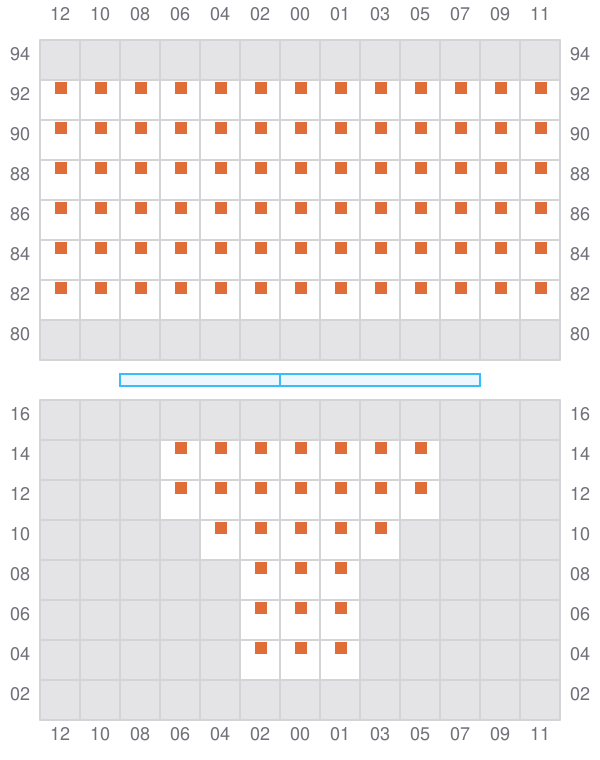

007
- ←

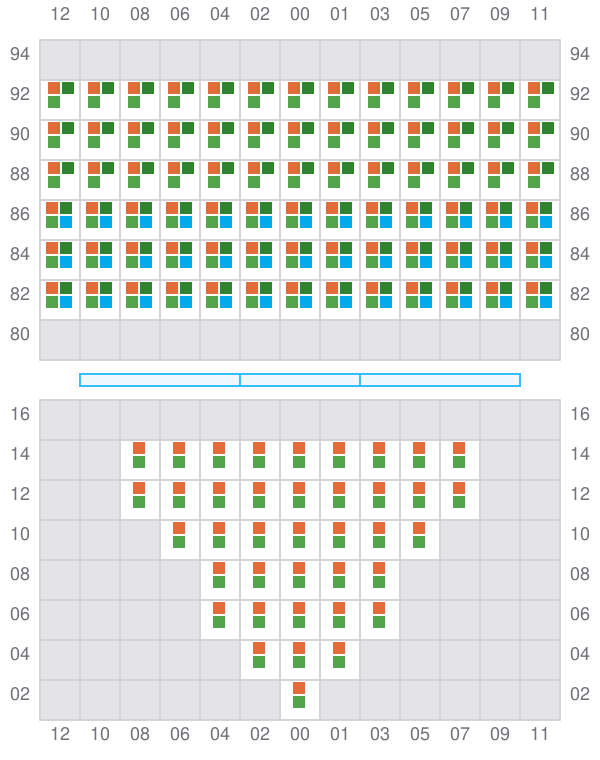

009 (010)
- →

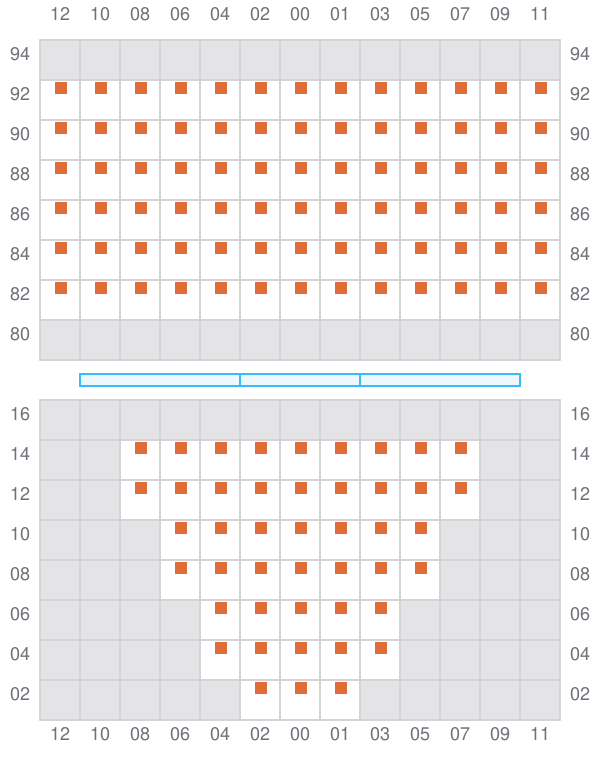

011
- ←
013 (014)
- →

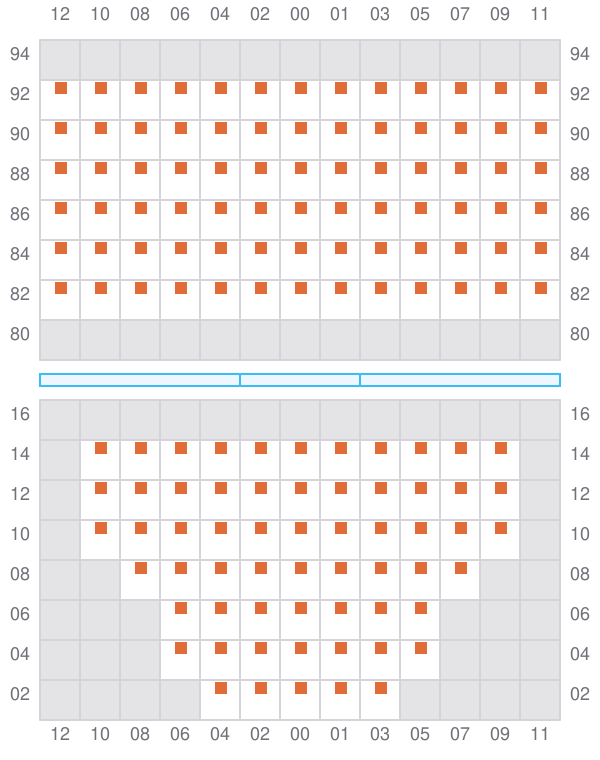

015
- ←
017 (018)
- →

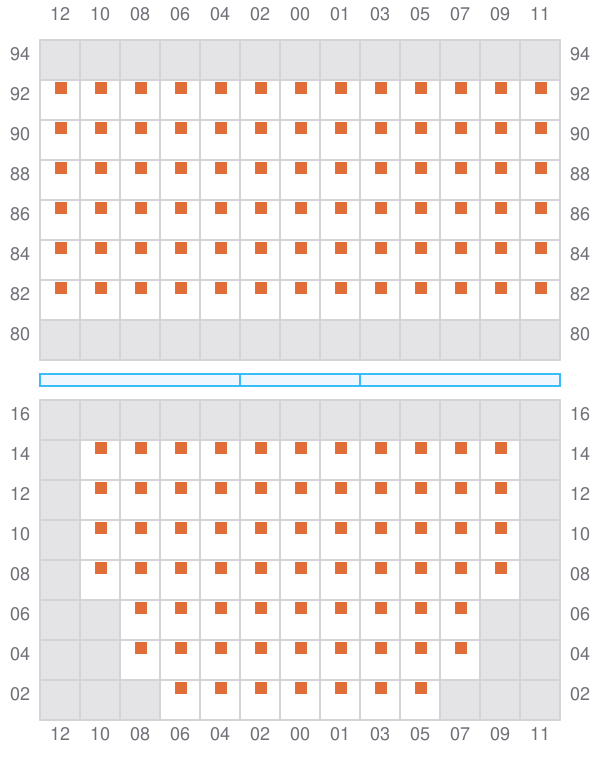

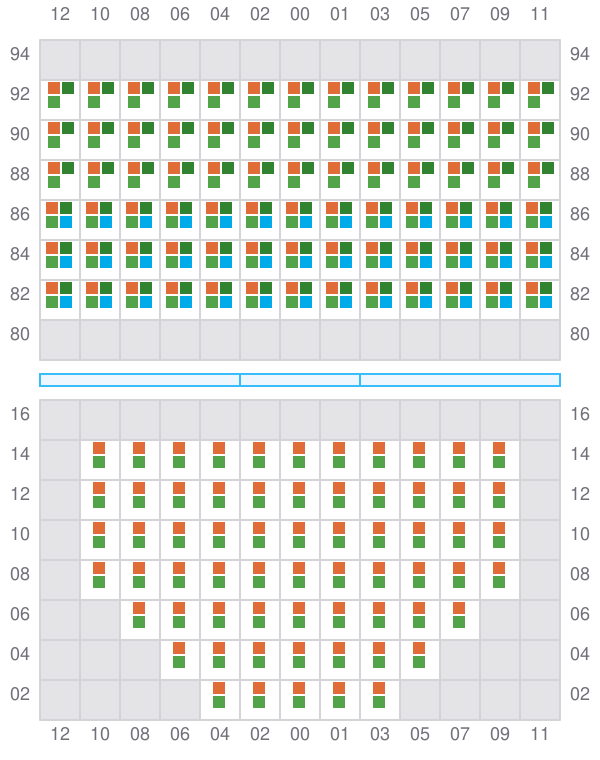

019
- ←

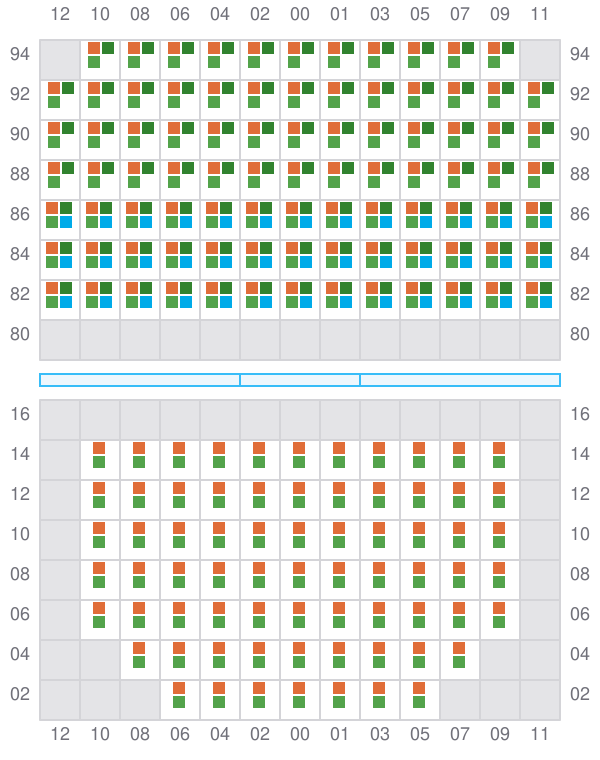

021 (022)
- →
023
- ←

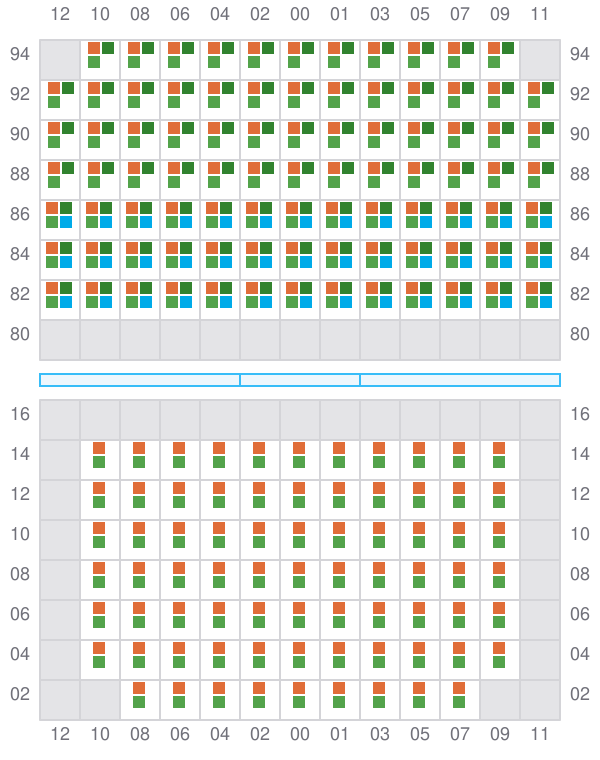

025 (026)
- →
027
- ←

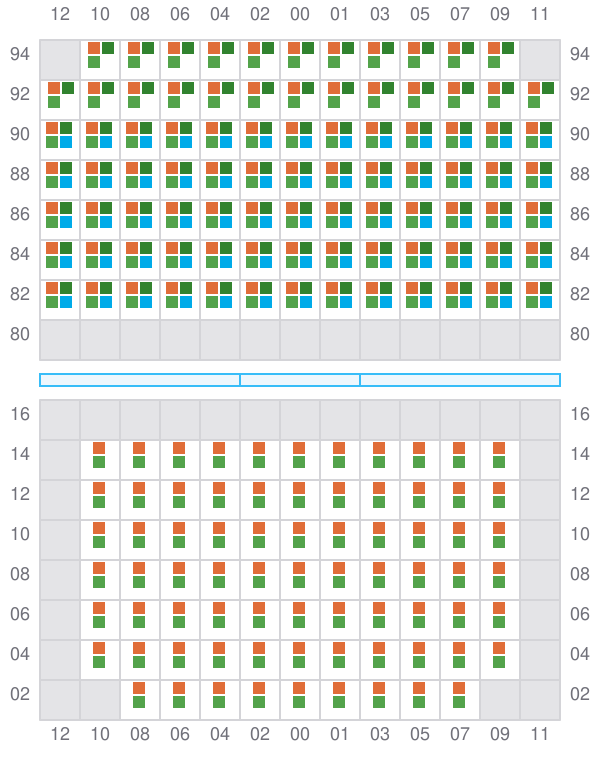

029 (030)
- →

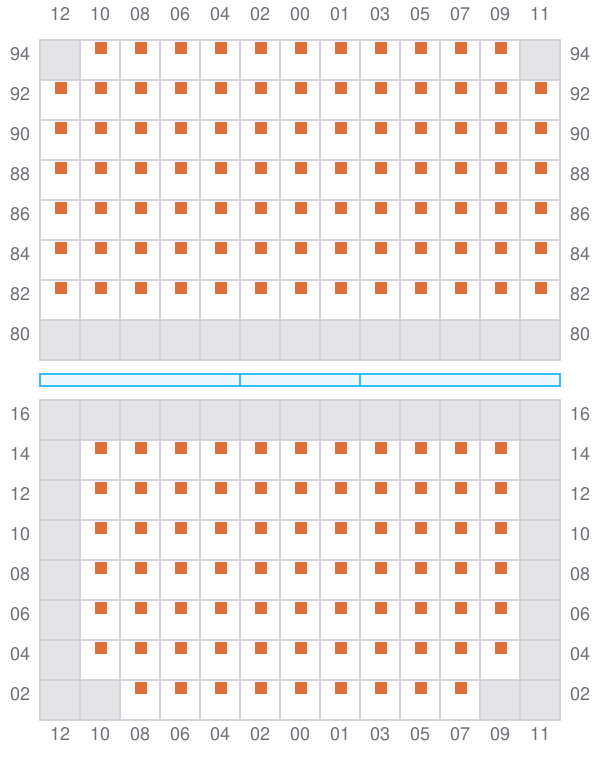

031
- ←

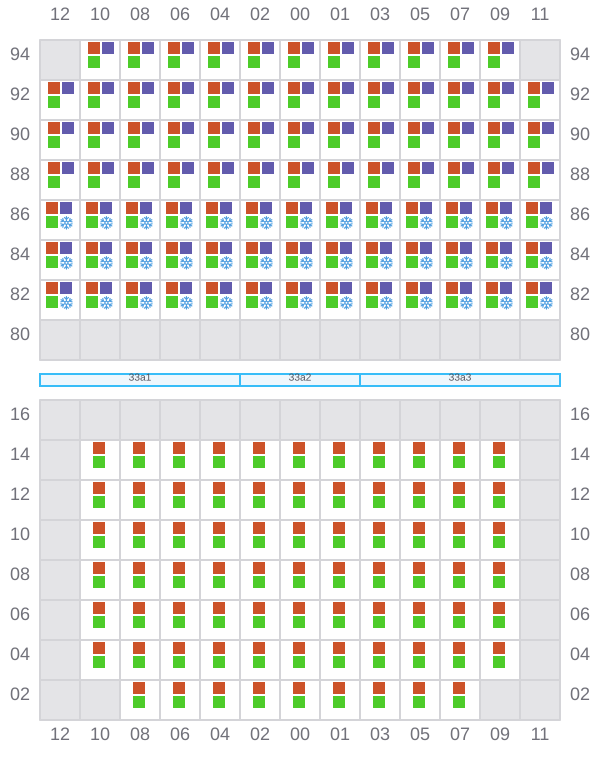

033 (034)
- →

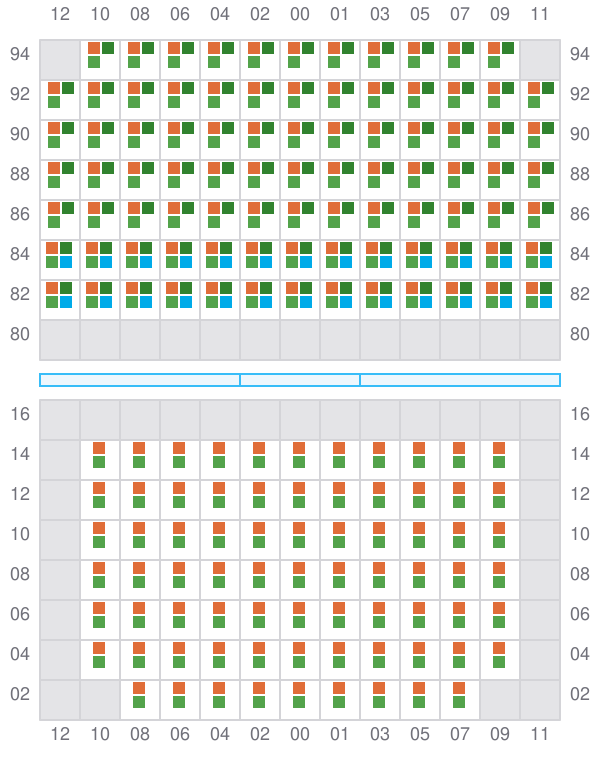

035
- ←
037 (038)
- →
039
- ←

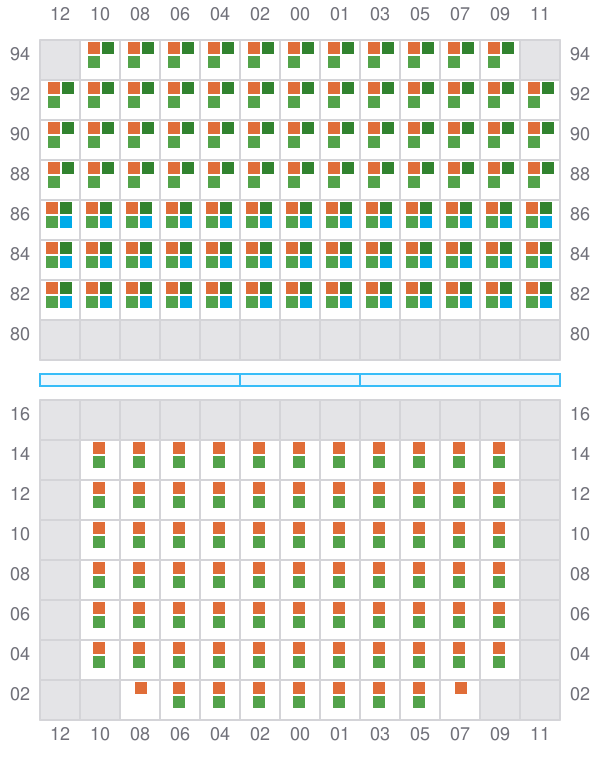

041 (042)
- →
043
- ←

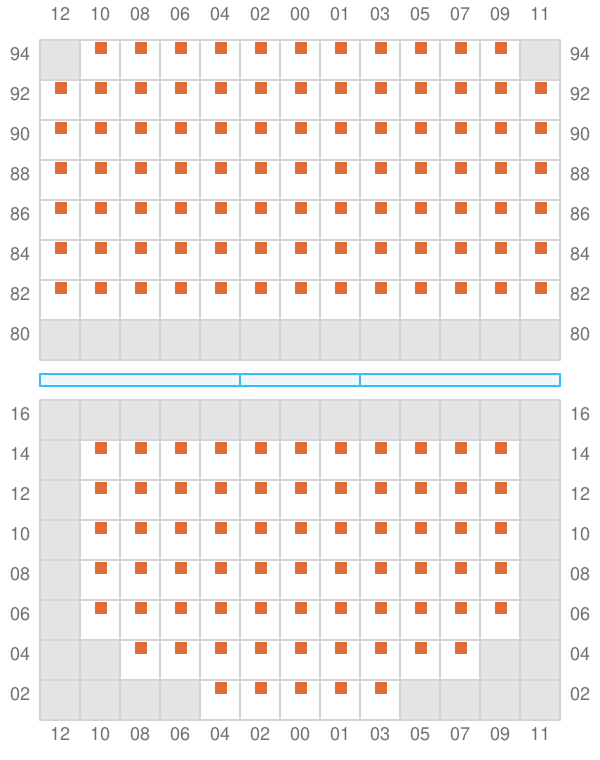

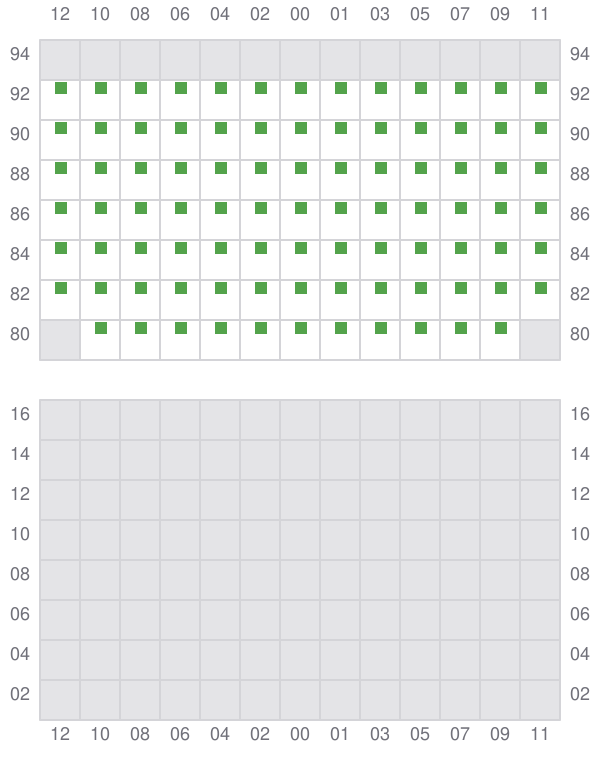

045 (046)
- →
047
- ←

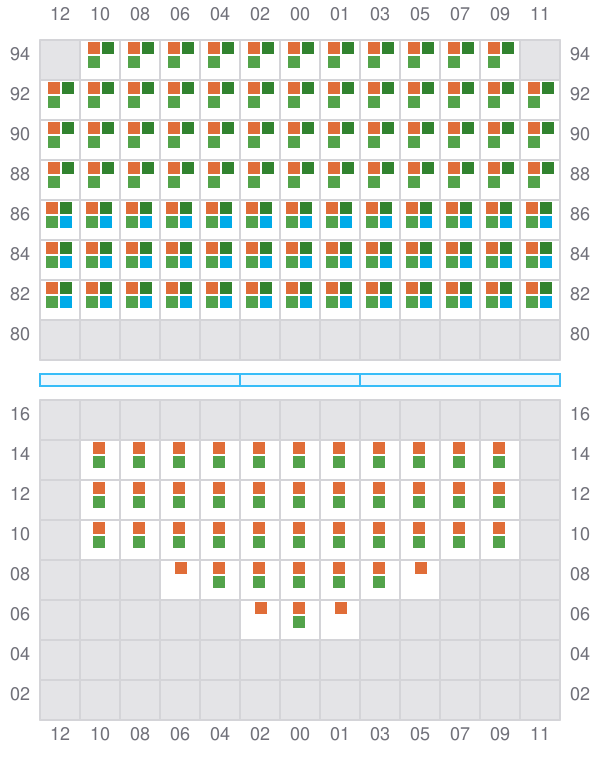

049 (050)
- → / ?

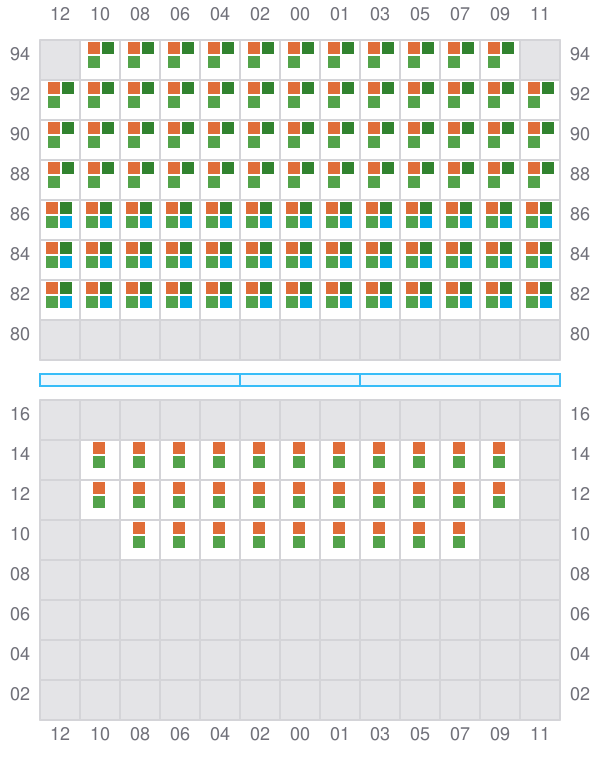

051
053 (054)
- →
055
- ←

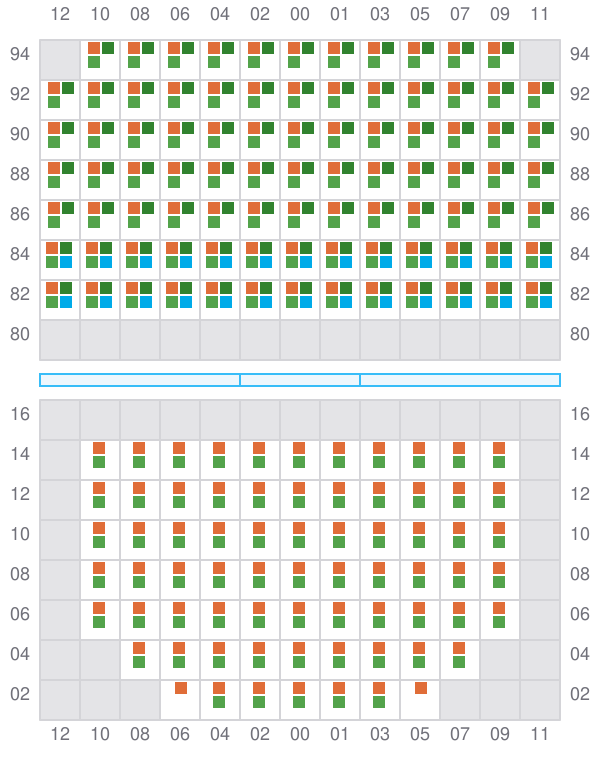

057 (058)
- →

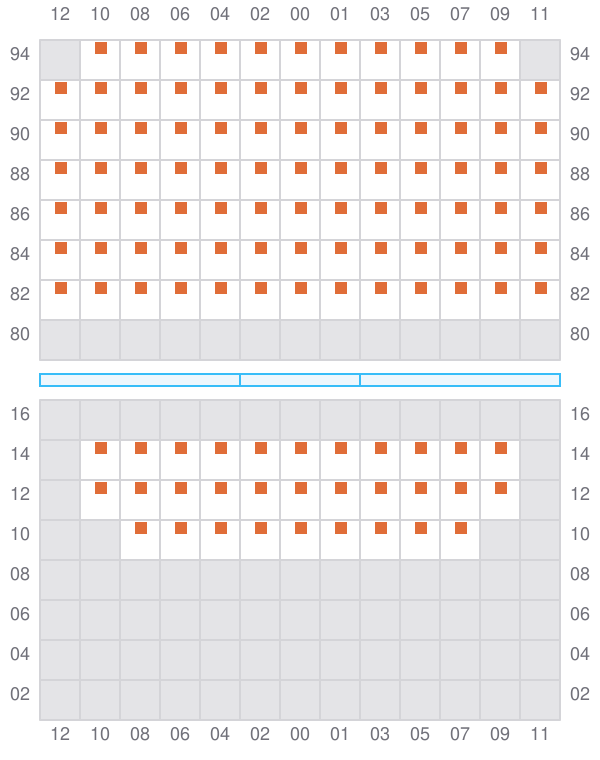

059
- ←

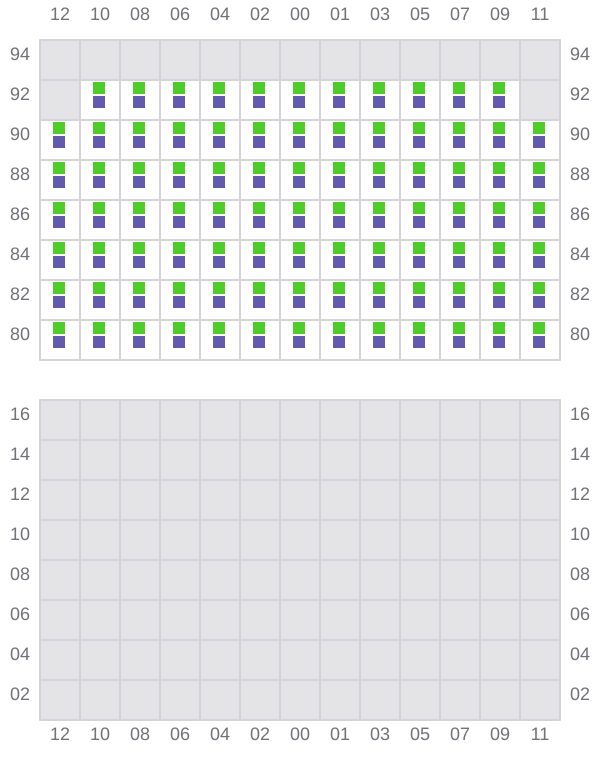

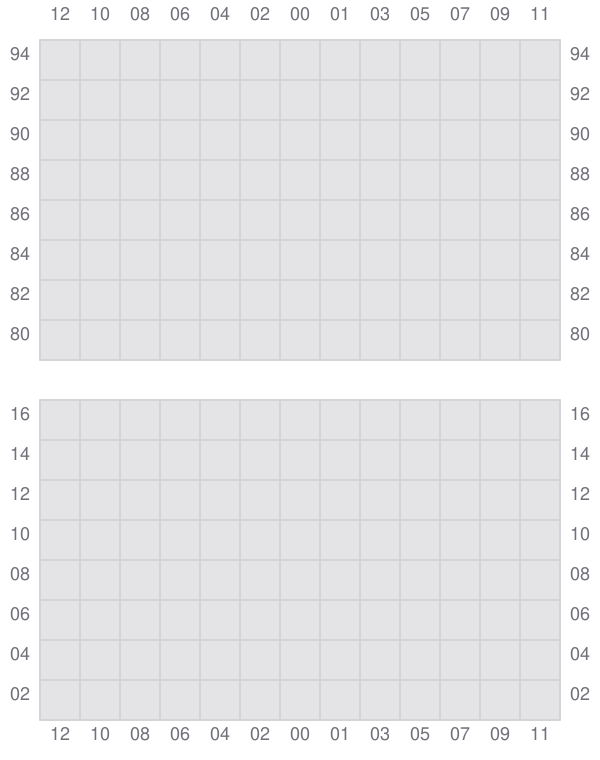

061 (062)
- → / ?
