MSC MANZANILLO
9289960 | CQME | HMM by *********************** Last update: Fri Jan 17 2025

General Info

Ship Name:MSC MANZANILLO
IMO Code:9289960
Call Sign:CQME
Line Operator:HMM
Class Name for Sister Ships:HMTG
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.75
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,089

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC MANZANILLO

Hatch-Covers View

Deck view of MSC MANZANILLO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →
Bay 001 view and slots of MSC MANZANILLO

003

  • ←
  • →
Bay 003 view and slots of MSC MANZANILLO

005 (006)

  • →
  • →
Bay 005 view and slots of MSC MANZANILLO

007

  • ←
  • →
Bay 007 view and slots of MSC MANZANILLO

009 (010)

  • →
  • →
Bay 009 view and slots of MSC MANZANILLO

011

  • ←
  • →
Bay 011 view and slots of MSC MANZANILLO

013 (014)

  • →
  • →
Bay 013 view and slots of MSC MANZANILLO

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of MSC MANZANILLO

017 (018)

  • →
  • →
  • →
Bay 017 view and slots of MSC MANZANILLO

019

  • ←
  • → / ?
  • →

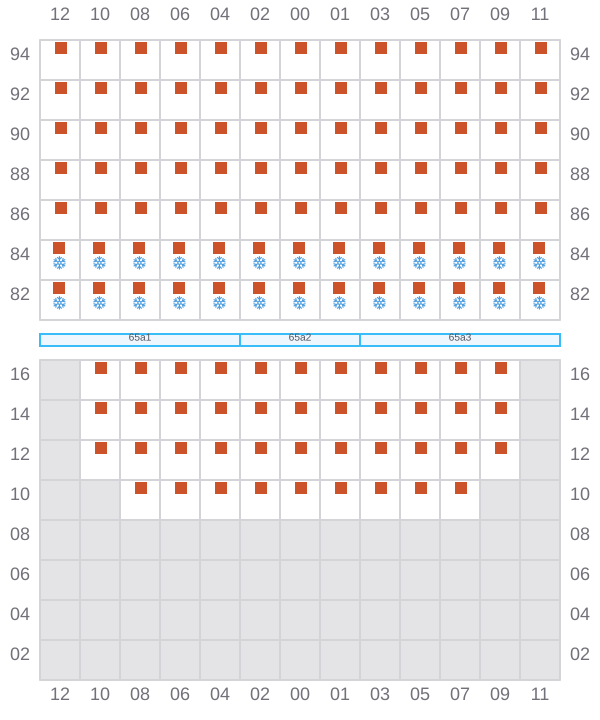

Bay 019 view and slots of MSC MANZANILLO

021 (022)

  • →
  • → / ?
  • →

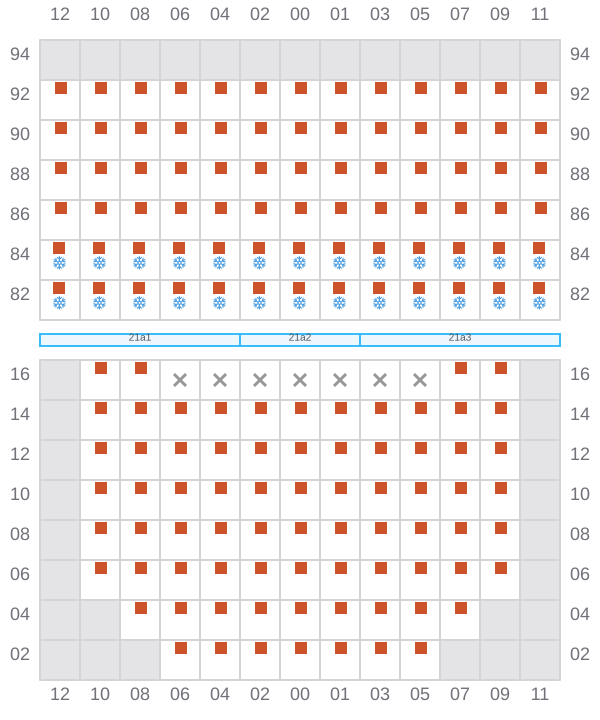

Bay 021 view and slots of MSC MANZANILLO

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of MSC MANZANILLO

025 (026)

  • →
  • →
  • →
Bay 025 view and slots of MSC MANZANILLO

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of MSC MANZANILLO

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of MSC MANZANILLO

031

  • ←
  • → / ?
  • →
Bay 031 view and slots of MSC MANZANILLO

033 (034)

  • →
  • →
  • →
Bay 033 view and slots of MSC MANZANILLO

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of MSC MANZANILLO

037 (038)

  • →
  • → / ?
  • →

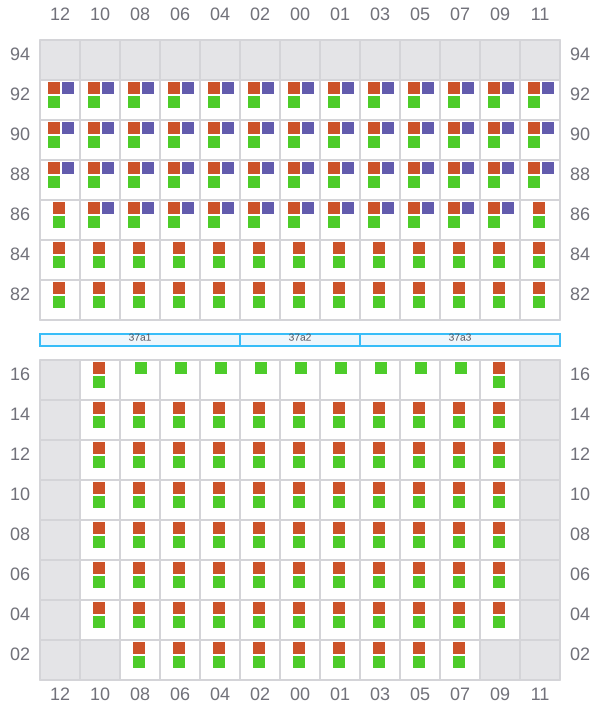

Bay 037 view and slots of MSC MANZANILLO

039

  • ←
  • → / ?
  • →

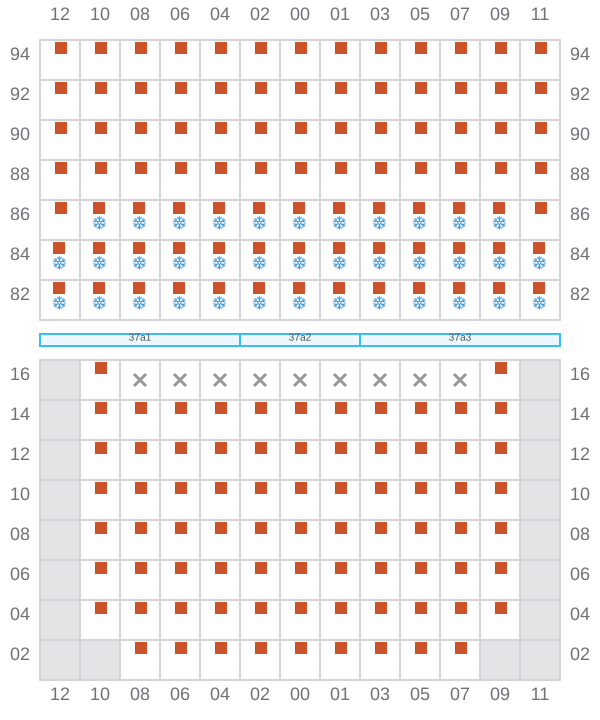

Bay 039 view and slots of MSC MANZANILLO

041 (042)

  • →
  • → / ?
  • →

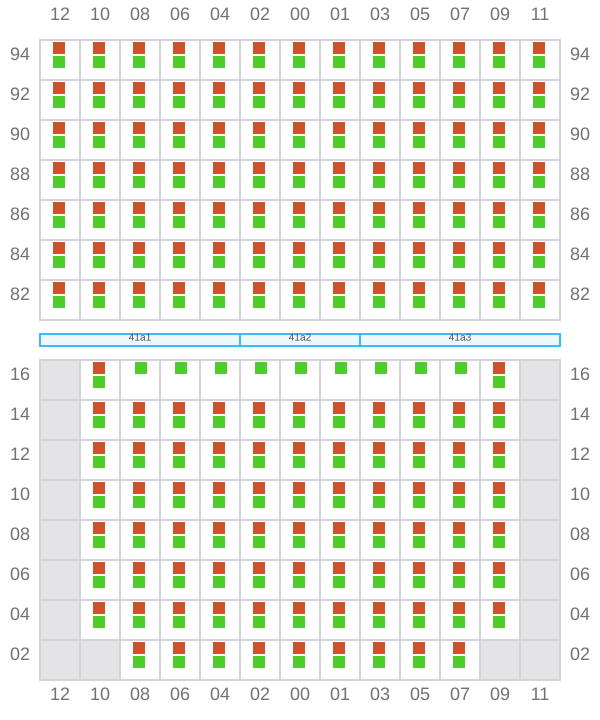

Bay 041 view and slots of MSC MANZANILLO

043

  • ←
  • →
  • →
Bay 043 view and slots of MSC MANZANILLO

045 (046)

  • →
  • →
  • →
Bay 045 view and slots of MSC MANZANILLO

047

  • ←
  • →
  • →

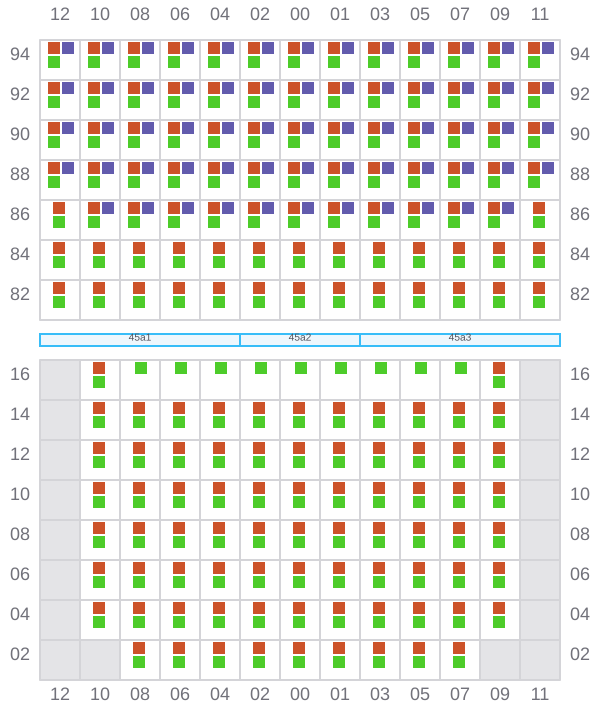

Bay 047 view and slots of MSC MANZANILLO

049 (050)

  • →
  • → / ?
  • →
Bay 049 view and slots of MSC MANZANILLO

051

  • ←
  • →
  • →
Bay 051 view and slots of MSC MANZANILLO

053 (054)

  • →
  • → / ?
  • →

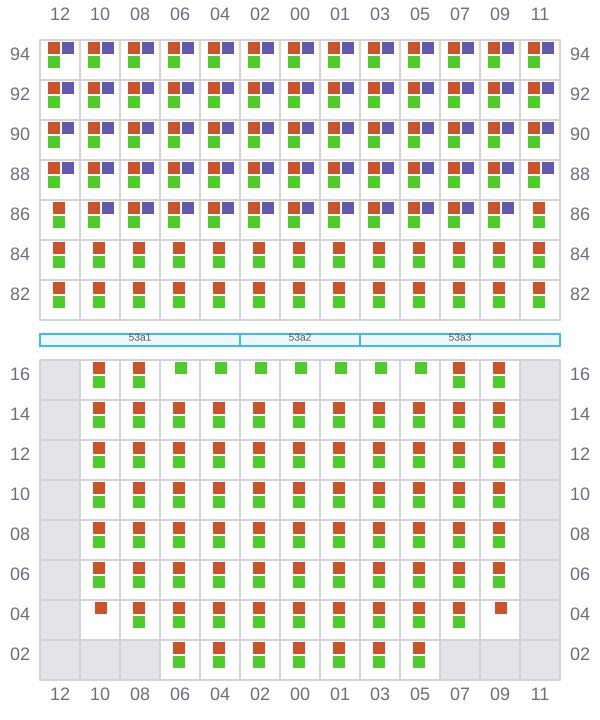

Bay 053 view and slots of MSC MANZANILLO

055

  • ←
  • →
  • →
Bay 055 view and slots of MSC MANZANILLO

057 (058)

  • →
  • → / ?
  • →

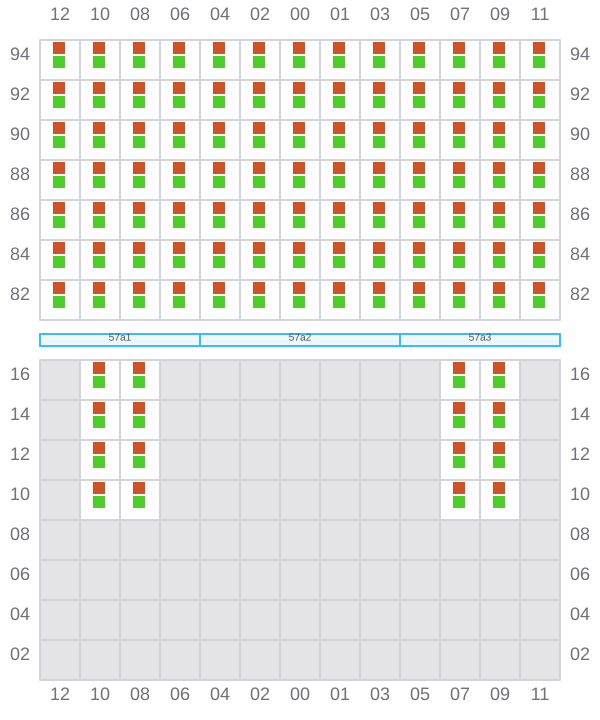

Bay 057 view and slots of MSC MANZANILLO

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of MSC MANZANILLO

061 (062)

  • →
  • → / ?
  • →
Bay 061 view and slots of MSC MANZANILLO

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of MSC MANZANILLO

065 (066)

  • →
  • → / ?
  • →
Bay 065 view and slots of MSC MANZANILLO

067

  • ←
  • ← / ?
  • →

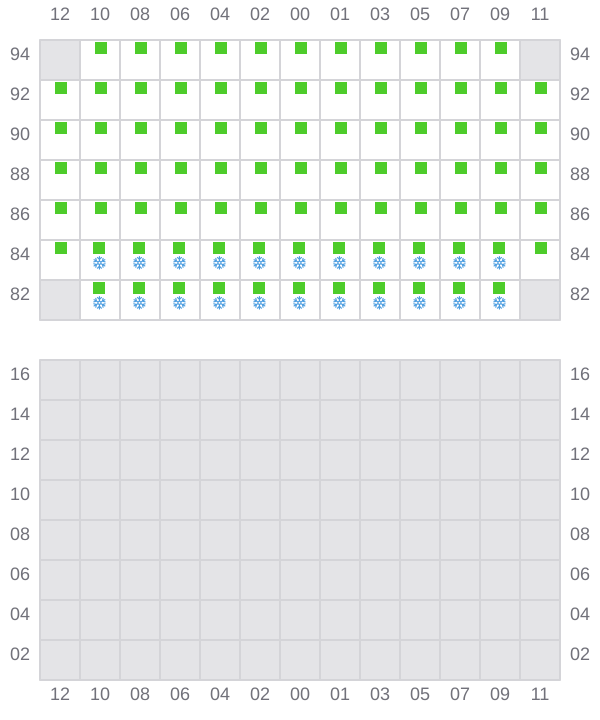

Bay 067 view and slots of MSC MANZANILLO

069 (070)

  • → / ?
  • ← / ?
  • → / ?
Bay 069 view and slots of MSC MANZANILLO
