MSC MARGARITA
9238741 | A8IX9 | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:MSC MARGARITA
IMO Code:9238741
Call Sign:A8IX9
Line Operator:MSC
Class Name for Sister Ships:MGT
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,766
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

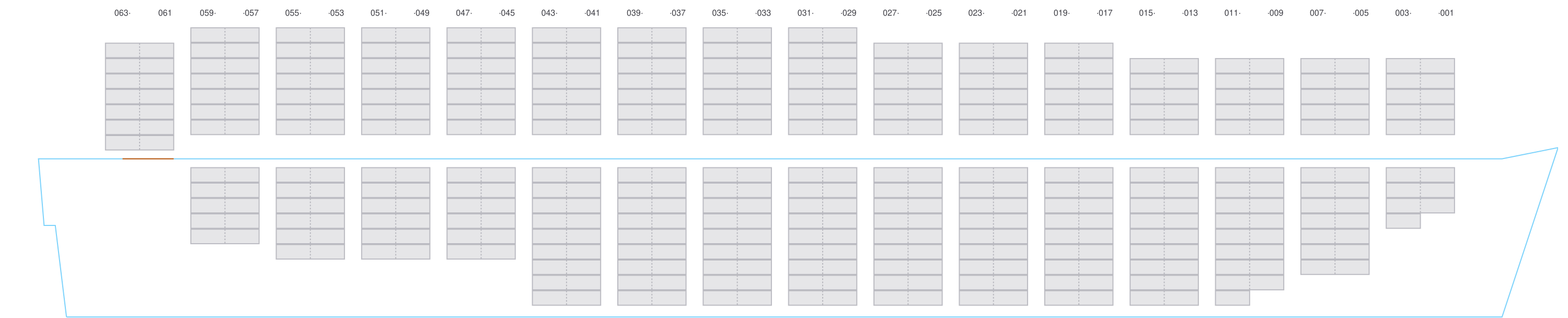

Side View

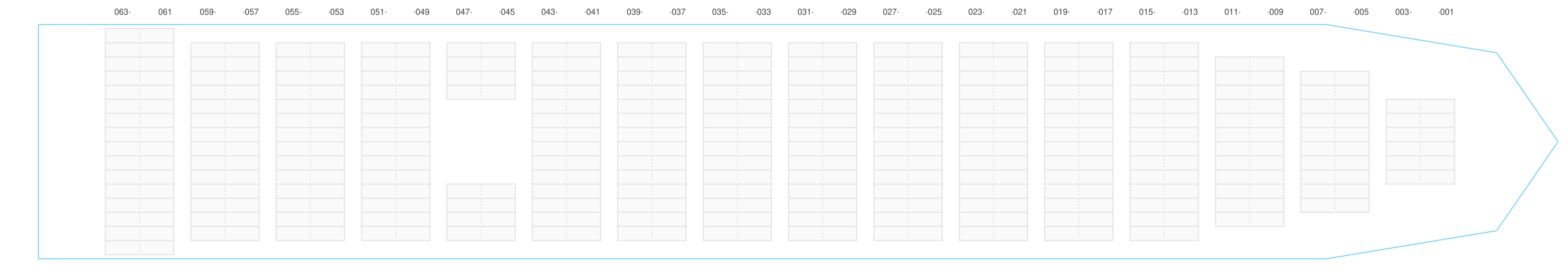

Hatch-Covers View

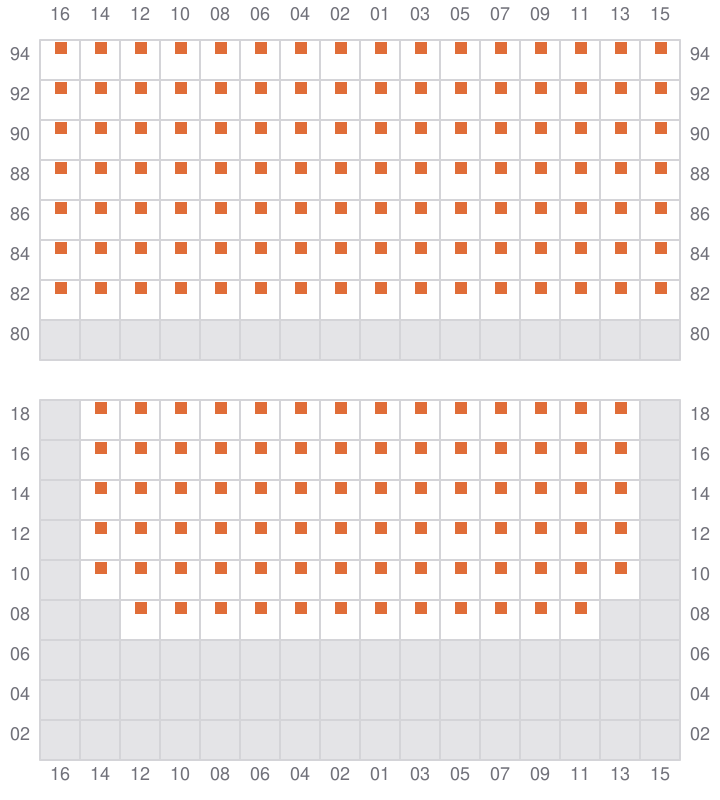

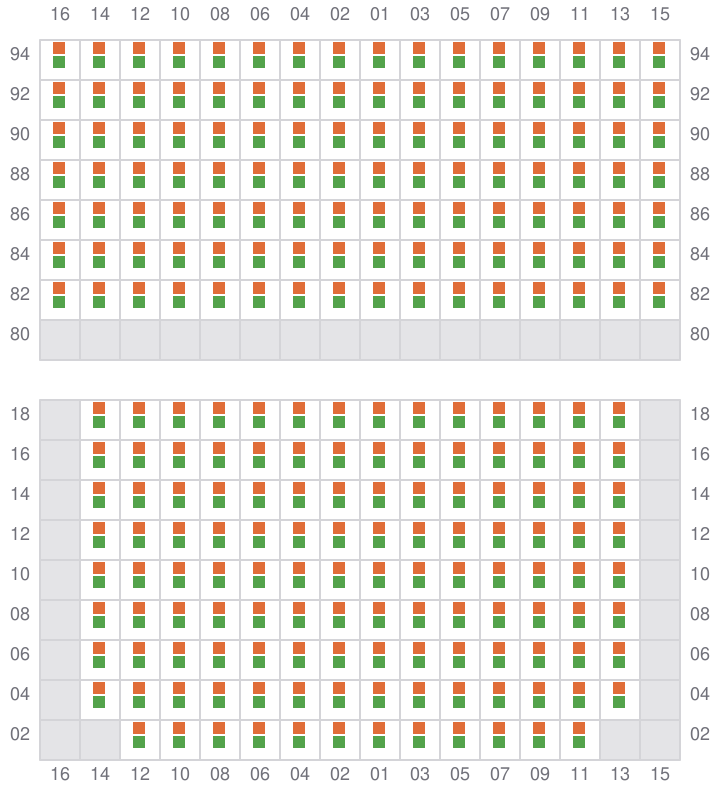

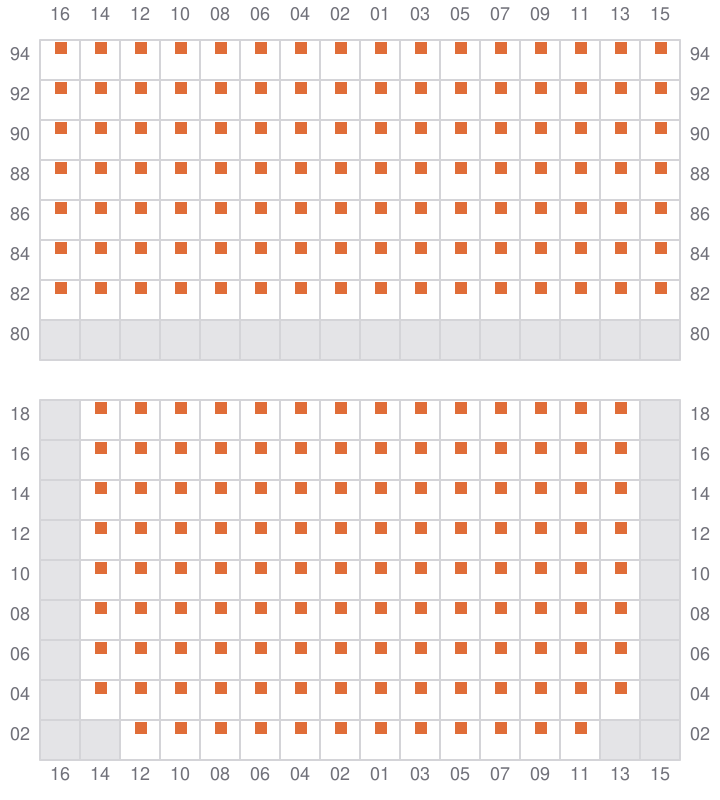

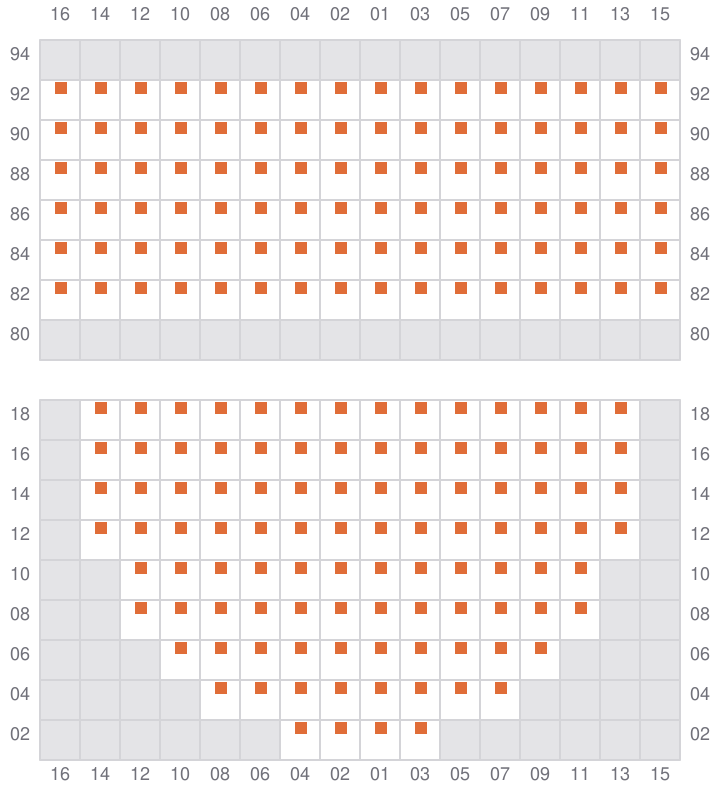

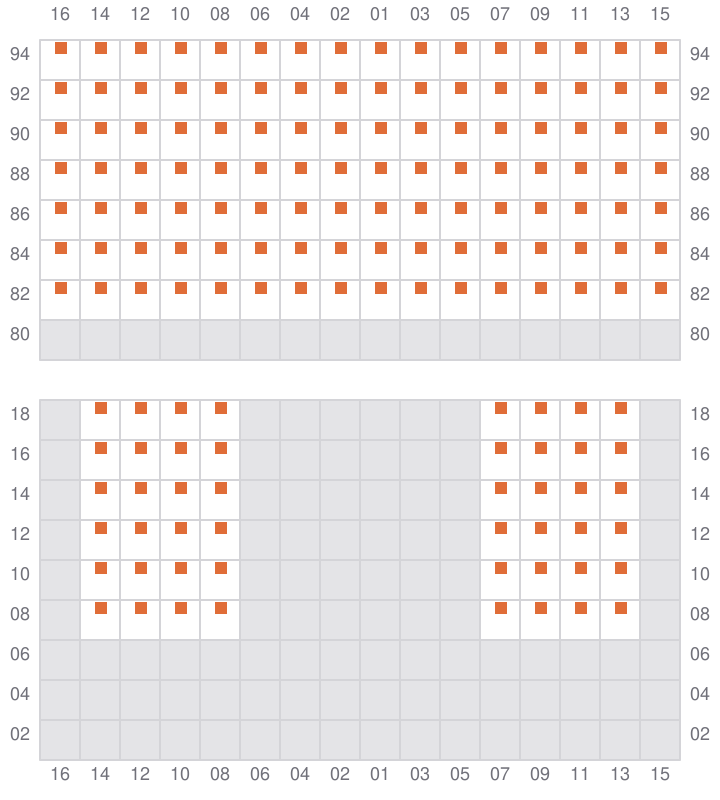

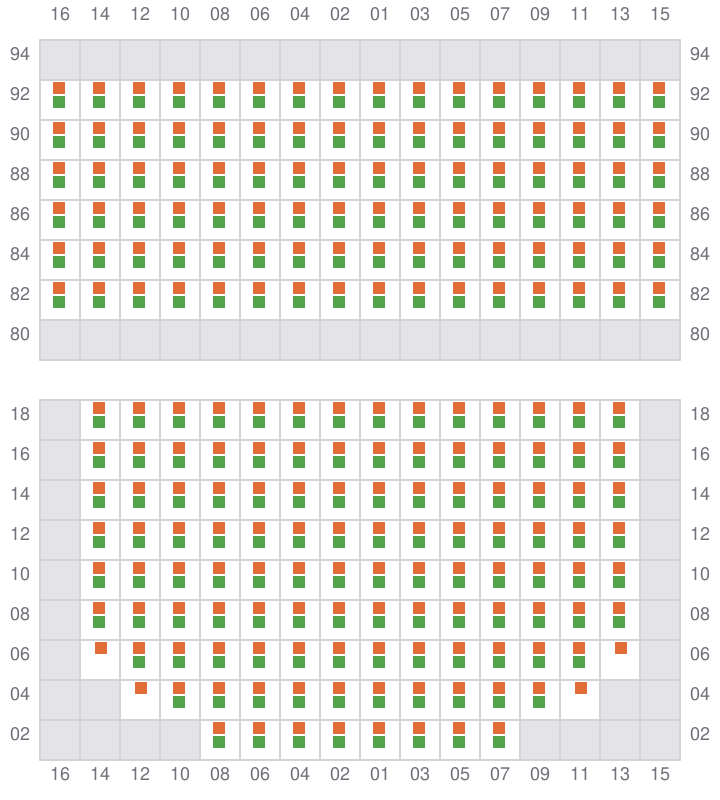

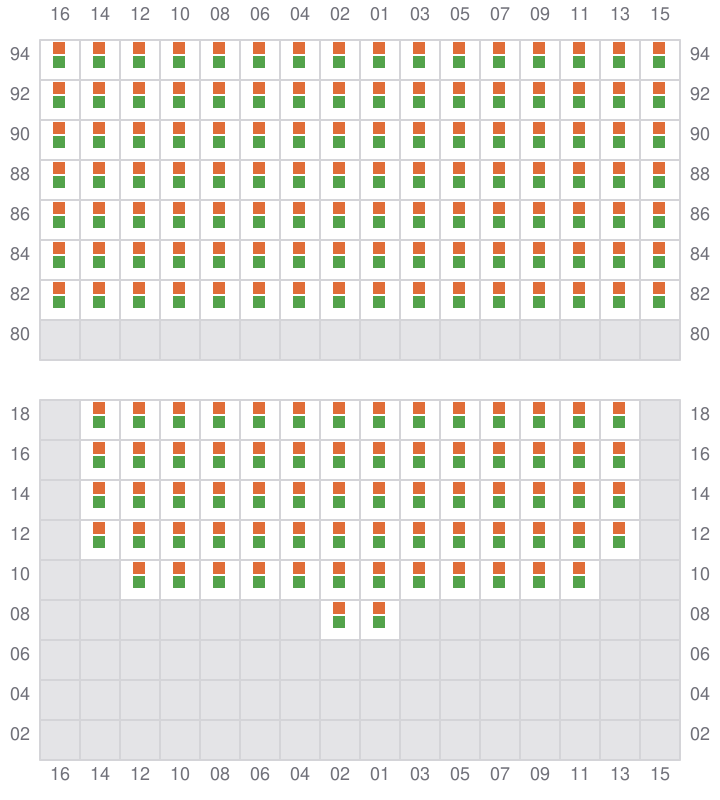

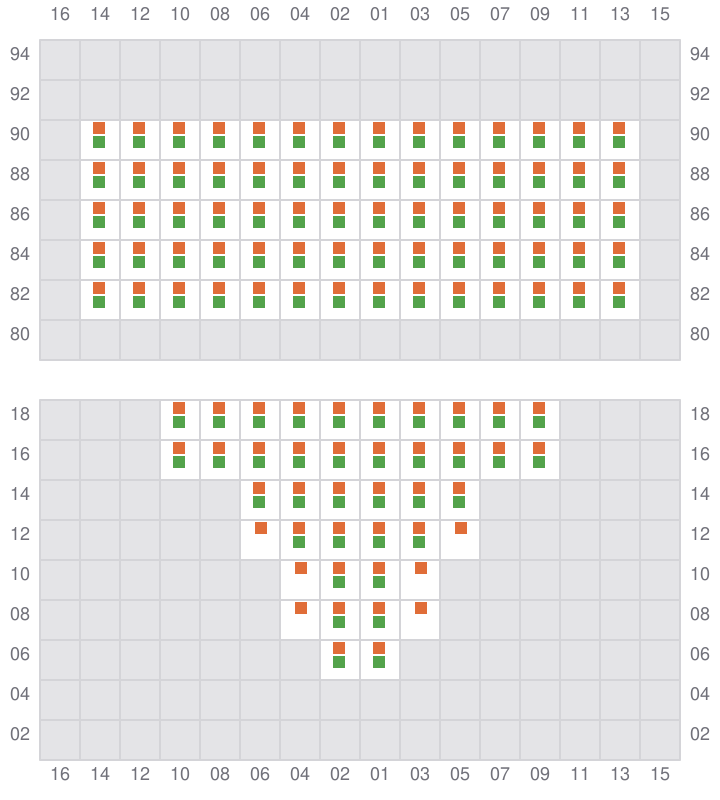

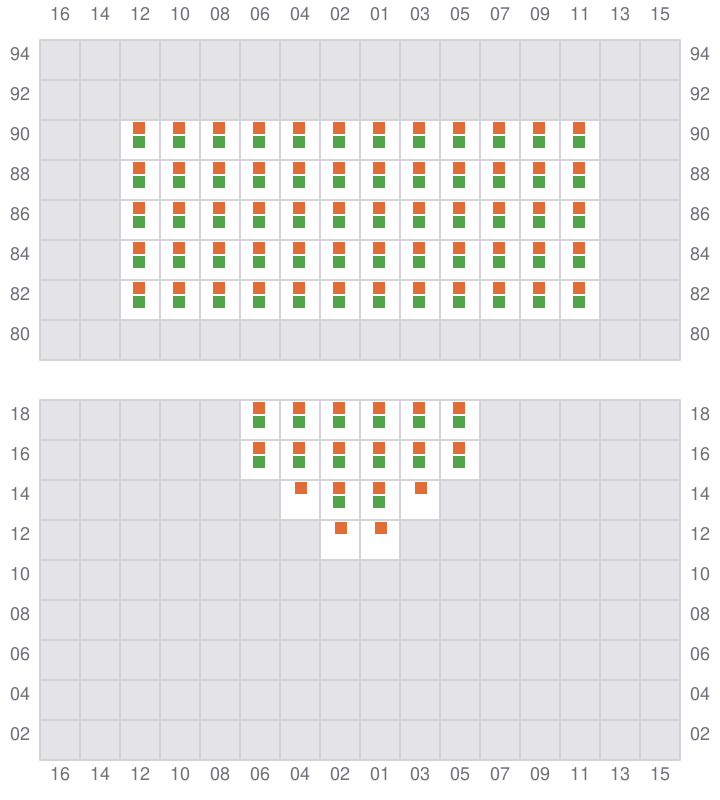

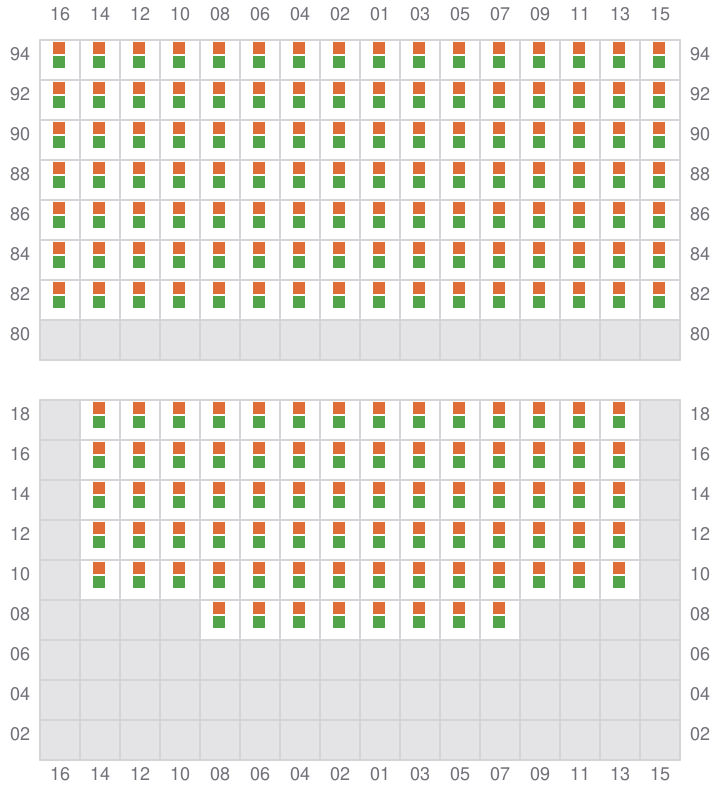

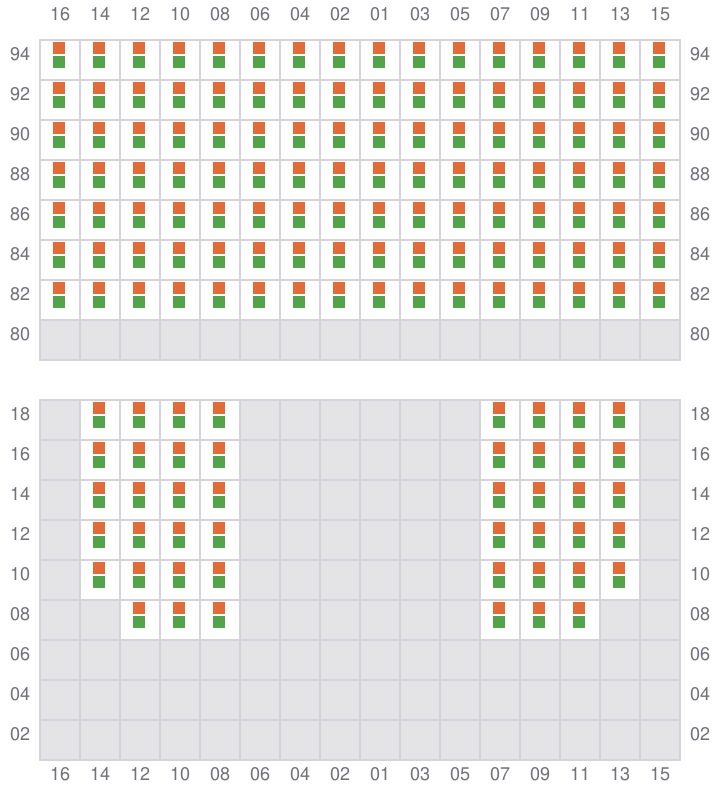

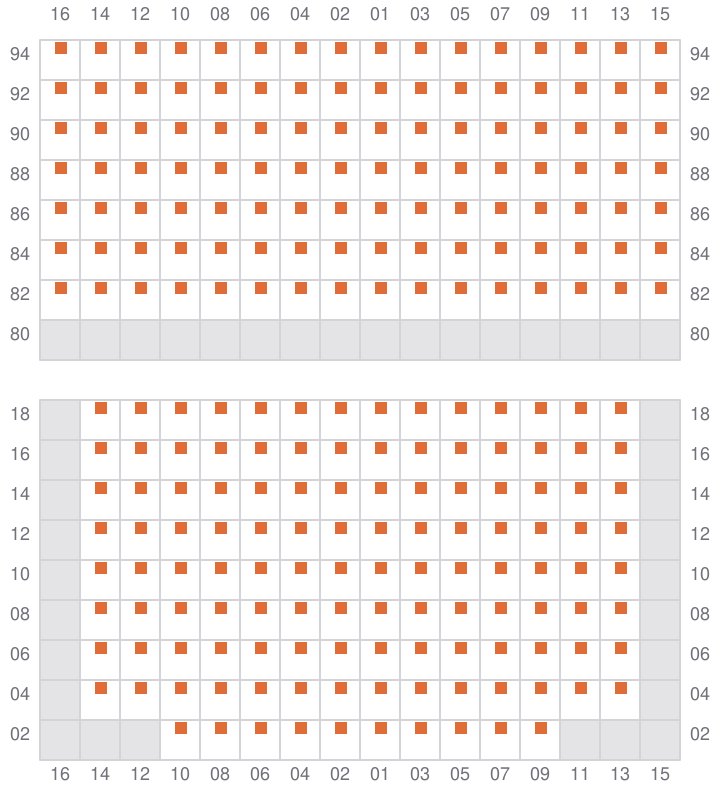

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

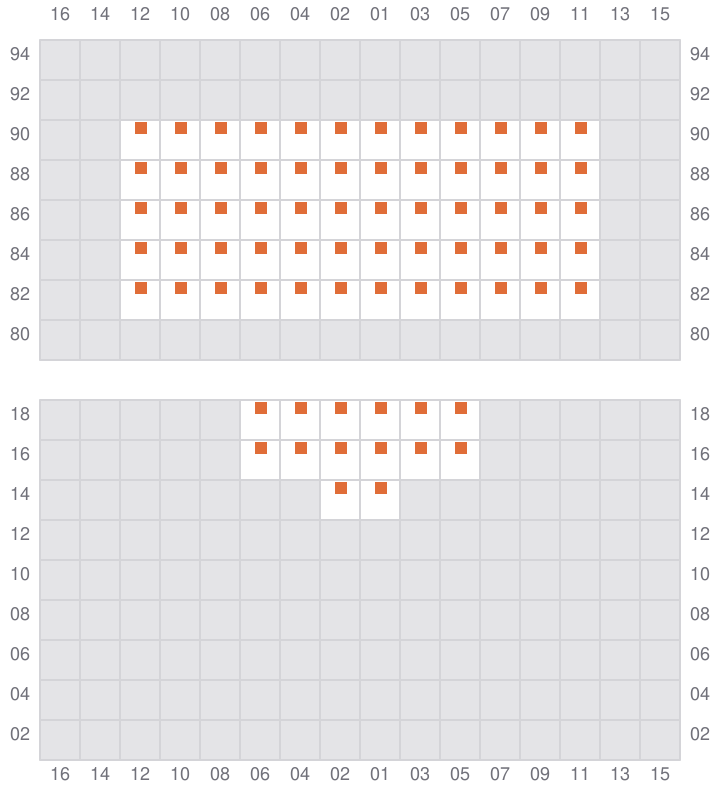

001
- →
003 (002)
- ←

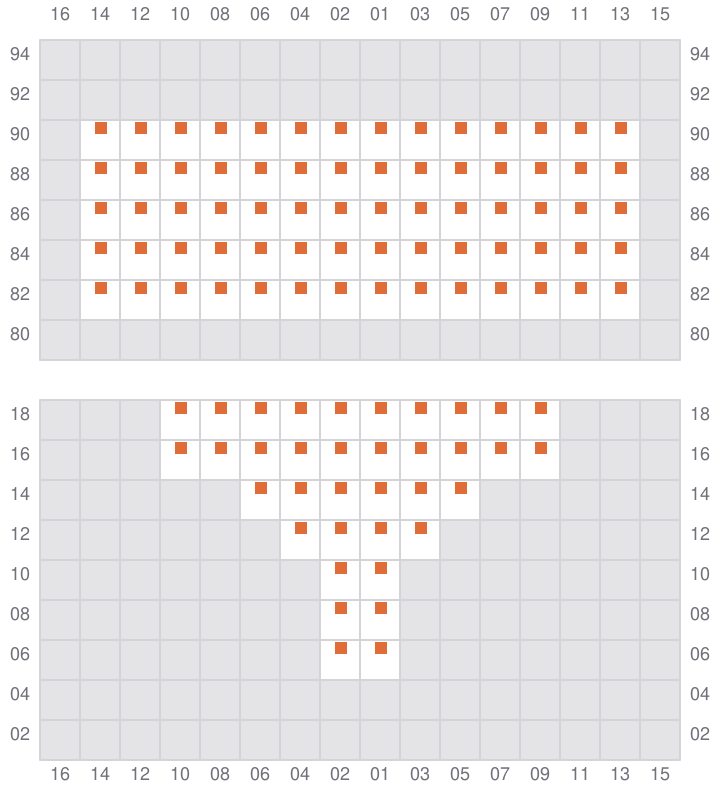

005
- →
007 (006)
- ←

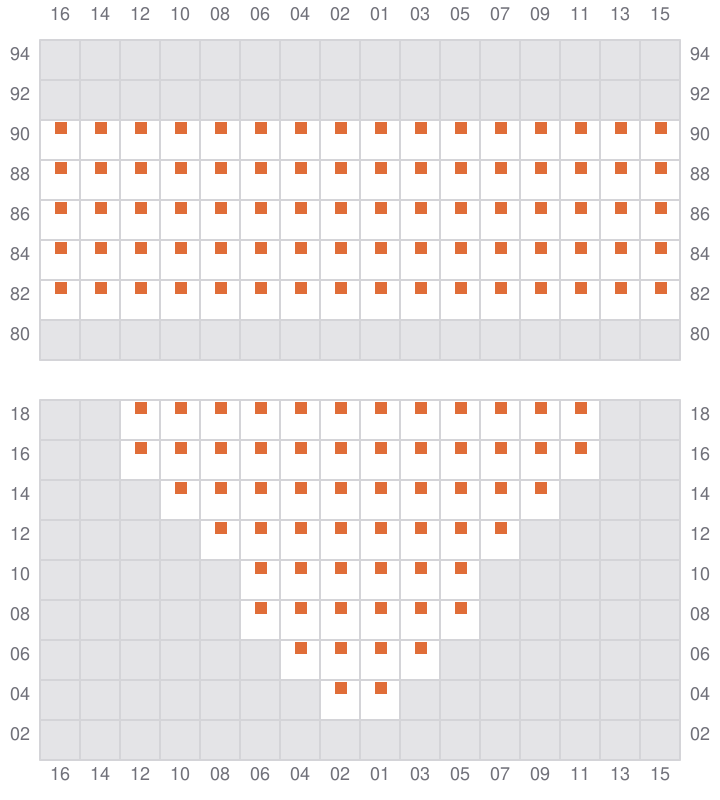

009
- →
011 (010)
- ←

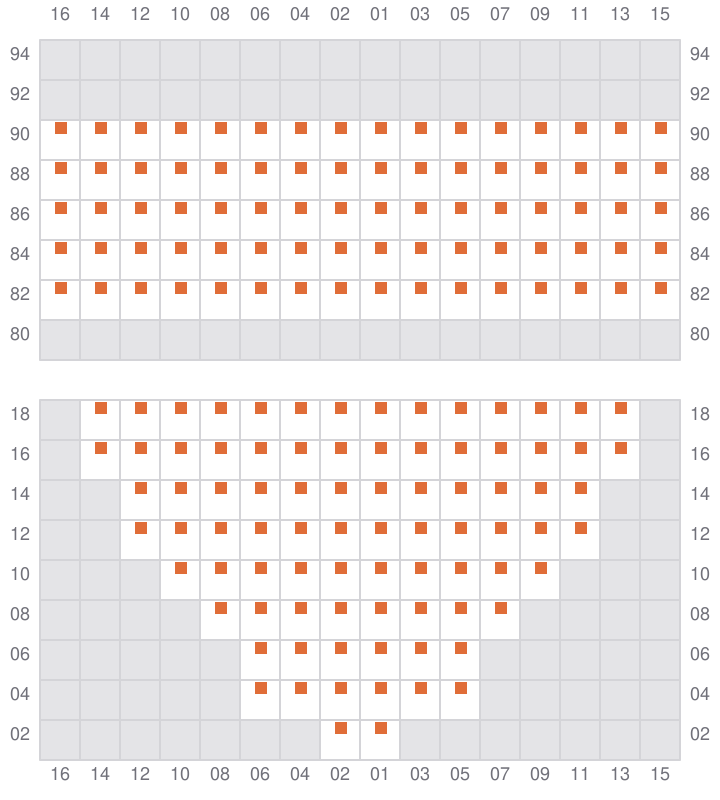

013
- →

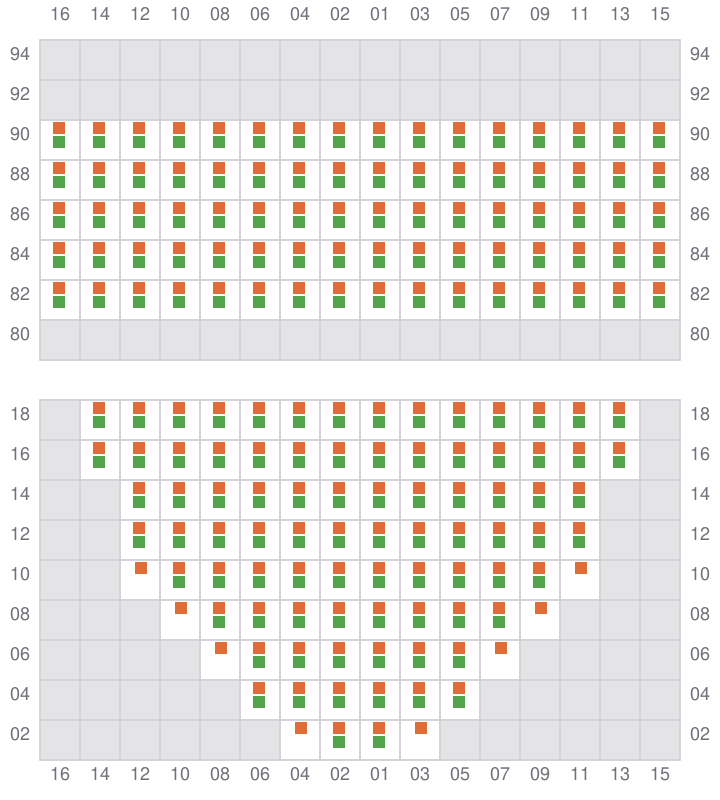

015 (014)
- ←

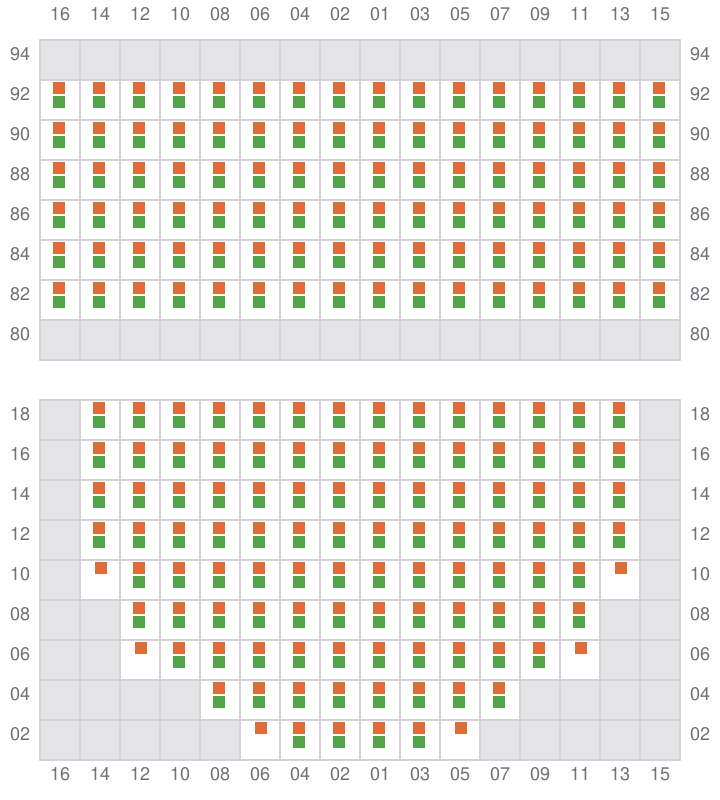

017
- →
019 (018)
- ←

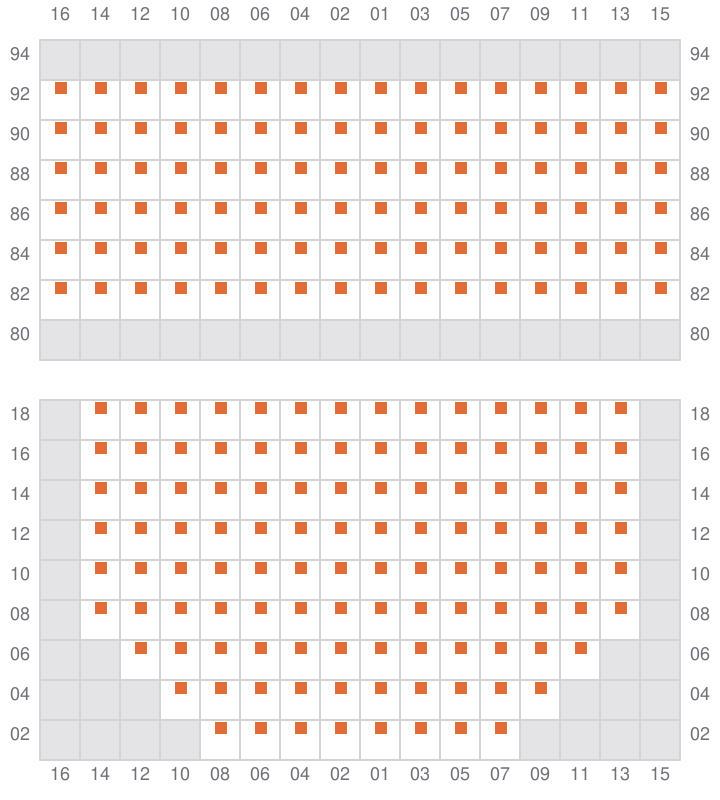

021
- →
023 (022)
- ←

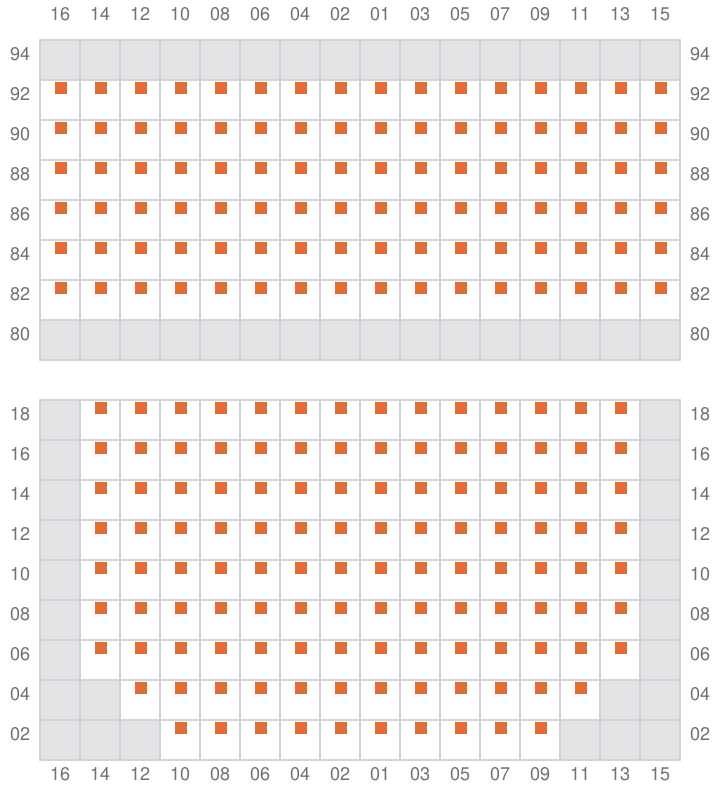

025
- →

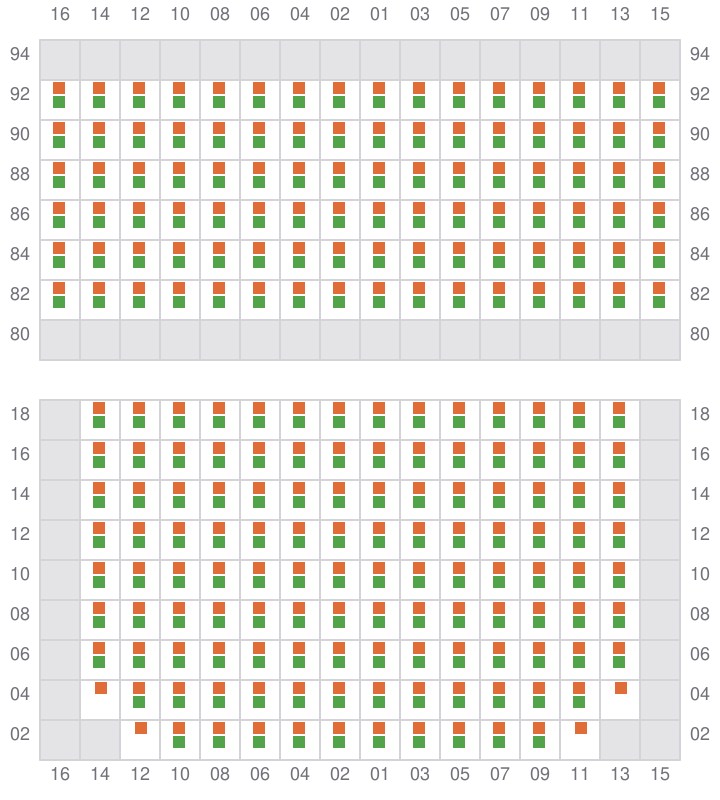

027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←

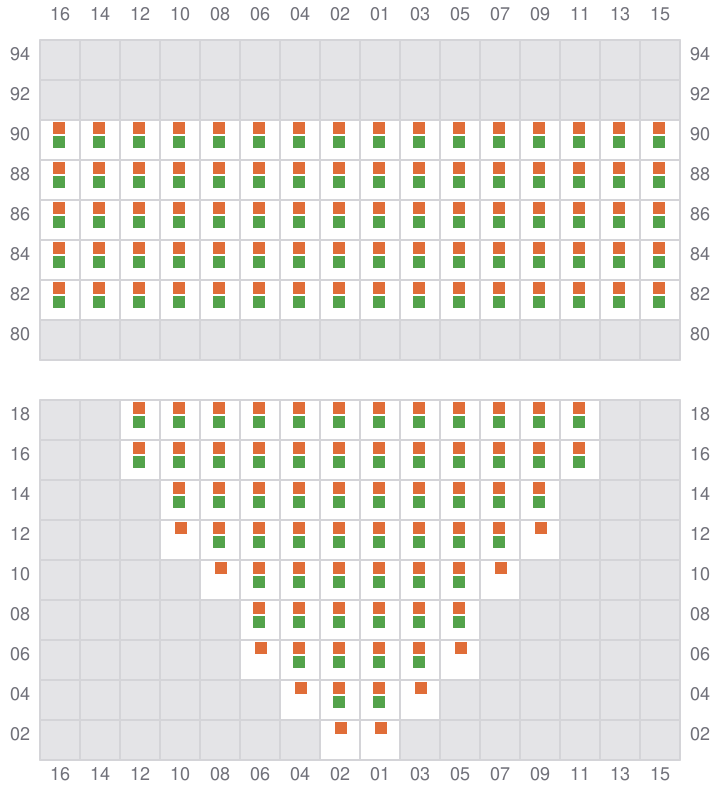

041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←

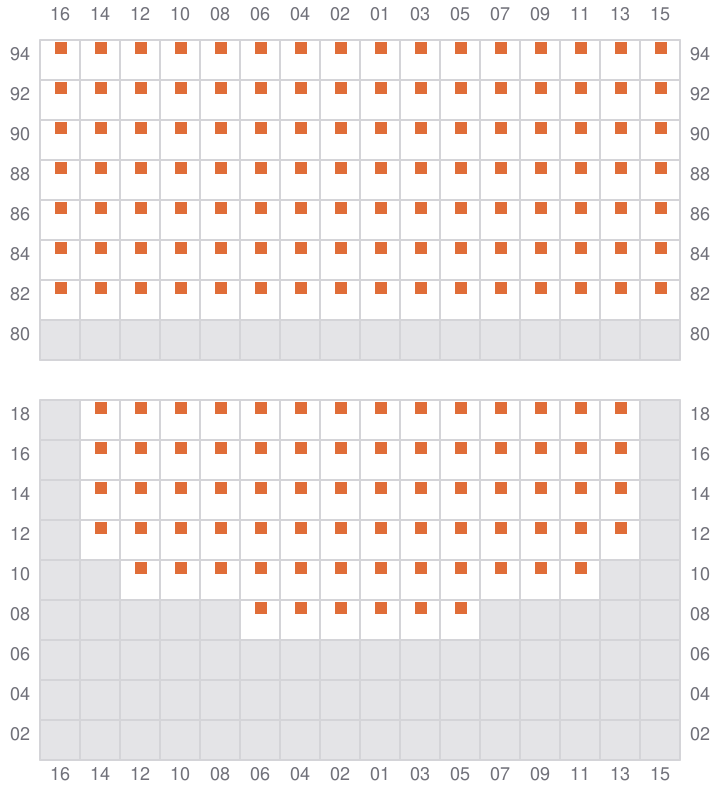

053
- →
055 (054)
- ←

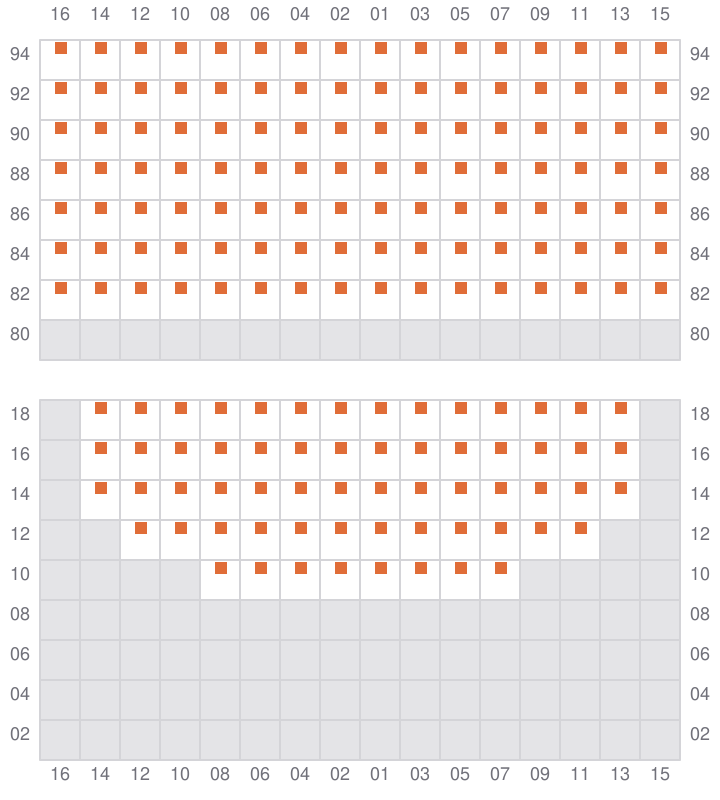

057
- →
059 (058)
- ←

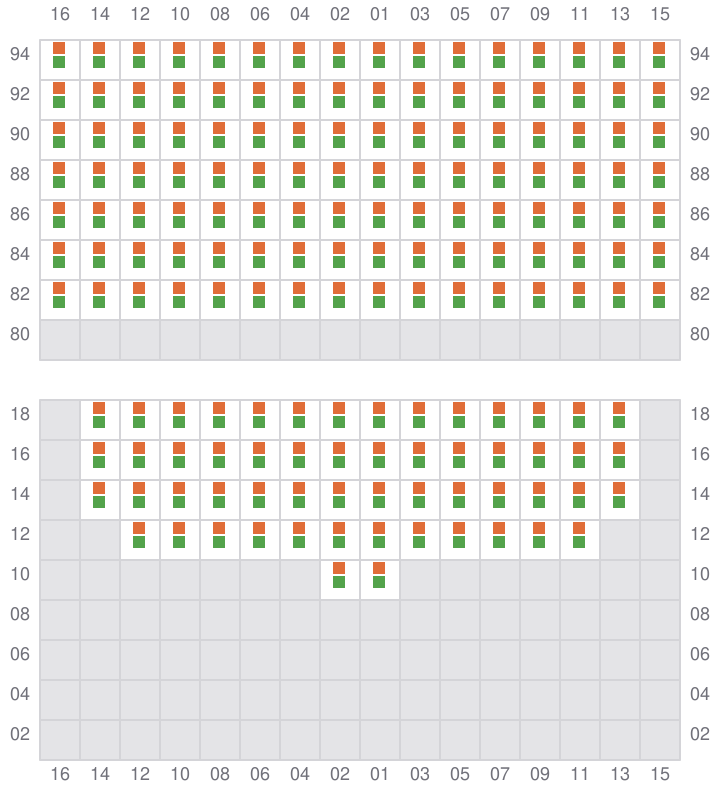

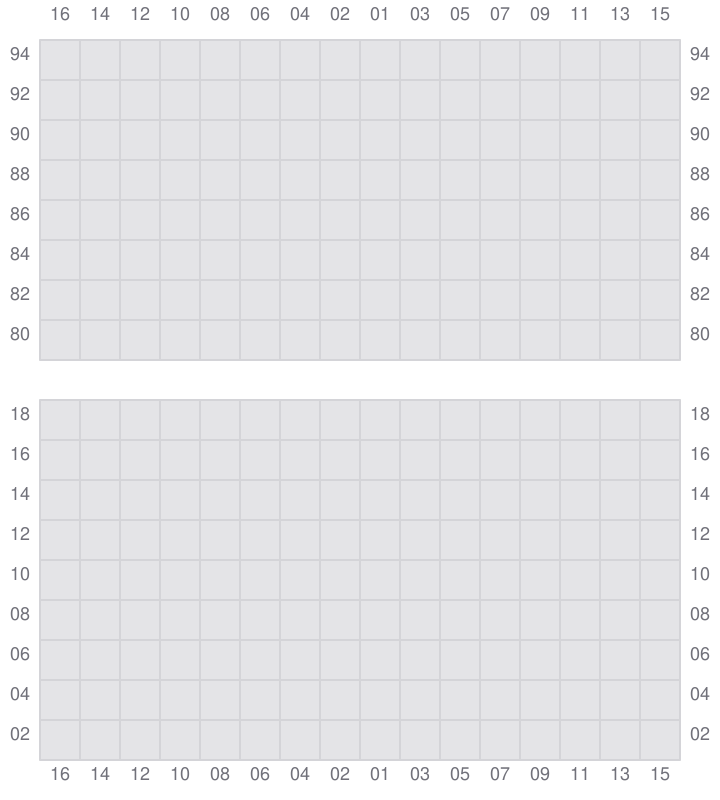

061

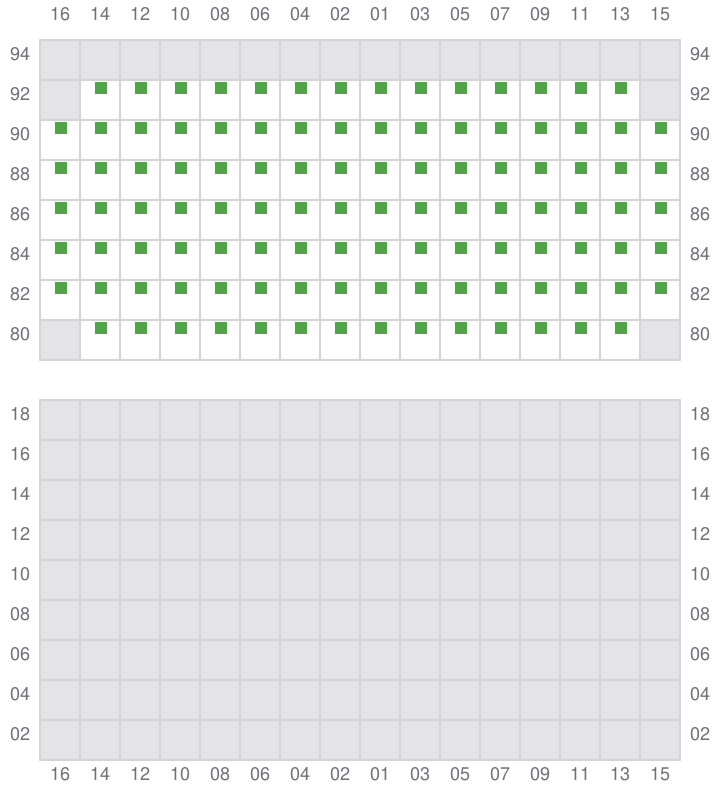

063 (062)
- ← / ?
