MSC MARIA CLARA
9287900 | 5LBG6 | 9287900 by ********* Last update: Sat Mar 16 2024

General Info

Ship Name:MSC MARIA CLARA
IMO Code:9287900
Call Sign:5LBG6
Line Operator:9287900
Class Name for Sister Ships:63Z
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:7,348

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

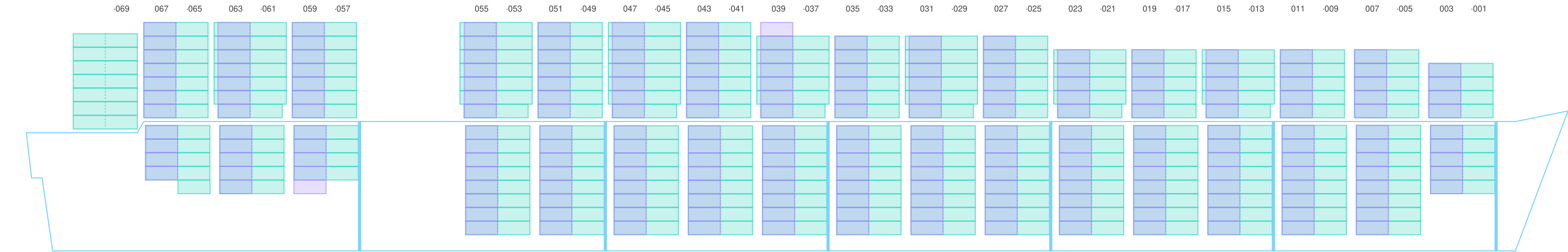

Side view of MSC MARIA CLARA

Hatch-Covers View

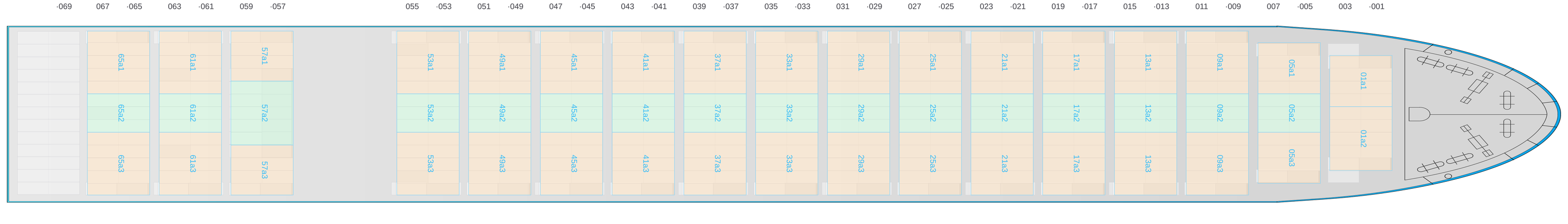

Deck view of MSC MARIA CLARA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

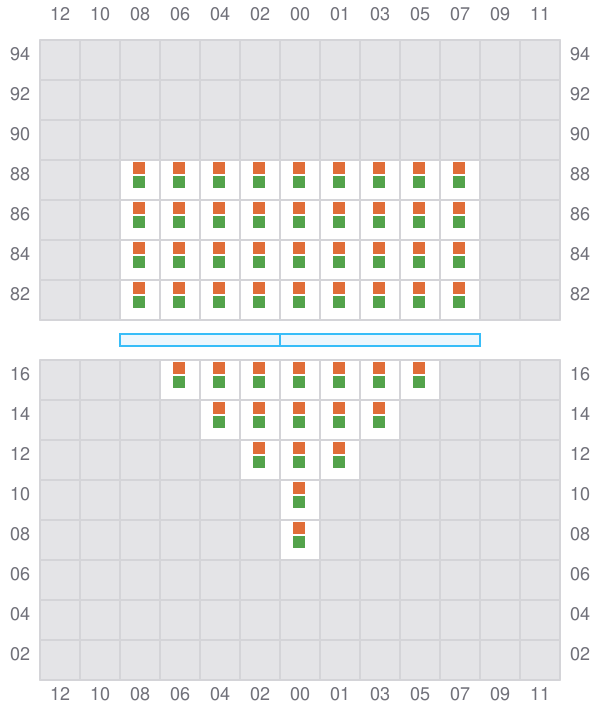

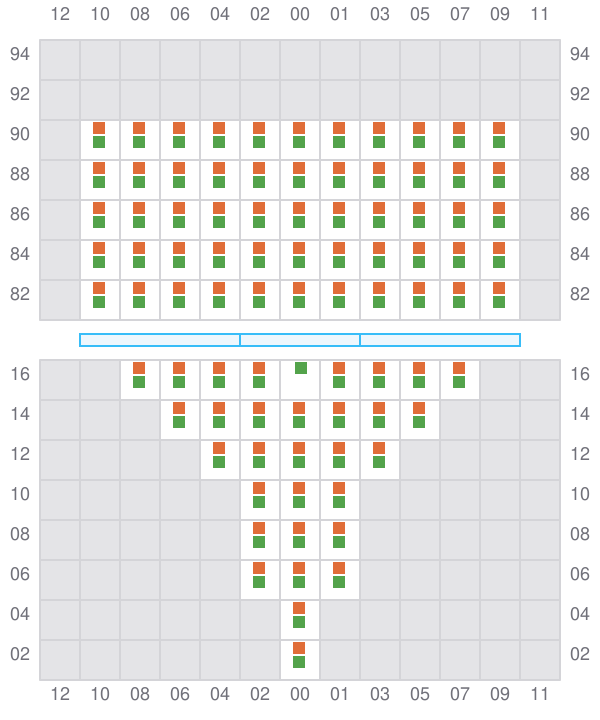

Bay 001 view and slots of MSC MARIA CLARA

003

  • → / ?

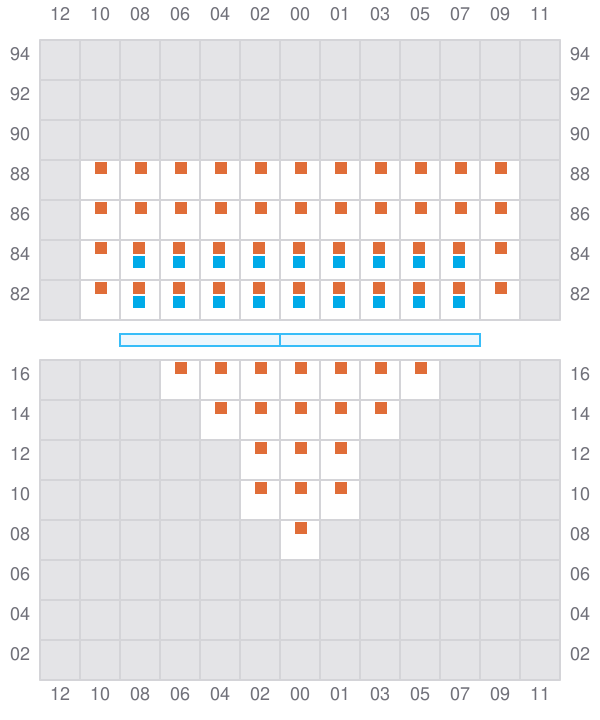

Bay 003 view and slots of MSC MARIA CLARA

005 (006)

  • →
Bay 005 view and slots of MSC MARIA CLARA

007

  • → / ?

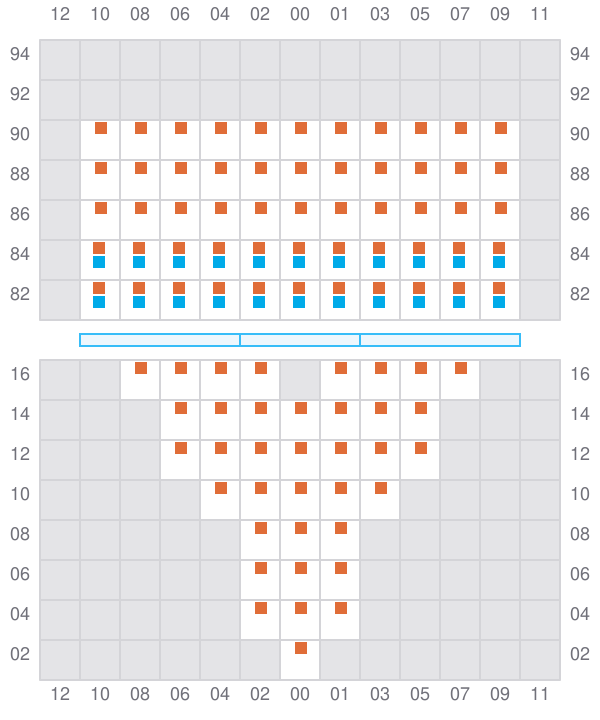

Bay 007 view and slots of MSC MARIA CLARA

009 (010)

  • →

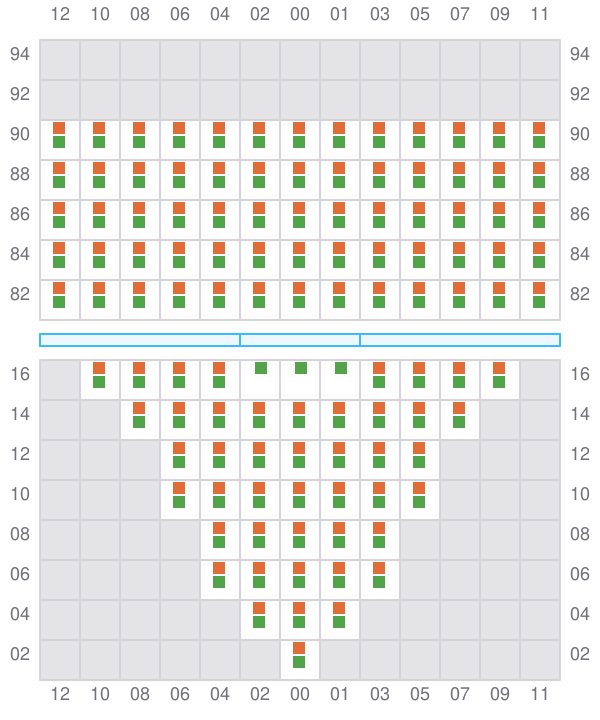

Bay 009 view and slots of MSC MARIA CLARA

011

  • → / ?

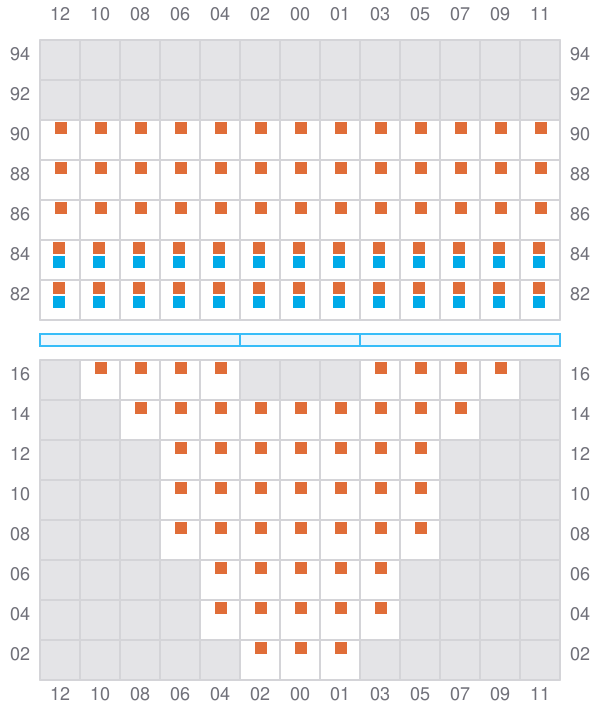

Bay 011 view and slots of MSC MARIA CLARA

013 (014)

  • →

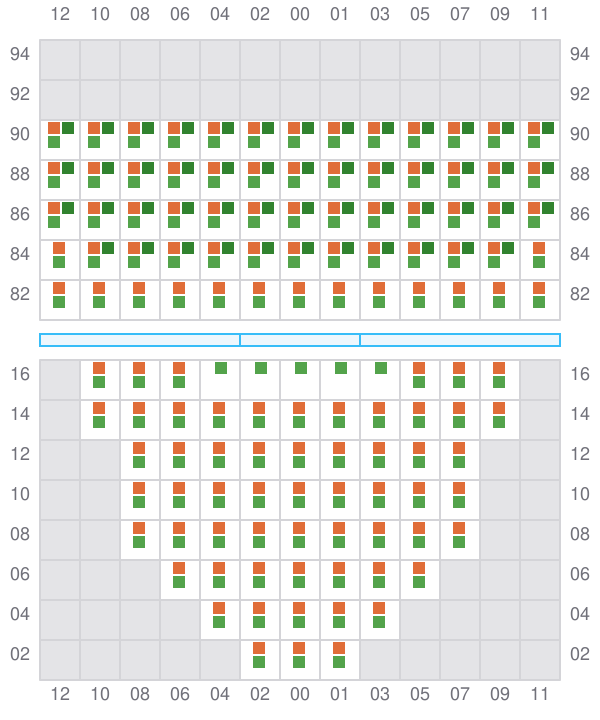

Bay 013 view and slots of MSC MARIA CLARA

015

  • → / ?

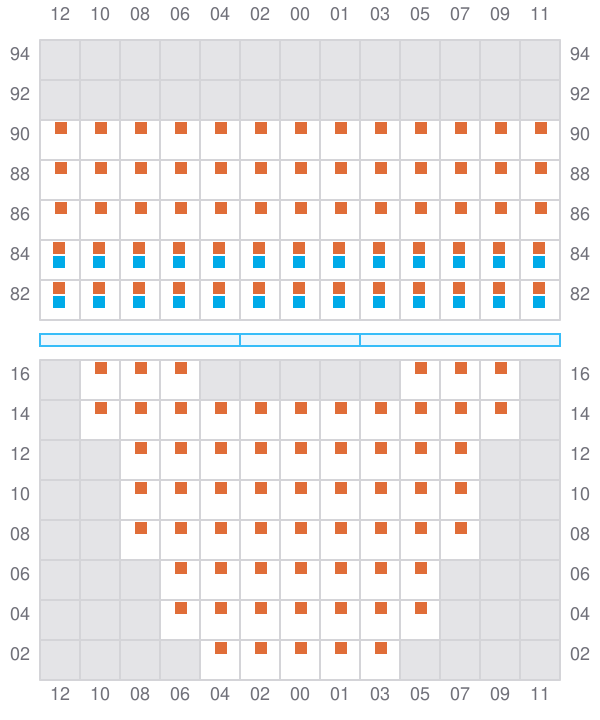

Bay 015 view and slots of MSC MARIA CLARA

017 (018)

  • →

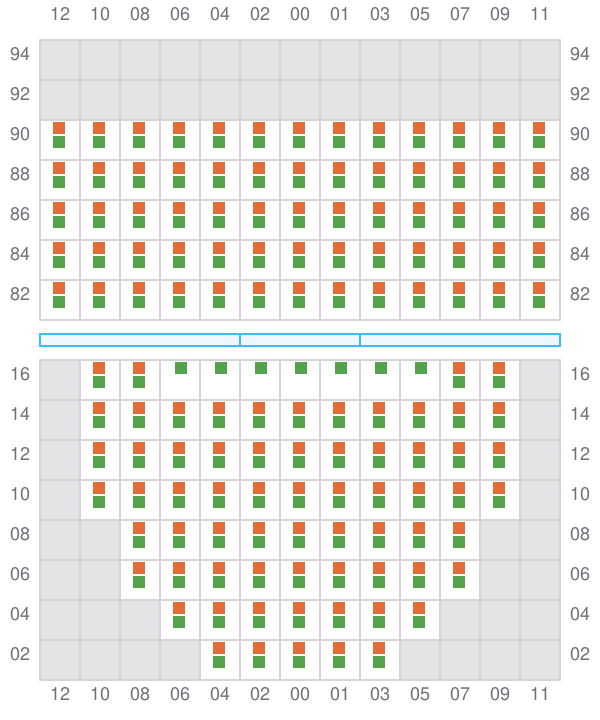

Bay 017 view and slots of MSC MARIA CLARA

019

  • → / ?

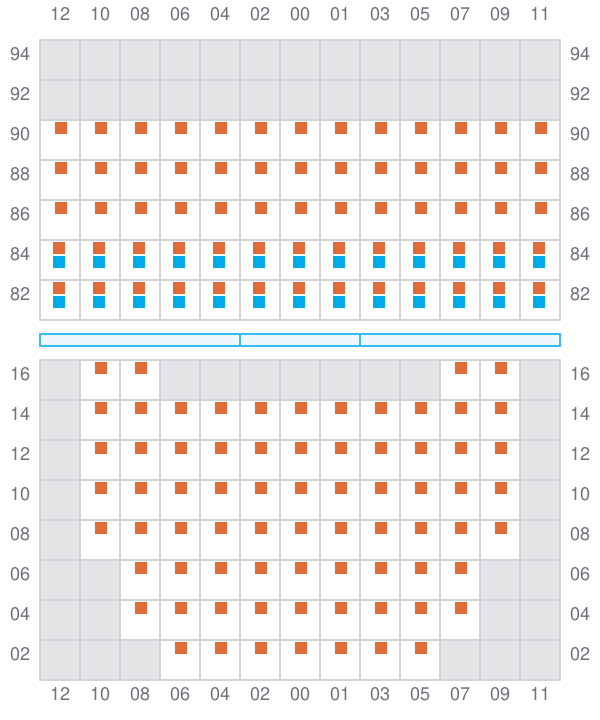

Bay 019 view and slots of MSC MARIA CLARA

021 (022)

  • →

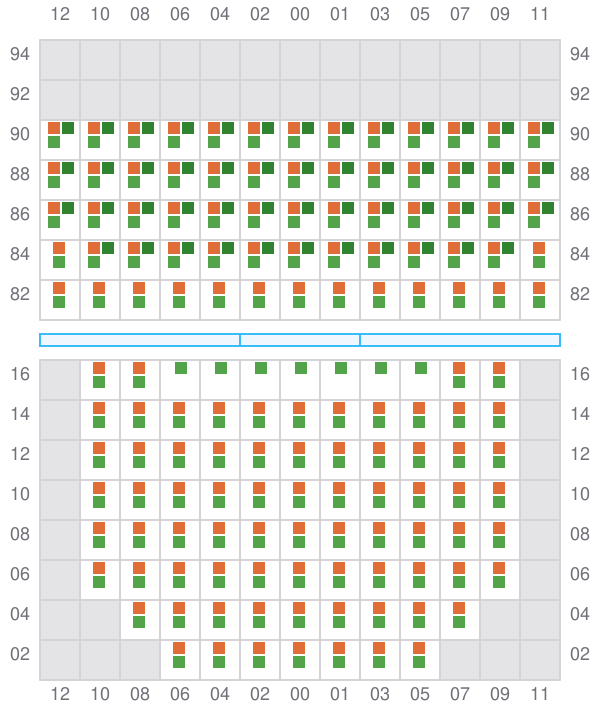

Bay 021 view and slots of MSC MARIA CLARA

023

  • → / ?

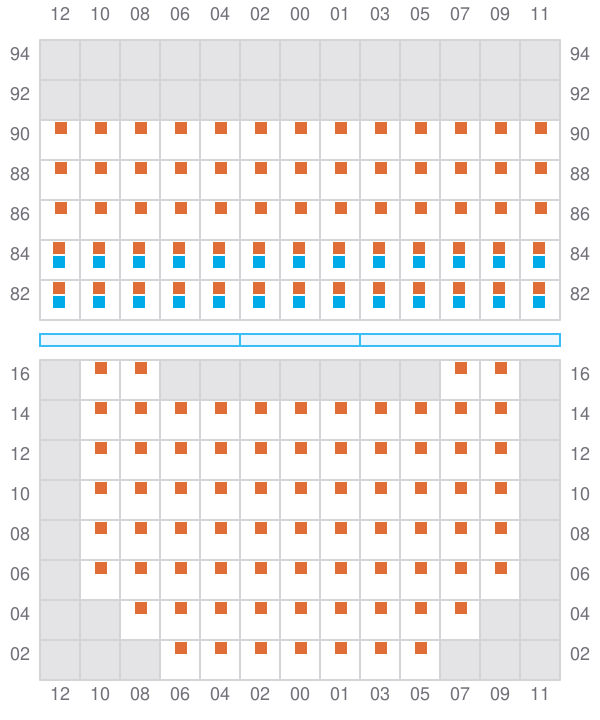

Bay 023 view and slots of MSC MARIA CLARA

025 (026)

  • →
Bay 025 view and slots of MSC MARIA CLARA

027

  • → / ?
Bay 027 view and slots of MSC MARIA CLARA

029 (030)

  • →

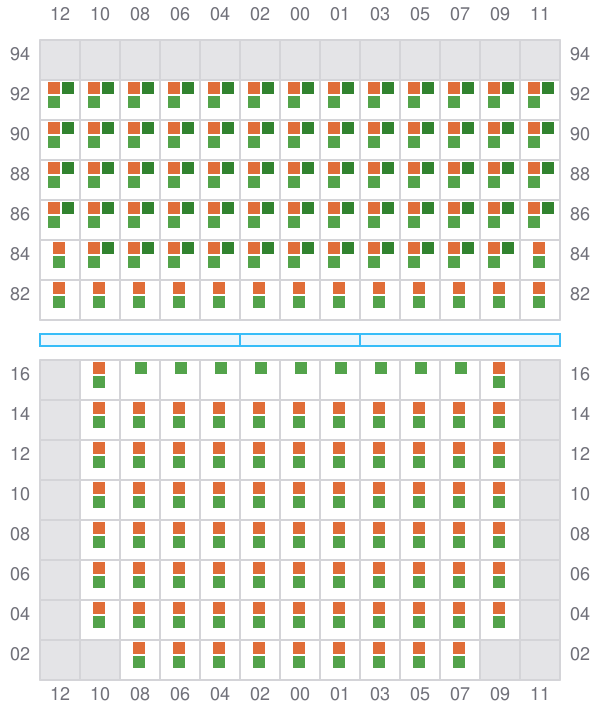

Bay 029 view and slots of MSC MARIA CLARA

031

  • → / ?
Bay 031 view and slots of MSC MARIA CLARA

033 (034)

  • →

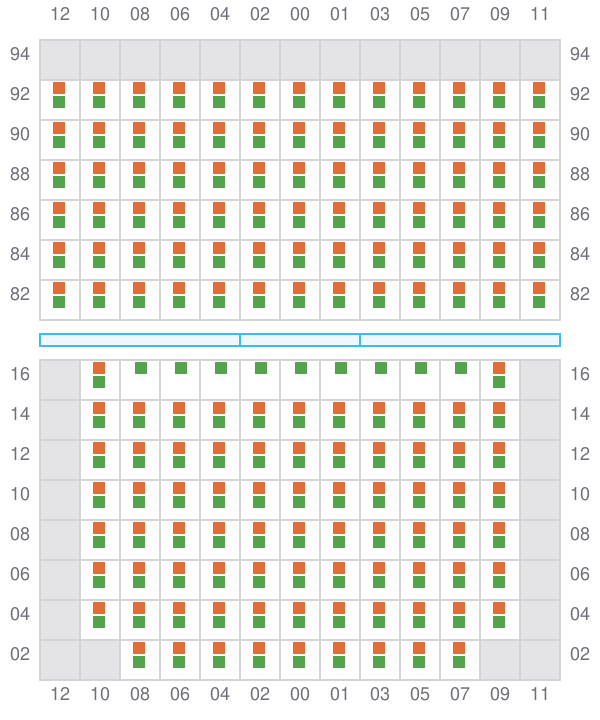

Bay 033 view and slots of MSC MARIA CLARA

035

  • → / ?

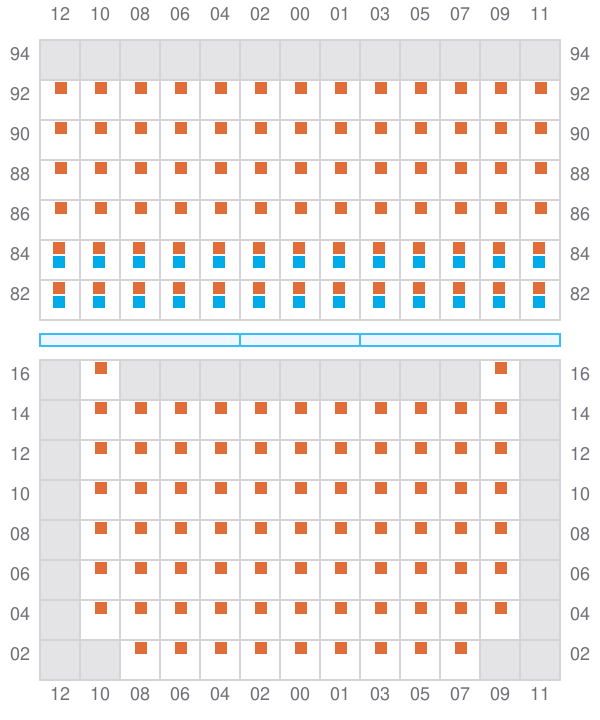

Bay 035 view and slots of MSC MARIA CLARA

037 (038)

  • →
Bay 037 view and slots of MSC MARIA CLARA

039

  • → / ?
Bay 039 view and slots of MSC MARIA CLARA

041 (042)

  • →

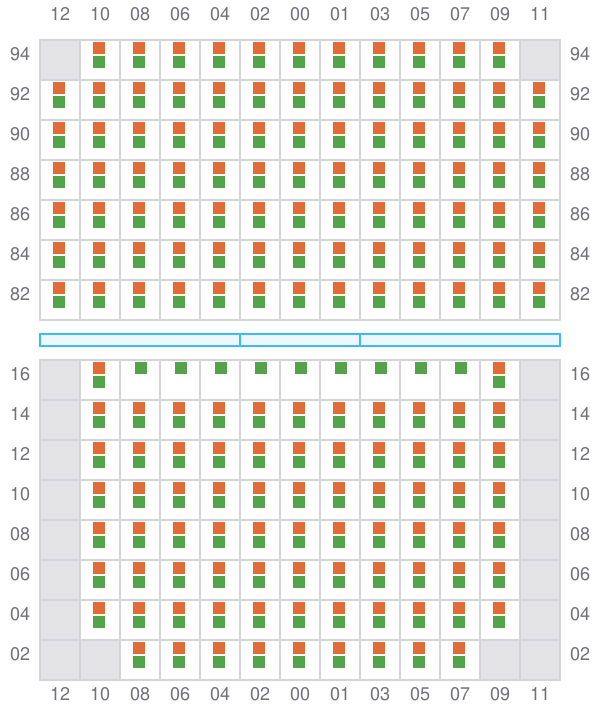

Bay 041 view and slots of MSC MARIA CLARA

043

  • → / ?
Bay 043 view and slots of MSC MARIA CLARA

045 (046)

  • →

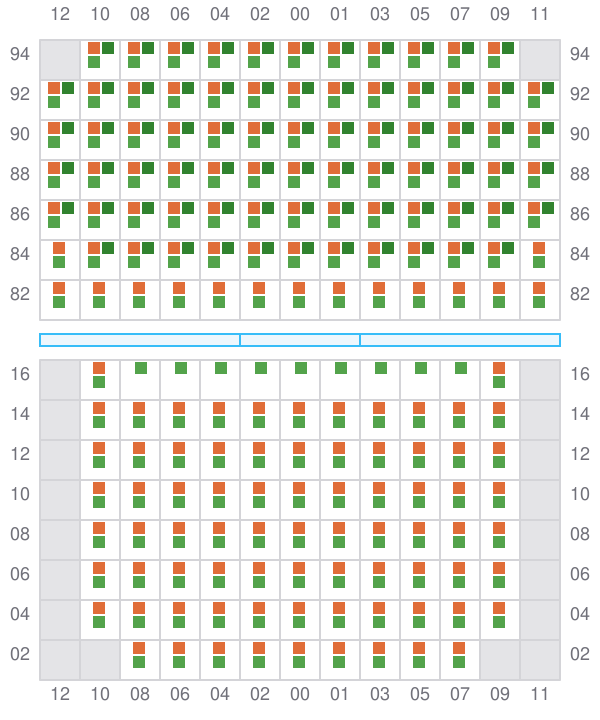

Bay 045 view and slots of MSC MARIA CLARA

047

  • → / ?
Bay 047 view and slots of MSC MARIA CLARA

049 (050)

  • →
Bay 049 view and slots of MSC MARIA CLARA

051

  • → / ?

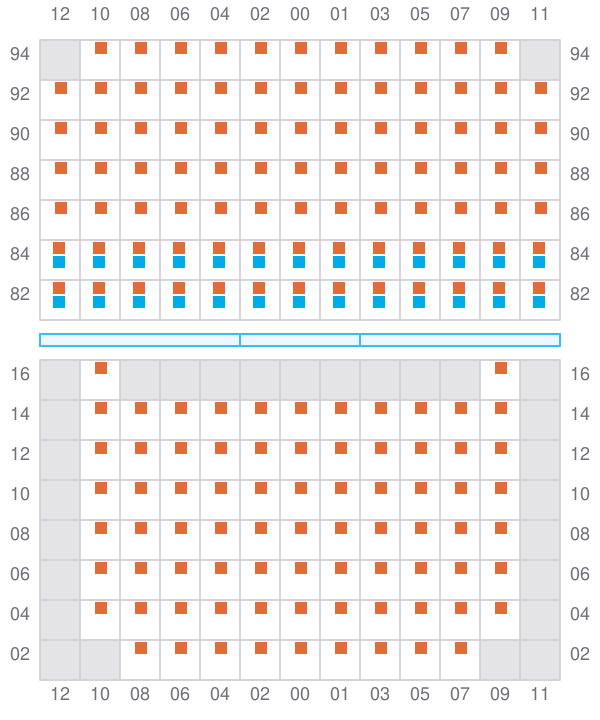

Bay 051 view and slots of MSC MARIA CLARA

053 (054)

  • →

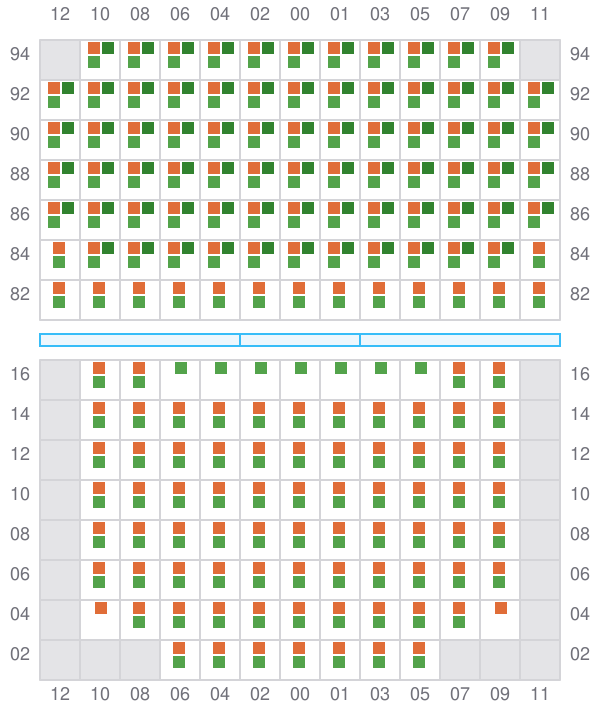

Bay 053 view and slots of MSC MARIA CLARA

055

  • → / ?

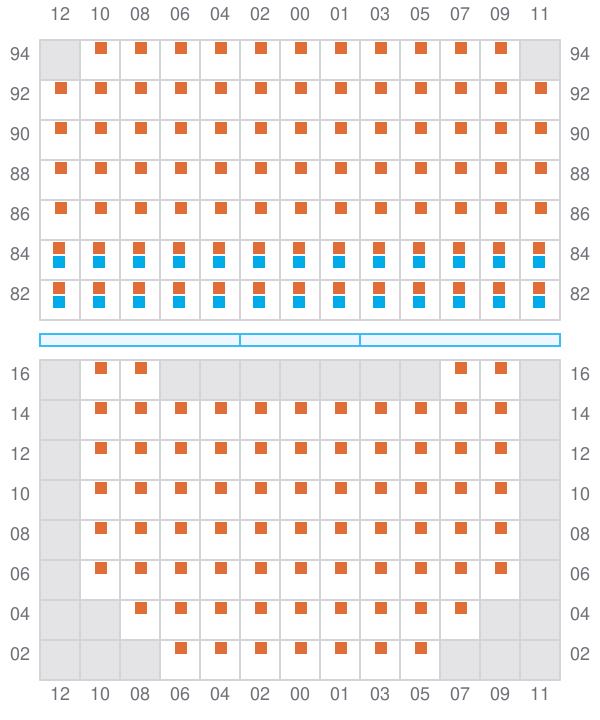

Bay 055 view and slots of MSC MARIA CLARA

057 (058)

  • →
Bay 057 view and slots of MSC MARIA CLARA

059

  • → / ?

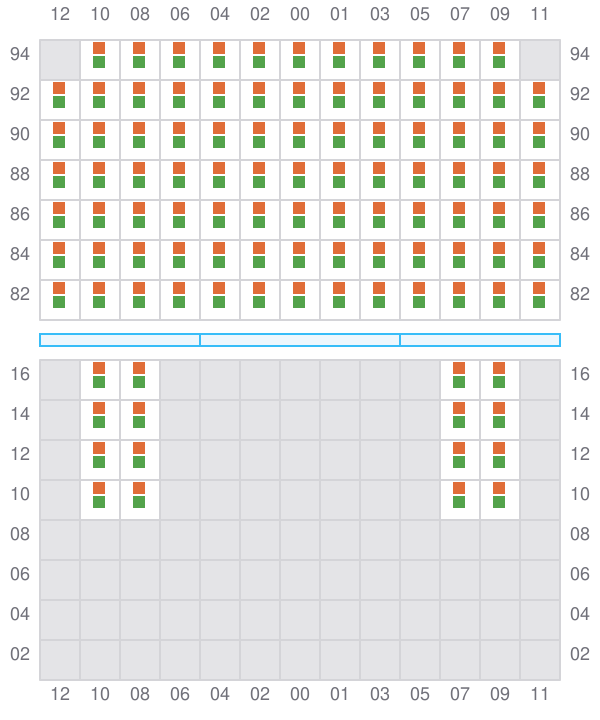

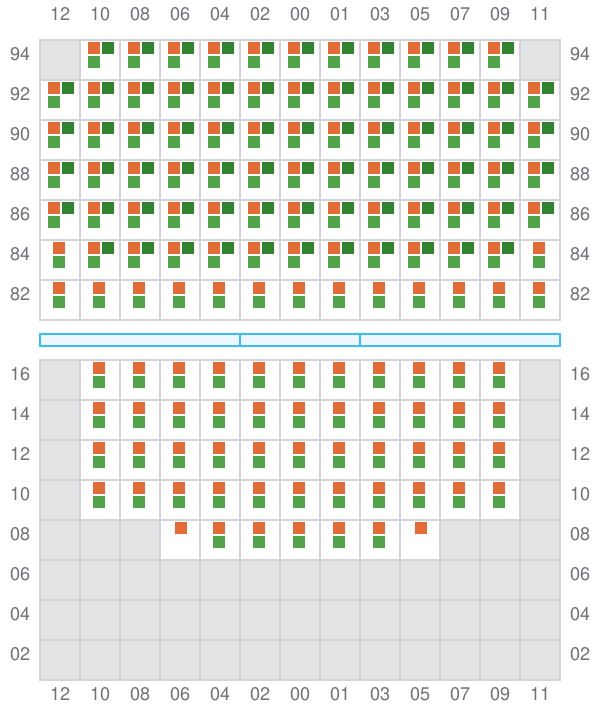

Bay 059 view and slots of MSC MARIA CLARA

061 (062)

  • →

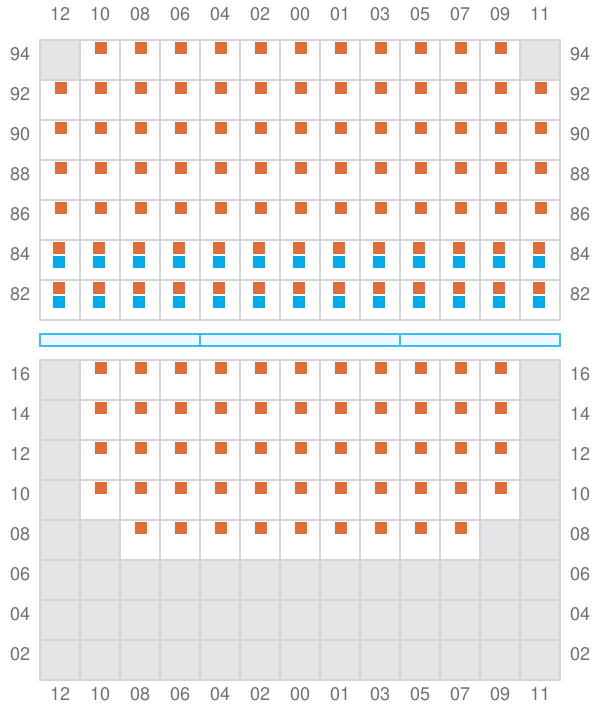

Bay 061 view and slots of MSC MARIA CLARA

063

  • → / ?

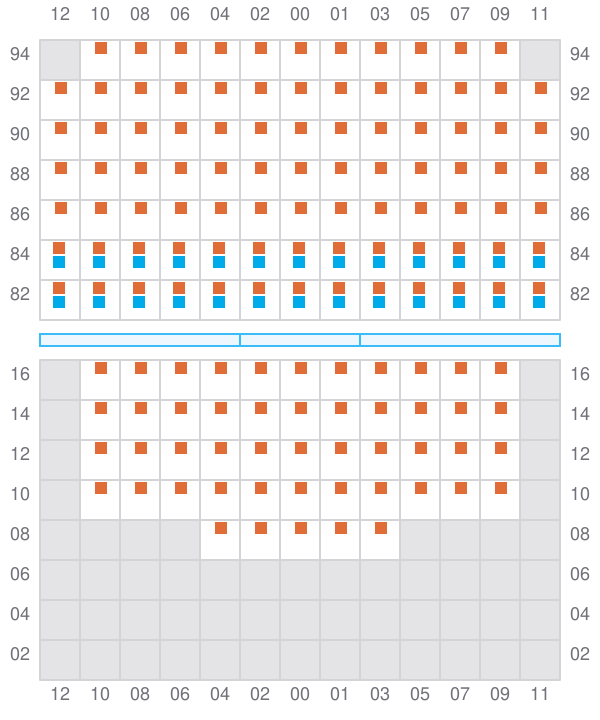

Bay 063 view and slots of MSC MARIA CLARA

065 (066)

  • →

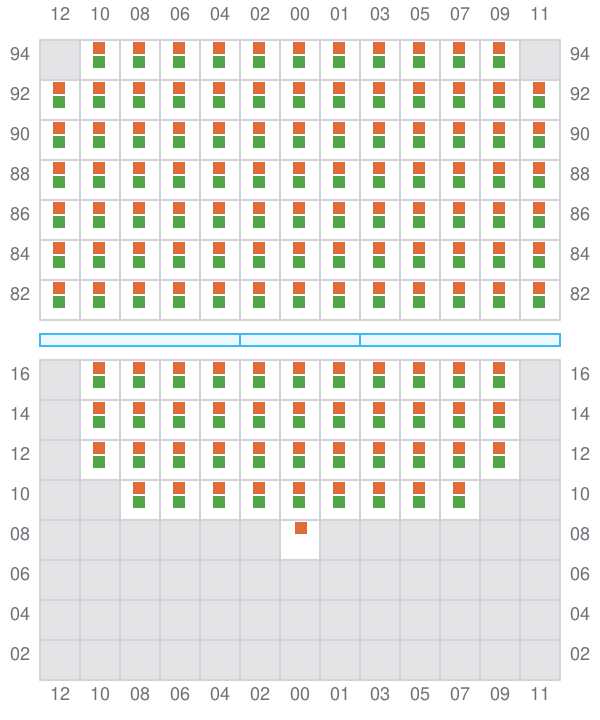

Bay 065 view and slots of MSC MARIA CLARA

067

  • → / ?

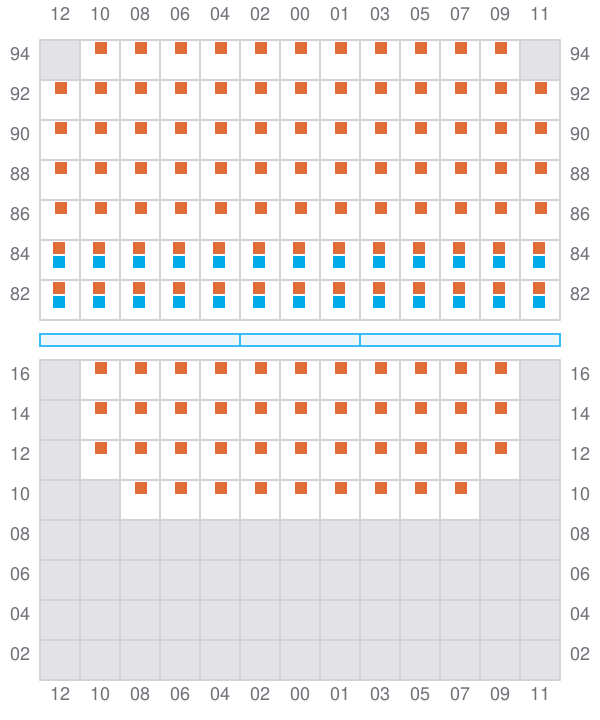

Bay 067 view and slots of MSC MARIA CLARA

069 (070)

  • → / ?
  • → / ?

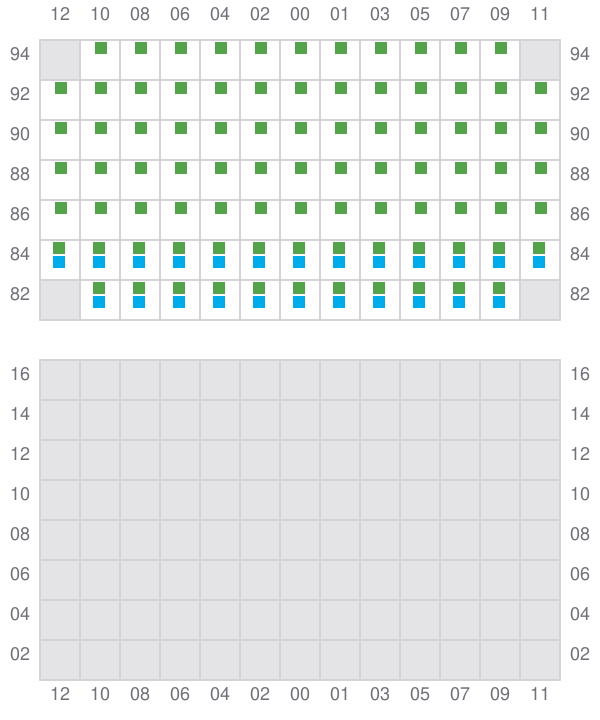

Bay 069 view and slots of MSC MARIA CLARA
