MSC MARIA ELENA
9304423 | 3EGR2 | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:MSC MARIA ELENA
IMO Code:9304423
Call Sign:3EGR2
Line Operator:MSC
Class Name for Sister Ships:MAA
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,182
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

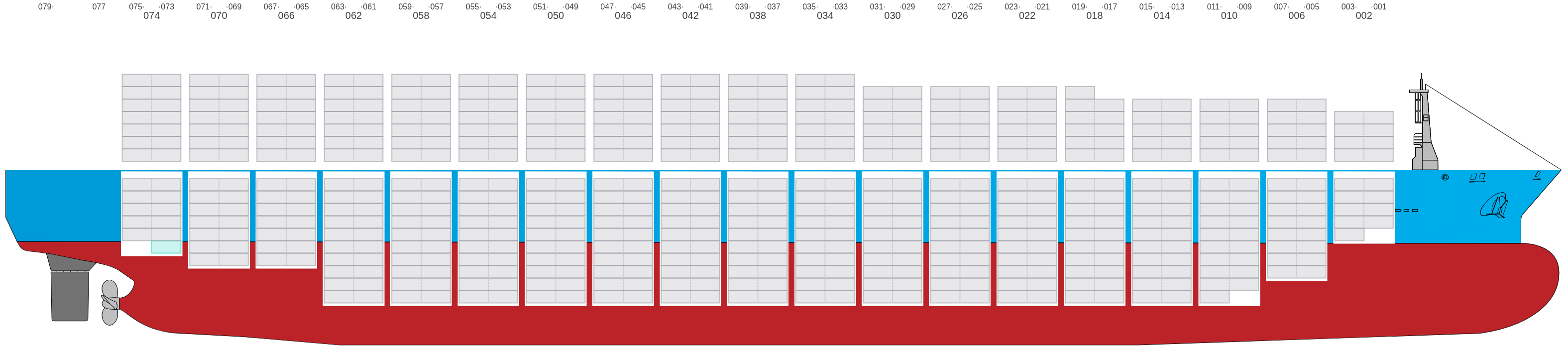

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

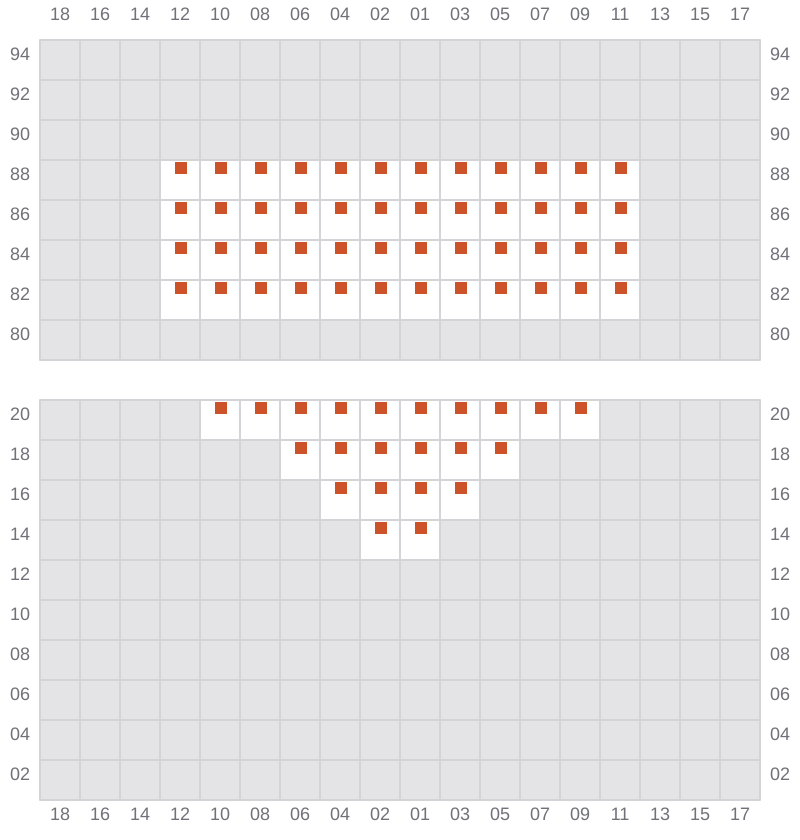

001
- →

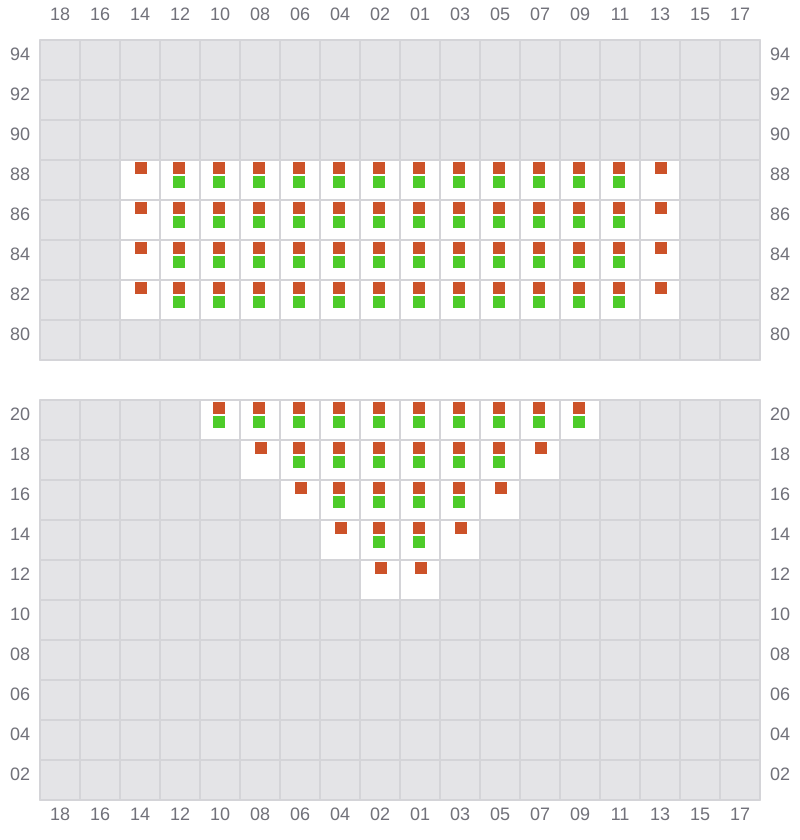

003 (002)
- ←

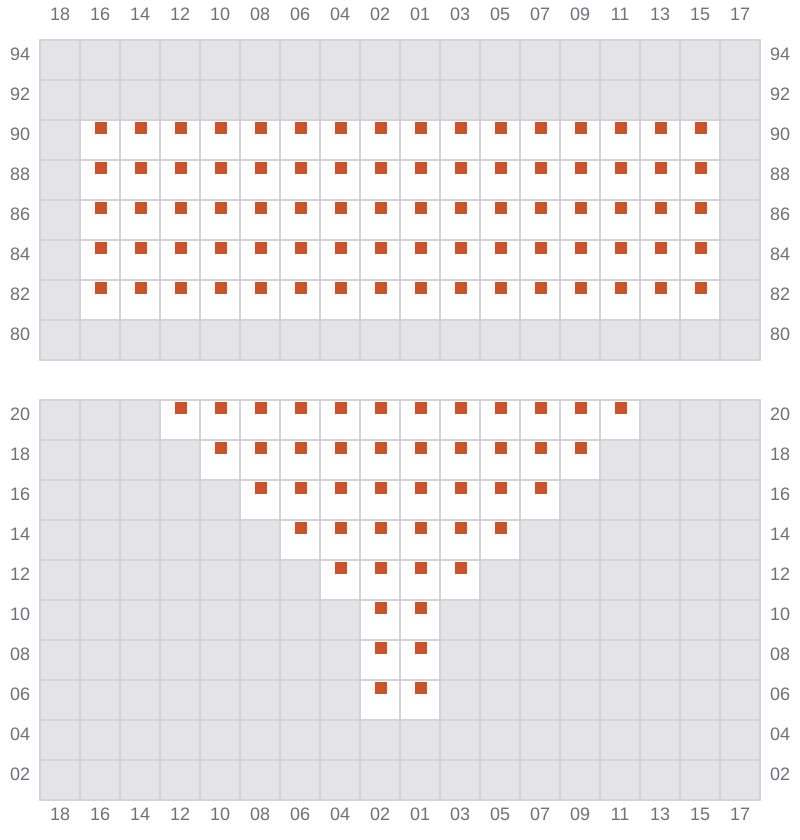

005
- →

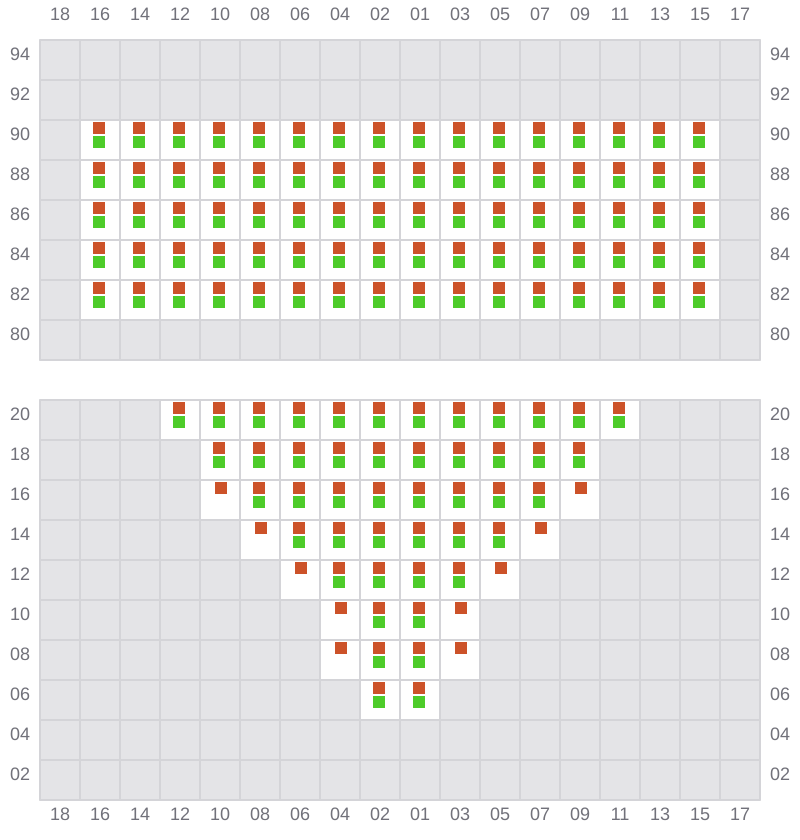

007 (006)
- ←

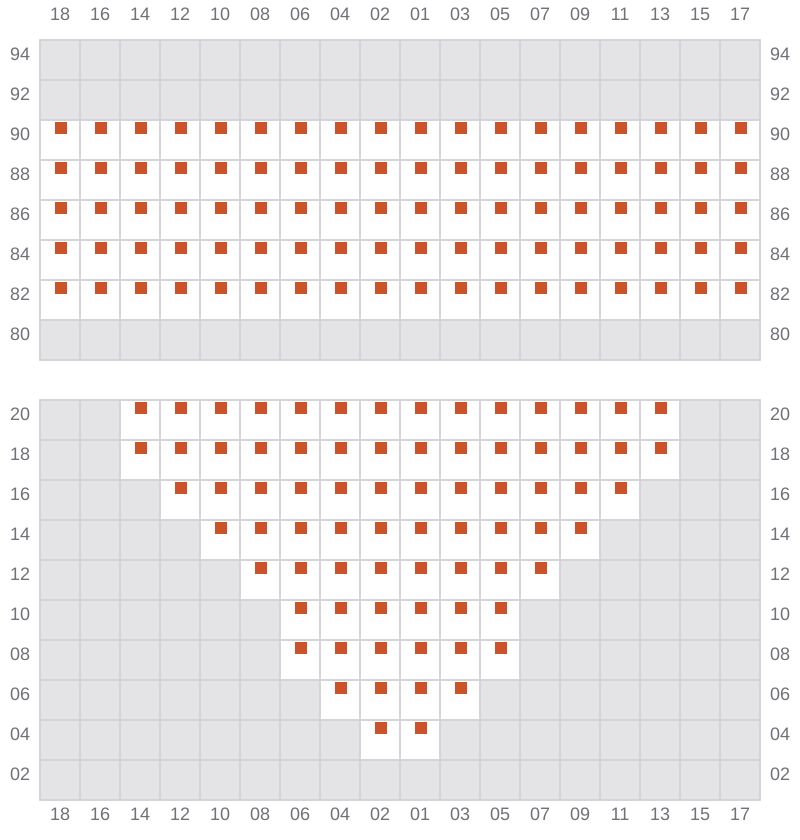

009
- →

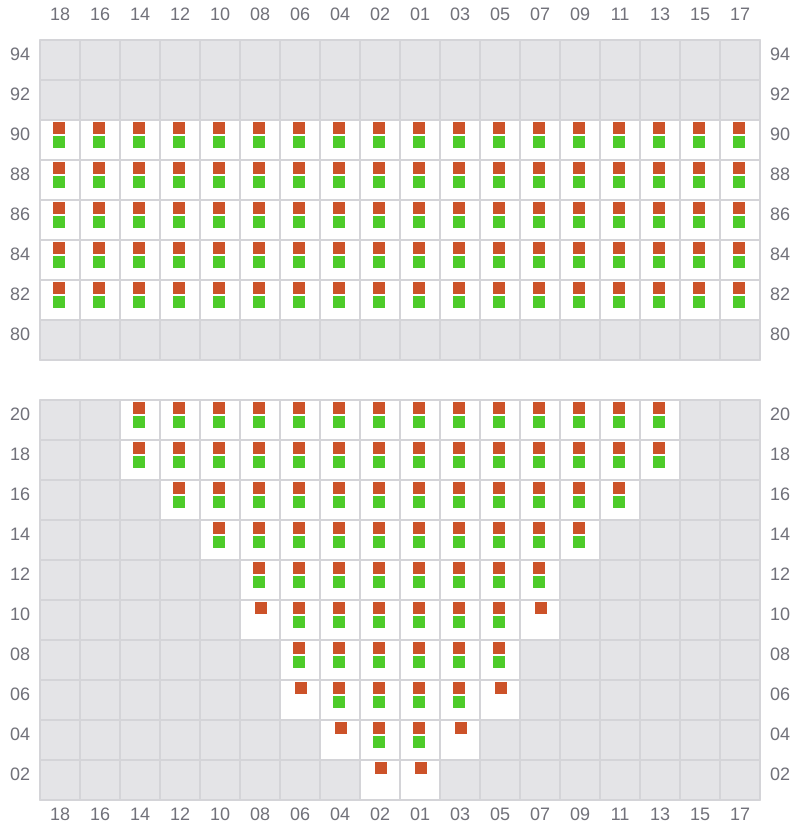

011 (010)
- ←

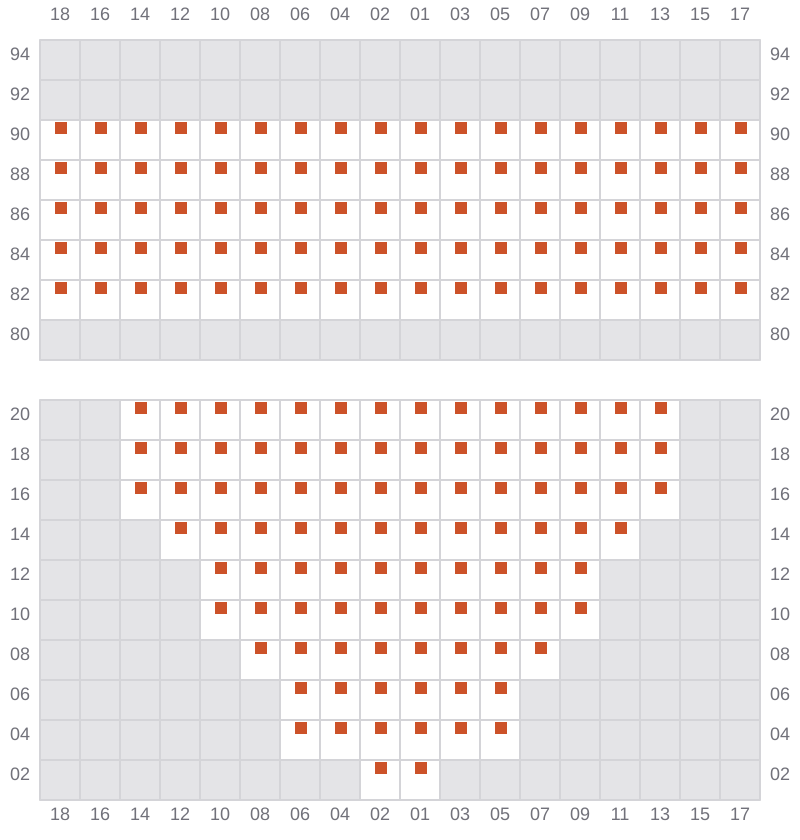

013
- →

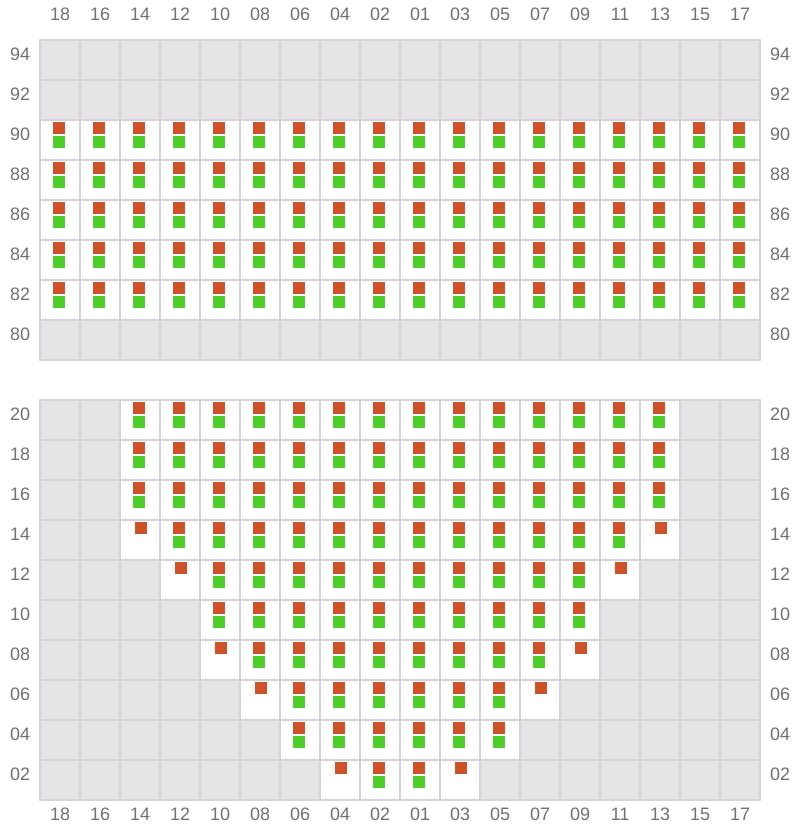

015 (014)
- ←
017
- →

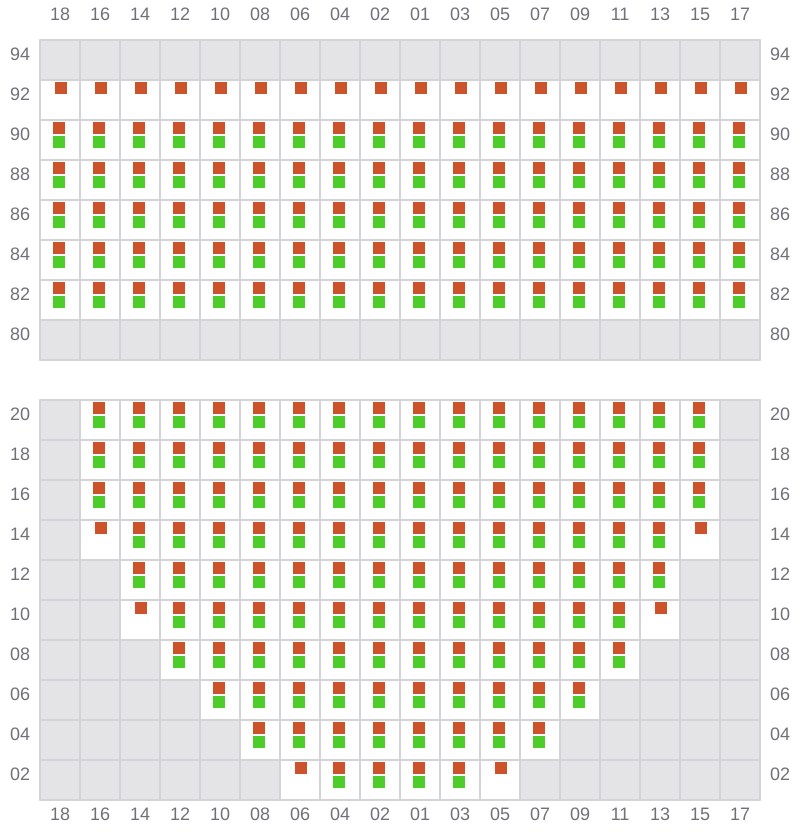

019 (018)
- ←

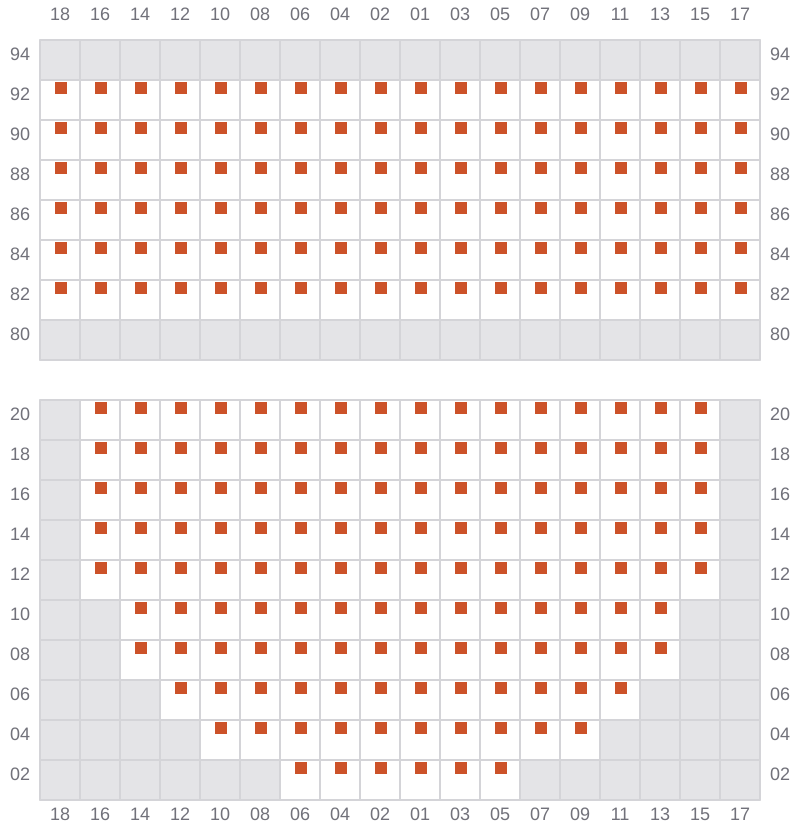

021
- →

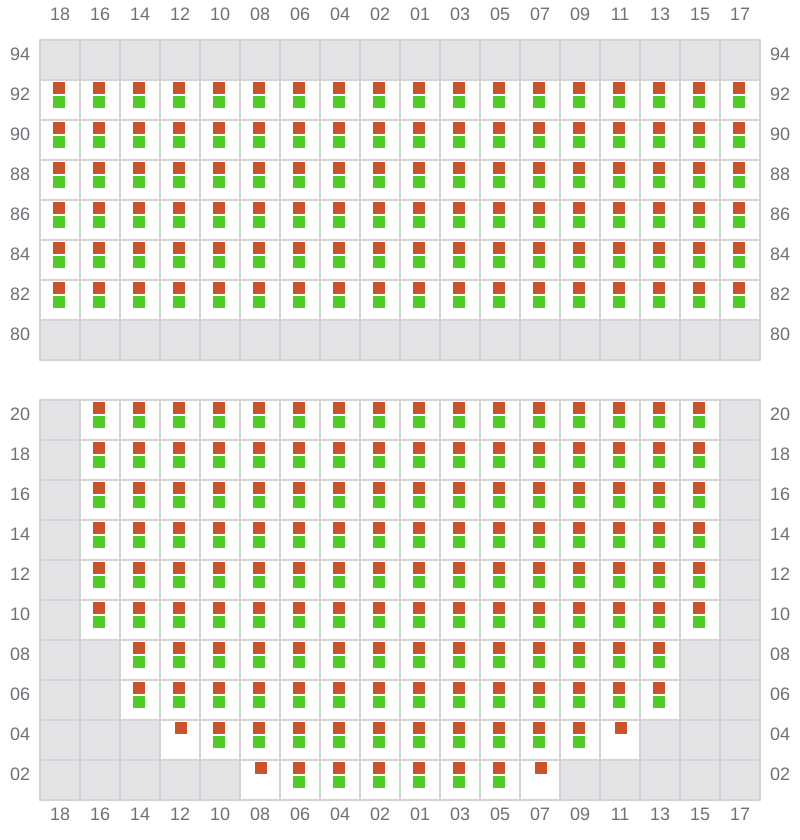

023 (022)
- ←

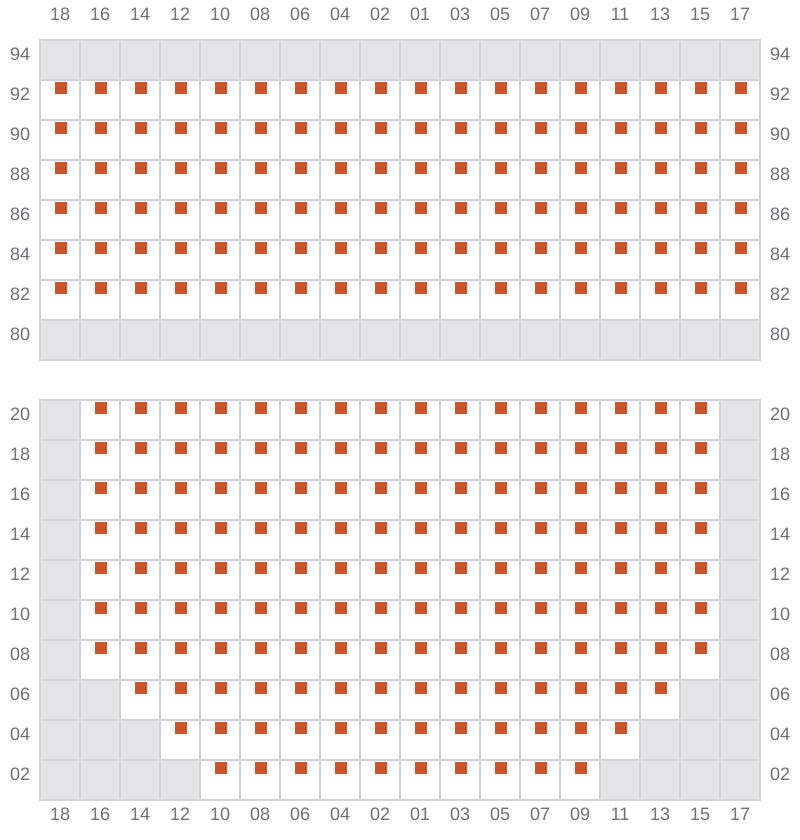

025
- →

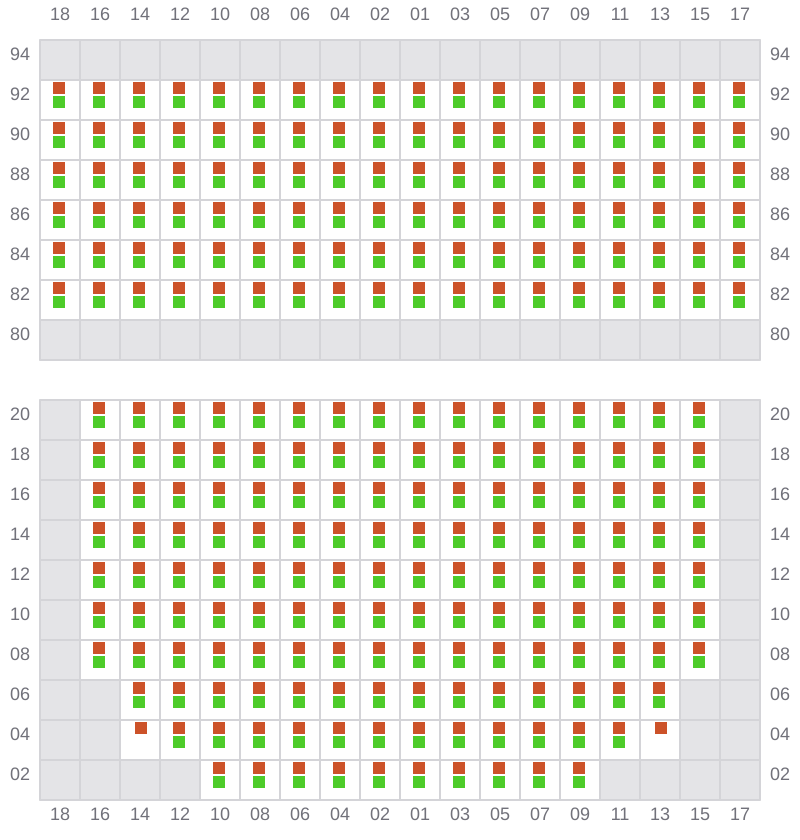

027 (026)
- ←

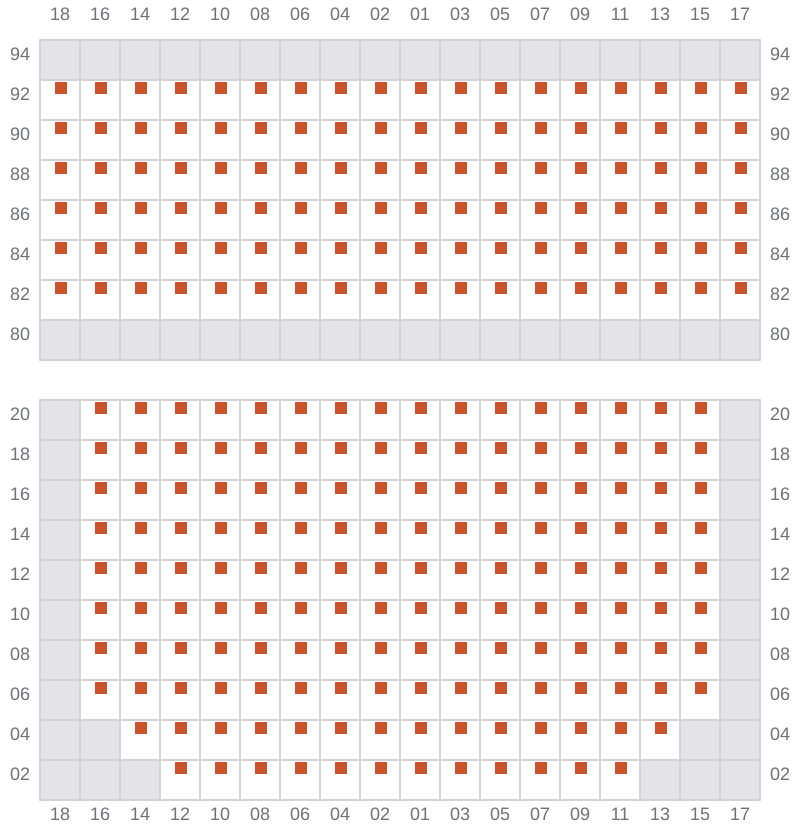

029
- →

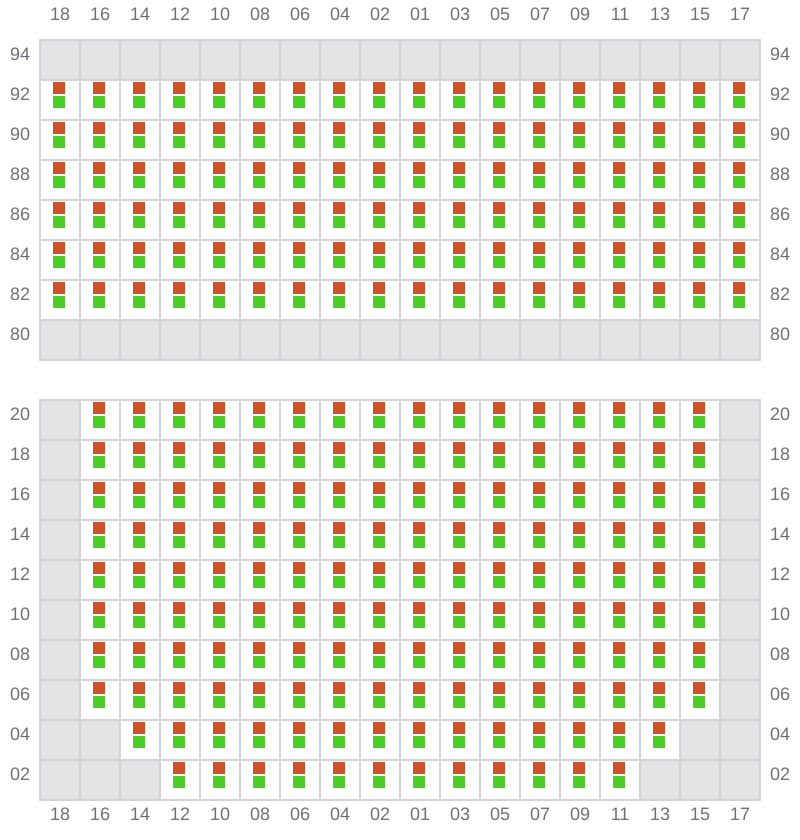

031 (030)
- ←
033
- →

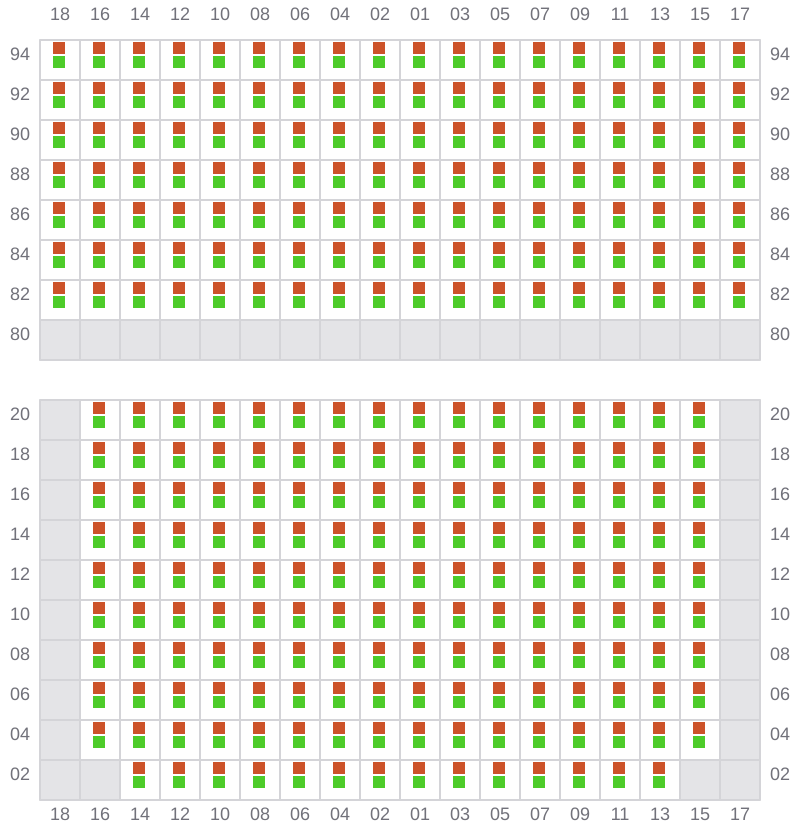

035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←
045
- →
047 (046)
- ←

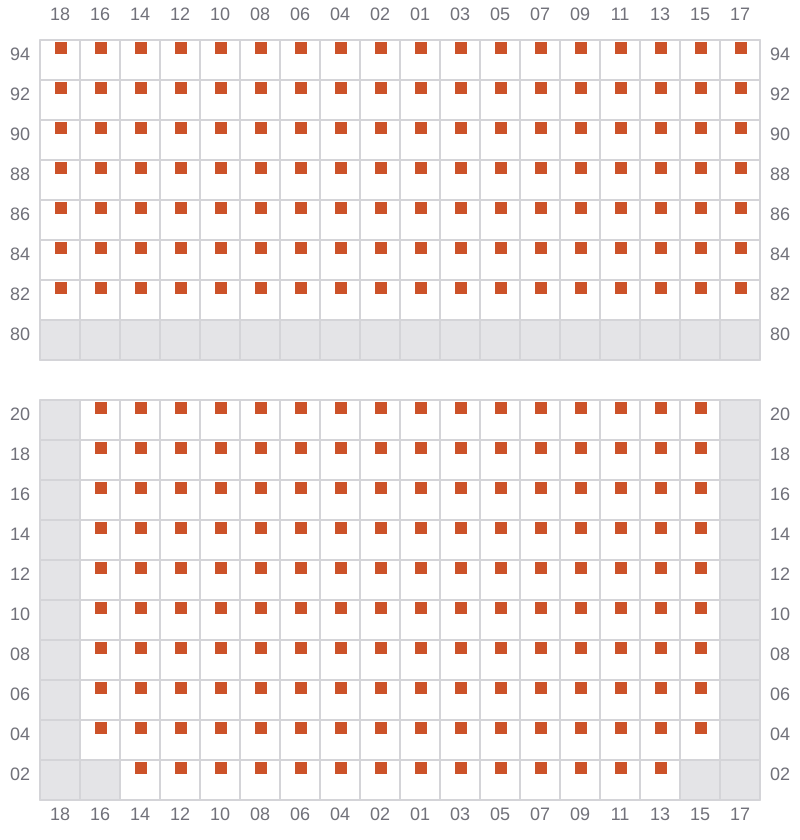

049
- →
051 (050)
- ←

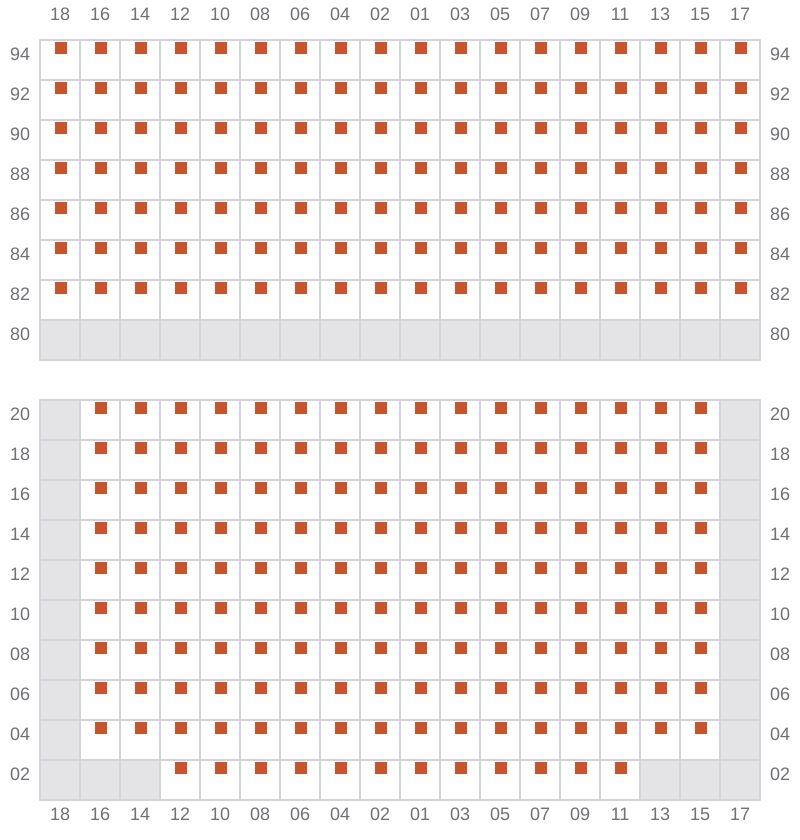

053
- →
055 (054)
- ←

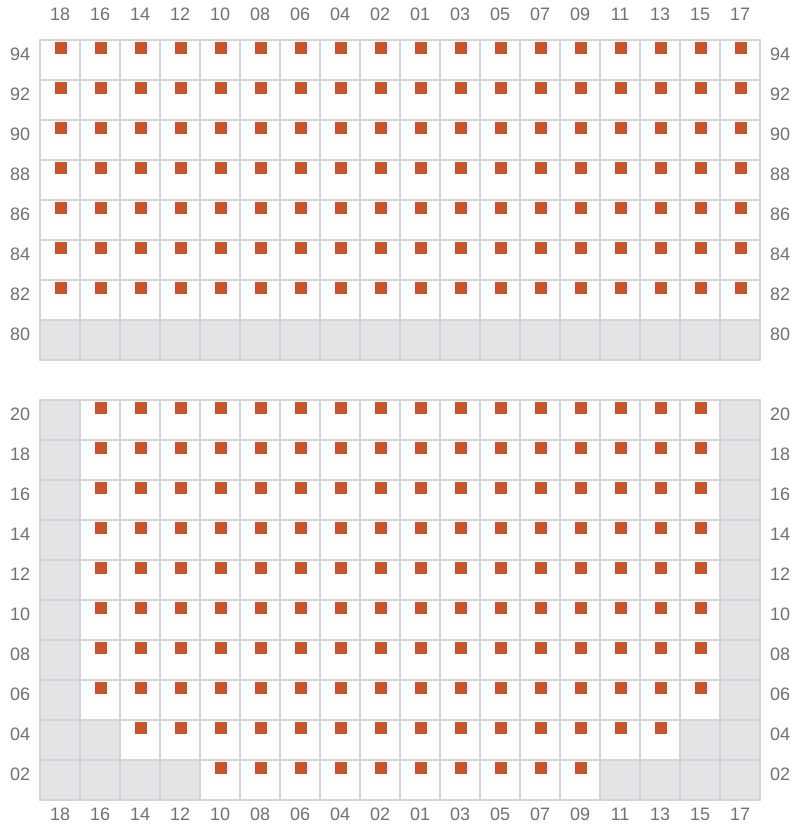

057
- →

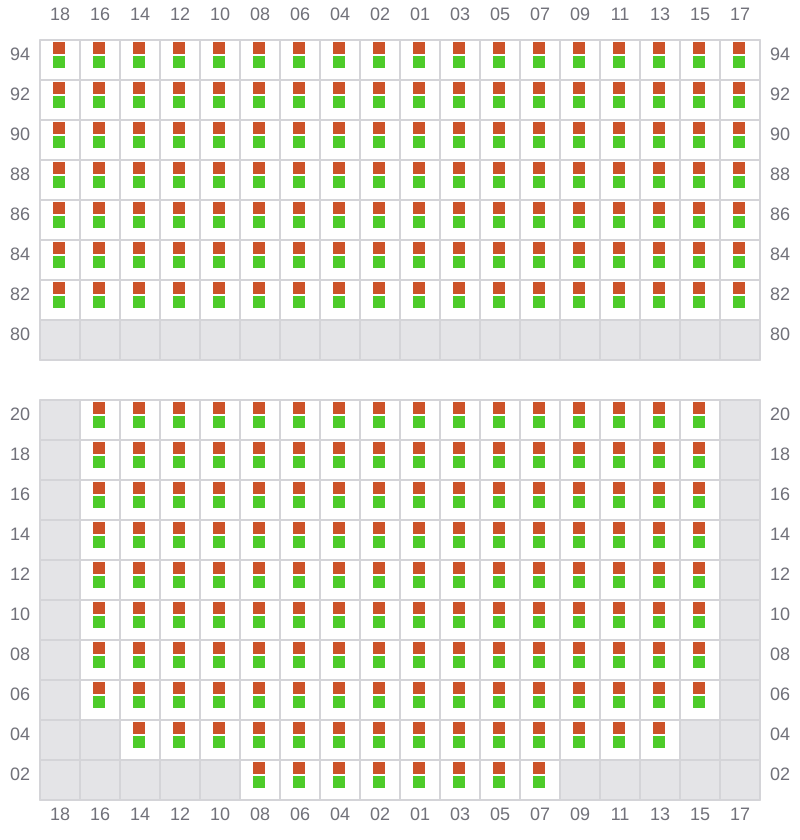

059 (058)
- ←
061
- →

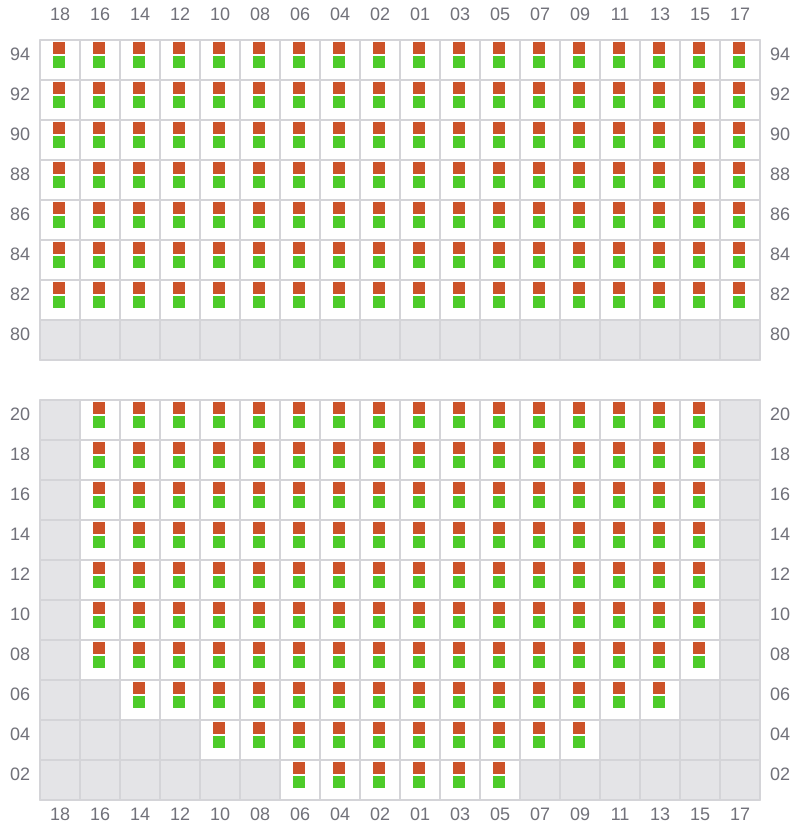

063 (062)
- ←

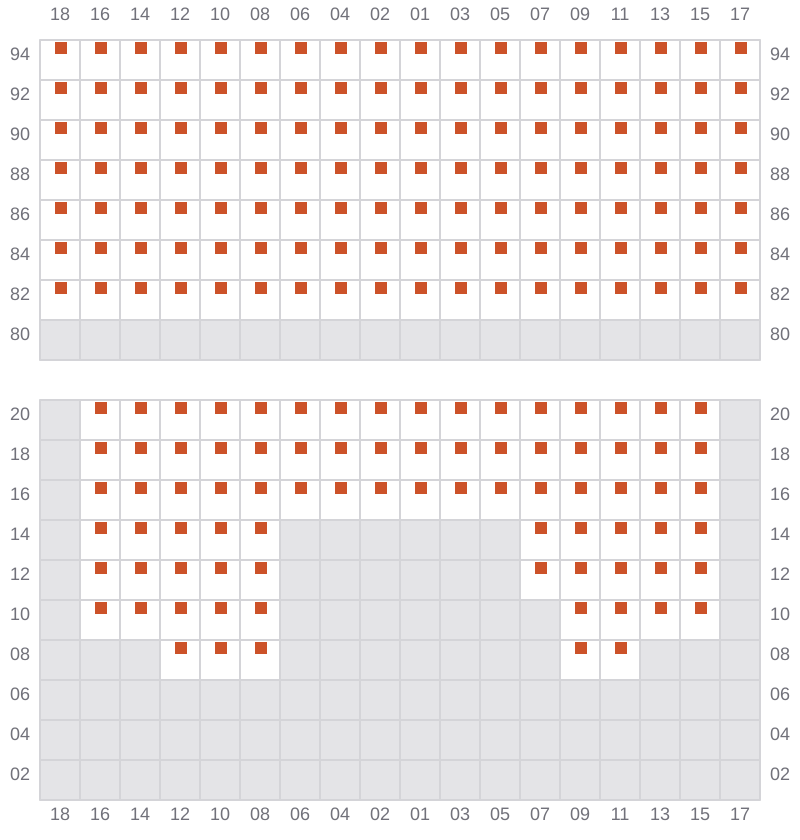

065
- →

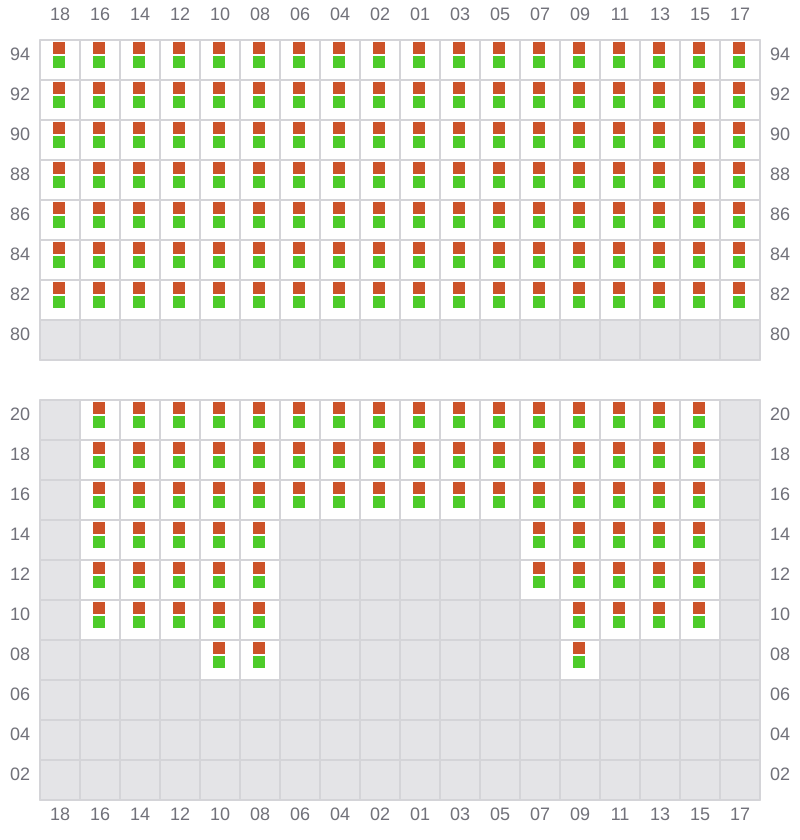

067 (066)
- ←

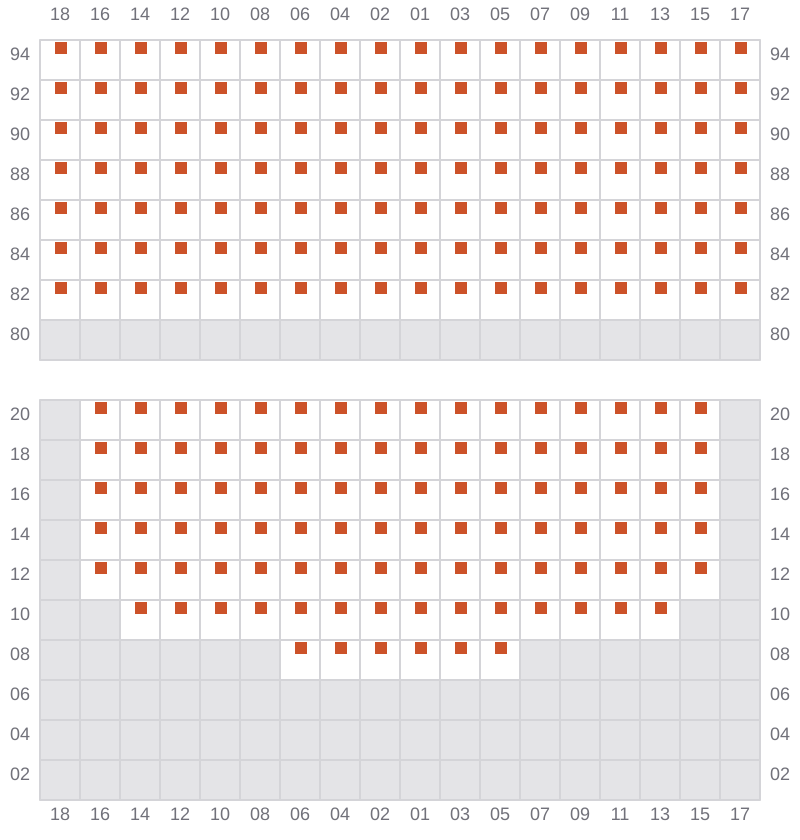

069
- →

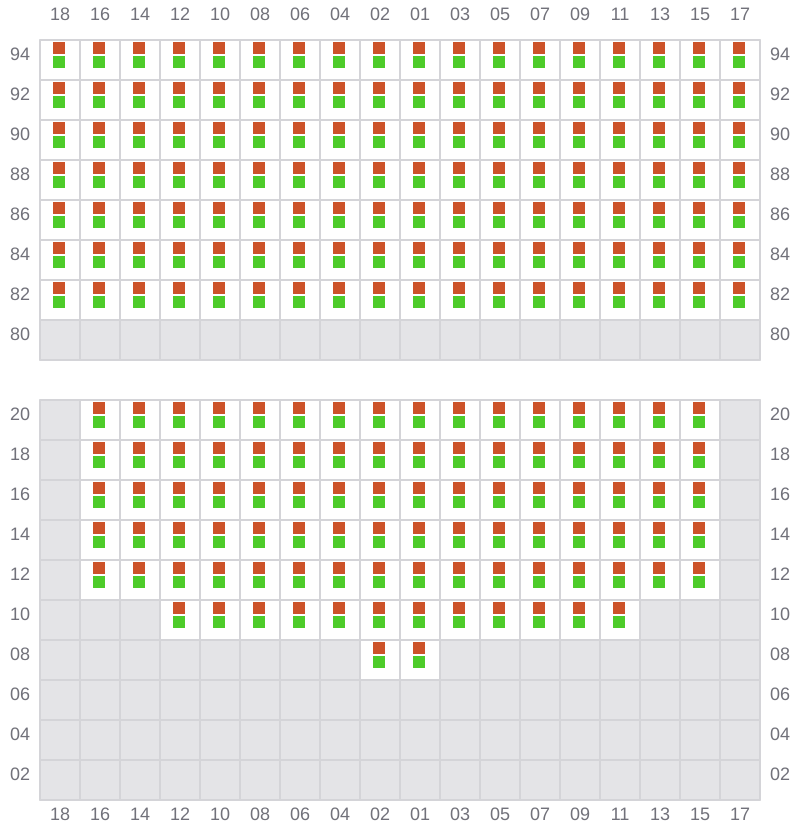

071 (070)
- ←

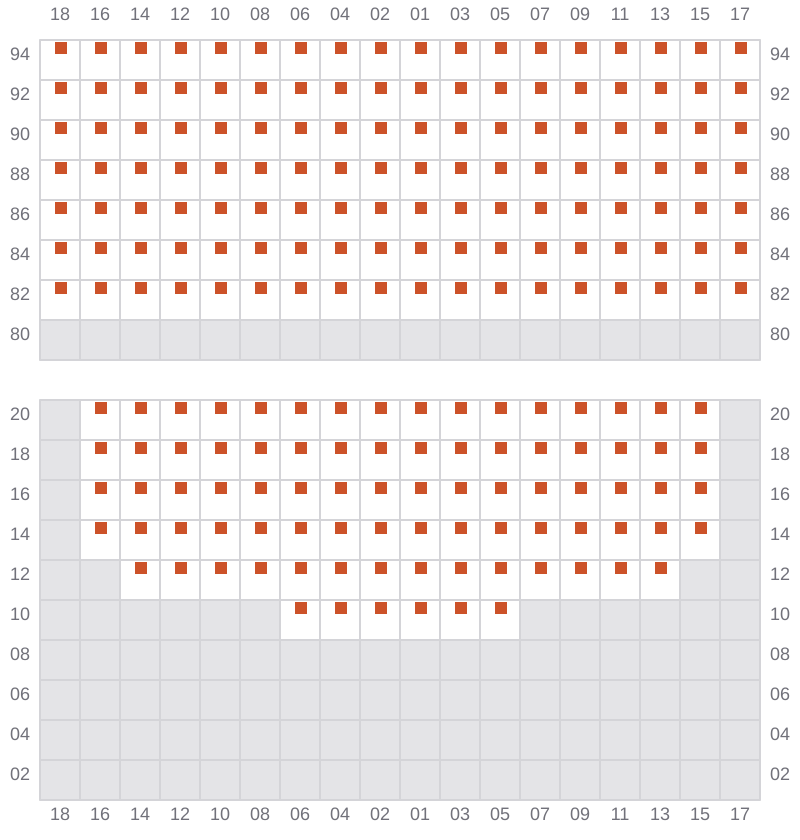

073
- →
075 (074)
- ←

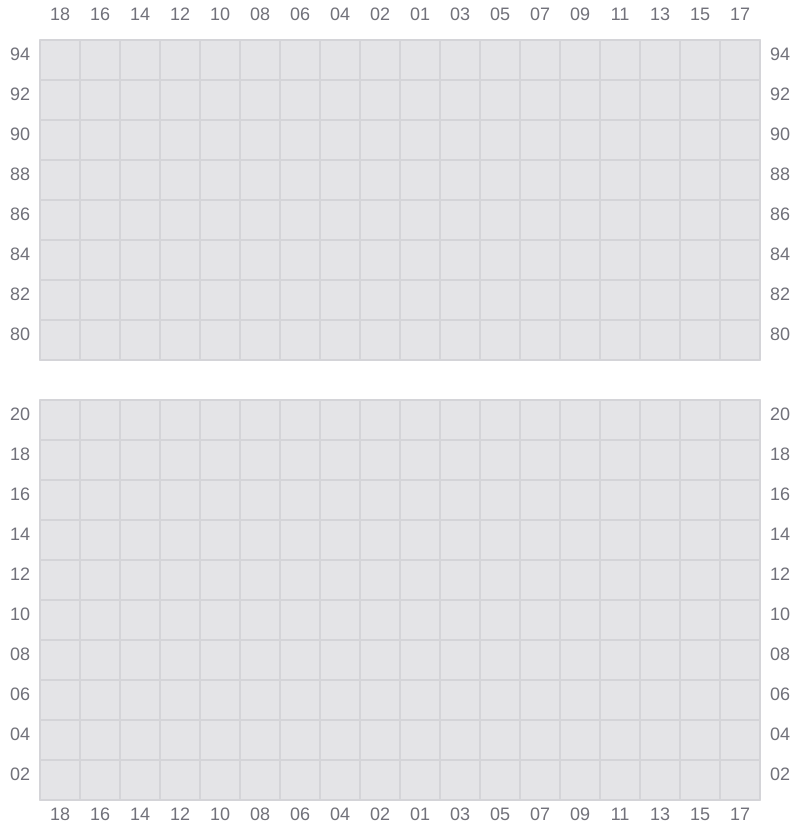

077

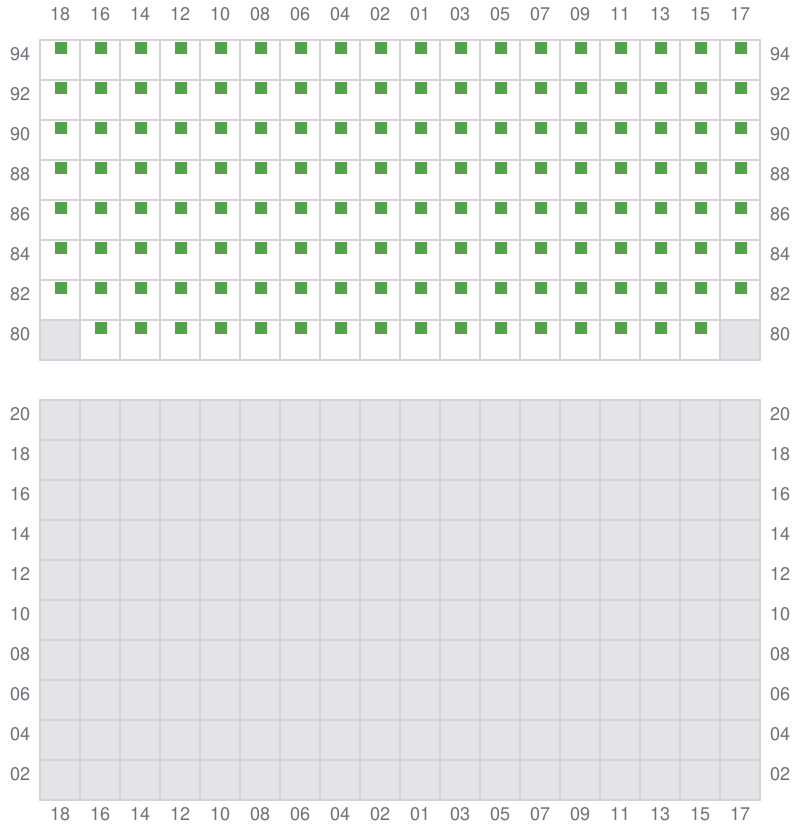

079 (078)
- ← / ?
