MSC MARIA PIA
9155107 | H3RJ | 9155107 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:MSC MARIA PIA
IMO Code:9155107
Call Sign:H3RJ
Line Operator:9155107
Class Name for Sister Ships:3TD
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):185.23
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,808
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

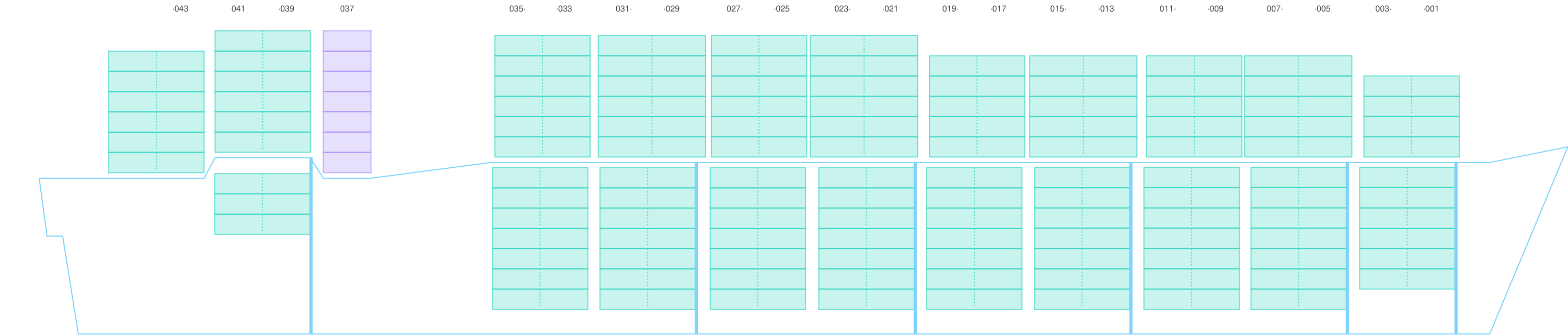

Side View
Hatch-Covers View

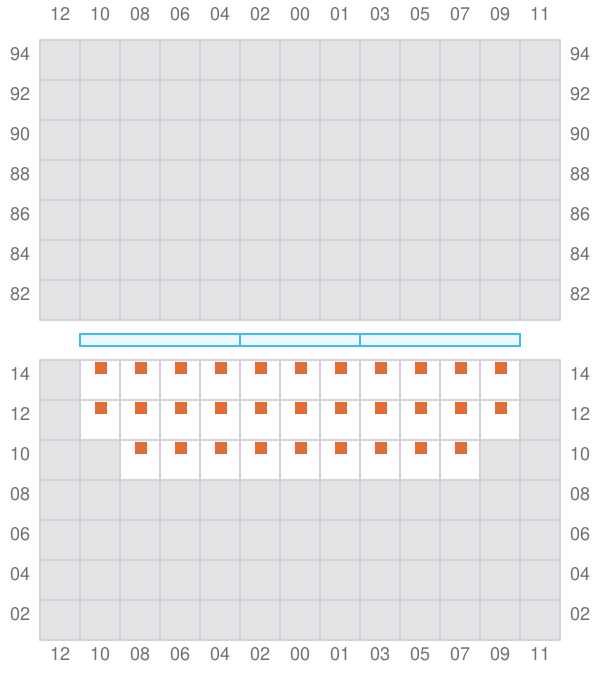

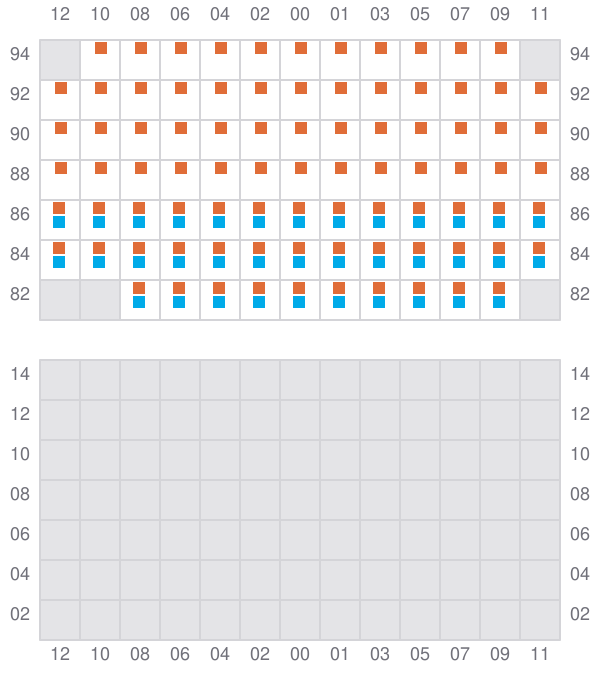

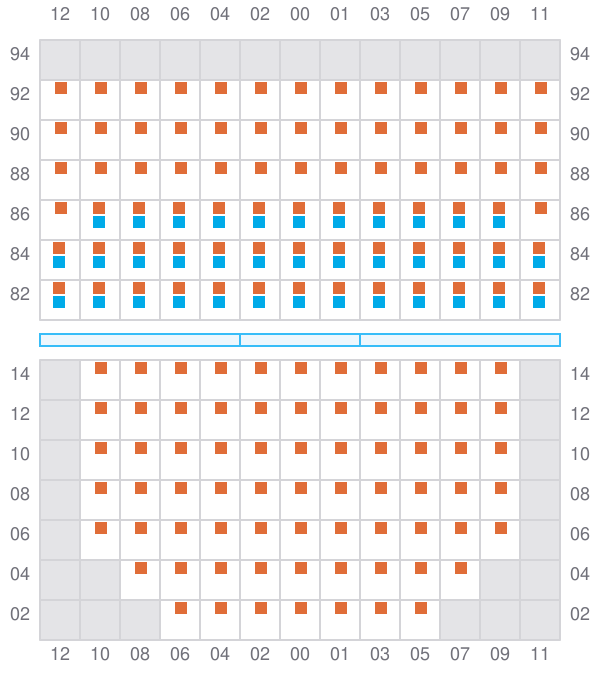

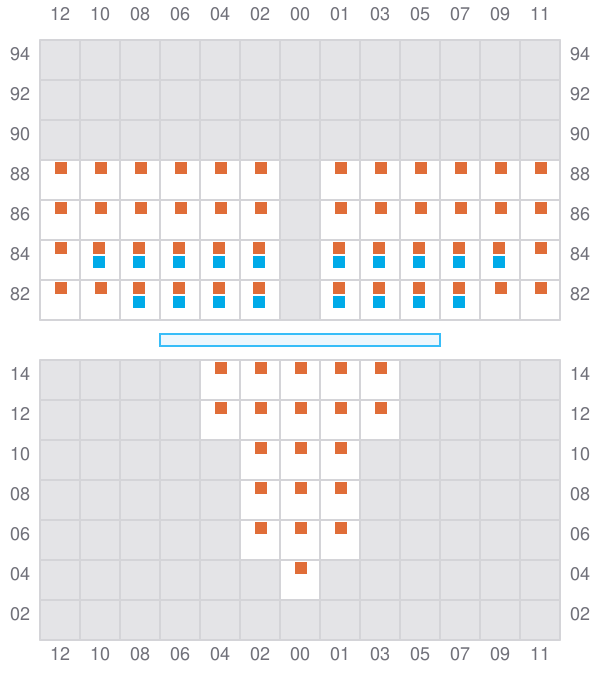

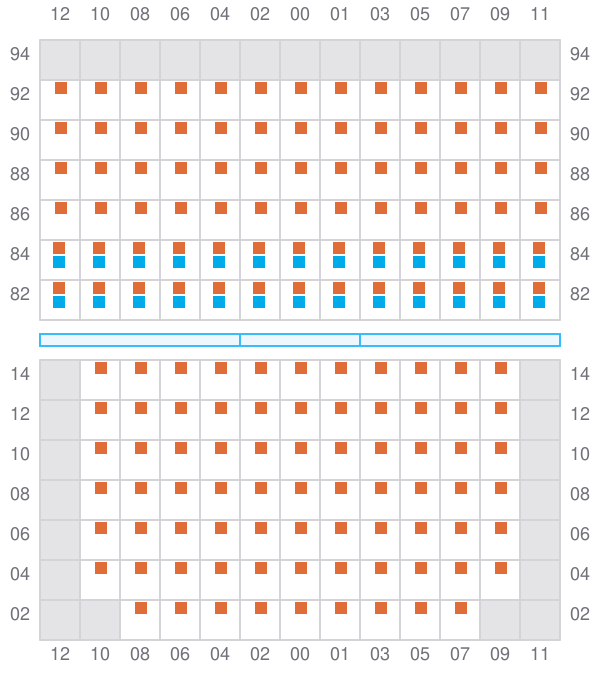

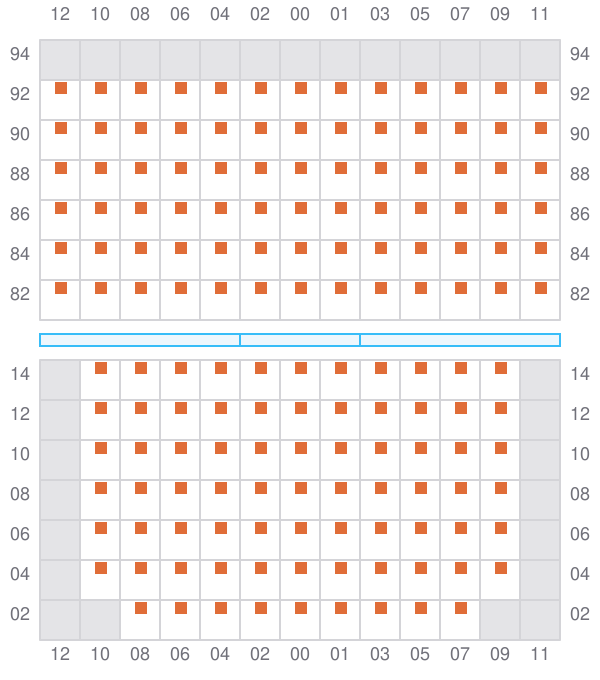

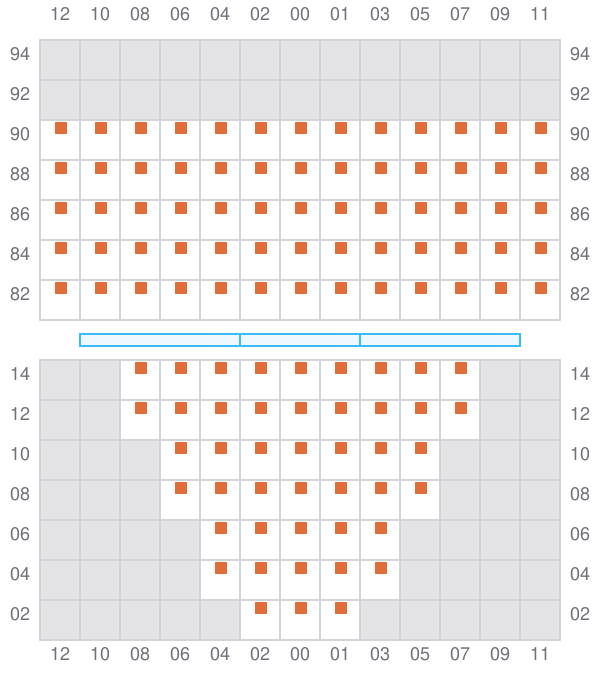

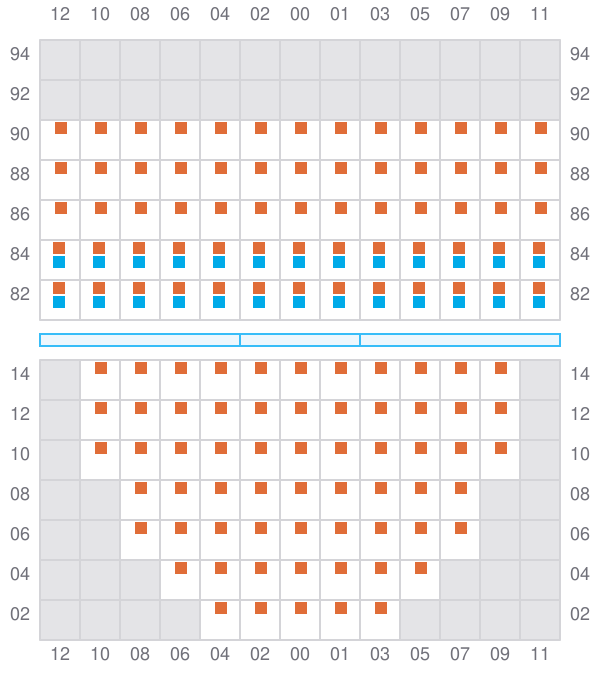

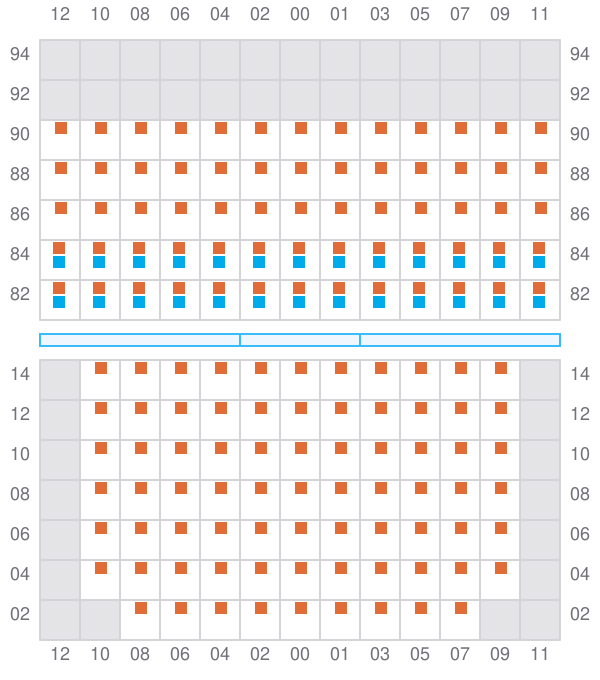

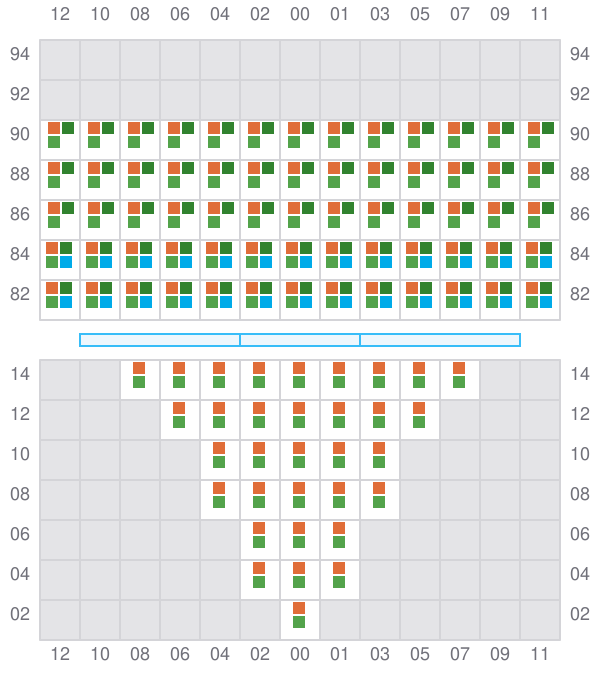

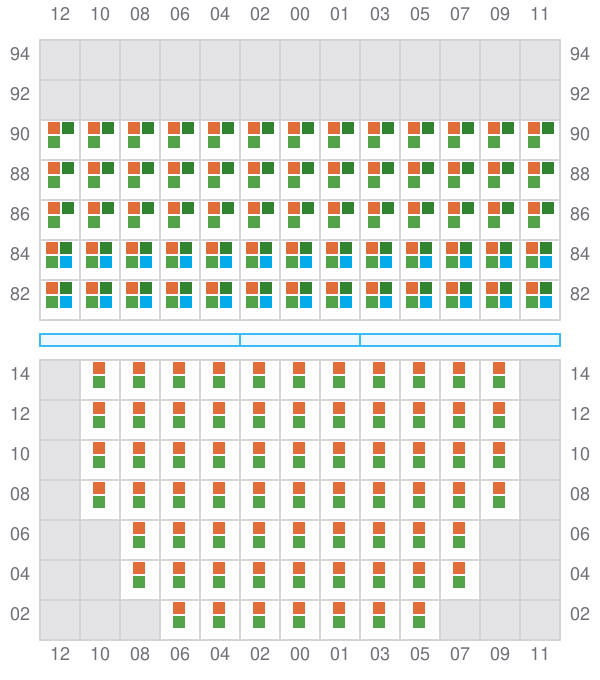

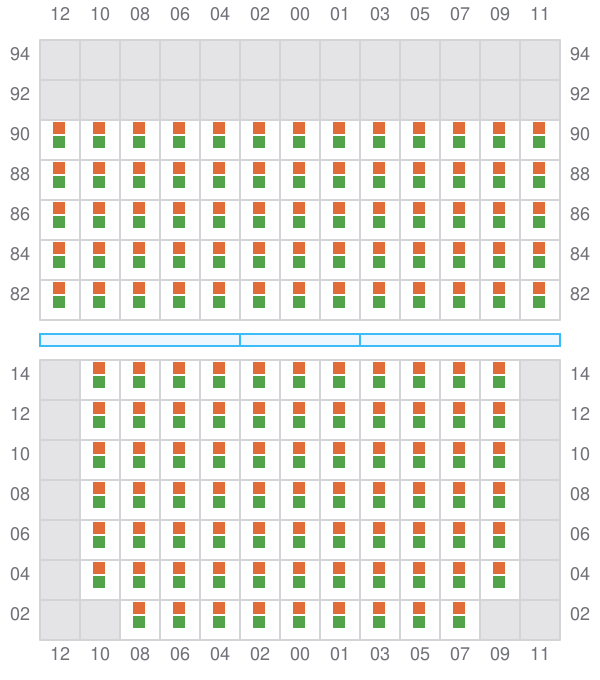

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
- → / ?
005 (006)
- →
- ← / ?
007
- ←
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
- ← / ?
015
- ←
- → / ?
017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
- ← / ?
023
- ←
025 (026)
- →
027
- ←
- → / ?
029 (030)
- →
- ← / ?
031
- ←
- → / ?
033 (034)
- →
- ← / ?
035
- ←
- → / ?
037
- → / ?
039 (040)
- →
- ← / ?
041
- ? / ←
043 (044)
- → / ?
- ← / ?
