MSC MARIA PIA
9155107 | H3RJ | MSC by ************************** Last update: Mon Jun 19 2023
General Info
Ship Name:MSC MARIA PIA
IMO Code:9155107
Call Sign:H3RJ
Line Operator:MSC
Class Name for Sister Ships:PIA
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,844
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

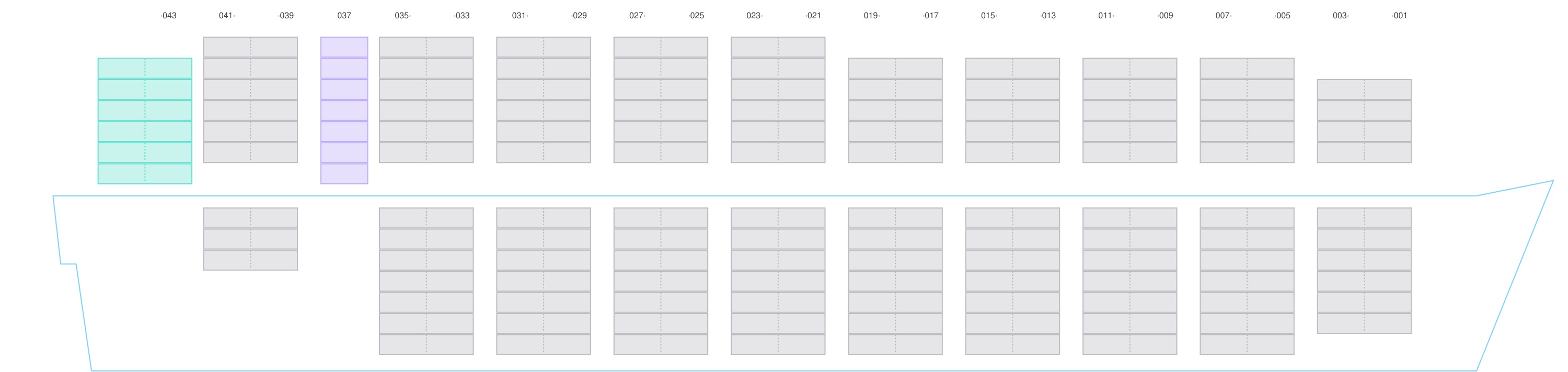

Side View
Hatch-Covers View

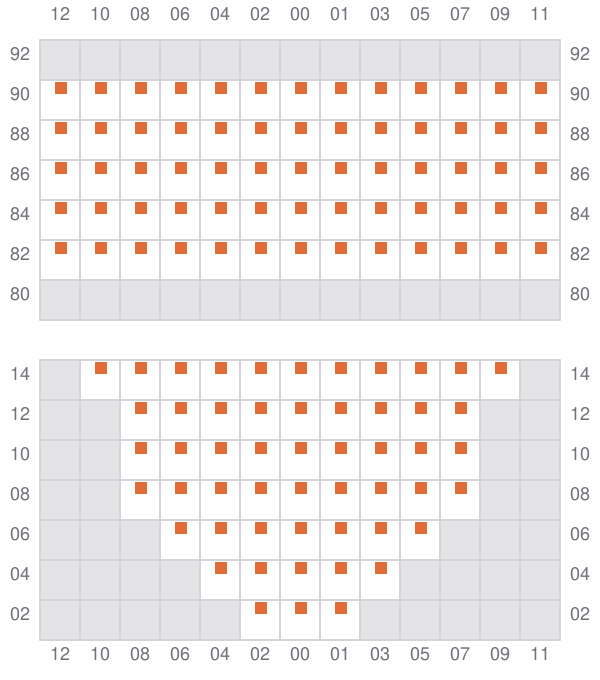

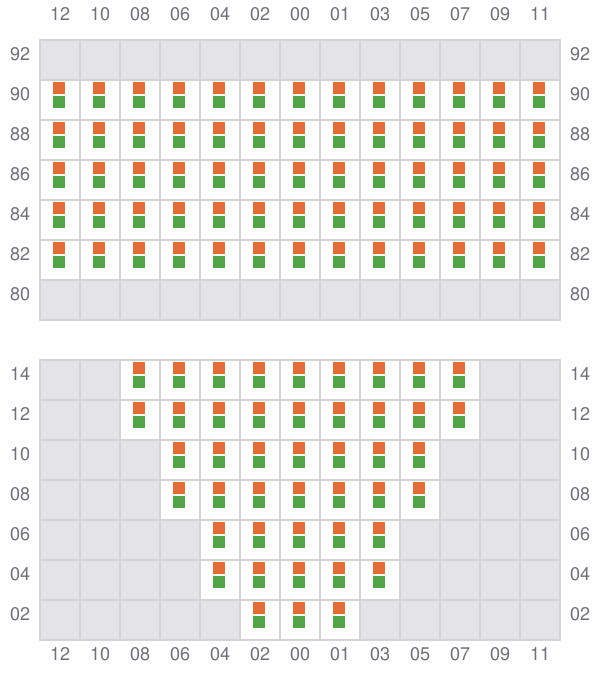

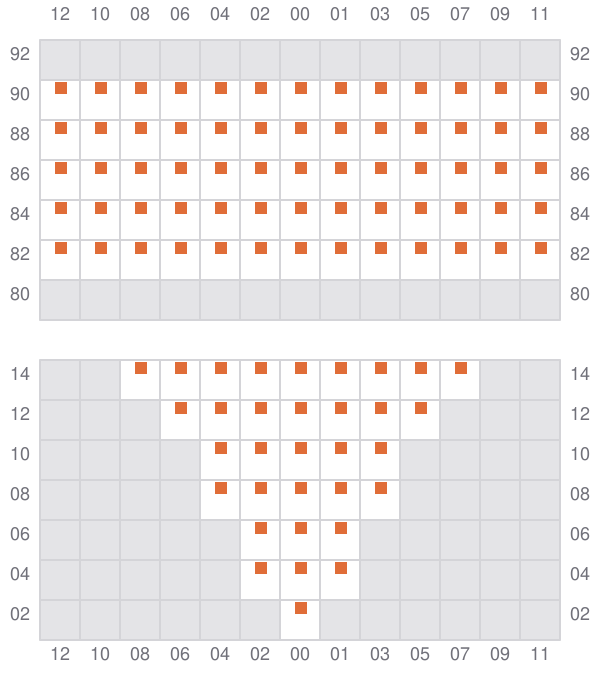

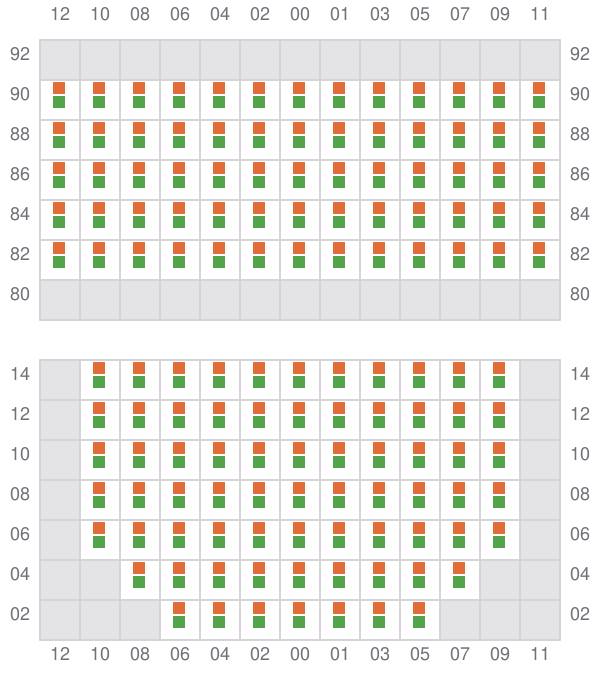

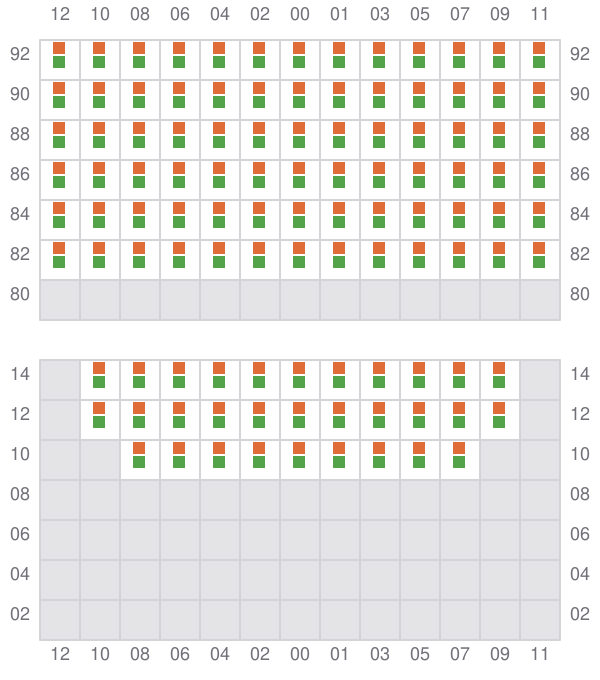

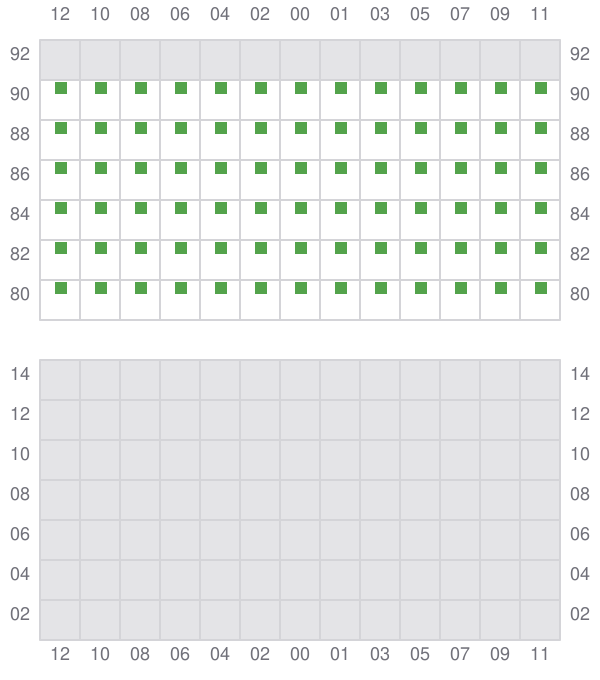

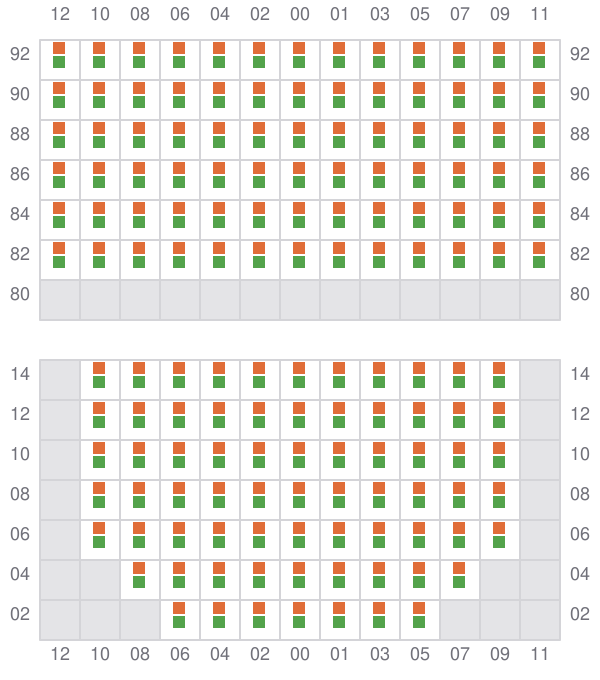

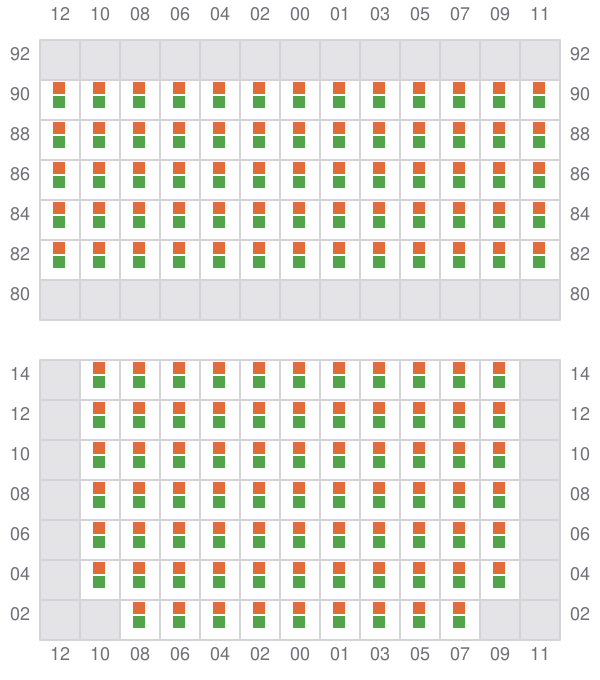

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →

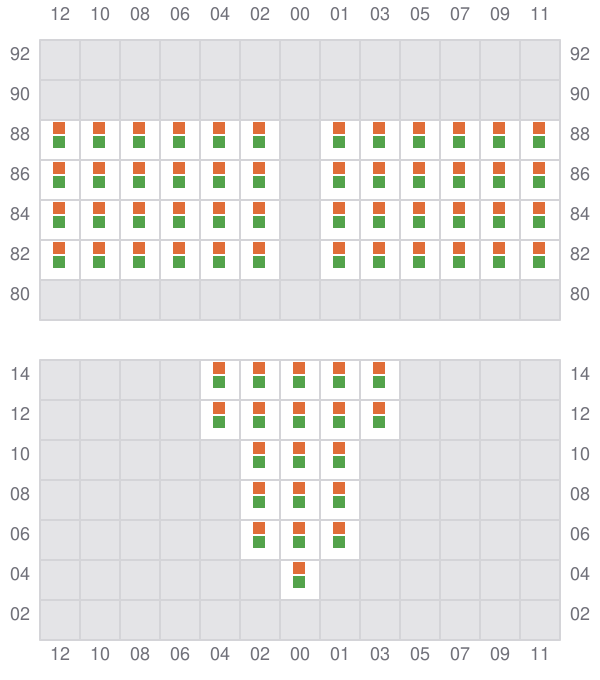

003 (002)
- ←
005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←
017
- →
019 (018)
- ←
021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←

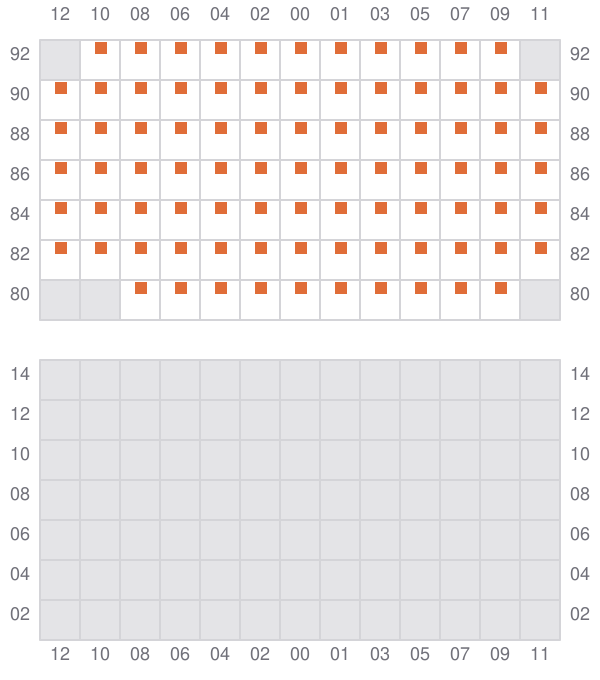

037
039
- →
041 (040)
- ←
043 (044)
- → / ?
