MSC MARIANNA
9226920 | H0AE | 9226920 by ********* Last update: Tue Jun 04 2024
General Info
Ship Name:MSC MARIANNA
IMO Code:9226920
Call Sign:H0AE
Line Operator:9226920
Class Name for Sister Ships:MSC MARIANNA
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.00
LOA (Length Overall):303.94
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,728
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

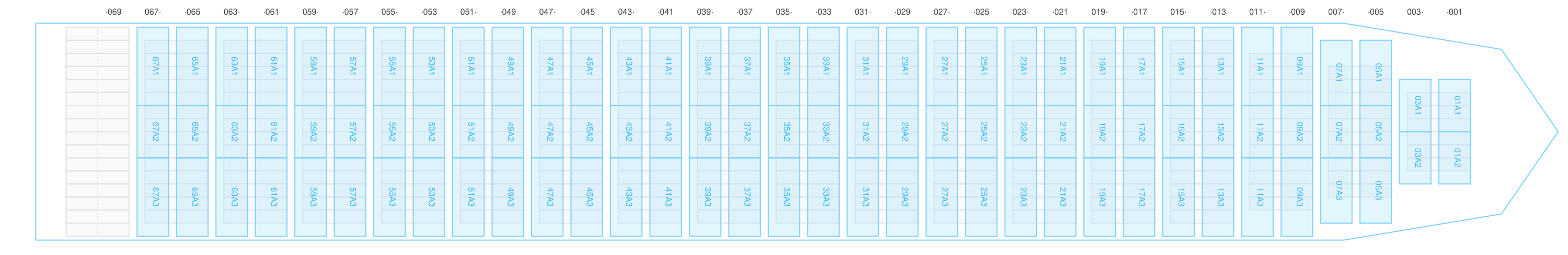

Hatch-Covers View

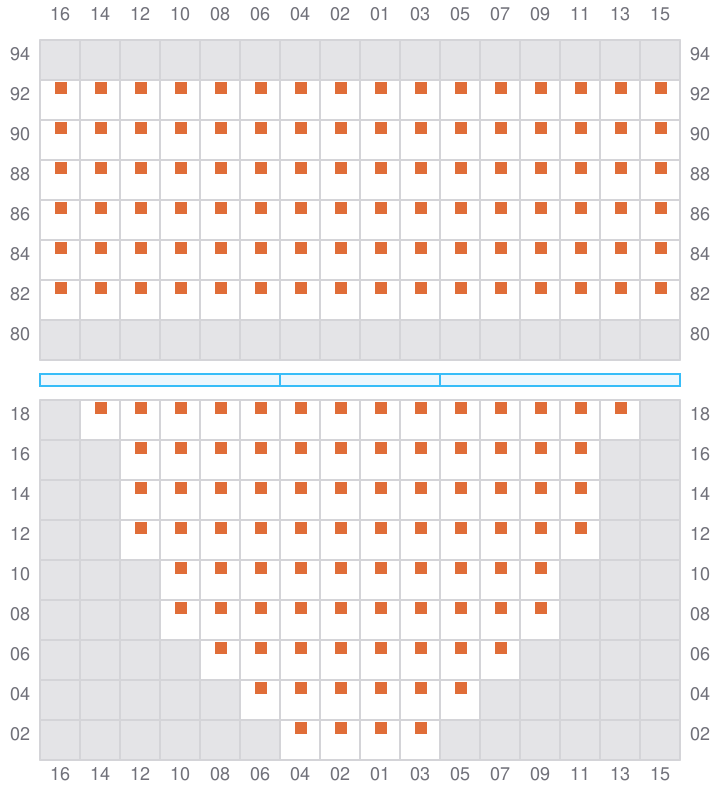

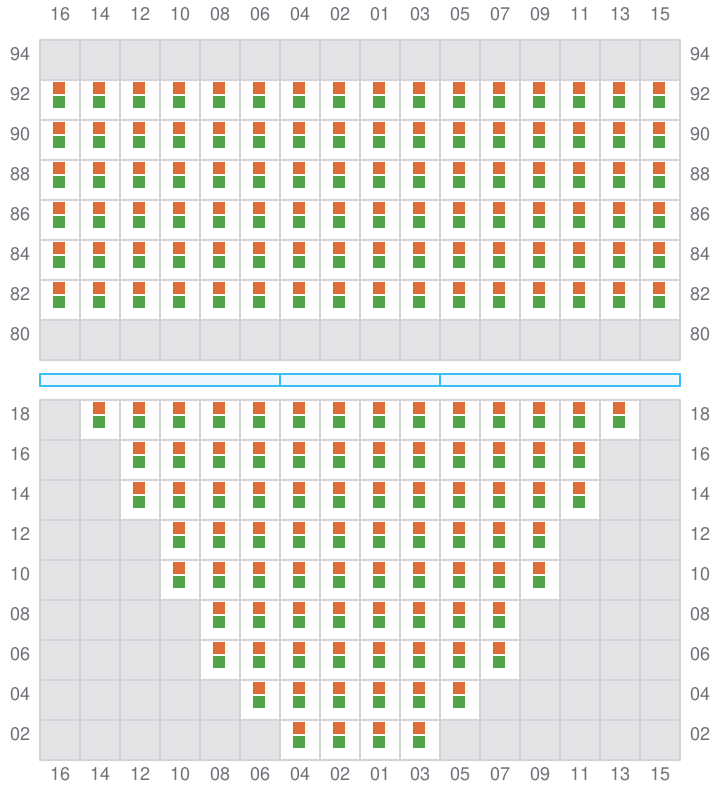

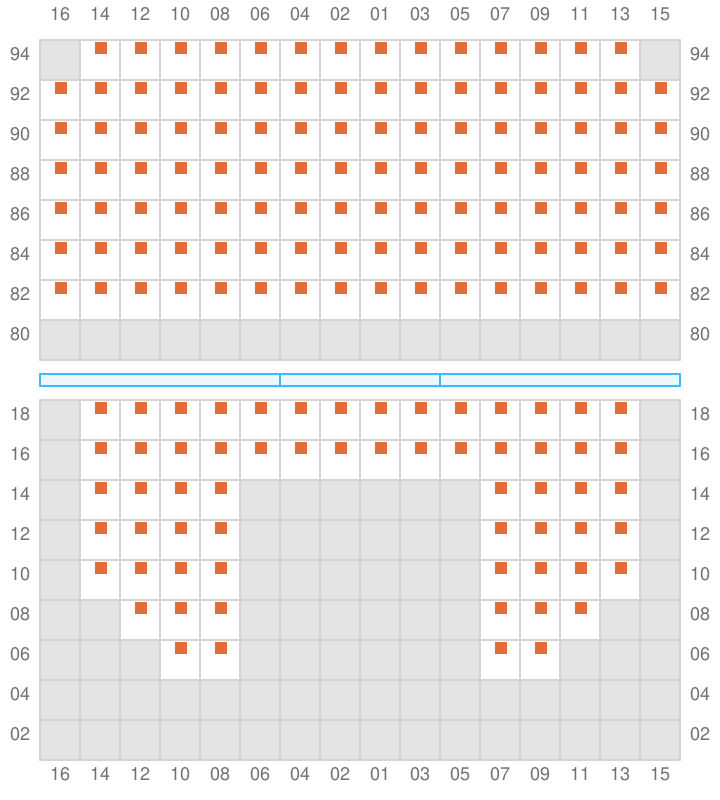

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

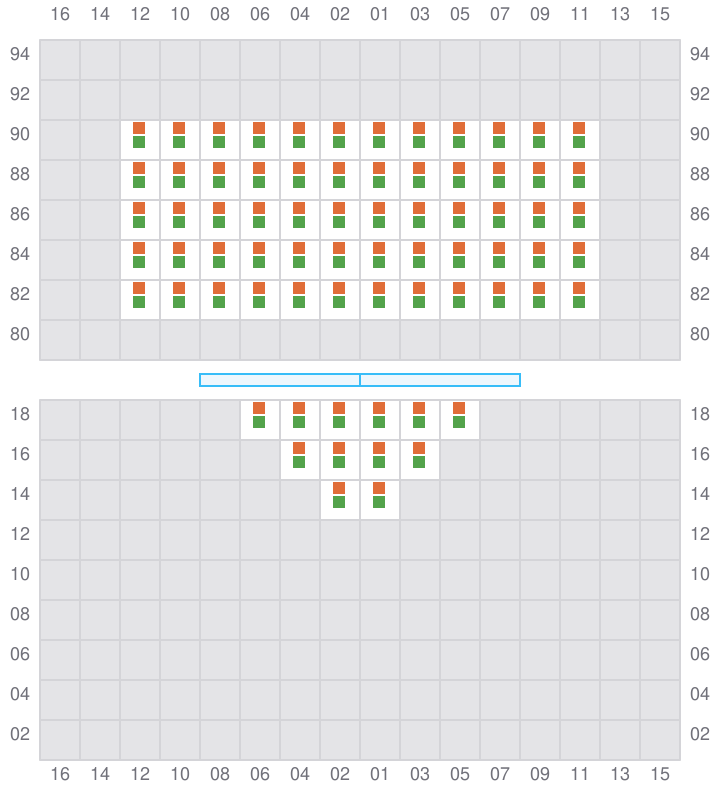

001 (002)
- →
003
- ←
005 (006)
- →

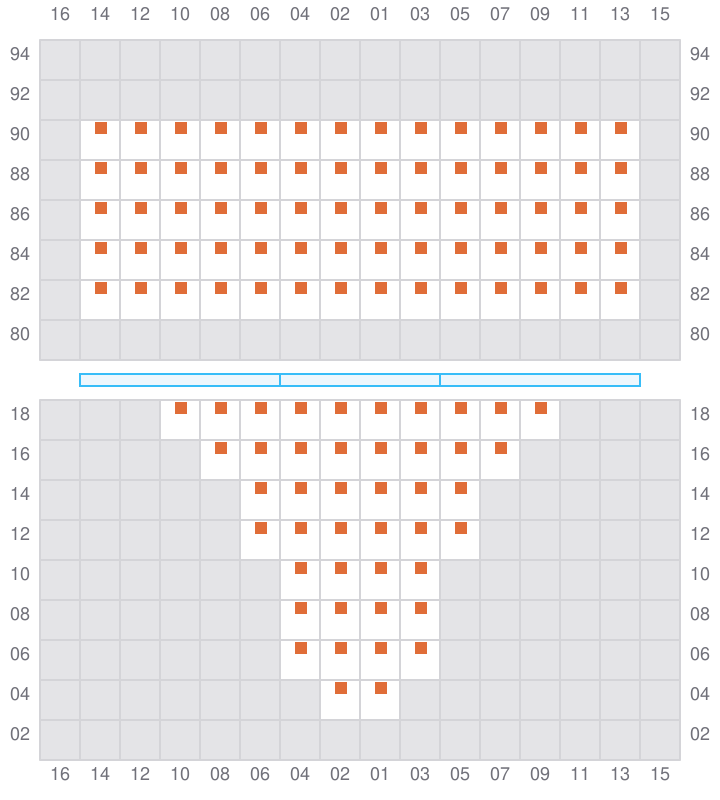

007
- ←

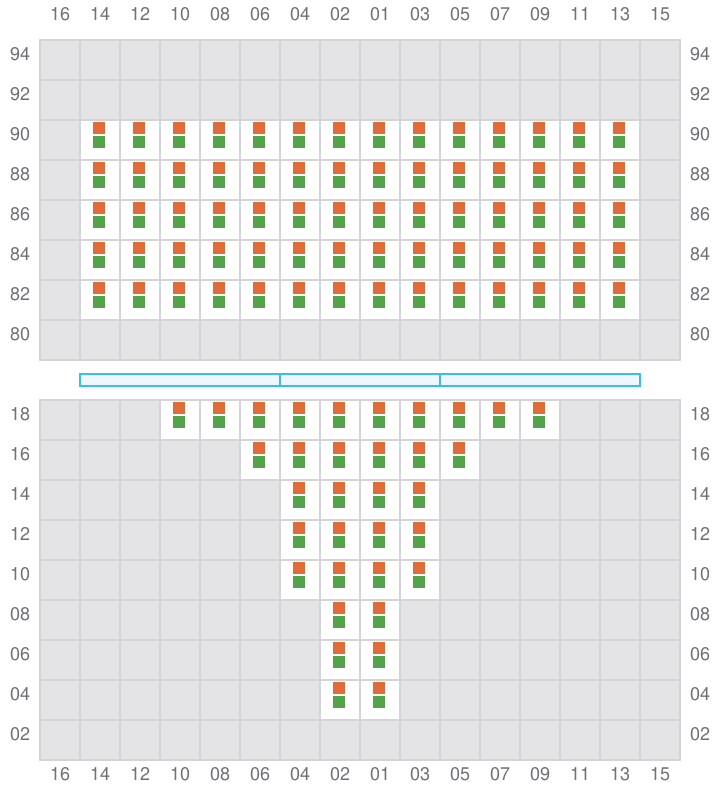

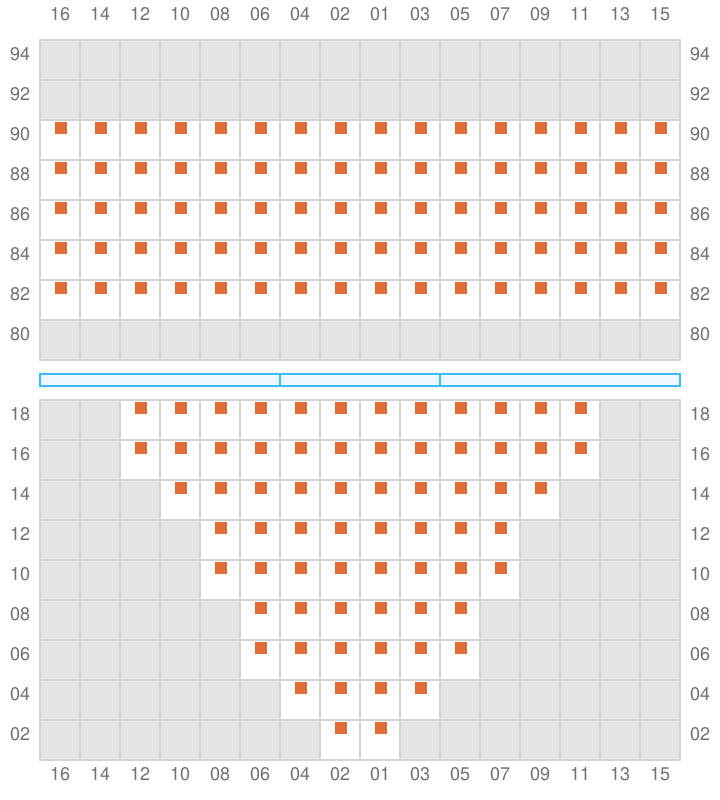

009 (010)
- →
011
- ←
013 (014)
- →
015
- ←

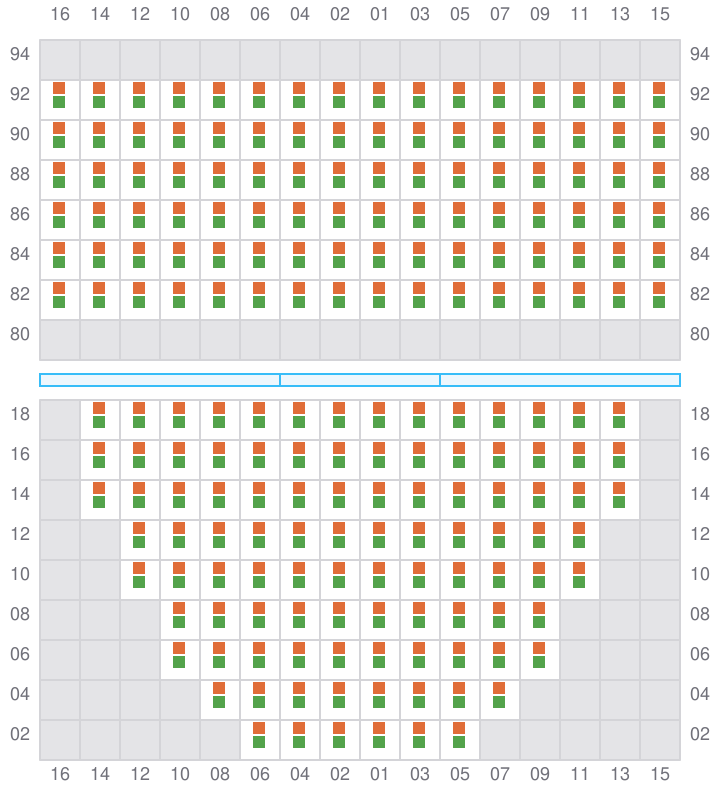

017 (018)
- →

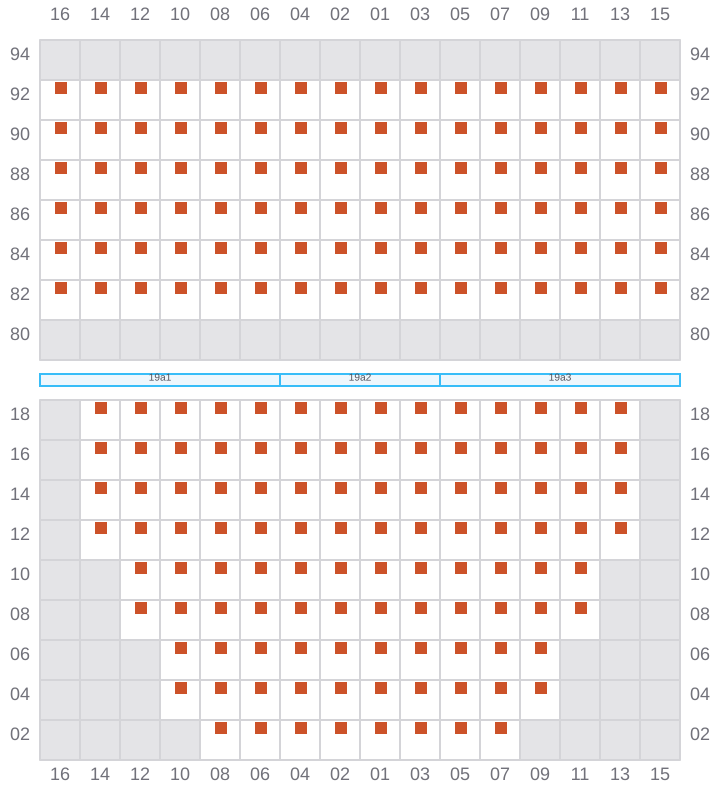

019
- ←

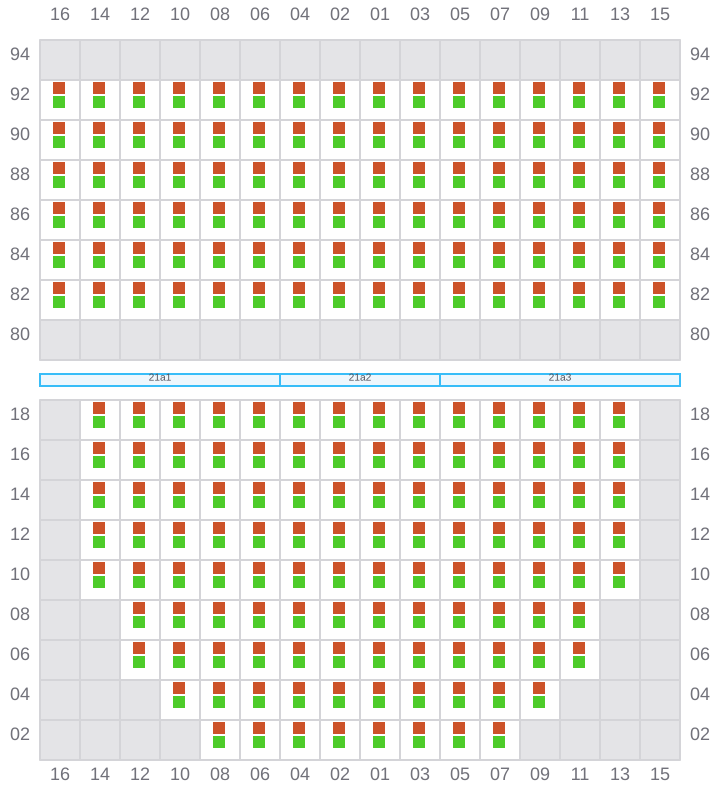

021 (022)
- →
023
- ←

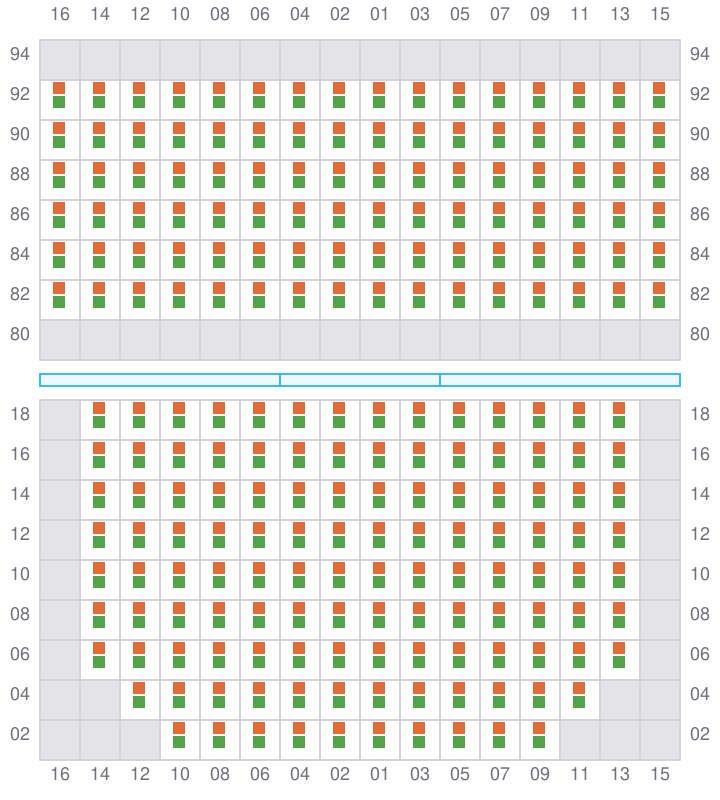

025 (026)
- →
027
- ←
029 (030)
- →
031
- ←

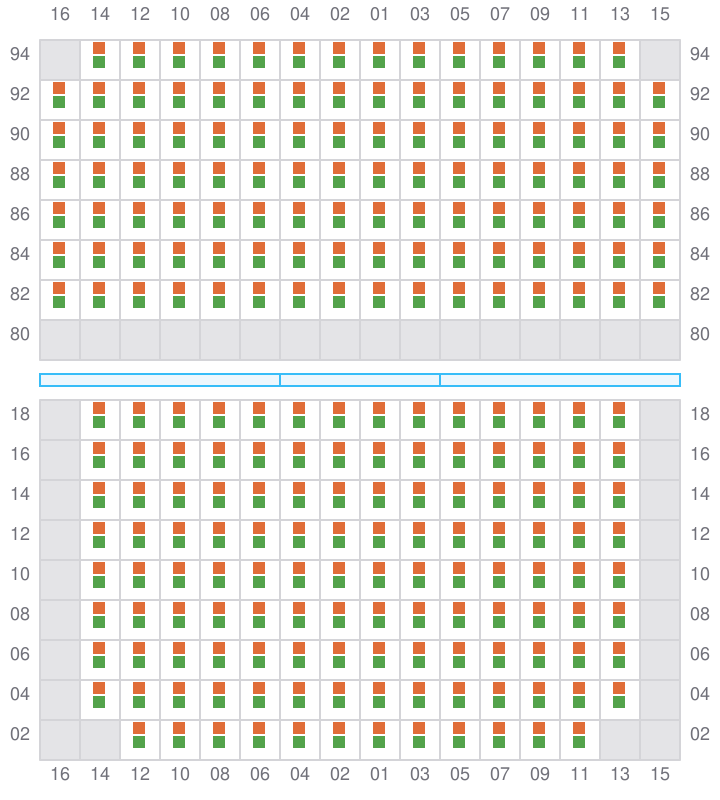

033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041 (042)
- →
043
- ←

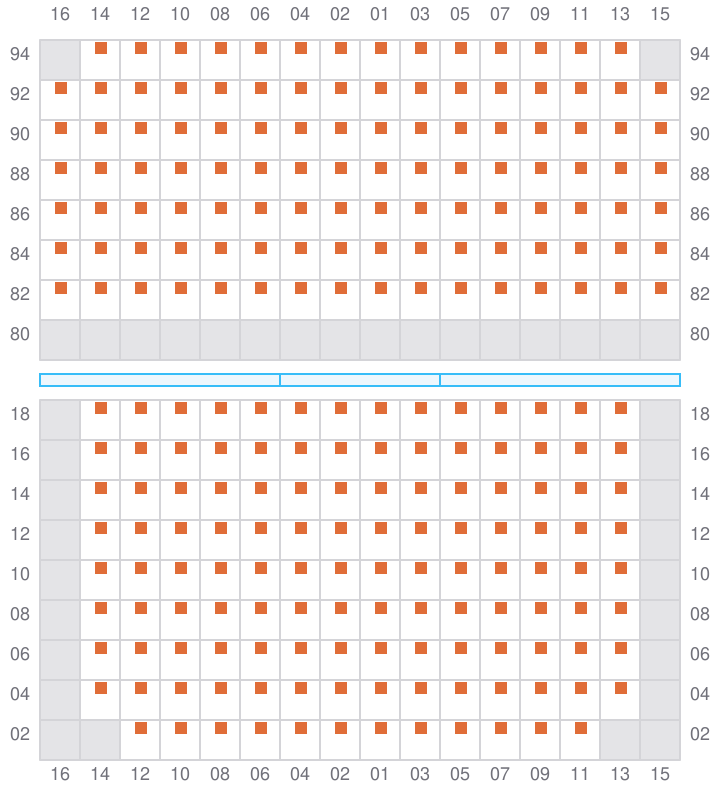

045 (046)
- →
047
- ←
049 (050)
- →
051
- ←
053 (054)
- →
055
- ←

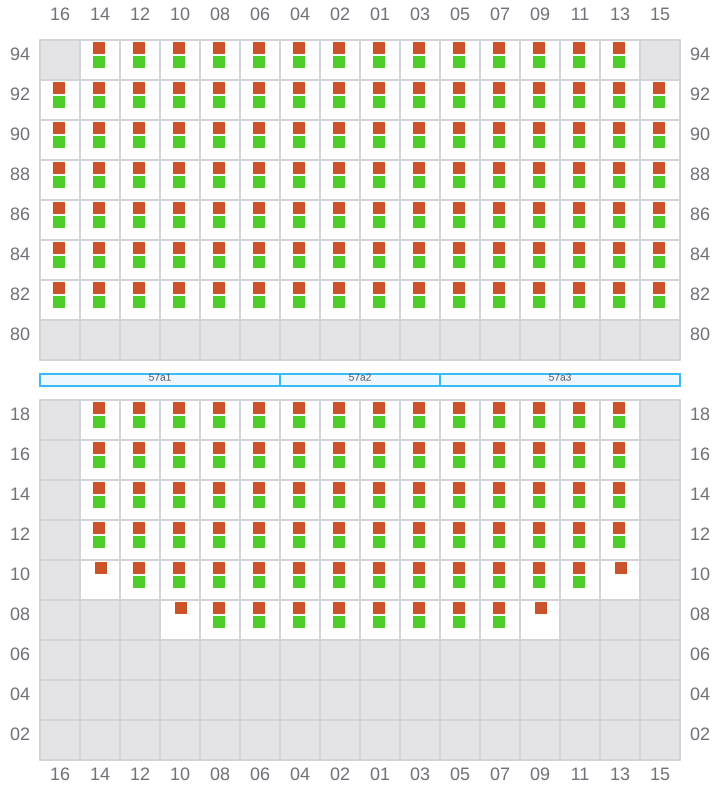

057 (058)
- →
059
- ←
061 (062)
- →
063
- ←
065 (066)
- →
067
- ←

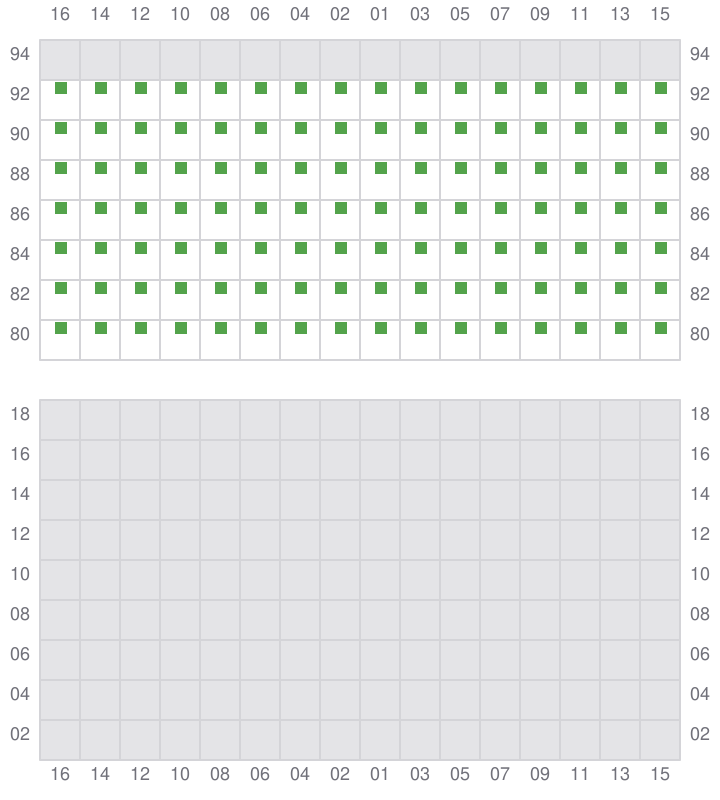

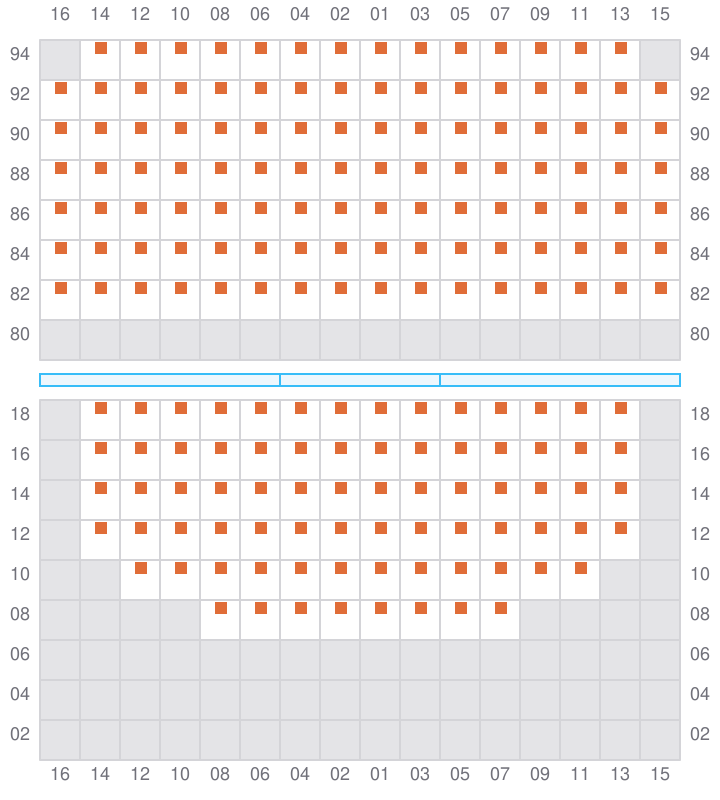

069 (070)
- → / ?
