MSC MARTA
9295385 | 3ECV4 | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:MSC MARTA
IMO Code:9295385
Call Sign:3ECV4
Line Operator:MSC
Class Name for Sister Ships:MRT
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,934
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

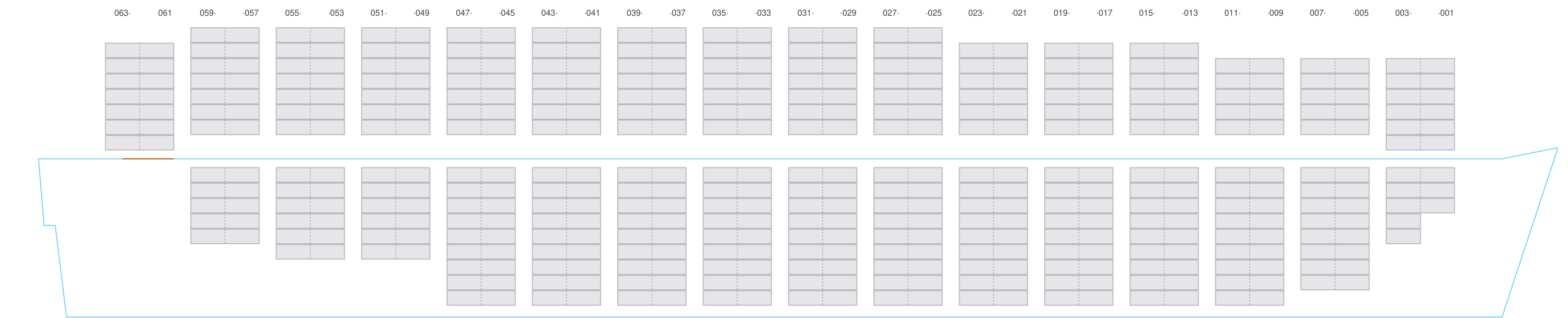

Side View

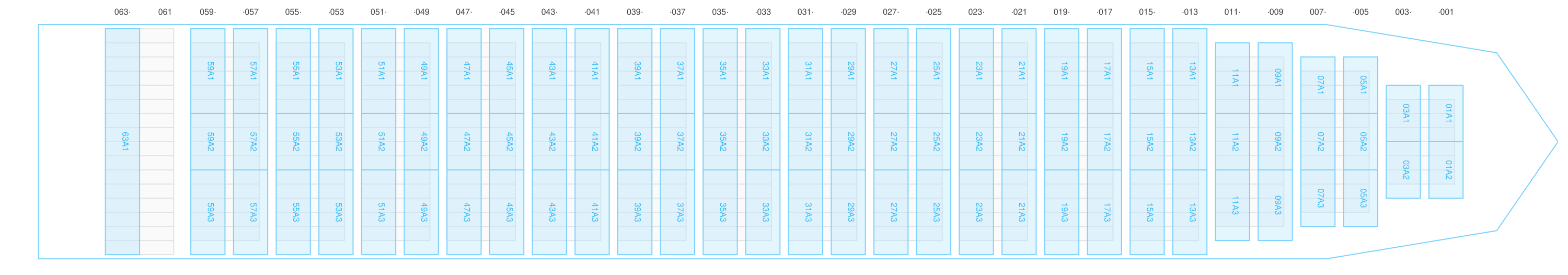

Hatch-Covers View

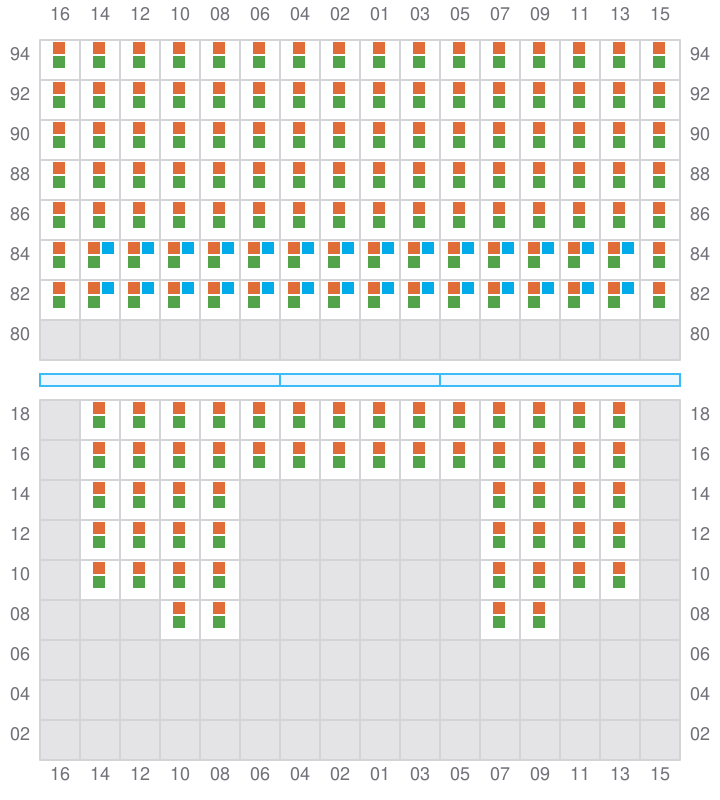

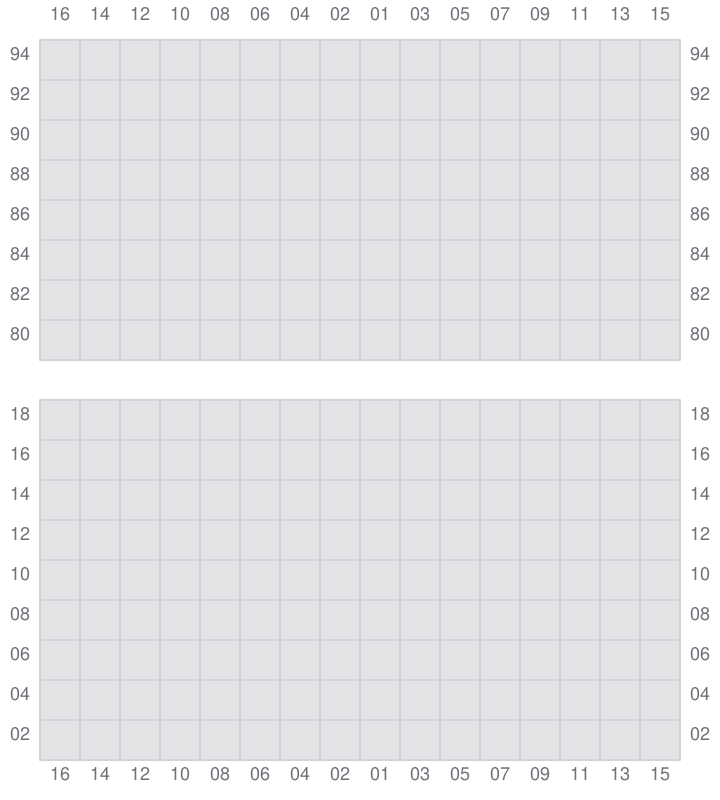

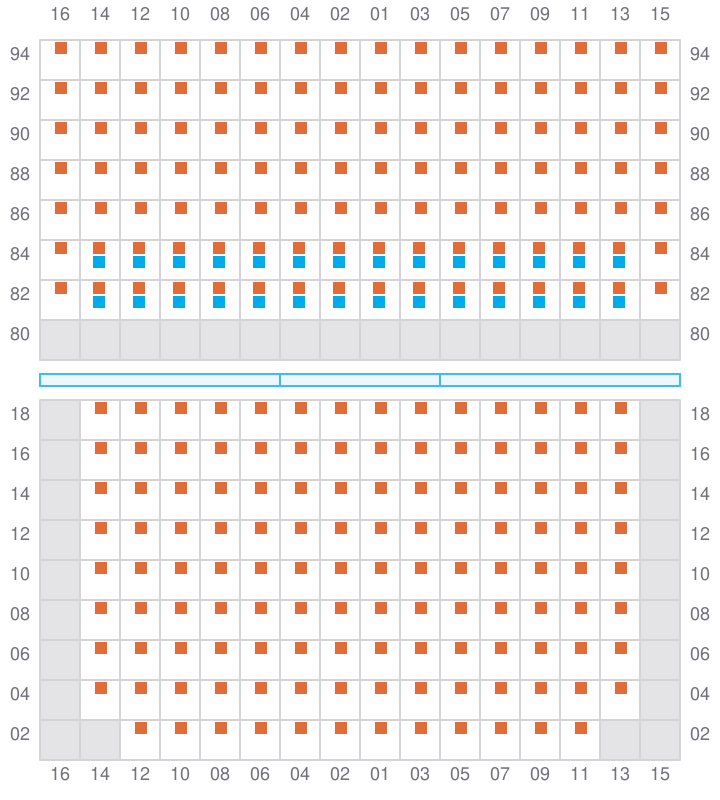

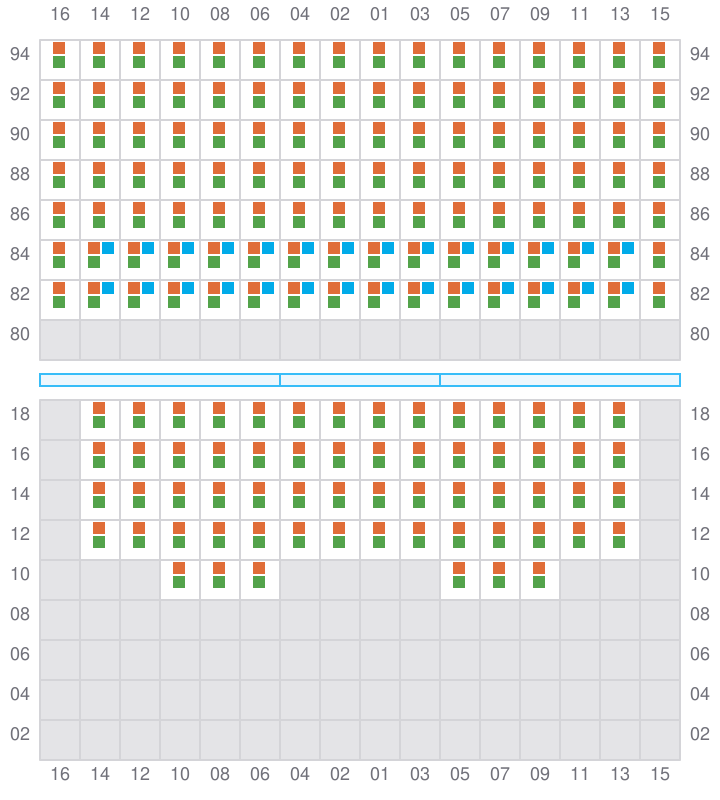

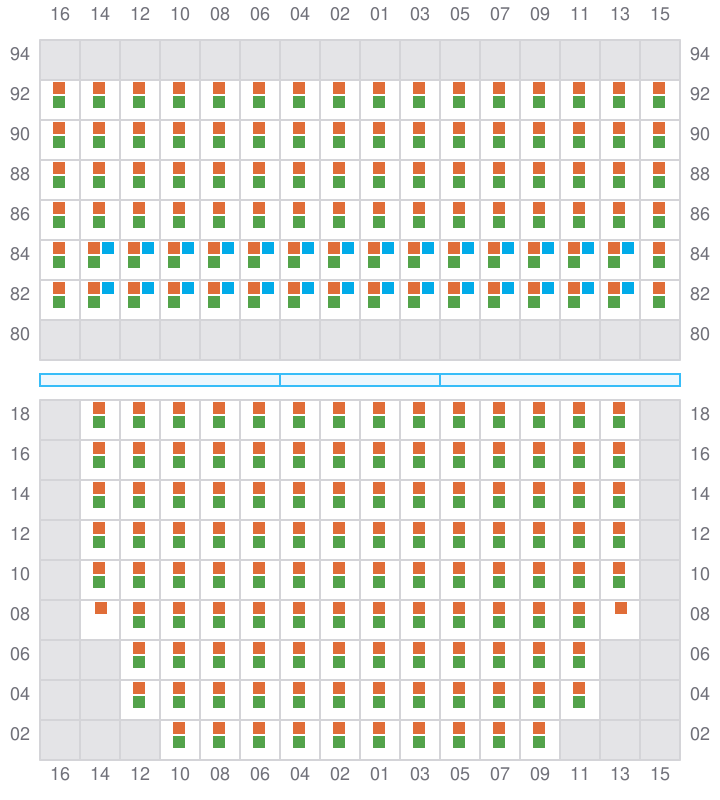

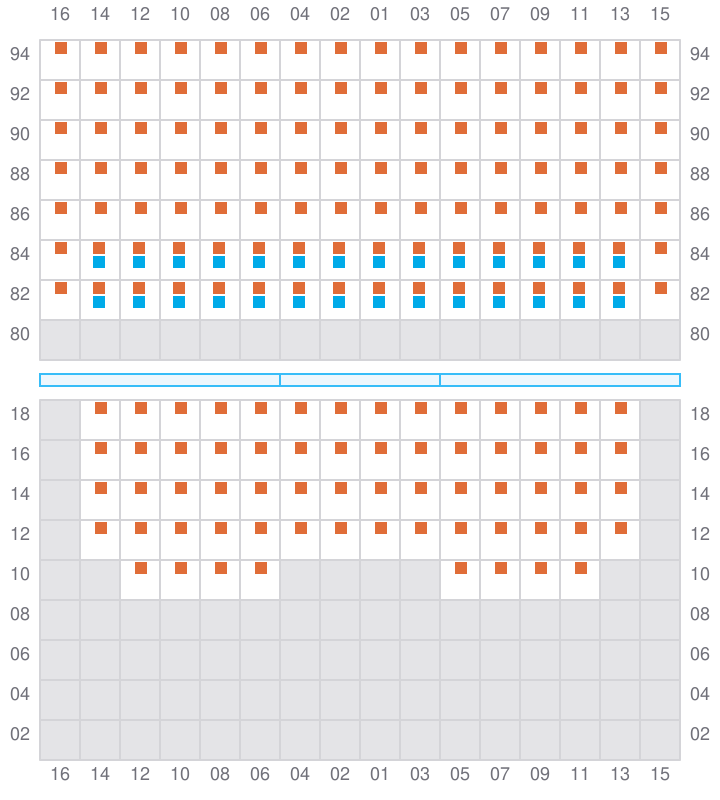

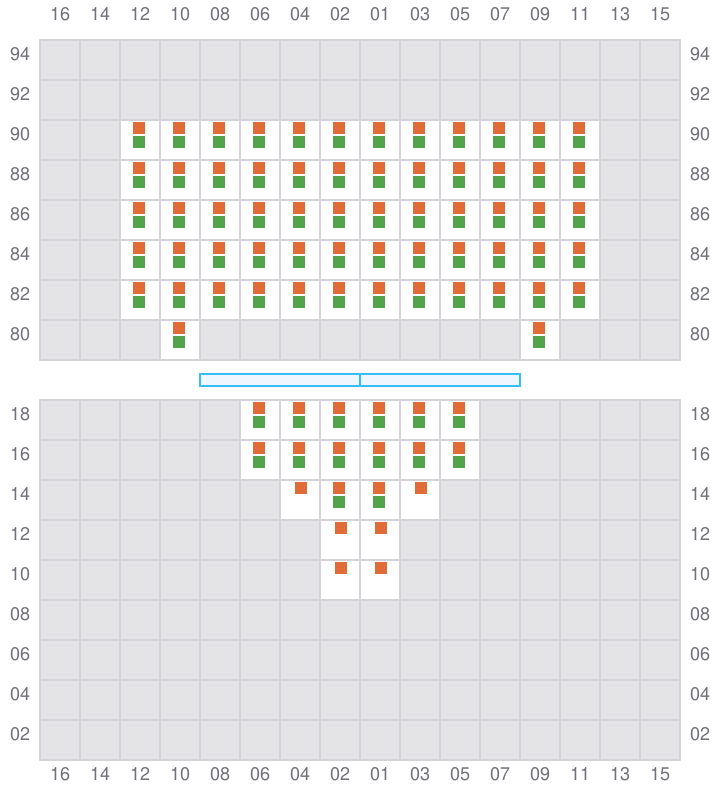

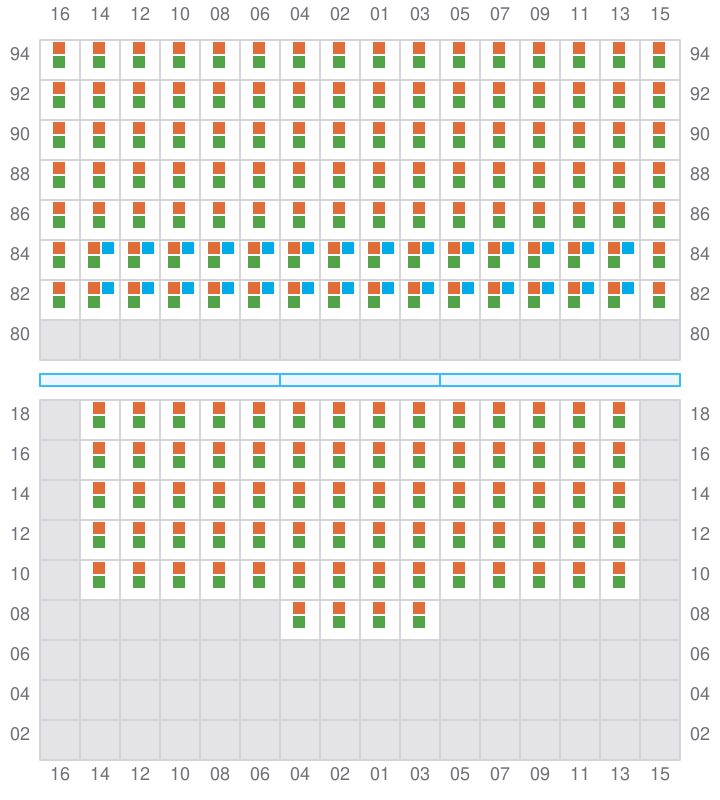

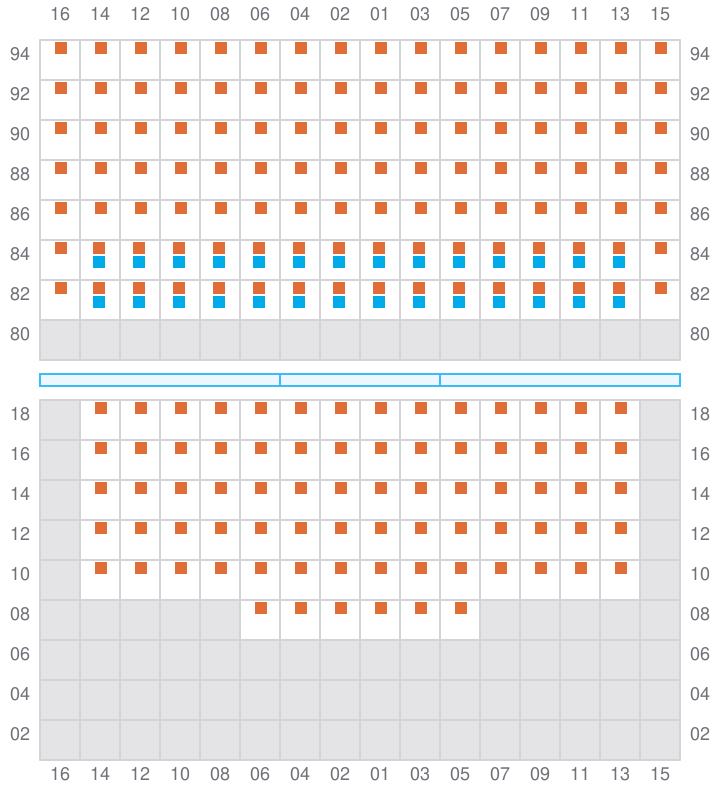

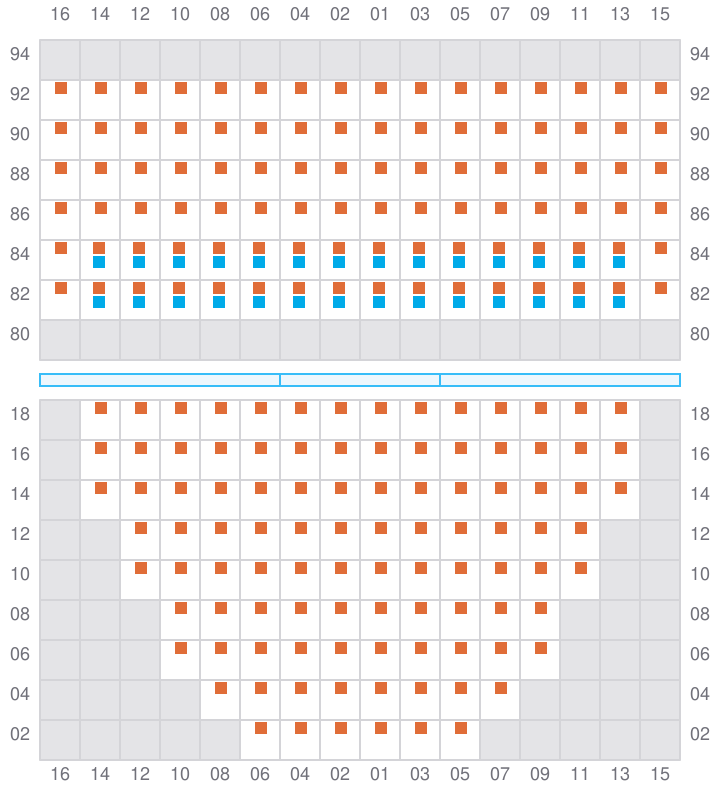

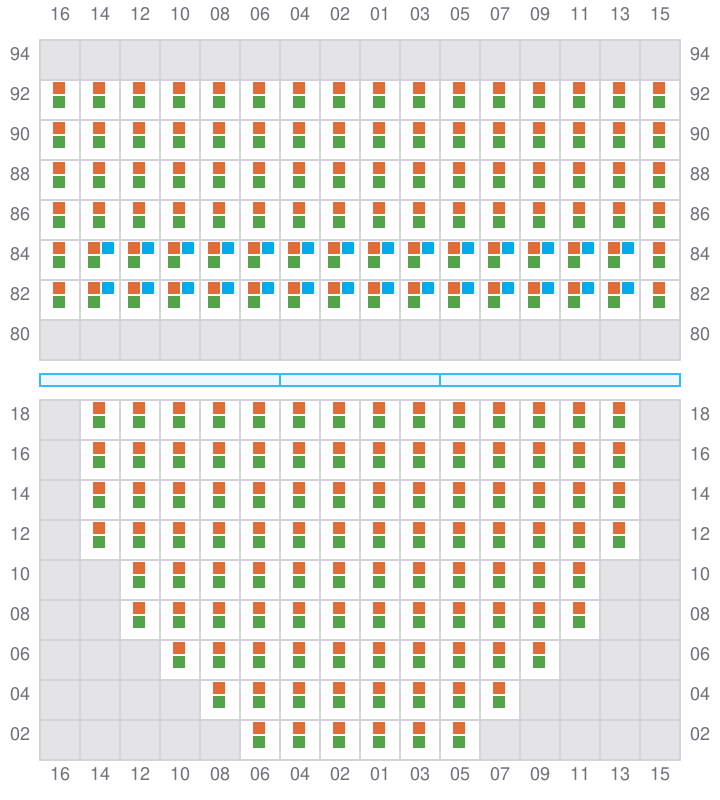

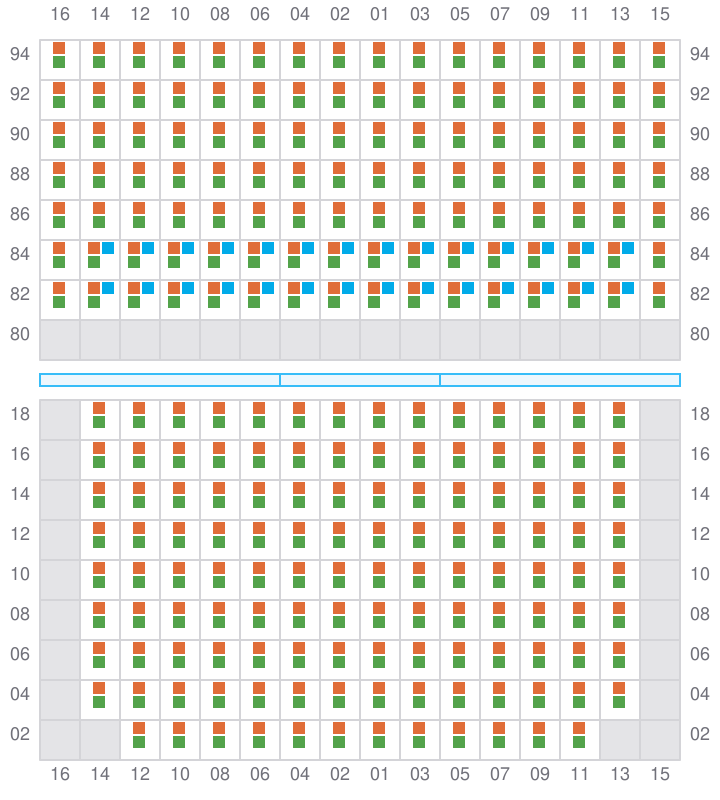

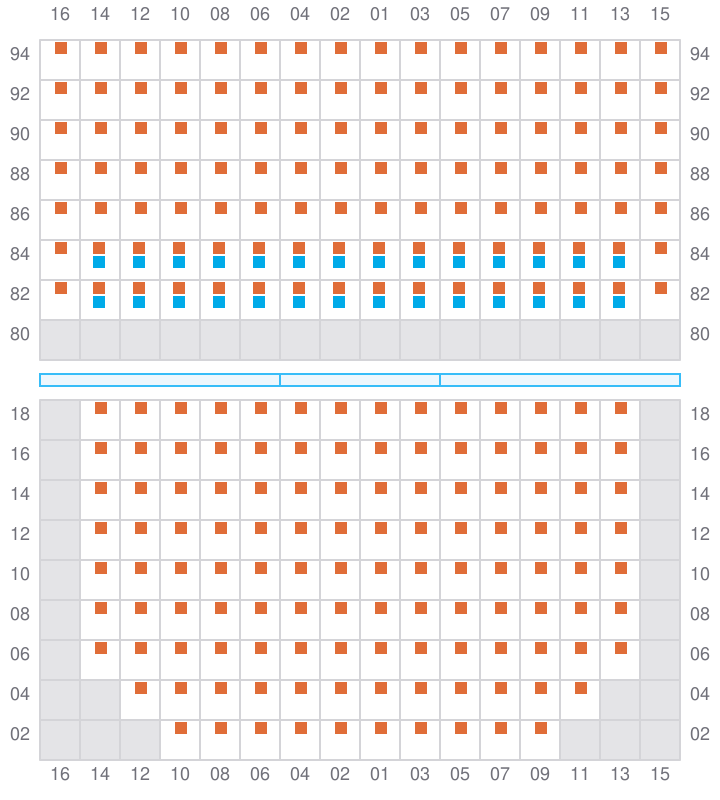

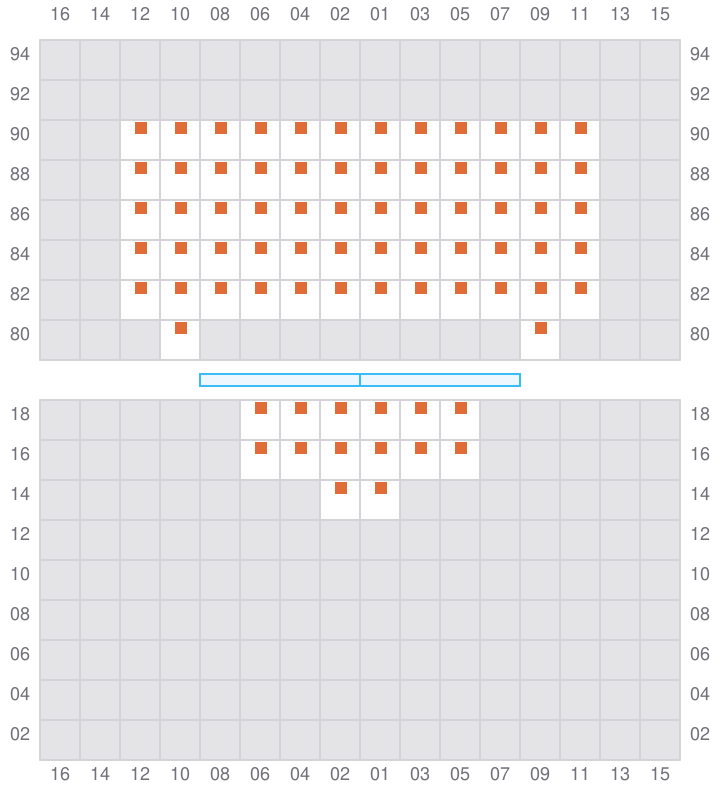

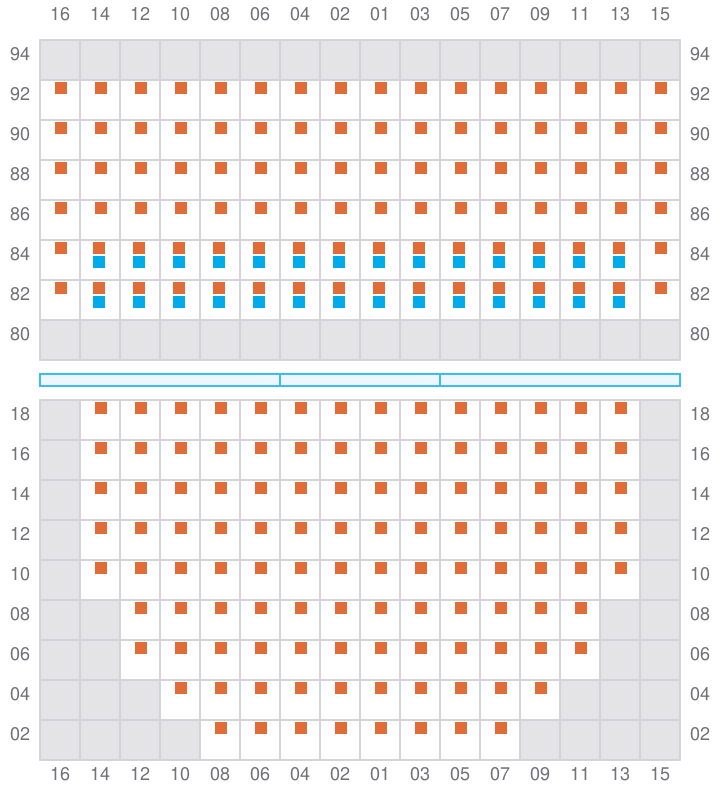

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

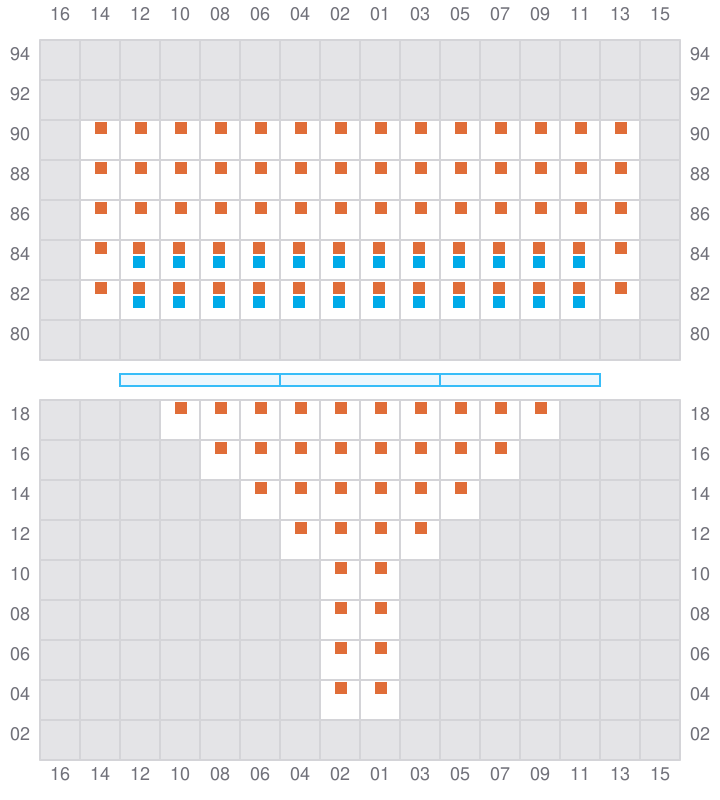

001
- →
- →

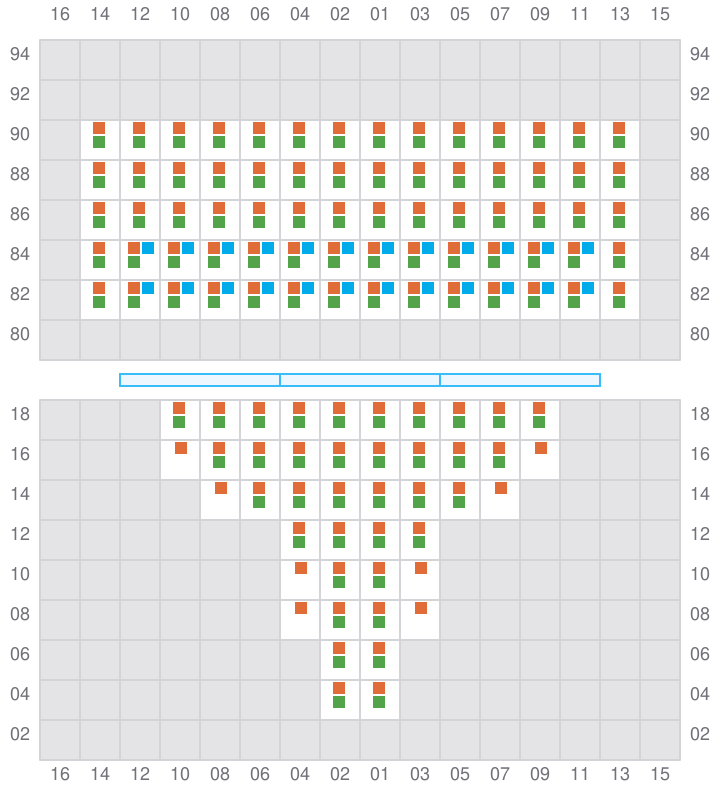

003 (002)
- ←
- →
005
- →
- → / ?
- →
007 (006)
- ←
- → / ?
- →

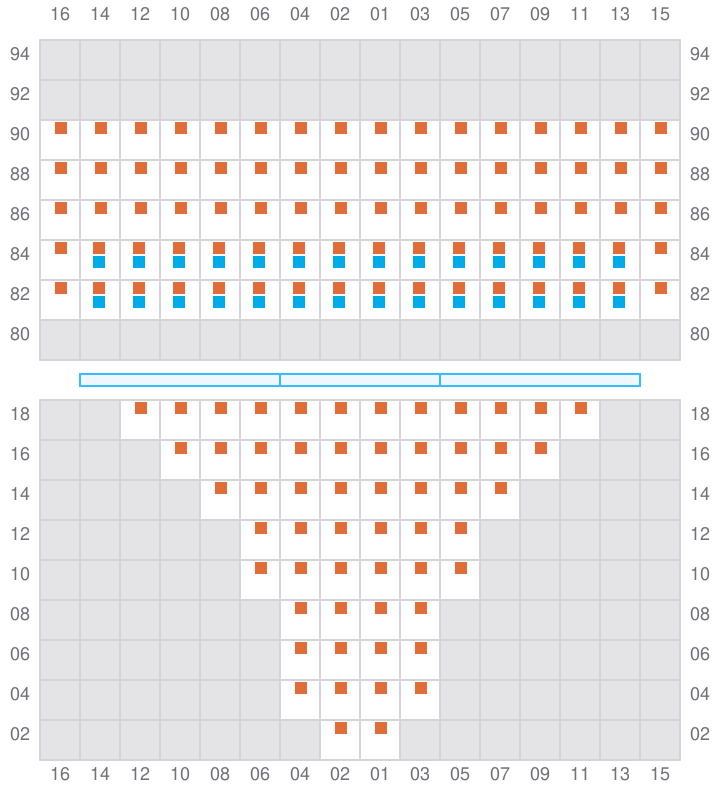

009
- →
- → / ?
- →
011 (010)
- ←
- → / ?
- →

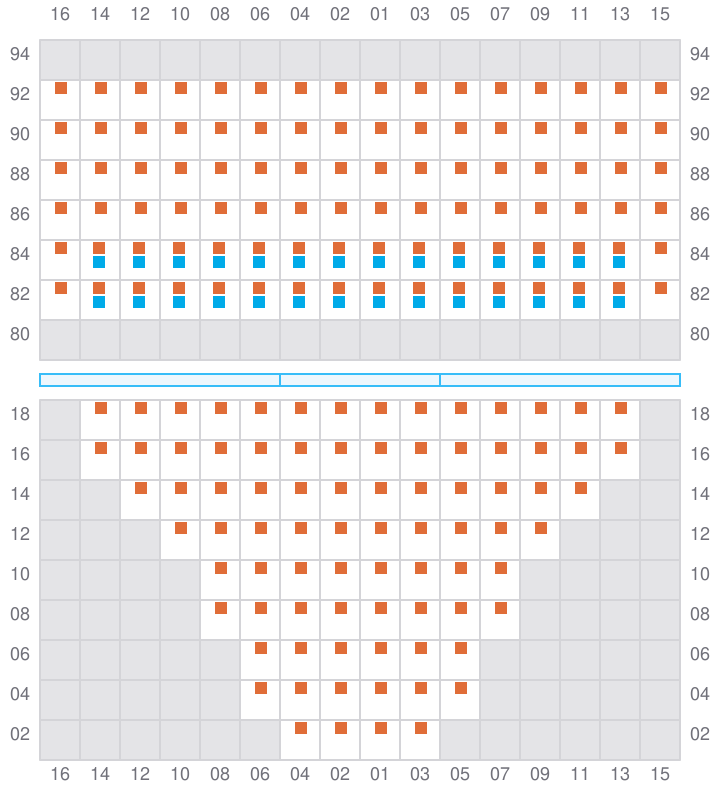

013
- →
- → / ?
- →

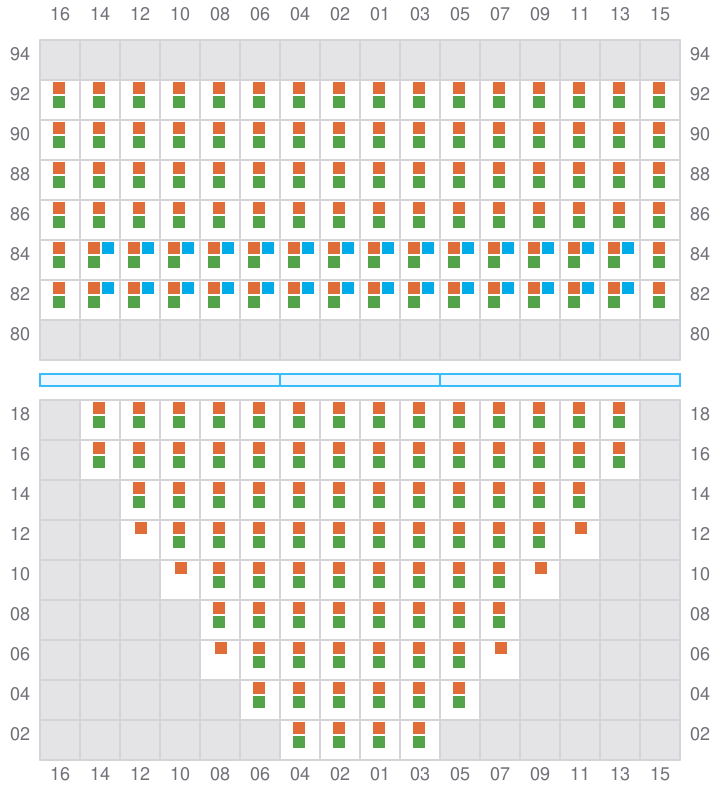

015 (014)
- ←
- → / ?
- →
017
- →
- → / ?
- →
019 (018)
- ←
- → / ?
- →
021
- →
- → / ?
- →
023 (022)
- ←
- → / ?
- →
025
- →
- → / ?
- →
027 (026)
- ←
- → / ?
- →
029
- →
- → / ?
- →
031 (030)
- ←
- → / ?
- →
033
- →
- → / ?
- →
035 (034)
- ←
- → / ?
- →
037
- →
- → / ?
- →
039 (038)
- ←
- → / ?
- →
041
- →
- → / ?
- →
043 (042)
- ←
- → / ?
- →
045
- →
- → / ?
- →
047 (046)
- ←
- → / ?
- →

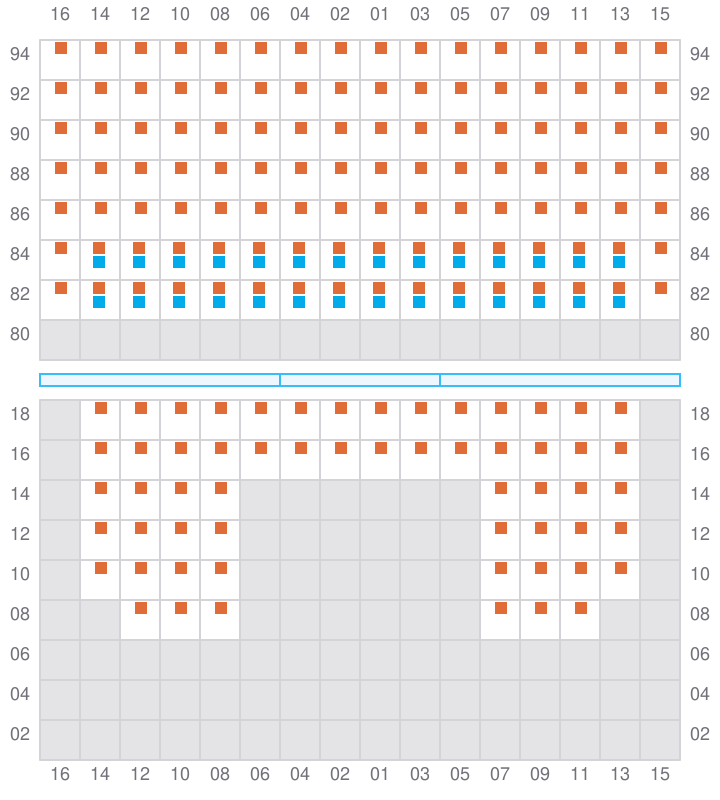

049
- →
- → / ?
- →
051 (050)
- ←
- → / ?
- →
053
- →
- → / ?
- →
055 (054)
- ←
- → / ?
- →
057
- →
- → / ?
- →
059 (058)
- ←
- → / ?
- →
061

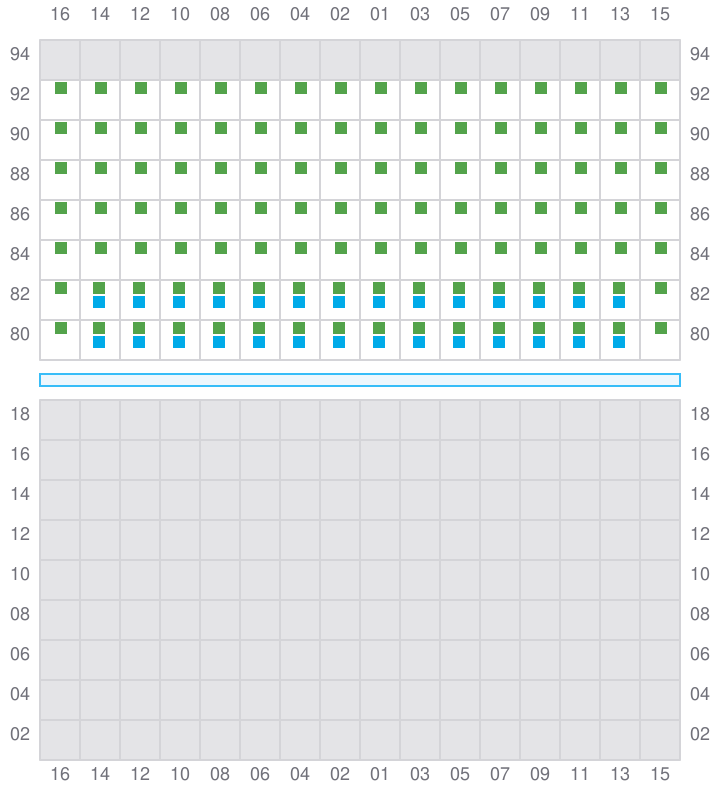

063 (062)
- ← / ?
- → / ?
- → / ?
