MSC MARTINA MARIA
9540077 | 5LIW2 by ************************** Last update: Mon Mar 25 2024

General Info

Ship Name:MSC MARTINA MARIA
IMO Code:9540077
Call Sign:5LIW2
Line Operator:-
Class Name for Sister Ships:MSMM
Year Built:2023
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:15,088

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

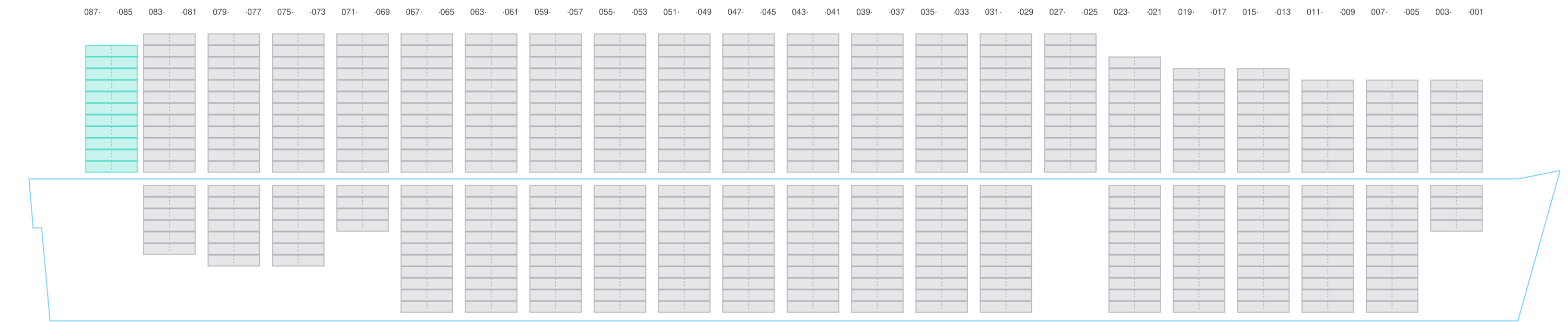

Side View

Side view of MSC MARTINA MARIA

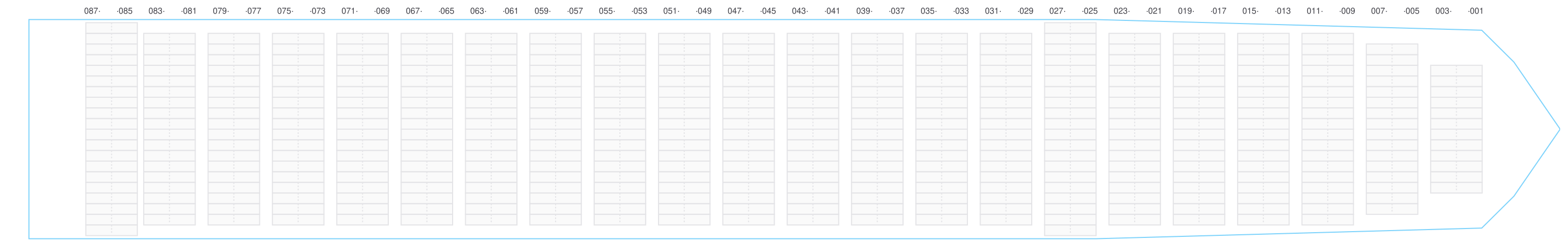

Hatch-Covers View

Deck view of MSC MARTINA MARIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

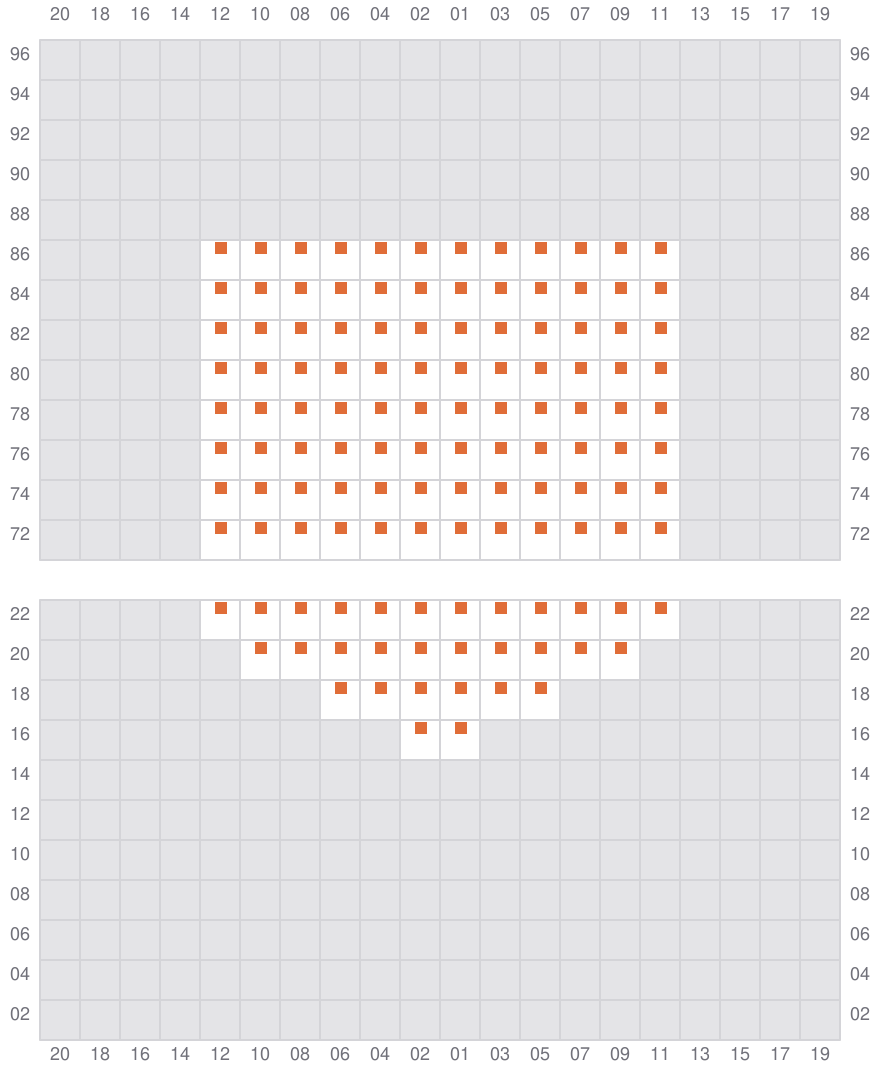

001

  • →
  • ✓
Bay 001 view and slots of MSC MARTINA MARIA

003 (002)

  • ←
  • ✓

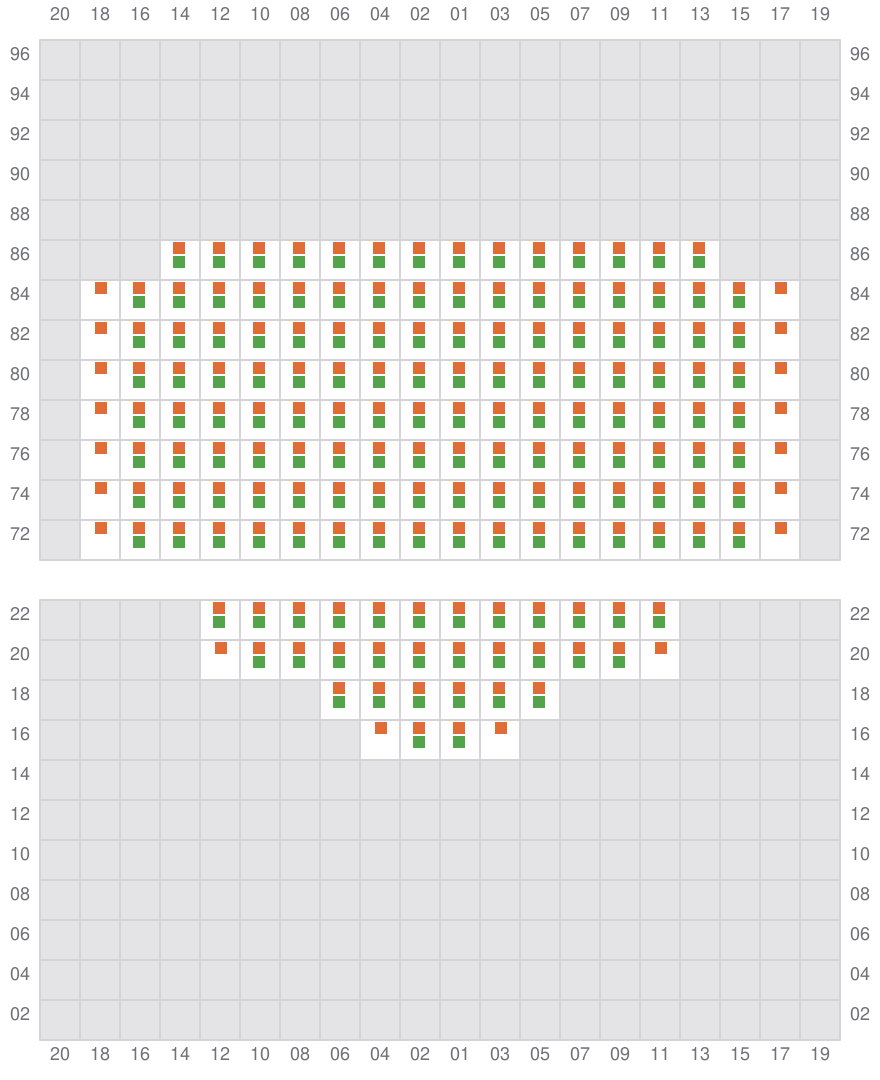

Bay 003 view and slots of MSC MARTINA MARIA

005

  • →
  • ✓

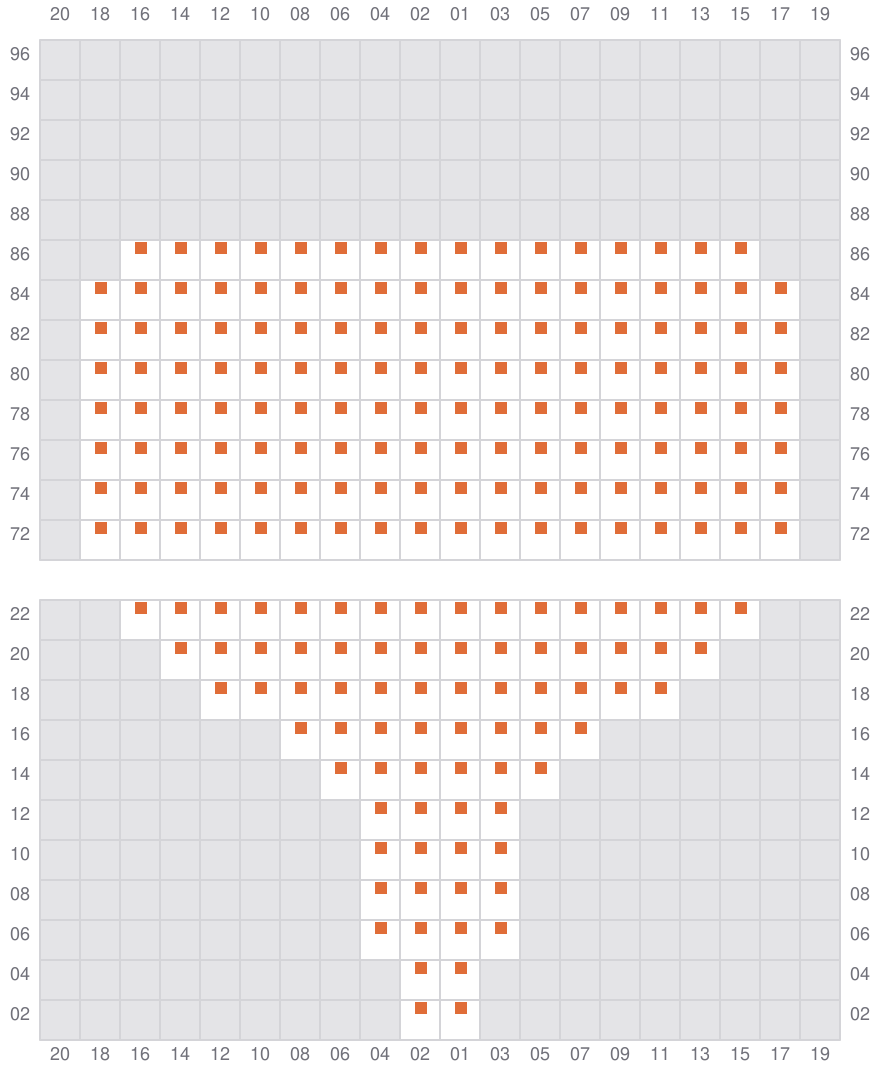

Bay 005 view and slots of MSC MARTINA MARIA

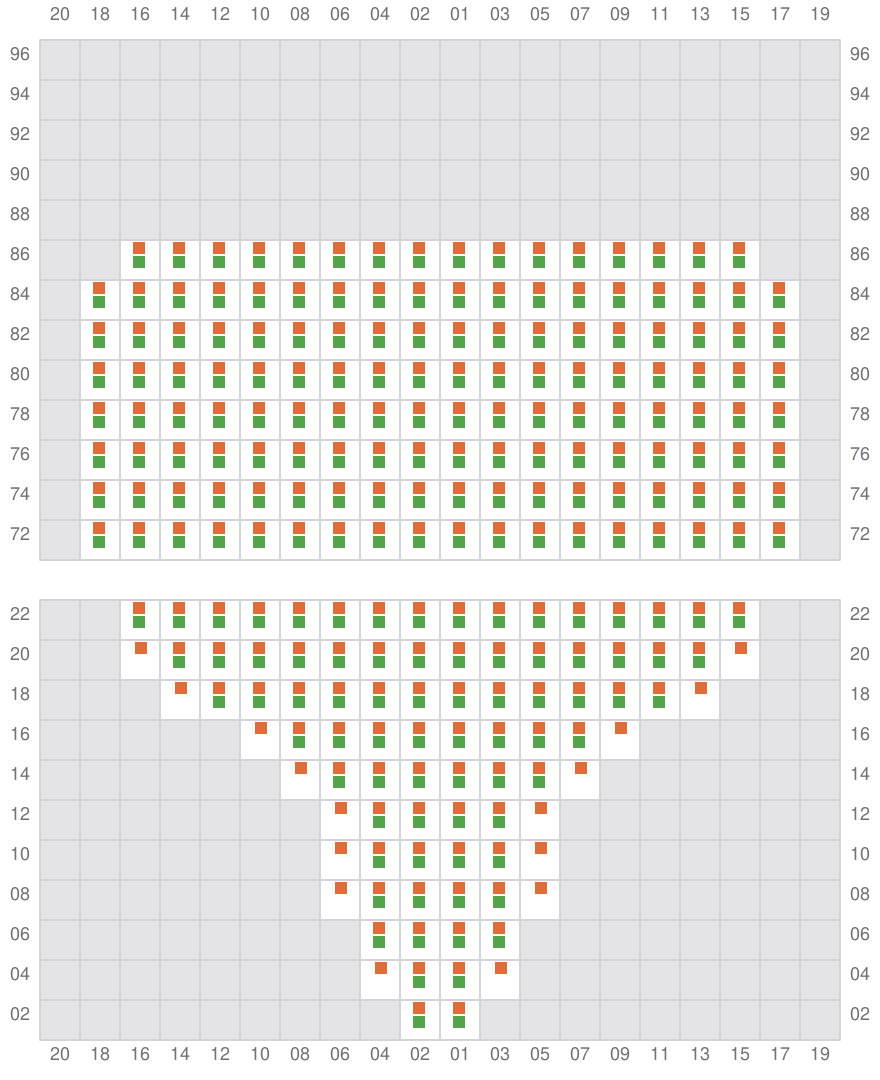

007 (006)

  • ←
  • ✓
Bay 007 view and slots of MSC MARTINA MARIA

009

  • →
  • ✓

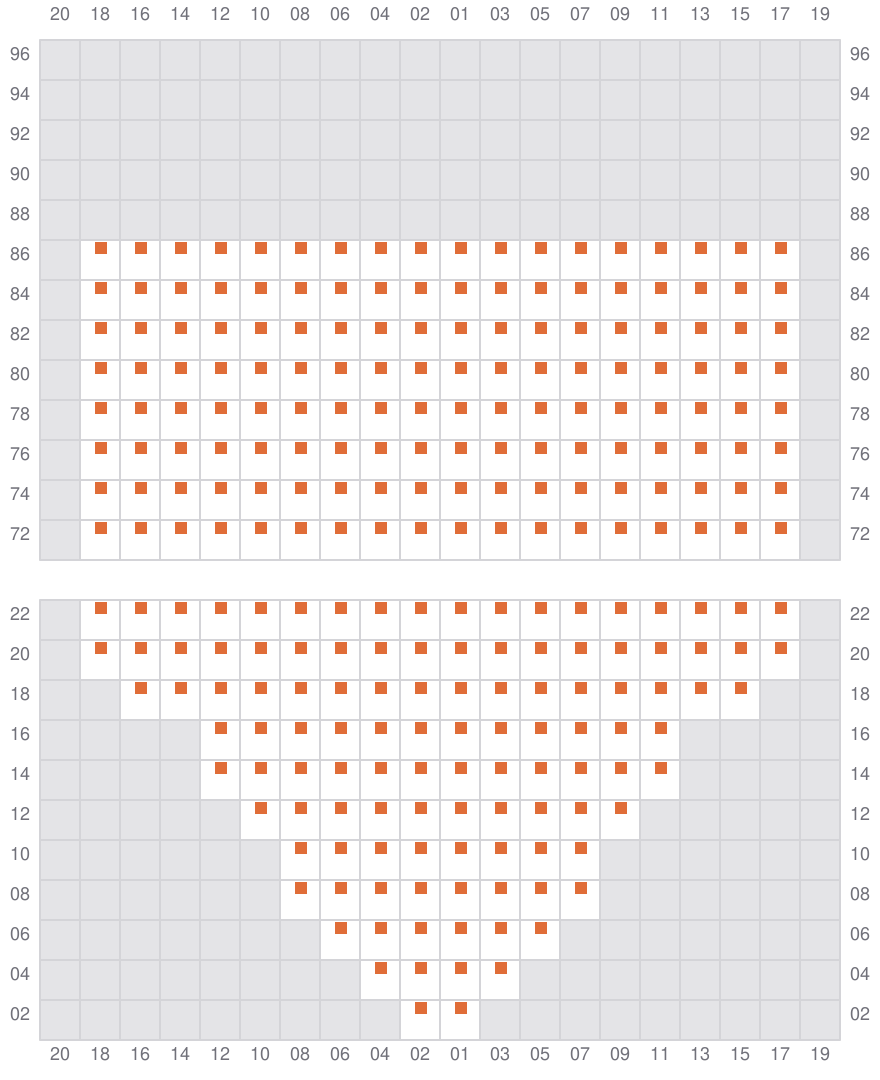

Bay 009 view and slots of MSC MARTINA MARIA

011 (010)

  • ←
  • ✓

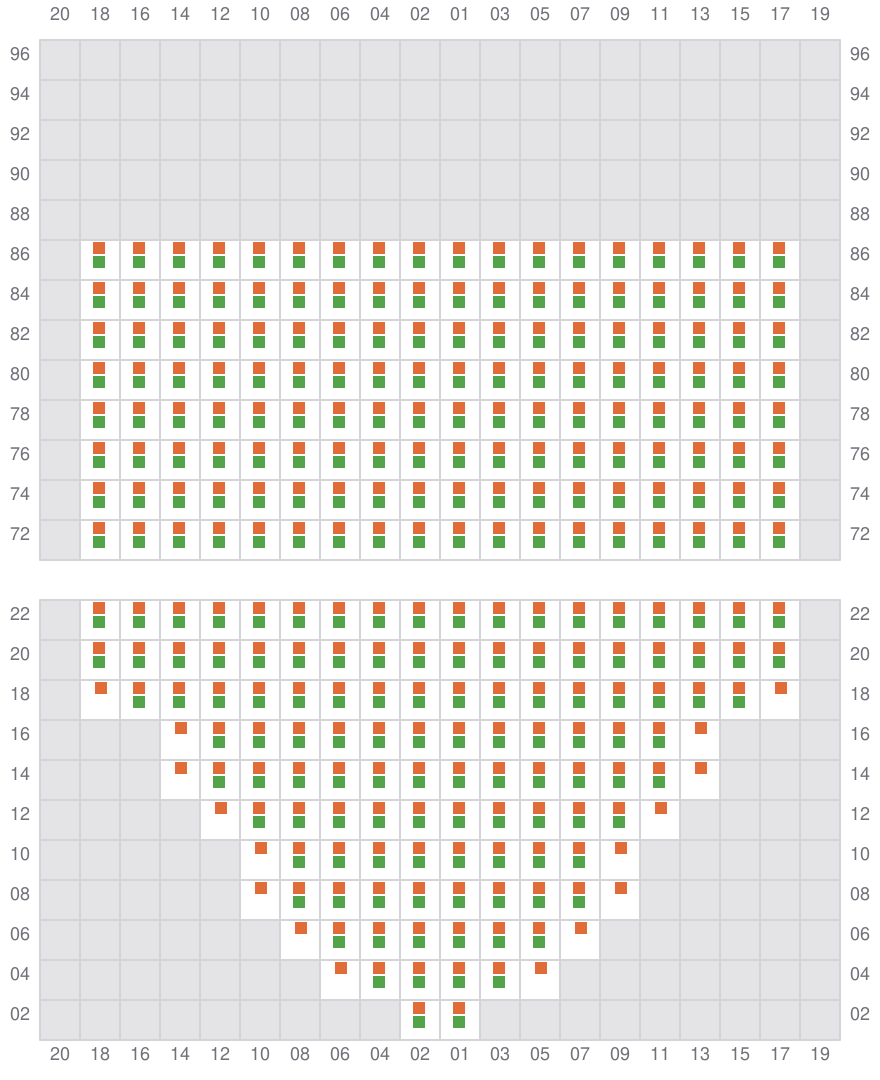

Bay 011 view and slots of MSC MARTINA MARIA

013

  • →
  • ✓

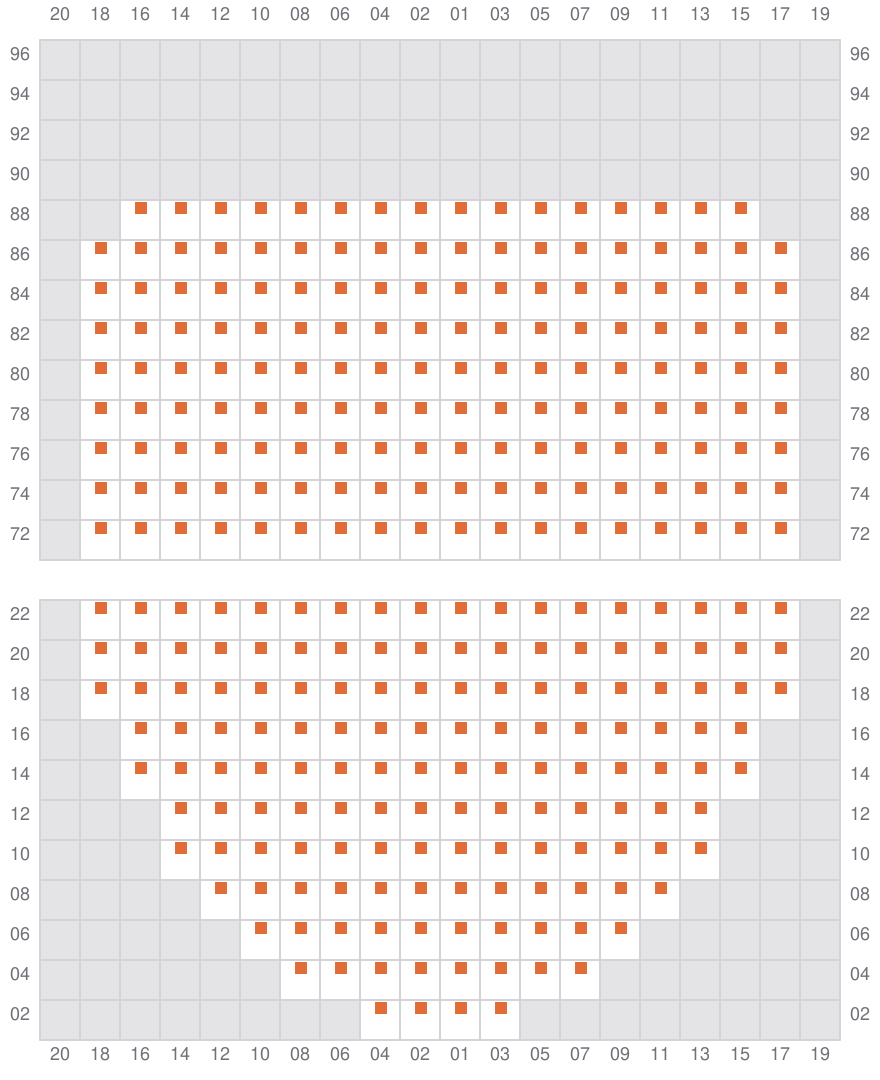

Bay 013 view and slots of MSC MARTINA MARIA

015 (014)

  • ←
  • ✓

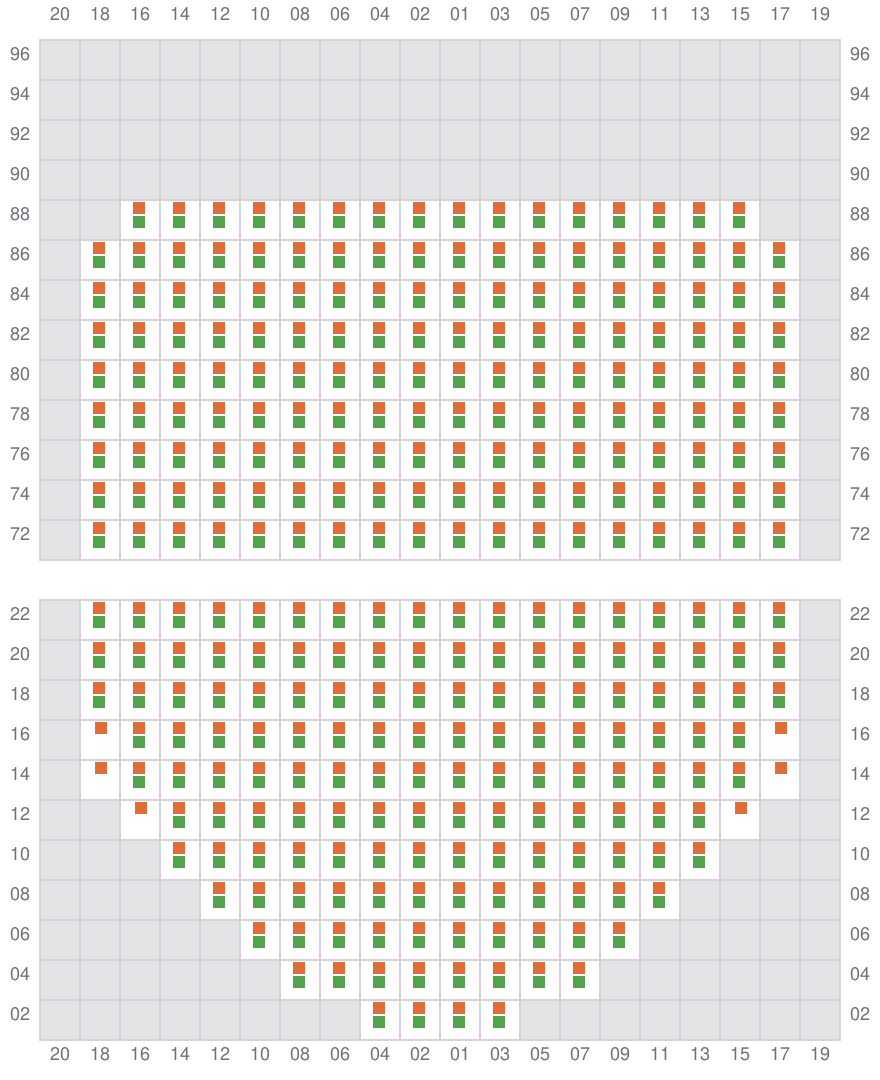

Bay 015 view and slots of MSC MARTINA MARIA

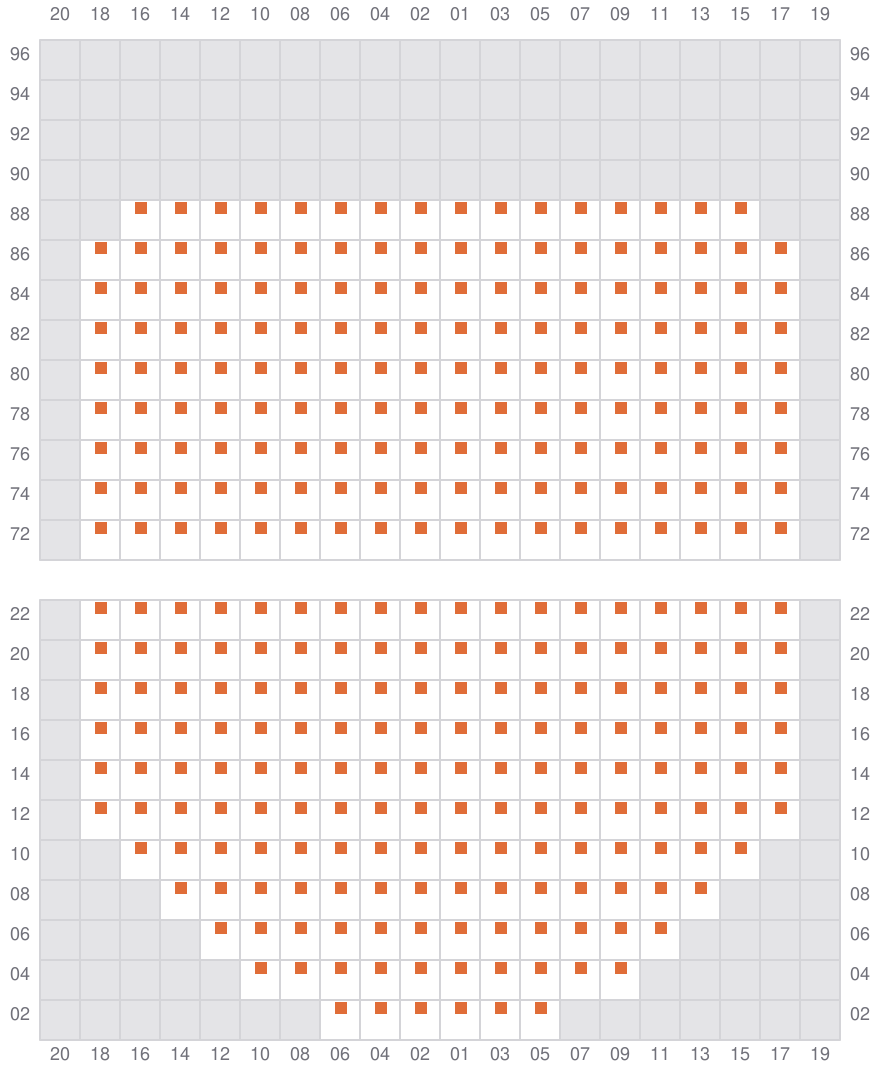

017

  • →
  • ✓
Bay 017 view and slots of MSC MARTINA MARIA

019 (018)

  • ←
  • ✓
Bay 019 view and slots of MSC MARTINA MARIA

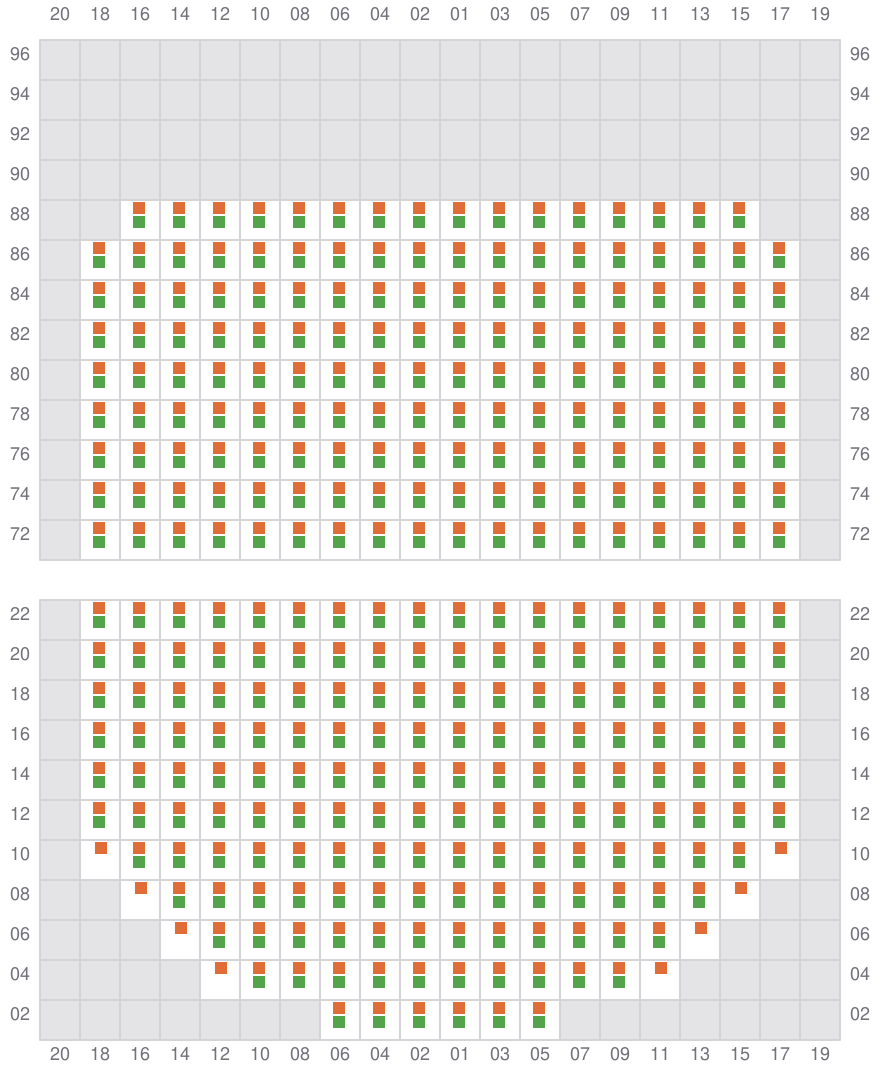

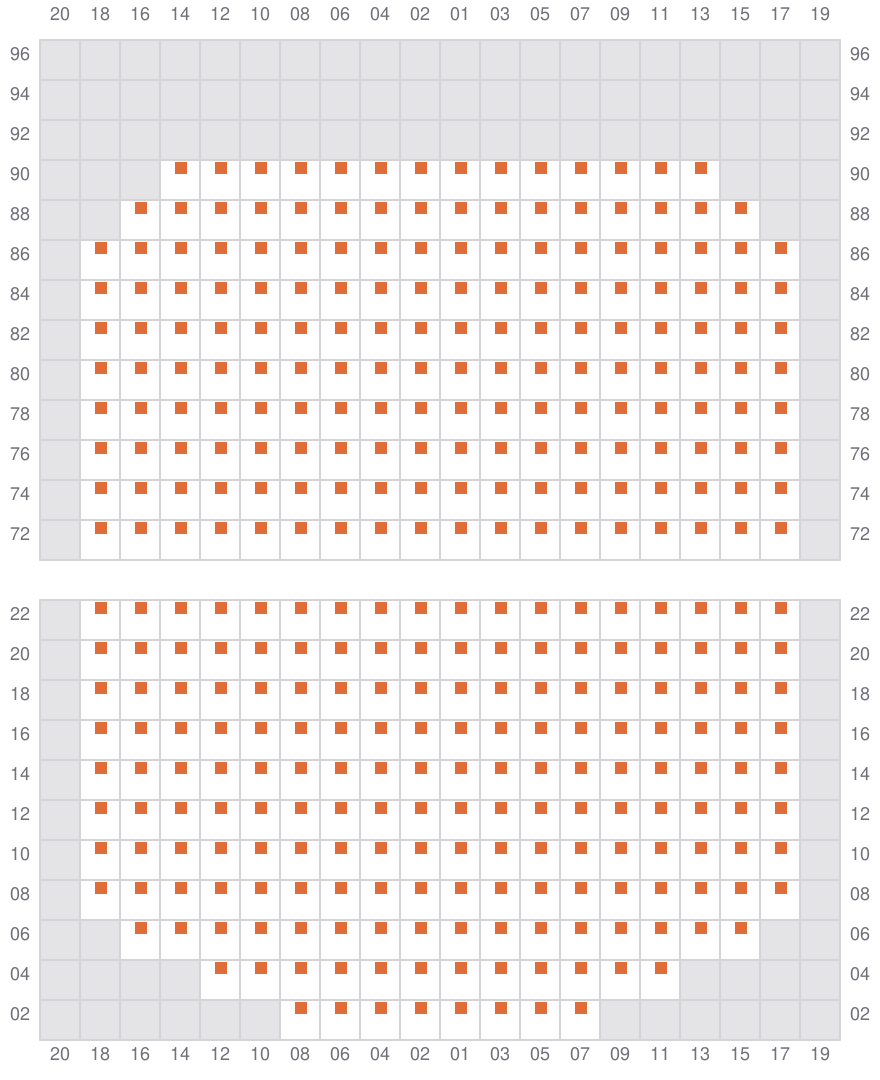

021

  • →
  • ✓
Bay 021 view and slots of MSC MARTINA MARIA

023 (022)

  • ←
  • ✓

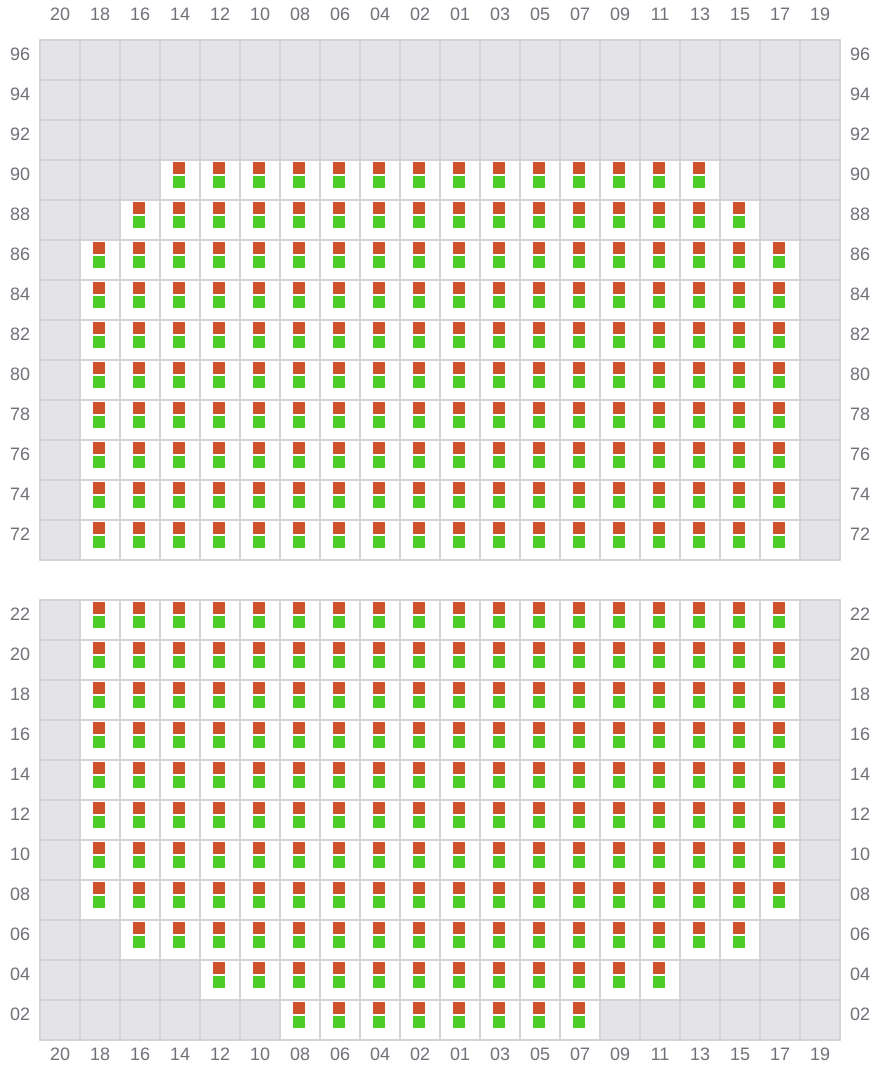

Bay 023 view and slots of MSC MARTINA MARIA

025

  • →
  • ? / ?
  • ? / ?
  • ✓
Bay 025 view and slots of MSC MARTINA MARIA

027 (026)

  • ←
  • ? / ?
  • ? / ?
  • ✓
Bay 027 view and slots of MSC MARTINA MARIA

029

  • →
  • ✓
Bay 029 view and slots of MSC MARTINA MARIA

031 (030)

  • ←
  • ✓
Bay 031 view and slots of MSC MARTINA MARIA

033

  • →
  • ✓
Bay 033 view and slots of MSC MARTINA MARIA

035 (034)

  • ←
  • ✓
Bay 035 view and slots of MSC MARTINA MARIA

037

  • →
  • ✓
Bay 037 view and slots of MSC MARTINA MARIA

039 (038)

  • ←
  • ✓
Bay 039 view and slots of MSC MARTINA MARIA

041

  • →
  • ✓
Bay 041 view and slots of MSC MARTINA MARIA

043 (042)

  • ←
  • ✓

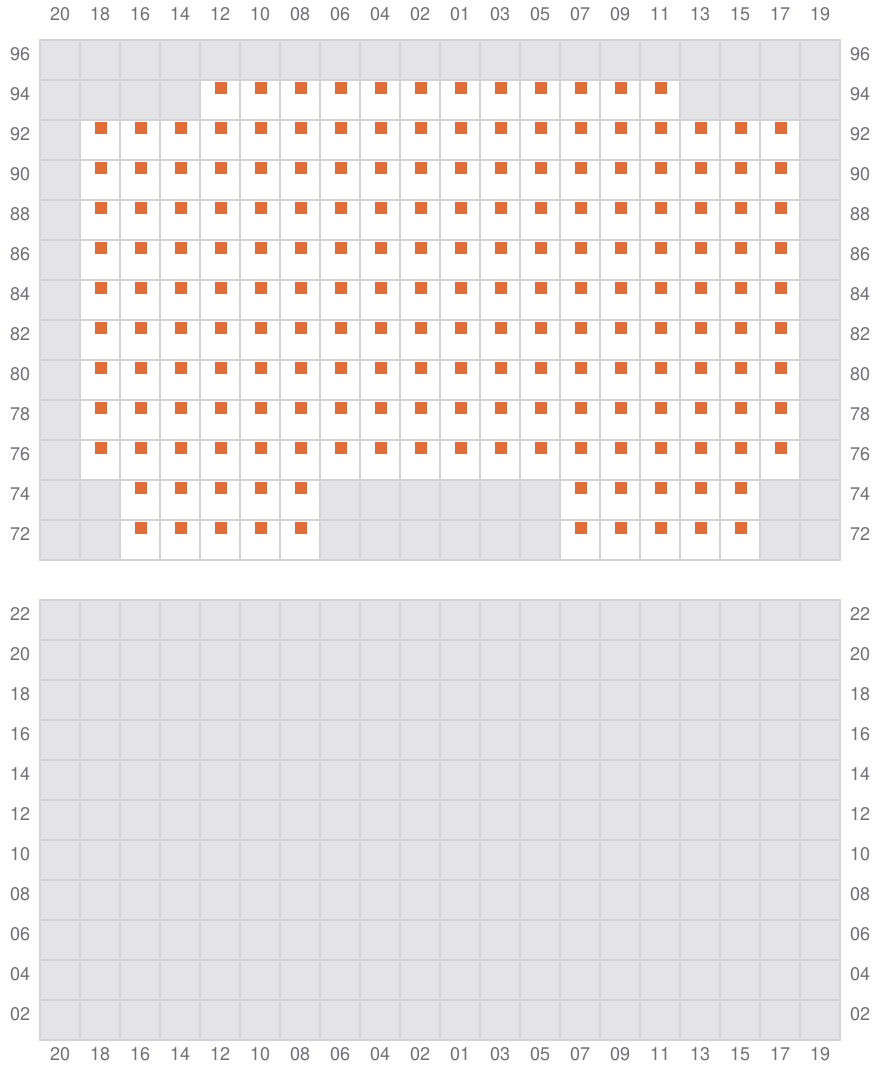

Bay 043 view and slots of MSC MARTINA MARIA

045

  • →
  • ✓

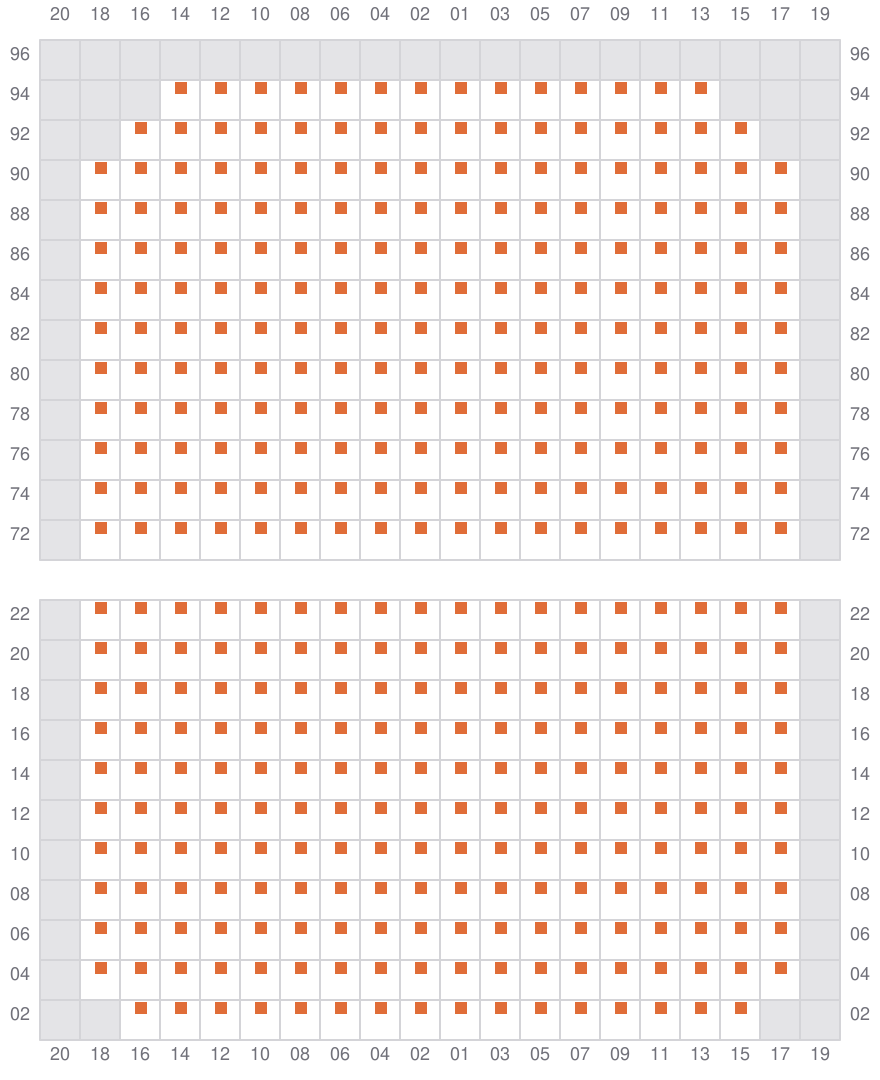

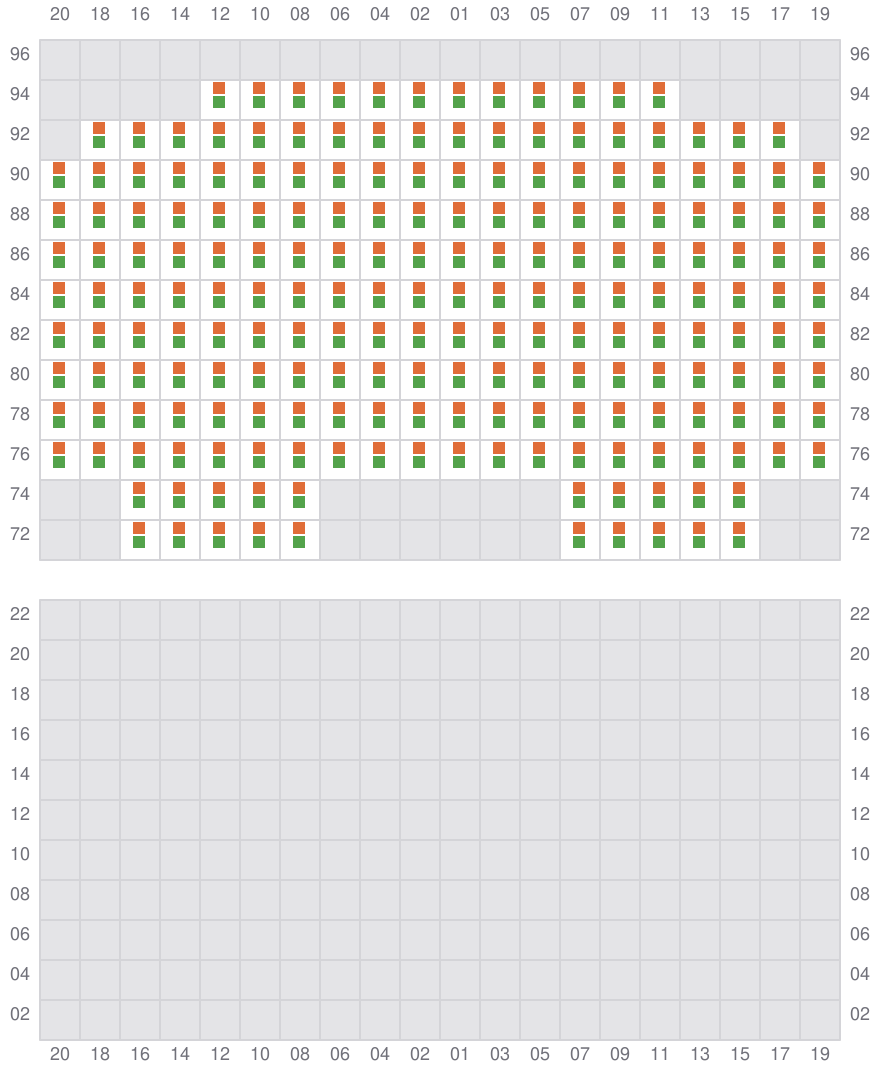

Bay 045 view and slots of MSC MARTINA MARIA

047 (046)

  • ←
  • ✓
Bay 047 view and slots of MSC MARTINA MARIA

049

  • →
  • ✓

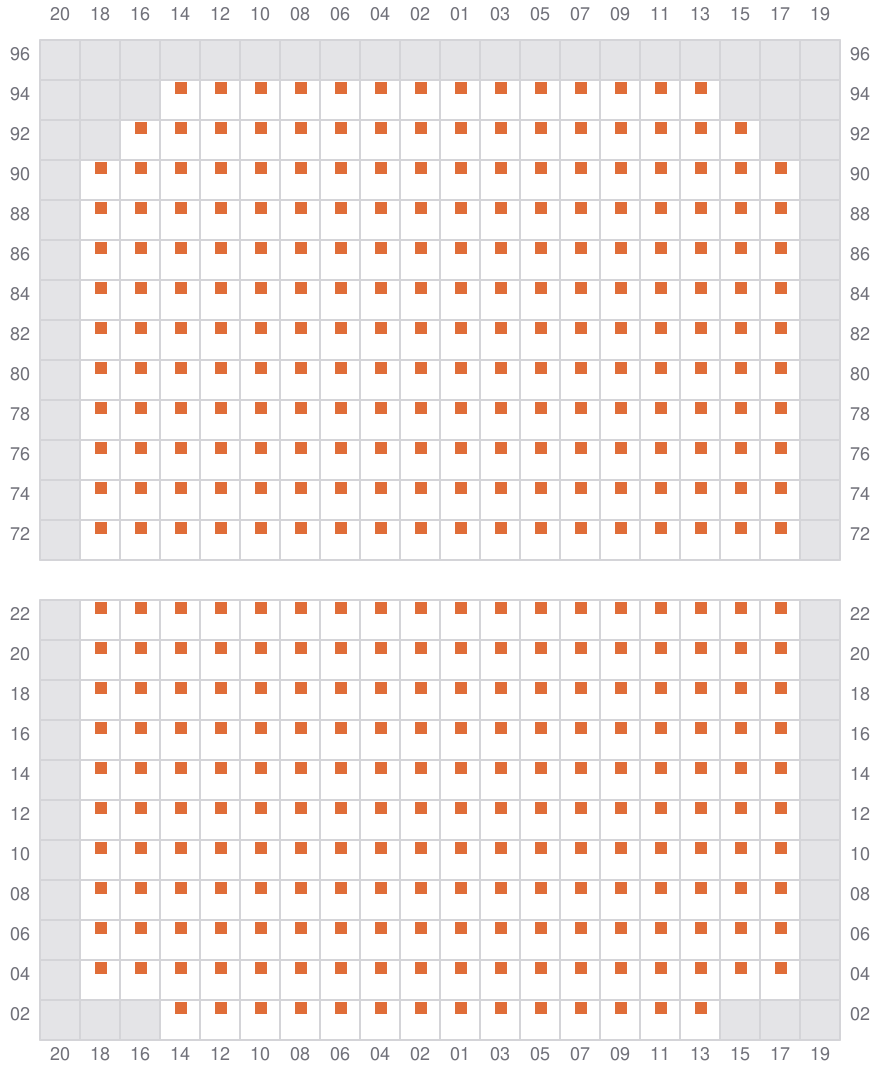

Bay 049 view and slots of MSC MARTINA MARIA

051 (050)

  • ←
  • ✓

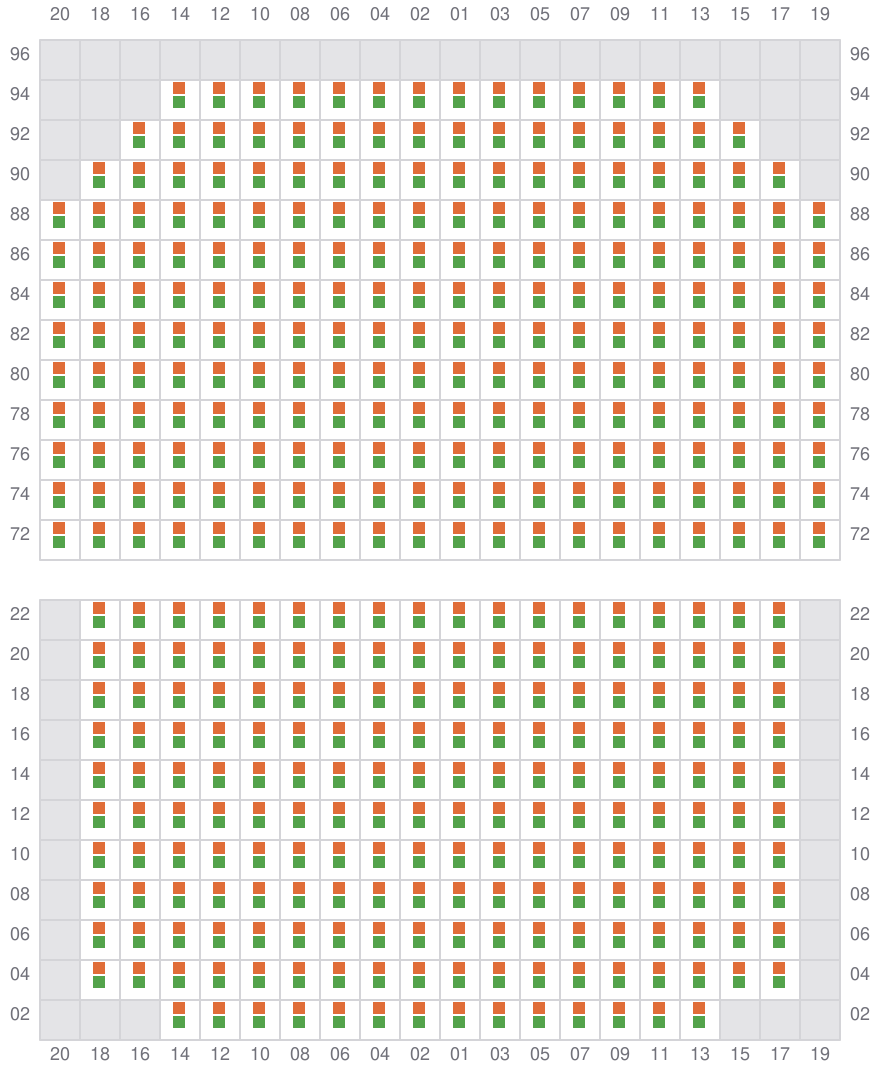

Bay 051 view and slots of MSC MARTINA MARIA

053

  • →
  • ✓
Bay 053 view and slots of MSC MARTINA MARIA

055 (054)

  • ←
  • ✓
Bay 055 view and slots of MSC MARTINA MARIA

057

  • →
  • ✓

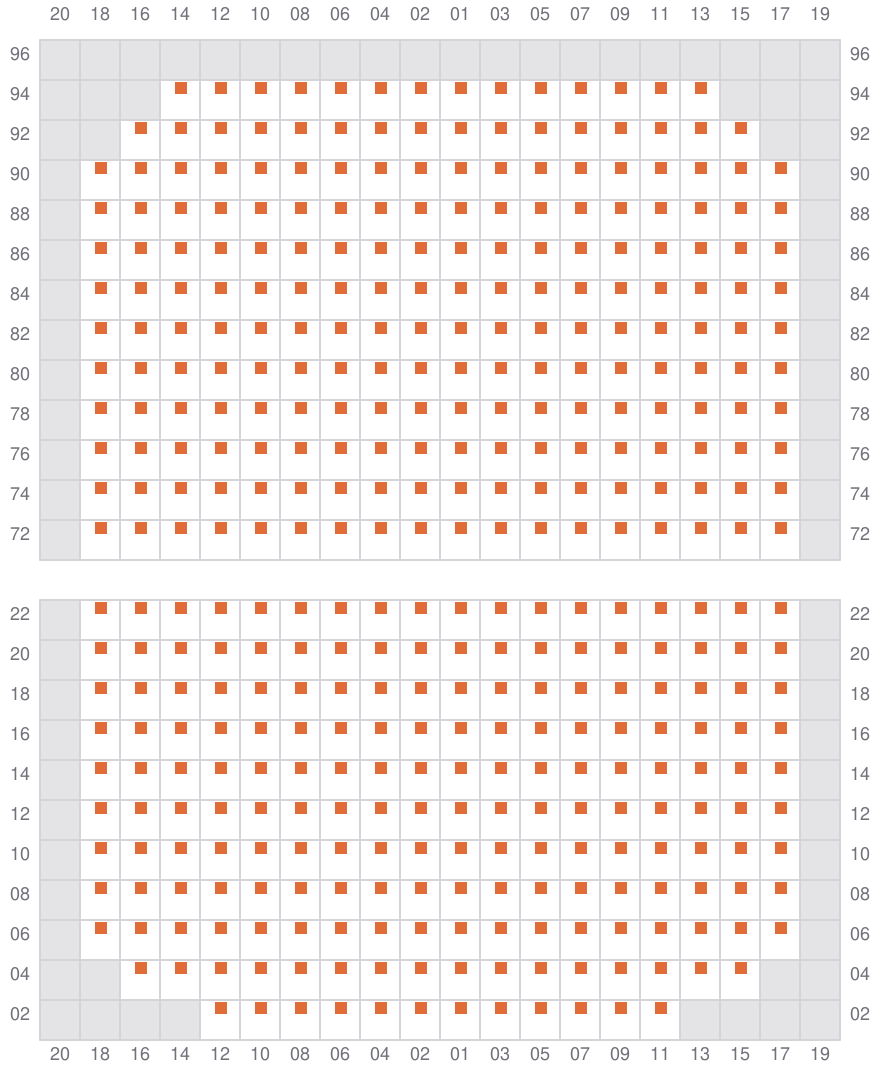

Bay 057 view and slots of MSC MARTINA MARIA

059 (058)

  • ←
  • ✓

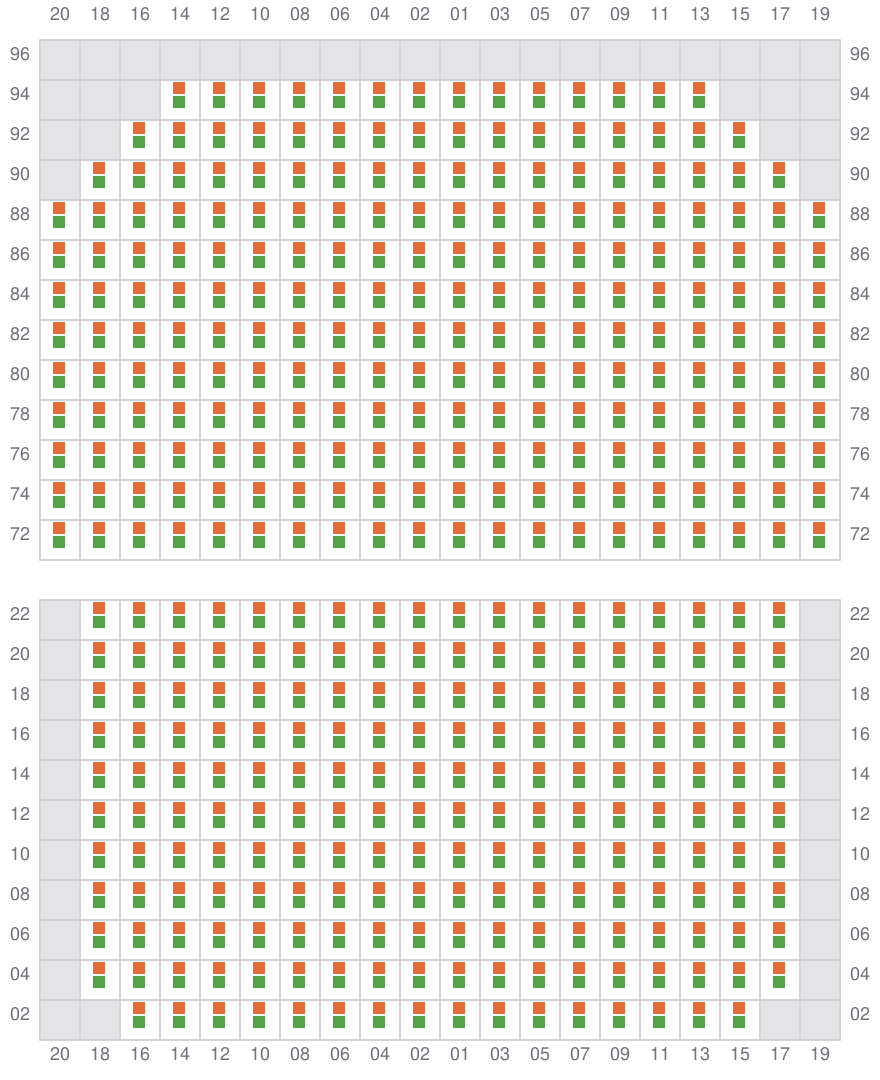

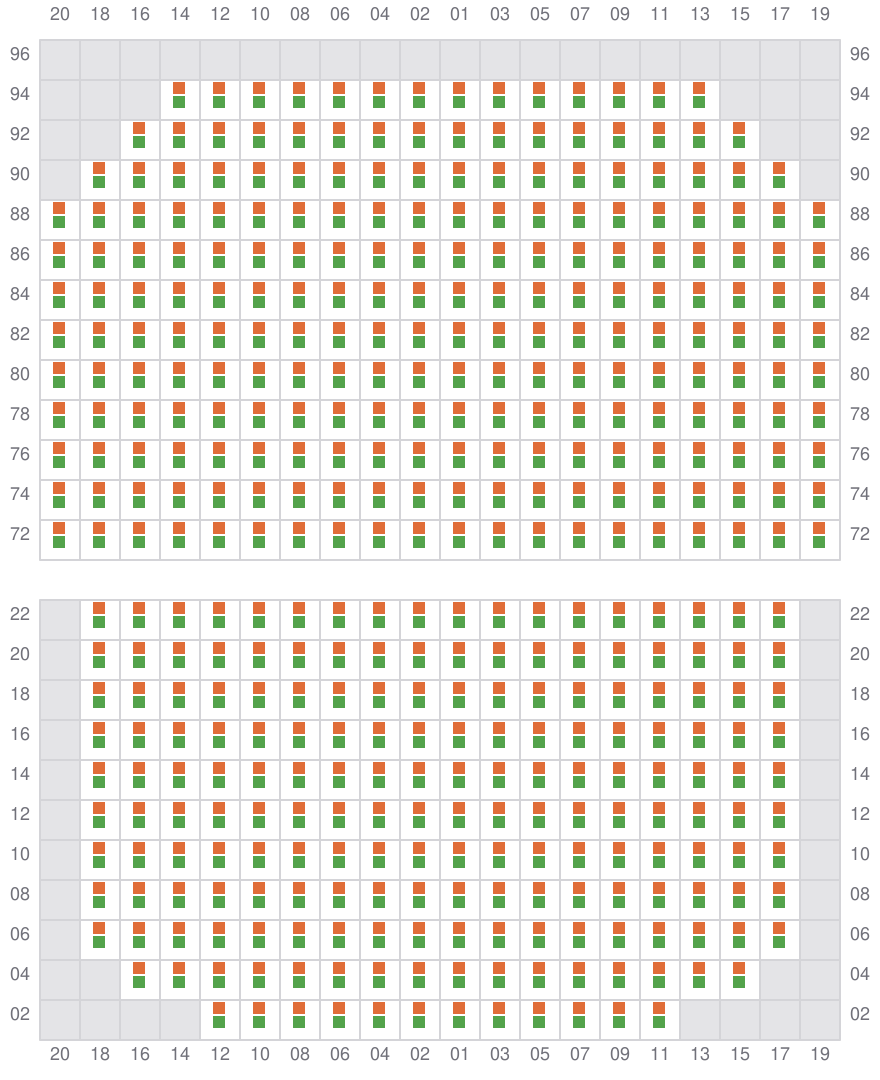

Bay 059 view and slots of MSC MARTINA MARIA

061

  • →
  • ✓

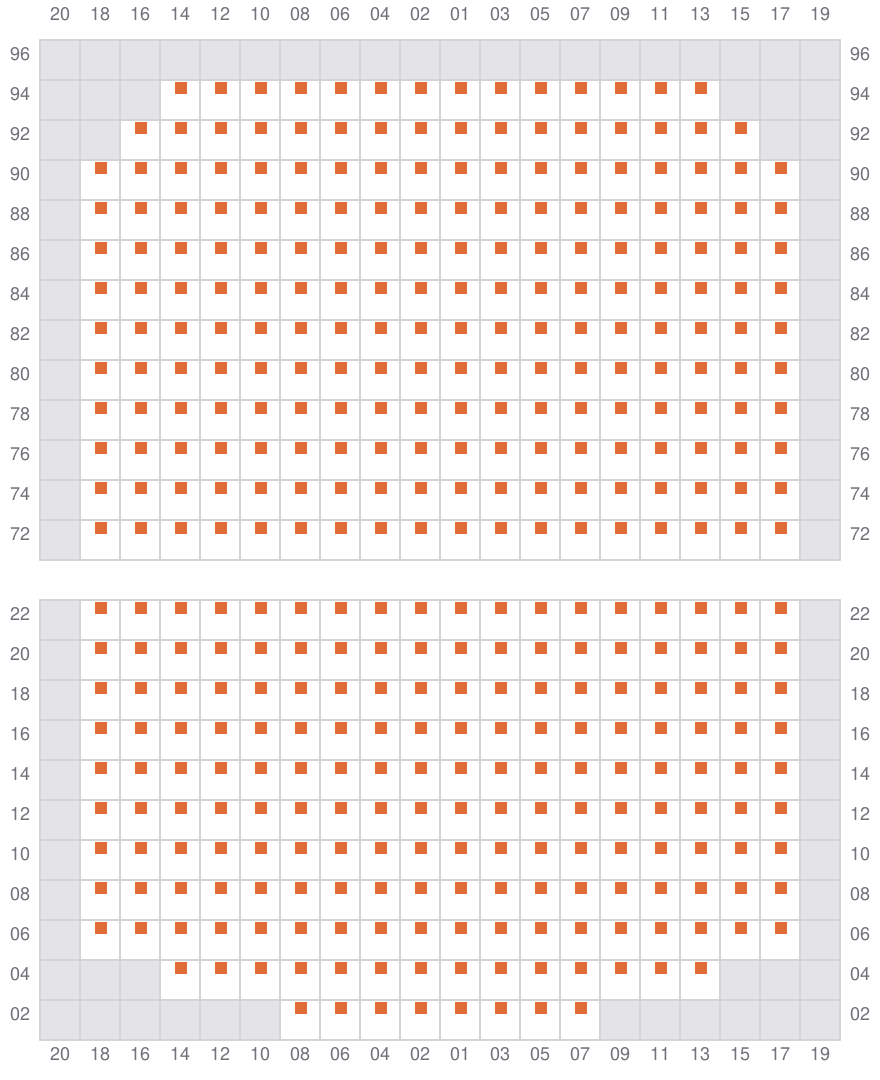

Bay 061 view and slots of MSC MARTINA MARIA

063 (062)

  • ←
  • ✓

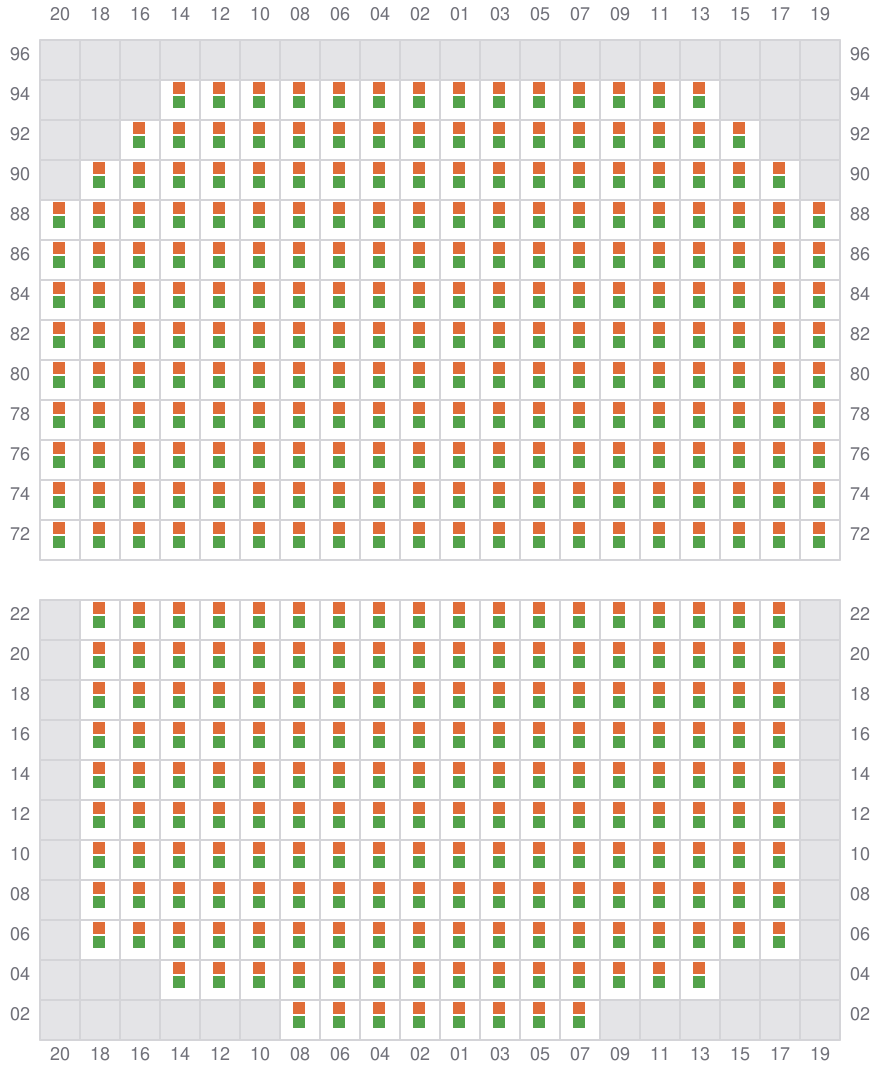

Bay 063 view and slots of MSC MARTINA MARIA

065

  • →
  • ✓
Bay 065 view and slots of MSC MARTINA MARIA

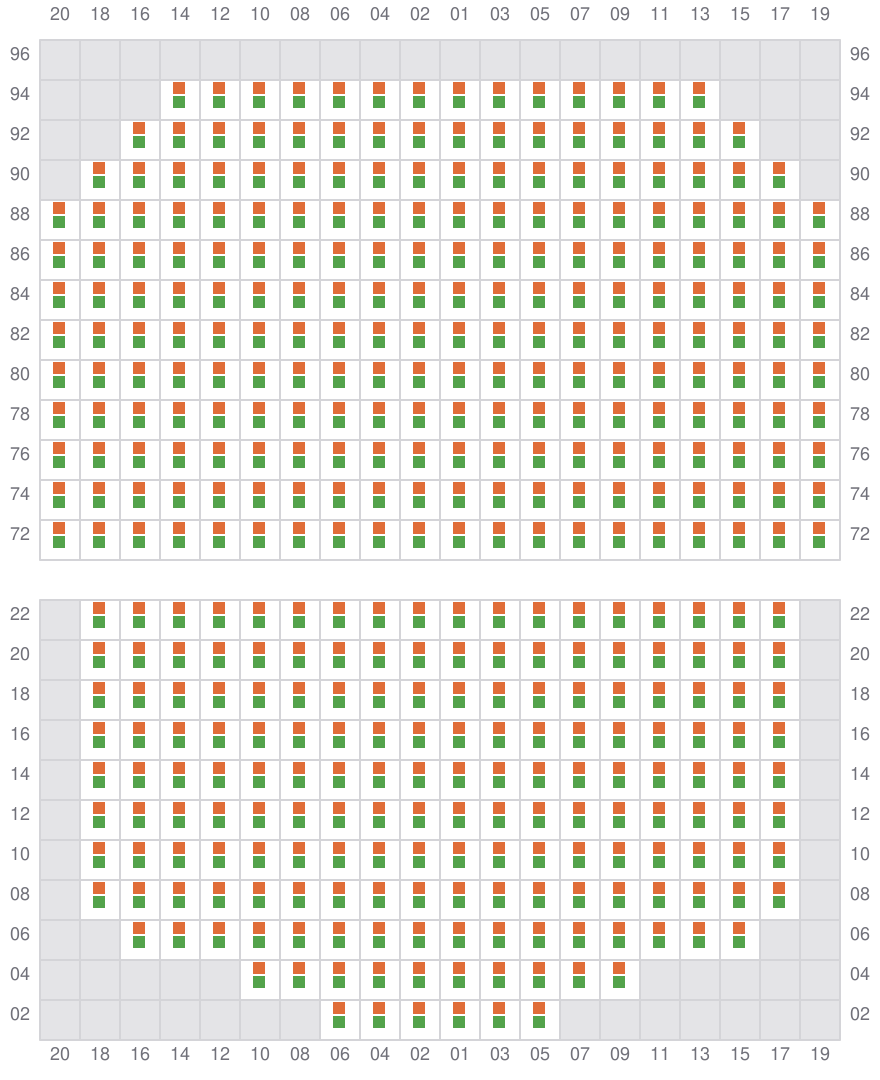

067 (066)

  • ←
  • ✓
Bay 067 view and slots of MSC MARTINA MARIA

069

  • →
  • ✓
Bay 069 view and slots of MSC MARTINA MARIA

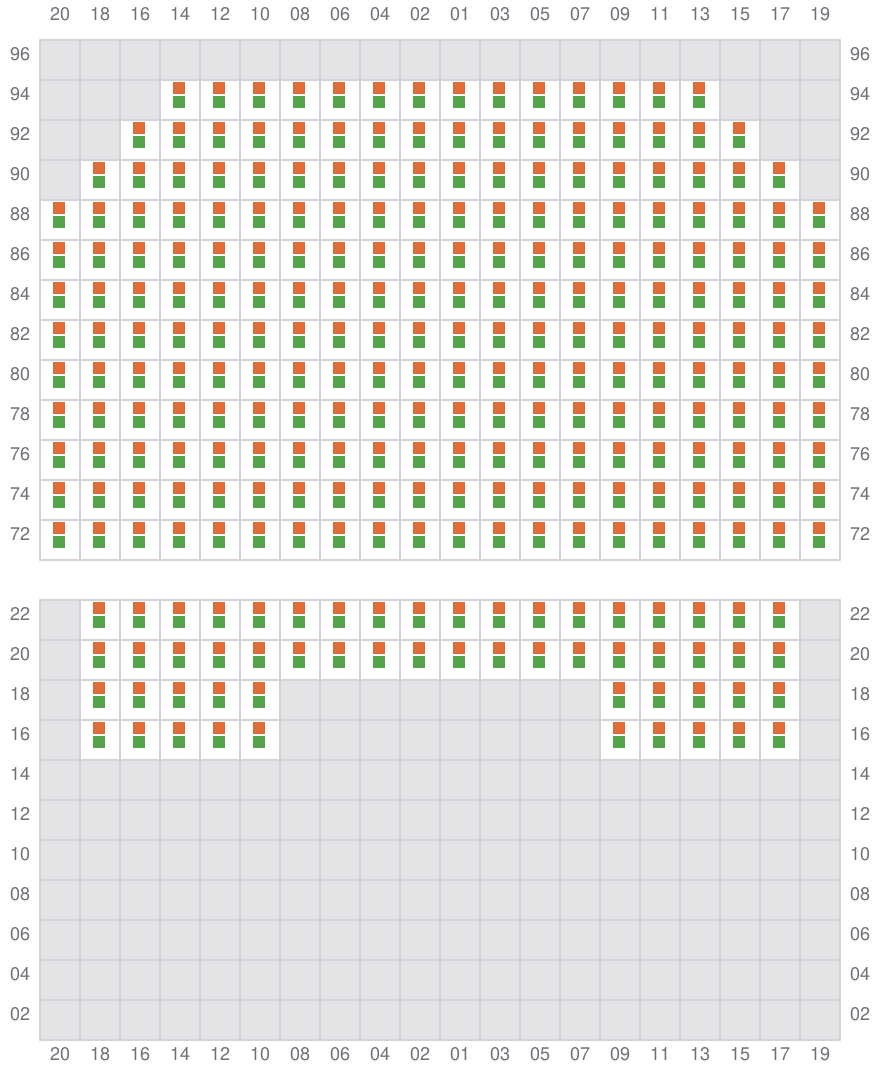

071 (070)

  • ←
  • ✓
Bay 071 view and slots of MSC MARTINA MARIA

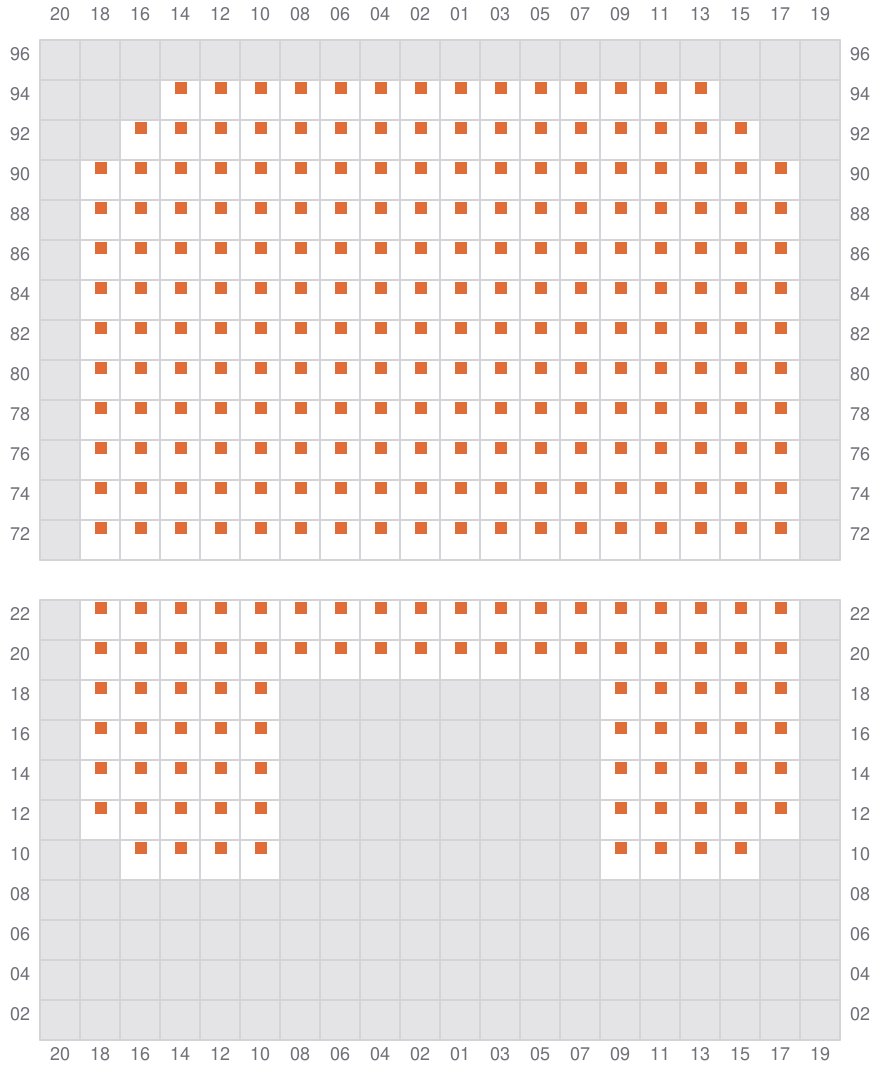

073

  • →
  • ✓
Bay 073 view and slots of MSC MARTINA MARIA

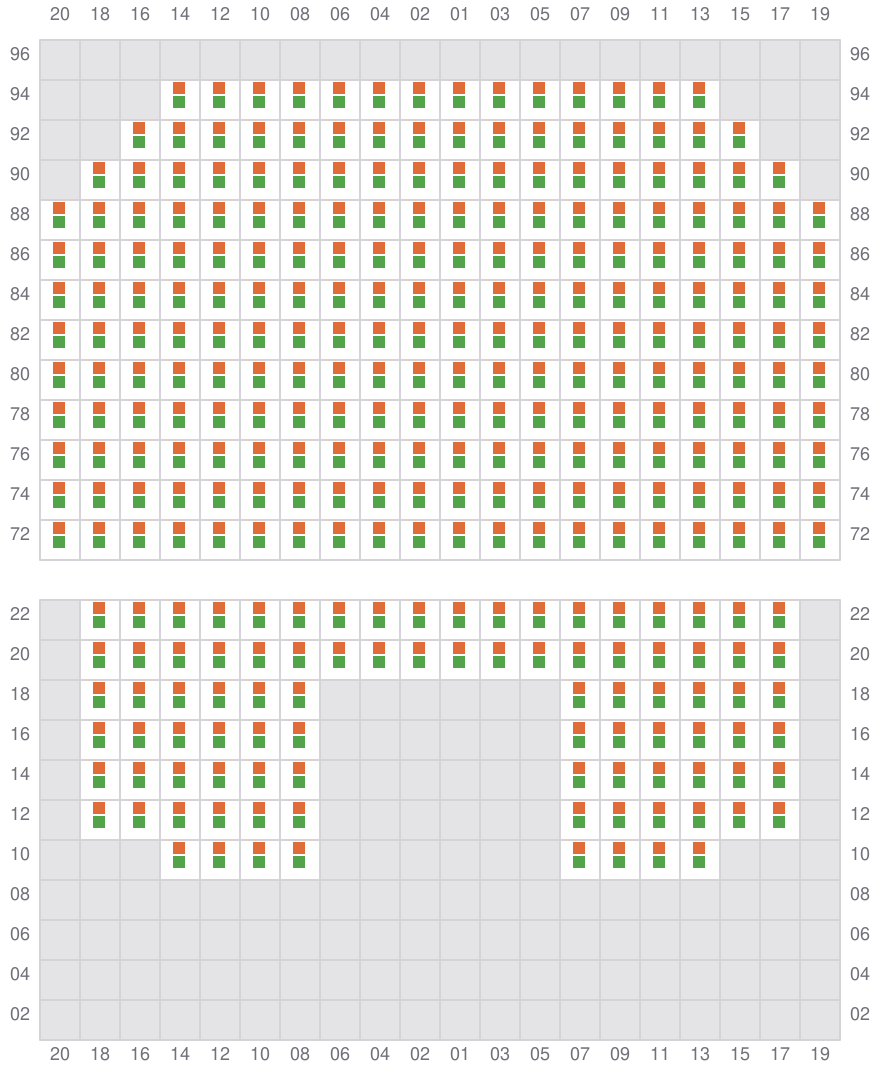

075 (074)

  • ←
  • ✓
Bay 075 view and slots of MSC MARTINA MARIA

077

  • →
  • ✓

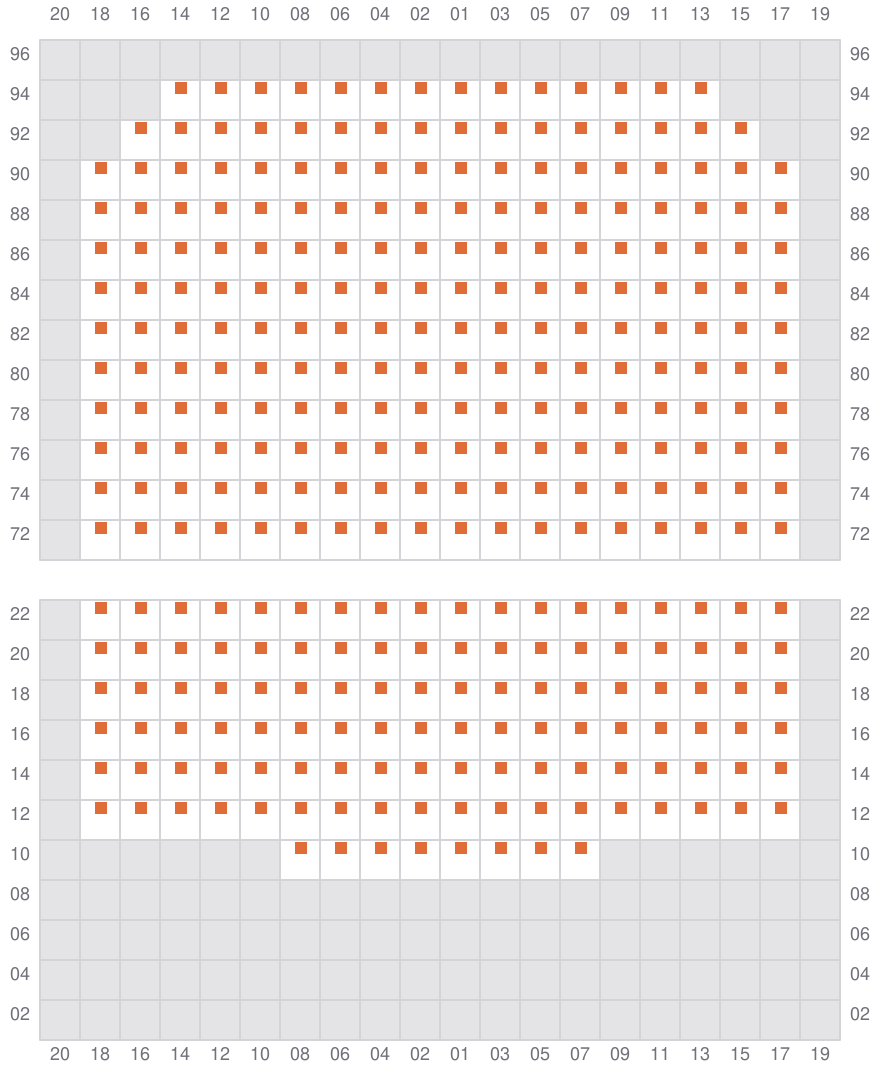

Bay 077 view and slots of MSC MARTINA MARIA

079 (078)

  • ←
  • ✓

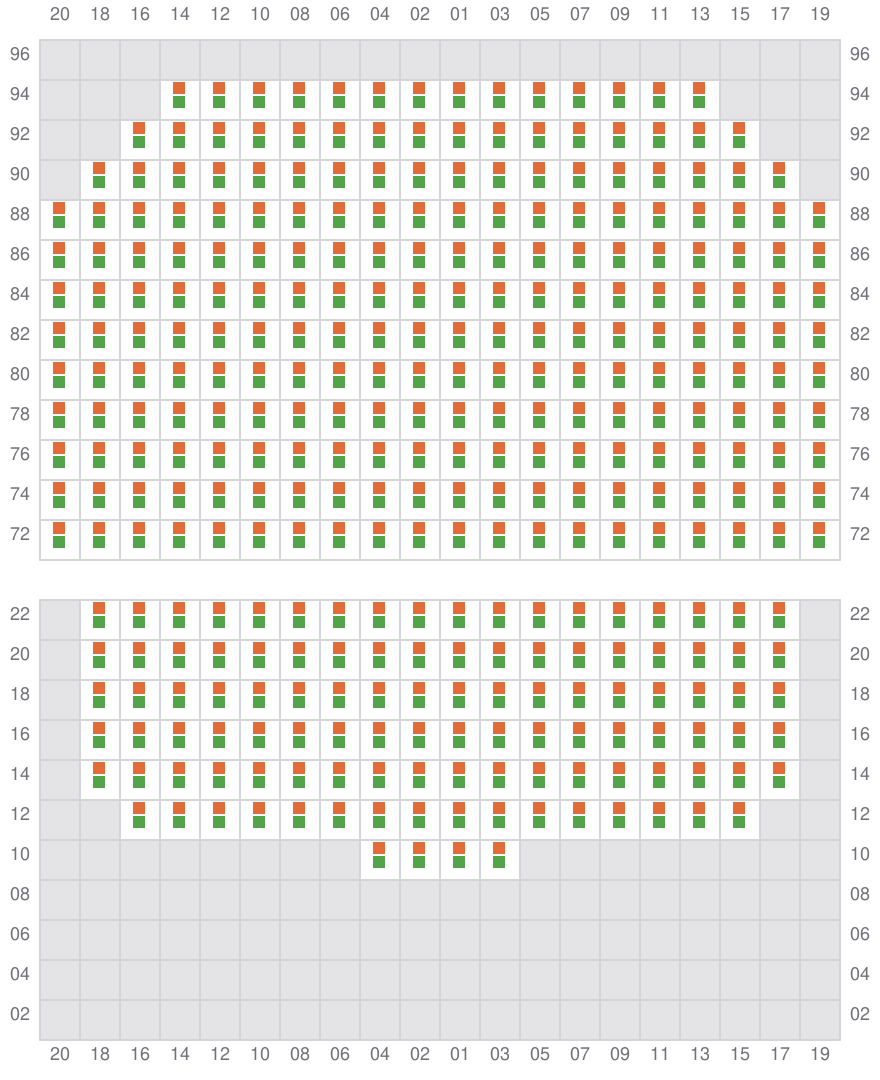

Bay 079 view and slots of MSC MARTINA MARIA

081

  • →
  • ✓

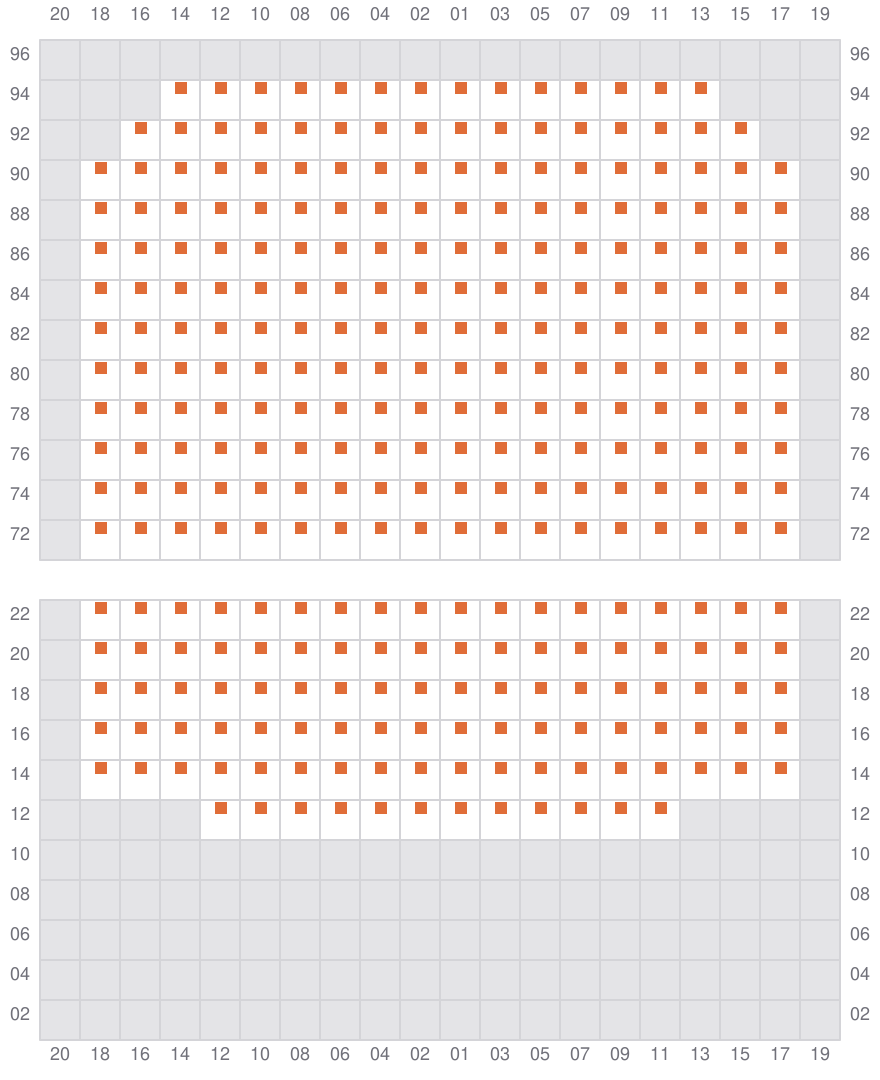

Bay 081 view and slots of MSC MARTINA MARIA

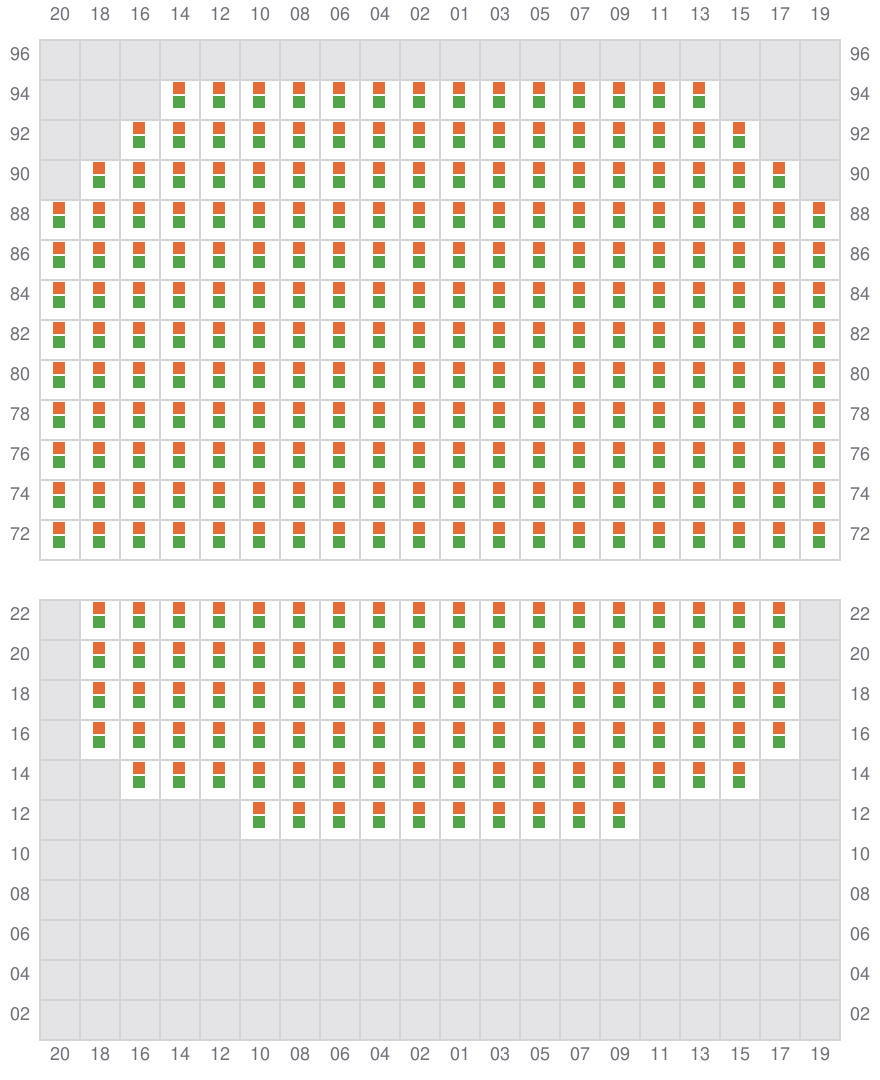

083 (082)

  • ←
  • ✓

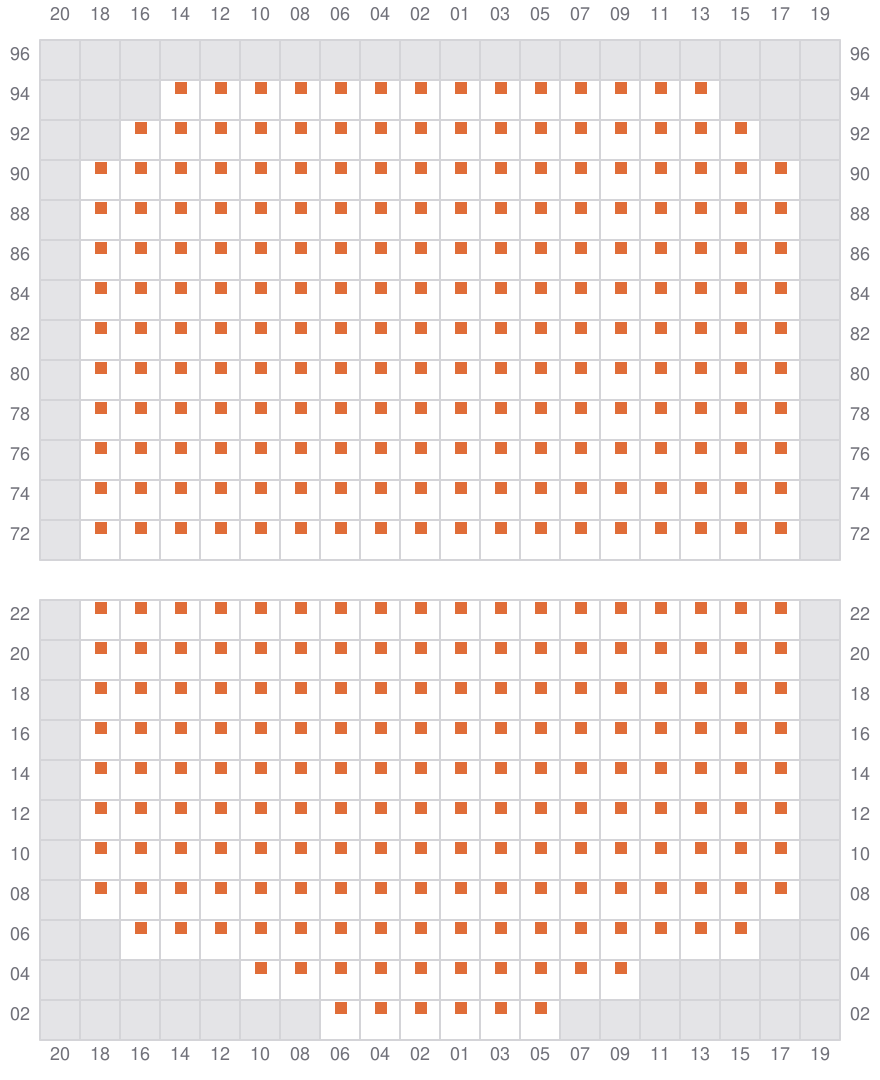

Bay 083 view and slots of MSC MARTINA MARIA

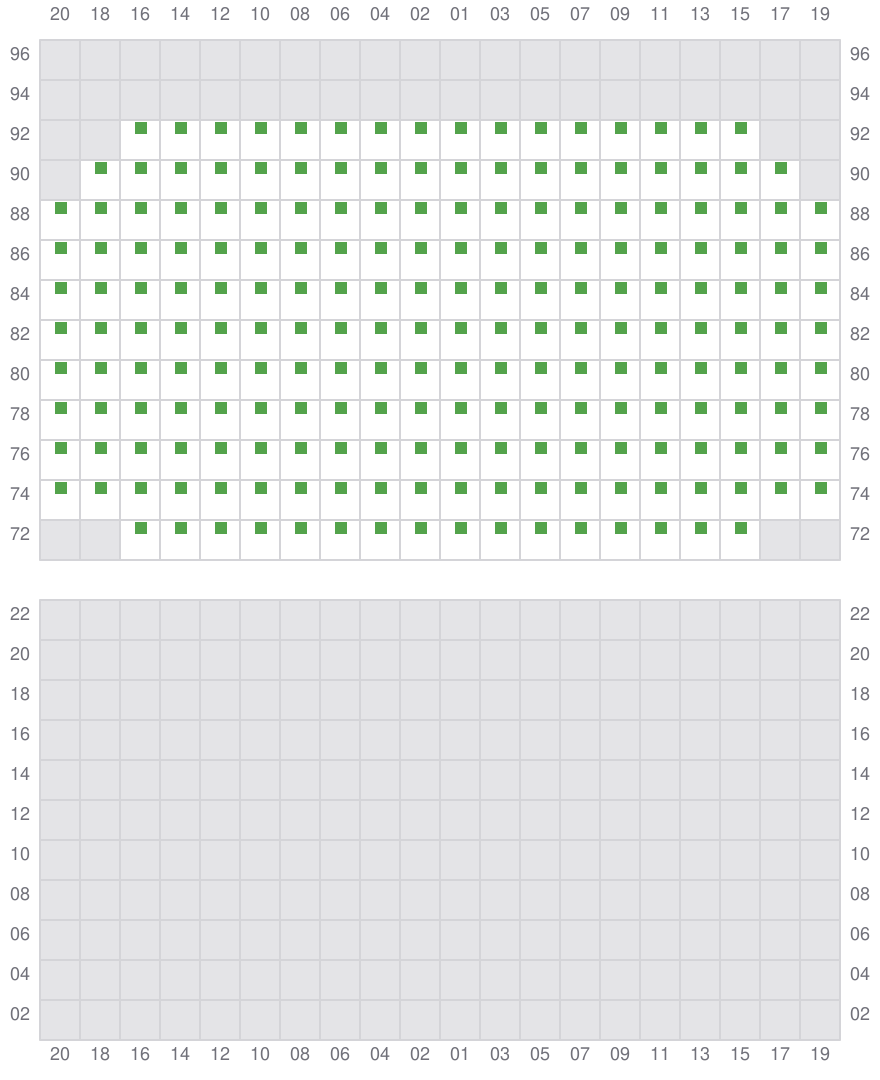

085 (086)

  • →
  • ? / ?
  • ? / ?
  • ✓
Bay 085 view and slots of MSC MARTINA MARIA

087

  • ←
  • ✓

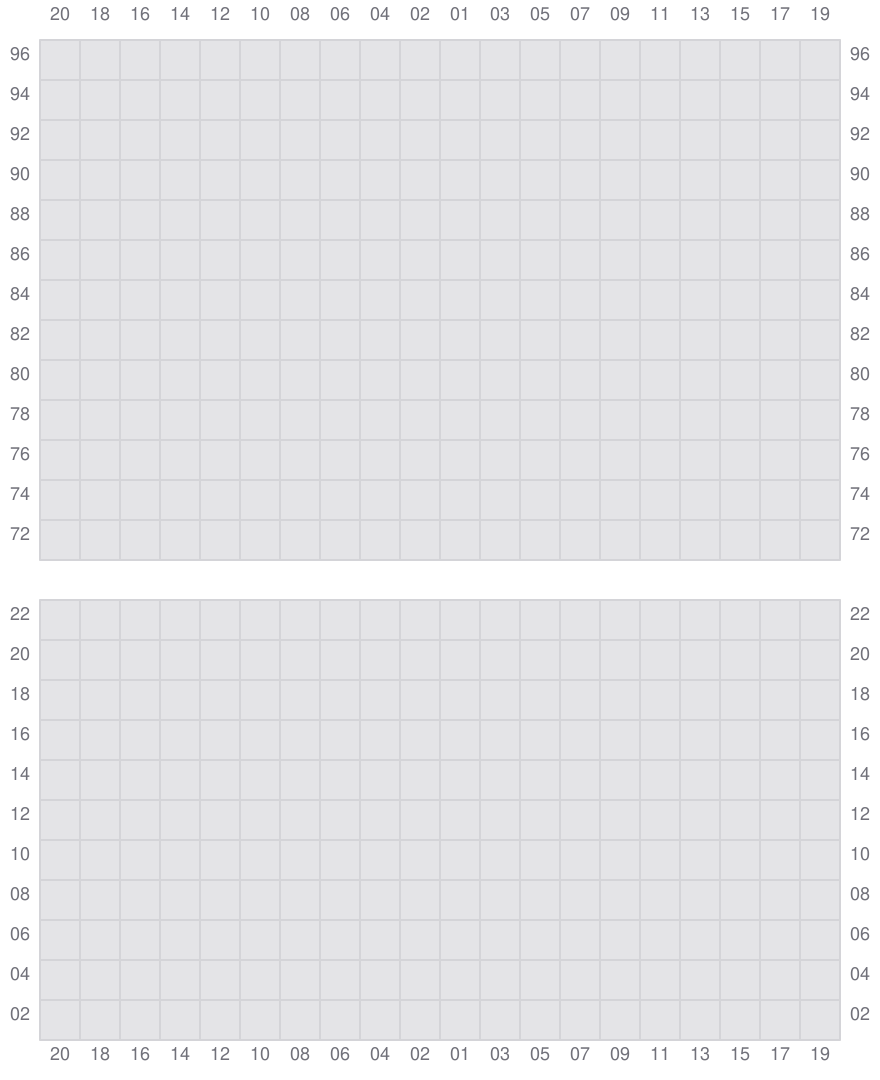

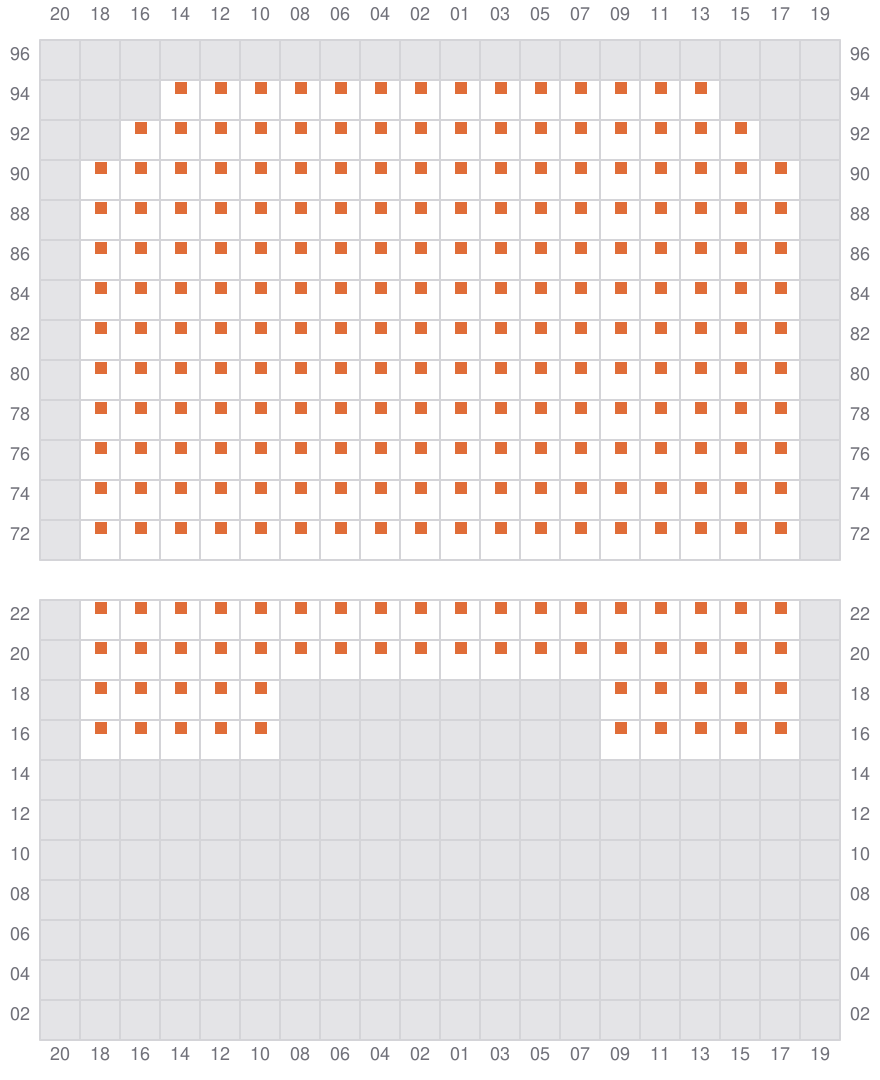

Bay 087 view and slots of MSC MARTINA MARIA
