MSC MATILDE V
9181663 | HODP | MSC by ************************** Last update: Sat Jun 17 2023

General Info

Ship Name:MSC MATILDE V
IMO Code:9181663
Call Sign:HODP
Line Operator:MSC
Class Name for Sister Ships:MMV
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,898

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

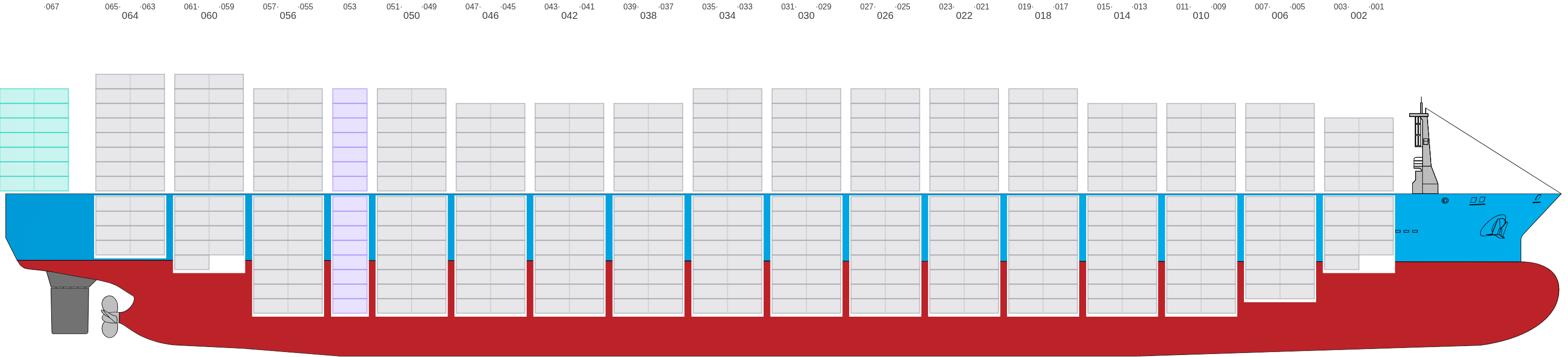

Side View

Side view of MSC MATILDE V

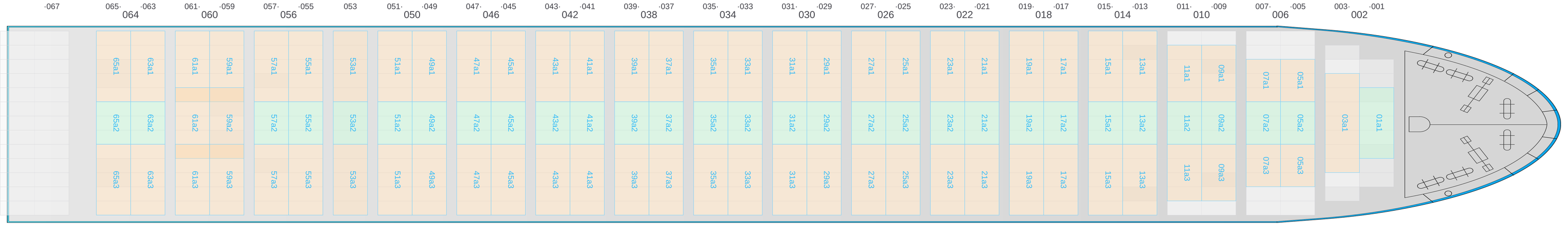

Hatch-Covers View

Deck view of MSC MATILDE V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • → / ?

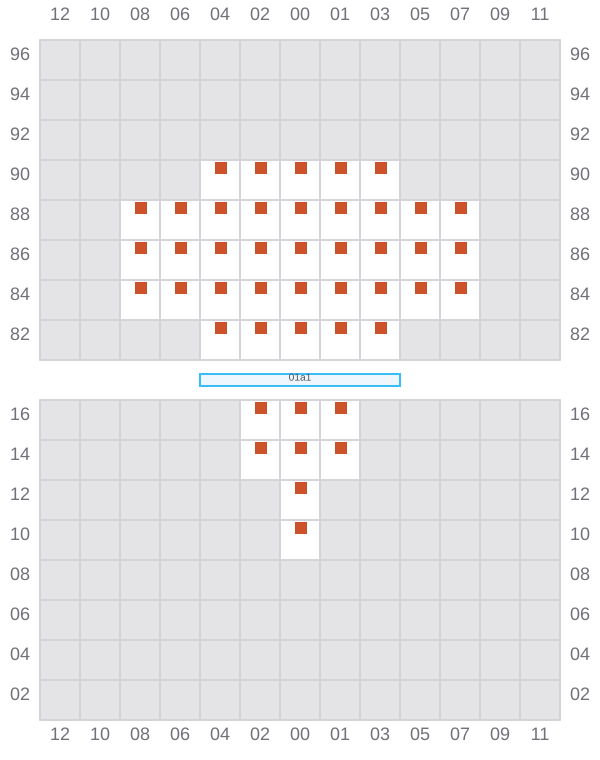

Bay 001 view and slots of MSC MATILDE V

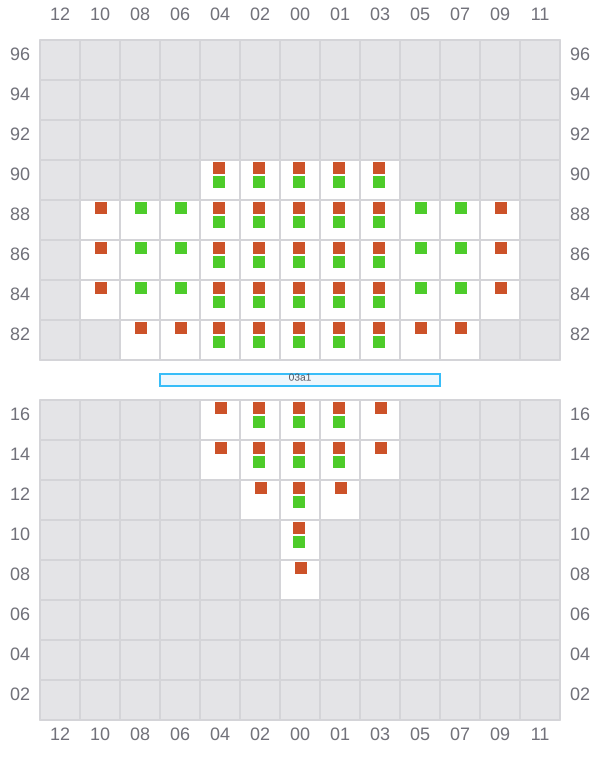

003 (002)

  • ←
  • → / ?
Bay 003 view and slots of MSC MATILDE V

005

  • →
  • → / ?

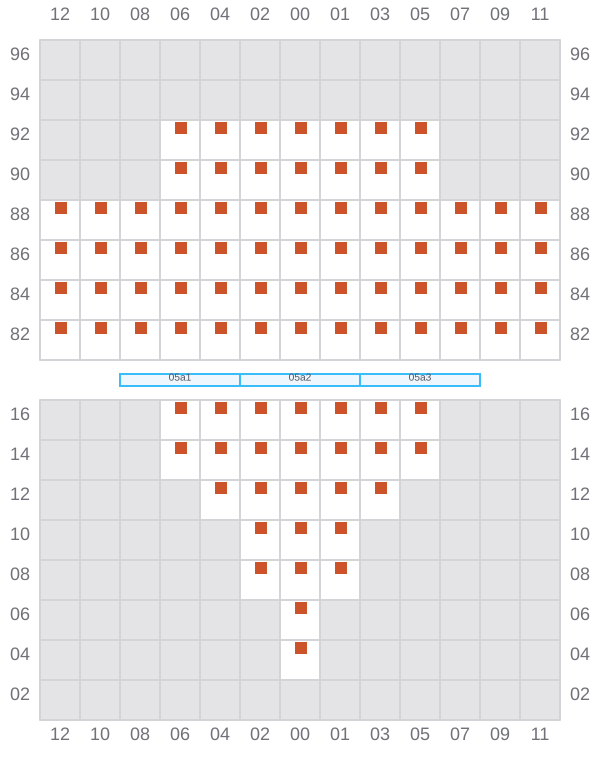

Bay 005 view and slots of MSC MATILDE V

007 (006)

  • ←
  • → / ?

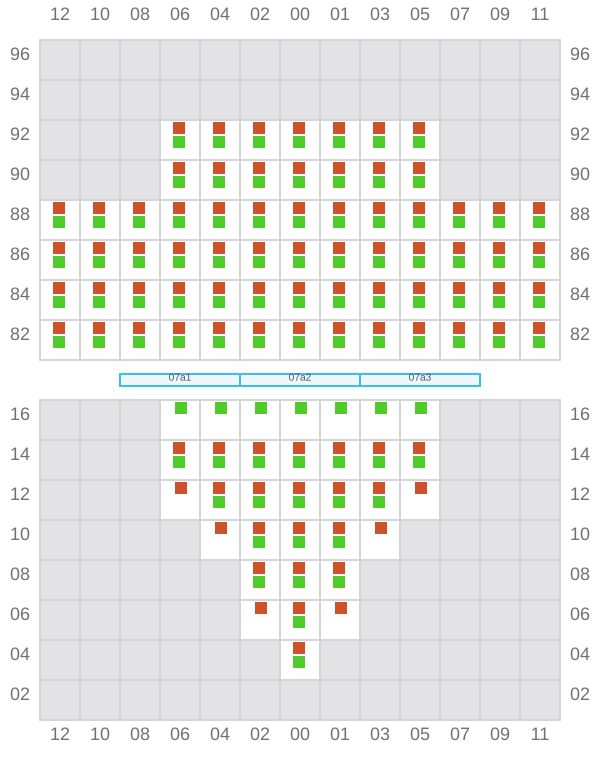

Bay 007 view and slots of MSC MATILDE V

009

  • →
  • → / ?

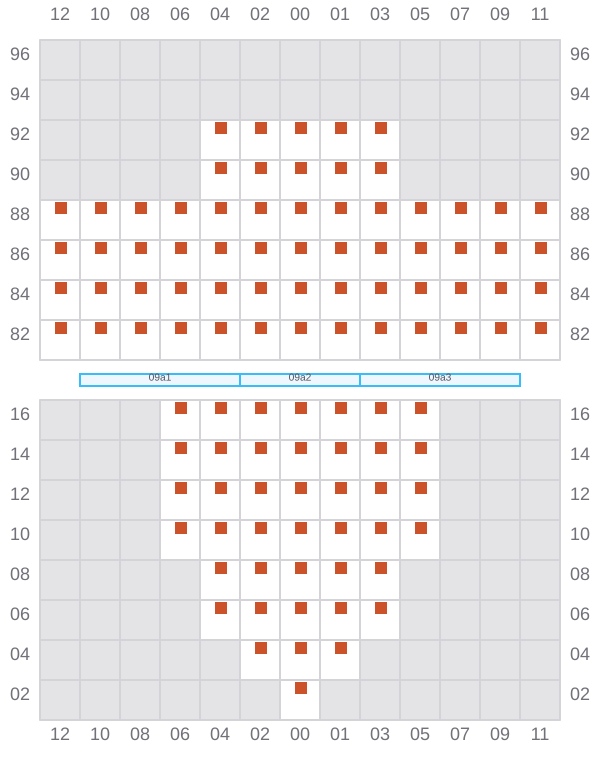

Bay 009 view and slots of MSC MATILDE V

011 (010)

  • ←
  • → / ?

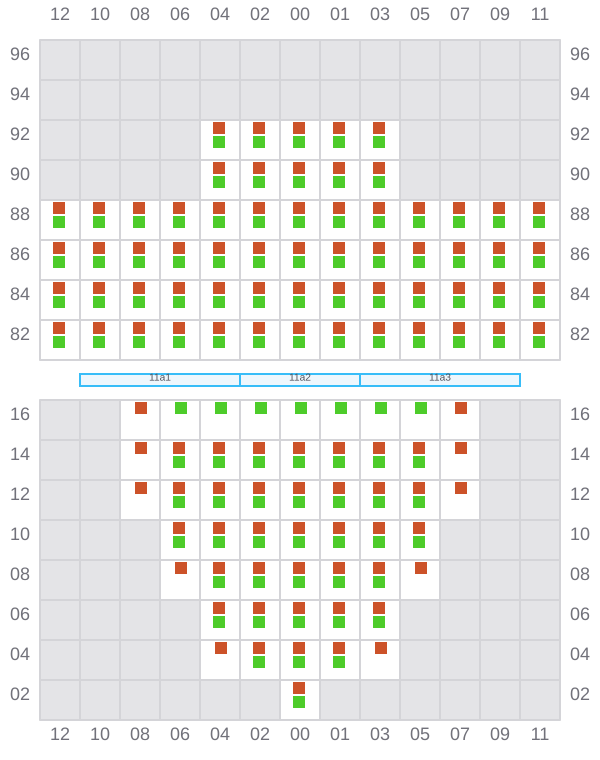

Bay 011 view and slots of MSC MATILDE V

013

  • →
  • → / ?

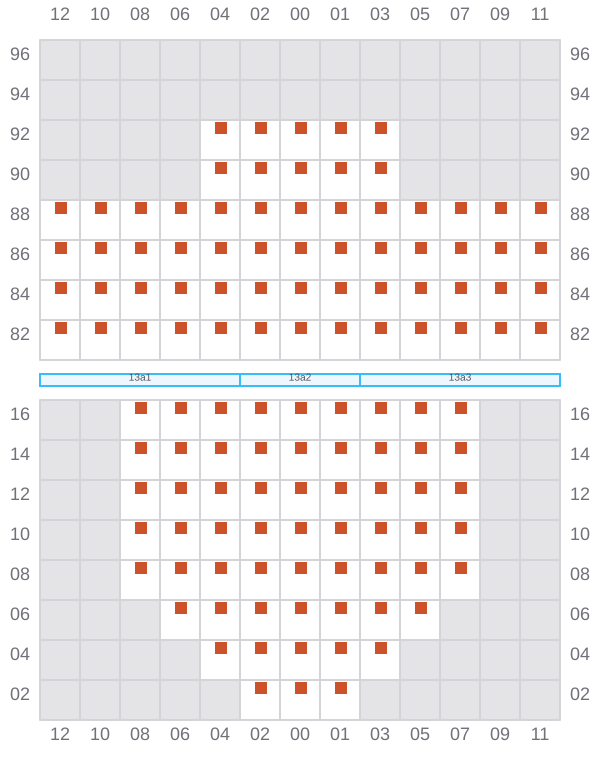

Bay 013 view and slots of MSC MATILDE V

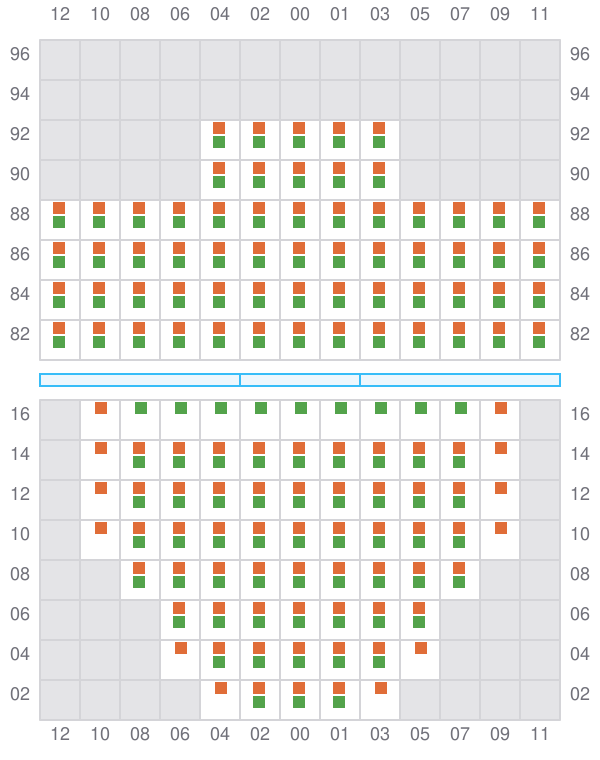

015 (014)

  • ←
  • → / ?
Bay 015 view and slots of MSC MATILDE V

017

  • →
  • → / ?

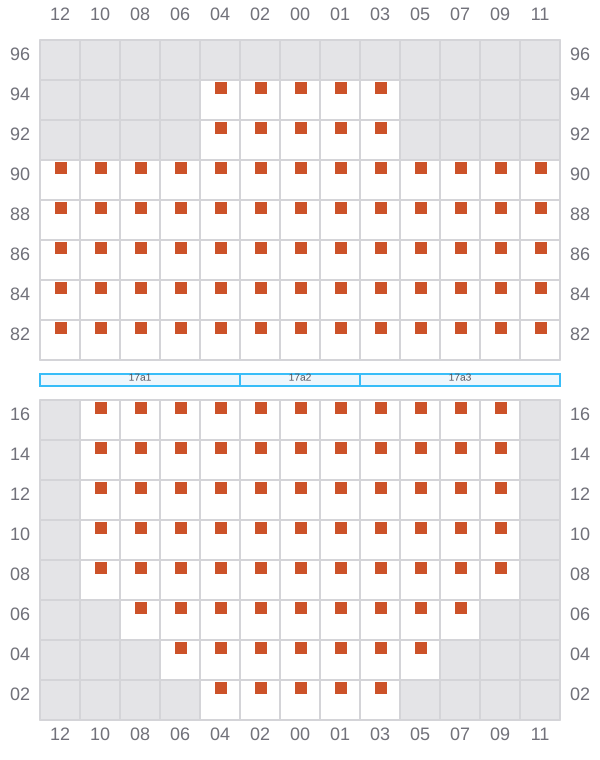

Bay 017 view and slots of MSC MATILDE V

019 (018)

  • ←
  • → / ?

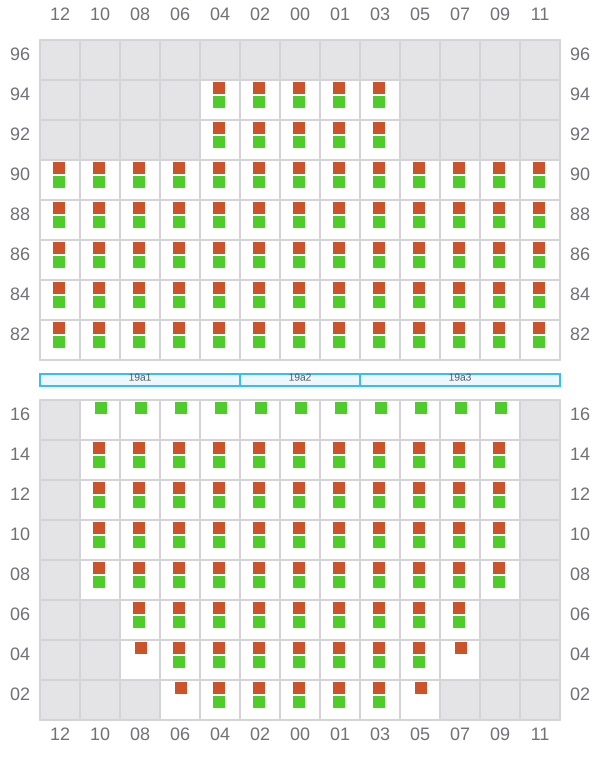

Bay 019 view and slots of MSC MATILDE V

021

  • →
  • → / ?
Bay 021 view and slots of MSC MATILDE V

023 (022)

  • ←
  • → / ?

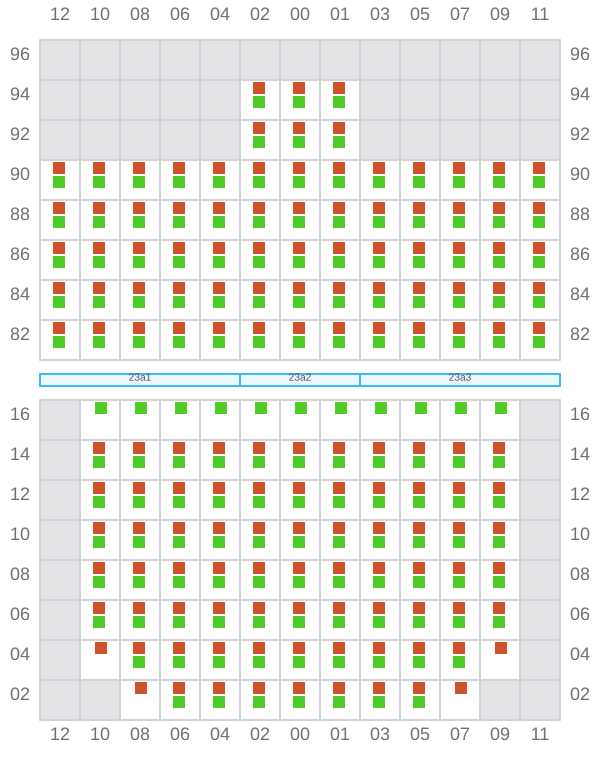

Bay 023 view and slots of MSC MATILDE V

025

  • →
  • → / ?
Bay 025 view and slots of MSC MATILDE V

027 (026)

  • ←
  • → / ?

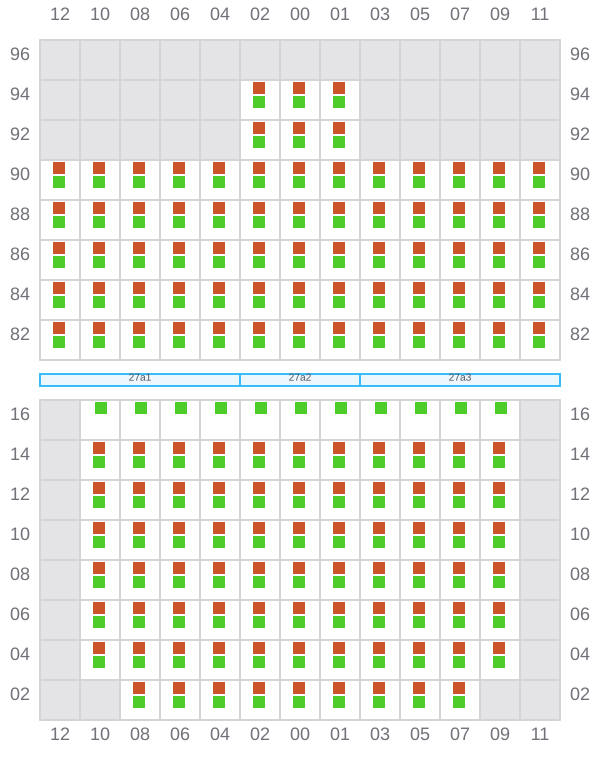

Bay 027 view and slots of MSC MATILDE V

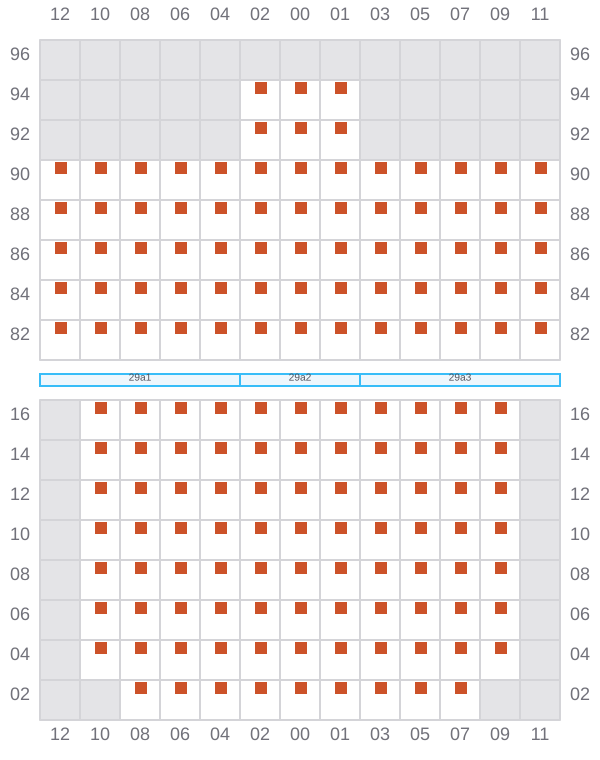

029

  • →
  • → / ?
Bay 029 view and slots of MSC MATILDE V

031 (030)

  • ←
  • → / ?
Bay 031 view and slots of MSC MATILDE V

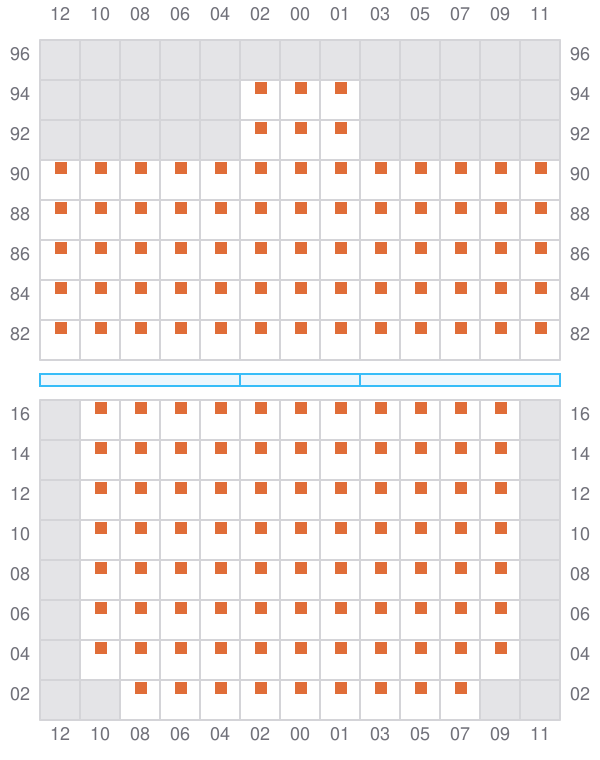

033

  • →
  • → / ?
Bay 033 view and slots of MSC MATILDE V

035 (034)

  • ←
  • → / ?
Bay 035 view and slots of MSC MATILDE V

037

  • →
  • → / ?
Bay 037 view and slots of MSC MATILDE V

039 (038)

  • ←
  • → / ?
Bay 039 view and slots of MSC MATILDE V

041

  • →
  • → / ?

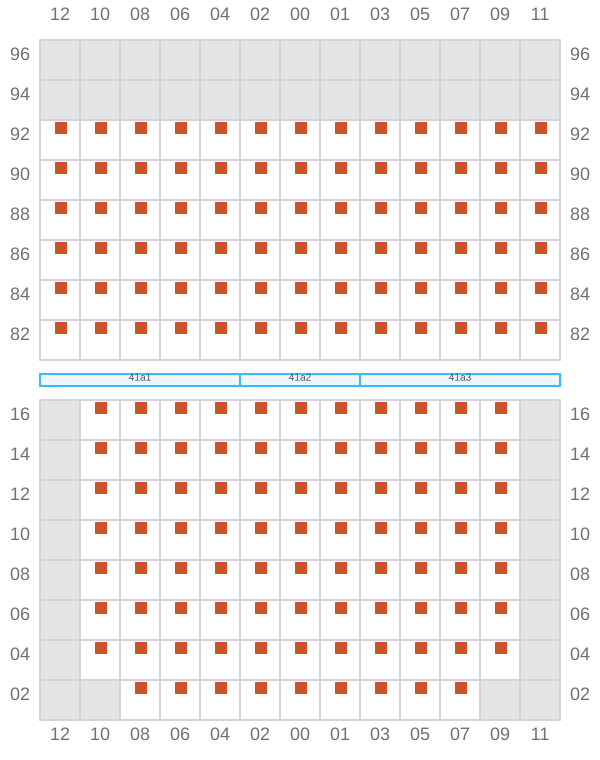

Bay 041 view and slots of MSC MATILDE V

043 (042)

  • ←
  • → / ?
Bay 043 view and slots of MSC MATILDE V

045

  • →
  • → / ?

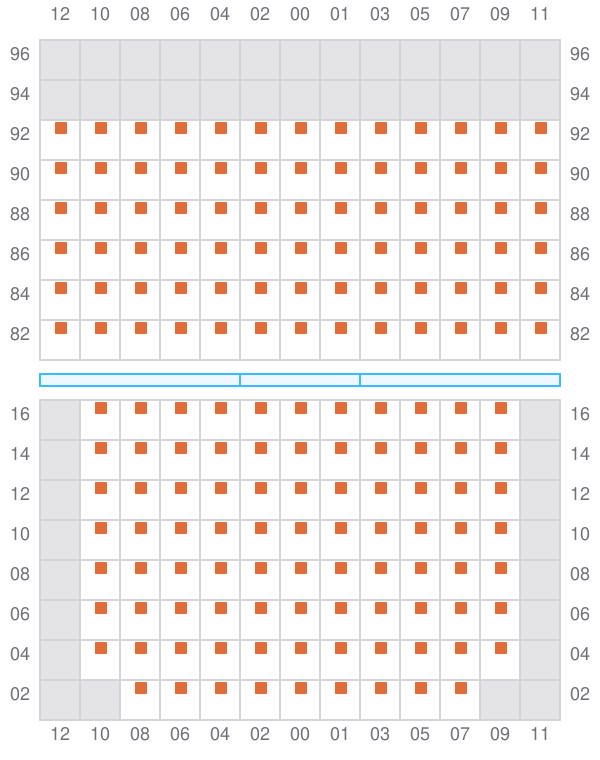

Bay 045 view and slots of MSC MATILDE V

047 (046)

  • ←
  • → / ?
Bay 047 view and slots of MSC MATILDE V

049

  • →
  • → / ?

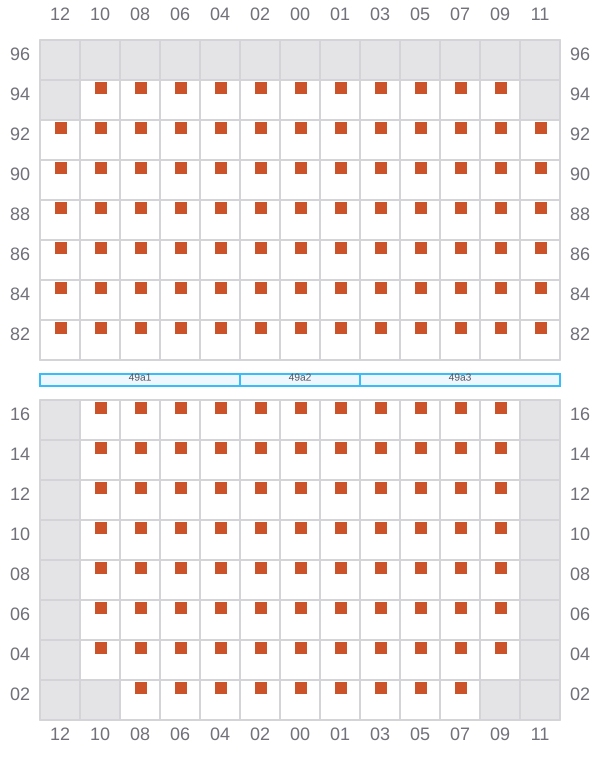

Bay 049 view and slots of MSC MATILDE V

051 (050)

  • ←
  • → / ?

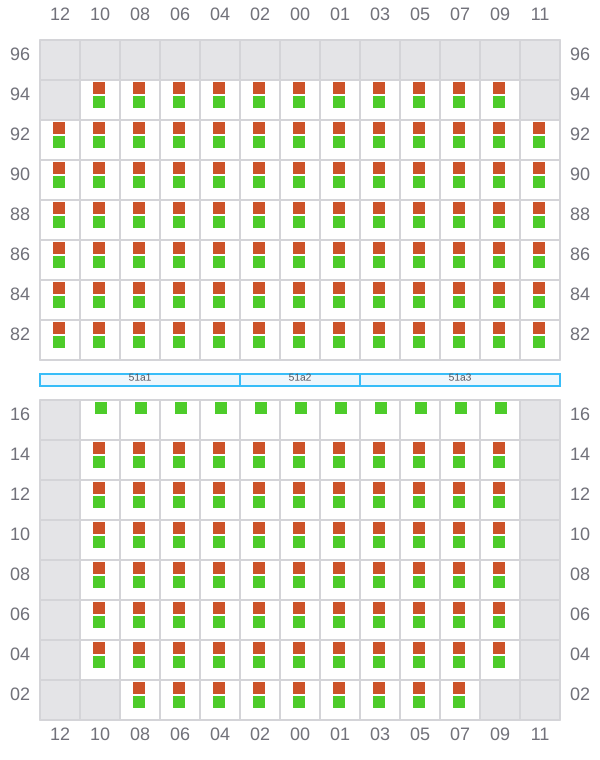

Bay 051 view and slots of MSC MATILDE V

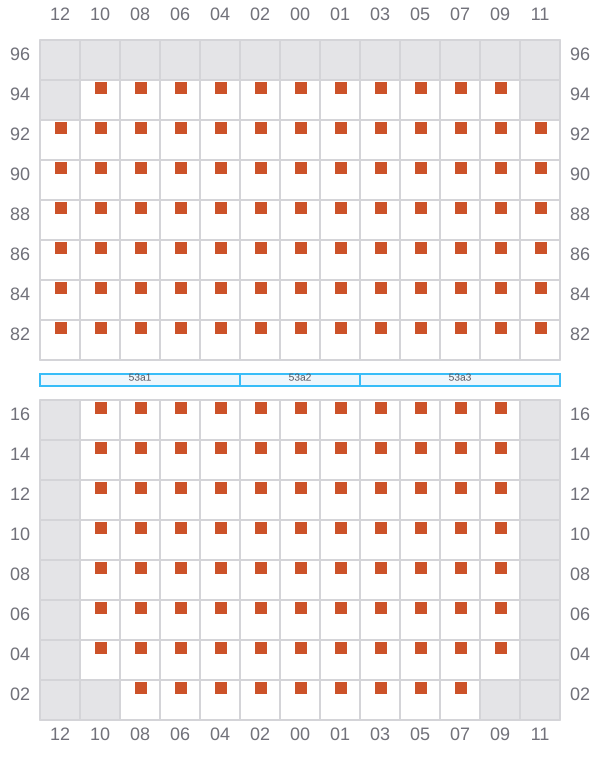

053

  • → / ?
Bay 053 view and slots of MSC MATILDE V

055

  • →
  • → / ?

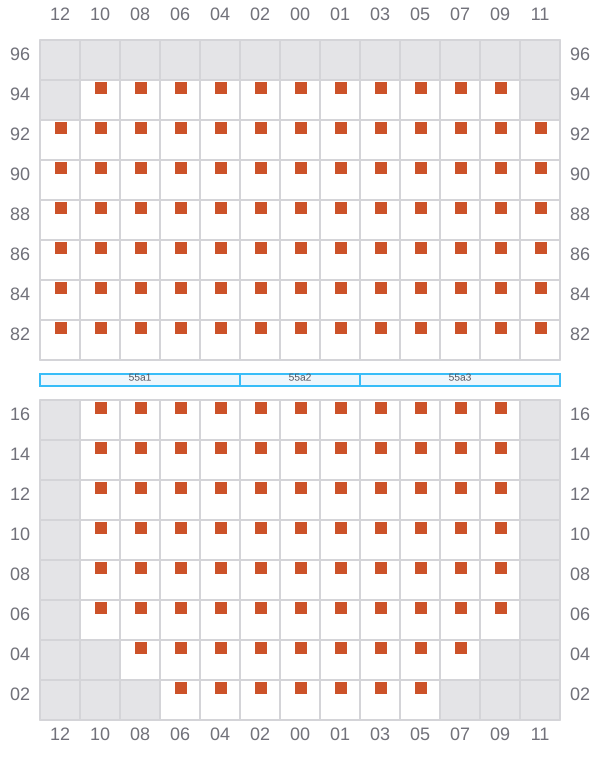

Bay 055 view and slots of MSC MATILDE V

057 (056)

  • ←
  • → / ?

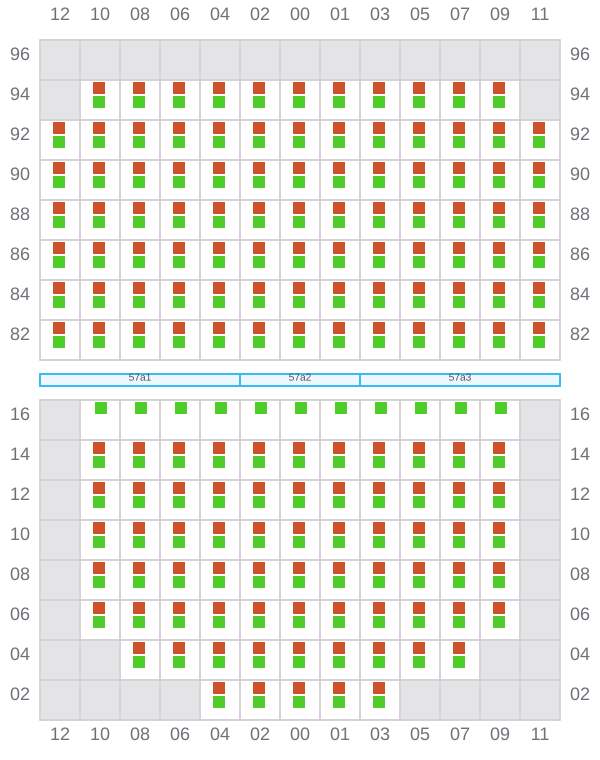

Bay 057 view and slots of MSC MATILDE V

059

  • →
  • → / ?

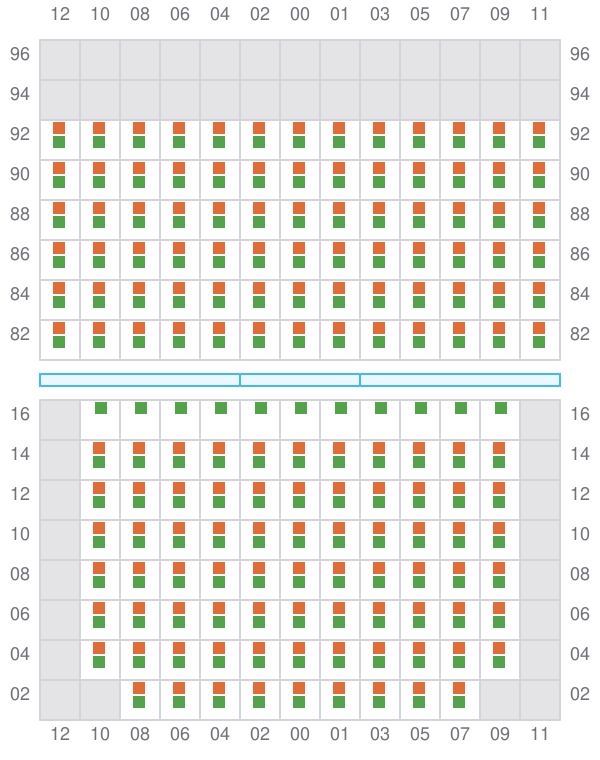

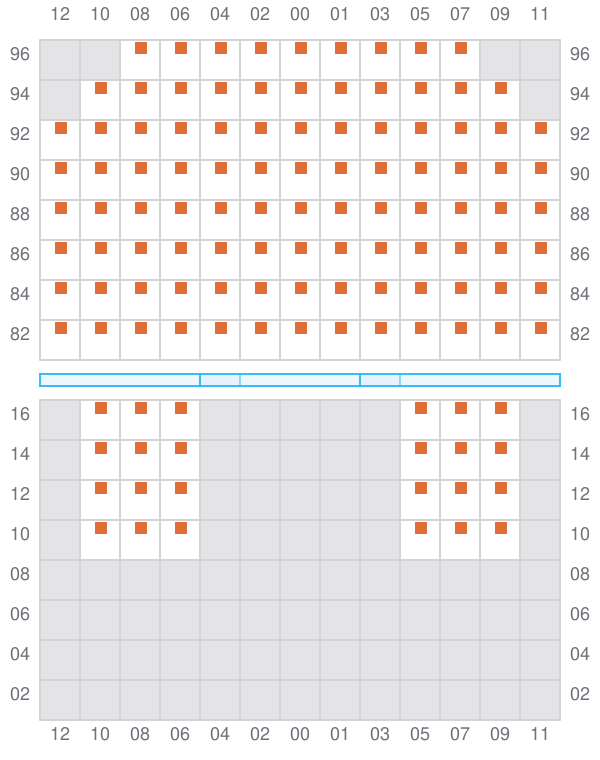

Bay 059 view and slots of MSC MATILDE V

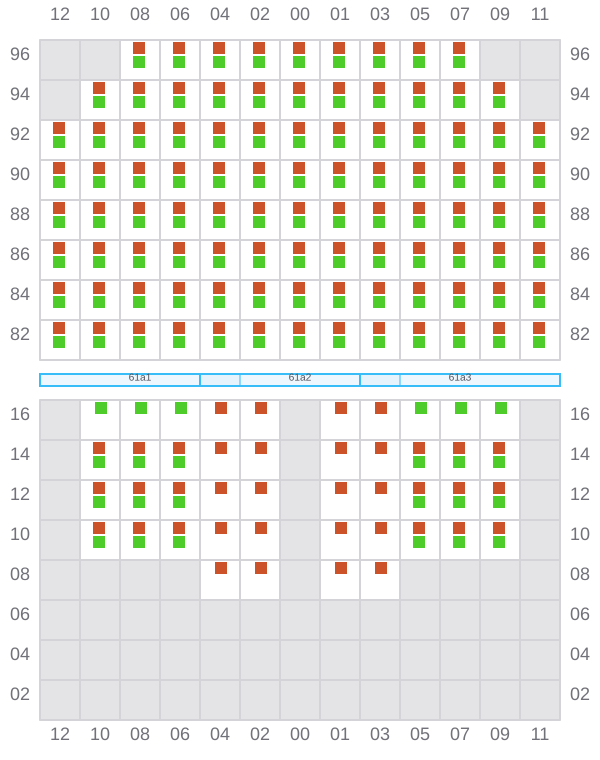

061 (060)

  • ←
  • → / ?
Bay 061 view and slots of MSC MATILDE V

063

  • →
  • → / ?

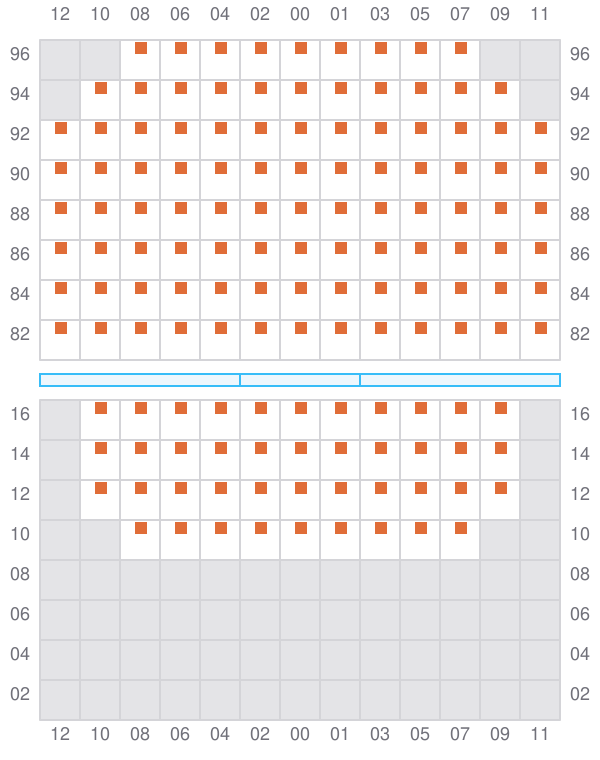

Bay 063 view and slots of MSC MATILDE V

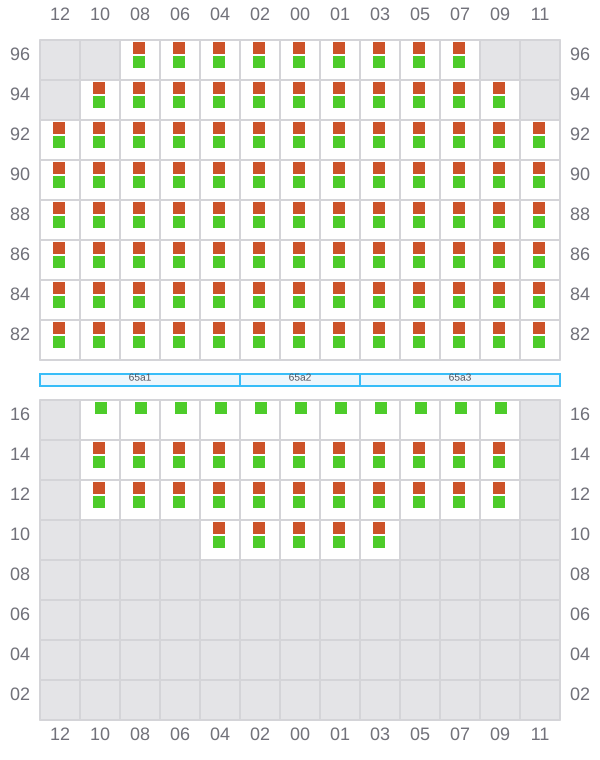

065 (064)

  • ←
  • → / ?
Bay 065 view and slots of MSC MATILDE V

067 (068)

  • → / ?
  • → / ?

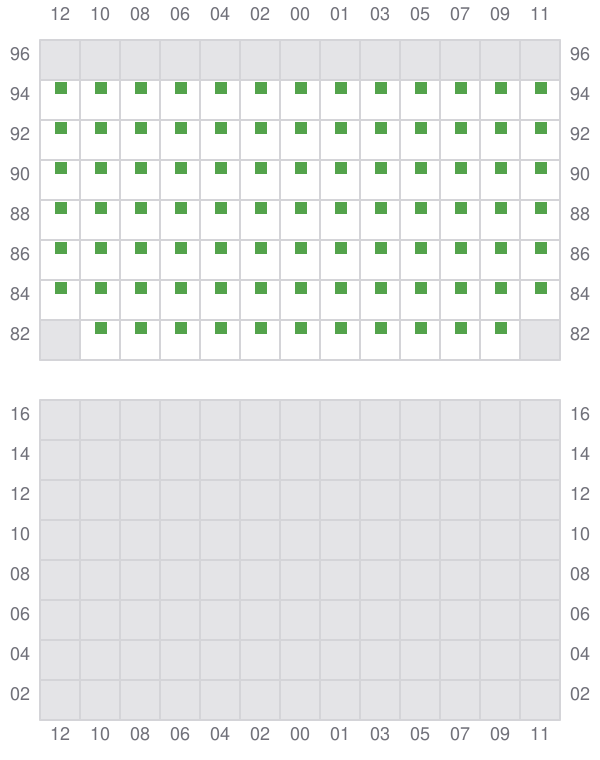

Bay 067 view and slots of MSC MATILDE V
