The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
MSC MATTINA
9315915 | 5LAR8 | 9315915 by ********* Last update: Tue May 21 2024
General Info
Ship Name:MSC MATTINA
IMO Code:9315915
Call Sign:5LAR8
Line Operator:9315915
Class Name for Sister Ships:ITAL MATTINA
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):249.00
LOA (Length Overall):264.21
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,327
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

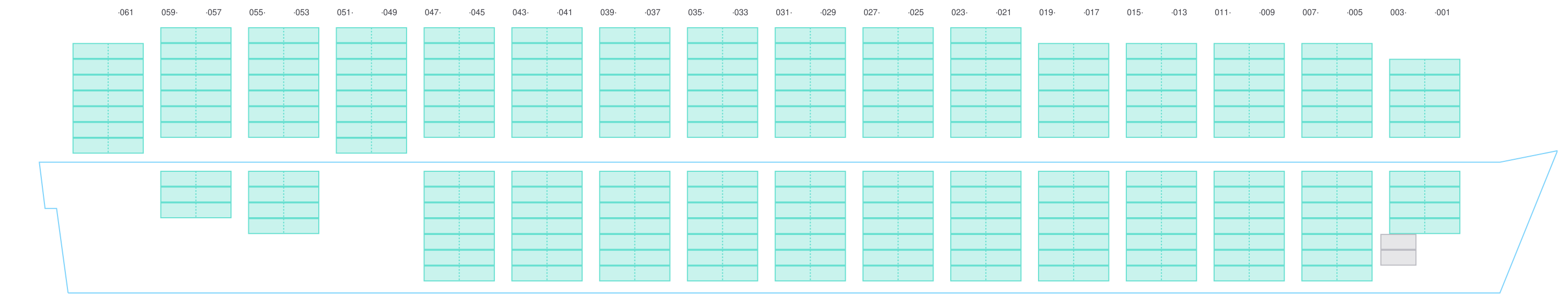

Side View
Hatch-Covers View

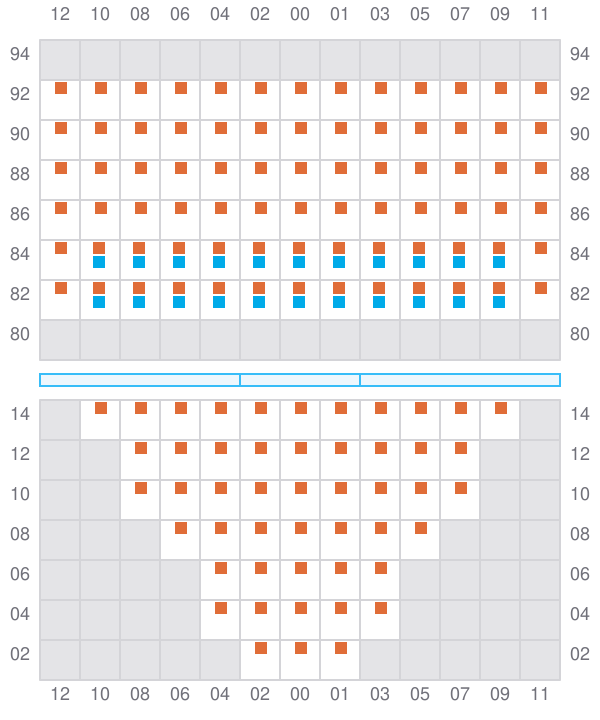

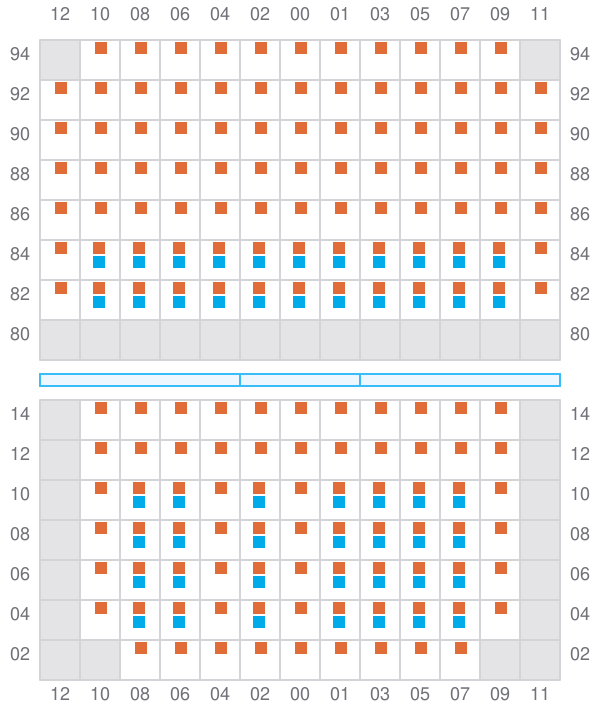

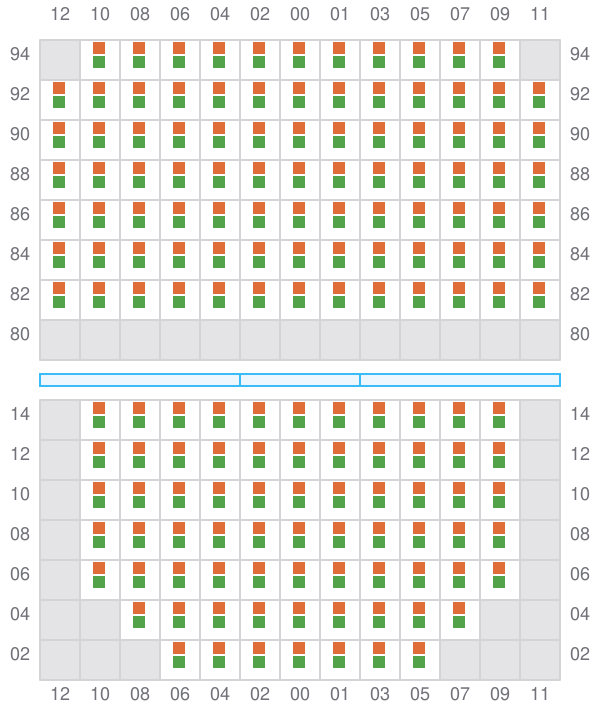

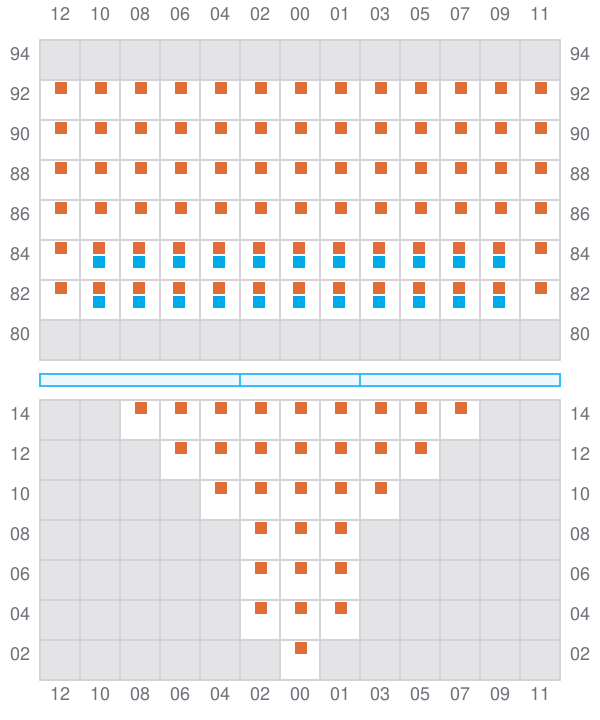

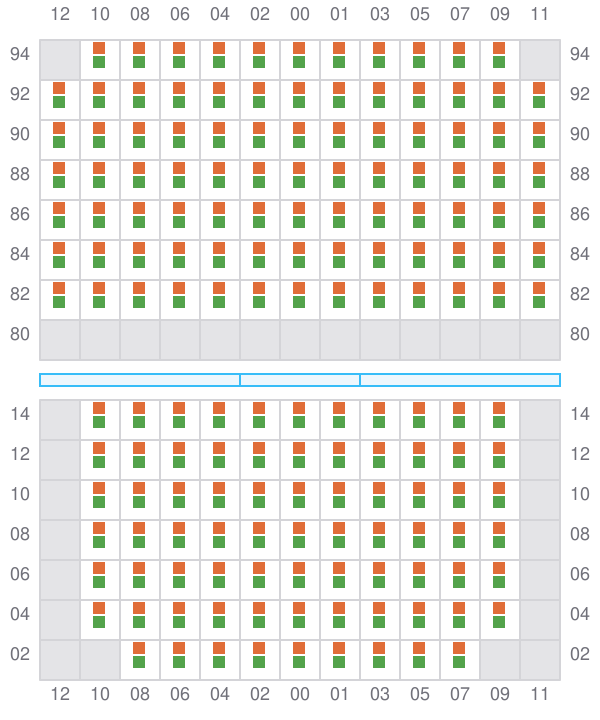

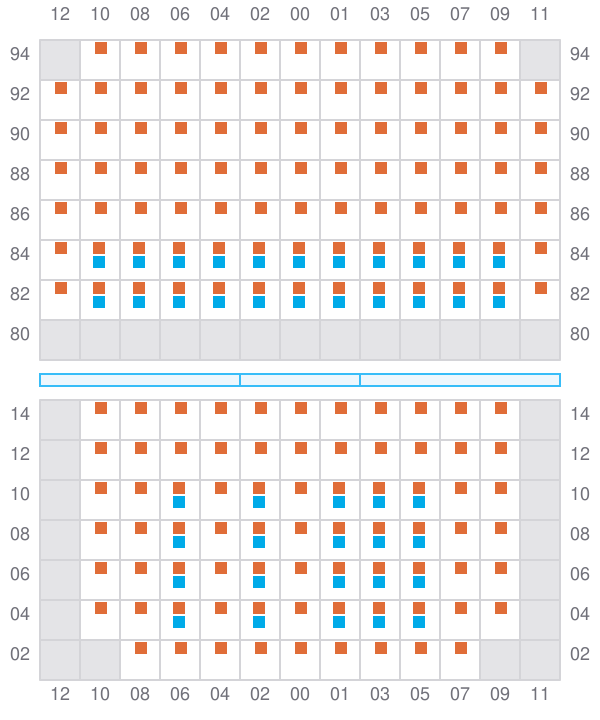

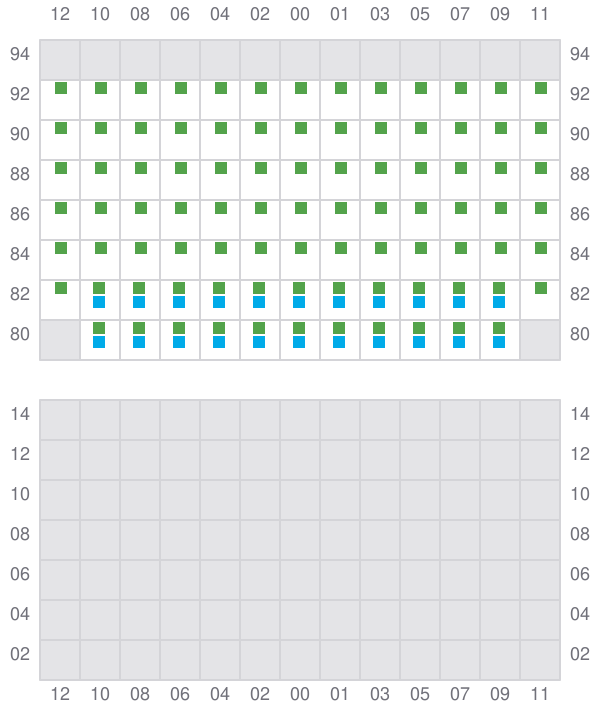

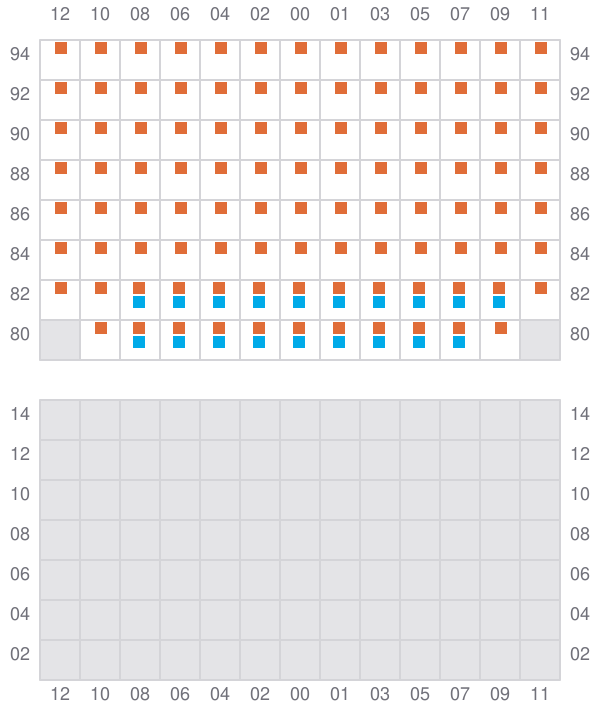

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

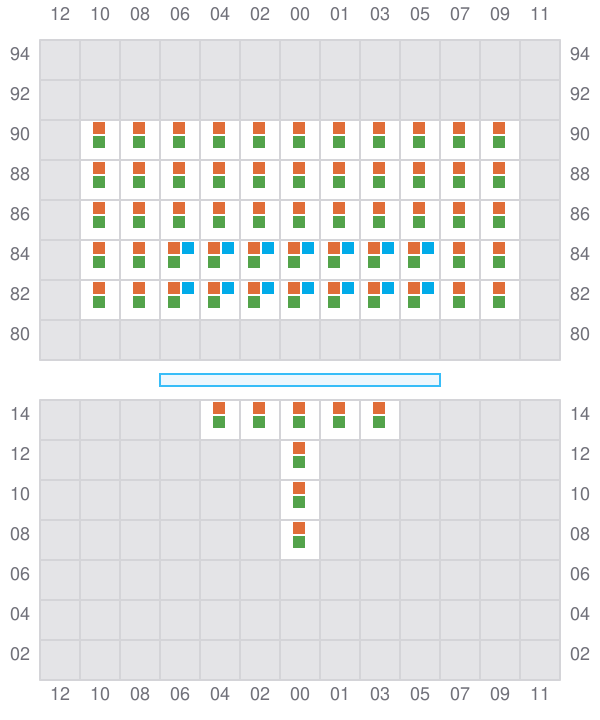

001 (002)
- →

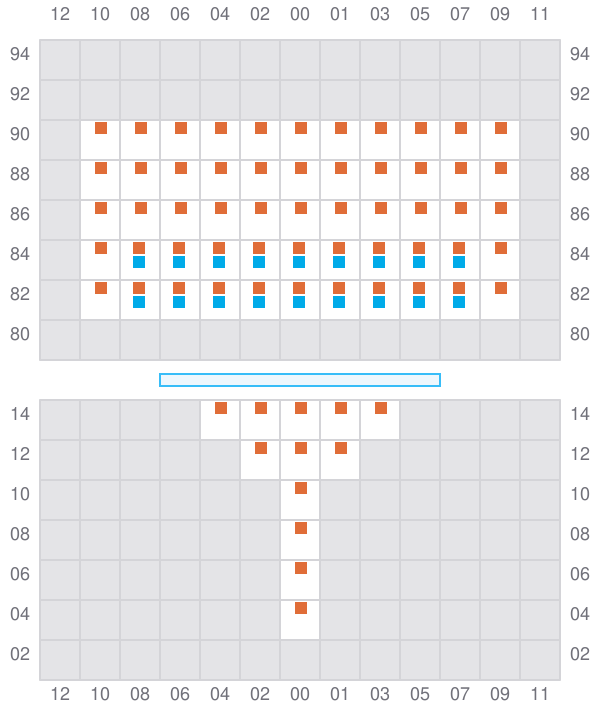

003
- ←
005 (006)
- →

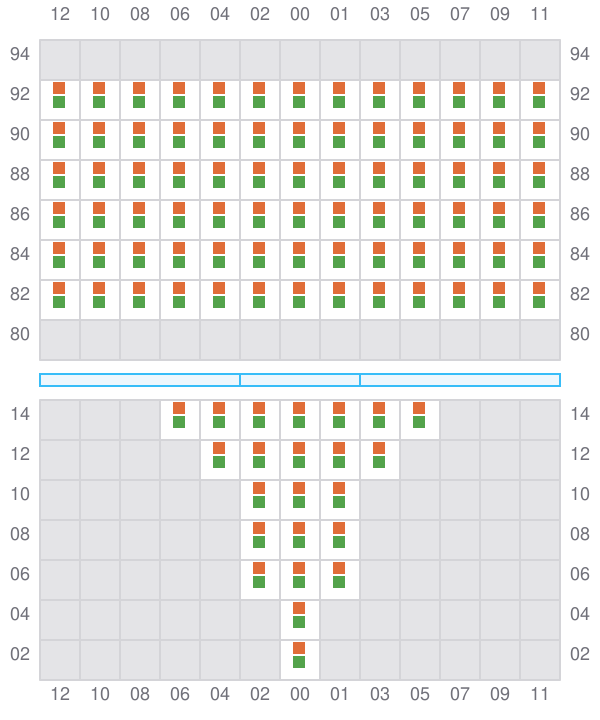

007
- ←

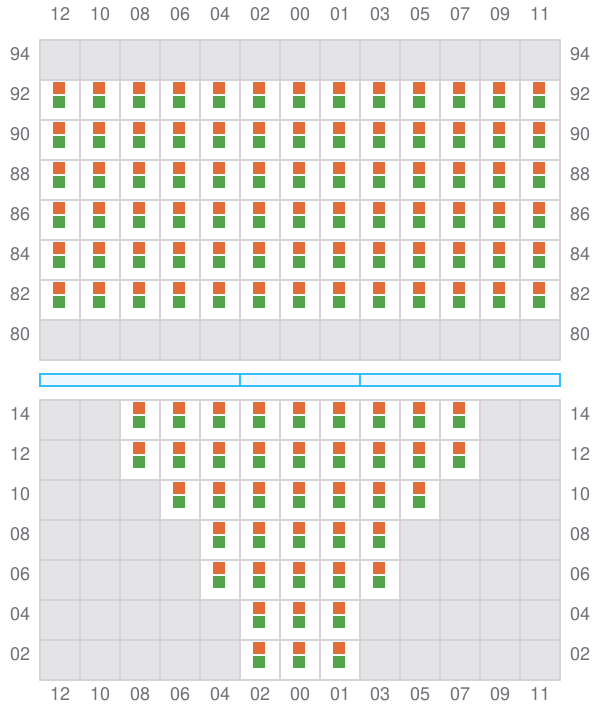

009 (010)
- →
011
- ←

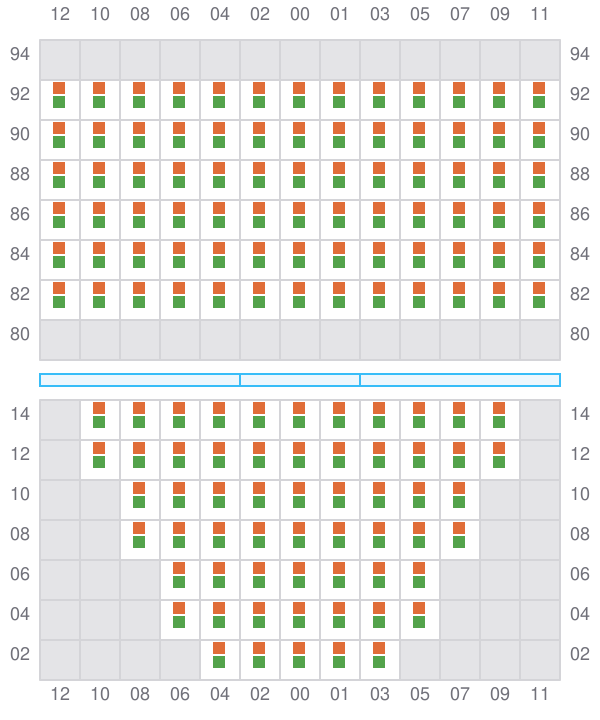

013 (014)
- →
015
- ←
017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →

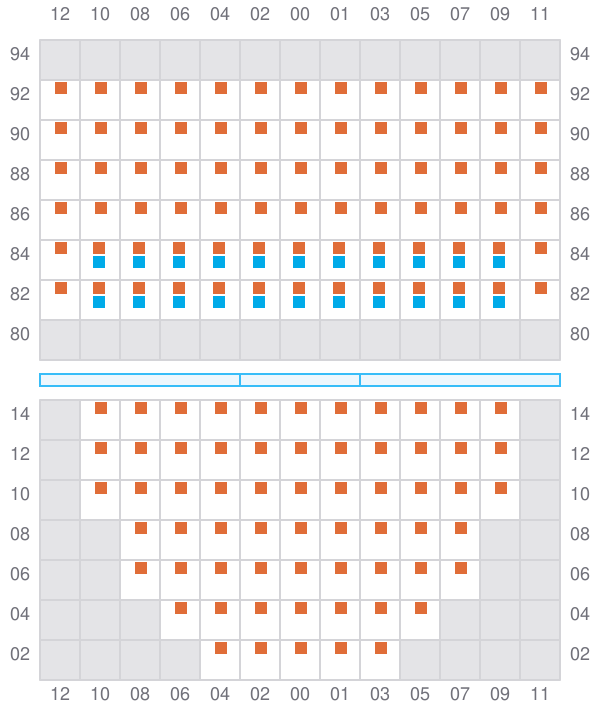

035
- ←

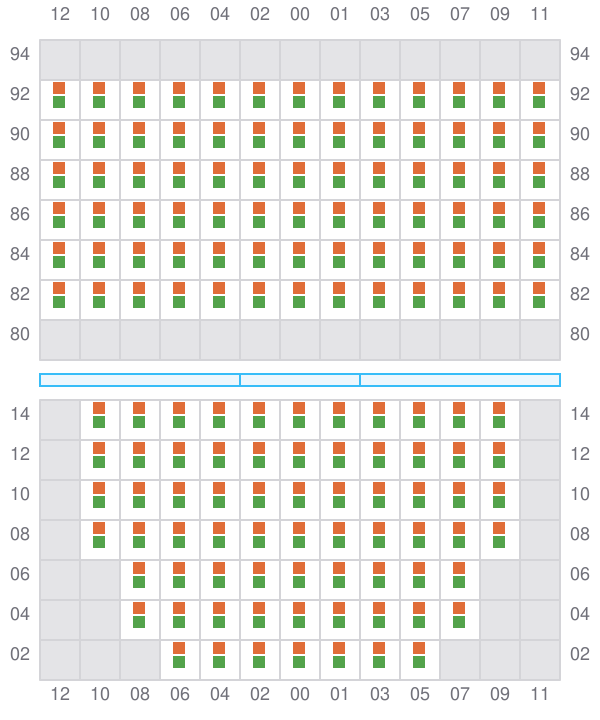

037 (038)
- →

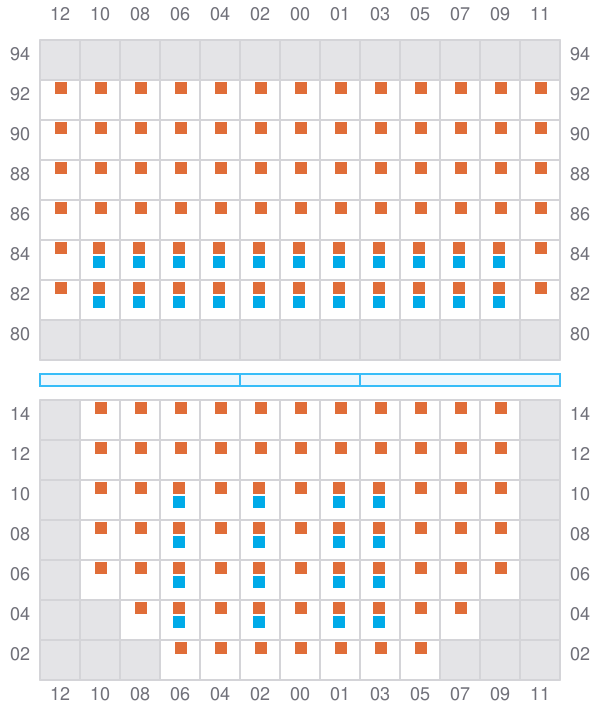

039
- ←
041 (042)
- →
043
- ←

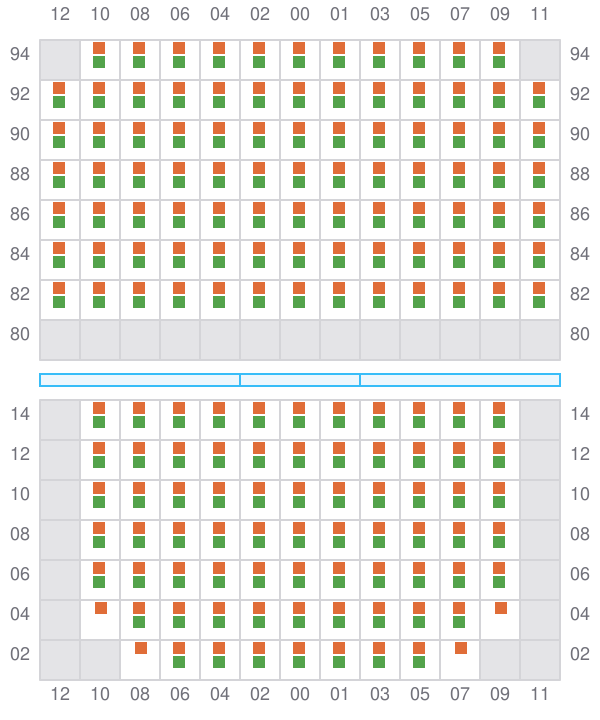

045 (046)
- →

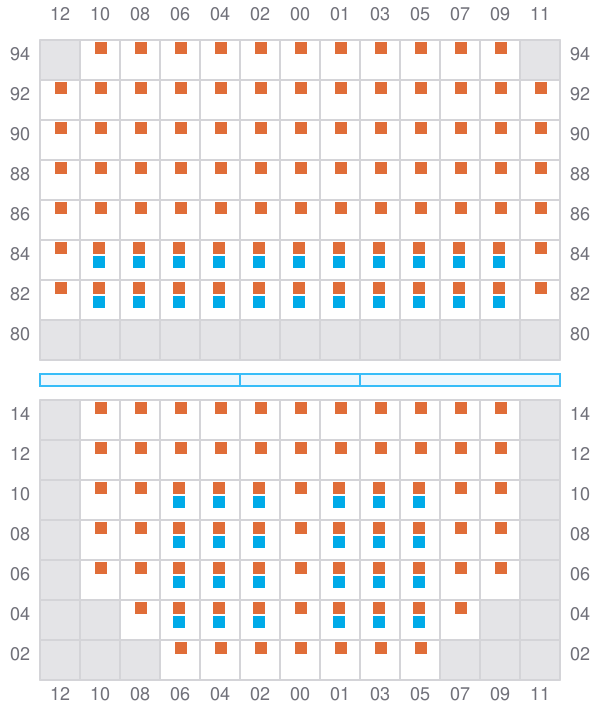

047
- ←

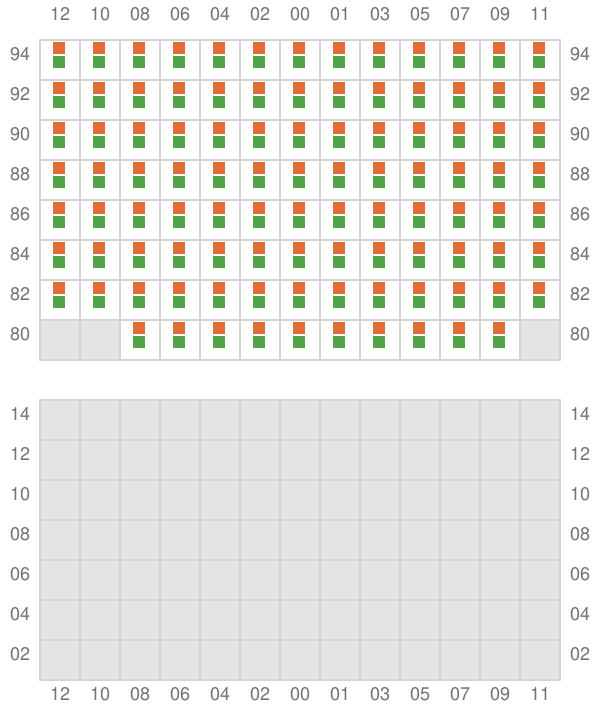

049 (050)
- → / ?

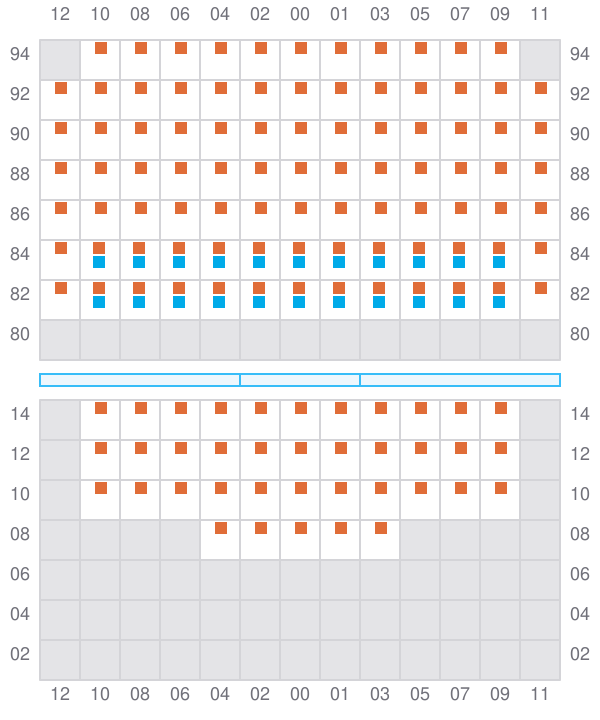

051
- ← / ?

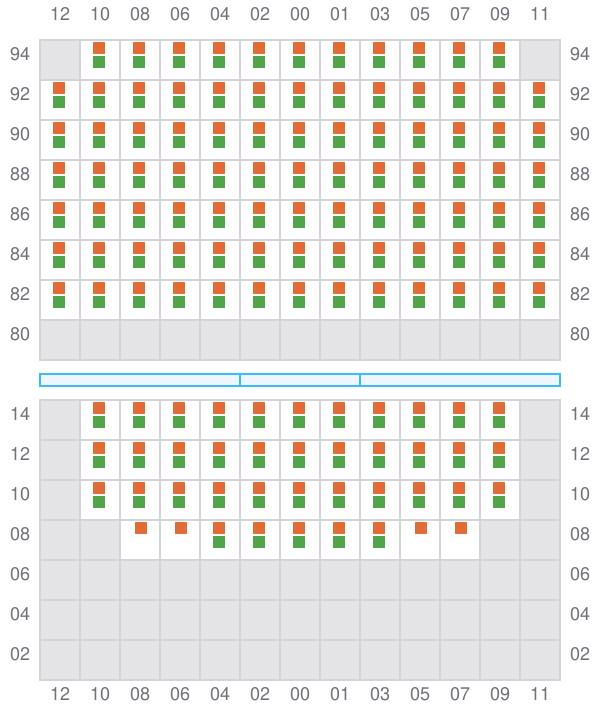

053 (054)
- →
055
- ←

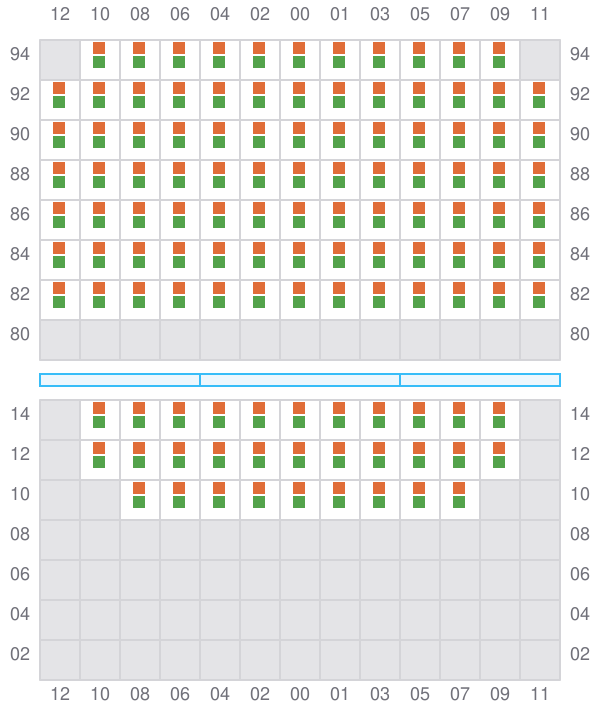

057 (058)
- →

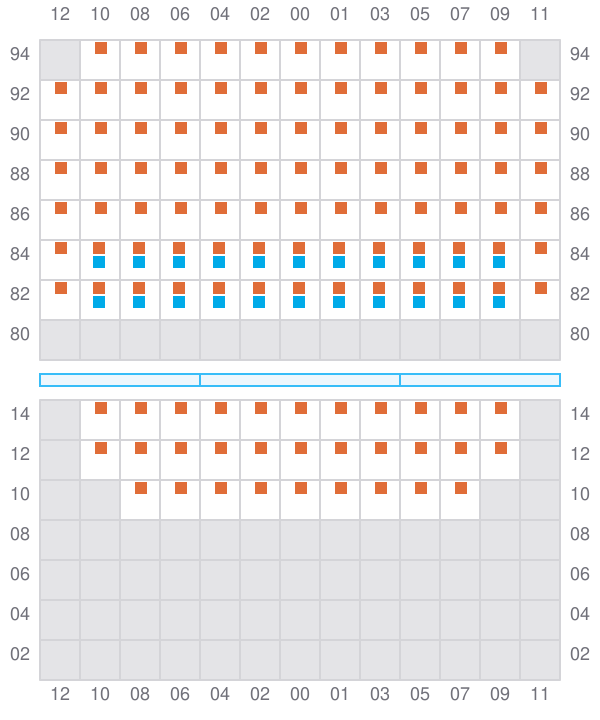

059
- ←
061 (062)
- → / ?
