MSC MAXINE
9720287 | CQEY6 | 9720287 by ********* Last update: Tue Jun 25 2024
General Info
Ship Name:MSC MAXINE
IMO Code:9720287
Call Sign:CQEY6
Line Operator:9720287
Class Name for Sister Ships:MSC
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.30
LOA (Length Overall):299.84
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,441
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

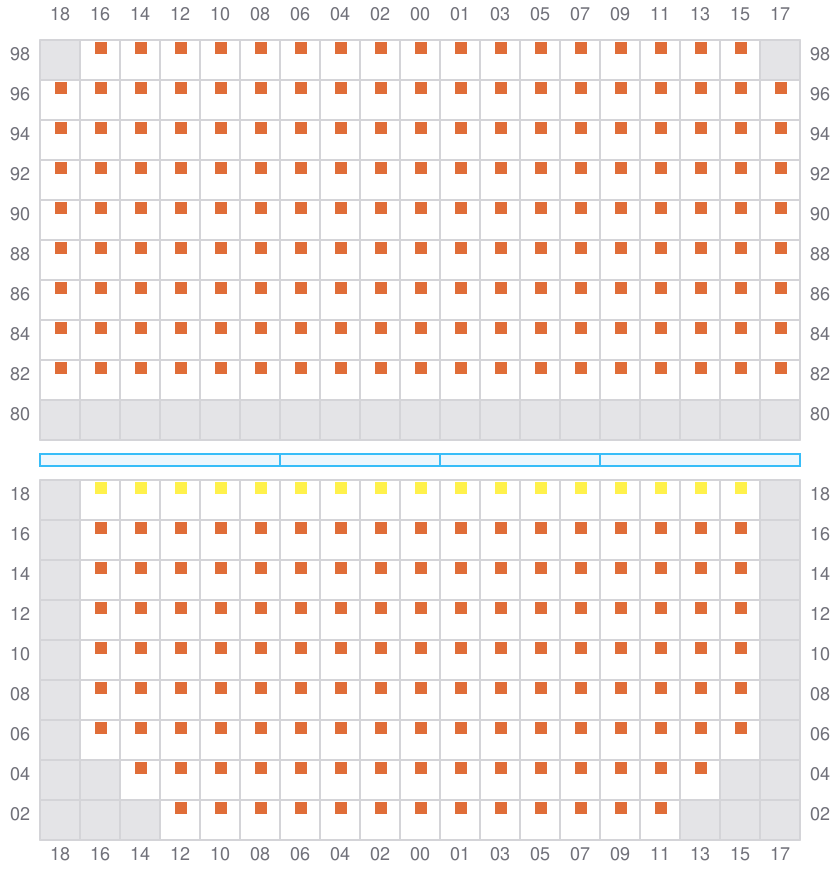

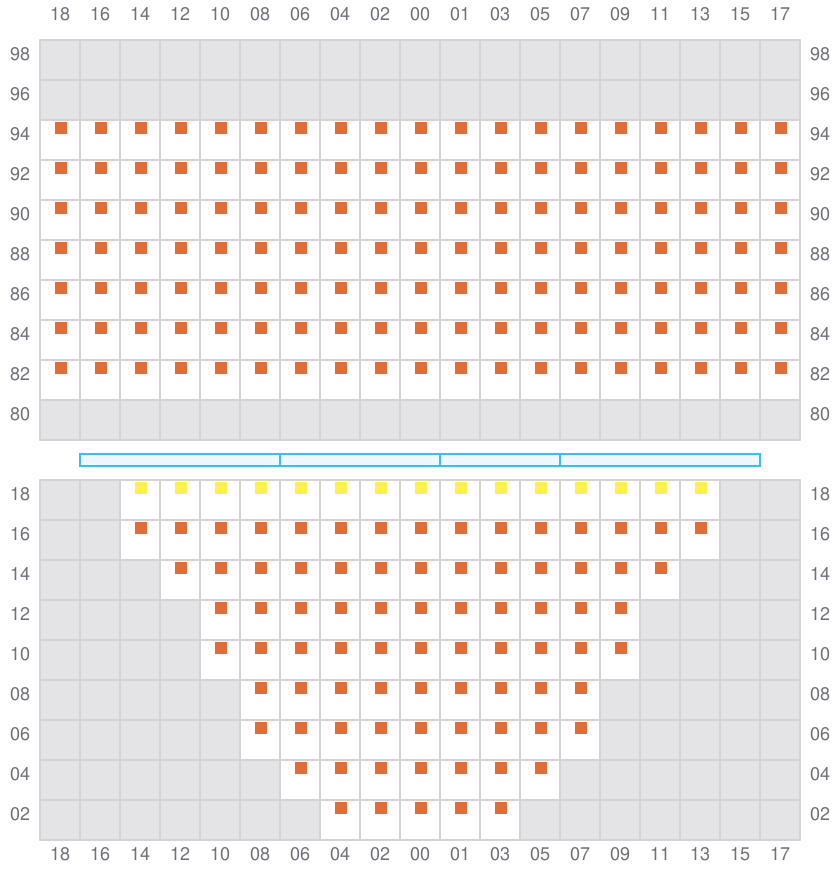

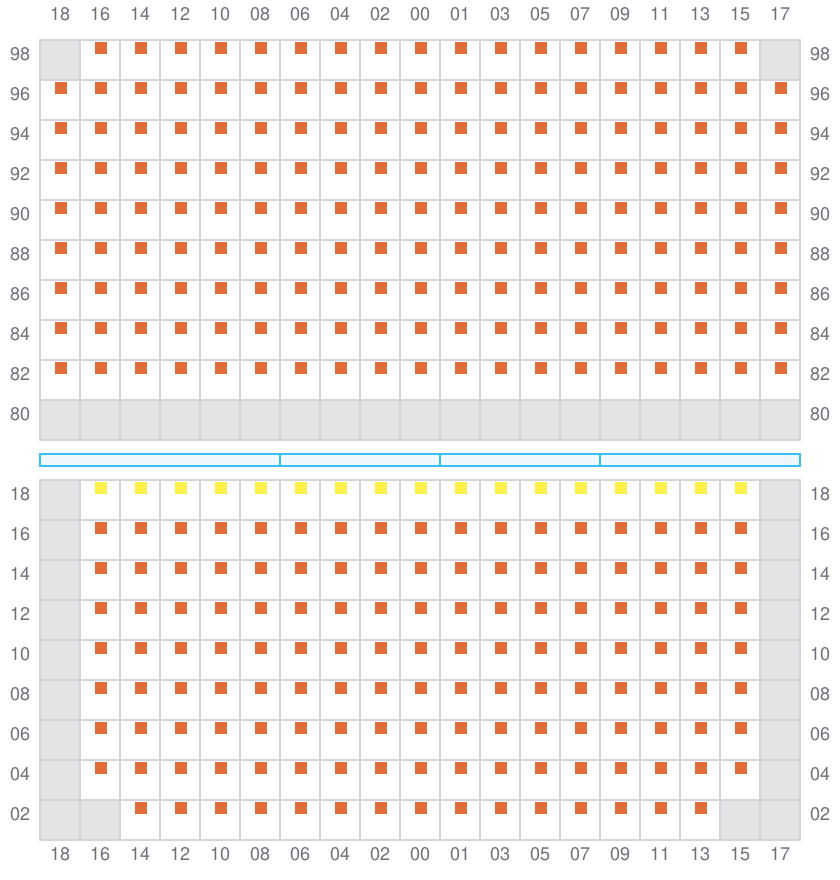

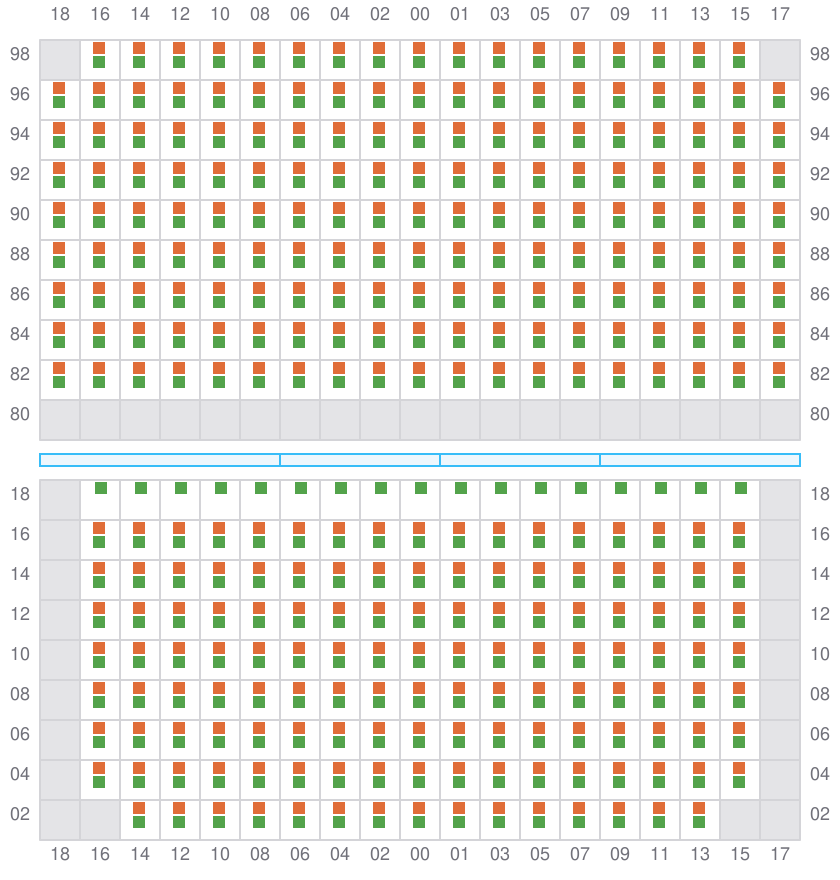

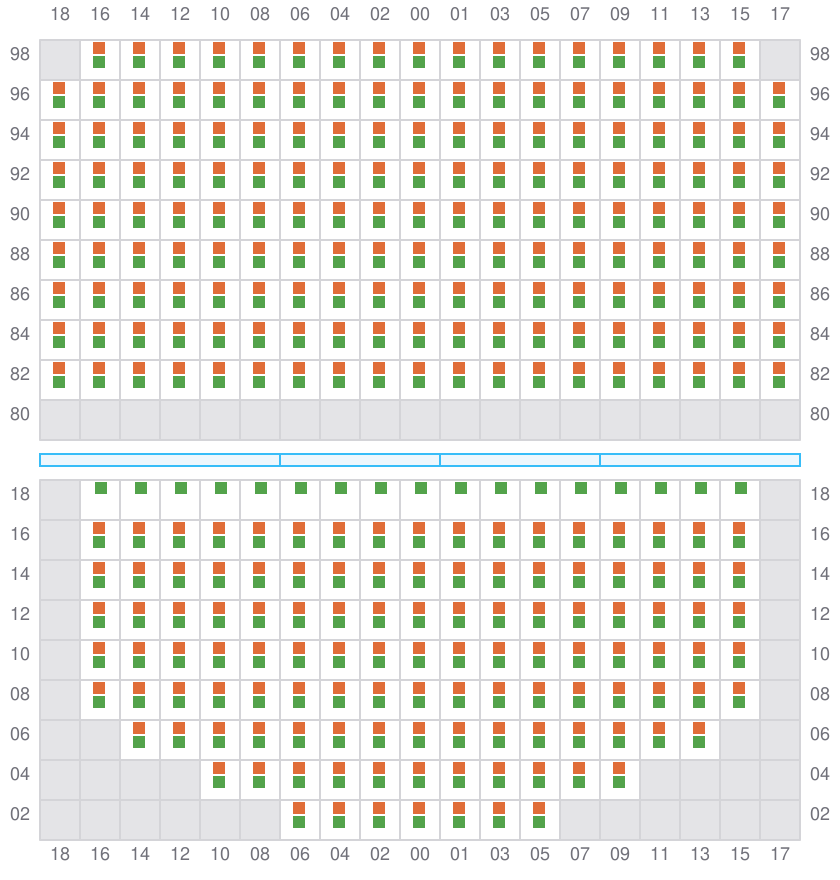

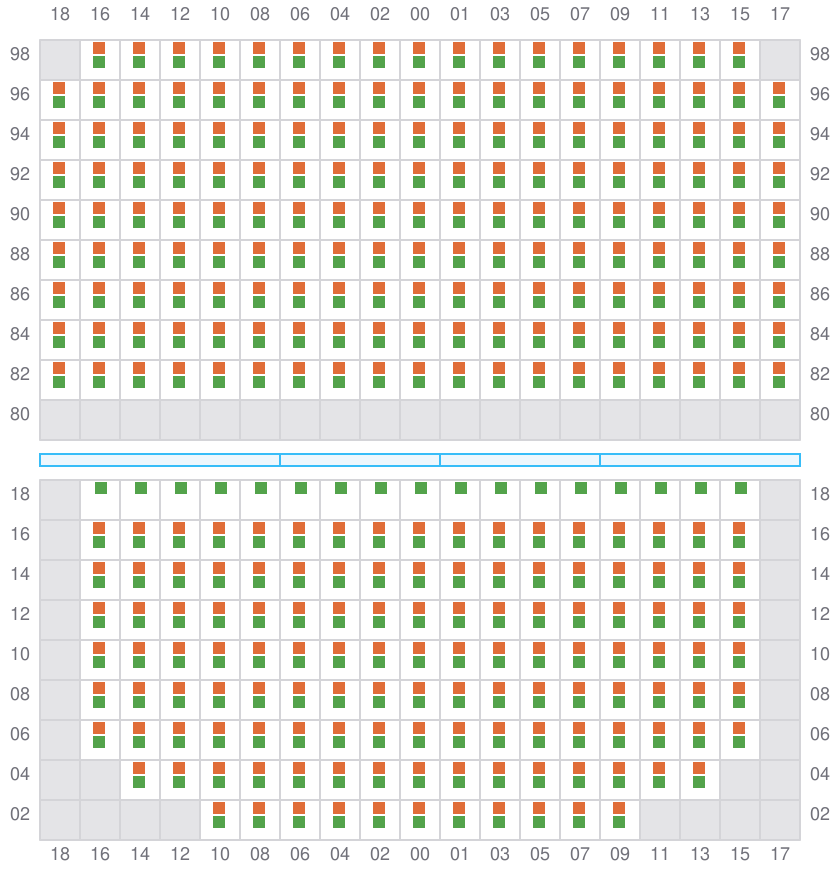

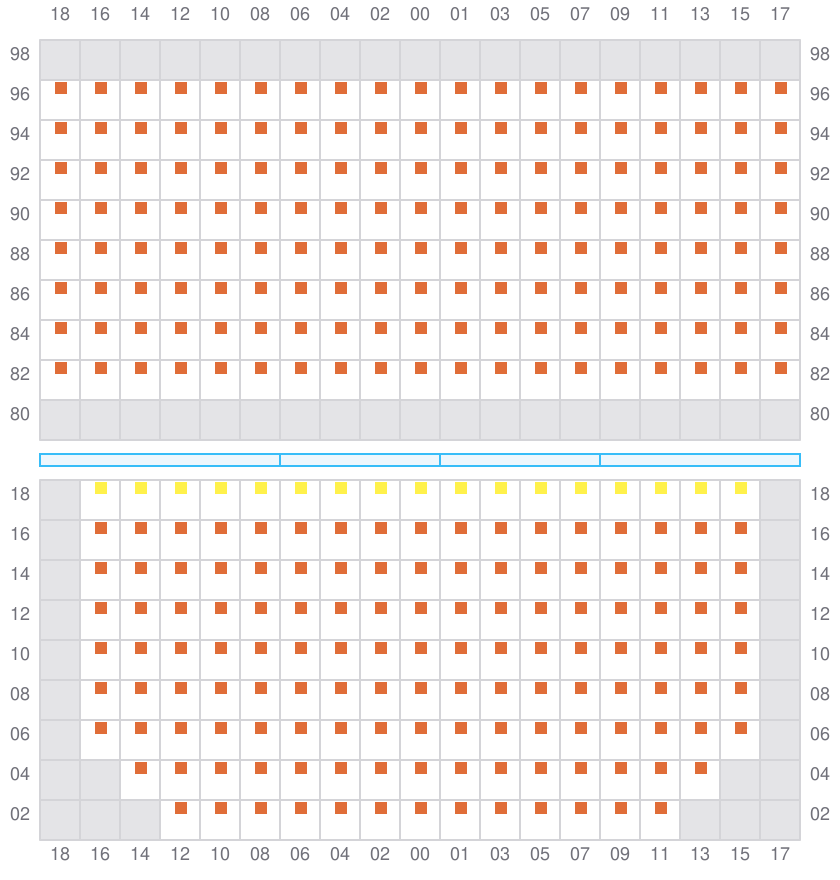

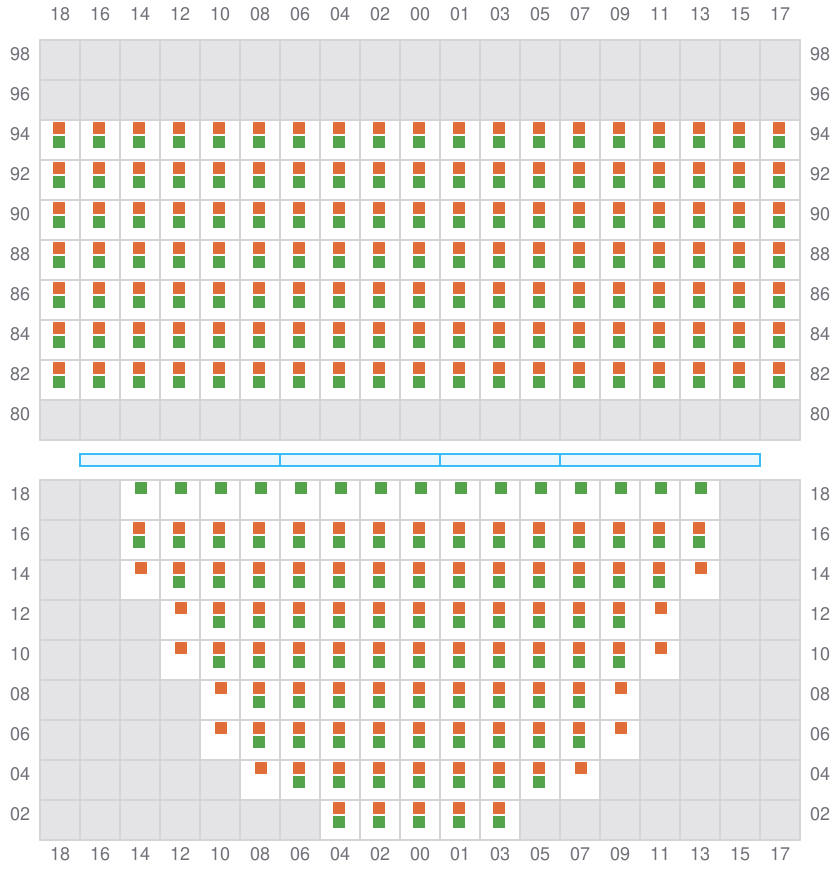

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

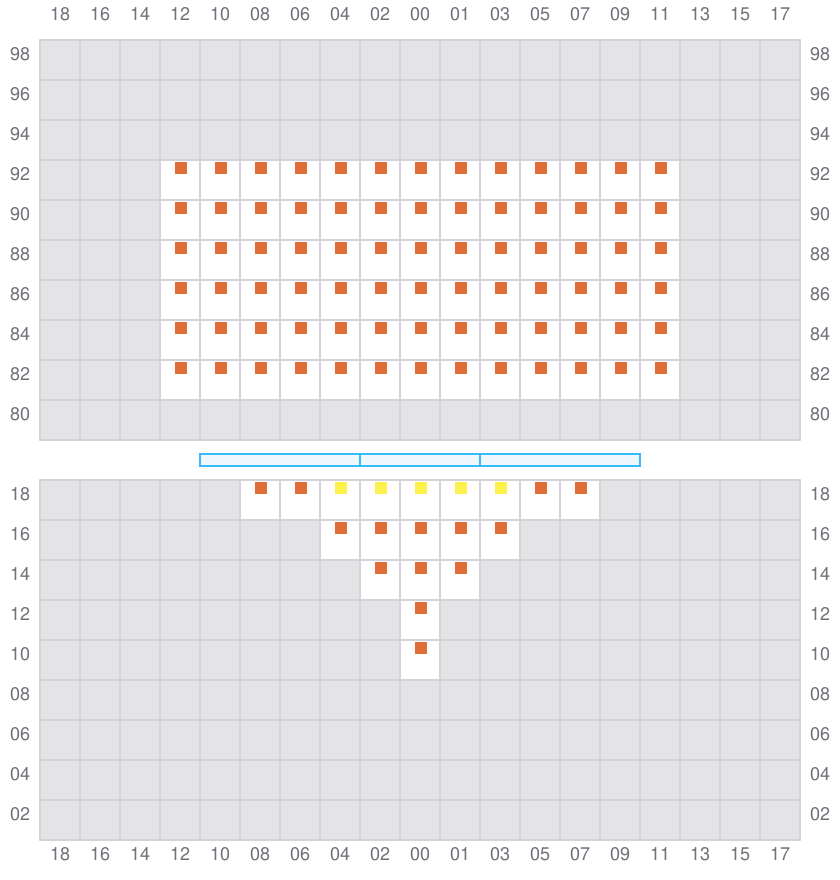

001
- →

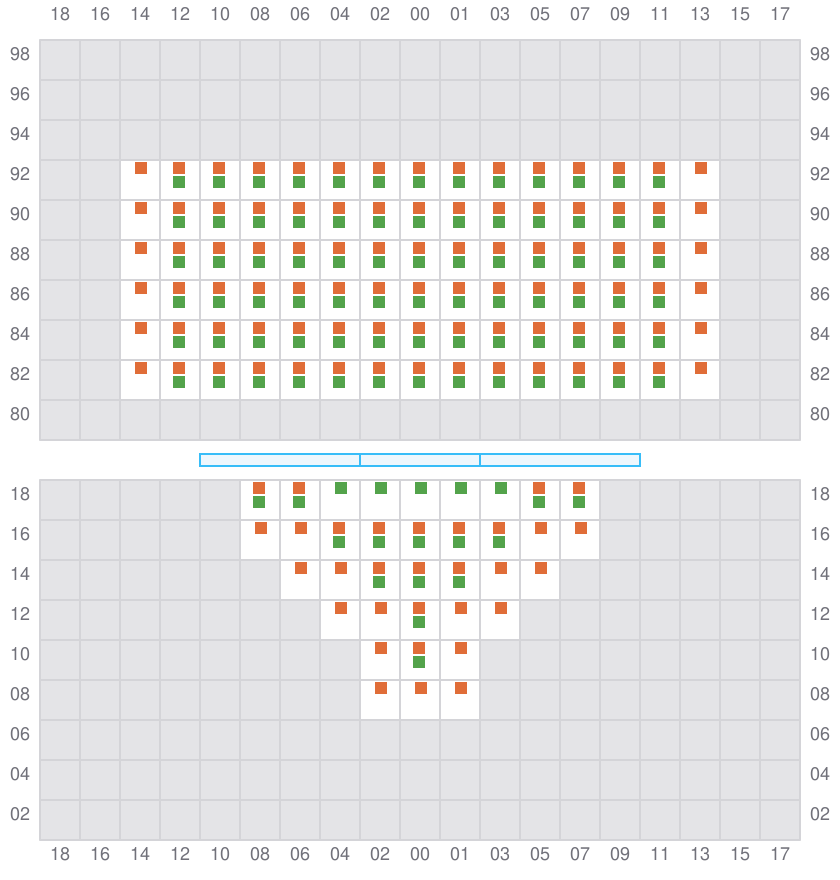

003 (002)
- ←

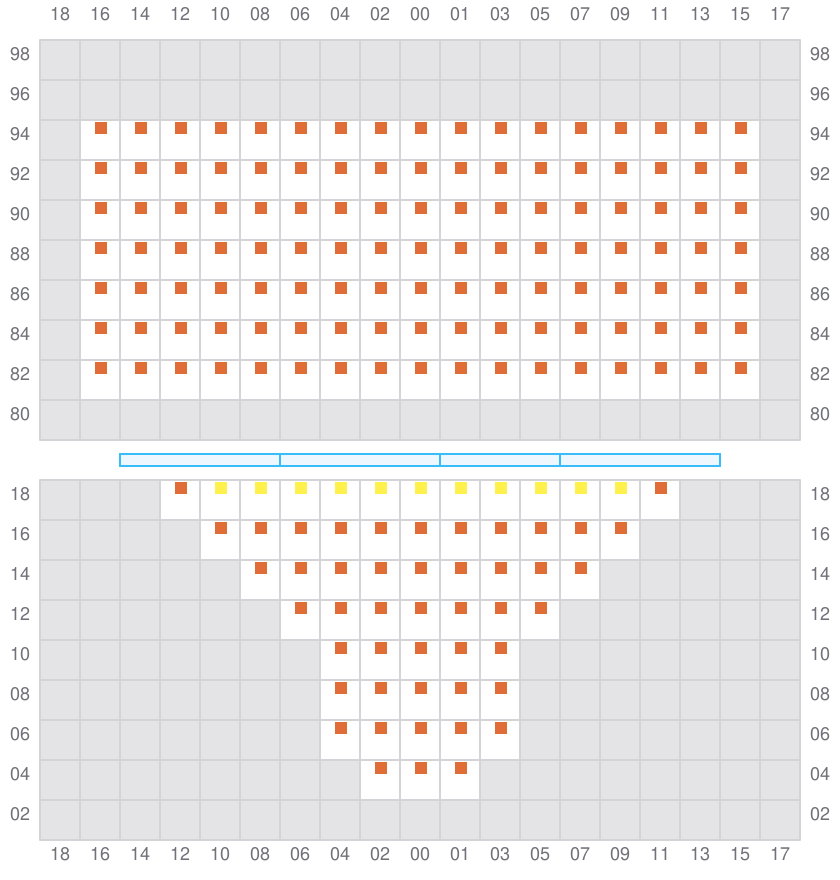

005
- →

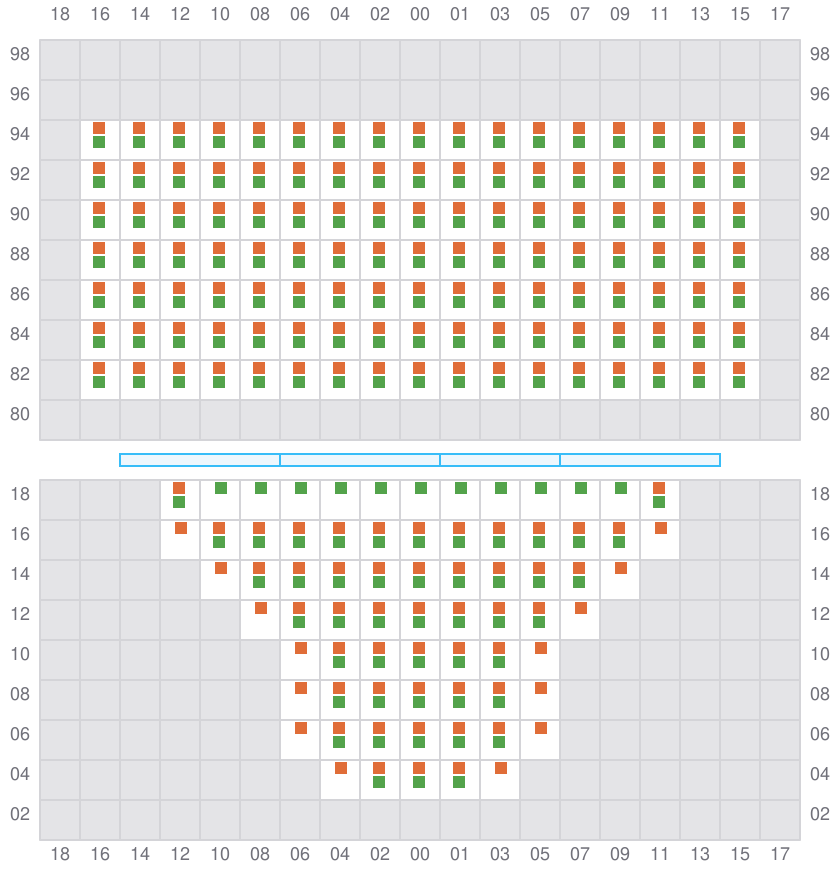

007 (006)
- ←
009
- →
011 (010)
- ←

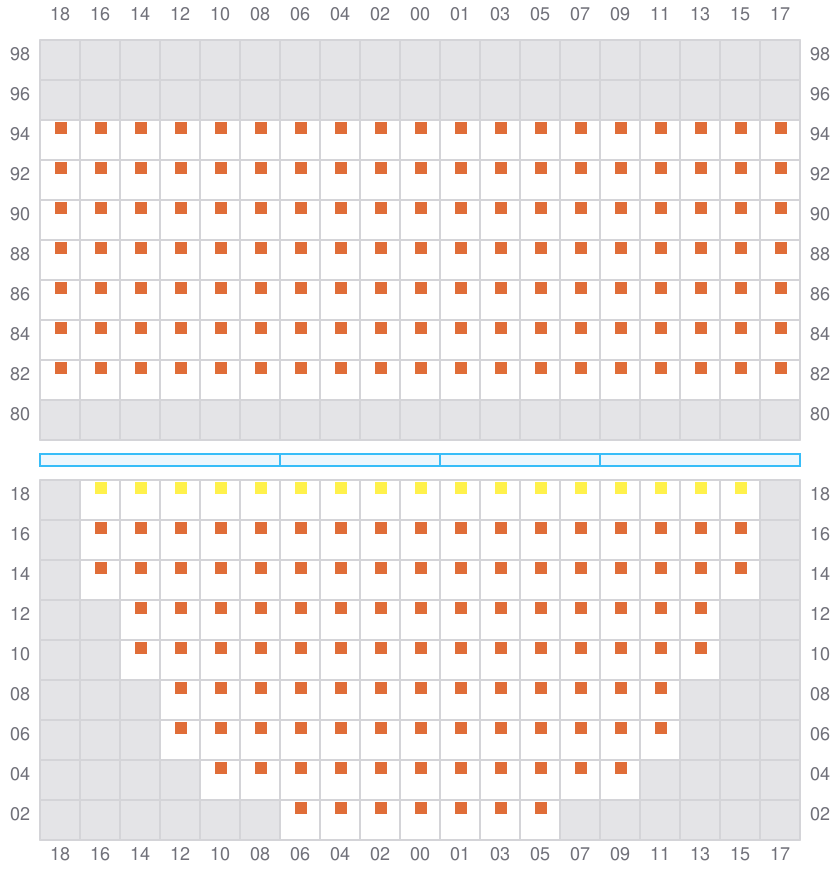

013
- →

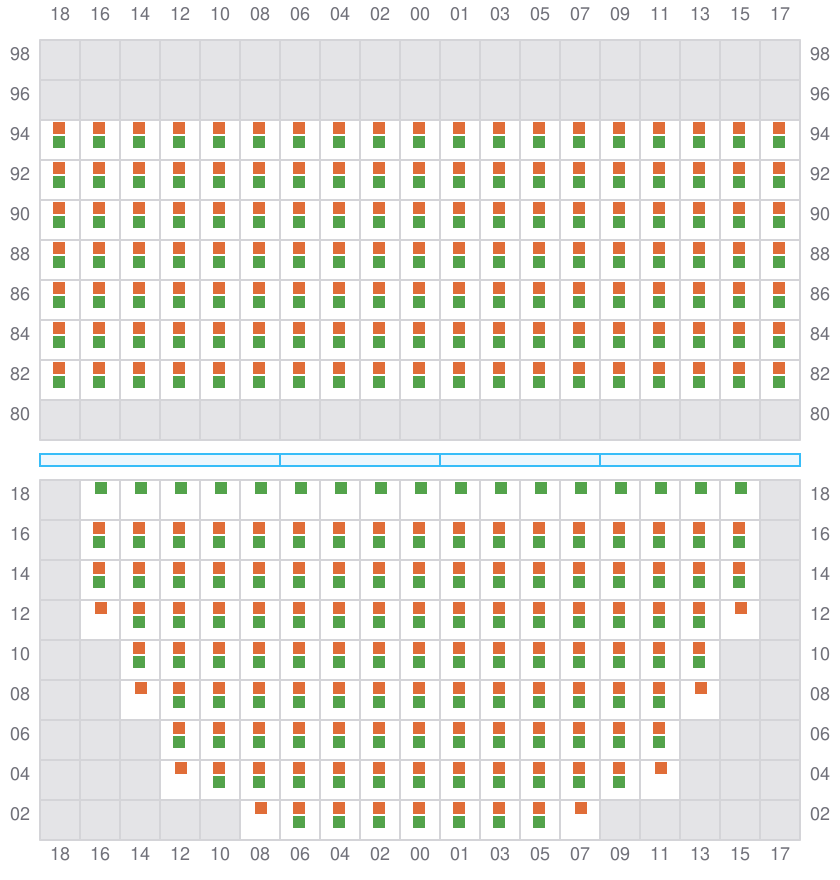

015 (014)
- ←
017
- →
019 (018)
- ←
021
- →

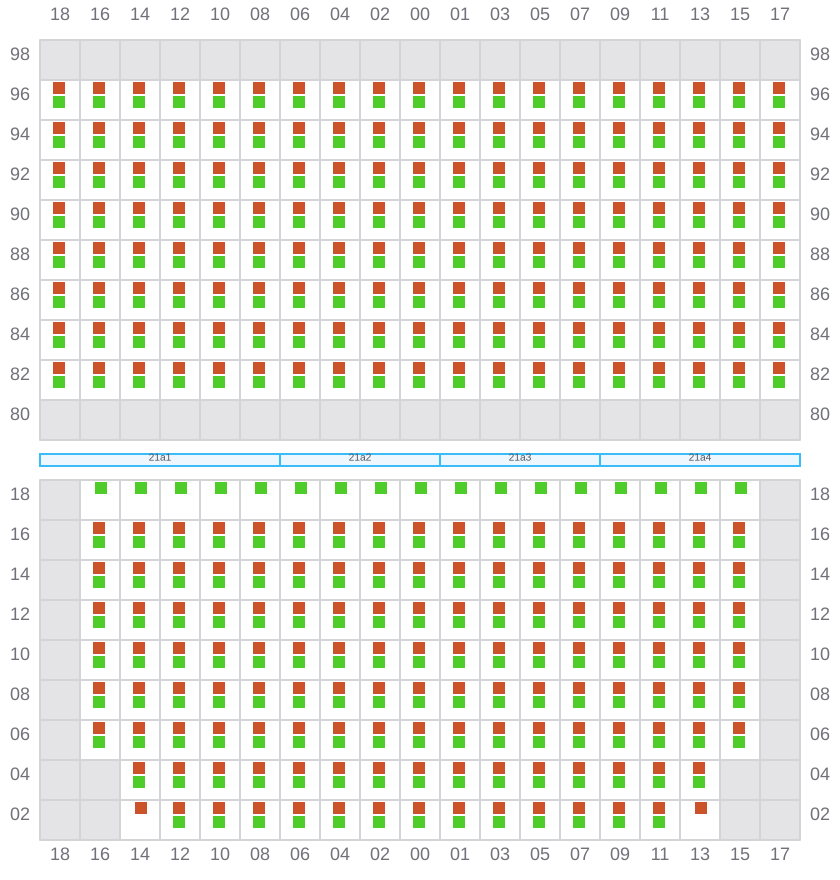

023 (022)
- ←

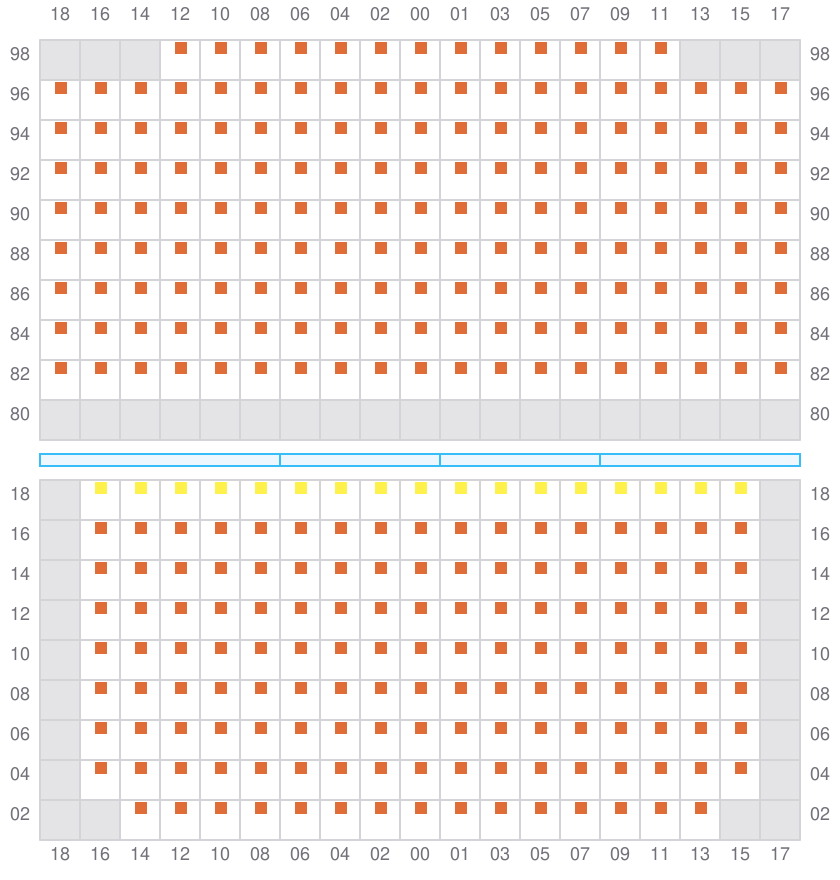

025
- →

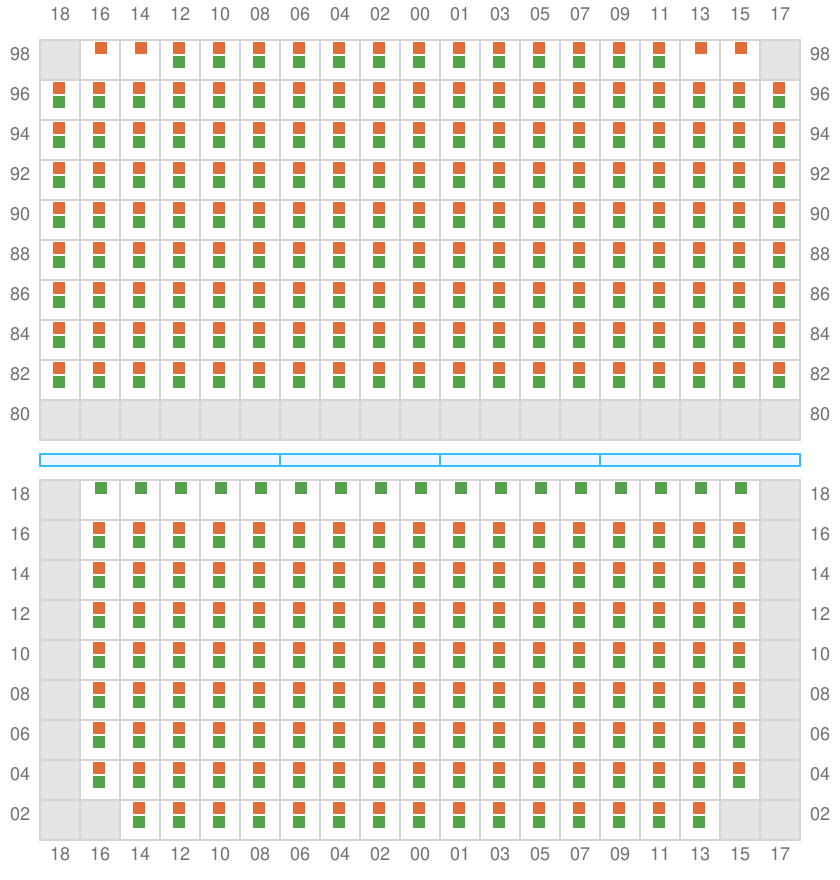

027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←
057
059 (058)
- ← / ?

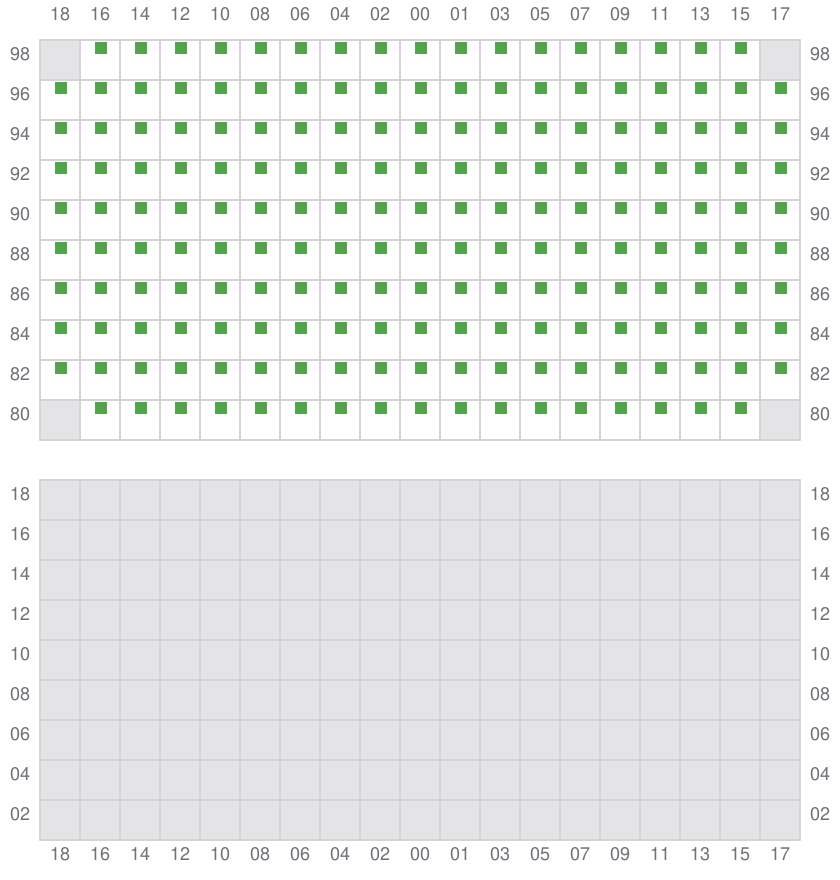

061
- → / ?
063 (062)
- ←
065
- →

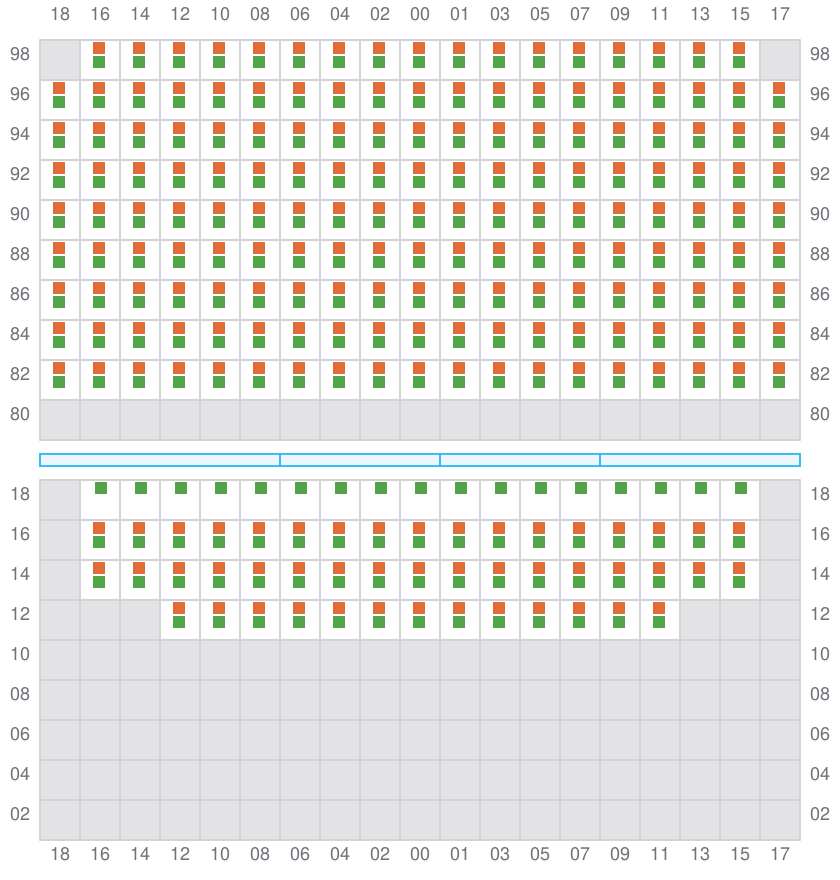

067 (066)
- ←
069

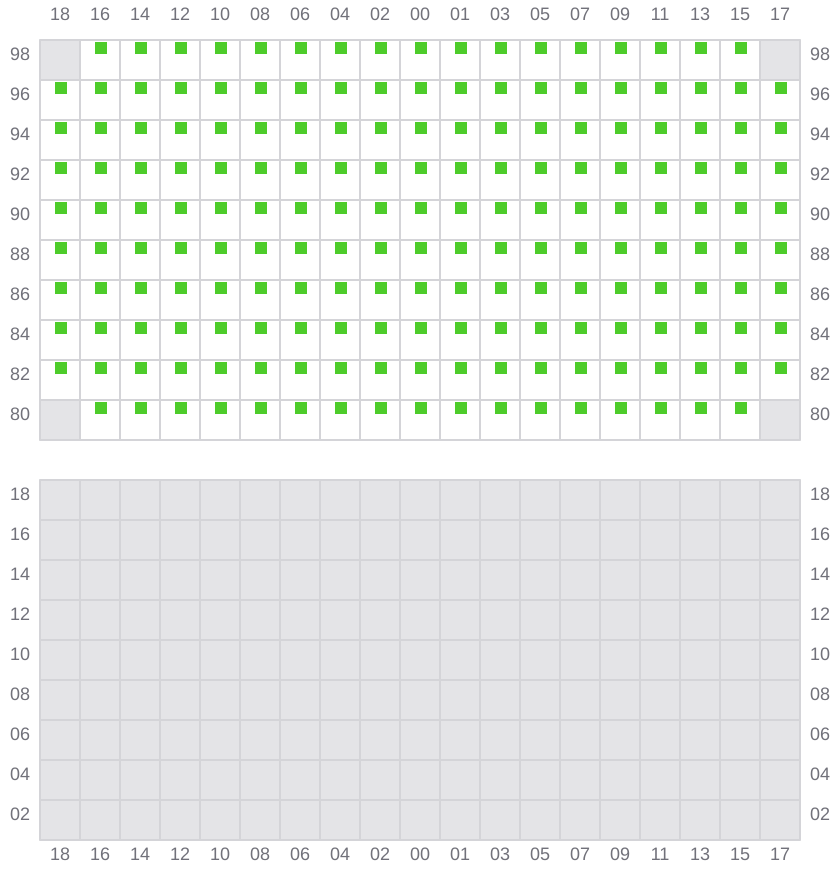

071 (070)
- ← / ?
