MSC MEDITERRANEAN
9102710 | H8JI | MSC by ************************** Last update: Sat Jun 17 2023

General Info

Ship Name:MSC MEDITERRANEAN
IMO Code:9102710
Call Sign:H8JI
Line Operator:MSC
Class Name for Sister Ships:MED
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,494

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

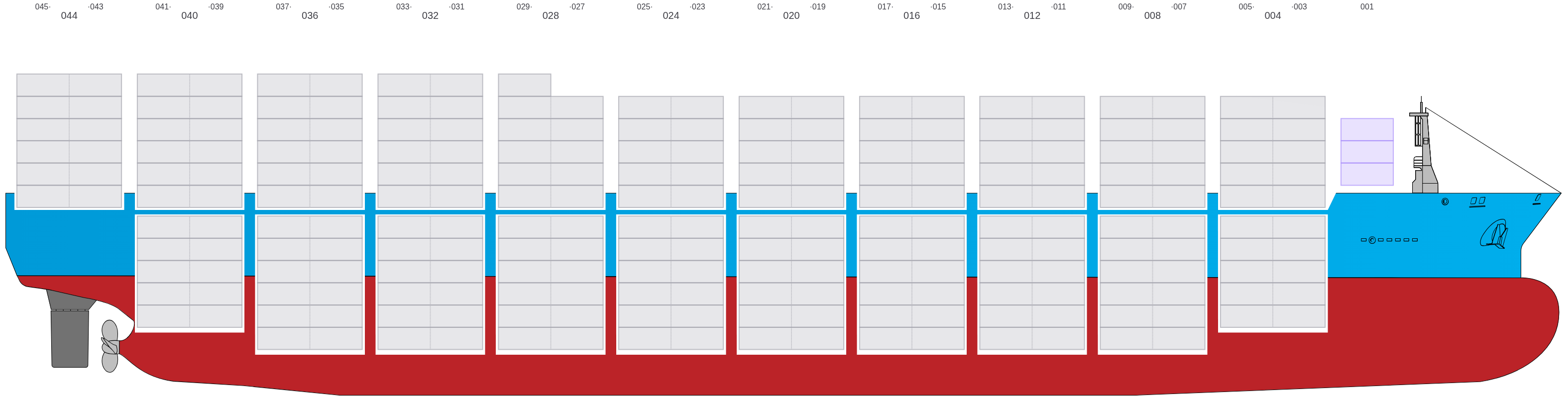

Side View

Side view of MSC MEDITERRANEAN

Hatch-Covers View

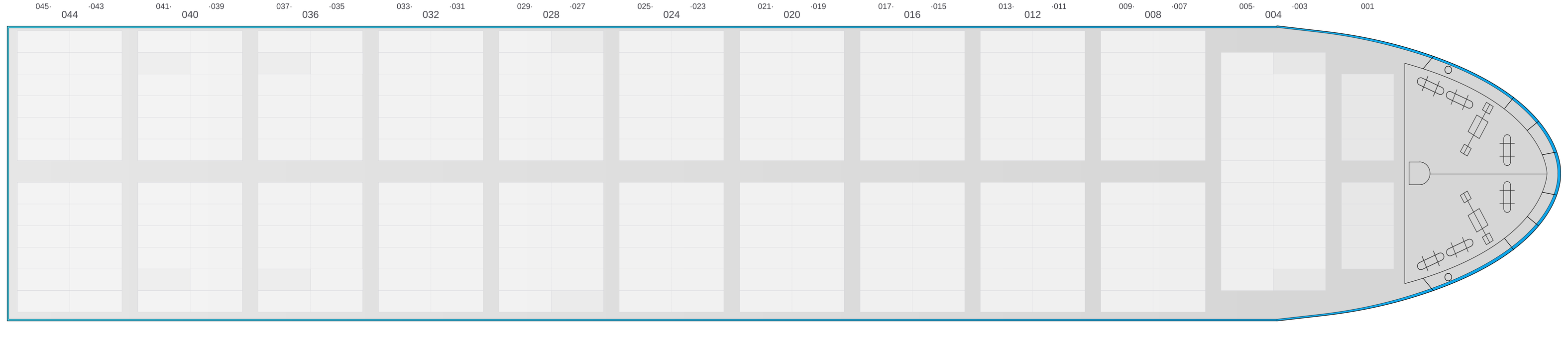

Deck view of MSC MEDITERRANEAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

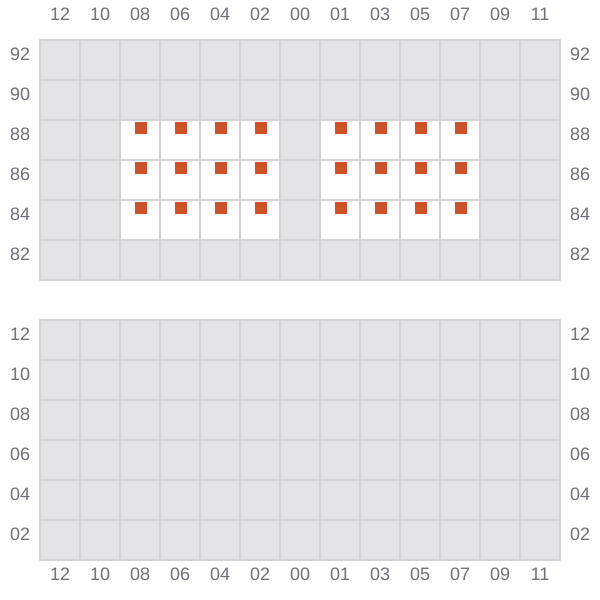

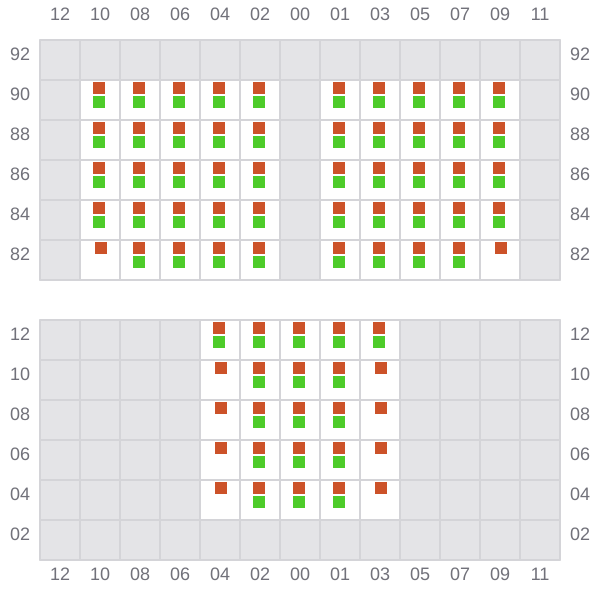

Bay 001 view and slots of MSC MEDITERRANEAN

003

  • →

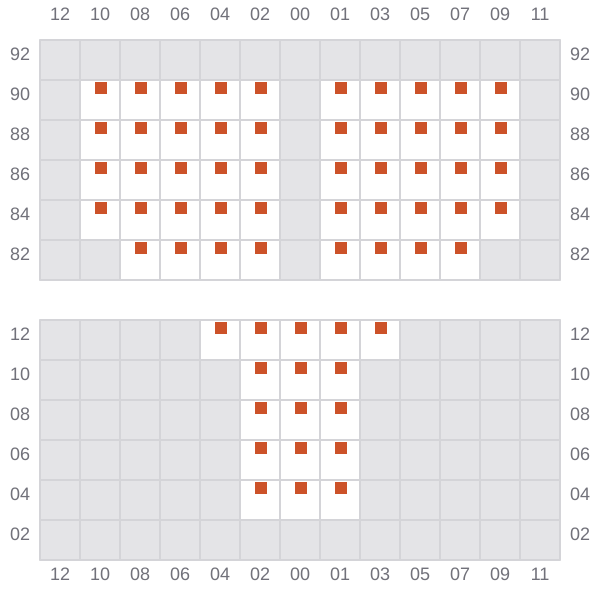

Bay 003 view and slots of MSC MEDITERRANEAN

005 (004)

  • ←
Bay 005 view and slots of MSC MEDITERRANEAN

007

  • →

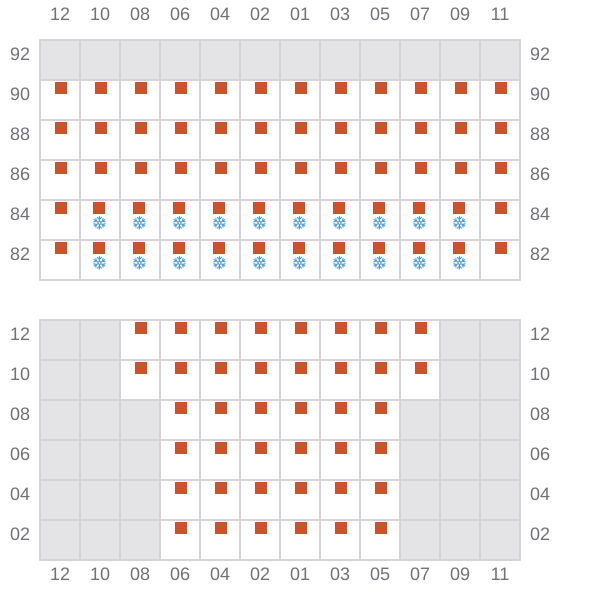

Bay 007 view and slots of MSC MEDITERRANEAN

009 (008)

  • ←
  • → / ?
  • → / ?

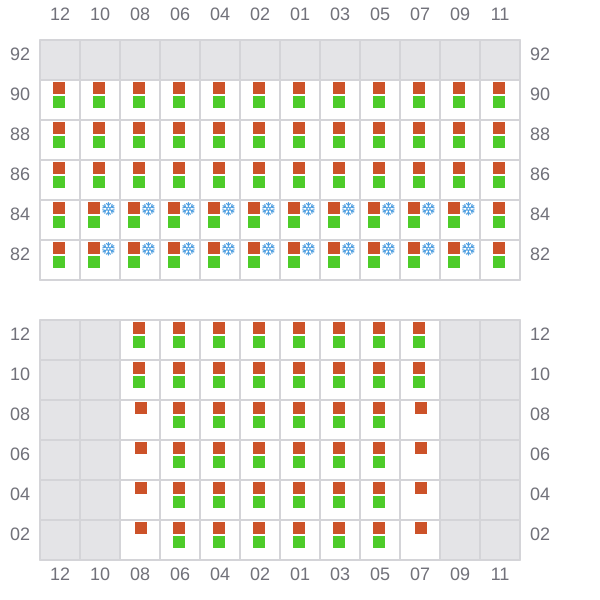

Bay 009 view and slots of MSC MEDITERRANEAN

011

  • →

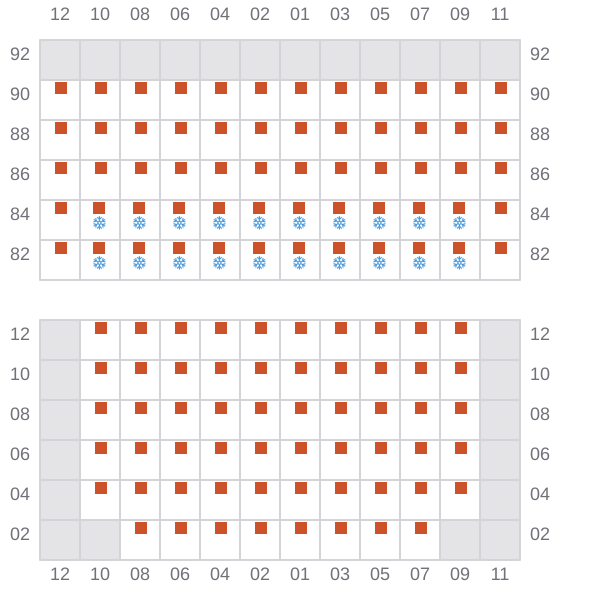

Bay 011 view and slots of MSC MEDITERRANEAN

013 (012)

  • ←
  • → / ?
  • → / ?

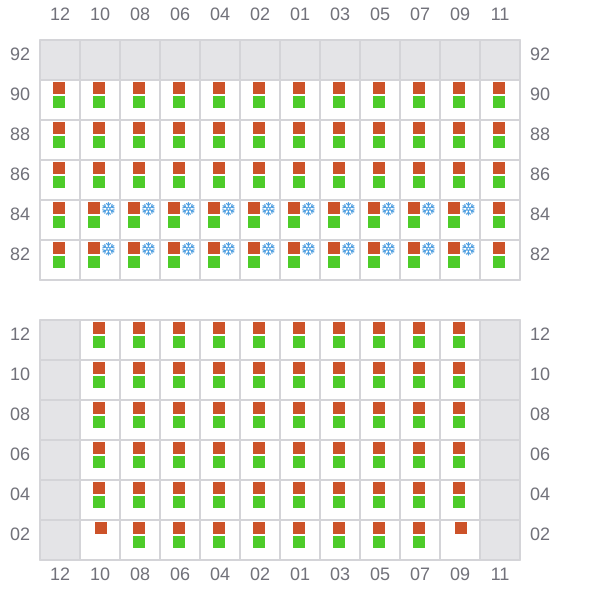

Bay 013 view and slots of MSC MEDITERRANEAN

015

  • →
Bay 015 view and slots of MSC MEDITERRANEAN

017 (016)

  • ←
  • → / ?
  • → / ?
Bay 017 view and slots of MSC MEDITERRANEAN

019

  • →
Bay 019 view and slots of MSC MEDITERRANEAN

021 (020)

  • ←
  • → / ?
  • → / ?
Bay 021 view and slots of MSC MEDITERRANEAN

023

  • →
Bay 023 view and slots of MSC MEDITERRANEAN

025 (024)

  • ←
  • → / ?
  • → / ?
Bay 025 view and slots of MSC MEDITERRANEAN

027

  • →

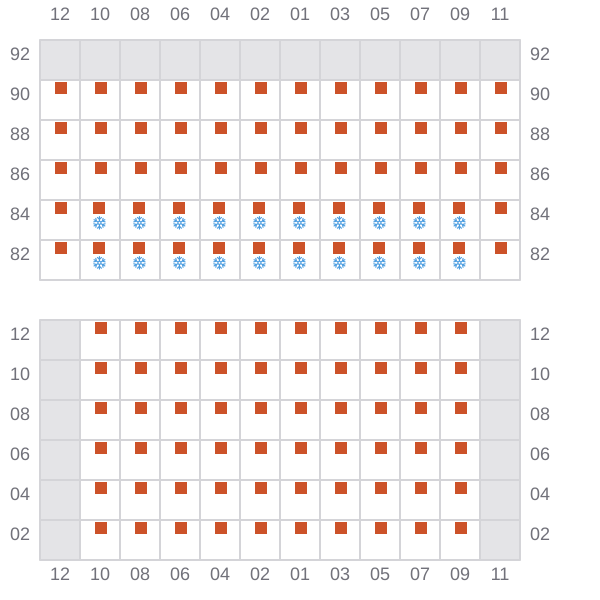

Bay 027 view and slots of MSC MEDITERRANEAN

029 (028)

  • ←
  • → / ?
  • → / ?

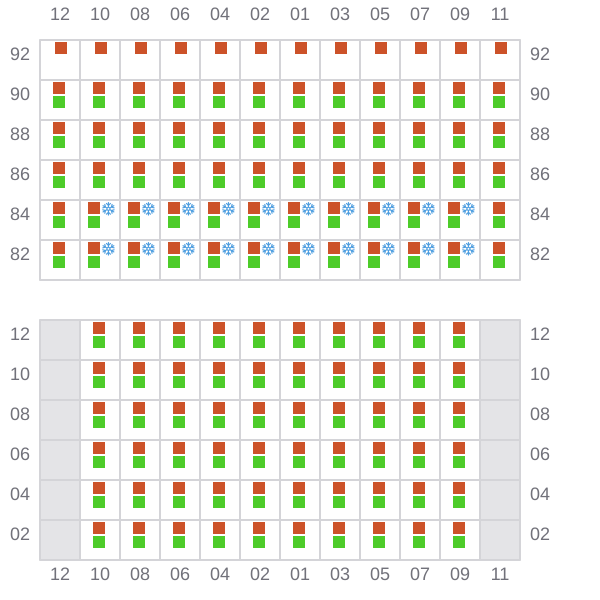

Bay 029 view and slots of MSC MEDITERRANEAN

031

  • →

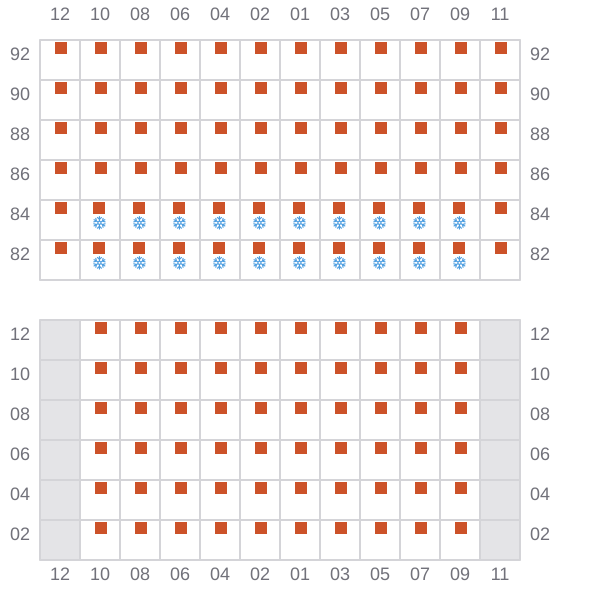

Bay 031 view and slots of MSC MEDITERRANEAN

033 (032)

  • ←
  • → / ?
  • → / ?

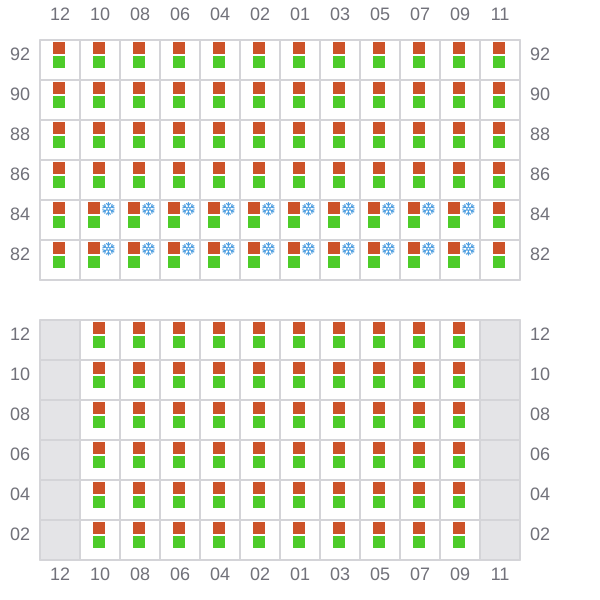

Bay 033 view and slots of MSC MEDITERRANEAN

035

  • →
Bay 035 view and slots of MSC MEDITERRANEAN

037 (036)

  • ←
  • → / ?
  • → / ?

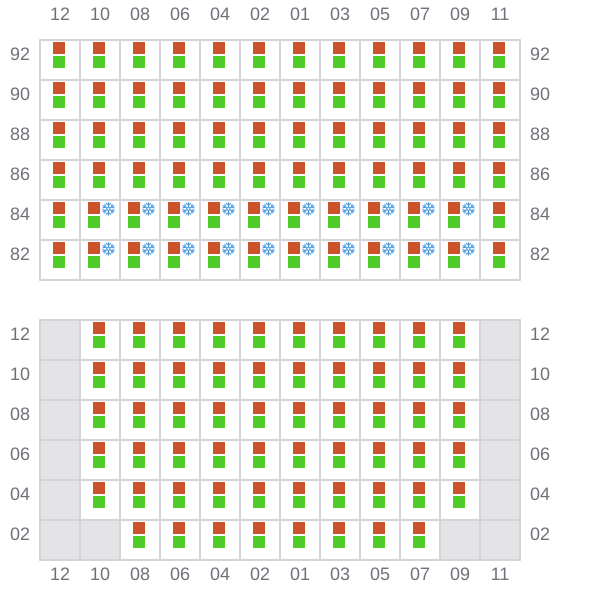

Bay 037 view and slots of MSC MEDITERRANEAN

039

  • →

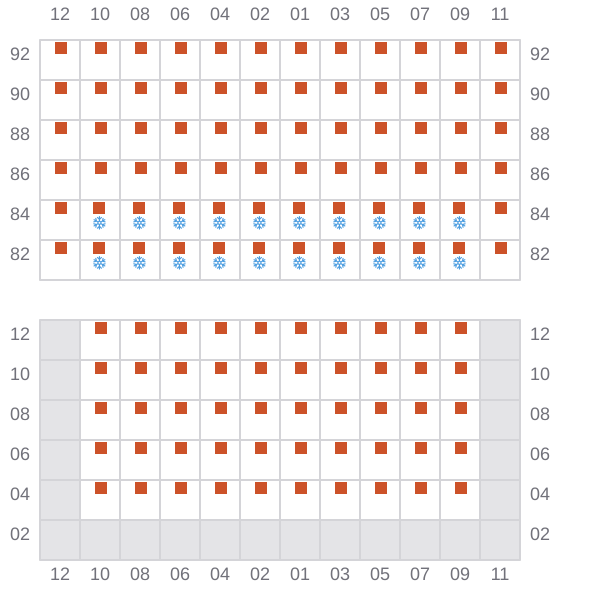

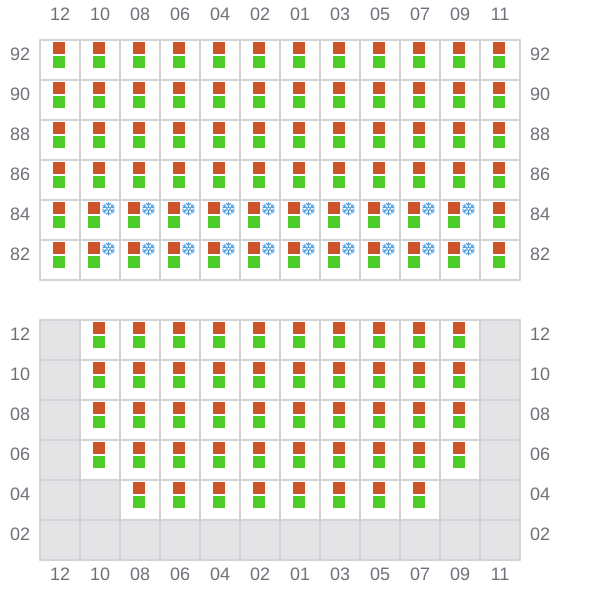

Bay 039 view and slots of MSC MEDITERRANEAN

041 (040)

  • ←
  • → / ?
  • → / ?
Bay 041 view and slots of MSC MEDITERRANEAN

043

  • → / ?

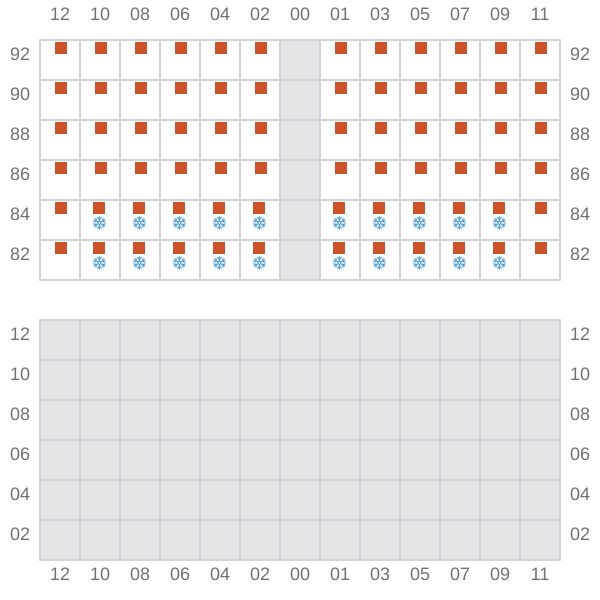

Bay 043 view and slots of MSC MEDITERRANEAN

045 (044)

  • ← / ?
  • → / ?
  • → / ?

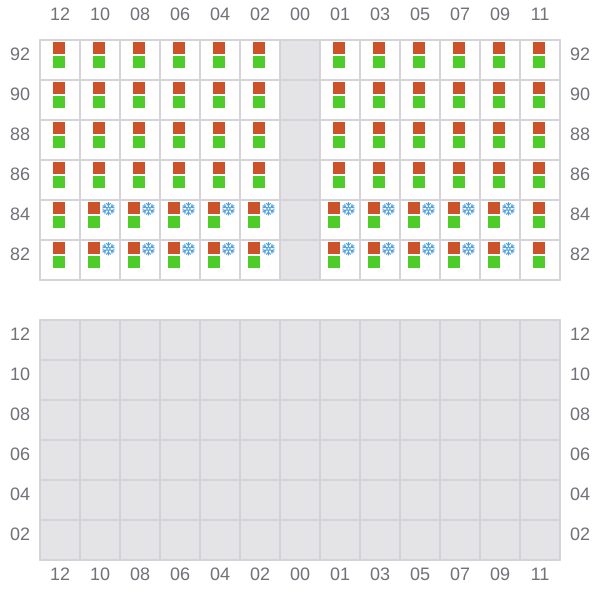

Bay 045 view and slots of MSC MEDITERRANEAN
