MSC MELATILDE
9404675 | 3FYE4 | 9404675 by ********* Last update: Mon May 20 2024

General Info

Ship Name:MSC MELATILDE

IMO Code:9404675

Call Sign:3FYE4

Line Operator:9404675

Class Name for Sister Ships:MSC MELATILDE

Year Built:2010

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:085

Max ISO Row:20

Center Line Row:No

Max Above ISO Tier:98

Min Above ISO Tier:80

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:13,988

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of MSC MELATILDE

Hatch-Covers View

Deck view of MSC MELATILDE

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

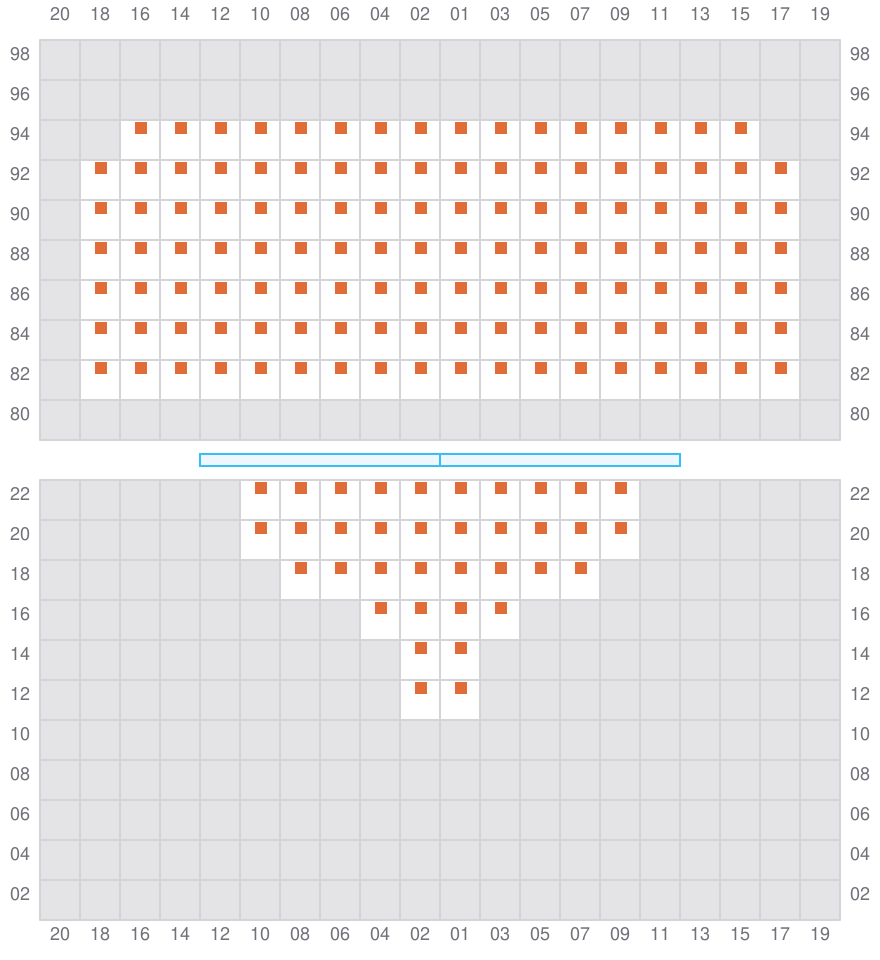

Bay 001 view and slots of MSC MELATILDE

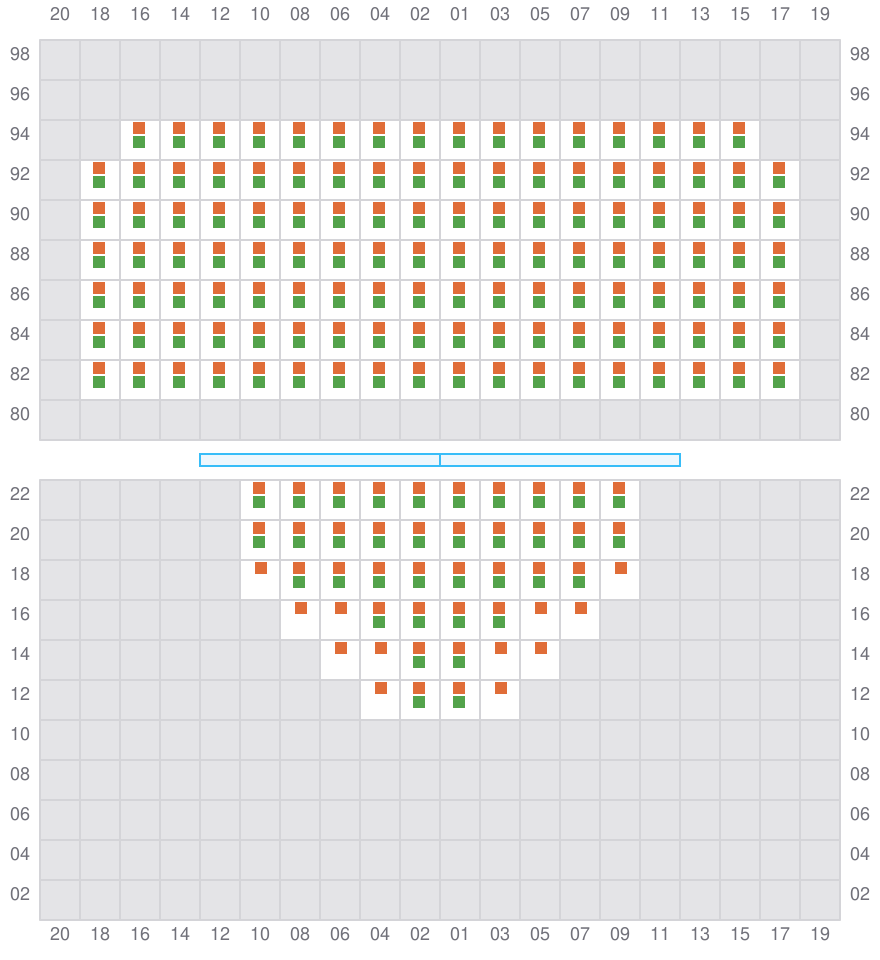

003 (002)

←

Bay 003 view and slots of MSC MELATILDE

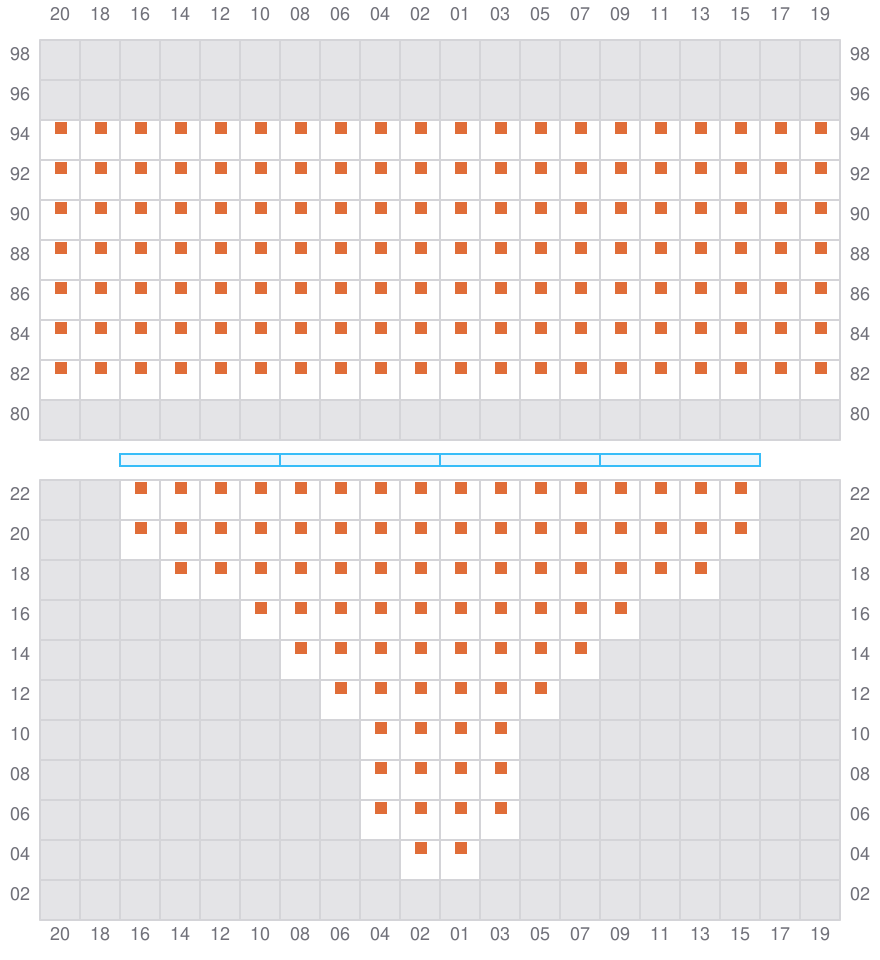

005

→

Bay 005 view and slots of MSC MELATILDE

007 (006)

←

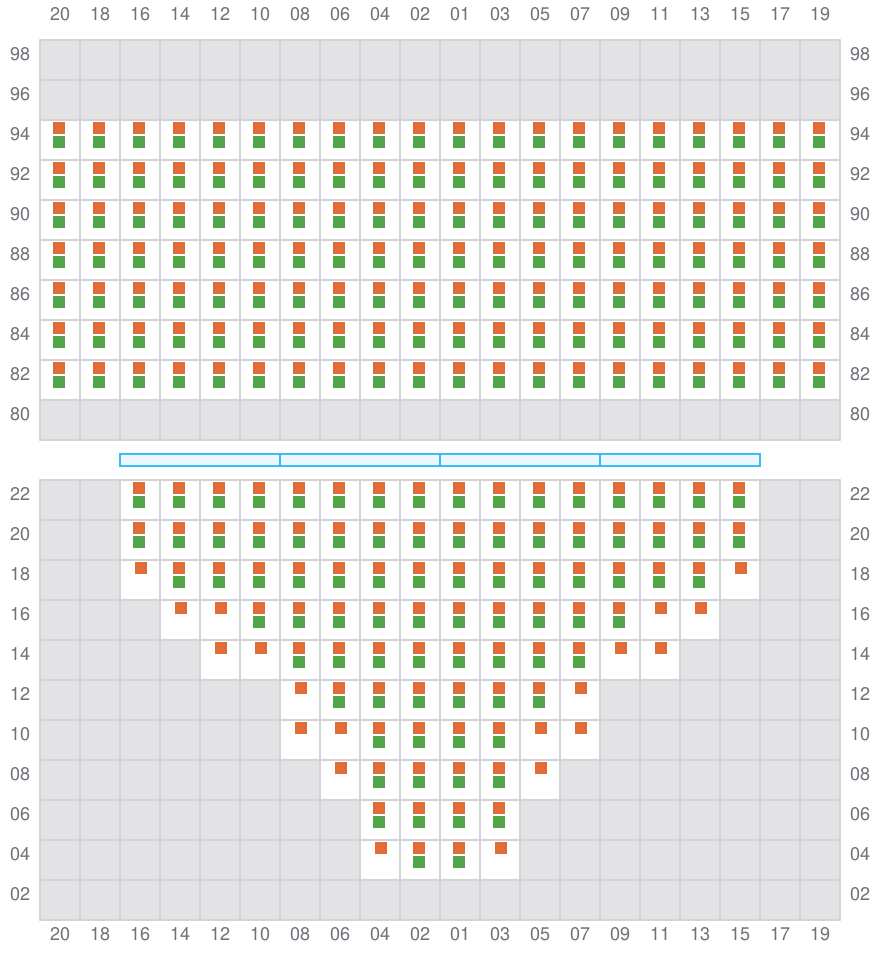

Bay 007 view and slots of MSC MELATILDE

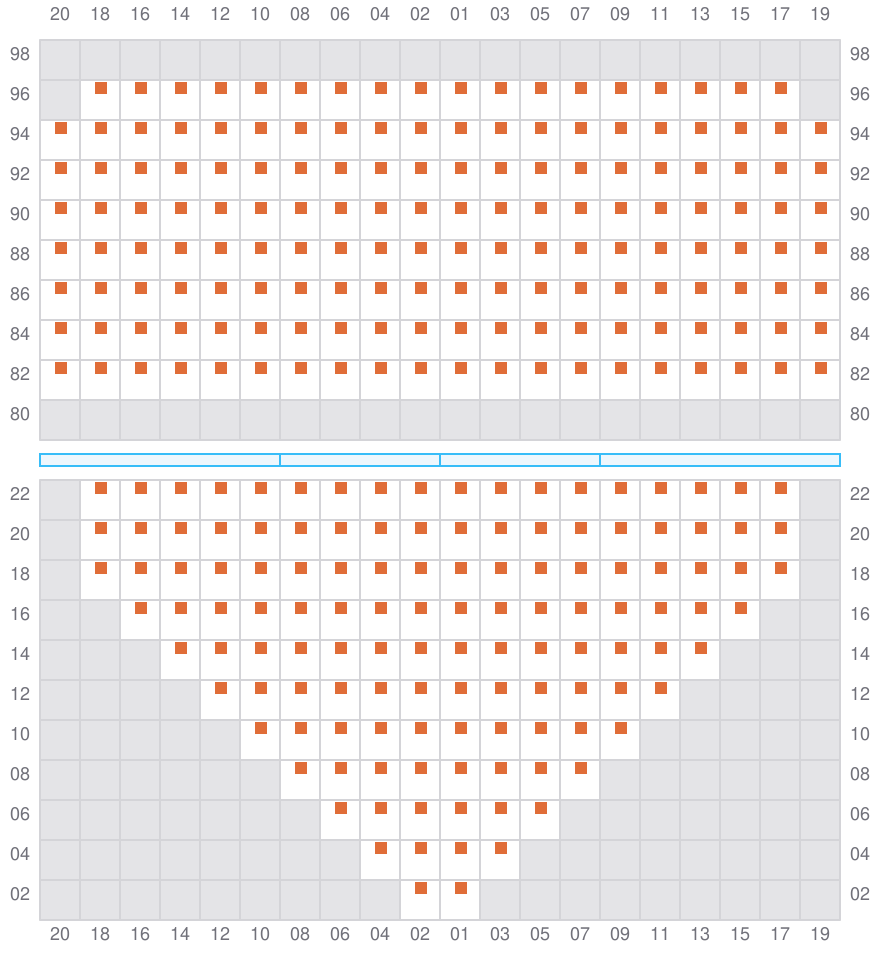

009

→

Bay 009 view and slots of MSC MELATILDE

011 (010)

←

Bay 011 view and slots of MSC MELATILDE

013

→

Bay 013 view and slots of MSC MELATILDE

015 (014)

←

Bay 015 view and slots of MSC MELATILDE

017

→

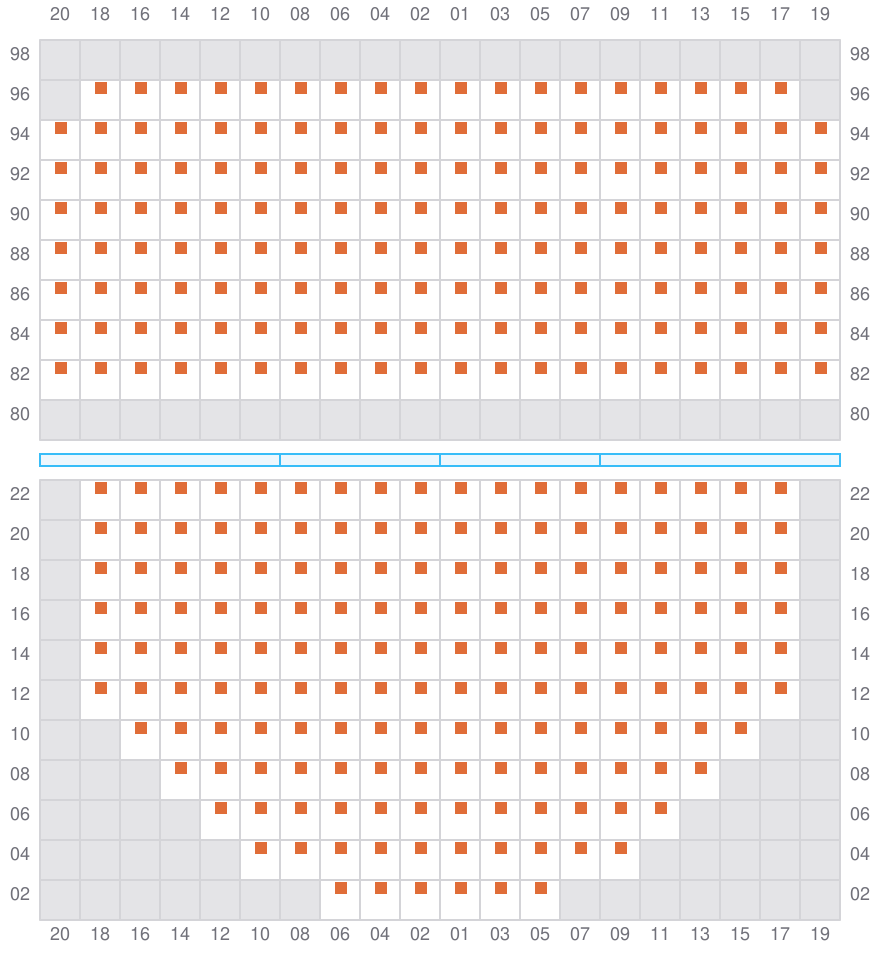

Bay 017 view and slots of MSC MELATILDE

019 (018)

←

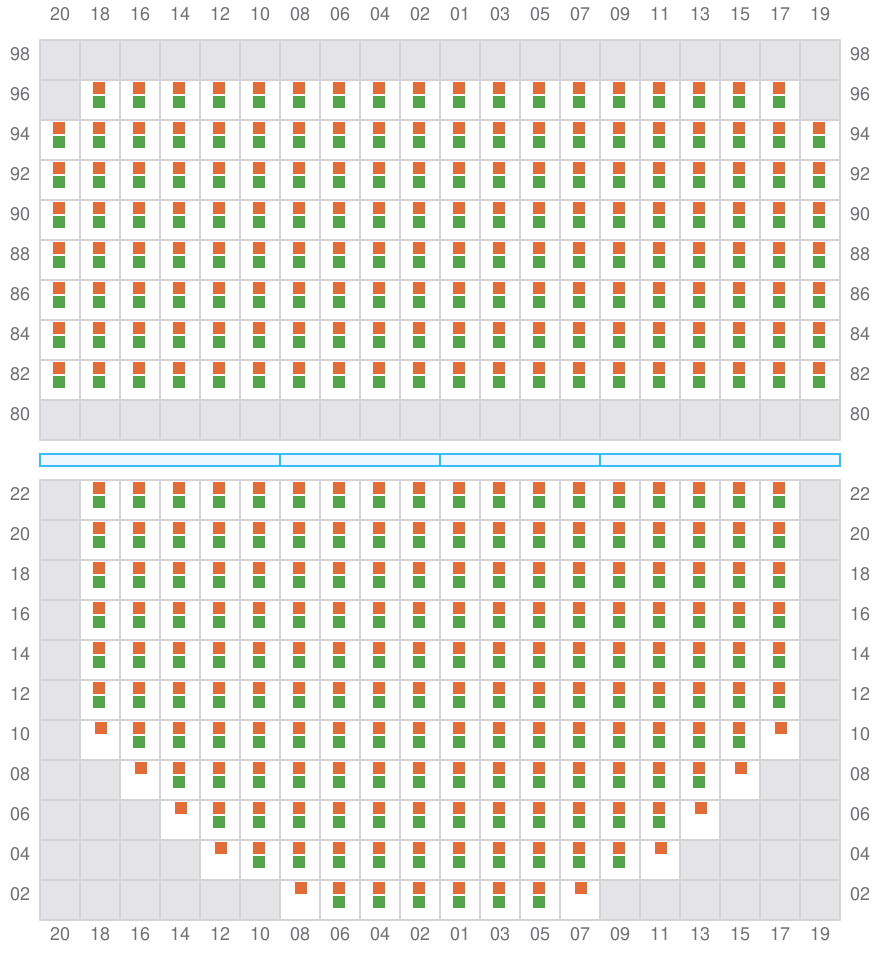

Bay 019 view and slots of MSC MELATILDE

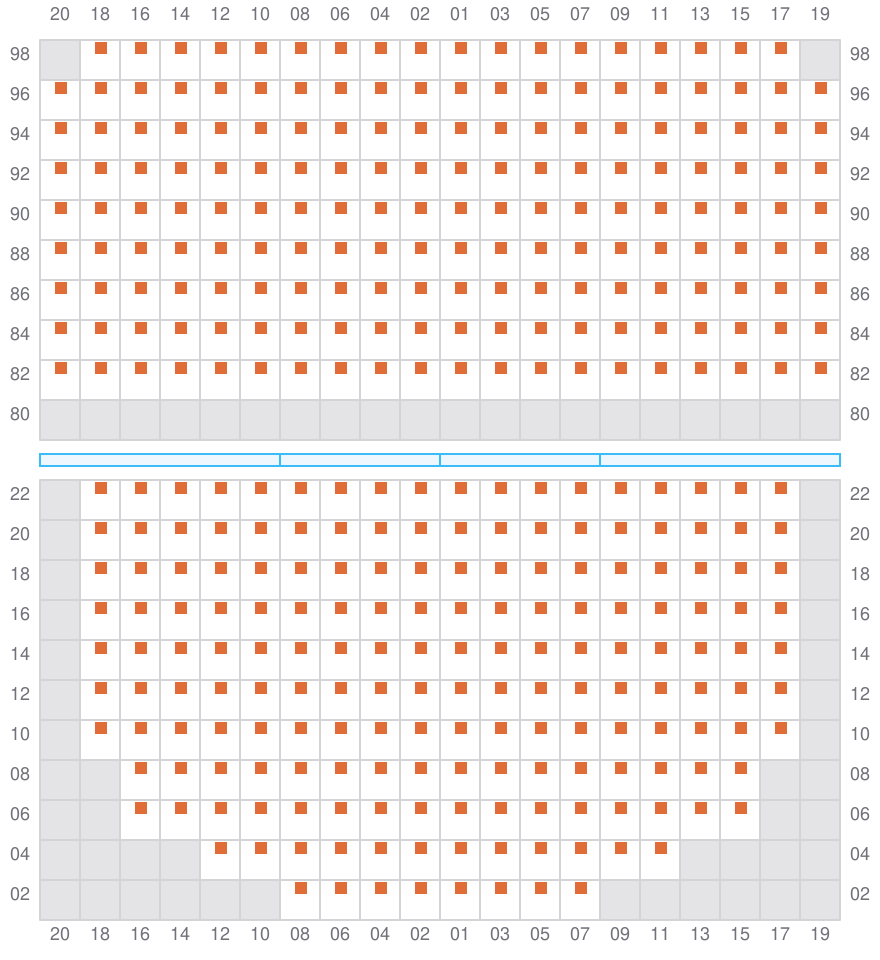

021

→

Bay 021 view and slots of MSC MELATILDE

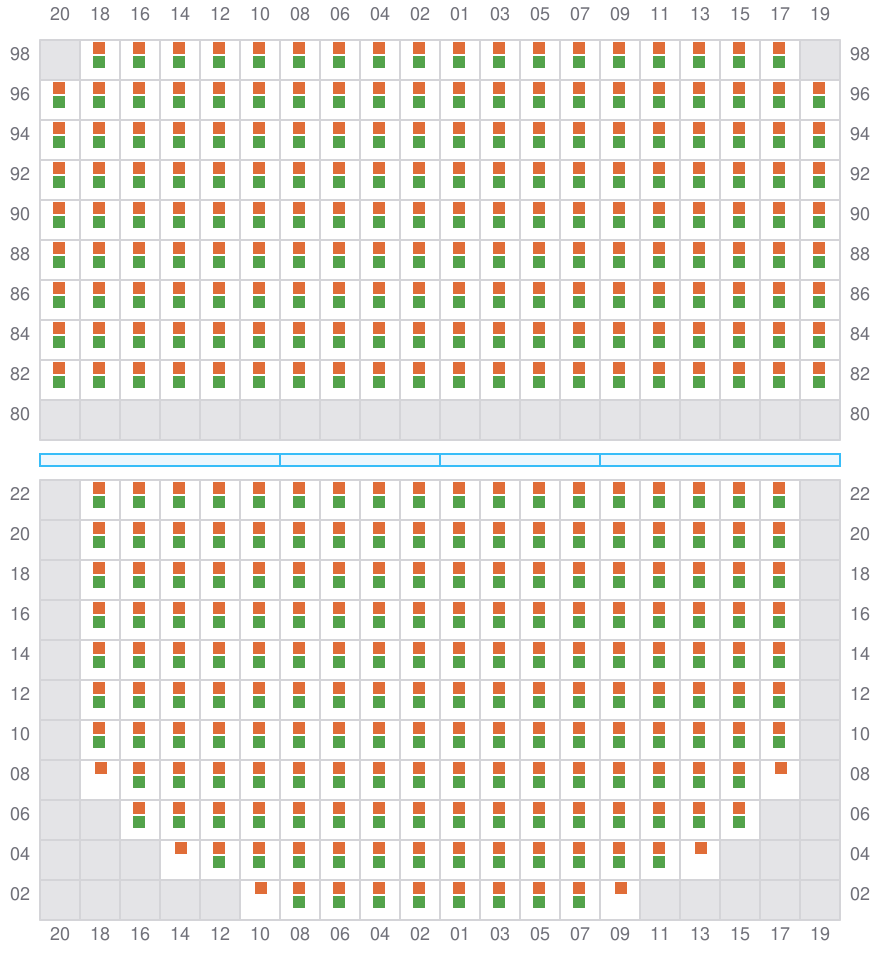

023 (022)

←
^→ / _?

Bay 023 view and slots of MSC MELATILDE

025

→

Bay 025 view and slots of MSC MELATILDE

027 (026)

←
^→ / _?

Bay 027 view and slots of MSC MELATILDE

029

→

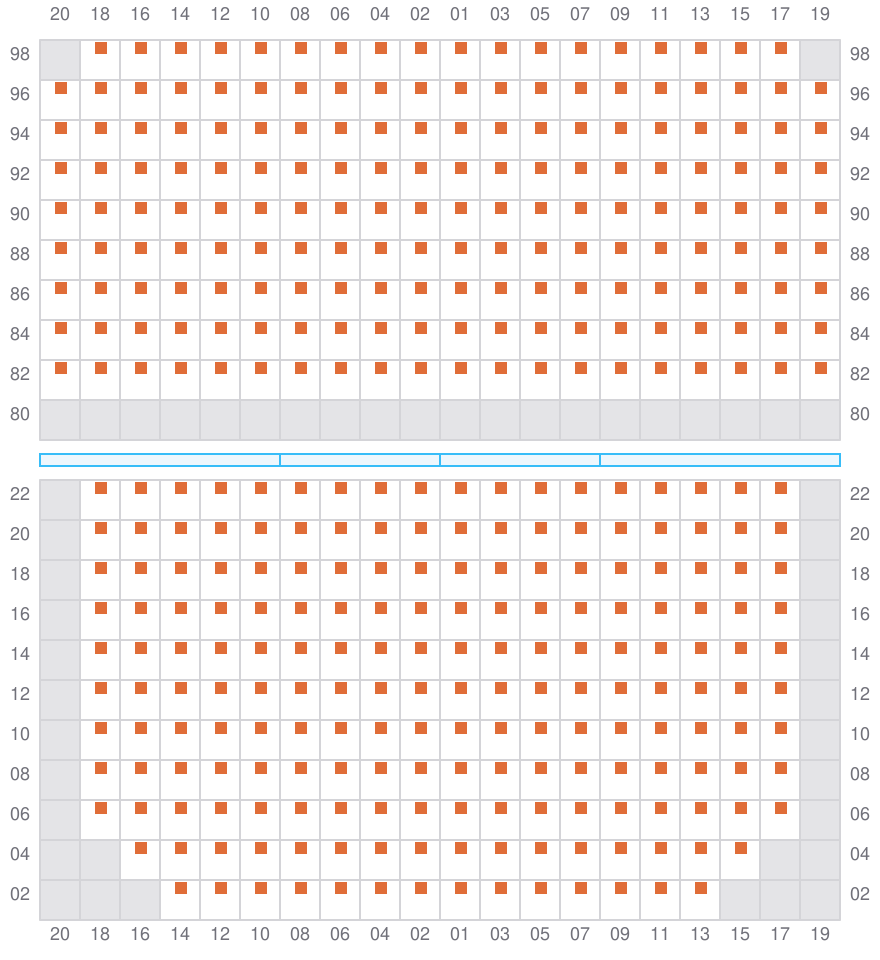

Bay 029 view and slots of MSC MELATILDE

031 (030)

←
^→ / _?

Bay 031 view and slots of MSC MELATILDE

033

→

Bay 033 view and slots of MSC MELATILDE

035 (034)

←
^→ / _?

Bay 035 view and slots of MSC MELATILDE

037

→

Bay 037 view and slots of MSC MELATILDE

039 (038)

←
^→ / _?

Bay 039 view and slots of MSC MELATILDE

041

→

Bay 041 view and slots of MSC MELATILDE

043 (042)

←
^→ / _?

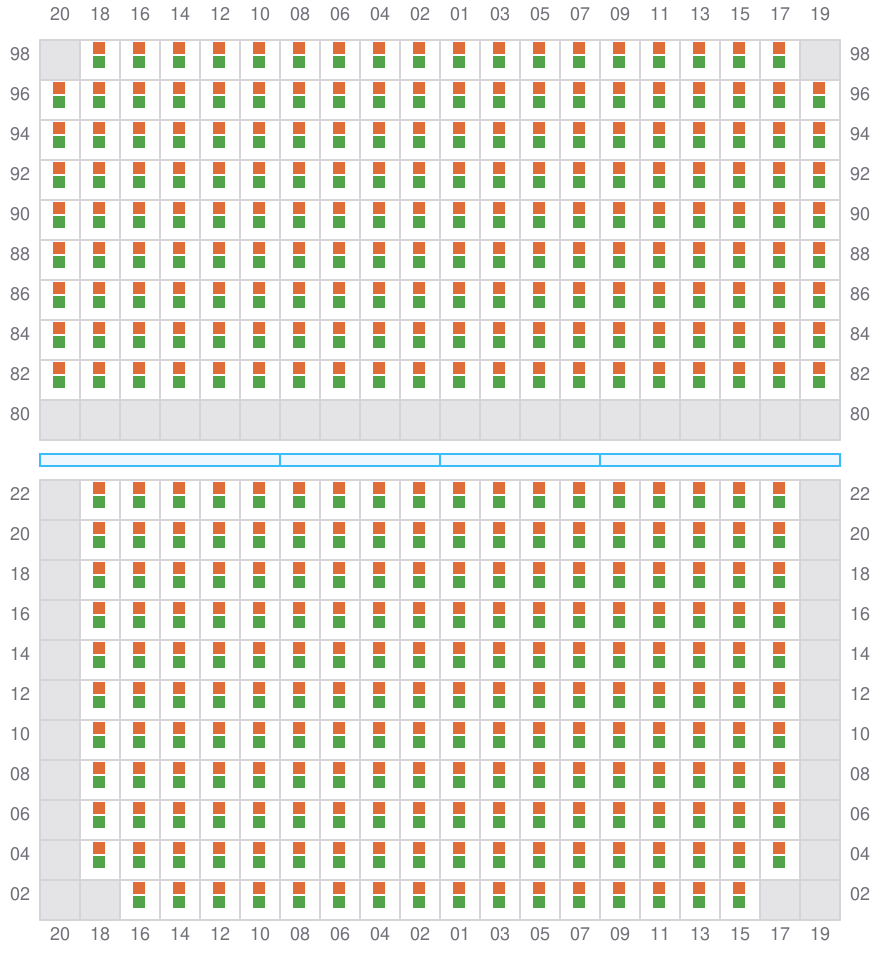

Bay 043 view and slots of MSC MELATILDE

045

→

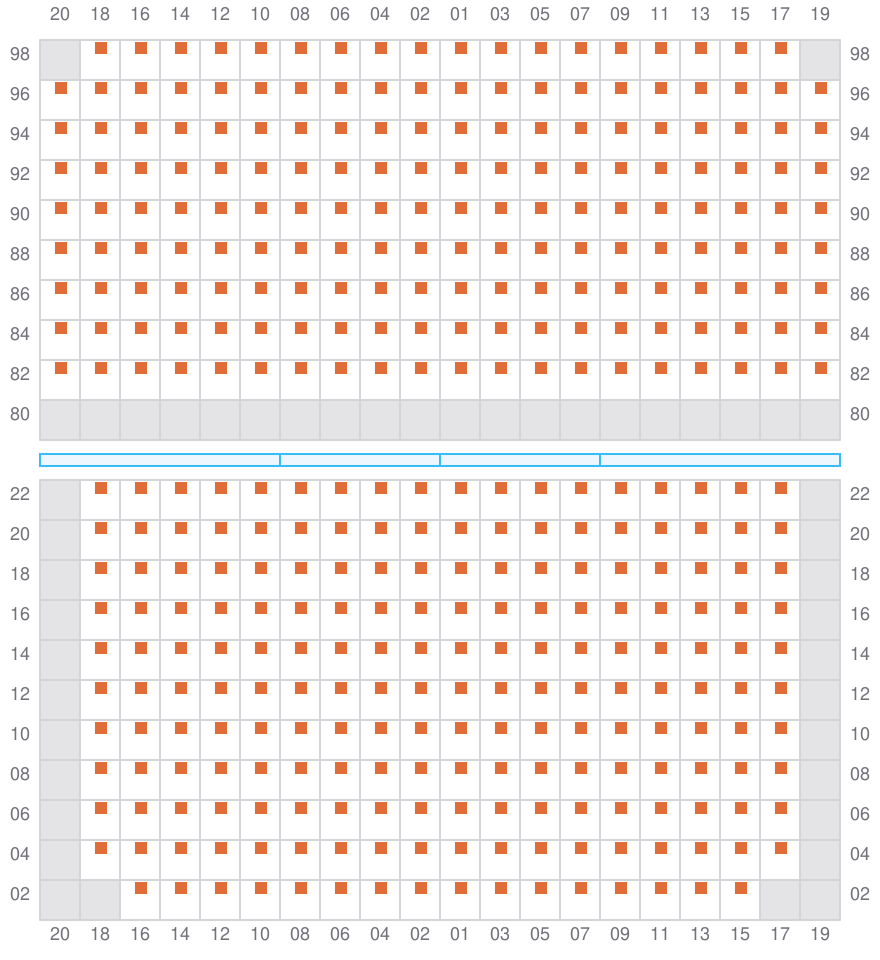

Bay 045 view and slots of MSC MELATILDE

047 (046)

←
^→ / _?

Bay 047 view and slots of MSC MELATILDE

049

→

Bay 049 view and slots of MSC MELATILDE

051 (050)

←
^→ / _?

Bay 051 view and slots of MSC MELATILDE

053

→

Bay 053 view and slots of MSC MELATILDE

055 (054)

←
^→ / _?

Bay 055 view and slots of MSC MELATILDE

057

→

Bay 057 view and slots of MSC MELATILDE

059 (058)

←
^→ / _?

Bay 059 view and slots of MSC MELATILDE

061

→

Bay 061 view and slots of MSC MELATILDE

063 (062)

←
^→ / _?

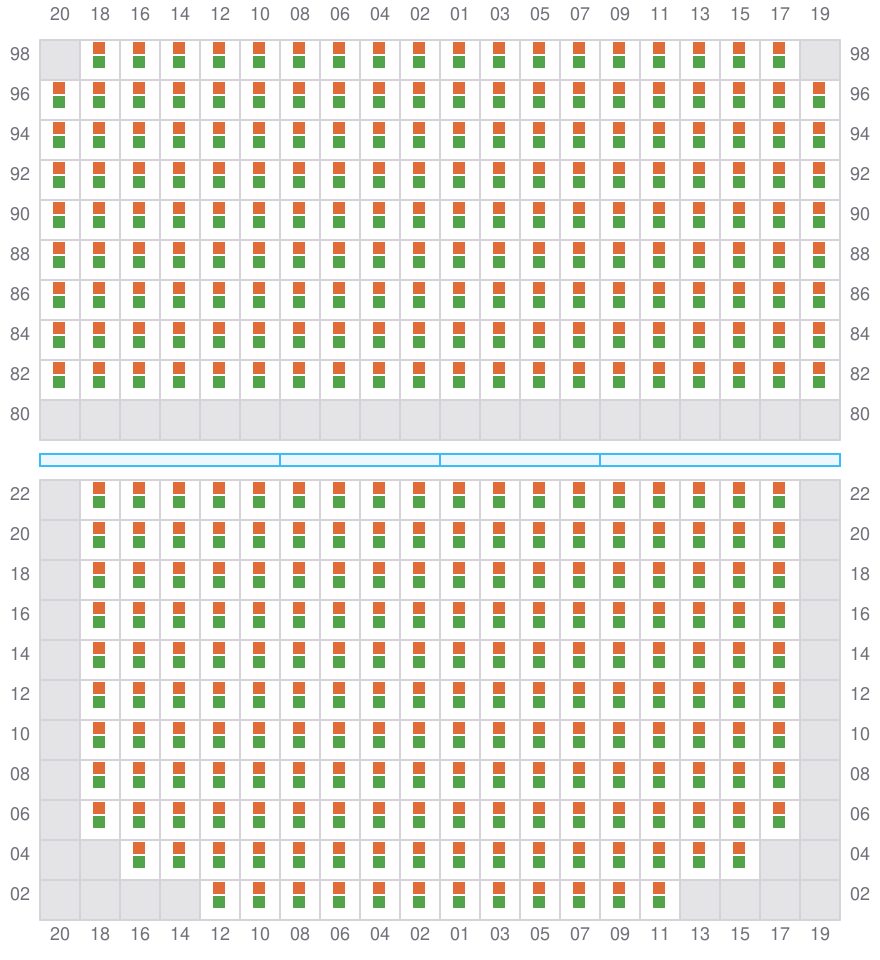

Bay 063 view and slots of MSC MELATILDE

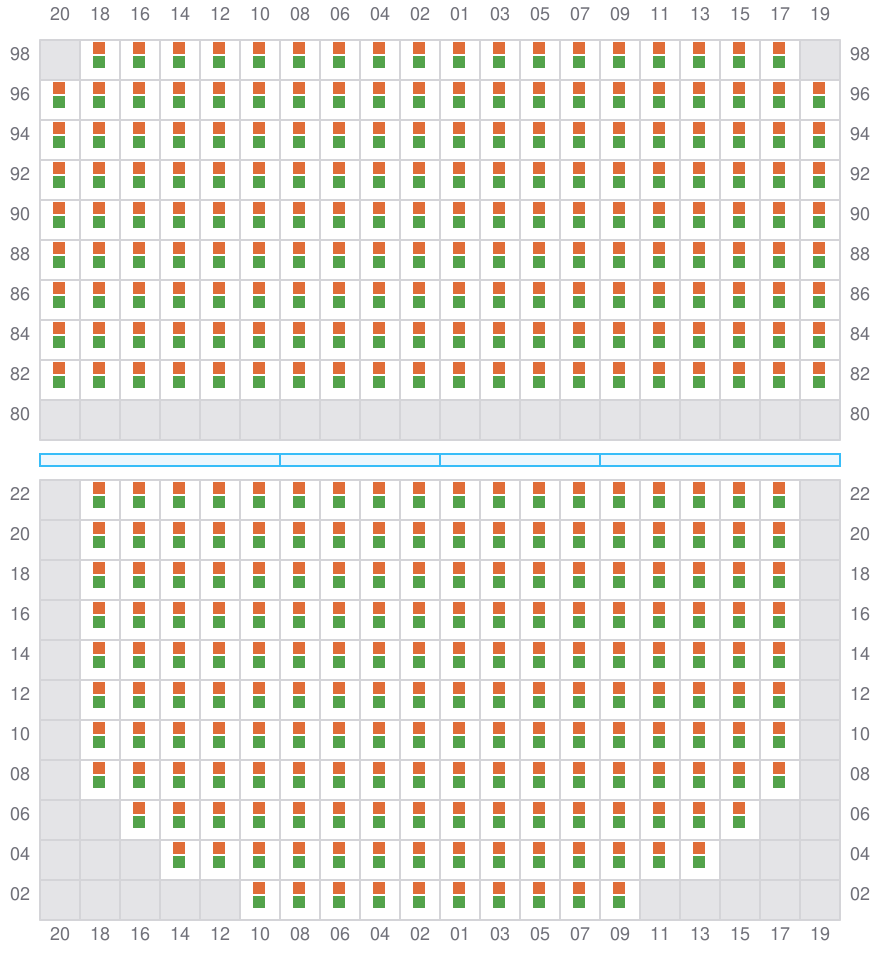

065

→

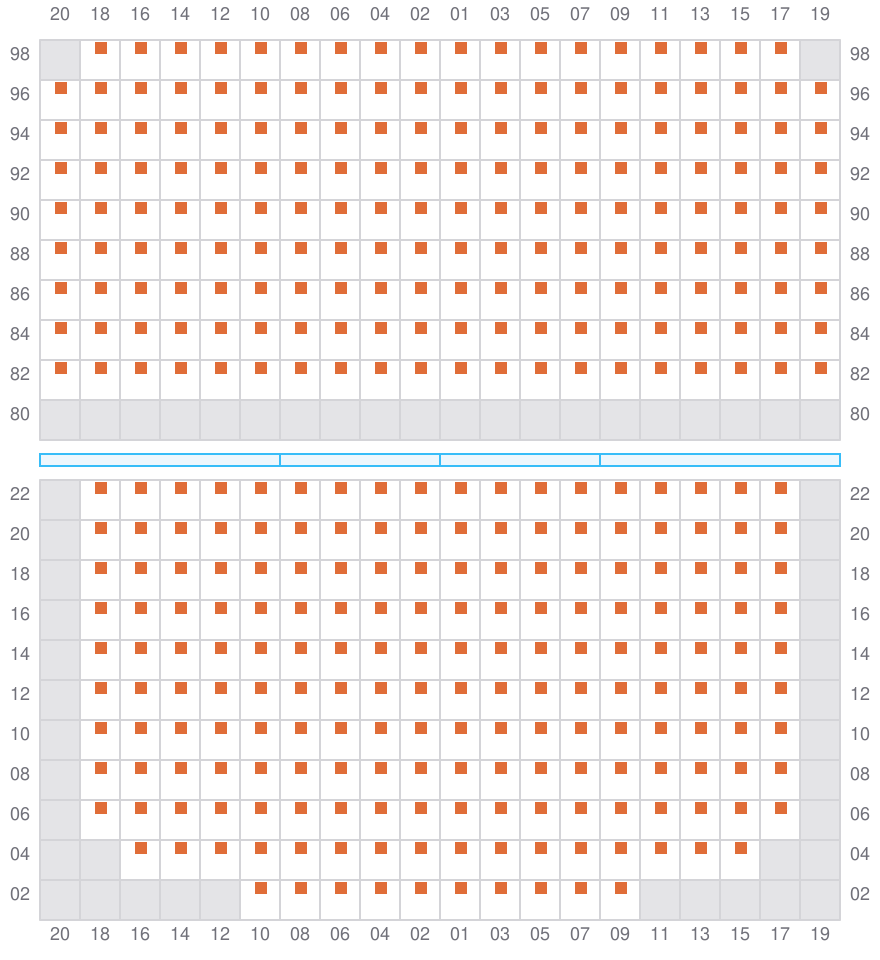

Bay 065 view and slots of MSC MELATILDE

067 (066)

←
^→ / _?

Bay 067 view and slots of MSC MELATILDE

069 (070)

^→ / _?

Bay 069 view and slots of MSC MELATILDE

071

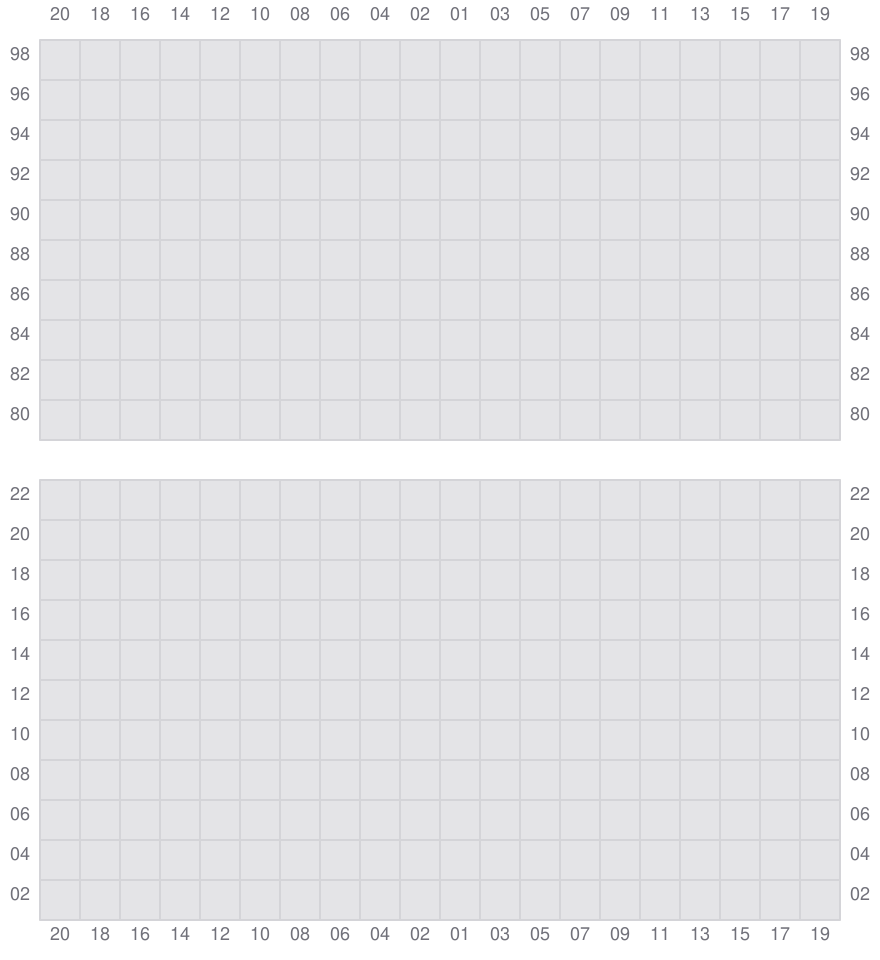

Bay 071 view and slots of MSC MELATILDE

073

→

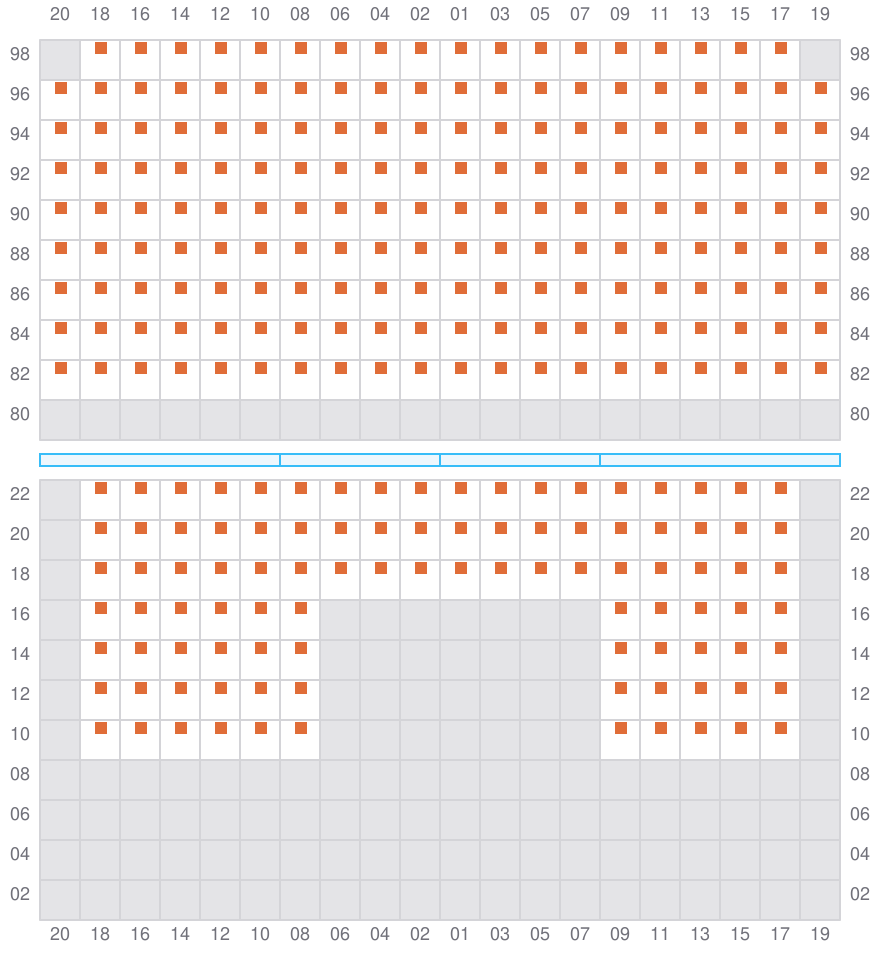

Bay 073 view and slots of MSC MELATILDE

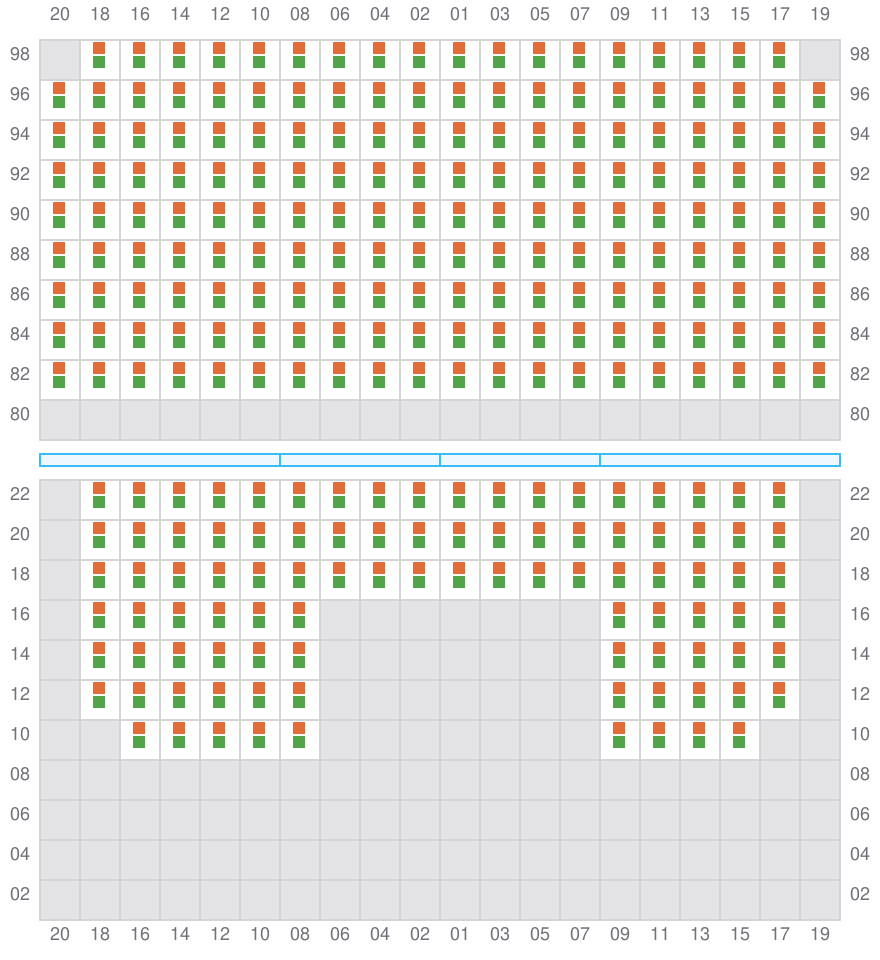

075 (074)

←

Bay 075 view and slots of MSC MELATILDE

077

→

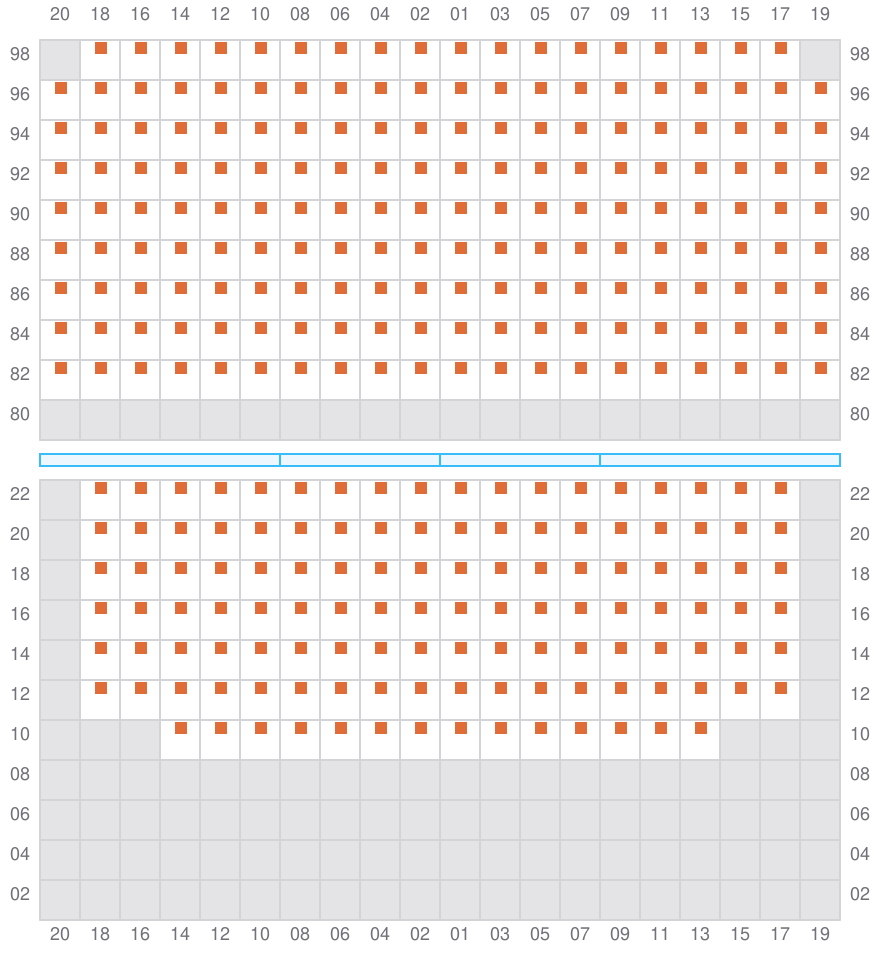

Bay 077 view and slots of MSC MELATILDE

079 (078)

←
^→ / _?

Bay 079 view and slots of MSC MELATILDE

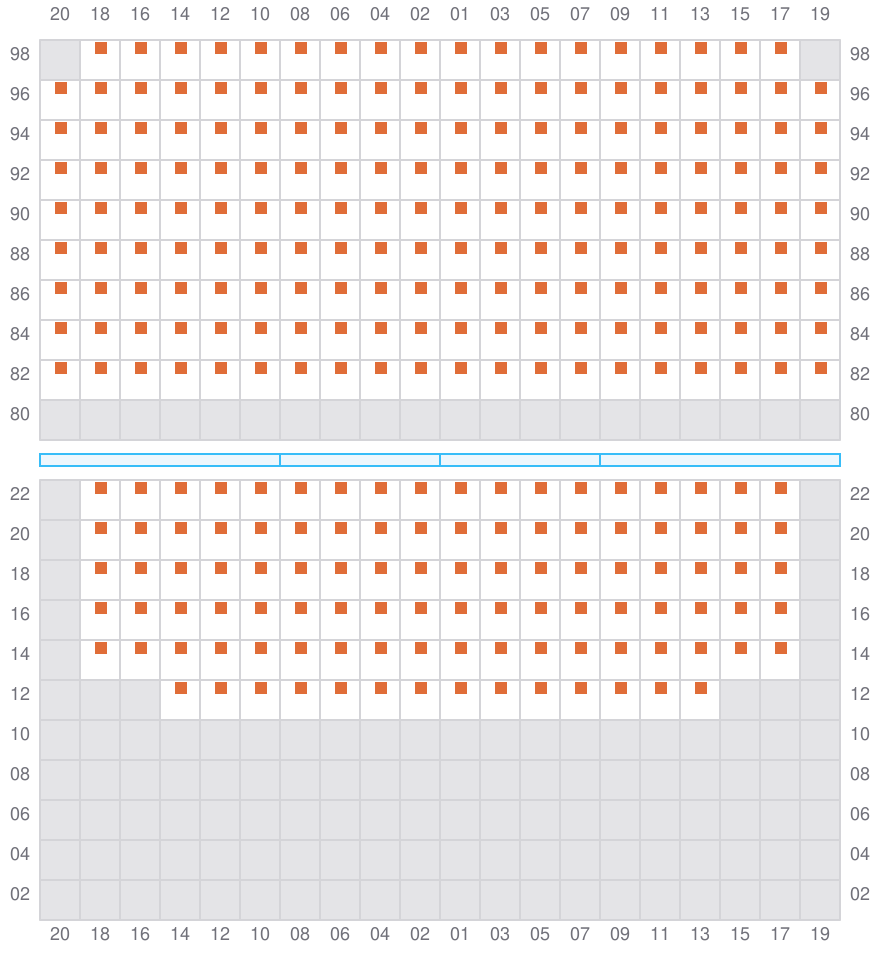

081

→

Bay 081 view and slots of MSC MELATILDE

083 (082)

←
^→ / _?

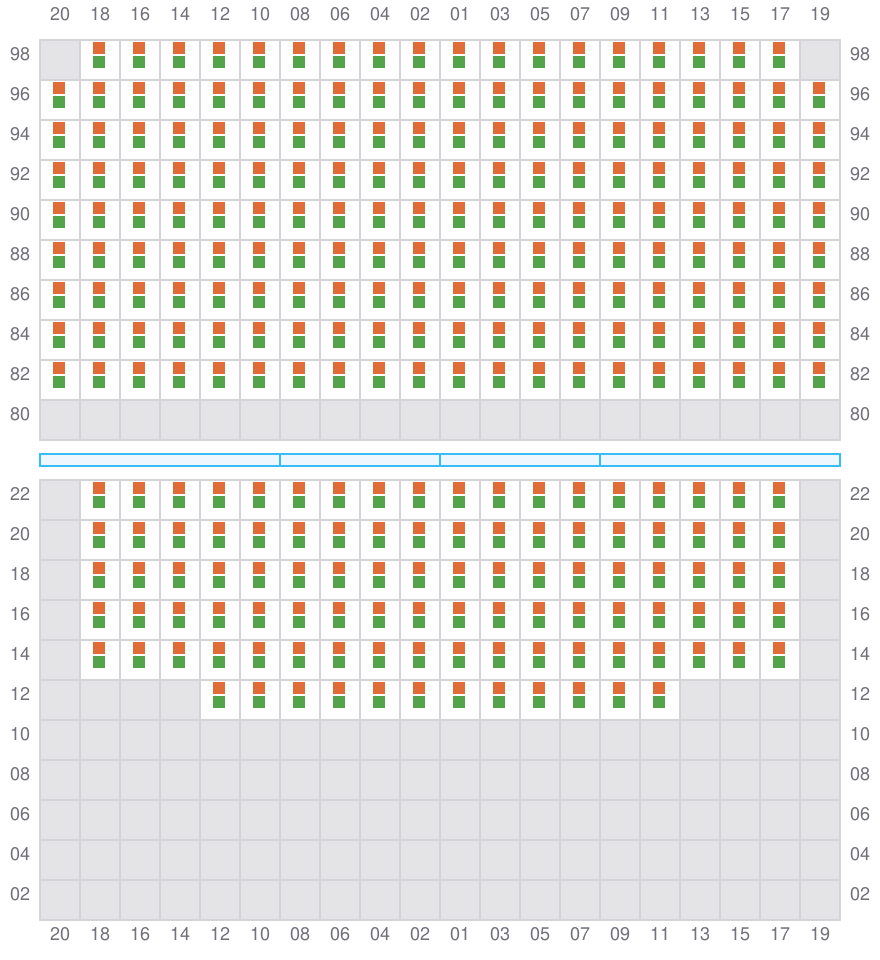

Bay 083 view and slots of MSC MELATILDE

085 (086)

^→ / _?

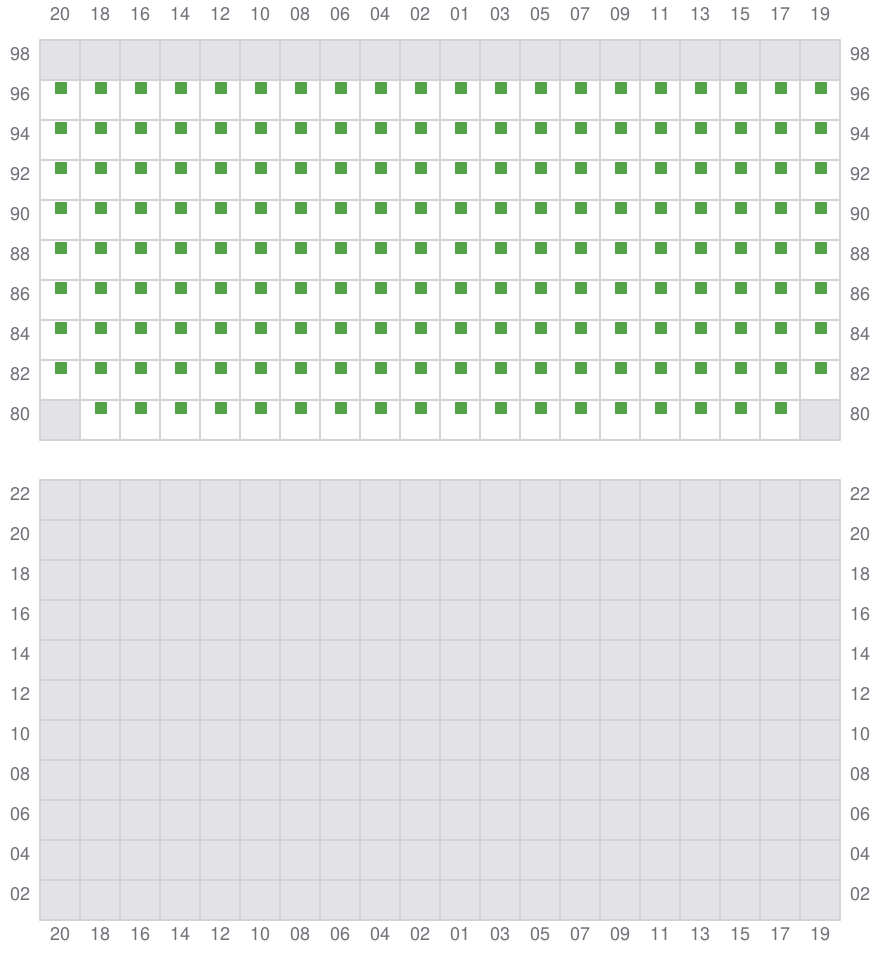

Bay 085 view and slots of MSC MELATILDE
