MSC MEXICO V
9231779 | D5BC5 | MSC by ************************** Last update: Sun May 28 2023

General Info

Ship Name:MSC MEXICO V
IMO Code:9231779
Call Sign:D5BC5
Line Operator:MSC
Class Name for Sister Ships:MEXI
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,838

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC MEXICO V

Hatch-Covers View

Deck view of MSC MEXICO V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

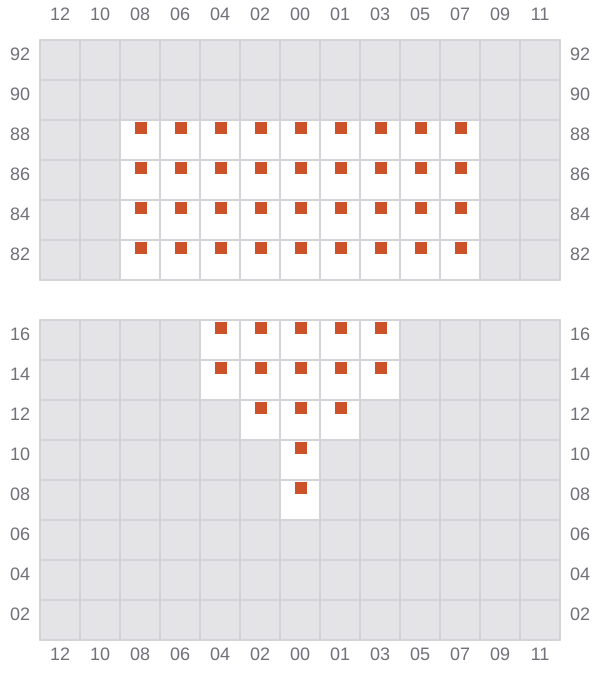

Bay 001 view and slots of MSC MEXICO V

003 (002)

  • ←
Bay 003 view and slots of MSC MEXICO V

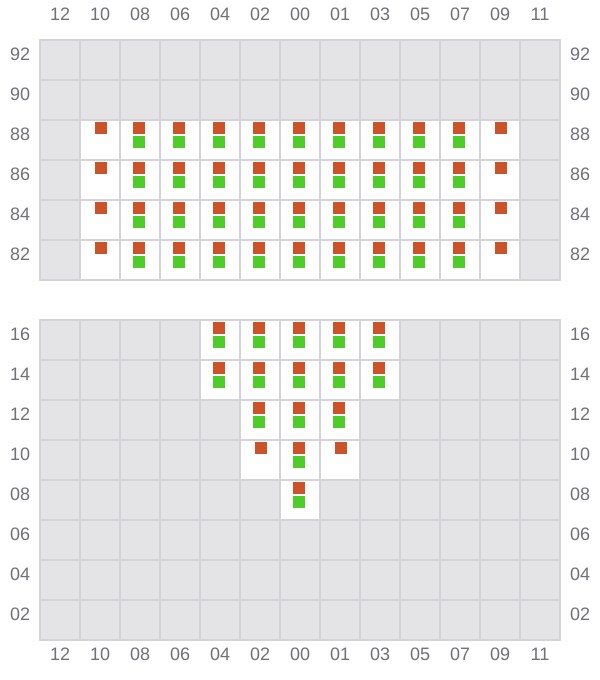

005

  • →

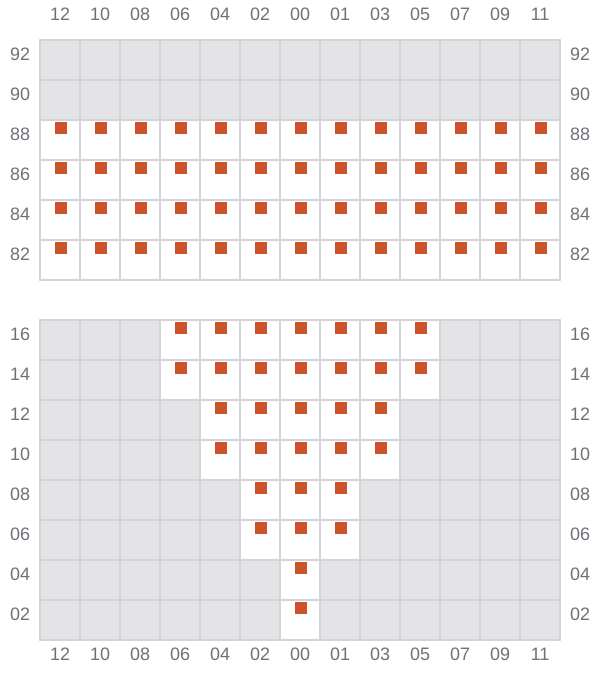

Bay 005 view and slots of MSC MEXICO V

007 (006)

  • ←

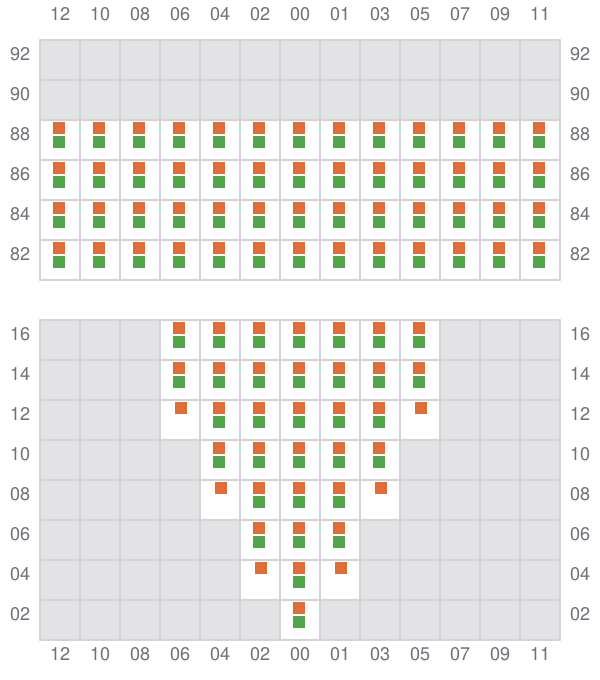

Bay 007 view and slots of MSC MEXICO V

009

  • →

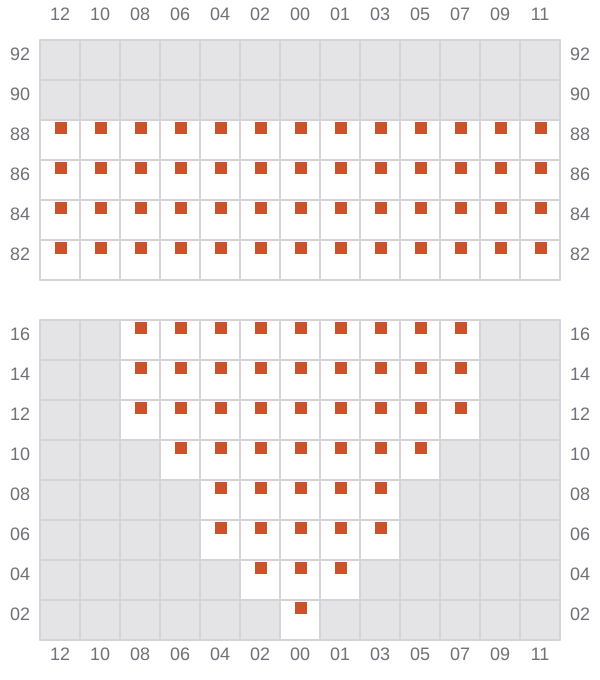

Bay 009 view and slots of MSC MEXICO V

011 (010)

  • ←

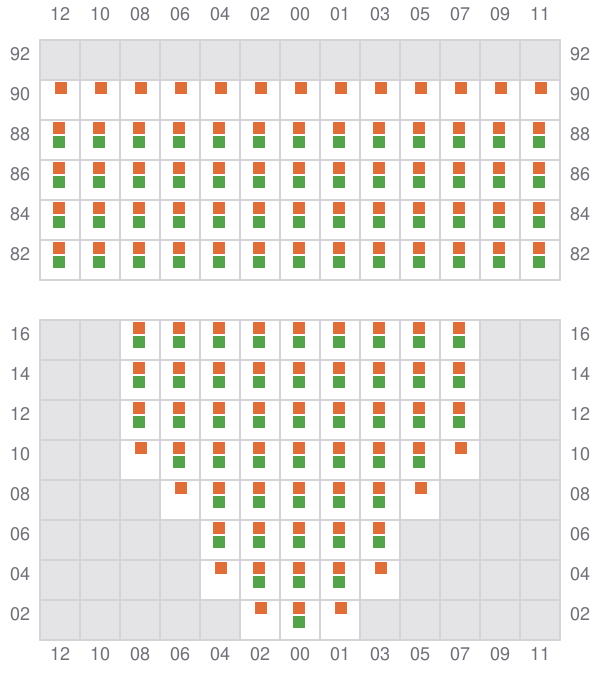

Bay 011 view and slots of MSC MEXICO V

013

  • →

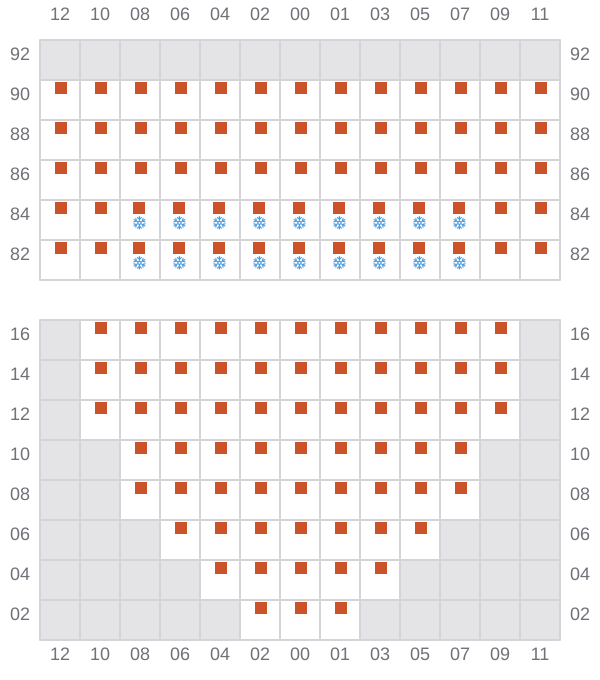

Bay 013 view and slots of MSC MEXICO V

015 (014)

  • ←
Bay 015 view and slots of MSC MEXICO V

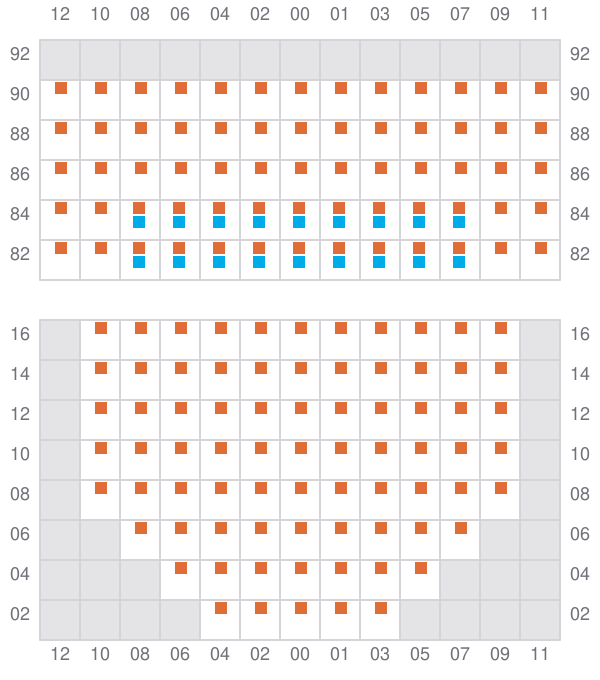

017

  • →
Bay 017 view and slots of MSC MEXICO V

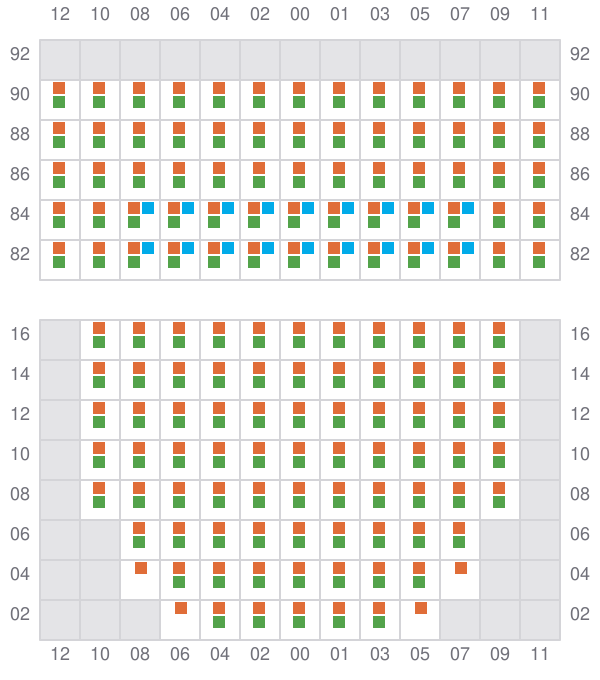

019 (018)

  • ←
Bay 019 view and slots of MSC MEXICO V

021

  • →
Bay 021 view and slots of MSC MEXICO V

023 (022)

  • ←

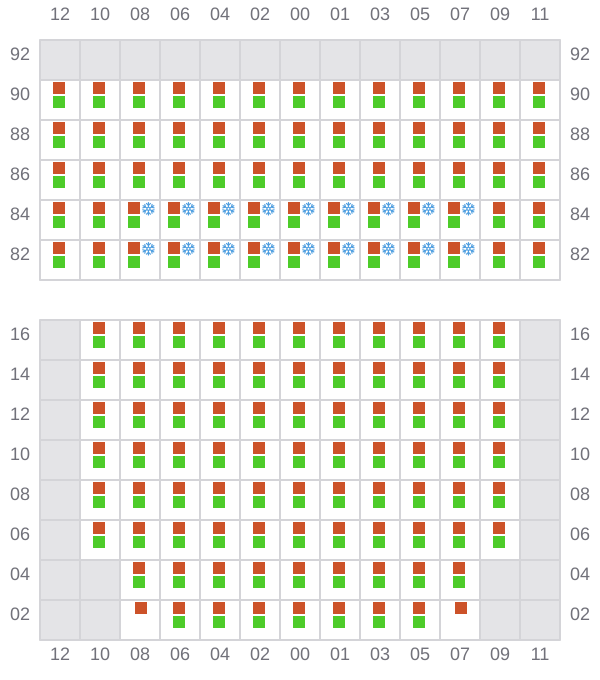

Bay 023 view and slots of MSC MEXICO V

025

  • →
Bay 025 view and slots of MSC MEXICO V

027 (026)

  • ←

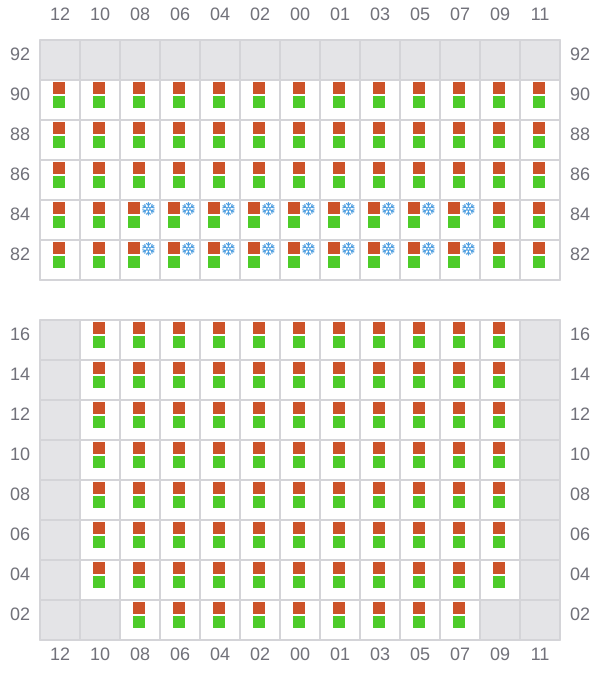

Bay 027 view and slots of MSC MEXICO V

029

  • →
Bay 029 view and slots of MSC MEXICO V

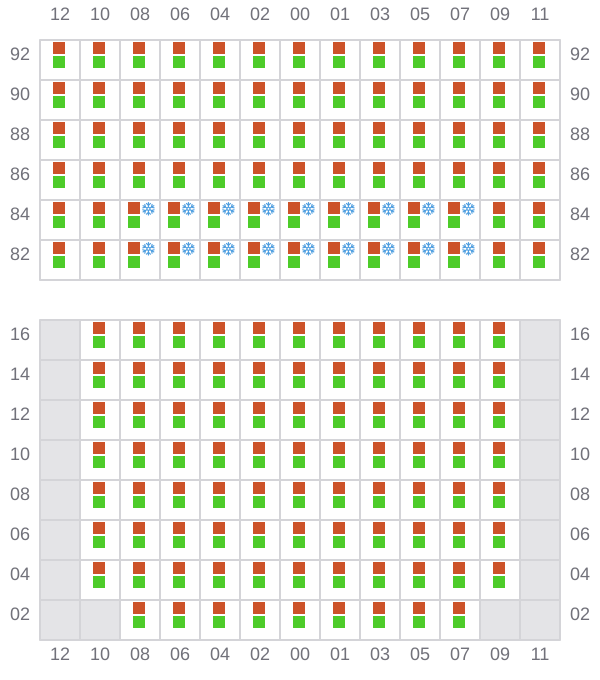

031 (030)

  • ←
Bay 031 view and slots of MSC MEXICO V

033

  • →
Bay 033 view and slots of MSC MEXICO V

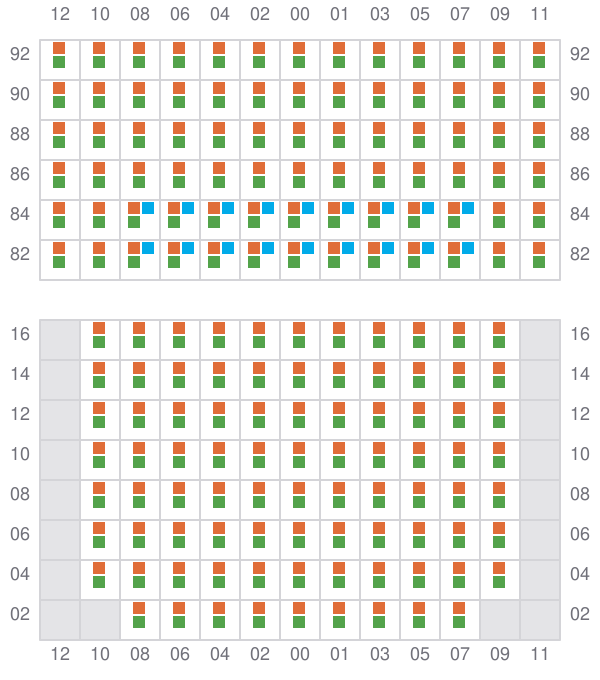

035 (034)

  • ←
Bay 035 view and slots of MSC MEXICO V

037

  • →
Bay 037 view and slots of MSC MEXICO V

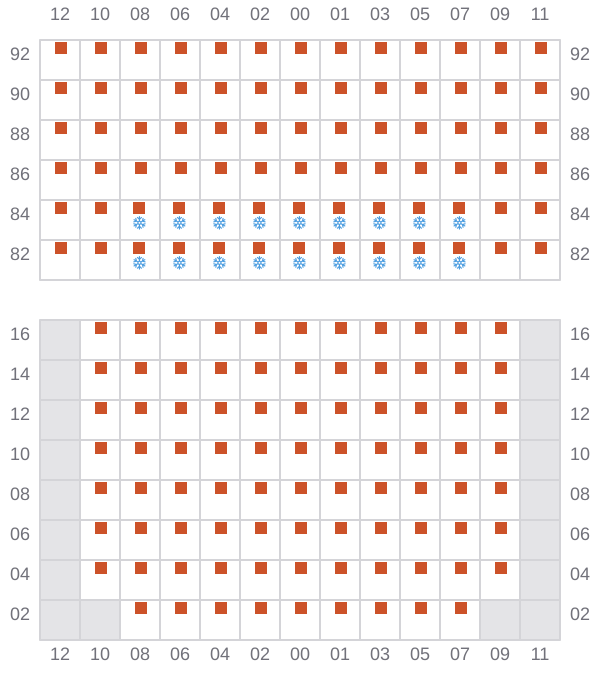

039 (038)

  • ←
Bay 039 view and slots of MSC MEXICO V

041

  • →
Bay 041 view and slots of MSC MEXICO V

043 (042)

  • ←

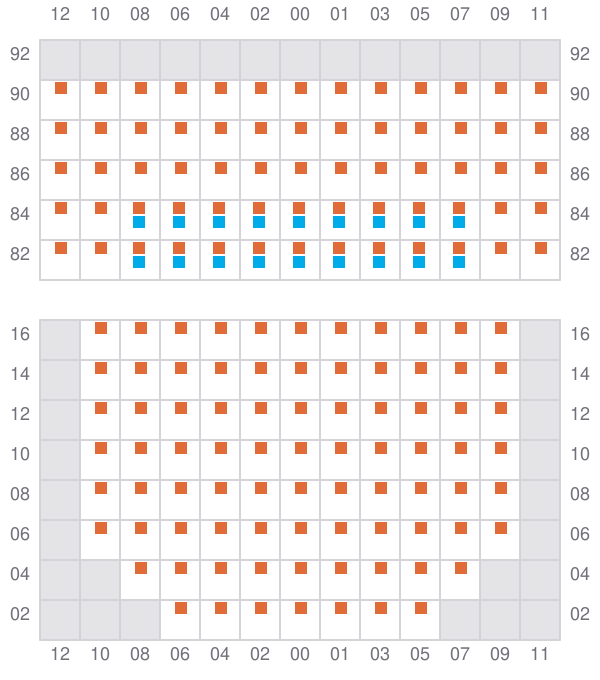

Bay 043 view and slots of MSC MEXICO V

045

  • →
Bay 045 view and slots of MSC MEXICO V

047 (046)

  • ←
Bay 047 view and slots of MSC MEXICO V

049

  • →
Bay 049 view and slots of MSC MEXICO V

051 (050)

  • ←
Bay 051 view and slots of MSC MEXICO V

053

  • →
Bay 053 view and slots of MSC MEXICO V

055 (054)

  • ←

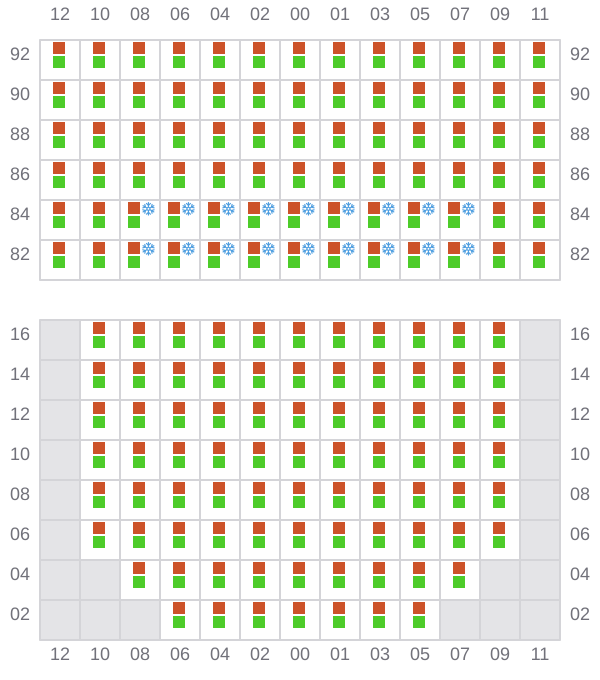

Bay 055 view and slots of MSC MEXICO V

057

  • →

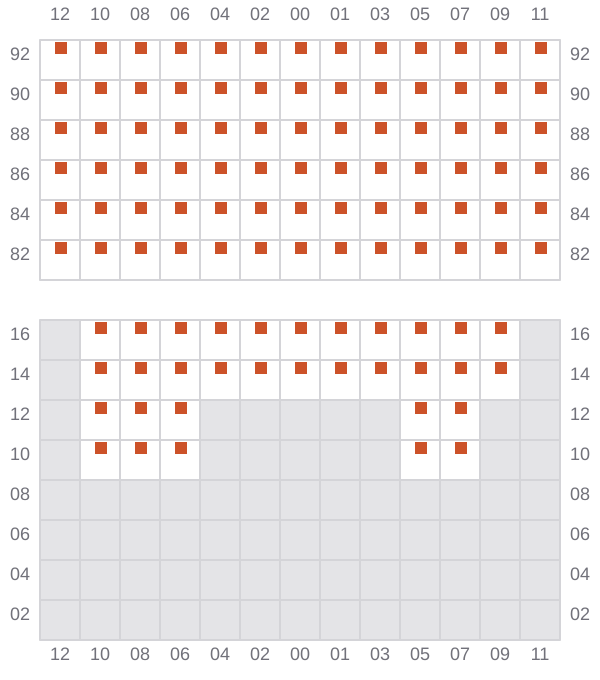

Bay 057 view and slots of MSC MEXICO V

059 (058)

  • ←

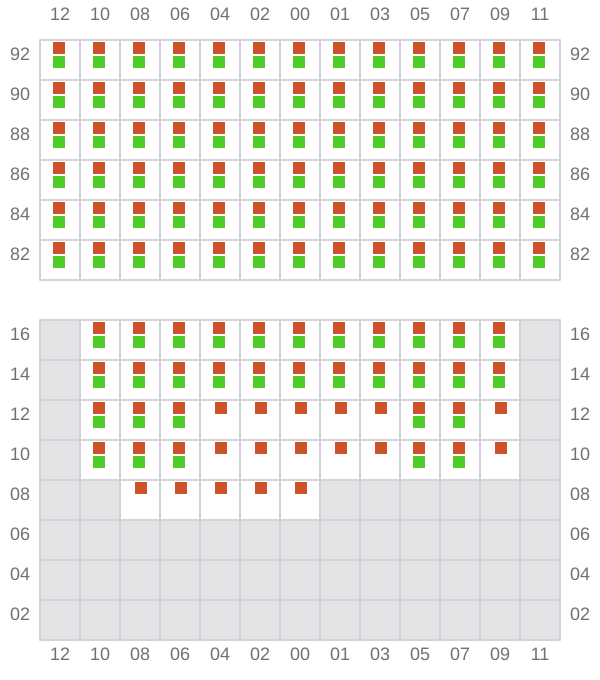

Bay 059 view and slots of MSC MEXICO V

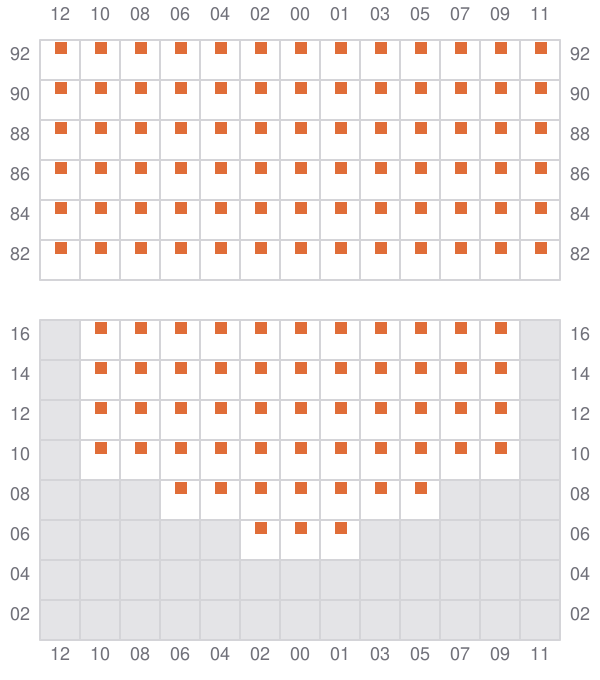

061

  • →
Bay 061 view and slots of MSC MEXICO V

063 (062)

  • ←

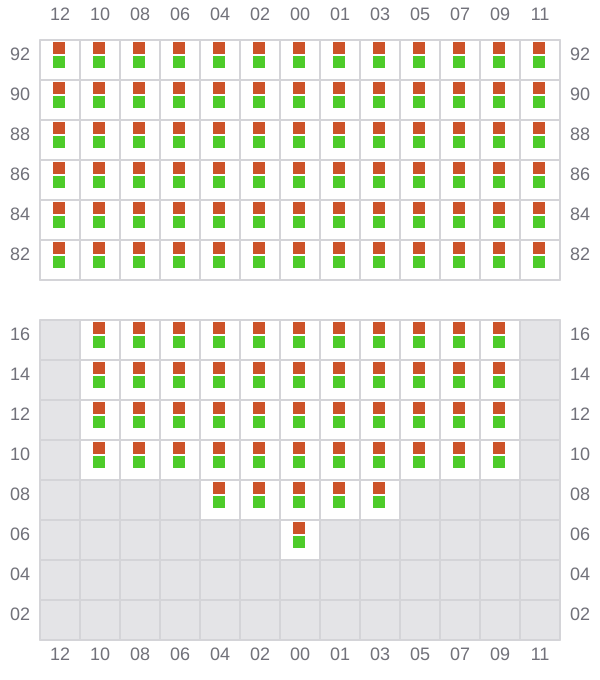

Bay 063 view and slots of MSC MEXICO V

065

  • →

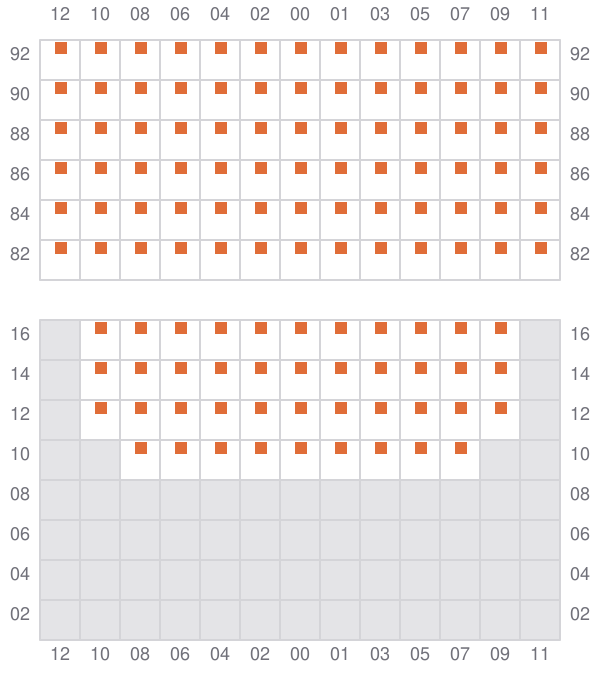

Bay 065 view and slots of MSC MEXICO V

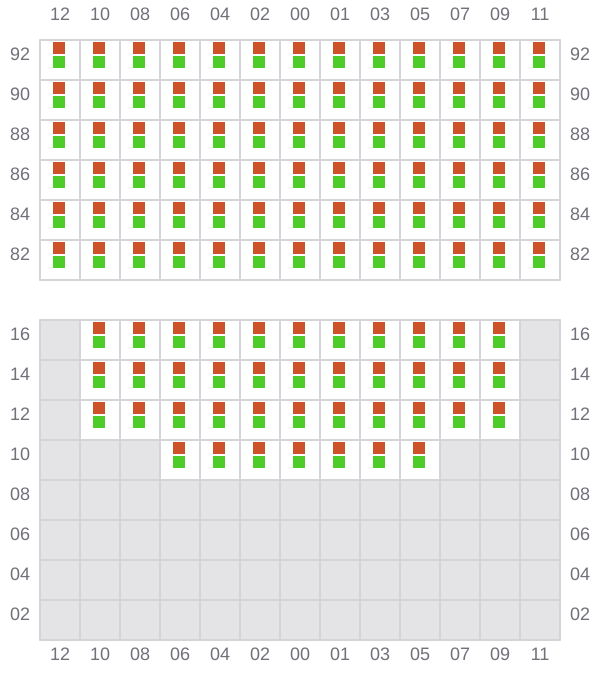

067 (066)

  • ←
Bay 067 view and slots of MSC MEXICO V

069 (070)

  • → / ?

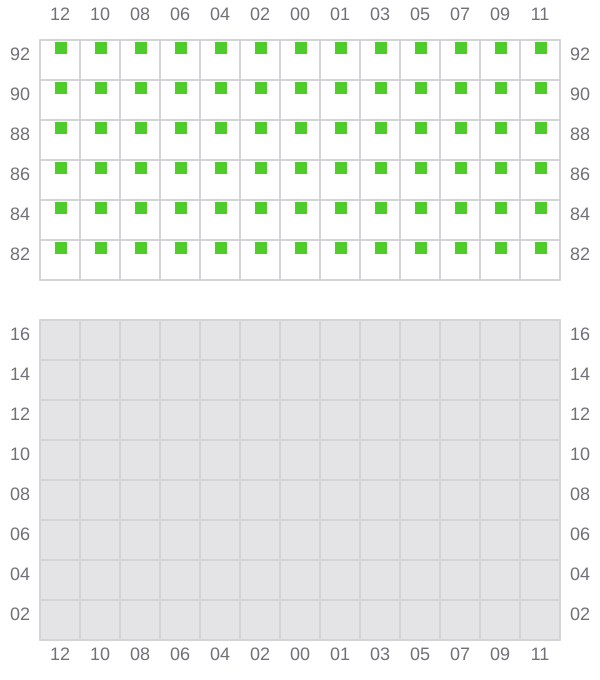

Bay 069 view and slots of MSC MEXICO V
