MSC MEXICO V
9231779 | D5BC5 | MSC by ***************************** Last update: Mon May 29 2023

General Info

Ship Name:MSC MEXICO V
IMO Code:9231779
Call Sign:D5BC5
Line Operator:MSC
Class Name for Sister Ships:OMEX
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.12
Stern to AFT PP:-
Features Informed:
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,992

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC MEXICO V

Hatch-Covers View

Deck view of MSC MEXICO V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →

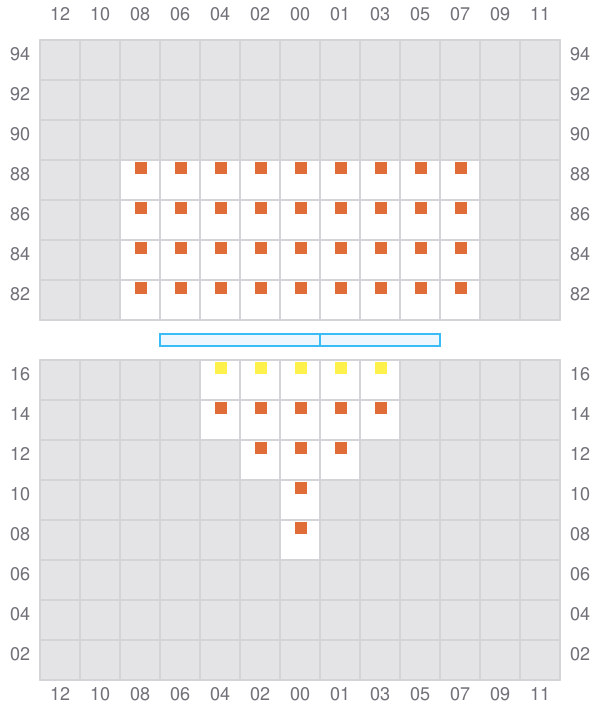

Bay 001 view and slots of MSC MEXICO V

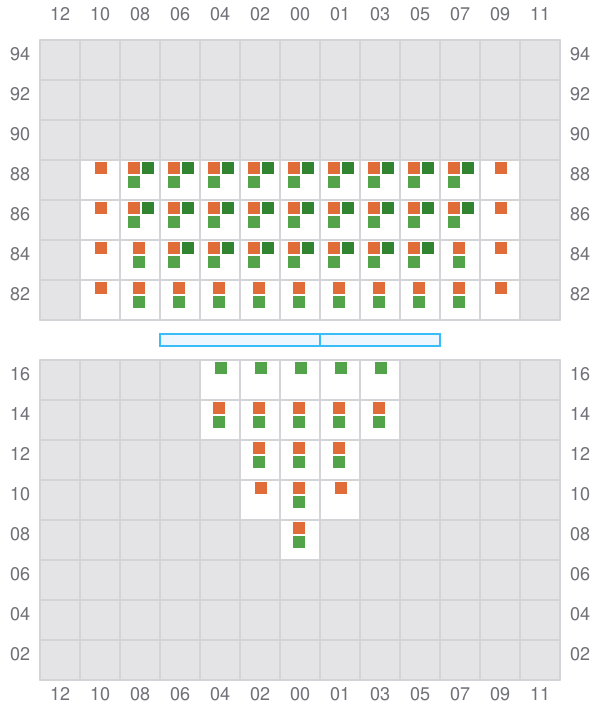

003 (002)

  • ←
  • →
Bay 003 view and slots of MSC MEXICO V

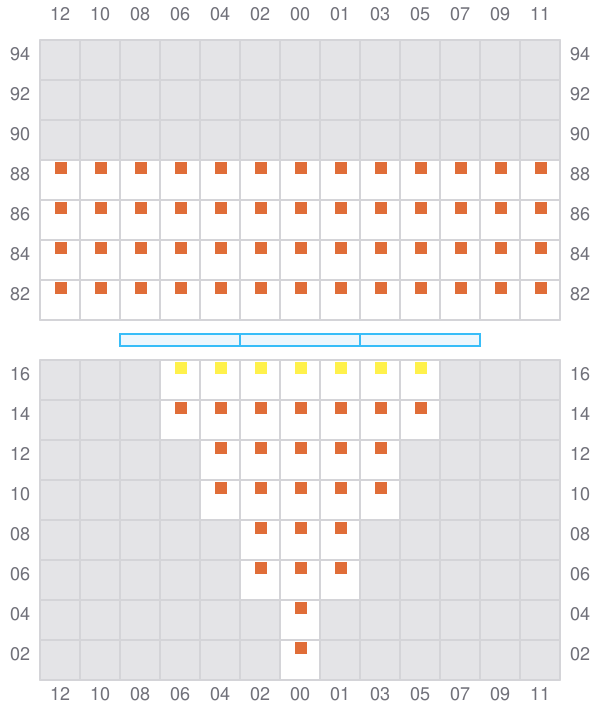

005

  • →
  • →
Bay 005 view and slots of MSC MEXICO V

007 (006)

  • ←
  • →

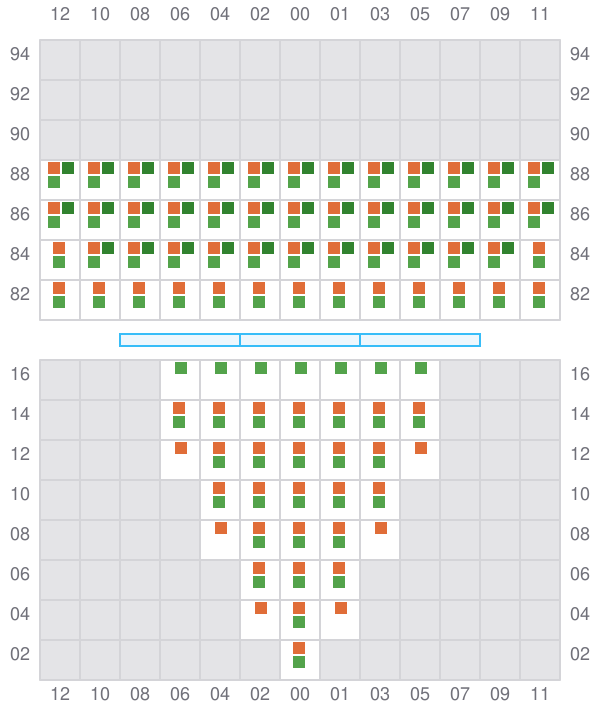

Bay 007 view and slots of MSC MEXICO V

009

  • →
  • →

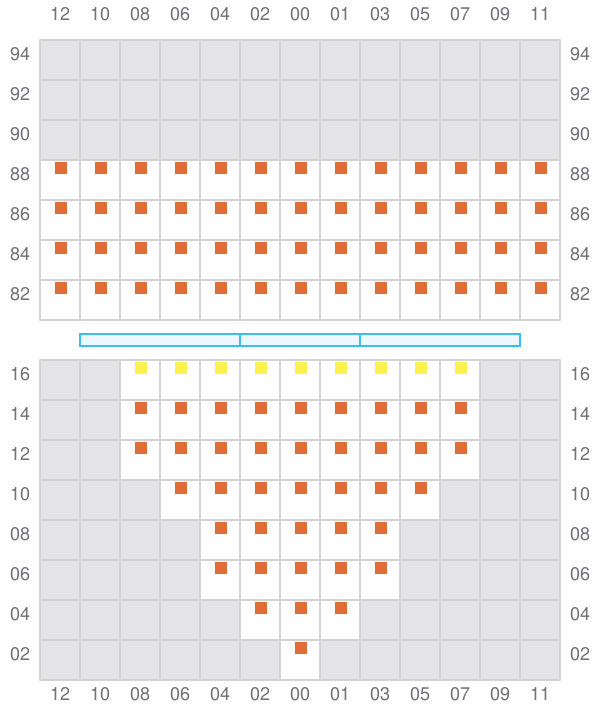

Bay 009 view and slots of MSC MEXICO V

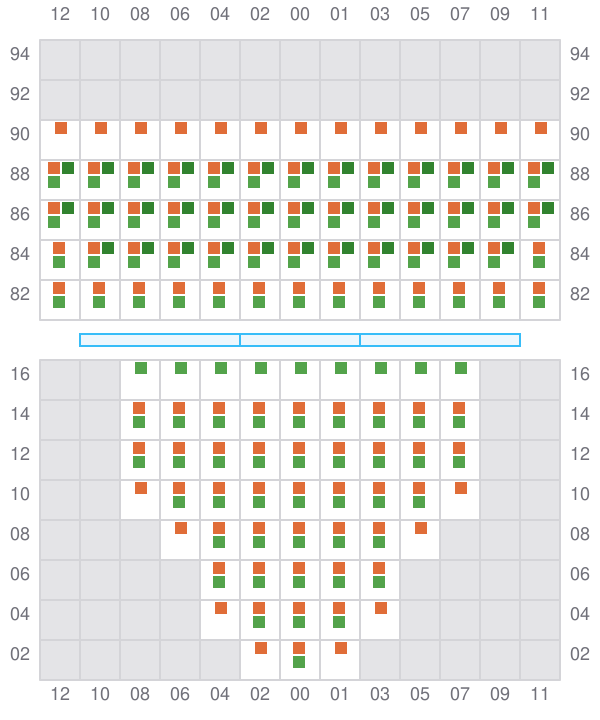

011 (010)

  • ←
  • →
Bay 011 view and slots of MSC MEXICO V

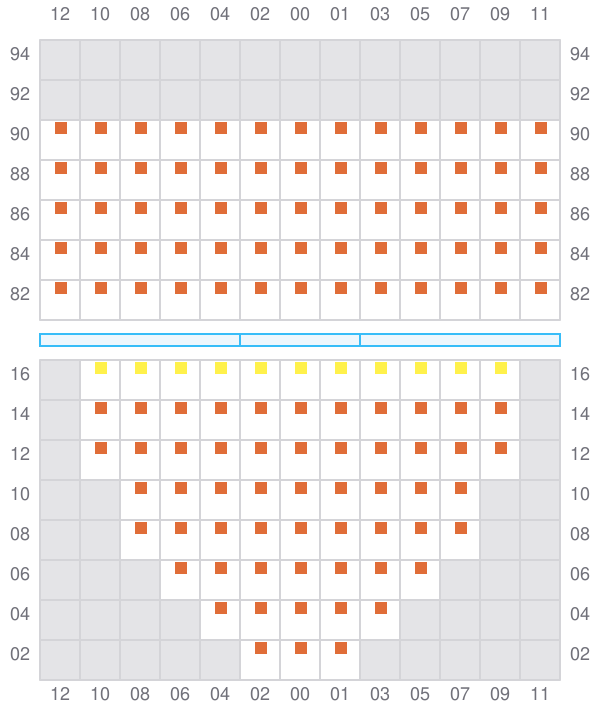

013

  • →
  • →
Bay 013 view and slots of MSC MEXICO V

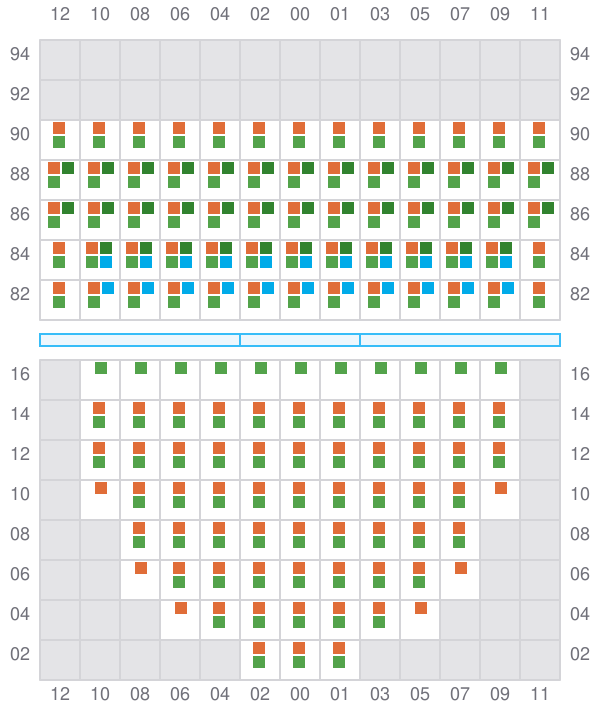

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of MSC MEXICO V

017

  • →
  • →

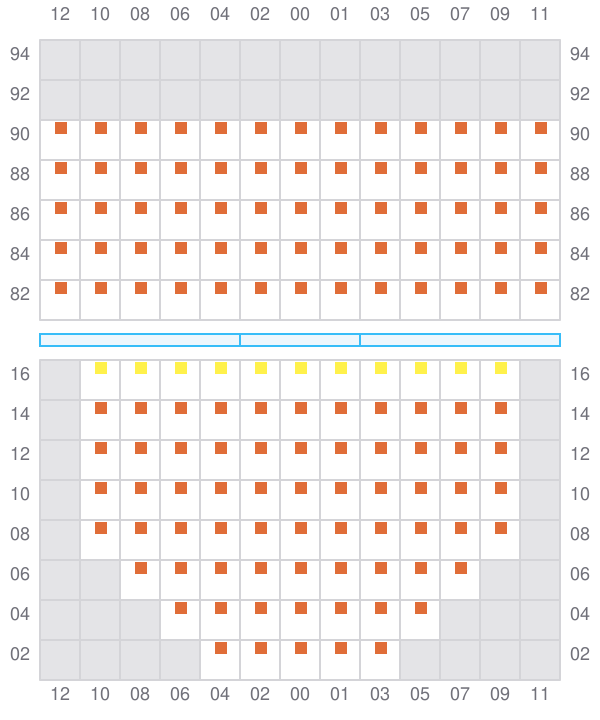

Bay 017 view and slots of MSC MEXICO V

019 (018)

  • ←
  • → / ?
  • →

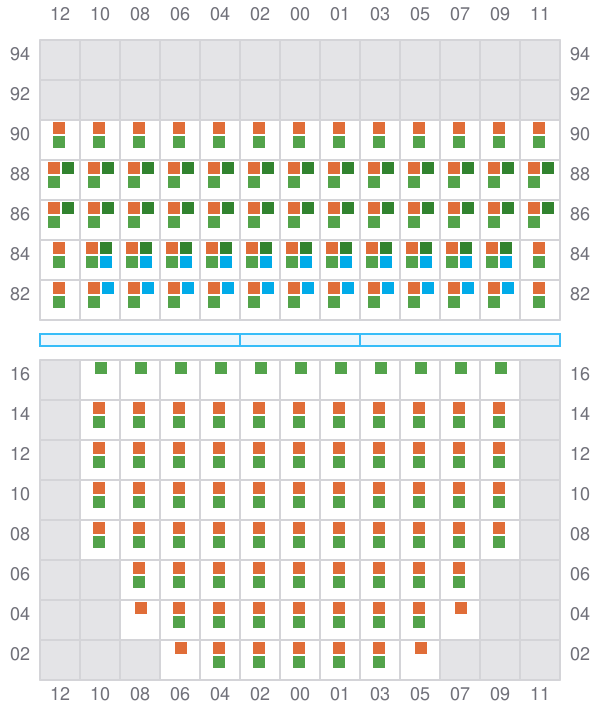

Bay 019 view and slots of MSC MEXICO V

021

  • →
  • →

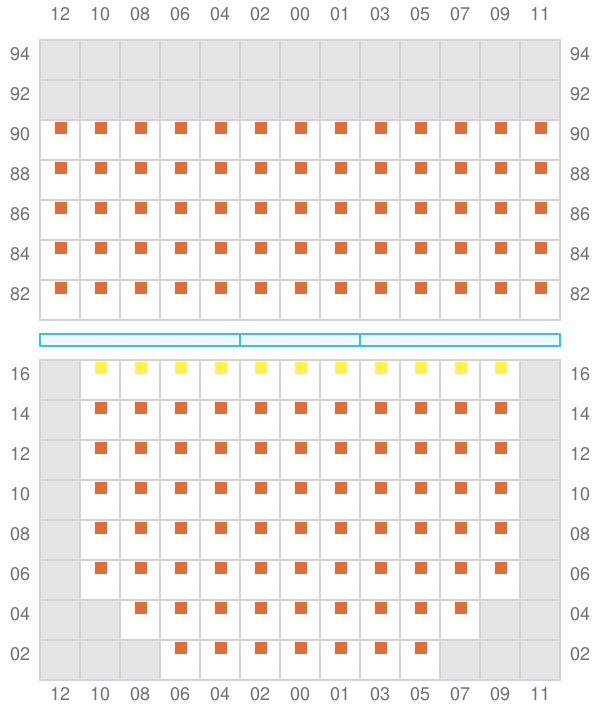

Bay 021 view and slots of MSC MEXICO V

023 (022)

  • ←
  • → / ?
  • →

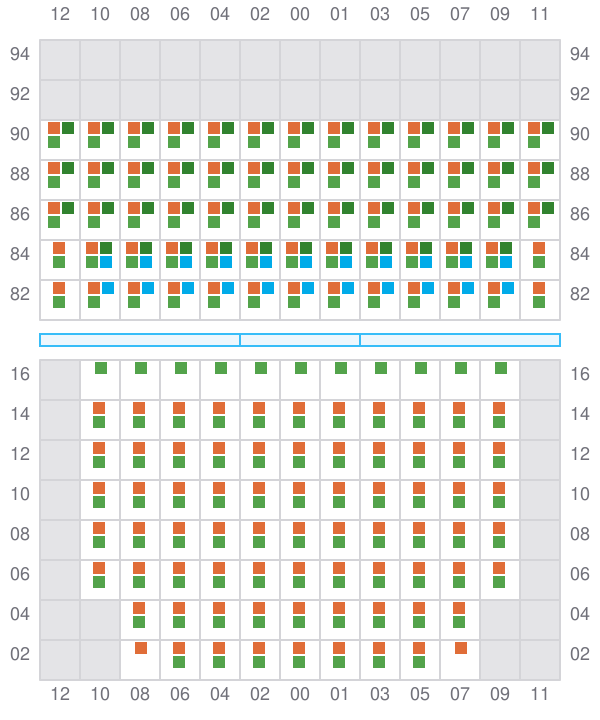

Bay 023 view and slots of MSC MEXICO V

025

  • →
  • →
Bay 025 view and slots of MSC MEXICO V

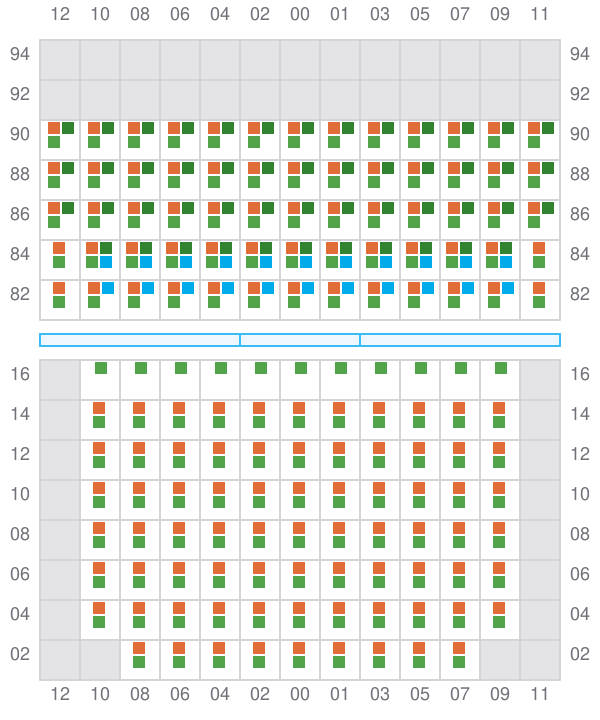

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of MSC MEXICO V

029

  • →
  • →

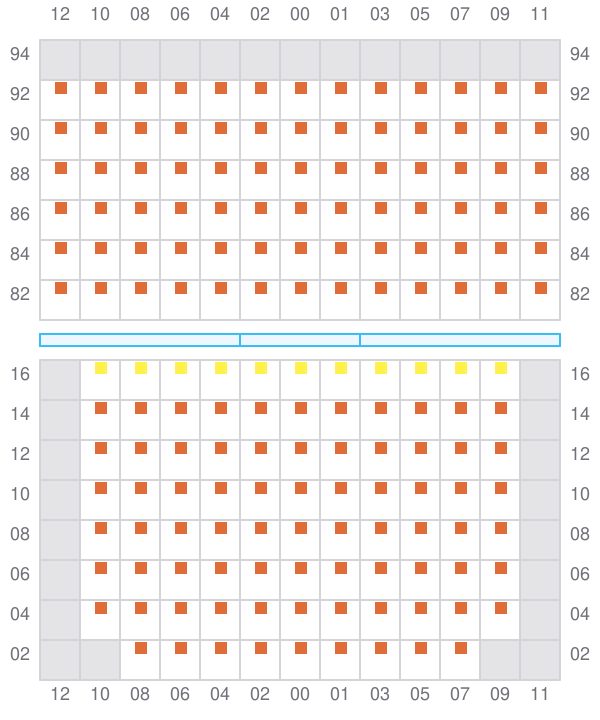

Bay 029 view and slots of MSC MEXICO V

031 (030)

  • ←
  • → / ?
  • →

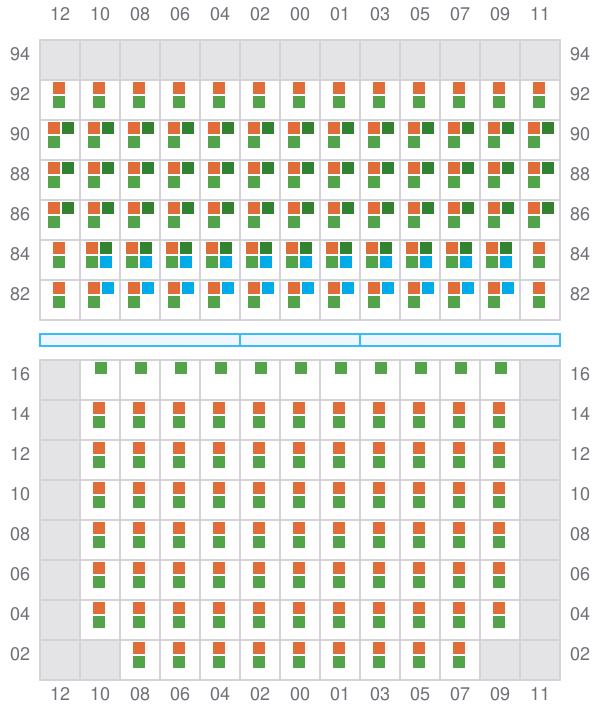

Bay 031 view and slots of MSC MEXICO V

033

  • →
  • →
Bay 033 view and slots of MSC MEXICO V

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of MSC MEXICO V

037

  • →
  • →
Bay 037 view and slots of MSC MEXICO V

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of MSC MEXICO V

041

  • →
  • →
Bay 041 view and slots of MSC MEXICO V

043 (042)

  • ←
  • → / ?
  • →

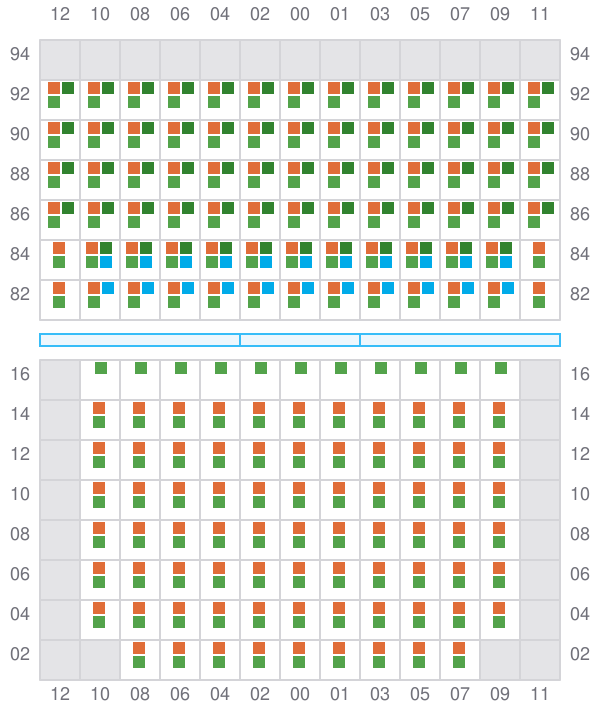

Bay 043 view and slots of MSC MEXICO V

045

  • →
  • →

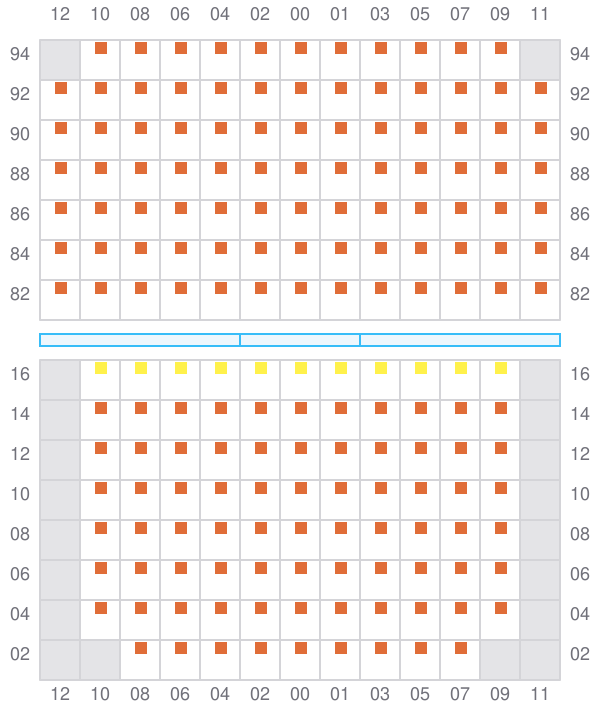

Bay 045 view and slots of MSC MEXICO V

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of MSC MEXICO V

049

  • →
  • →
Bay 049 view and slots of MSC MEXICO V

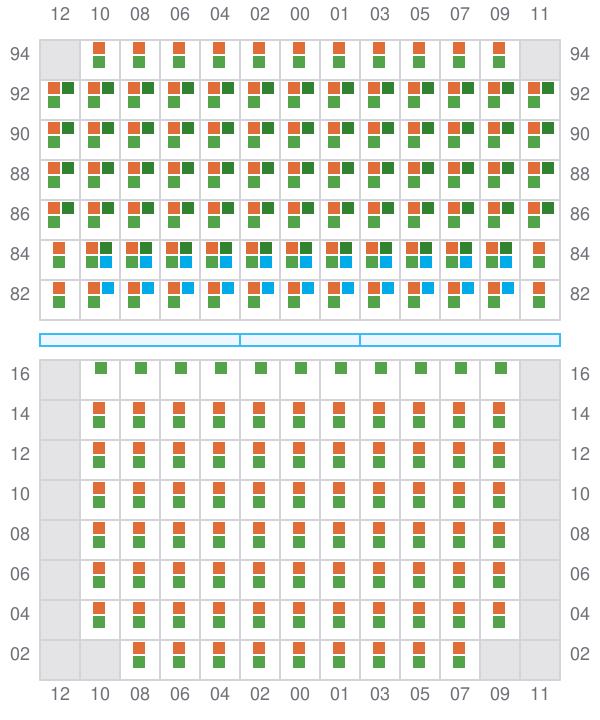

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of MSC MEXICO V

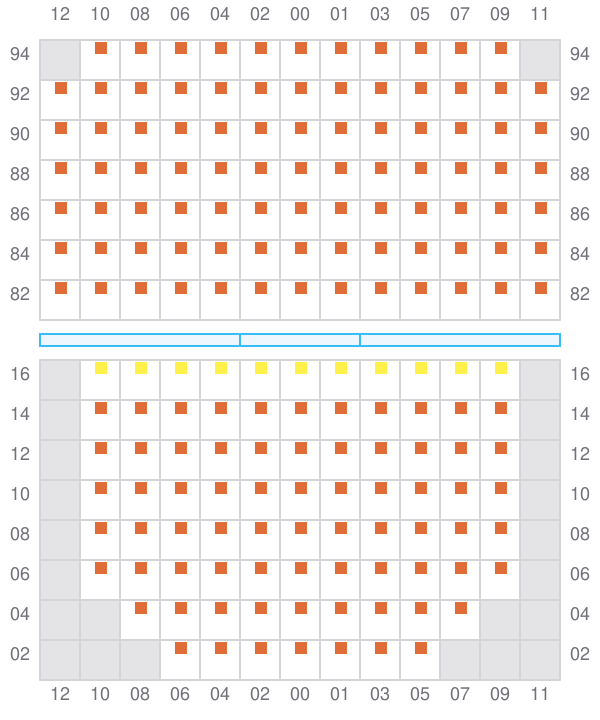

053

  • →
  • →
Bay 053 view and slots of MSC MEXICO V

055 (054)

  • ←
  • → / ?
  • →

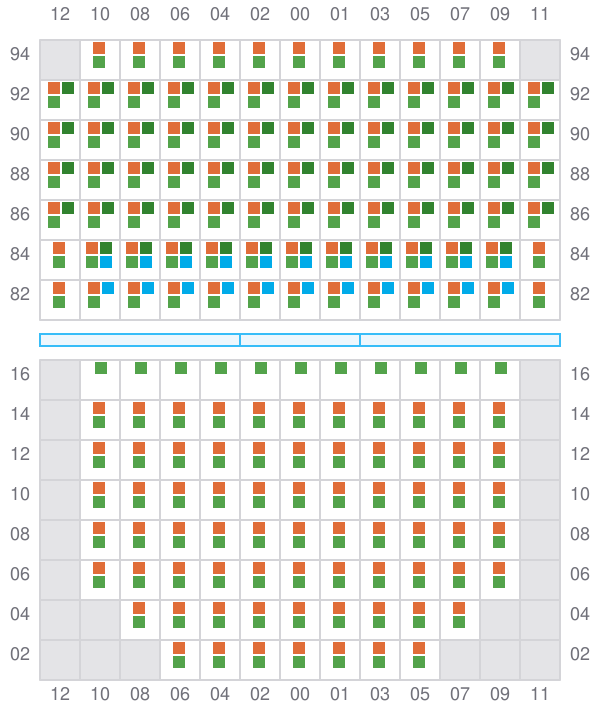

Bay 055 view and slots of MSC MEXICO V

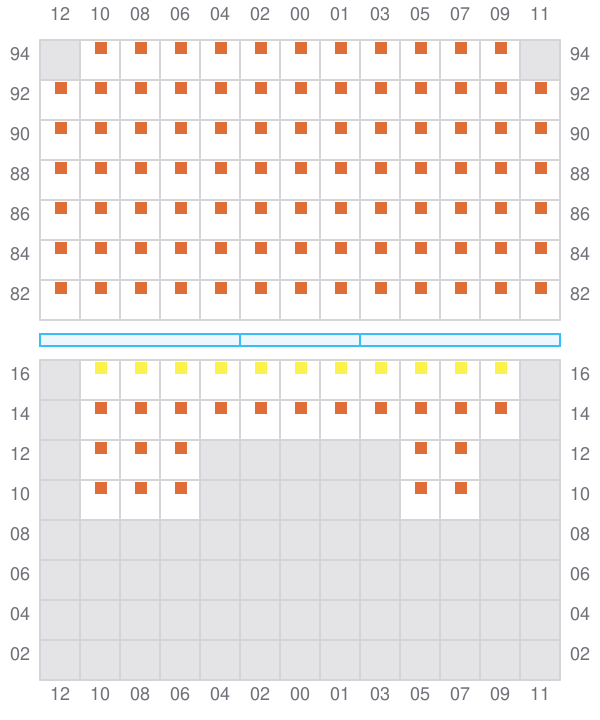

057

  • →
  • →
Bay 057 view and slots of MSC MEXICO V

059 (058)

  • ←
  • → / ?
  • →

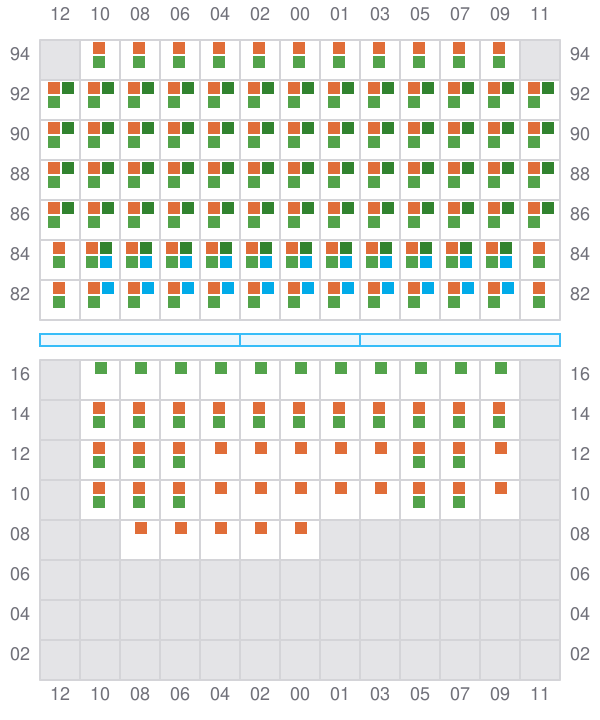

Bay 059 view and slots of MSC MEXICO V

061

  • →
  • →

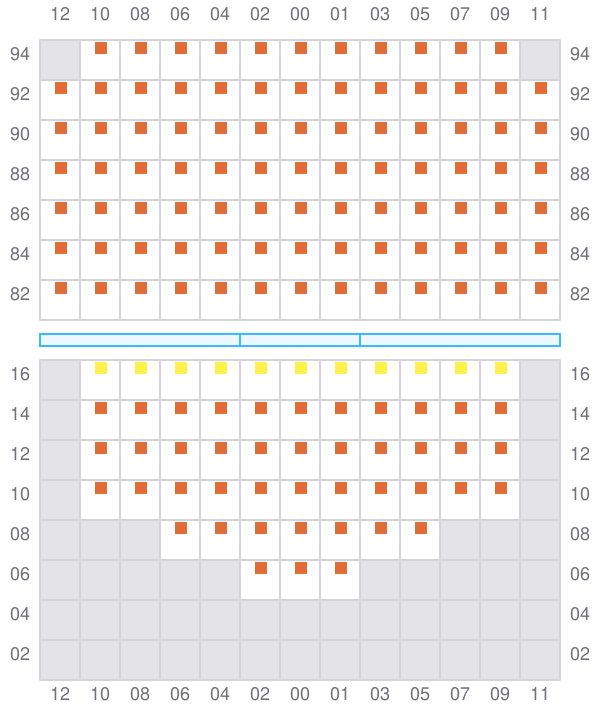

Bay 061 view and slots of MSC MEXICO V

063 (062)

  • ←
  • → / ?
  • →

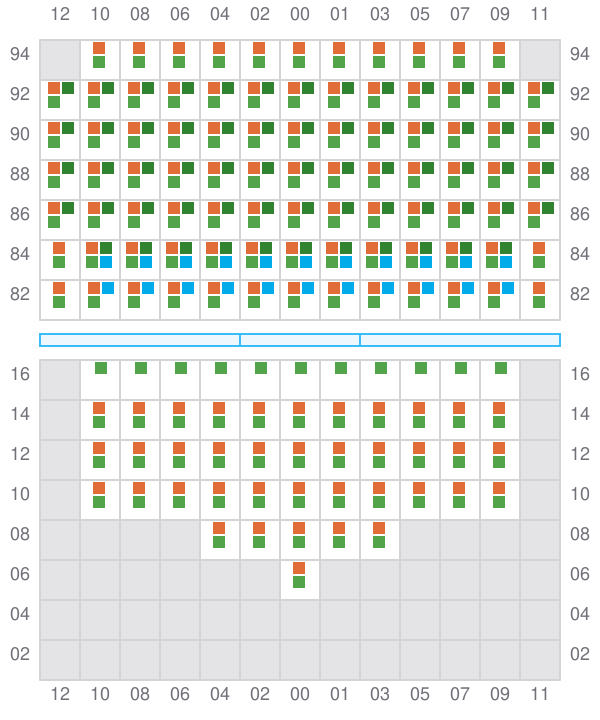

Bay 063 view and slots of MSC MEXICO V

065

  • →
  • →

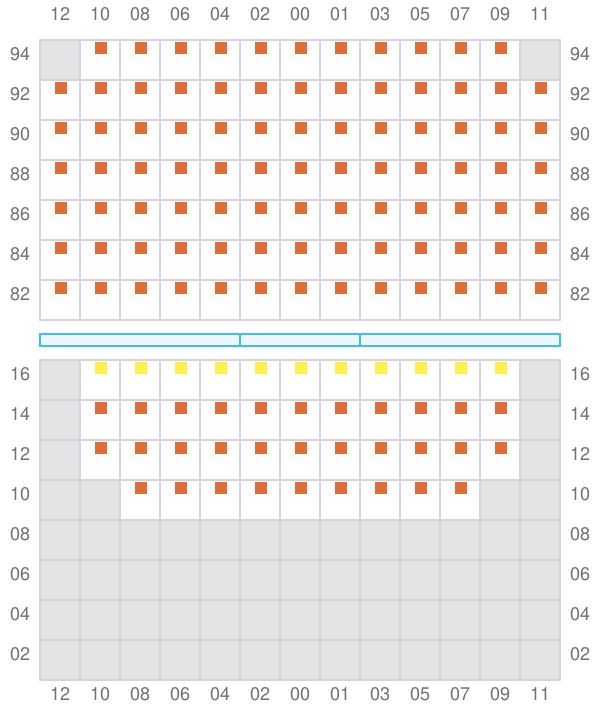

Bay 065 view and slots of MSC MEXICO V

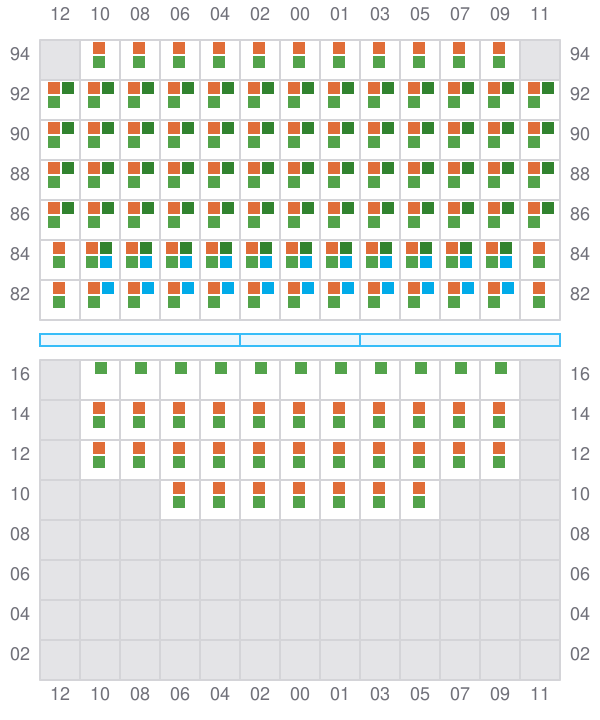

067 (066)

  • ←
  • → / ?
  • →
Bay 067 view and slots of MSC MEXICO V

069

Bay 069 view and slots of MSC MEXICO V

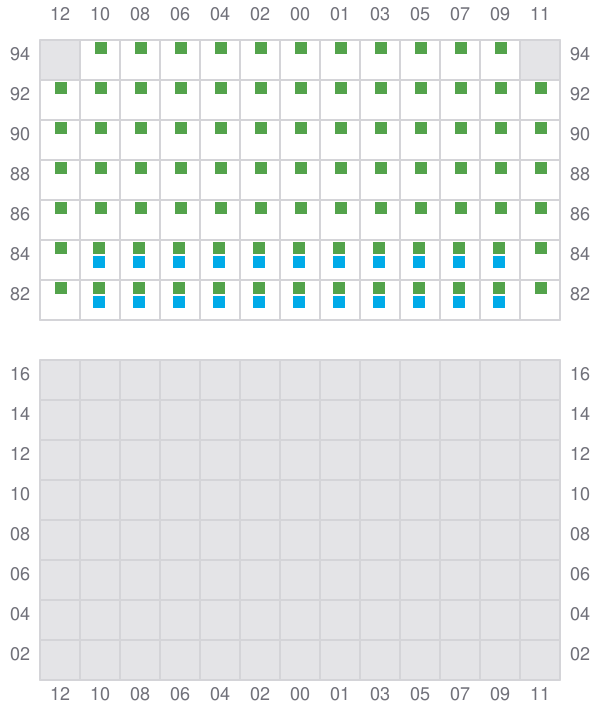

071

  • ← / ?
  • → / ?
Bay 071 view and slots of MSC MEXICO V
