MSC MICHIGAN VII
9196864 | 5LGR5 | 9196864 by ********* Last update: Mon Mar 11 2024

General Info

Ship Name:MSC MICHIGAN VII
IMO Code:9196864
Call Sign:5LGR5
Line Operator:9196864
Class Name for Sister Ships:05M
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,698

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC MICHIGAN VII

Hatch-Covers View

Deck view of MSC MICHIGAN VII

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

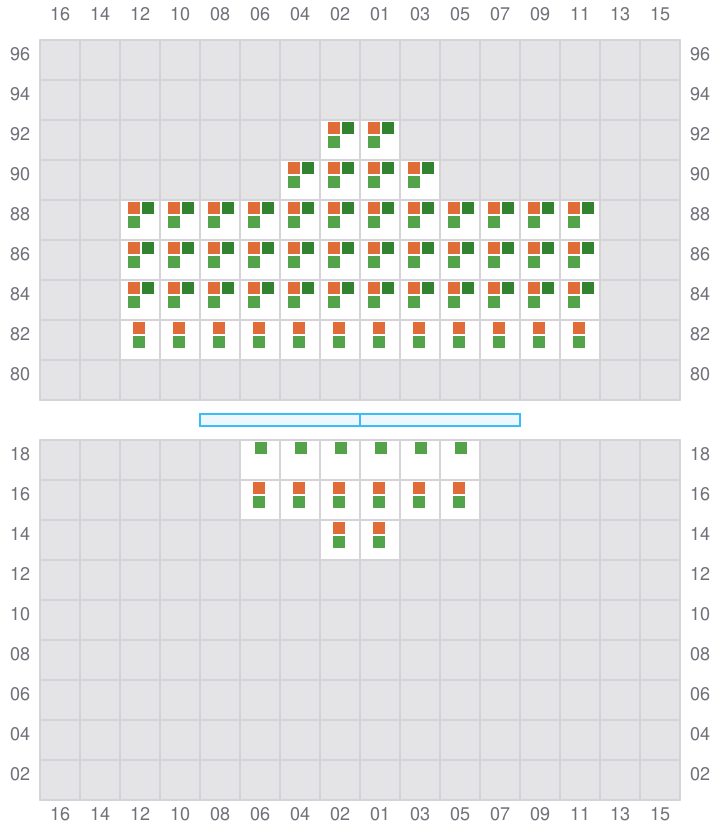

Bay 001 view and slots of MSC MICHIGAN VII

003

  • ←
Bay 003 view and slots of MSC MICHIGAN VII

005 (006)

  • →

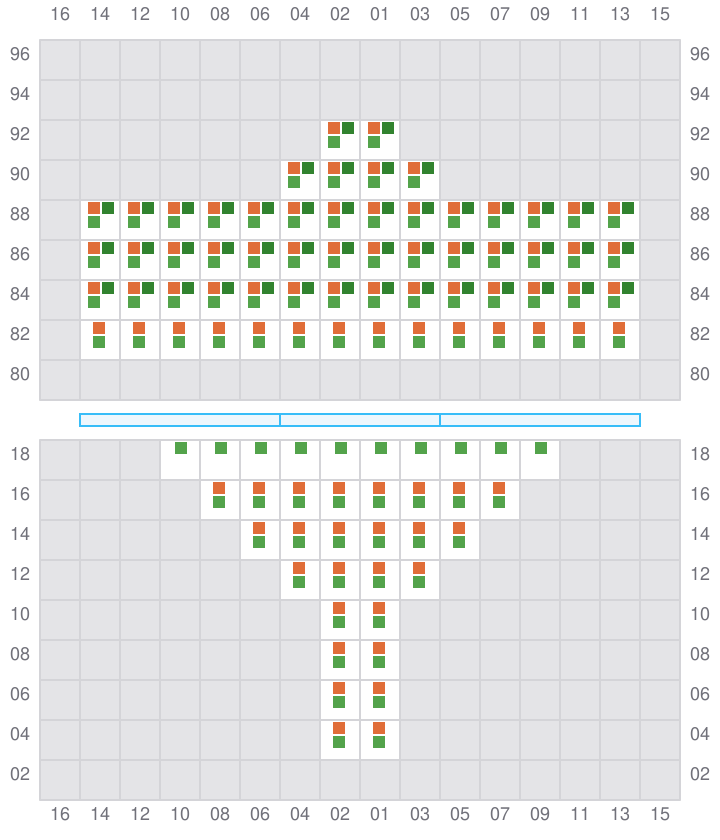

Bay 005 view and slots of MSC MICHIGAN VII

007

  • ←

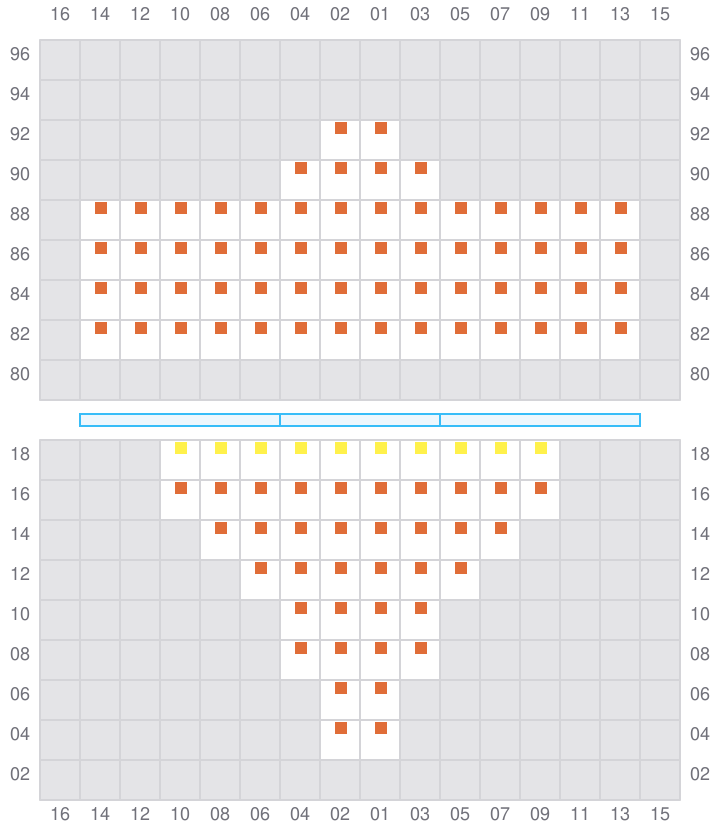

Bay 007 view and slots of MSC MICHIGAN VII

009 (010)

  • →

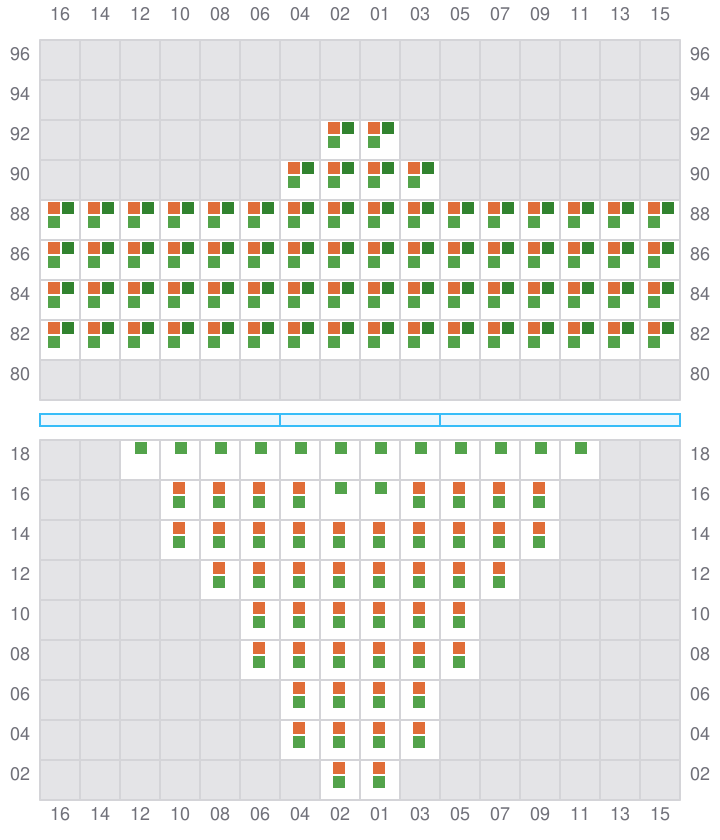

Bay 009 view and slots of MSC MICHIGAN VII

011

  • ←
Bay 011 view and slots of MSC MICHIGAN VII

013 (014)

  • →

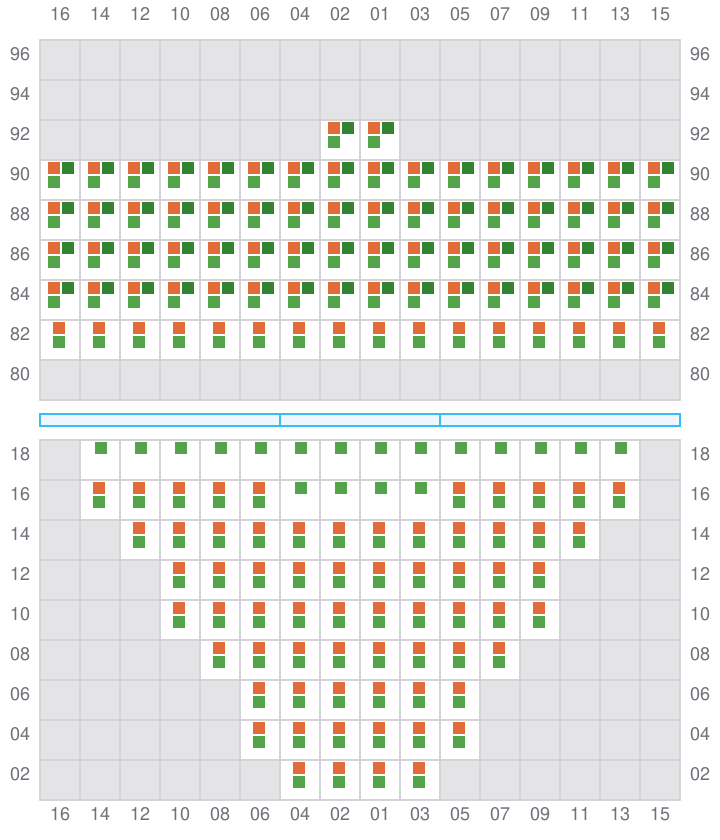

Bay 013 view and slots of MSC MICHIGAN VII

015

  • ←
Bay 015 view and slots of MSC MICHIGAN VII

017 (018)

  • →

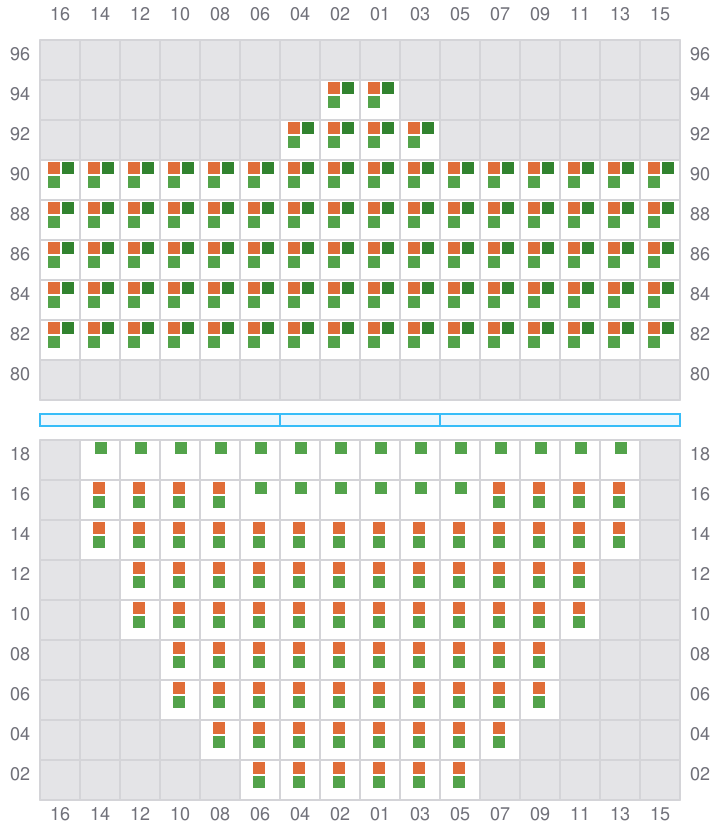

Bay 017 view and slots of MSC MICHIGAN VII

019

  • ←

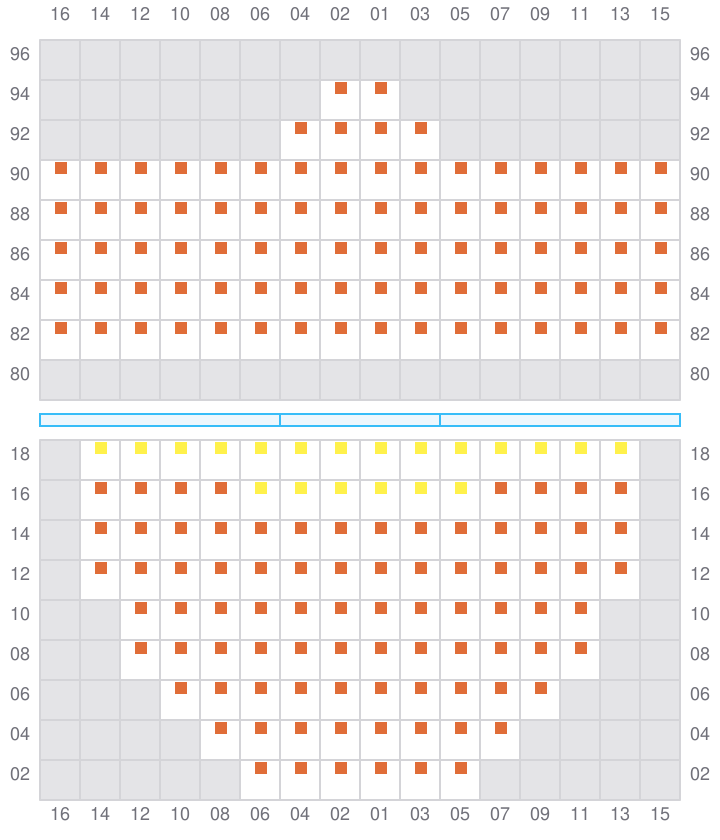

Bay 019 view and slots of MSC MICHIGAN VII

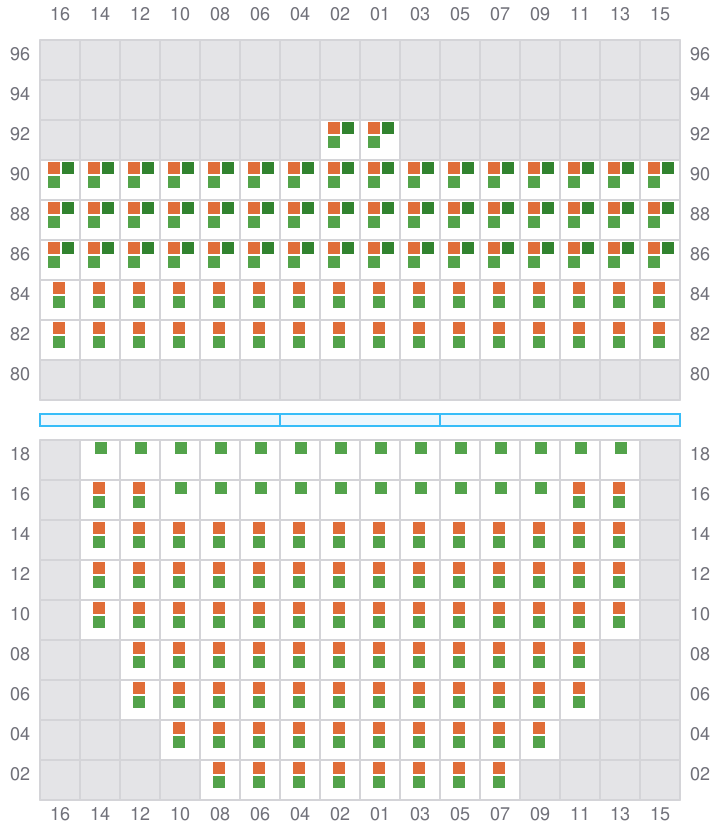

021 (022)

  • →

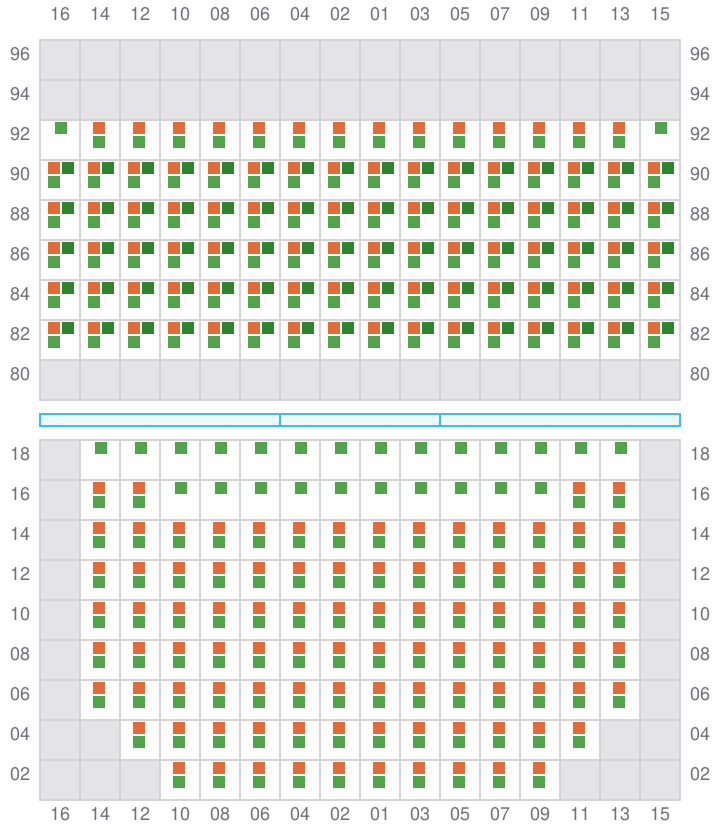

Bay 021 view and slots of MSC MICHIGAN VII

023

  • ←
Bay 023 view and slots of MSC MICHIGAN VII

025 (026)

  • →
Bay 025 view and slots of MSC MICHIGAN VII

027

  • ←
  • → / ?

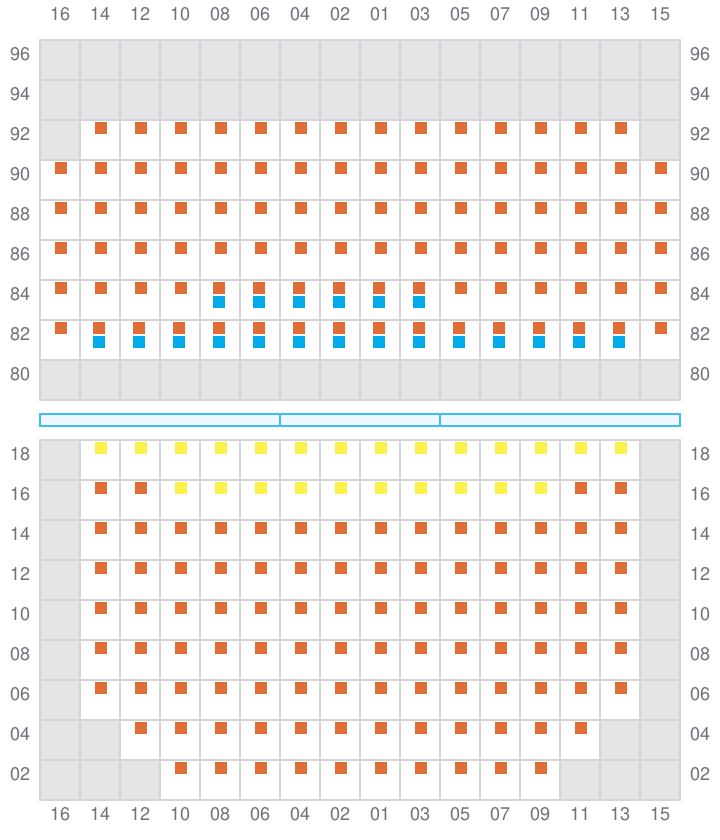

Bay 027 view and slots of MSC MICHIGAN VII

029 (030)

  • →
Bay 029 view and slots of MSC MICHIGAN VII

031

  • ←
  • →

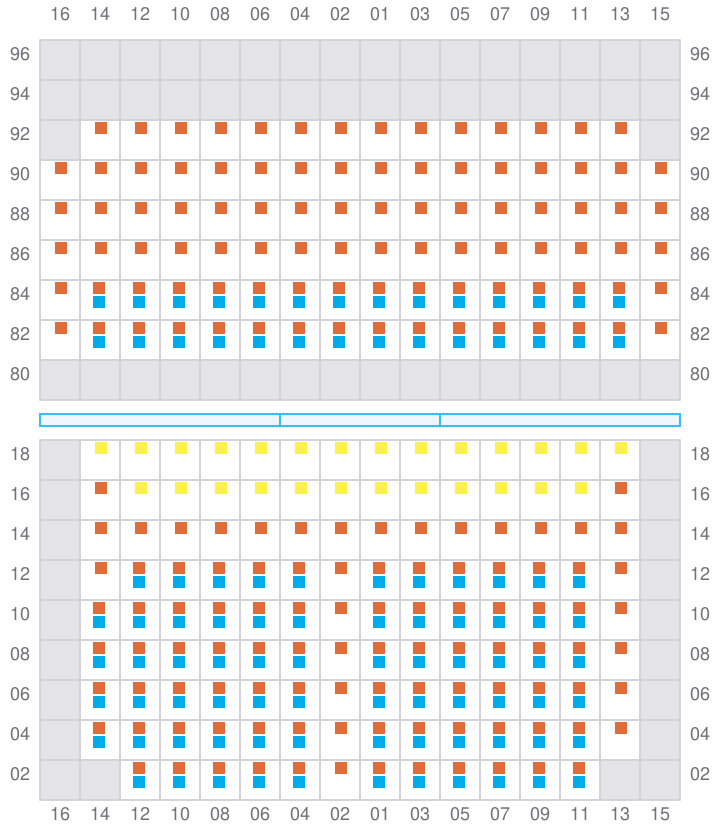

Bay 031 view and slots of MSC MICHIGAN VII

033 (034)

  • →

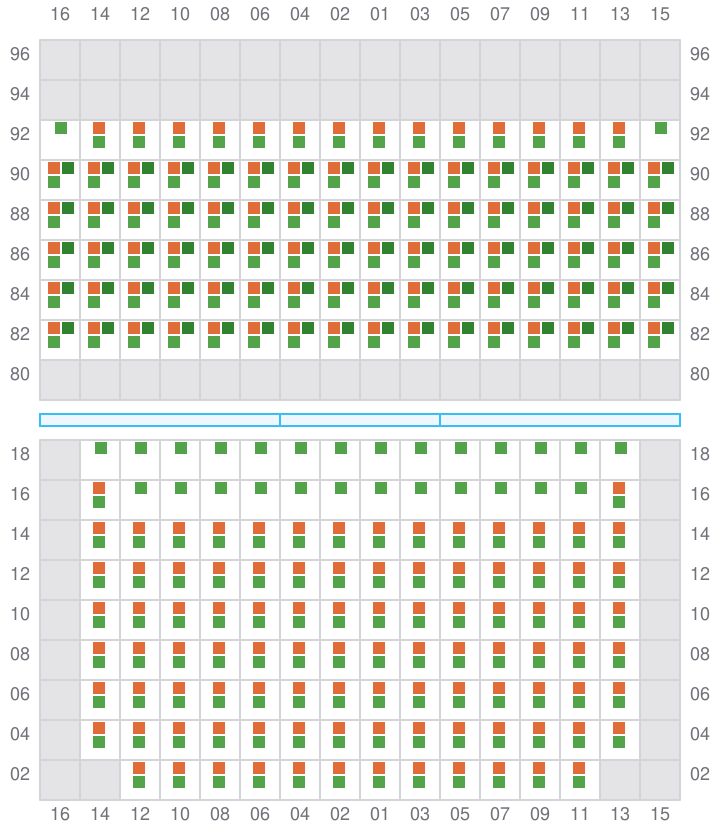

Bay 033 view and slots of MSC MICHIGAN VII

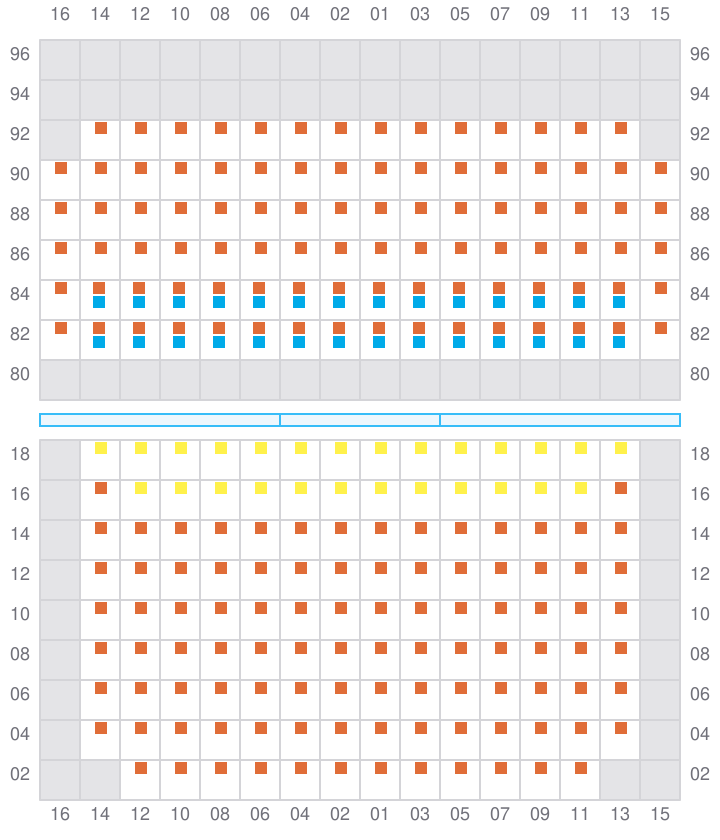

035

  • ←
  • → / ?
Bay 035 view and slots of MSC MICHIGAN VII

037 (038)

  • →
Bay 037 view and slots of MSC MICHIGAN VII

039

  • ←
  • →

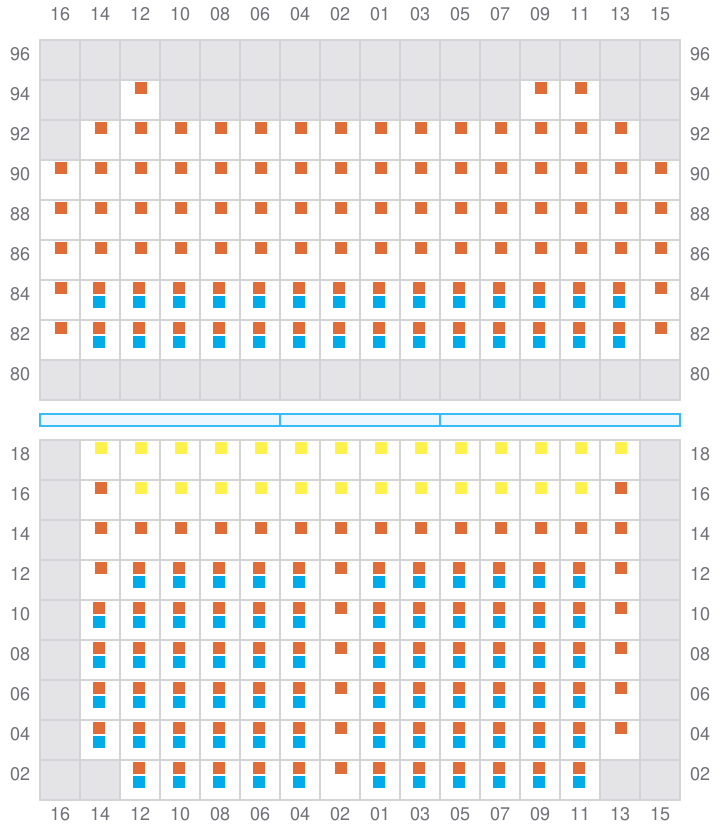

Bay 039 view and slots of MSC MICHIGAN VII

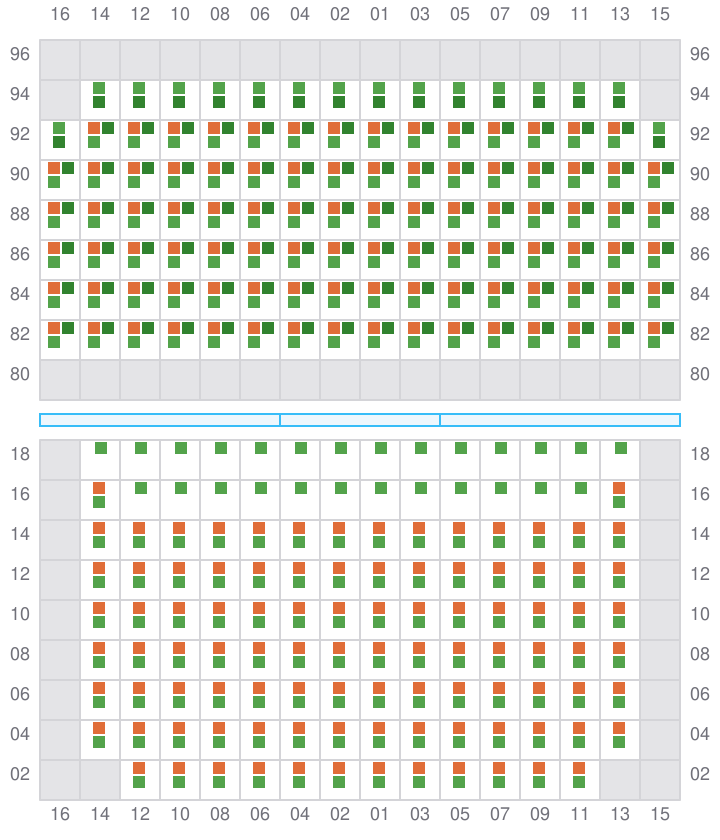

041 (042)

  • →

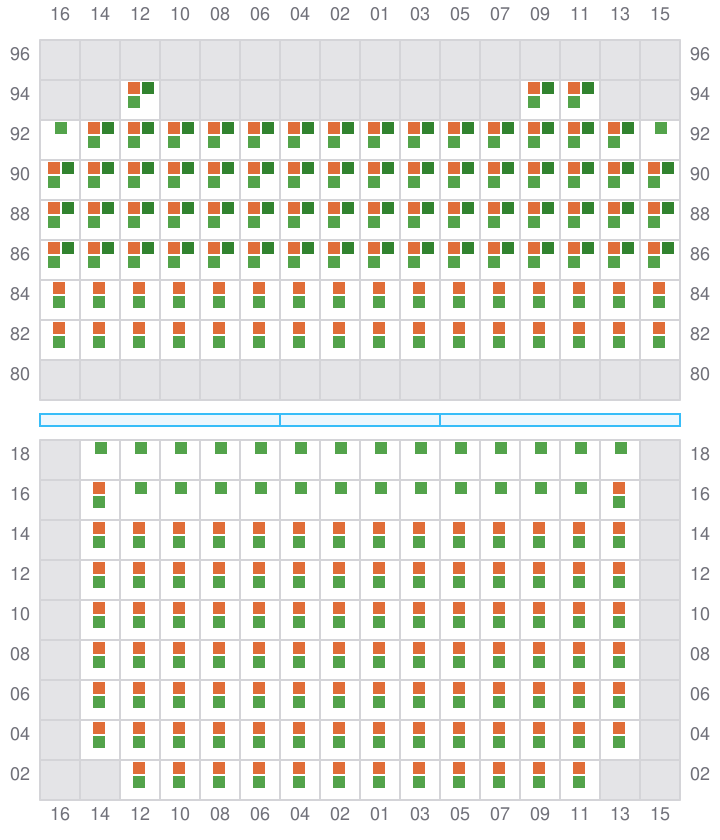

Bay 041 view and slots of MSC MICHIGAN VII

043

  • ←
  • → / ?
Bay 043 view and slots of MSC MICHIGAN VII

045 (046)

  • →

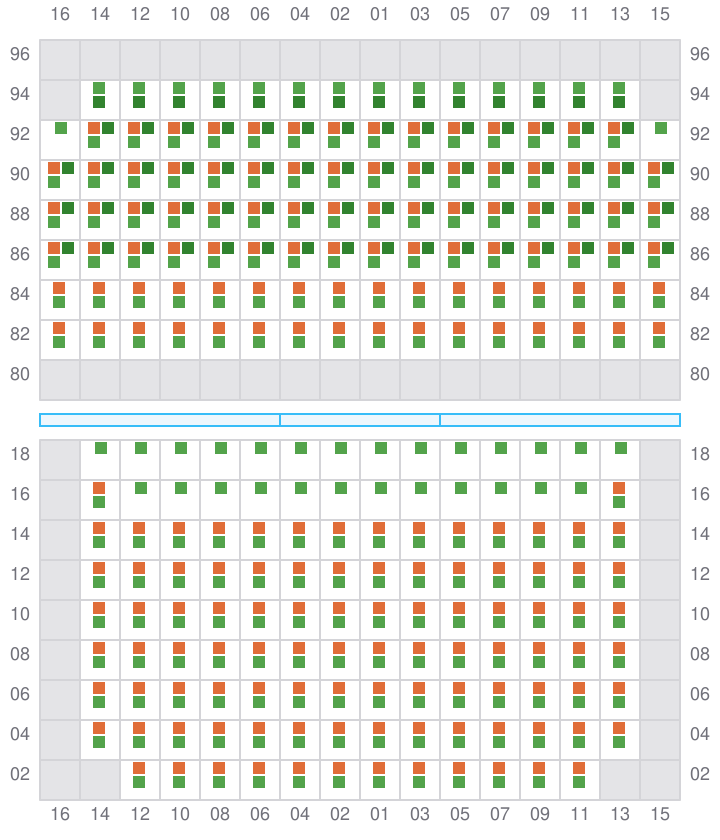

Bay 045 view and slots of MSC MICHIGAN VII

047

  • ←
  • →

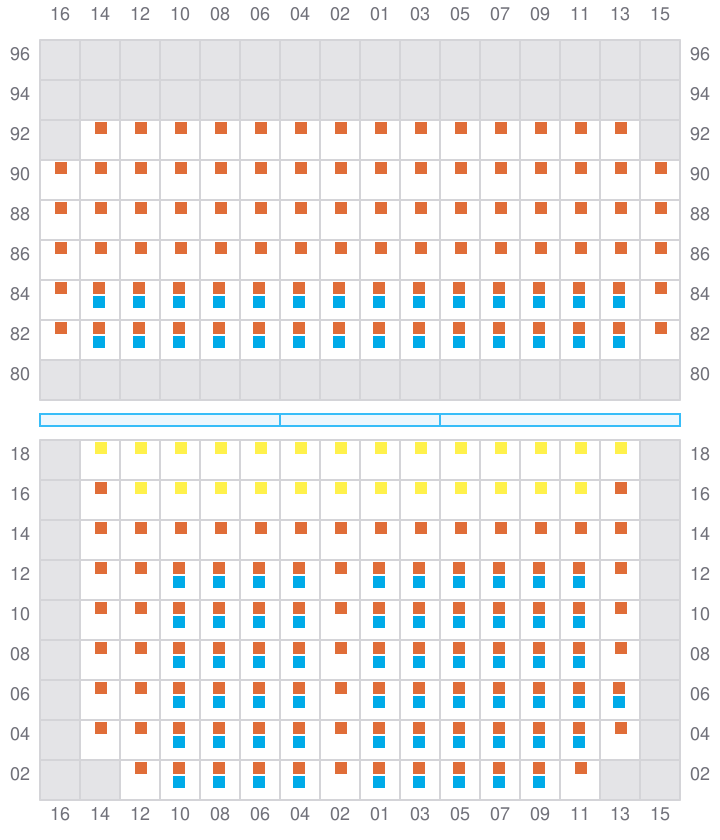

Bay 047 view and slots of MSC MICHIGAN VII

049 (050)

  • →

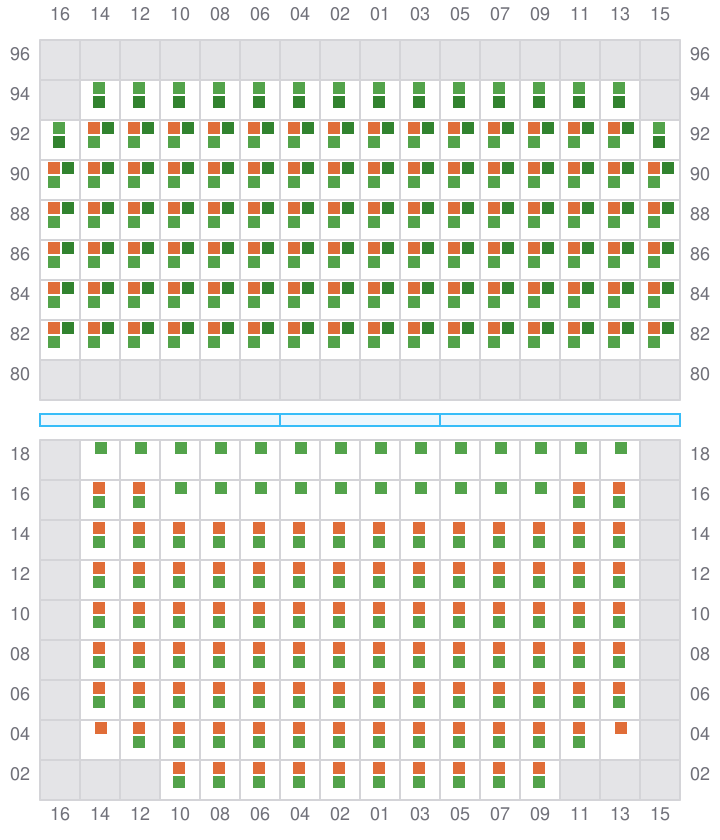

Bay 049 view and slots of MSC MICHIGAN VII

051

  • ←
  • → / ?
Bay 051 view and slots of MSC MICHIGAN VII

053 (054)

  • →
Bay 053 view and slots of MSC MICHIGAN VII

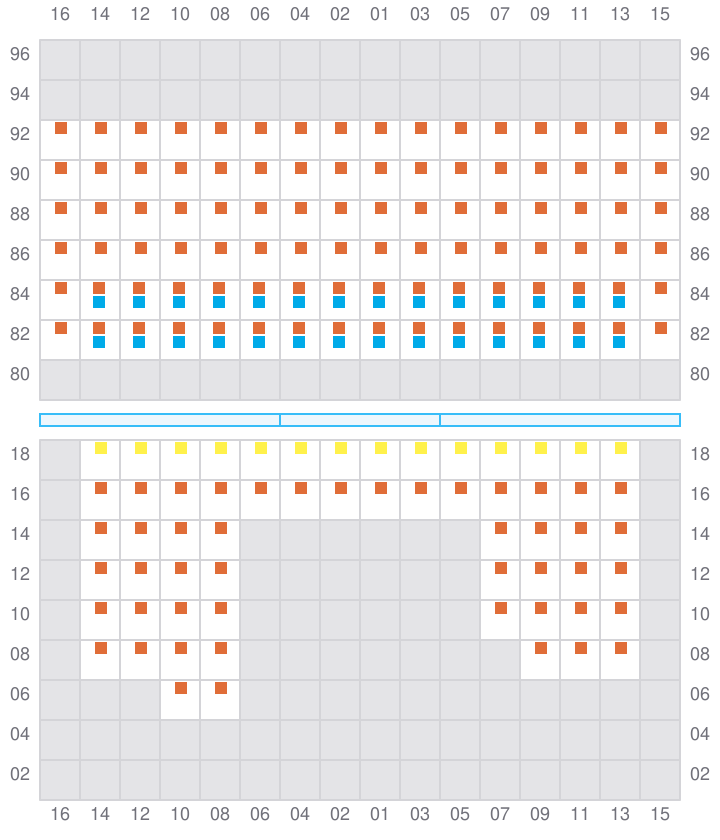

055

  • ←
  • → / ?
Bay 055 view and slots of MSC MICHIGAN VII

057 (058)

  • →

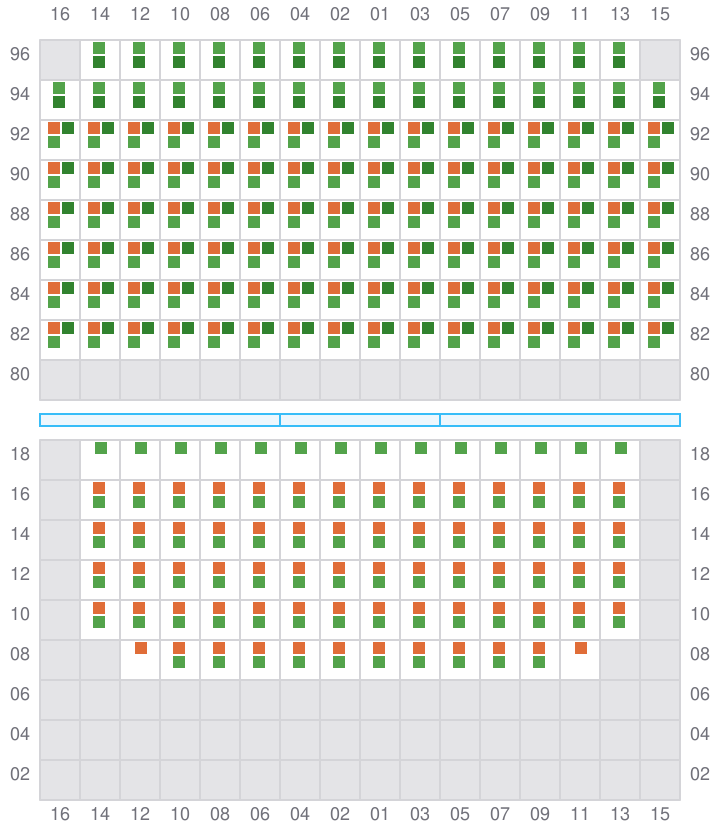

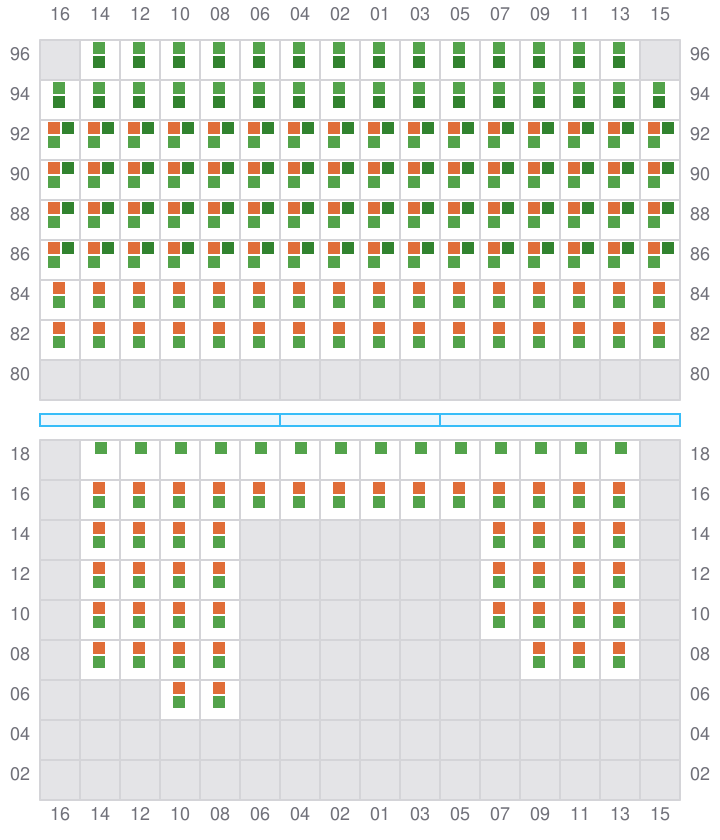

Bay 057 view and slots of MSC MICHIGAN VII

059

  • ←
  • → / ?

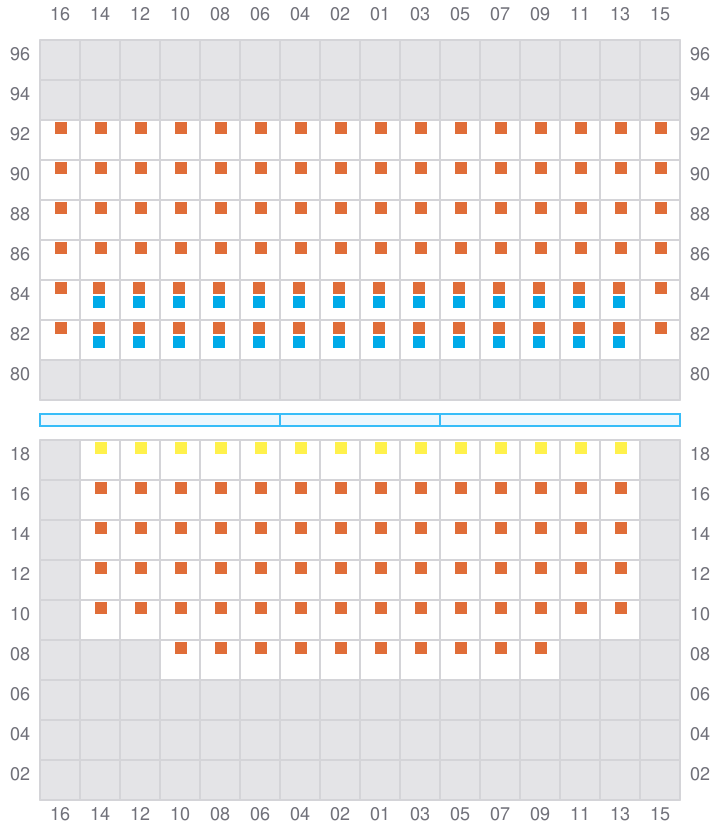

Bay 059 view and slots of MSC MICHIGAN VII

061 (062)

  • →

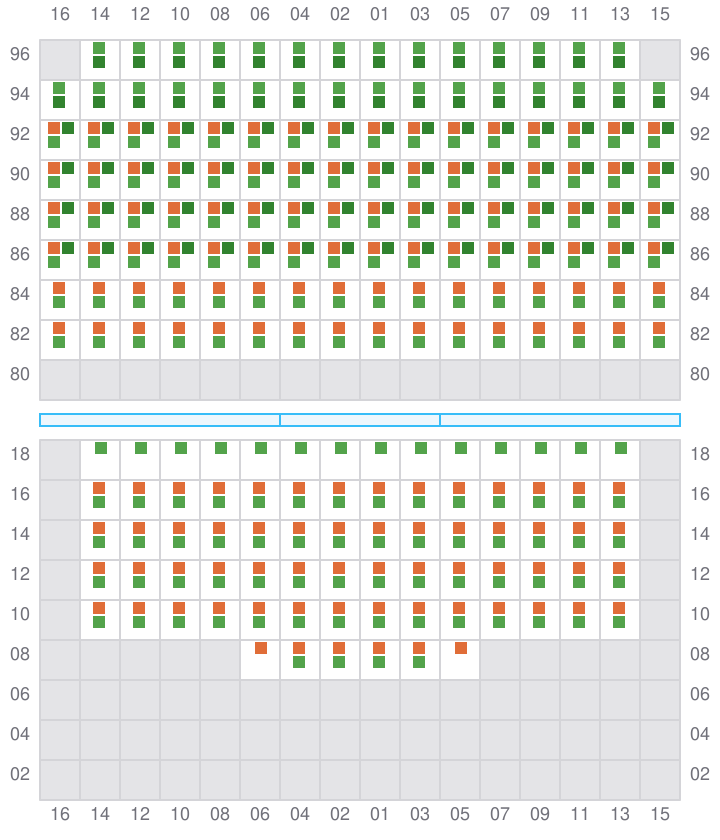

Bay 061 view and slots of MSC MICHIGAN VII

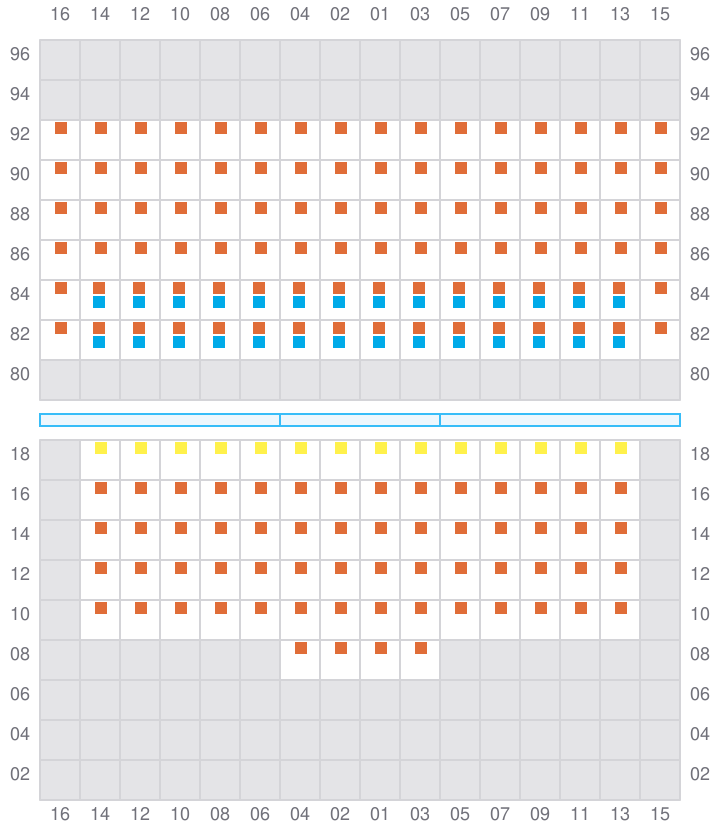

063

  • ←
  • → / ?
Bay 063 view and slots of MSC MICHIGAN VII

065 (066)

  • →

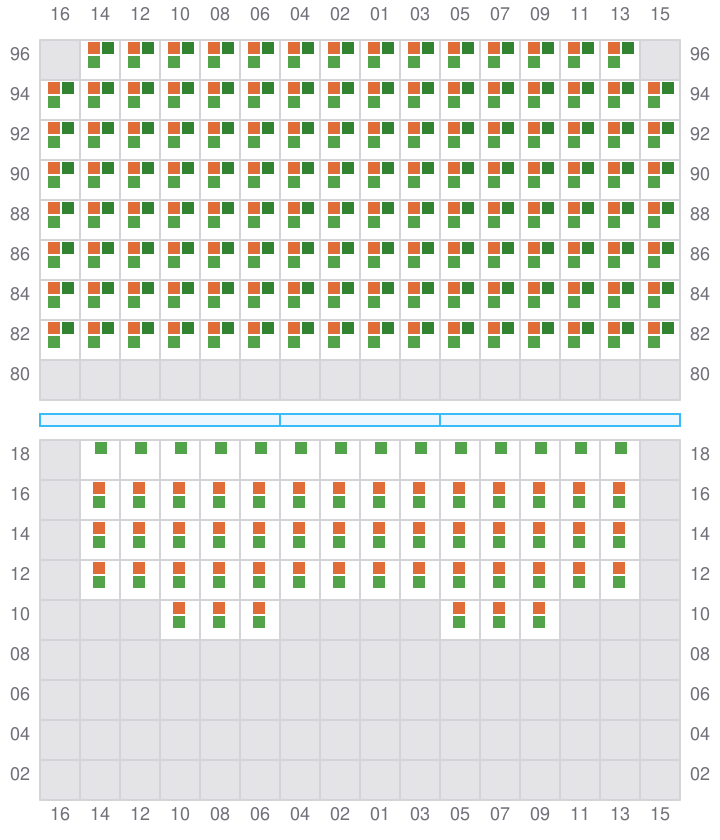

Bay 065 view and slots of MSC MICHIGAN VII

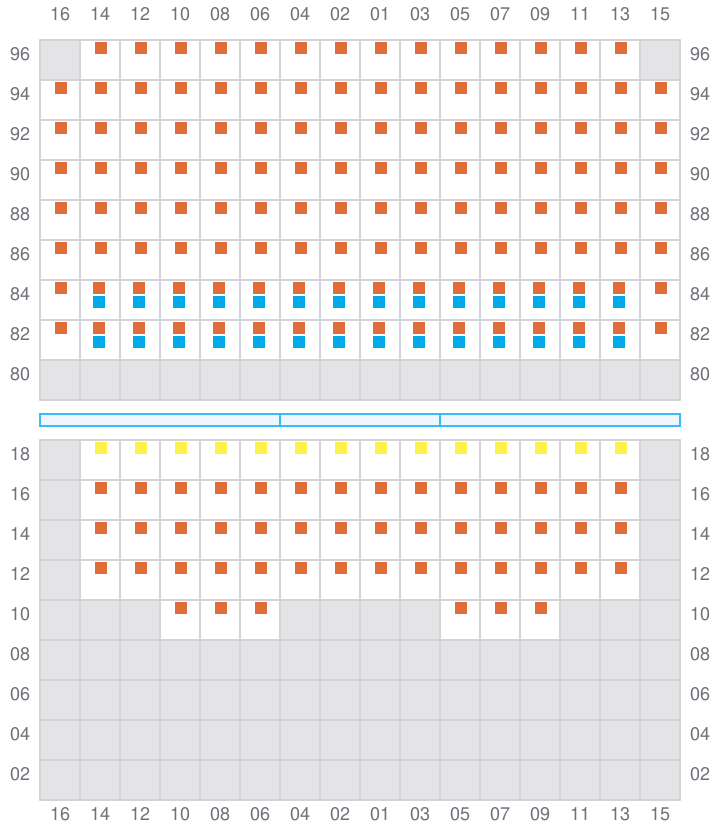

067

  • ←
  • → / ?
Bay 067 view and slots of MSC MICHIGAN VII

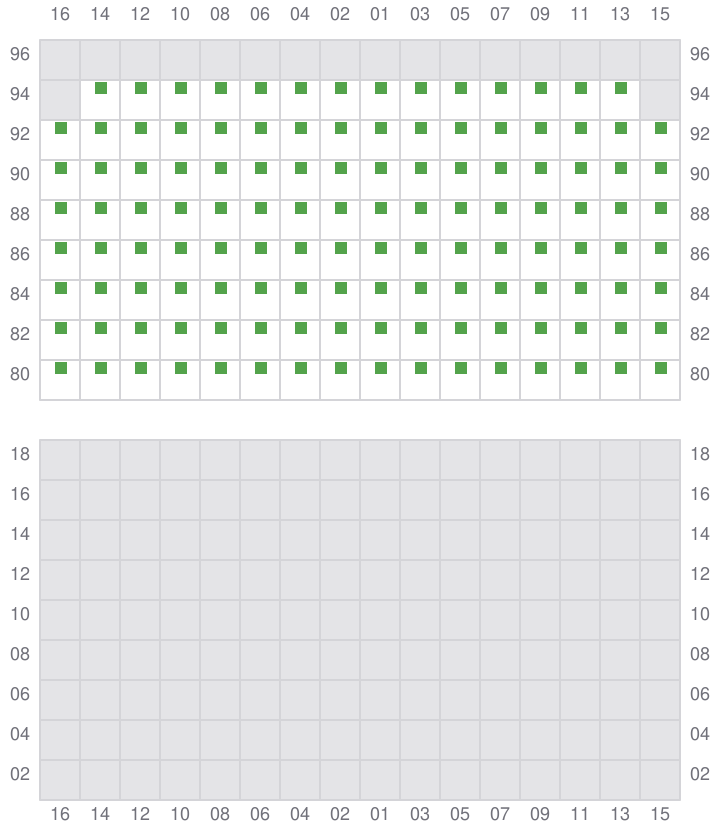

069 (070)

  • → / ?
Bay 069 view and slots of MSC MICHIGAN VII
