MSC MIRELLA
9293179 | A8RL4 | 9293179 by ********* Last update: Sun Mar 17 2024

General Info

Ship Name:MSC MIRELLA

IMO Code:9293179

Call Sign:A8RL4

Line Operator:9293179

Class Name for Sister Ships:2Y4

Year Built:2005

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:069

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,955

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

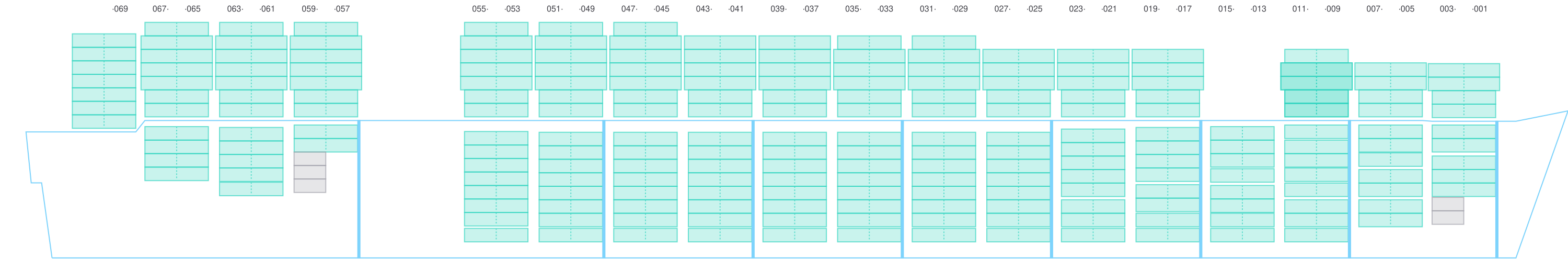

Side View

Side view of MSC MIRELLA

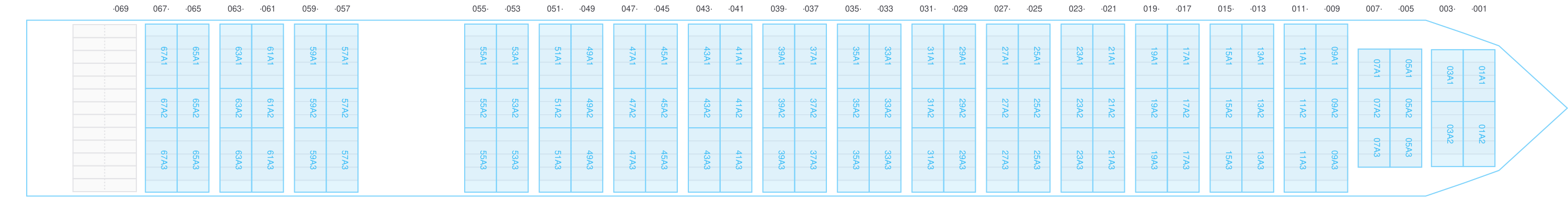

Hatch-Covers View

Deck view of MSC MIRELLA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→
^→ / _?

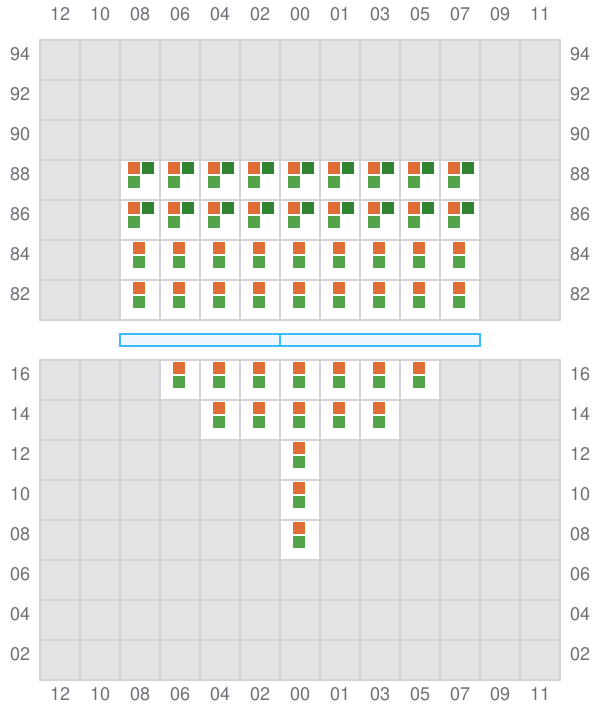

Bay 001 view and slots of MSC MIRELLA

003

←
^→ / _?

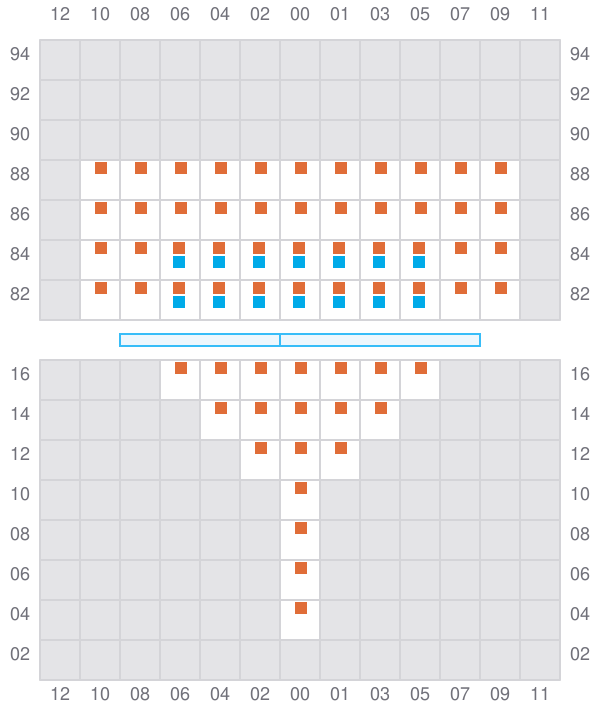

Bay 003 view and slots of MSC MIRELLA

005 (006)

→
^→ / _?

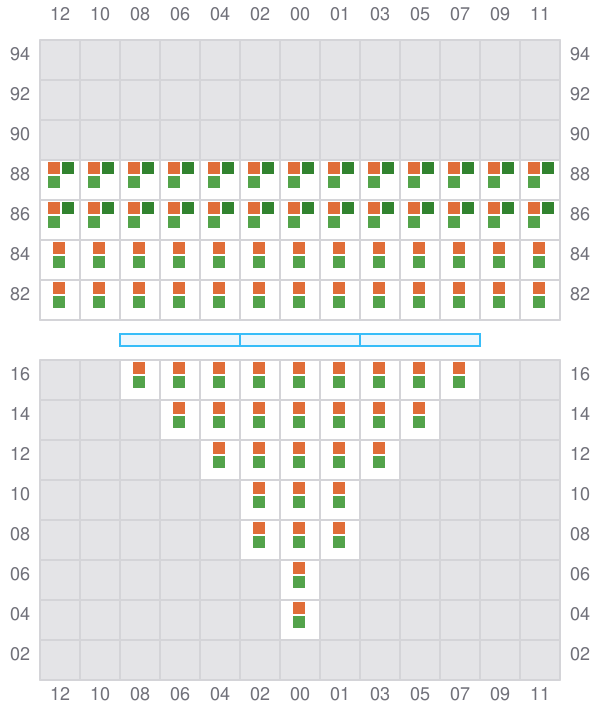

Bay 005 view and slots of MSC MIRELLA

007

←
→

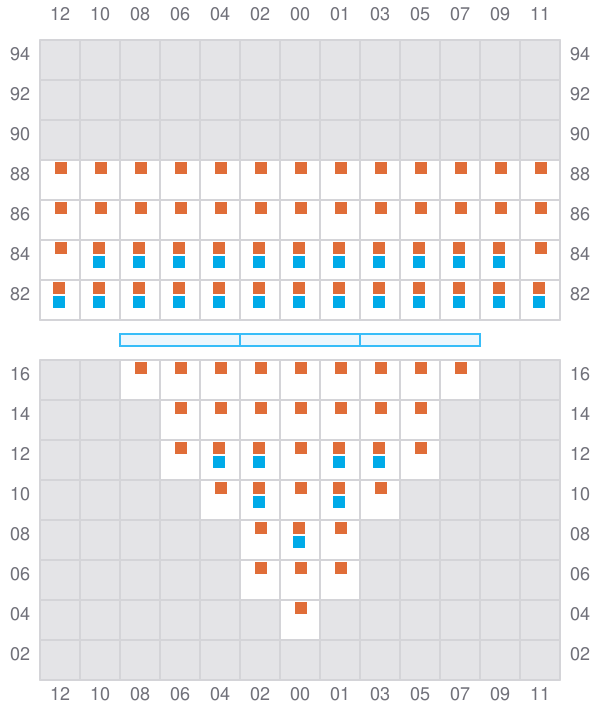

Bay 007 view and slots of MSC MIRELLA

009 (010)

→
^→ / _?

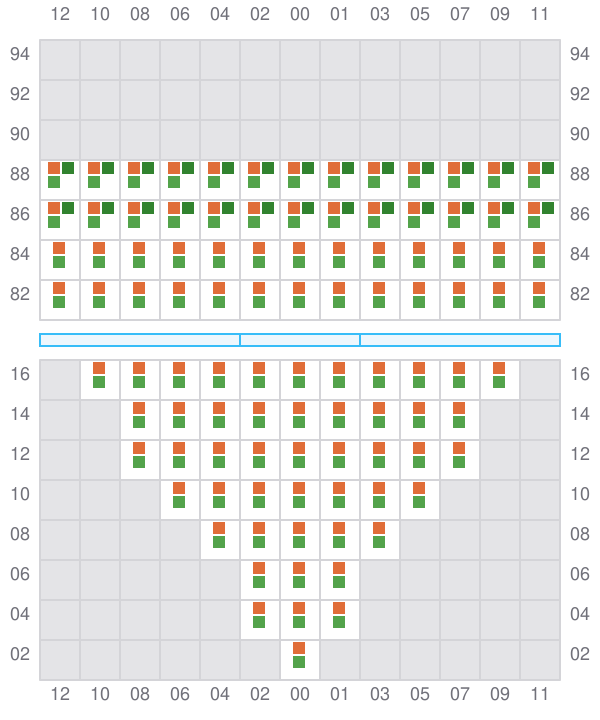

Bay 009 view and slots of MSC MIRELLA

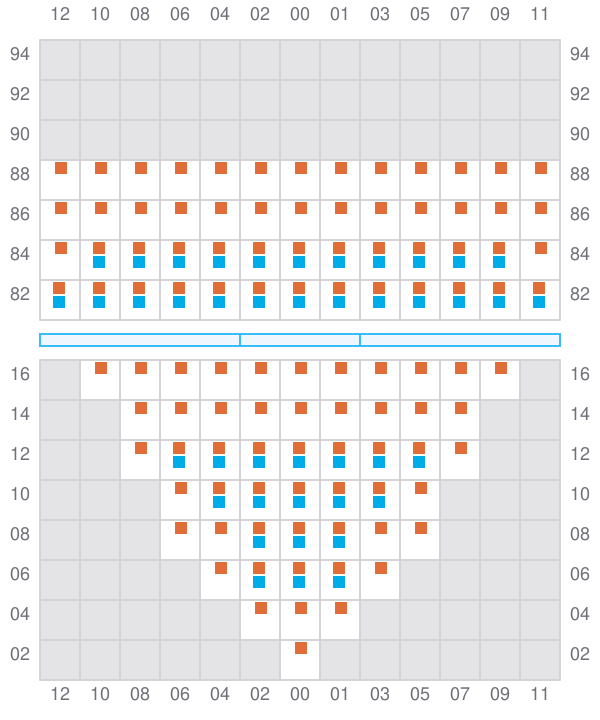

011

←
→

Bay 011 view and slots of MSC MIRELLA

013 (014)

→

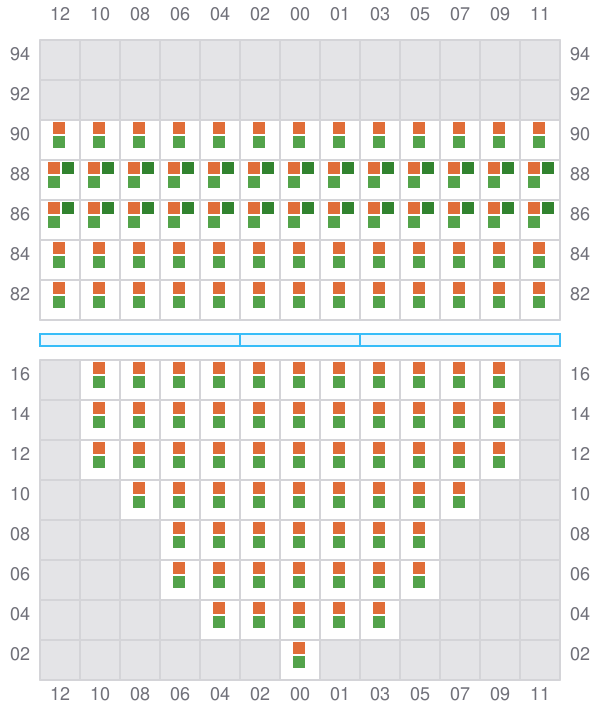

Bay 013 view and slots of MSC MIRELLA

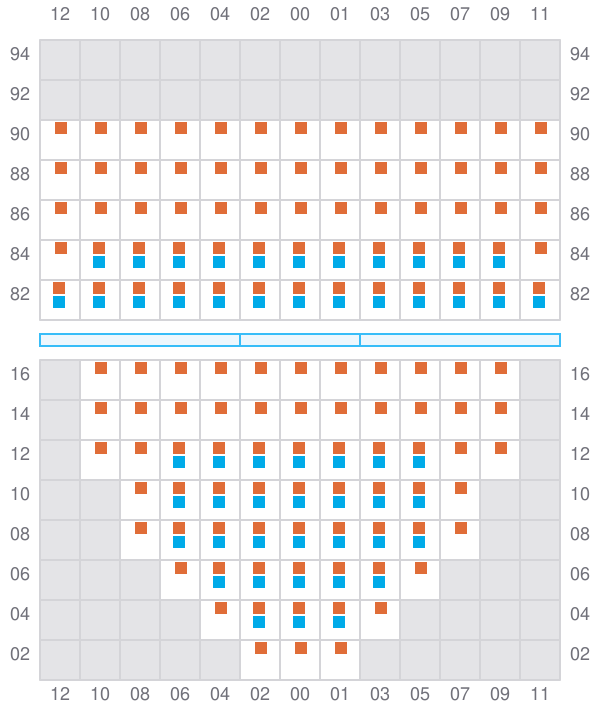

015

←
^? / _→

Bay 015 view and slots of MSC MIRELLA

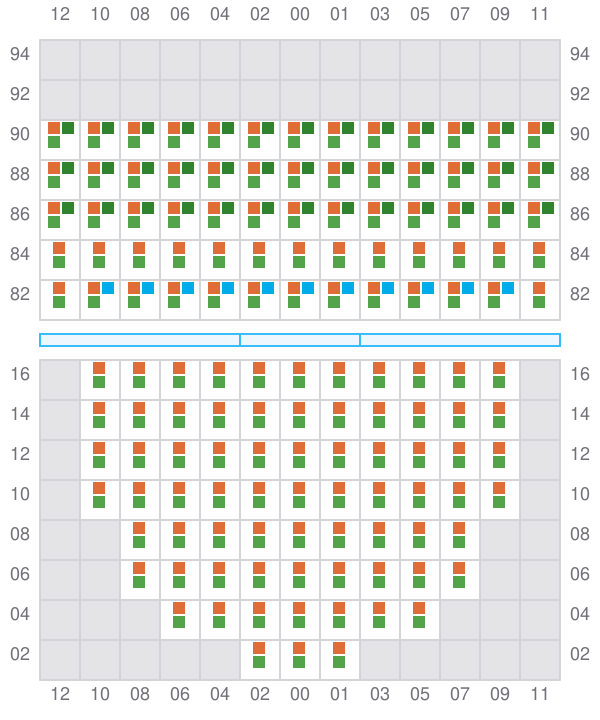

017 (018)

→

Bay 017 view and slots of MSC MIRELLA

019

←
^? / _→

Bay 019 view and slots of MSC MIRELLA

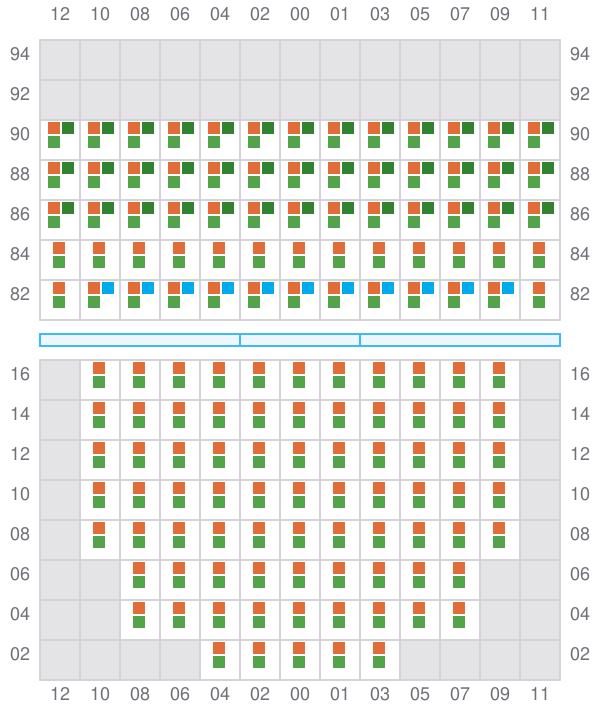

021 (022)

→
^← / _?

Bay 021 view and slots of MSC MIRELLA

023

←
→

Bay 023 view and slots of MSC MIRELLA

025 (026)

→
^← / _?

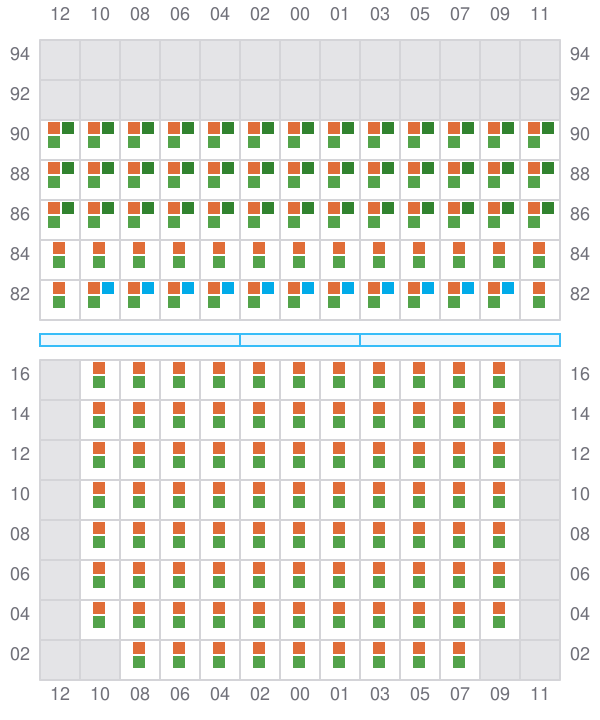

Bay 025 view and slots of MSC MIRELLA

027

←
→

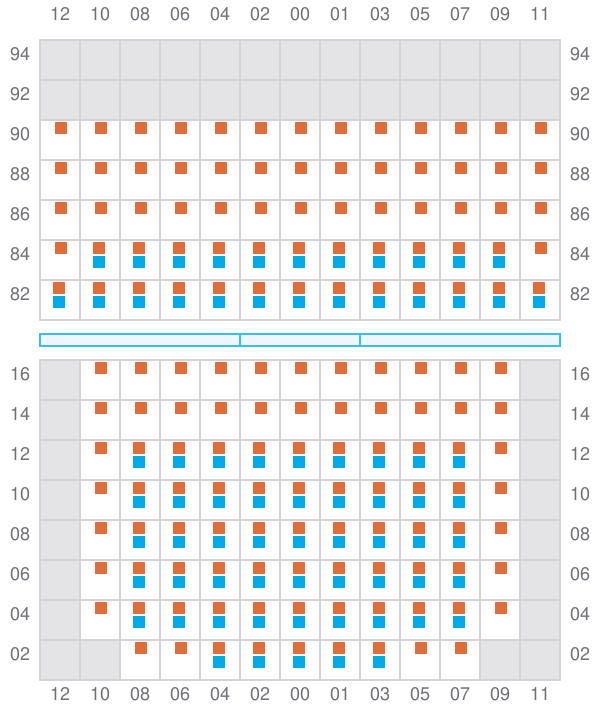

Bay 027 view and slots of MSC MIRELLA

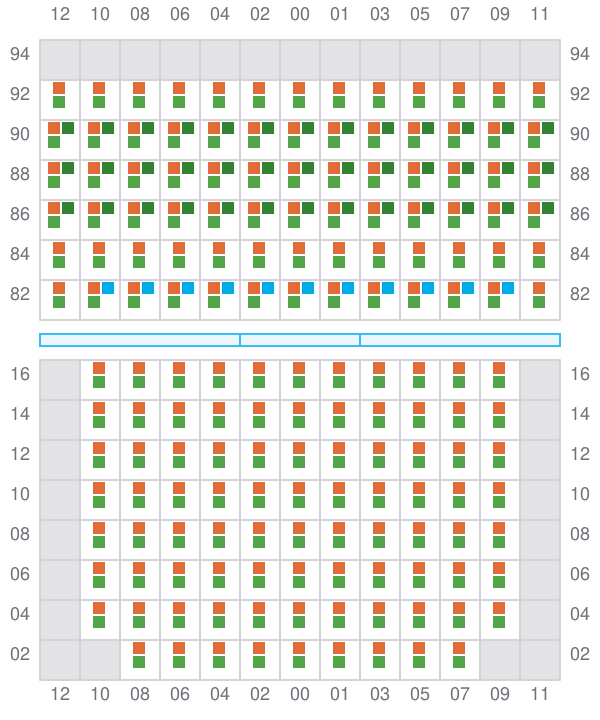

029 (030)

→
^← / _?

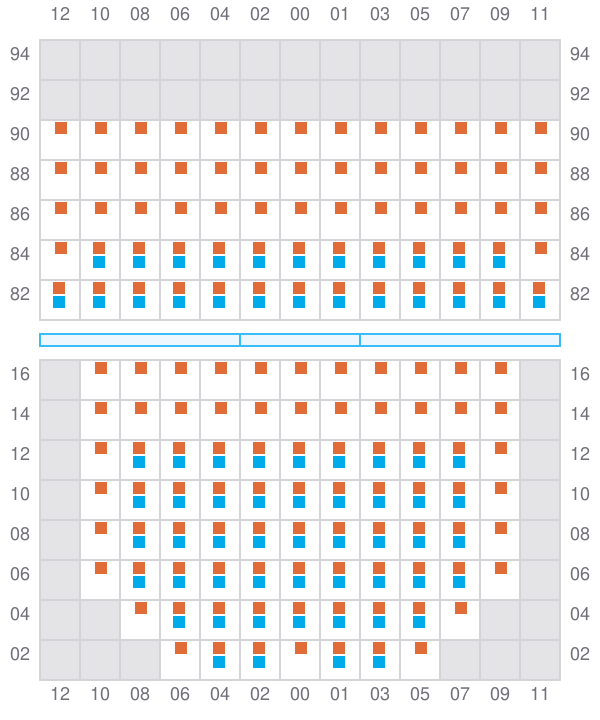

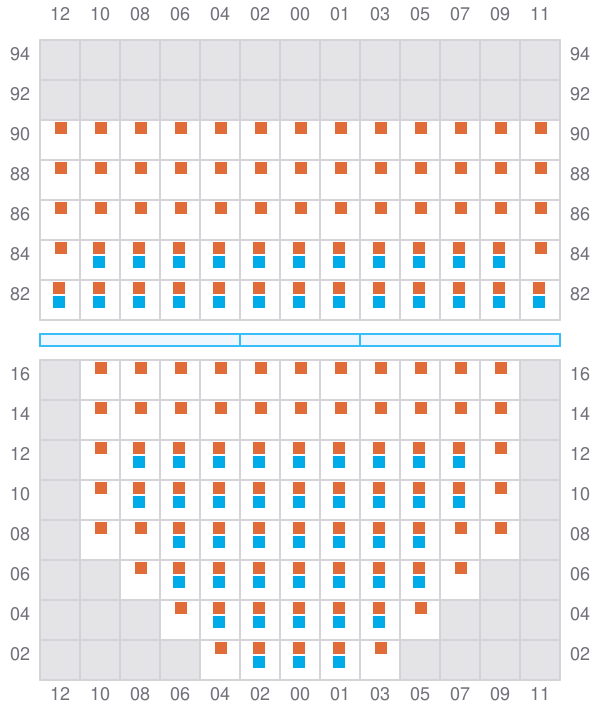

Bay 029 view and slots of MSC MIRELLA

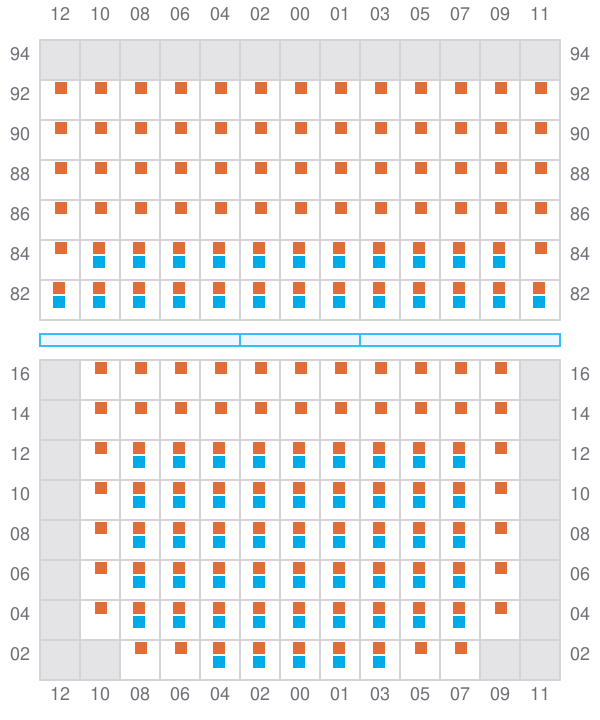

031

←
→

Bay 031 view and slots of MSC MIRELLA

033 (034)

→
^← / _?

Bay 033 view and slots of MSC MIRELLA

035

←
→

Bay 035 view and slots of MSC MIRELLA

037 (038)

→
^← / _?

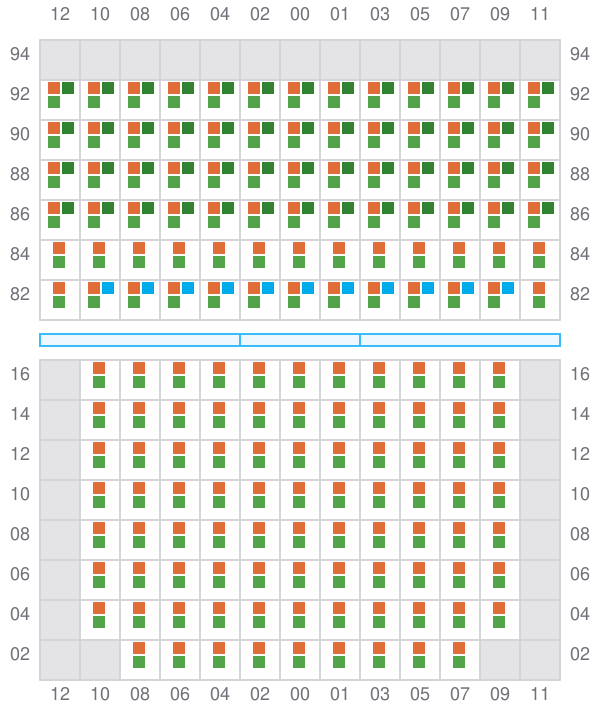

Bay 037 view and slots of MSC MIRELLA

039

←
→

Bay 039 view and slots of MSC MIRELLA

041 (042)

→
^← / _?

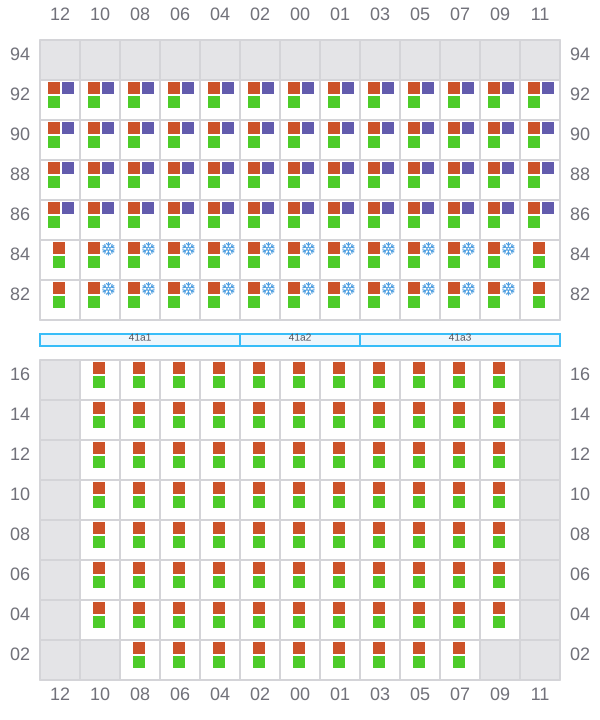

Bay 041 view and slots of MSC MIRELLA

043

←
→

Bay 043 view and slots of MSC MIRELLA

045 (046)

→
^← / _?

Bay 045 view and slots of MSC MIRELLA

047

←
→

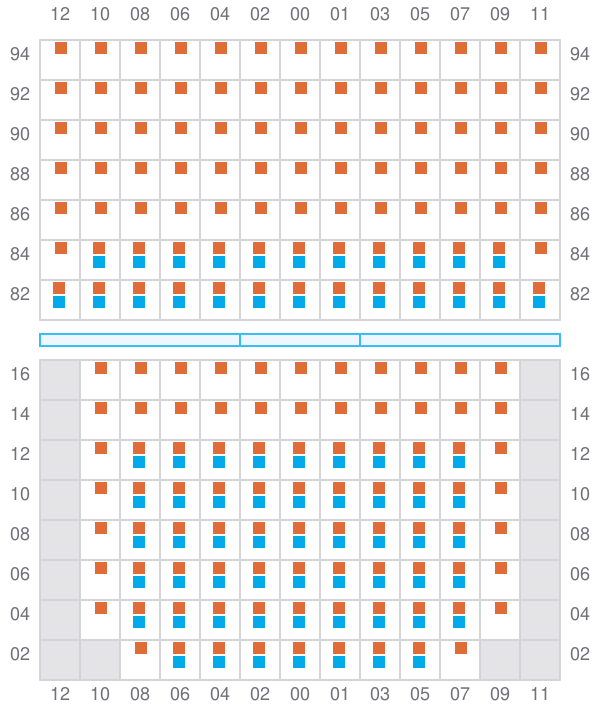

Bay 047 view and slots of MSC MIRELLA

049 (050)

→
^← / _?

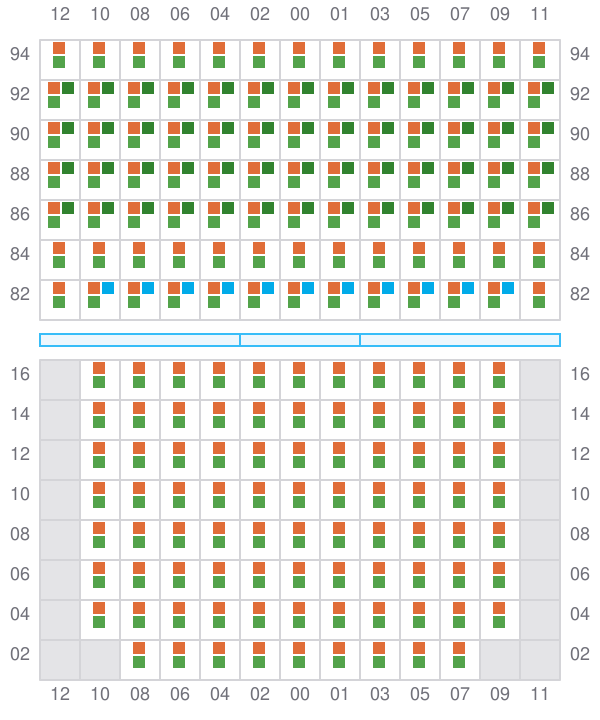

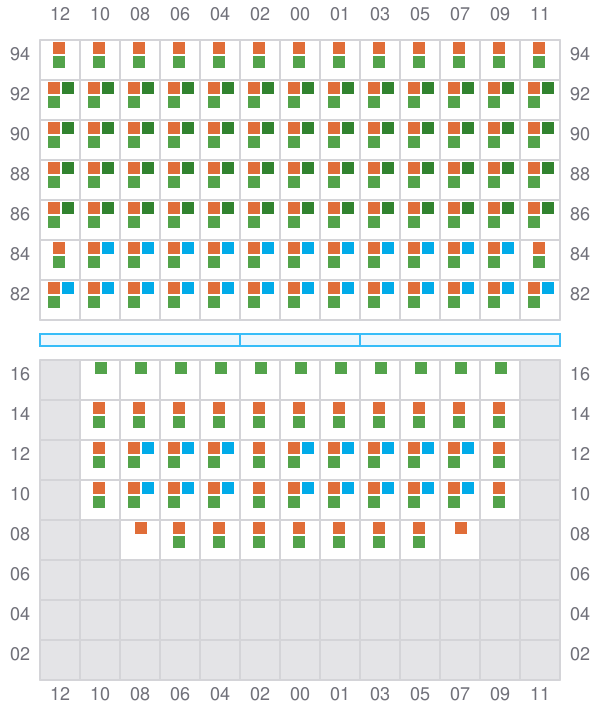

Bay 049 view and slots of MSC MIRELLA

051

←
→

Bay 051 view and slots of MSC MIRELLA

053 (054)

→

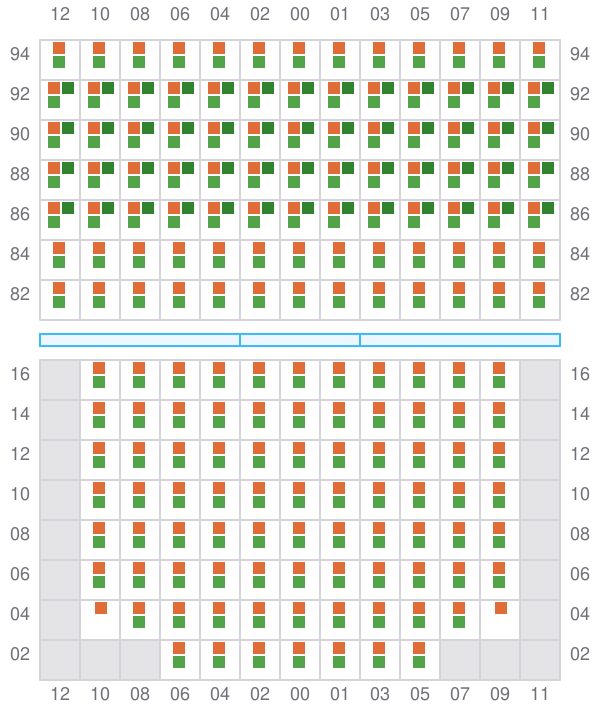

Bay 053 view and slots of MSC MIRELLA

055

←
→

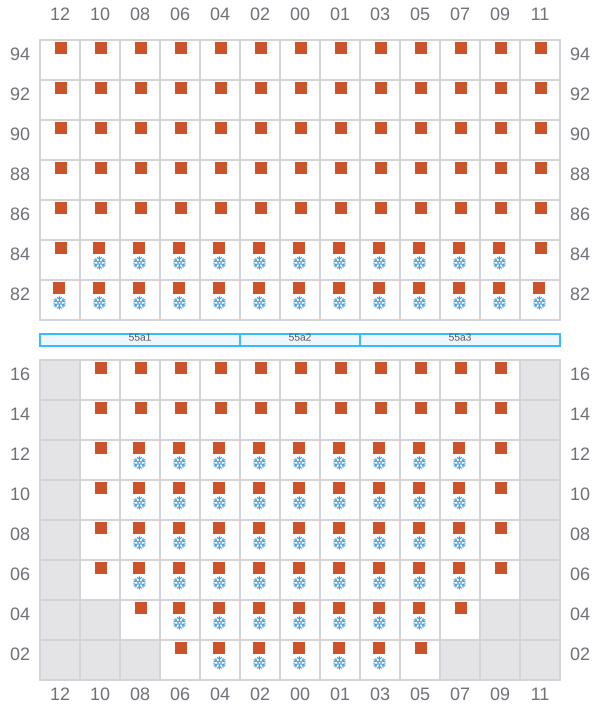

Bay 055 view and slots of MSC MIRELLA

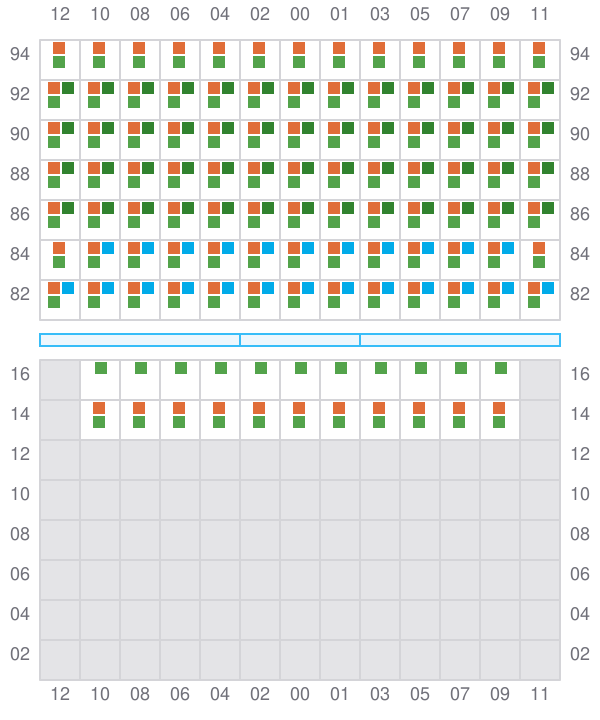

057 (058)

→
^← / _?

Bay 057 view and slots of MSC MIRELLA

059

←

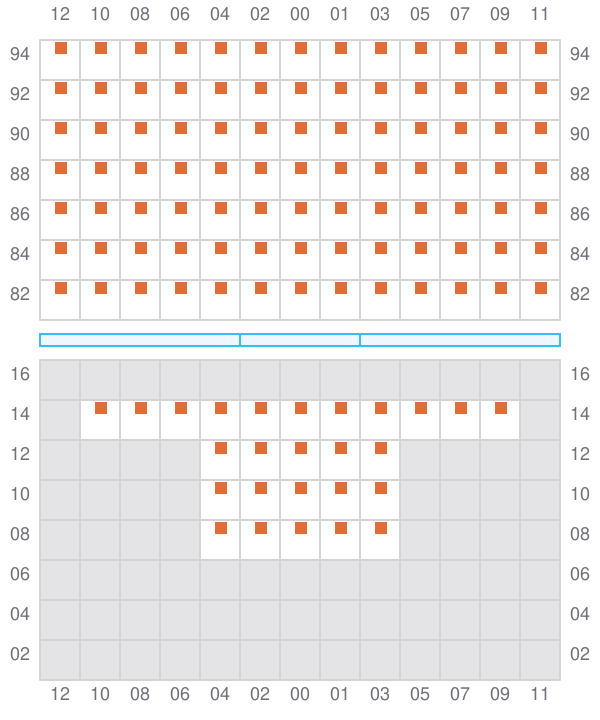

Bay 059 view and slots of MSC MIRELLA

061 (062)

→
←

Bay 061 view and slots of MSC MIRELLA

063

←

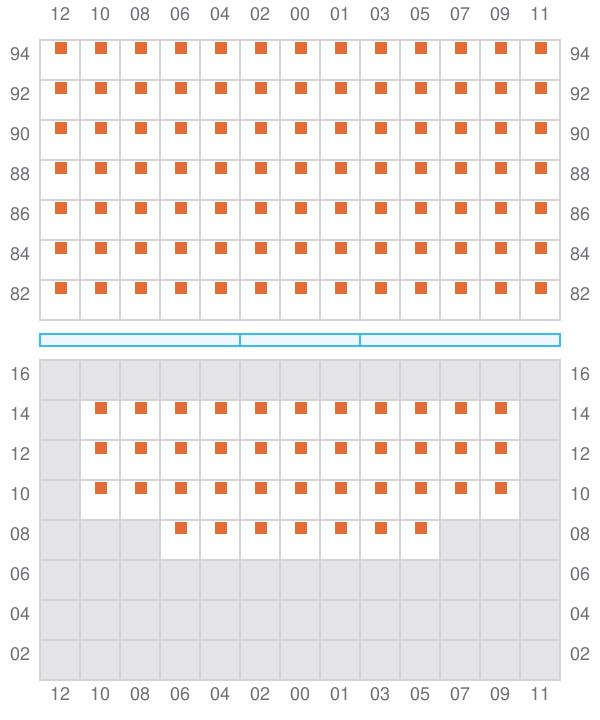

Bay 063 view and slots of MSC MIRELLA

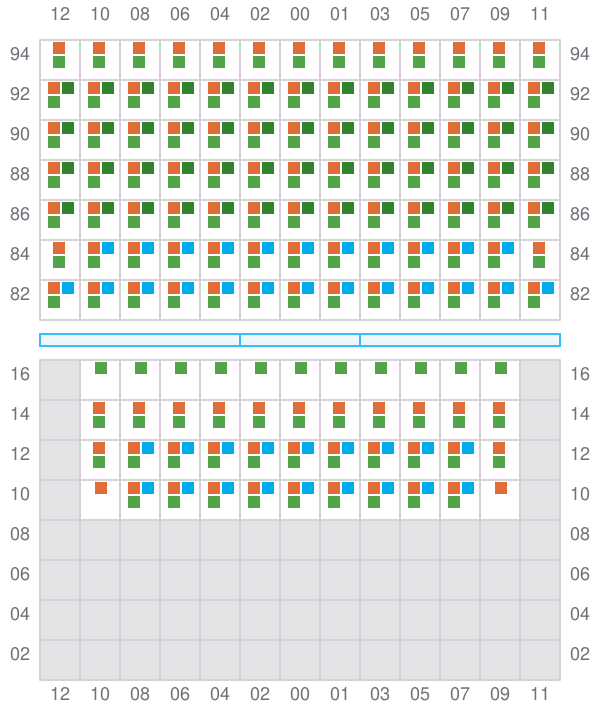

065 (066)

→
←

Bay 065 view and slots of MSC MIRELLA

067

←

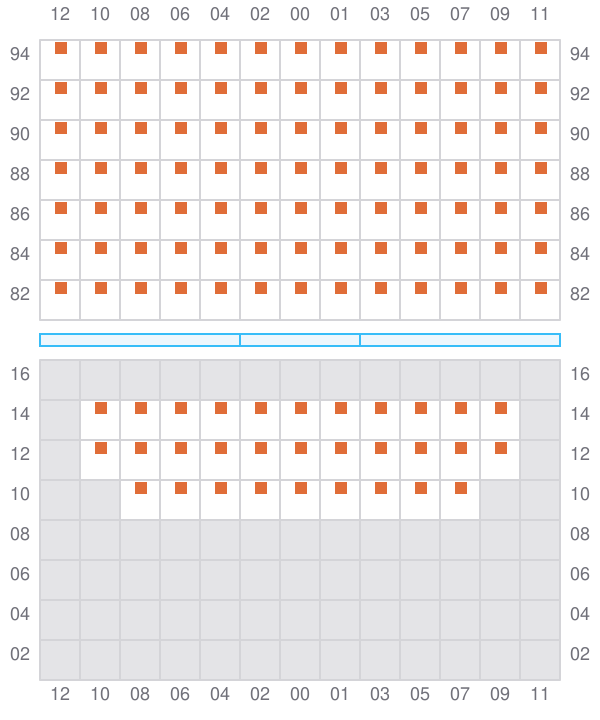

Bay 067 view and slots of MSC MIRELLA

069 (070)

^→ / _?
^← / _?

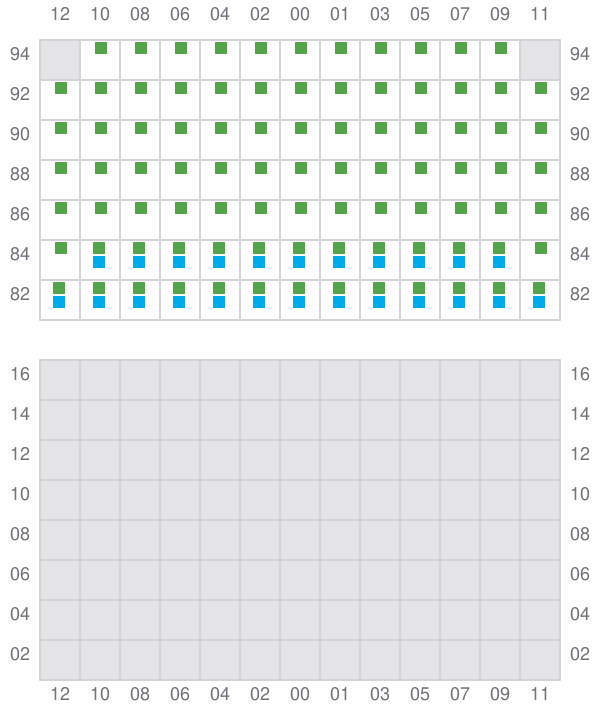

Bay 069 view and slots of MSC MIRELLA
