MSC MIRELLA
9293179 | A8RL4 | CMA by *********************** Last update: Fri Jan 17 2025

General Info

Ship Name:MSC MIRELLA
IMO Code:9293179
Call Sign:A8RL4
Line Operator:CMA
Class Name for Sister Ships:SARE
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,939

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

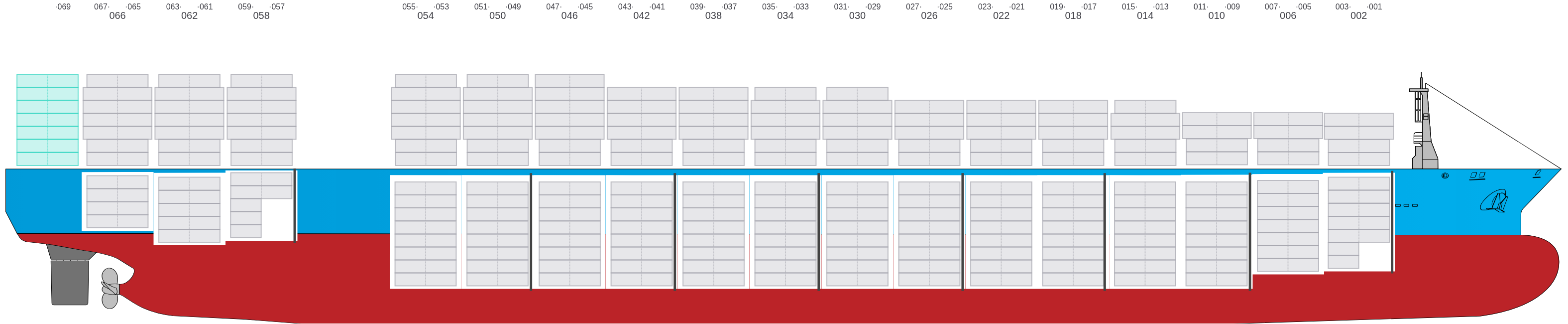

Side view of MSC MIRELLA

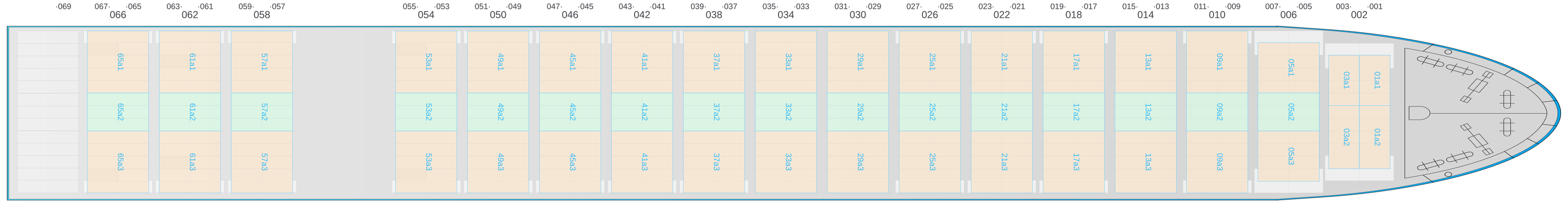

Hatch-Covers View

Deck view of MSC MIRELLA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

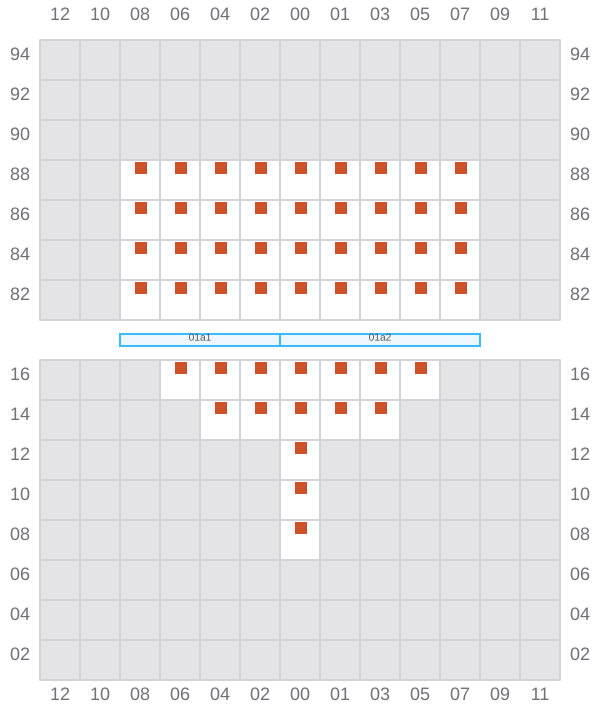

001

  • →
  • → / ?
  • →
Bay 001 view and slots of MSC MIRELLA

003 (002)

  • ←
  • → / ?
  • →

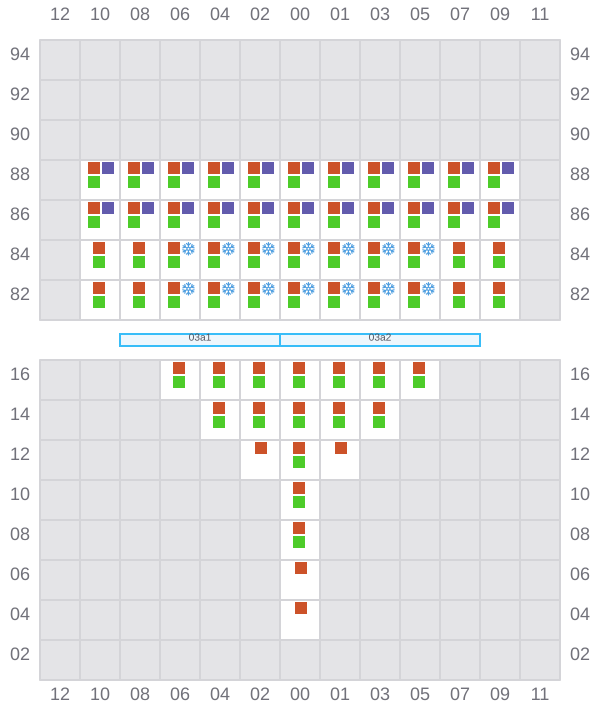

Bay 003 view and slots of MSC MIRELLA

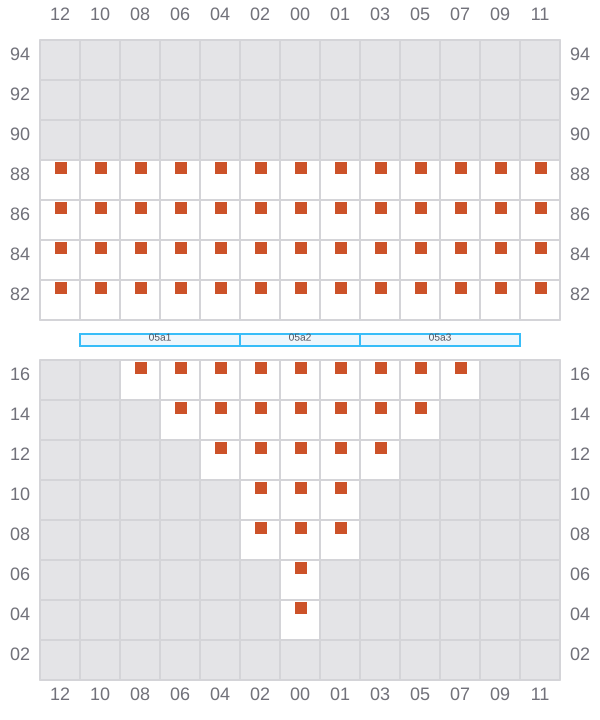

005

  • →
  • → / ?
  • →
Bay 005 view and slots of MSC MIRELLA

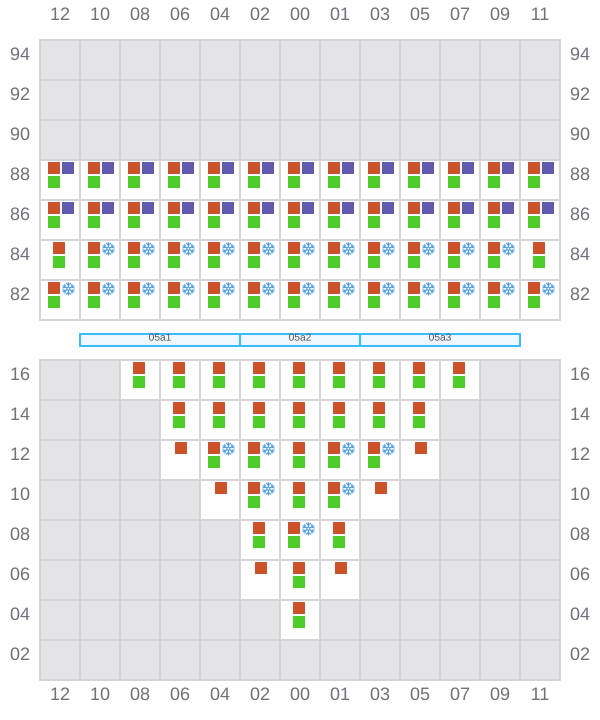

007 (006)

  • ←
  • →
  • →
Bay 007 view and slots of MSC MIRELLA

009

  • →
  • → / ?
  • →

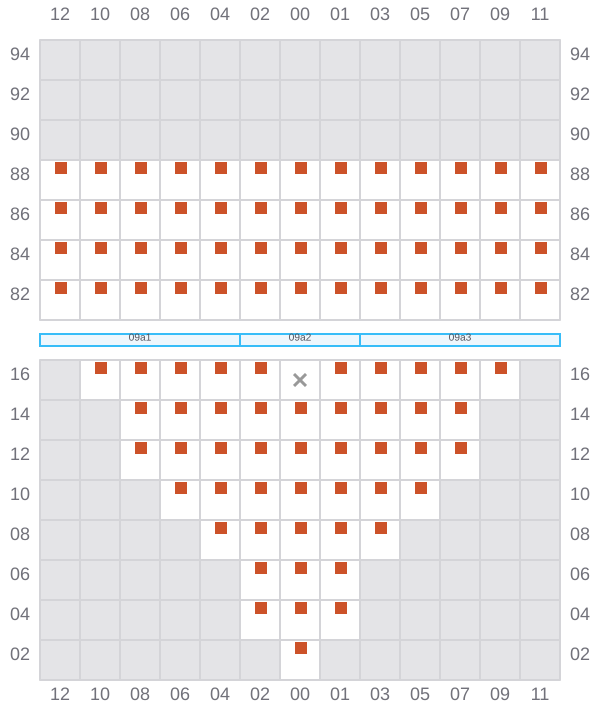

Bay 009 view and slots of MSC MIRELLA

011 (010)

  • ←
  • →
  • →

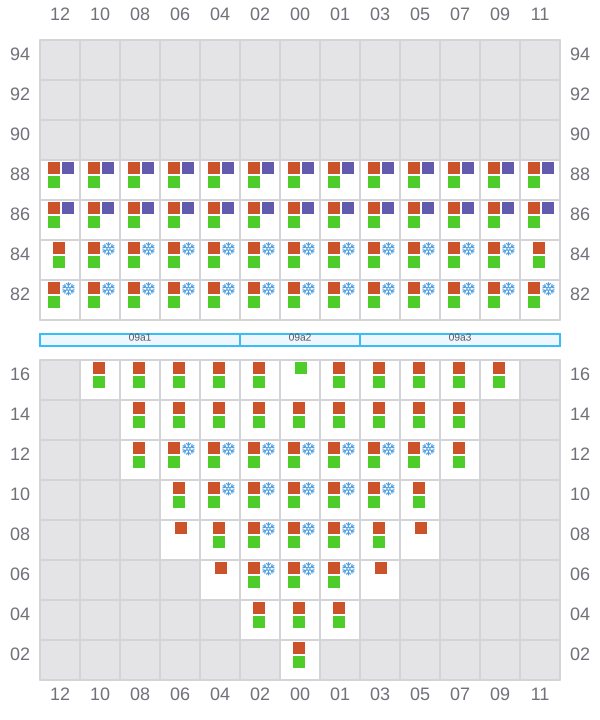

Bay 011 view and slots of MSC MIRELLA

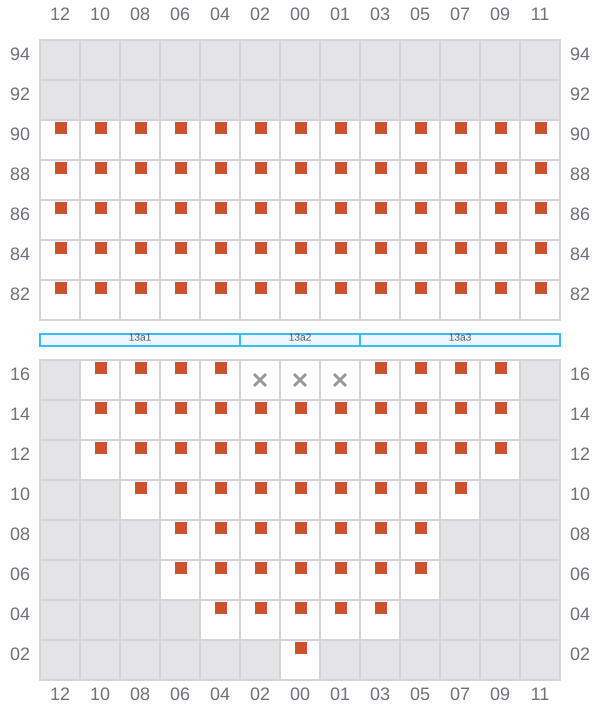

013

  • →
  • →

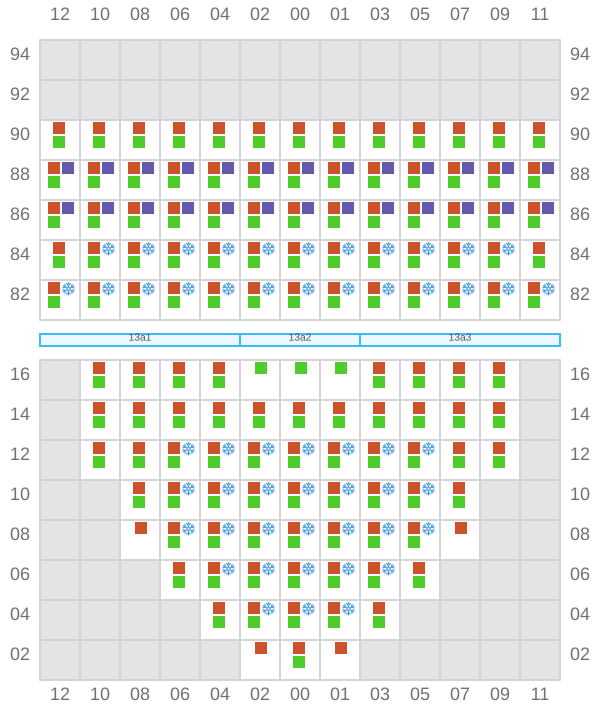

Bay 013 view and slots of MSC MIRELLA

015 (014)

  • ←
  • →
  • →
Bay 015 view and slots of MSC MIRELLA

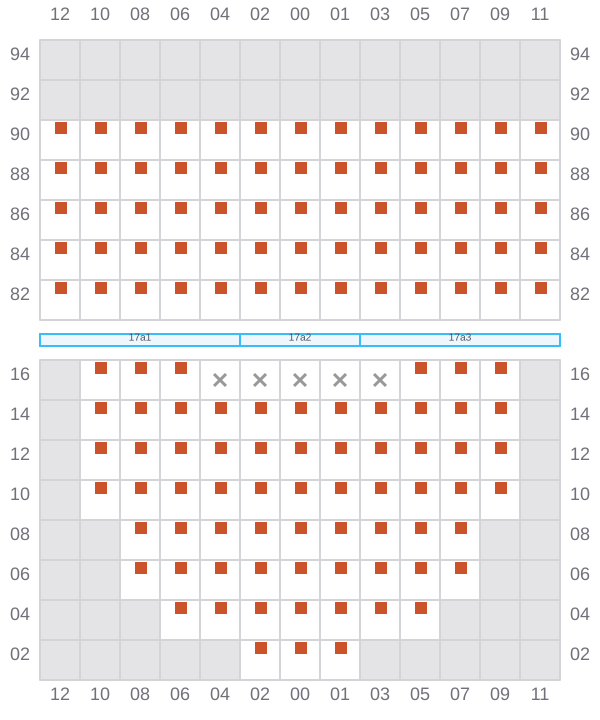

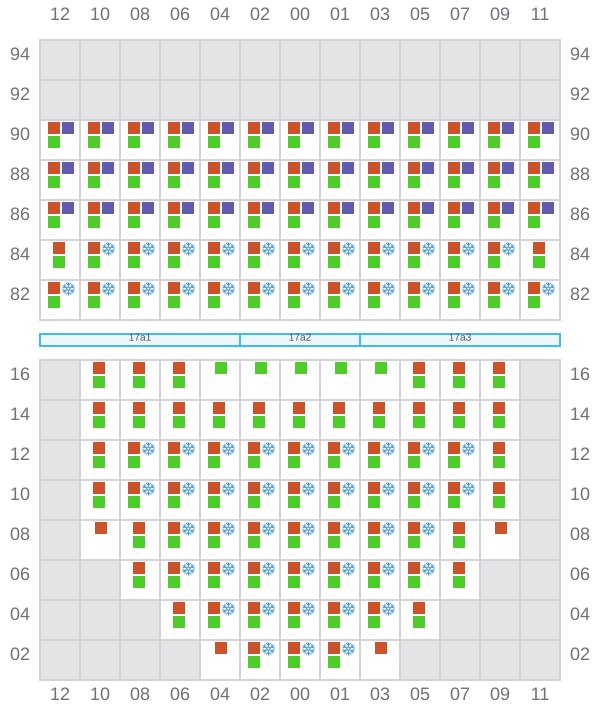

017

  • →
  • →
Bay 017 view and slots of MSC MIRELLA

019 (018)

  • ←
  • →
  • →
Bay 019 view and slots of MSC MIRELLA

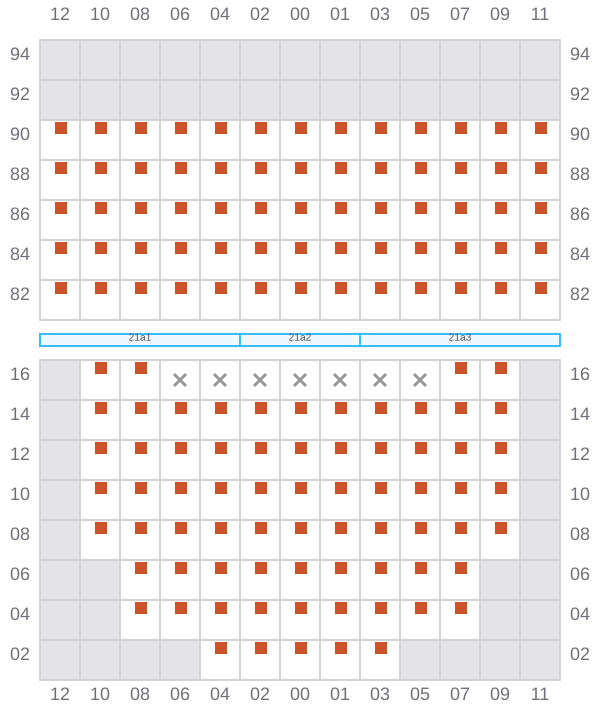

021

  • →
  • →

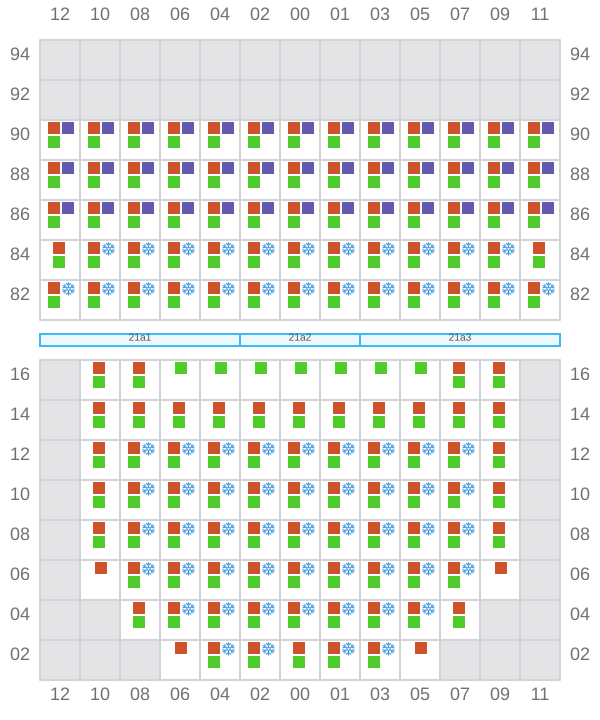

Bay 021 view and slots of MSC MIRELLA

023 (022)

  • ←
  • →
  • →
Bay 023 view and slots of MSC MIRELLA

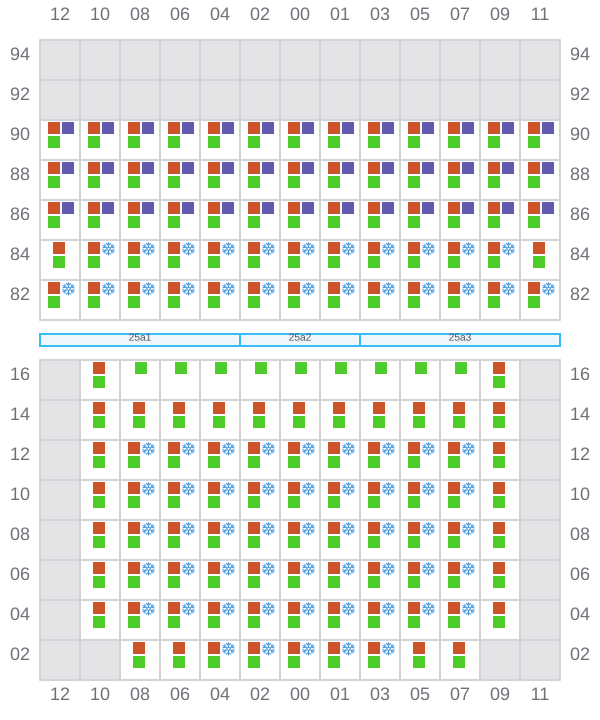

025

  • →
  • ← / ?
  • →

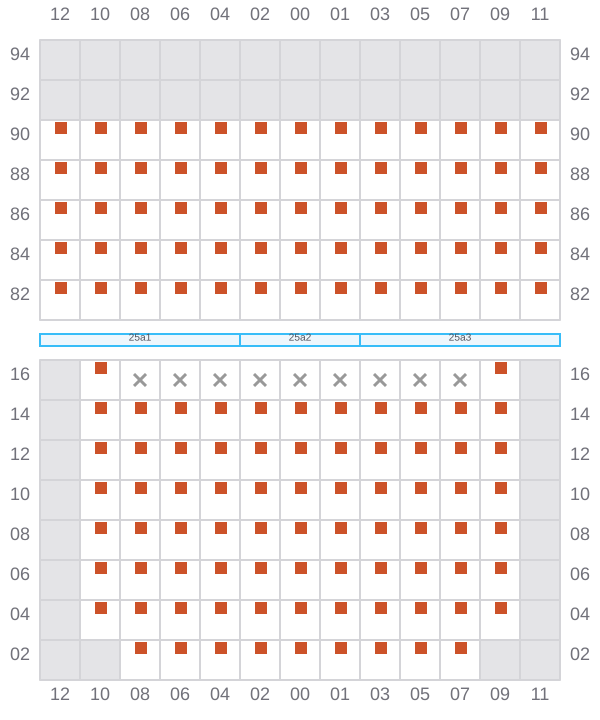

Bay 025 view and slots of MSC MIRELLA

027 (026)

  • ←
  • →
  • →
Bay 027 view and slots of MSC MIRELLA

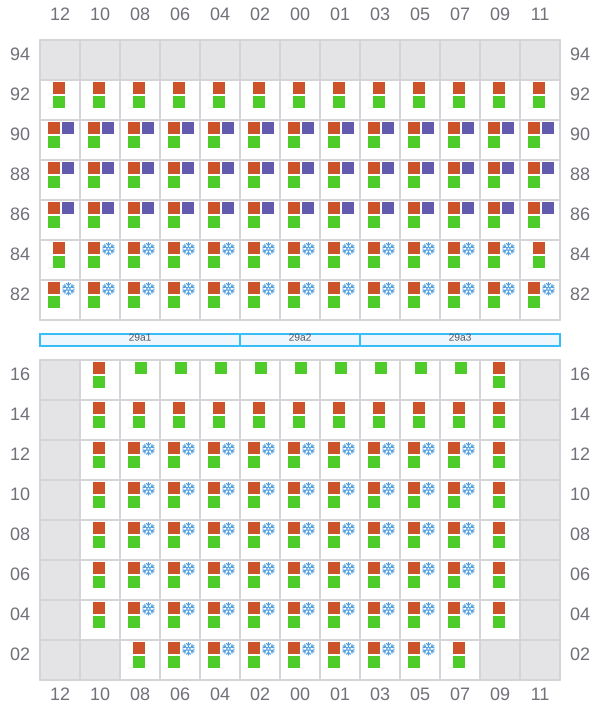

029

  • →
  • →
Bay 029 view and slots of MSC MIRELLA

031 (030)

  • ←
  • →
  • →
Bay 031 view and slots of MSC MIRELLA

033

  • →
  • →
Bay 033 view and slots of MSC MIRELLA

035 (034)

  • ←
  • →
  • →
Bay 035 view and slots of MSC MIRELLA

037

  • →
  • →

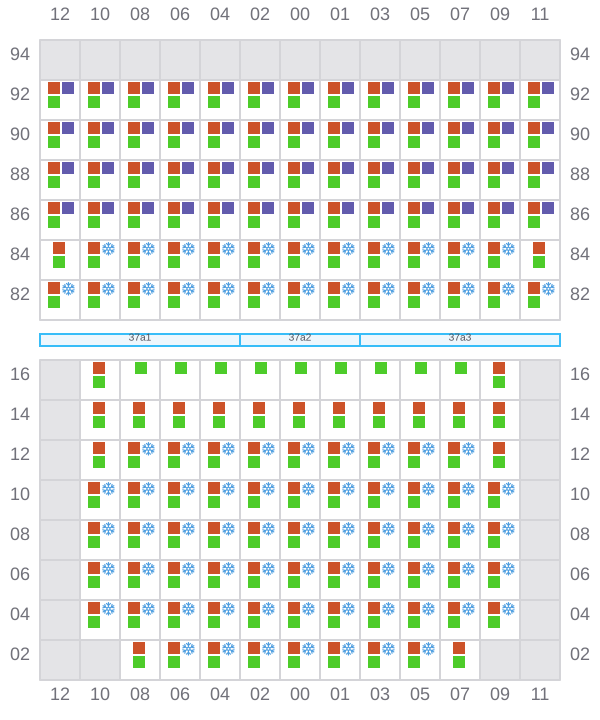

Bay 037 view and slots of MSC MIRELLA

039 (038)

  • ←
  • →
  • →
Bay 039 view and slots of MSC MIRELLA

041

  • →
  • →

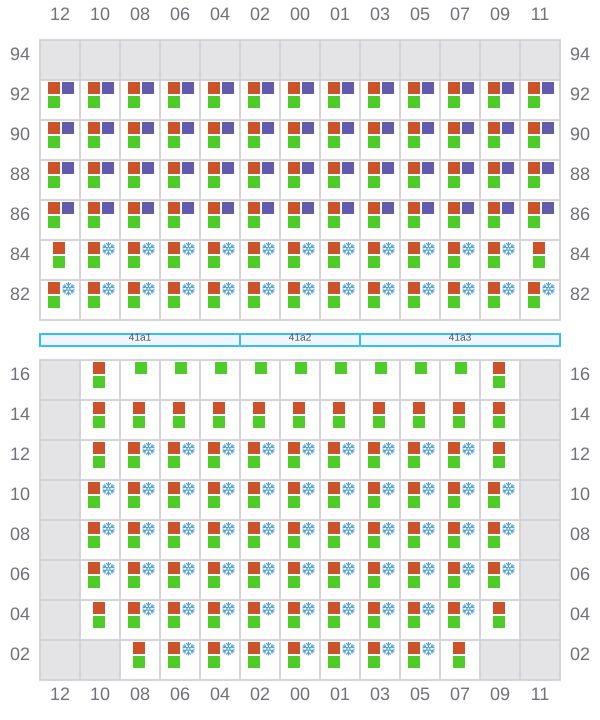

Bay 041 view and slots of MSC MIRELLA

043 (042)

  • ←
  • →
  • →
Bay 043 view and slots of MSC MIRELLA

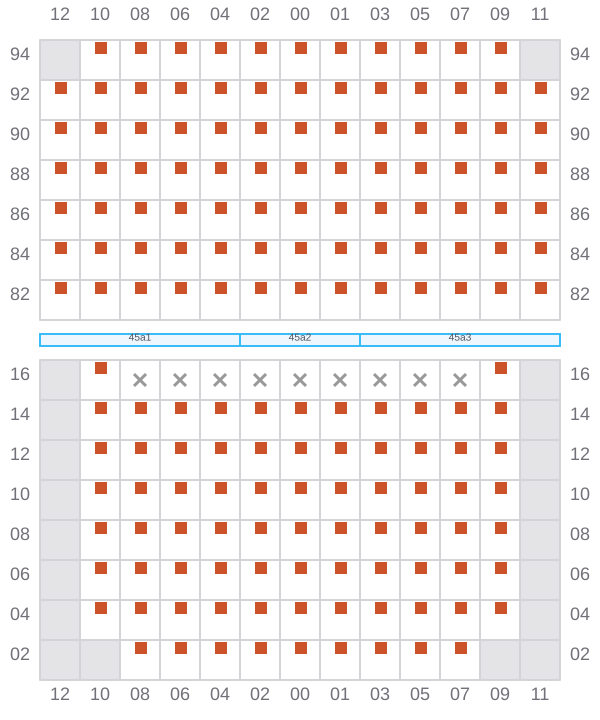

045

  • →
  • →
Bay 045 view and slots of MSC MIRELLA

047 (046)

  • ←
  • →
  • →

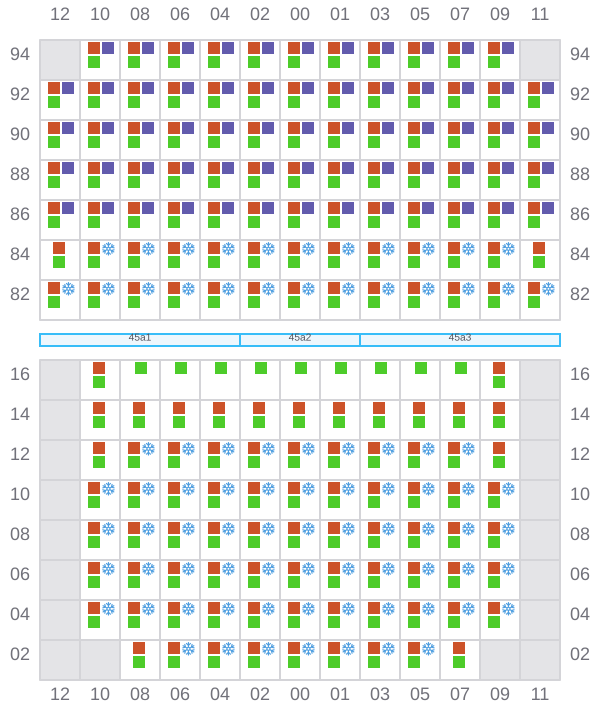

Bay 047 view and slots of MSC MIRELLA

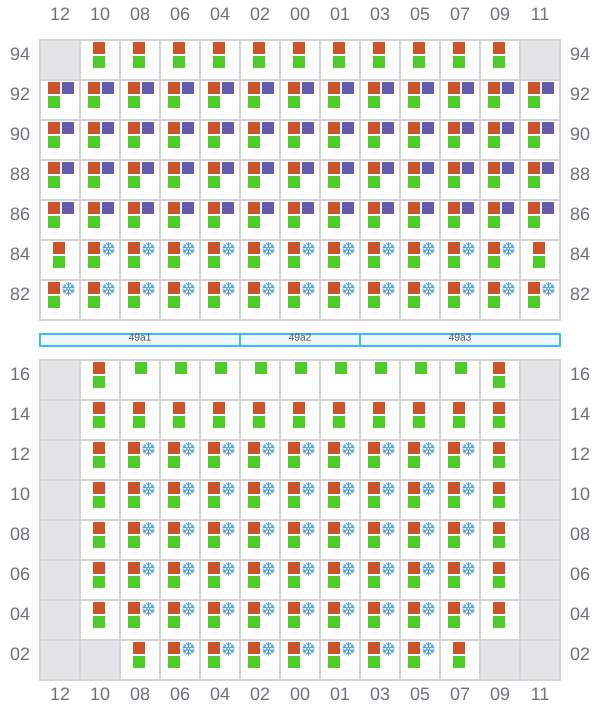

049

  • →
  • →
Bay 049 view and slots of MSC MIRELLA

051 (050)

  • ←
  • →
  • →
Bay 051 view and slots of MSC MIRELLA

053

  • →
  • →

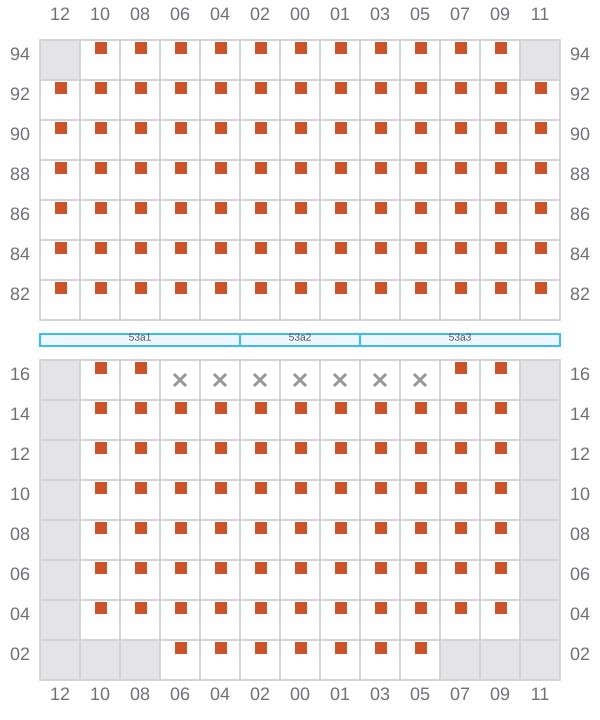

Bay 053 view and slots of MSC MIRELLA

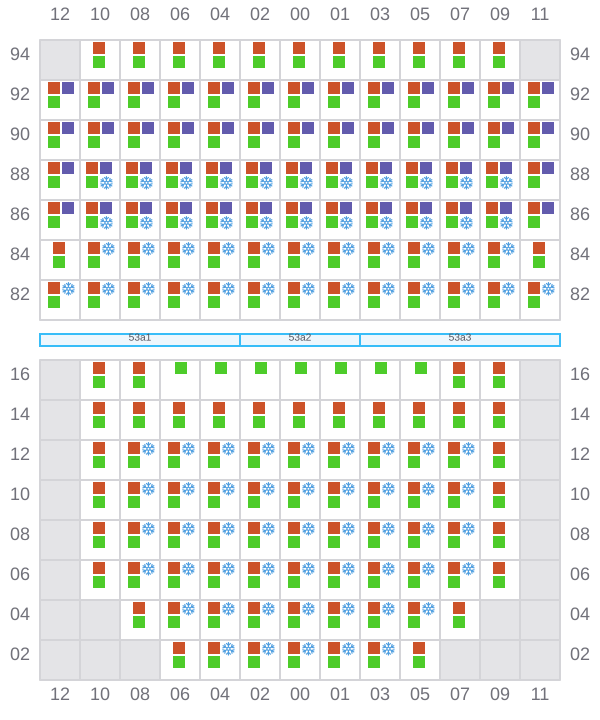

055 (054)

  • ←
  • →
  • →
Bay 055 view and slots of MSC MIRELLA

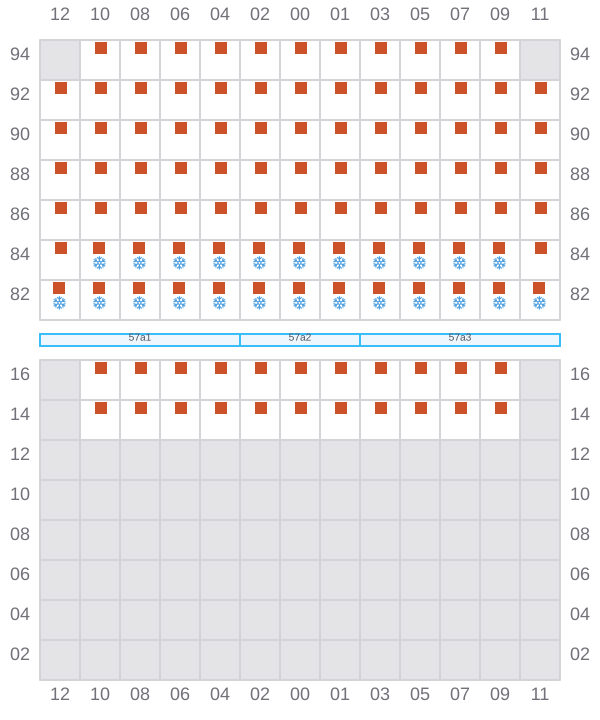

057

  • →
  • ← / ?
  • →

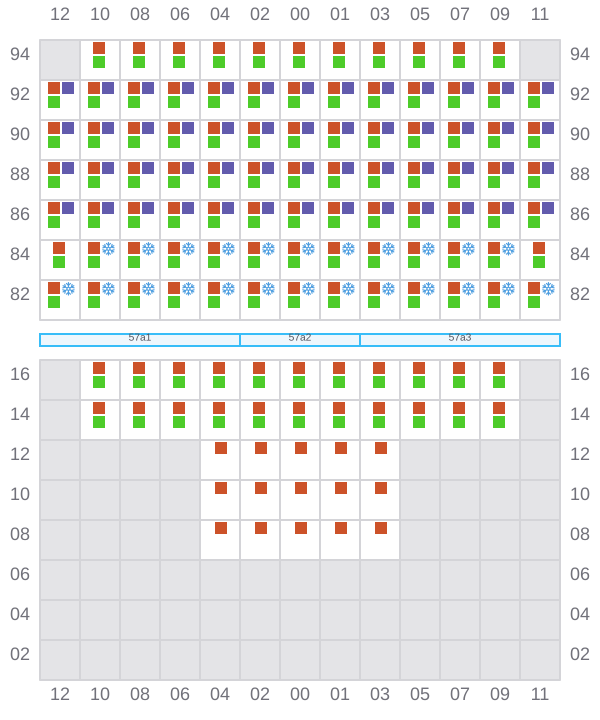

Bay 057 view and slots of MSC MIRELLA

059 (058)

  • ←
  • ← / ?
  • →
Bay 059 view and slots of MSC MIRELLA

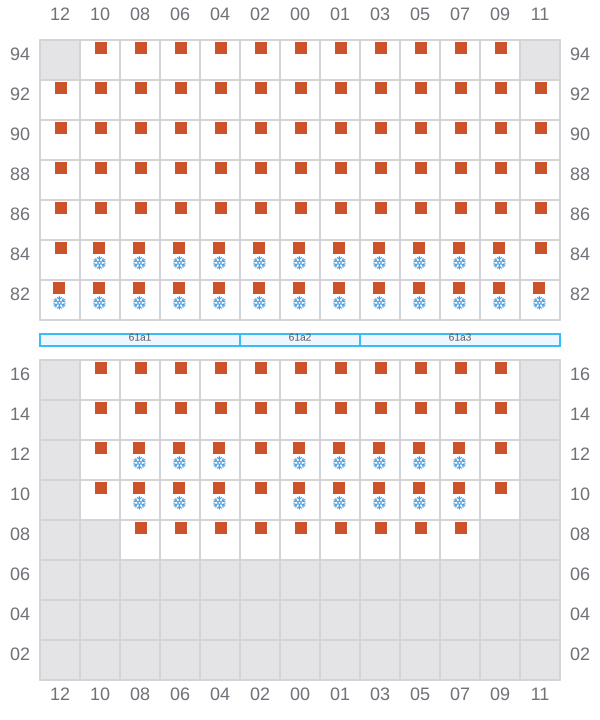

061

  • →
  • ←
  • →

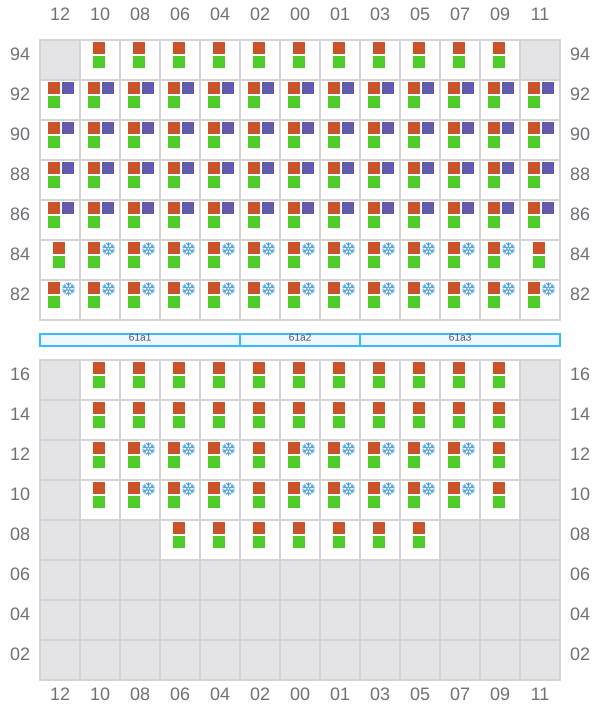

Bay 061 view and slots of MSC MIRELLA

063 (062)

  • ←
  • ←
  • →
Bay 063 view and slots of MSC MIRELLA

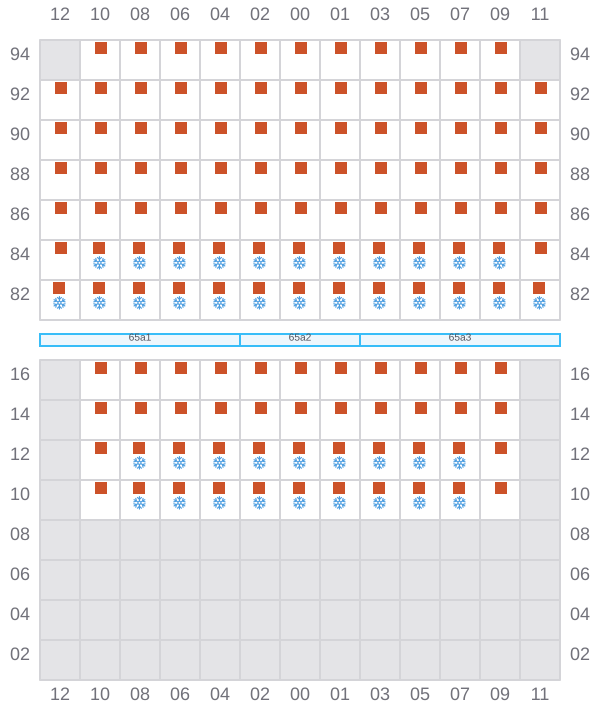

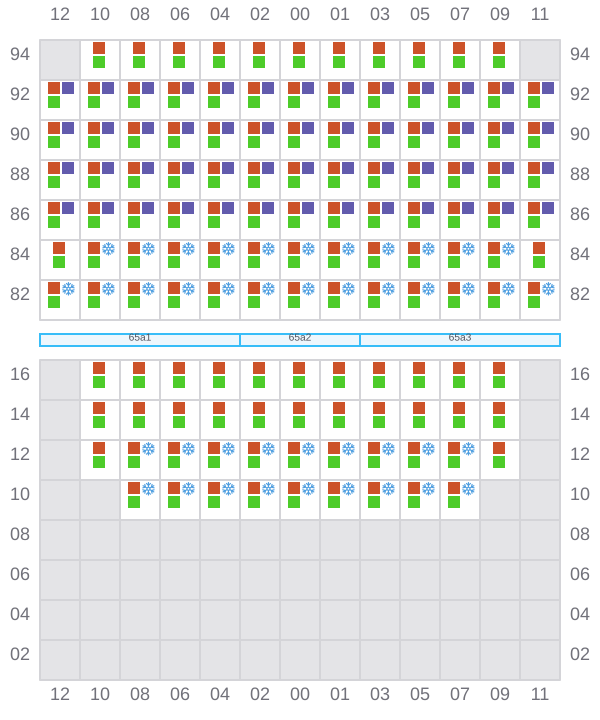

065

  • →
  • ←
  • →
Bay 065 view and slots of MSC MIRELLA

067 (066)

  • ←
  • ←
  • →
Bay 067 view and slots of MSC MIRELLA

069 (070)

  • → / ?
  • ← / ?
  • → / ?

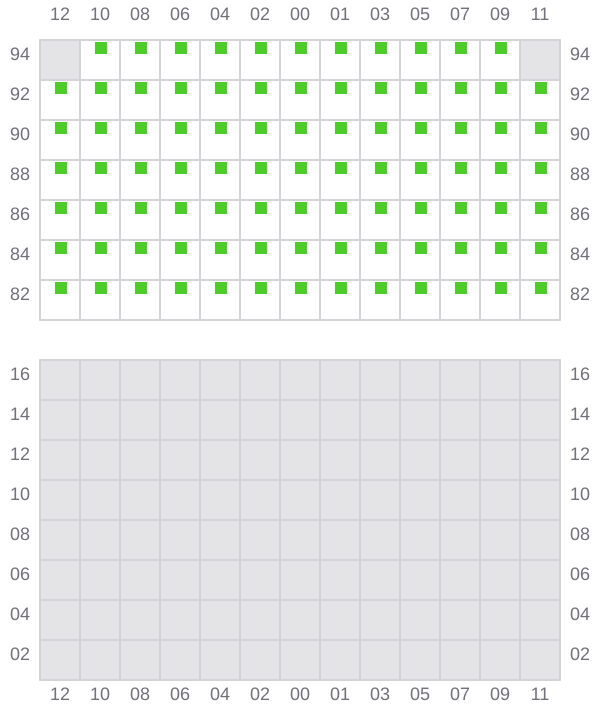

Bay 069 view and slots of MSC MIRELLA
