MSC MONICA III
9060649 | 3FSU7 | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:MSC MONICA III
IMO Code:9060649
Call Sign:3FSU7
Line Operator:MSC
Class Name for Sister Ships:MON
Year Built:1993
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:057
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,424
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

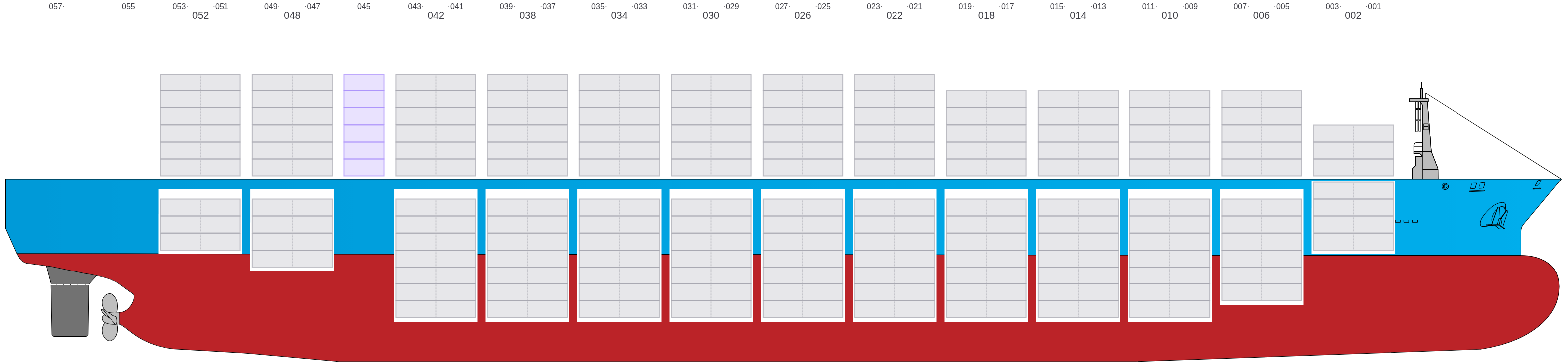

Side View
![Side view of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-sideView.png?v=1687122799905)
Hatch-Covers View
![Deck view of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-deckView.png?v=1687122799905)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

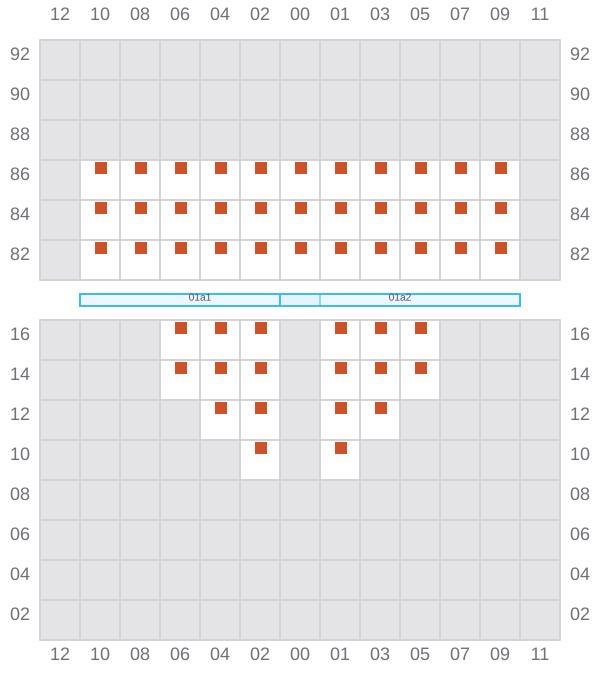

001
- →
![Bay 001 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b001.png?v=1687122799905)

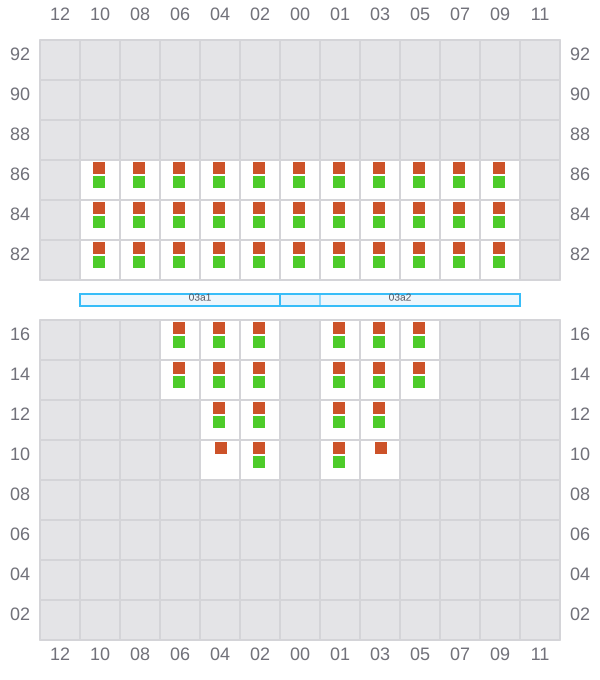

003 (002)
- ←
![Bay 003 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b003.png?v=1687122799905)

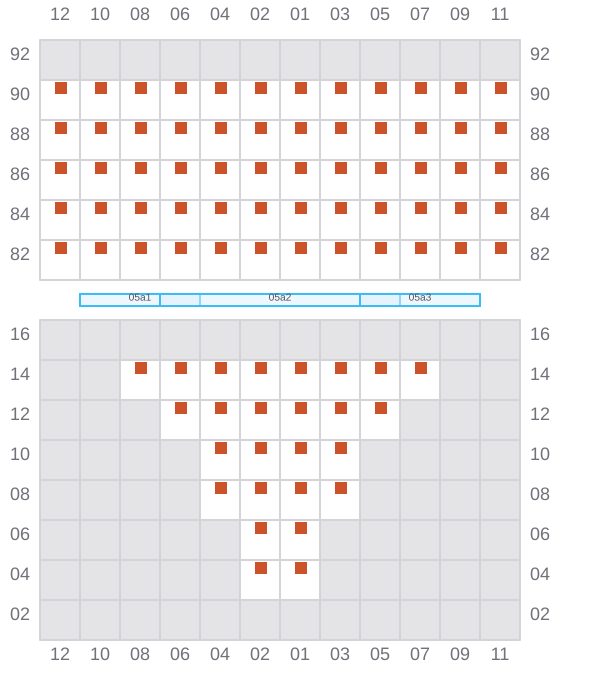

005
- →
![Bay 005 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b005.png?v=1687122799905)

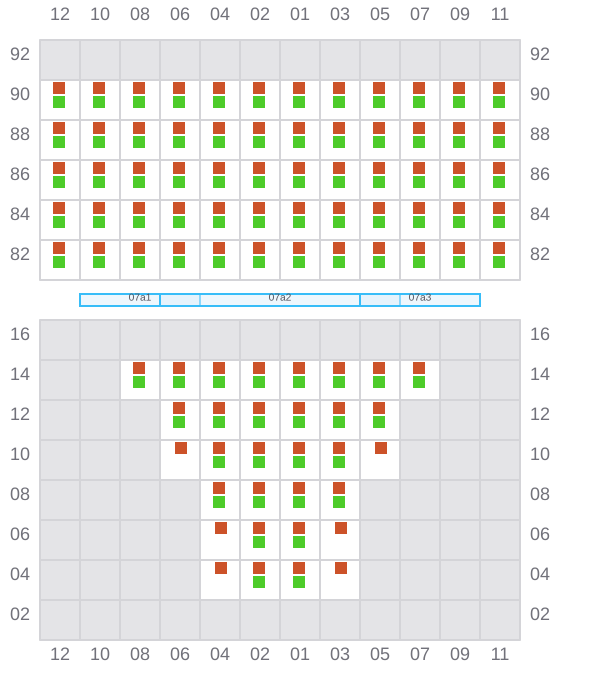

007 (006)
- ←
![Bay 007 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b007.png?v=1687122799905)

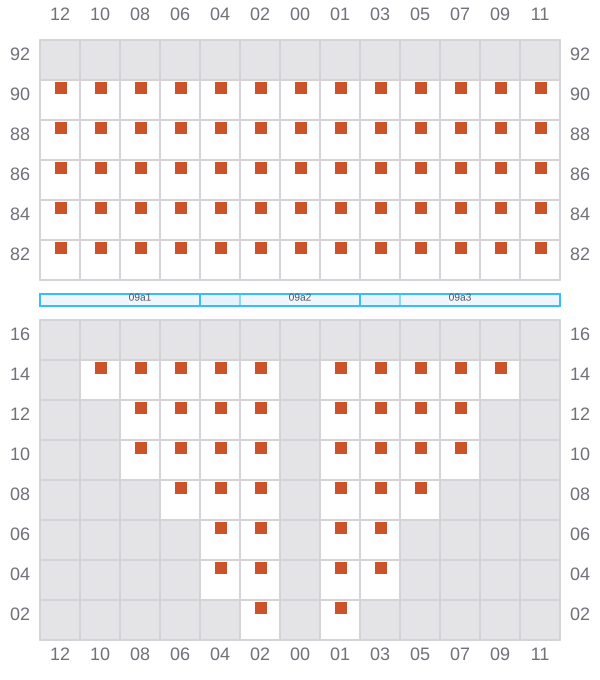

009
- →
![Bay 009 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b009.png?v=1687122799905)

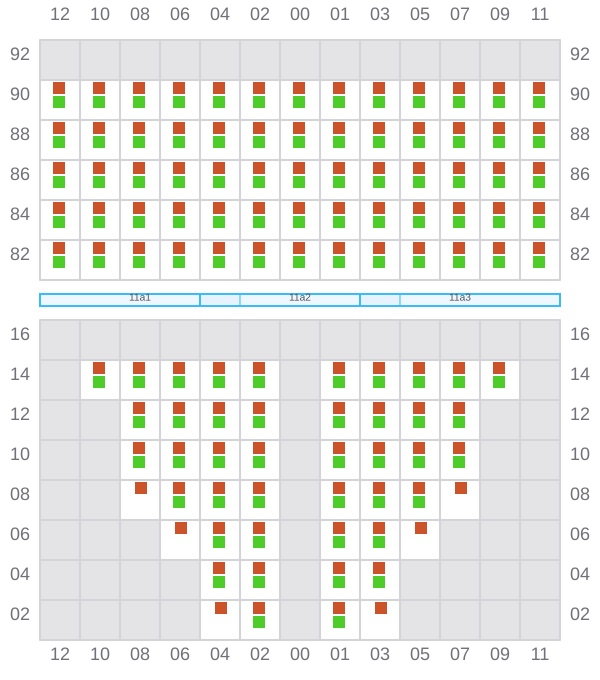

011 (010)
- ←
![Bay 011 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b011.png?v=1687122799905)

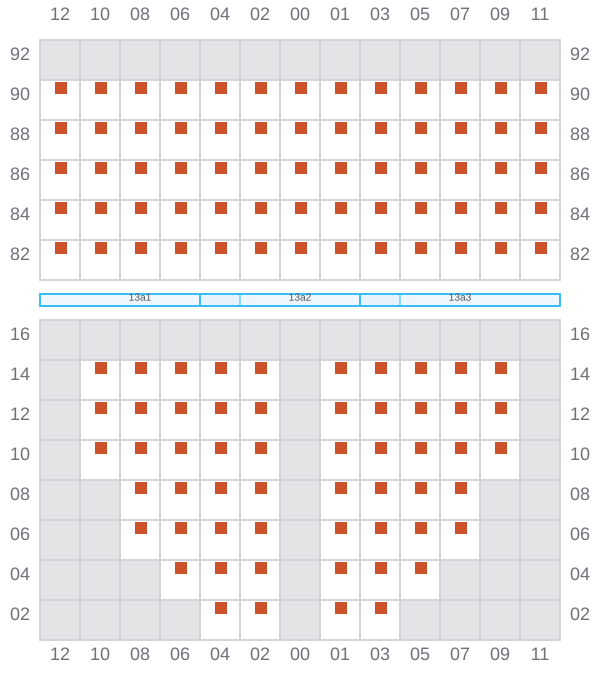

013
- →
![Bay 013 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b013.png?v=1687122799905)

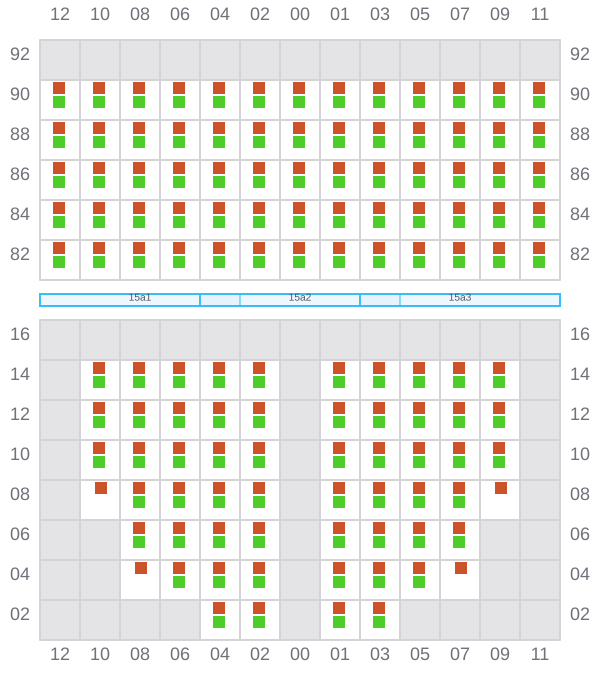

015 (014)
- ←
![Bay 015 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b015.png?v=1687122799905)

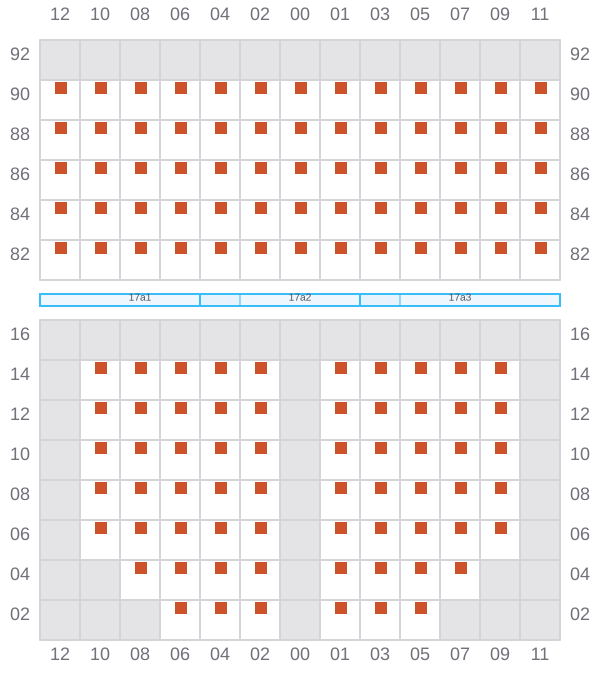

017
- →
![Bay 017 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b017.png?v=1687122799905)

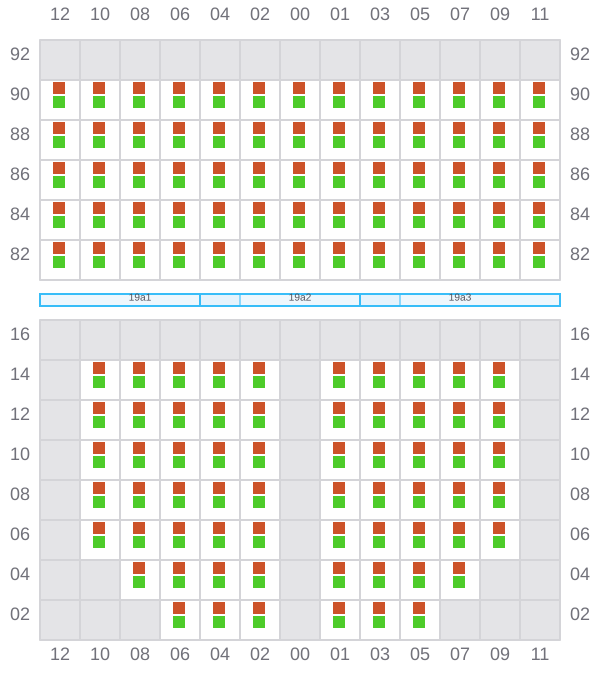

019 (018)
- ←
![Bay 019 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b019.png?v=1687122799905)
021
- →
![Bay 021 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b021.png?v=1687122799905)

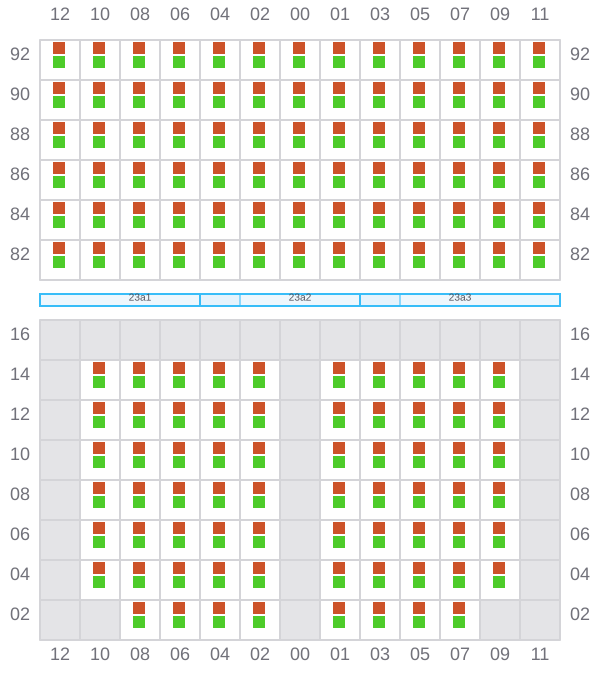

023 (022)
- ←
![Bay 023 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b023.png?v=1687122799905)
025
- →
![Bay 025 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b025.png?v=1687122799905)

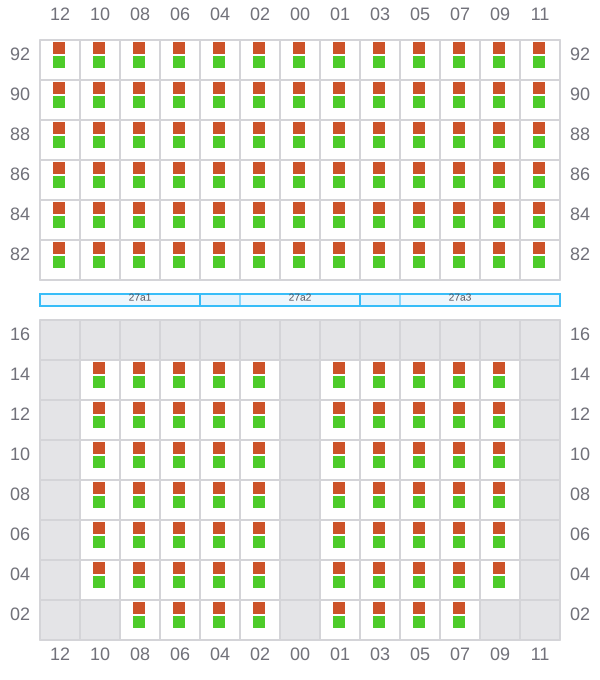

027 (026)
- ←
![Bay 027 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b027.png?v=1687122799905)
029
- →
![Bay 029 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b029.png?v=1687122799905)
031 (030)
- ←
![Bay 031 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b031.png?v=1687122799905)
033
- →
![Bay 033 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b033.png?v=1687122799905)
035 (034)
- ←
![Bay 035 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b035.png?v=1687122799905)

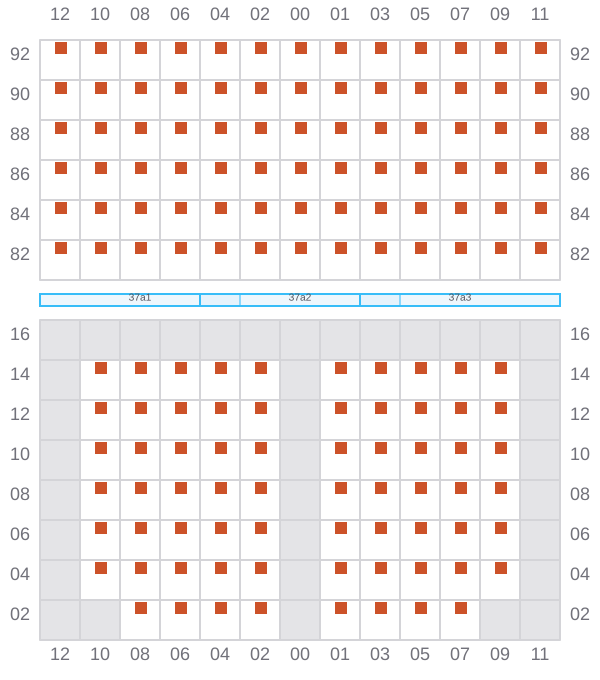

037
- →
![Bay 037 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b037.png?v=1687122799905)
039 (038)
- ←
![Bay 039 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b039.png?v=1687122799905)
041
- →
![Bay 041 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b041.png?v=1687122799905)

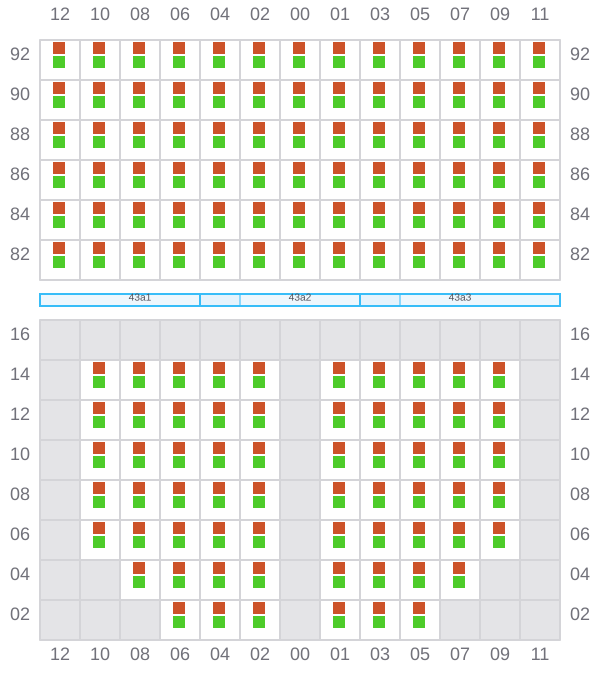

043 (042)
- ←
![Bay 043 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b043.png?v=1687122799905)

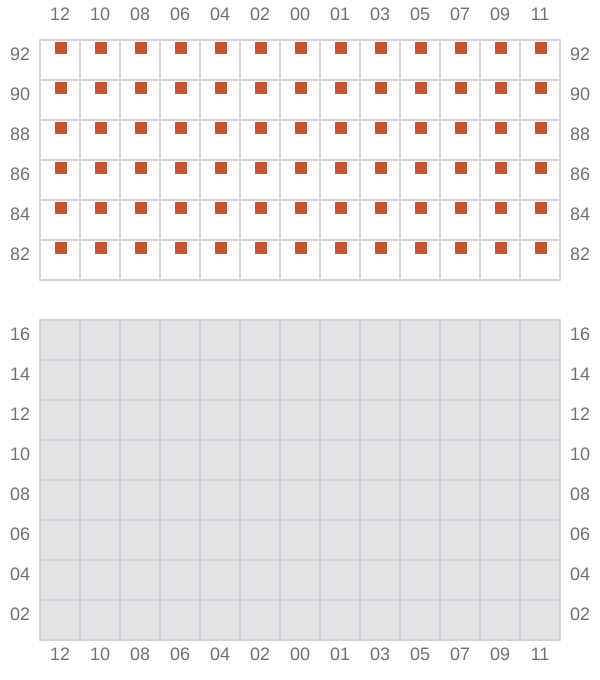

045
![Bay 045 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b045.png?v=1687122799905)

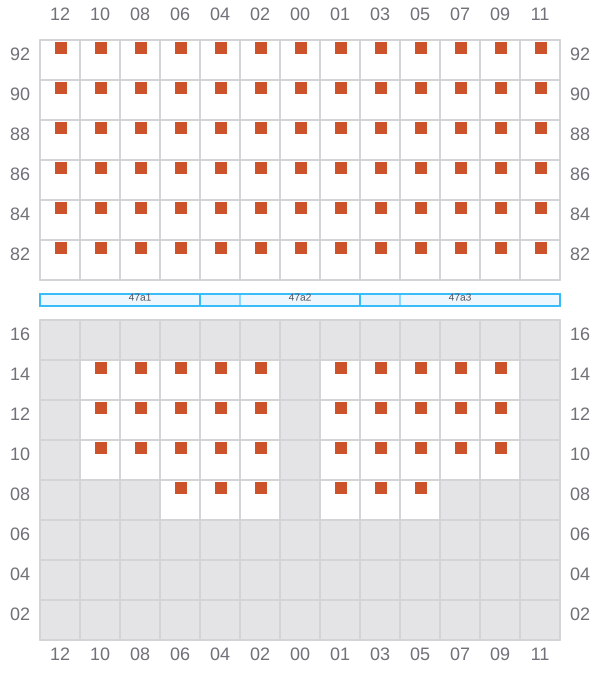

047
- →
![Bay 047 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b047.png?v=1687122799905)

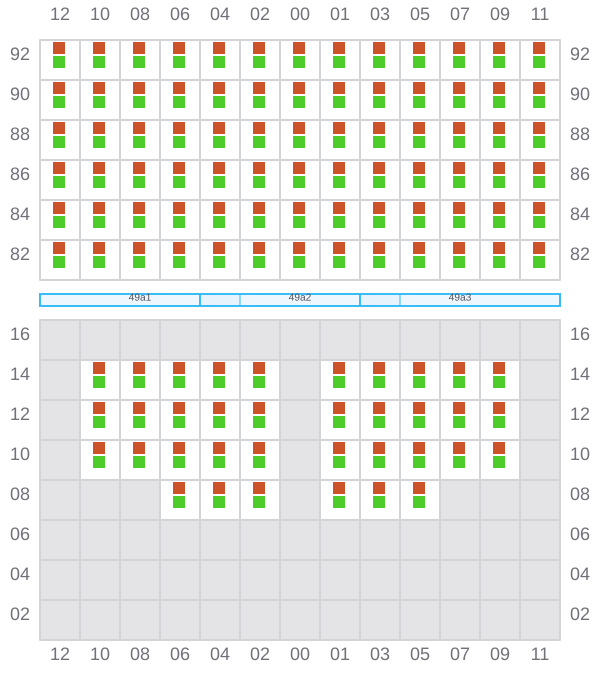

049 (048)
- ←
![Bay 049 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b049.png?v=1687122799905)

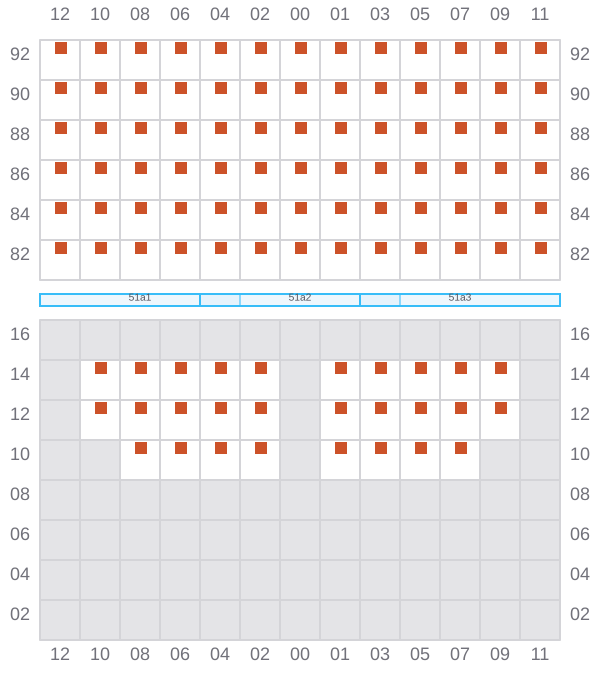

051
- →
![Bay 051 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b051.png?v=1687122799905)

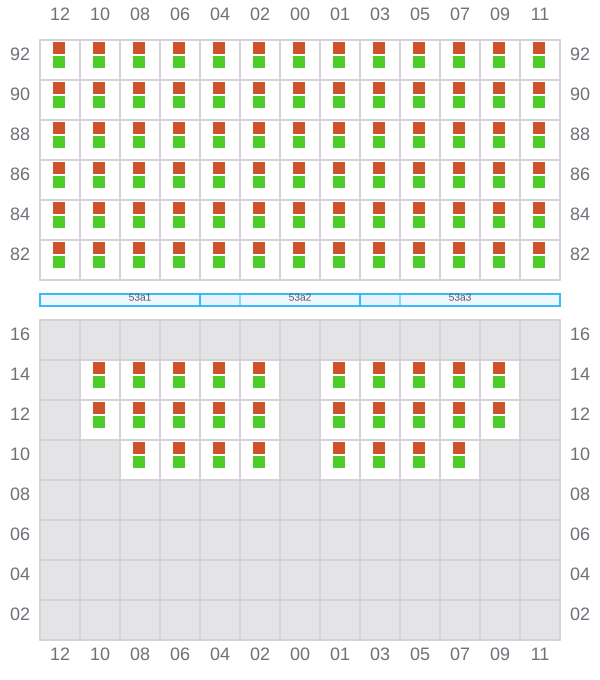

053 (052)
- ←
![Bay 053 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b053.png?v=1687122799905)

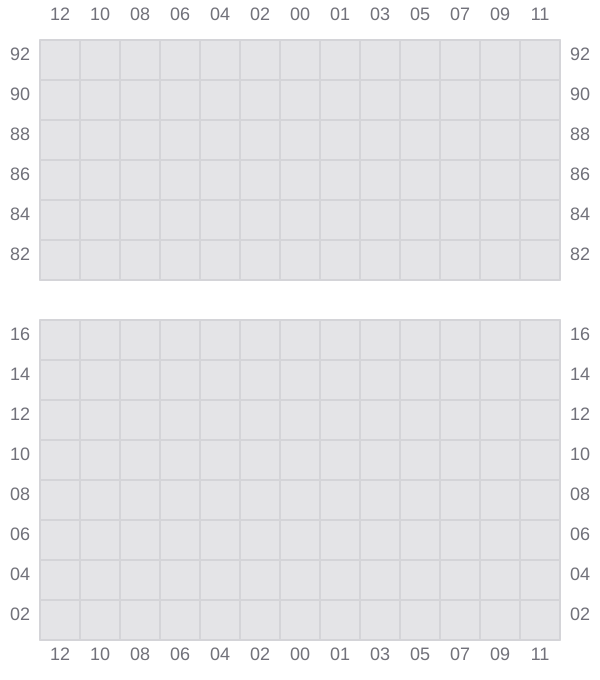

055
![Bay 055 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b055.png?v=1687122799905)

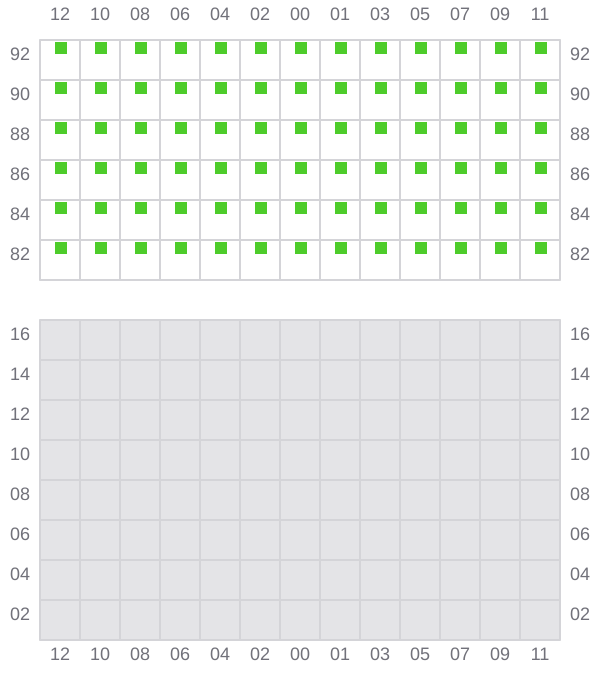

057 (056)
- ← / ?
![Bay 057 view and slots of MSC MONICA III](/vessel-images/745e4926-5747-4235-ad41-4168745b717d-b057.png?v=1687122799905)
