MSC NADIA IV
9321897 | C4VG2 | 9321897 by ********* Last update: Wed Jun 19 2024

General Info

Ship Name:MSC NADIA IV

IMO Code:9321897

Call Sign:C4VG2

Line Operator:9321897

Class Name for Sister Ships:SCL

Year Built:2007

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):232.30

LOA (Length Overall):246.86

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:057

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:92

Min Above ISO Tier:80

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:3,586

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

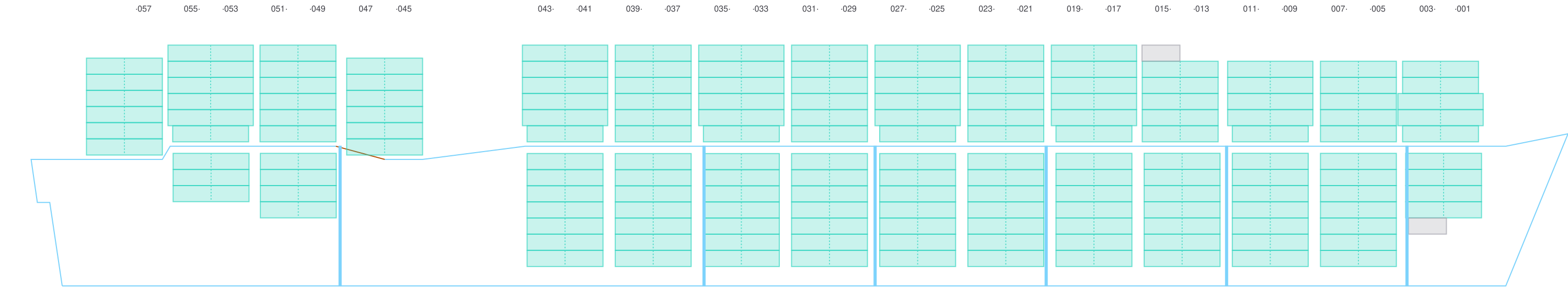

Side View

Side view of MSC NADIA IV

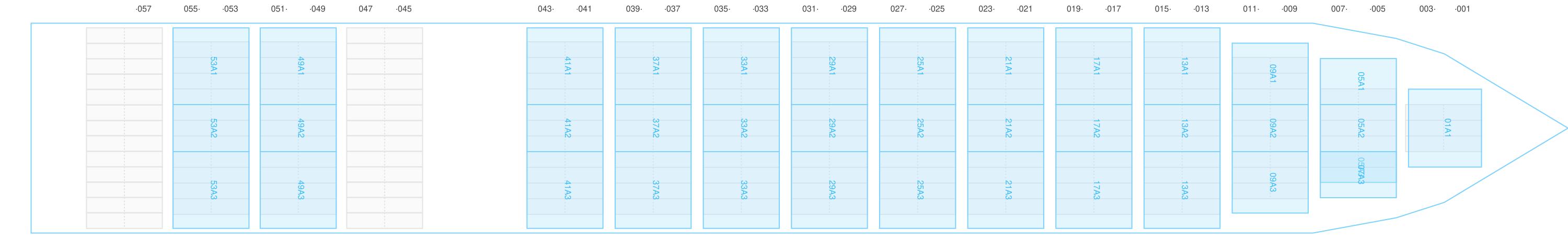

Hatch-Covers View

Deck view of MSC NADIA IV

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

Bay 001 view and slots of MSC NADIA IV

003

←

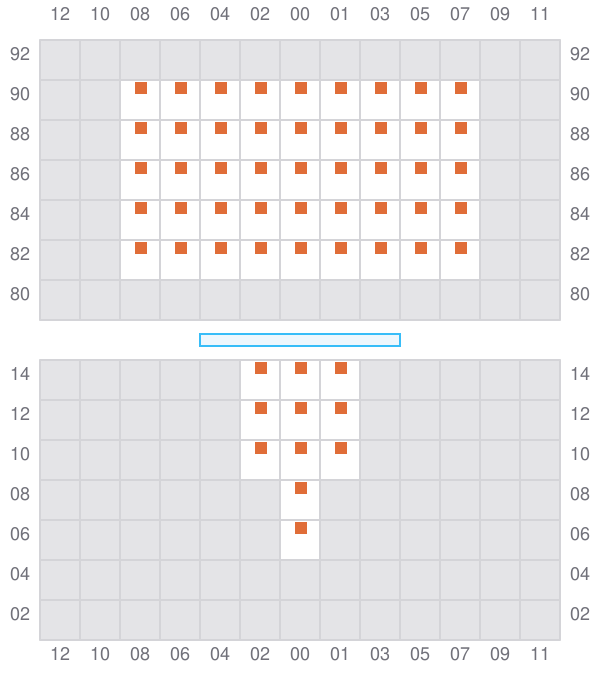

Bay 003 view and slots of MSC NADIA IV

005 (006)

→

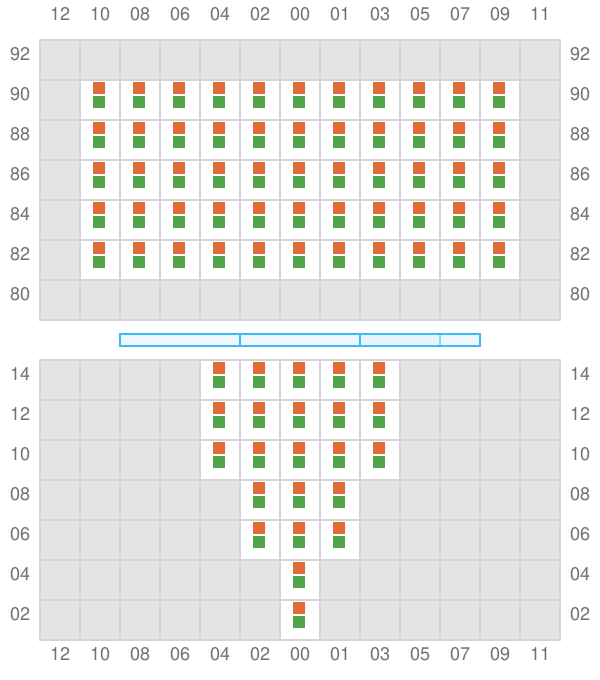

Bay 005 view and slots of MSC NADIA IV

007

←

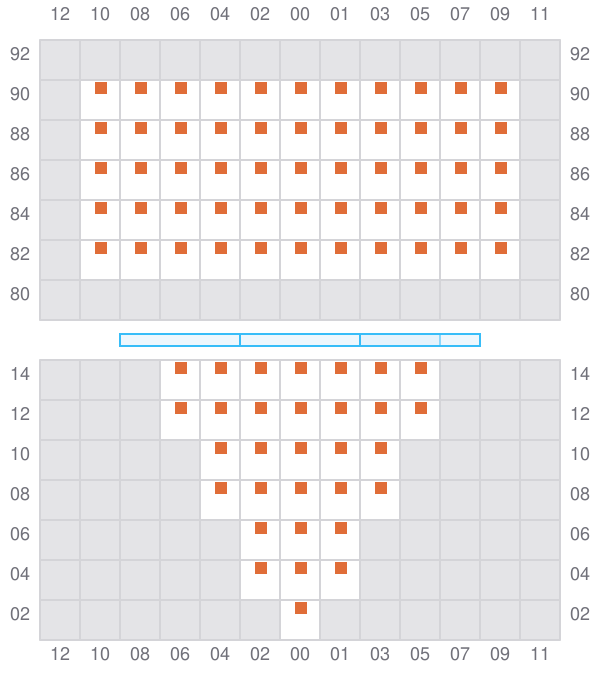

Bay 007 view and slots of MSC NADIA IV

009 (010)

→

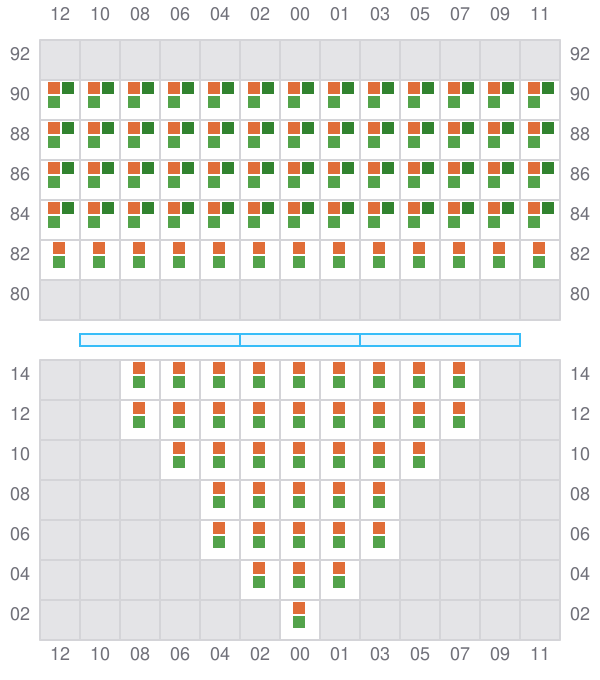

Bay 009 view and slots of MSC NADIA IV

011

←

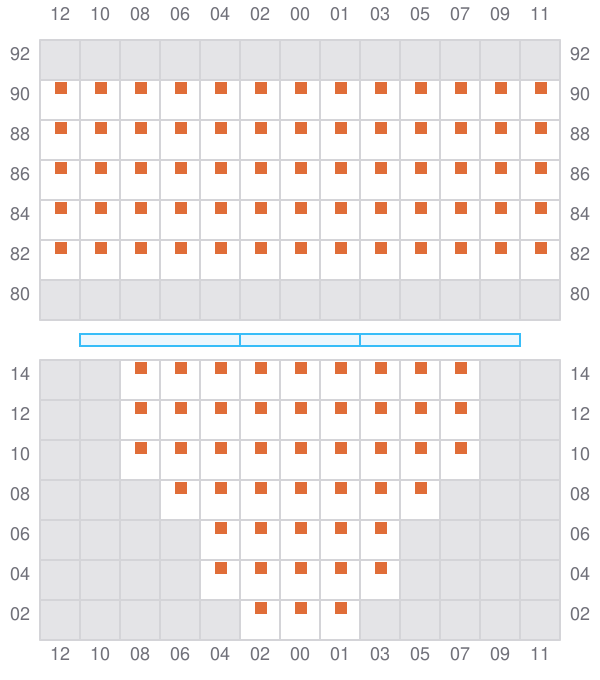

Bay 011 view and slots of MSC NADIA IV

013 (014)

→

Bay 013 view and slots of MSC NADIA IV

015

←
→

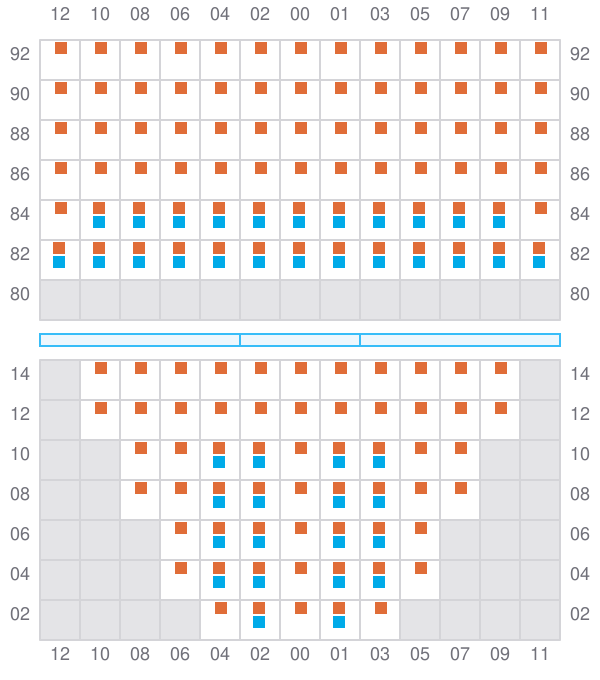

Bay 015 view and slots of MSC NADIA IV

017 (018)

→

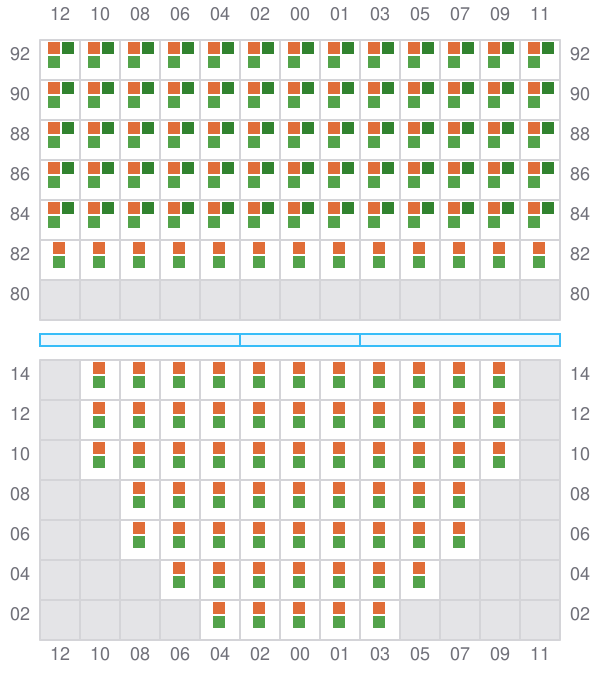

Bay 017 view and slots of MSC NADIA IV

019

←
→

Bay 019 view and slots of MSC NADIA IV

021 (022)

→

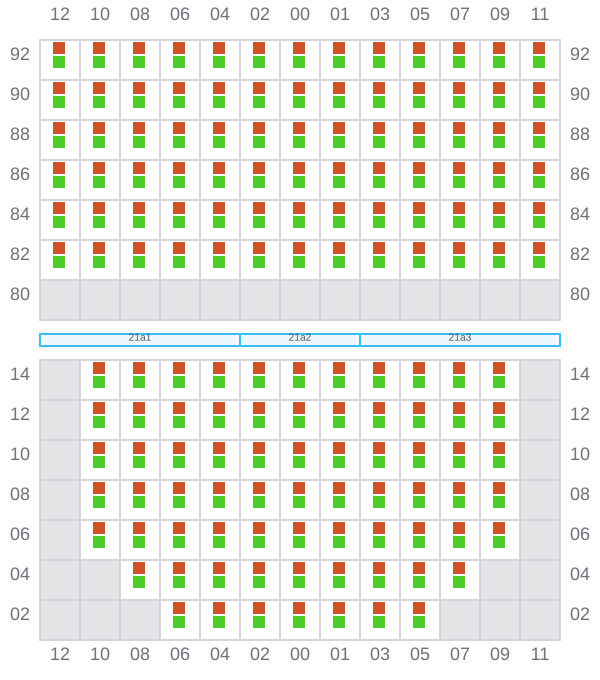

Bay 021 view and slots of MSC NADIA IV

023

←
→

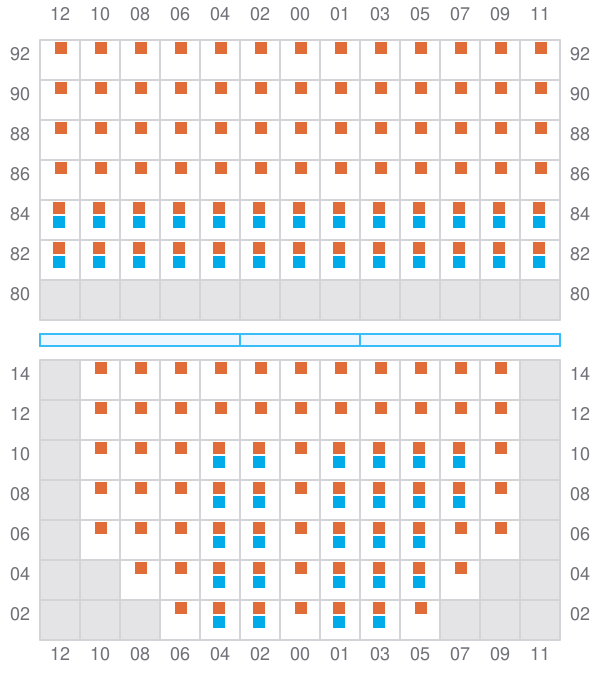

Bay 023 view and slots of MSC NADIA IV

025 (026)

→

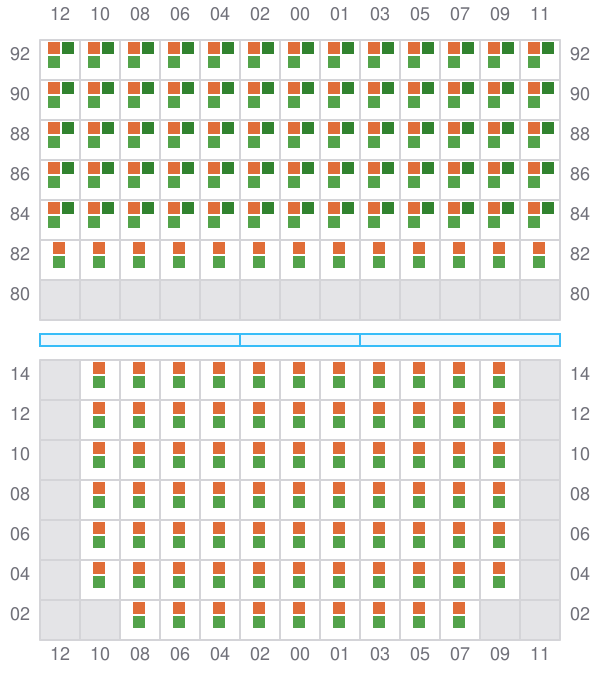

Bay 025 view and slots of MSC NADIA IV

027

←
→

Bay 027 view and slots of MSC NADIA IV

029 (030)

→

Bay 029 view and slots of MSC NADIA IV

031

←
→

Bay 031 view and slots of MSC NADIA IV

033 (034)

→

Bay 033 view and slots of MSC NADIA IV

035

←
→

Bay 035 view and slots of MSC NADIA IV

037 (038)

→

Bay 037 view and slots of MSC NADIA IV

039

←
→

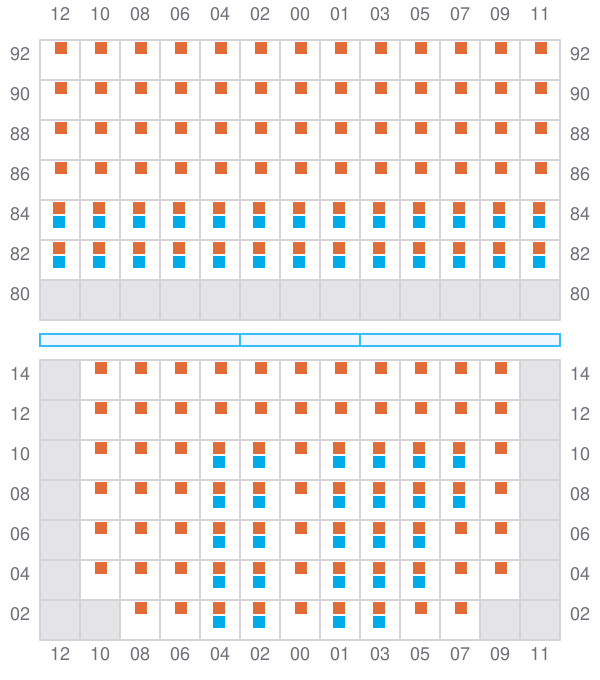

Bay 039 view and slots of MSC NADIA IV

041 (042)

→

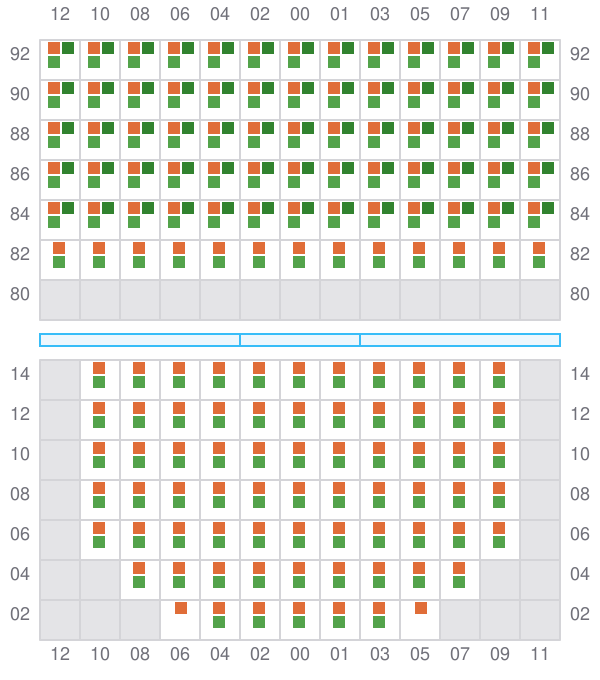

Bay 041 view and slots of MSC NADIA IV

043

←
→

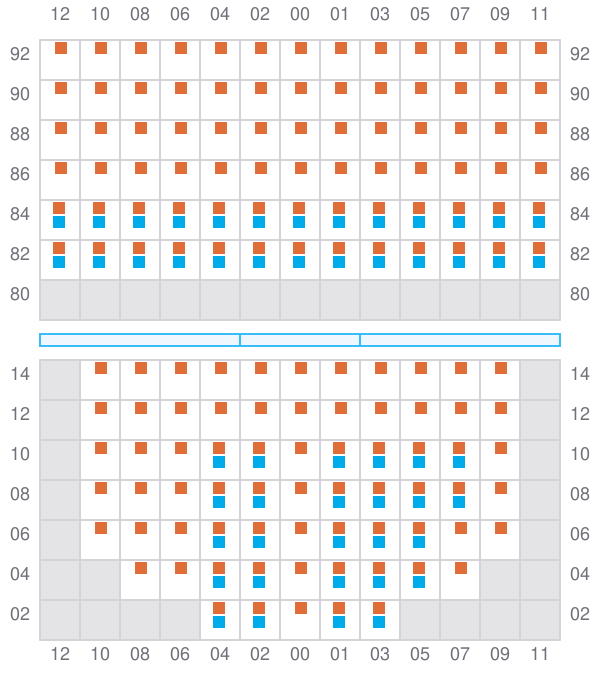

Bay 043 view and slots of MSC NADIA IV

045 (046)

^→ / _?
^← / _?

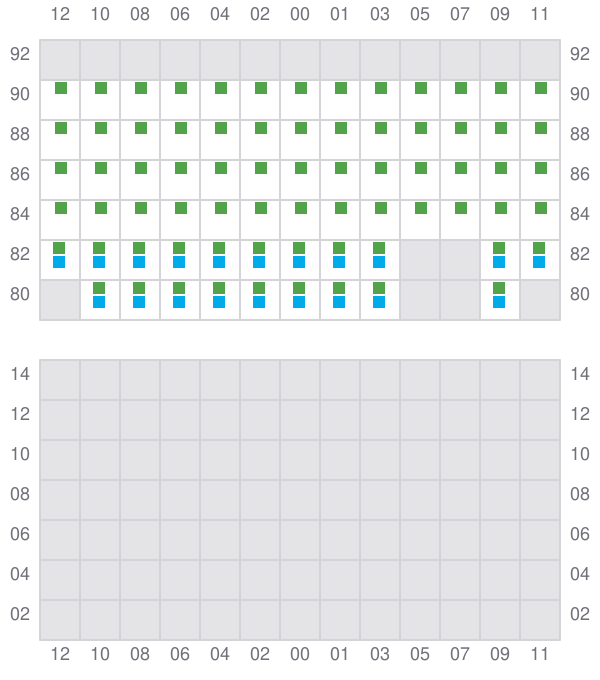

Bay 045 view and slots of MSC NADIA IV

047

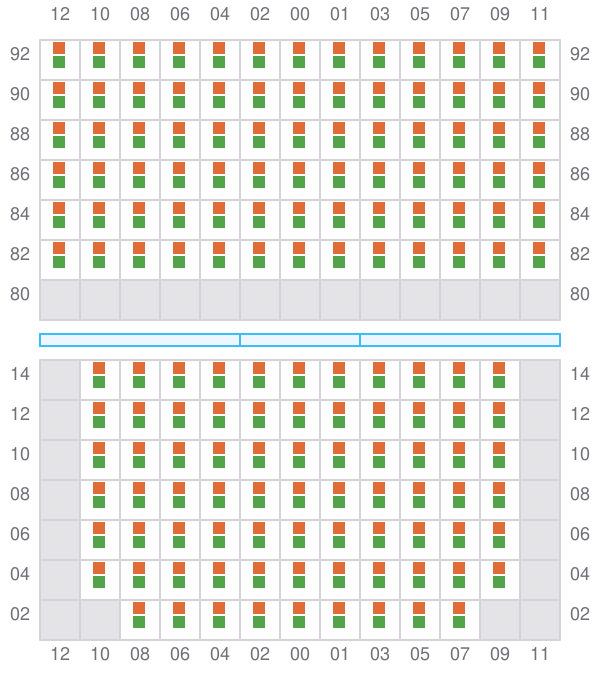

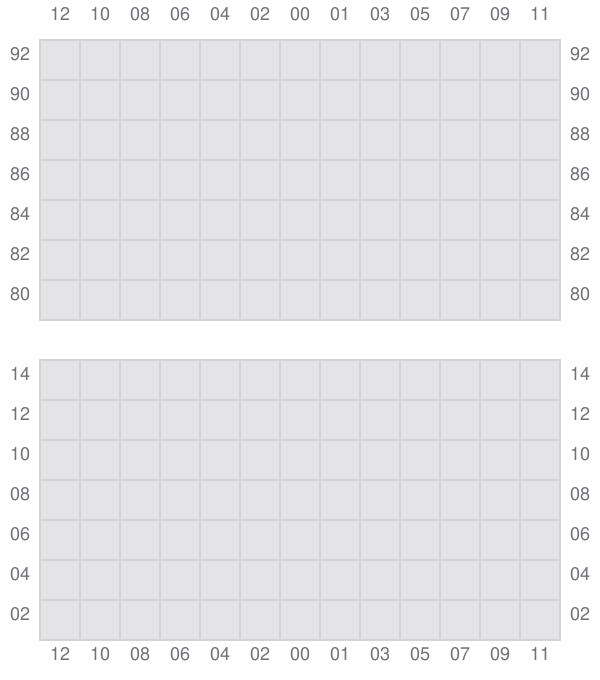

Bay 047 view and slots of MSC NADIA IV

049 (050)

→

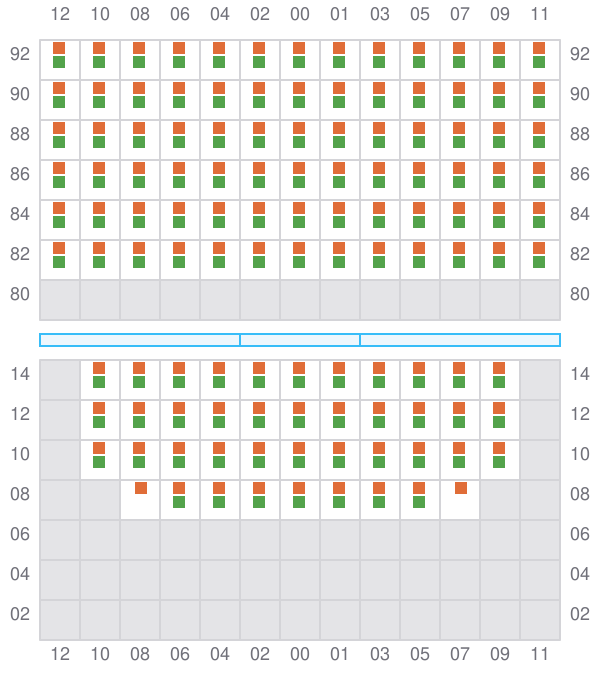

Bay 049 view and slots of MSC NADIA IV

051

←
^→ / _?

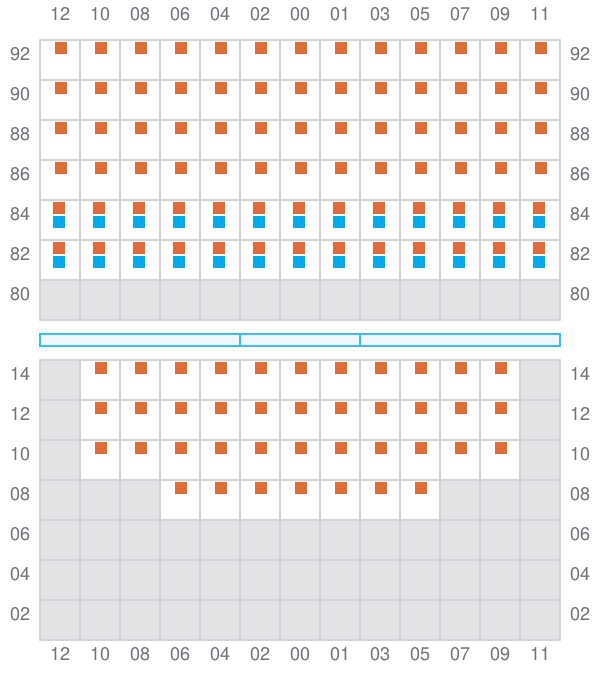

Bay 051 view and slots of MSC NADIA IV

053 (054)

→

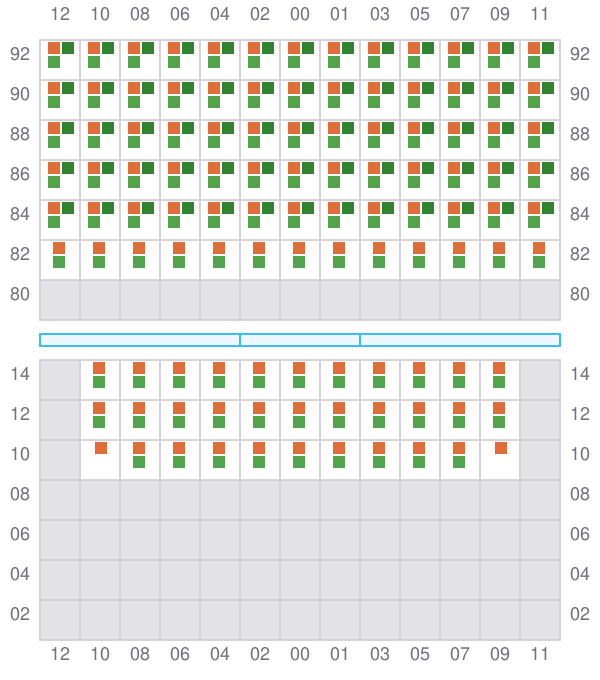

Bay 053 view and slots of MSC NADIA IV

055

←
^→ / _?

Bay 055 view and slots of MSC NADIA IV

057 (058)

^→ / _?
^← / _?

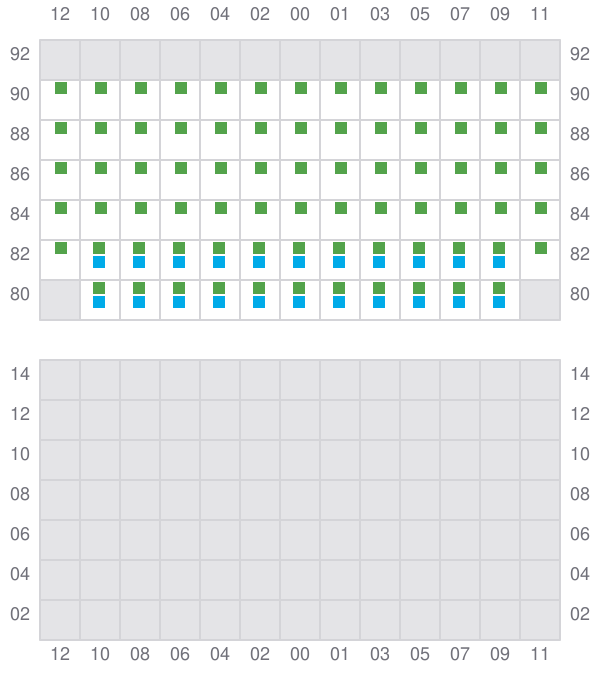

Bay 057 view and slots of MSC NADIA IV
