MSC NADRIELY
9149328 | D5HX2 | CHI by ************************** Last update: Fri Jun 30 2023

General Info

Ship Name:MSC NADRIELY
IMO Code:9149328
Call Sign:D5HX2
Line Operator:CHI
Class Name for Sister Ships:GUA
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,608

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

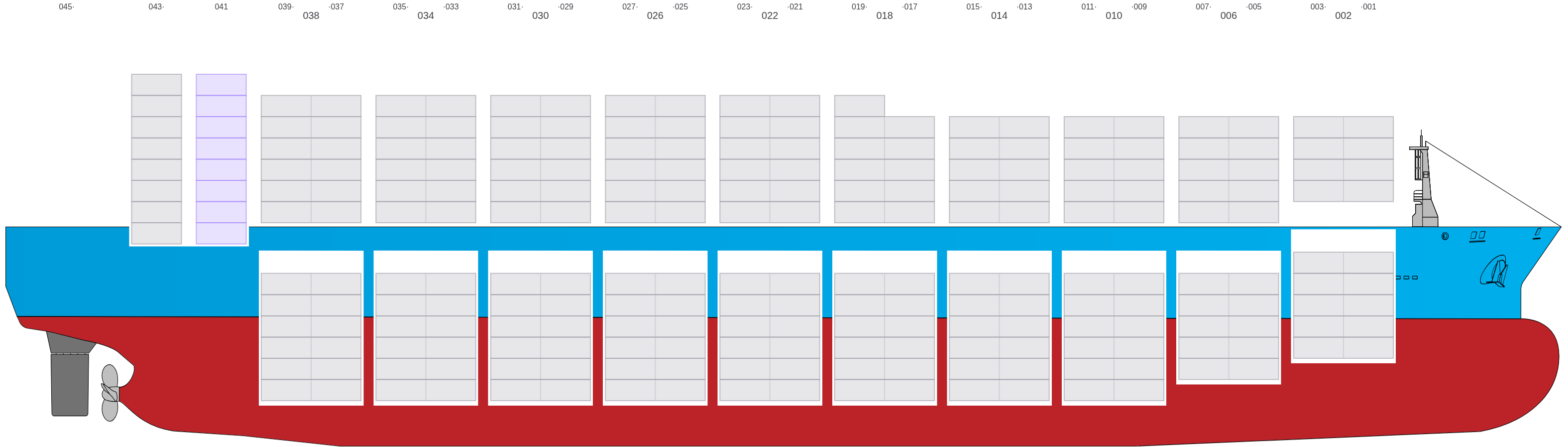

Side View

Side view of MSC NADRIELY

Hatch-Covers View

Deck view of MSC NADRIELY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

Bay 001 view and slots of MSC NADRIELY

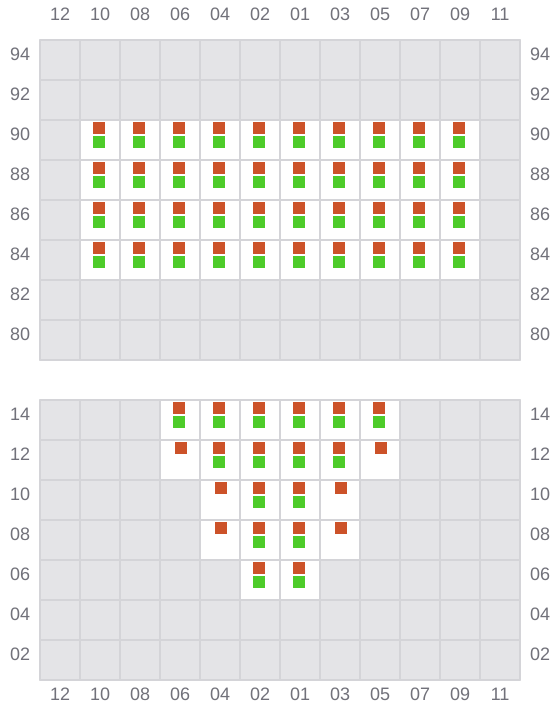

003 (002)

Bay 003 view and slots of MSC NADRIELY

005

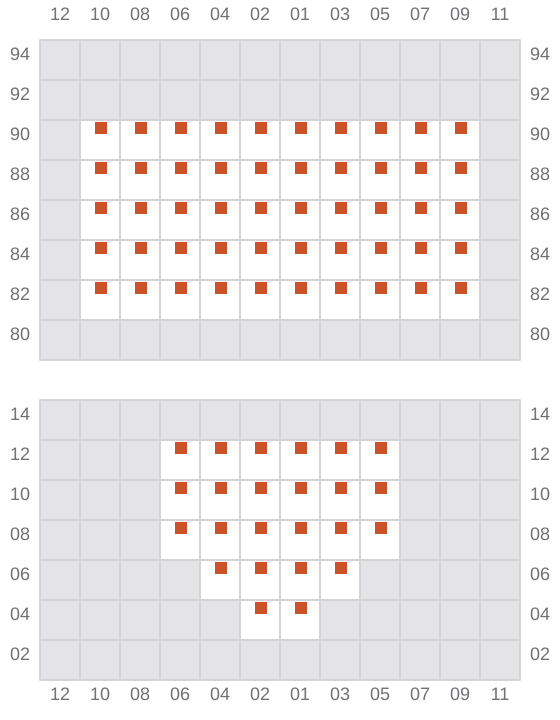

Bay 005 view and slots of MSC NADRIELY

007 (006)

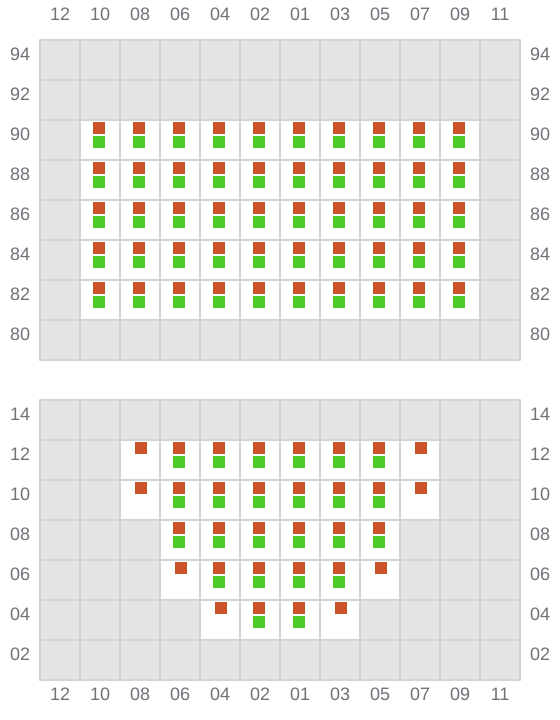

Bay 007 view and slots of MSC NADRIELY

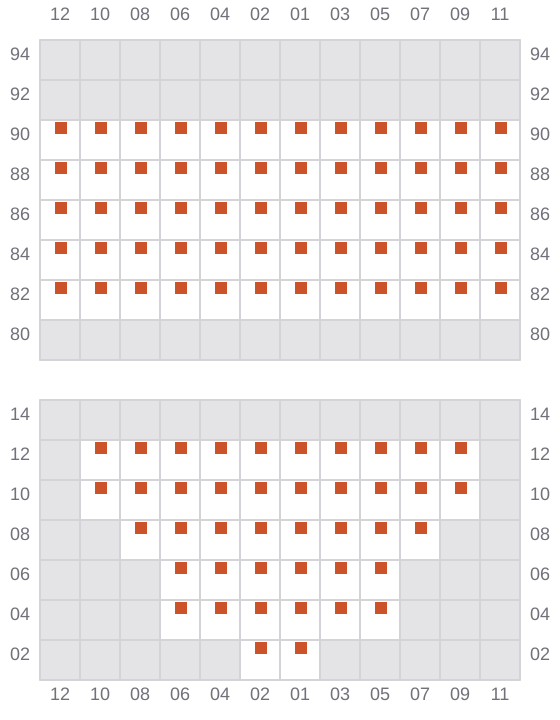

009

Bay 009 view and slots of MSC NADRIELY

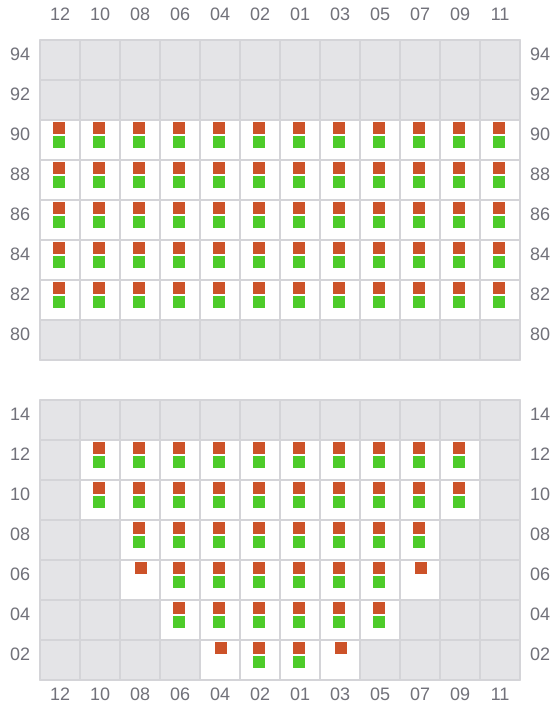

011 (010)

Bay 011 view and slots of MSC NADRIELY

013

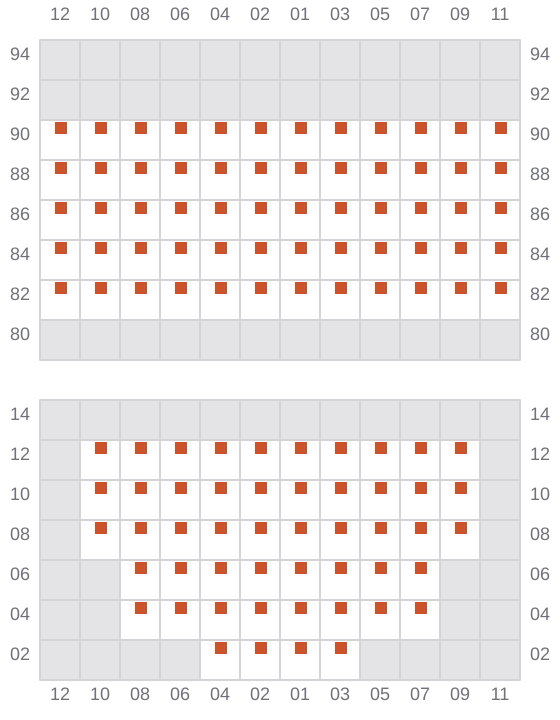

Bay 013 view and slots of MSC NADRIELY

015 (014)

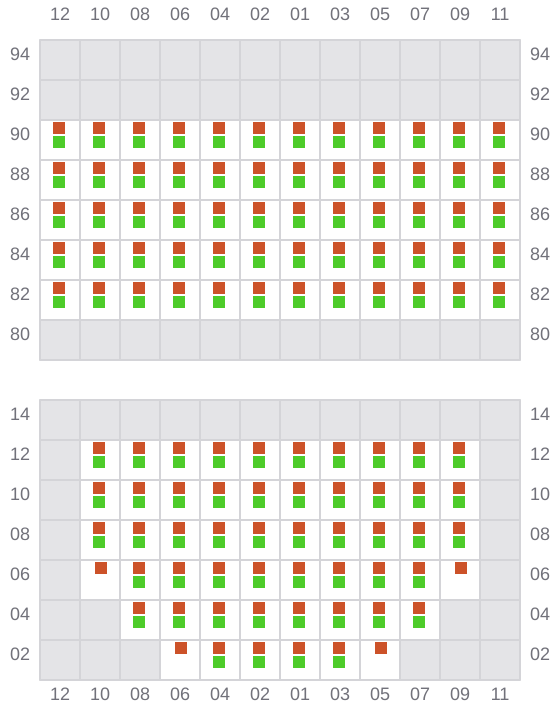

Bay 015 view and slots of MSC NADRIELY

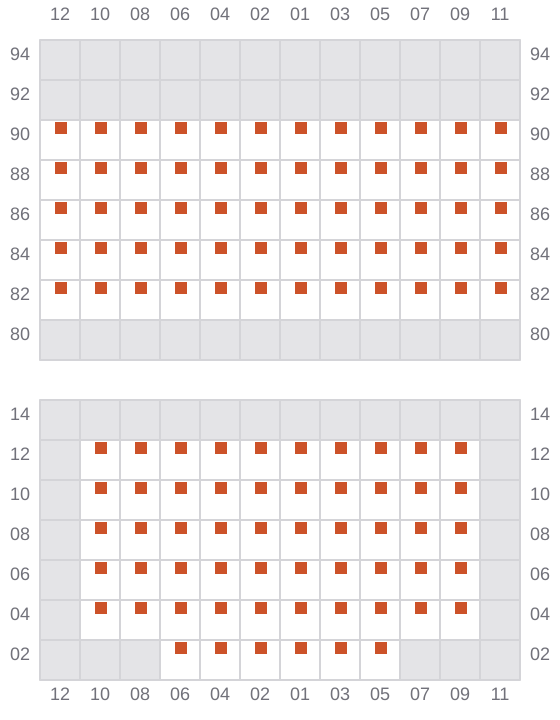

017

Bay 017 view and slots of MSC NADRIELY

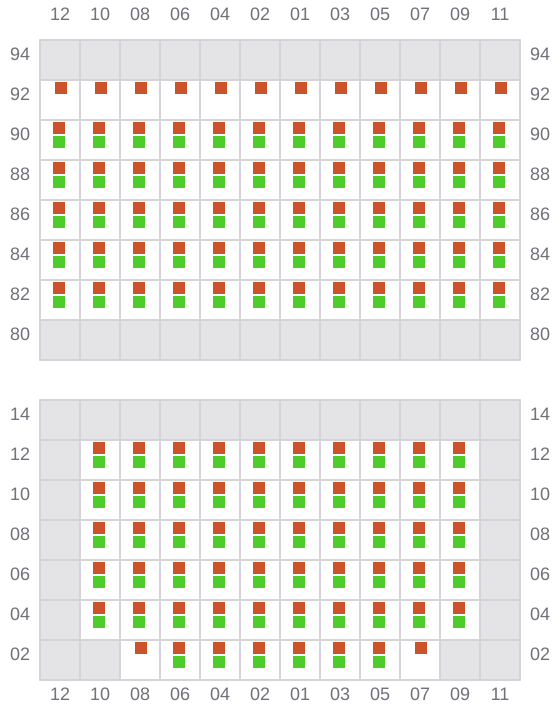

019 (018)

Bay 019 view and slots of MSC NADRIELY

021

Bay 021 view and slots of MSC NADRIELY

023 (022)

Bay 023 view and slots of MSC NADRIELY

025

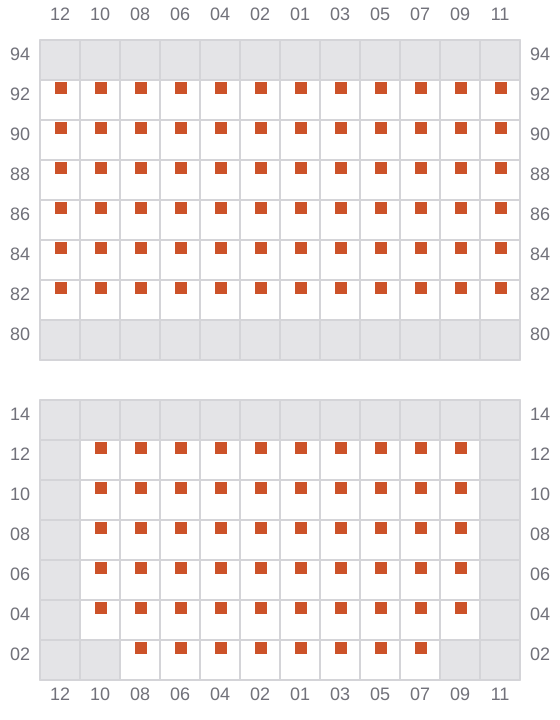

Bay 025 view and slots of MSC NADRIELY

027 (026)

Bay 027 view and slots of MSC NADRIELY

029

Bay 029 view and slots of MSC NADRIELY

031 (030)

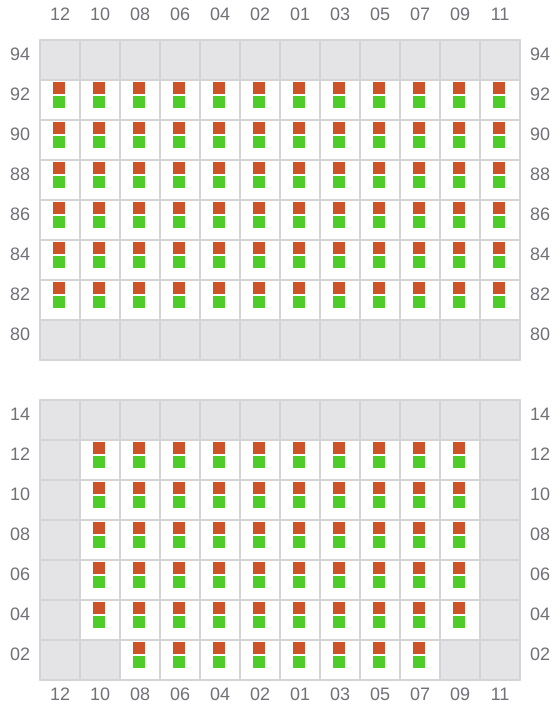

Bay 031 view and slots of MSC NADRIELY

033

Bay 033 view and slots of MSC NADRIELY

035 (034)

Bay 035 view and slots of MSC NADRIELY

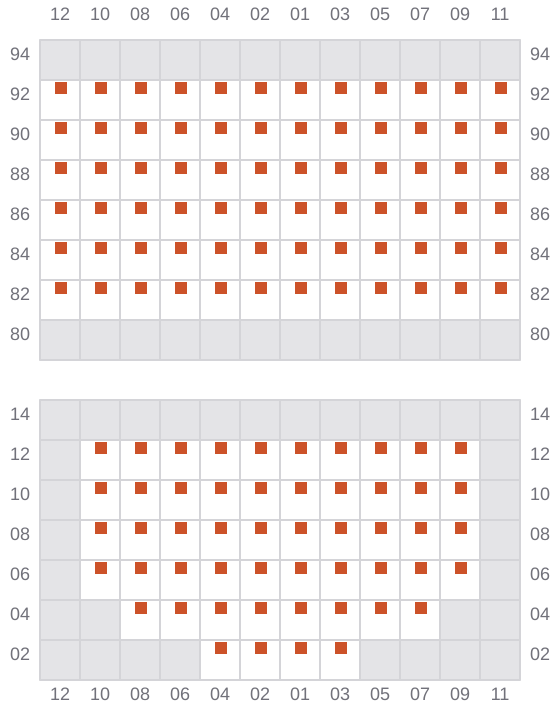

037

Bay 037 view and slots of MSC NADRIELY

039 (038)

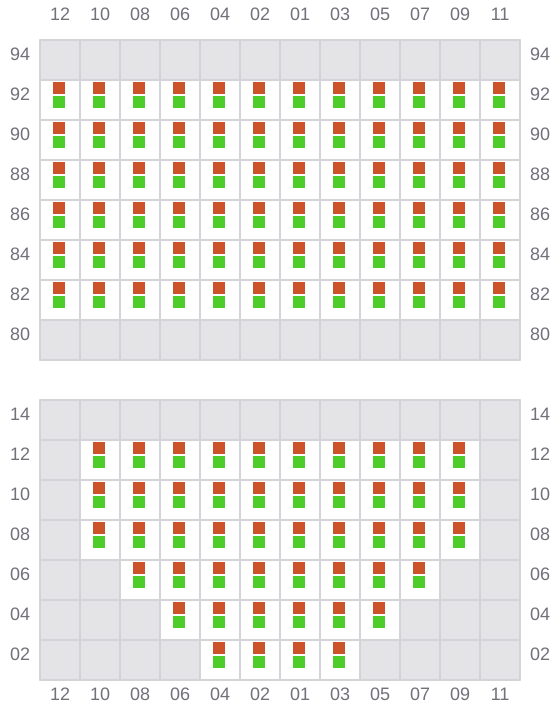

Bay 039 view and slots of MSC NADRIELY

041

Bay 041 view and slots of MSC NADRIELY

043

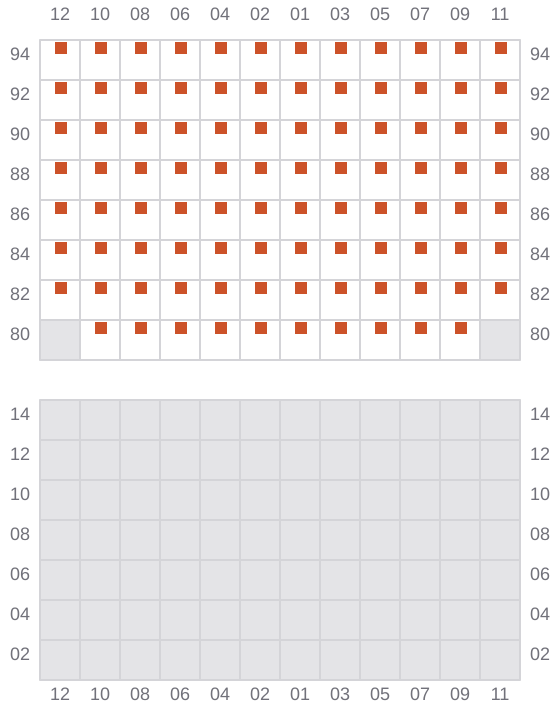

Bay 043 view and slots of MSC NADRIELY

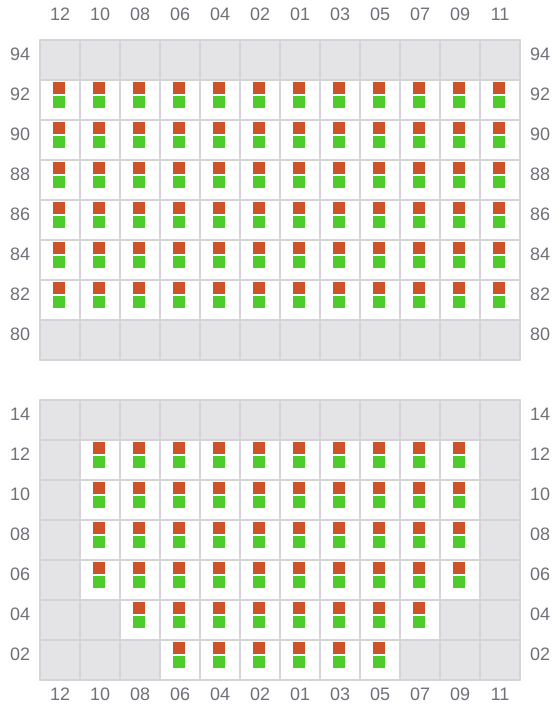

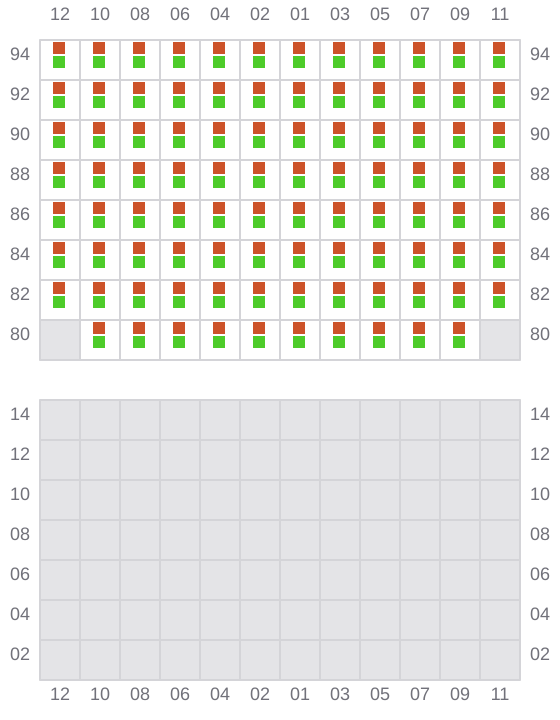

045 (044)

Bay 045 view and slots of MSC NADRIELY
