MSC NAISHA III
9307839 | 5LCB4 | MSC by ************************** Last update: Sat May 27 2023

General Info

Ship Name:MSC NAISHA III
IMO Code:9307839
Call Sign:5LCB4
Line Operator:MSC
Class Name for Sister Ships:NAIS
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,586

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC NAISHA III

Hatch-Covers View

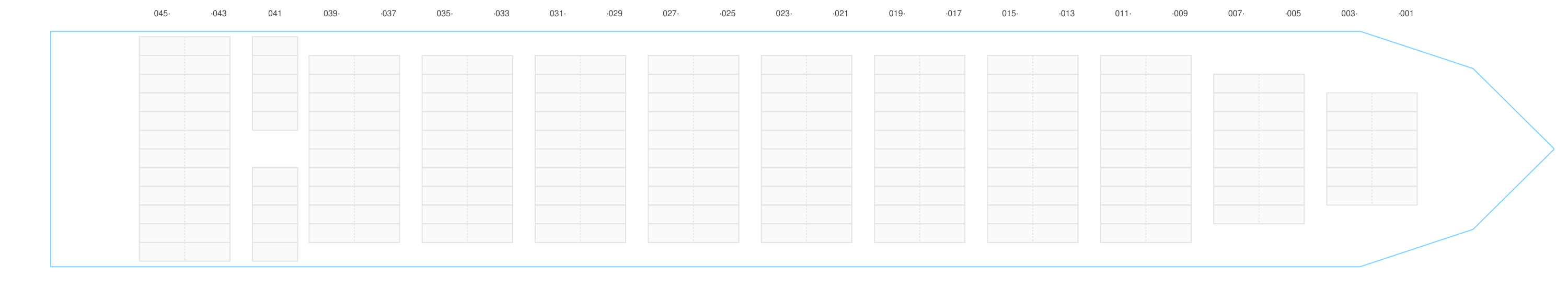

Deck view of MSC NAISHA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
Bay 001 view and slots of MSC NAISHA III

003 (002)

  • ←
Bay 003 view and slots of MSC NAISHA III

005

  • →
Bay 005 view and slots of MSC NAISHA III

007 (006)

  • ←
Bay 007 view and slots of MSC NAISHA III

009

  • →

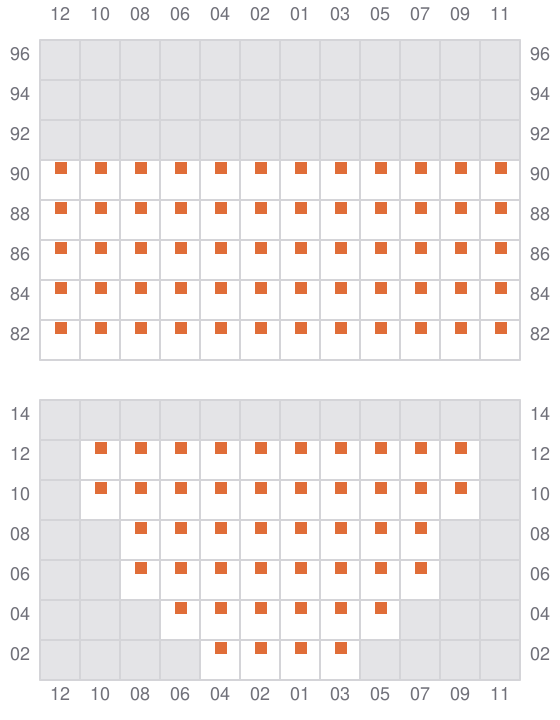

Bay 009 view and slots of MSC NAISHA III

011 (010)

  • ←
Bay 011 view and slots of MSC NAISHA III

013

  • →
Bay 013 view and slots of MSC NAISHA III

015 (014)

  • ←

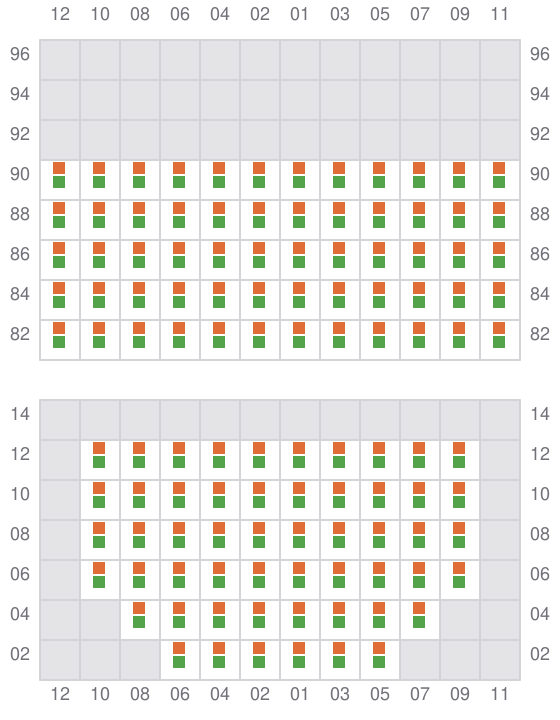

Bay 015 view and slots of MSC NAISHA III

017

  • →
Bay 017 view and slots of MSC NAISHA III

019 (018)

  • ←
Bay 019 view and slots of MSC NAISHA III

021

  • →

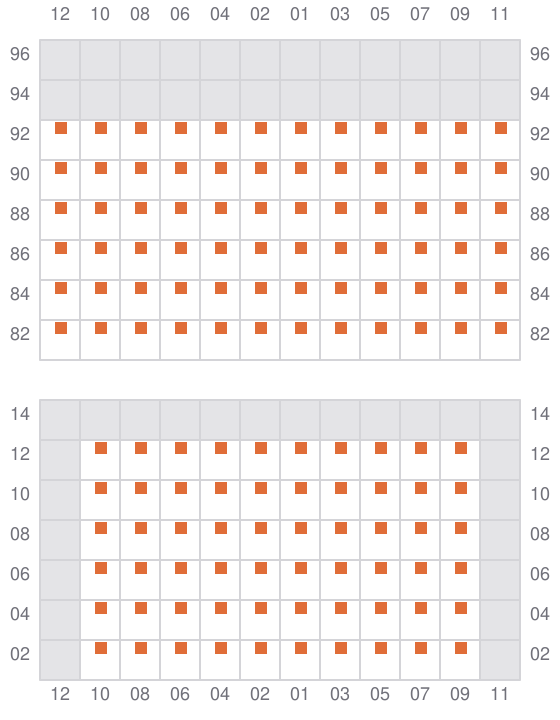

Bay 021 view and slots of MSC NAISHA III

023 (022)

  • ←
Bay 023 view and slots of MSC NAISHA III

025

  • →
Bay 025 view and slots of MSC NAISHA III

027 (026)

  • ←
Bay 027 view and slots of MSC NAISHA III

029

  • →
Bay 029 view and slots of MSC NAISHA III

031 (030)

  • ←
Bay 031 view and slots of MSC NAISHA III

033

  • →
Bay 033 view and slots of MSC NAISHA III

035 (034)

  • ←
Bay 035 view and slots of MSC NAISHA III

037

  • →
Bay 037 view and slots of MSC NAISHA III

039 (038)

  • ←
Bay 039 view and slots of MSC NAISHA III

041

Bay 041 view and slots of MSC NAISHA III

043

  • → / ?
Bay 043 view and slots of MSC NAISHA III

045 (044)

  • ← / ?
Bay 045 view and slots of MSC NAISHA III
