MSC NAOMI
9704984 | CQEV9 | MSC by ************************** Last update: Mon Jun 19 2023

General Info

Ship Name:MSC NAOMI
IMO Code:9704984
Call Sign:CQEV9
Line Operator:MSC
Class Name for Sister Ships:NAI
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,913

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

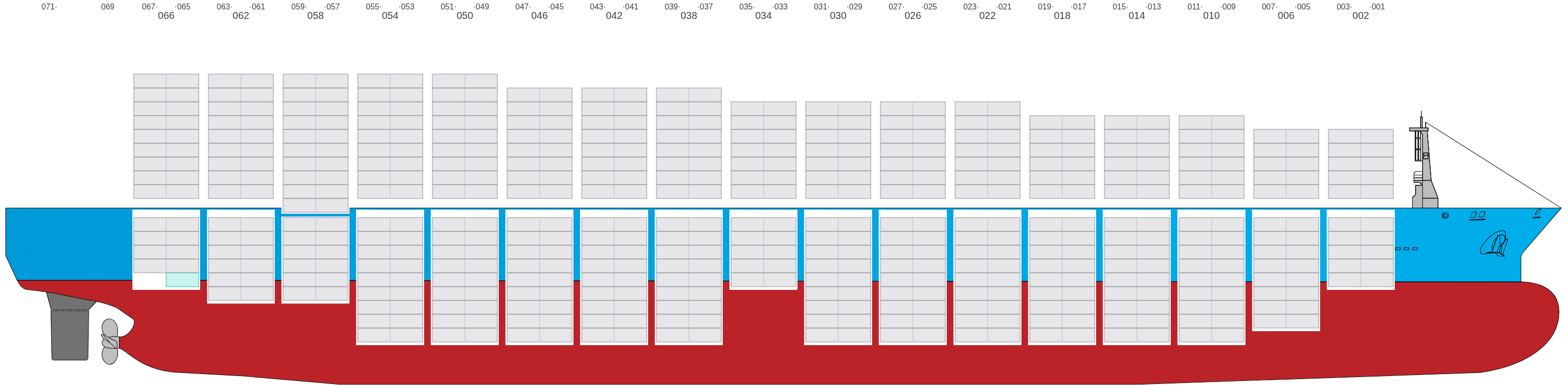

Side View

Side view of MSC NAOMI

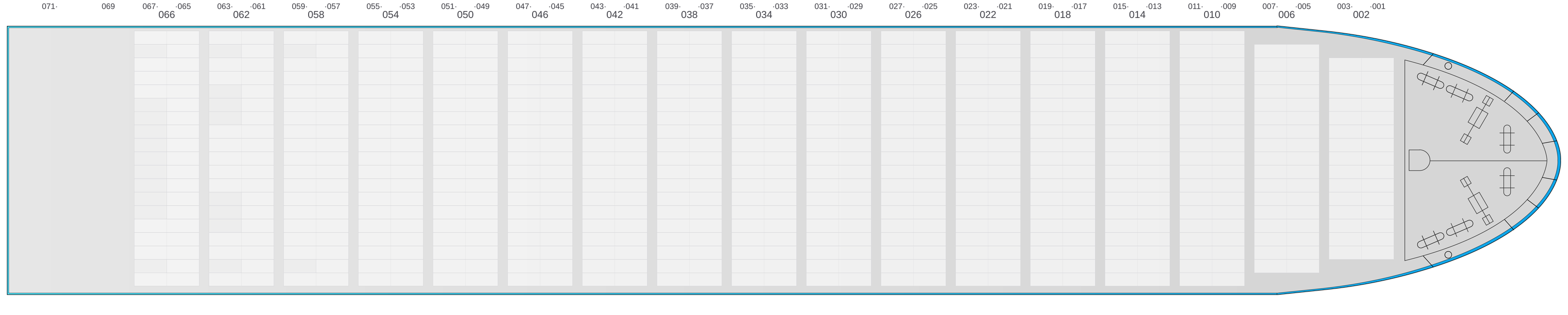

Hatch-Covers View

Deck view of MSC NAOMI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

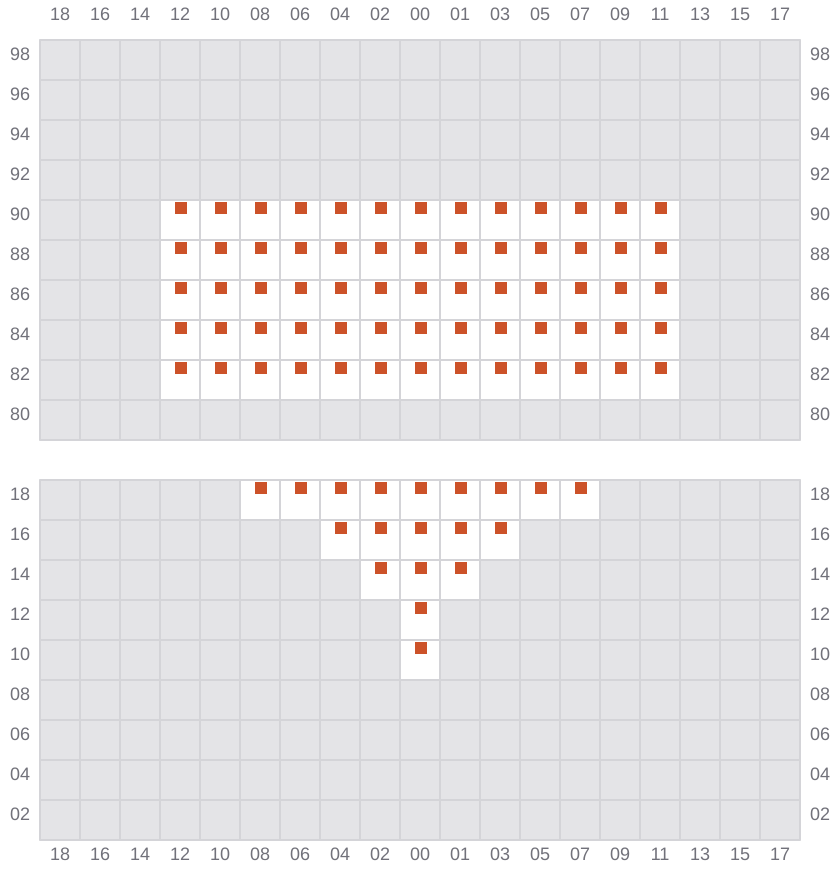

Bay 001 view and slots of MSC NAOMI

003 (002)

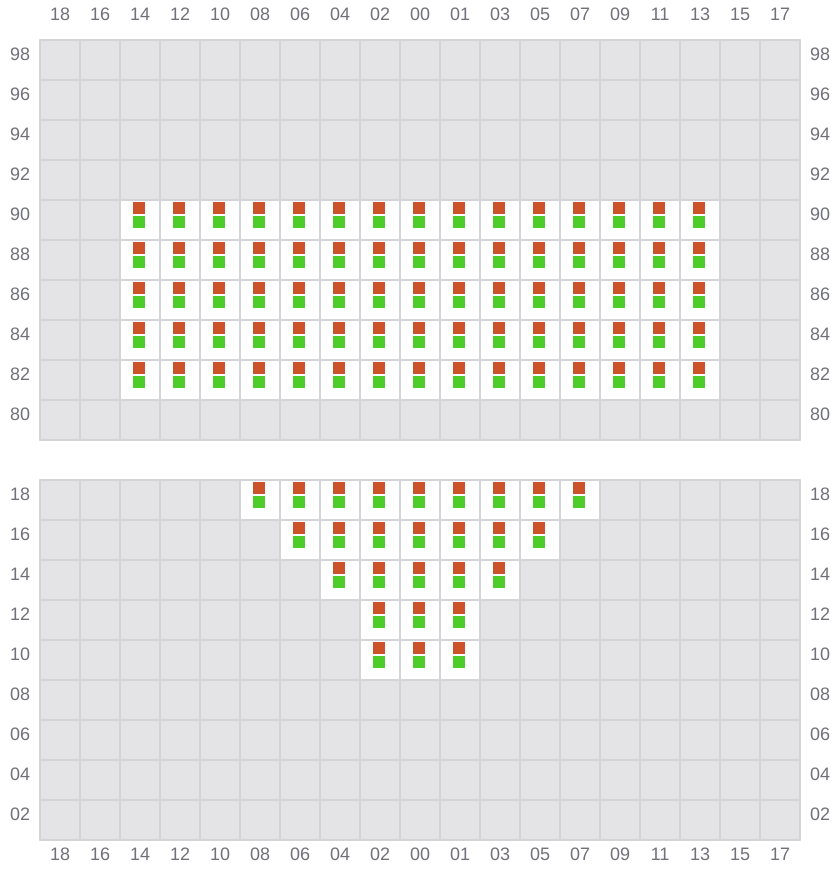

Bay 003 view and slots of MSC NAOMI

005

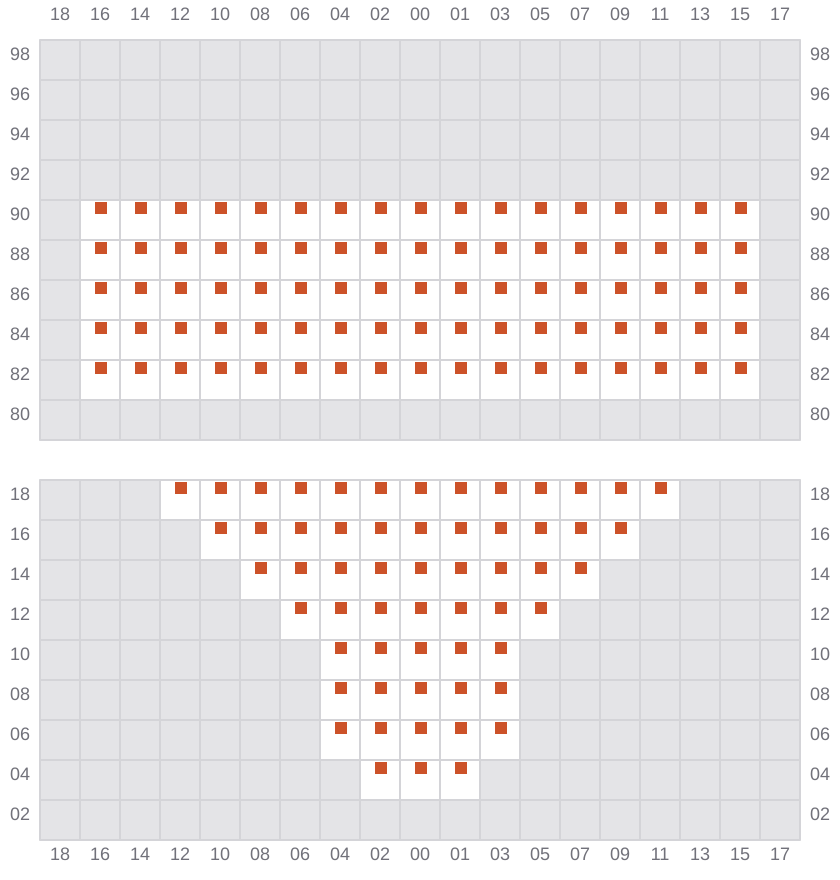

Bay 005 view and slots of MSC NAOMI

007 (006)

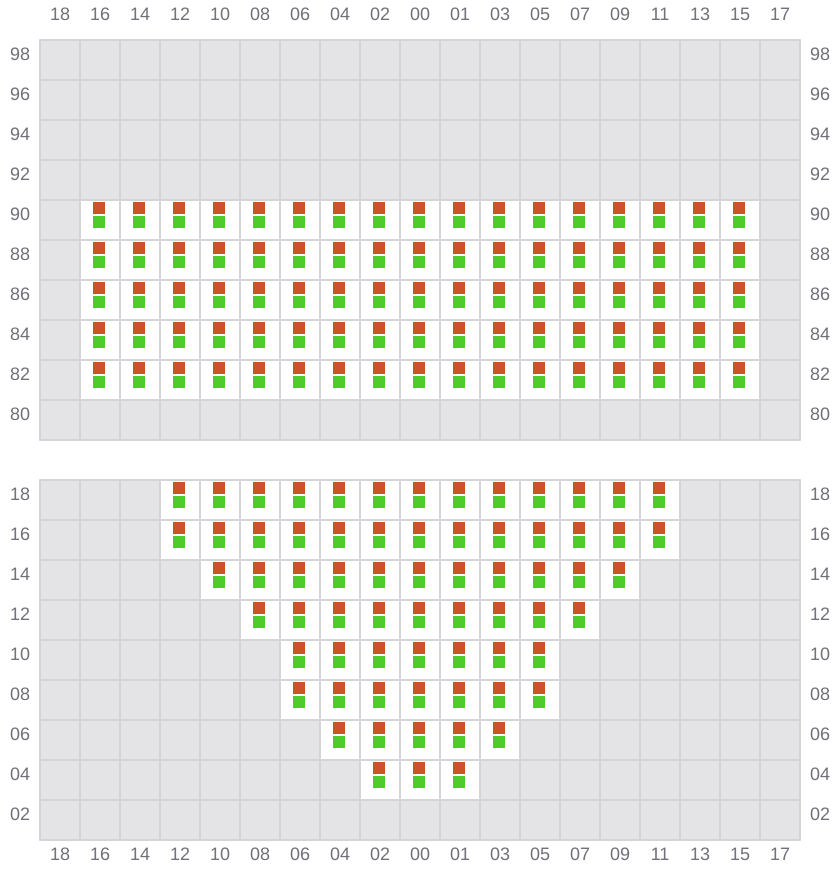

Bay 007 view and slots of MSC NAOMI

009

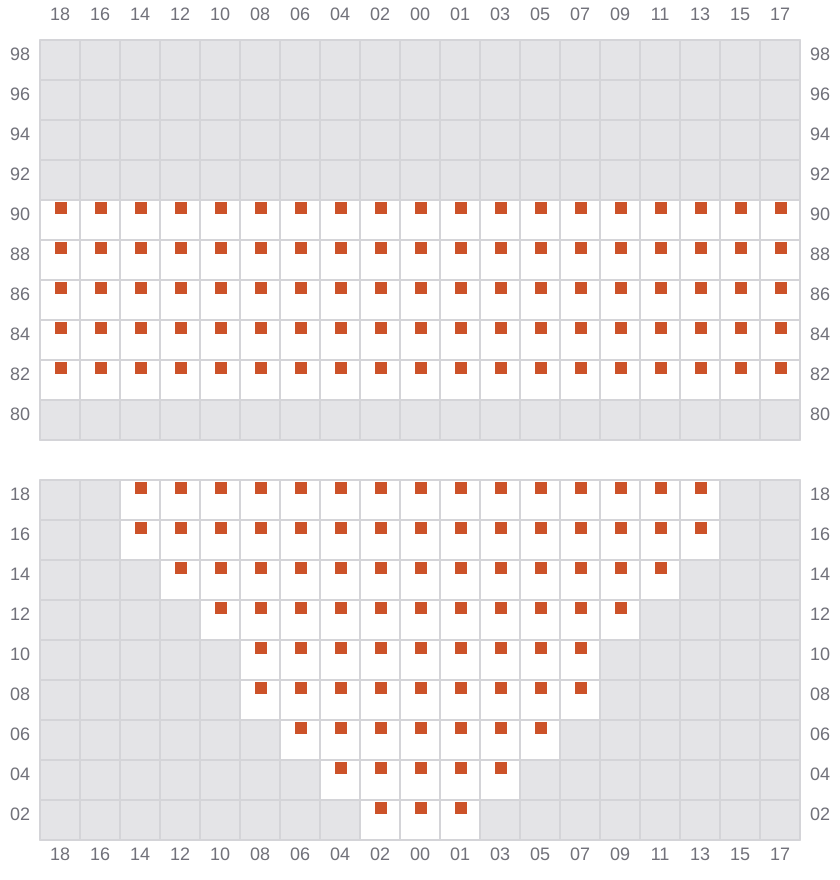

Bay 009 view and slots of MSC NAOMI

011 (010)

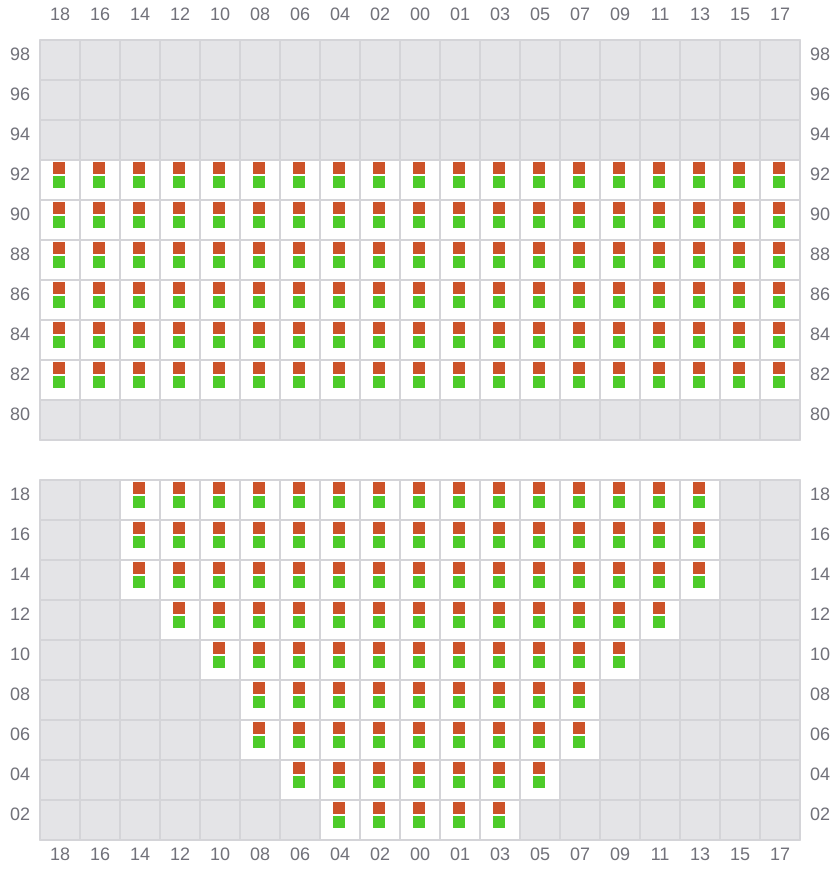

Bay 011 view and slots of MSC NAOMI

013

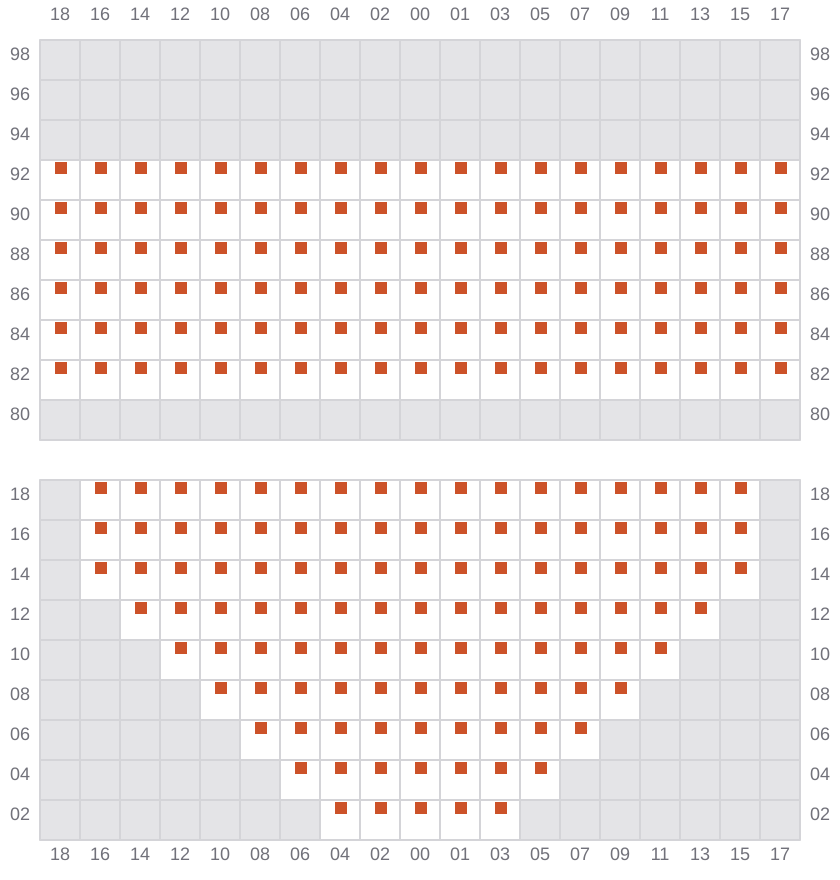

Bay 013 view and slots of MSC NAOMI

015 (014)

Bay 015 view and slots of MSC NAOMI

017

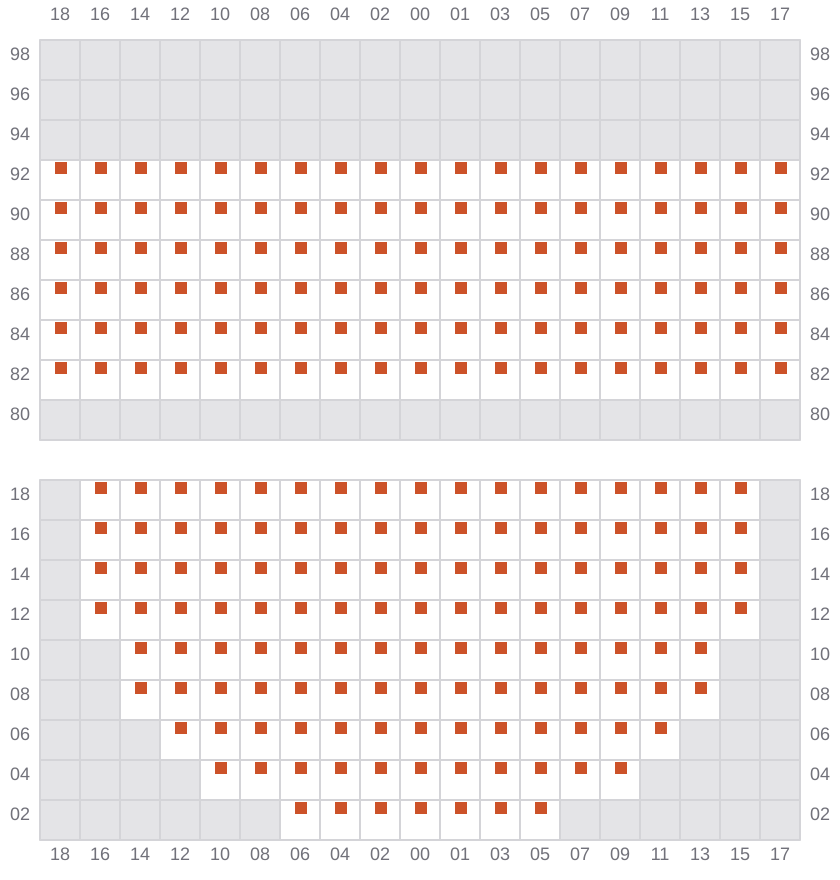

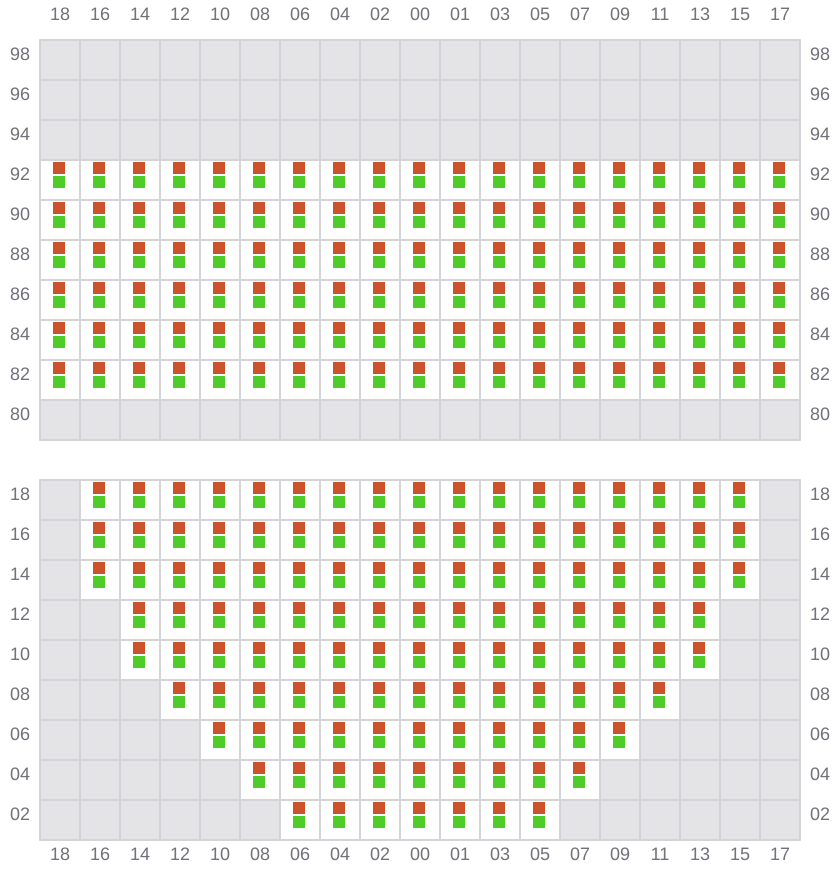

Bay 017 view and slots of MSC NAOMI

019 (018)

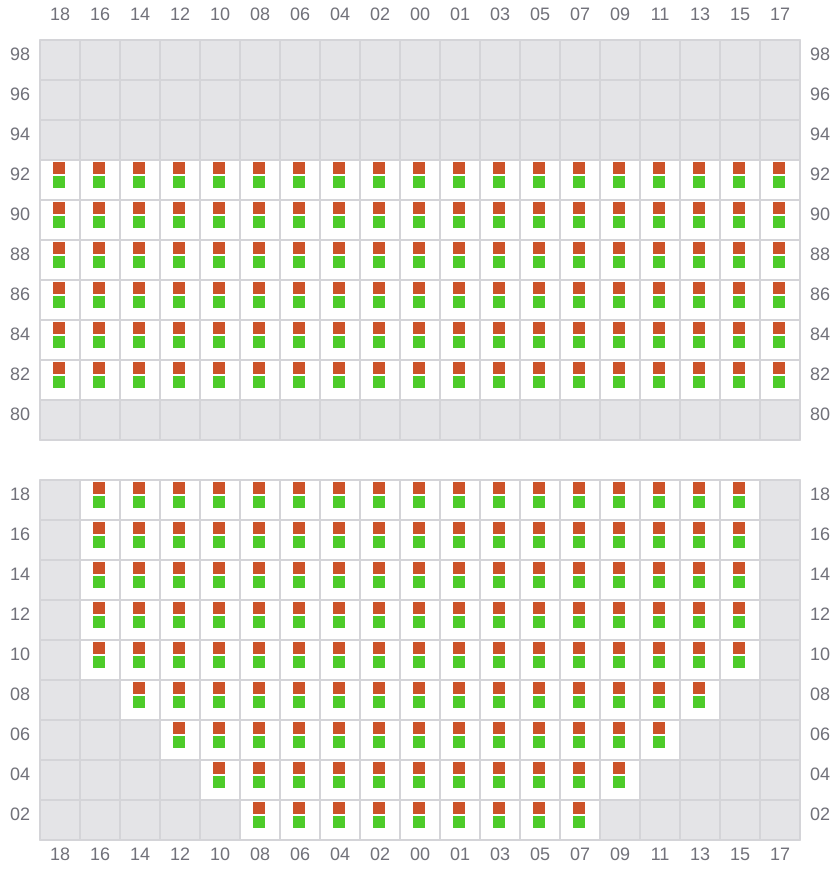

Bay 019 view and slots of MSC NAOMI

021

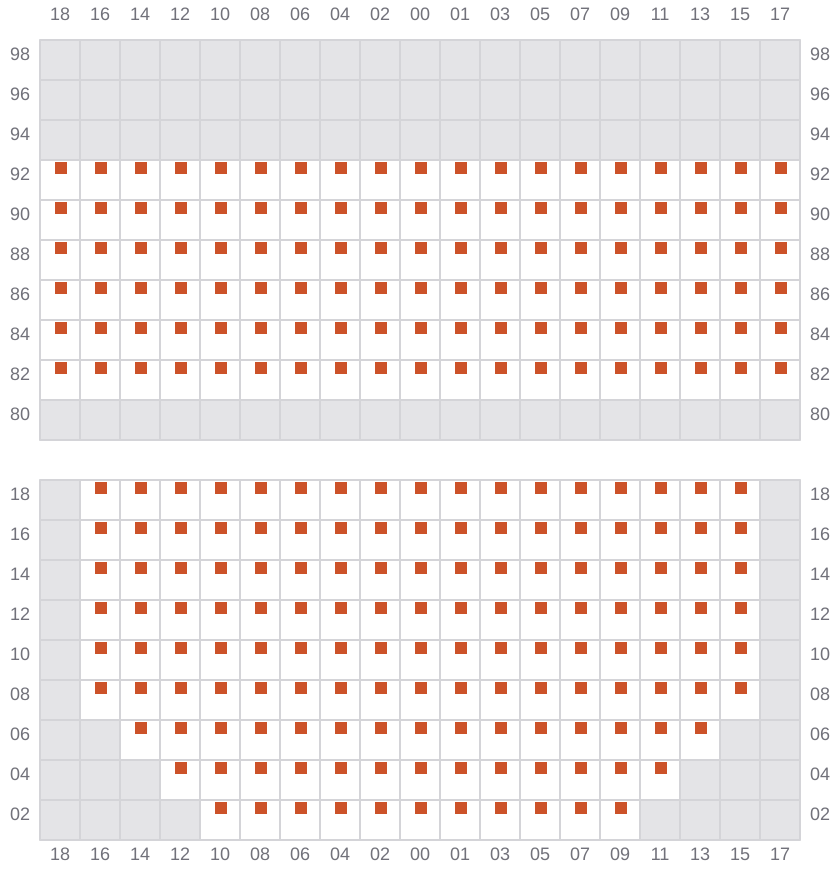

Bay 021 view and slots of MSC NAOMI

023 (022)

Bay 023 view and slots of MSC NAOMI

025

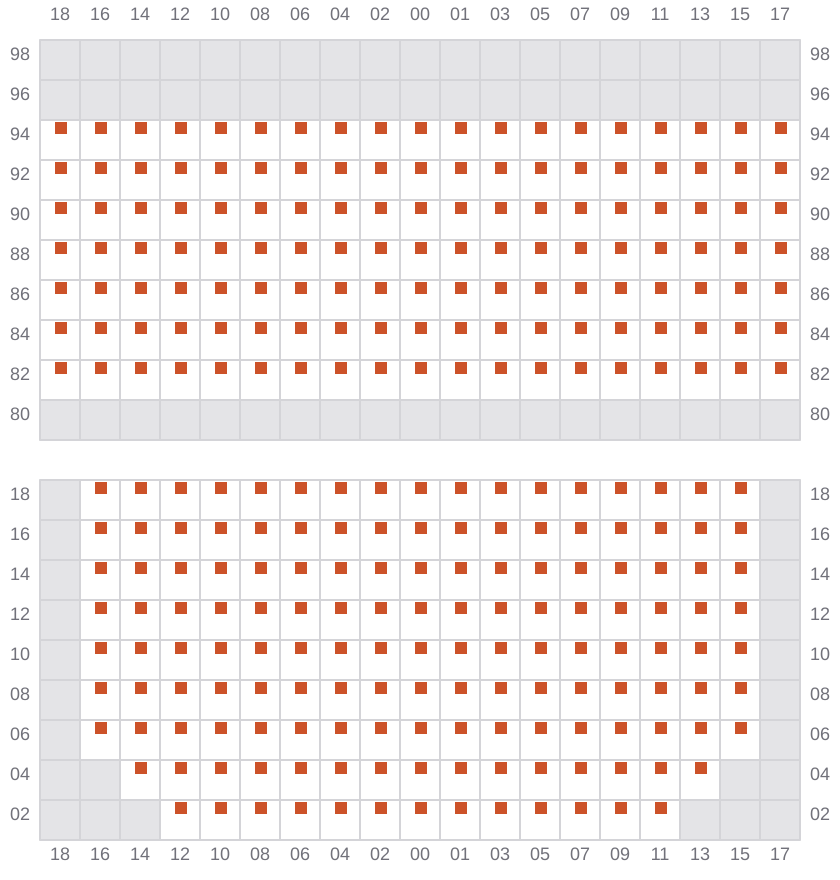

Bay 025 view and slots of MSC NAOMI

027 (026)

Bay 027 view and slots of MSC NAOMI

029

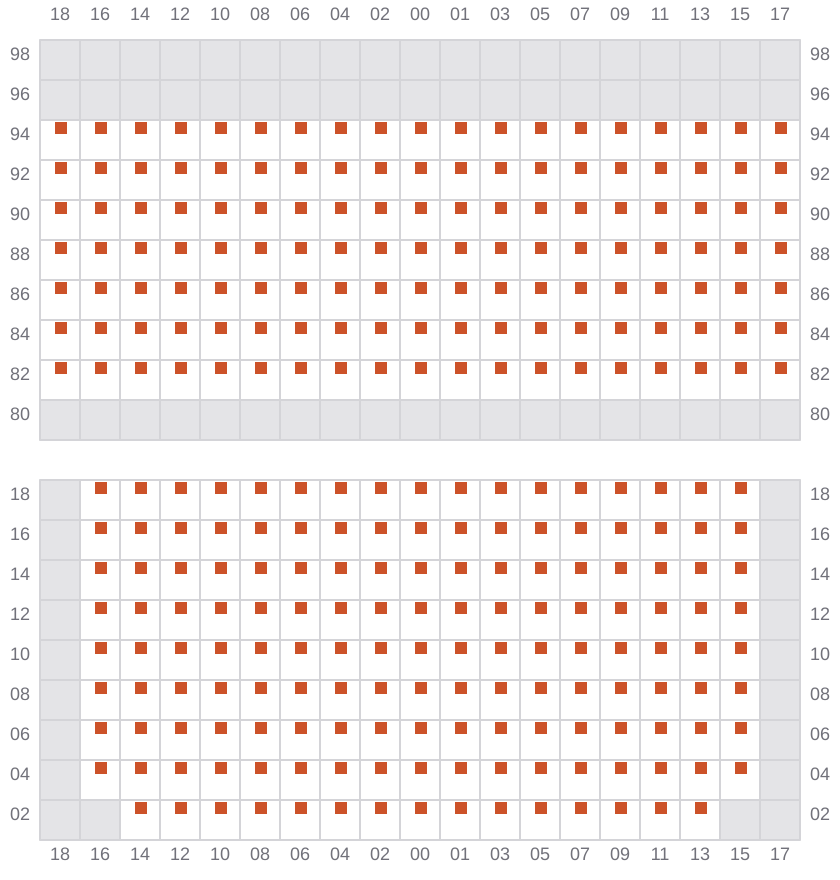

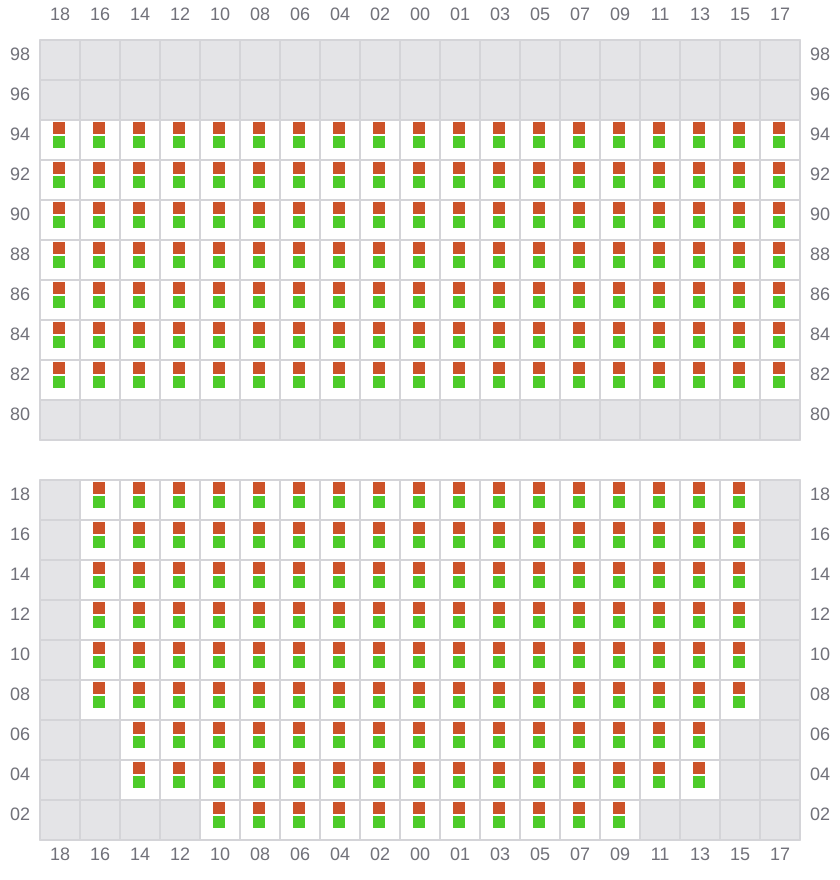

Bay 029 view and slots of MSC NAOMI

031 (030)

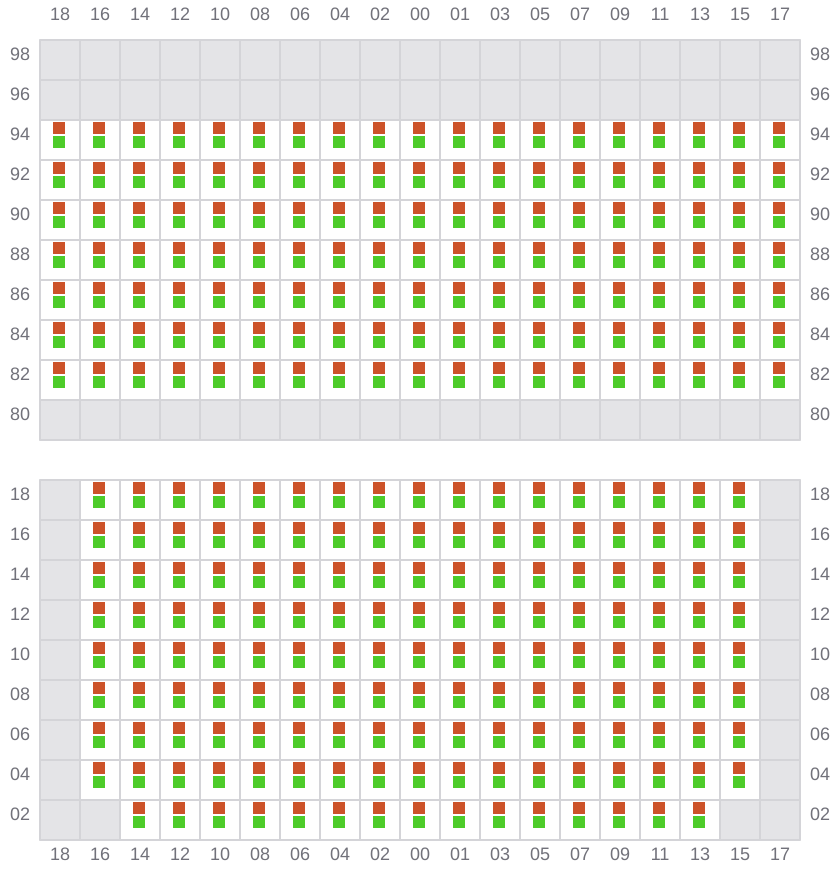

Bay 031 view and slots of MSC NAOMI

033

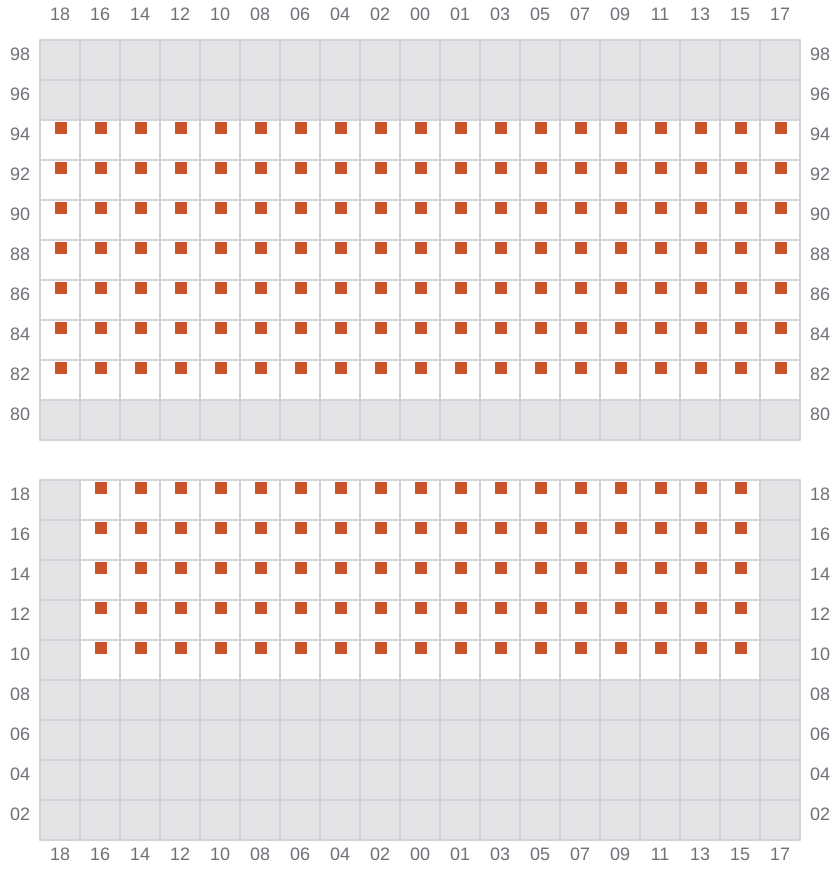

Bay 033 view and slots of MSC NAOMI

035 (034)

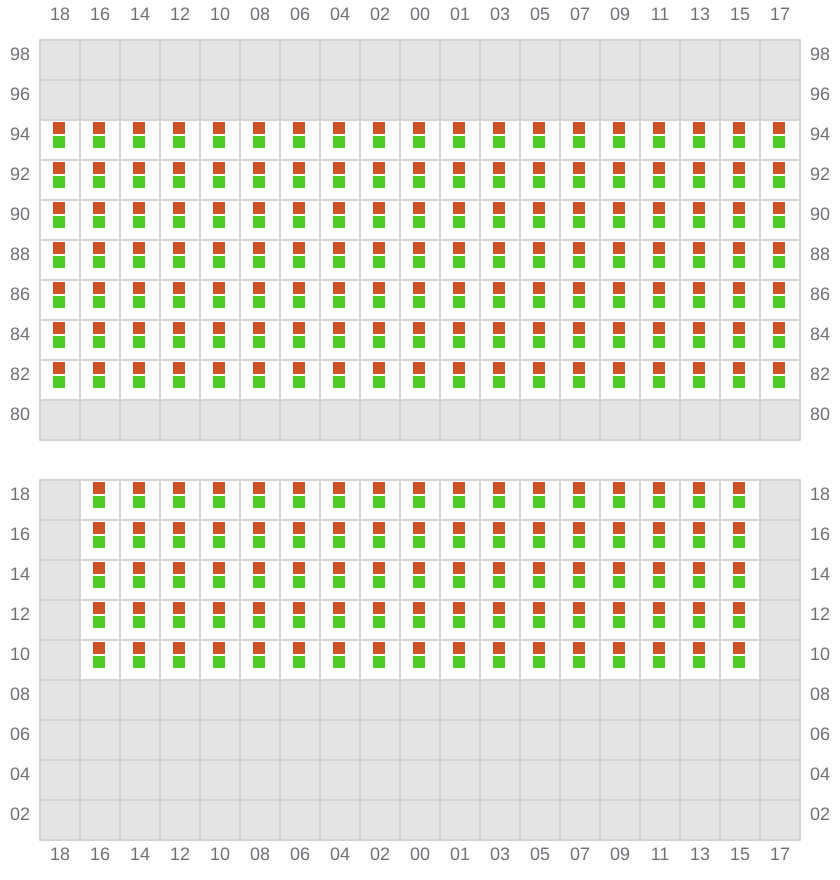

Bay 035 view and slots of MSC NAOMI

037

Bay 037 view and slots of MSC NAOMI

039 (038)

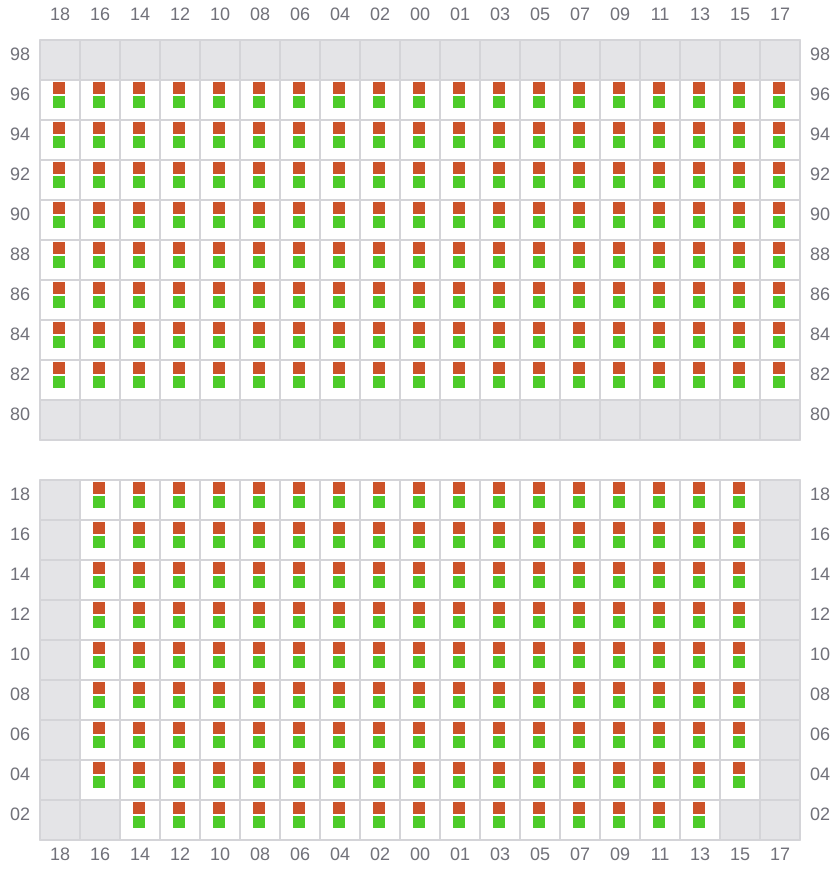

Bay 039 view and slots of MSC NAOMI

041

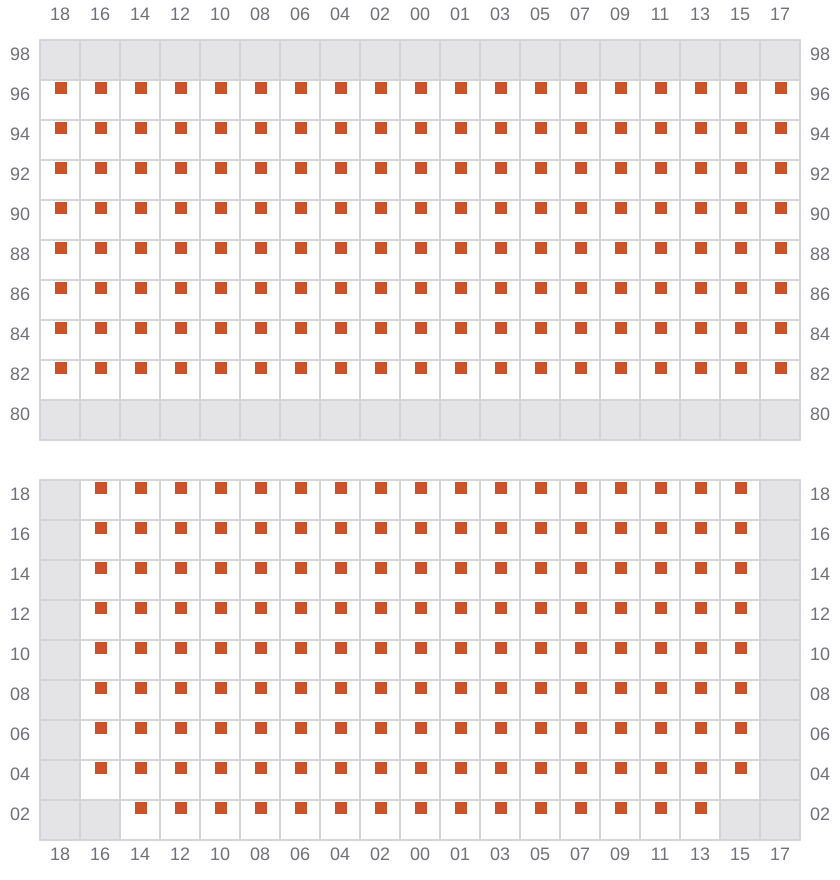

Bay 041 view and slots of MSC NAOMI

043 (042)

Bay 043 view and slots of MSC NAOMI

045

Bay 045 view and slots of MSC NAOMI

047 (046)

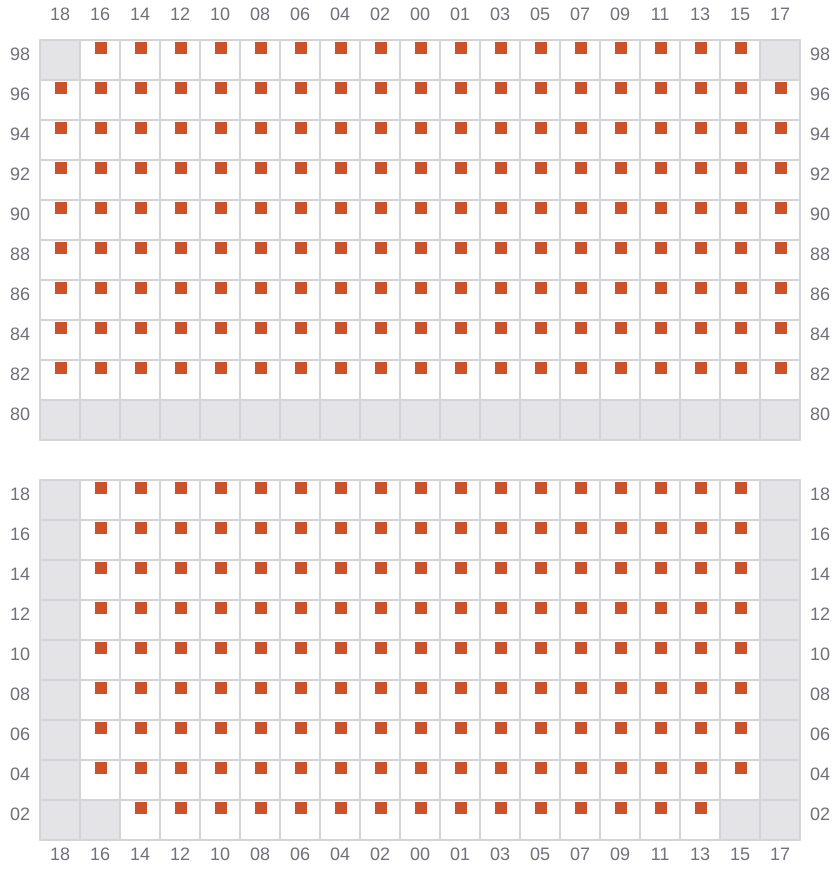

Bay 047 view and slots of MSC NAOMI

049

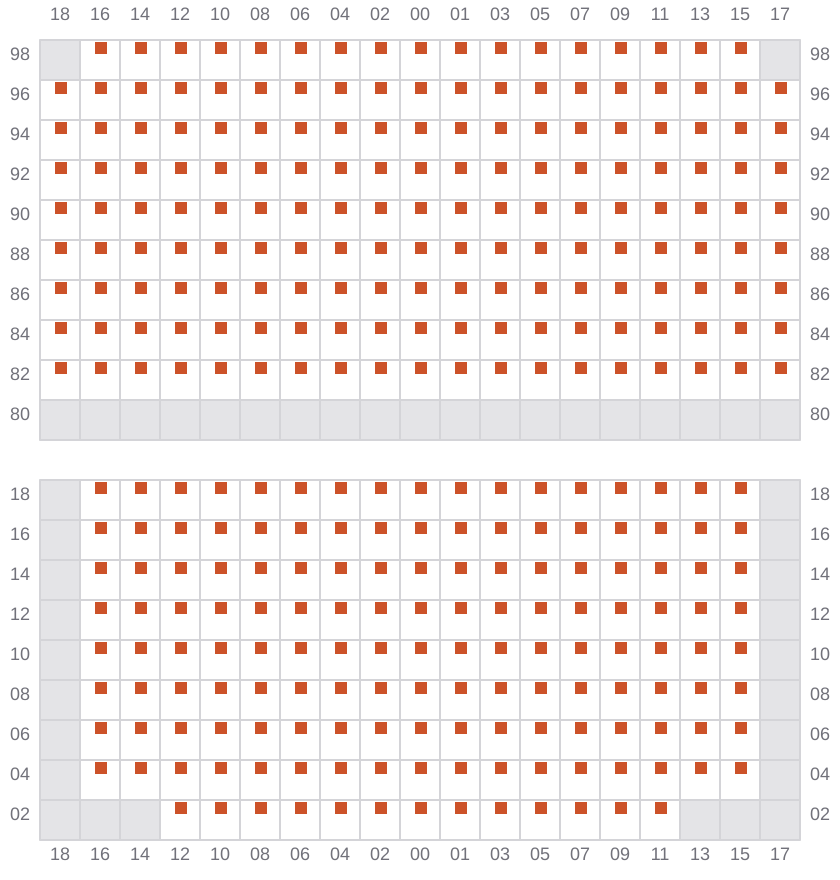

Bay 049 view and slots of MSC NAOMI

051 (050)

Bay 051 view and slots of MSC NAOMI

053

Bay 053 view and slots of MSC NAOMI

055 (054)

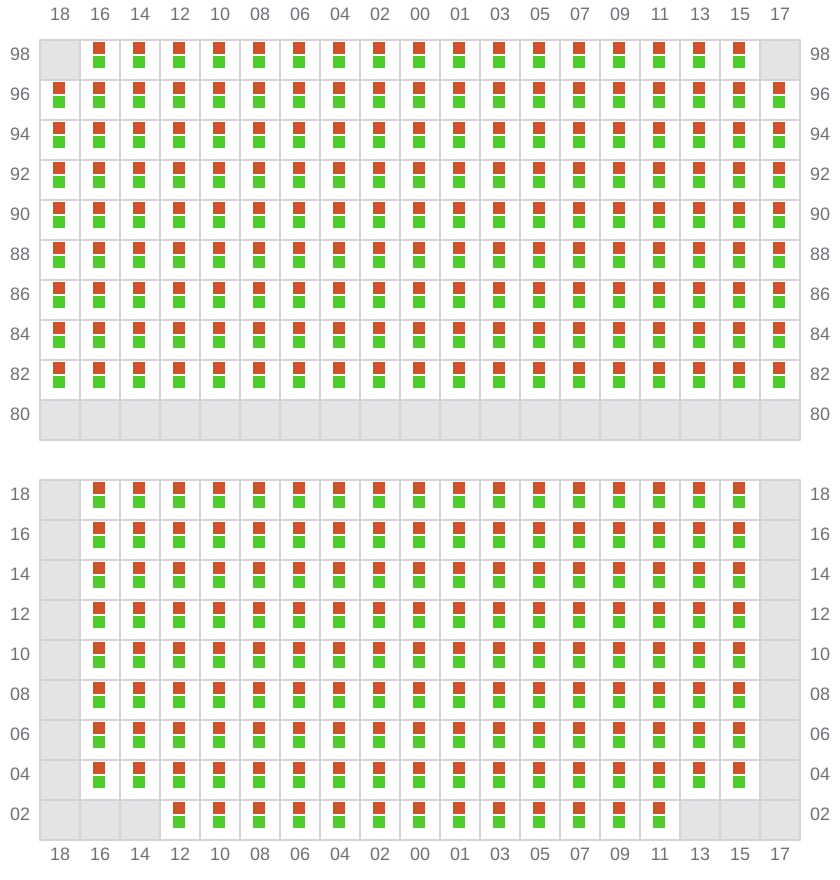

Bay 055 view and slots of MSC NAOMI

057

Bay 057 view and slots of MSC NAOMI

059 (058)

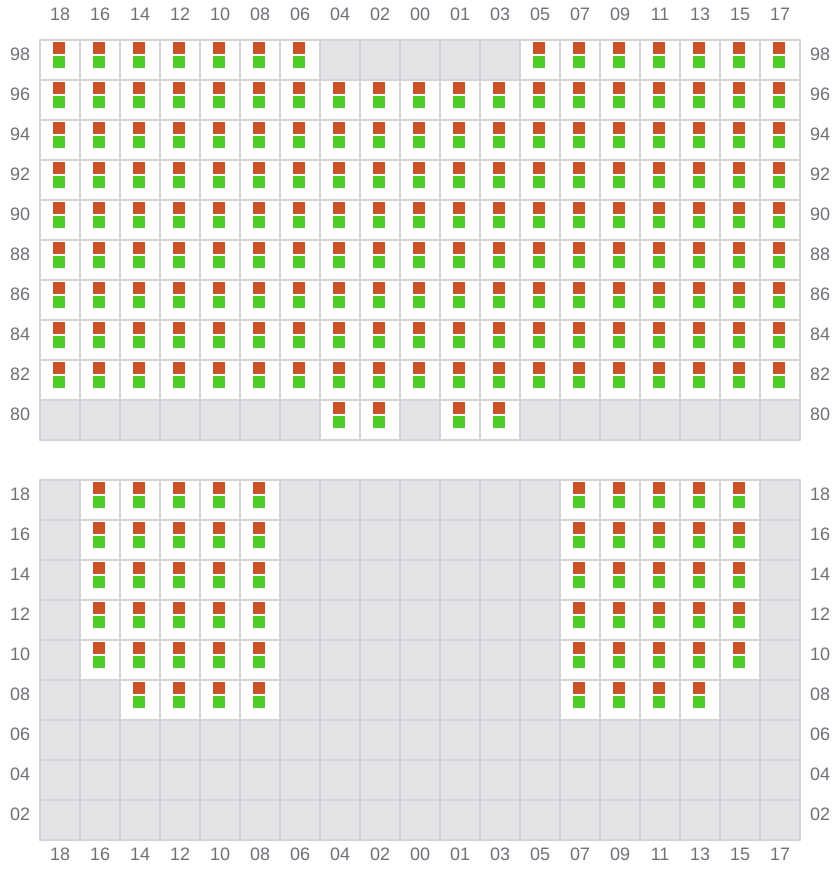

Bay 059 view and slots of MSC NAOMI

061

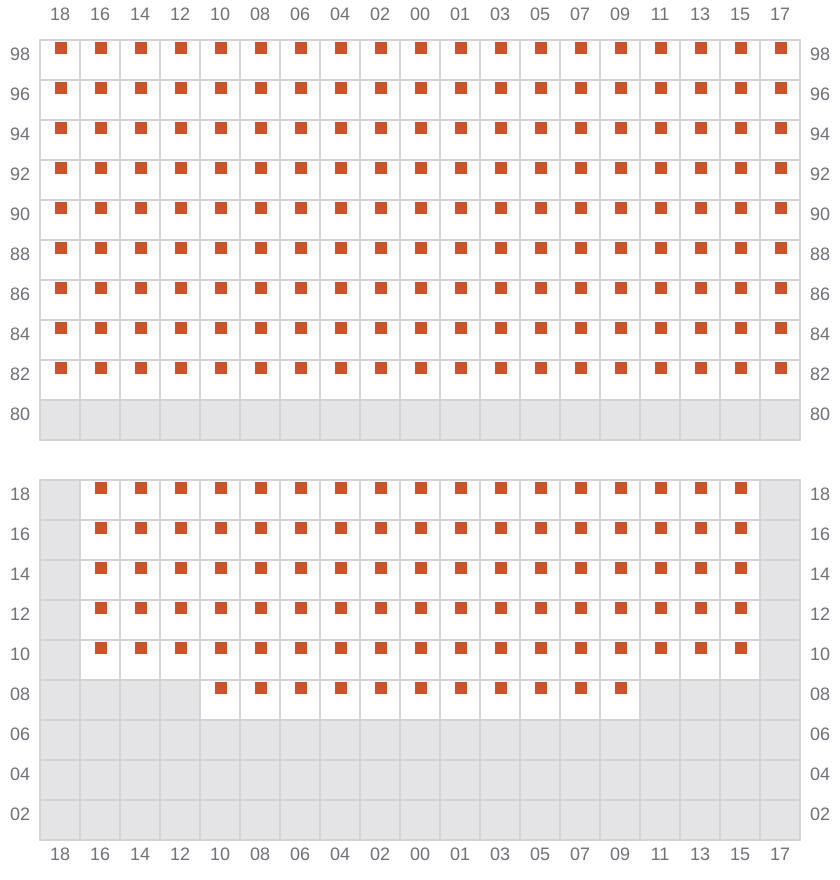

Bay 061 view and slots of MSC NAOMI

063 (062)

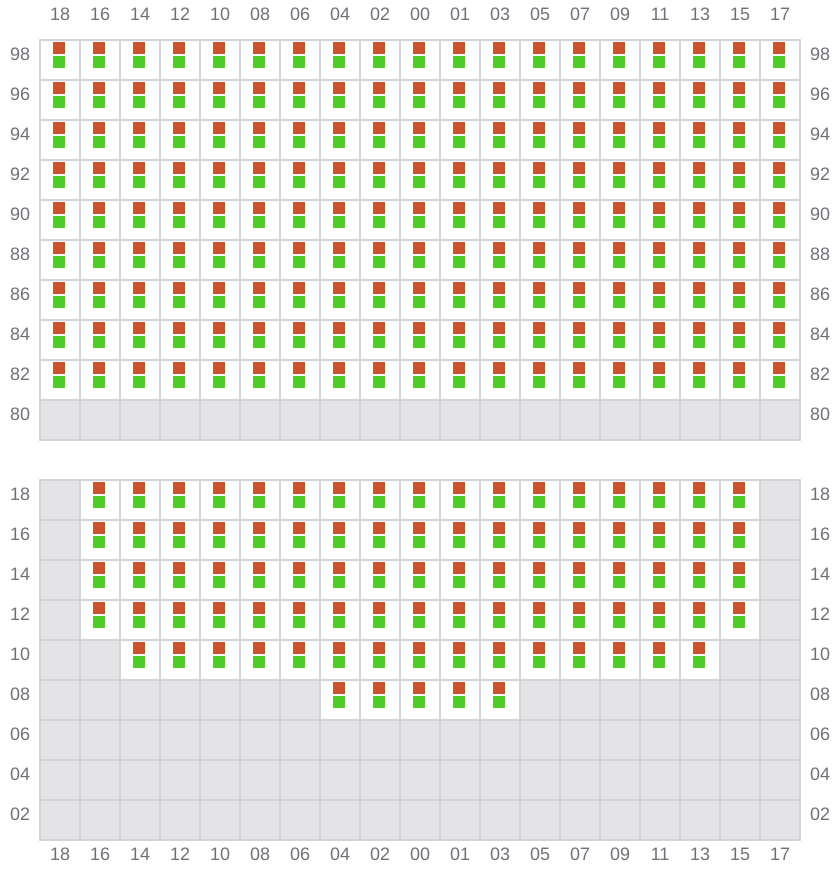

Bay 063 view and slots of MSC NAOMI

065

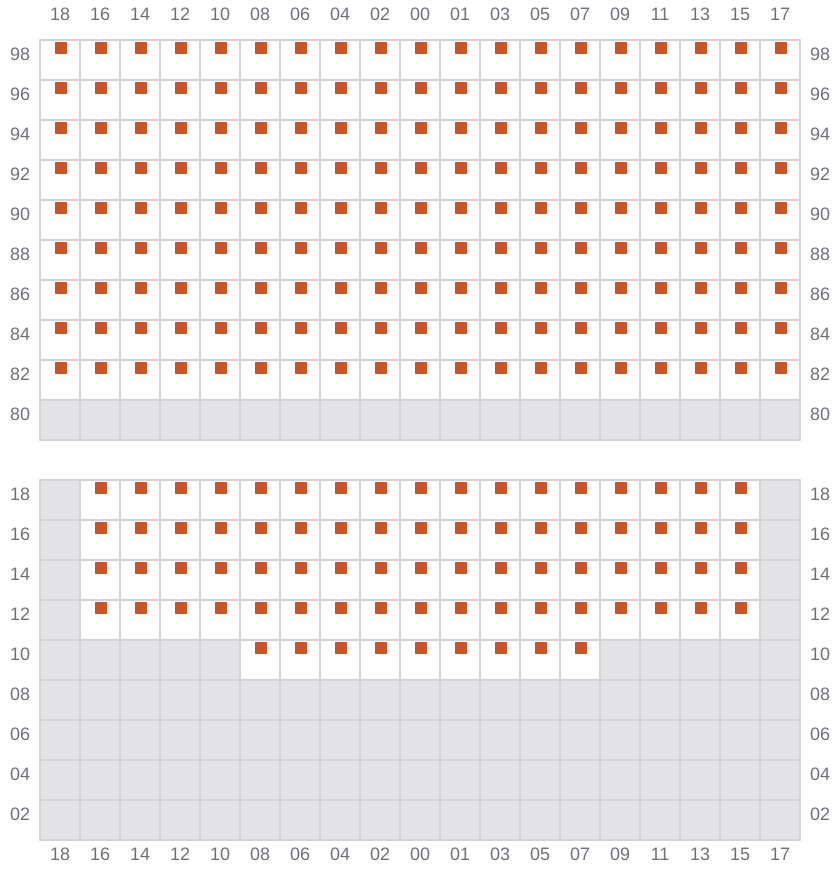

Bay 065 view and slots of MSC NAOMI

067 (066)

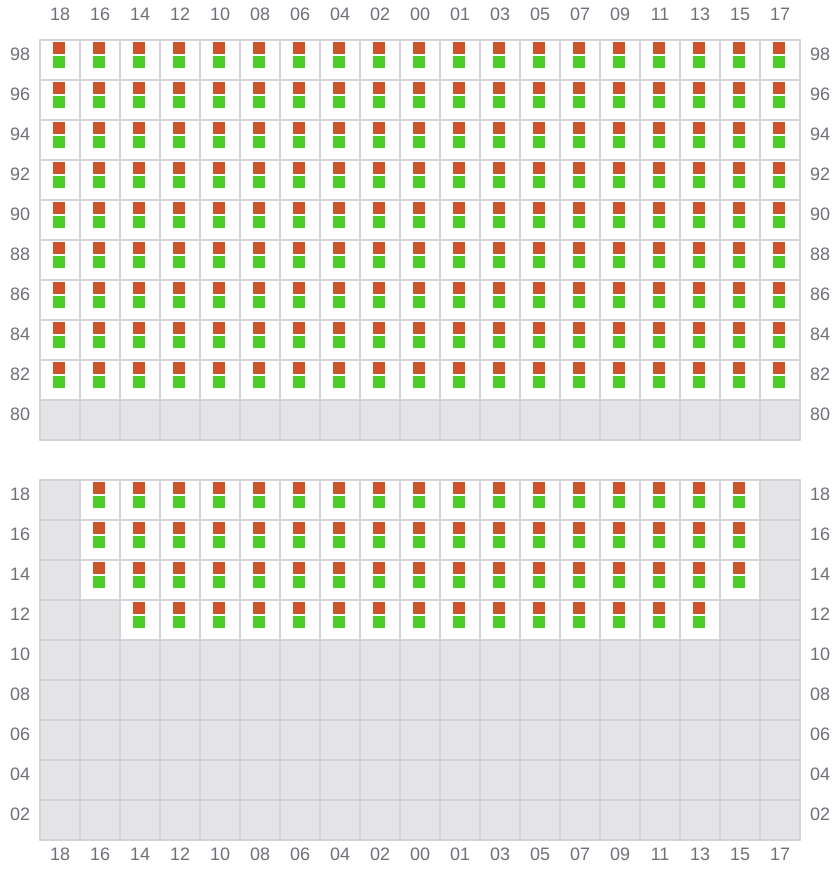

Bay 067 view and slots of MSC NAOMI

069

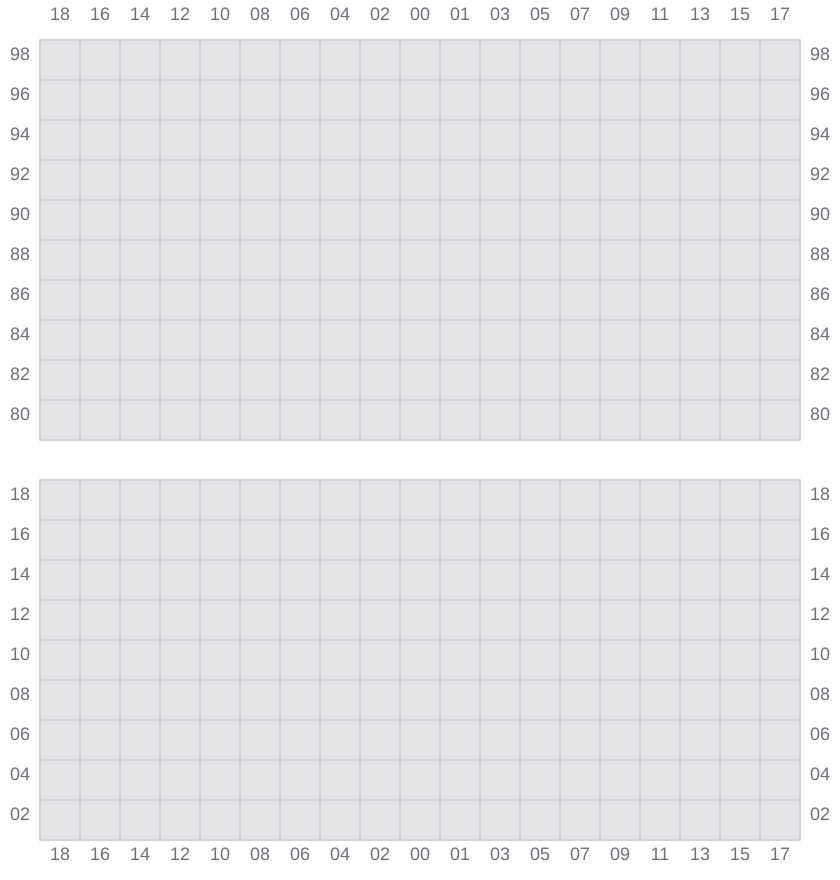

Bay 069 view and slots of MSC NAOMI

071 (070)

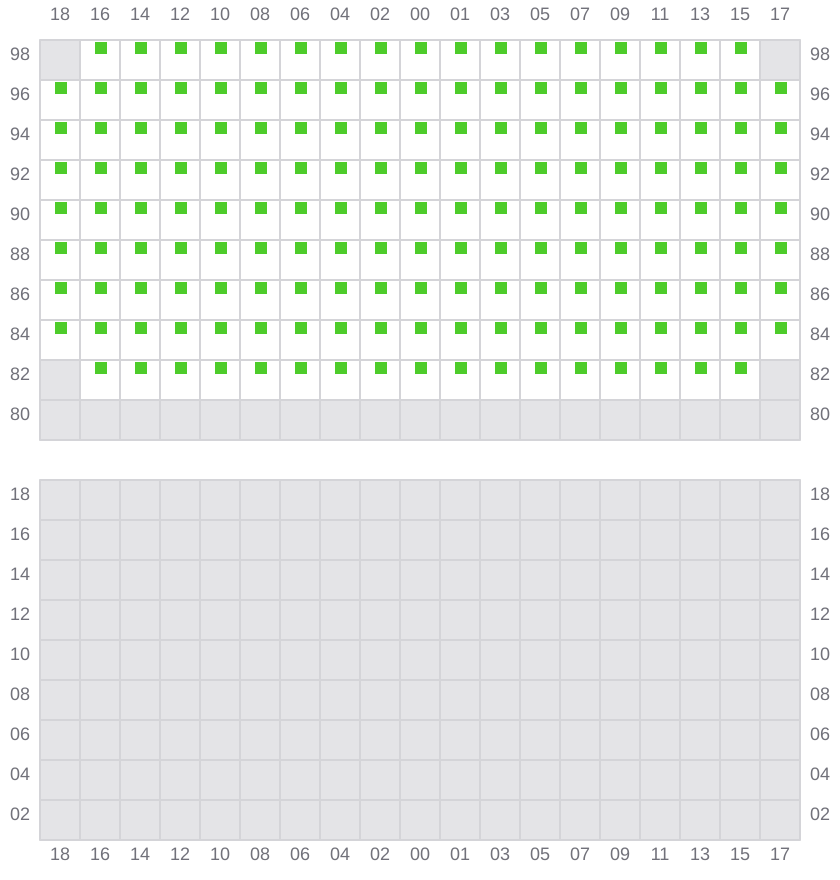

Bay 071 view and slots of MSC NAOMI
