MSC NEW HAVEN
9293777 | CQRI | MSC by ************************** Last update: Thu Jun 22 2023

General Info

Ship Name:MSC NEW HAVEN

IMO Code:9293777

Call Sign:CQRI

Line Operator:MSC

Class Name for Sister Ships:SNH

Year Built:2005

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:079

Max ISO Row:16

Center Line Row:Yes

Max Above ISO Tier:100

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,875

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

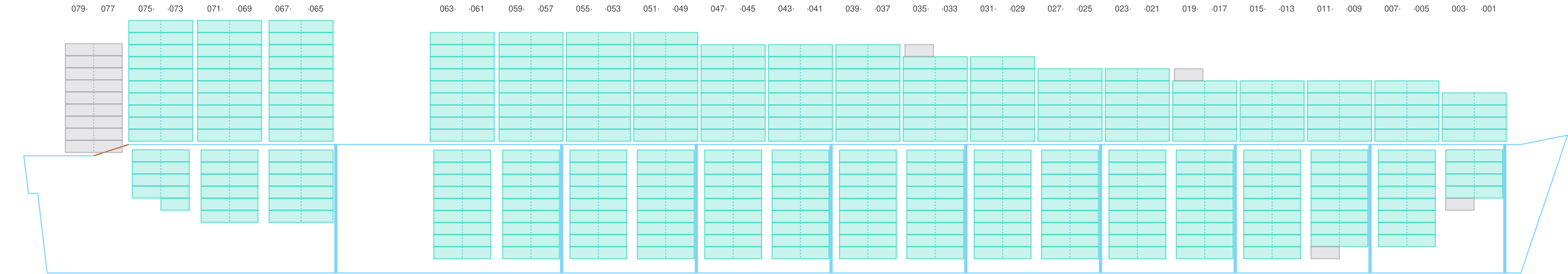

Side view of MSC NEW HAVEN

Hatch-Covers View

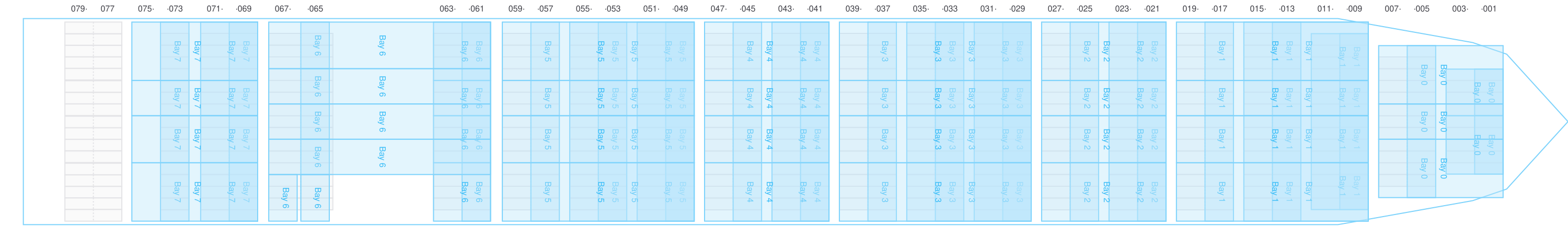

Deck view of MSC NEW HAVEN

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

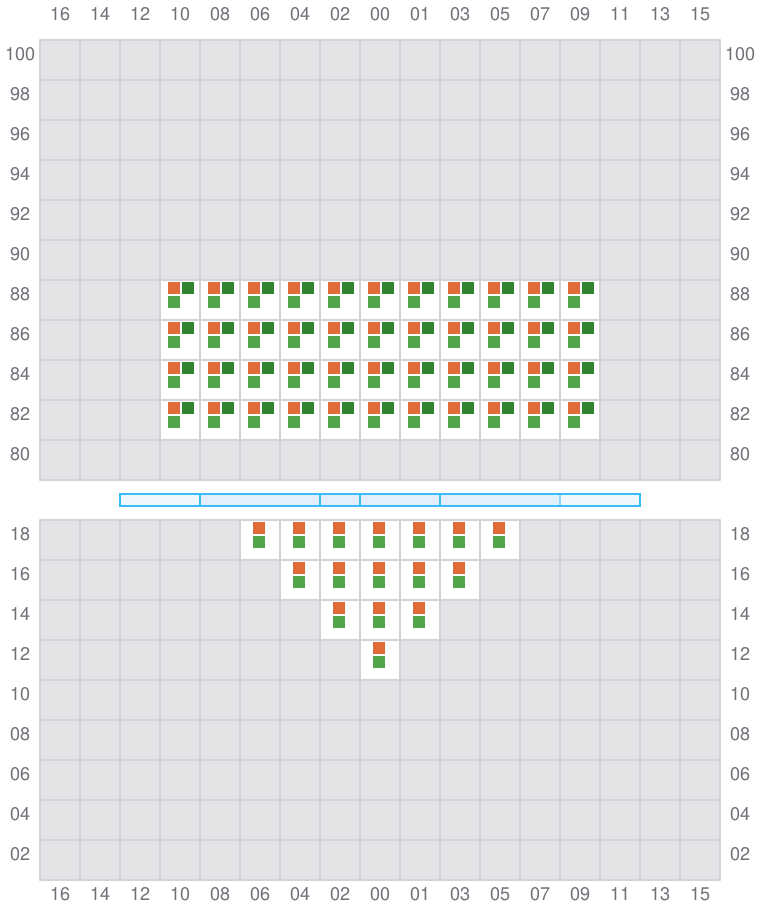

Bay 001 view and slots of MSC NEW HAVEN

003

←

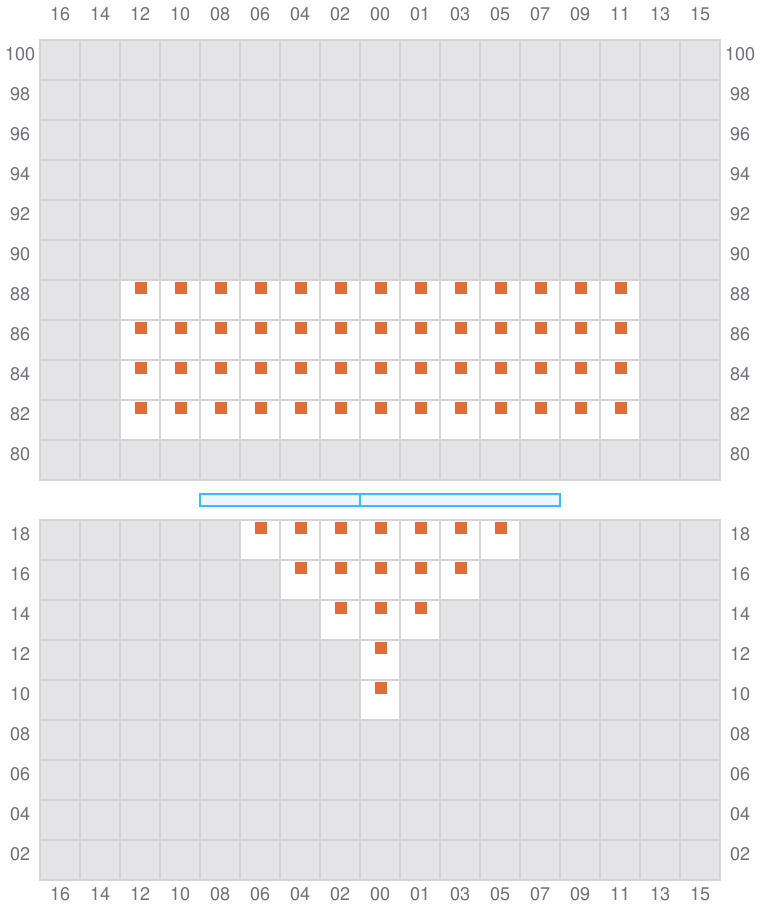

Bay 003 view and slots of MSC NEW HAVEN

005 (006)

→

Bay 005 view and slots of MSC NEW HAVEN

007

←

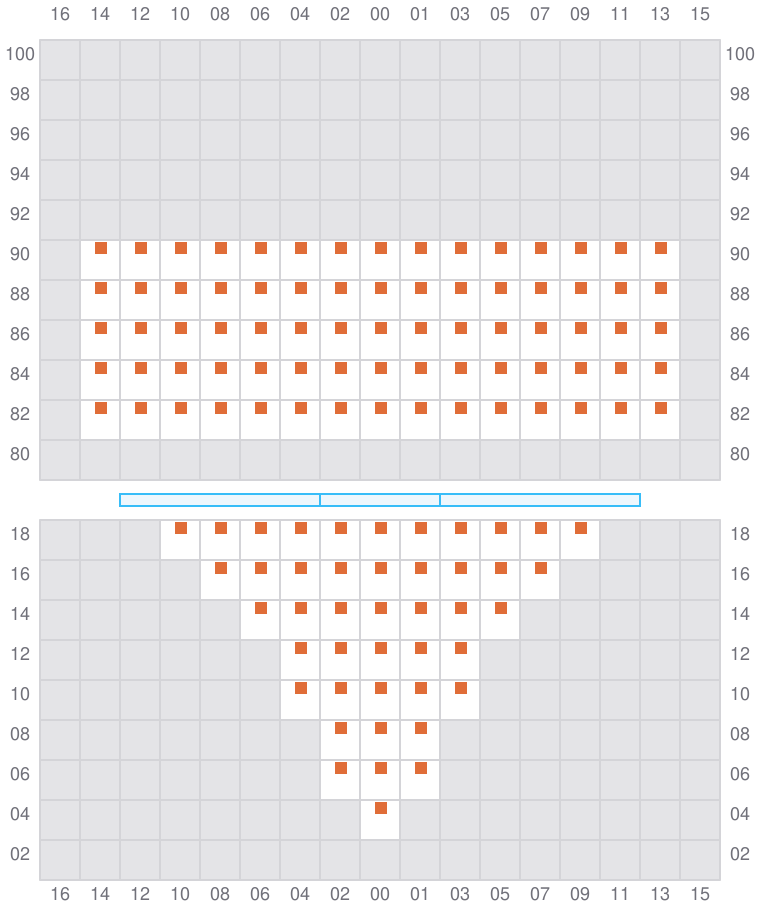

Bay 007 view and slots of MSC NEW HAVEN

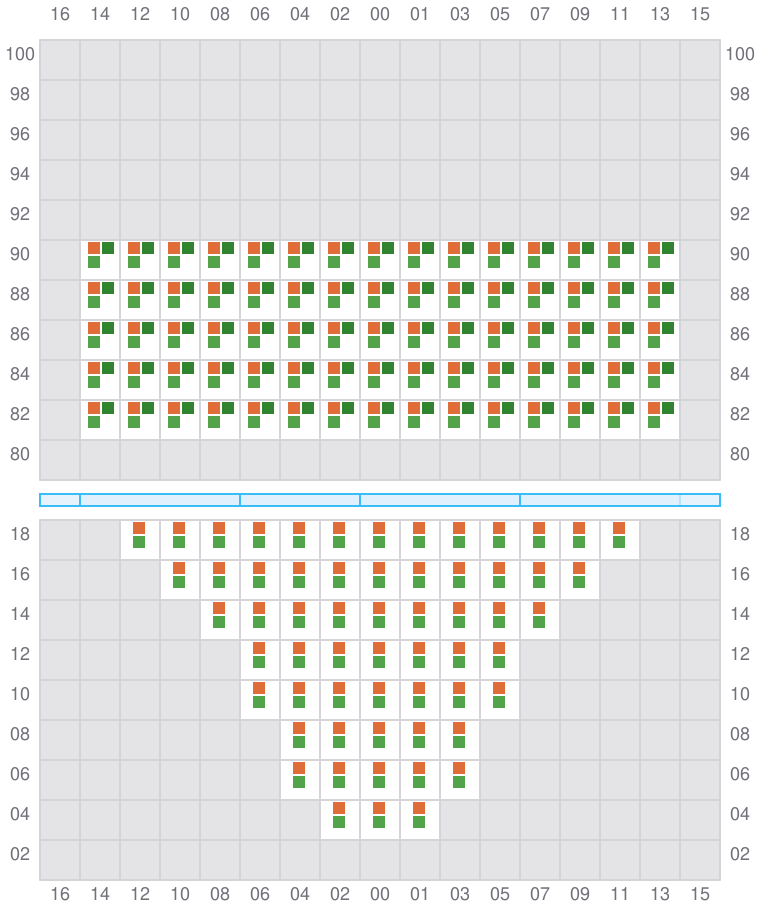

009 (010)

→

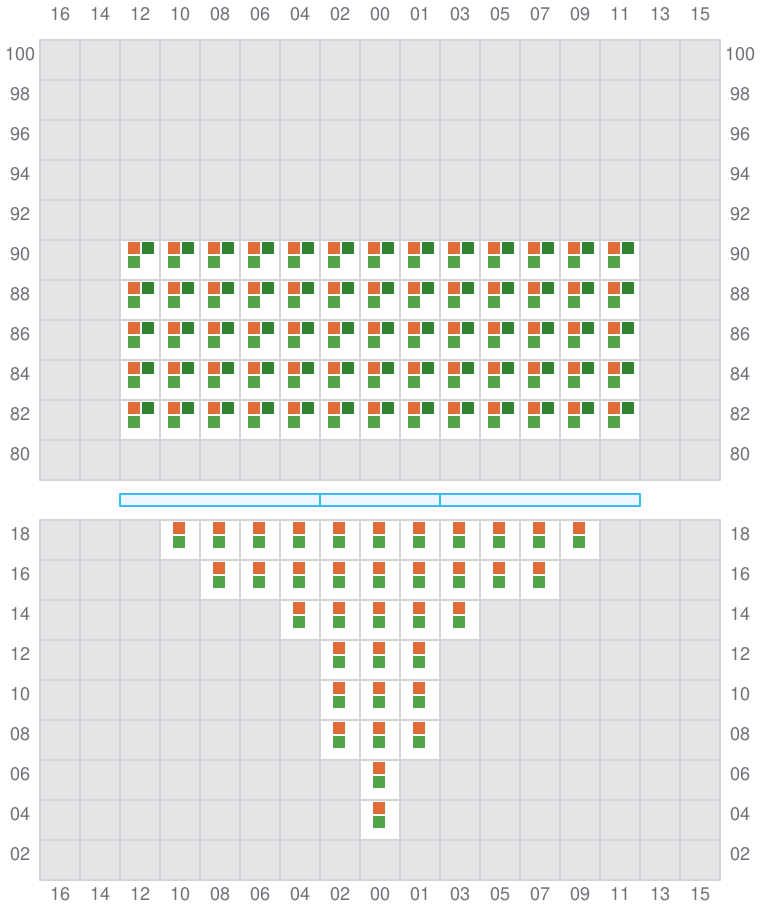

Bay 009 view and slots of MSC NEW HAVEN

011

←

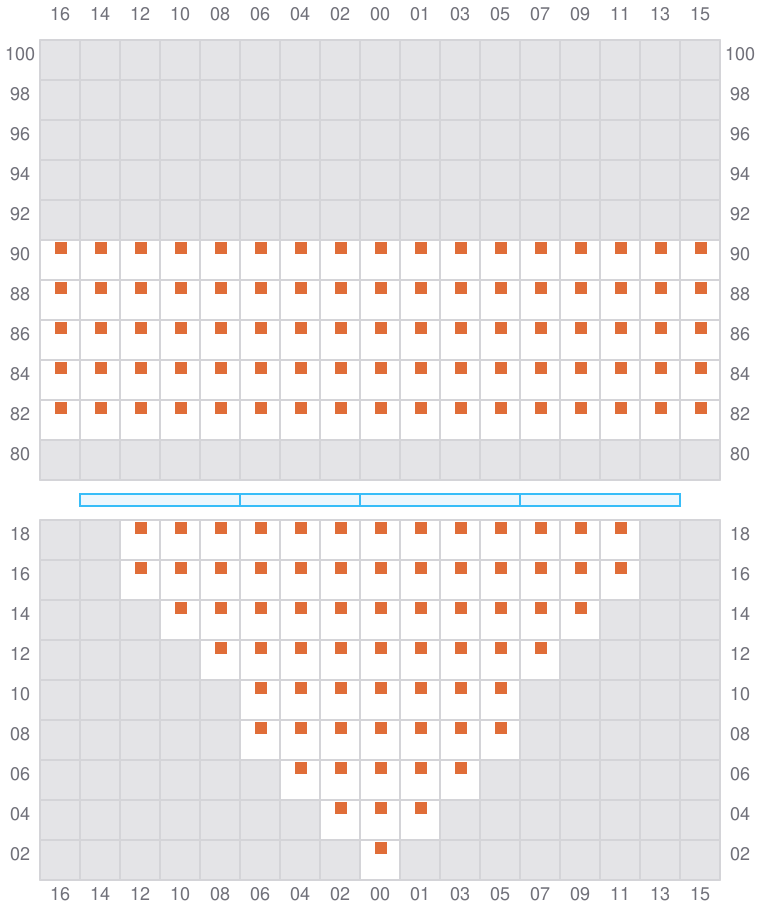

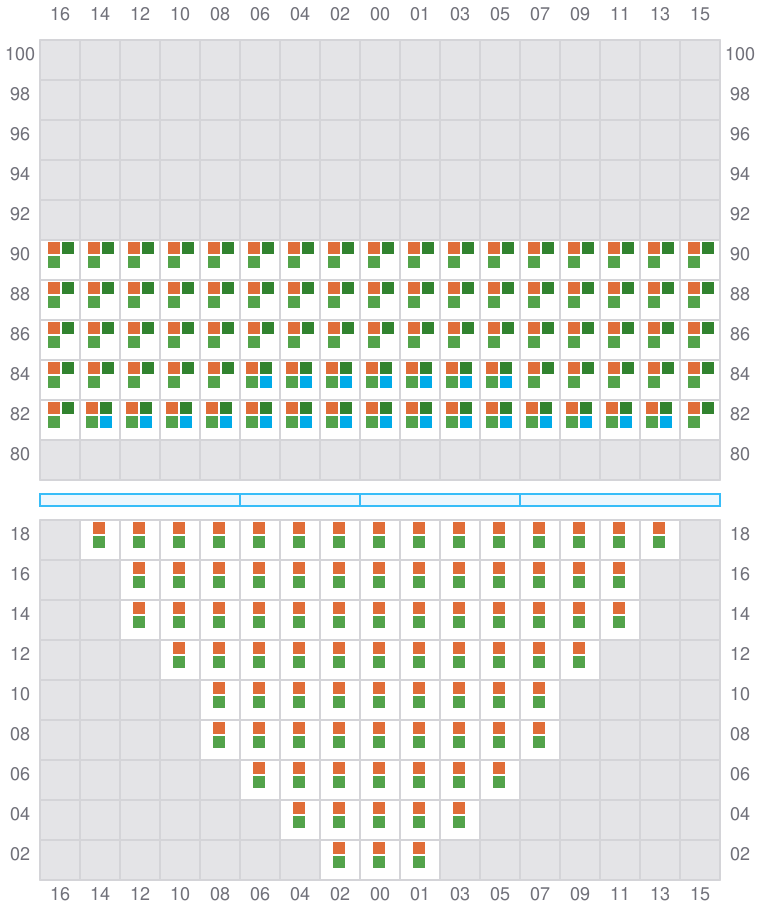

Bay 011 view and slots of MSC NEW HAVEN

013 (014)

→

Bay 013 view and slots of MSC NEW HAVEN

015

←

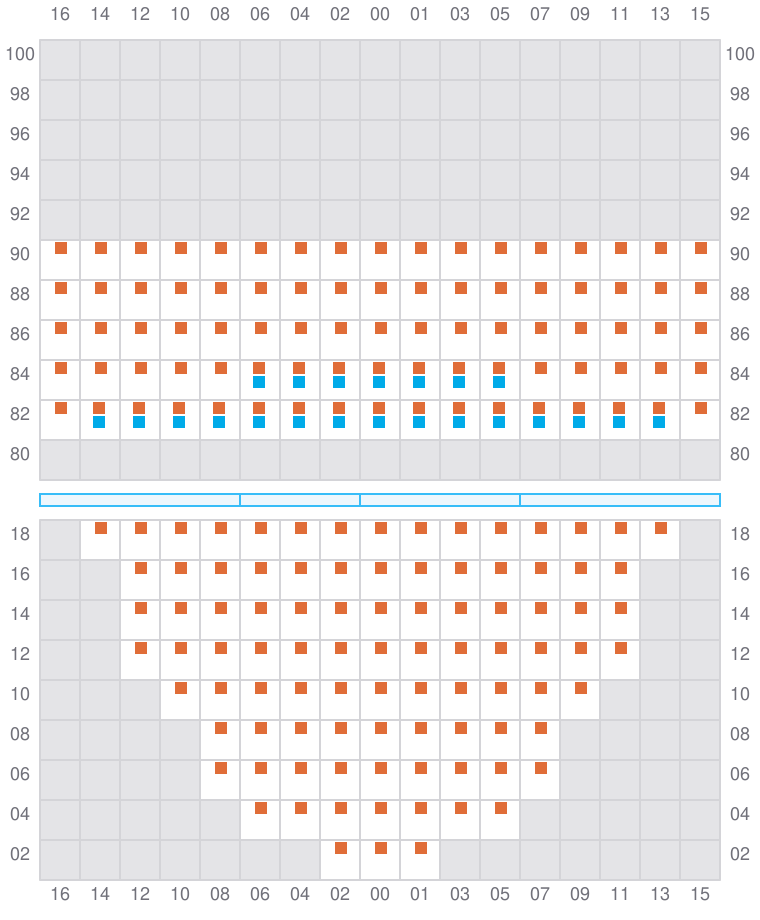

Bay 015 view and slots of MSC NEW HAVEN

017 (018)

→

Bay 017 view and slots of MSC NEW HAVEN

019

←

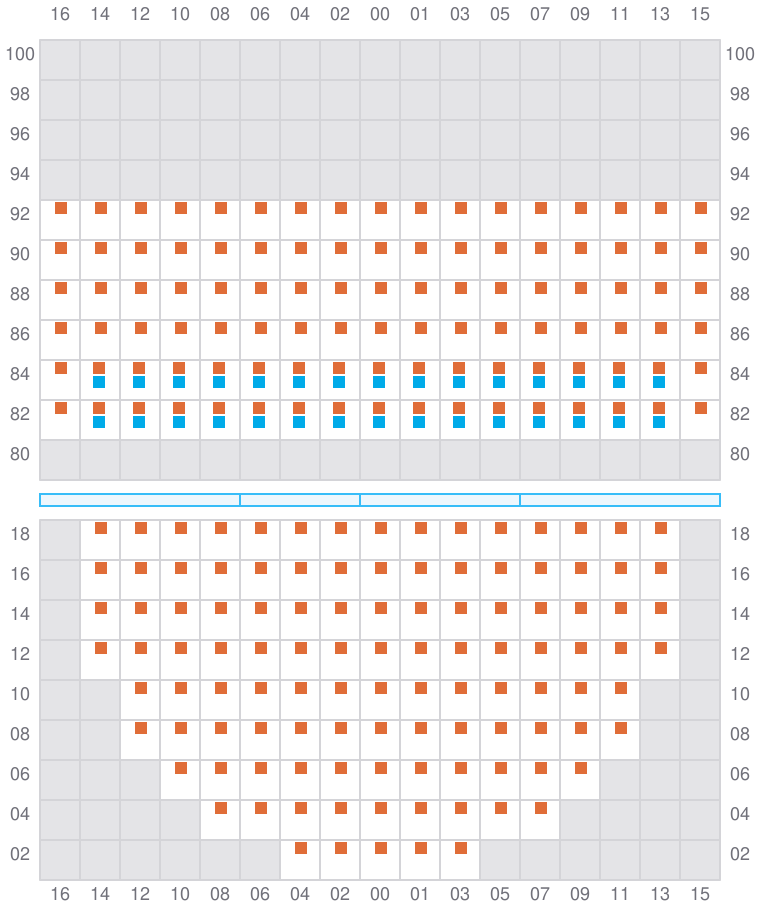

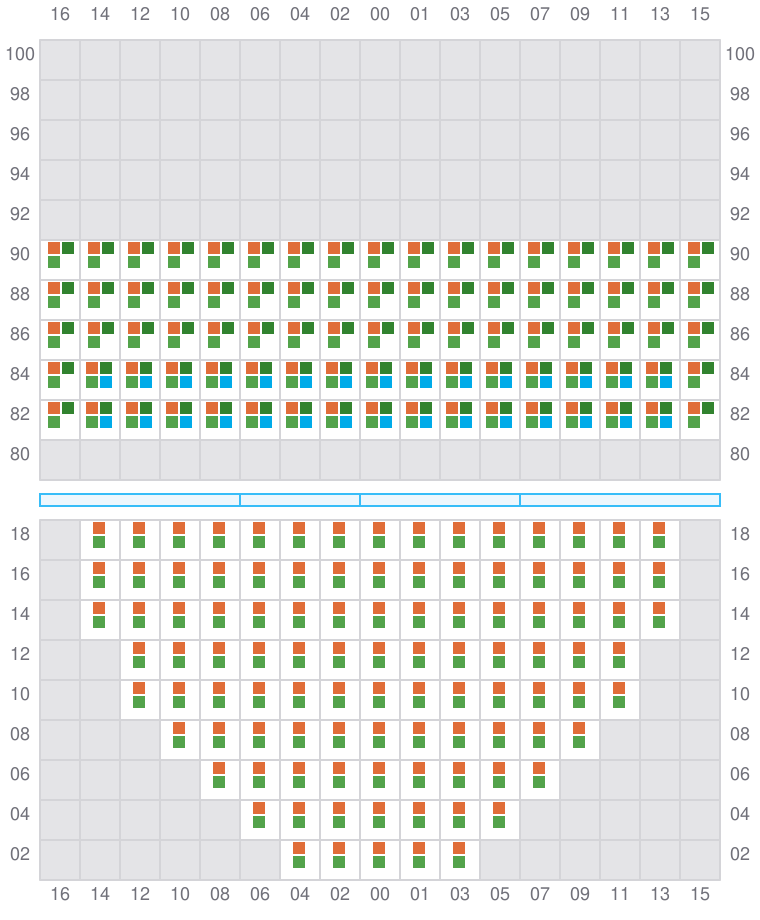

Bay 019 view and slots of MSC NEW HAVEN

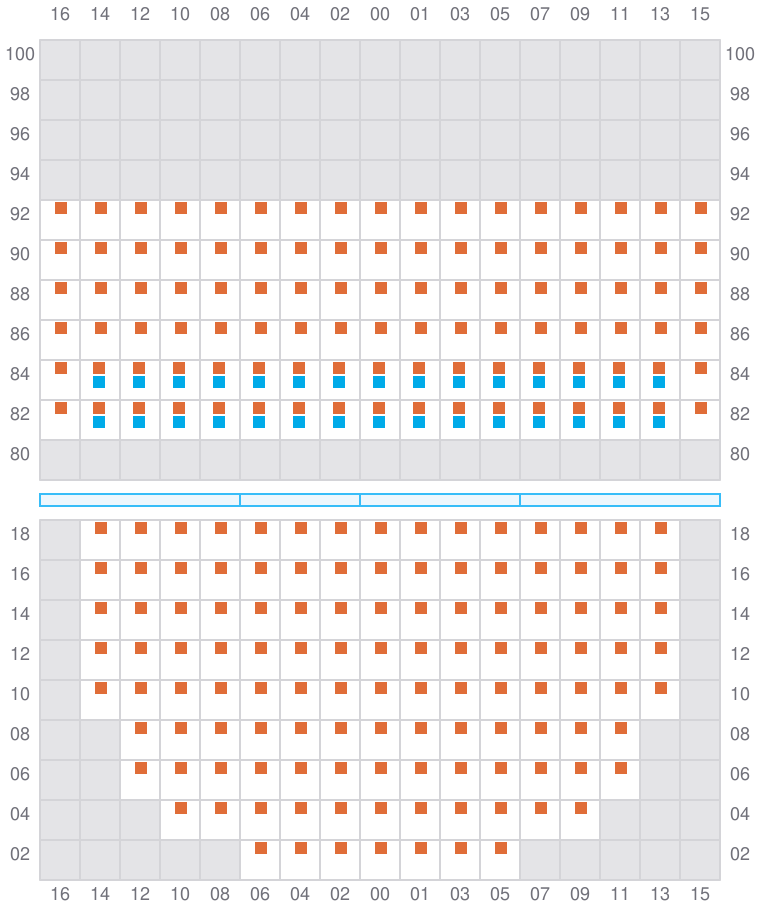

021 (022)

→

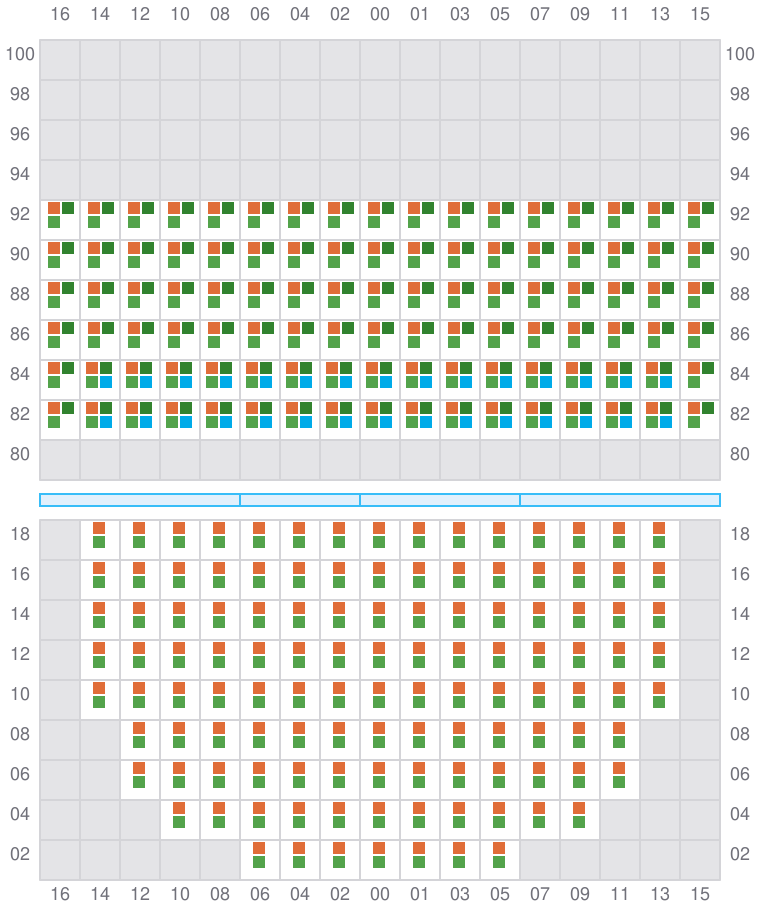

Bay 021 view and slots of MSC NEW HAVEN

023

←

Bay 023 view and slots of MSC NEW HAVEN

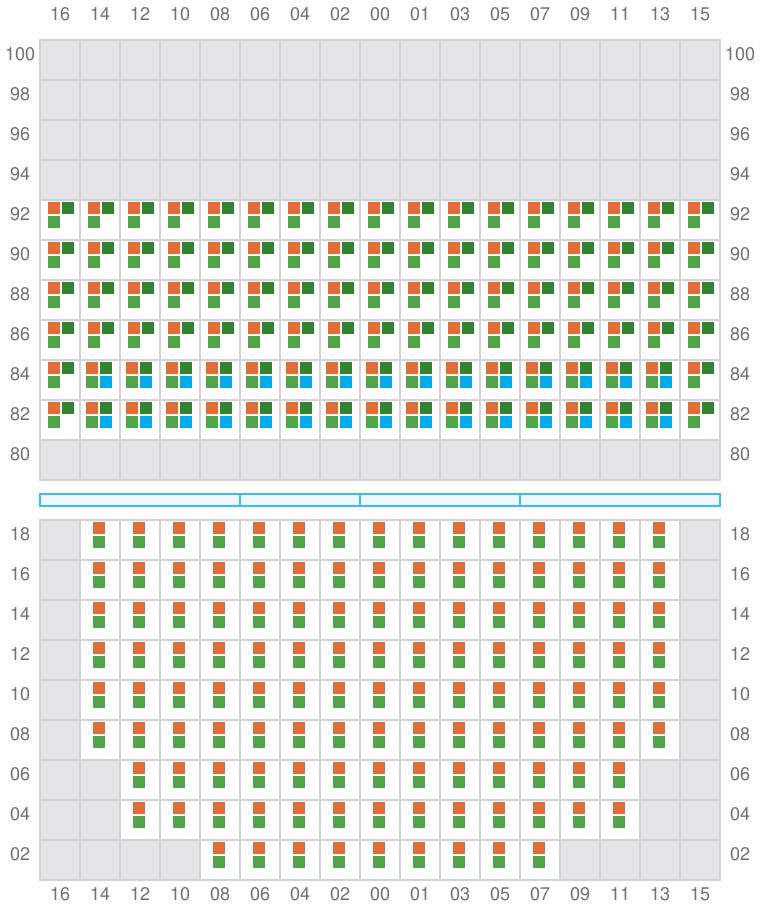

025 (026)

→

Bay 025 view and slots of MSC NEW HAVEN

027

←

Bay 027 view and slots of MSC NEW HAVEN

029 (030)

→

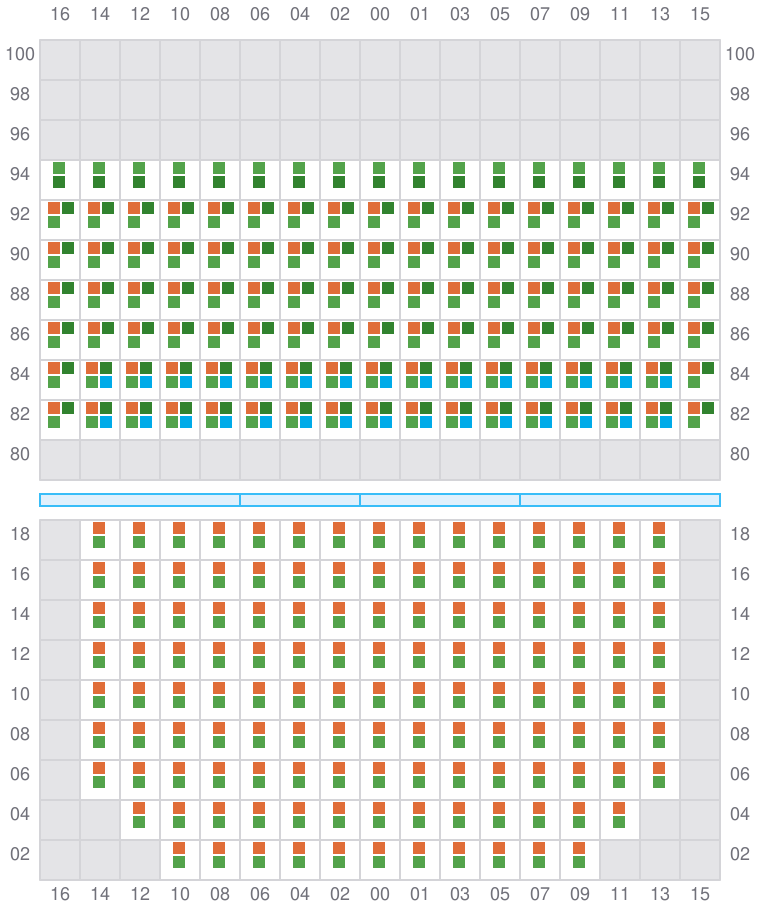

Bay 029 view and slots of MSC NEW HAVEN

031

←

Bay 031 view and slots of MSC NEW HAVEN

033 (034)

→

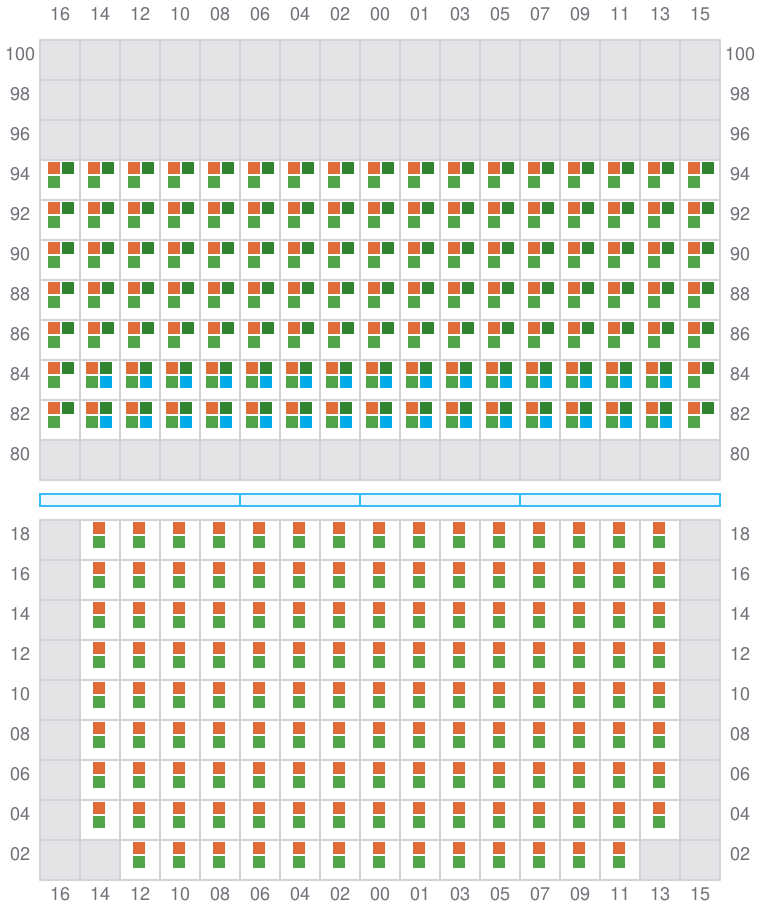

Bay 033 view and slots of MSC NEW HAVEN

035

←

Bay 035 view and slots of MSC NEW HAVEN

037 (038)

→

Bay 037 view and slots of MSC NEW HAVEN

039

←

Bay 039 view and slots of MSC NEW HAVEN

041 (042)

→

Bay 041 view and slots of MSC NEW HAVEN

043

←

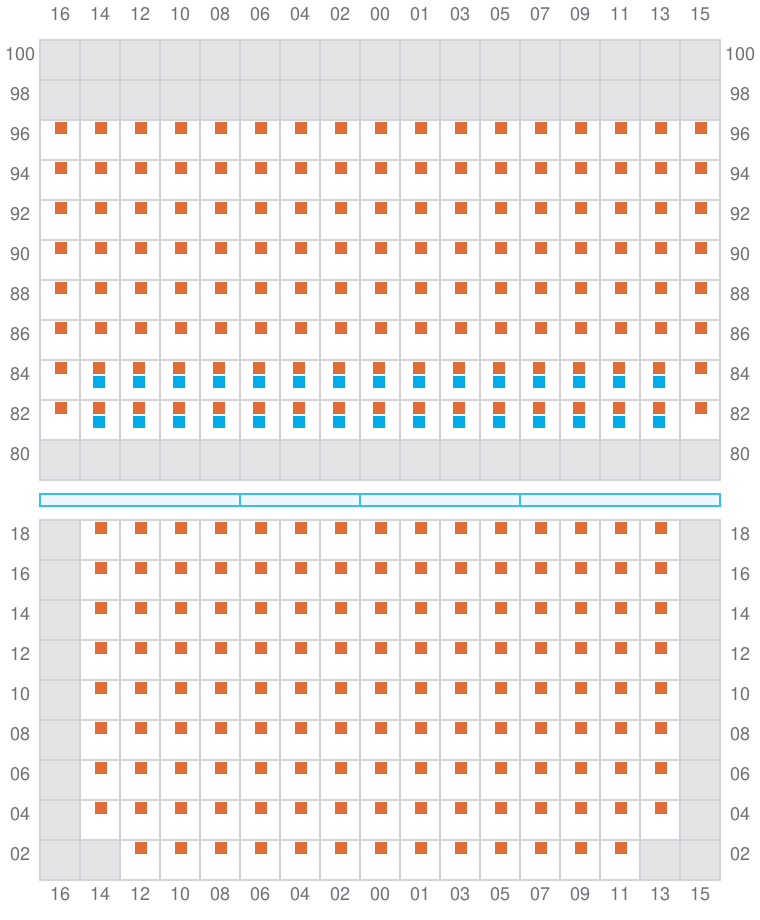

Bay 043 view and slots of MSC NEW HAVEN

045 (046)

→

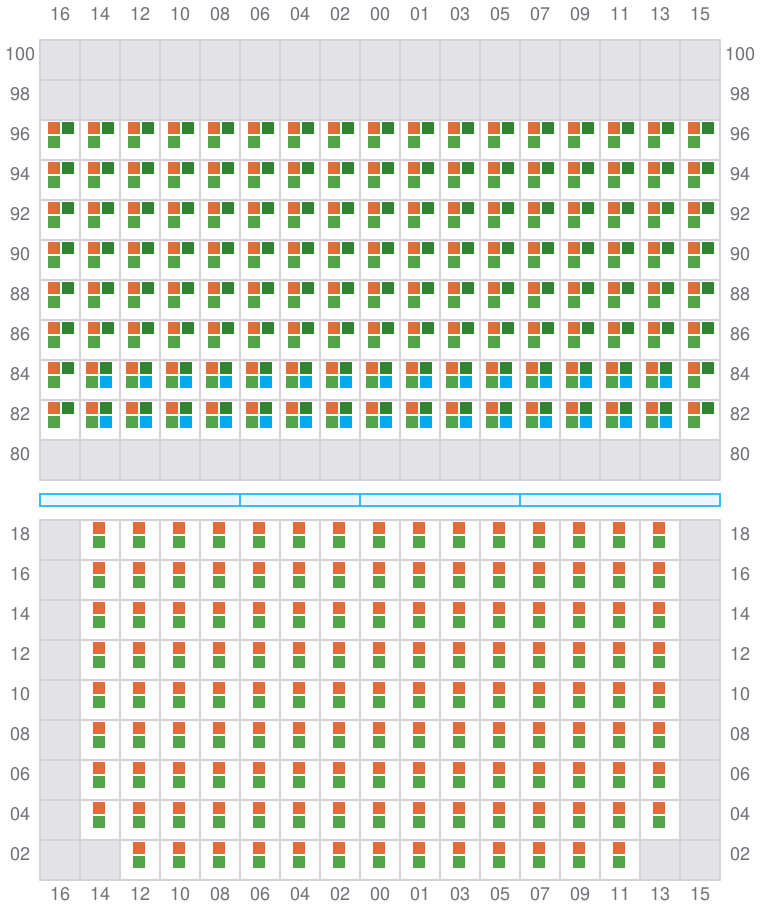

Bay 045 view and slots of MSC NEW HAVEN

047

←

Bay 047 view and slots of MSC NEW HAVEN

049 (050)

→

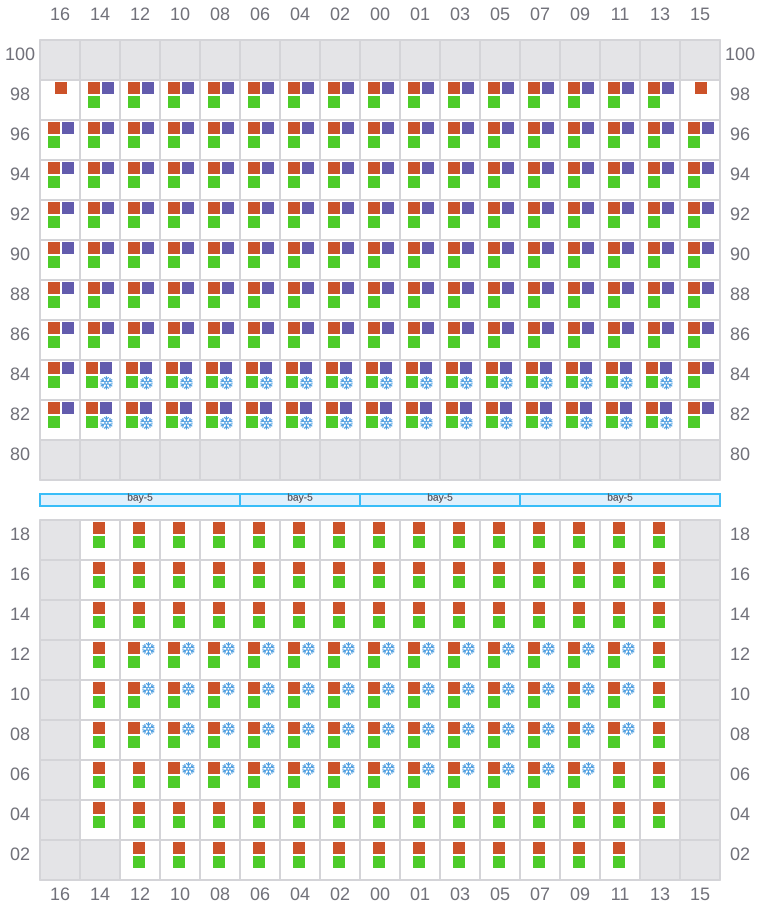

Bay 049 view and slots of MSC NEW HAVEN

051

←

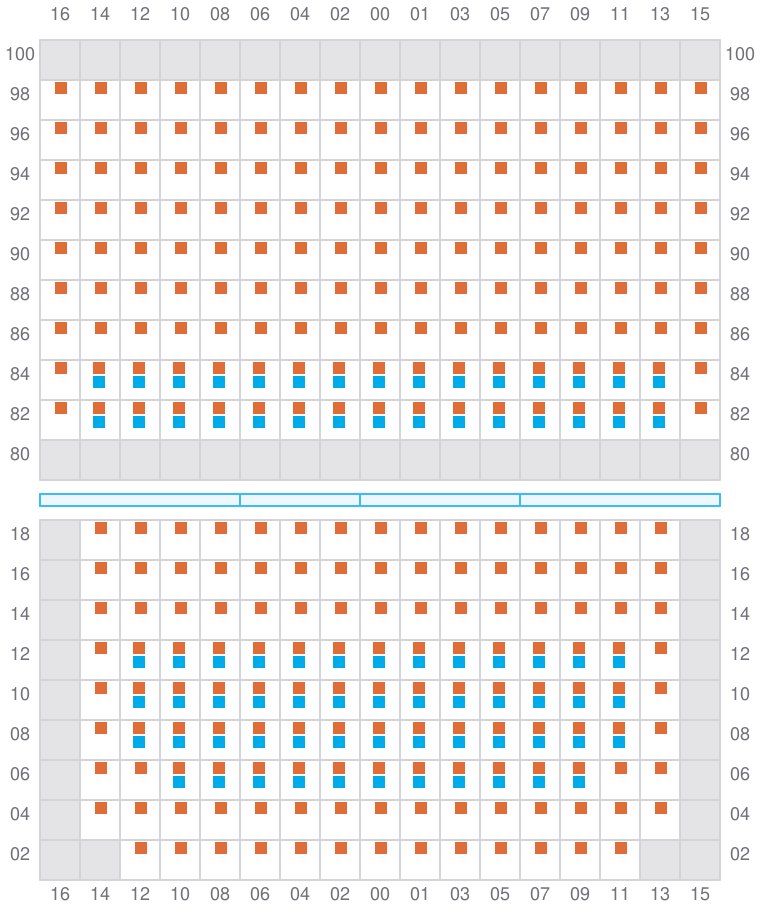

Bay 051 view and slots of MSC NEW HAVEN

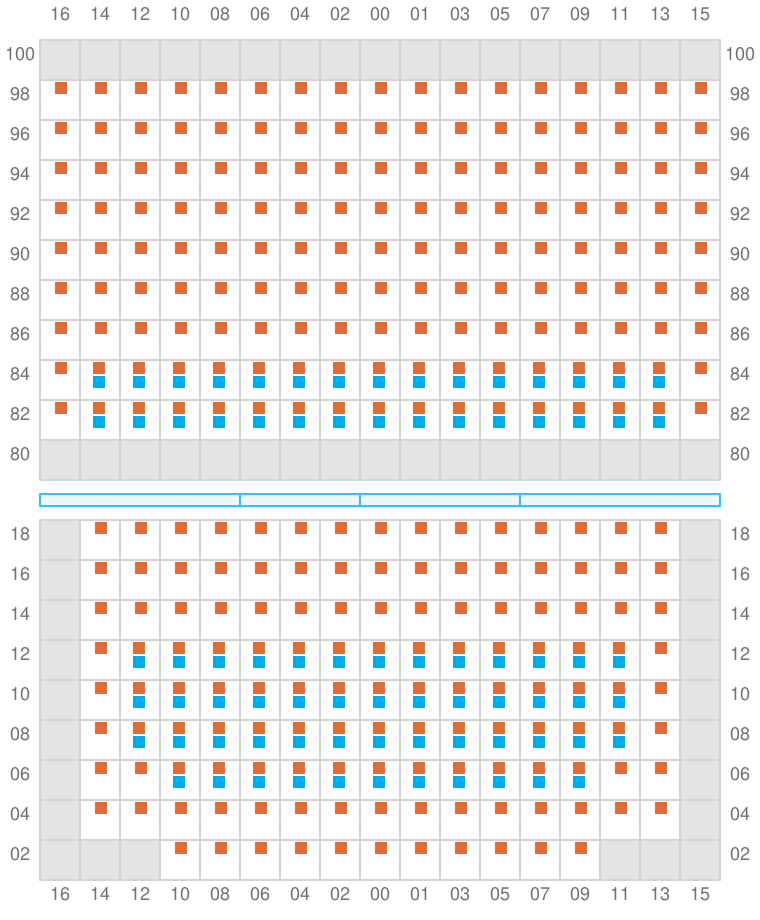

053 (054)

→

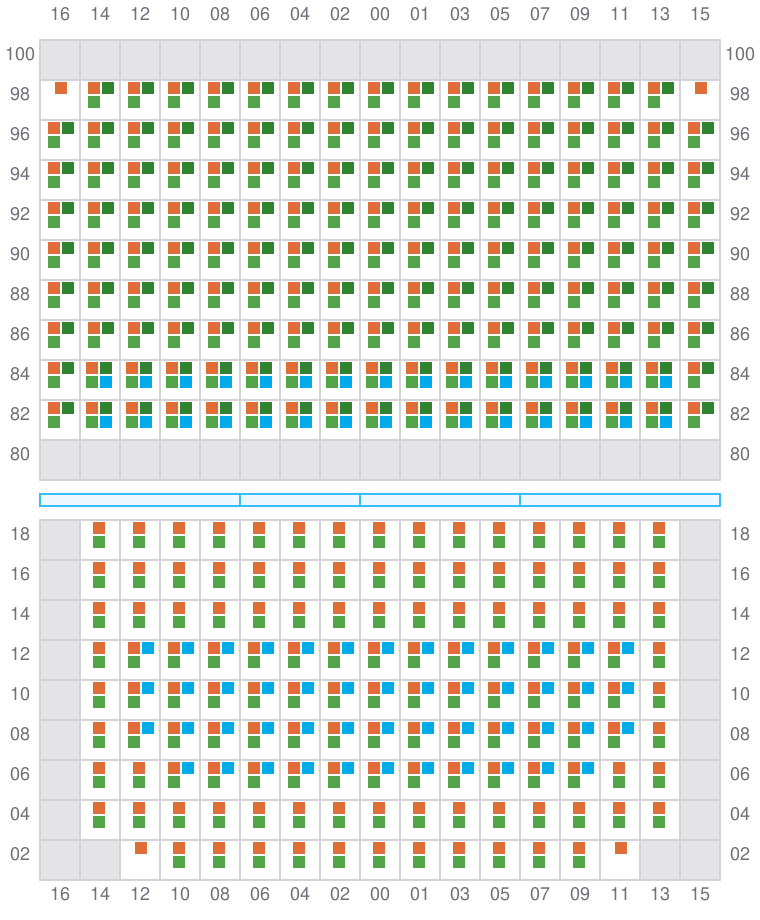

Bay 053 view and slots of MSC NEW HAVEN

055

←

Bay 055 view and slots of MSC NEW HAVEN

057 (058)

→

Bay 057 view and slots of MSC NEW HAVEN

059

←

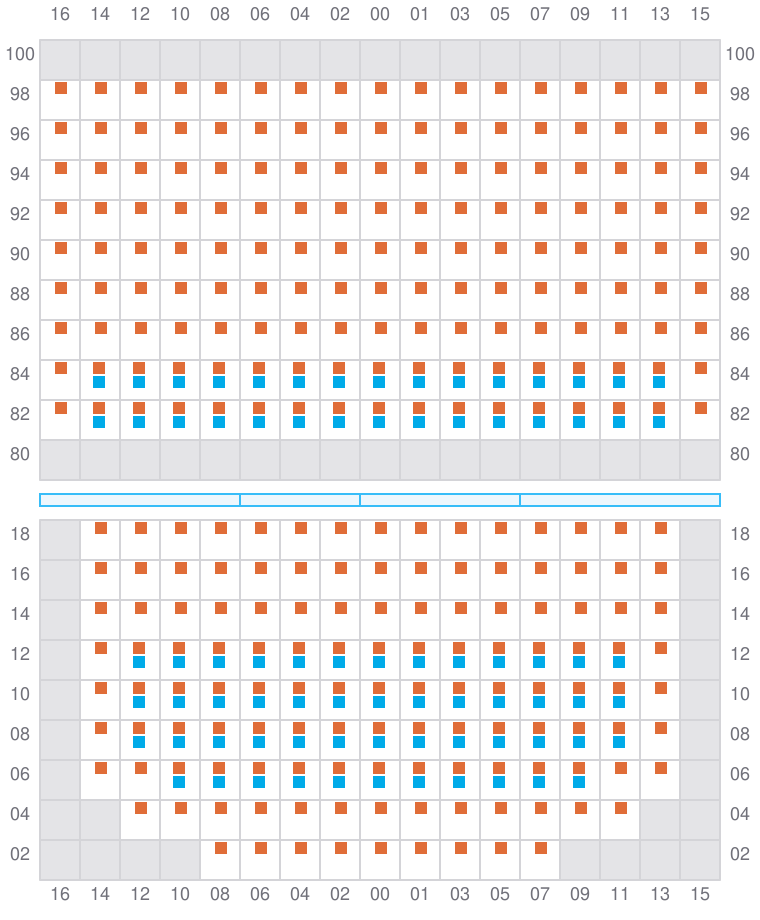

Bay 059 view and slots of MSC NEW HAVEN

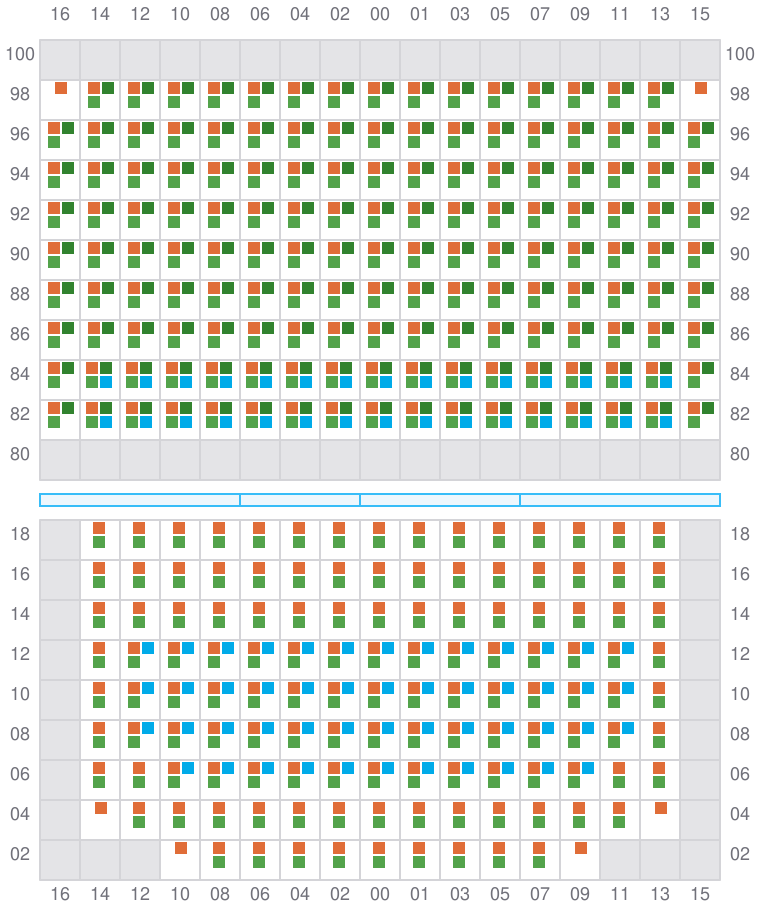

061 (062)

→

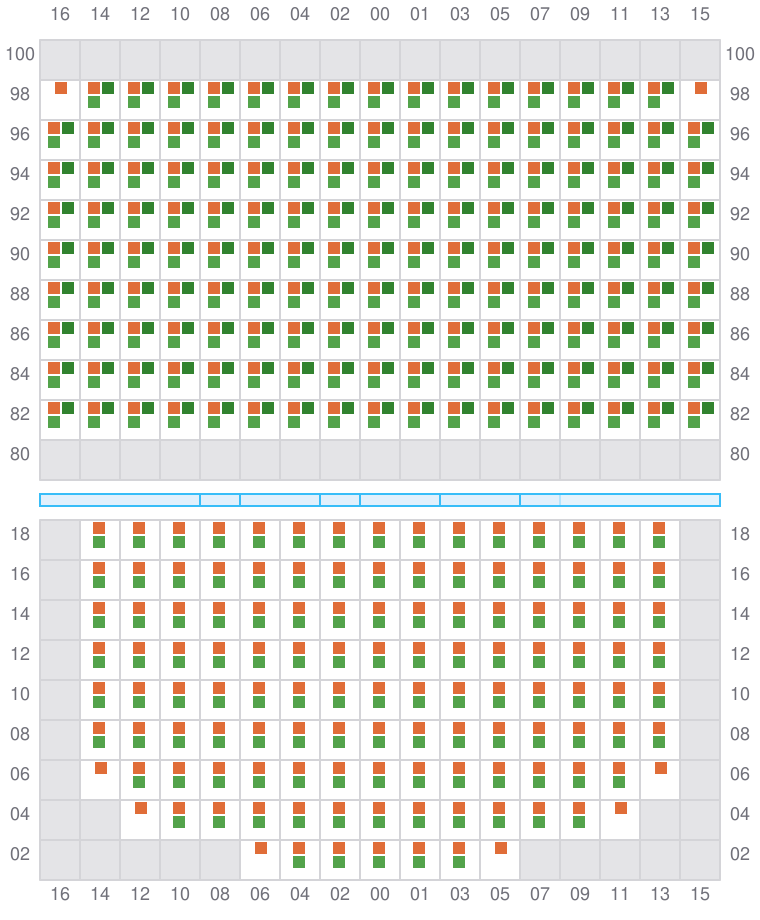

Bay 061 view and slots of MSC NEW HAVEN

063

←

Bay 063 view and slots of MSC NEW HAVEN

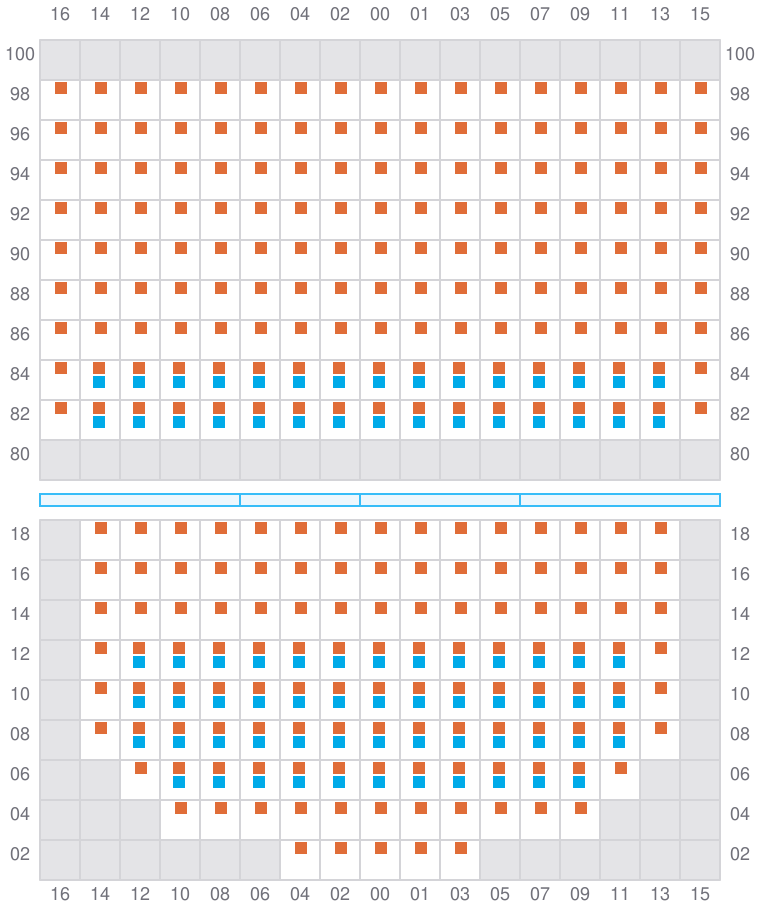

065 (066)

→

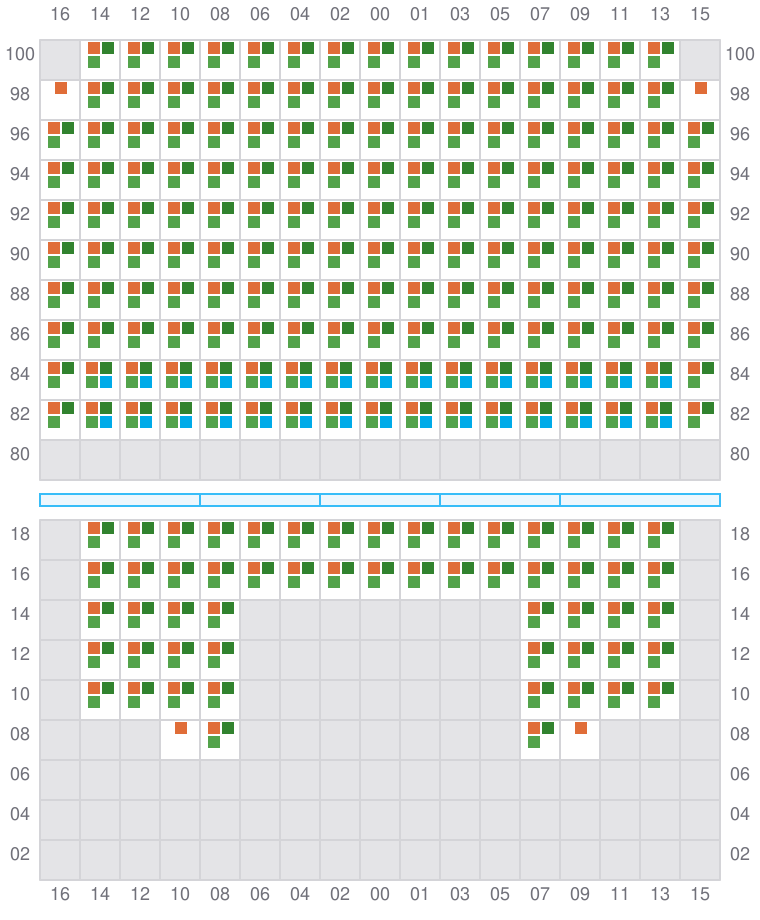

Bay 065 view and slots of MSC NEW HAVEN

067

←

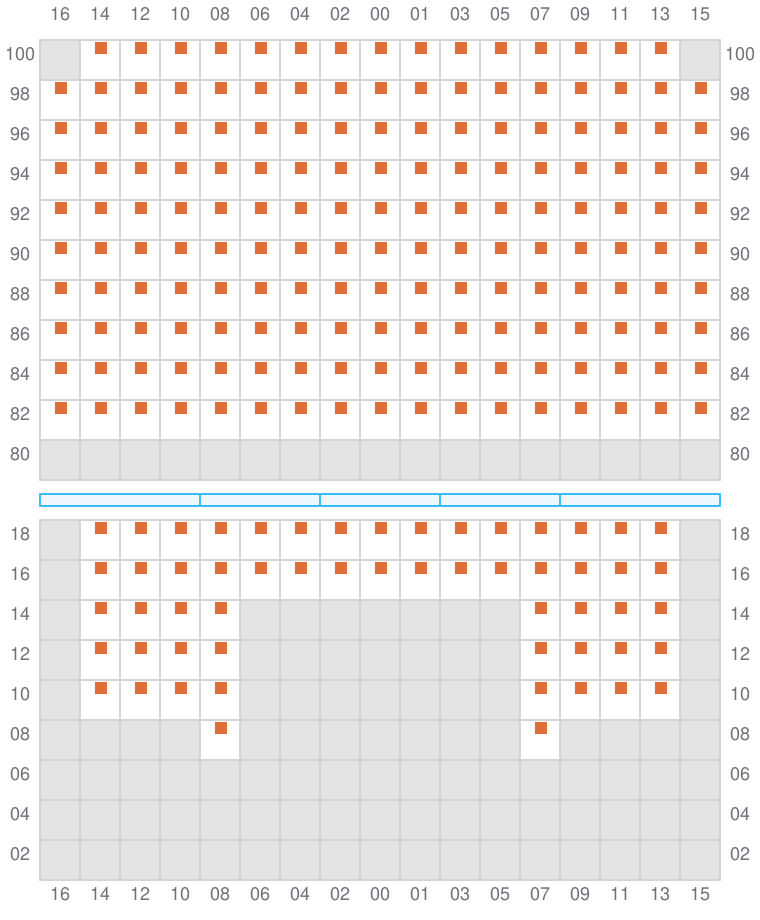

Bay 067 view and slots of MSC NEW HAVEN

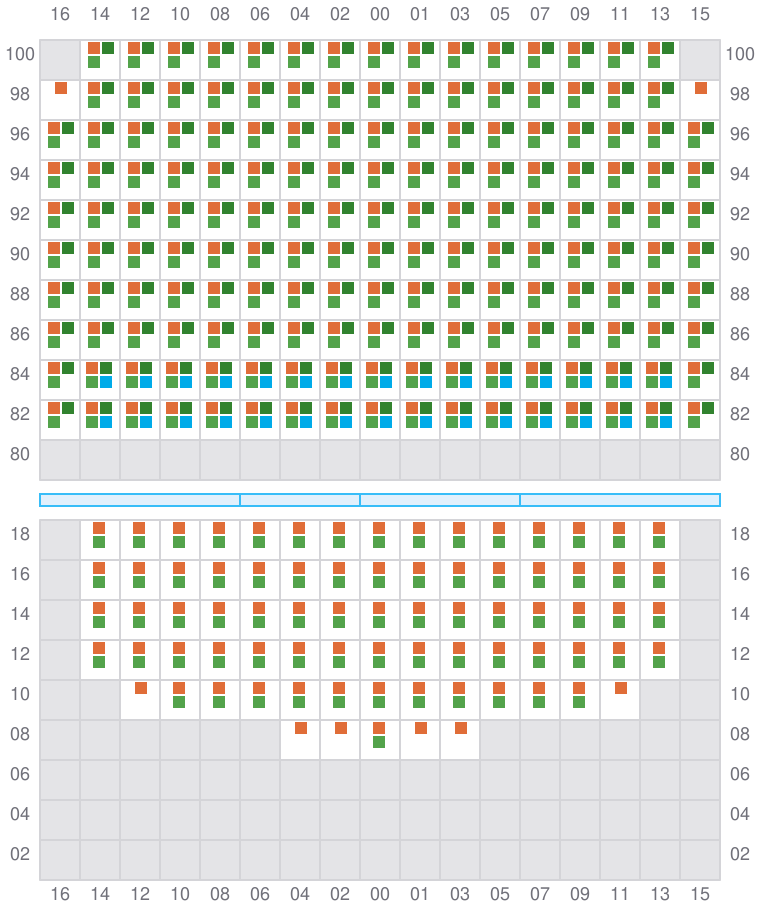

069 (070)

→

Bay 069 view and slots of MSC NEW HAVEN

071

←

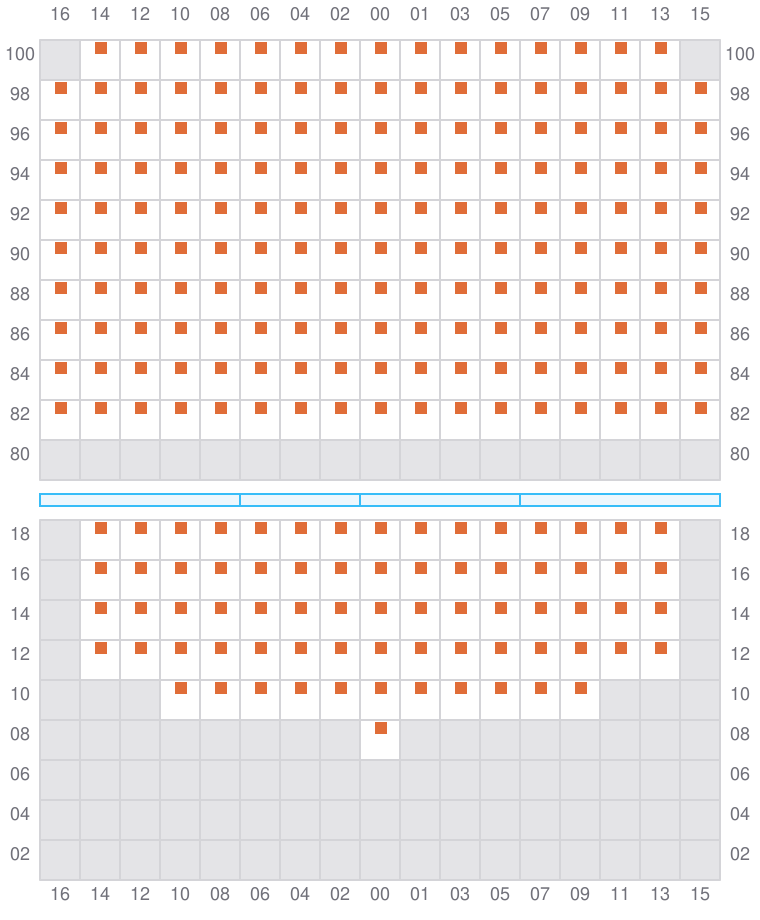

Bay 071 view and slots of MSC NEW HAVEN

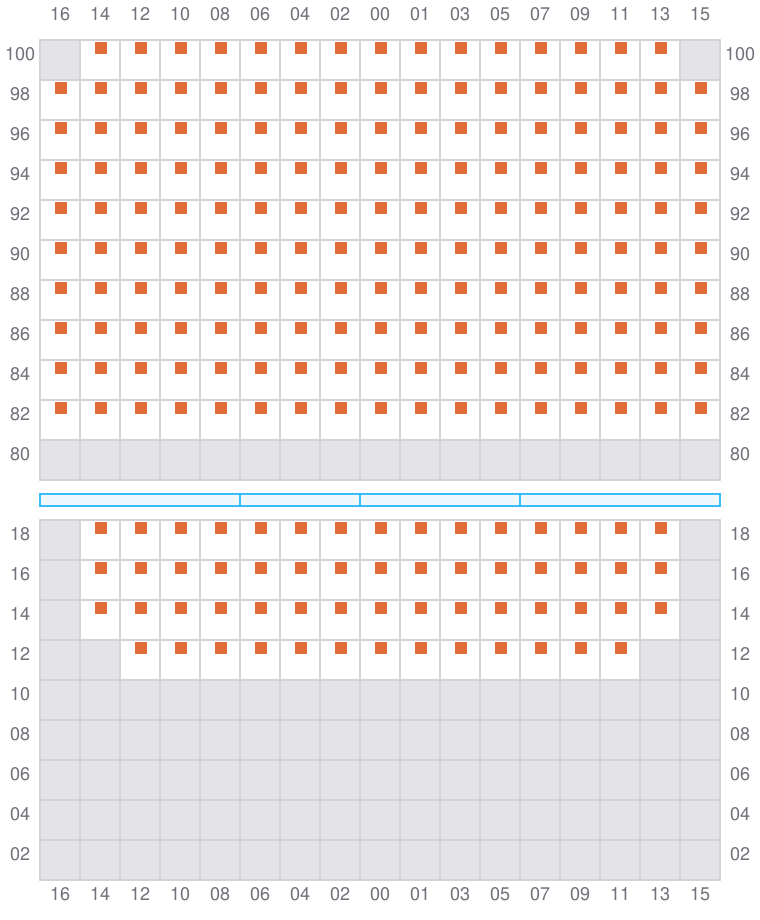

073 (074)

→

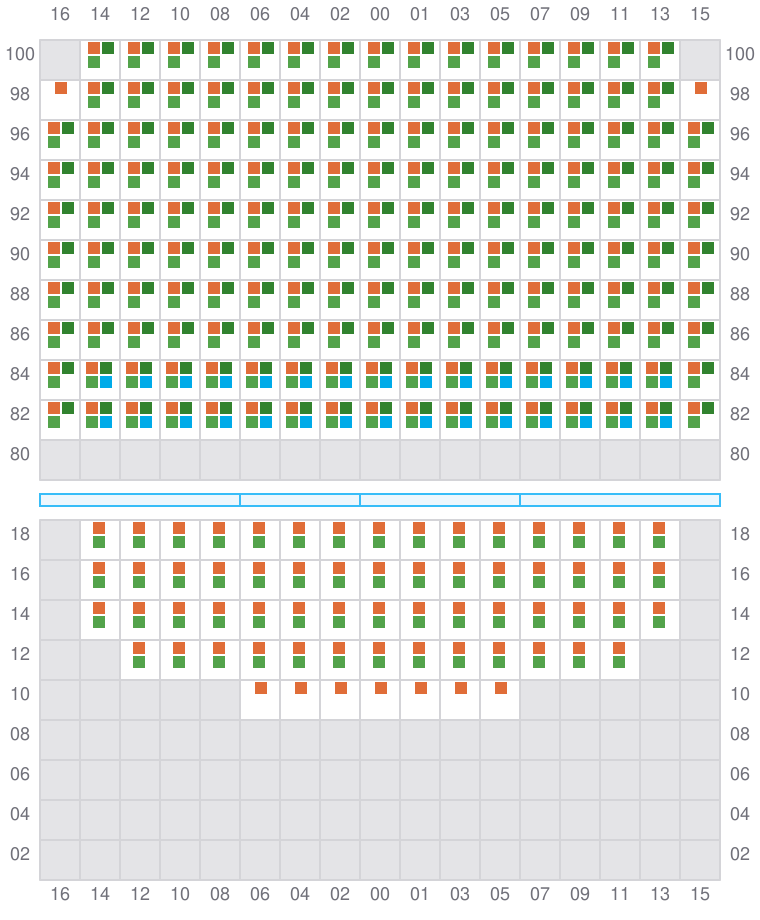

Bay 073 view and slots of MSC NEW HAVEN

075

←

Bay 075 view and slots of MSC NEW HAVEN

077

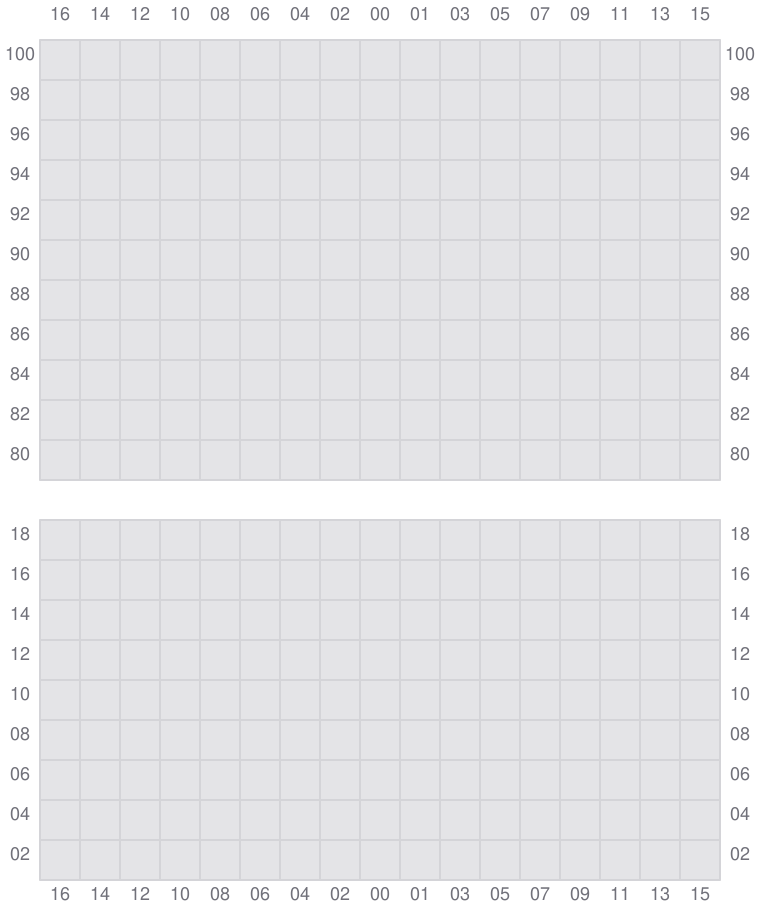

Bay 077 view and slots of MSC NEW HAVEN

079 (078)

^← / _?

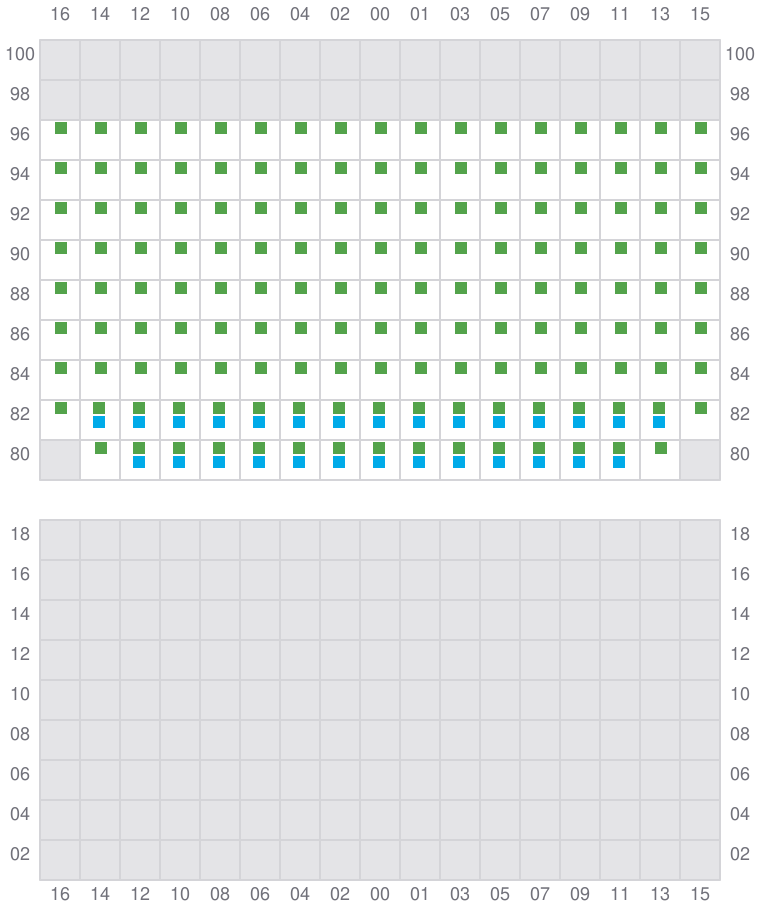

Bay 079 view and slots of MSC NEW HAVEN
