MSC NEW HAVEN
9293777 | CQRI | MSC by ***************************** Last update: Mon May 29 2023

General Info

Ship Name:MSC NEW HAVEN
IMO Code:9293777
Call Sign:CQRI
Line Operator:MSC
Class Name for Sister Ships:SNHV
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):319.00
LOA (Length Overall):333.99
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,105

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

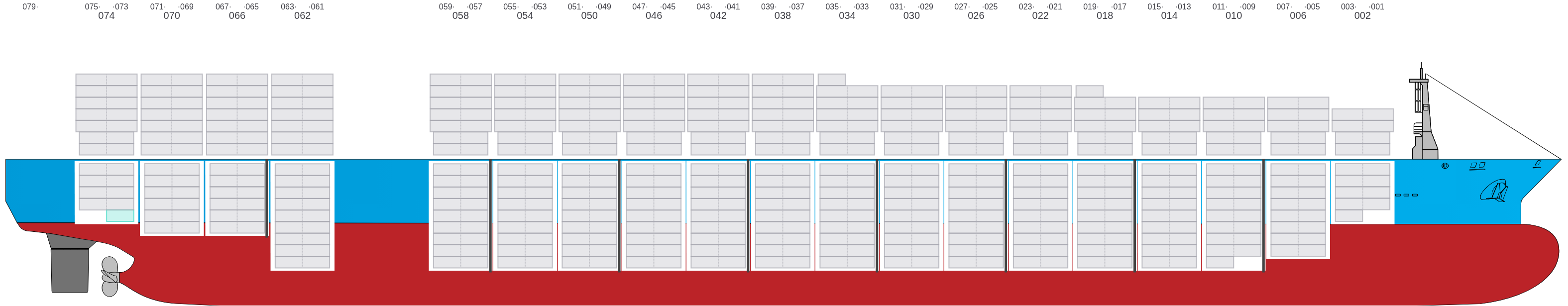

Side view of MSC NEW HAVEN

Hatch-Covers View

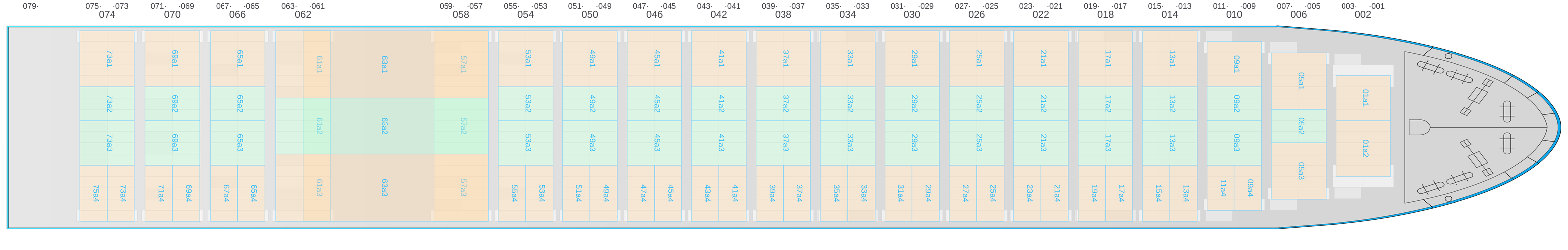

Deck view of MSC NEW HAVEN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →

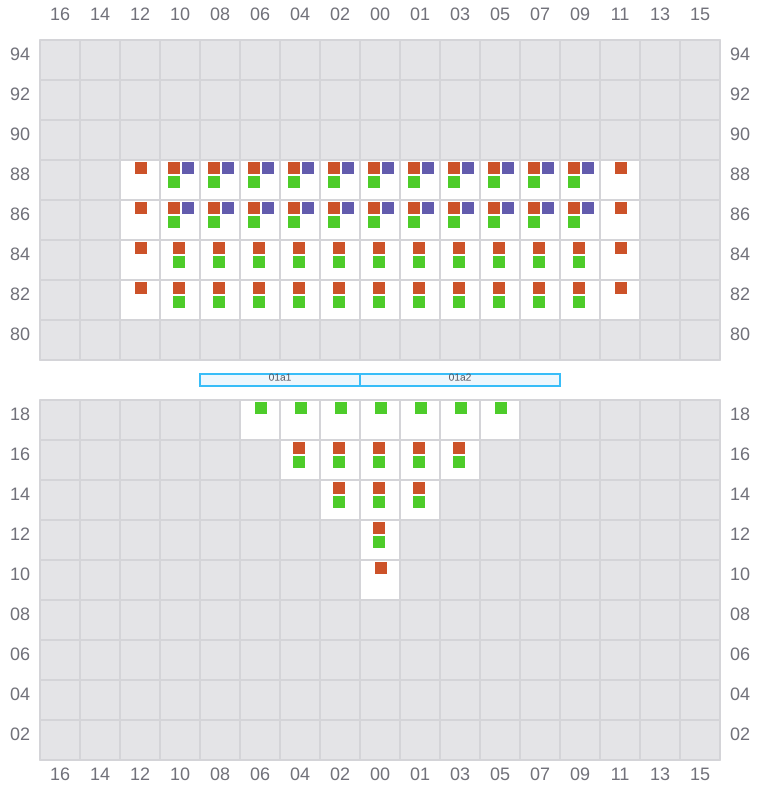

Bay 001 view and slots of MSC NEW HAVEN

003 (002)

  • ←
  • →

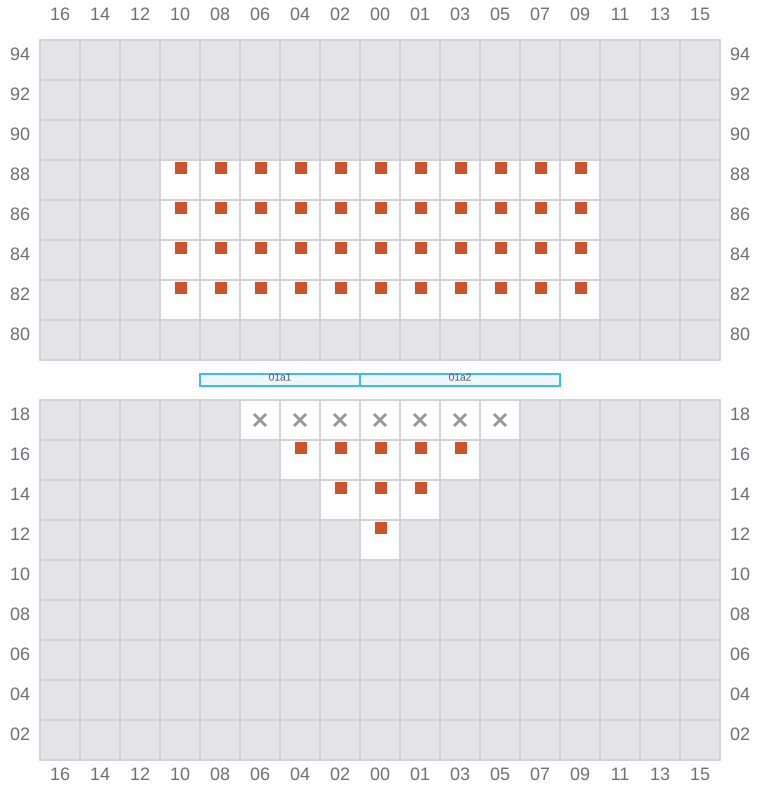

Bay 003 view and slots of MSC NEW HAVEN

005

  • →
  • →

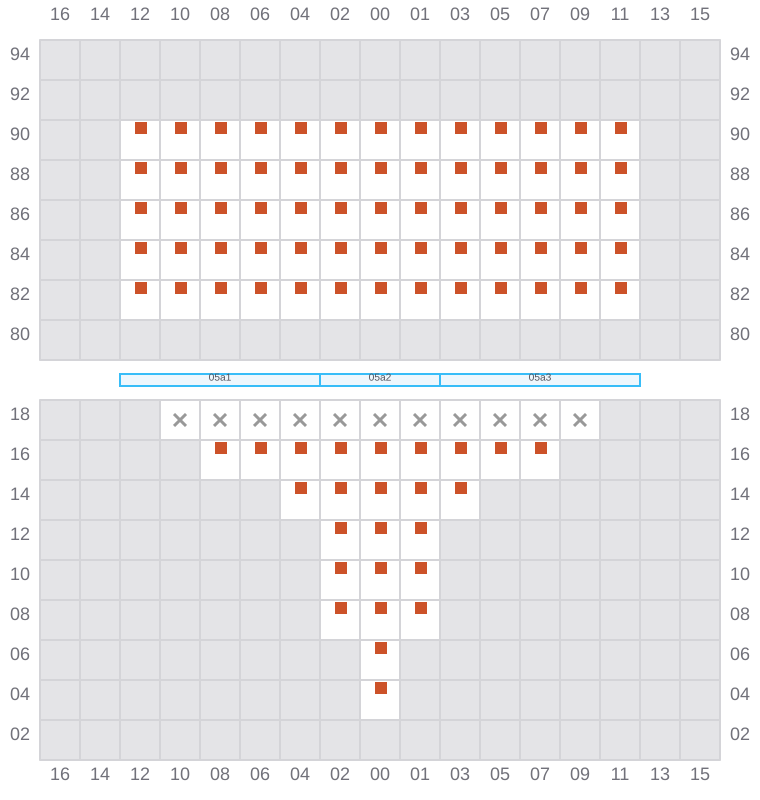

Bay 005 view and slots of MSC NEW HAVEN

007 (006)

  • ←
  • → / ?
  • →

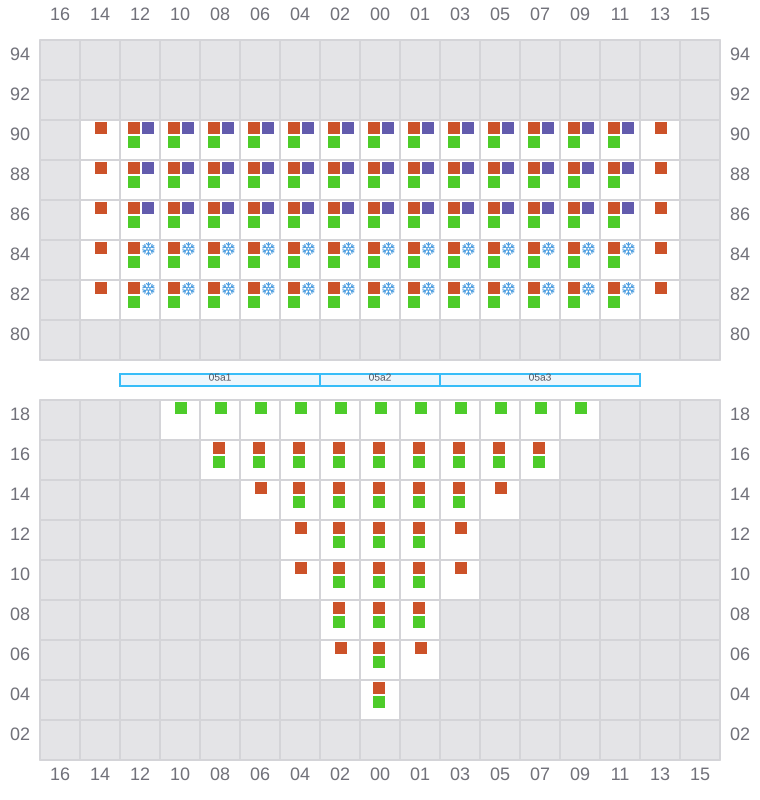

Bay 007 view and slots of MSC NEW HAVEN

009

  • →
  • →

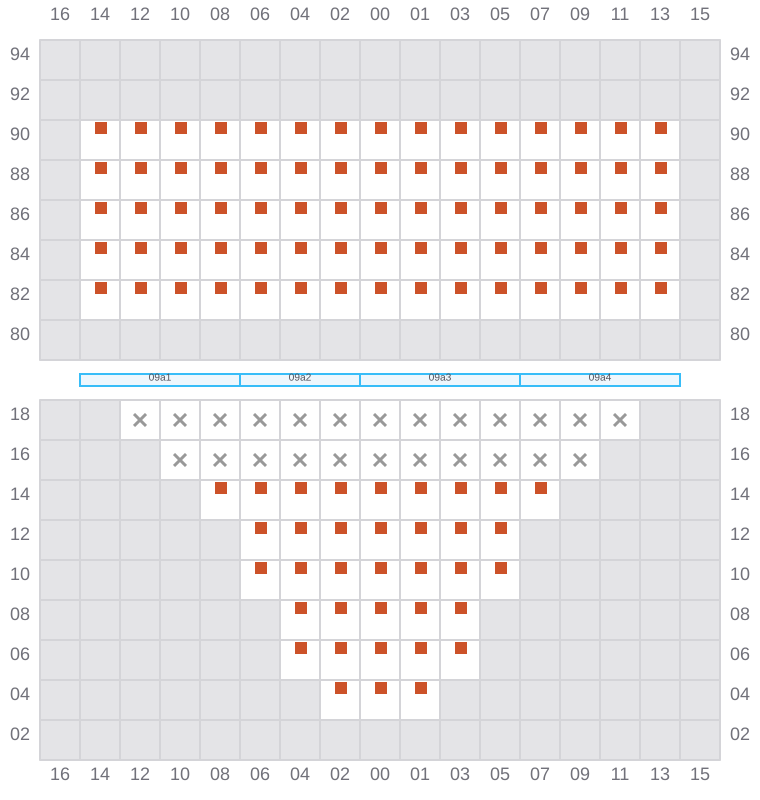

Bay 009 view and slots of MSC NEW HAVEN

011 (010)

  • ←
  • → / ?
  • →

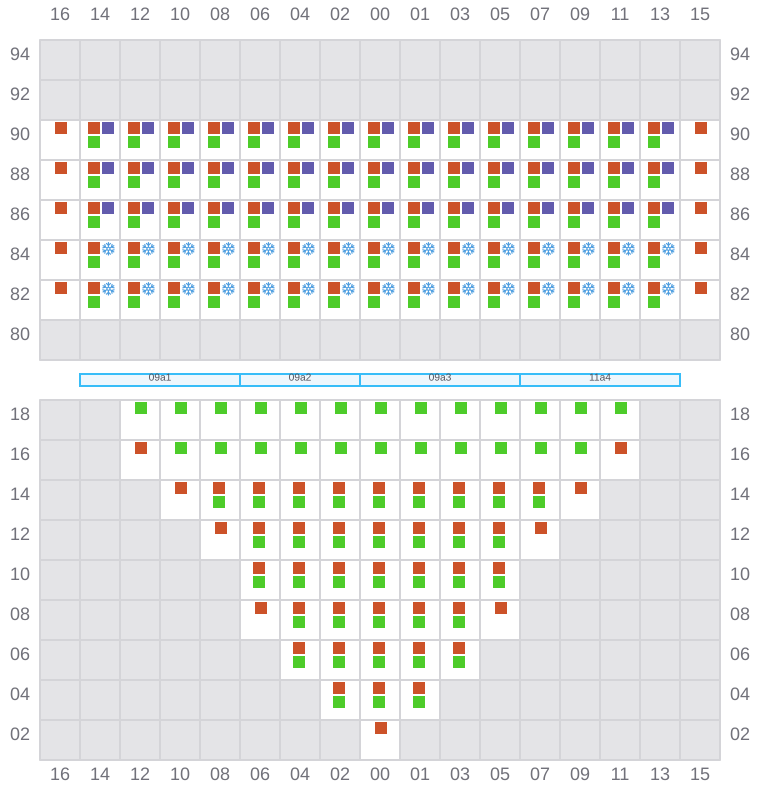

Bay 011 view and slots of MSC NEW HAVEN

013

  • →
  • →

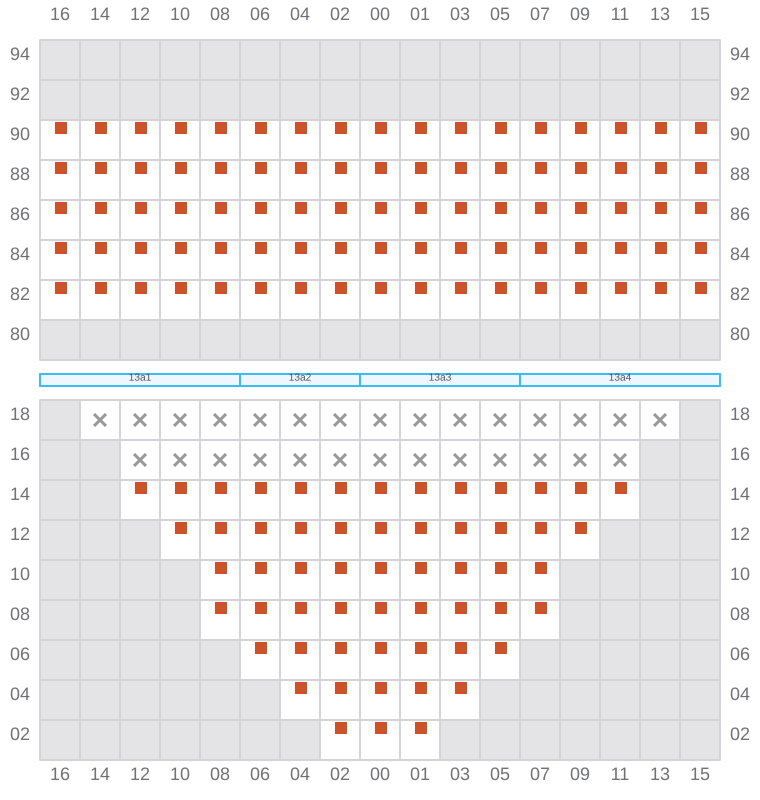

Bay 013 view and slots of MSC NEW HAVEN

015 (014)

  • ←
  • → / ?
  • →

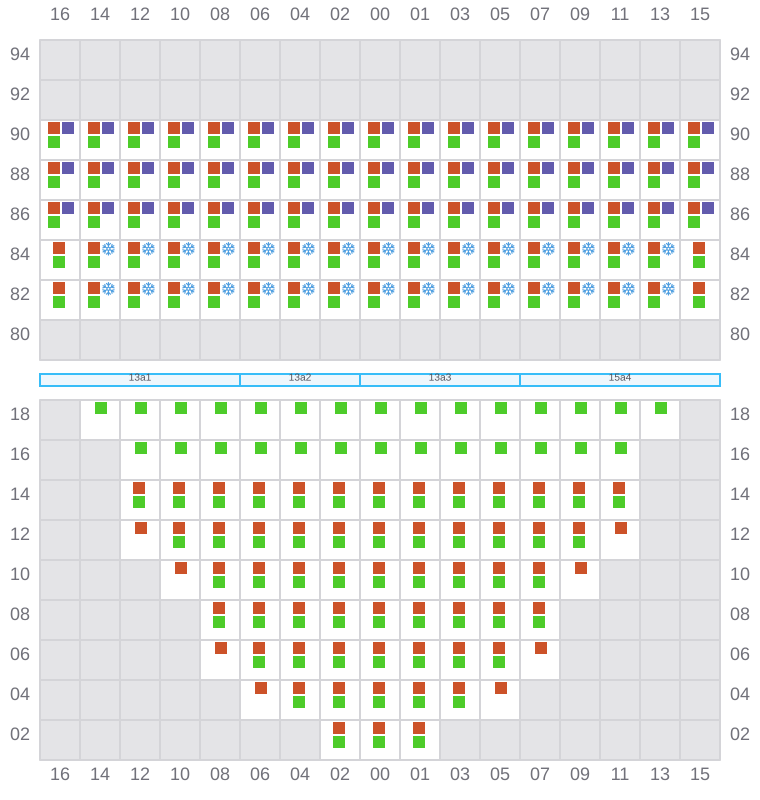

Bay 015 view and slots of MSC NEW HAVEN

017

  • →
  • →

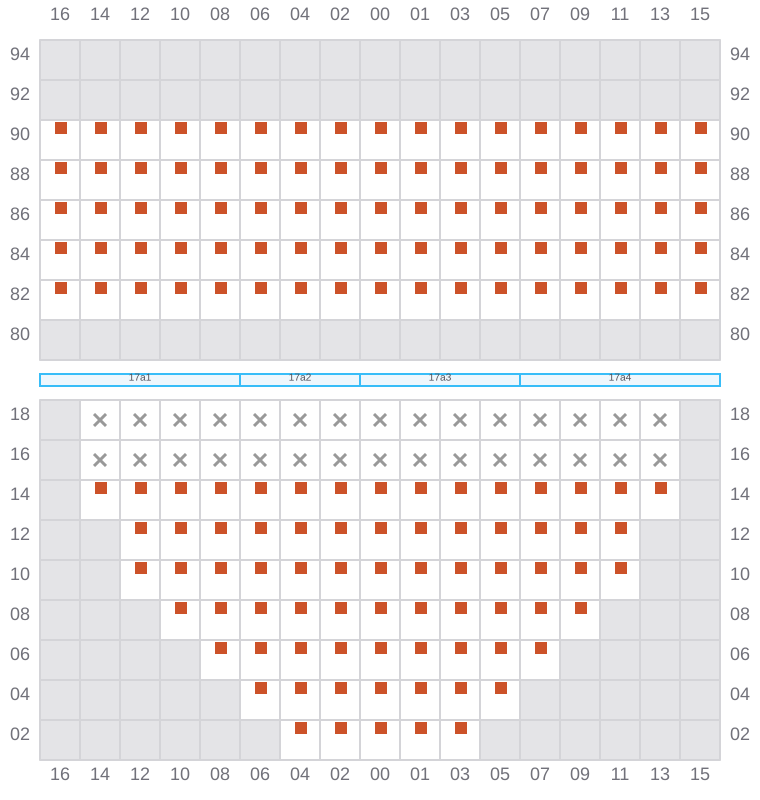

Bay 017 view and slots of MSC NEW HAVEN

019 (018)

  • ←
  • → / ?
  • →

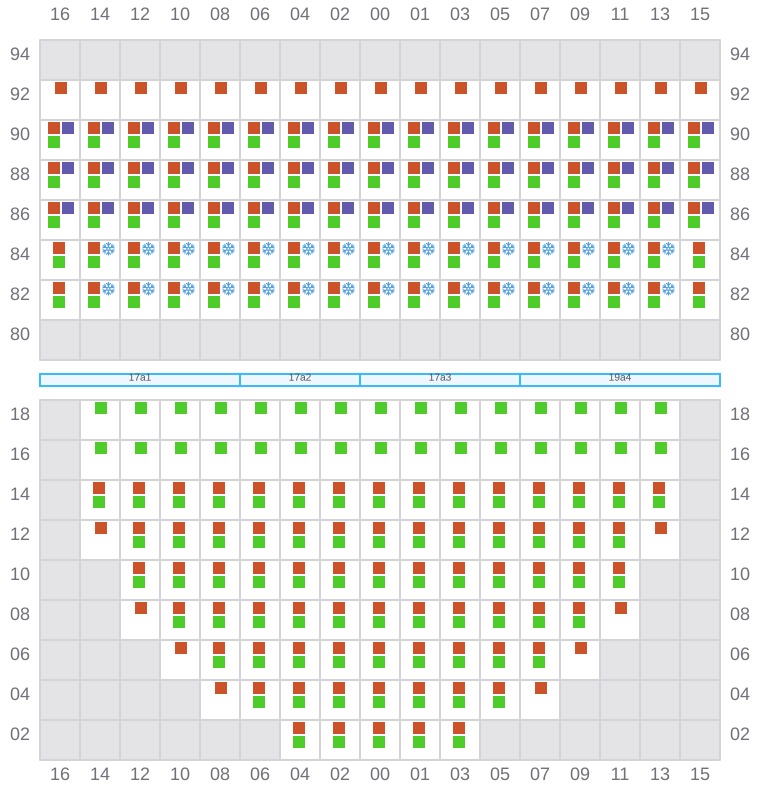

Bay 019 view and slots of MSC NEW HAVEN

021

  • →
  • →

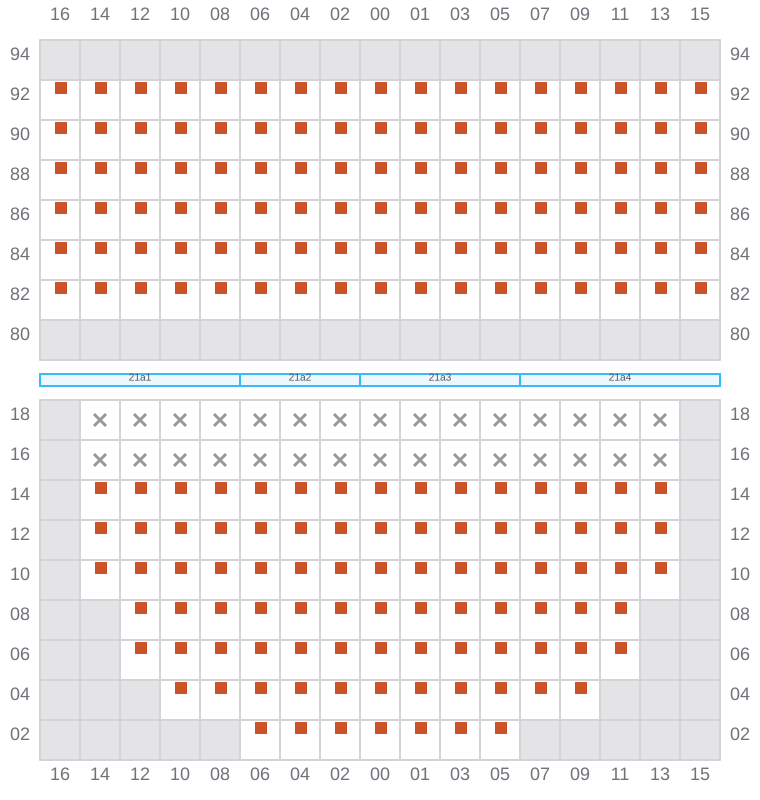

Bay 021 view and slots of MSC NEW HAVEN

023 (022)

  • ←
  • → / ?
  • →

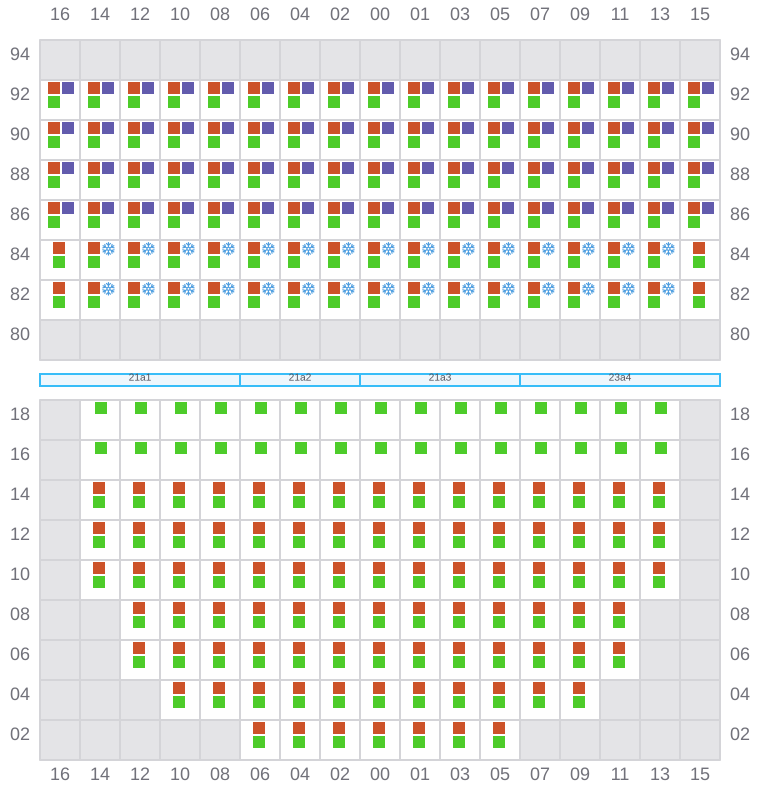

Bay 023 view and slots of MSC NEW HAVEN

025

  • →
  • →

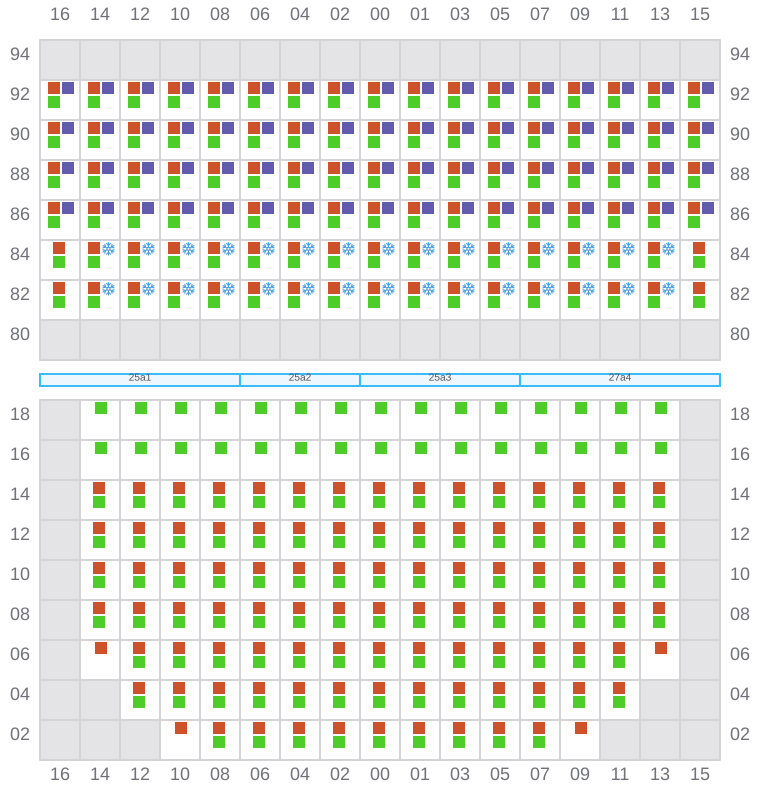

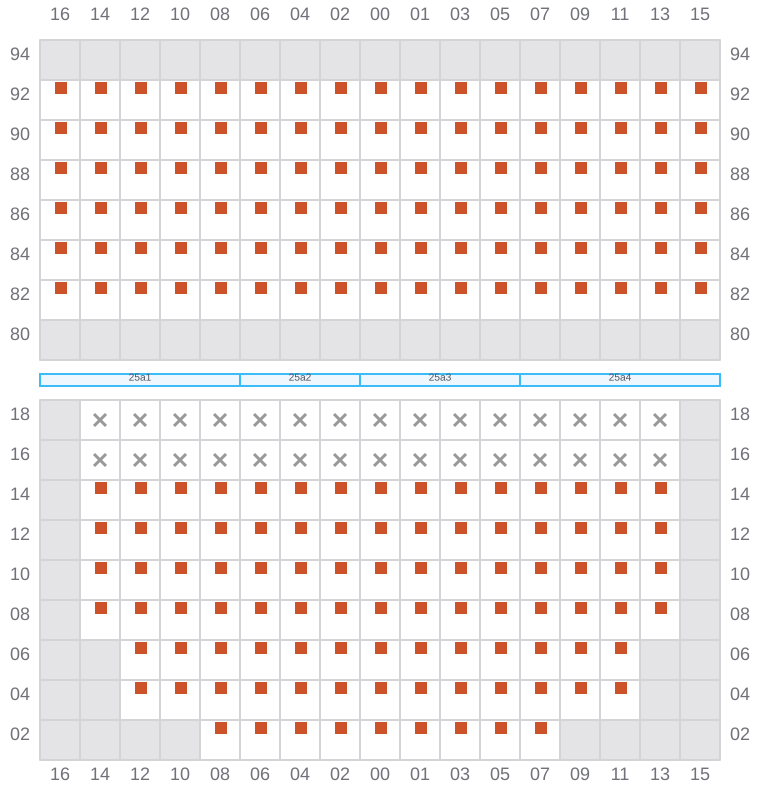

Bay 025 view and slots of MSC NEW HAVEN

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of MSC NEW HAVEN

029

  • →
  • →

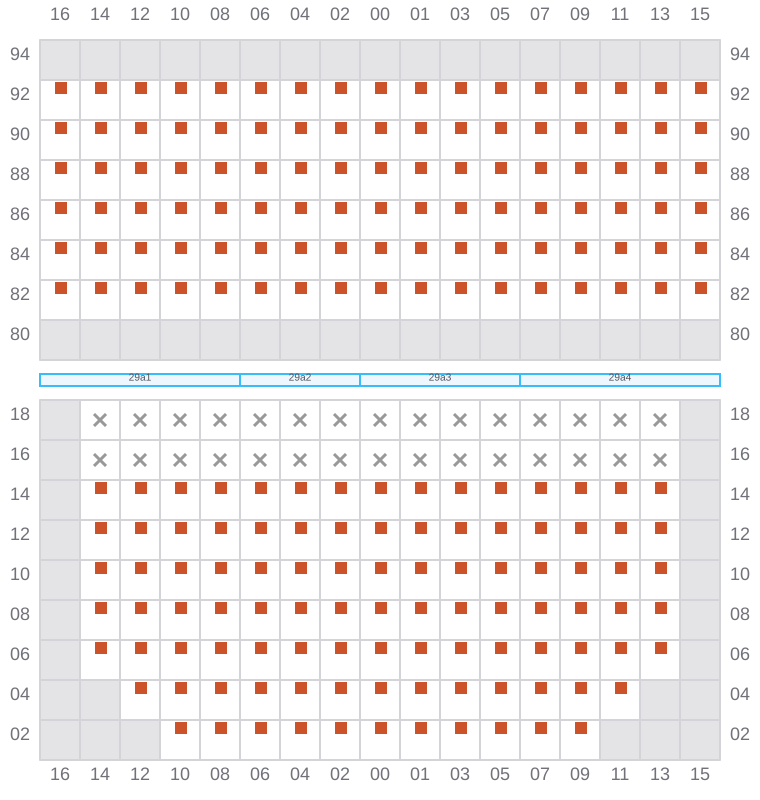

Bay 029 view and slots of MSC NEW HAVEN

031 (030)

  • ←
  • → / ?
  • →

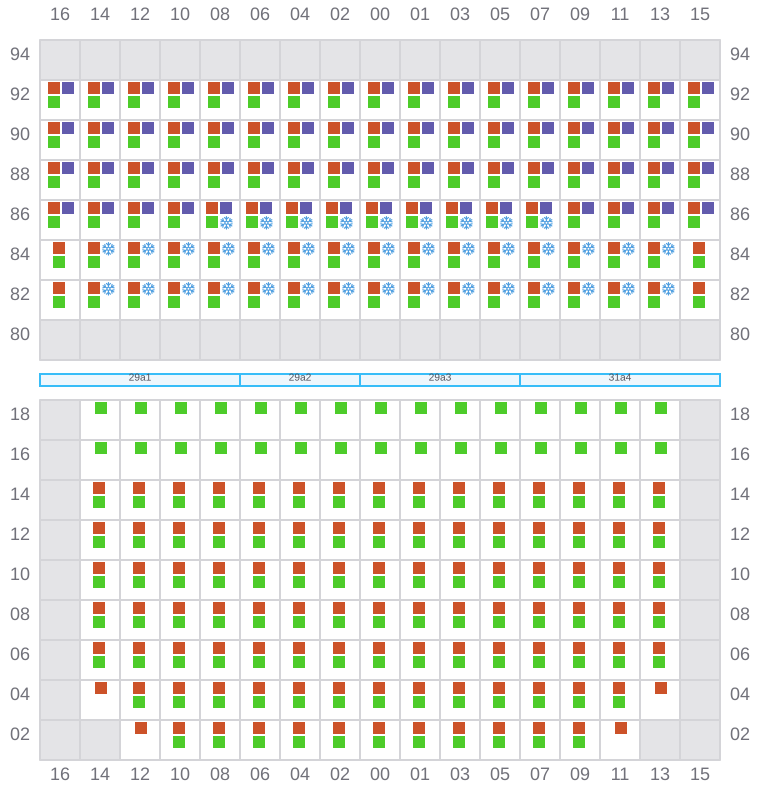

Bay 031 view and slots of MSC NEW HAVEN

033

  • →
  • →

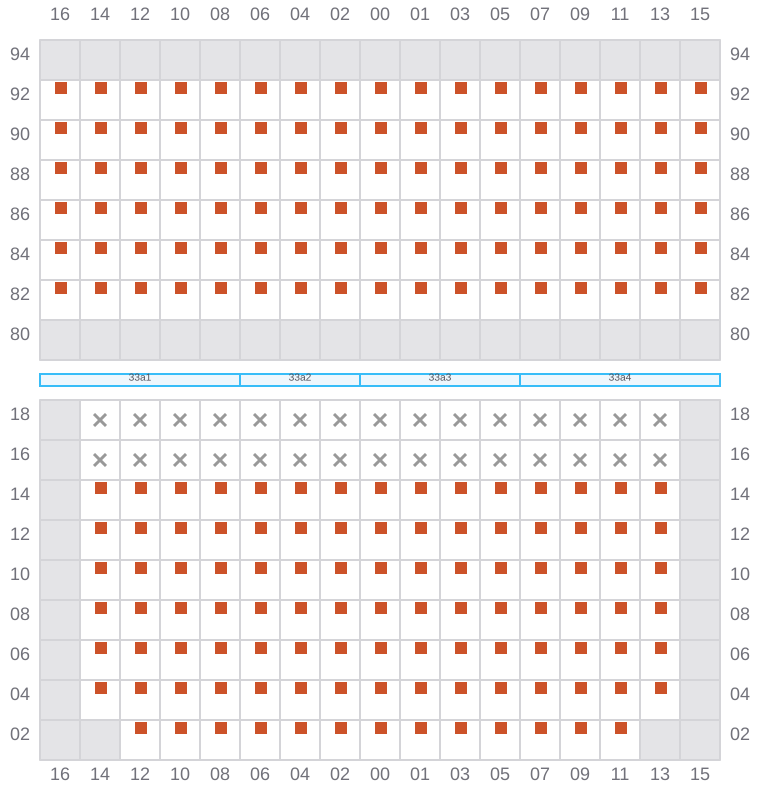

Bay 033 view and slots of MSC NEW HAVEN

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of MSC NEW HAVEN

037

  • →
  • →

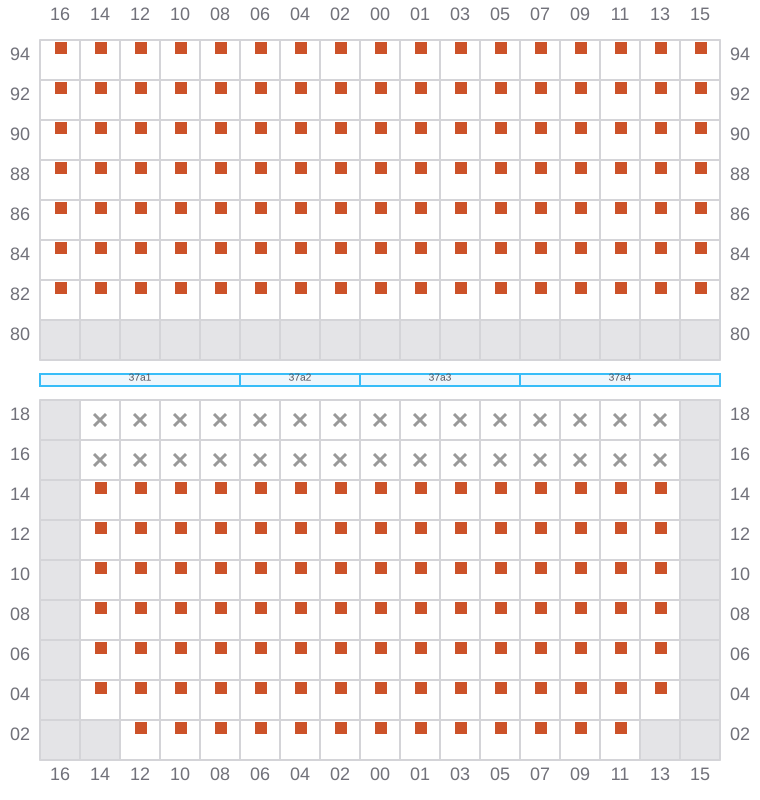

Bay 037 view and slots of MSC NEW HAVEN

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of MSC NEW HAVEN

041

  • →
  • →

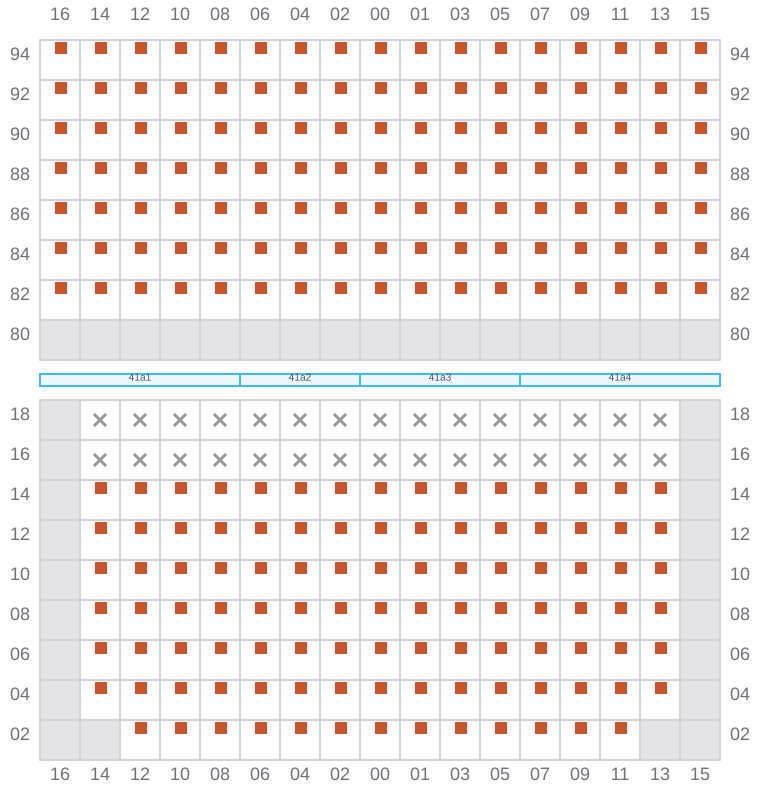

Bay 041 view and slots of MSC NEW HAVEN

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of MSC NEW HAVEN

045

  • →
  • →

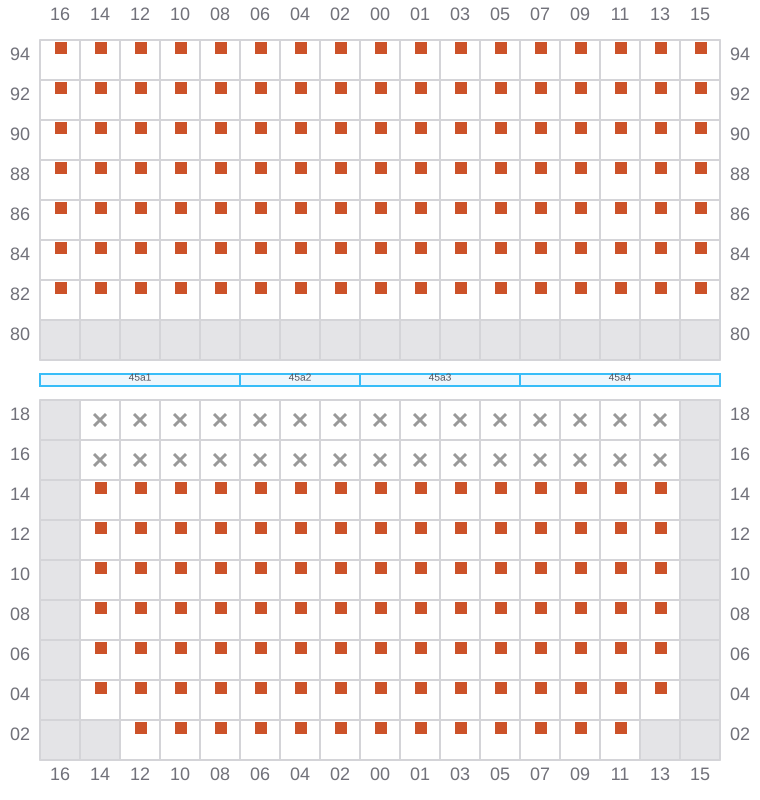

Bay 045 view and slots of MSC NEW HAVEN

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of MSC NEW HAVEN

049

  • →
  • →
Bay 049 view and slots of MSC NEW HAVEN

051 (050)

  • ←
  • → / ?
  • →

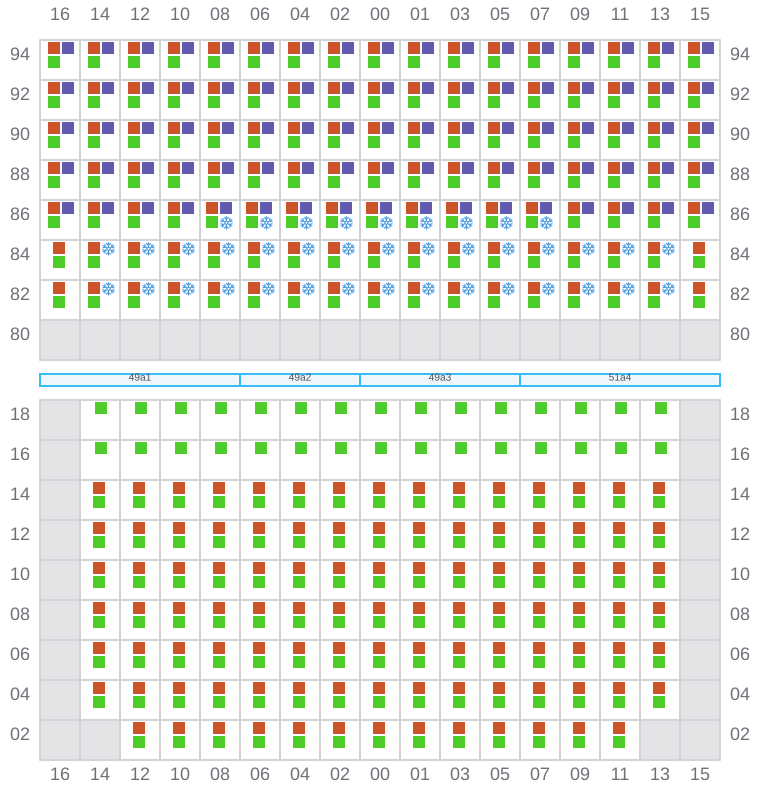

Bay 051 view and slots of MSC NEW HAVEN

053

  • →
  • →
Bay 053 view and slots of MSC NEW HAVEN

055 (054)

  • ←
  • → / ?
  • →

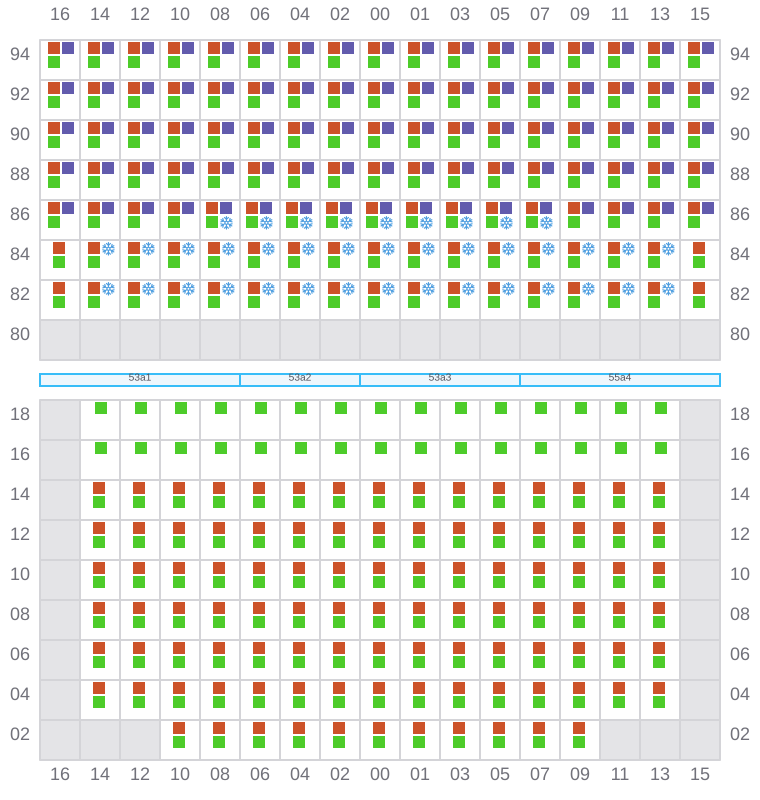

Bay 055 view and slots of MSC NEW HAVEN

057

  • →
  • →

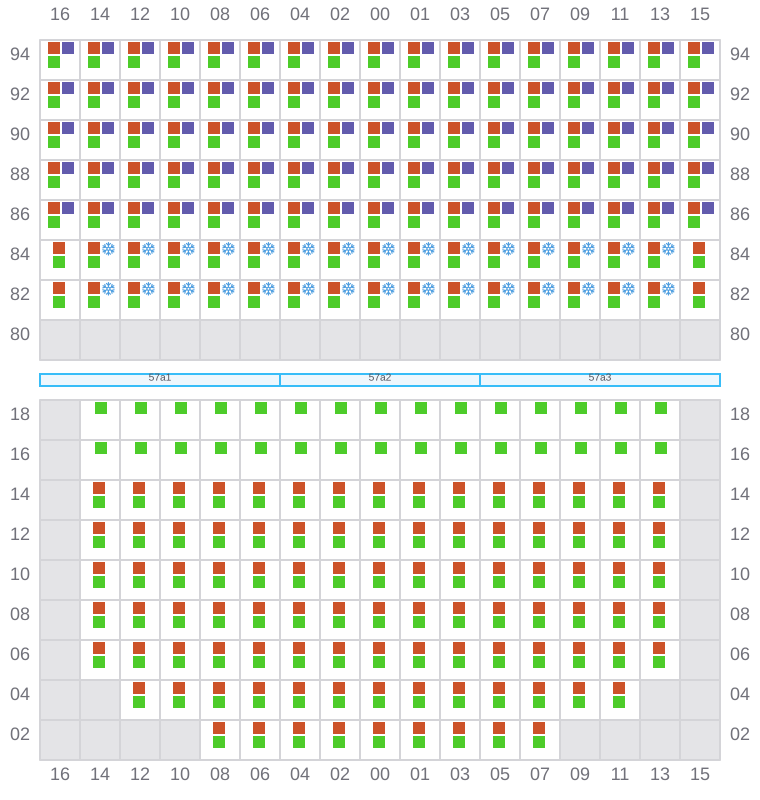

Bay 057 view and slots of MSC NEW HAVEN

059 (058)

  • ←
  • → / ?
  • →
Bay 059 view and slots of MSC NEW HAVEN

061

  • →
  • →

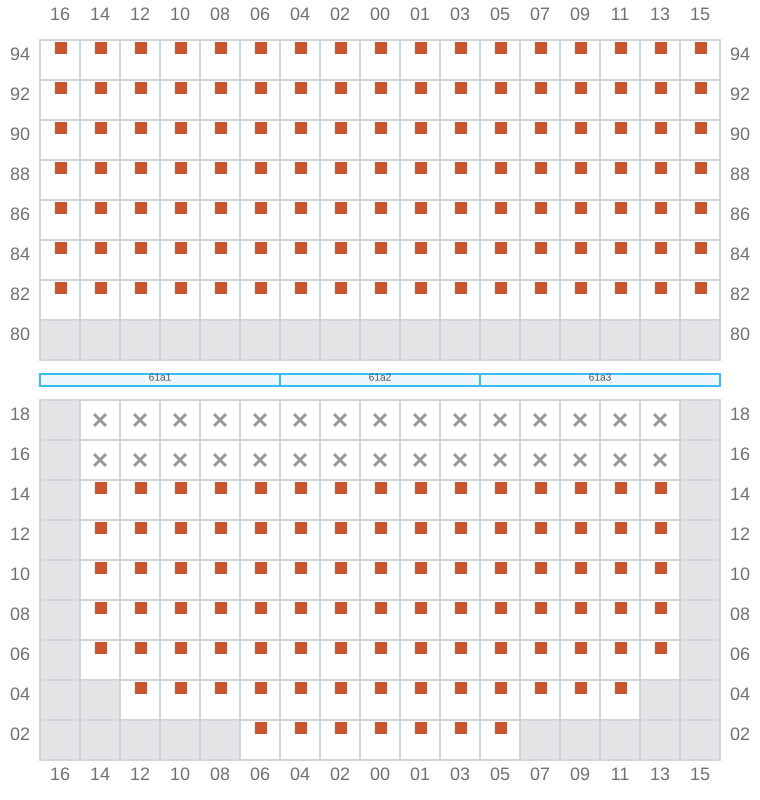

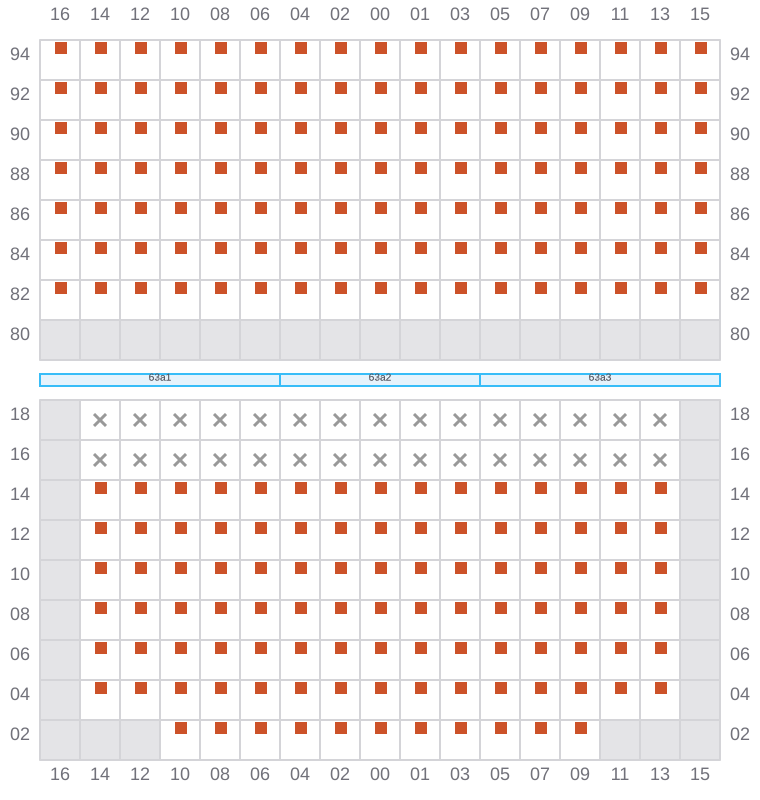

Bay 061 view and slots of MSC NEW HAVEN

063 (062)

  • ←
  • → / ?
  • →

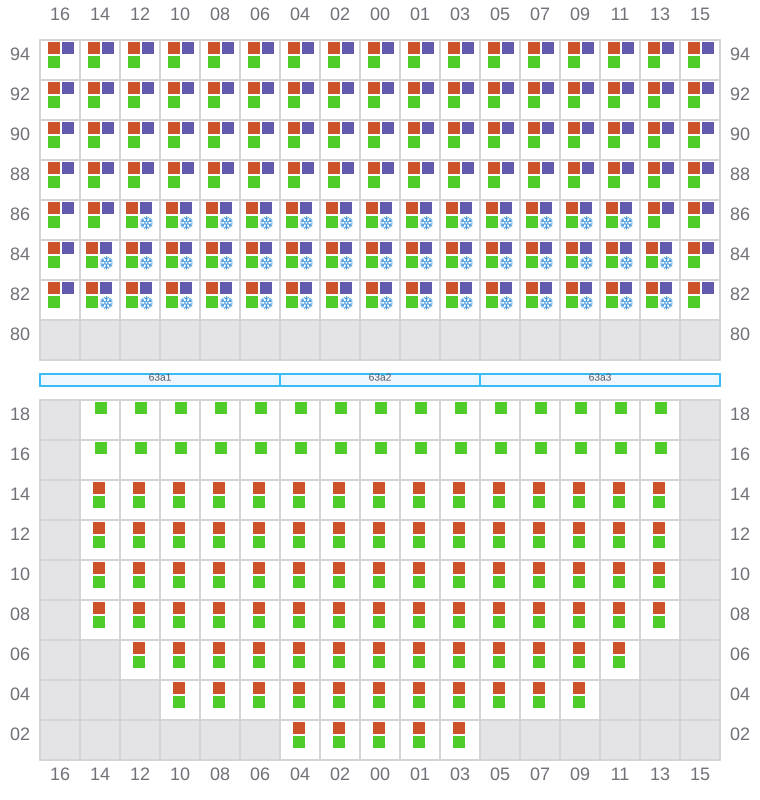

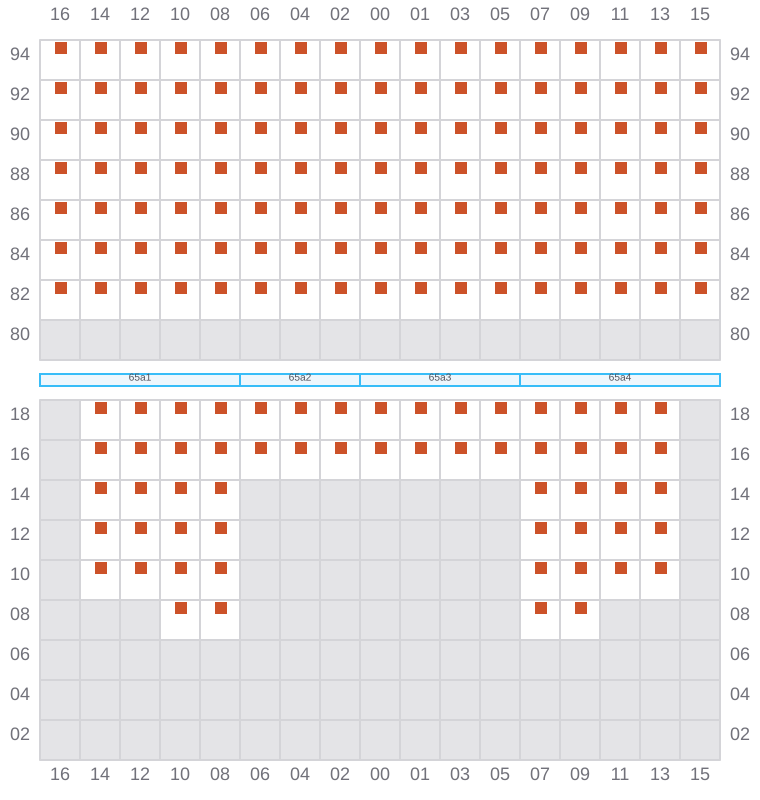

Bay 063 view and slots of MSC NEW HAVEN

065

  • →
  • →
Bay 065 view and slots of MSC NEW HAVEN

067 (066)

  • ←
  • → / ?
  • →

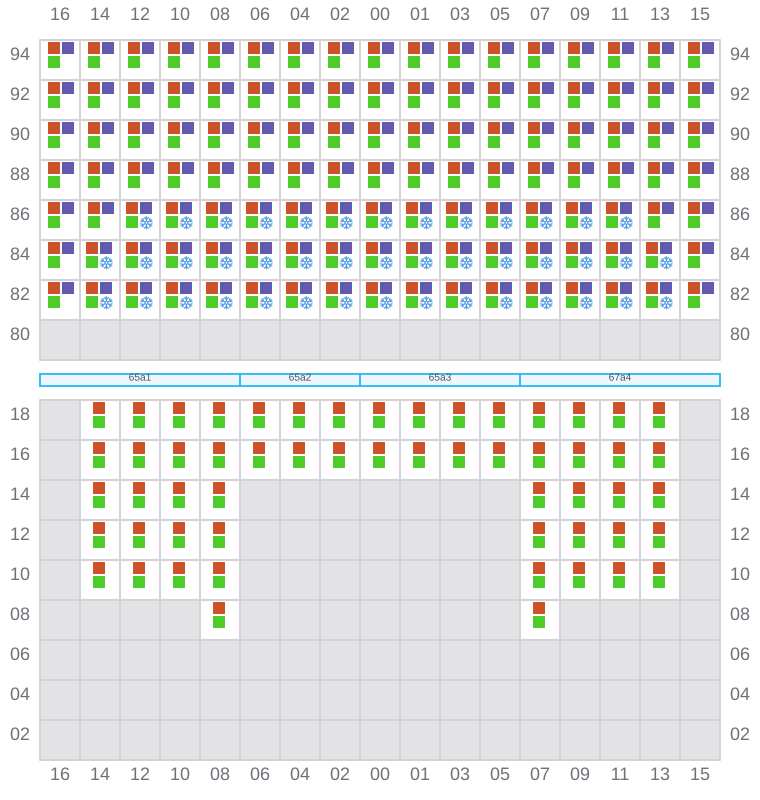

Bay 067 view and slots of MSC NEW HAVEN
