MSC NIKOLETA II
9232644 | 5LBG9 | CSAV by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MSC NIKOLETA II
IMO Code:9232644
Call Sign:5LBG9
Line Operator:CSAV
Class Name for Sister Ships:LCH
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,443

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

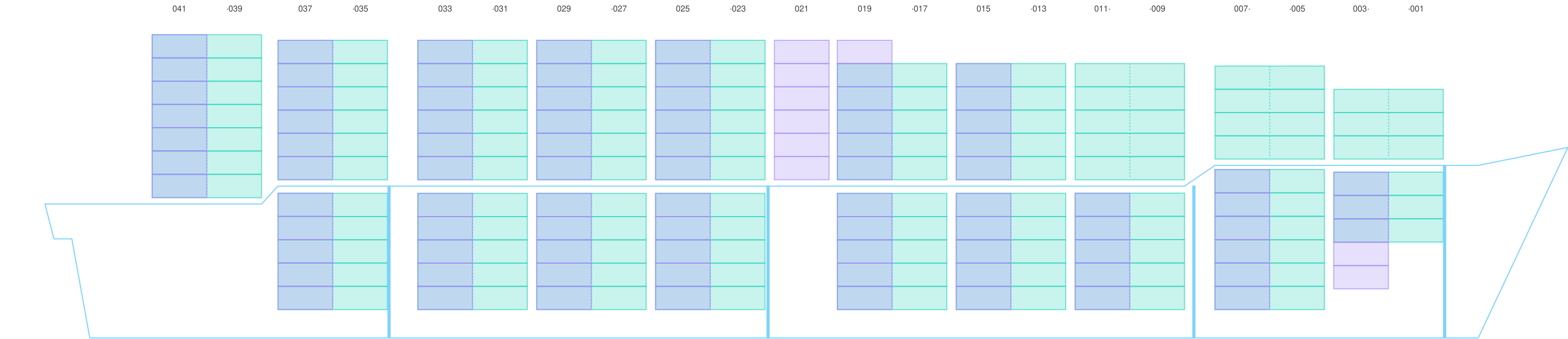

Side View

Side view of MSC NIKOLETA II

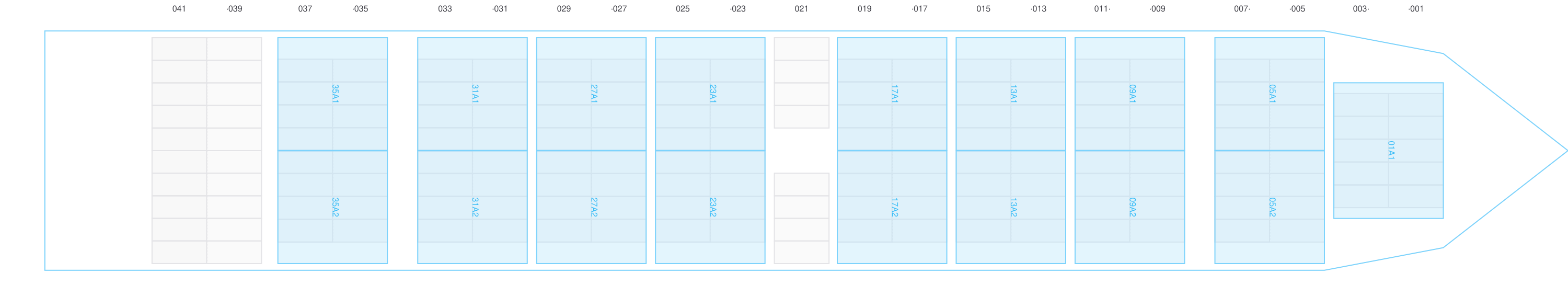

Hatch-Covers View

Deck view of MSC NIKOLETA II

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

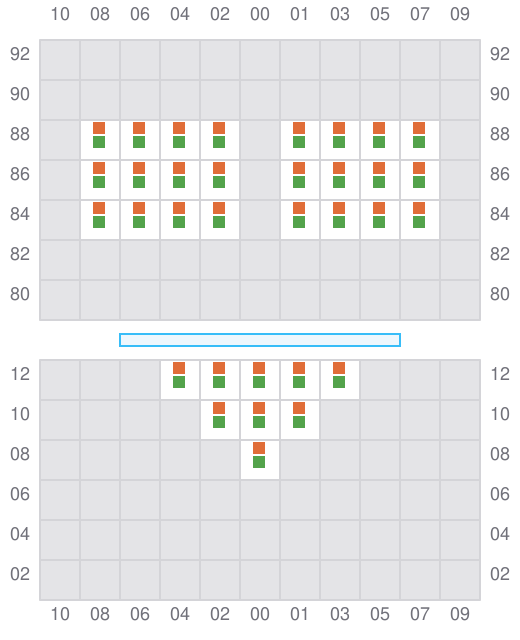

Bay 001 view and slots of MSC NIKOLETA II

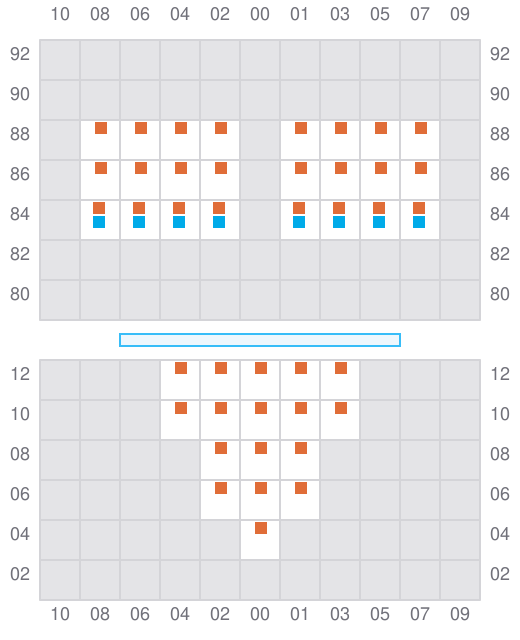

003

  • ← / ?
  • → / ?
Bay 003 view and slots of MSC NIKOLETA II

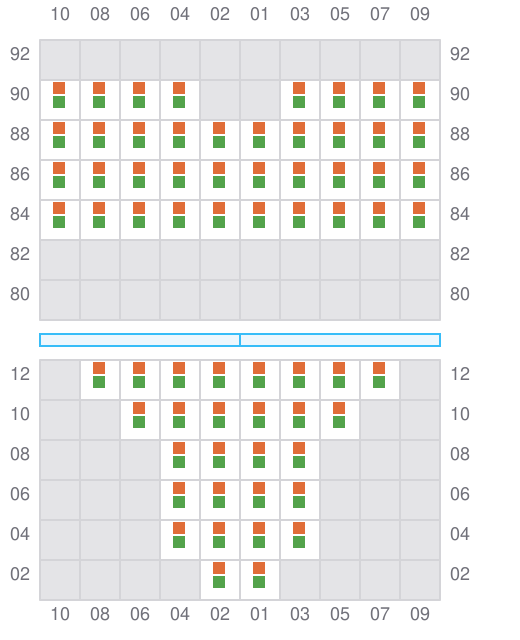

005 (006)

  • →
Bay 005 view and slots of MSC NIKOLETA II

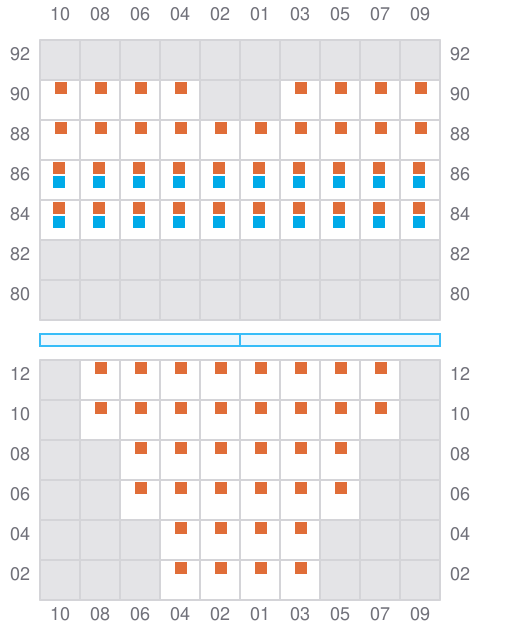

007

  • ← / ?
  • → / ?
Bay 007 view and slots of MSC NIKOLETA II

009 (010)

  • →
Bay 009 view and slots of MSC NIKOLETA II

011

  • ← / ?
  • → / ?

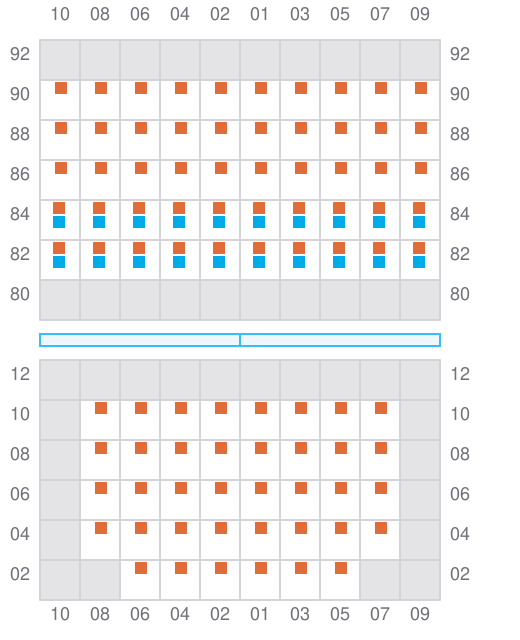

Bay 011 view and slots of MSC NIKOLETA II

013 (014)

  • →

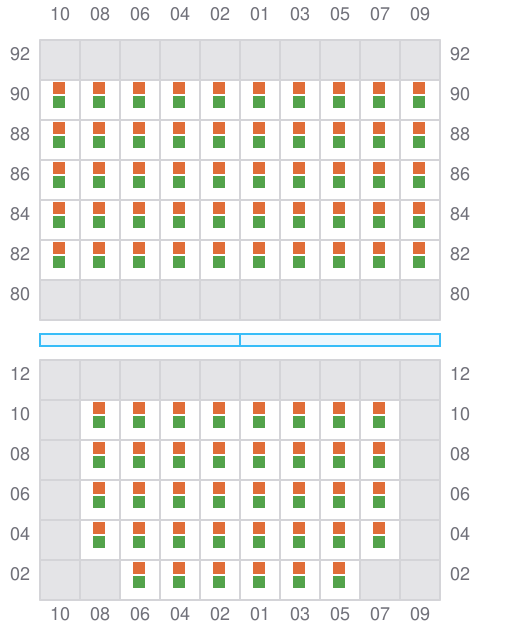

Bay 013 view and slots of MSC NIKOLETA II

015

  • → / ?
Bay 015 view and slots of MSC NIKOLETA II

017 (018)

  • →
Bay 017 view and slots of MSC NIKOLETA II

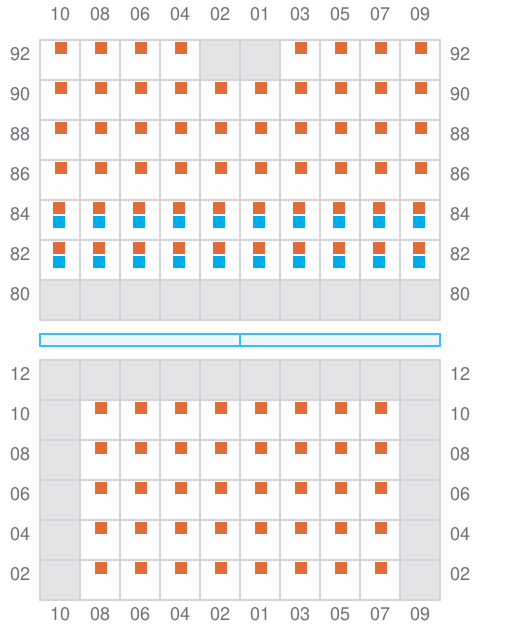

019

  • → / ?
Bay 019 view and slots of MSC NIKOLETA II

021

  • → / ?

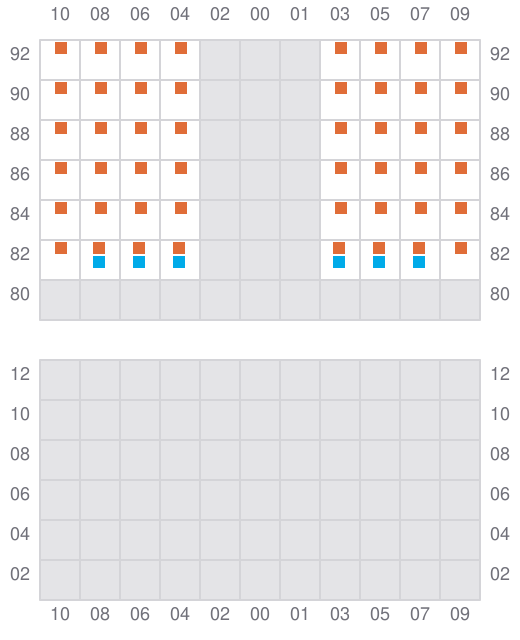

Bay 021 view and slots of MSC NIKOLETA II

023 (024)

  • →
Bay 023 view and slots of MSC NIKOLETA II

025

  • → / ?
Bay 025 view and slots of MSC NIKOLETA II

027 (028)

  • →

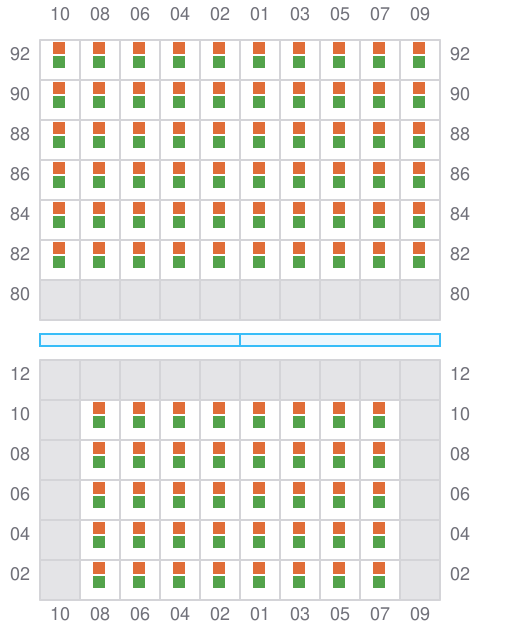

Bay 027 view and slots of MSC NIKOLETA II

029

  • → / ?
Bay 029 view and slots of MSC NIKOLETA II

031 (032)

  • →
Bay 031 view and slots of MSC NIKOLETA II

033

  • → / ?
Bay 033 view and slots of MSC NIKOLETA II

035 (036)

  • →

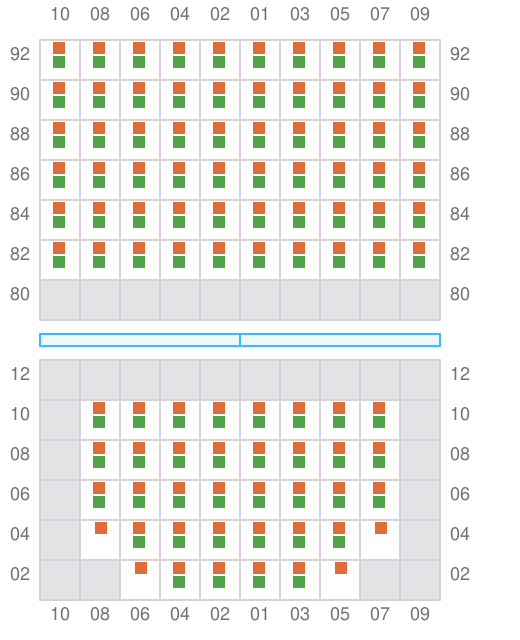

Bay 035 view and slots of MSC NIKOLETA II

037

  • → / ?
Bay 037 view and slots of MSC NIKOLETA II

039 (040)

  • → / ?

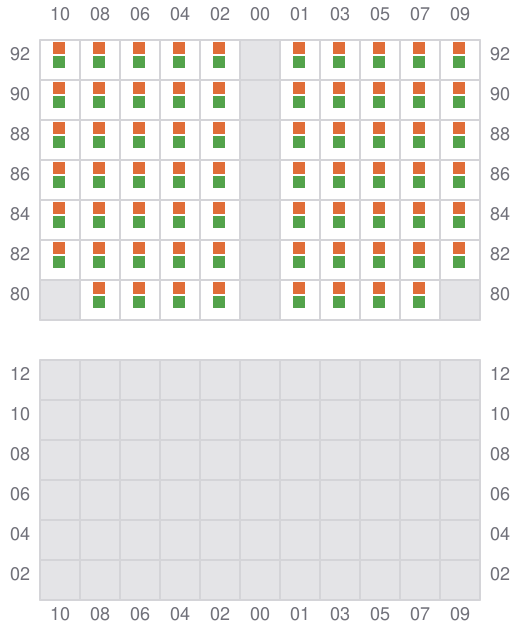

Bay 039 view and slots of MSC NIKOLETA II

041

  • → / ?

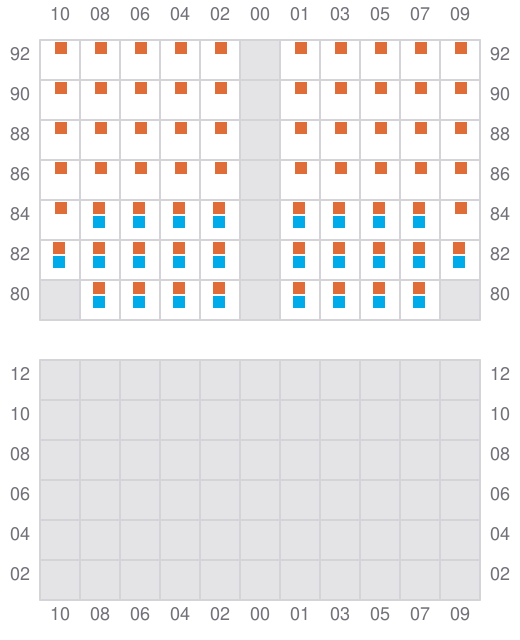

Bay 041 view and slots of MSC NIKOLETA II
