MSC NILGUN
9051492 | H8MU | MSC by ************************** Last update: Mon Jun 19 2023

General Info

Ship Name:MSC NILGUN
IMO Code:9051492
Call Sign:H8MU
Line Operator:MSC
Class Name for Sister Ships:NIL
Year Built:1994
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,394

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

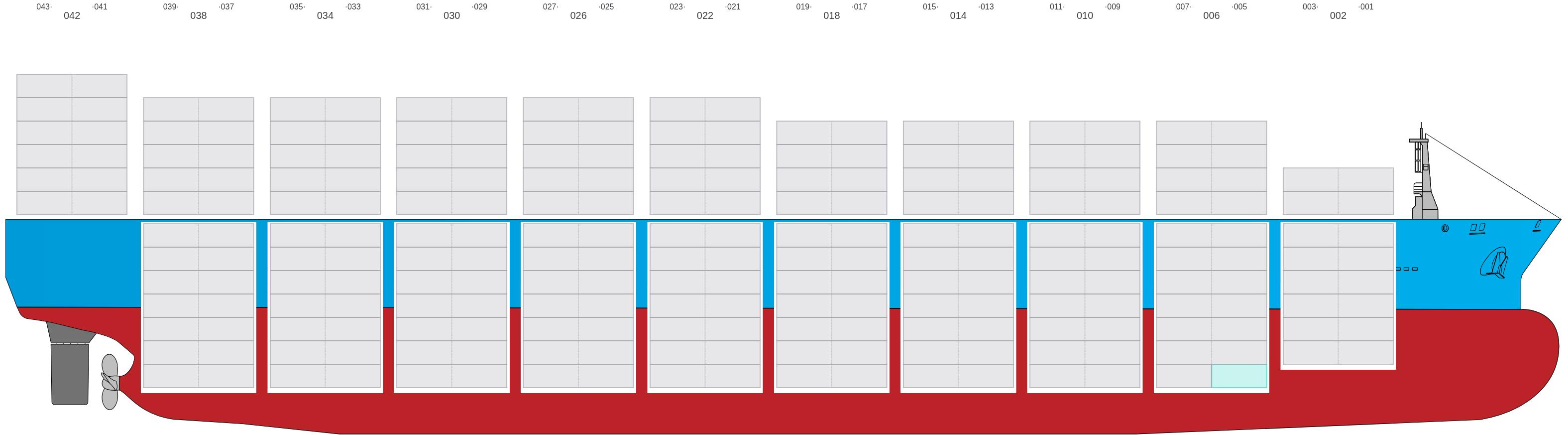

Side View

Side view of MSC NILGUN

Hatch-Covers View

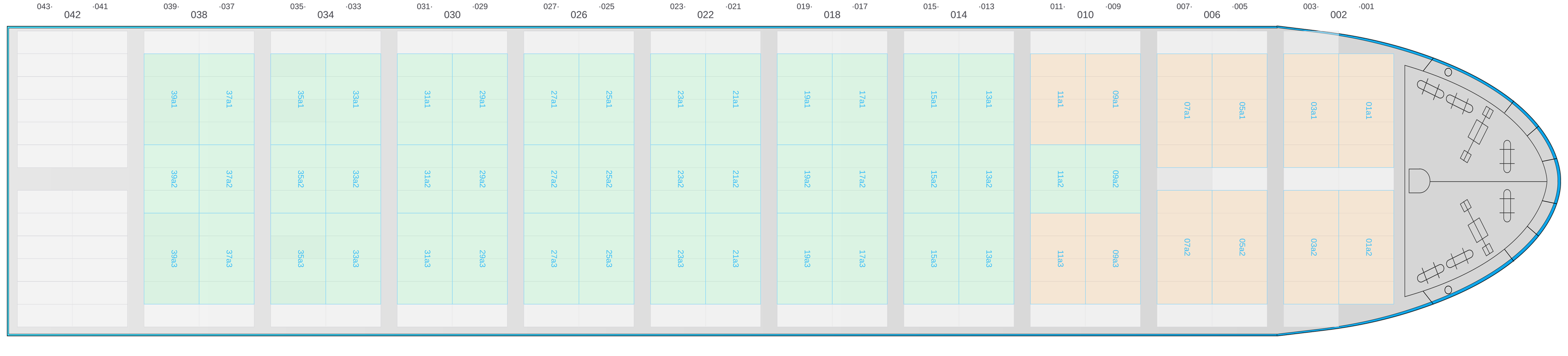

Deck view of MSC NILGUN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

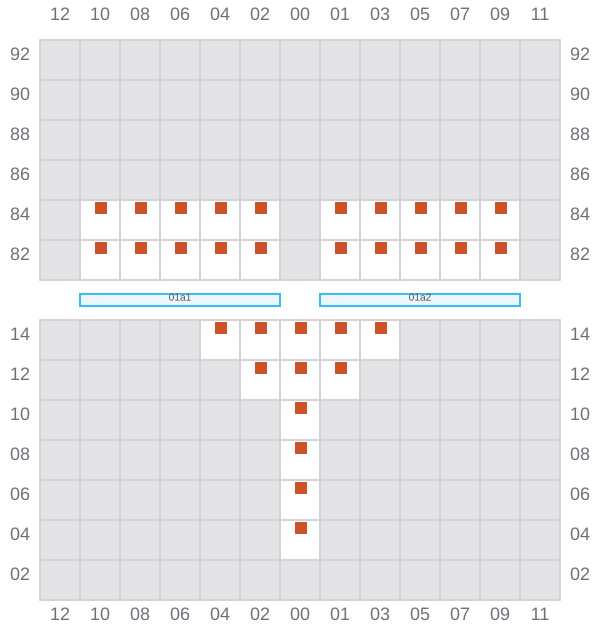

Bay 001 view and slots of MSC NILGUN

003 (002)

  • ←

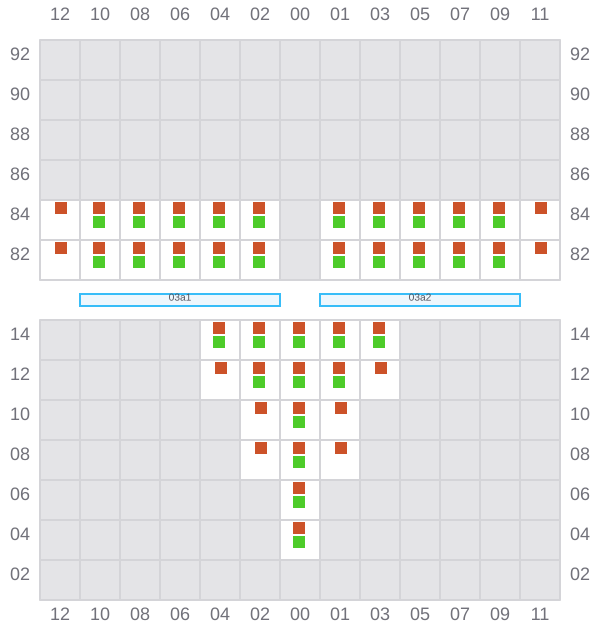

Bay 003 view and slots of MSC NILGUN

005

  • →

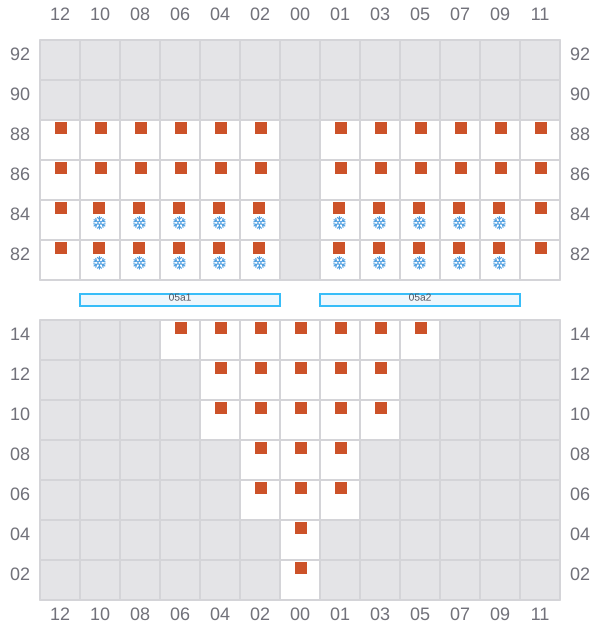

Bay 005 view and slots of MSC NILGUN

007 (006)

  • ←

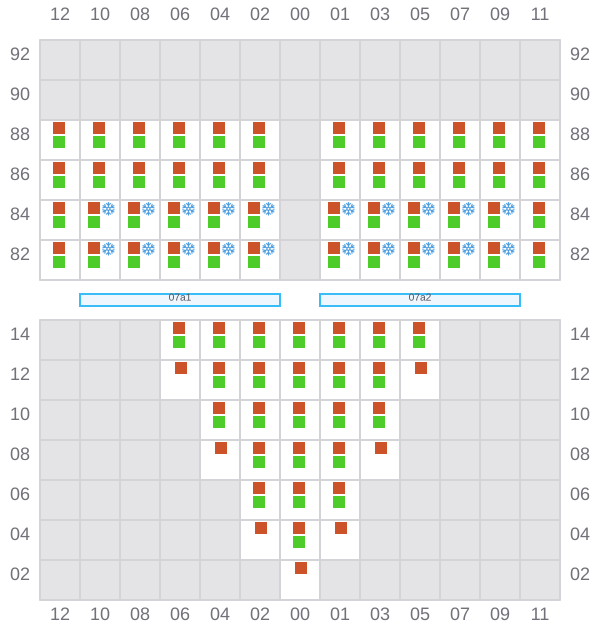

Bay 007 view and slots of MSC NILGUN

009

  • →

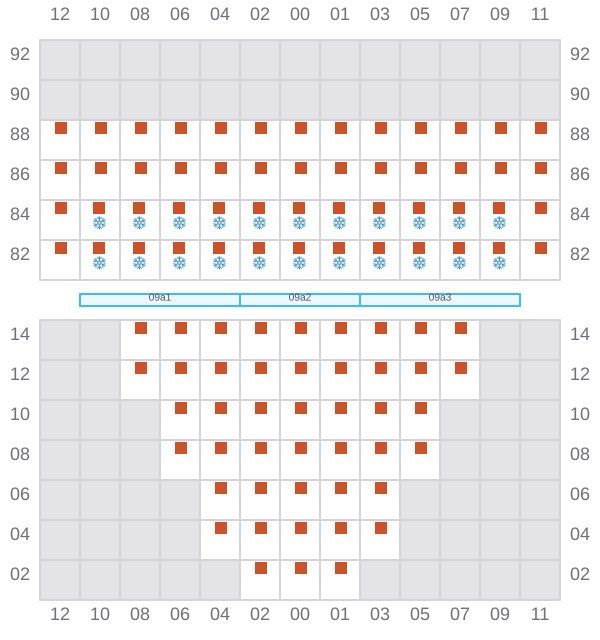

Bay 009 view and slots of MSC NILGUN

011 (010)

  • ←

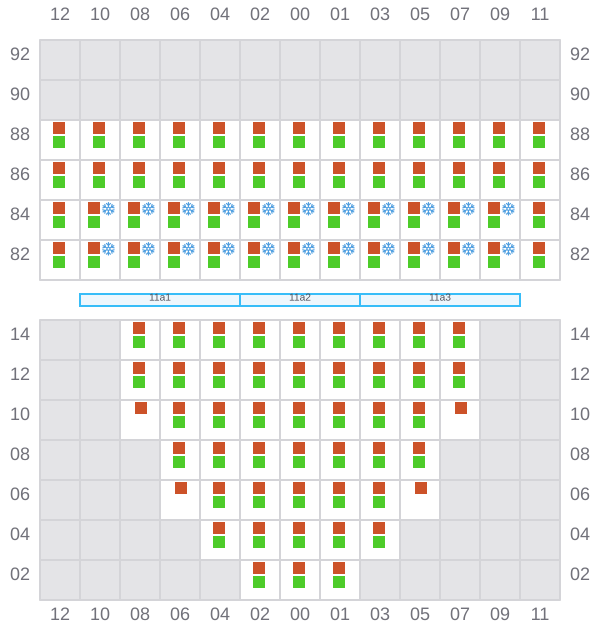

Bay 011 view and slots of MSC NILGUN

013

  • →

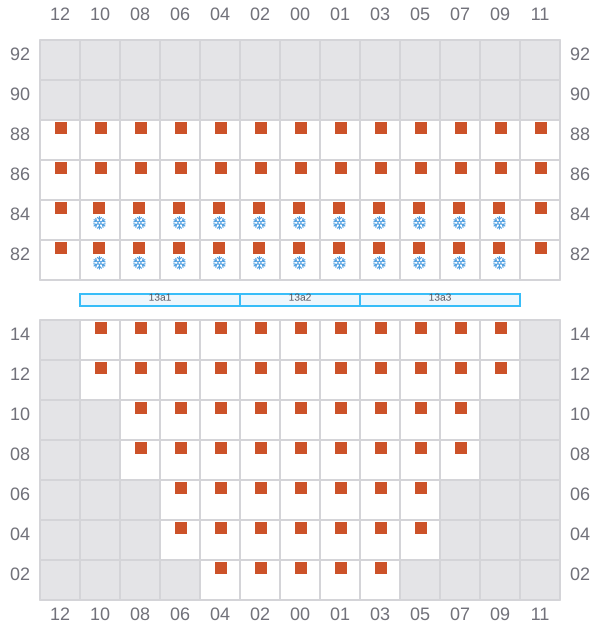

Bay 013 view and slots of MSC NILGUN

015 (014)

  • ←

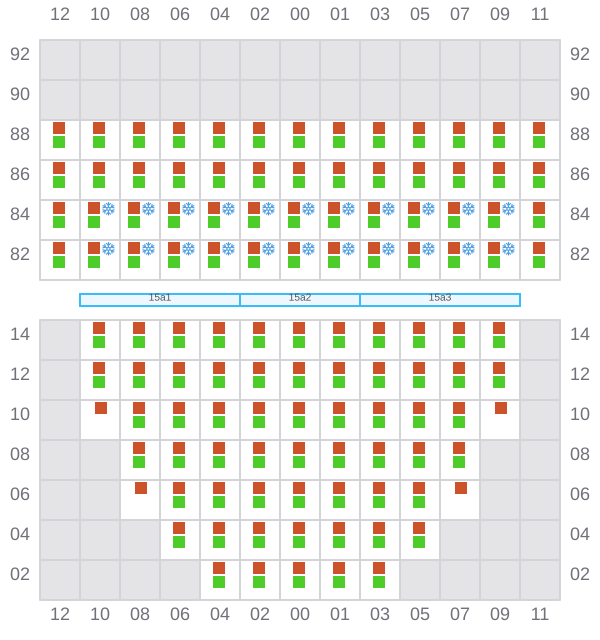

Bay 015 view and slots of MSC NILGUN

017

  • →

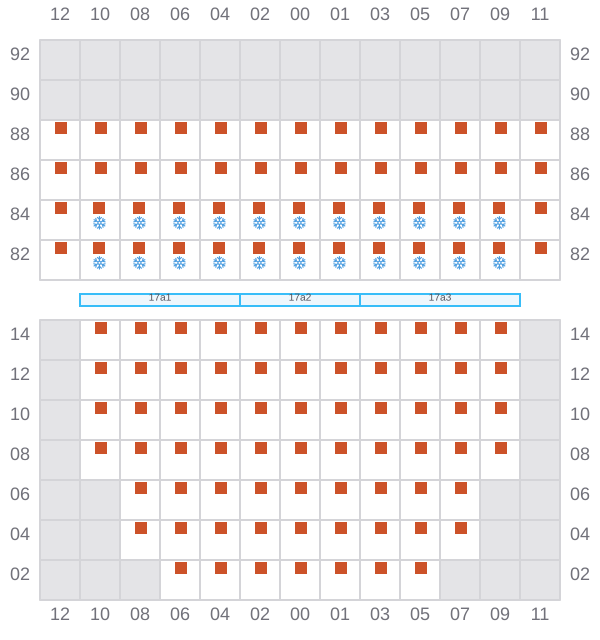

Bay 017 view and slots of MSC NILGUN

019 (018)

  • ←

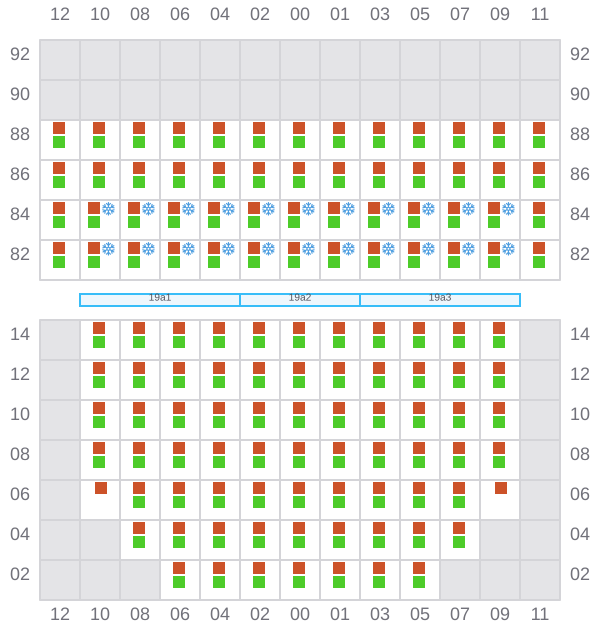

Bay 019 view and slots of MSC NILGUN

021

  • →
Bay 021 view and slots of MSC NILGUN

023 (022)

  • ←

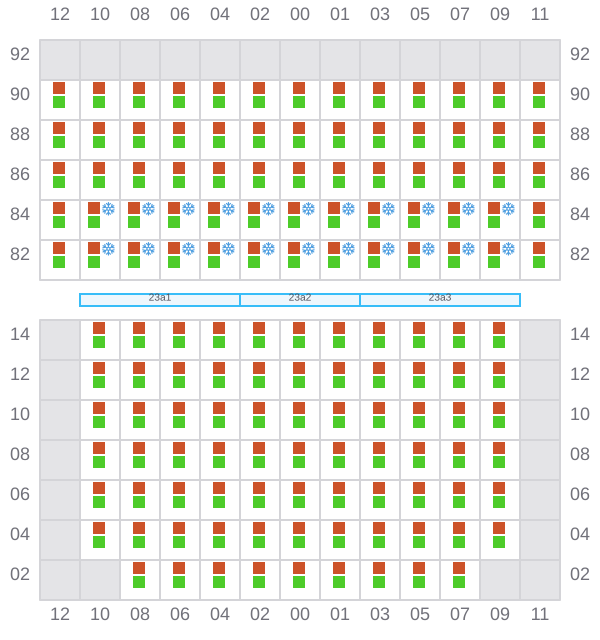

Bay 023 view and slots of MSC NILGUN

025

  • →

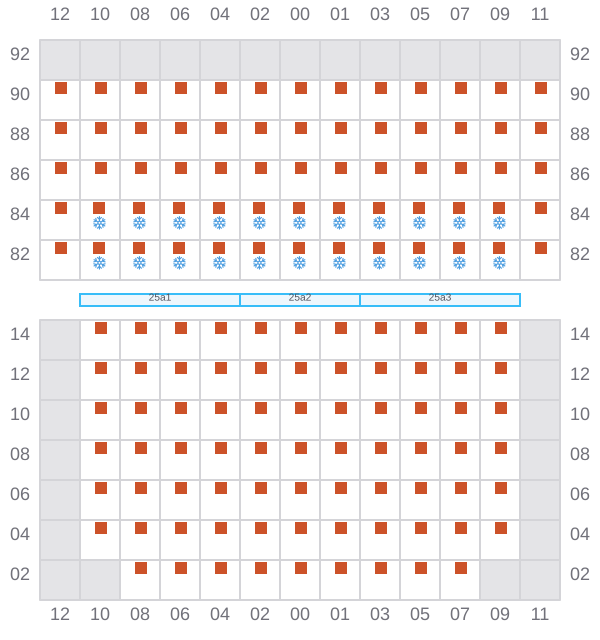

Bay 025 view and slots of MSC NILGUN

027 (026)

  • ←
Bay 027 view and slots of MSC NILGUN

029

  • →
Bay 029 view and slots of MSC NILGUN

031 (030)

  • ←
Bay 031 view and slots of MSC NILGUN

033

  • →

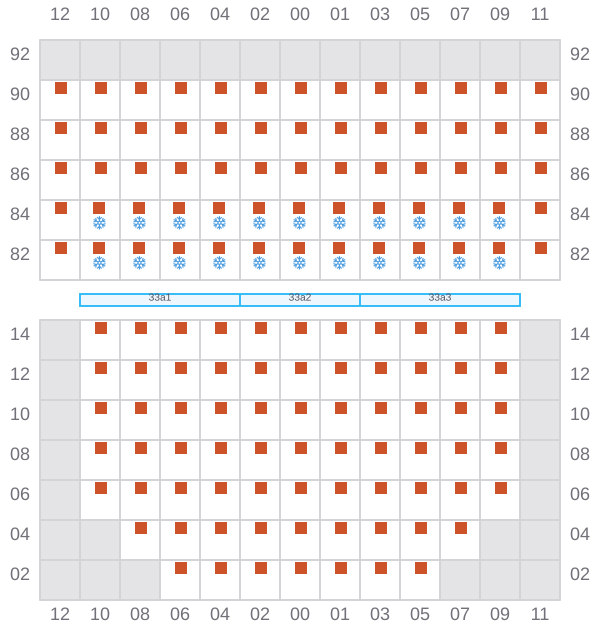

Bay 033 view and slots of MSC NILGUN

035 (034)

  • ←

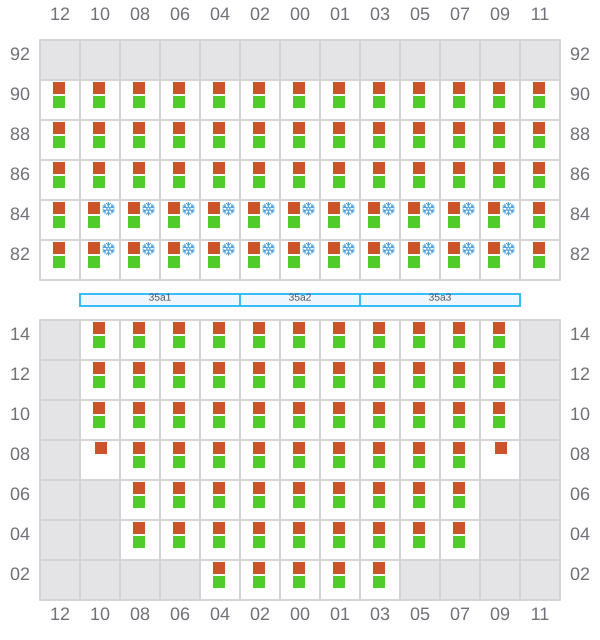

Bay 035 view and slots of MSC NILGUN

037

  • →
Bay 037 view and slots of MSC NILGUN

039 (038)

  • ←

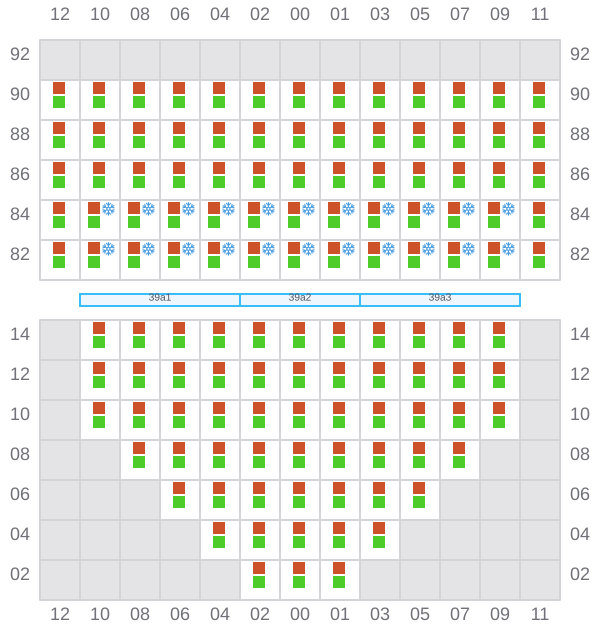

Bay 039 view and slots of MSC NILGUN

041

  • → / ?

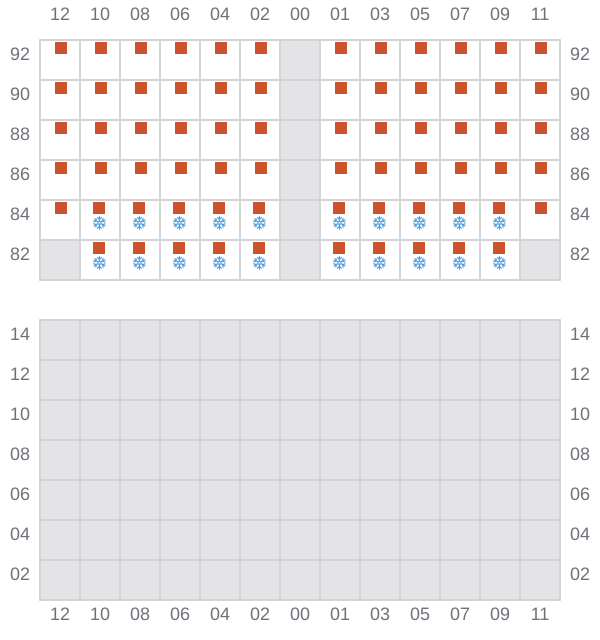

Bay 041 view and slots of MSC NILGUN

043 (042)

  • ← / ?

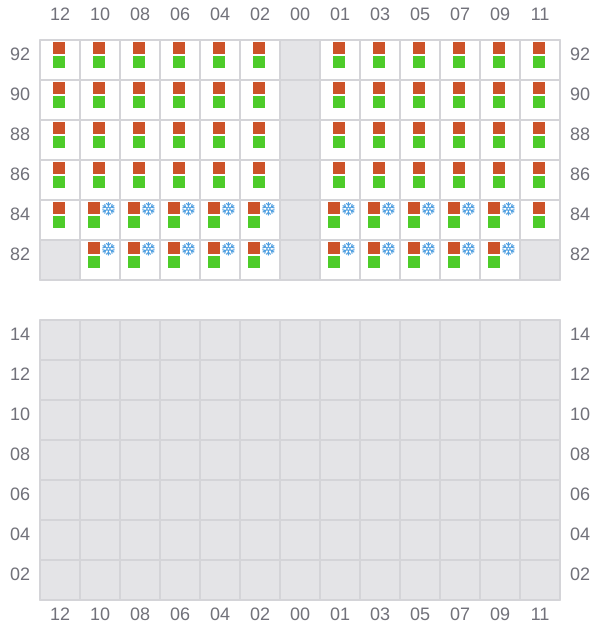

Bay 043 view and slots of MSC NILGUN
