MSC NISHA V
9326768 | 5LGH6 | 9326768 by ********* Last update: Thu Jun 27 2024

General Info

Ship Name:MSC NISHA V
IMO Code:9326768
Call Sign:5LGH6
Line Operator:9326768
Class Name for Sister Ships:HLC
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,306

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

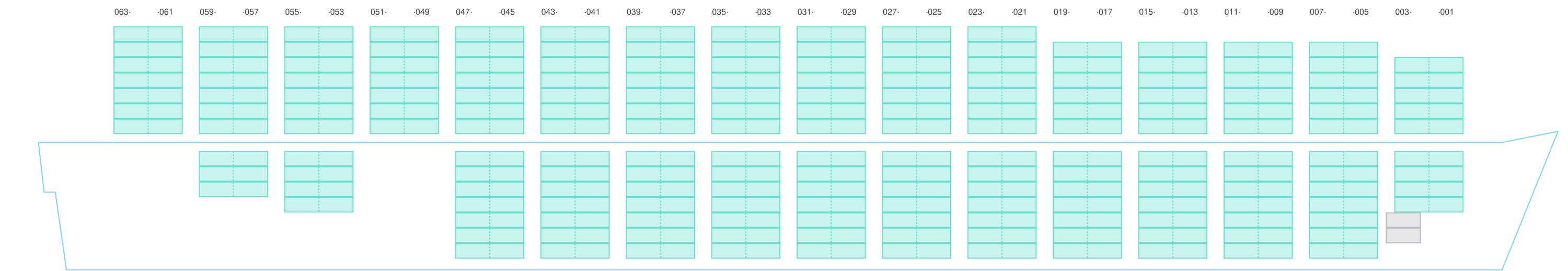

Side view of MSC NISHA V

Hatch-Covers View

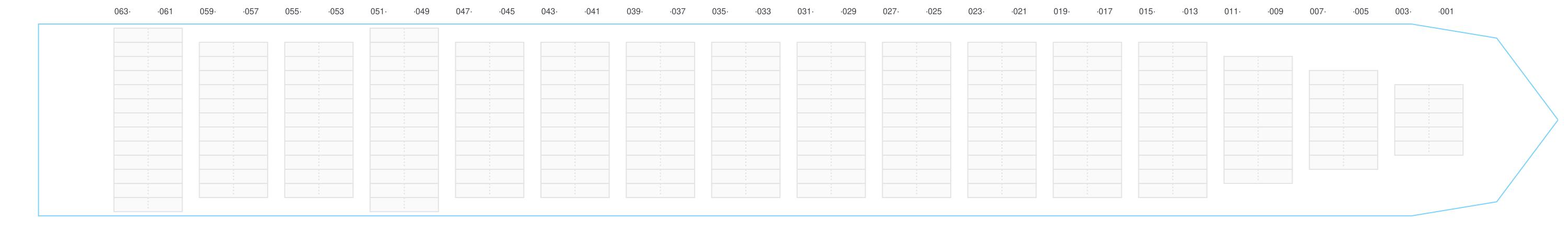

Deck view of MSC NISHA V

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

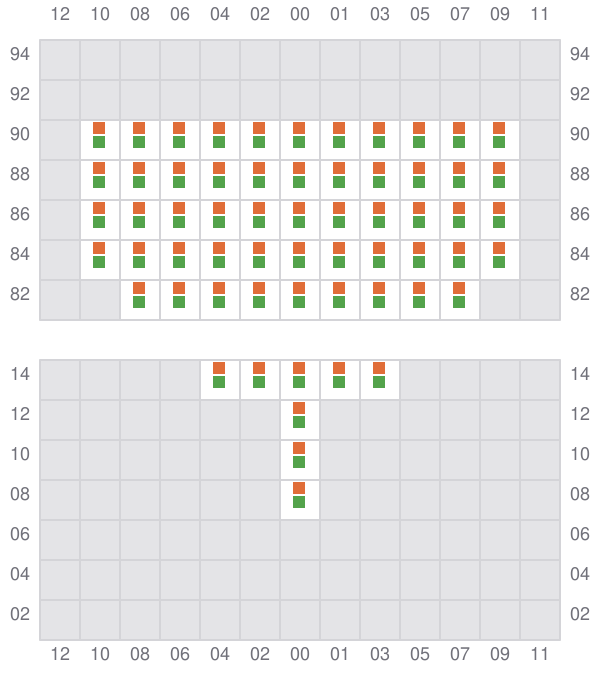

Bay 001 view and slots of MSC NISHA V

003

  • ←

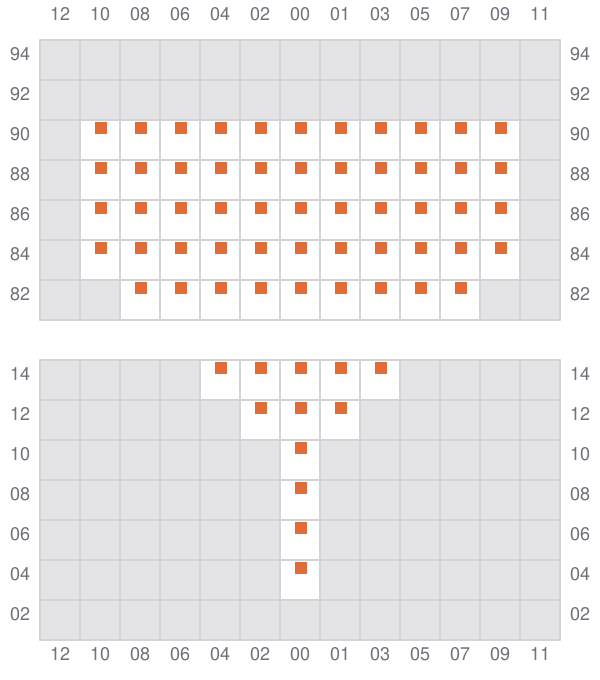

Bay 003 view and slots of MSC NISHA V

005 (006)

  • →

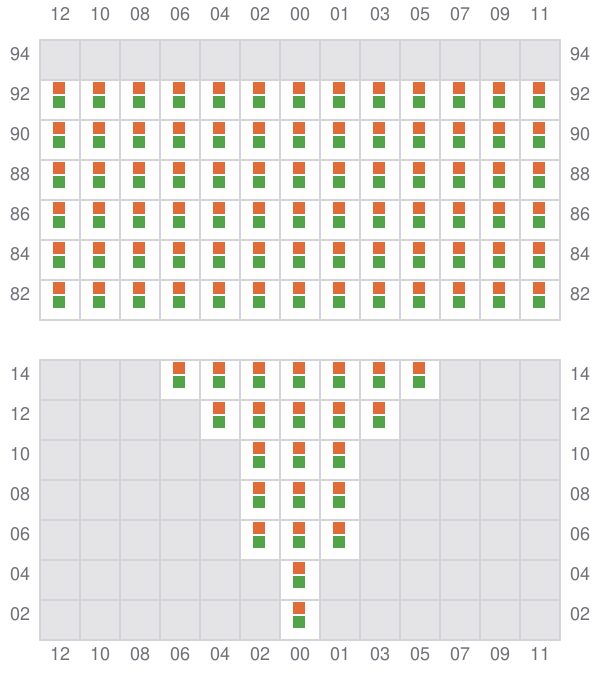

Bay 005 view and slots of MSC NISHA V

007

  • ←

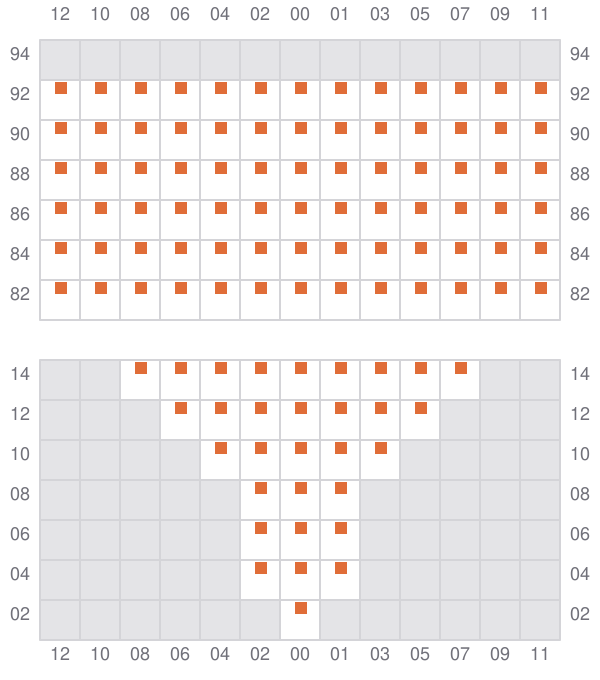

Bay 007 view and slots of MSC NISHA V

009 (010)

  • →

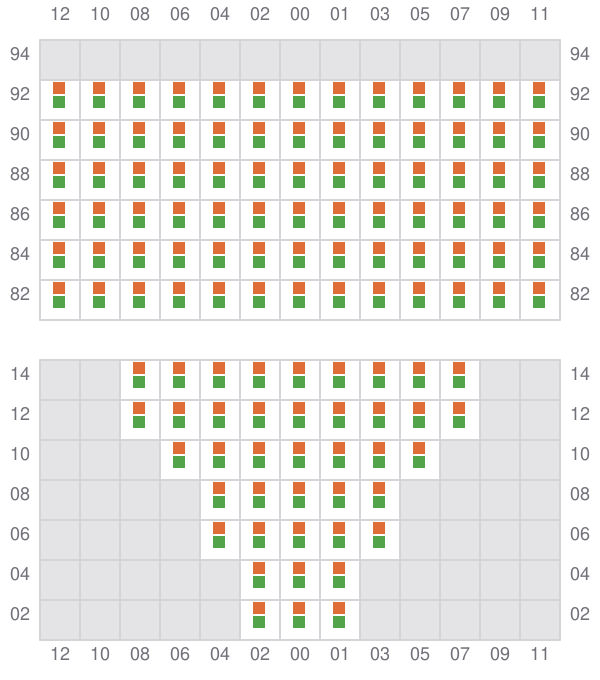

Bay 009 view and slots of MSC NISHA V

011

  • ←

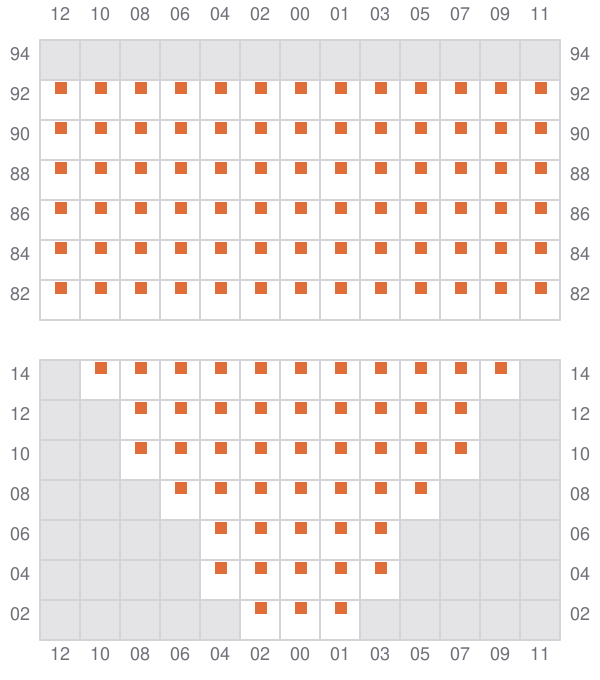

Bay 011 view and slots of MSC NISHA V

013 (014)

  • →

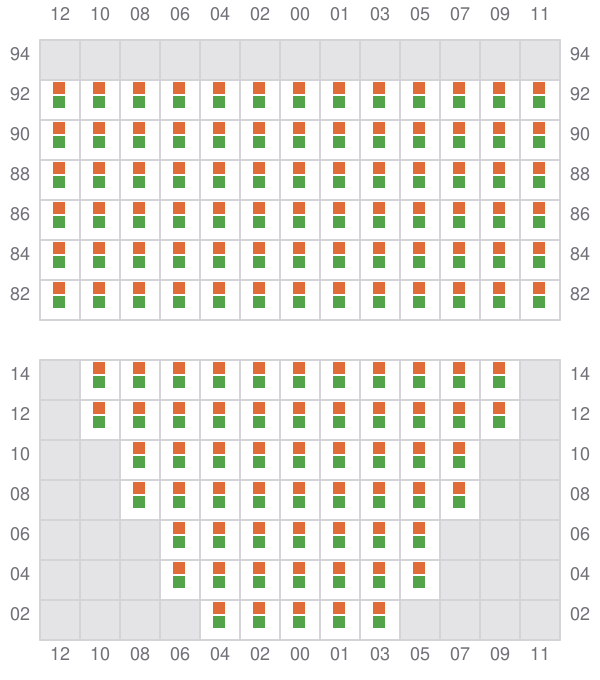

Bay 013 view and slots of MSC NISHA V

015

  • ←

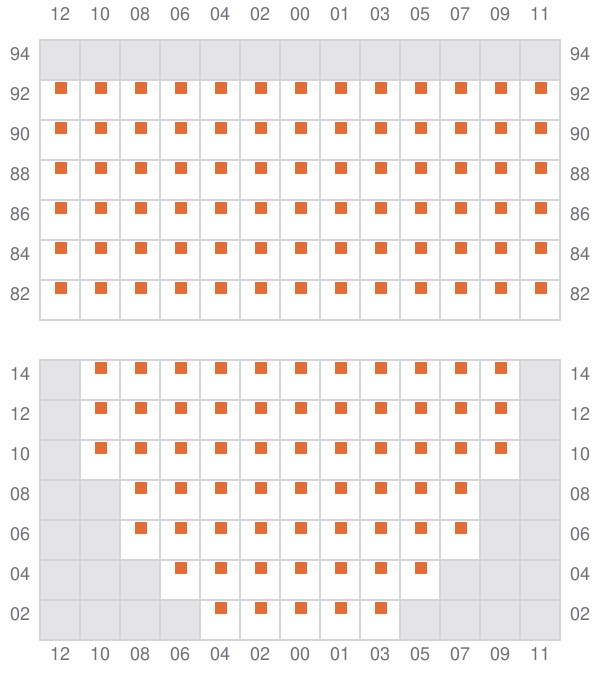

Bay 015 view and slots of MSC NISHA V

017 (018)

  • →

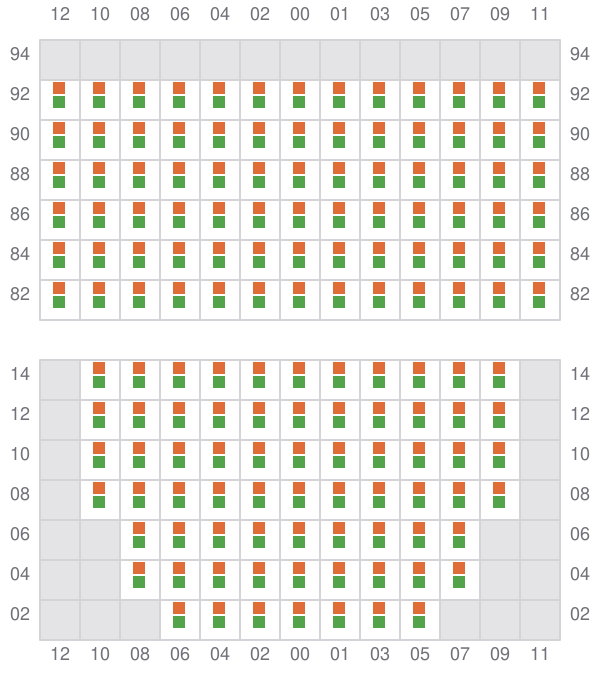

Bay 017 view and slots of MSC NISHA V

019

  • ←

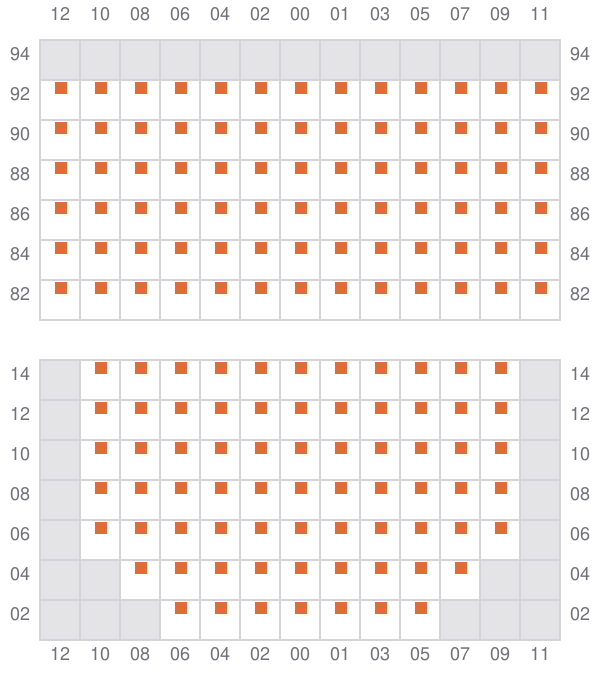

Bay 019 view and slots of MSC NISHA V

021 (022)

  • →

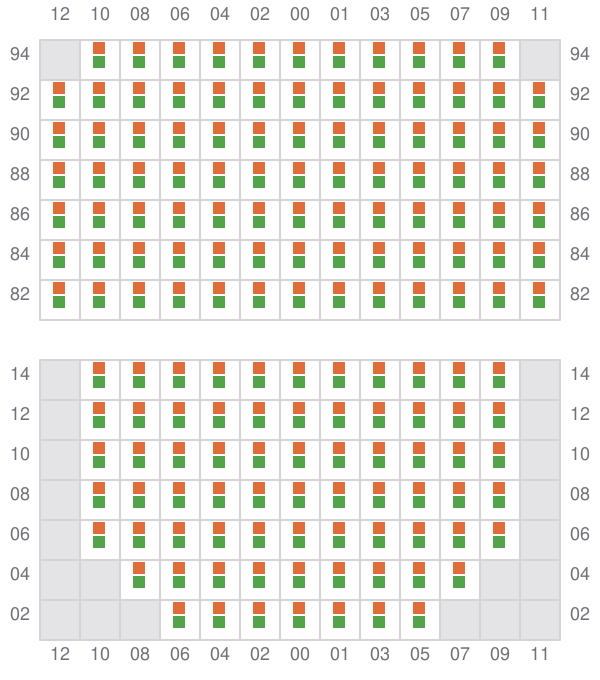

Bay 021 view and slots of MSC NISHA V

023

  • ←

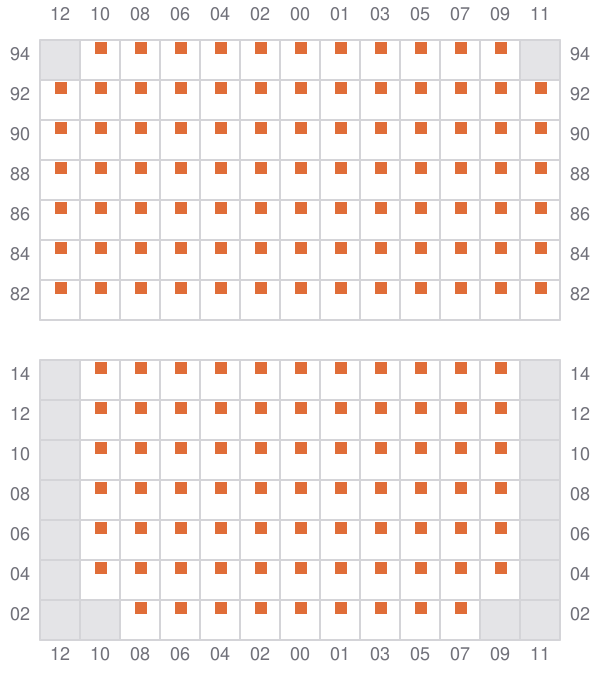

Bay 023 view and slots of MSC NISHA V

025 (026)

  • →
Bay 025 view and slots of MSC NISHA V

027

  • ←
Bay 027 view and slots of MSC NISHA V

029 (030)

  • →

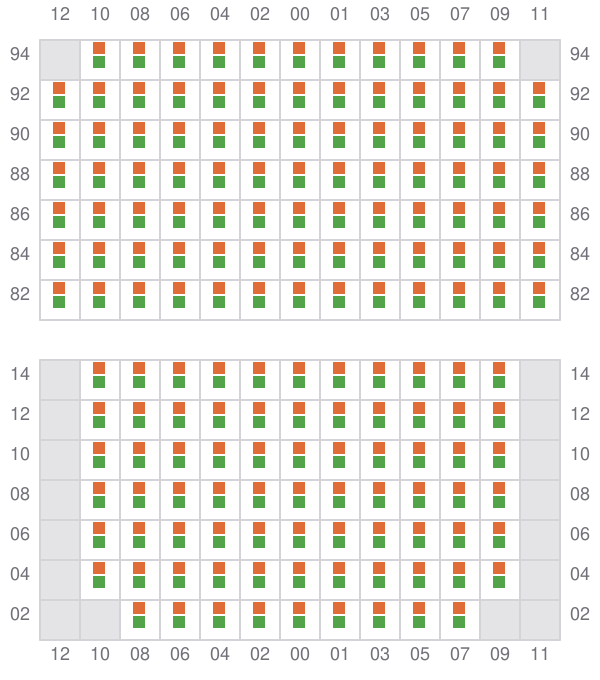

Bay 029 view and slots of MSC NISHA V

031

  • ←
Bay 031 view and slots of MSC NISHA V

033 (034)

  • →
Bay 033 view and slots of MSC NISHA V

035

  • ←
Bay 035 view and slots of MSC NISHA V

037 (038)

  • →
Bay 037 view and slots of MSC NISHA V

039

  • ←
Bay 039 view and slots of MSC NISHA V

041 (042)

  • →
Bay 041 view and slots of MSC NISHA V

043

  • ←
Bay 043 view and slots of MSC NISHA V

045 (046)

  • →
Bay 045 view and slots of MSC NISHA V

047

  • ←

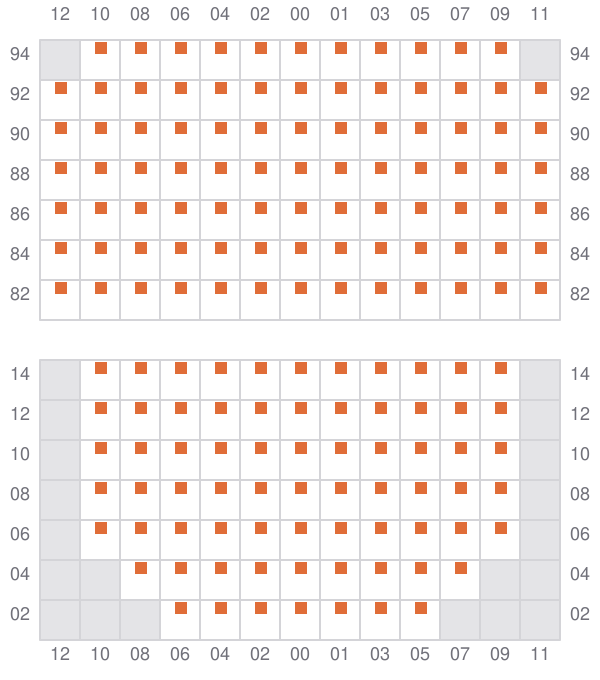

Bay 047 view and slots of MSC NISHA V

049 (050)

  • → / ?

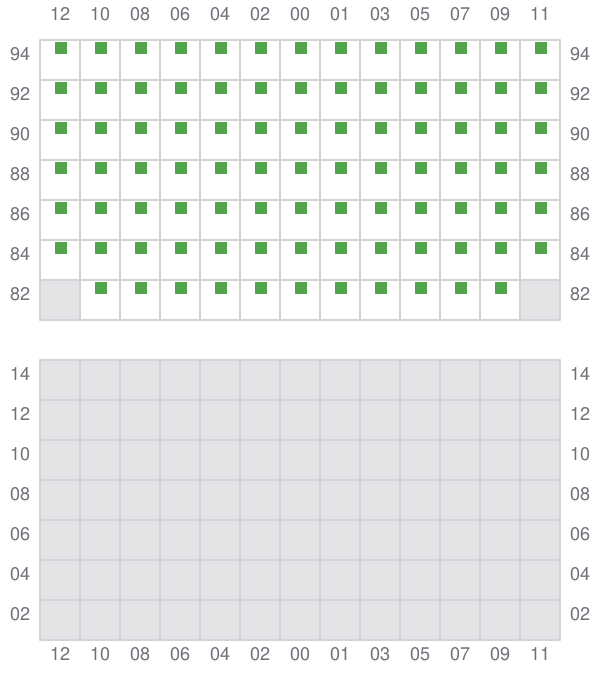

Bay 049 view and slots of MSC NISHA V

051

  • ← / ?

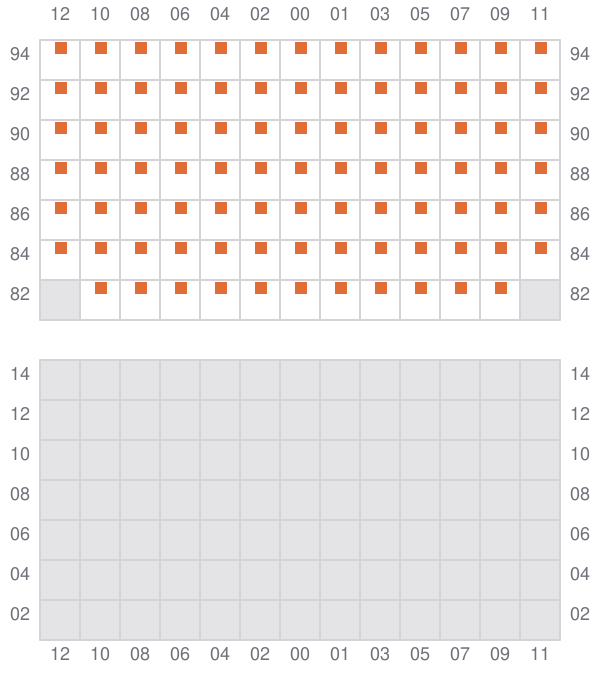

Bay 051 view and slots of MSC NISHA V

053 (054)

  • →

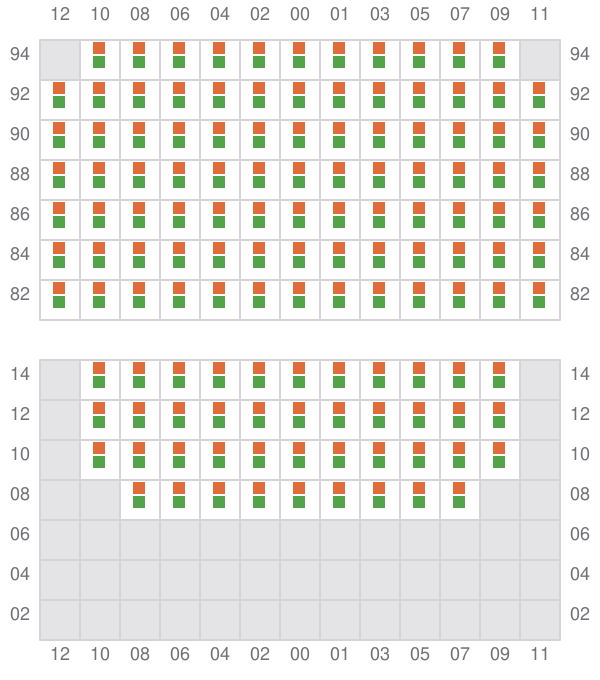

Bay 053 view and slots of MSC NISHA V

055

  • ←

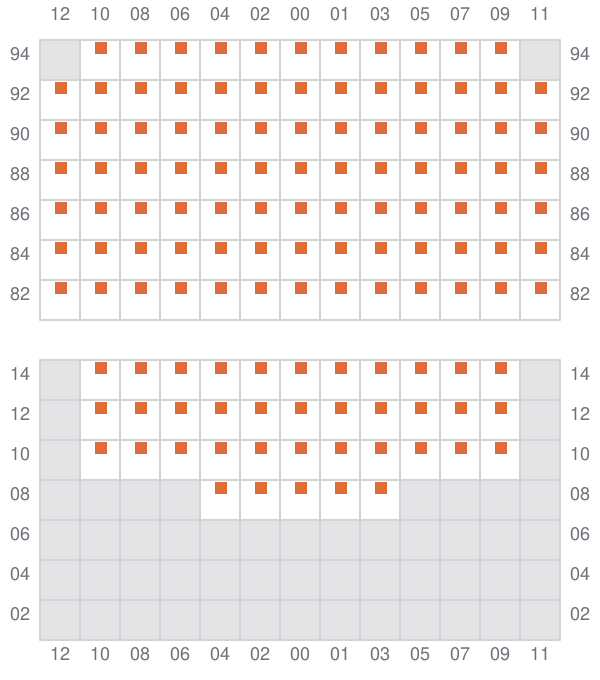

Bay 055 view and slots of MSC NISHA V

057 (058)

  • →

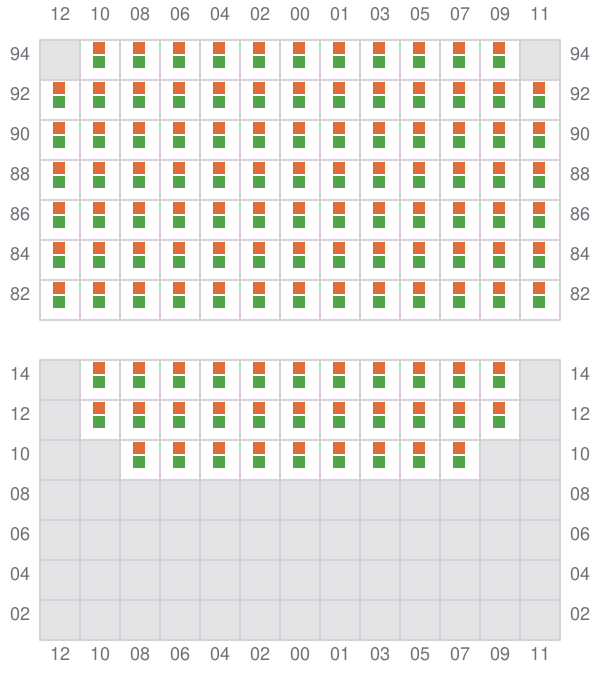

Bay 057 view and slots of MSC NISHA V

059

  • ←

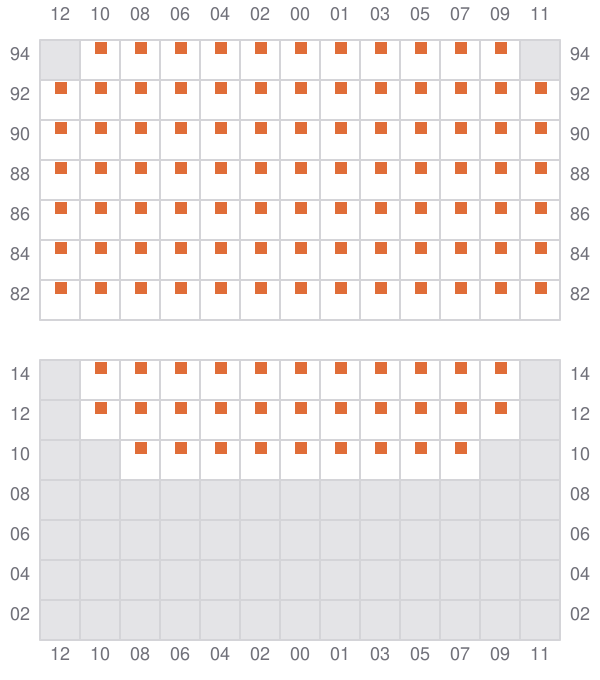

Bay 059 view and slots of MSC NISHA V

061 (062)

  • → / ?

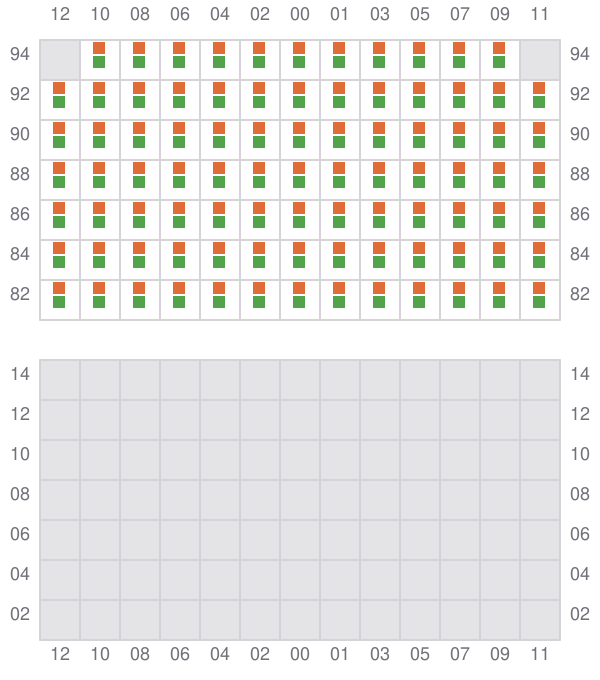

Bay 061 view and slots of MSC NISHA V

063

  • ← / ?

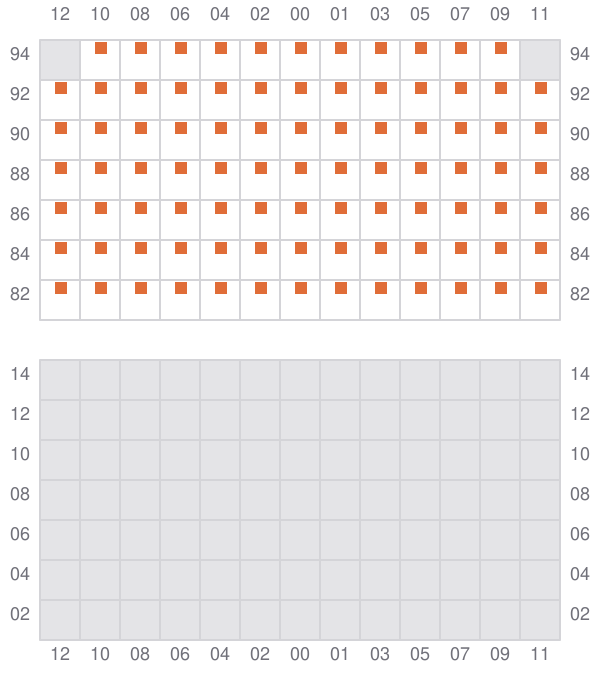

Bay 063 view and slots of MSC NISHA V
