MSC NITA
9084607 | D5PL7 | 9084607 by *********** Last update: Mon Mar 04 2024
General Info
Ship Name:MSC NITA
IMO Code:9084607
Call Sign:D5PL7
Line Operator:9084607
Class Name for Sister Ships:7GZ
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,511
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

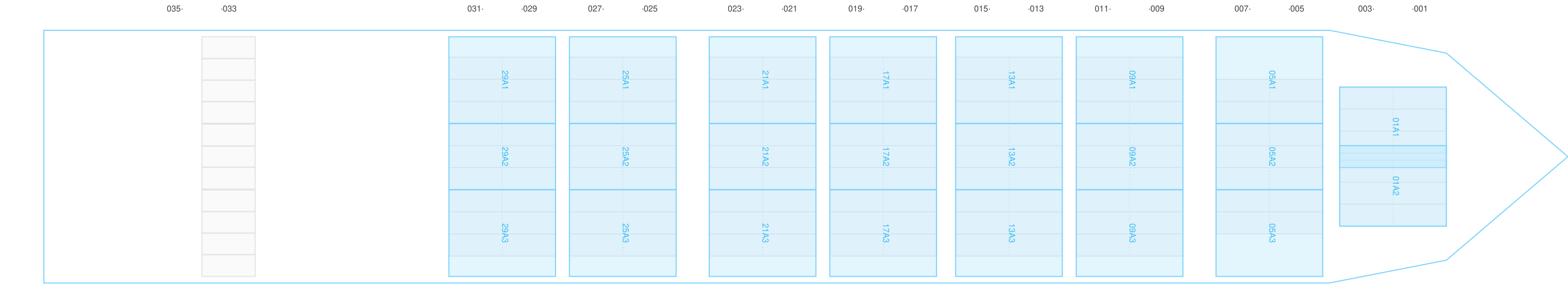

Hatch-Covers View

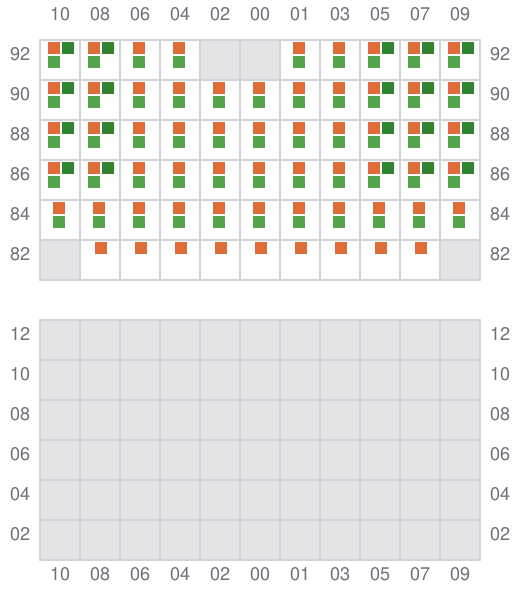

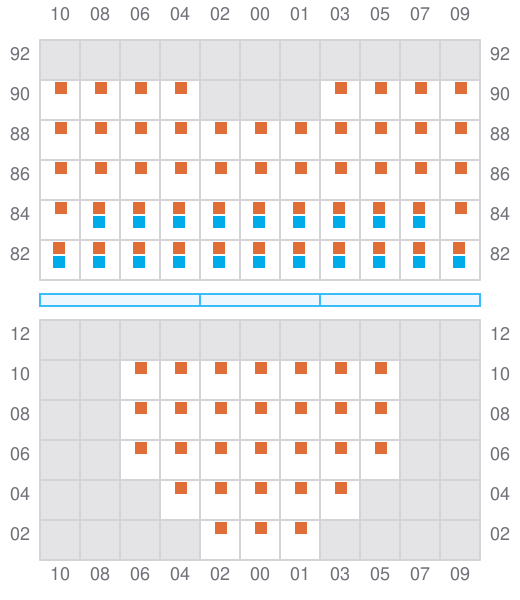

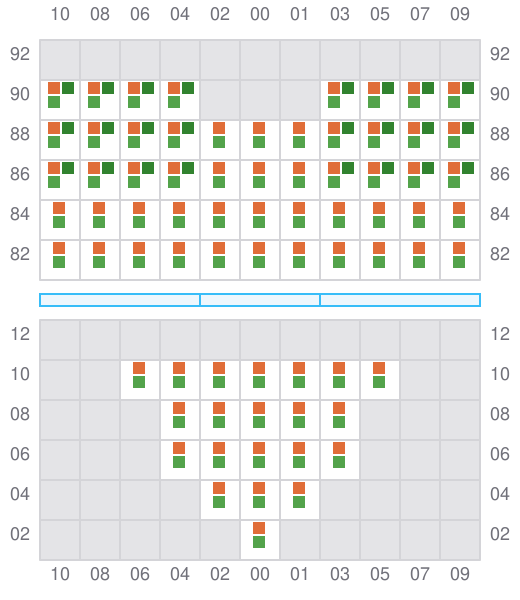

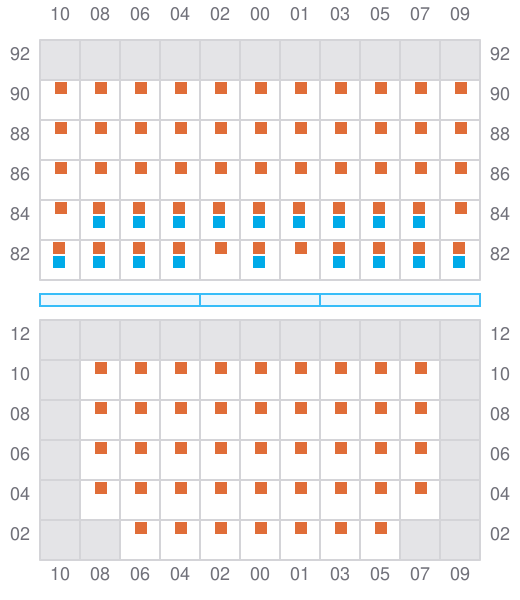

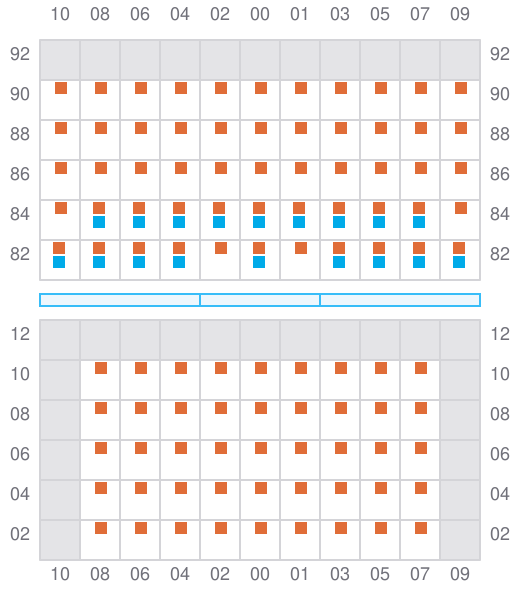

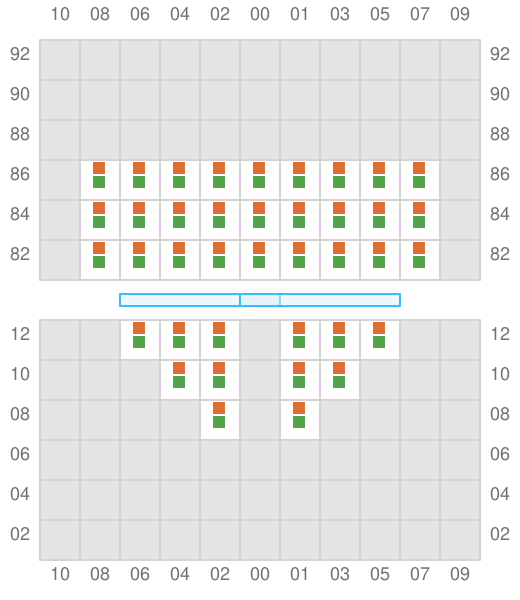

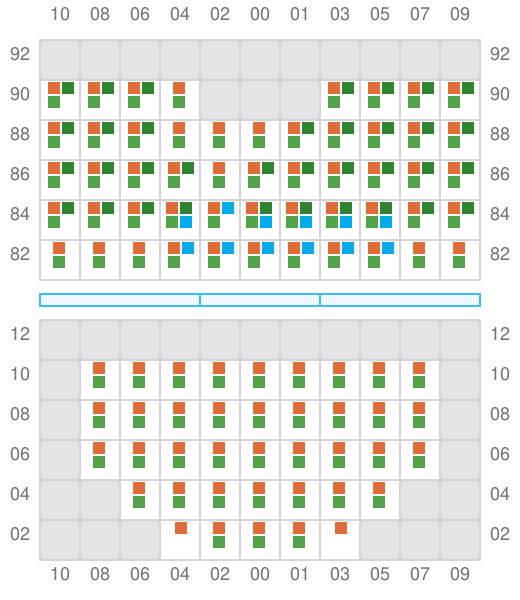

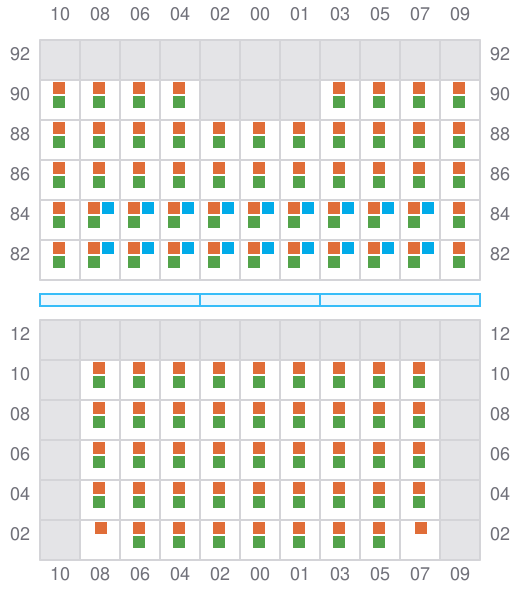

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

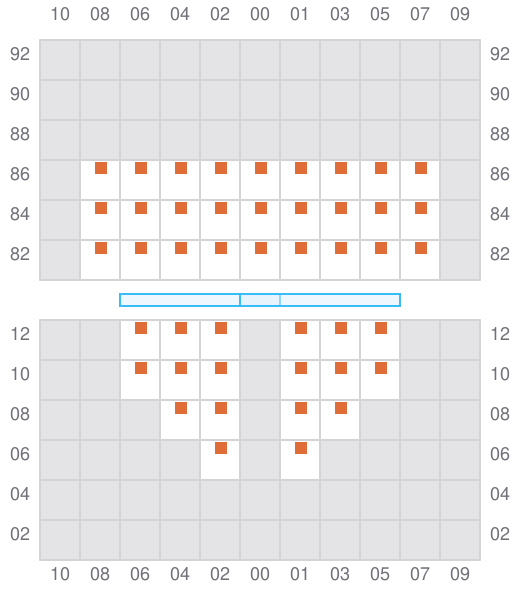

003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
013 (014)
- →
015
- ←
017 (018)
- →
- ← / ?
019
- ←
- → / ?
021 (022)
- →
- ← / ?
023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
029 (030)
- →
- ← / ?
031
- ←
033 (034)
- → / ?

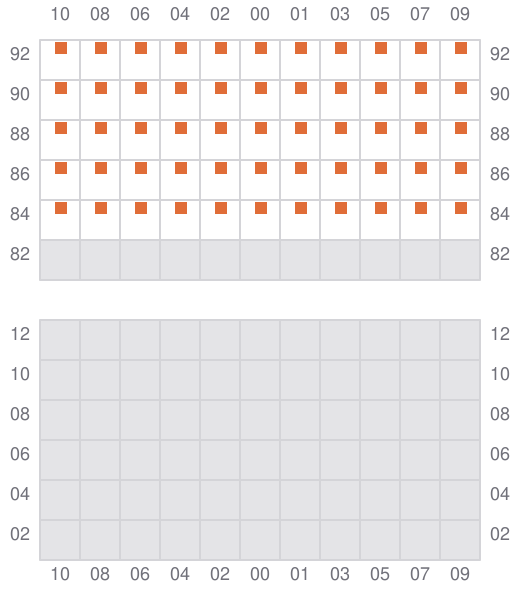

035
- ← / ?
