MSC NOA
9398228 | D5QT6 | 9398228 by ********* Last update: Sun Mar 24 2024

General Info

Ship Name:MSC NOA

IMO Code:9398228

Call Sign:D5QT6

Line Operator:9398228

Class Name for Sister Ships:G54

Year Built:2009

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):292.03

LOA (Length Overall):304.16

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:069

Max ISO Row:16

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:6,969

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

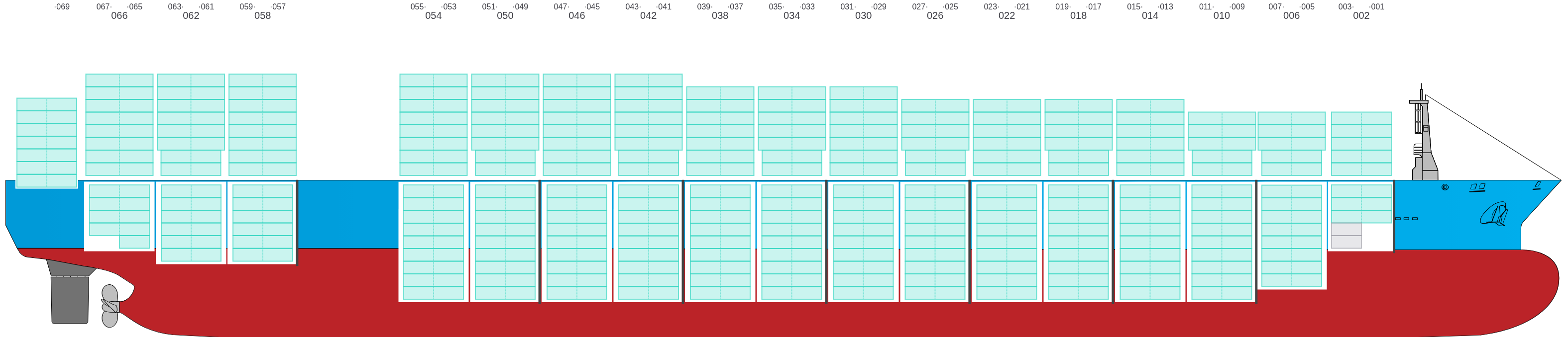

Side view of MSC NOA

Hatch-Covers View

Deck view of MSC NOA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

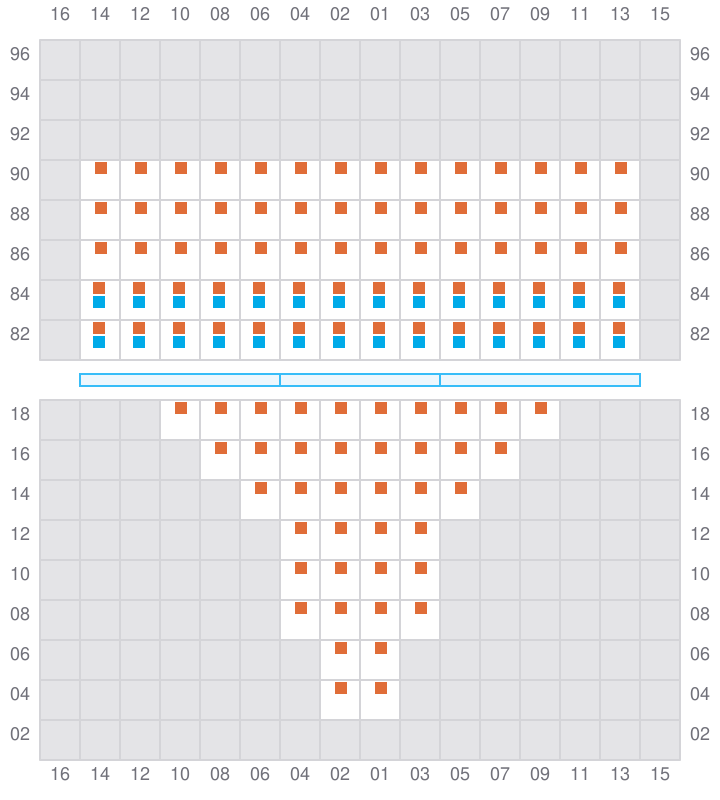

001 (002)

→

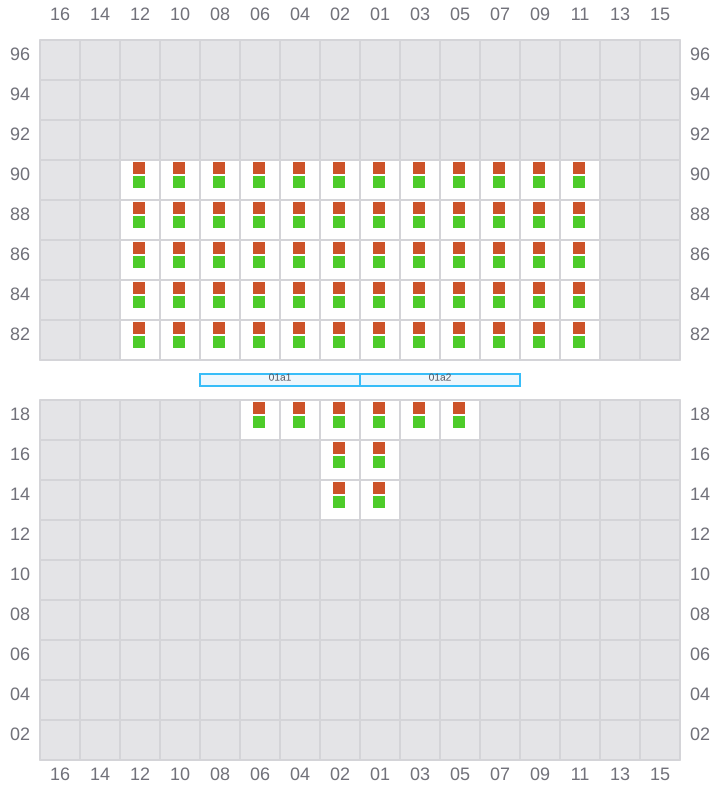

Bay 001 view and slots of MSC NOA

003

←
^→ / _?

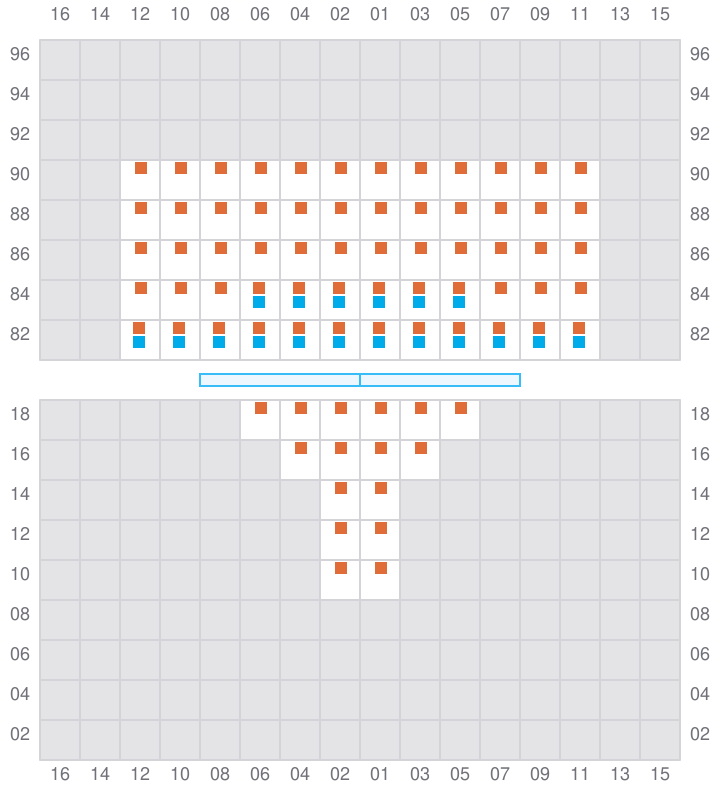

Bay 003 view and slots of MSC NOA

005 (006)

→

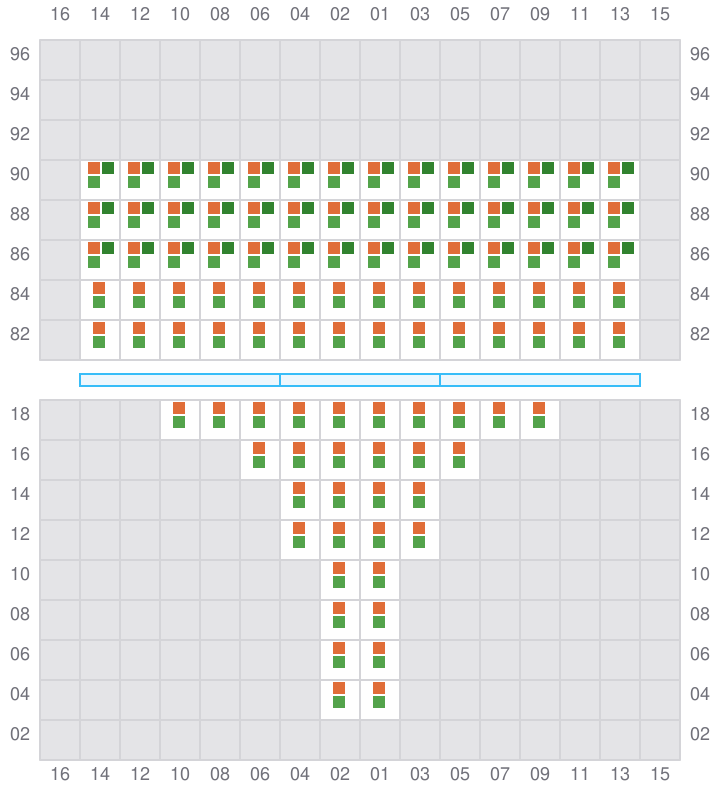

Bay 005 view and slots of MSC NOA

007

←
^→ / _?

Bay 007 view and slots of MSC NOA

009 (010)

→

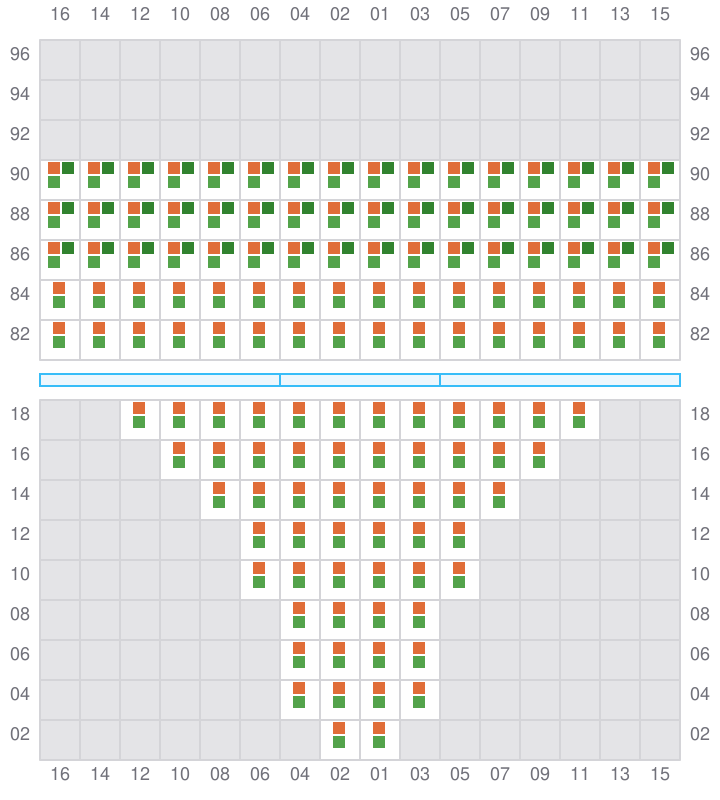

Bay 009 view and slots of MSC NOA

011

←
^→ / _?

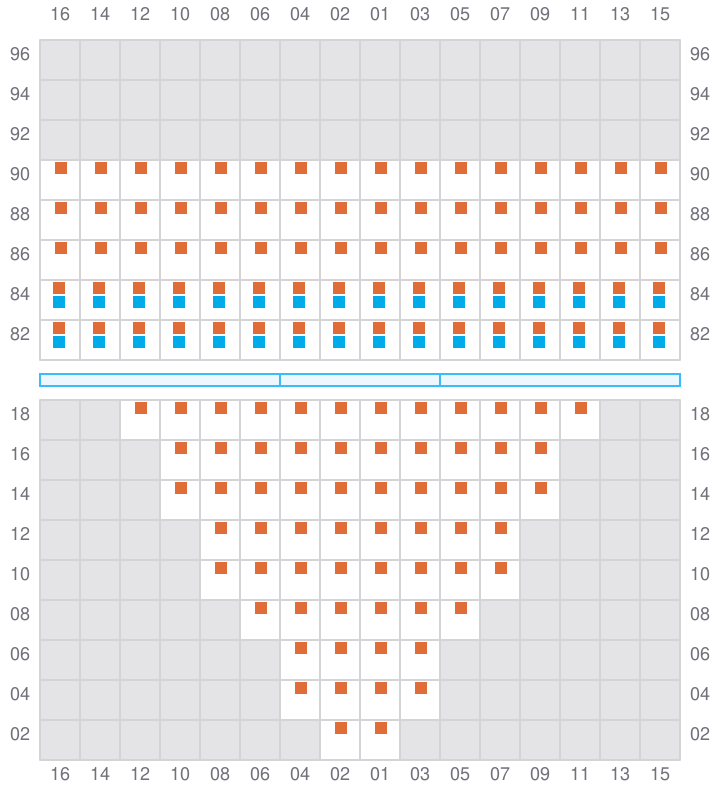

Bay 011 view and slots of MSC NOA

013 (014)

→

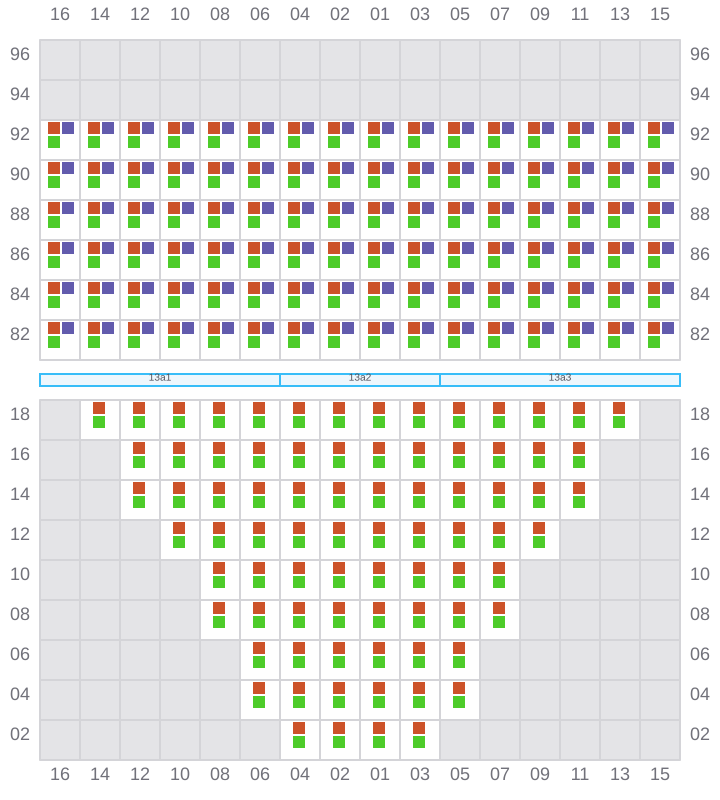

Bay 013 view and slots of MSC NOA

015

←
^→ / _?

Bay 015 view and slots of MSC NOA

017 (018)

→

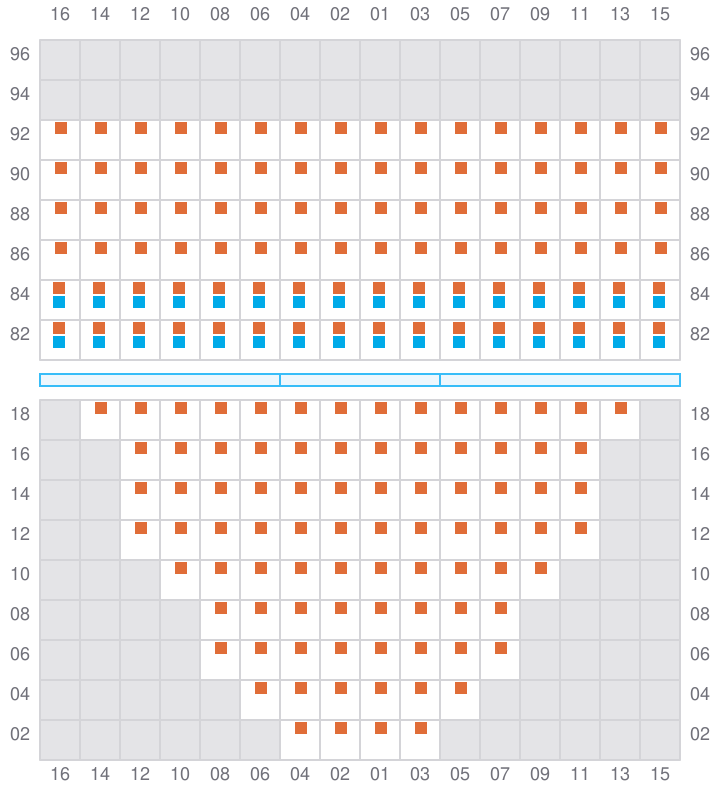

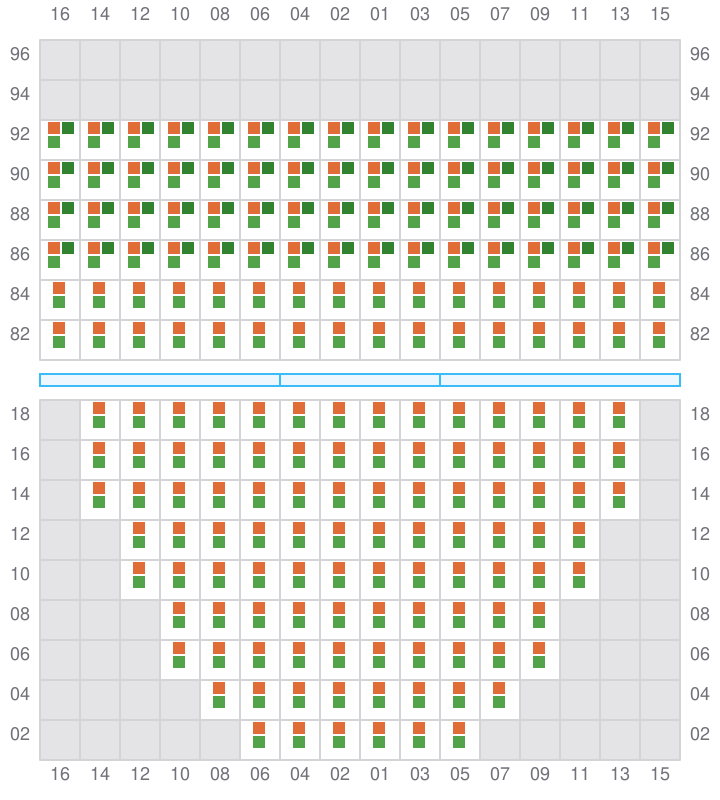

Bay 017 view and slots of MSC NOA

019

←
^→ / _?

Bay 019 view and slots of MSC NOA

021 (022)

→

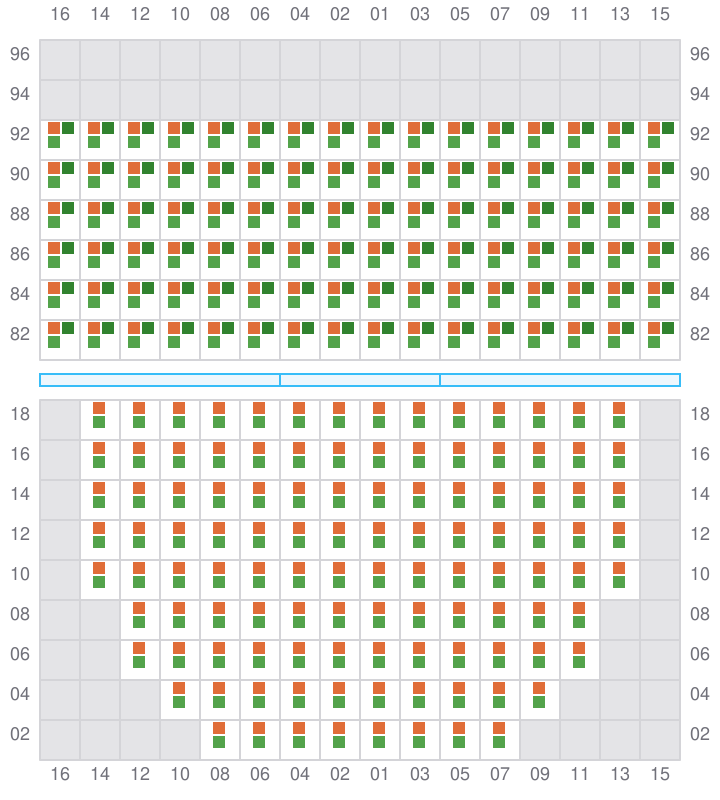

Bay 021 view and slots of MSC NOA

023

←
^→ / _?

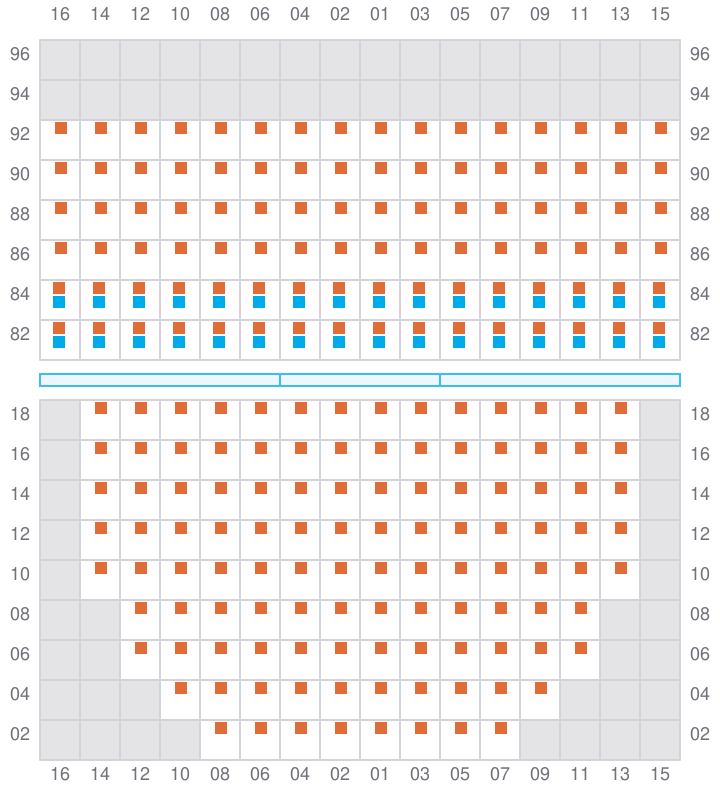

Bay 023 view and slots of MSC NOA

025 (026)

→

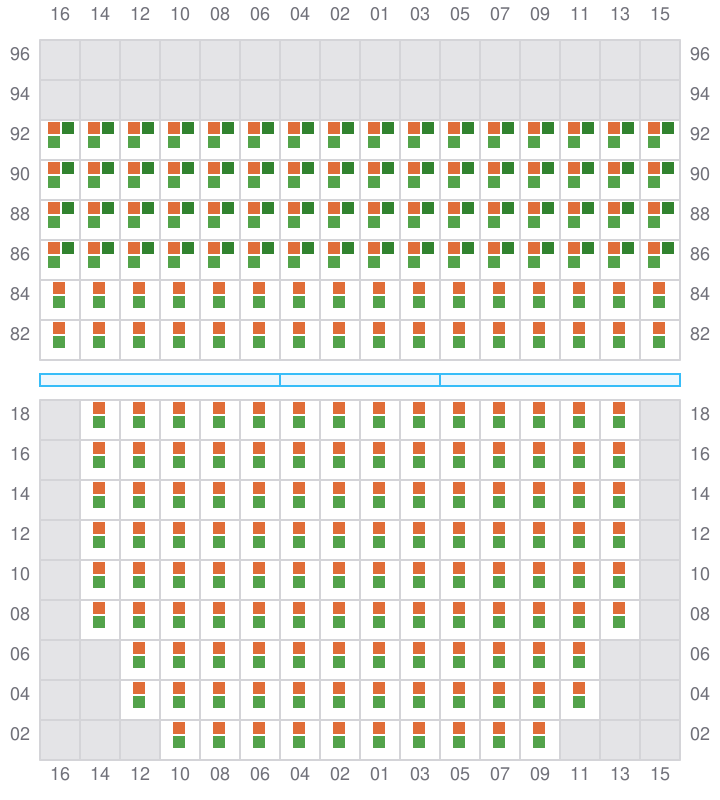

Bay 025 view and slots of MSC NOA

027

←
^→ / _?

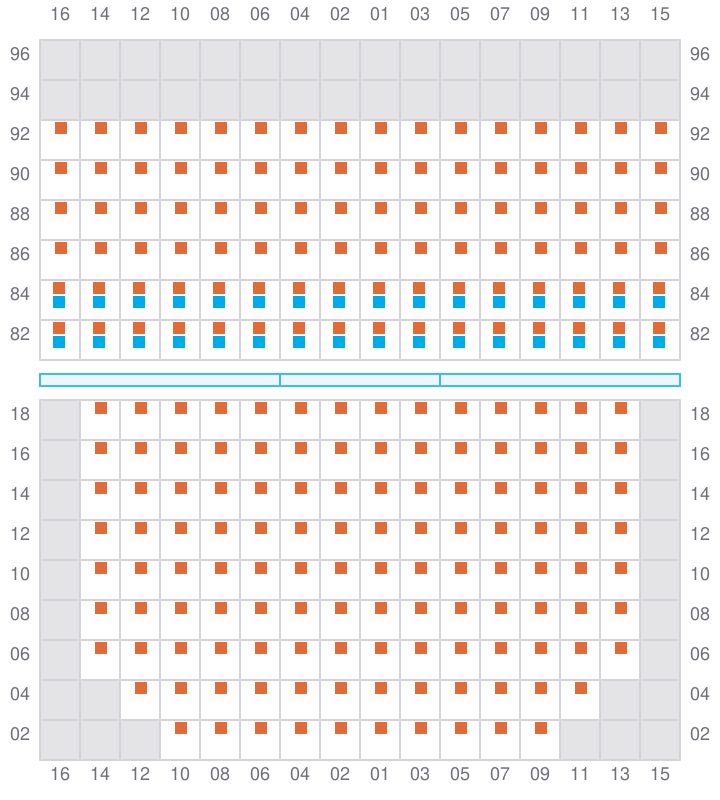

Bay 027 view and slots of MSC NOA

029 (030)

→

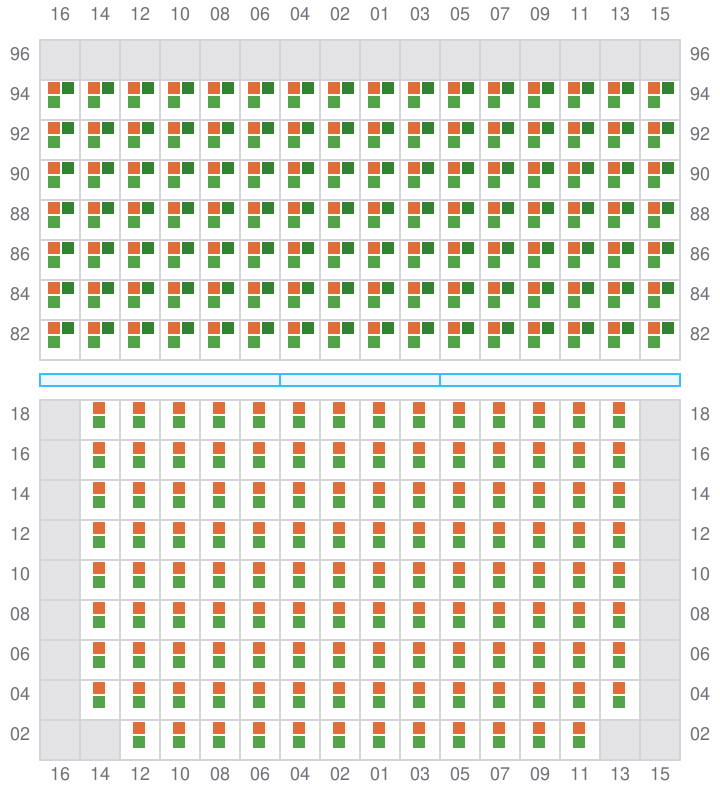

Bay 029 view and slots of MSC NOA

031

←
^→ / _?

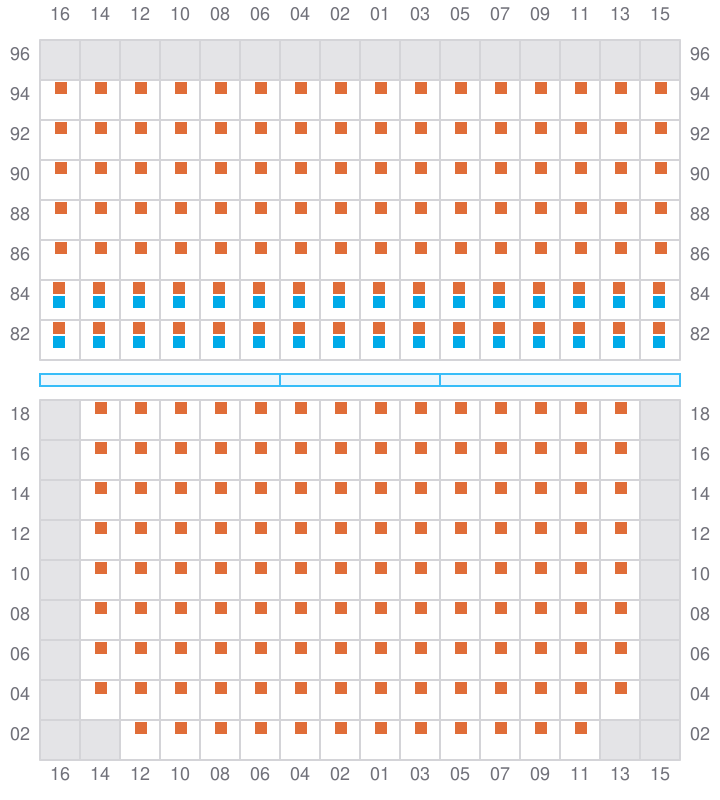

Bay 031 view and slots of MSC NOA

033 (034)

→

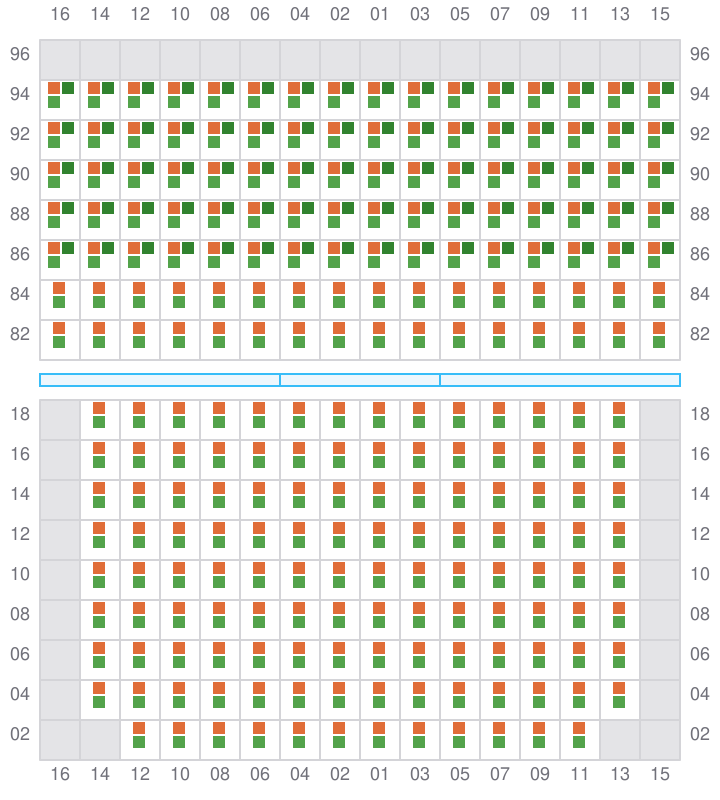

Bay 033 view and slots of MSC NOA

035

←
^→ / _?

Bay 035 view and slots of MSC NOA

037 (038)

→

Bay 037 view and slots of MSC NOA

039

←
^→ / _?

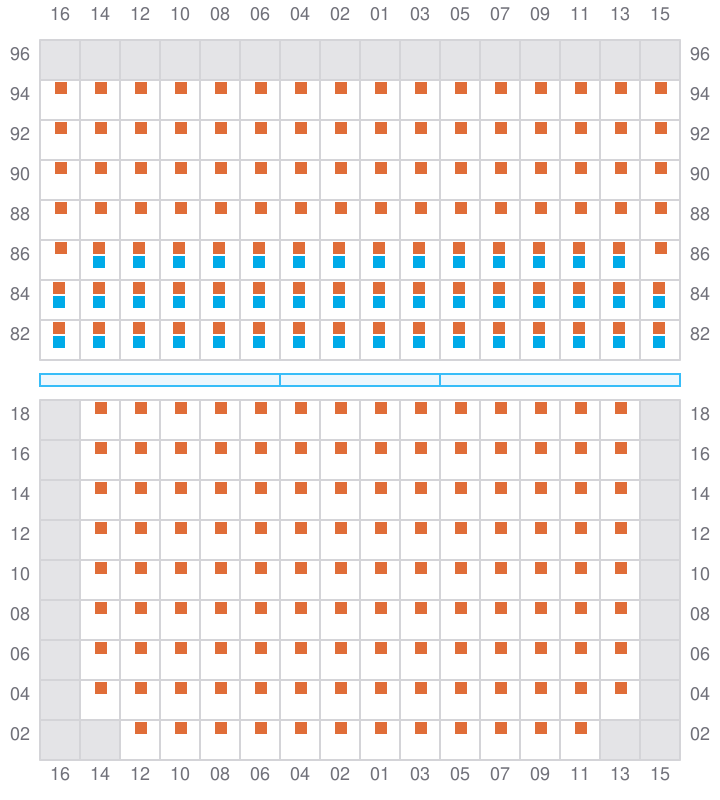

Bay 039 view and slots of MSC NOA

041 (042)

→

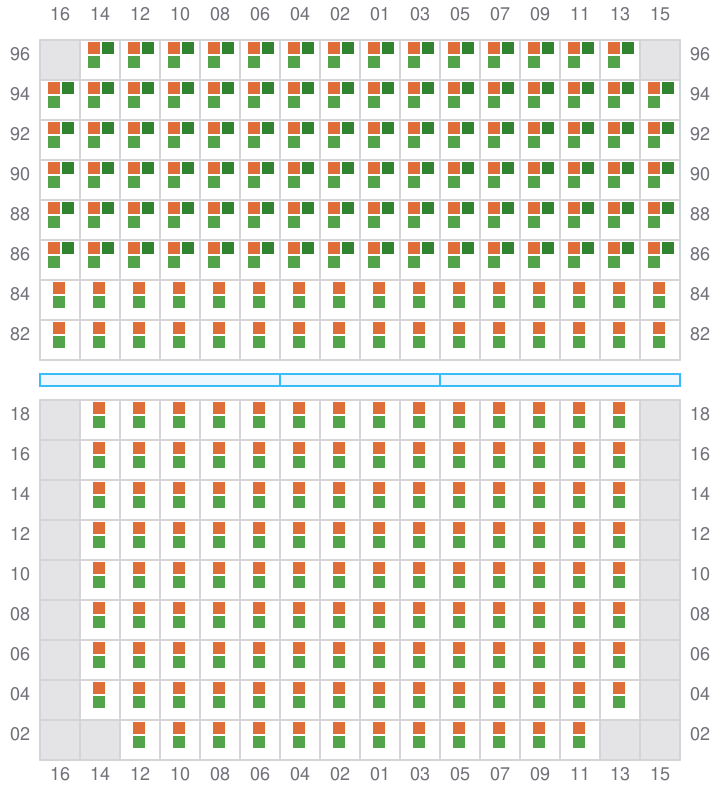

Bay 041 view and slots of MSC NOA

043

←

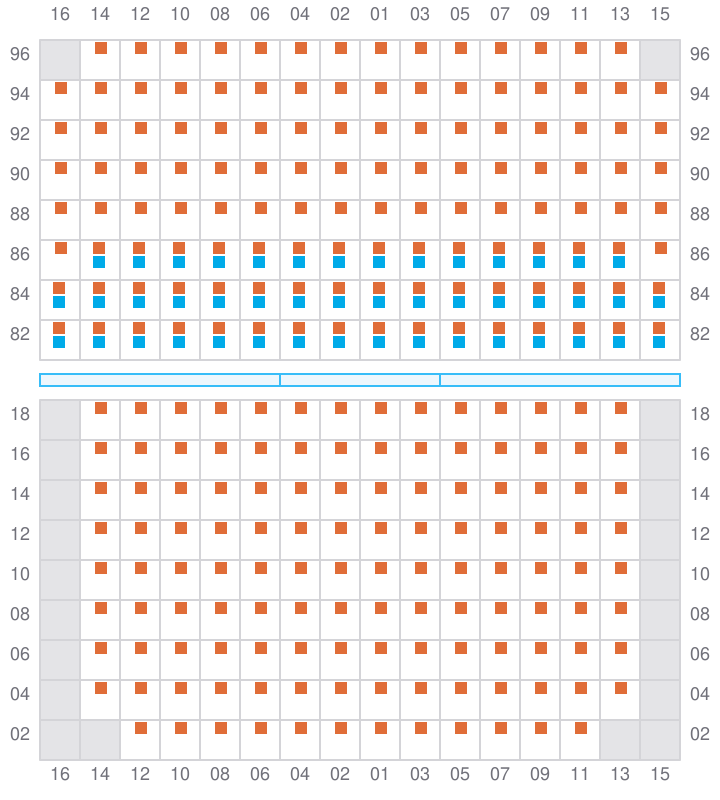

Bay 043 view and slots of MSC NOA

045 (046)

→

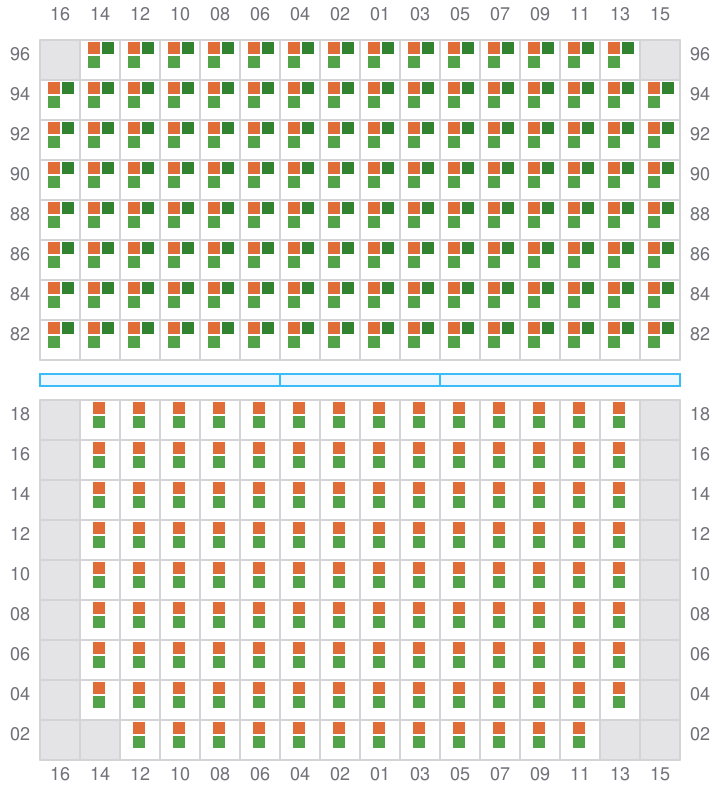

Bay 045 view and slots of MSC NOA

047

←
^→ / _?

Bay 047 view and slots of MSC NOA

049 (050)

→

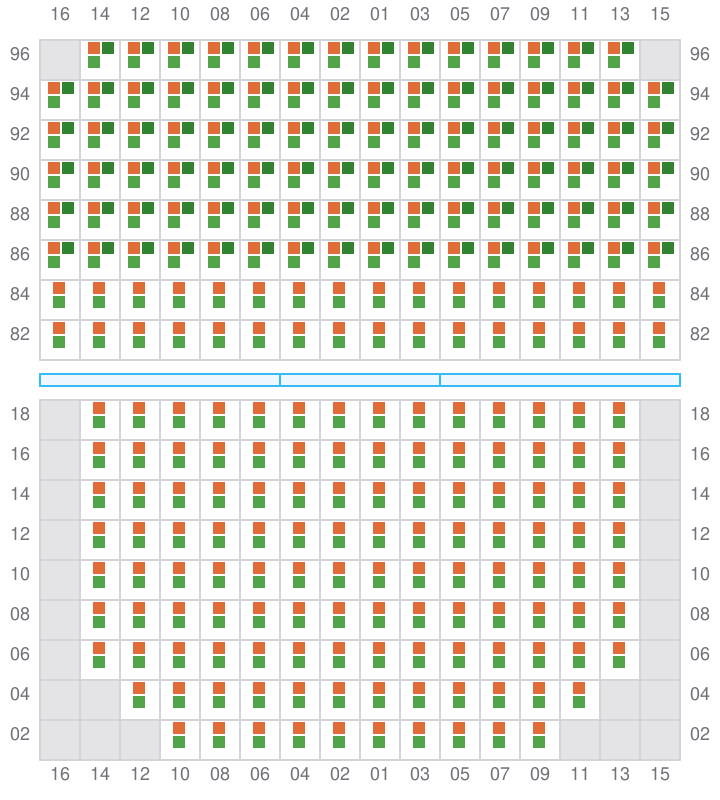

Bay 049 view and slots of MSC NOA

051

←
^→ / _?

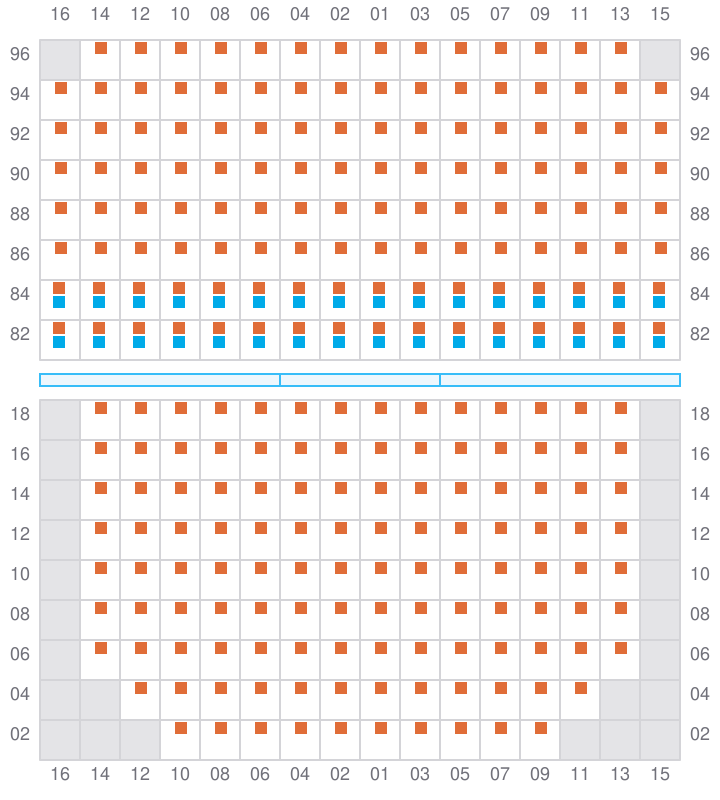

Bay 051 view and slots of MSC NOA

053 (054)

→

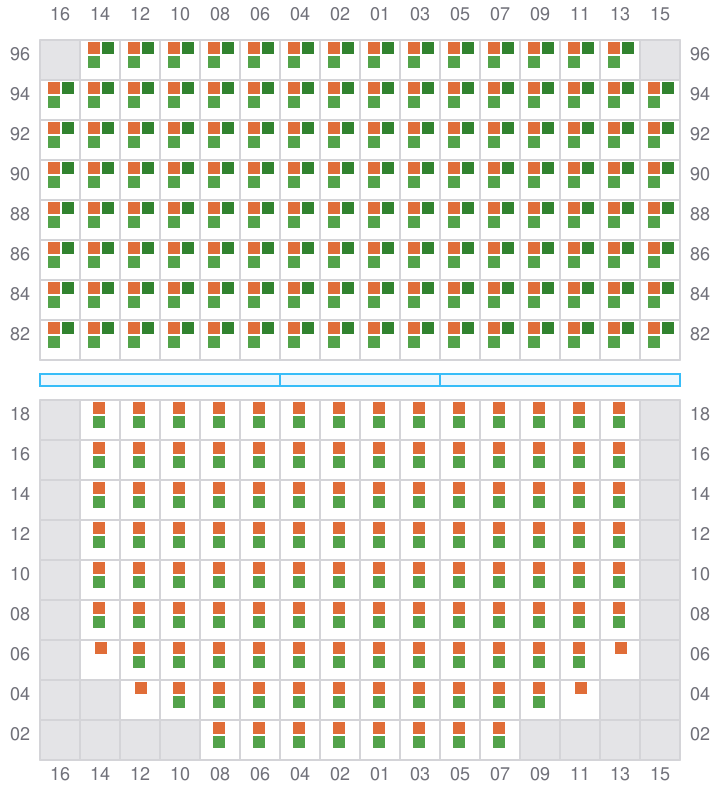

Bay 053 view and slots of MSC NOA

055

←
^→ / _?

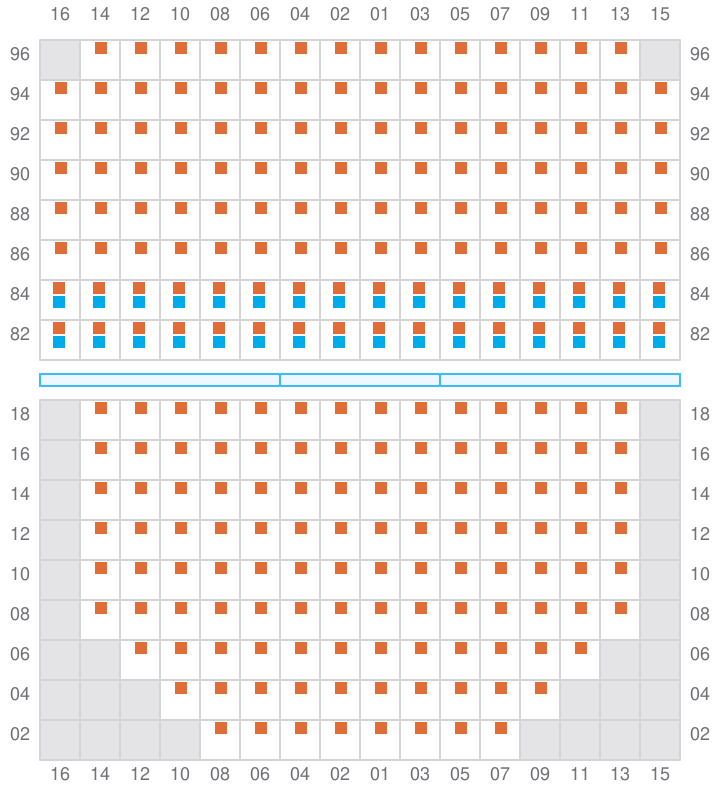

Bay 055 view and slots of MSC NOA

057 (058)

→

Bay 057 view and slots of MSC NOA

059

←
^→ / _?

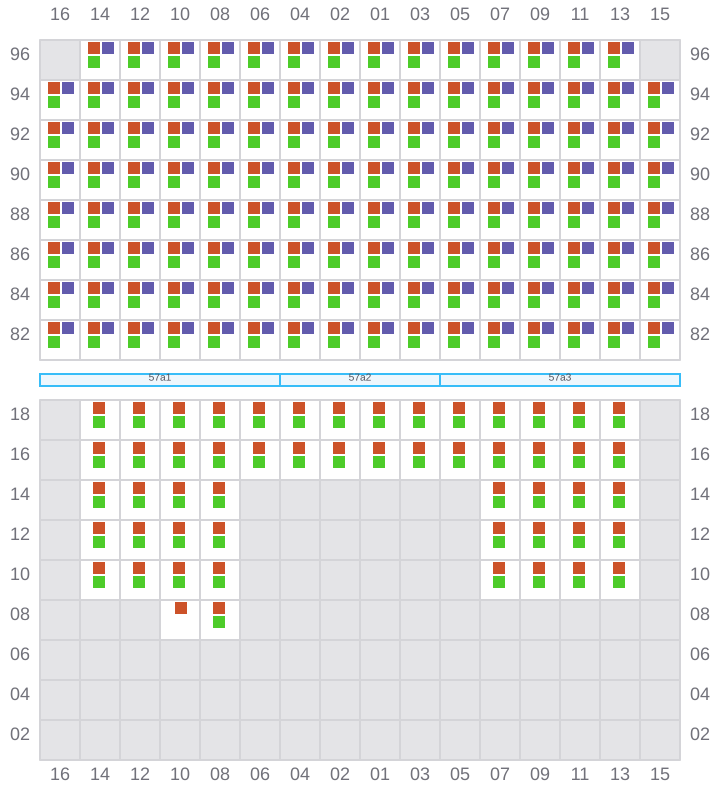

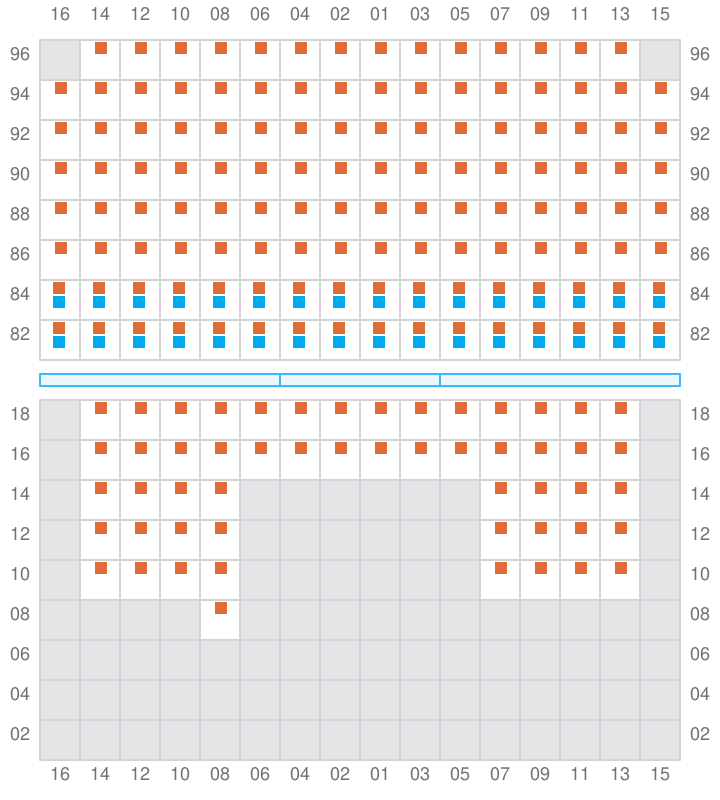

Bay 059 view and slots of MSC NOA

061 (062)

→

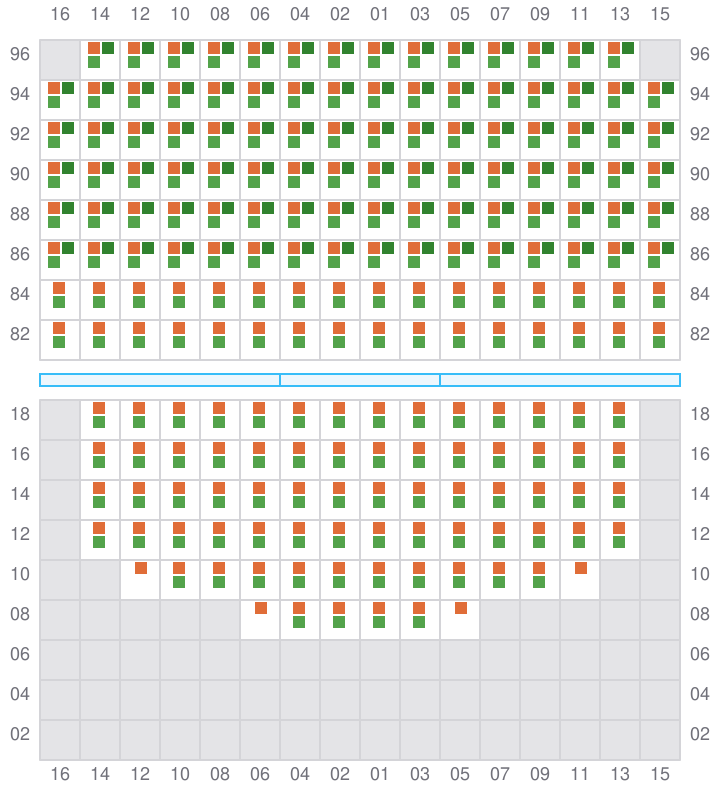

Bay 061 view and slots of MSC NOA

063

←
^→ / _?

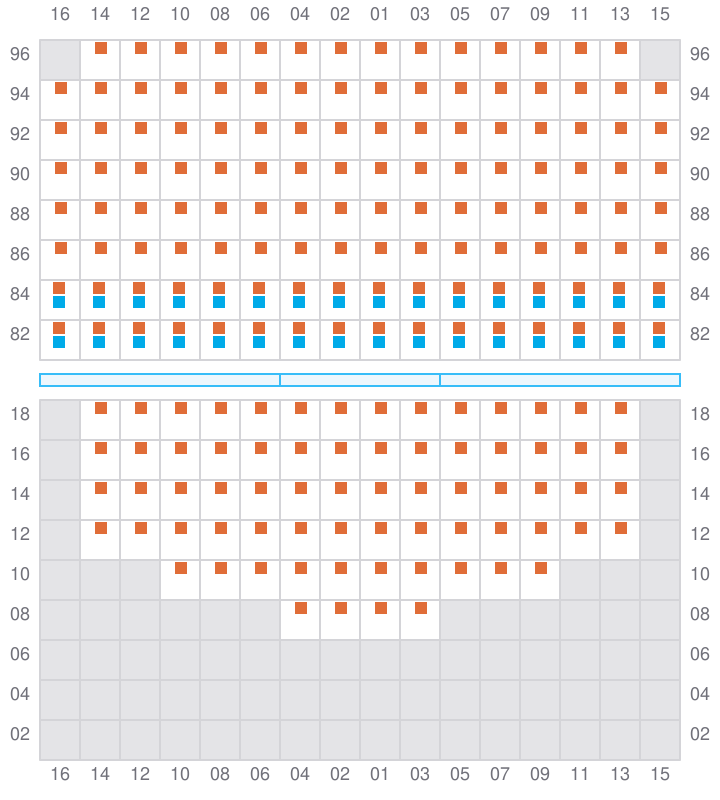

Bay 063 view and slots of MSC NOA

065 (066)

→

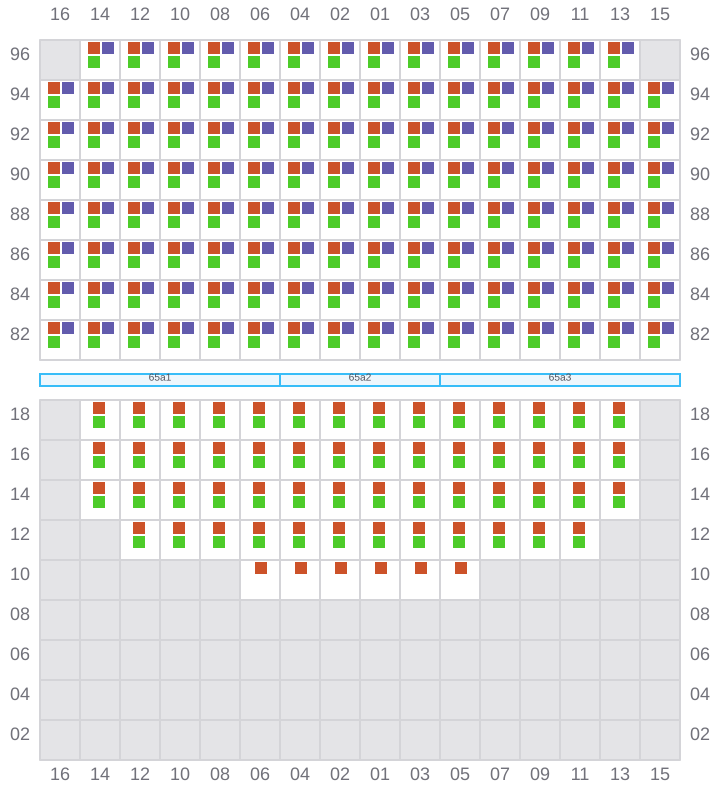

Bay 065 view and slots of MSC NOA

067

←
^→ / _?

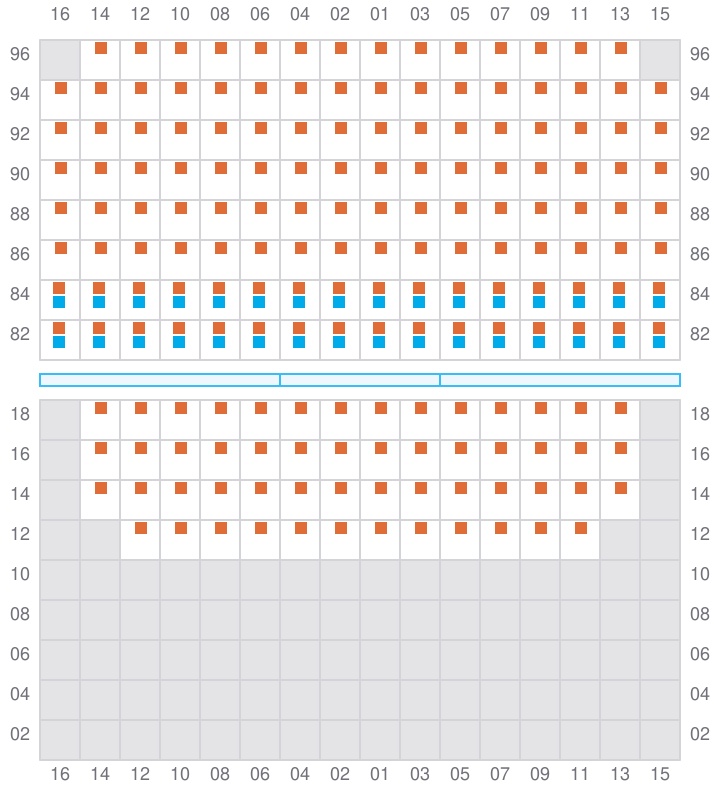

Bay 067 view and slots of MSC NOA

069 (070)

^→ / _?
^← / _?

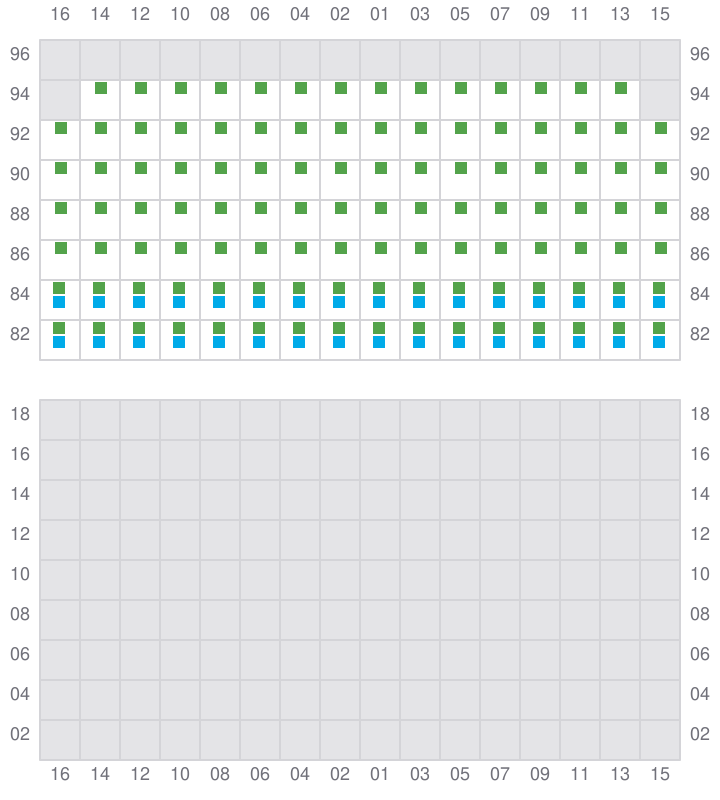

Bay 069 view and slots of MSC NOA
