MSC NURIA
9349825 | 3ESE2 | MSC by ************************** Last update: Mon Jun 19 2023
General Info
Ship Name:MSC NURIA
IMO Code:9349825
Call Sign:3ESE2
Line Operator:MSC
Class Name for Sister Ships:NUR
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,004
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

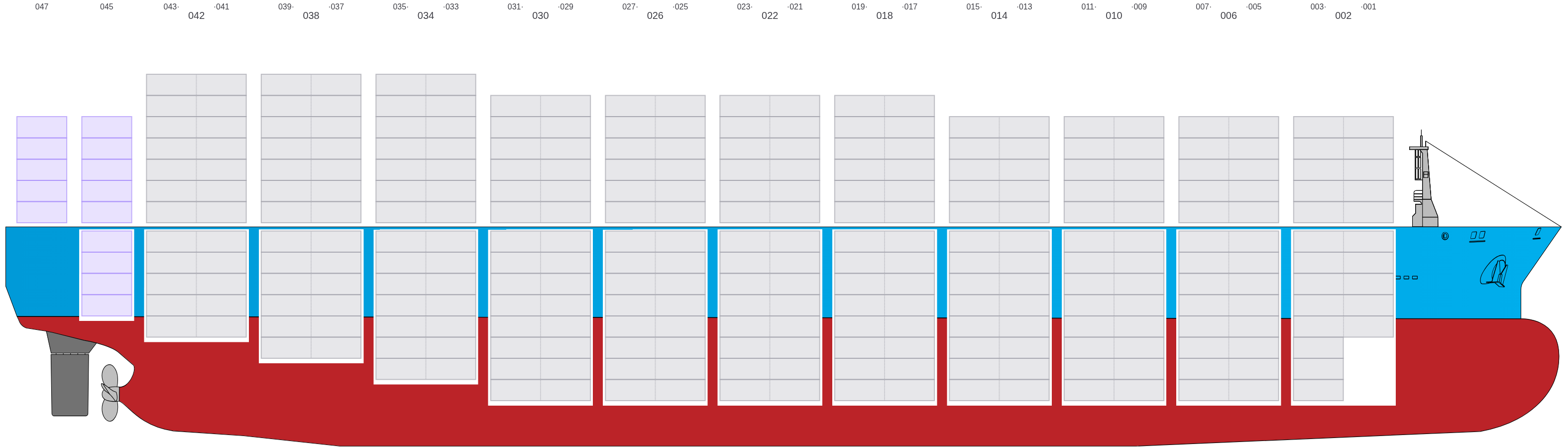

Side View
![Side view of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-sideView.png?v=1687192888324)
Hatch-Covers View
![Deck view of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-deckView.png?v=1687192888324)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

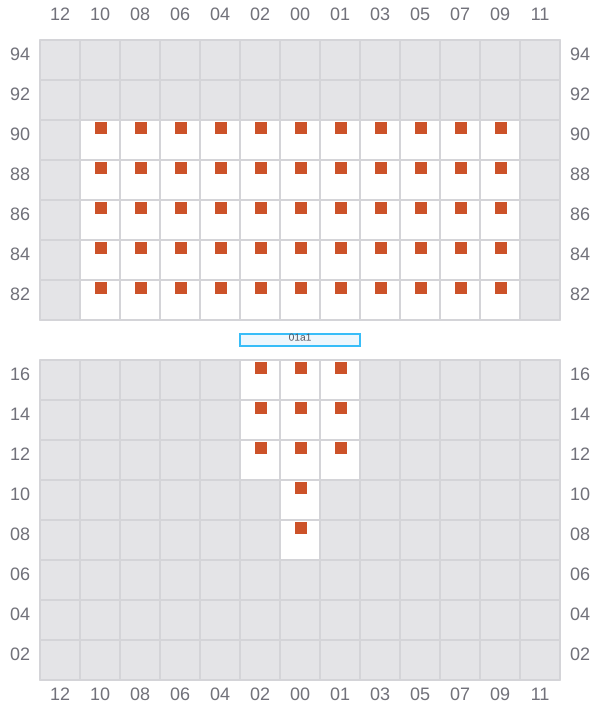

001
- →
![Bay 001 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b001.png?v=1687192888324)
003 (002)
- ←
![Bay 003 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b003.png?v=1687192888324)

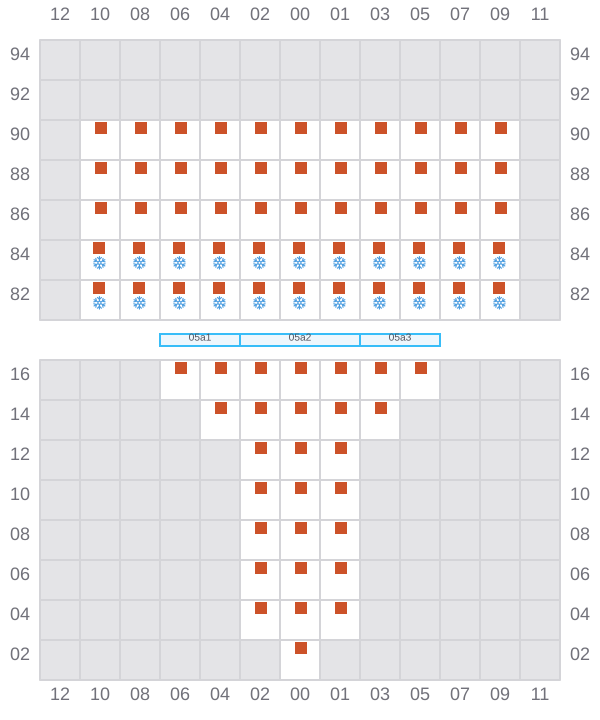

005
- →
![Bay 005 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b005.png?v=1687192888324)

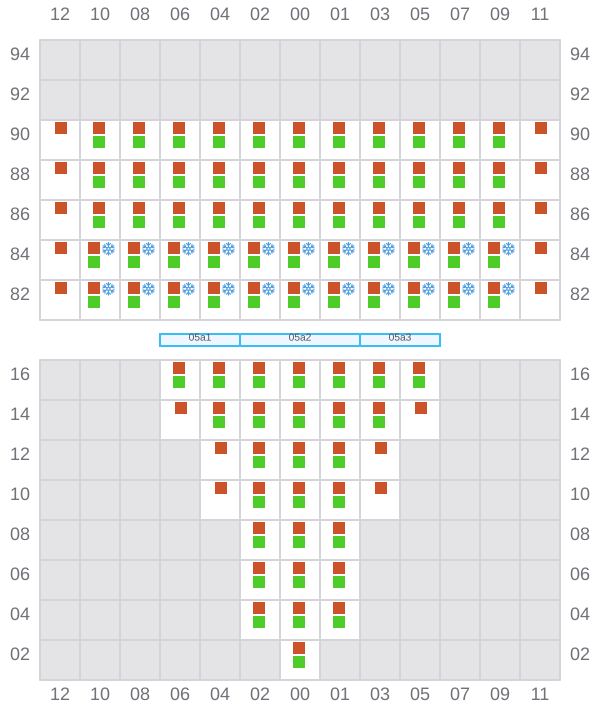

007 (006)
- ←
![Bay 007 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b007.png?v=1687192888324)

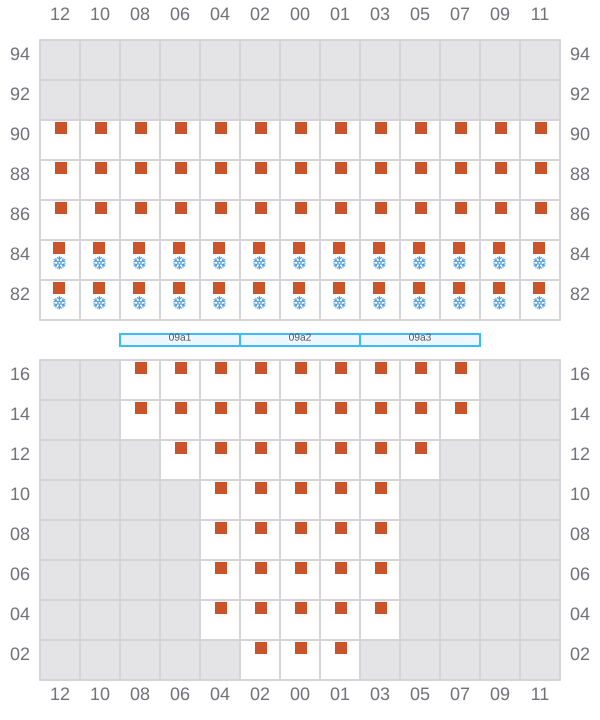

009
- →
![Bay 009 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b009.png?v=1687192888324)

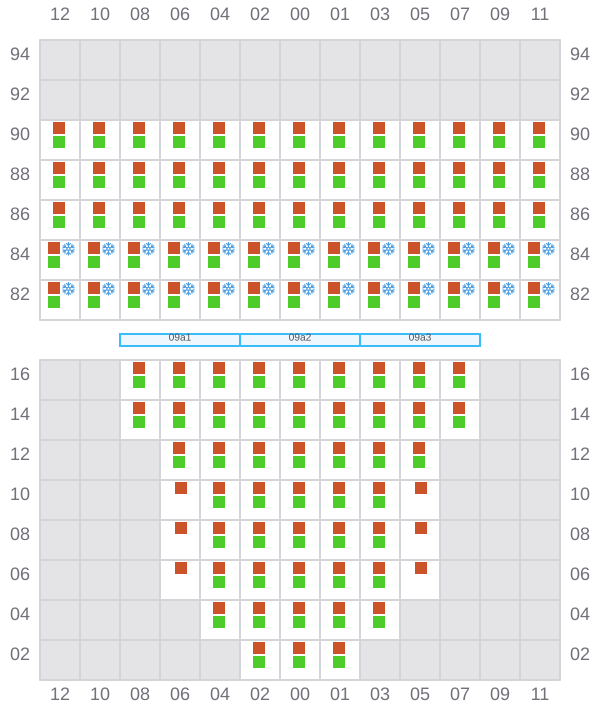

011 (010)
- ←
![Bay 011 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b011.png?v=1687192888324)

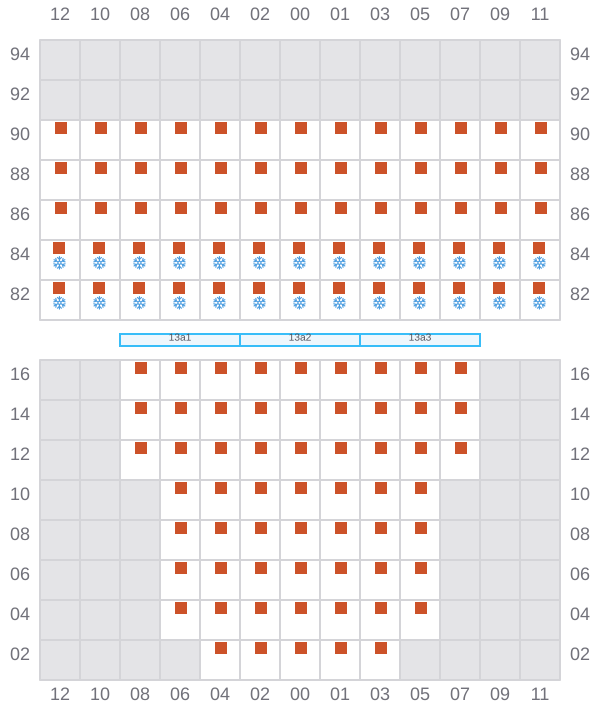

013
- →
![Bay 013 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b013.png?v=1687192888324)

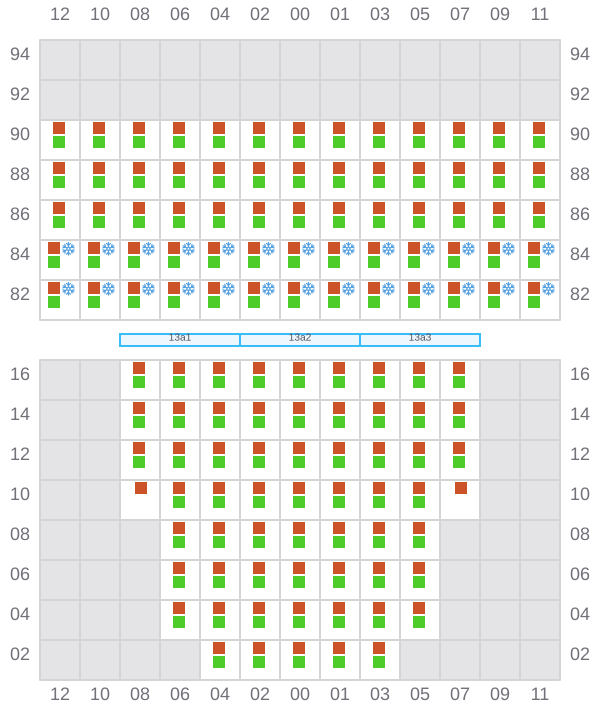

015 (014)
- ←
![Bay 015 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b015.png?v=1687192888324)

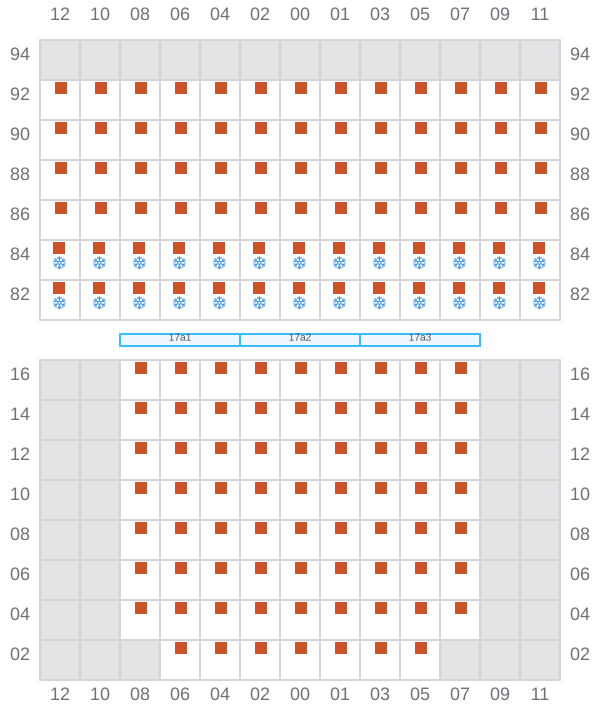

017
- →
![Bay 017 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b017.png?v=1687192888324)
019 (018)
- ←
![Bay 019 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b019.png?v=1687192888324)

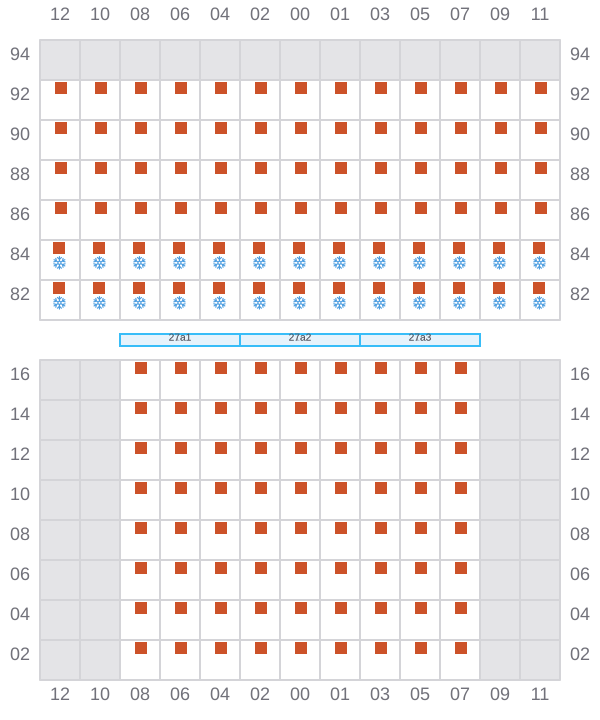

021
- →
![Bay 021 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b021.png?v=1687192888324)
023 (022)
- ←
![Bay 023 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b023.png?v=1687192888324)
025
- →
![Bay 025 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b025.png?v=1687192888324)
027 (026)
- ←
![Bay 027 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b027.png?v=1687192888324)
029
- →
![Bay 029 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b029.png?v=1687192888324)

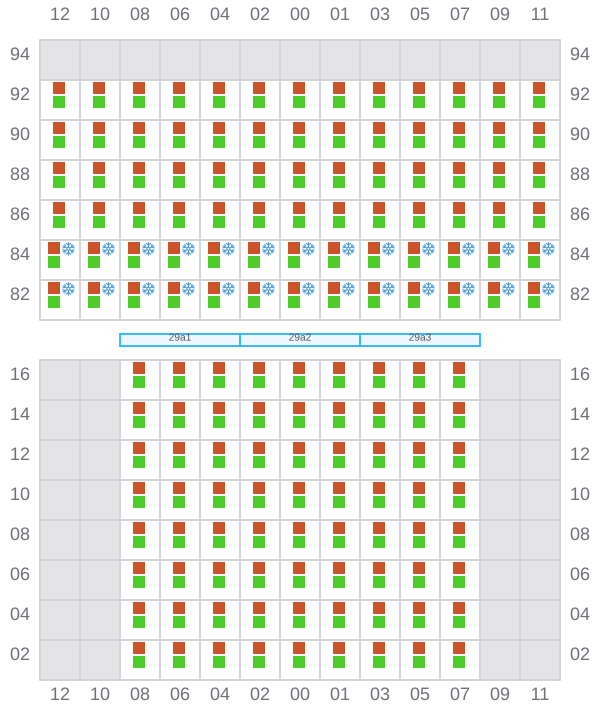

031 (030)
- ←
![Bay 031 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b031.png?v=1687192888324)

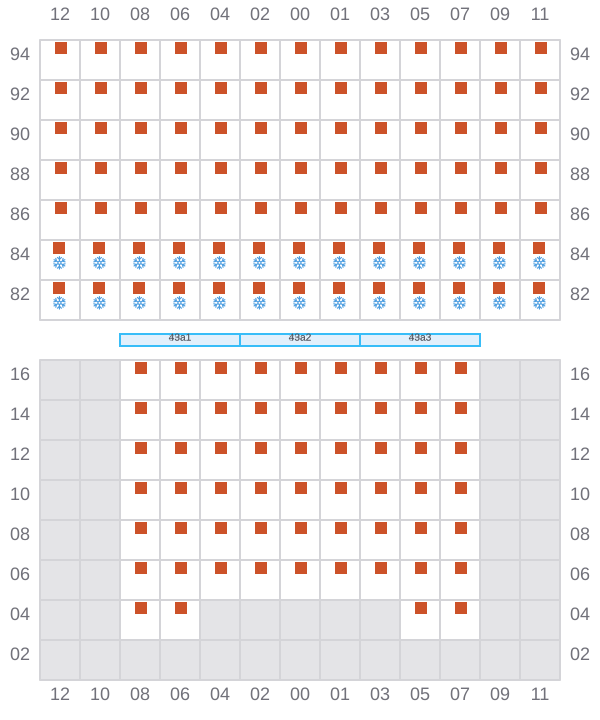

033
- →
![Bay 033 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b033.png?v=1687192888324)

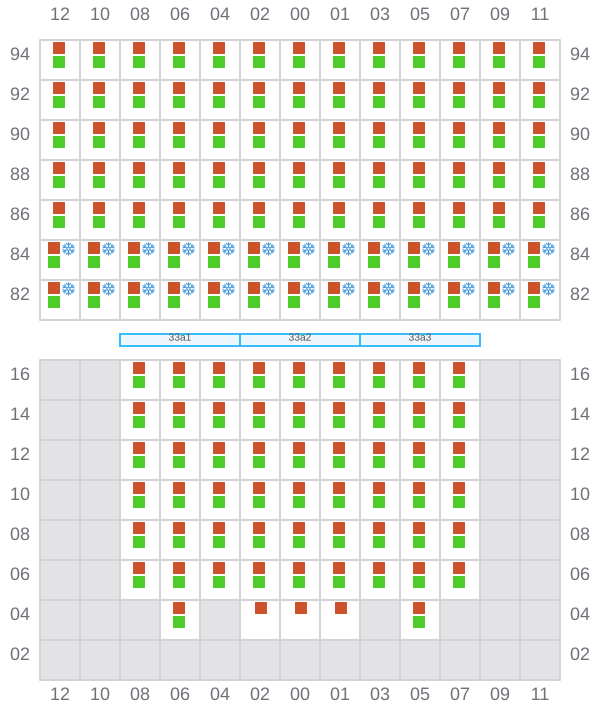

035 (034)
- ←
![Bay 035 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b035.png?v=1687192888324)

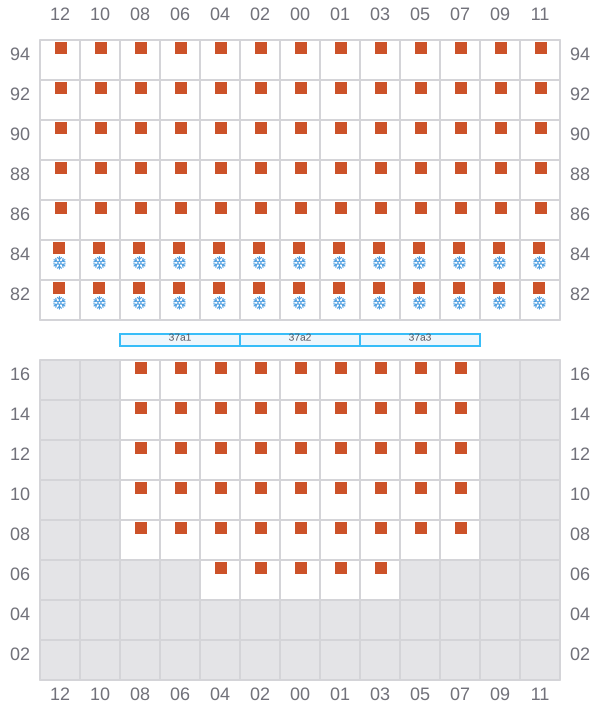

037
- →
![Bay 037 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b037.png?v=1687192888324)
039 (038)
- ←
![Bay 039 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b039.png?v=1687192888324)
041
- →
![Bay 041 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b041.png?v=1687192888324)
043 (042)
- ←
![Bay 043 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b043.png?v=1687192888324)

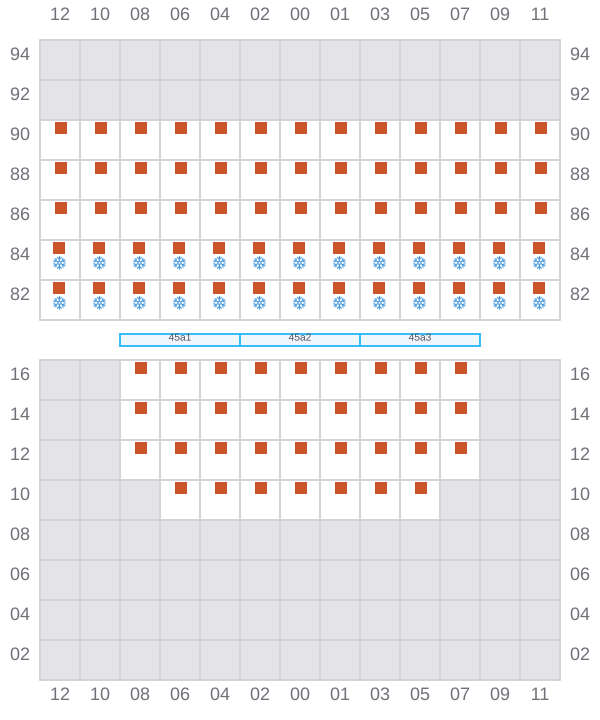

045
![Bay 045 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b045.png?v=1687192888324)

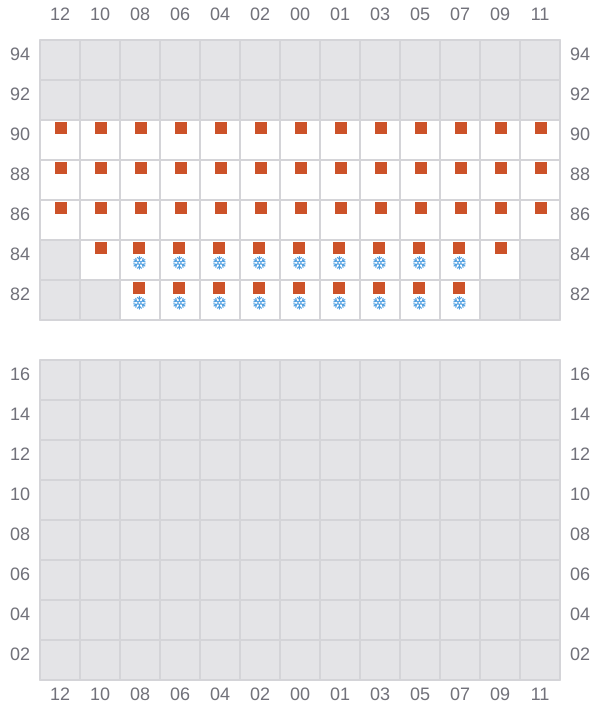

047
![Bay 047 view and slots of MSC NURIA](/vessel-images/702bd7be-4d73-4f2f-9308-2c64c40313b4-b047.png?v=1687192888324)
