MSC OLGA F
9336359 | 5LBV6 | MSC by ************************** Last update: Mon Jun 19 2023

General Info

Ship Name:MSC OLGA F

IMO Code:9336359

Call Sign:5LBV6

Line Operator:MSC

Class Name for Sister Ships:OLG

Year Built:2006

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:071

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:5,084

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

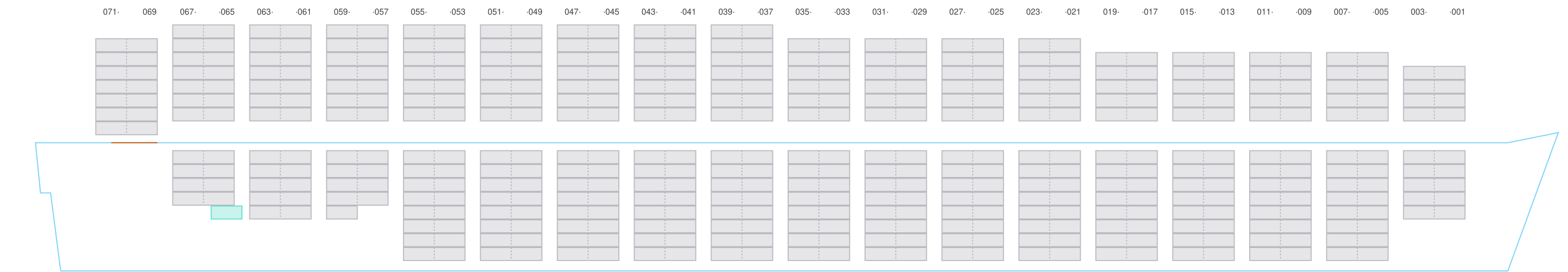

Side view of MSC OLGA F

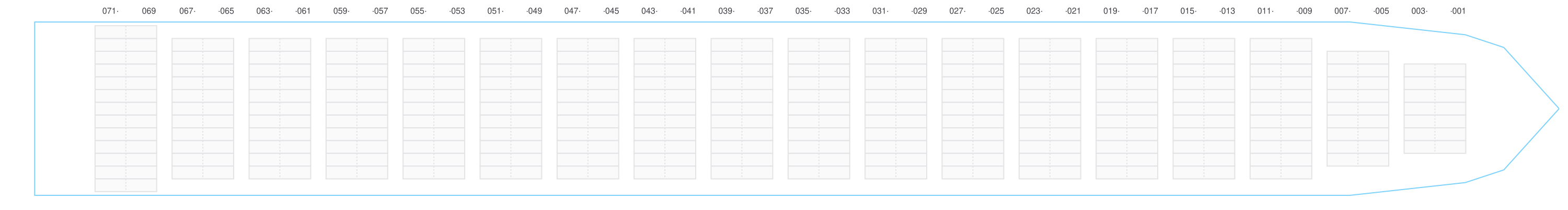

Hatch-Covers View

Deck view of MSC OLGA F

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

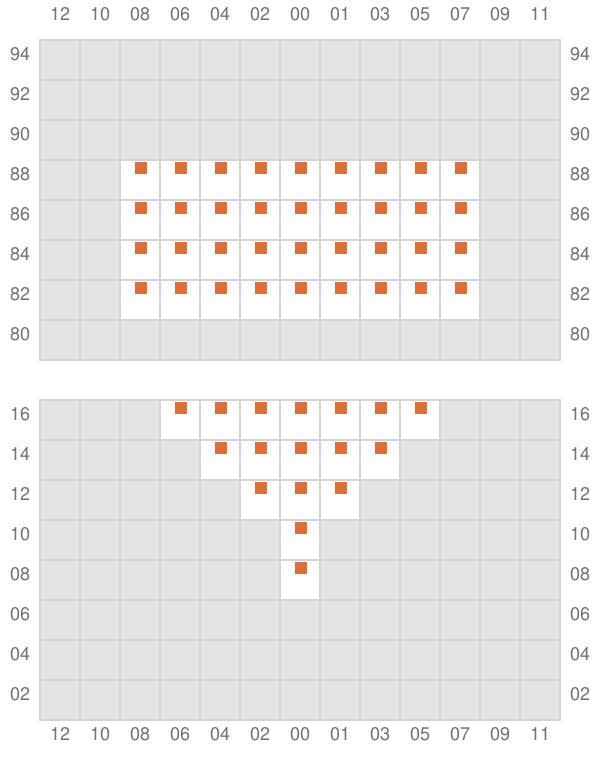

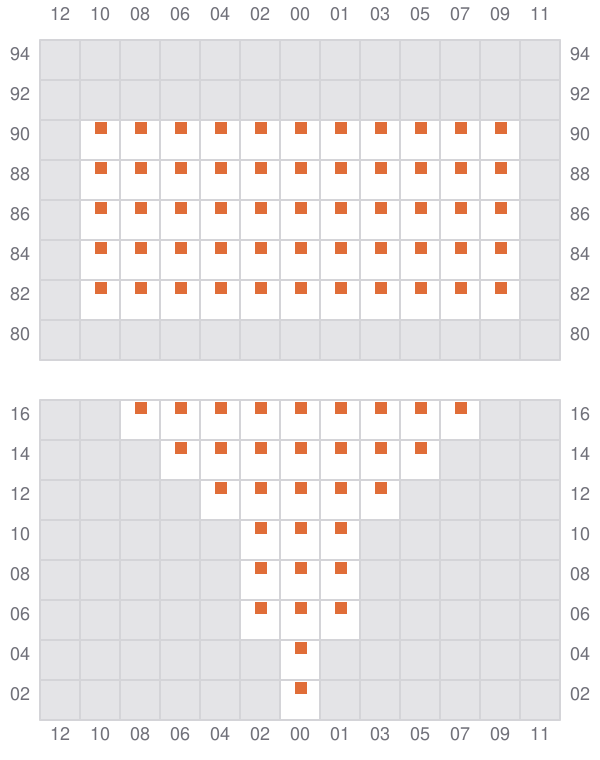

Bay 001 view and slots of MSC OLGA F

003 (002)

←

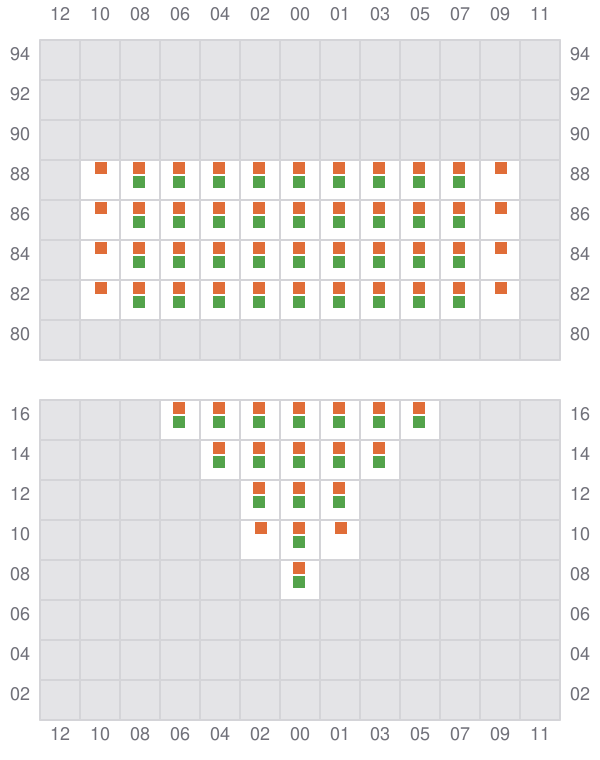

Bay 003 view and slots of MSC OLGA F

005

→

Bay 005 view and slots of MSC OLGA F

007 (006)

←

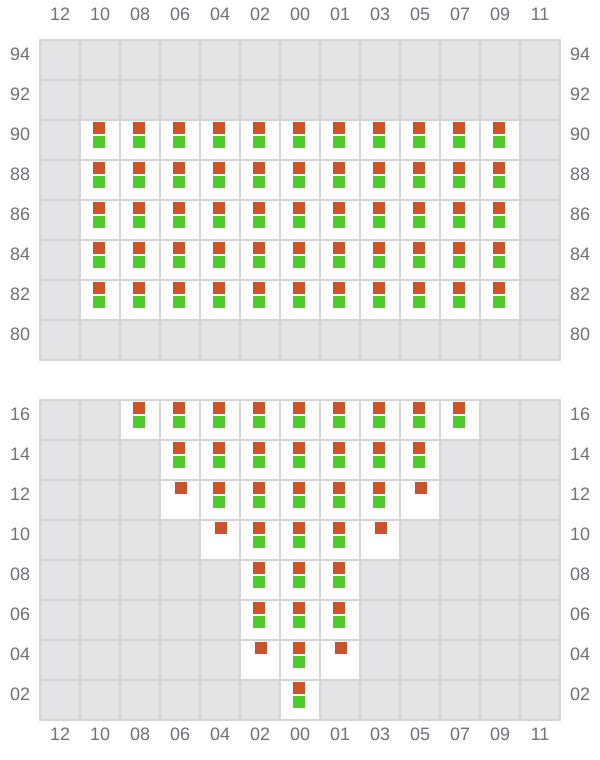

Bay 007 view and slots of MSC OLGA F

009

→

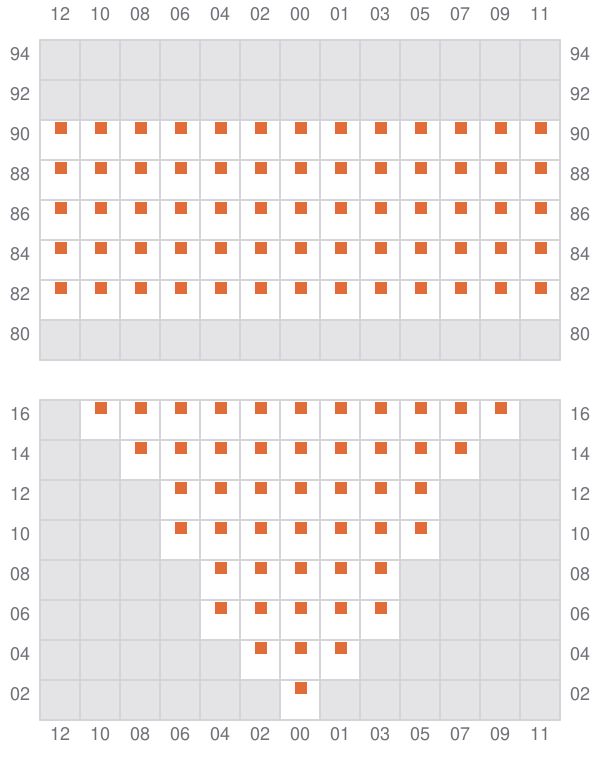

Bay 009 view and slots of MSC OLGA F

011 (010)

←

Bay 011 view and slots of MSC OLGA F

013

→

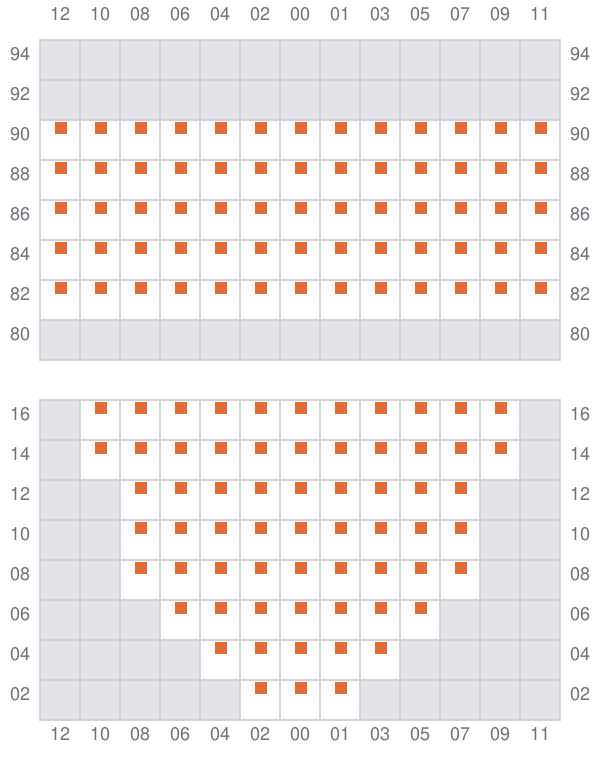

Bay 013 view and slots of MSC OLGA F

015 (014)

←

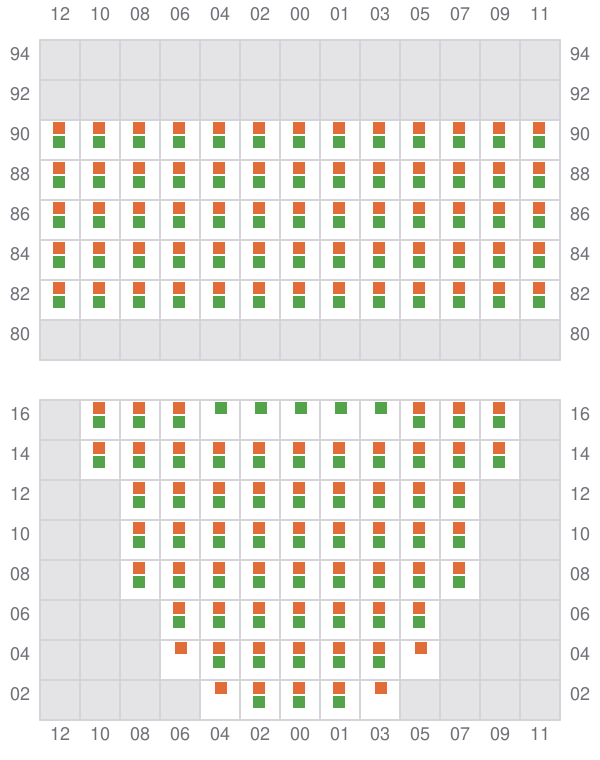

Bay 015 view and slots of MSC OLGA F

017

→

Bay 017 view and slots of MSC OLGA F

019 (018)

←

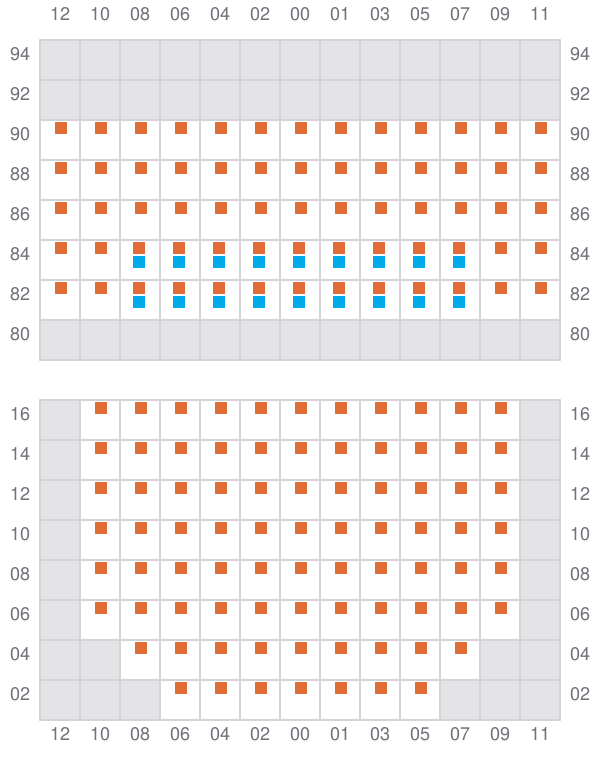

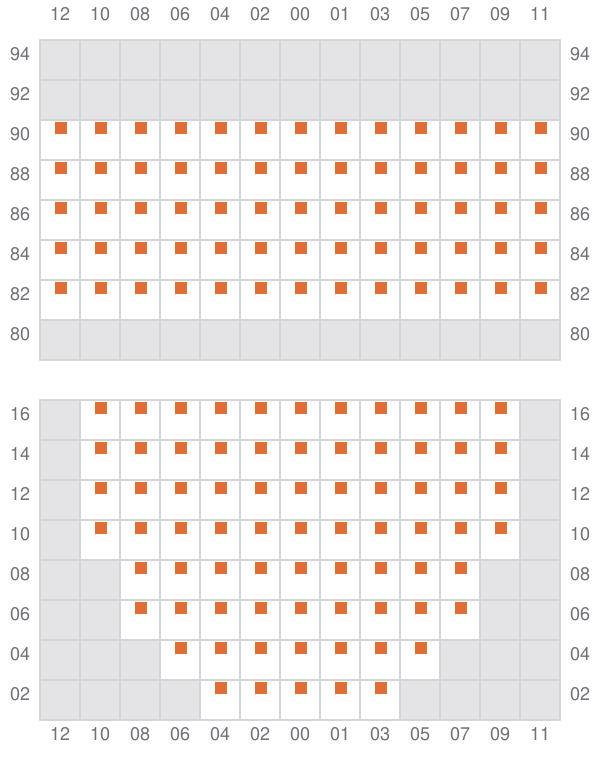

Bay 019 view and slots of MSC OLGA F

021

→

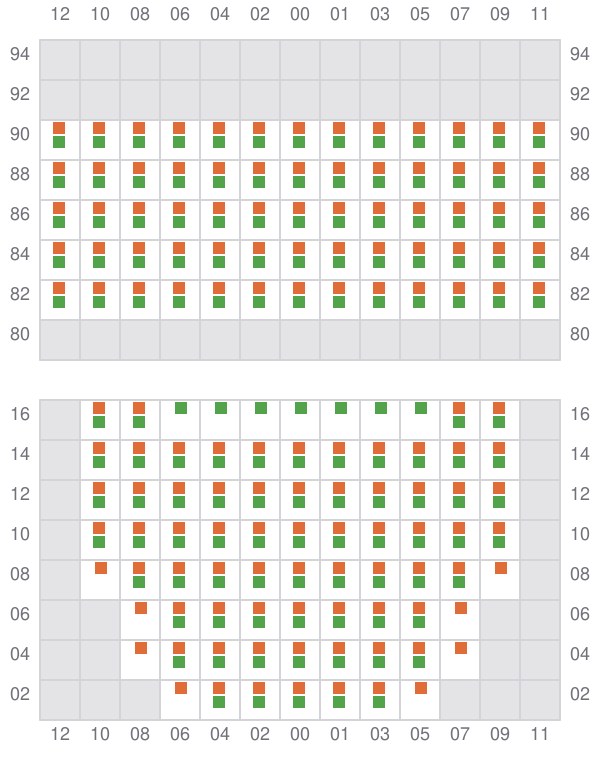

Bay 021 view and slots of MSC OLGA F

023 (022)

←

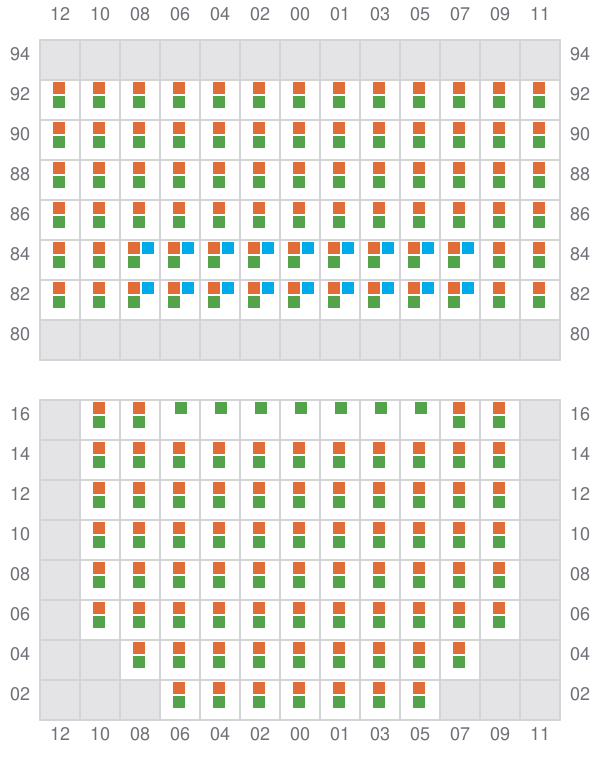

Bay 023 view and slots of MSC OLGA F

025

→

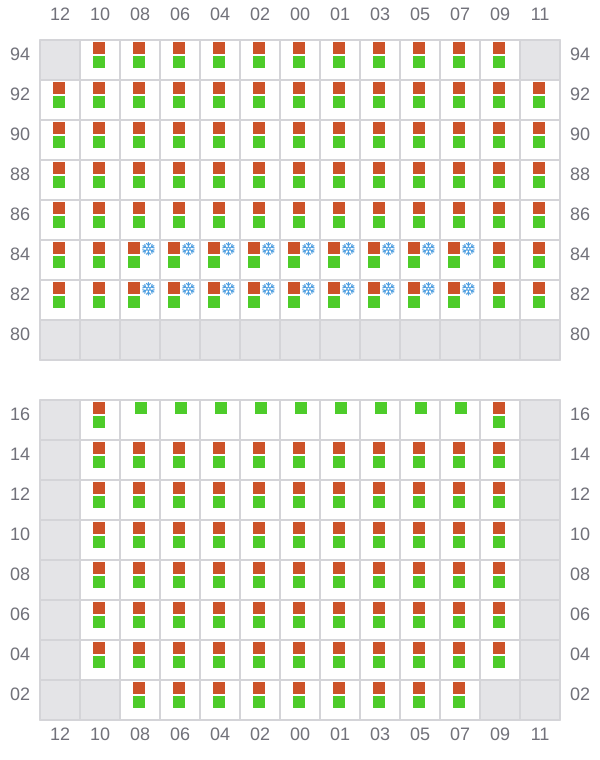

Bay 025 view and slots of MSC OLGA F

027 (026)

←

Bay 027 view and slots of MSC OLGA F

029

→

Bay 029 view and slots of MSC OLGA F

031 (030)

←

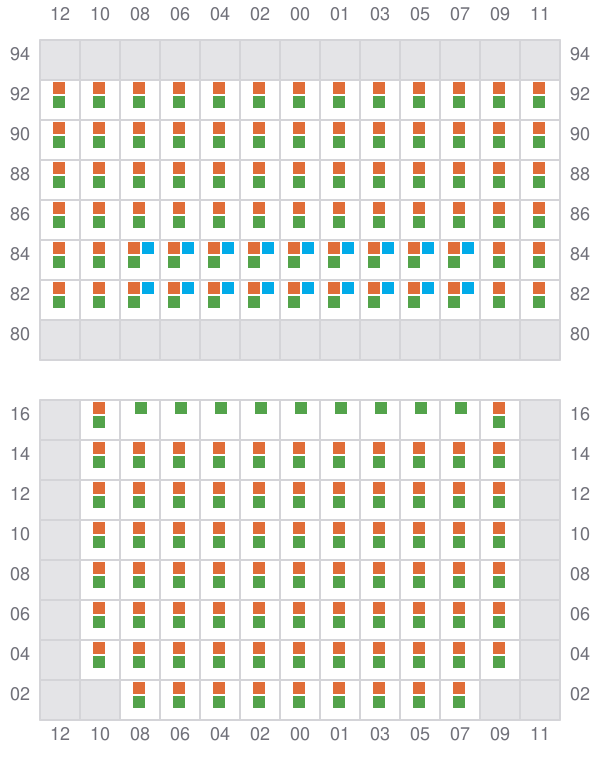

Bay 031 view and slots of MSC OLGA F

033

→

Bay 033 view and slots of MSC OLGA F

035 (034)

←

Bay 035 view and slots of MSC OLGA F

037

→

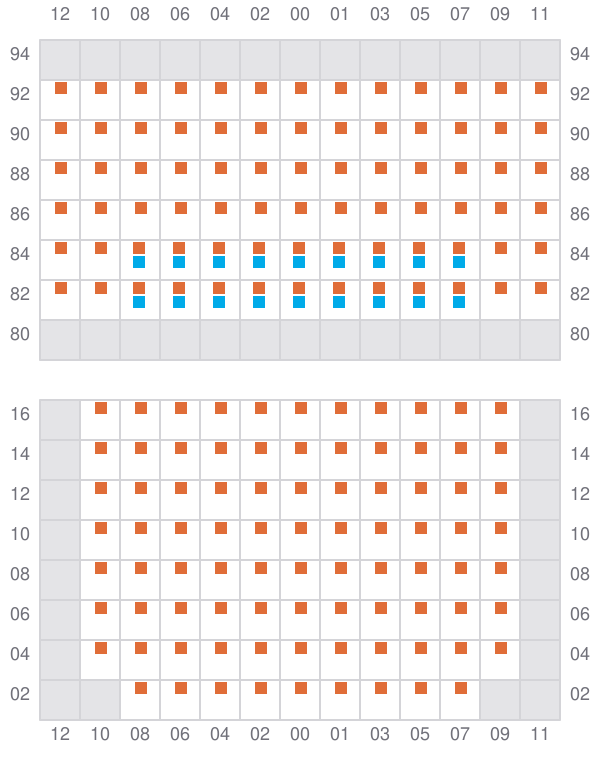

Bay 037 view and slots of MSC OLGA F

039 (038)

←

Bay 039 view and slots of MSC OLGA F

041

→

Bay 041 view and slots of MSC OLGA F

043 (042)

←

Bay 043 view and slots of MSC OLGA F

045

→

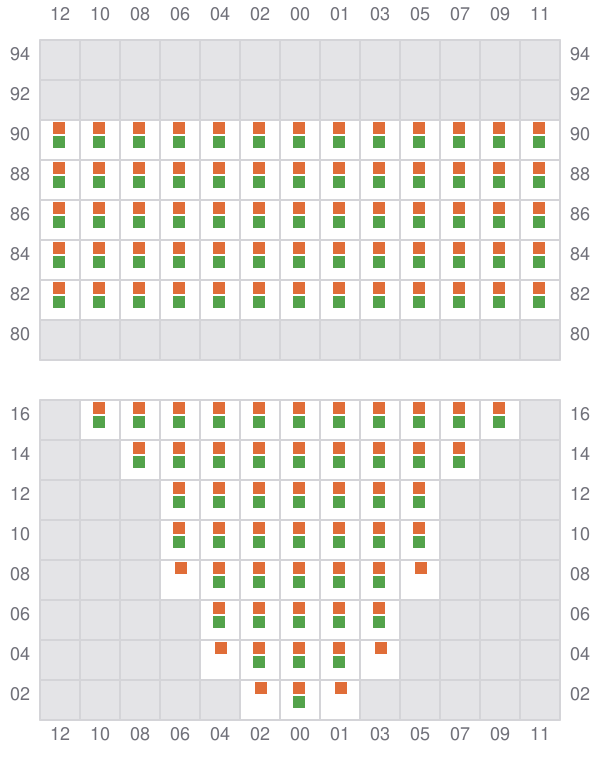

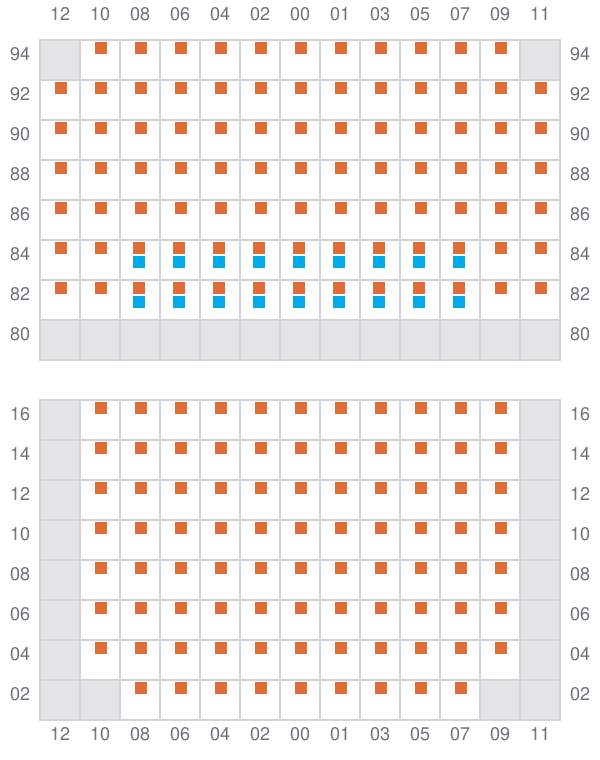

Bay 045 view and slots of MSC OLGA F

047 (046)

←

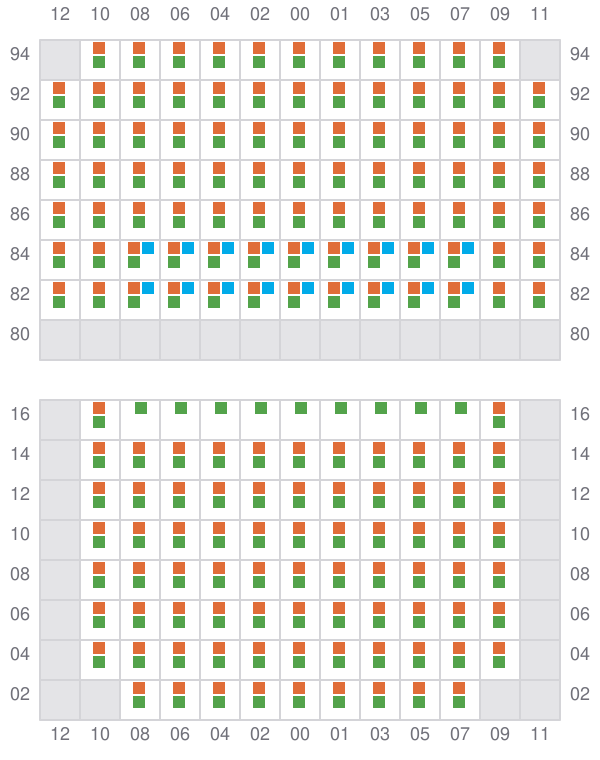

Bay 047 view and slots of MSC OLGA F

049

→

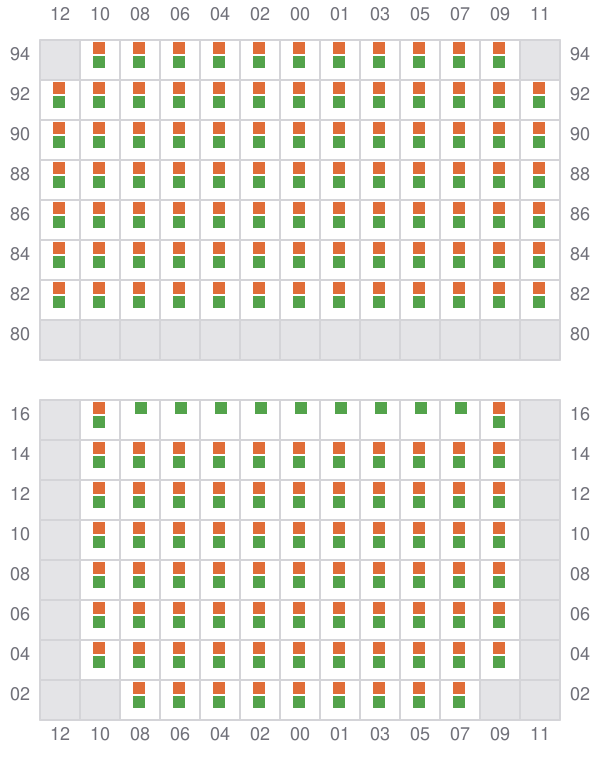

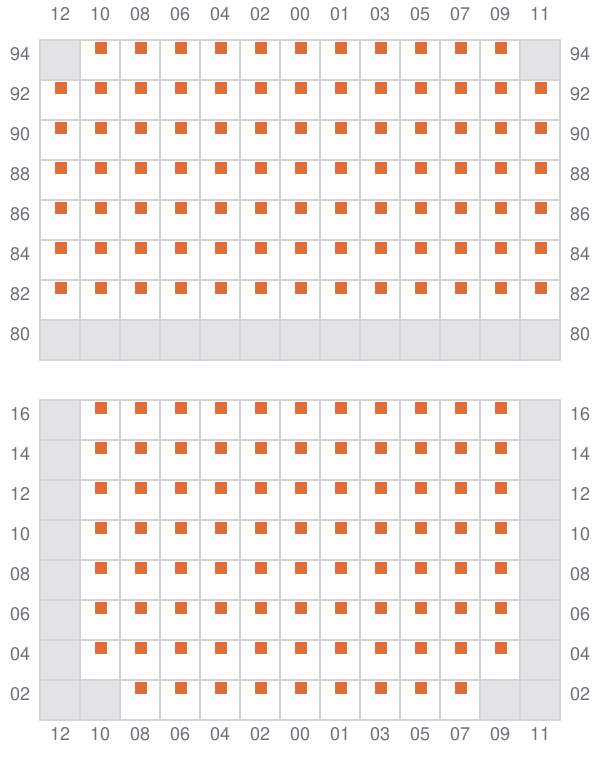

Bay 049 view and slots of MSC OLGA F

051 (050)

←

Bay 051 view and slots of MSC OLGA F

053

→

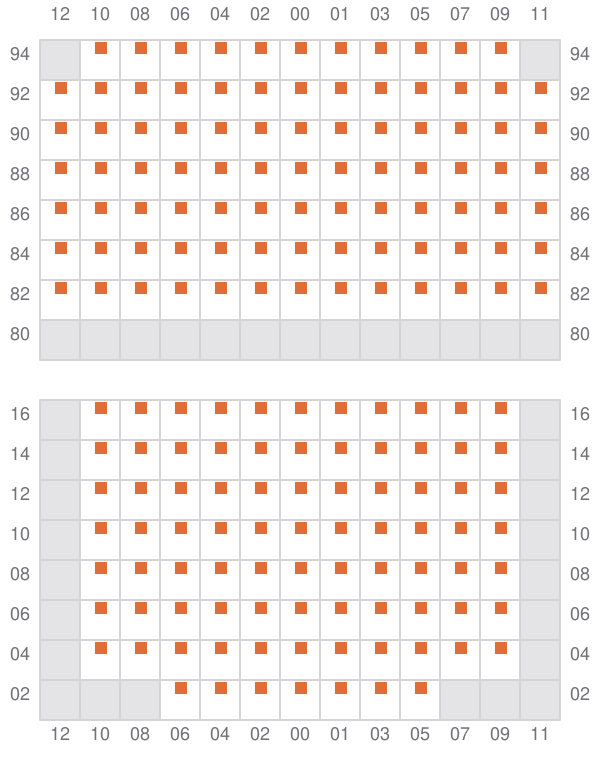

Bay 053 view and slots of MSC OLGA F

055 (054)

←

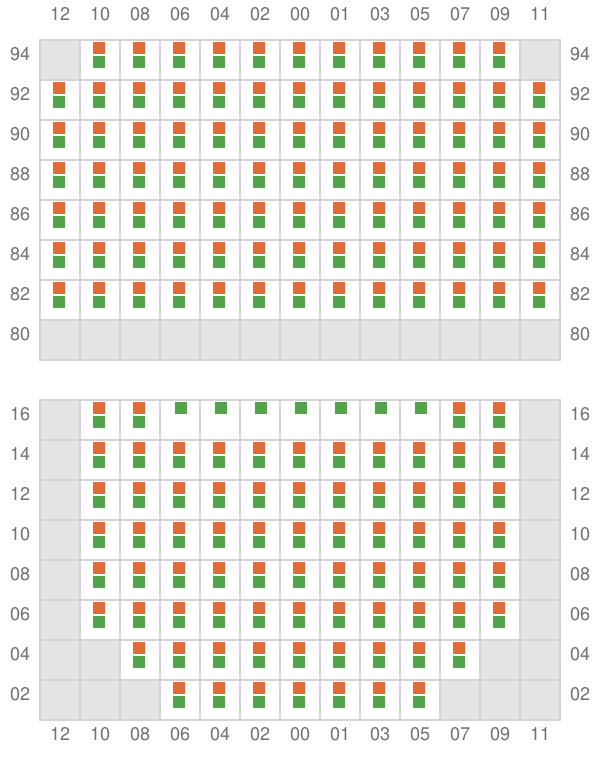

Bay 055 view and slots of MSC OLGA F

057

→

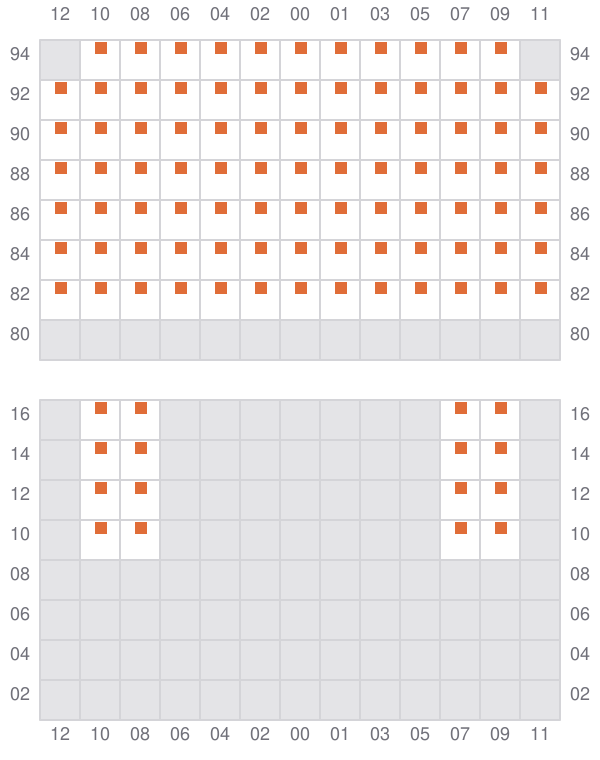

Bay 057 view and slots of MSC OLGA F

059 (058)

←

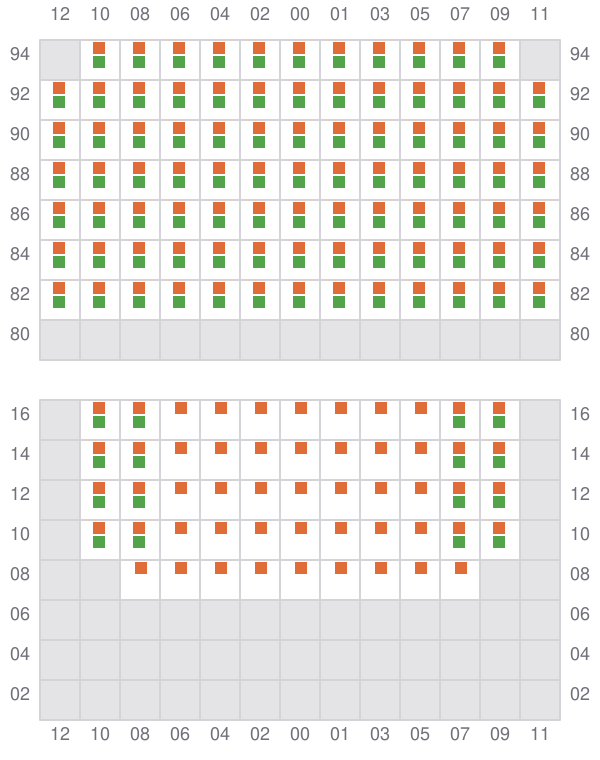

Bay 059 view and slots of MSC OLGA F

061

→

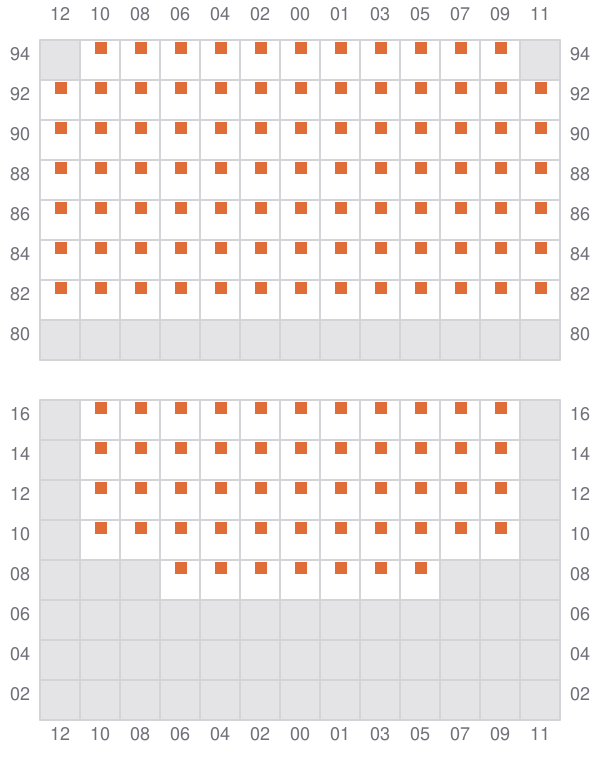

Bay 061 view and slots of MSC OLGA F

063 (062)

←

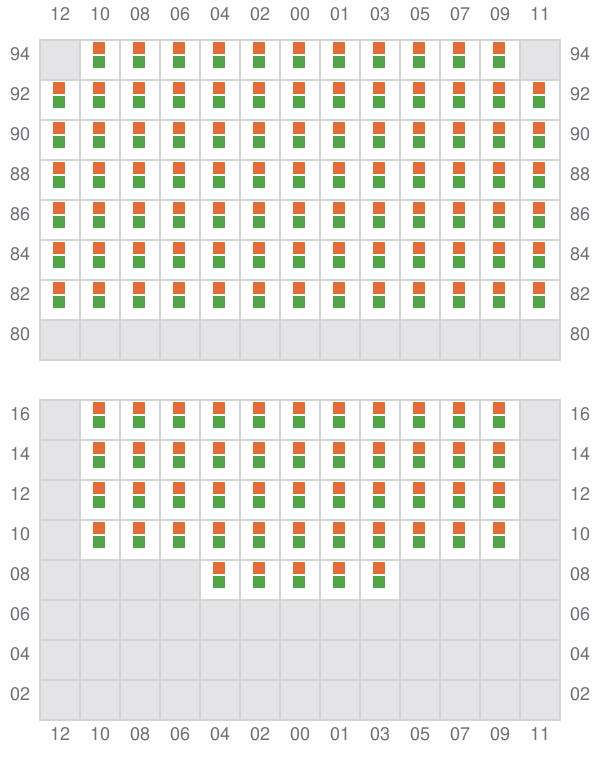

Bay 063 view and slots of MSC OLGA F

065

→

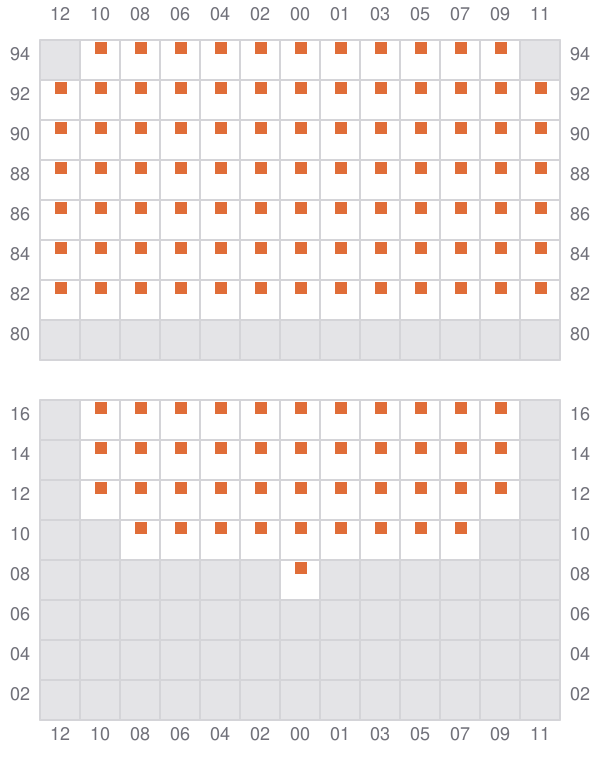

Bay 065 view and slots of MSC OLGA F

067 (066)

←

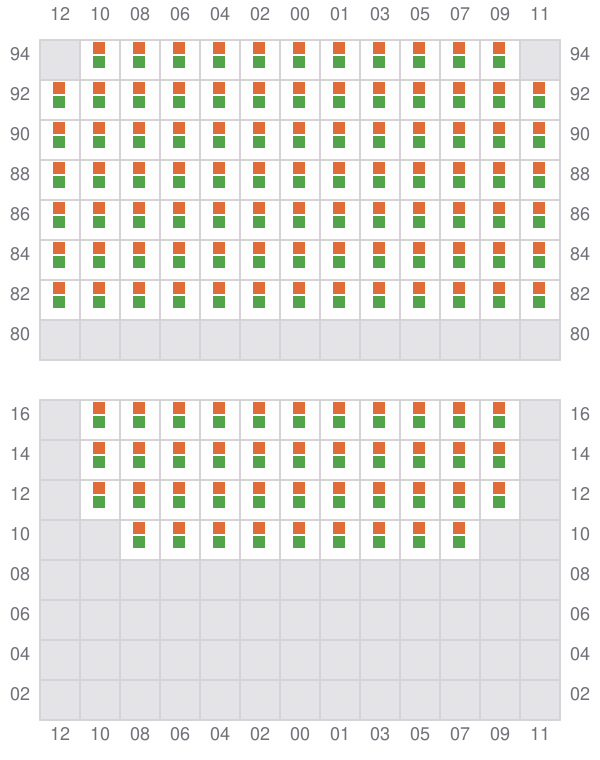

Bay 067 view and slots of MSC OLGA F

069

Bay 069 view and slots of MSC OLGA F

071 (070)

^← / _?

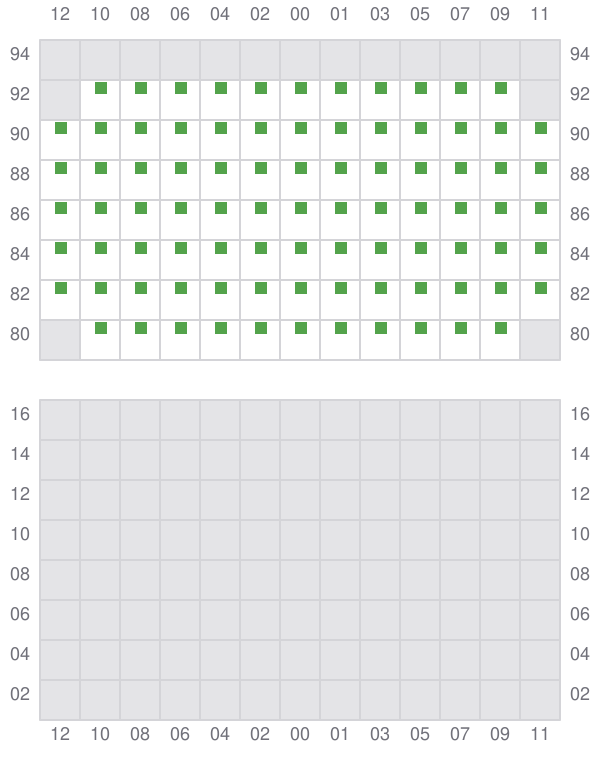

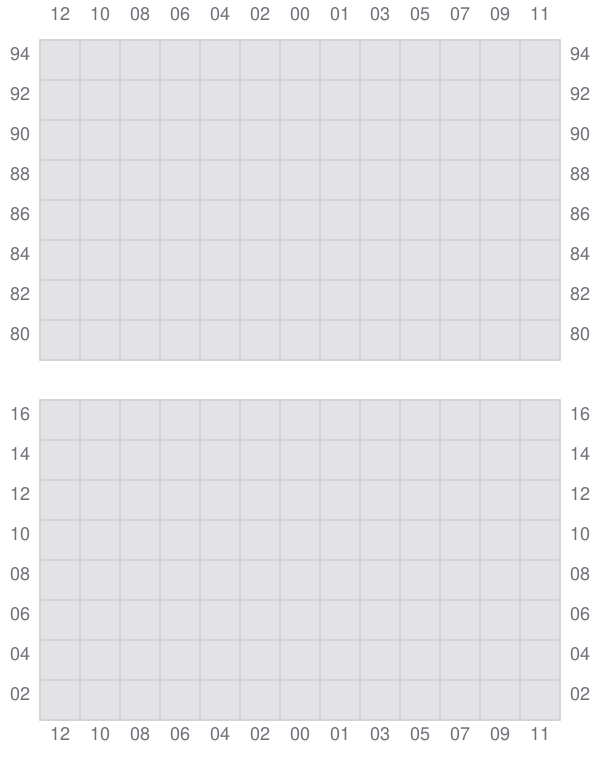

Bay 071 view and slots of MSC OLGA F
