MSC OLGA F
9336359 | 5LBV6 | 9336359 by ********* Last update: Wed May 01 2024
General Info
Ship Name:MSC OLGA F
IMO Code:9336359
Call Sign:5LBV6
Line Operator:9336359
Class Name for Sister Ships:VEGAFYNEN
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):141.37
LOA (Length Overall):147.87
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,114
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

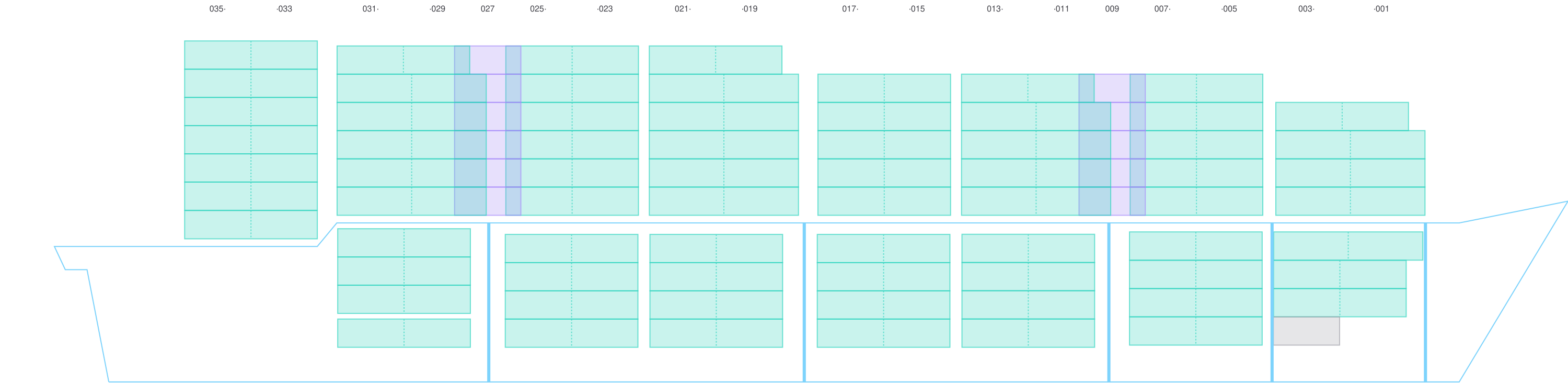

Side View
![Side view of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-sideView.png?v=1714605302797)

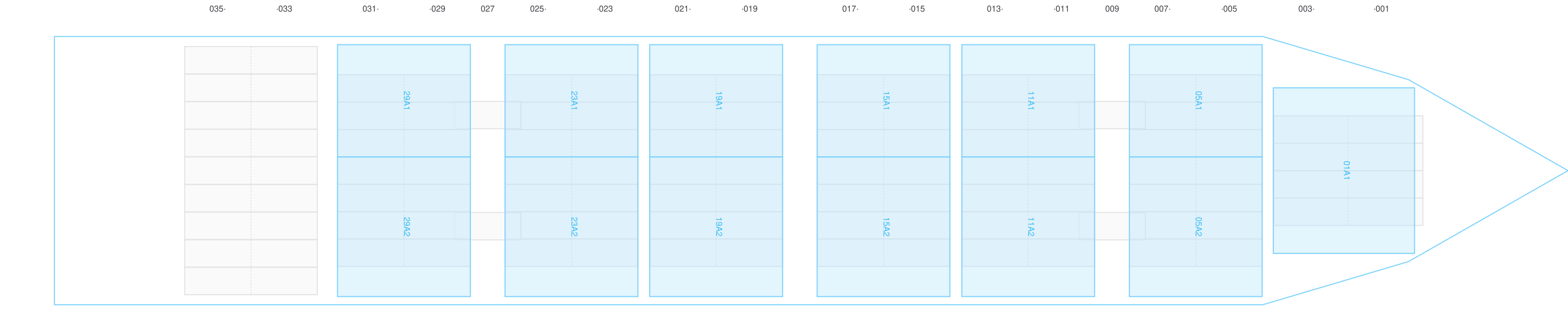

Hatch-Covers View
![Deck view of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-deckView.png?v=1714605302797)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ← / ?
![Bay 001 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b001.png?v=1714605302797)
003
- ←
![Bay 003 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b003.png?v=1714605302797)

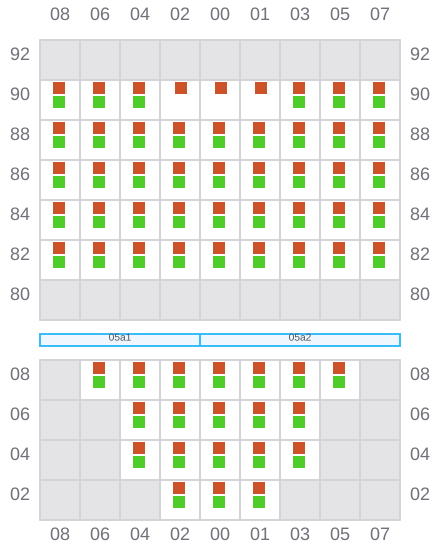

005 (006)
- →
![Bay 005 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b005.png?v=1714605302797)

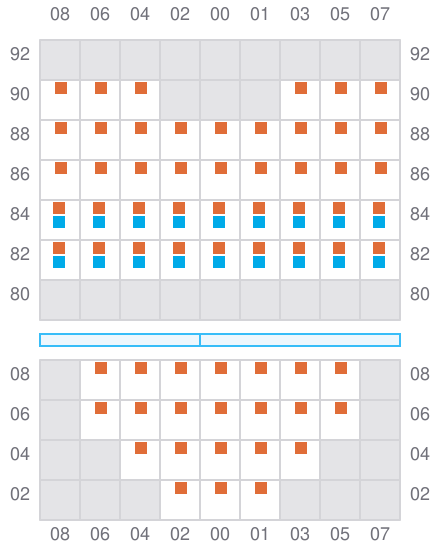

007
- ←
- → / ?
![Bay 007 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b007.png?v=1714605302797)

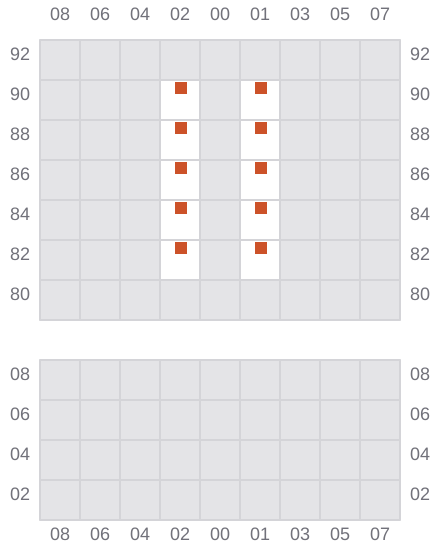

009
![Bay 009 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b009.png?v=1714605302797)

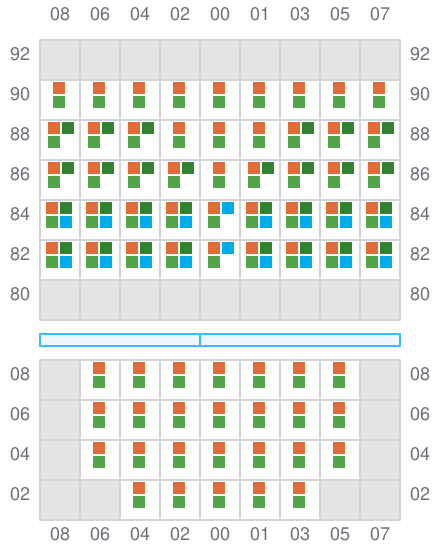

011 (012)
- →
- ← / ?
![Bay 011 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b011.png?v=1714605302797)

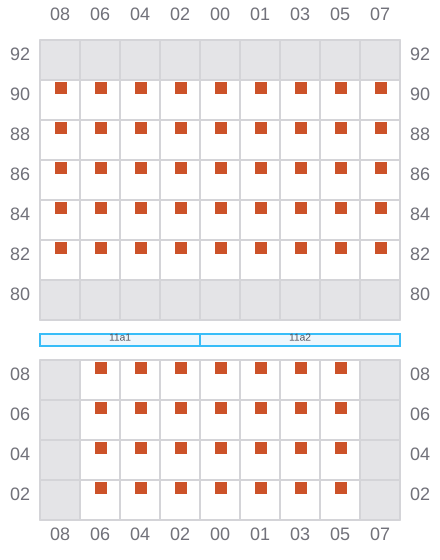

013
- ←
![Bay 013 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b013.png?v=1714605302797)

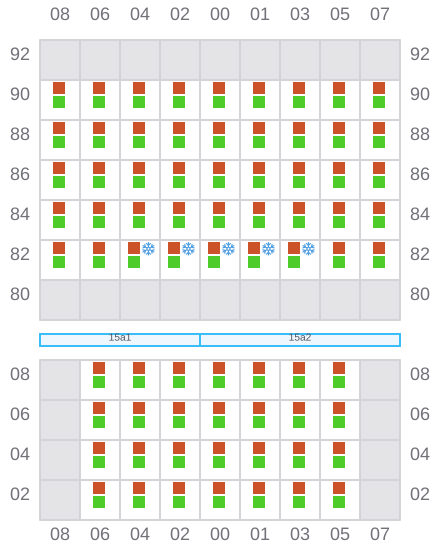

015 (016)
- →
![Bay 015 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b015.png?v=1714605302797)

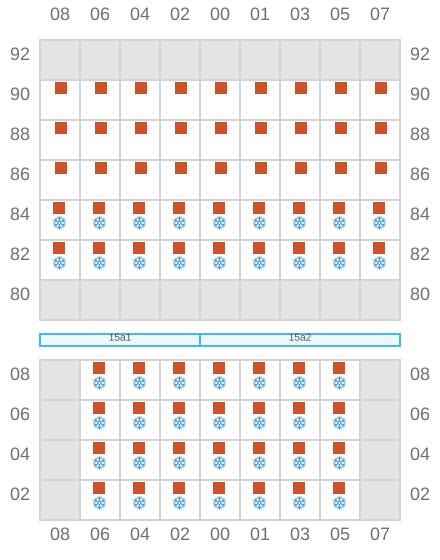

017
- ←
- →
![Bay 017 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b017.png?v=1714605302797)

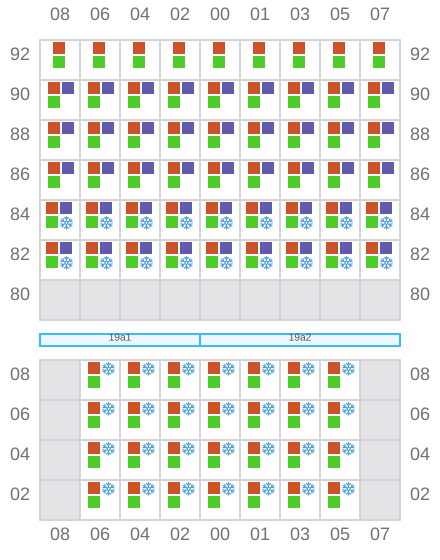

019 (020)
- →
- ←
![Bay 019 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b019.png?v=1714605302797)

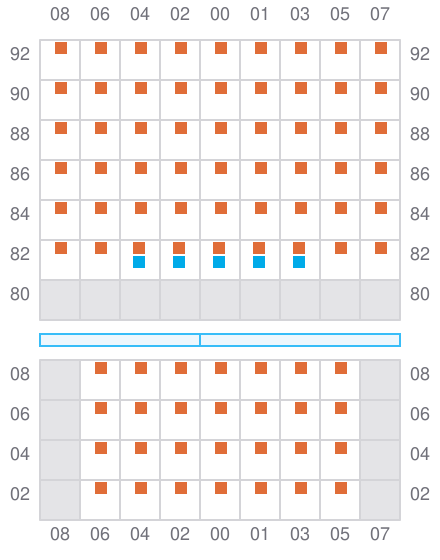

021
- ←
- → / ?
![Bay 021 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b021.png?v=1714605302797)

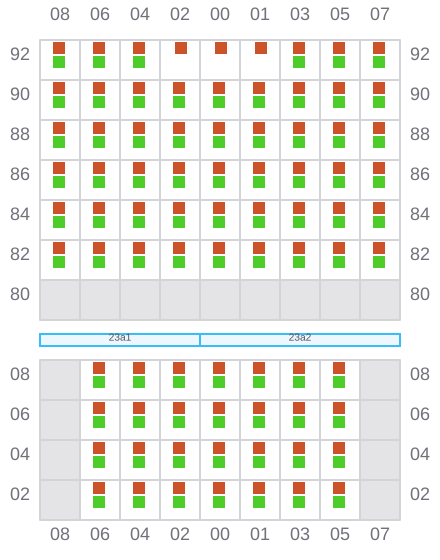

023 (024)
- →
![Bay 023 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b023.png?v=1714605302797)

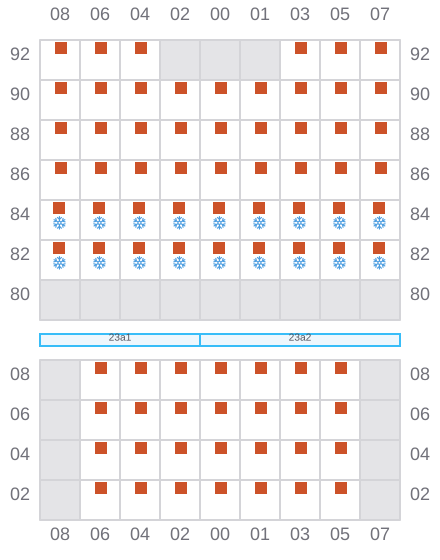

025
- ←
- → / ?
![Bay 025 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b025.png?v=1714605302797)

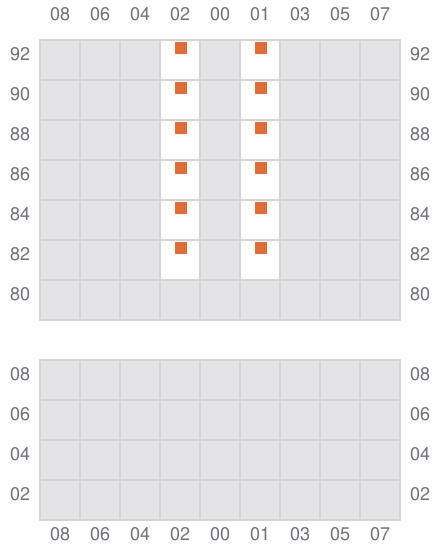

027
![Bay 027 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b027.png?v=1714605302797)

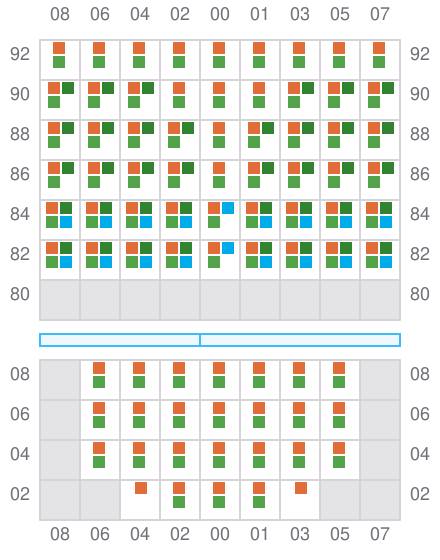

029 (030)
- →
- ← / ?
![Bay 029 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b029.png?v=1714605302797)

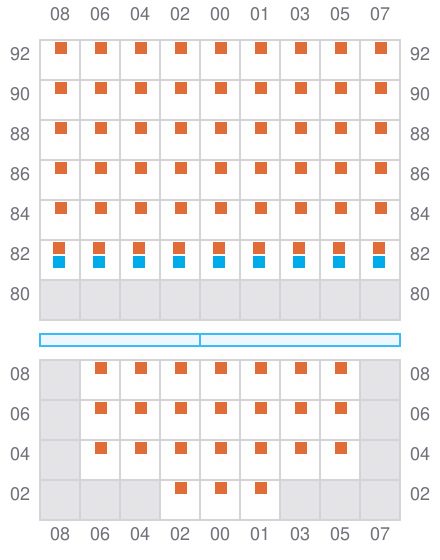

031
- ←
- → / ?
![Bay 031 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b031.png?v=1714605302797)

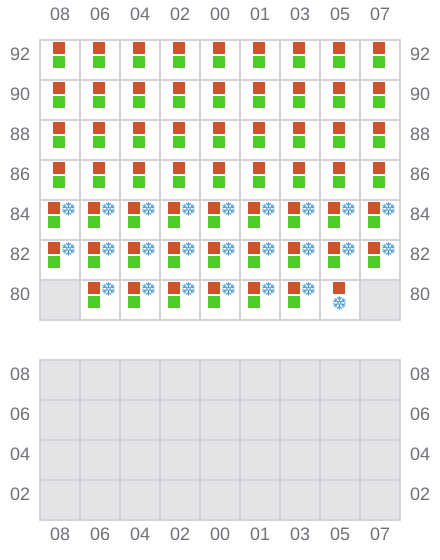

033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b033.png?v=1714605302797)

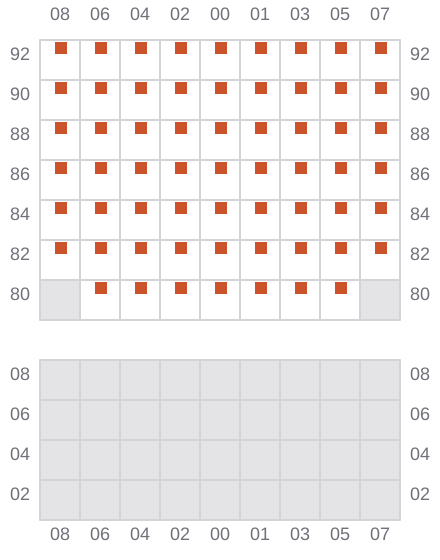

035
- ← / ?
![Bay 035 view and slots of MSC OLGA F](/vessel-images/d6b5b39a-7090-4757-9031-38fd97fffe14-b035.png?v=1714605302797)
