MSC ORIANE
9372482 | 3EPY8 | MSC by ************************** Last update: Mon Jun 19 2023

General Info

Ship Name:MSC ORIANE
IMO Code:9372482
Call Sign:3EPY8
Line Operator:MSC
Class Name for Sister Ships:ORI
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,792

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

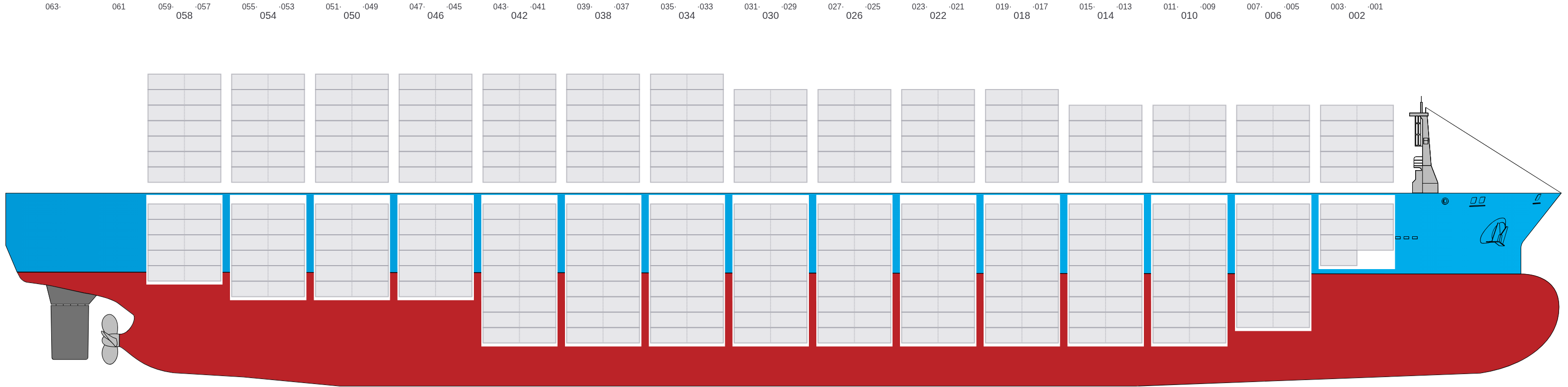

Side view of MSC ORIANE

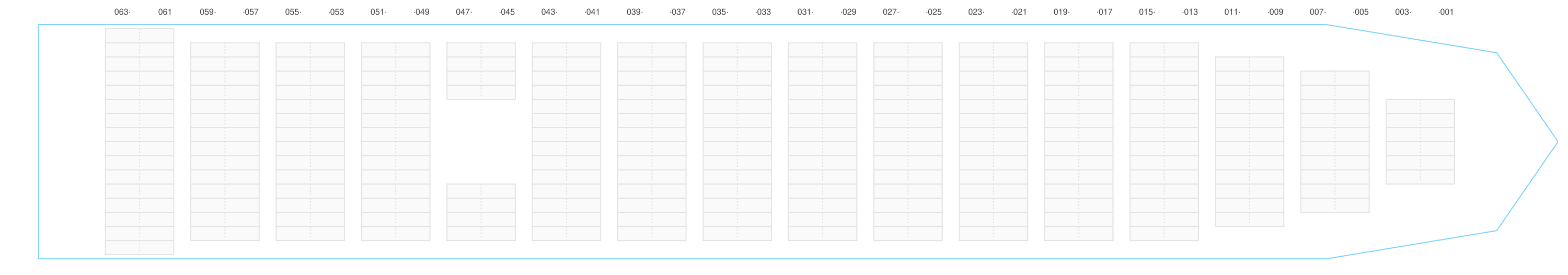

Hatch-Covers View

Deck view of MSC ORIANE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

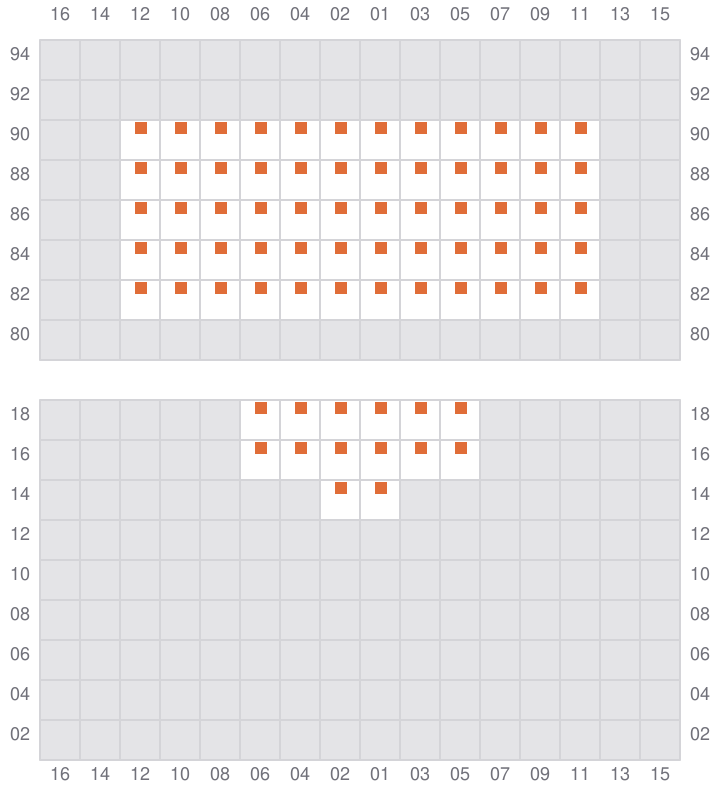

Bay 001 view and slots of MSC ORIANE

003 (002)

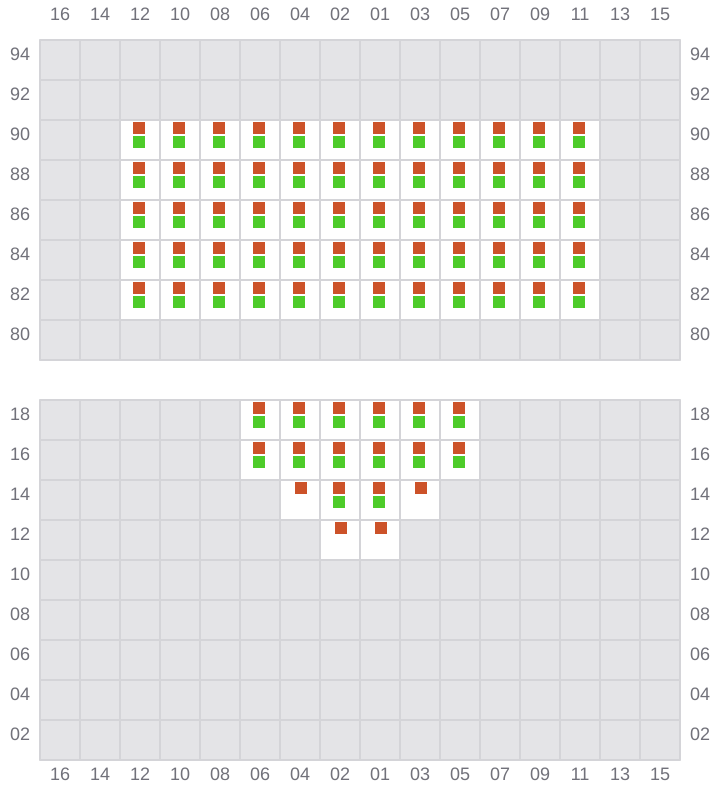

Bay 003 view and slots of MSC ORIANE

005

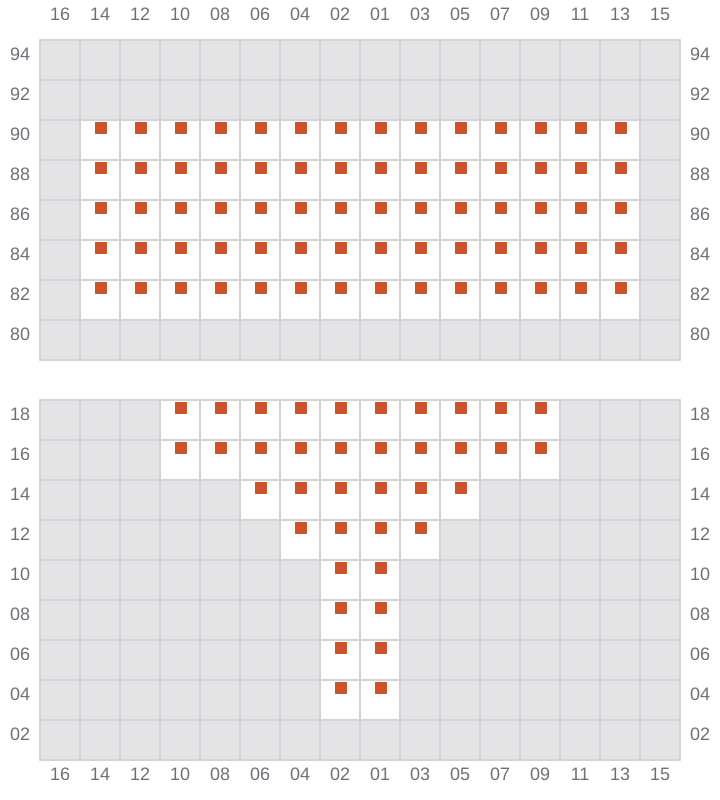

Bay 005 view and slots of MSC ORIANE

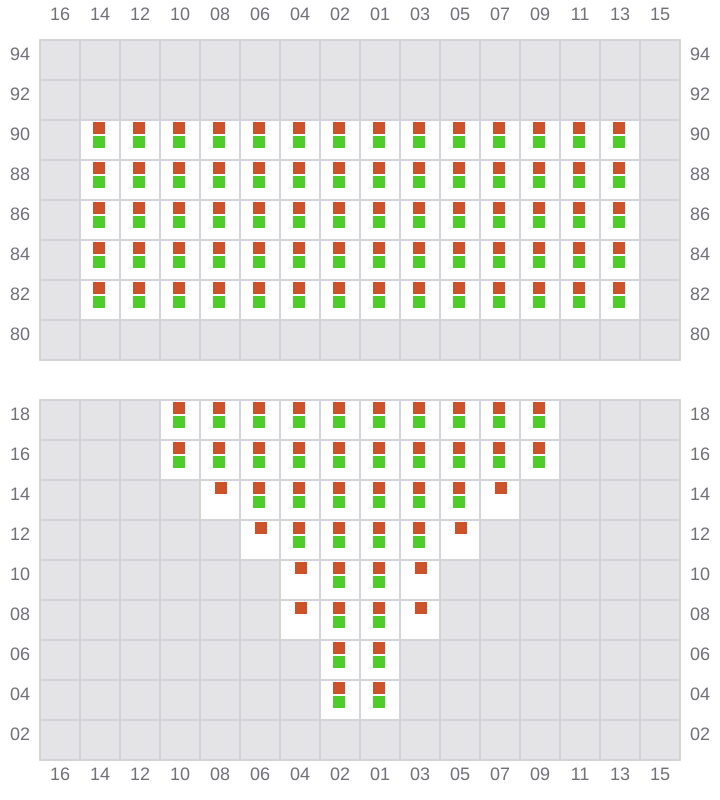

007 (006)

Bay 007 view and slots of MSC ORIANE

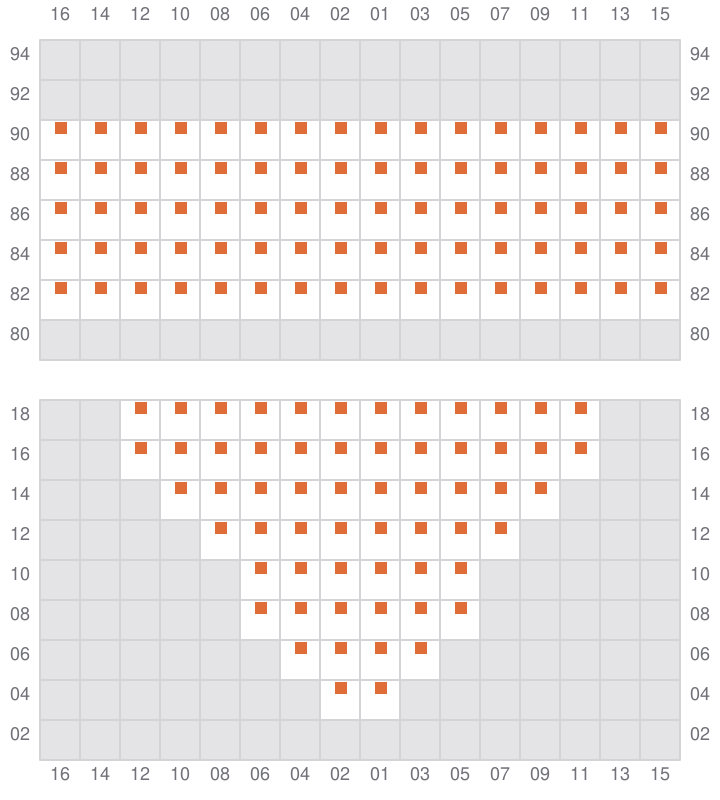

009

Bay 009 view and slots of MSC ORIANE

011 (010)

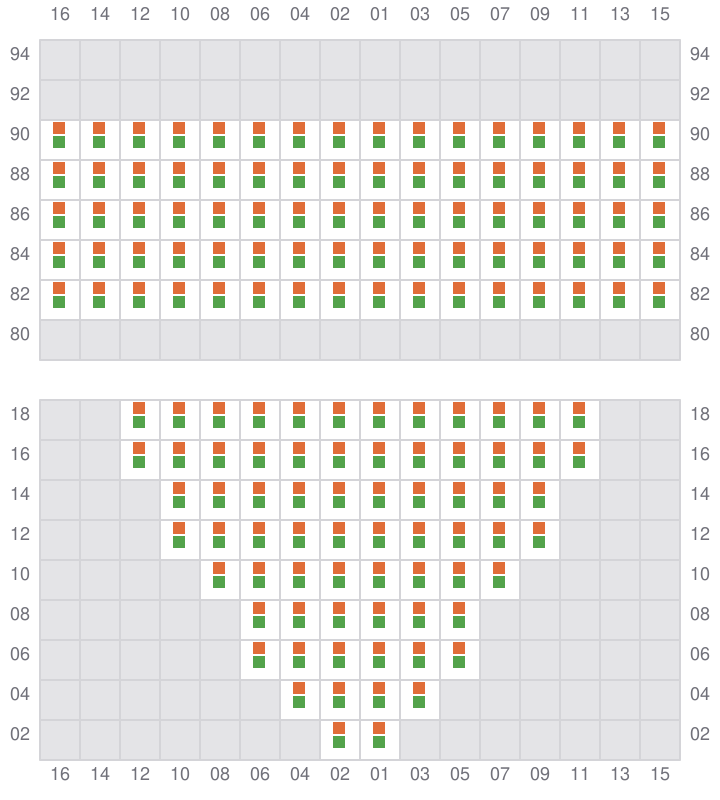

Bay 011 view and slots of MSC ORIANE

013

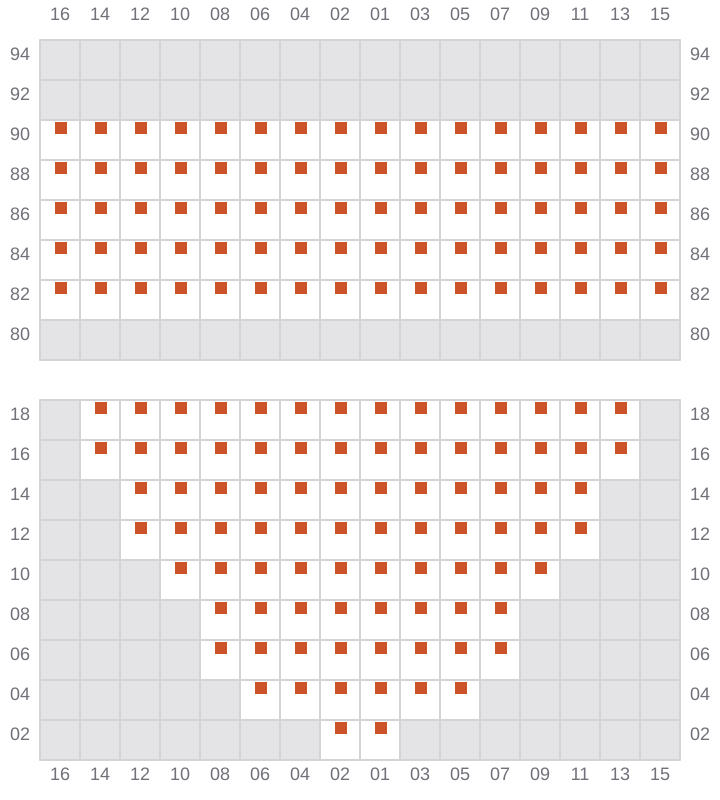

Bay 013 view and slots of MSC ORIANE

015 (014)

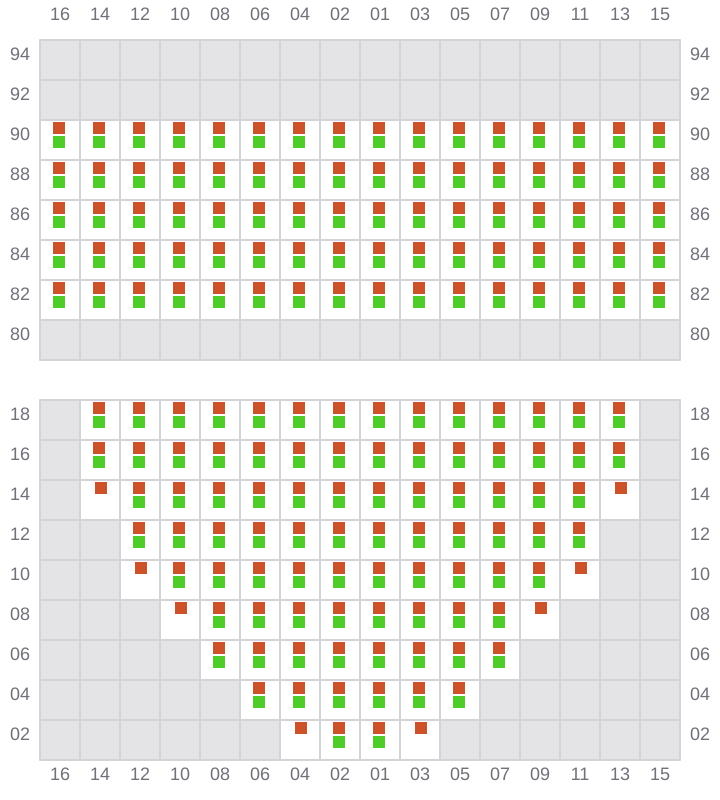

Bay 015 view and slots of MSC ORIANE

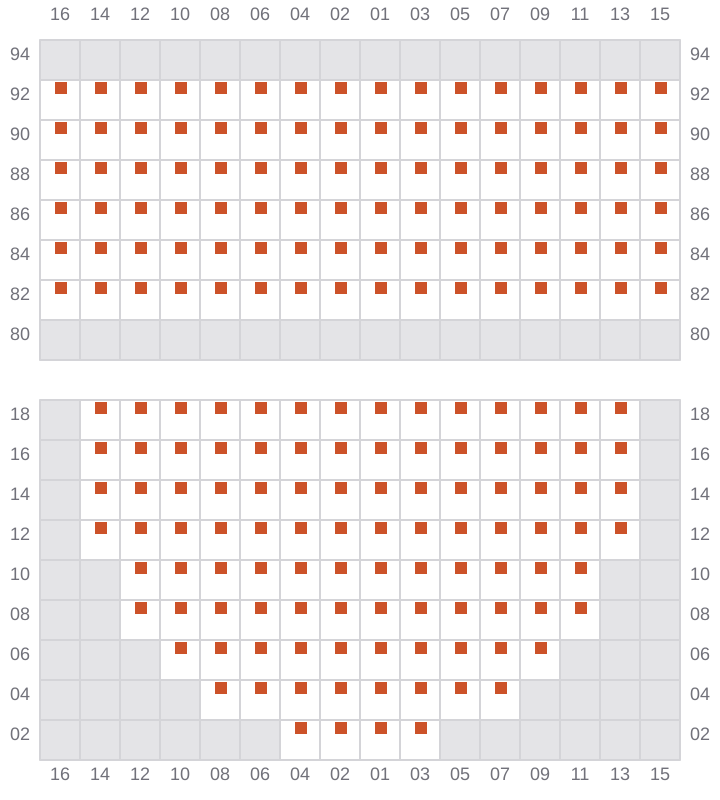

017

Bay 017 view and slots of MSC ORIANE

019 (018)

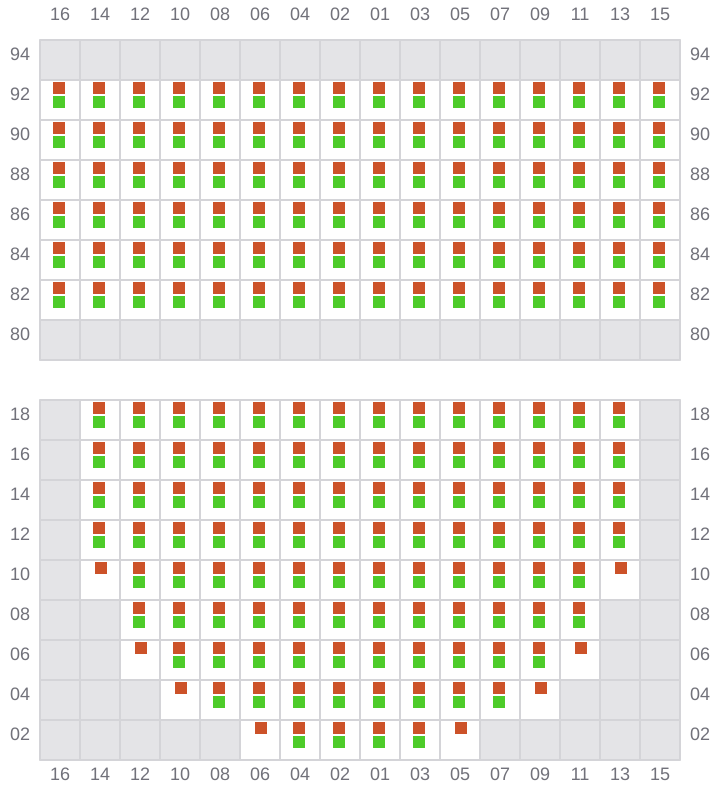

Bay 019 view and slots of MSC ORIANE

021

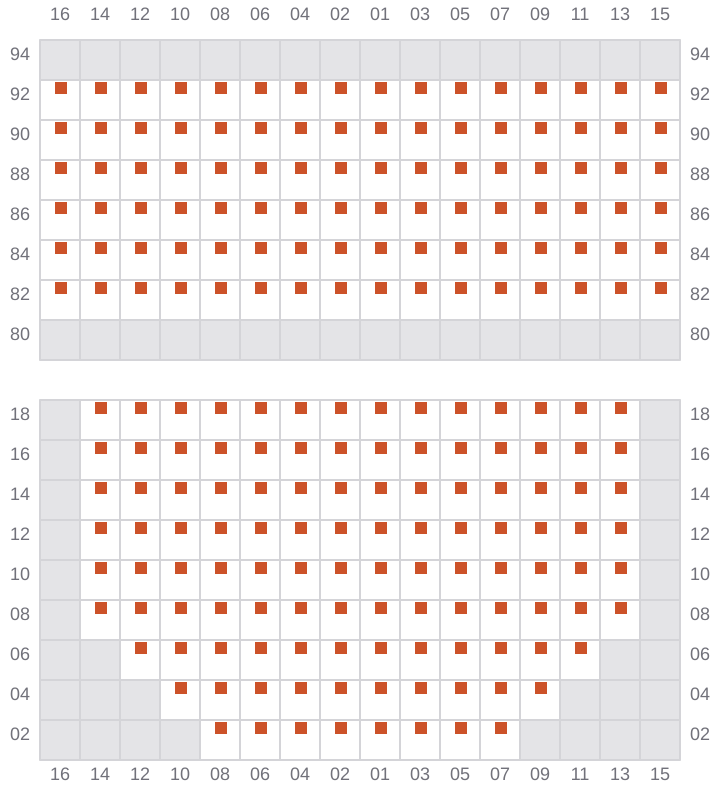

Bay 021 view and slots of MSC ORIANE

023 (022)

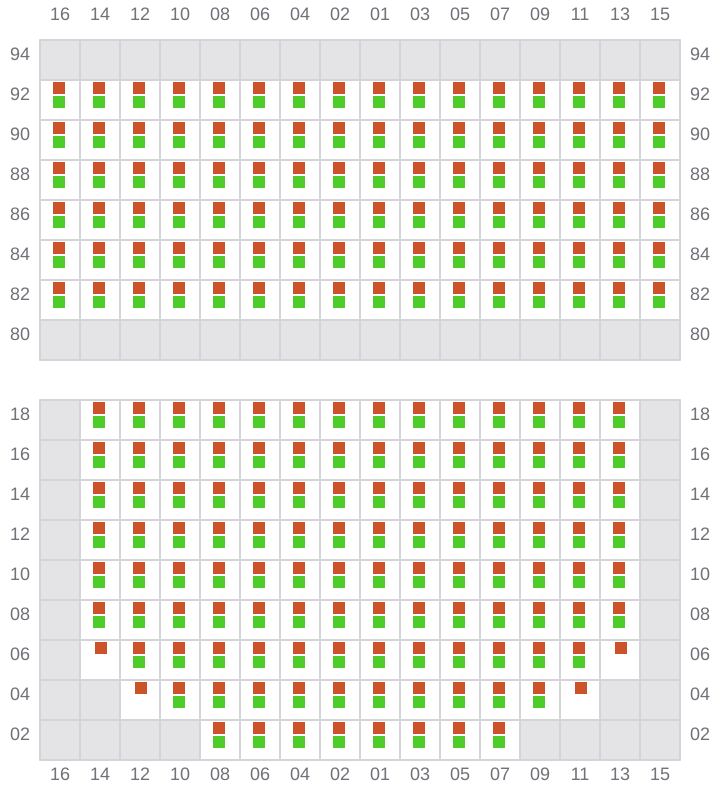

Bay 023 view and slots of MSC ORIANE

025

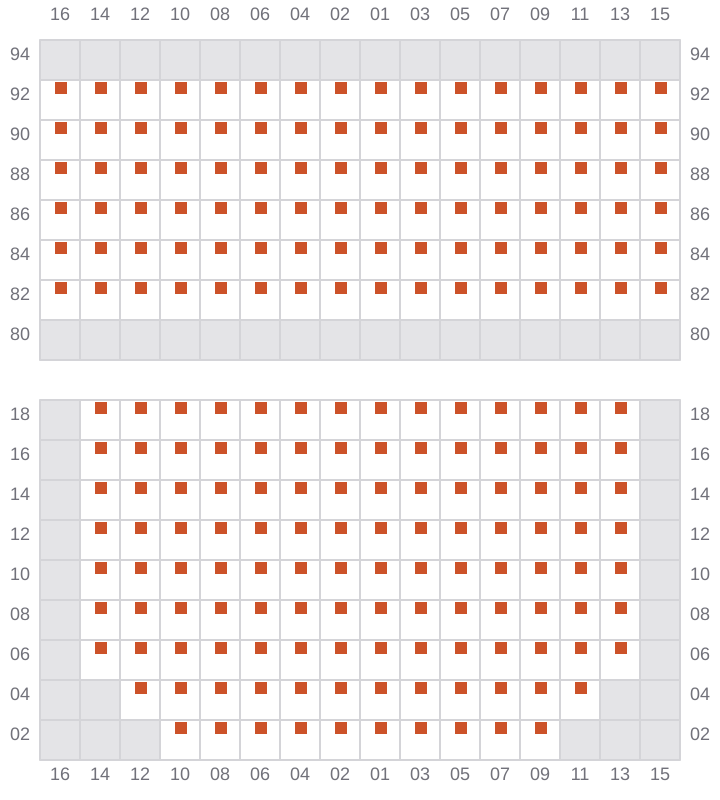

Bay 025 view and slots of MSC ORIANE

027 (026)

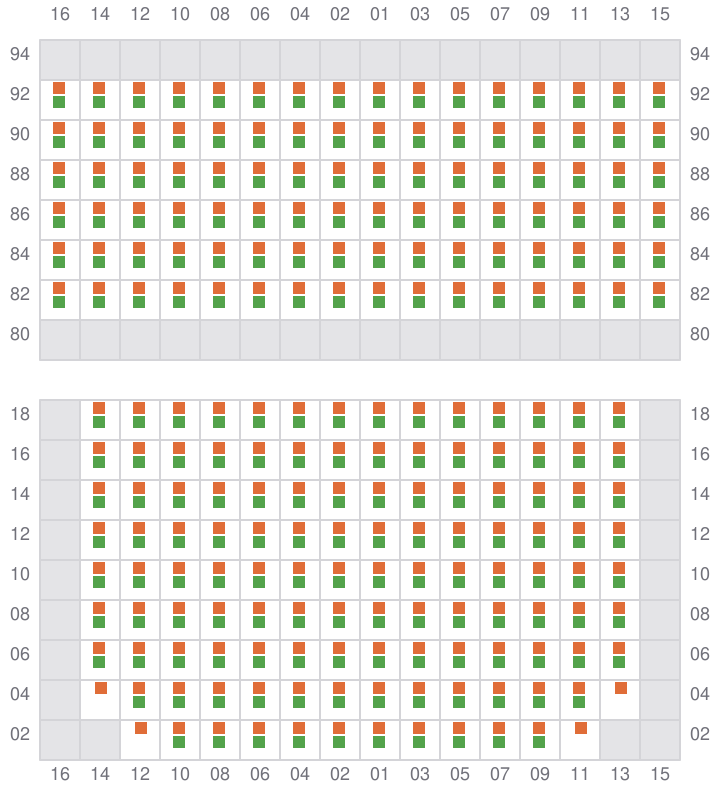

Bay 027 view and slots of MSC ORIANE

029

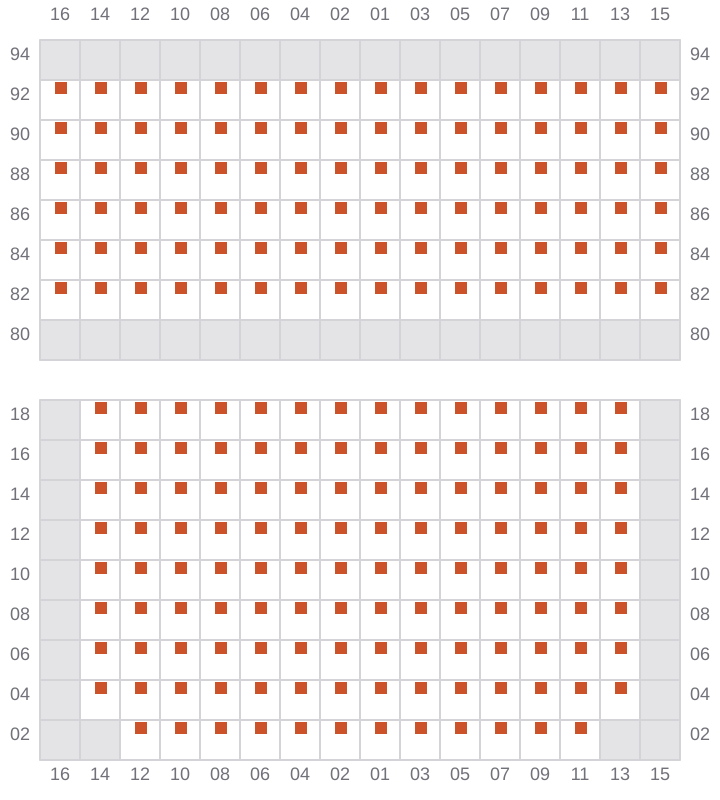

Bay 029 view and slots of MSC ORIANE

031 (030)

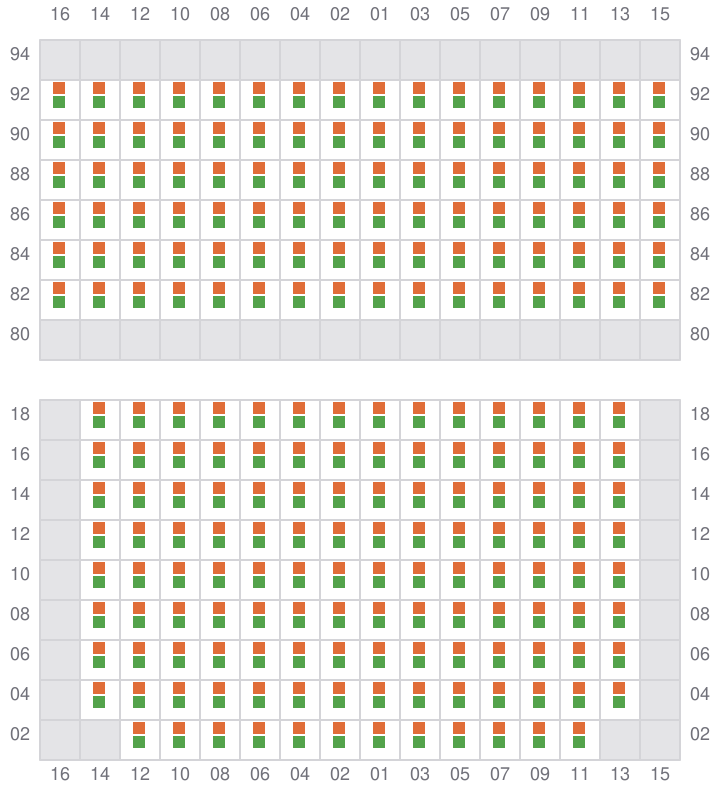

Bay 031 view and slots of MSC ORIANE

033

Bay 033 view and slots of MSC ORIANE

035 (034)

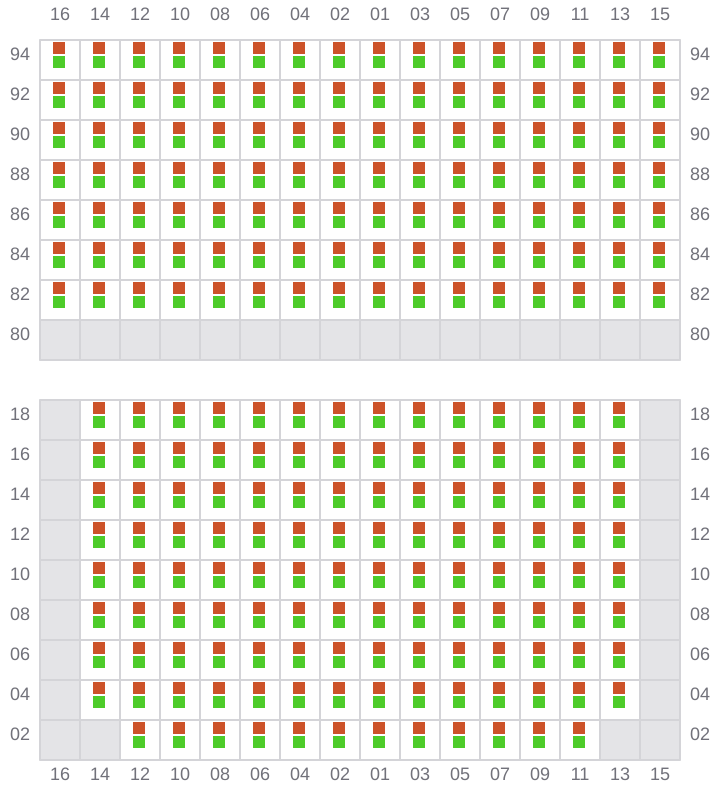

Bay 035 view and slots of MSC ORIANE

037

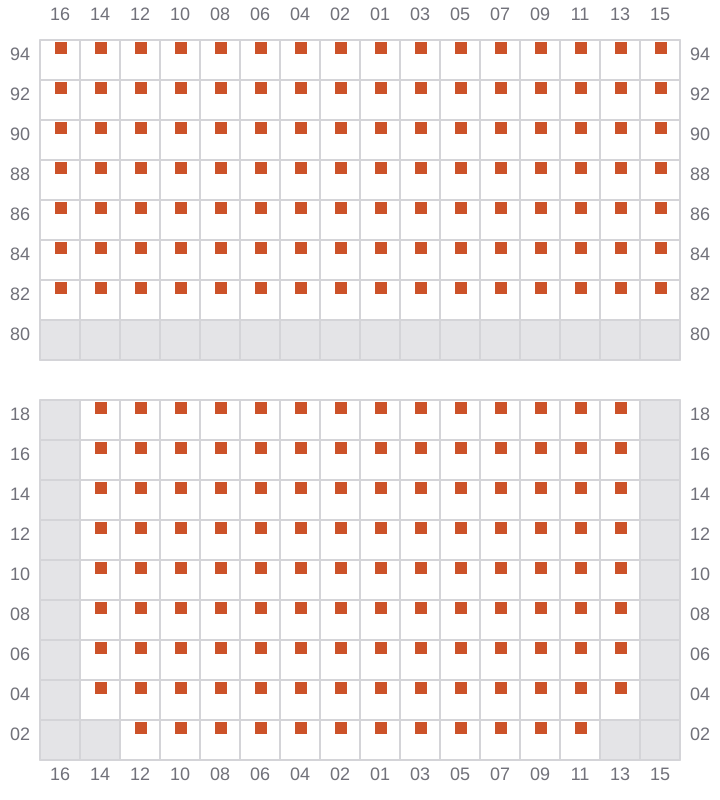

Bay 037 view and slots of MSC ORIANE

039 (038)

Bay 039 view and slots of MSC ORIANE

041

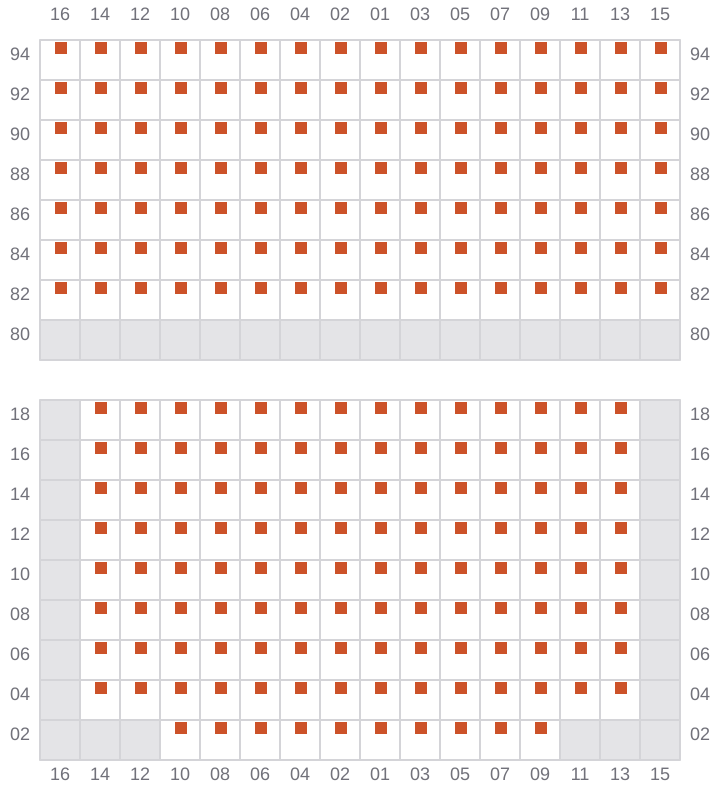

Bay 041 view and slots of MSC ORIANE

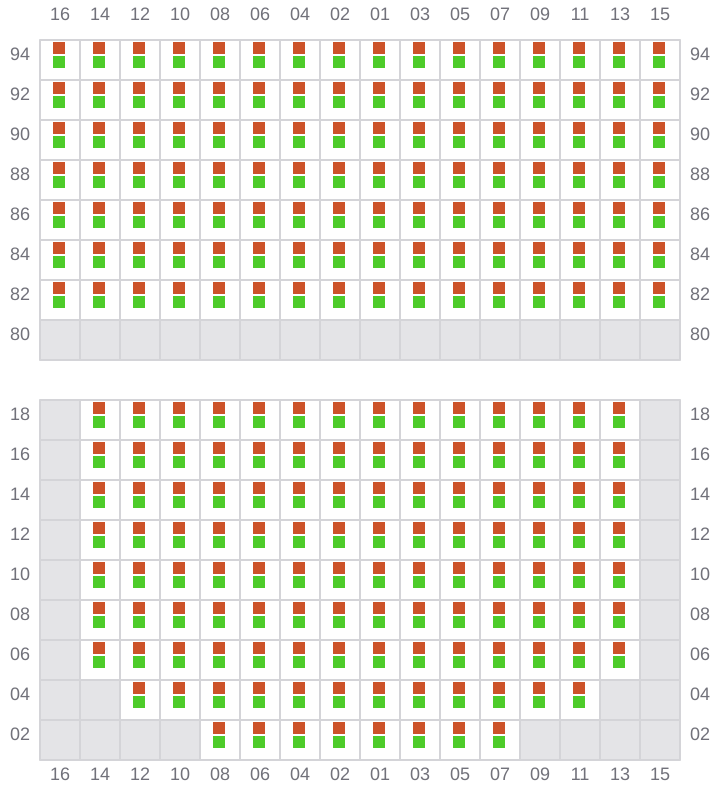

043 (042)

Bay 043 view and slots of MSC ORIANE

045

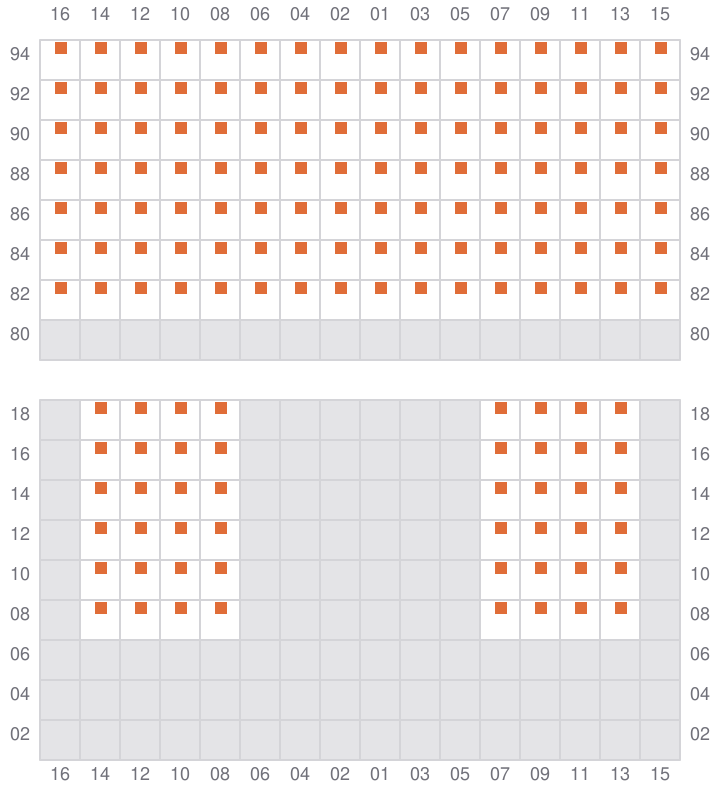

Bay 045 view and slots of MSC ORIANE

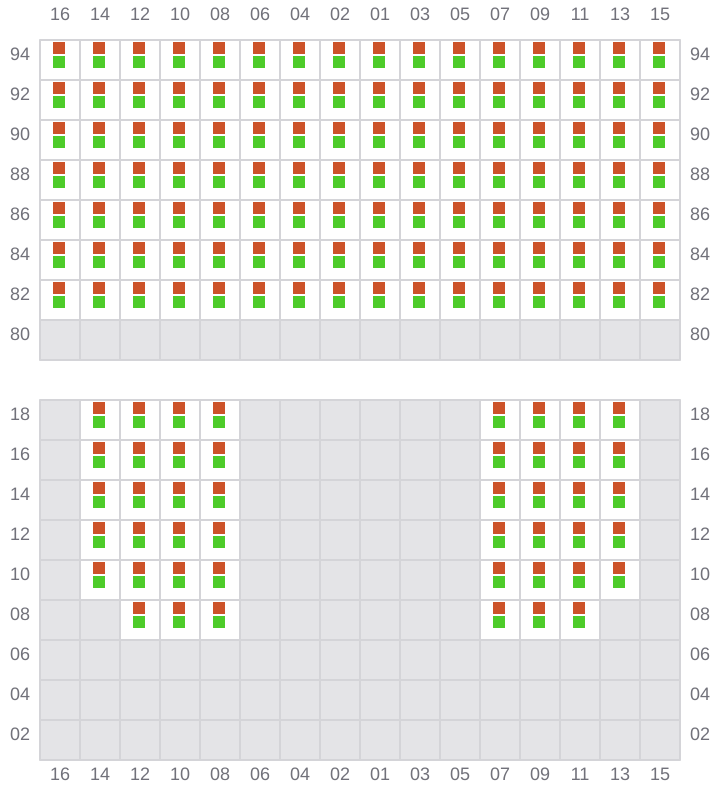

047 (046)

Bay 047 view and slots of MSC ORIANE

049

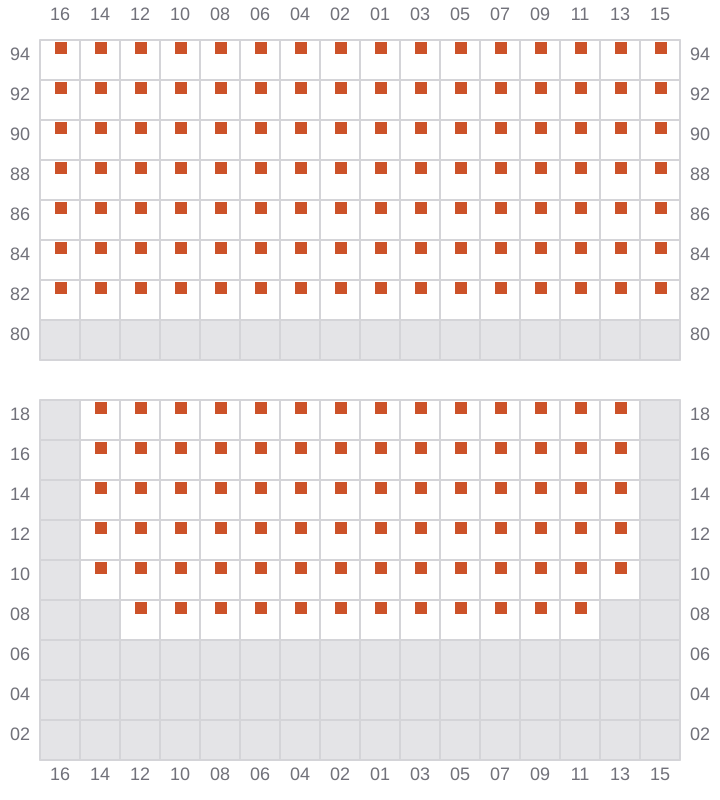

Bay 049 view and slots of MSC ORIANE

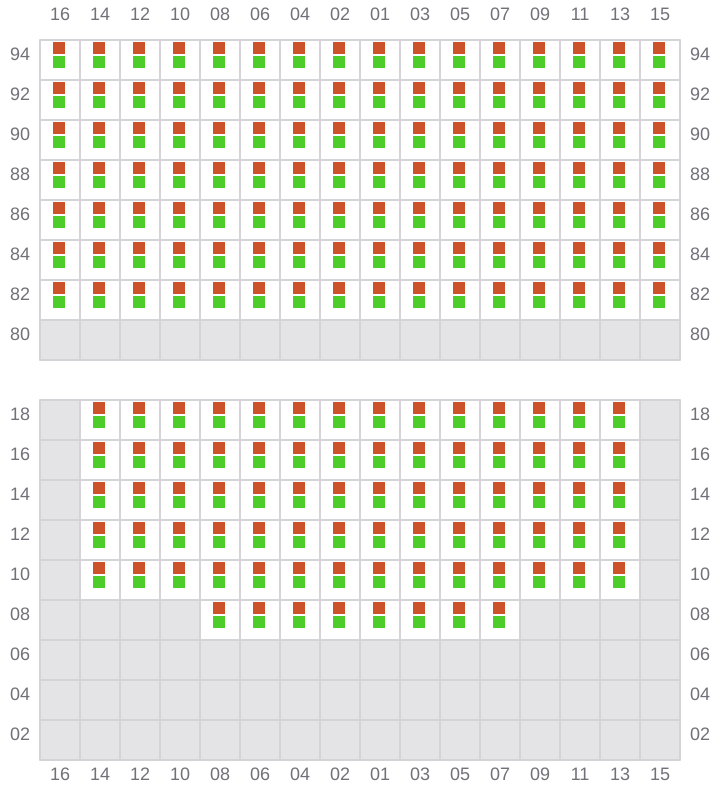

051 (050)

Bay 051 view and slots of MSC ORIANE

053

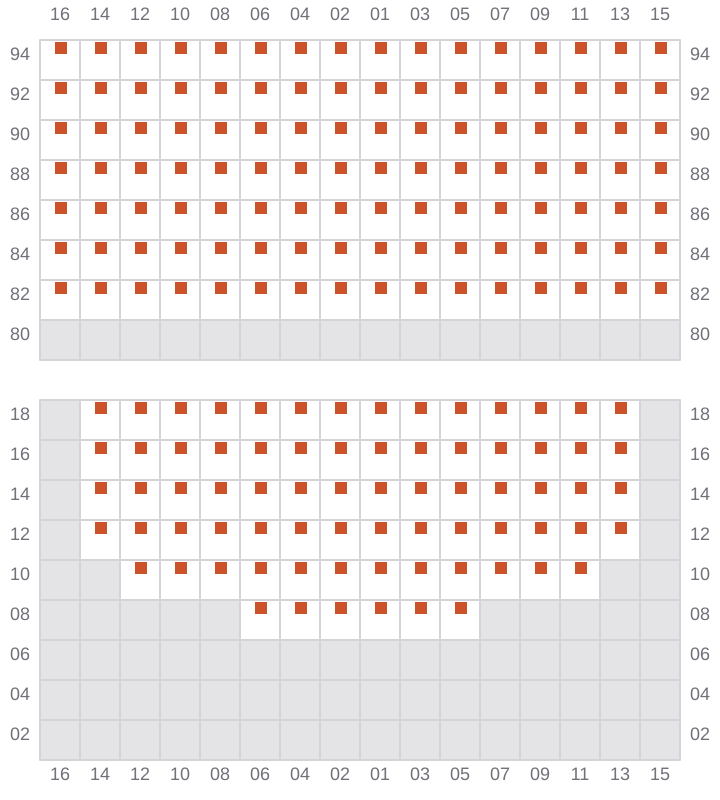

Bay 053 view and slots of MSC ORIANE

055 (054)

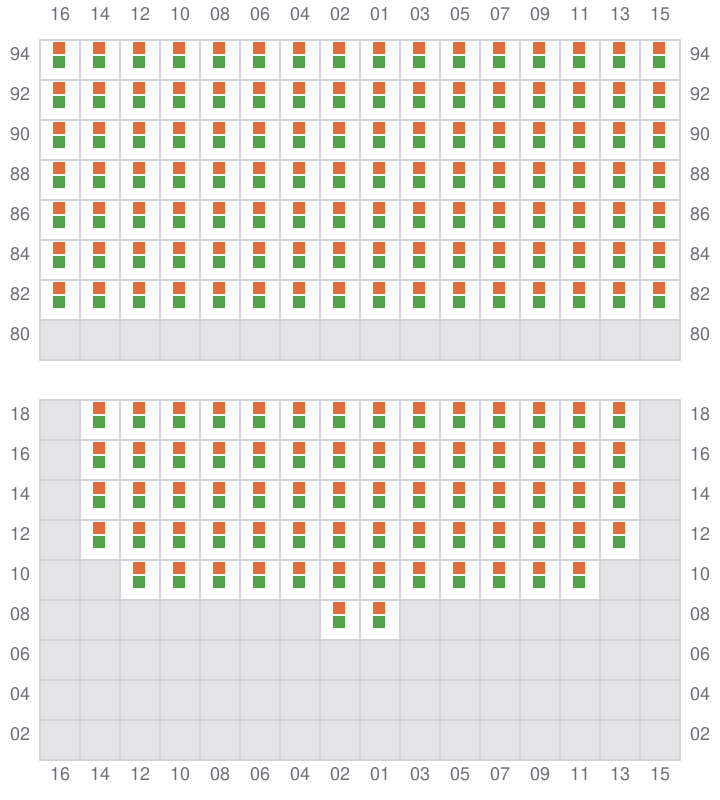

Bay 055 view and slots of MSC ORIANE

057

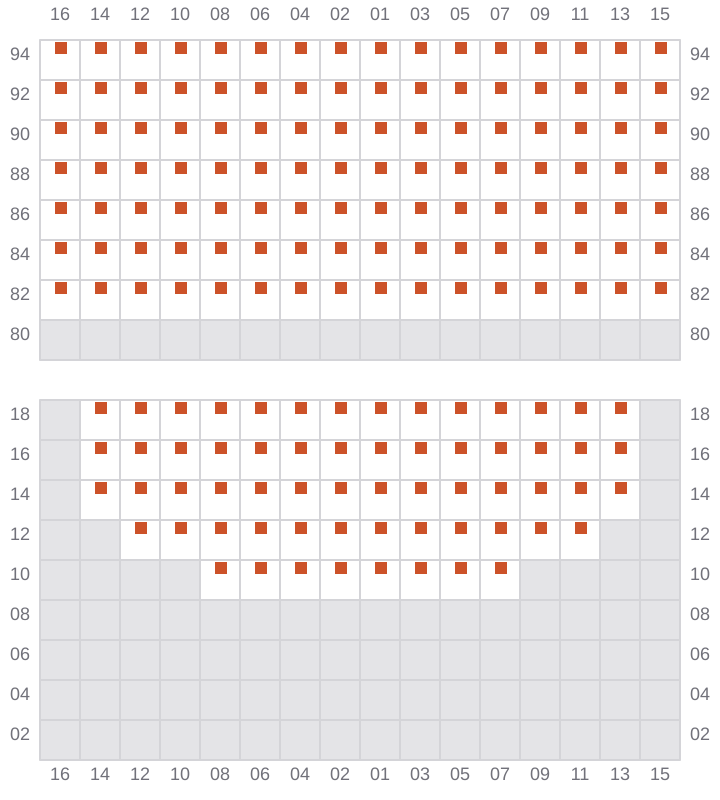

Bay 057 view and slots of MSC ORIANE

059 (058)

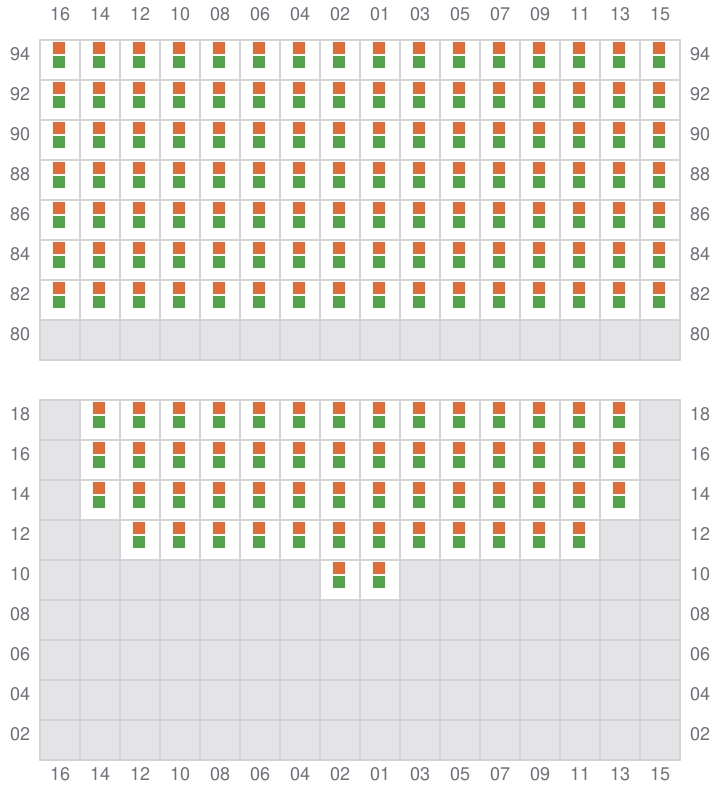

Bay 059 view and slots of MSC ORIANE

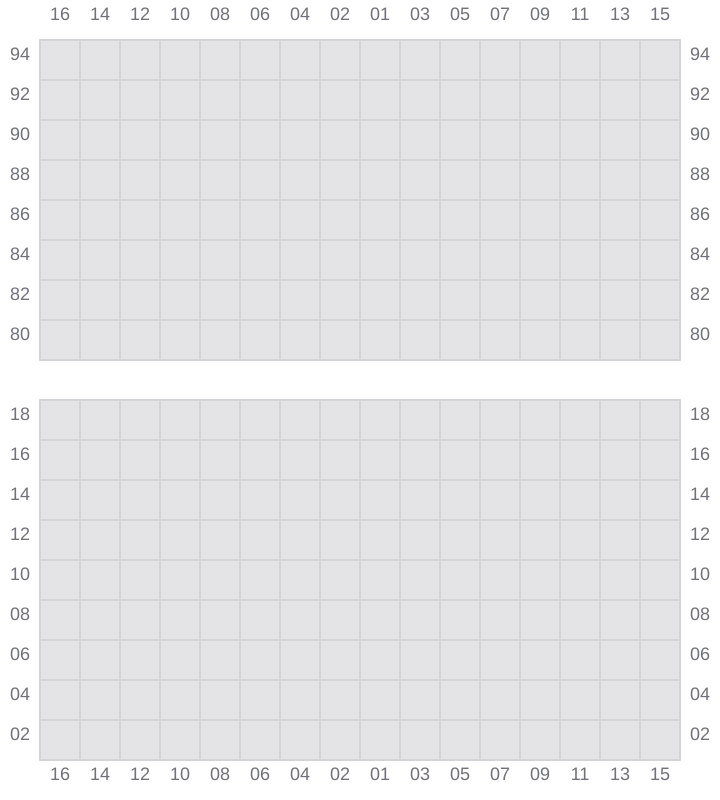

061

Bay 061 view and slots of MSC ORIANE

063 (062)

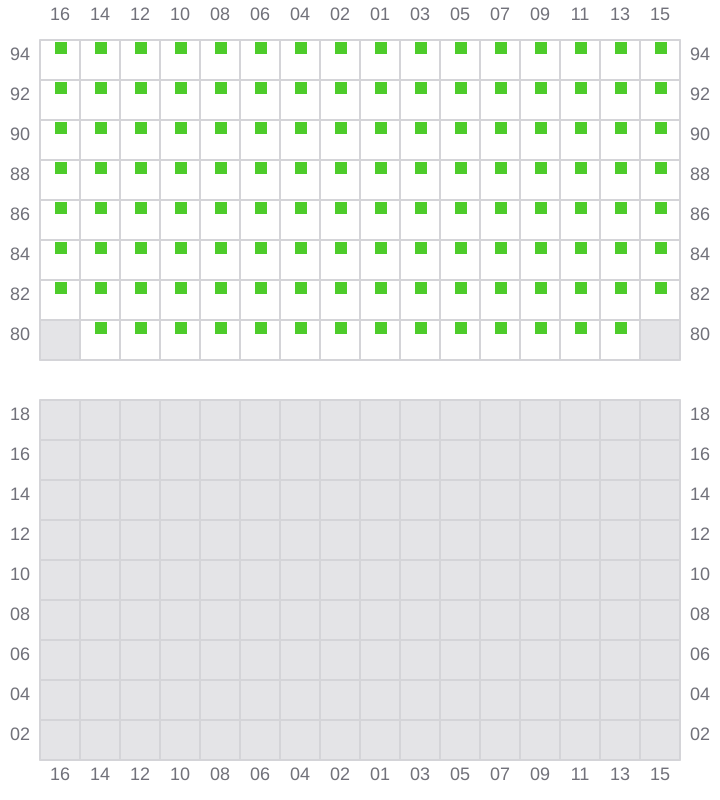

Bay 063 view and slots of MSC ORIANE
