MSC PALATIUM III
9336165 | A8KD9 | MSC by ********* Last update: Thu May 09 2024

General Info

Ship Name:MSC PALATIUM III
IMO Code:9336165
Call Sign:A8KD9
Line Operator:MSC
Class Name for Sister Ships:JIANGSU 2500
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):196.90
LOA (Length Overall):208.93
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,546

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

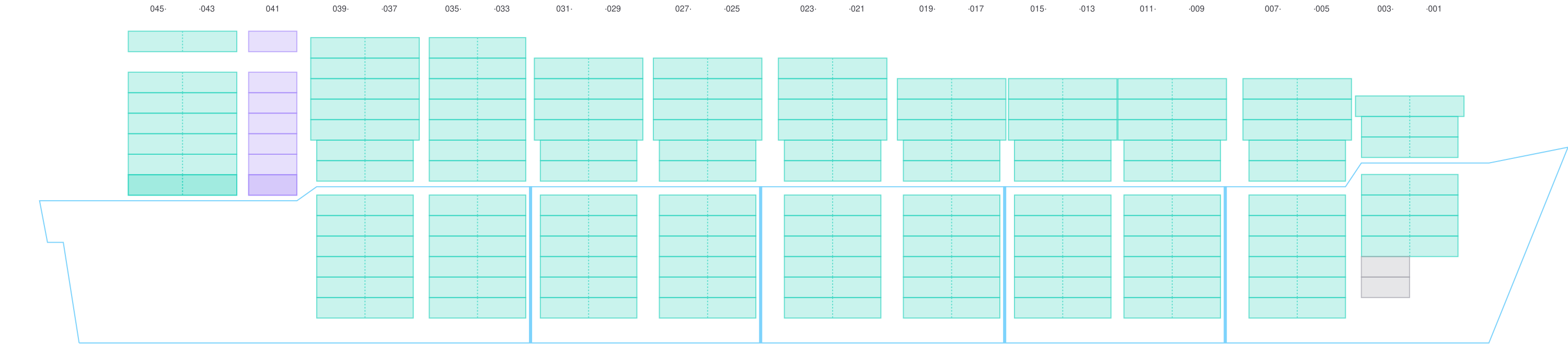

Side View

Side view of MSC PALATIUM III

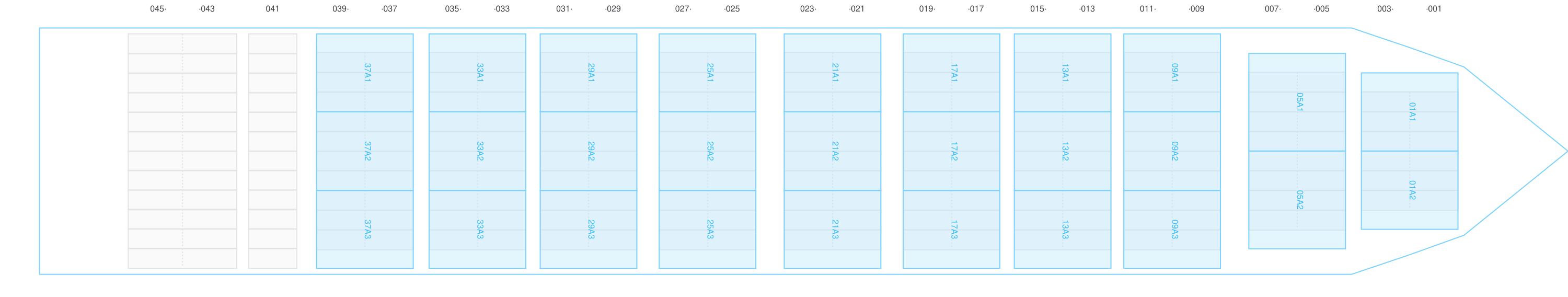

Hatch-Covers View

Deck view of MSC PALATIUM III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

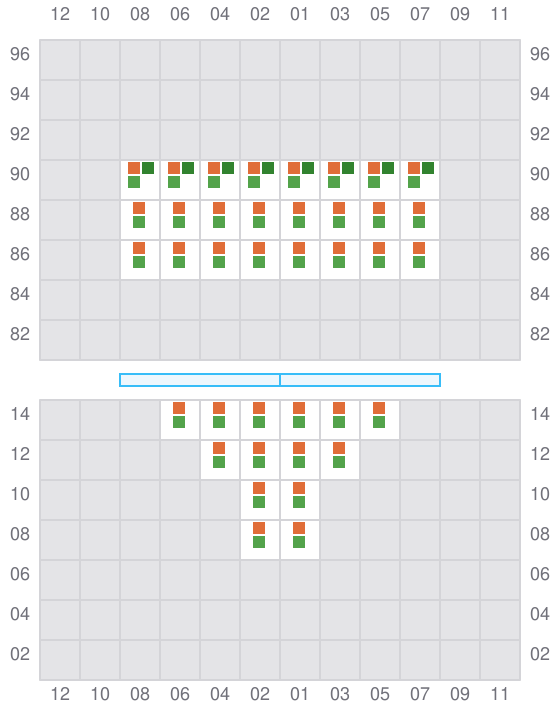

001 (002)

  • →
Bay 001 view and slots of MSC PALATIUM III

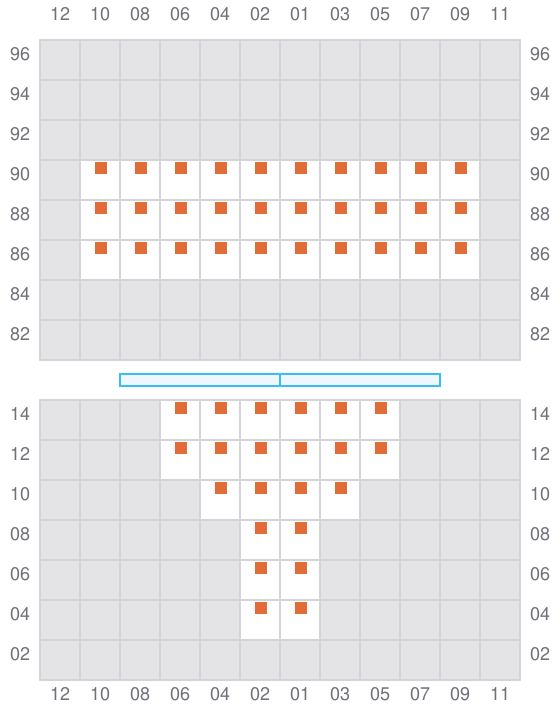

003

  • ←
Bay 003 view and slots of MSC PALATIUM III

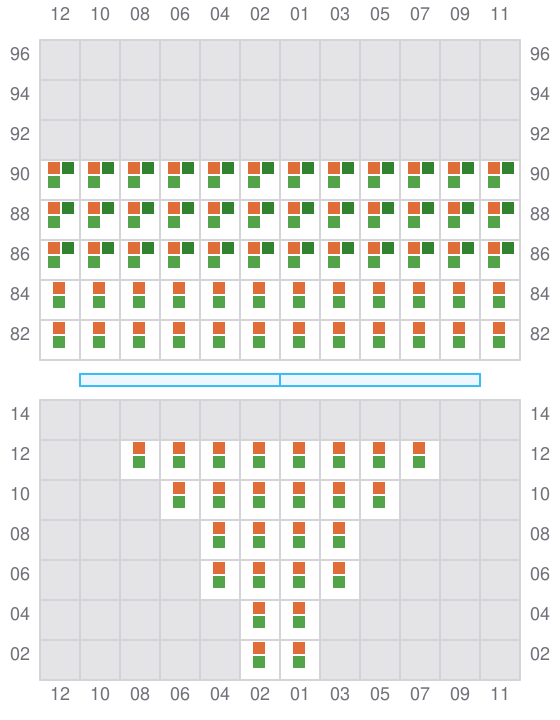

005 (006)

  • →
Bay 005 view and slots of MSC PALATIUM III

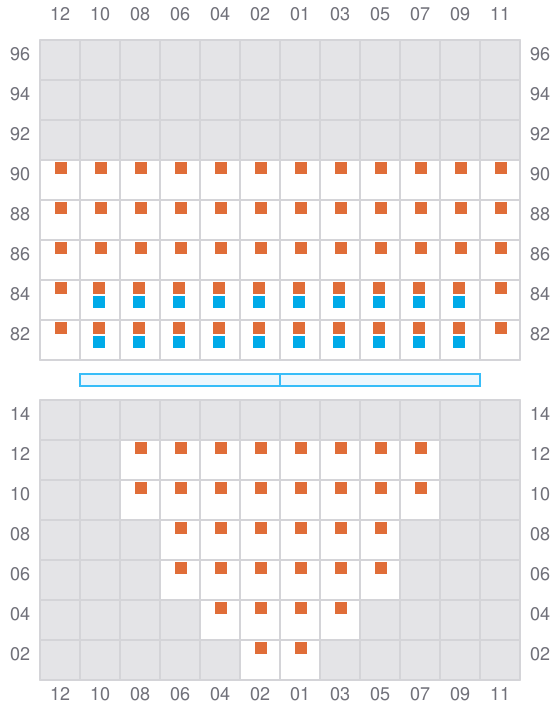

007

  • ←
  • → / ?
Bay 007 view and slots of MSC PALATIUM III

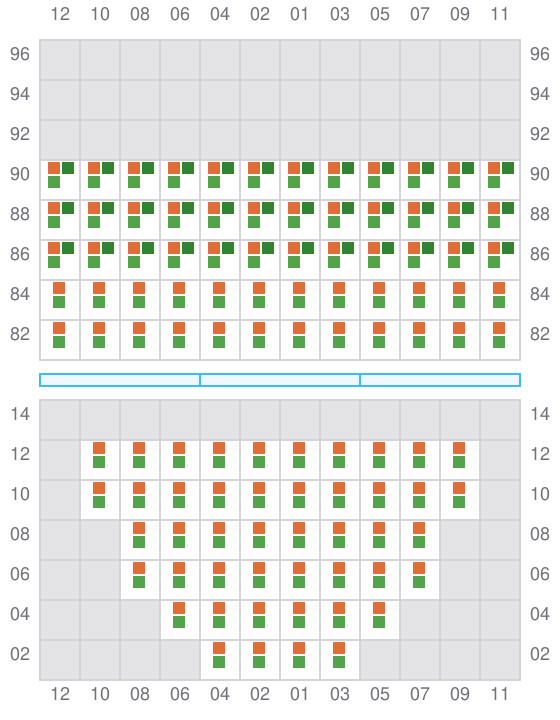

009 (010)

  • →
  • ← / ?
Bay 009 view and slots of MSC PALATIUM III

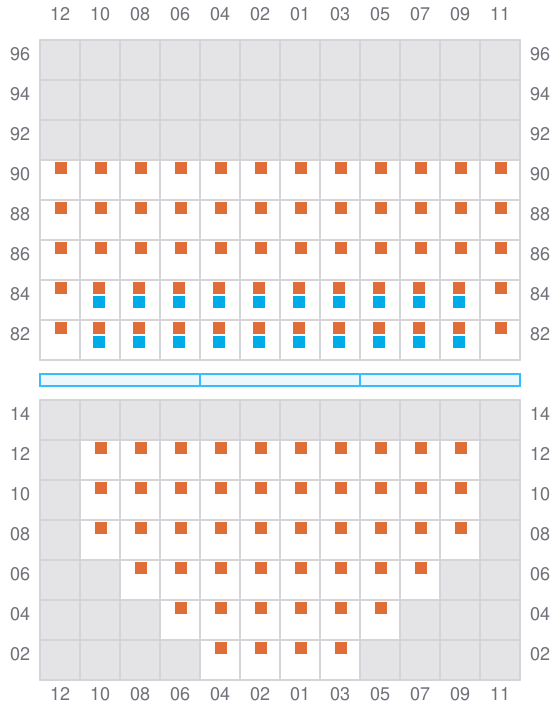

011

  • ←
  • → / ?
Bay 011 view and slots of MSC PALATIUM III

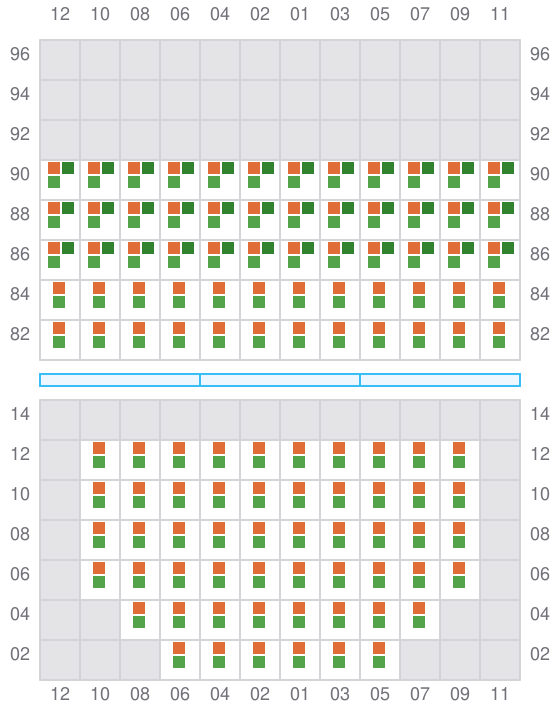

013 (014)

  • →
Bay 013 view and slots of MSC PALATIUM III

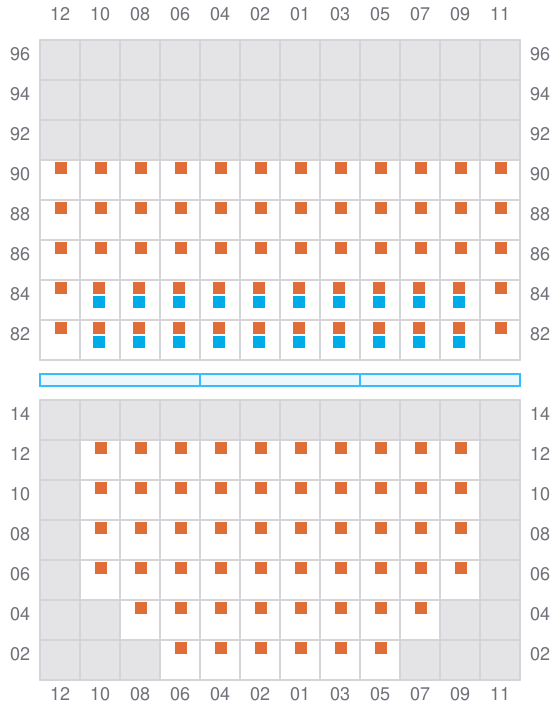

015

  • ←
  • → / ?
Bay 015 view and slots of MSC PALATIUM III

017 (018)

  • →
Bay 017 view and slots of MSC PALATIUM III

019

  • ←
  • →
Bay 019 view and slots of MSC PALATIUM III

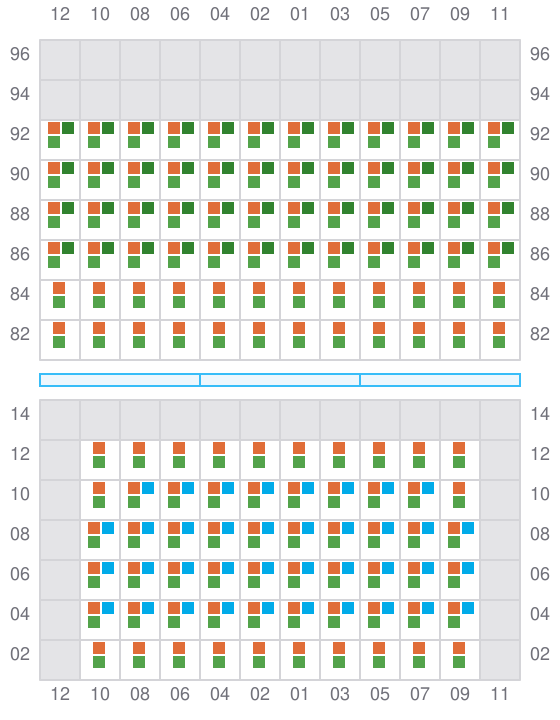

021 (022)

  • →
  • ? / ←
Bay 021 view and slots of MSC PALATIUM III

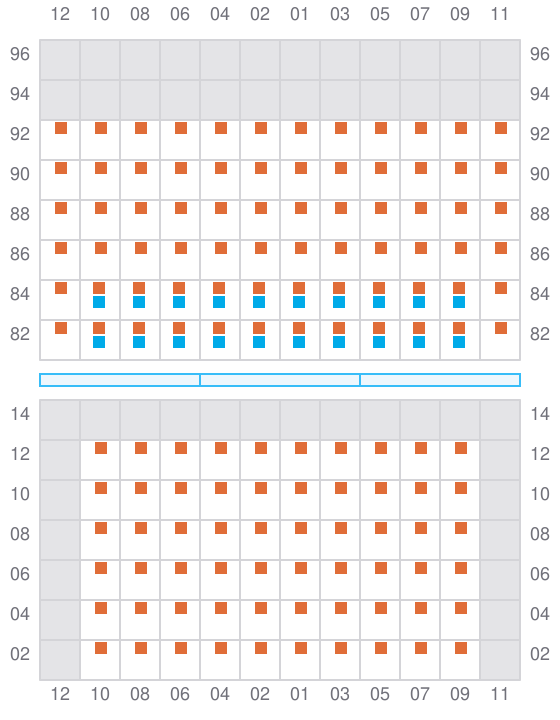

023

  • ←
  • → / ?
Bay 023 view and slots of MSC PALATIUM III

025 (026)

  • →
  • ? / ←
Bay 025 view and slots of MSC PALATIUM III

027

  • ←
  • → / ?
Bay 027 view and slots of MSC PALATIUM III

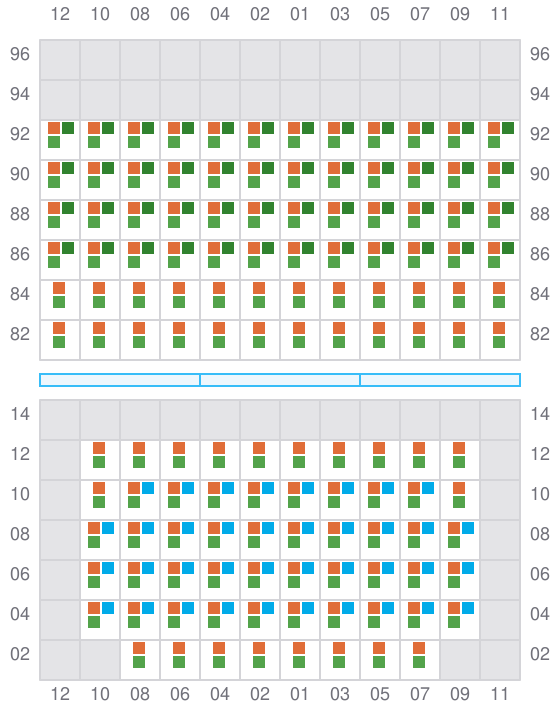

029 (030)

  • →
  • ←
Bay 029 view and slots of MSC PALATIUM III

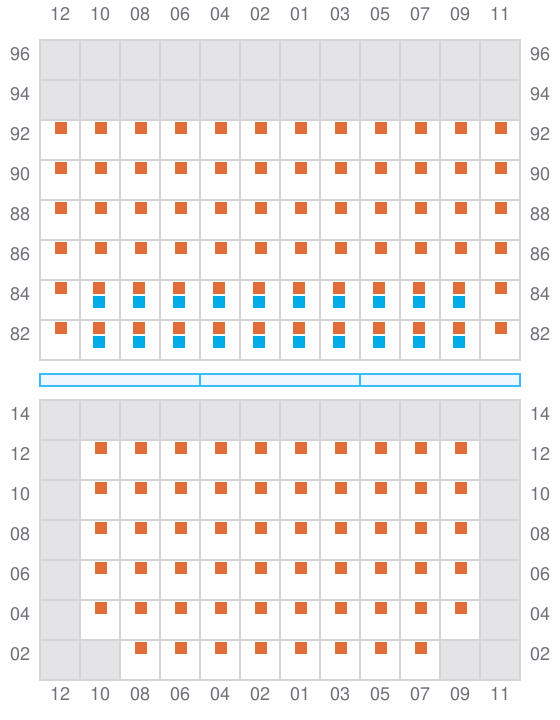

031

  • ←
  • → / ?
Bay 031 view and slots of MSC PALATIUM III

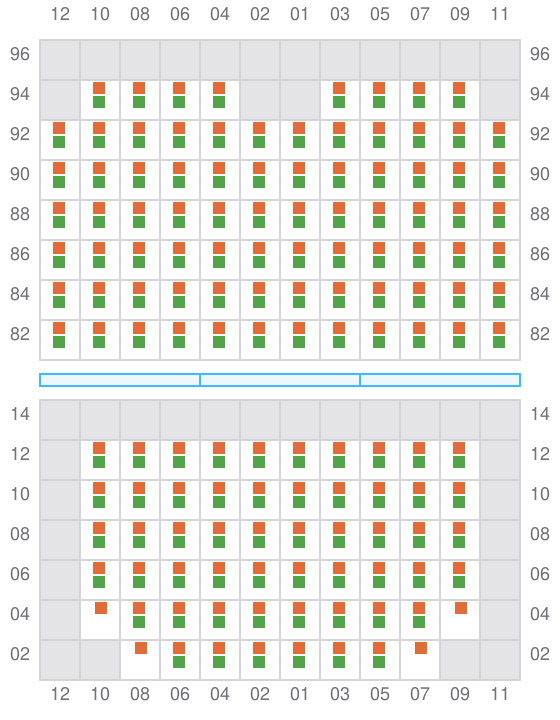

033 (034)

  • →
Bay 033 view and slots of MSC PALATIUM III

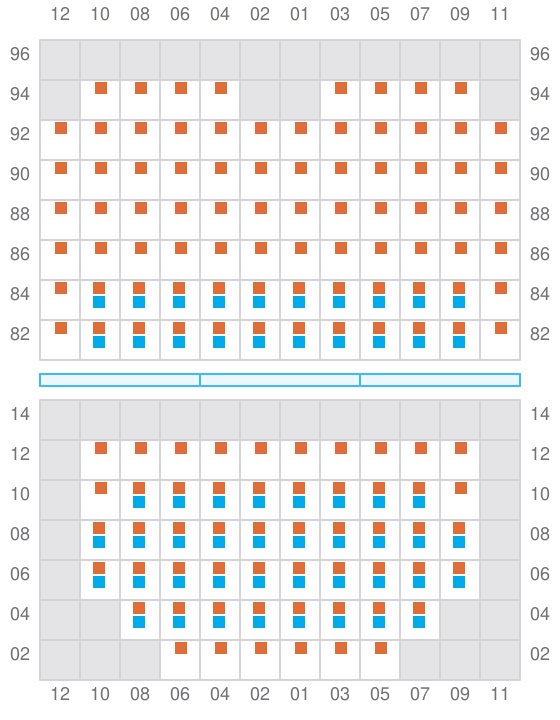

035

  • ←
  • →
Bay 035 view and slots of MSC PALATIUM III

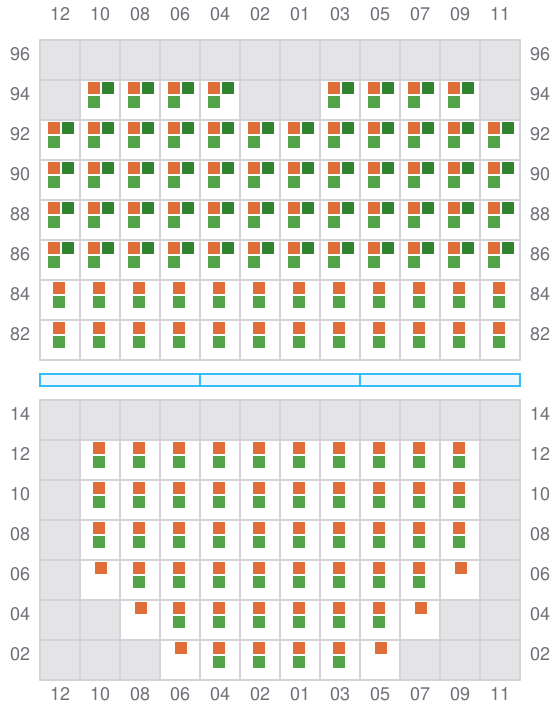

037 (038)

  • →
Bay 037 view and slots of MSC PALATIUM III

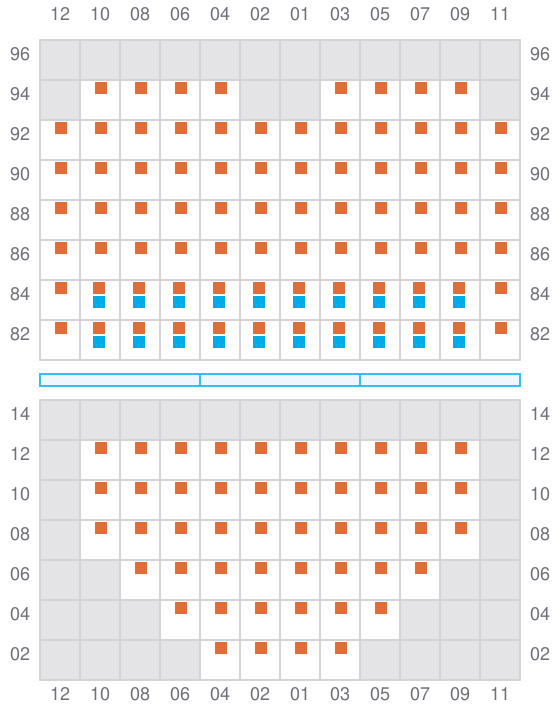

039

  • ←
  • → / ?
Bay 039 view and slots of MSC PALATIUM III

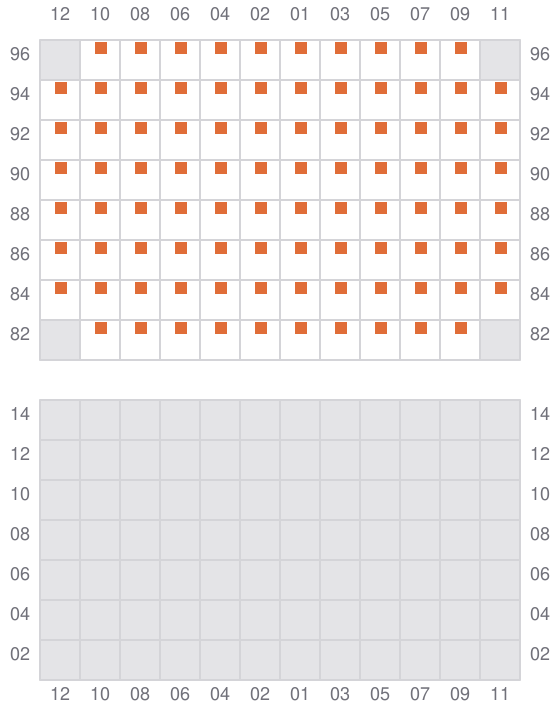

041

Bay 041 view and slots of MSC PALATIUM III

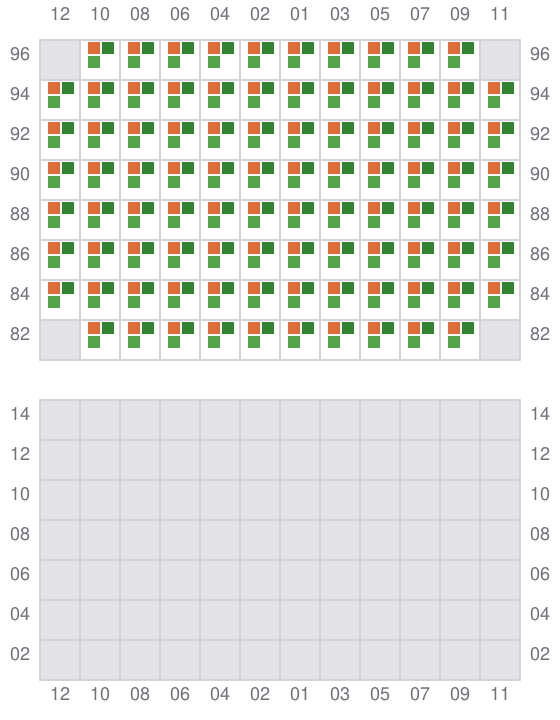

043 (044)

  • → / ?
Bay 043 view and slots of MSC PALATIUM III

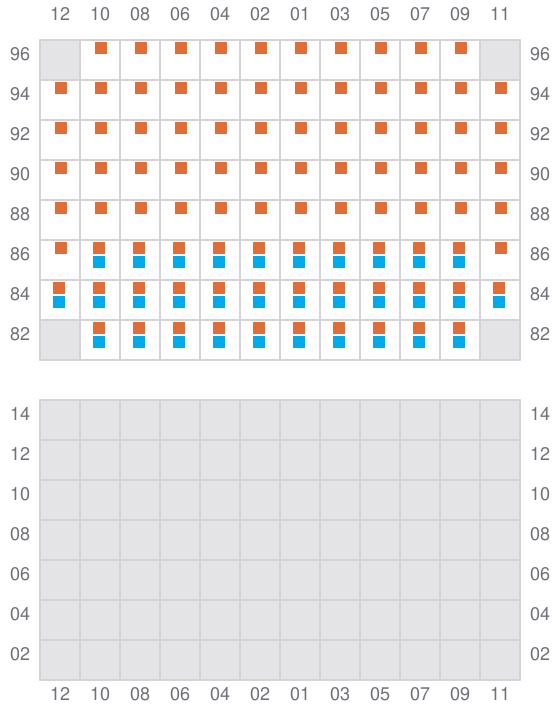

045

  • ← / ?
  • → / ?
Bay 045 view and slots of MSC PALATIUM III
