MSC PAMELA
9290531 | 3EBT6 | MSC by ************* Last update: Fri Jun 16 2023

General Info

Ship Name:MSC PAMELA
IMO Code:9290531
Call Sign:3EBT6
Line Operator:MSC
Class Name for Sister Ships:PAM
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

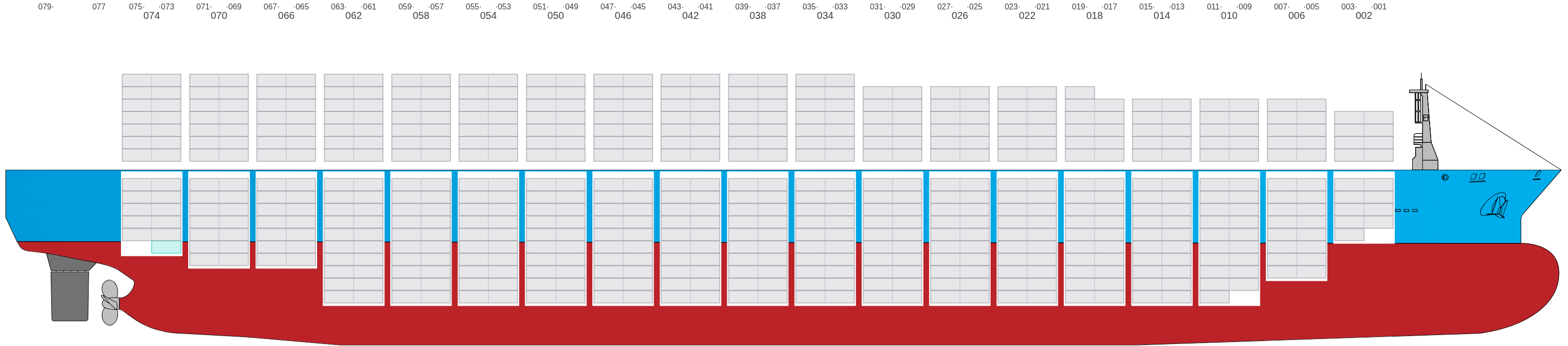

Side View

MSC PAMELA

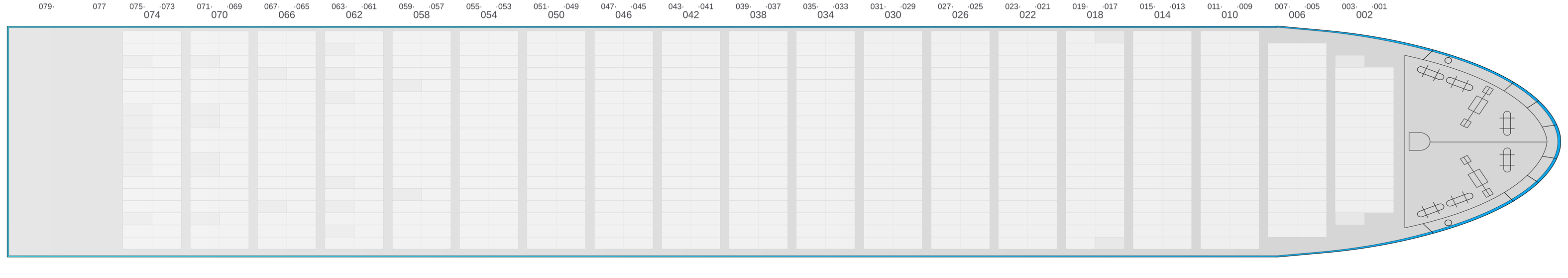

Hatch-Covers View

MSC PAMELA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

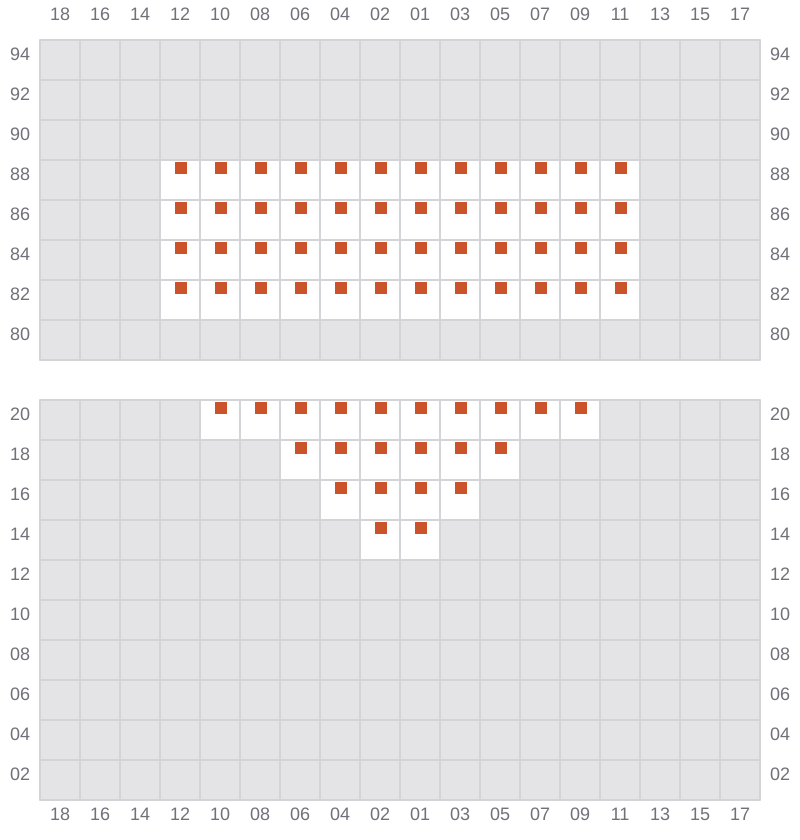

001

MSC PAMELA

003 (002)

MSC PAMELA

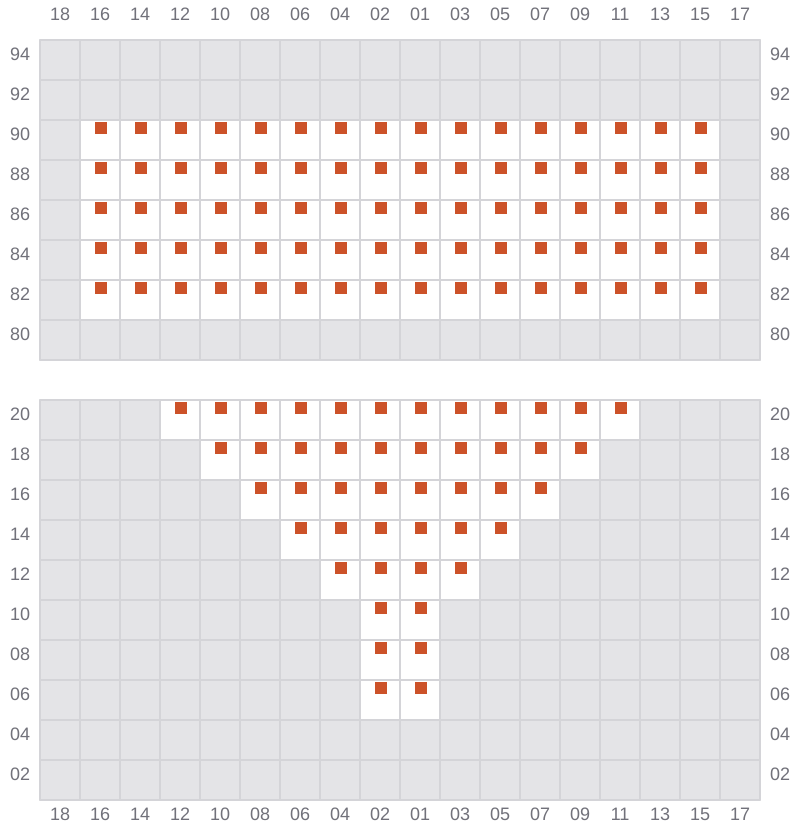

005

MSC PAMELA

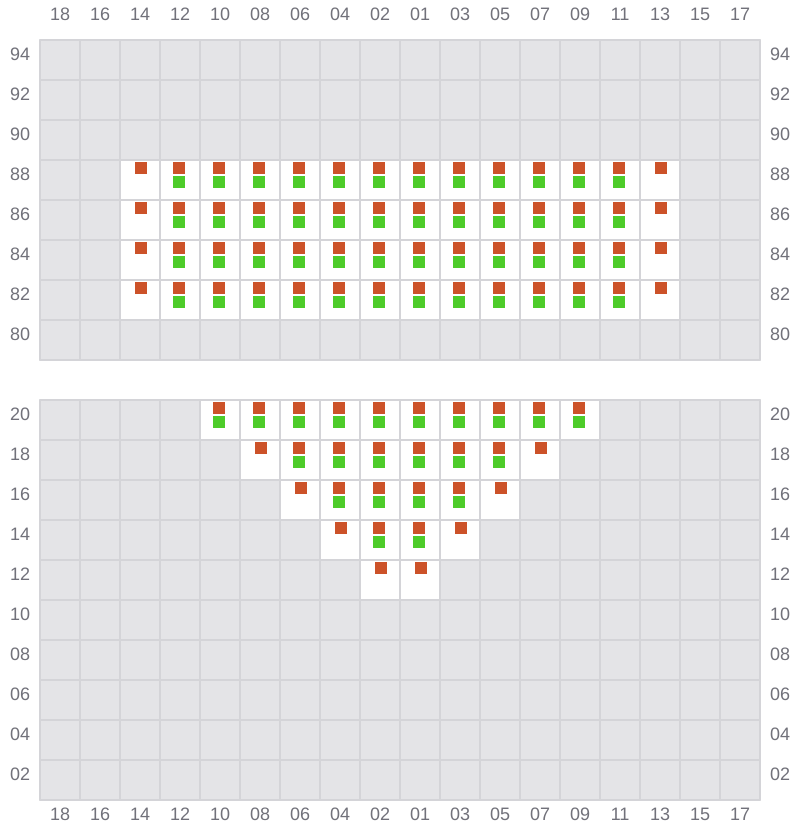

007 (006)

MSC PAMELA

009

MSC PAMELA

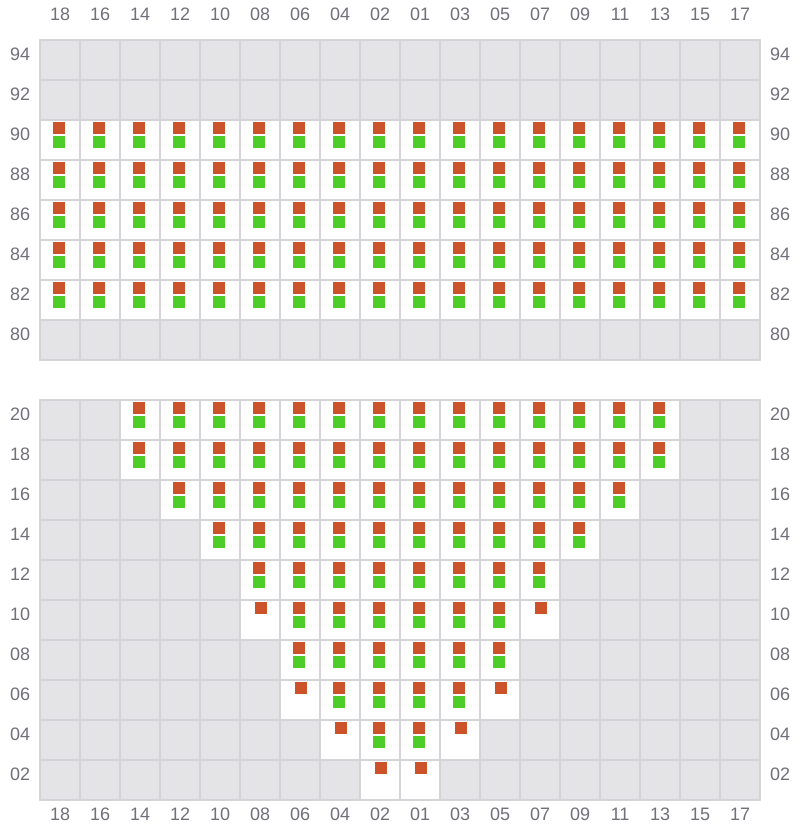

011 (010)

MSC PAMELA

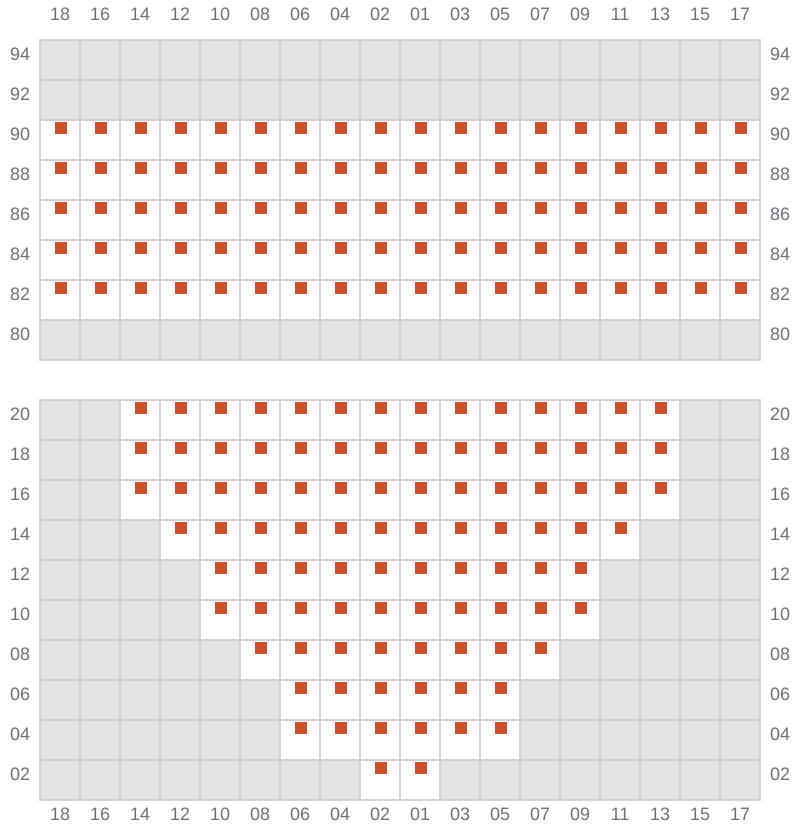

013

MSC PAMELA

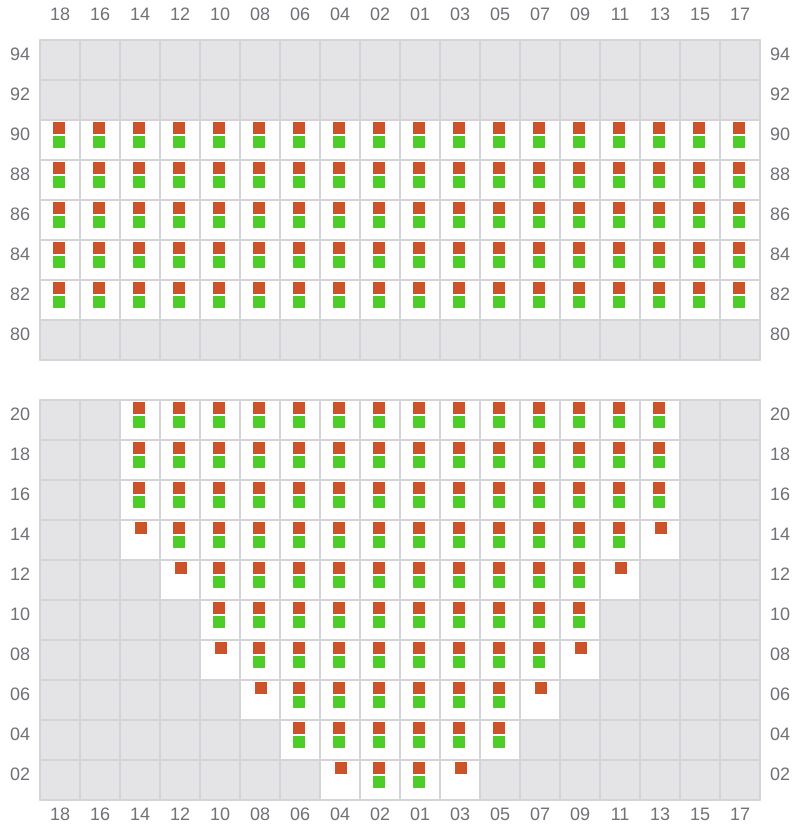

015 (014)

MSC PAMELA

017

MSC PAMELA

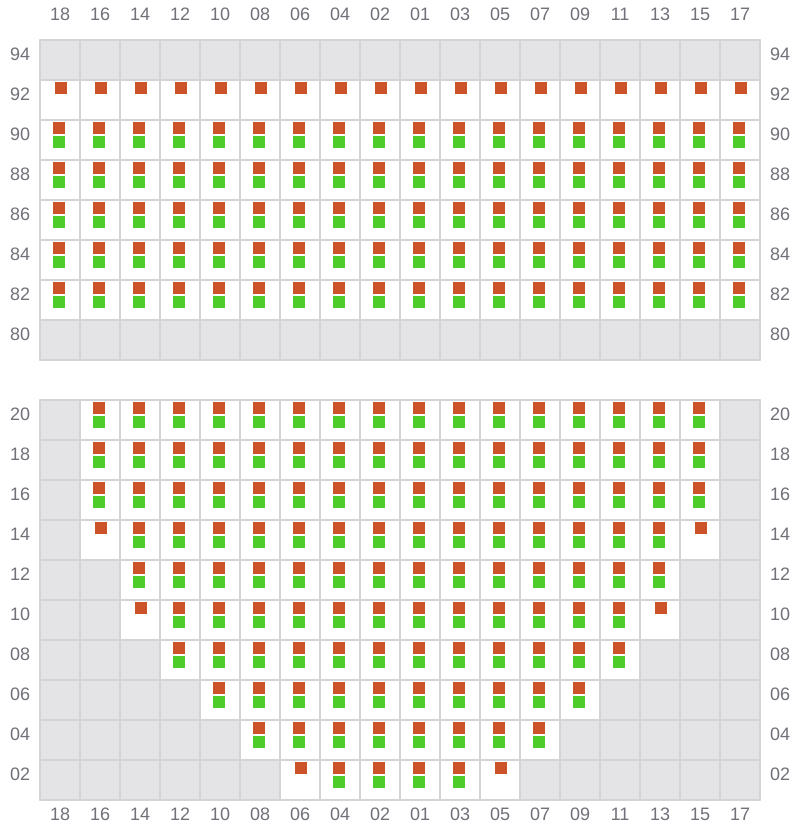

019 (018)

MSC PAMELA

021

MSC PAMELA

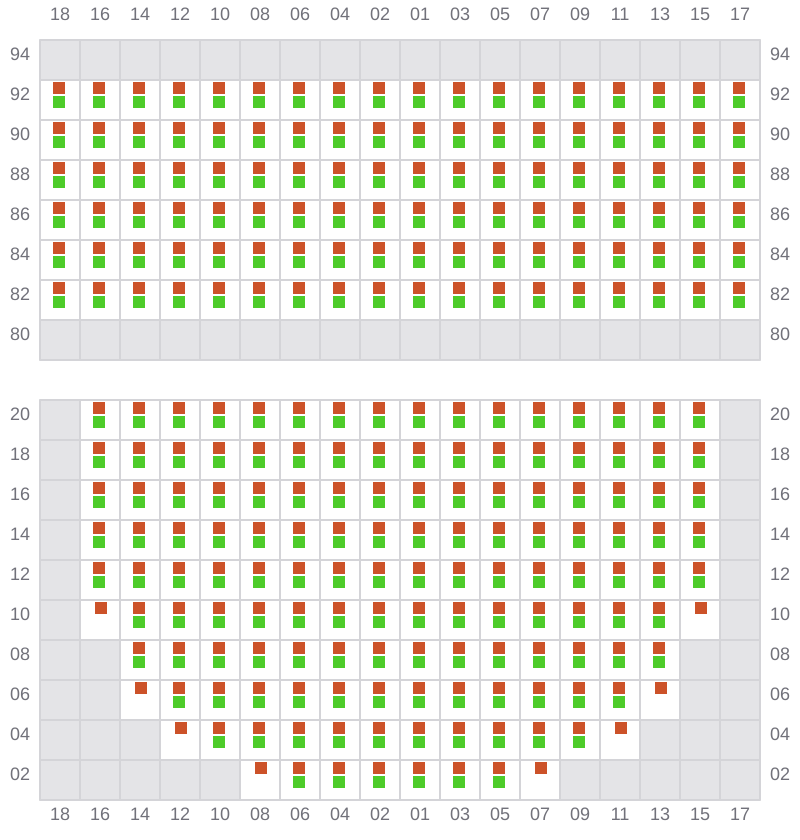

023 (022)

MSC PAMELA

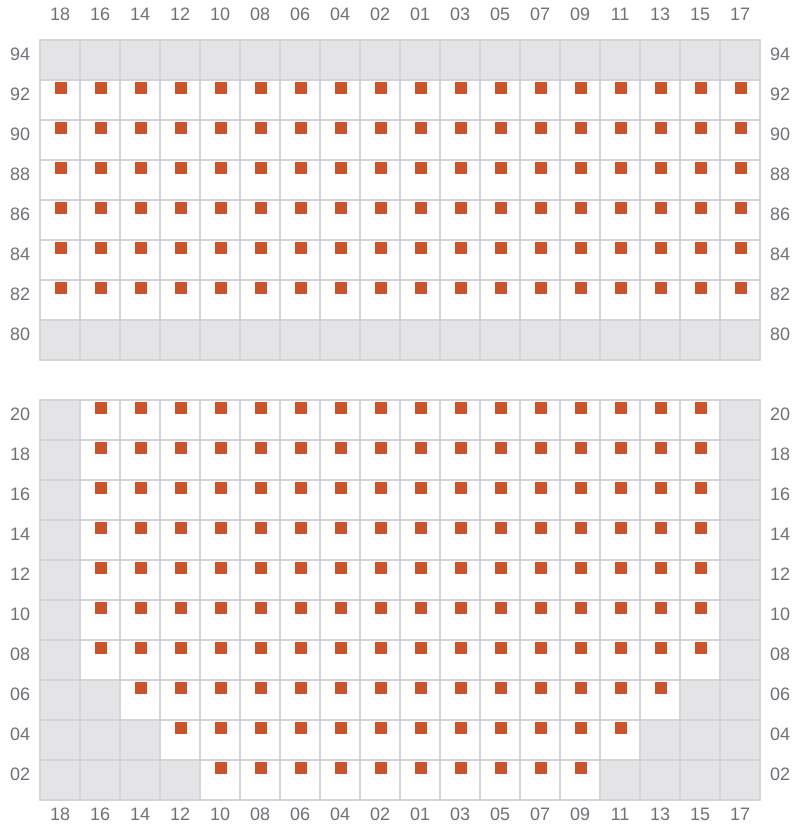

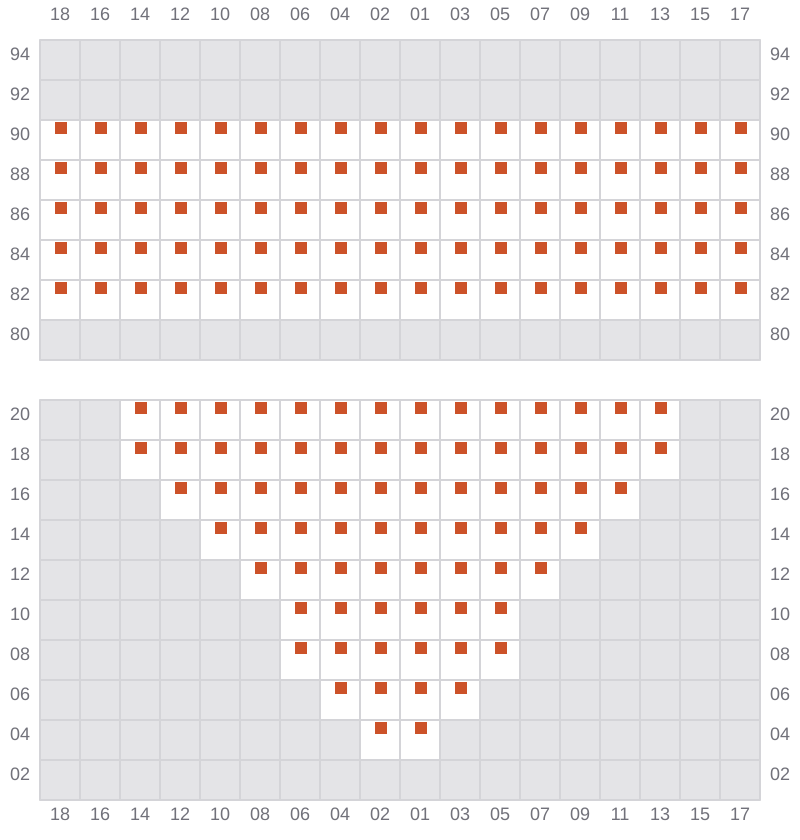

025

MSC PAMELA

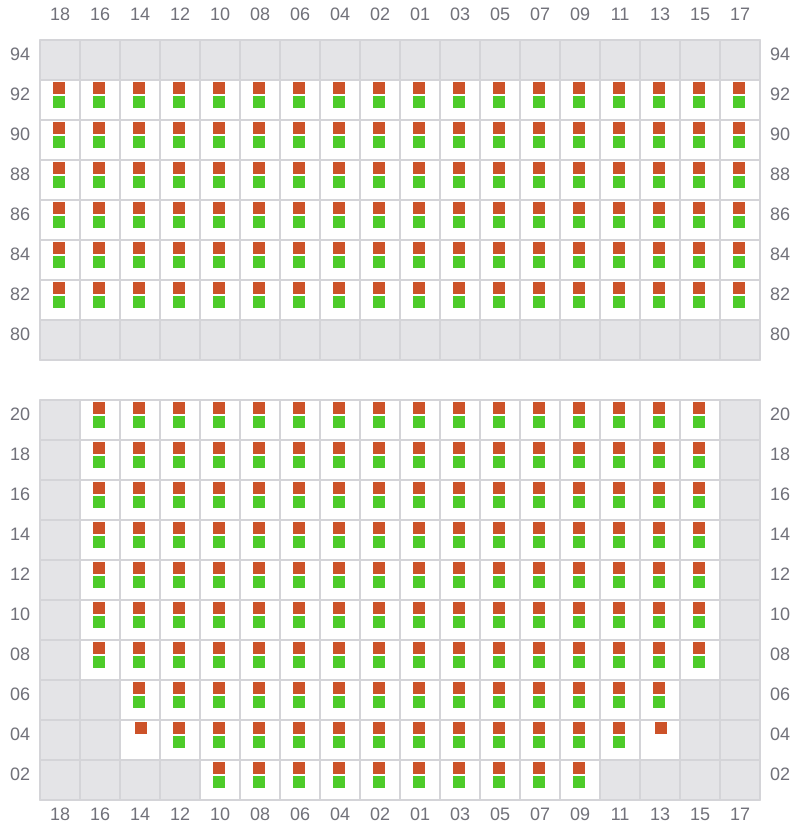

027 (026)

MSC PAMELA

029

MSC PAMELA

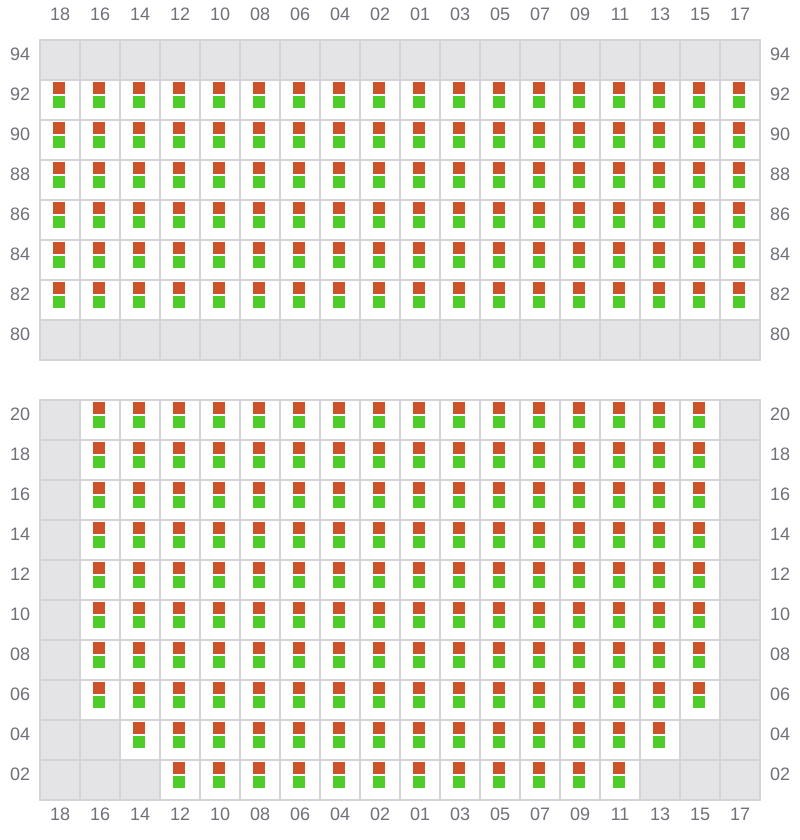

031 (030)

MSC PAMELA

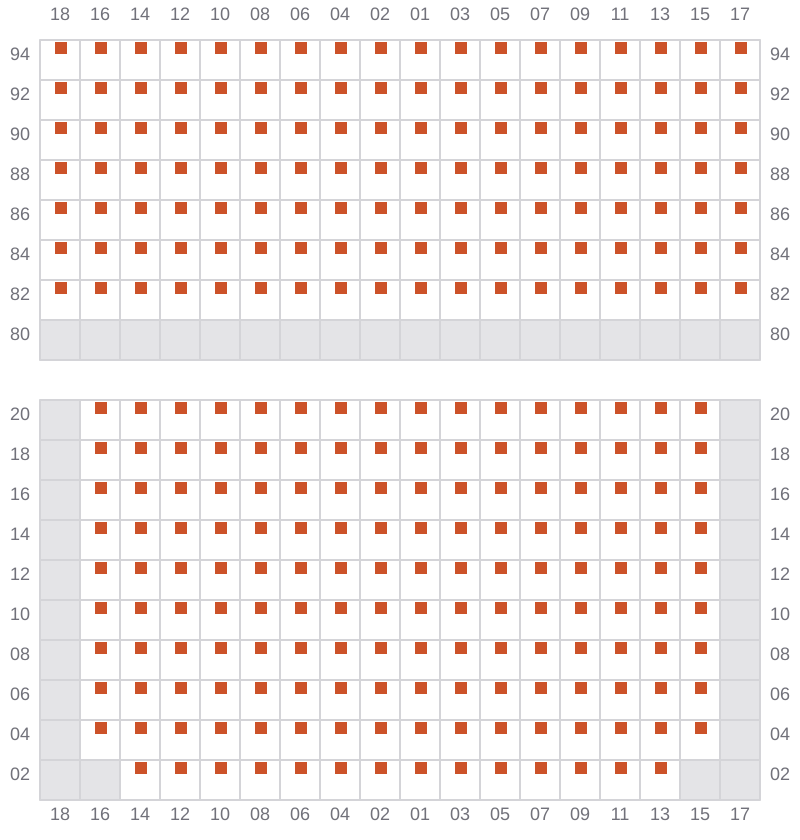

033

MSC PAMELA

035 (034)

MSC PAMELA

037

MSC PAMELA

039 (038)

MSC PAMELA

041

MSC PAMELA

043 (042)

MSC PAMELA

045

MSC PAMELA

047 (046)

MSC PAMELA

049

MSC PAMELA

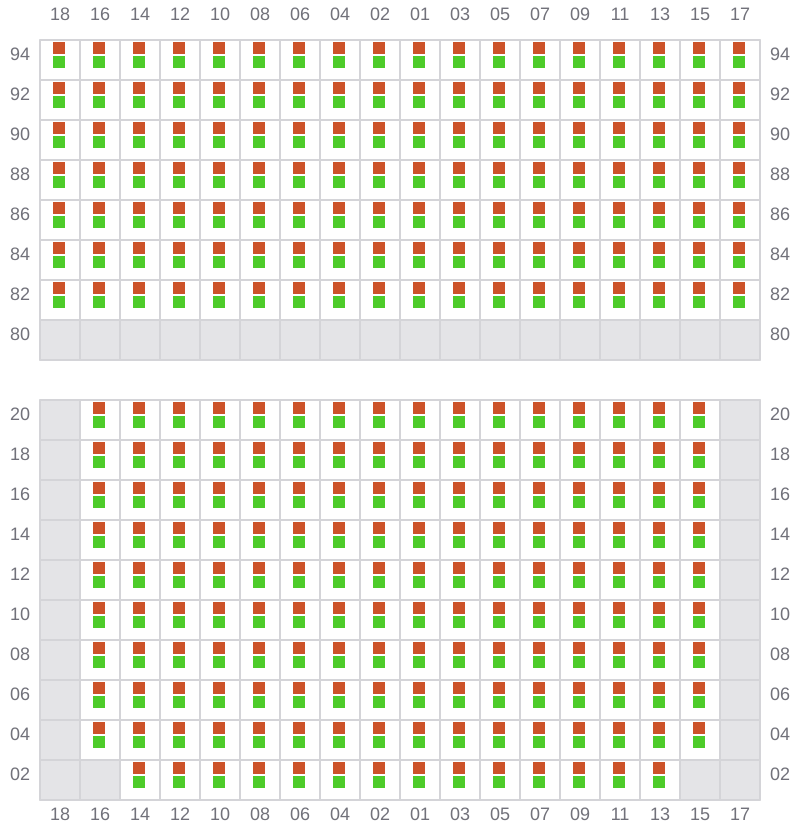

051 (050)

MSC PAMELA

053

MSC PAMELA

055 (054)

MSC PAMELA

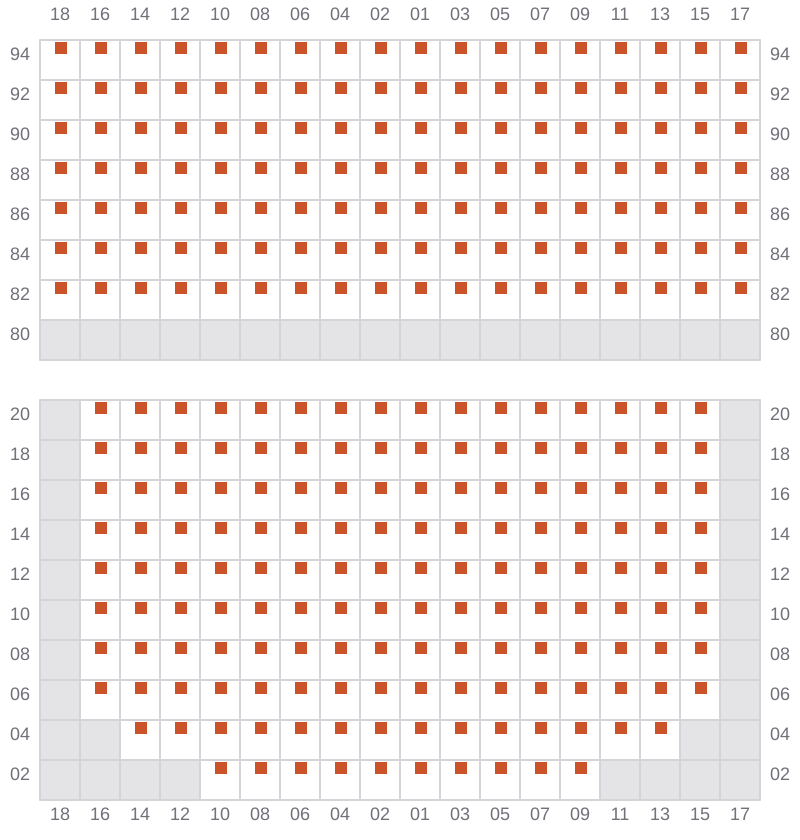

057

MSC PAMELA

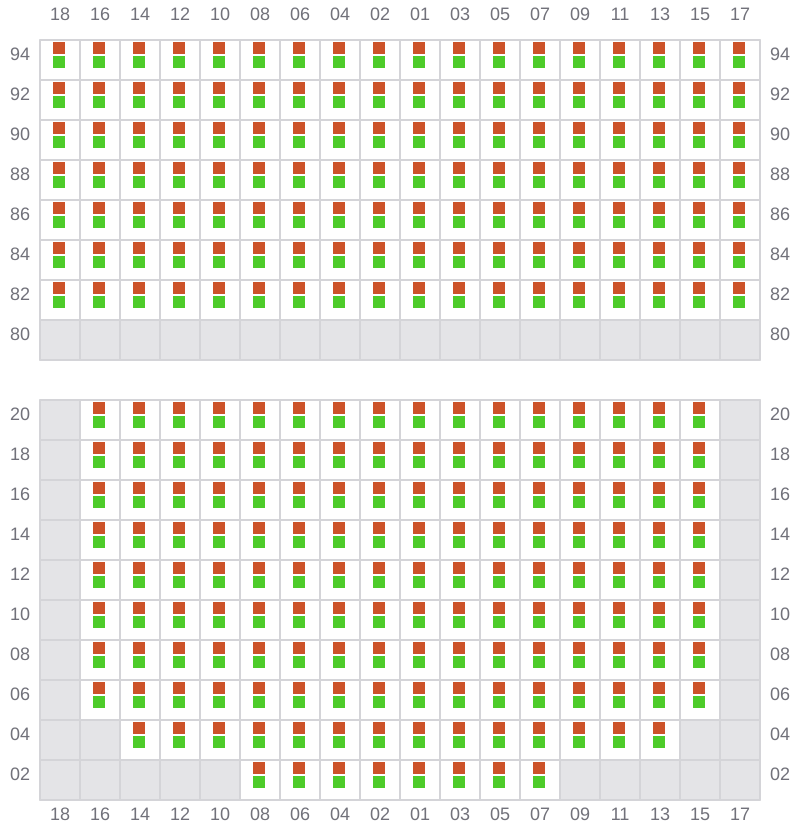

059 (058)

MSC PAMELA

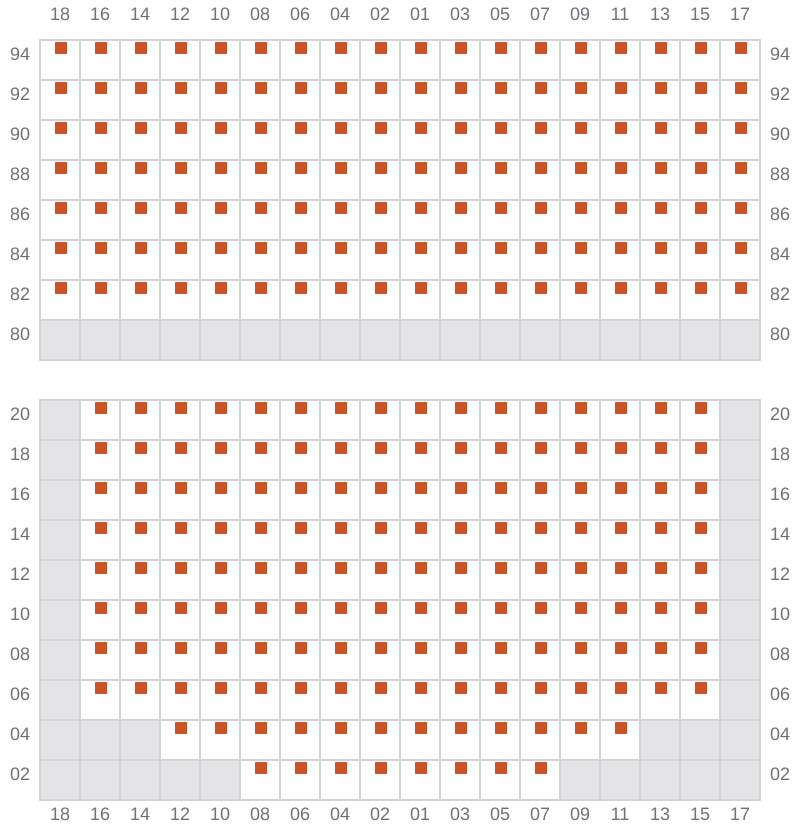

061

MSC PAMELA

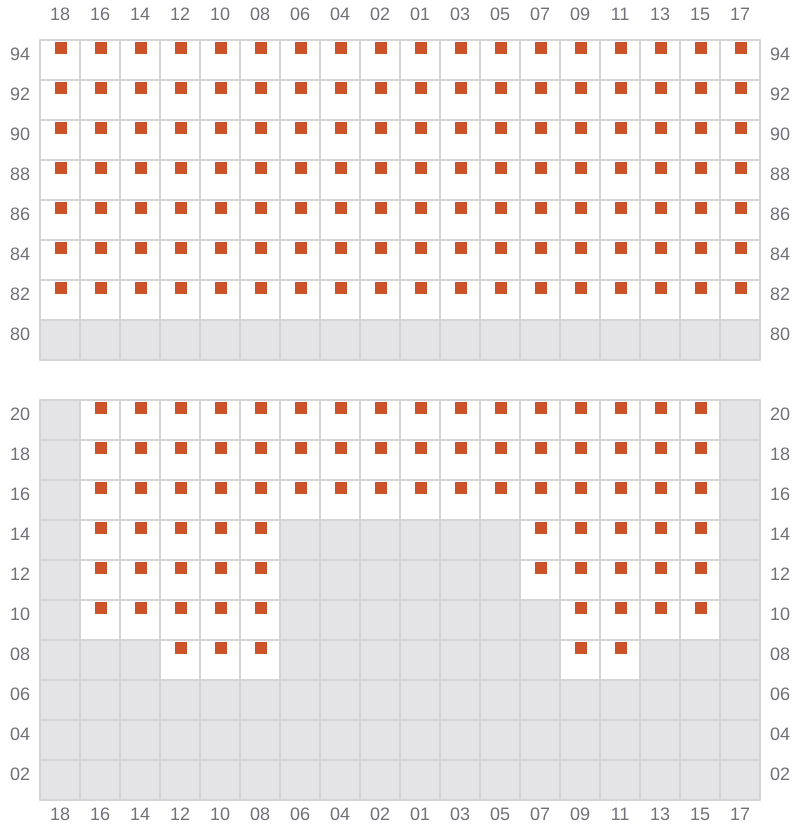

063 (062)

MSC PAMELA

065

MSC PAMELA

067 (066)

MSC PAMELA

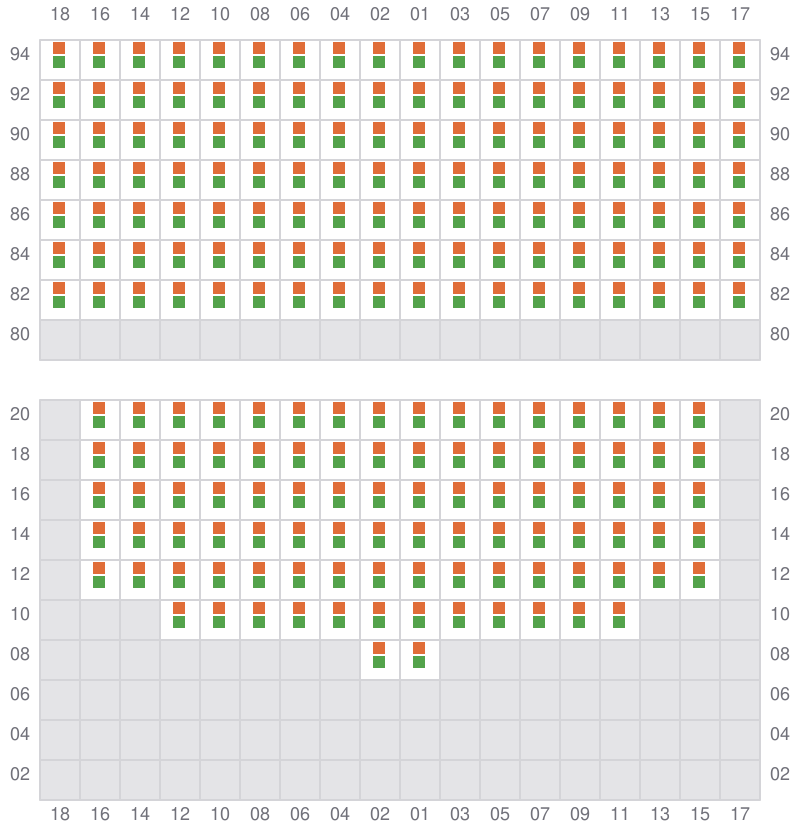

069

MSC PAMELA

071 (070)

MSC PAMELA

073

MSC PAMELA

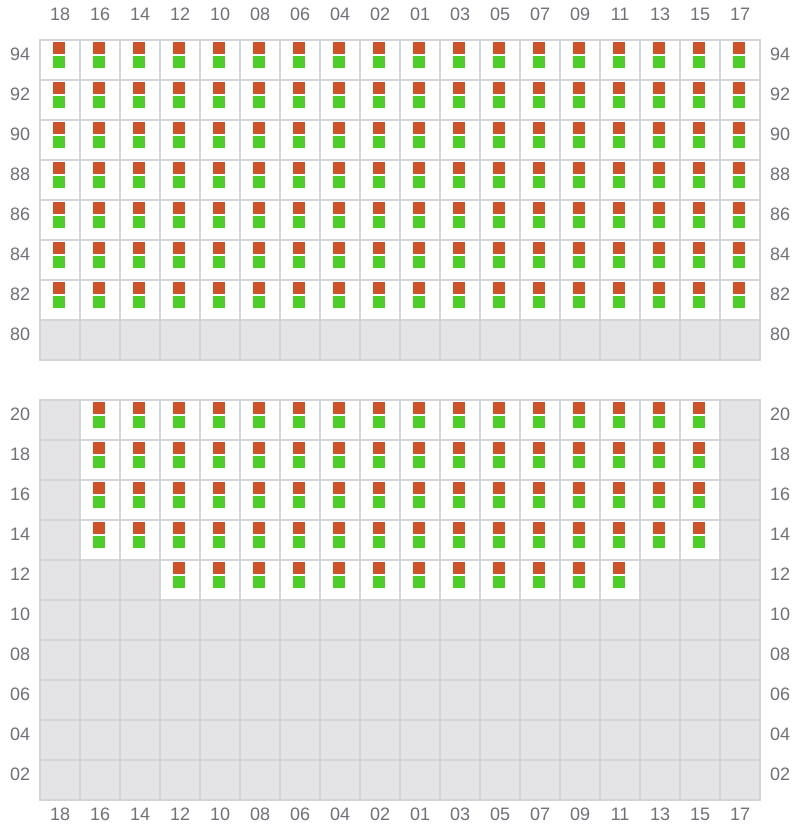

075 (074)

MSC PAMELA

077

MSC PAMELA

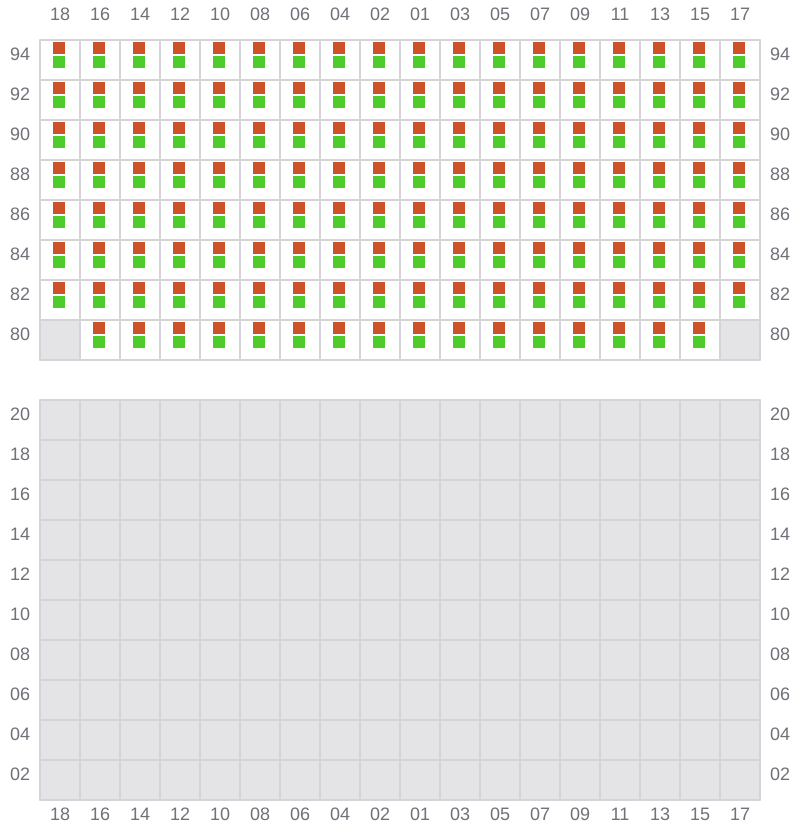

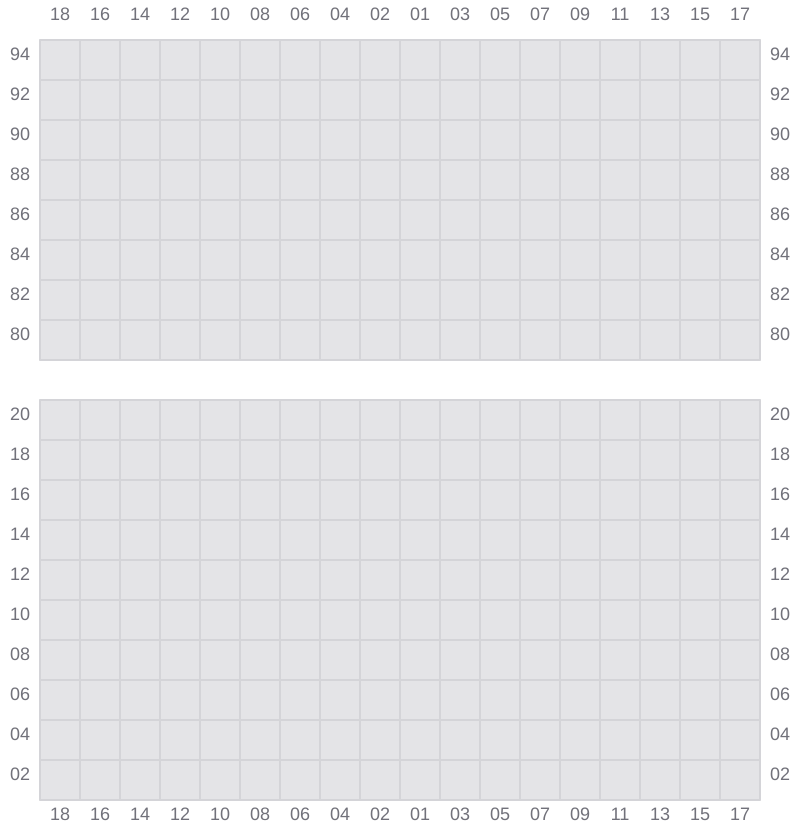

079 (078)

MSC PAMELA
